Comparative Review on Thin Film Growth of Iron-Based Superconductors

1
Department of Physics, Tohoku University, Sendai 980-8578, Japan
2
Department of Basic Science, University of Tokyo, Tokyo 153-8902, Japan
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Condens. Matter 2017, 2(3), 25; https://doi.org/10.3390/condmat2030025
Submission received: 3 April 2017 / Revised: 30 June 2017 / Accepted: 3 July 2017 / Published: 7 July 2017
(This article belongs to the Special Issue Layered Superconductors)

Abstract

:
Since the discovery of the novel iron-based superconductors, both theoretical and experimental studies have been performed intensively. Because iron-based superconductors have a smaller anisotropy than high- T c cuprates and a high superconducting transition temperature, there have been a lot of researchers working on the film fabrication of iron-based superconductors and their application. Accordingly, many novel features have been reported in the films of iron-based superconductors, for example, the fabrication of the epitaxial film with a higher T c than bulk samples, the extraction of the metastable phase which cannot be obtained by the conventional solid state reaction, and so on. In this paper, we review the progress of research on thin film fabrications of iron-based superconductors, especially the four categories: L n FeAs(O,F) ( L n = Lanthanide ), A E Fe 2 As 2 ( A E = Alkaline-earth metal), Fe C h ( C h = Chalcogen), and FeSe monolayer. Furthermore, we focus on two important topics in thin films of iron-based superconductors; one is the substrate material for thin film growth on the iron-based superconductors, and the other is the whole phase diagram in FeSe 1 x Te x which can be obtained only by using film-fabrication technique.

1. Introduction

Research on iron-based superconductors is one of the most exciting topics in recent condensed matter physics. Triggered by the discovery of a superconductivity in LaFeP(O,F) [1] and LaFeAs(O,F) [2], both theoretical and experimental studies on iron-based superconductors have been performed intensively. For many researchers, it is very surprising that the material including iron, which is a typical magnetic element that is generally considered not to be a “good friend” of a superconductivity, at the key position in the crystal shows a superconductivity with a superconducting transition temperature, T c , above 20 K. Within only a few months since the report on LaFeAs(O,F) [2], the substitution of other Lanthanide atoms is found to raise T c rapidly, and the value of T c for iron-based superconductors increased up to ∼56 K in SmFeAs(O,F) [3] with a ZrCuSiAs-type structure which was the same crystal structure as LaFeAs(O,F) [2]. Now, many iron-based superconductors have been discovered [4], and the iron-based superconductors attain the positions of a new class of high- T c superconductor next to cuprates. The superconductivity of iron-based superconductors cannot be explained theoretically by a conventional electron-phonon interaction, similar to a case of cuprates, and thus there is an almost complete consensus that the superconductivity in both these two systems is due to an unconventional origin. The band calculation at early stages [5,6,7,8,9] revealed that the Fermi surface of iron-based superconductors was constructed from five orbitals of iron. One of the most important features of iron-based superconductors is that these are multi-band compounds, where the Fermi surface consists of hole pockets around Γ -point and electron- pockets around M-points in most of iron-based superconductors. Thus, the origin of the unconventional superconductivity has been considered to be a pairing mediated by a spin [8,9] and/or orbital [10,11,12] fluctuations related to the nesting between the hole and electron Fermi surface. However, in the FeSe monolayer films [13] and A x Fe y Se 2 ( A = Alkaline metal) [14,15], the only electron pockets are observed in their Fermi surface. These cannot be explained by the simple s ± superconductivity which was proposed as a superconductivity mediated by a spin fluctuation in iron-based superconductors at early stages. At this moment, there are no theories by which all the novel features of various iron-based superconductors can be explained, and the iron-based superconductors which exhibit an intimate interplay of orbital, spin, and lattice degrees of freedom provide an interesting platform for researches in the fundamental physics.
The iron-based superconductors are attractive materials also in terms of their application, because they have a smaller anisotropy than cuprate superconductors and large values of T c and the upper critical field, B c 2 . Thus, the extensive works on the film growth of iron-based superconductors have been performed. Here, we will briefly describe the importance and the merit for the film fabrication. The film fabrication technique is very important for not only application but also fundamental study. The tensile/compressive strain can be induced into a film by using a lattice mismatch between a film and a substrate. This is an anisotropic pressure effect in contrast to the hydrostatic pressure. Thus, the strain effect in films and the hydrostatic pressure provide a complementary information. The film fabrication is also a powerful tool for searching new materials. The process of the film fabrication is a thermodynamically non-equilibrium one, which is effective for obtaining a meta-stable phase. In addition, by utilizing the superlattice technique, a material with a new stacking structure can be designed. As can be expected easily, the film technique is necessary for an application like the Josephson junctions and the superconducting quantum interference devices (SQUID). The fabrication of the Josephson junction is very important also for a fundamental study. The phase-sensitive experimental techniques were developed to determine the symmetry of the pair state in cuprate superconductors. Indeed, the observation of the half-integer quantum flux in the YBa 2 Cu 3 O 7 films on the tri-crystal (100) SrTiO 3 substrates provides the direct evidence for the d-wave superconductivity [16,17]. As described above, the film technique is very important for both the application and the fundamental study. Thus, the researches related on the film synthesis of the iron-based superconductors have also been performed from the early period by many groups. There were some difficulties in the film fabrication of these materials at the early period and these techniques for the film fabrication have much advanced in these 9 years. Today, in some materials of iron-based superconductors, the epitaxial thin films with higher T c ’s than bulk samples can be obtained. Especially, in monolayer film of FeSe, which is one of the iron-based superconductors with a T c of 8 K [18] in bulk samples, the superconducting-like gap structure was observed at higher temperatures than boiling point of liquid nitrogen in some in situ measurements. In addition, the fabrication of the device, Josephson junctions and SQUID, by using the films of iron-based superconductors has also been reported. As the remarkable development has been made in the film growth of iron-based superconductors in this manner, in this paper, we overview the progress of the studies on the film fabrication of iron-based superconductors from our viewpoint at first, while there have already been some nice review articles [4,19,20,21,22,23,24,25,26]. Subsequently, we focus on the two topics; one is the substrate material in the thin film growth of iron-based superconductors. The substrate material is one of the key parameters for the thin film fabrication. Interestingly, in thin films of 1111, 122, and 11, the highest T c for each systems is commonly obtained in the case of the same substrate material, CaF 2 , although the in-plane lattice constants largely differ from each other. We would like to compare the superconducting and structural properties in 1111, 122, and 11 films on CaF 2 and to discuss the reason why the films on CaF 2 show superconductivity with high T c . The other is the whole phase diagram for iron chalcogenide superconductor, FeSe 1 x Te x , which can be obtained only by utilizing the film-fabrication technique. Recently, extensive studies on iron selenide, FeSe, have been performed, because FeSe exhibits an orbital and/or electronic nematic order without accompanying antiferromagnetic order at low temperatures, unlike other iron-based superconductors. However, in a Te-substituted iron selenide, FeSe 1 x Te x , bulk sample, it is well-known that a phase separation occurs at 0.1 x 0.4 [27], which prevents systematic studies on this material. We compare the phase diagrams of FeSe 1 x Te x bulk samples and films, and review the reported results on FeSe 1 x Te x films with a whole range of x.

2. Historical Overview of Film Fabrication of Iron-Based Superconductors

In iron-based superconductors, the studies on the film fabrication of iron-based superconductors are mainly performed in the four systems; (1) L n FeAsO (1111-system); (2) A E Fe 2 As 2 (122-system); (3) Fe C h (11-system); and (4) FeSe mono-layer film (11-system ML).We overview the progress of the researches on the film fabrication of these four kinds of materials.

2.1. 1111-System

Hiramatsu et al. reported the successful fabrication of an epitaxial thin film of LaFeAsO by a pulsed laser deposition (PLD) method, which is the first report on the film fabrication of the iron-based superconductors [28].They attempted some methods (simple PLD, post-thermal annealing, and reactive solid-phase epitaxy, which were used for the with the same crystal structure) for obtaining LaFeAsO 1 x F x film, and successfully fabricated LaFeAsO epitaxial thin films on MgO, MgAl 2 O 4 , and (La,Sr)(Al,Ta)O 3 (LSAT) substrates only by a simple PLD method. The key growth condition was the excitation source of the laser ablation, which the second harmonics of a neodymium-doped yttrium aluminum garnet (Nd-YAG) laser with λ = 532 nm was suitable for the film growth of this system. The obtained LaFeAsO epitaxial thin film has slightly larger a-axis and c-axis lengths than those of LaFeAsO bulk samples [2]. In the electrical resistivity measurement of this film, the kink anomaly is observed around 150 K as is polycrystalline samples, which is due to the structural and spin density wave transitions [2,29]. Unfortunately, however, the superconducting LaFeAsO 1 x F x film cannot be obtained even by using the LaFeAsO 0.9 F 0.1 target. In their latter work [30], the authors recognized that the difficulty of thin film growth of L n Fe P n O ( P n : Pnictogen) may come from the crystal structure containing two different anions, because it is difficult to control their stoichiometry, especially for thin film growth. Indeed, it was only recently that the superconducting 1111 film fabrication via in situ PLD method was reported by using the diffusion of fluorine into the film from the CaF 2 substrate [31].
Almost simultaneously, Backen et al. also reported the fabrication of the superconducting LaFeAsO 1 x F x polycrystalline film by the ex-situ process [32]. The amorphous-like films were deposited on MgO and LaAlO 3 (LAO) substrates at room temperature by PLD method, and then the superconducting films were obtained by the post-annealing in an evacuated silica-glass tube at high temperatures. The obtained film was a polycrystalline one, and showed only the onset of superconducting transition at ∼11 K in the temperature dependence of resistivity. Then, the superconducting films which showed a zero resistivity around T c of bulk samples were successfully synthesized by revising the annealing condition [33,34]. The film synthesis by using the post-annealing out of the deposition chamber has already been summarized by Haindl et al. [26], and we reviewed the epitaxial thin film fabrication by the in situ process in the followings.
The technical breakthrough is the successful fabrication of NdFeAsO (Nd1111) epitaxial thin film by molecular beam epitaxy (MBE) [35]. Although the growth window is very narrow, the single crystalline film of NdFeAsO can be reproducibly fabricated on GaAs substrate. One year later, Kawaguchi et al. reported the successful fabrication of superconducting single crystalline films of F-doped Nd1111 by MBE process and found that the growth time, t g , has a crucial importance for the superconducting properties of resultant films [36]. When t g 3 h , the single crystalline films with almost no impurity phases were obtained and did not show a superconductivity, which were similar to their previous report [35]. However, when t g 4 h , the Nd1111 phase was still major one, and some impurity phases (NdOF, Fe 2 O 3 , and FeAs) appeared. The formation of NdOF phase became apparent especially in films grown for t g = 5 6 h , which showed a clear superconducting transition ( T c onset 48 K , T c zero 42 K for t g = 6 h ). Superconductivity emerged with a formation of an impurity phase of NdOF, which suggested that this impurity phase played a role in a dopant of fluorine into a film. However, the understanding for the deposition process was not so complete at this moment. In this process , both Nd and F were provided from the raw material of NdF 3 and it was impossible to control these contents independently [36]. This difficulty was overcome by the co-evaporation of Ga. Kawaguchi et al. found that the use of Ga as a getter were effective for controlling a amount of fluorine [37]. Even when t g 1 h , a superconductivity is observed in the NdFeAsO film on which a NdOF layer was intentionally grown. On the other hand, Naito et al. reported that the SmFeAsO (Sm1111) film on CaF 2 substrate with a cap layer of SmF 3 fabricated by MBE showed a superconducting transition at ∼56 K which was slightly higher than T c of SmFeAs(O,F) bulk samples [38,39]. Although CaF 2 was firstly used by Tsukada et al. as a substrate material in the film growth of FeSe 1 x Te x [40], which will be discussed later, the enhancement of T c also in Sm1111 film on CaF 2 [38] shows that CaF 2 is efficient for the thin film growth of other iron-based superconductors. In these reports, the extra cap layer is necessary to obtain a superconducting 1111 film, which prevents an application of 1111 film for a sandwich-type junction [36,38]. The one-step growth method which does not need the extra cap layer for obtaining a superconductivity was established by using L n F 3 ( L n = Sm, Nd ) or FeF 2 as a fluorine source [41,42,43].Naito et al. pointed out the importance of the fluorine source in the film growth of 1111 and proposed a four kinds of fluorine sources [41]; (1) F diffused from the fluoride substrate (CaF 2 , SrF 2 , BaF 2 ); (2) F from L n F 3 codeposited; (3) F from FeF n ( n = 2 , 3 ) codeposited; and (4) molecular F 2 gas. Although method (4) is not realistic, the other three methods are effective for supplying F to the films in the MBE process. While methods (2) and (3) are shown above [42,43], a superconductivity appeared in the SmFeAsO film on the BaF 2 substrate, in which the fluorine was provided by the diffusion from the substrates [41]. On the other hand, highly textured NdFeAs(O,F) thin films have been grown on ion beam assisted deposition(IBAD)-MgO/Y 2 O 3 /Hastelloy substrates by MBE, which is well known as the one of the most practical methods to obtain the textured film on the metallic substrate [44].
While some kinds of the fluorine sources are proposed in the MBE process, it has been considered for a long time that in the PLD process the fluorine can be doped into a film only from a target, which prevents an in situ growth of a superconducting 1111 film via PLD. Recently, Haindl et al. reported the in situ growth of superconducting Sm1111 films on CaF 2 substrates via PLD by using the F diffusion from the substrate [31]. The SmFeAs(O,F) films fabricated on BaFe 2 As 2 -buffered MgO substrates by using the SmFeAsO 0.9 F 0.1 polycrystalline target had almost the same lattice parameters as those of SmFeAsO bulk samples and showed an anomaly, which is due to a structural transition [39], around 150 K and no superconductivity in the temperature dependence of resistivity. These results indicate that the F content in this film is insufficient. On the other hand, the Sm1111 film on CaF 2 substrate deposited from the same target shows a superconductivity at ∼40 K. The c-axis length is comparable to that of Sm1111 film on CaF 2 fabricated by MBE [38,41,42,43] and is slightly larger than that of Sm1111 bulk samples [39]. This indicates that the fluorine diffused from the substrate is doped into a film, which induces a superconductivity as is the case of MBE [41]. Although the fluoride CaF 2 is generally thought to be stable, the fluorine in the substrate can diffuse into a film in the film fabrication process. The similar fluorine diffusion was proposed also in the film growth of FeSe 0.5 Te 0.5 [45,46], which was confirmed from these above superconductivity in 1111 films [31,41].
In summary, the superconducting single crystalline thin films can be fabricated by MBE and PLD methods. A fluorine source is a key issue in the film growth of this material. At this moment, however, the precise control of the amount of fluorine is difficult in the 1111 film fabrication, and the doping dependence of the structural and superconducting properties has not been clarified in the 1111 film yet.

2.2. 122-System

Soon after the first report on the La1111 film fabrication [28] , Hiramatsu et al. reported the successful fabrication of an epitaxial superconducting thin film of Sr(Fe,Co) 2 As 2 (Co-doped Sr122) on LSAT substrate via PLD using Nd:YAG laser [30]. In this report, they pointed out that the Co doping into Fe site was easier than K doping into Sr site in 122 or F doping into O site in 1111 because of low vapor pressure of Co and that the film growth of Co-doped Sr122 which contains only one anion (As) would be easier than a mixed-anion compound 1111 containing two or three kinds of anions (As, O, and F). Later, Choi et al. reported that the Co-doped Sr122 superconducting film could be prepared even by using not Nd:YAG laser but KrF laser [47]. In the thin film growth of 122 and 11, the Nd:YAG laser is not indispensable unlike the 1111 system, and there are many reports on the film fabrication via PLD using KrF or ArF lasers. In addition, Hiramatsu et al. showed that a superconductivity could be induced in the parent Sr122 film by exposing to the air [48]. When the parent Sr122 films were exposed to the dry oxygen, dry nitrogen, and dry carbon dioxide gas, these treated films did not show a superconductivity. On the other hand, the Sr122 film after the exposure to the water vapor showed a superconductivity around 25 K. Therefore, this novel superconductivity was considered to be induced by the water vapor and the detailed mechanism of this phenomena is not unclear at this moment. Anyway, this means that Sr122 films are very sensitive to the air and the moisture and that they are unstable in the atmosphere. These features of Sr122 films are not favorable for its application.
Katase et al. reported the first successful fabrication of Ba(Fe,Co) 2 As 2 (Co-doped Ba122) superconducting epitaxial film by PLD and showed that Co-doped Ba122 film was much more stable in the air than Co-doped Sr122 film [49]. So, hereafter, we focus on the Ba122 system in this review. In addition, Lee et al. fabricated Co-doped Ba122 films on four kinds of 001 -tilt- ( 100 ) -SrTiO 3 bicrystal substrates whose misorientation angles are 3 , 6 , 9 , and 24 [50]. These films showed a superconductivity above 20 K, and the critical current density across 001 tilt grain boundaries, J gb , of Ba(Fe,Co) 2 As 2 is strongly depressed at θ = 9 , 24 , which is similar to high- T c cuprates. At the similar period, Iida et al. [51] showed the comparative study on the Co-doped Ba122 epitaxial thin films fabricated on four kinds of oxide substrates (SrTiO 3 (STO), LAO, LSAT, and YAlO 3 (YAO)) by the same condition. The highest T c of 24.5 K was obtained in the film on STO which has the smallest a-axis length among four films. In addition, they insisted that the values of T c can be scaled by the ratio of c / a . The similar results were reported in 11 films [52]. For improving the superconducting properties of the resultant films, many groups tried a variety of approaches. Lee et al. proposed that the introduction of STO or BaTiO 3 (BTO) thin buffer layers on LAO and LSAT substrates was effective for improving the film quality [53]. The Co-doped Ba122 films on these buffer layers showed a sharp superconducting transition ( T c onset 22.8 K , T c zero 21.5 K , Δ T c 1.3 K ), and the self-field critical current density, J c , was as high as 4.5 MA/cm 2 at 4.2 K. Iida et al. found another useful buffer layer, that is, metal iron with a body-centered-cubic (bcc) structure whose bond length along 110 direction was close to that along 100 direction of Ba122 [54,55,56]. Indeed, by introducing the bcc-Fe buffer layer with thickness of ∼15 nm, the obtained values of T c for Co-doped Ba122 films on LSAT and MgO substrates increased by ∼2–4 K compared to those of films on bare these substrates. Additionally, the observed self-field J c in the Co-doped Ba122 films on the Fe buffer layer was 0.45 MA/cm 2 at 12 K, which was several times higher than that of the film on the bare LSAT substrate [57]. On the other hand, Katase et al. demonstrated that the Co-doped Ba122 films with high T c and J c could be grown without any buffer layers only by the optimization of the PLD deposition condition [58]. They improved the phase purity of the PLD target and the homogeneity of the substrate temperature, and fabricated the Co-doped Ba122 film on LSAT substrate with T c onset of 22.6 K, Δ T c of 1.1 K, and J c of 2–10 MA/cm 2 at 3 K. These values of T c and J c are comparable to those of films on STO or iron buffer layers. In addition, by applying the superior film fabrication technique, Katase et al. successfully fabricated the Josephson junction of the Co-doped Ba122 film on the bicrystal LSAT substrate [58] and SQUID [59], which is the first demonstration of these devices in the films of the iron-based superconductors. Around the same time, Schmidt et al. reported the successful fabrication of a multi layer Josephson junction (superconductor-normal metal-superconductor, SNS) consisting of the Co-doped Ba122, PbIn and Au [60]. The Co-doped Ba122 film can be grown more easily than 1111-system and many groups reported the film growths of this material. These studies were performed for obtaining the high J c or fabricating junctions and devices, and there were no reports on the growth of Co-doped Ba122 films on oxide substrates with T c higher than ∼26 K which was the highest T c of Co-doped Ba122 bulk samples [61,62]. Iida et al. fabricated the Co-doped Ba122 films on fluoride A E F 2 ( A E = Ca, Sr, Ba) substrates [63], which had been used in the film growth of 11- [40] and 1111-systems [38]. The in-plane lattice parameter of Co-doped Ba122 film on CaF 2 is smaller than those of Co-doped Ba122 bulk samples [61,62], which indicates that the film received the in-plane compressive strain. The obtained superconducting transition temperature is T c onset 28 K [63], which is higher than the highest T c in Co-doped Ba122 bulk samples [61,62].
A superconductivity can be induced in BaFe 2 As 2 by the doping at the sites other than the iron site. The bulk samples of Ba 1 x K x Fe 2 As 2 (K-doped Ba122) show a superconductivity at x = 0.16 –1, which the highest T c is ∼40 K around x = 0.4 [62,64]. The K-doped Ba122 epitaxial single crystalline films with whole range of x were successfully fabricated on LAO, MgO, LAO, STO, and r-cut Al 2 O 3 substrates by MBE [65,66,67] and by PLD [68]. The highest T c of K-doped Ba122 films was obtained around x = 0.4 and its value is as high as ∼38 K [65,66,67], which are comparable with the highest T c of K-doped Ba122 bulk samples [61,62]. Because K-doped Ba122 has high T c [62] and low anisotropy [69,70,71] compared with Co-doped Ba122, K-doped Ba122 is considered to be a prospective material for an application. However, the film deposition of K-doped Ba122 is very difficult because of the high vapor pressure of potassium and there are fewer papers on the K-doped Ba122 films than Co-doped Ba122.
In BaFe 2 As 2 , the chemical pressure is introduced by a partial substitution of P for As, which also induces a superconductivity [72]. In BaFe 2 (As 1 x P x ) 2 (P-doped Ba122) bulk samples, a superconductivity appeared at x = 0.2 0.7 and the highest T c is as high as ∼31 K around x = 0.33 [62]. The P-doped Ba122 epitaxial thin films were successfully fabricated by PLD [73,74] and MBE [75]. While T c of these films [73,74,75] is comparable to that of bulk sample [62], it is noteworthy that the obtained J c is extremely high. Sakagami et al. showed that J c of P-doped Ba122 films strongly depended on the Ba/Fe ratio, and that the highest self-field J c was as high as 10 MA/cm 2 at 4.2 K [75]. They speculated that the nano-particles of Fe or Fe-based compounds which could not be detected by XRD were acted as pinning centers since the highest J c was obtained in the iron-rich film [75]. Later, from scanning transmission electron microscopy (STEM) measurement, Sato et al. reported that the vertical dislocations along the c-axis existed in the P-doped Ba122 film fabricated by PLD and that these served as strong vortex-pinning centers [76]. The existence of these vertical dislocations is probably the origin of the isotropic and large J c in the P-doped Ba122 film. The other striking feature is the dependence of J c on the misorientation angle, θ GB , in P-doped Ba122 films fabricated on bicrystal substrates. Sakagami et al. [75] demonstrated that J c across a grain boundary in the P-doped Ba122 film on the MgO bicrystal substrate with θ GB = 24 exceeded 1 MA/cm 2 at 4.2 K. This value is much larger than those of YBa 2 Cu 3 O 7 δ [77] and Co-dope Ba122 [78], which strongly indicates that the P-dope Ba122 has a prospective material for an application of superconducting tapes or wires.
In Ba122, there are a few reports on the superconductivity induced by using distinctive features of the film technique. One is the electron doping by a partial substitution of L n for Ba [79]. One of the characteristics of Ba122 is that a superconductivity can be induced by the substitution at any of three sites [62]. Superconductivity appears by the substitution of K at Ba site, which introduces hole carriers in Ba122 [80]. However, the electron doping by substituting the Ba site cannot be realized by a conventional solid state reaction. Katase et al. were succeeded in the electron doping by the atomic substitution at Ba site via a non-equilibrium film growth process. They successfully fabricated Ba 1 x La x Fe 2 As 2 ( x = 0 0.44 ) epitaxial thin films on MgO substrates by PLD method. In the temperature dependence of resistivity, an anomaly was observed around 135 K in BaFe 2 As 2 film, which was well known behavior related to a structural/magnetic transition in BaFe 2 As 2 bulk sample [61,62]. The characteristic temperature, T anom , rapidly decreases with increasing x. The zero resistivity was observed at ∼5 K for the film with x = 0.08 , where T anom still remained at ∼72 K. T c onset reached a maximum value of 22.4 K at x = 0.13 , where T anom just disappeared. T c monotonically decreased with increasing x. At x = 0.44 , there was no superconductivity. Both the La substitution for Ba and the Co substitution of Fe is expected to introduce the electron carriers into Ba122. Indeed, in Co-doped Ba122 bulk single crystals, the evolution of the Fermi surface due to the electron doping was observed in the angle-resolved photoemission spectroscopy [81]. Since electronic states at the Fermi level are occupied predominantly by five 3d orbitals of Fe in the iron-based superconductors, T c of Ba 1 x La x Fe 2 As 2 is expected to be rather higher than that of Co-doped Ba122. Surprisingly, T c of Ba 1 x La x Fe 2 As 2 is much lower than that of K-doped Ba122 and is comparable to that of Co-doped Ba122. This indicated that T c was sensitive to the kinds of dominant carriers rather than the doping site. The other is the tensile-strain-induced superconductivity in the BaFe 2 As 2 film [82]. Engelmann et al. fabricated the BaFe 2 As 2 epitaxial films with different film thicknesses on Fe-buffered MgAl 2 O 4 substrates with a spinel structure. It is no doubt that the parent BaFe 2 As 2 bulk material is semi-metal and does not show a superconductivity [61,62]. In BaFe 2 As 2 films with thickness less than 30 nm, the in-plane lattice parameters are slightly larger than that of bulk sample, which shows that the tensile strain was introduced into the BaFe 2 As 2 film. The tensile-strained BaFe 2 As 2 films showed a superconductivity with T c of 7–10 K. With increasing thickness, the in-plane lattice parameter got close to that of BaFe 2 As 2 bulk sample and a superconductivity disappeared. Here, the important thing is that they used the same target of BaFe 2 As 2 in the film fabrication and that the carrier concentration and the substrate material were not changed. These results suggest that a fine structure around the iron, which is sensitive to the changes of lattice parameters, has a crucial importance in the iron-based superconductors.

2.3. 11-System

The first report of thin film growth of FeSe was made by Han et al. [83], which firstly appeared in the arXiv. They used off-stoichiometric FeSe 1 x polycrystals as the targets and STO, LSAT and LAO as substrates, and grew films via a PLD method. The highest T c value of T c onset 12 K was obtained for films on LAO substrates with x = 0.88, while T c zero values were below 4 K. They also pointed out difficulties of growing superconducting FeSe films because of its narrow growth window. Soon after Han et al., Wu et al. reported fabrication of FeSe and FeSe 1 x Te x films [84] (The publication was earlier than Han’s paper). Their films show strong thickness dependence of T c values. Although T c increases with increasing film thickness, even films with thickness of 1 μ m did not have good superconducting properties compared with bulk samples.
After these papers, many research groups reported the thin film growth of FeSe and related compounds one after another [85,86,87,88,89,90,91]. Among them, some reported the enhancement of T c in FeSe 1 x Te x [87,88]. In particular, Bellingeri et al., who had already reported the enhanced T c in FeSe 1 x Te x on STO, investigated thickness dependence in detail, and found that T c strongly depends on thickness and a film on LAO with thickness of 200 nm shows T c onset of 21 K ( T c zero = 19 K), which is 1.5 times higher than that of bulk FeSe 1 x Te x [92]. They demonstrated that T c of FeSe 0.5 Te 0.5 are correlated with a-axis length of the films and contraction of the a-axis length results in the enhancement of T c , which is also the case with FeSe [85,93,94]. They estimated local structural parameters of the films from relative intensity of XRD and found that the T c values increase as the C h -Fe- C h bond angle reaches to that of the regular tetrahedron as expected by the empirical law concerning relations between structural parameters and T c values [95,96]. Interestingly, thickness dependence of the a-axis length shows non-monotonic behavior; as the films become thick, the a-axis length of the films firstly becomes shorter and reaches minimum at 200 nm and then slowly becomes long. This non-monotonic dependence of lattice constants on thickness is also observed for FeSe on CaF 2 [93,94]. Bellingeri et al. inferred that the Volmer–Weber growth mode should be related to this non-monotonic thickness dependence and the contraction of a-axis length [92].
Control of lattice strain is particularly important for the growth of FeSe 1 x Te x films because T c can be enhanced due to compression of a-axis length as Bellingeri et al. demonstrated [92]. The simplest way to achieve this is to utilizing epitaxial strain due to lattice mismatch between the film and the substrate. However, these attempts were not successful except for a few cases such as FeSe on LAO [97] and FeSe monolayer films on STO [98]. Imai et al. reported the growth of FeSe 0.5 Te 0.5 films on eight different oxide substrates, and they found that a-axis length and the superconducting properties of the grown films are nothing to do with in-plane lattice parameters of the substrates [52]. Indeed, the films with best superconducting properties, are on LAO and MgO, whose the lattice misfit parameter M ( a sub 3.798 ) / a sub = –0.21% and 9.82%, respectively. It should be noted that Bellingeri et al. reported positive correlation between the in-plane lattice parameters of the films and the substrates [99], while their films were not coherently strained to the underlying substrates. The discrepancy between the observed results may result from the difference of the growth temperatures; Bellingeri et al. grew the films at much higher temperature of 550 C than Imai et al. (300 C) [52].
One of the causes for which there is no correlation between in-plane lattice parameters of films and substrates may be chemical reaction at the interface between the film and the substrate [52,100] (other possible causes are discussed in Section 3). Imai et al. also performed TEM observations of the cross-sections of the films [52]. Films on LAO and MgO, which show the best superconducting properties, have clear interface between substrate and film. On the other hand, films on YSZ, which had worst superconducting properties, have amorphous-like layer at the interface. In addition, oxygen penetrates into films from substrates. These results clearly demonstrated that chemical reaction at the interface between the substrate and the film and oxygen penetration into the films have a bad influence on the superconducting properties of FeSe 1 x Te x films.
Consequently, various materials are tried as substrates and buffer layers in order to prevent oxygen penetration. Tsukada et al. focused on non-oxide substrates, and grew FeSe 0.5 Te 0.5 films on CaF 2 [40]. The grown films have shorter a-axis length compared with oxide substrates, and T c increases to above 15 K, higher than bulk value. Such a short a-axis length is not due to a simple coincidence to the lattice parameters of CaF 2 because a sub / 2 = 3.863 Å > a film . Detailed cross-sectional TEM observations suggests that chemical reaction at the interface between substrate and film will be related to the strong compression of a-axis length [45,46]. A belt-shaped pattern is observed near the interface between the substrate and the film in CaF 2 in a TEM image, where Se penetrates from the films. Studies of composition dependence revealed that the compression of a-axis length is prominent for FeSe, while FeTe on CaF 2 have almost the same a-axis length as bulk FeTe [101]. These results indicate the relation between compression of a in FeSe 1 x Te x on CaF 2 and chemical reaction at the interface between substrate and film. A possible explanation for the shortened a-axis length of the films on CaF 2 is that at the beginning of the growth the initial several layers of FeSe 1 x Te x have shorter a-axis length due to the Se deficiency and then, the subsequent layers of FeSe 1 x Te x grow epitaxially on the initial layers with keeping the shorter a-axis length.
Having demonstrated the effectiveness of the use of the Fe-buffer layer in the growth of Co-doped BaFe 2 As 2 thin films [54,55], Iida et al. also used Fe-buffered MgO substrates for the growth of FeSe 0.5 Te 0.5 [102]. Then, they observed enhanced superconducting transition temperature of T c onset = 17.7 K, indicating that the use of Fe-buffer is also effective to obtain high T c FeSe 1 x Te x .
Si et al. found that CeO 2 buffer is also effective for the growth of FeSe 1 x Te x [103]. CeO 2 is a commonly used buffer layer for high T c cuprates, and it has the in-plane lattice parameter of a / 2 3.83 Å, similar to that of FeSe 1 x Te x . They observed T c onset ∼ 20 K and T c zero ∼ 18 K in FeSe 1 x Te x films not only on CeO 2 -buffered YSZ but also on Rolling Assisted Biaxially Textured Substrate (RABiTS) with CeO 2 on top. Realization of enhanced superconductivity in FeSe 1 x Te x on coated conductors would be a great step forward the superconducting tape application of these materials.
Recently, the use of FeSe 1 x Te x itself as a buffer layer was reported by Molatta et al. [104] The growth window of superconducting FeSe 1 x Te x films is narrow, and although films grown at much higher temperatures does not show superconductivity, they have better texture with high reproducibility, to which Molatta et al. paid attention. They deposited thin FeSe 1 x Te x seed layer at 400 C on MgO, and subsequently lowered the temperature of the substrates and deposited another FeSe 1 x Te x layer. In this way, they succeeded in obtaining wider growth window (240–320 C) compared with films without seed layer (300–320 C) and superconducting thin films with reproducible high T c over 17 K.
The growth of FeSe 1 x Te x films by other techniques than PLD or MBE has also been reported. Tkachenko et al. reported the sputtering growth of FeSe thin films on SrTiO 3 and LaAlO 3 with T c onset 10 K, T c zero 8 K [105]. In contrast to FeSe [105,106], FeSe 1 x Te x films with T c zero comparable to that of bulk samples seem to be difficult to be obtained by sputtering techniques [107,108]. There are also attempts to grow FeSe films by electrochemical techniques [109,110,111,112,113,114] and chemical vapor deposition techniques [115,116]. However, T c zero comparable to that of bulk samples has not been obtained or the resistivity was not measured in these films.
The critical current properties of FeSe 1 x Te x thin films was first reported by Eiseterer et al. [117]. They investigated J c properties of FeSe 1 x Te x thin films on LAO with T c above 19 K. Then they obtained J c > 0.8 MA/cm 2 (at 4.5 K and μ 0 H = 0 T) and J c > 0.1 MA/cm 2 (at 4.5 K and μ 0 H = 5 T), which are much higher than those of sulfur-doped FeTe thin films that had been reported before [118]. They also found correlated pinning parallel to the film plane (parallel to the a b plane) in all the measured samples, and they speculated that this could be intrinsic in nature. Iida et al. also observed the similar angular dependence of J c in FeSe 1 x Te x films on Fe-buffered MgO [102]. They investigated electric field-current density curves of the films in detail, and concluded that these behavior are due to the intrinsic pinning in FeSe 1 x Te x [119]. On the other hand, Braccini et al. reported nearly isotropic J c in FeSe 1 x Te x thin films on CaF 2 , which showed J c > 1 MA/cm 2 in self field at 4 K [120]. Therefore J c properties of FeSe 1 x Te x films are considered to depend strongly on the substrates. FeSe 1 x Te x has remarkable J c properties under magnetic fields and has potential for high-field magnet applications. Si et al. reported that FeSe 1 x Te x films both on CeO 2 -buffered YSZ and on RABiTS show J c > 0.1 MA/cm 2 at 4.2 K and μ 0 H = 30 T [103]. In order to further improve J c properties, introduction of artificial pinning center should be needed. Indeed, Ozaki et al. reported enhancement in T c and J c by proton irradiation, which is considered to be due to local strain around the defects and pinning by the defects, respectively [121].
There are some reports on thin film growth of iron chalcogenides which are not available in bulk crystals. Below we describe three topics: (i) superconducting FeTe thin films; (ii) FeSe 1 x Te x films with compositions where bulk crystals are not available due to phase separation; and (iii) fabrication of superlattice films based on Fe chalcogenides.
FeTe shows an antiferromagnetic phase transition accompanied by structural transition at approximately 70 K, and does not exhibit superconductivity. However, there are some reports on the growth of superconducting FeTe thin films [122,123,124,125]. Han et al. reported superconductivity in FeTe thin films with T c onset of 13 K for the first time [122]. They speculated that the superconductivity is due to tensile strain of the films. On the other hand, Si et al. argued that oxygen incorporation is crucial for the superconductivity in FeTe films [123]. They compared FeTe films grown in vacuum (<2 × 10 6 Torr) and oxygen (∼1 × 10 4 Torr), and demonstrated that films grown in oxygen shows better superconducting properties. Nie et al. investigated X-ray absorption spectra and showed that the superconducting samples exhibit Fe with a nominal 3+ valence [124]. Han et al. performed the composition analysis by the scanning electron microscopy and energy dispersive analysis of X-ray. However the oxygen composition in the film was not evaluated because a large amount of oxygen from the oxide substrate was detected. Therefore it is possible that the superconducting FeTe films of Han et al. also contained some amount of oxygen.
These results suggests oxygen incorporation is the key for superconducting FeTe. Interestingly, bulk FeTe samples do not show superconductivity even if they are annealed in oxygen. This suggests that thin-film growth may be another key for superconducting FeTe. However, because superconducting FeTe films can have both longer and shorter a-axis length [124], the mechanism seems not simple like the strain scenario by Han et al. [122], whereas the superconducting properties of FeTe may be largely affected by the lattice strain, suggested by thermal expansion measurements [126]. Physical properties of the superconducting FeTe are similar to those of FeSe 1 x Te x : (1) strain largely affects the T c values [126]; (2) importance of both n- and p-type carriers for the superconductivity, suggested by the Hall effect [40,127,128]; (3) huge B c 2 (> 30 T) [122,123,129]. These may suggest that the mechanism of the superconductivity is the same for both FeTe and FeSe 1 x Te x .
It is well-known that FeSe 1 x Te x bulk samples with 0.1 < x < 0.4 are not available due to phase separation [27]. Thin film deposition will enable the synthesis of a materials with metastable phase because it involves crystal growth in a thermodynamically non-equilibrium state. The first attempt to obtain single phase FeSe 1 x Te x bulk samples with 0.1 < x < 0.4 has already been reported in 2009 by Wu et al. using a PLD method [84]. However their films with 0.1 < x < 0.4 showed much broader 00l reflection peaks in the X-ray diffraction than the films with other composition, which suggests non-uniform substitution of Te to Se sites. Successful suppression of phase separation in FeSe 1 x Te x was reported independently by Zhuang et al. and Imai et al. around the same time [130,131]. They both reported the thin film growth of FeSe 1 x Te x on CaF 2 with 0.1 < x < 0.4 via PLD. Importantly, the highest T c was obtained at x = 0.2 – 0.4, compositions where bulk samples cannot be obtained. Imai et al. reported that T c reaches 22.3 K for T c onset and 21.7 K for T c zero at x = 0.3, highest value among FeSe 1 x Te x samples at ambient pressure except for monolayer FeSe films on STO [132]. Suppression of phase separation is also possible with LAO substrates; in this case the optimal composition is x = 0.4 [133]. These results demonstrate that the optimal composition, x opt , of FeSe 1 x Te x is in the phase separation region. Imai et al. also found that T c rapidly changes at x around x opt , and the composition dependence of T c is different from a simple dome-shaped one unlike other iron-based superconductors [131], which will be a hint for understandings of superconductivity in these materials. Details on this topic are described in Section 4.
Since FeSe consists of conducting planes alone, novel materials can be artificially grown by depositing FeSe and another non-superconducting material alternately. Research on intercalated FeSe revealed that T c may depend on the interlayer distance between each FeSe layer and T c increases over 40 K with samples with large interlayer distance [134,135]. In addition, fabrication of heterostructure with FeSe can also increase its T c , as demonstrated by the observation of very-high- T c superconductivity in monolayer FeSe films on STO [98]. Therefore fabrication of artificial superlattice based on FeSe is a promising way to obtain high T c . Nabeshima et al. reported on the growth of FeSe/FeTe superlattice films by a PLD technique [136]. Clear satellite peaks in XRD patterns of the grown films indicated periodic stacking structure of FeSe and FeTe. The grown FeSe/FeTe superlattice films on CaF 2 and LAO showed T c higher than those of bulk FeSe and FeSe films on CaF 2 . This is exiting results if the observed enhancement in T c is due to their superstructure. However interdiffusion of Se and Te was indicated by XRD and TEM observations, and a formation of FeSe 1 x Te x may result in the enhanced T c . Therefore, suppression of the diffusion of atoms is necessary by improving the growth procedure or by changing FeTe with other materials. Another interesting results in the FeSe/FeTe superlattice films by Nabeshima et al. was that the FeTe layers in the films were coherently strained to the underlying FeSe layers. This demonstrates that introduction of an FeSe 1 x Te x buffer layer will make it possible to control the lattice strain in an FeSe 1 x Te x film on it.
To summarize this section, study on the thin film growth of Fe chalcogenides has been carried out as extensively as that for 122-system. FeSe 1 x Te x has been found to have good J c characteristics especially under high magnetic fields, and is expected to be applied to high-field superconducting magnets. Recently successful suppression of phase separation by the film growth revealed that optimal composition in terms of T c is in the composition region where bulk crystal cannot be obtained. Therefore, research on the composition dependence of J c is necessary to clarify the optimal composition for application of these materials, as well as improvement of J c characteristics by introduction of artificial pinning centers. In view of fundamental study, on the other hand, FeSe 1 x Te x is unique in that (i) FeSe shows a structural transition without a magnetic order unlike other iron-based superconductors and in that (ii) FeSe 1 x Te x is considered to be in the BCS-BEC crossover region because of its very large Δ / ϵ F ( Δ and ϵ F are the superconducting gap size and the Fermi energy, respectively) [137,138,139]. Although it has been an obstacle to research on these materials that samples are not available in a wide composition region of 0.1 < x < 0.4 , successful growth of single crystalline films in a whole composition region will promote progress in the research.

2.4. 11-System ML

The report on the high T c superconductivity in monolayer FeSe films on SrTiO 3 [98] has generated considerable research interest because it may set a new record of T c in iron-based superconductors that has been unchanged since 2008, and because there is a possibility that the T c value exceeds boiling point of liquid nitrogen. Wang et al. observed superconducting-like large energy gaps by scanning tunneling spectroscopy (STS) at low temperatures in monolayer FeSe films on TiO 2 -terminated STO grown by MBE [98]. They demonstrated a U-shaped gap with magnitude of 40.2 meV at 4.2 K. This means that the size of the superconducting gap, Δ , is 20.1 meV, which corresponds to T c of approximately 80 K assuming the same gap ratio, 2 Δ / k B T c , as that of bulk FeSe. Interestingly, no energy gaps were found in 2 ML FeSe, suggesting this phenomena originates from the interface between FeSe and STO.
Soon after the discovery, angle-resolved photoemission spectroscopy (ARPES) measurements of monolayer FeSe were performed, which revealed that monolayer FeSe on STO has only electron Fermi surfaces at M point, suggesting the samples were heavily electron-doped [13]. Disappearance of the hole Fermi surface in monolayer FeSe is similar to the case of K x Fe 2 y Se 2 [15]. On the other hand, the Fermi surface of films with thickness of equal to or thicker than 2 ML is completely different from that of monolayer films; it consists of both hole and electron-like Fermi surfaces, similar to that of bulk crystals. The origin of the electron doping was found to be charge transfer from the STO substrates [140]. Opening of the energy gap was also confirmed by ARPES studies, which demonstrate that the gap persists up to ∼65 K [13]. The gap structure is nearly isotropic, consistent with the U-shaped spectrum observed by STS measurements. More importantly, a bending back of the electron band after the gap opening was observed, which suggests electron-hole symmetry of the quasiparticles in the superconducting state [141].
Although the best demonstration of superconductivity is observation of zero resistivity and the Meissner effect, there are some difficult problems in these measurements for monolayer FeSe on STO. One is that air exposure destroys the superconductivity. Another is high conductivity of the treated STO substrates. According to Wang et al., the substrates are etched by Se flux at 950 C in the growth chamber just before the deposition, which make the substrate conductive [98]. Despite these difficulties, Wang et al., in their first paper, attempted transport measurements using a 5 ML FeSe films capped with amorphous Si without pretreatment of the substrate at high temperature in vacuum, and they obtained T c > 30 K, much higher than bulk FeSe. Later, ex-situ measurements of transport properties and magnetization of monolayer FeSe on STO, using various capping layers. Zhang et al. prepared monolayer FeSe on insulating STO substrates with 10 ML of FeTe protection layers [142]. The samples shows T c onset = 40 K , T c zero = 23.5 K , and J c = 1.7 × 10 6 A/cm 2 at 2 K. The value of J c is much larger than bulk FeSe and comparable to that of FeSe 1 x Te x thin films. Deng et al. measured the dc and ac magnetic susceptibility of 1–4 ML FeSe on STO with FeTe protection layers, and reported that the superconductivity persists up to 45 K [143]. Subsequently, Zhang et al. improved the protection layers and measured the ac magnetic susceptibility of Se(18 nm)/FeSe(2 ML)/Fe 0.96 Co 0.04 Se (2 ML)/FeSe (1 ML)/Nb-doped STO, and demonstrated the onset of diamagnetic signal at 65 K [144].
Ge et al. performed in situ transport measurements on monolayer FeSe for the first time [145]. They used four-point probe which was made on the basis of STM, and observed T c above 100 K in monolayer FeSe. The reported T c value is much higher than those reported by ARPES measurements and other ex-situ measurements. This may be because this four-point probe is local probe and successfully avoided step structure of the substrates, which may suppress the superconductivity for atomically thin films. However further confirmation by other research groups is necessary.
There are three possible origins for the enhancement of T c in monolayer FeSe on STO: (i) tensile strain; (ii) the electron doping from the substrates; and (iii) the electron-phonon coupling to a phonon mode of STO. Firstly, the lattice stain will affect the superconductivity in monolayer FeSe as the case of bulk FeSe. The monolayer FeSe films are coherently strained to the STO substrates, namely their a-axis length is 3.90 Å [98]. Peng et al. grew monolayer FeSe on KTO substrate with STO buffer layer, which had larger a-axis length of 3.99 Å [146]. ARPES measurements revealed that the film under stronger tensile strain showed larger superconducting gap of Δ 19 meV and higher gap-opening temperature of T g 70 K than films on STO substrates ( Δ 15 meV and T g 65 K). The enhancement of T c under tensile strain in monolayer FeSe is contrary to the case of bulk FeSe, and thus, the enhancement of T c in monolayer FeSe cannot be explained only by the strain effects.
The second factor is carrier-doping from the substrates. ARPES studies revealed that monolayer FeSe on STO is heavily electron-doped and the hole Fermi surface has vanished. The importance of carrier-doping for the enhanced superconductivity is suggested by the fact that the superconductivity is not observed in the second layer of a bilayer FeSe film, where the band structure is similar to that of bulk FeSe. Miyata et al. investigated carrier-doping effects on superconductivity for FeSe multilayer films by ARPES, where electron-doping was achieved by K adsorption after the growth [147]. They found that when electron is doped even 3-ML thick films have enhanced superconducting gaps while it is smaller compared with monolayer FeSe. They also found that the superconducting phase of 3-ML thick films is dome-shaped in a temperature-vs-doping-level phase diagram, suggesting an unconventional mechanism for the superconductivity. Subsequently, the K-adsorption effects were investigated in detail by other several research groups using ARPES [148,149] or STM/STS [150,151,152], and their common results were that the electron-doping can enhance the superconductivity even for a 50-ML-thick FeSe film [149] and the superconducting gap size of the doped samples becomes larger as the thickness becomes thinner, suggesting an interfacial effect for the enhancement of superconductivity in monolayer FeSe.
The carrier doping effects were also investigated by ex-situ measurements. Shiogai et al. [153], Lei et al. [154] and Hanzawa et al. [155] independently demonstrated enhancement of T c onset to above 40 K by electron doping using an electric double-layer transistor (EDLT) technique. As the gate voltage is changed, a rapid increase of T c and sign reversal of Hall coefficient are simultaneously observed, suggesting that enhancement of T c is related to the Lifshitz transition (disappearance of hole Fermi surface) [154]. Shiogai et al. successfully controlled thickness of the grown FeSe films by electrochemical etching using EDLT, and investigated the dependence of T c on thickness and substrate [153,156]. They found that electron-doped FeSe films on both STO and MgO substrates show almost the same T c of approximately 40 K. These results seem to be inconsistent with the results of the in situ measurements, which may be due to differences in condition of pretreatment for substrates and post-annealing.
Coupling of electrons in FeSe to phonon of STO substrates has also been considered to be one of the origin of the superconductivity in monolayer FeSe [157]. Lee et al. in their ARPES studies observed a band-dispersion-like structure with the similar shape as the true band dispersions at ∼100 meV lower than the true ones (replica bands) [158]. The energy value of 100 meV corresponds to that of a phonon mode of STO substrates, and observation of replica bands suggests strong electron-phonon coupling. They estimated the electron-phonon coupling constant, λ , to be 0.5 from the relative intensity of replica bands. Large electron-phonon coupling to STO substrates was also suggested by some other experimental results [151,159,160]. However, at present, there are no experimental results that demonstrate the direct relation between the electron-phonon coupling and the enhancement of the superconductivity. Nevertheless, the interface superconductivity has also been found in related materials such as FeSe on BaTiO 3 [161], Te-doped FeSe on STO [162], KFe 2 Se 2 on STO [148], FeSe on STO(110) [163,164], and FeSe on anatase TiO 2 [165]. In addition, replica bands were also observed in monolayer FeSe on anatase TiO 2 [166]. The mechanism for the enhancement of superconductivity is considered to be the same among these materials, and thus, comprehensive study including these materials will enrich understanding of the interface superconductivity in FeSe on STO.
To summarize this section, monolayer FeSe on STO is a potential superconductor with much better superconducting properties than other iron-based superconductors. However, the superconducting properties of monolayer FeSe observed by ex-situ measurements are not good compared with other iron-based materials at present. Therefore, there are still many challenges for application of these materials such as improvement of protection layers and fabrication of superlattice utilizing interface effects between FeSe and STO.
On the other hand, in view of fundamental study there has been much progress in understandings of the superconductivity in monolayer FeSe. Interface superconductivity was first proposed by Ginzburg in 1964 [167]. Monolayer FeSe on STO may be the first that demonstrates enhancement of T c by interface effects. Indeed, in STS and ARPES studies, the thickness dependence of the superconducting gap size of carrier-doped FeSe monolayer films suggests interface effects. Several results such as the observation of replica band by ARPES measurements indicated the strong coupling of FeSe electrons with phonon of STO, and the electron phonon coupling is considered to be the most likely candidate for the interface-enhancement mechanism of the superconductivity. However, the results of ex-situ measurements such as by a EDLT technique are inconsistent with other results of in situ probes such as ARPES and STS. Thus, there is still room for discussion about interface effects on the superconductivity in monolayer FeSe on STO. In particular, successful in situ measurements of electrical resistivity have been reported by only one group, and therefore further confirmation by other groups is necessary.

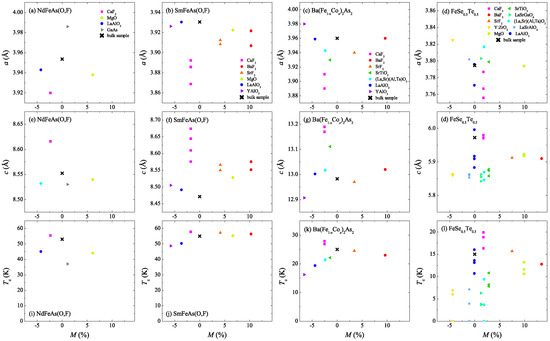

3. Substrate Materials in the Films Fabrication of Iron-Based Superconductors

The substrate material is one of the key parameters for the thin film fabrication. The specifications for substrate materials which are used in the film growth of iron-based superconductors are summarized in Table 1. Generally, the substrate material whose in-plane constant is close to that of the target material is suitable for the epitaxial thin film growth because the lattice mismatch between the film and the substrate is small. Therefore, it seems to be natural that there are no common “optimal” substrate for thin film growth of 1111, 122, and 11 since there are large differences in the in-plane lattice constants of these three systems. However, in thin films of 1111, 122, and 11, the highest T c is commonly obtained in the case of CaF 2 substrates. Tsukada et al. firstly reported the effectiveness of the CaF 2 substrate in the 11 film fabrication [40], and then the fabrication of the film with high T c were reported in other systems [31,41,63]. Here, we define the lattice misfit,
M = 100 × a sub a bulk a sub ,
where a sub , a bulk are in-plane lattice constants of substrate and bulk materials (in some substrate materials, the in-plane lattice constant divided by 2 is used as a sub ), respectively. We use the values reported in refs. [27,63,168,169] as a bulk , and the values of a sub , which are summarized in Table 1. In Figure 1, we plot the lattice constants and T c for films as a function of M. In a simple way, the positive (negative) M is expected to result in the tensile (compressive) strain. From the Poisson effect, the changes of lattice parameters are expected as follows,
M > 0 a film > a bulk , c film < c bulk
M < 0 a film < a bulk , c film > c bulk ,
where a bulk ( c bulk ) and a film ( c film ) are the a (c)-axis lengths of bulk and film, respectively. However, the behaviors shown in Figure 1 are different from these simple expectations, and there is no definite correlation between the lattice misfit and lattice parameters or T c . In 1111 and 122, the in-plane lattice parameters of films on most of substrates are smaller than those of bulk samples. On the other hand, in 11, a film is larger than a bulk for most of films except for LaAlO 3 and CaF 2 . An important thing is that the films of all these three systems on CaF 2 substrates commonly have small in-plane lattice constants and show superconductivity with high T c . Additionally, it is noteworthy that these commonly-observed compressive strains can be expected in 1111 and 122 but cannot be expected in 11 from the values of M. Why do films of iron-based superconductors on CaF 2 substrates receive the compressive strains? One possible reason may be a thermal expansion. In the case of large coefficient of thermal expansion, it is possible that the size mismatch is relaxed at the deposition temperature or that the large compressive strain is induced in the cooling process from the deposition temperature to room temperature. In Figure 2, we plot the lattice constants and T c for films as a function of coefficient of thermal expansion at 300 K, α 300 K . T c and c film ( a film ) roughly increase(decrease) with increasing α 300 K , while there are a few exception, for example BaF 2 and SrF 2 substrates. The changes of the lattice parameters in Figure 2 suggest that large α 300 K induces the strong compressive strain, which results in the enhancement of T c . The reason why the behaviors in the BaF 2 and SrF 2 substrates with large α 300 K are different from the above expectations may be that the lattice mismatches in these two substrates are too large.

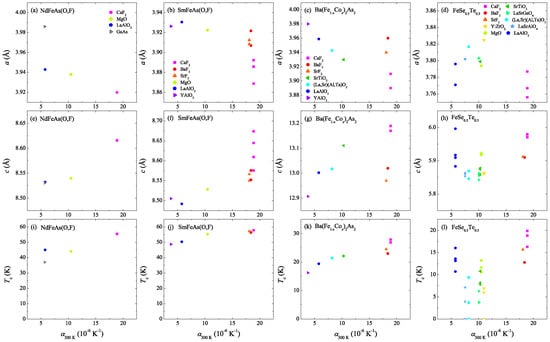

While the large value of α 300 K is important for the compressive strain and high T c in films of iron-based superconductors on CaF 2 substrates, all properties for films on CaF 2 cannot be explained only by the thermal expansion and there seem to be particular things in each materials. In 1111, M is the closest to zero among three systems, which is slightly negative. Indeed, a film of Sm1111 films on CaF 2 is ∼3.87–3.89 Å which is smaller than the a-axis length of bulk samples and is close to a sub 3.865 Å for CaF 2 in Table 1. From the measurement of the cross-sectional transmission electron microscopy (TEM), the interface between the film and the substrate is smooth and the atomic ordering across the interface is nearly perfect in Sm1111 films on CaF 2 [46,192]. Therefore, CaF 2 is an appropriate substrate material for this system also in terms of the lattice mismatch. In addition, the F diffusion into the film from the CaF 2 substrate was confirmed [46] and the CaF 2 substrate plays a role as the F dopant [31,41]. Therefore, in terms of both the lattice mismatch and the F dopant, the CaF 2 is suitable as a substrate material for the film growth of 1111. In 122, the in-plane lattice constant of CaF 2 is slightly smaller than that of BaFe 2 x Co x As 2 bulk sample, which is expected to result in the compressive strain. Indeed, BaFe 2 x Co x As 2 films on CaF 2 substrates receive the compressive strain, which is similar to the behaviors observed in 1111 films. However, there is a clear difference in the micro-structure near the interface between the film and the substrate between 1111 and 122 films on CaF 2 [46,63,192]. In the case of BaFe 2 x Co x As 2 films on CaF 2 , the interface between the film and the substrate is unclear and the reactive layers exist just on the CaF 2 substrate. These layers contain some Ba deficiencies, which are unstable and are easy to change into the amorphous-like layers after aging [46]. The energy dispersive X-ray analysis (EDX) revealed that a small amount of Ba and Ca was inter-diffused at the interface. In BaFe 2 x Co x As 2 films on oxide substrates, the similar diffusion of Ba from the film to the substrate was also reported by Haindl et al. [24]. Therefore, the a-axis length was not reduced to the length of the CaF 2 substrate because the initial 122 layer deformed by the underlying CaF 2 with a Ba-partially-substituted CaF 2 . Finally, the in-plane lattice constant of FeSe 0.5 Te 0.5 film on the CaF 2 substrate is smaller than those of FeSe 0.5 Te 0.5 and FeSe bulk samples, although M is positive in 11. Thus, the unexpected in-plane shrinkage of the FeSe 0.5 Te 0.5 film cannot be explained neither by the simple lattice mismatch nor by the deviations in Te content. Ichinose et al. insisted the F diffusion into film from the CaF 2 substrate [45] and/or the formation of the Se-deficient layer [101] as the origin of the nontrivial compressive strain. In the cross-sectional TEM image, a reactive region exists at the interface between the film and the substrate also in FeSe 0.5 Te 0.5 film on the CaF 2 [45,46]. Although this seems to be similar to the initial layer of BaFe 2 x Co x As 2 film with some Ba deficiencies, these are quite different and the reactive layer in FeSe 0.5 Te 0.5 film exist not at the initial layer of the film but at the top of the CaF 2 substrate. The energy dispersive X-ray analysis (EDX) revealed that a small amount of the interdiffusion of F and Se at the interface, and the reactive layer at the interface is considered to play a role in the compressive strain as a buffer layer.
In the film fabrication of iron-based superconductors, the material with a large coefficient of thermal expansion is considered to be suitable as the substrate for obtaining films of iron-based superconductors with high T c . CaF 2 has a large coefficient of thermal expansion and a relatively small value of lattice misfit, and thus is an appropriate substrate material for the film fabrication of iron-based superconductors.

4. Comparison in Phase Diagram between Bulk Single Crystal and Epitaxial Thin Films in 11 System

The progress of thin film growth technique enables us to investigate a systematic change in physical properties with the composition in the thin film and to compare the phase diagram between the bulk single crystal and the epitaxial thin film [131,193]. Here, we introduce the whole phase diagram in FeSe 1 x Te x thin films.
The iron-chalcogenide superconductor, FeSe ( T c 8 K ) [18], initially attracted attention because it has the simplest crystal structure among iron-based superconductors and its T c strongly depends on applied pressures [194,195,196]. FeSe undergoes a structural transition from tetragonal to orthorhombic at a structural transition temperature, T s 90 K and does not show any long-range magnetic orders at ambient pressure. This is quite contrast to other iron-based superconductors, where a structural and a magnetic phase transition occur almost simultaneously. Recently, this unique feature of FeSe has attracted lots of attention for exploring the relation between superconductivity and a structural and/or nematic order. Since establishment of the method of growth of FeSe single crystals with high quality [197], many studies on this material have been performed. For investigating this system, it is quite natural to become interested in the substitution effect, for example FeSe 1 x S x and FeSe 1 x Te x . The reported results in FeSe 1 x Te x bulk samples [27,198,199,200,201,202] are summarized in Figure 3a. FeSe shows a structural/nematic transition at T s 90 K [199]. While the structural transition is still observed at x 0.43 [202], it disappears at x 0.5 where the highest T c of 15 K in FeSe 1 x Te x is obtained [200]. The values of T c do not change at x 0.5–0.8 very much [198]. Additionally, the end member material FeTe opposite to FeSe shows a structural transition from tetragonal to monoclinic at T s ( T N ) 70 K and simultaneously develops a bicollinear antiferromagnetic (AF) order [200,203] whose AF magnetic structure is different from those of other iron-based superconductors [29,204]. In the Te-substituted materials, it is well-known that a phase separation occurs at 0.1 x 0.4 and that the single phase sample with these compositions are not available [27]. This is a large problem for investigating the Te substitution effect in FeSe. Recently, we succeeded in obtaining FeSe 1 x Te x thin films with these compositions by a pulsed laser deposition (PLD) method [131]. Zhuang et al. also reported the successful suppression of phase separation by using film technique around the same time, independently [130]. Generally, the film deposition, whose process involves crystal growth in a thermodynamically non-equilibrium state, provides an avenue for the synthesis of a material with a metastable phase. The suppression of phase separation is probably brought about by this feature of film fabrication process. The temperature dependence of resistivity of FeSe 1 x Te x thin films on CaF 2 ( x = 0–1) and LaAlO 3 ( x = 0–0.7) substrates is summarized in Figure 4. A superconducting transition is observed in all films except for FeTe films on CaF 2 . The optimum Te content for obtaining the highest T c , x opt , depends on a kind of substrate. The highest T c is 23 K at x opt = 0.2 for CaF 2 and ∼19 K at x opt = 0.4 for LAO. These values of T c are larger than the highest T c 15 K [27] observed in FeSe 1 x Te x bulk samples. It is noteworthy that the highest T c was obtained at or around the phase-separation region for films on both substrates. This enhancement of T c seems to be consistent with a recent theoretical study which concludes that a superconducting phase with high T c is placed around a electronic phase separation region [205]. Looking at the normal-state behavior, the residual resistivity ratio, R R R ( = ρ ( 300 K ) / ρ ( 20 K ) ) , of these films decreases with increasing x. Note that there is a kink around 90 K in the ρ T curve for annealed FeSe film on LaAlO 3 with large value of R R R 7 . This behavior is familiar in FeSe bulk single crystals, and is due to the structural transition from tetragonal to orthorhombic [197,199]. A structural/nematic transition temperature, T s , for FeSe 1 x Te x films can be estimated from the temperature dependence of the temperature derivative of resistivity shown in Figure 5b as FeSe bulk samples. T s is considered to be a temperature where a temperature derivative of resistivity takes its local minimum (maximum) for FeSe single crystals with large values of R R R [197] (samples with small values of R R R [206,207]). We can define T s at x = 0–0.1 for films on CaF 2 and x = 0–0.3 for films on LAO [133]. At the other compositions, there are no peak- nor dip- structure in a temperature derivative of resistivity, which shows that structural/nematic transition does not occur. To understand the relation between T s and T c , these values are plotted as a function of x in Figure 3b. In this figure, the horizontal axis is the nominal Te content of the polycrystalline target. We strongly believe that Te contents of the grown films are nearly identical to the nominal values of the targets, because the c-axis lengths of the films exhibit almost linear dependence on x including two end member materials, FeSe and FeTe [131,133]. Therefore, in Figure 3b, the horizontal axis is able to be regarded as the Te content of the resultant film. In films on both substrates, T s decreases with increasing x, and then, at x = x opt , the structural/nematic transition is completely suppressed and the highest T c is realized at the same time. Note that T s is lower for an FeSe film on CaF 2 than that for LAO. This is due to the in-plane lattice strain. Indeed, a recent ARPES measurement for strained FeSe films revealed that the nematicity weakens as the a-axis length of the films shrinks [208].

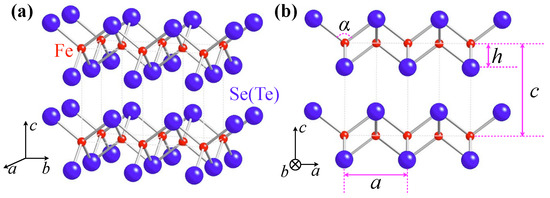

Here, for discussing the relation between local structural parameters and superconductivity, we focus on the peak intensity of out-of-plane XRD patterns [131,133], especially the intensity ratio of the 003 reflections to the 002 reflections, r = I 003 / I 002 , where I 002 and I 003 are intensities of 002 and 003 reflections, respectively. The structural analysis of FeSe 1 x Te x bulk samples at room temperatures revealed that the space group and the atomic coordinates other than the z-coordinate of the Chalcogen (Se or Te) site did not change with changing Te contents [210]. Thus, from these results in bulk samples [210], we assume (1) the space group is P 4 / n m m (no. 129); (2) only the z-coordinate of the Chalcogen (Se or Te) site, z C h , depends on x and the other atomic coordinates are constant with x; (3) occupancies at each atomic site are the same as the chemical compositions, and simulate XRD patterns of FeSe 1 x Te x by using VESTA and RIETAN programs [211]. The parameters used in these simulations are summarized in Table 2. We confirmed that the values of r strongly depend on z C h . In FeSe 0.5 Te 0.5 films [92], the similar arguments have been provided by Bellingeri et al. We estimate z C h to reproduce the experimentally-obtained intensity ratio of the 003 reflections to the 002 reflections, r exp = I 003 exp / I 002 exp . By using the obtained values of z C h and the lattice constants of a and c, we calculate the chalcogen height from the iron plane, h, and the bond angle, α , whose definitions are shown in Figure 6, by using the relation,
h = c · z C h = a 2 tan α 2 .

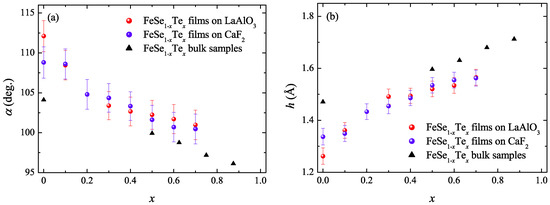

the results of these calculations are summarized in Table 3. The structural parameters, α and h, are well-accepted to be critical ones to determine values of T c [95,96,212], and the optimum values are empirically known to be 109.48 deg. for α [95,96] and 1.38 Å for h [212]. Figure 7 is the relation between α or h and the Te content, x. In these figures, we set error bars for the data of α and h by considering the influences of the off-stoichiometry and the differences of r exp depending on samples. Both parameters get close to their optimum values with decreasing x, which probably results in the increase of T c at x > x opt as shown in Figure 3b. We plot values of T c as a function of α or h in Figure 8. Focussing on the data of samples without the structural transition (closed symbols), the values of T c increase when these parameters get close to their optimum values. This indicates that the well-known empirical laws between T c and α or h [95,96,212] can be applicable to 11 materials, and the increase of T c at x x opt can be explained by the optimization of these structural parameters. On the other hand, the samples with the structural transition, which are represented by open symbols in Figure 8, show rather low T c despite that their α and h are very close to their optimum values. These results confirmed that the suppression of T c in films with x < x opt cannot be explained by the local structural parameters. Therefore, we believe that the sudden change in T c at x opt in Figure 3b is probably related to the structural/nematic transition since the Te content where T s disappears coincides x opt [133], and that the orthorhombic distortion and/or nematic order may not be favorable for the superconductivity in iron chalcogenides.

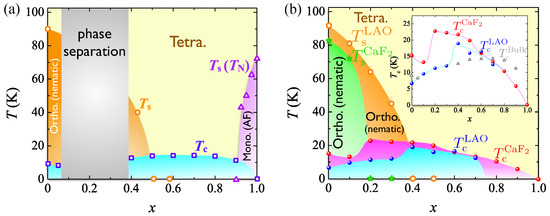

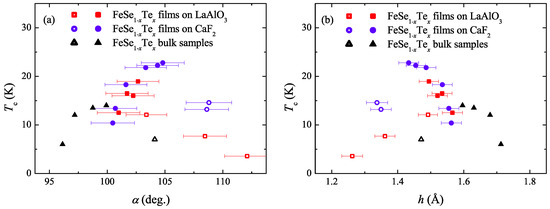

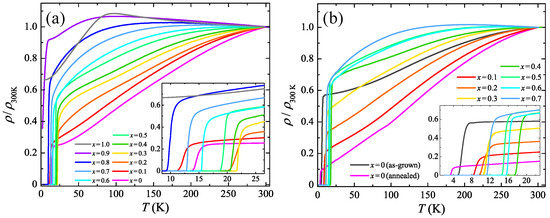

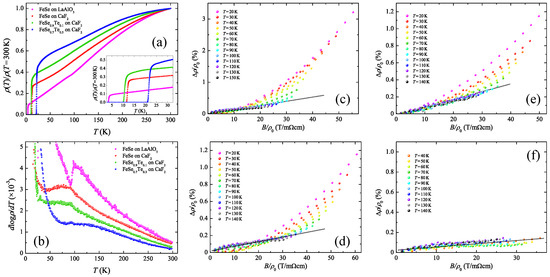

At x opt , which is closely related to the structural/nematic transition, big changes are observed in some physical properties other than T c : the upper critical field, B c 2 [209], the superconducting transition width [213], the ratio of B c 2 along the a b -plane and the c-axis in the orbital limit, γ B c 2 , 0 K / / a b / B c 2 , 0 K / / c [213], the temperature dependence of Hall coefficient, R H ( T ) [209], and the optical conductivity [214]. In Figure 5c–f, we plot the magnetic field dependence of magneto resistance, MR, at different temperatures, which is the so-called Kohler plot, where the MR can be scaled by ρ ( H , T ) / ρ ( H = 0 , T ) = F ( ω c τ ) = F ( μ 0 H / ρ ( H = 0 , T ) ) according to the Kohler’s rule. Here, F is a function of the cyclotron frequency, ω c , and the relaxation time, τ , which depend on the nature of the materials. At T > T s in Figure 5c–e and all temperatures in Figure 5f, the MR is small and can be almost scaled by one curve. On the other hand, the values of MR rapidly increases with decreasing temperature below T s and are against the Kohler’s rule at T < T s in Figure 5c–e. This indicates that the scattering rate is anisotropic at the Fermi surface below T s . In FeSe bulk single crystals, the similar violence of the Kohler’s rule is observed at low temperatures [215].
Finally, we would like to compare our phase diagram of Figure 3b to those obtained in bulk samples of 11 materials. In bulk single crystals, the detailed phase diagram of FeSe under hydrostatic pressures [216,217,218] and FeSe 1 x S x [219,220] have been reported because the high-quality single crystals of FeSe 1 x S x and FeSe can be available. The S-substitution for Se introduces chemical pressure in FeSe, and T s gradually decreases with increasing S content x [219]. The structural/nematic transition is completely suppressed at x = 0.17 , where the nematic fluctuations were found to diverge toward T 0 K from the measurements of nematic susceptibility [219]. This result shows that the nematic quantum critical point (QCP) exists around x = 0.17 [219]. A superconducting transition temperature slightly increases by the S substitution, and the highest T c is obtained deep inside the nematic ordered phase [219]. Thus, Hosoi et al. insisted that the critical nematic fluctuations do not have a simple correlation with the T c enhancement [219]. Contrary to the phase diagram of FeSe 1 x S x , in FeSe 1 x Te x thin films (Figure 3), the values of T c suddenly change around x opt where the structural/nematic transition disappears. At this moment, it is not clear whether a nematic QCP exists around x opt or not. However, if it is revealed that the nematic QCP exists around x opt by evaluating the nematic fluctuations in FeSe 1 x Te x films as Ba122 [221,222] and FeSe 1 x S x [219], it can be concluded that the nematic fluctuation may enhance a superconducting transition temperature as suggested by some theoretical studies [223]. On the other hand, in the phase diagram of FeSe under hydrostatic pressures, T s also decreases with increasing applied pressure and disappears around 2 GPa [217]. Surprisingly, the magnetic order emerges around 1 GPa [224,225]. The magnetic transition temperature ( T m ) increases up to 45 K with increasing pressure, and then T m disappears around 6 GPa [217]. Interestingly, in T c for FeSe under hydrostatic pressures, a characteristic three-step increase is observed [216]; the 2nd and 3rd increases in T c appear around 2 GPa and 6 GPa, respectively. The 2nd increase in T c is closely related with the suppression of T s [217], which is similar to the rapid increase of T c at x opt in FeSe 1 x Te x thin films (Figure 3), while there are no clear evidences for the existence of a magnetic order in FeSe 1 x Te x films. For clarifying the differences in these three phase diagrams, we consider that it is of crucial importance to reveal whether x opt in the phase diagram of FeSe 1 x Te x (Figure 3b) is a nematic QCP or not, and that the measurement of the nematic and/or superconducting fluctuations in FeSe 1 x Te x films [226] is a key experiment for realizing it.

5. Conclusions

We reviewed the progress of the works on the film fabrications of iron-based superconductors. Initially, there were some difficulties in the film growth. However, its technology has much advanced in the last nine years. In 1111, 122, and 11 systems, the epitaxial films with higher T c than those of bulk samples have been fabricated. Surprisingly, in these three systems whose in-plane lattice parameters rather differ from each other, the highest T c was realized in films on the same substrate material, CaF 2 , which is probably related to the large thermal expansion of CaF 2 . Additionally, the values of J c for these films are also large even at high magnetic fields, which the fabrication technique of iron-based superconductor films with high quality is expected to apply the fabrications of the advanced device.
There are many interesting phenomena, for example (1) high T c in FeSe monolayer film; (2) strain-induced superconductivity (3) novel material obtained only by the film technique, and so on, observed in films of iron-based superconductors. Especially, in the FeSe monolayer film, there is a possibility that the T c values exceeds boiling point of liquid nitrogen and that the record of T c in iron-based superconductors is broken. On the other hand, in FeSe 1 x Te x thin films, it is revealed that the phase separation can be suppressed, which enables us to use the whole phase diagram in this system. The large enhancement of T c is observed in the conventional phase separation region. More importantly, the suppression of phase diagram opens an avenue for investigating the composition dependences of many physical properties, for example, the optical conductivity, the electronic structure, the nematic and superconducting fluctuations, and so on. Some of these measurements are currently underway, which will be shown in the future papers. Including the works on FeSe 1 x Te x films, some of researches concerning iron-based superconducting films are still under debate, which are considered to be key issues for revealing the mechanism of the unconventional superconductivity in iron-based superconductors.

Acknowledgments

The authors acknowledge collaborations with Takanori Akiike, Ryo Tanaka, Yuichi Sawada, Daisuke Asami, Masataka Kawai, Daisuke Nakamura, Hideyuki Takahashi, Tatsunori Okada, Ryo Ogawa, Masafumi Hanawa, Seiki Komiya, Ataru Ichinose, Ichiro Tsukada, Tatsuo Hikage, Takahiko Kawaguchi, Hiroshi Ikuta, Takayoshi Katase, Hidenori Hiramatsu, Hideo Hosono, Dario Daghero, Paola Pecchio, Giovanni Ummarino, Renato Gonnelli, Costantino Mauro, Carlo Barone, Sergio Pagano, Masamichi Nakajima, Kazuya Yanase, Setsuko Tajima, Giao N. Phan, Kosuke Nakayama, Katsuaki Sugawara, Takafumi Sato, and Takashi Takahashi. This work was supported by JSPS KAKENHI Grant Numbers 15K17697 and 14J09315.

Author Contributions

Yoshinori Imai, Fuyuki Nabeshima and Atsutaka Maeda conceived and designed the experiments; Yoshinori Imai and Fuyuki Nabeshima performed the experiments and analyzed the data; Yoshinori Imai, Fuyuki Nabeshima and Atsutaka Maeda wrote the paper. All authors have read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.
