Article

Geometric Effects of a Quarter of Corrugated Torus

1
Key Laboratory of Modern Acoustics, Department of Physics, Nanjing University, Nanjing 210093, China
2
School of Physics and Electronic Engineering, Linyi University, Linyi 276005, China
3
Joint Center for Particle, Nuclear Physics and Cosmology, Nanjing 210093, China
4
State Key Laboratory of Theoretical Physics, Institute of Theoretical Physics, CAS, Beijing 100190, China
*
Authors to whom correspondence should be addressed.
Condens. Matter 2019, 4(1), 3; https://doi.org/10.3390/condmat4010003
Submission received: 1 December 2018 / Revised: 24 December 2018 / Accepted: 24 December 2018 / Published: 28 December 2018

Abstract

:
In the spirit of the thin-layer quantization scheme, we give the effective Shrödinger equation for a particle confined to a corrugated torus, in which the geometric potential is substantially changed by corrugation. We find the attractive wells reconstructed by the corrugation not being at identical depths, which is strikingly different from that of a corrugated nanotube, especially in the inner side of the torus. By numerically calculating the transmission probability, we find that the resonant tunneling peaks and the transmission gaps are merged and broadened by the corrugation of the inner side of torus. These results show that the quarter corrugated torus can be used not only to connect two tubes with different radiuses in different directions, but also to filter the particles with particular incident energies.

1. Introduction

With the rapid development of nanotechnology, a variety of nanostructures with complex geometries are successfully fabricated, and the related geometric effects have attracted study by both theoretical and experimental researchers [1,2]. Specifically, the geometric effects are shown by the geometric potential [3,4], geometric momentum [5,6], geometric orbital angular momentum [7], geometric gauge potential [4,8,9], geometric magnetic moment [8,10] and so on. One of the most important geometric effects is the geometric potential that has been investigated widely. Researchers found that the geometric potential can be used to change the band-structure of the geometrically deformed systems [11,12,13], to generate localized surface states [14,15,16,17,18,19] and prompt energy shifts [20,21] for an electron confined to a curved surface; additionally, transport properties on a curved surface or space curve can be affected [21,22,23,24]. Experimentally, the geometric potential [25] and the geometric momentum [26] have been observed. These results provide evidence on the validity of the confining potential method.
A nanotube has nonvanishing curvature that contributes an attractive scalar potential for a particle moving on the tube. When the nanotube is deformed [14,27,28,29], the geometric potential will be substantially reconstructed by the deformation. In other words, the deformation plays an important role in the effective quantum dynamics, like Dirac comb [30], with attractive wells. Particularly, the geometric potential is mainly induced by the deformation, such as the case for corrugations on the surface [31,32,33,34]. The corrugation extremely affects the geometric potential, and further influences the corresponding electronic transport. Usually, corrugations appear in the bend of a tube. To connect smoothly two tubes with different radiuses in different directions, we can consider a part torus with corrugation, a quarter corrugated torus particularly in the present paper.
This paper is organized as follows. In Section 2, we deduce the effective quantum equation for a particle confined to a periodically corrugated torus by the confining potential approach, and analyze the associated geometric potential. In Section 3, we investigate the effects of the corrugations on transmission probability. Finally, in Section 4, the conclusions are given.

2. Quantum Dynamics of a Particle Confined to a Periodically Corrugated Torus

A torus reconstructed by corrugation (see Figure 1b) that is parametrized by
r = ( r x , r y , r z ) ,
where r x , r y and r z are
r x = r x 0 + r x , r y = r y 0 + r y , r z = r z 0 + r z ,
respectively, with
r x 0 = ( R + r cos θ ) cos ϕ , r x = ε 2 ( 1 cos n ϕ ) cos θ cos ϕ , r y 0 = ( R + r cos θ ) sin ϕ , r y = ε 2 ( 1 cos n ϕ ) cos θ sin ϕ , r z 0 = r sin θ , r z = ε 2 ( 1 cos n ϕ ) sin θ ,
wherein R and ϕ are the large radius and azimuthal angle, r and θ are the small radius and polar angle of a torus (see Figure 1a), respectively, ε is the amplitude of corrugation and n denotes the period number of corrugation. The position vector r 0 = ( r x 0 , r y 0 , r z 0 ) describes a torus, r = ( r x , r y , r z ) describes the torus with corrugation shown in Figure 1a,b, respectively. In addition, the vector r = ( r x , r y , r z ) describes corrugation.
From the corrugated torus Equation (1), the two tangent unit basis vectors e η , e ξ and the normal unit basis vector e n are obtained as
e η = ( cos ϕ sin θ , sin θ sin ϕ , cos θ ) , e ξ = 1 U ( T sin ϕ + S cos θ cos ϕ , T cos ϕ + S cos θ sin ϕ , S sin θ ) , e n = 1 U ( T cos θ cos ϕ + S sin ϕ , T cos θ sin ϕ S cos ϕ , T sin θ ) ,
where
Q = 2 r + ε ε cos n ϕ , S = ε n sin n ϕ , T = 2 R + Q cos θ , U = S 2 + T 2 .
In addition, the position vector R of a point close to the deformed torus is then described by
R = r + q 3 e n ,
where q 3 is the coordinate that measures the normal distance away from the surface. According to the two position vectors r and R, with the definitions of two matric tensors g a b = a r · b r ( a , b = 1 , 2 ) and G i j = i R · j R ( i , j = 1 , 2 , 3 ) , we obtain their covariant elements as
g 11 = 1 , g 22 = 1 , g 12 = g 21 = 0 ,
and
G 11 = ( 1 2 T Q U q 3 ) 2 + 4 S 2 sin 2 θ U 4 q 3 2 , G 12 = G 21 = 4 S sin θ U 2 q 3 [ T Q U 3 + ( S 2 + U 2 ) cos θ ε n 2 T cos n ϕ U 5 ] 4 S sin θ q 3 2 , G 22 = [ 1 ( S 2 + U 2 ) cos θ ε n 2 T cos n ϕ U 3 2 q 3 ] 2 + 4 S 2 sin 2 θ U 4 q 3 2 , G 33 = 1 , G 13 = G 31 = G 23 = G 32 = 0 ,
respectively. It is straightforward to check the relationship between g and G as
G = f 2 g ,
where g and G are the determinants of g a b and G i j , respectively, and f is the rescaling factor, that is
f = 1 Q ( S 2 + U 2 ) cos θ n 2 ε Q T cos n ϕ + U 2 T Q U 3 2 q 3 + ( S 2 + U 2 ) T cos θ n 2 ε T 2 cos n ϕ Q S 2 sin 2 θ Q U 4 4 q 3 2 .
For a particle confined to the corrugated torus (see Figure 1b), we deduce the effective Schrödinger equation by the confining potential approach [4,8,35] (i.e., the thin-layer quantization scheme [3,7,36]), that is
2 2 m * ( 2 η 2 + 2 ξ 2 ) ψ + V g ψ = E ψ ,
where is the Plank constant divided by 2 π , m * is the effective mass of electron, η and ξ are two tangent coordinate variables of the deformed torus, ψ is the wave function describing the motion of the confined particle, E is the energy with respect to ψ , and V g is the geometric potential induced by curvature, that is,
V g = 2 2 m { 4 S 2 sin 2 θ U 4 + [ Q ( S 2 + U 2 ) cos θ T ( U 2 + n 2 ε Q cos n ϕ ) Q U 3 ] 2 } .
The geometric potential Equation (10) is still valid to a part deformed torus with ϕ ranging from ϕ 0 to ϕ 1 ( 0 < ϕ 0 < ϕ 1 < 2 π ). In practical terms, we consider two models, one is a quarter corrugated torus with n = 6 and the other with n = 12 (see Figure 2c,d). For the sake of expressing convenience, a deformed tube and a quarter torus are also sketched (Figure 2a,b). The deformation of tube generates the geometric potential, like Dirac comb, attractive wells with identical depthes. The Dirac comb can be used to filter particles with particular incident energies [29]. It is obvious that the quarter torus can connect two tubes with identical radiuses in different directions. The rest two quarter deformed toruses own the two features simultaneously. In what follows, we will discuss the properties of geometric potential of the quarter corrugated torus.
For a corrugated tube (see Figure 2a), the geometric potential is determined by the radius of tube, the periodic length and the amplitude of corrugation together. As the periodic length is fixed, it is easy to check that the amplitude is larger, and the attractive wells are deeper. When the amplitude of corrugation is fixed, it is easy to confirm that the periodic length is longer, and the wells are shallower. The corrugation can create a Dirac comb for the particle passing the deformed torus. In order to learn the differences in the four cases described in Figure 2a–d, the corresponding four geometric potentials are sketched in Figure 3a–d, respectively. In the case of a quarter torus, the geometric potential well is minimal at θ = π , and it does not change by varying the azimuthal angle ϕ . This result means that the inner side of the quarter torus is more capable of attracting particles. According to the figures of the geometric potential versus θ and ϕ shown in Figure 3c,d, it is easy to see that the geometric potentials take their minima at θ = π , ϕ = ( i + 1 / 2 ) π 3 and ϕ = ( i + 1 / 2 ) π 6 with ( i = 0 , 1 , 2 , ) for n = 6 , 12 , respectively. The minima of the geometric potential can be in general expressed by
V g m = 2 8 m * [ 1 R r ε + 1 r + ε n 2 ε 2 ( R r ε ) 2 ] 2 .
It is obvious that the minima depends on curvature. For the quarter torus with corrugation, the geometric potential looks like the Dirac comb [30] that can affect the transport of the electron confined to the particular quarter torus. When the variable θ is far away from π , the wells sharply become shallow. These results are useful to control the electronic transport by tailoring the quarter corrugated torus further. In what follows, we will consider the geometric effects of the quarter corrugated torus on transmission probability to illustrate the deduction.

3. Transmission Probability in Periodically Corrugated Toruses

In terms of the quarter corrugated torus, from left to right, the head skirt can be taken as a free electron beam source, the first connection between the head skirt and the deformed torus plays the role of a barrier, the central part is a quarter corrugated torus that can provides a geometric potential, the second connection between the central part and the foot skirt can be taken as the other barrier, and the foot skirt plays the role of a drain. This system in the ϕ direction can be simplified as a model that has the form as [34,37] (see Figure 4) which consists of two leads, two barriers and a geometric potential.
By setting the geometric potential equal to zero, the present model becomes one with double barriers. The double barriers resonant tunneling structure is a typical microstructure that attracted various investigations [38,39,40,41,42,43,44]. A quarter corrugated torus is a mesostructure that has attracted much investigation, in which the geometric potential induced by curvature will substantially affect the resonant peaks created by the double barriers. For transport properties, the resonant peaks correspond to quasibound states, which are associated with geometric quantum wells. The electrons are primarily confined to a curved surface, and tend to stay in the attractive wells, but the electron has a certain probability to tunnel the corrugation, if the energy of the electron is nearly the energy eigenvalue of the quansibound state. Physically, when the spatial dimension is reduced to a scale being comparable with the de Broglie wavelength of electron in the vicinity of Fermi energy, the wave nature of electron is expected to play an important role in transport properties. We will investigate four generic cases: a periodically corrugated nanotube with 1.5 periods, a quarter of a nanotorus, a quarter nanotorus with 1.5 corrugations and a quarter nanotorus with three corrugations.
For the effective quantum equation Equation (9), when θ is fixed with constant, the equation can be simplified as
2 2 m * d 2 d ξ 2 ψ ( ξ ) + V ( ξ ) ψ ( ξ ) = E ψ ( ξ ) ,
where m * is the effective mass of electron, is the Planck constant divided by 2 π , ψ is a wave function describing the motion of electron confined to the surface with θ being a constant, E is the energy with respect to ψ , and the potential V ( ξ ) has the general form as
V ( ξ ) = 0 meV , ξ R 1 , 20 meV , ξ R 2 , V g ( ξ ) , ξ R 3 , 20 meV , ξ R 4 , 0 meV , ξ R 5 ,
wherein V g ( ξ ) denotes the geometric potential that is specifically expressed in Equation (10) and meV stands for milli electron volts. This simplified model has the same form of the effective Hamiltonian of a corrugated surface [34].
Repeating the calculation process [34], we first split R 3 up into segments instead of continuous variations of V ( ξ ) , in each segment V g ( ξ ) can be taken as a constant. Then, let us assume that R 3 consists of a sequence N 3 small segments, R 2 one segment ( N 2 = 1 ) and R 4 one segment ( N 4 = 1 ). It is straightforward to obtain that the total number of segments is N = N 2 + N 3 + N 4 , and that of boundaries is N + 1 . It is worthwhile to notice that the tangent variable ξ in the j-th segment of R 3 should be replaced by ξ j , which can be described by
ξ j = 1 2 ϕ j 1 ϕ j T 2 + S 2 d ϕ ,
with T = 2 R + ( 2 r + ε ε cos n ϕ ) cos θ and S = ε n sin n ϕ . This integrated function is more complex than that of a corrugated surface [34]. Based on the continuous conditions of the wave function and its first derivative, the transmission probability can be calculated for electron moving on the particular torus.
The transmission probabilities of the electron confined to the four curved surfaces described in Figure 2a–d are shown in Figure 5a–d, respectively. In these cases, the substrate is graphene in which the effective mass of electron is m * = 0 . 173 m 0 with m 0 being the static mass of an electron. Figure 5 shows that the geometric potential makes the strips of resonant tunneling peaks curved tend to the lower energy. In addition, the corrugation of nanotube and nanotorus deepens the geometric potential wells extremely, and the energy levels of the quasibound states shift downward, which means a shift of the resonant peaks to lower energy. As a result, there are more resonant peak strips shown in Figure 5. Comparing Figure 5c with Figure 5a, we find that the bent corrugated nanotube can create the resonant peak strips more than the straight one. In addition, it is apparent that the resonant peak strips are deformed by corrugation. The result is more significant than that of a corrugated surface [34]. The deformation becomes more important when the number of corrugations is increased. As a consequence, the quarter corrugated nanotorus can be not only employed to connect different nanotubes, but also to control the electronic transport. These results become more straightforward when the two-dimensional (2D) figures describing the transmission probabilities versus the incident energy given by Figure 6. The transmission gaps [34,45,46,47] are deepened and emerged and the tunneling peaks [48,49,50] are emerged and broadened (see Figure 6d).
In order to learn the difference between the transmission probabilities for θ = π / 2 and θ = π , the transmission probabilities are described in the plane constructed by E and ϕ (see Figure 7). In the case of θ = π / 2 , there are more resonant peak strips than that of the case of θ = π . Those resonant peaks are generated by the boundaries constructed by different materials in which electrons have different effective masses. Comparing (c) and (d) with (a) and (b) in Figure 7, we find that the deeper wells are more capable of merging multiple resonant peaks into one. In other words, the geometric potential can broaden the width of the resonant peaks and the transmission gaps. The result can be used to tailor the deformed torus to filter the electrons with special incident energies.
For GaAs substrate with m * = 0 . 067 m 0 and graphene m * = 0 . 173 m 0 , the transmission probability depending on the incident energy E is described in Figure 8, (a) m * = 0.067 m 0 and θ = π / 2 , (b) m * = 0.173 m 0 and θ = π / 2 , (c) m * = 0.067 m 0 and θ = π and (d) m * = 0.173 m 0 and θ = π . It is obvious that the above-mentioned results are more manifest in graphene than in the GaAs substrate. Generally, the geometric potential can influence the electronic transport of various materials. Specifically, for different materials, the geometric effects have a certain difference.

4. Conclusions

In the present paper, the main result has been to obtain the effective quantum Hamiltonian for a particle confined to the corrugated torus. To illustrate the effects of the geometric potential on the electronic transmission, we numerically calculate the transmission probability. By researching four examples, a periodically corrugated nanotube, a quarter torus, a quarter torus with 1.5 corrugations and a quarter torus with three corrugations, we found that the corrugations can extremely deepen the geometric potential wells. It is worthwhile to point out that the integer values of the number of corrugations for an usual torus would be broken when the investigated models are taken as a quarter torus. Subsequently, a part of corrugated torus can be selected to include any number of corrugations, and it can be used to connect two nanotubes with different radiuses in different directions.
The corrugations of the deformed nanotube and nanotorus can deepen the attractive wells, and the resonant peaks and valleys can emerge to broaden them. In the resonant peaks of the transmission probability, electrons with particular incident energy can easily pass, while, in the transmission gaps, electrons with specific incident energy are almost reflected. Practically, we can adjust the widths of the resonant peaks and the transmission gaps by designing corrugation, which may be used to design some quantum electronic and photonic nanodevices. In the present models, the interactions between electrons are neglected. A model including interactions of particles is still an interesting project that needs further investigation.

Author Contributions

Formal analysis, F.A., H.J.; Funding Acquisition, X.-J.L.; Methodology, R.C.; Resources, Y.-L.W.; Supervision, H.-S.Z.

Funding

This work is jointly supported by the National Major State Basic Research and Development of China (Grant No. 2016YFE0129300), and the National Nature Science Foundation of China (Grants No. 11690030, No. 11475085, No. 11535005, No. 61425018). Y.-L.W. was funded by the Natural Science Foundation of Shandong Province of China (Grant No. ZR2017MA010).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, P.; Cottrill, A.L.; Kozawa, D.; Koman, V.B.; Parviz, D.; Liu, A.T.; Yang, J.; Tran, T.Q.; Wong, M.H.; Wang, S.; et al. Emerging trends in 2D nanotechnology that are redefining our understanding of “Nanocomposites”. Nano Today 2018, 21, 18–40. [Google Scholar] [CrossRef]
  2. Khoshnevis, H.; Tran, T.Q.; Mint, S.M.; Zadhoush, A.; Duong, H.M.; Youssefi, M. Effect of alignment and packing density on the stress relaxation process of carbon nanotube fibers spun from floating catalyst chemical vapor deposition method. Colloids Surf. A 2018, 588, 570–578. [Google Scholar] [CrossRef]
  3. Da Costa, R.C.T. Quantum mechanics of a constrained particle. Phys. Rev. A 1981, 23, 1982–1987. [Google Scholar] [CrossRef]
  4. Schuster, P.; Jaffe, R. Quantum mechanics on manifolds embedded in Euclidean space. Ann. Phys. 2003, 307, 132–143. [Google Scholar] [CrossRef] [Green Version]
  5. Liu, Q.H.; Tong, C.L.; Lai, M.M. Constraint-induced mean curvature dependence of Cartesian momentum operators. J. Phys. A Math. Theor. 2007, 40, 4161. [Google Scholar] [CrossRef]
  6. Liu, Q.H.; Tang, L.H.; Xun, D.M. Geometric momentum: The proper momentum for a free particle on a two-dimensional sphere. Phys. Rev. A 2011, 84, 042101. [Google Scholar] [CrossRef]
  7. Wang, Y.L.; Jiang, H.; Zong, H.S. Geometric influences of a particle confined to a curved surface embedded in three-dimensional Euclidean space. Phys. Rev. A 2017, 96, 022116. [Google Scholar] [CrossRef]
  8. Wang, Y.L.; Lai, M.Y.; Wang, F.; Zong, H.S.; Chen, Y.F. Geometric effects resulting from square and circular confinements for a particle constrained to a space curve. Phys. Rev. A 2018, 97, 042108. [Google Scholar] [CrossRef] [Green Version]
  9. Wang, Y.L.; Lai, M.Y.; Wang, F.; Zong, H.S.; Chen, Y.F. Erratum: Geometric effects resulting from square and circular confinements for a particle constrained to a space curve. Phys. Rev. A 2018, 97, 069904. [Google Scholar] [CrossRef]
  10. Brandt, F.T.; Sánchez-Monroy, J.A. Induced magnetic moment for a spinless charged particle in the thin-layer approach. EPL 2015, 111, 67004. [Google Scholar] [CrossRef] [Green Version]
  11. Aoki, H.; Koshino, M.; Takeda, D.; Morise, H.; Kuroki, K. Electronic structure of periodic curved surfaces: Topological band structure. Phys. Rev. B 2001, 65, 035102. [Google Scholar] [CrossRef]
  12. Fujita, N.; Terasaki, O. Band structure of the P, D, and G surfaces. Phys. Rev. B 2005, 72, 085459. [Google Scholar] [CrossRef] [Green Version]
  13. Koshino, M.; Aoki, H. Electronic structure of an electron on the gyroid surface: A helical labyrinth. Phys. Rev. B 2005, 71, 073405. [Google Scholar] [CrossRef]
  14. Goldstone, J.; Jaffe, R.L. Bound states in twisting tubes. Phys. Rev. B 1992, 45, 14100–14107. [Google Scholar] [CrossRef]
  15. Cantele, G.; Ninno, D.; Iadonisi, G. Topological surface states in deformed quantum wires. Phys. Rev. B 2000, 61, 13730–13736. [Google Scholar] [CrossRef]
  16. Encinosa, M.; Mott, L. Curvature-induced toroidal bound states. Phys. Rev. A 2003, 68, 014102. [Google Scholar] [CrossRef]
  17. Taira, H.; Shima, H. Electronic States in Cylindrical Surfaces with Local Deformation. J. Phys. Conf. Ser. 2007, 61, 1142. [Google Scholar] [CrossRef]
  18. Taira, H.; Shima, H. Curvature effects on surface electron states in ballistic nanostructures. Surf. Sci. 2007, 601, 5270–5275. [Google Scholar] [CrossRef] [Green Version]
  19. Ortix, C.; van den Brink, J. Effect of curvature on the electronic structure and bound-state formation in rolled-up nanotubes. Phys. Rev. B 2010, 81, 165419. [Google Scholar] [CrossRef]
  20. Encinosa, M.; Etemadi, B. Energy shifts resulting from surface curvature of quantum nanostructures. Phys. Rev. A 1998, 58, 77–81. [Google Scholar] [CrossRef]
  21. Shima, H.; Yoshioka, H.; Onoe, J. Geometry-driven shift in the Tomonaga-Luttinger exponent of deformed cylinders. Phys. Rev. B 2009, 79, 201401. [Google Scholar] [CrossRef]
  22. Marchi, A.; Reggiani, S.; Rudan, M.; Bertoni, A. Coherent electron transport in bent cylindrical surfaces. Phys. Rev. B 2005, 72, 035403. [Google Scholar] [CrossRef]
  23. Zhang, E.; Zhang, S.; Wang, Q. Quantum transport in a curved one-dimensional quantum wire with spin-orbit interactions. Phys. Rev. B 2007, 75, 085308. [Google Scholar] [CrossRef]
  24. Cuoghi, G.; Ferrari, G.; Bertoni, A. Surface carrier transport in Y nanojunctions: Signatures of the geometric potential. Phys. Rev. B 2009, 79, 073410. [Google Scholar] [CrossRef]
  25. Szameit, A.; Dreisow, F.; Heinrich, M.; Keil, R.; Nolte, S.; Tünnermann, A.; Longhi, S. Geometric Potential and Transport in Photonic Topological Crystals. Phys. Rev. Lett. 2010, 104, 150403. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Spittel, R.; Uebel, P.; Bartelt, H.; Schmidt, M.A. Curvature-induced geometric momenta: the origin of waveguide dispersion of surface plasmons on metallic wires. Opt. Express 2015, 23, 12174. [Google Scholar] [CrossRef] [PubMed]
  27. Ouyang, P.; Mohta, V.; Jaffe, R. Dirac Particles in Twisted Tubes. Ann. Phys. 1999, 275, 297–313. [Google Scholar] [CrossRef] [Green Version]
  28. Novakovic, B.; Akis, R.; Knezevic, I. Transport in curved nanoribbons in a magnetic field. Phys. Rev. B 2011, 84, 195419. [Google Scholar] [CrossRef]
  29. Santos, F.; Fumeron, S.; Berche, B.; Moraes, F. Geometric effects in the electronic transport of deformed nanotubes. Nanotechnology 2016, 27, 135302. [Google Scholar] [CrossRef] [Green Version]
  30. Sakurai, J.J.; Kirkner, D.J. Modern Quantum Mechanics; Addison-Wesley: Reading, MA, USA, 1993. [Google Scholar]
  31. Li, X. Strain induced semiconductor nanotubes: from formation process to device applications. J. Phys. D Appl. Phys. 2008, 41, 193001. [Google Scholar] [CrossRef]
  32. Turner, A.M.; Vitelli, V.; Nelson, D.R. Vortices on curved surfaces. Rev. Mod. Phys. 2010, 82, 1301–1348. [Google Scholar] [CrossRef] [Green Version]
  33. Mutilin, S.V.; Soots, R.A.; Vorob’ev, A.B.; Ikusov, D.G.; Prinz, V.Y. Microtubes and corrugations fabricated from strained ZnTe/CdHgTe/HgTe/CdHgTe heterofilms with 2D electron–hole gas in the HgTe quantum well. J. Phys. D Appl. Phys. 2014, 47, 295301. [Google Scholar] [CrossRef]
  34. Wang, Y.L.; Liang, G.H.; Jiang, H.; Lu, W.T.; Zong, H.S. Transmission gaps from corrugations. J. Phys. D Appl. Phys. 2016, 49, 295103. [Google Scholar] [CrossRef] [Green Version]
  35. Maraner, P. A complete perturbative expansion for quantum mechanics with constraints. J. Phys. A Math. Gen. 1995, 28, 2939–2951. [Google Scholar] [CrossRef] [Green Version]
  36. Jensen, H.; Koppe, H. Quantum mechanics with constraints. Ann. Phys. 1971, 63, 586–591. [Google Scholar] [CrossRef]
  37. Encinosa, M. Surface geometric effects on tunneling rates. IEEE Trans. Electron. Devices 2000, 47, 878. [Google Scholar] [CrossRef]
  38. Li, Y.P.; Zaslavsky, A.; Tsui, D.C.; Santos, M.; Shayegan, M. Noise characteristics of double-barrier resonant-tunneling structures below 10 kHz. Phys. Rev. B 1990, 41, 8388–8391. [Google Scholar] [CrossRef]
  39. Chen, L.Y.; Ting, C.S. Theoretical investigation of noise characteristics of double-barrier resonant-tunneling systems. Phys. Rev. B 1991, 43, 4534–4537. [Google Scholar] [CrossRef]
  40. Chen, L.Y.; Ting, C.S. Dynamic properties of double-barrier resonant-tunneling structures. Phys. Rev. B 1991, 43, 2097–2105. [Google Scholar] [CrossRef]
  41. Kane, C.L.; Fisher, M.P.A. Transmission through barriers and resonant tunneling in an interacting one-dimensional electron gas. Phys. Rev. B 1992, 46, 15233–15262. [Google Scholar] [CrossRef]
  42. Doering, C.R.; Gadoua, J.C. Resonant activation over a fluctuating barrier. Phys. Rev. Lett. 1992, 69, 2318–2321. [Google Scholar] [CrossRef]
  43. Nguyen, H.S.; Vishnevsky, D.; Sturm, C.; Tanese, D.; Solnyshkov, D.; Galopin, E.; Lemaître, A.; Sagnes, I.; Amo, A.; Malpuech, G.; et al. Realization of a Double-Barrier Resonant Tunneling Diode for Cavity Polaritons. Phys. Rev. Lett. 2013, 110, 236601. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, H.X.; Zhan, A.; Xu, Y.D.; Chen, H.Y.; You, W.L.; Majumdar, A.; Jiang, J.H. Quantum many-body simulation using monolayer exciton-polaritons in coupled-cavities. J. Phys. Condens. Matter 2017, 29, 445703. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Khelif, A.; Djafari-Rouhani, B.; Vasseur, J.O.; Deymier, P.A. Transmission and dispersion relations of perfect and defect-containing waveguide structures in phononic band gap materials. Phys. Rev. B 2003, 68, 024302. [Google Scholar] [CrossRef]
  46. Chen, X.; Wang, L.G.; Li, C.F. Transmission gap, Bragg-like reflection, and Goos-Hänchen shifts near the Dirac point inside a negative-zero-positive index metamaterial slab. Phys. Rev. A 2009, 80, 043839. [Google Scholar] [CrossRef]
  47. Chen, X.; Tao, J.W. Design of electron wave filters in monolayer graphene by tunable transmission gap. Appl. Phys. Lett. 2009, 94, 262102. [Google Scholar] [CrossRef]
  48. Liu, X.W.; Stamp, A.P. Resonance splitting effect in multibarrier tunneling. Phys. Rev. B 1993, 47, 16605–16607. [Google Scholar] [CrossRef]
  49. Guo, Y.; Gu, B.L.; Li, Z.Q.; Yu, J.Z.; Kawazoe, Y. Resonance splitting effect and wave-vector filtering effect in magnetic superlattices. J. Appl. Phys. 1998, 83, 367218. [Google Scholar] [CrossRef]
  50. Zeng, Z.Y.; Zhang, L.D.; Yan, X.H.; You, J.Q. Resonant peak splitting for ballistic conductance in magnetic superlattices. Phys. Rev. B 1999, 60, 1515–1518. [Google Scholar] [CrossRef] [Green Version]

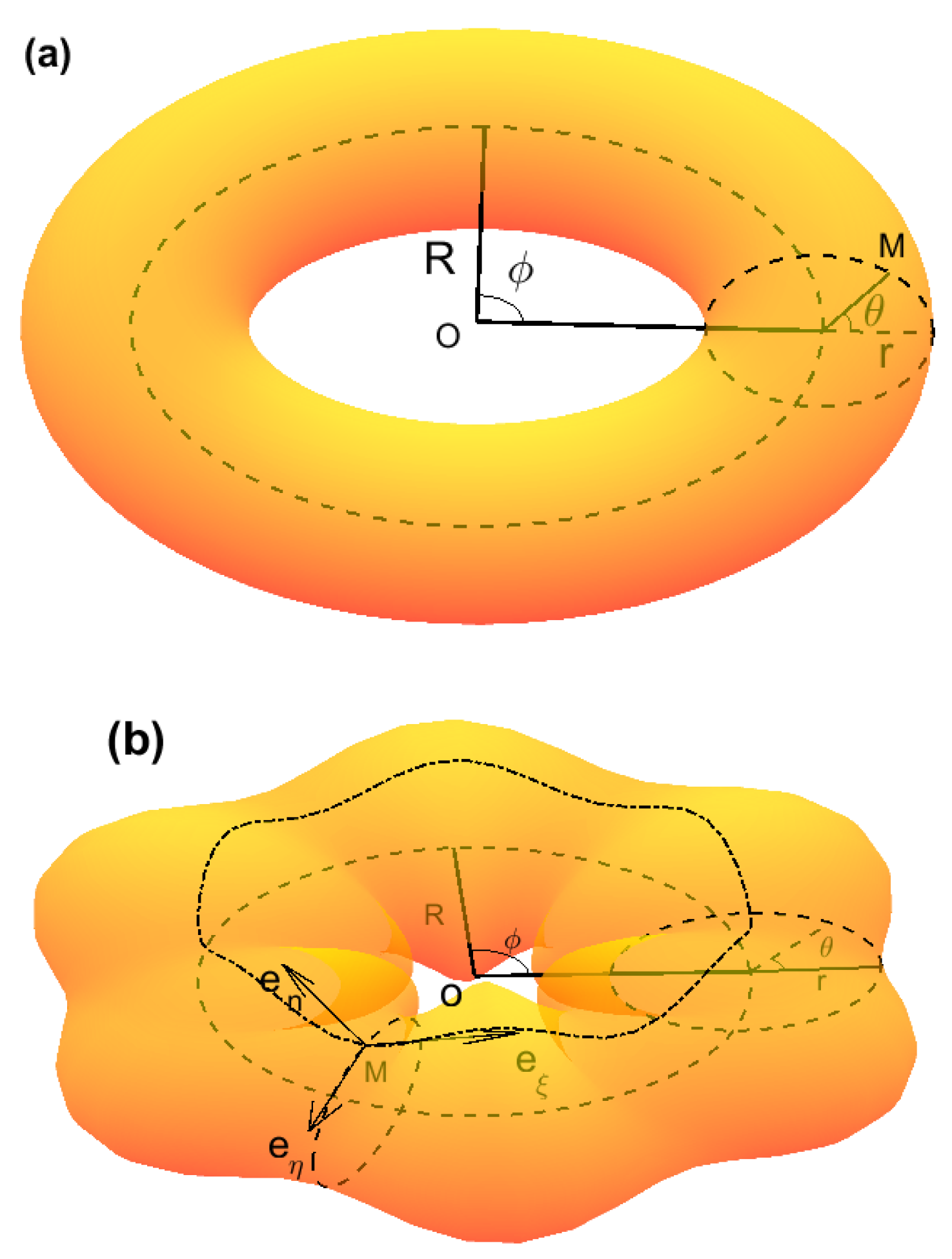

Figure 1. (a) schematic of a torus with r 0 = ( r x 0 , r y 0 , r z 0 ) ; (b) schematic of a corrugated torus described by r = ( r x , r y , r z ) with n = 6 . Here, R and ϕ are the large radius and azimuthal angle, and r and θ are the small radius and polar angle.
Figure 1. (a) schematic of a torus with r 0 = ( r x 0 , r y 0 , r z 0 ) ; (b) schematic of a corrugated torus described by r = ( r x , r y , r z ) with n = 6 . Here, R and ϕ are the large radius and azimuthal angle, and r and θ are the small radius and polar angle.
Condensedmatter 04 00003 g001

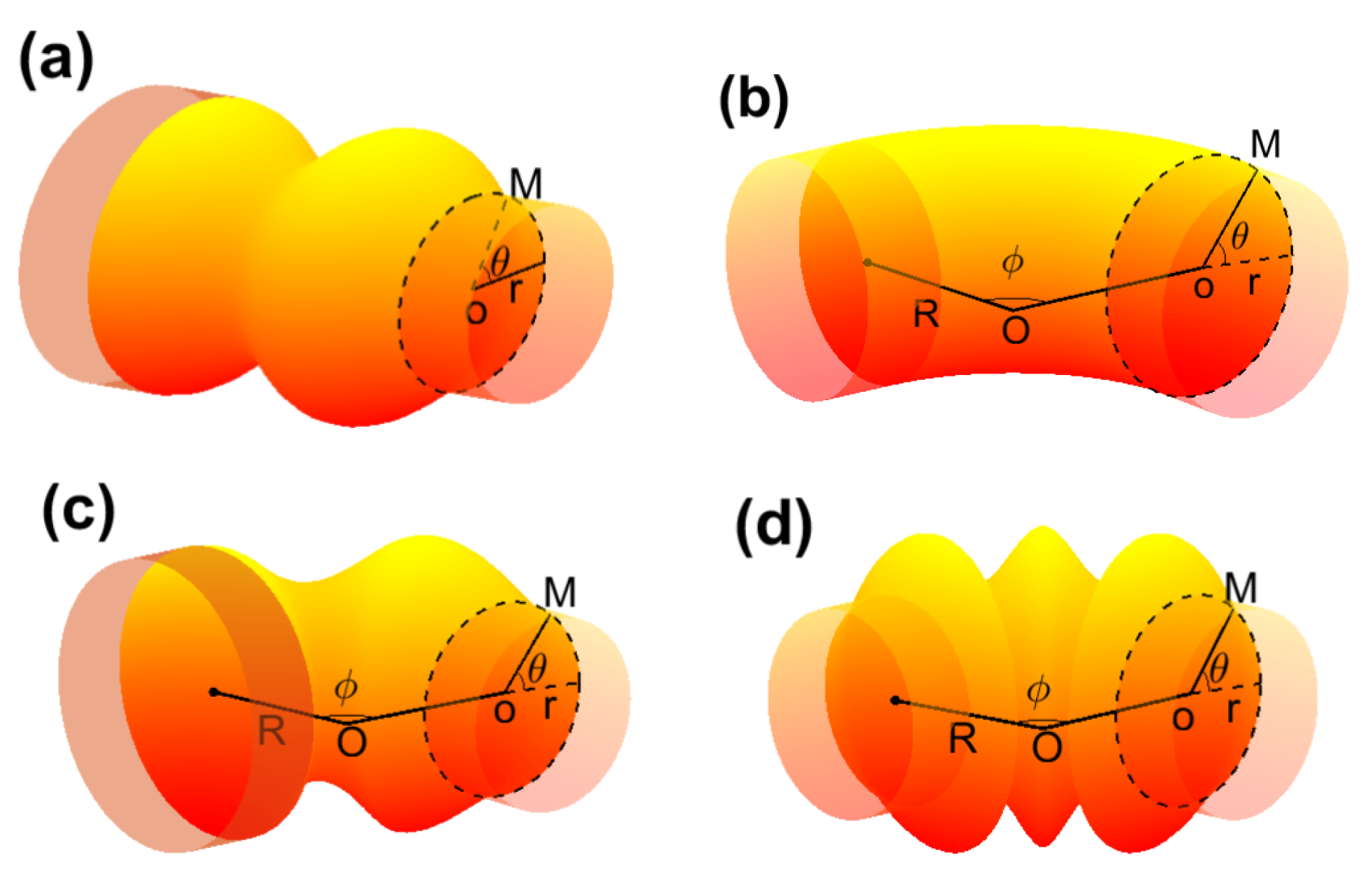

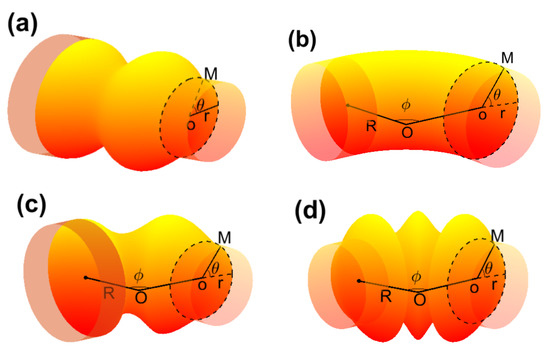

Figure 2. (a) schematic of a deformed tube; (b) schematic of a quarter torus; (c) schematic of a quarter corrugated torus with n = 6 ; (d) schematic of a quarter corrugated torus with n = 12 .
Figure 2. (a) schematic of a deformed tube; (b) schematic of a quarter torus; (c) schematic of a quarter corrugated torus with n = 6 ; (d) schematic of a quarter corrugated torus with n = 12 .
Condensedmatter 04 00003 g002

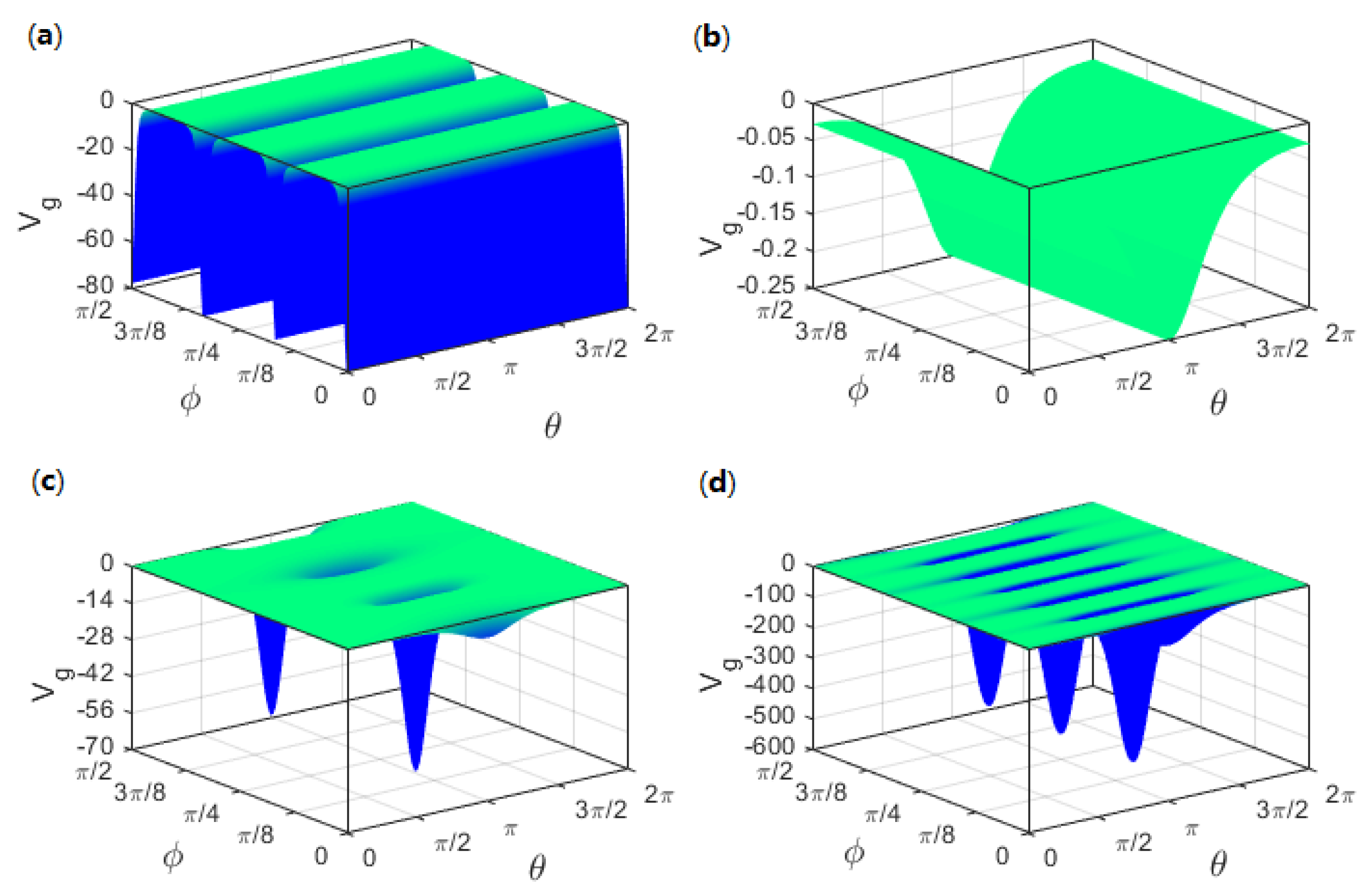

Figure 3. (a) the geometric potential versus θ and ϕ for a corrugated tube of r = 2 and ε = 1 ; (b) the geometric potential versus θ and ϕ for a quarter torus of R = 4 and r = 2 ; (c) the geometric potential versus θ and ϕ for a quarter corrugated torus with R = 4 , r = 2 , ε = 1 and n = 6 ; (d) the geometric potential versus θ and ϕ for a quarter corrugated torus with R = 4 , r = 2 , ε = 1 and n = 12 . Here, 2 2 m * is taken as an unit.
Figure 3. (a) the geometric potential versus θ and ϕ for a corrugated tube of r = 2 and ε = 1 ; (b) the geometric potential versus θ and ϕ for a quarter torus of R = 4 and r = 2 ; (c) the geometric potential versus θ and ϕ for a quarter corrugated torus with R = 4 , r = 2 , ε = 1 and n = 6 ; (d) the geometric potential versus θ and ϕ for a quarter corrugated torus with R = 4 , r = 2 , ε = 1 and n = 12 . Here, 2 2 m * is taken as an unit.
Condensedmatter 04 00003 g003

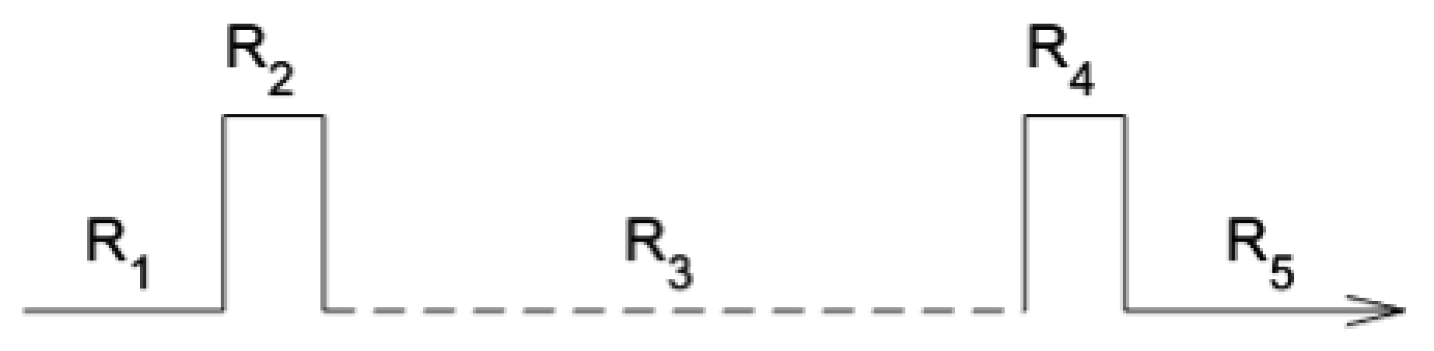

Figure 4. A simplified model is sketched for a quarter corrugated torus connected with two skirts. R 1 describes the head skirt, R 2 and R 4 are two barriers, R 3 denotes a quarter torus with corrugations and R 5 stands for the foot skirt.
Figure 4. A simplified model is sketched for a quarter corrugated torus connected with two skirts. R 1 describes the head skirt, R 2 and R 4 are two barriers, R 3 denotes a quarter torus with corrugations and R 5 stands for the foot skirt.
Condensedmatter 04 00003 g004

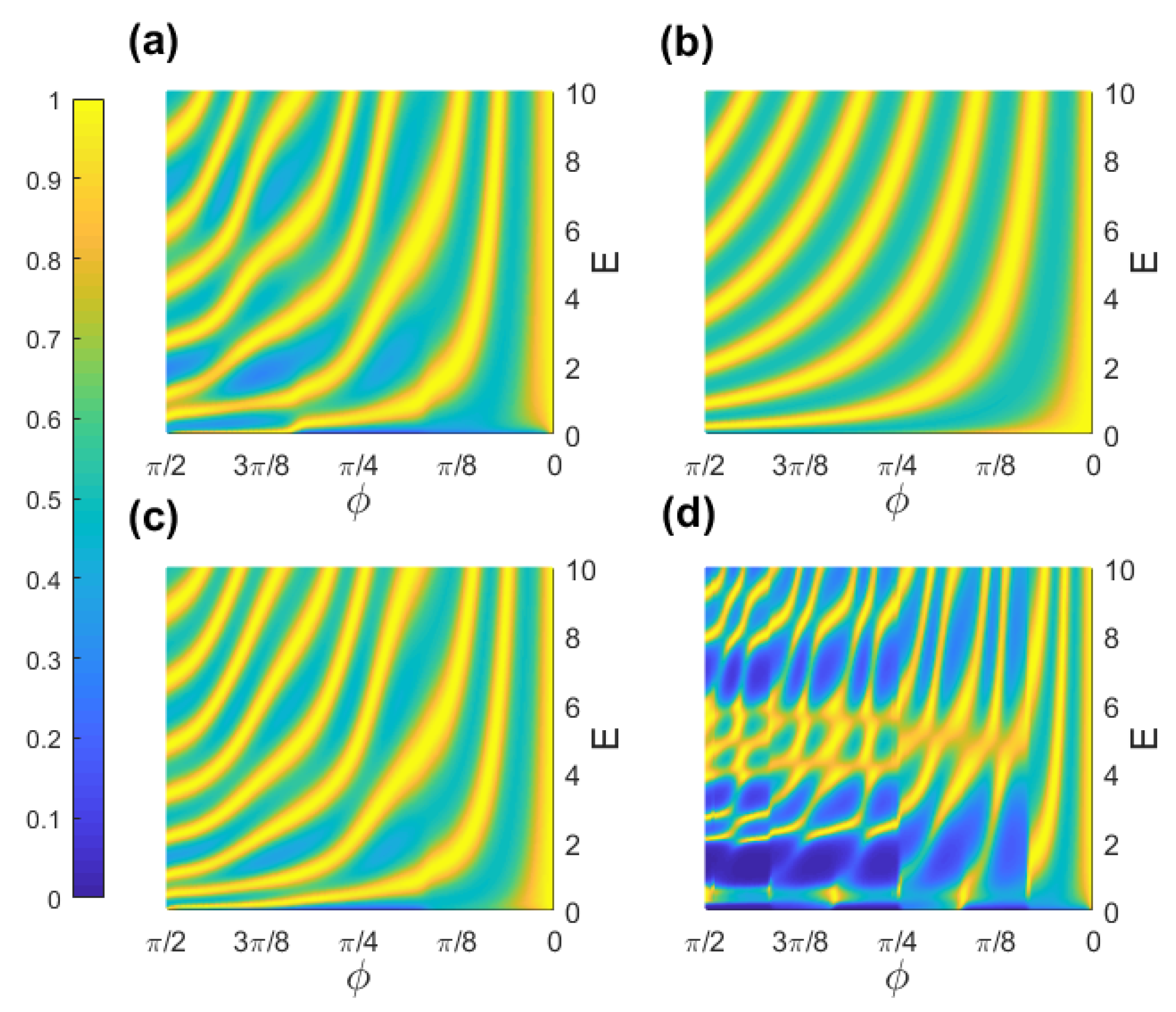

Figure 5. Transmission probability versus incident energy E and azimuthal angle ϕ for the model with V ( ξ ) = 20 meV in R 2 and R 4 , and for (a) V g ( ξ ) given by a corrugated tube; (b) V g ( ξ ) induced by a quarter torus; (c) V g ( ξ ) provided by a quarter torus with 1.5 corrugations; (d) V g ( ξ ) provided by a quarter torus with three corrugations, and m * = 0.173 m 0 and θ = π in R 3 , m * = m 0 , otherwise.
Figure 5. Transmission probability versus incident energy E and azimuthal angle ϕ for the model with V ( ξ ) = 20 meV in R 2 and R 4 , and for (a) V g ( ξ ) given by a corrugated tube; (b) V g ( ξ ) induced by a quarter torus; (c) V g ( ξ ) provided by a quarter torus with 1.5 corrugations; (d) V g ( ξ ) provided by a quarter torus with three corrugations, and m * = 0.173 m 0 and θ = π in R 3 , m * = m 0 , otherwise.
Condensedmatter 04 00003 g005

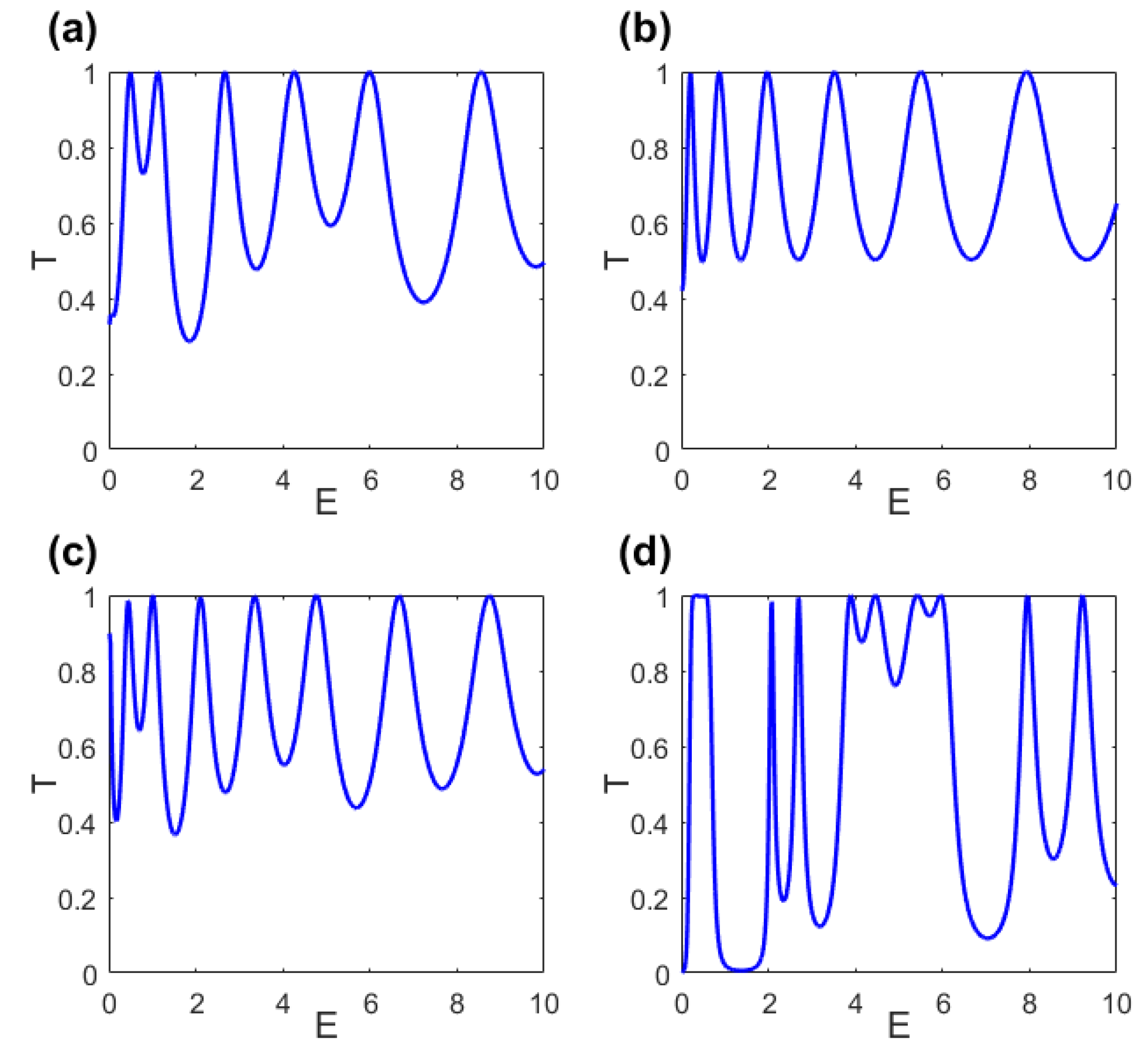

Figure 6. Transmission probability versus incident energy E for the model with V ( ξ ) = 20 meV in R 2 and R 4 , and for (a) V g ( ξ ) given by a corrugated tube; (b) V g ( ξ ) induced by a quarter torus; (c) V g ( ξ ) provided by a quarter torus with 1.5 corrugations; (d) V g ( ξ ) provided by a quarter torus with 3 corrugations, and θ = π and m * = 0.173 m 0 in R 3 , m * = m 0 , otherwise.
Figure 6. Transmission probability versus incident energy E for the model with V ( ξ ) = 20 meV in R 2 and R 4 , and for (a) V g ( ξ ) given by a corrugated tube; (b) V g ( ξ ) induced by a quarter torus; (c) V g ( ξ ) provided by a quarter torus with 1.5 corrugations; (d) V g ( ξ ) provided by a quarter torus with 3 corrugations, and θ = π and m * = 0.173 m 0 in R 3 , m * = m 0 , otherwise.
Condensedmatter 04 00003 g006

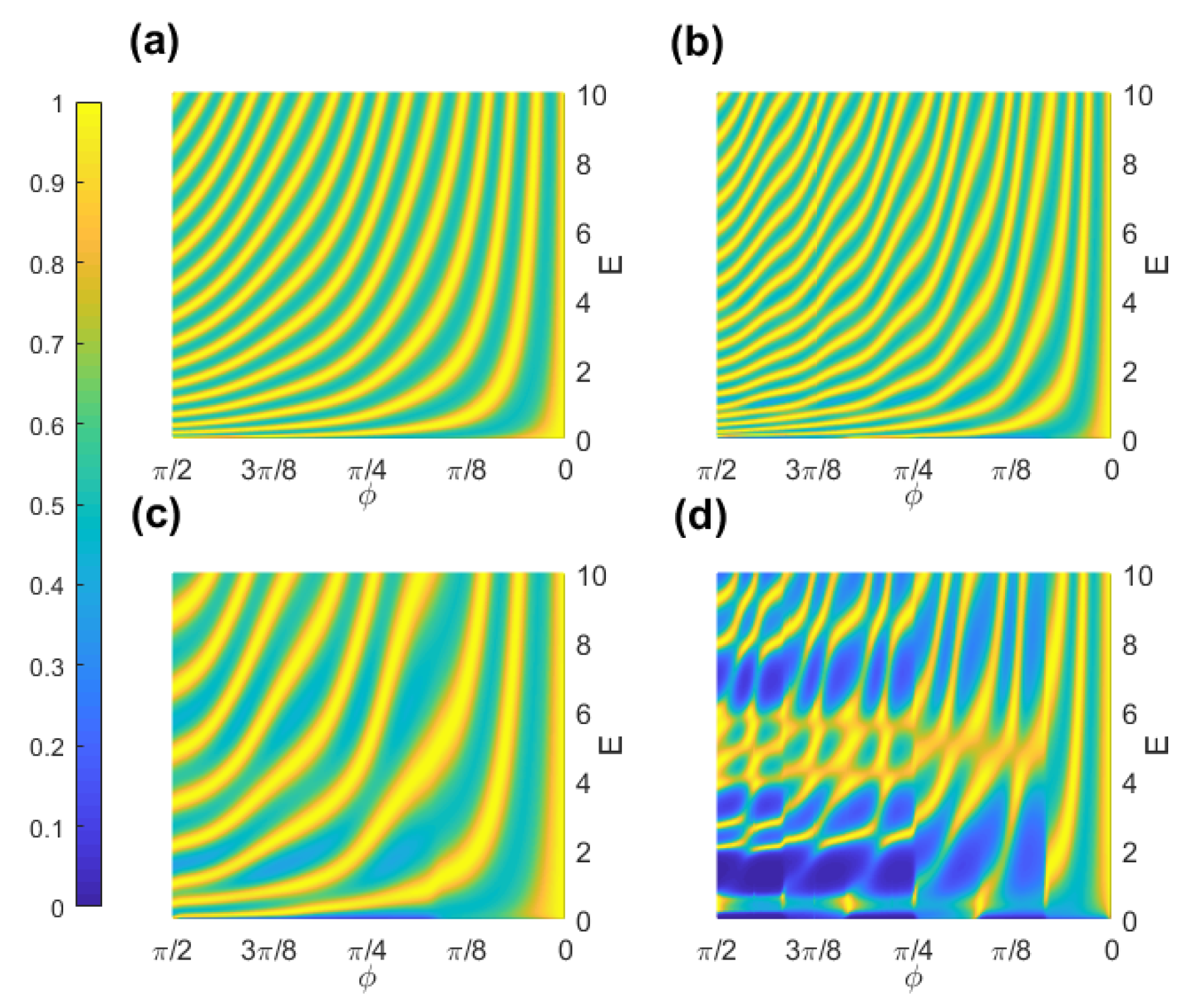

Figure 7. Surface plot of the transmission probability as a function of E and ϕ for V ( ξ ) = 20 meV in R 2 and R 4 regions and in R 3 (a) n = 6 with θ = π / 2 ; (b) n = 12 with θ = π / 2 ; (c) n = 6 with θ = π and (d) n = 12 with θ = π , and m * = 0.173 m 0 , m * = m 0 , otherwise.
Figure 7. Surface plot of the transmission probability as a function of E and ϕ for V ( ξ ) = 20 meV in R 2 and R 4 regions and in R 3 (a) n = 6 with θ = π / 2 ; (b) n = 12 with θ = π / 2 ; (c) n = 6 with θ = π and (d) n = 12 with θ = π , and m * = 0.173 m 0 , m * = m 0 , otherwise.
Condensedmatter 04 00003 g007

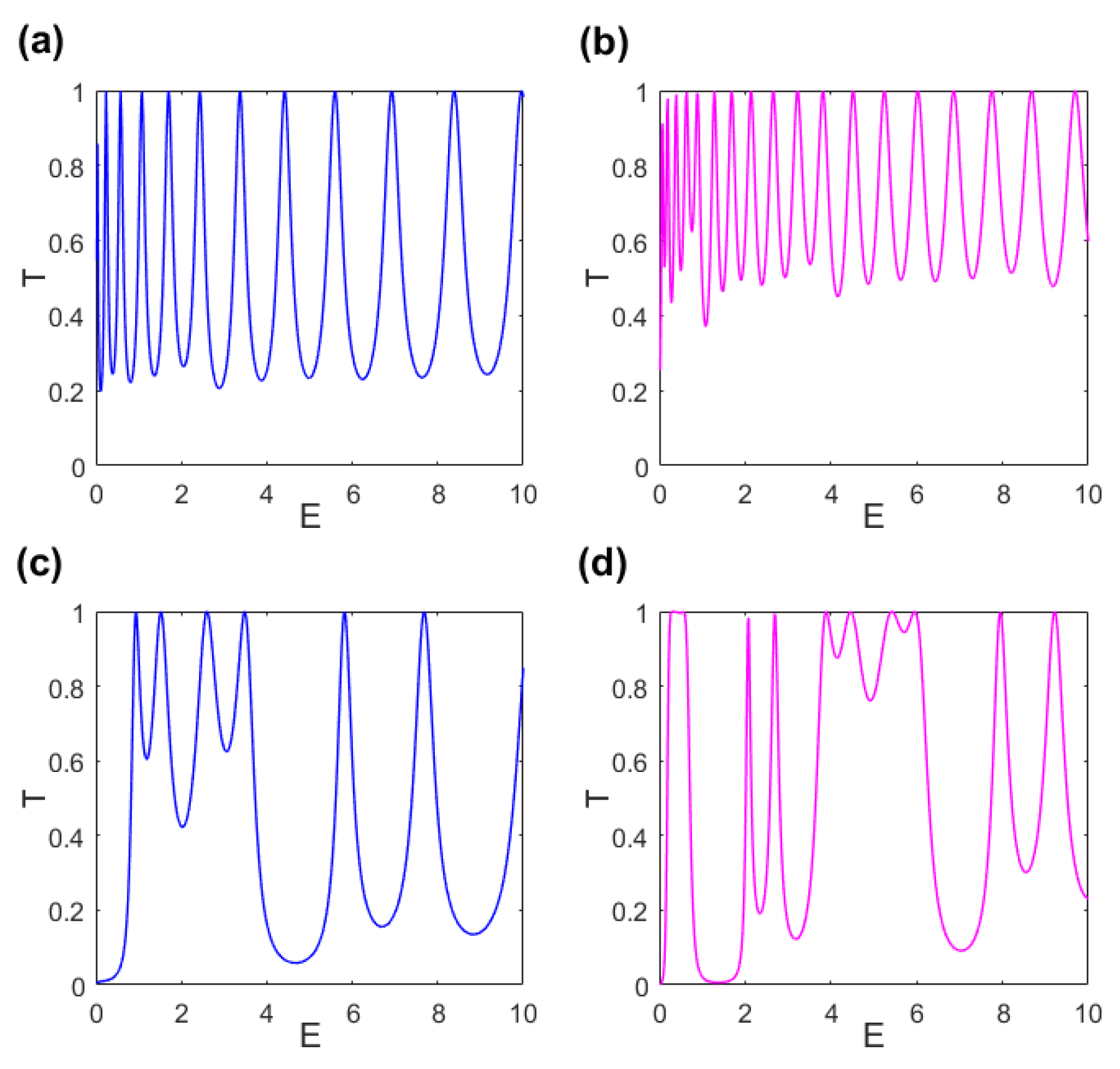

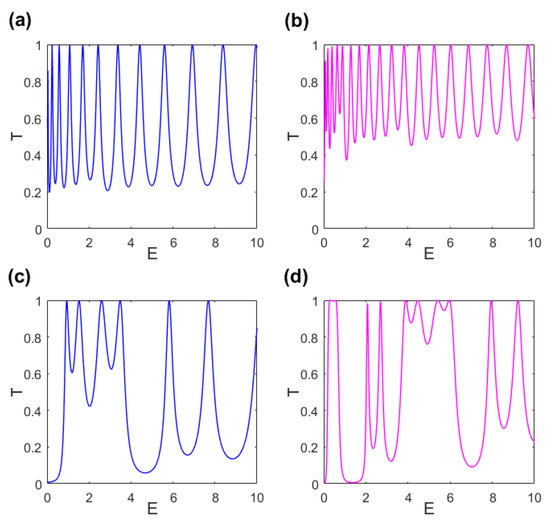

Figure 8. Surface plot of the transmission probability as a function of E with (a) m * = 0.067 m 0 and θ = π / 2 ; (b) m * = 0.173 m 0 and θ = π / 2 ; (c) m * = 0.067 m 0 and θ = π ; (d) m * = 0.173 m 0 and θ = π and n = 12 in R 3 , m * = m 0 elsewhere, V ( ξ ) = V g ( ξ ) in R 3 , V ( ξ ) = 20 meV in R 2 and R 4 and V ( ξ ) = 0 meV, otherwise.
