1 Million-Q Optomechanical Microdisk Resonators with Very Large Scale Integration ^†

Abstract

Cavity optomechanics have become a promising route towards the development of ultrasensitive sensors for a wide range of applications including mass, chemical and biological sensing. We demonstrate the potential of Very Large Scale Integration (VLSI) with state-of-the-art low-loss performance silicon optomechanical microdisks for real-world applications. We report microdisks exhibiting optical Whispering Gallery Modes (WGM) with 1 million quality factors. These high-Q microdisks allow their Brownian motion to be resolved at few 100 MHz in ambient air. Such performance shows our VLSI process is a viable approach for the next generation of high-end sensors operating in vacuum, gas or liquid phase.

1. Introduction

Nano-optomechanical resonators have attracted much interest in the last decade and have shown record displacement sensitivities [1]. On-chip cavity optomechanics has been a privileged route towards quantum studies [2] and has now become mature enough to reach a more applied realm, like mass [3] or chemical [4] sensing, as well as operation in liquid [5]. In cavity optomechanics, displacement sensitivity is proportional to optical quality factor and disk resonators are canonical objects for experimental—and optical performance demonstration [6,7]. Industrial applications however, will require reaching state-of-the-art performance with VLSI processes and packaging.

2. Fabrication

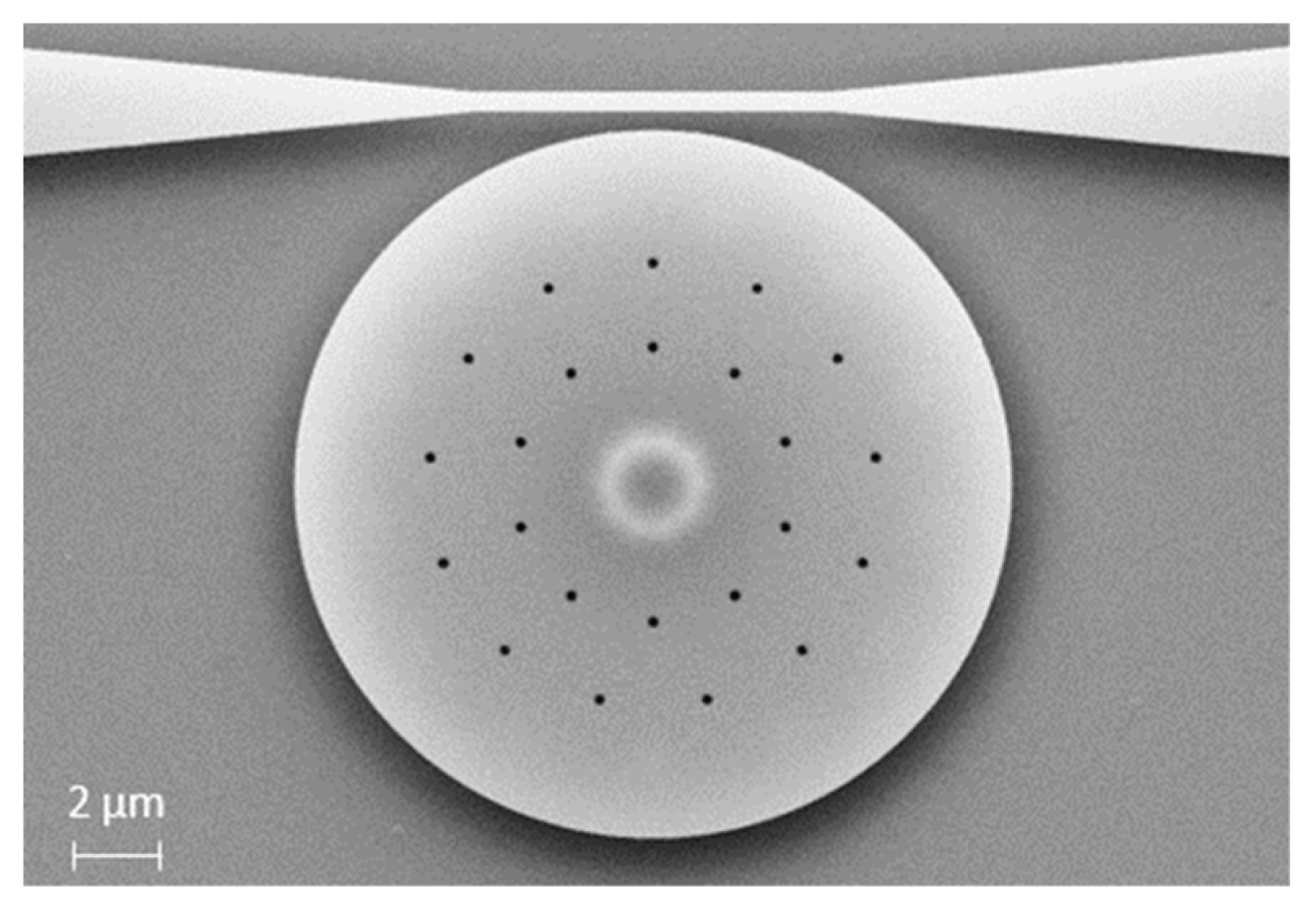

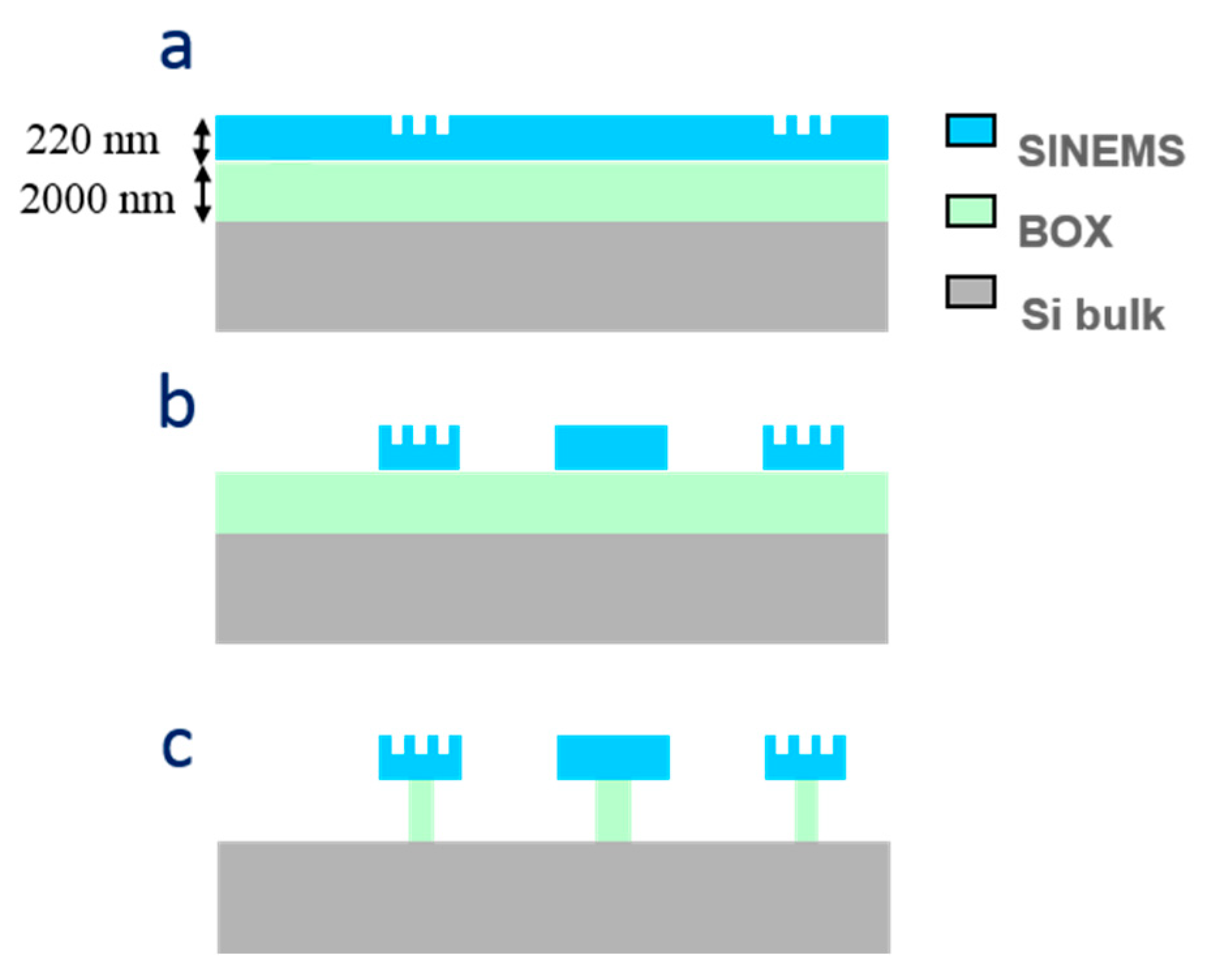

We show here silicon optomechanical microdisks fabricated in an industrial-grade clean-room on 200 mm SOI wafers (Figure 1). The fabrication process of these resonators is illustrated in Figure 2. The disks were fabricated from SOI wafers with 220 nm thick top layer. Partial silicon etching was first performed to pattern grating couplers (Figure 2a). A second lithography level was performed by Variable Shape Beam (VSB) and the optical waveguides and resonators were patterned by Induced Coupled Plasma (ICP) dry etching (Figure 2b). Resist exposure with VSB as well as the ICP process were optimized in order to minimize silicon wall roughness. Finally, disks were released using vapor HF etching (Figure 2c). Typical disk dimensions range from 2 to 20 µm in radius, with optical gaps of a few hundred nm.

On-chip light coupling is compatible with standard silicon photonics packaging and uses grating couplers. The devices are the first optomechanical resonators fabricated on 200 mm wafers with Variable Shaped Beam (VSB) lithography, allowing for both high fabrication throughput and high patterning resolution: each wafer contains more than 120,000 optomechanical devices.

3. Results

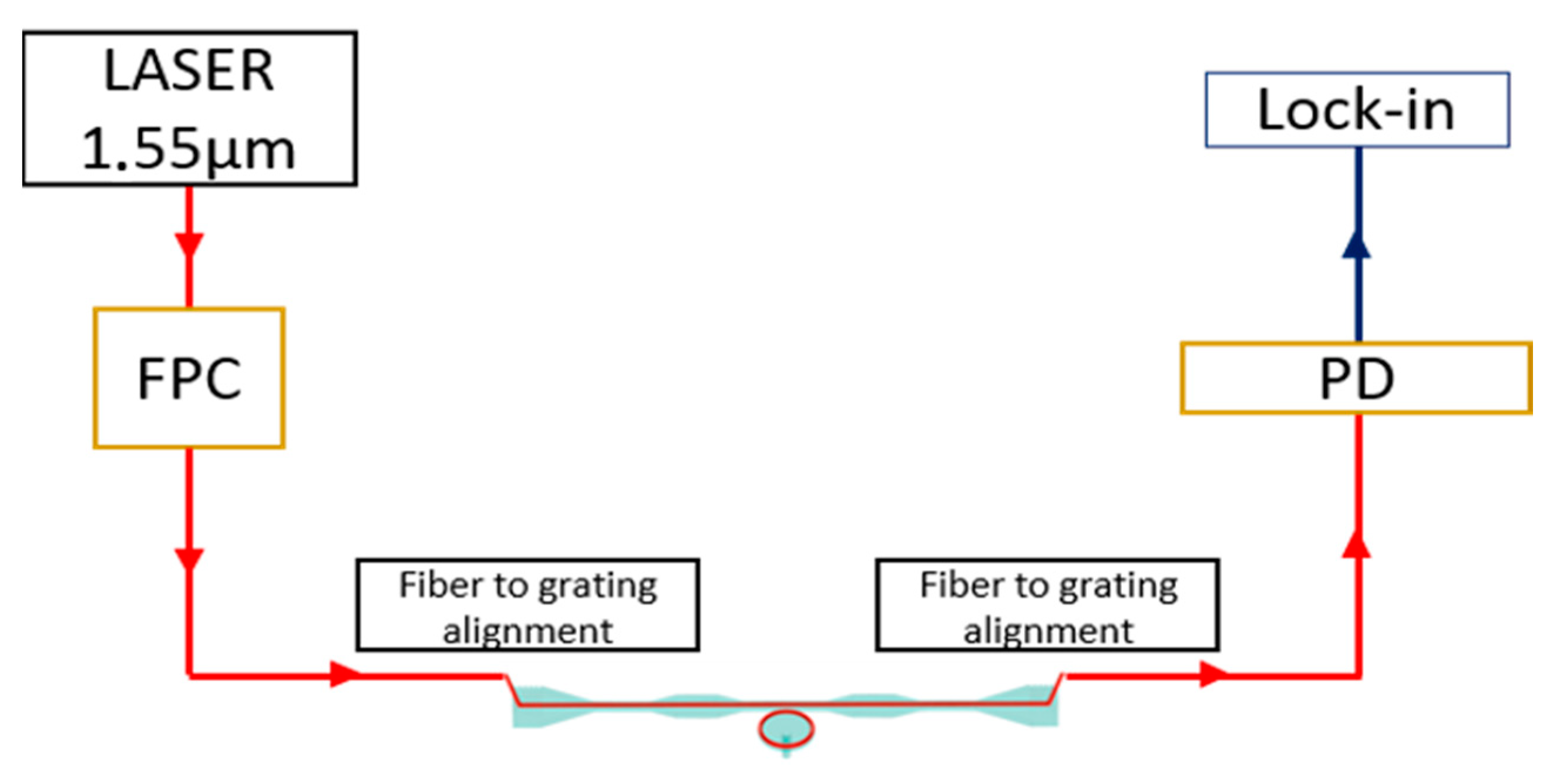

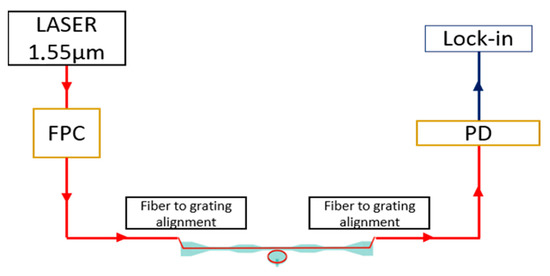

Our optomechanical set-up is described in Figure 3. It consists of a tunable external cavity laser (with wavelength around 1.55 µm), a fiber polarization control (FPC), a lock-in amplifier and a low-noise, variable gain photodetector (PD). The laser wavelength was swept to obtain optical spectra.

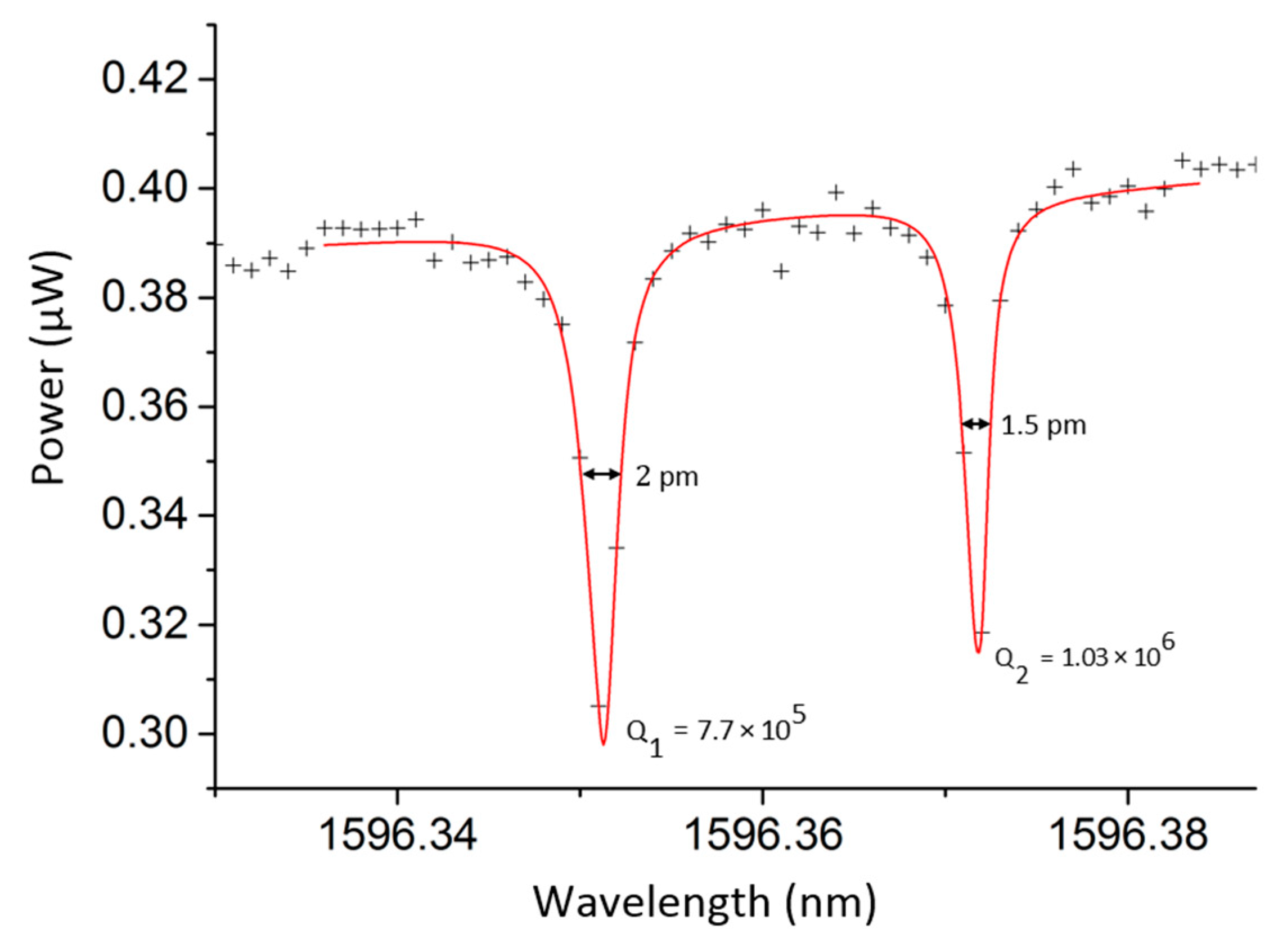

Typical examples of optical WGM close to 1.55 µm wavelength are shown in Figure 4. Most measured loaded quality factors are in the high 100,000 s, and many resonances show quality factors above 1 million. These figures are among the best measured in the literature with silicon disks of a few µm radius [6]. We attribute this to the very low silicon roughness obtained with our specifically developed lithography and etching processes.

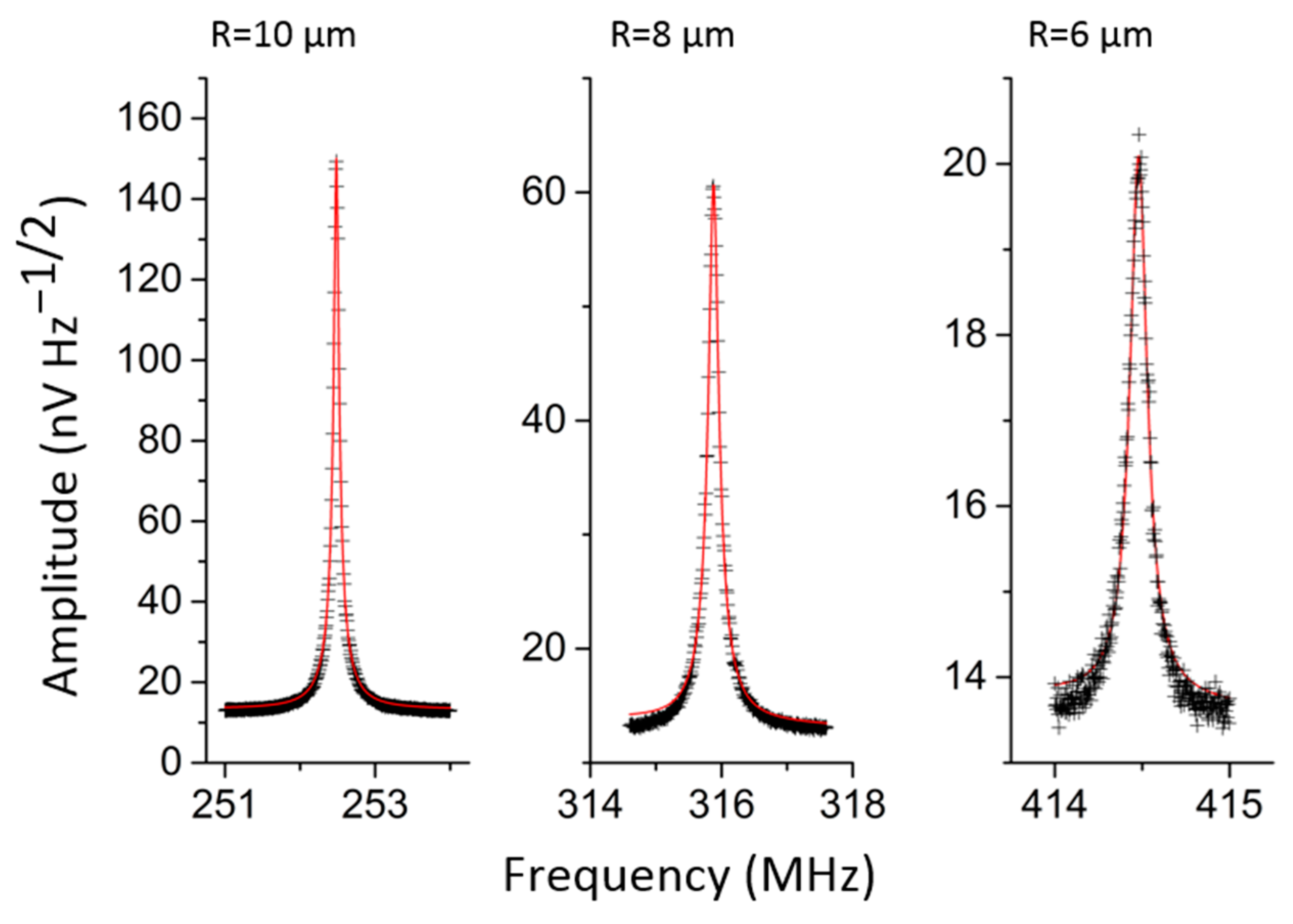

Such high-Q microdisks show a strong coupling between optical WGMs and Radial Breathing Modes (RBM). We were able to resolve the thermomechanical motion of our resonators at a few 100 MHz frequencies at ambient pressure (Figure 5).

Sufficient signal to noise ratio was obtained without the need for an optical amplifier while the optical power was kept low (100 s of nW at the device output) in order to limit thermo-optical and back-action effects. Indeed, with such high Qs, the resonator operates in the good cavity (sideband-resolved) regime: strong back-action with blue- or red-detuned operation can be expected. These results show our VLSI process is a promising route towards real-world sensors with optomechanical devices operating in vacuum, gas or liquid medium.
