Neutral Argon Plasma in Minimally Invasive Medical Devices for Therapy ^†

Abstract

This paper presents a solution to implement neutral argon plasma (NAP) in minimally invasive medical devices (MIMD) for therapy in endoscopy. The NAP system is composed by compressed inert gas (argon), two electrodes and a high-voltage source to ionize the argon. The miniaturization of an argon reservoir is required. The finite element method simulation of a small reservoir of 304 L stainless steel with 0.2 mm thick at 7 atm of pressure was performed. The results show maximum total deformation of 40 μm and maximum equivalent stress of 160 MPa, with no permanent deformation of argon reservoir.

1. Introduction

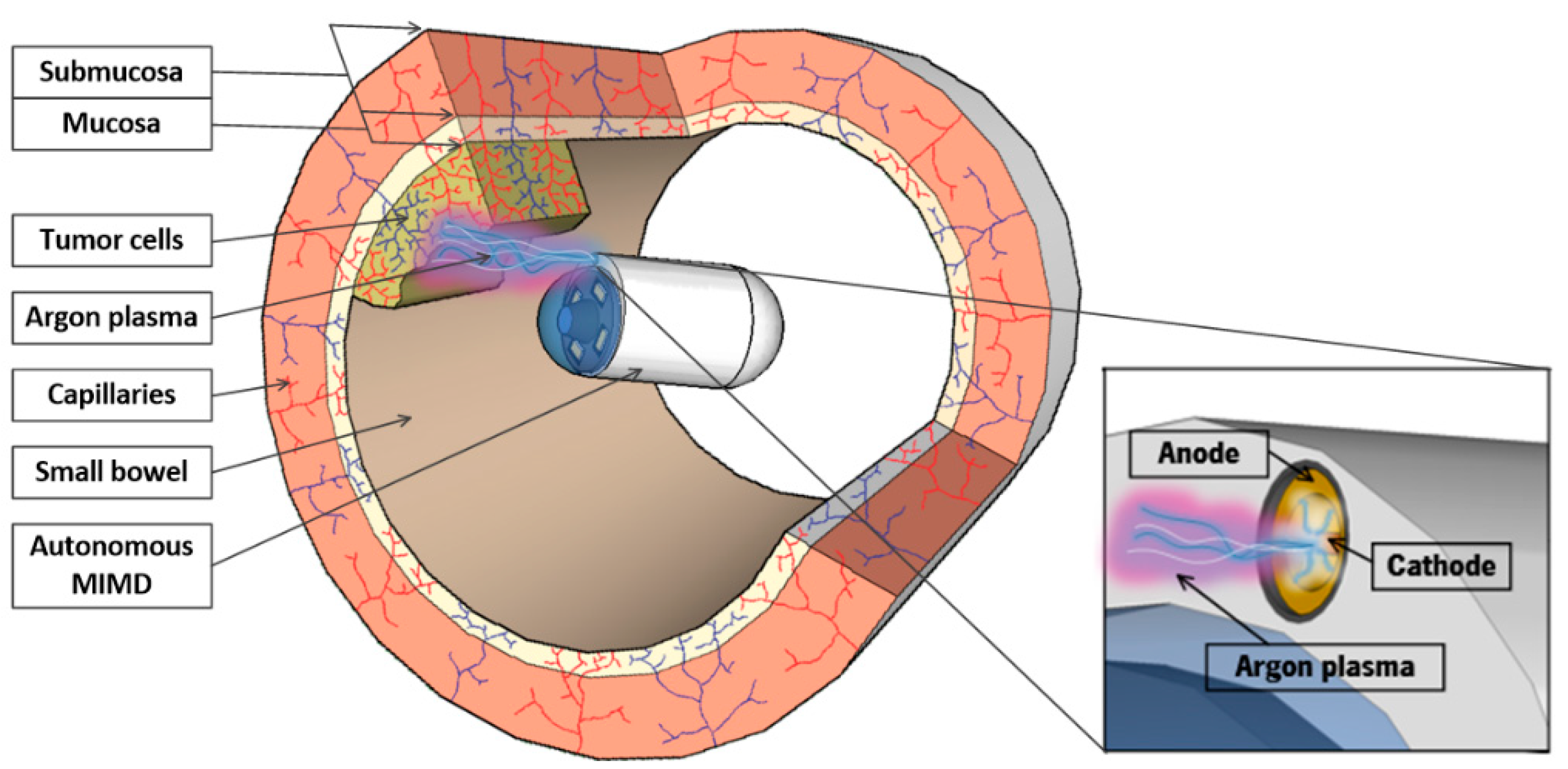

The research in minimally invasive medical devices (MIMD) have been growing in the last years. The appearance of new medical devices has allowed a better diagnosis and visualization of tissue until now not observed in a minimally invasive way. In endoscopy, for example, the endoscopic capsule has revolutionized the way of visualizing the gastrointestinal tract with painless visualization an access of the entire small bowel. Endoscopic capsules have evolved from passive diagnostic devices to active mobility systems with potential therapeutic capacity [1,2]. The latest developments in mobility of autonomous MIMD, with the possibility of stopping and rotating the MIMD, allow the integration of therapeutic techniques, such as the neutral argon plasma (NAP) [3]. Figure 1 envisages the integration of NAP in an autonomous MIMD.

Gas discharges in argon are growing in electrosurgery application, where they are used to induce mostly superficial thermal effects on tissue in a non-contact way. Argon plasma coagulation (APC) is a known monopolar electrosurgical technique in conventional endoscopy to coagulate and ablate tissue by applying argon discharges at atmospheric pressure [4,5]. Argon is used because it is biochemically inert, has a low breakdown voltage and is relatively inexpensive. Argon facilitates the arc of current between the target tissue and the active electrode (stainless steel or tungsten electrode, generally a wire), creating a low impedance zone through the air between the active electrode and the tissue. The distance between electrode and tissue is typically 2–10 mm. An alternating voltage with an amplitude of typically 4 kV and a frequency of 350 kHz is used to ionize the flow of inert gas in a tube surrounding the electrode and to generate the effect on the tissue without contact [4].

NAP is a therapeutic technique similar to APC and bipolar electrosurgery that allows the tissue coagulation by the electrically neutral flow of ionized gas [6]. This technique uses an inert gas (argon) and a voltage around 30 to 60 V (applied between internal bipolar electrodes) to ionize the argon and produce high-energy electrically neutral plasma. The plasma has thermal, kinetic and light energy that allows the destruction of tumor tissue and blood at the application site. Subsequently, a small coagulum is formed which seals the surface of the tissue [6,7,8]. The depth of tissue penetration ranges from 0.5 to 2 mm, depending on the application time of plasma in the tissue (1 to 3 s). In contrast to electrosurgery techniques, the NAP has a remarkably gentle effect on tissue, minimizing the thermal damage to the underlying and adjacent tissues. This technique uses approximately 10% of the gas flow used in the APC. The gas flow is typically less than 0.4 L/min, reducing the risk of air embolism and intraperitoneal overpressure [6,7].

NAP is currently used in several surgical procedures including gynecology, surgical oncology, plastic surgery, thoracic surgery, hepatic and general surgery [8]. However, with this paper, we intend to introduce this technique in MIMD for therapy in endoscopy domain. A small argon reservoir is required to perform the NAP with MIMD. The following sections discuss the design and simulation of the argon reservoir.

2. Materials and Methods

The volume is one of the three state variables of gases, the others are the pressure and the temperature. The ideal gas law relates pressure, volume and temperature to the number of moles of the gas:

P.V = n.R.T,

(1)

where P is the gas pressure, V is the gas volume, n is the number of moles of the gas, R is the universal gas constant (0.08206 L.atm.mol⁻¹ K⁻¹) and T is the absolute temperature of the gas (in Kelvin). This law states that if the volume and temperature of a fixed amount of gas do not change, the pressure also remains constant [9].

Boyle’s law says that if the temperature is kept constant, the volume of a given amount of gas is inversely proportional to the pressure, i.e., the product of pressure and volume is a constant [9]. For comparing the same substance under two different sets of conditions, the law is expressed by:

P₁.V₁ = P₂.V₂,

(2)

where P₁ and V₁ represent the original gas pressure and volume, respectively, and P₂ and V₂ represent the gas pressure and volume of the second condition, respectively.

The gas flow used in the NAP technique is less than 0.4 L/min or 6.67 mL/s. Assuming an argon flow of 3.3(3) mL/s (0.2 L/min) during 1 s, so the volume of argon used in the treatment will be 3.3(3) mL or 3333 mm³ (1 atm, 37 °C). A pressure inside the argon reservoir of 7 atm and a temperature of 37 °C were considered in the calculations of the argon reservoir volume. At the same temperature and maintaining the same amount of matter (n), the volume of argon reservoir is:

P₁.V₁ = P₂.V₂ ⇔ 1 × 3333 = 7 × V₂ ⇔ V₂ = 476.1 mm³,

(3)

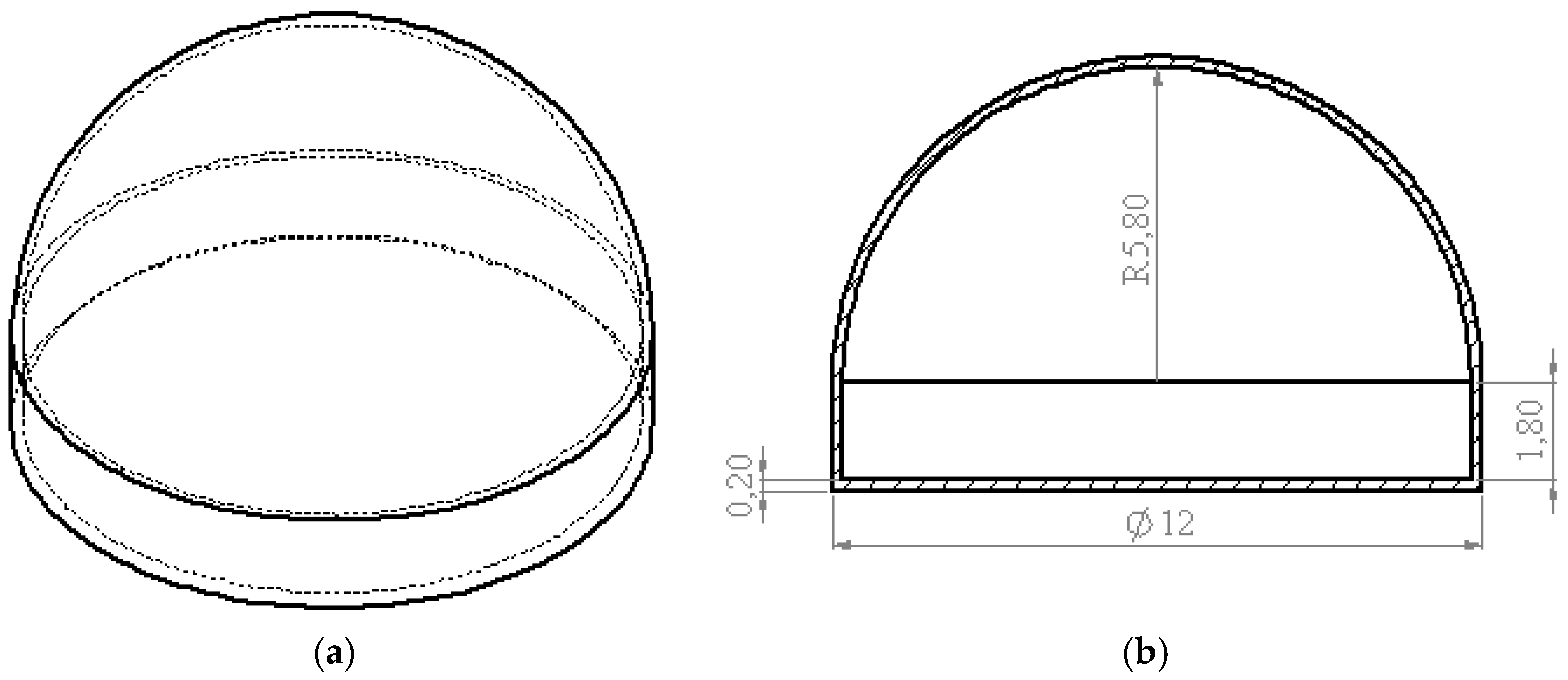

So the volume of argon reservoir at a pressure of 7 atm to perform the NAP at 0.2 L/min during 1 s is approximately 476 mm³. Figure 2 presents the dimensions of argon reservoir to implement inside the MIMD. The shape of argon reservoir matches with the current MIMD for endoscopy.

3. Results

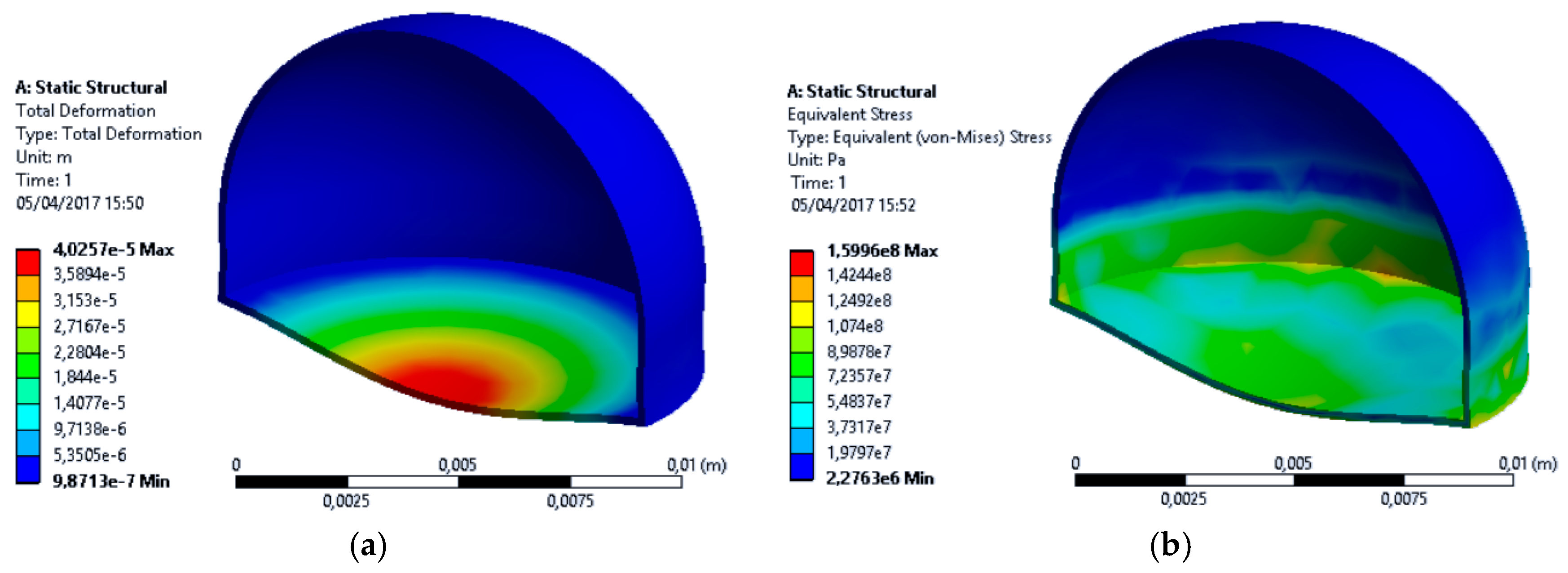

The reservoir is composed by 304 L stainless steel corresponding to the properties of the American Society for Testing and Materials (ASTM) with 0.2 mm thick. The total mass of argon reservoir is approximately 642 mg. A finite element method (FEM) study of static analysis for pressure and temperature was performed to simulate the argon reservoir deformation. A mesh with default parameters was generated, with 2951 elements and 5898 nodes. A pressure inside the reservoir of 7 atm (709,275 Pa) and an external temperature of 37 °C (temperature inside the human body) was considered. Figure 3 presents the FEM results of total deformation and equivalent stress of argon reservoir.

The maximum total deformation and maximum equivalent stress were approximately 40 μm and 160 MPa, respectively.

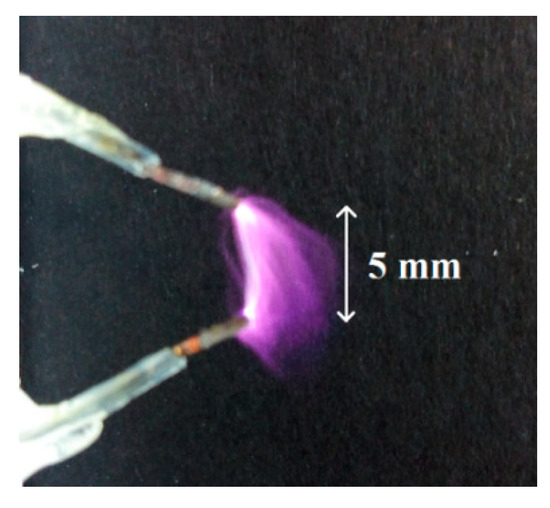

A macroscale experimental setup was mounted to produce argon plasma. Figure 4 shows the neutral argon plasma arc when an electric discharge occurs between the two electrodes (separated by 5 mm with an argon gas flow of 1 L/min).

4. Discussion

The maximum equivalent stress (160 MPa) is less than tensile yield strength of 304 L stainless steel (207 MPa). The tensile yield strength point determines the performance limits of the material, since it represents the maximum stress that can be applied without permanent deformation. So, the reduced total deformation and the no induction of permanent deformation at the maximum equivalent stress, assure that the projected argon reservoir will withstand the pressure of 7 atm at 37 °C. The experimental results demonstrate the neutral argon plasma arc when an electric discharge occurs between the two electrodes. The integration of the NAP in MIMD will be a breakthrough for the new autonomous MIMD with therapy.
