Sensitivity Improvement of Thermoelectric Hydrocarbon Sensors: Combination of Glass-Ceramic Tapes and Alumina Substrates ^†

Abstract

This contribution presents the integration of glass-ceramic tapes on alumina substrates to increase the sensitivity of thermoelectric hydrocarbon gas sensors. Both ceramic materials have different thermal conductivity. Their combination into one sensor structure significantly improves the sensitivity by at the same time maintaining the excellent mechanical stability at high temperatures. Furthermore, this special technology allows for an easy integration of additional functional elements such as screen-printed thermocouples for temperature control purposes.

1. Introduction

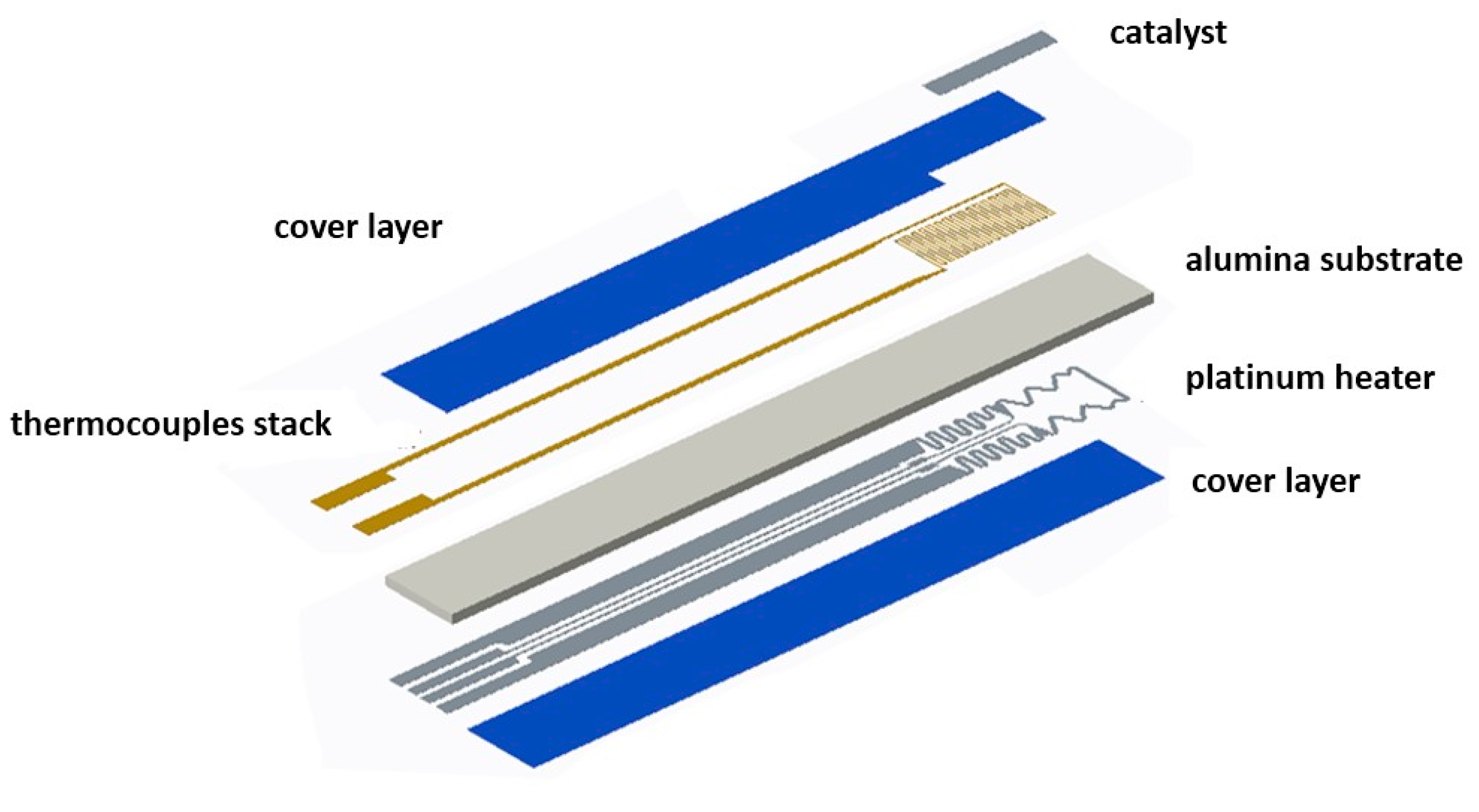

Many applications require high-temperature stable and highly sensitive hydrocarbon (HC) sensors, especially for automotive exhaust applications [1,2,3,4]. In previous works, a sensor based on the thermoelectric principle was successfully tested for application in automotive exhausts [4,5]. Such sensors are built as follows: On the front side of a ceramic substrate, two conducting materials (here: gold and platinum) are screen-printed to form a stack of thermocouples (thermopile). The area of one junction is covered with an inert layer whereas the other one is coated with a catalyst (Figure 1).

An integrated thick-film heater on the reverse side sets the absolute sensor temperature (e.g., to 600 °C) to keep the catalyst active. Exothermic oxidation of hydrocarbons leads to a temperature increase at the active coating, which generates a thermo-voltage between both junctions. This sensor response depends linearly on the HC concentration, shows a long-term stable signal, and fast response and recovery times.

Its sensitivity depends also on the substrate material, respectively its thermal conductivity λ, due to the heat transfer between both junctions. Whereas alumina-based sensors offer good mechanical stability at high temperatures, their sensitivity is low due to its relatively high thermal conductivity. Using LTCC ceramics as substrate material with low thermal conductivity increases sensitivity, but the homogeneity of the temperature field becomes worse [6]. Moreover, LTCC-based sensors are less long-term stable at high temperatures. This effect has already been very successfully applied to build an LTCC-based differential scanning calorimeter (DSC) [7,8].

In this study, we show how such thermoelectric devices can be improved significantly with respect to sensitivity by maintaining both a large homogenous temperature field in the desired area and the mechanical stability. To achieve this, both above mentioned substrate materials and techniques were combined.

2. Sensor Construction

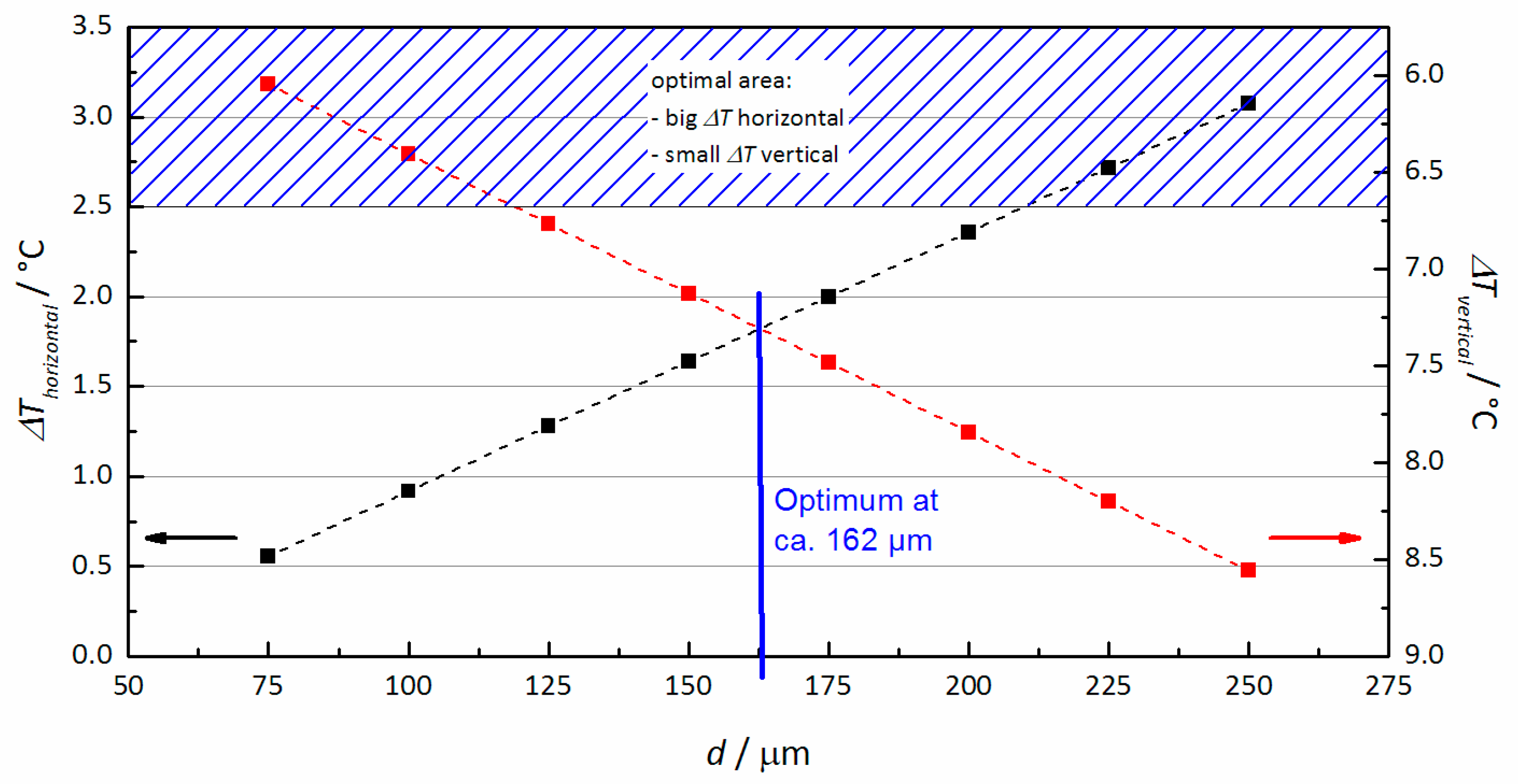

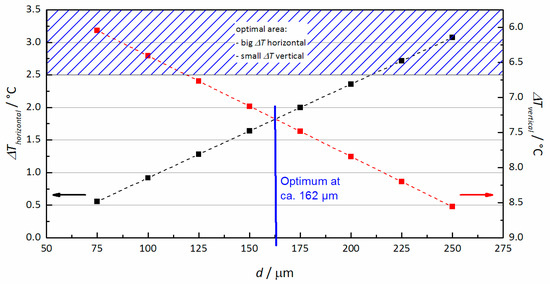

The design of the sensor was supported by FEM analysis. The main goal of the FEM analysis was to find an optimal LTCC layer thickness at which the sensor signal becomes as high as possible (temperature difference ∆T_horizontal between catalytically active layer and inert layer). At the same time, the vertical temperature difference ∆T_vertical between front and reverse side of the heater area should be as small as possible. The simulation results are summarized in Figure 2.

As expected, the sensor signal increases when the LTCC layer thickness d is increased. However, the vertical temperature difference increases as well. An optimum LTCC layer thickness is about 160 μm. Since the thicknesses of commercially available tapes are standardized, we decided to build two versions of sensors, with LTCC layer thicknesses of about 110 μm and 230 μm, respectively.

As basic substrates, a 96% alumina (Ceramtec) with already screen-printed and fired platinum heaters on the reverse side and a single thick-film type-S thermocouple (Pt/PtRh, DuPont, for details see [9]) for temperature control on the front side were used. Then, a low temperature transfer tape (LTTT, ESL 41020) was laminated and co-fired at 850 °C onto the front side.

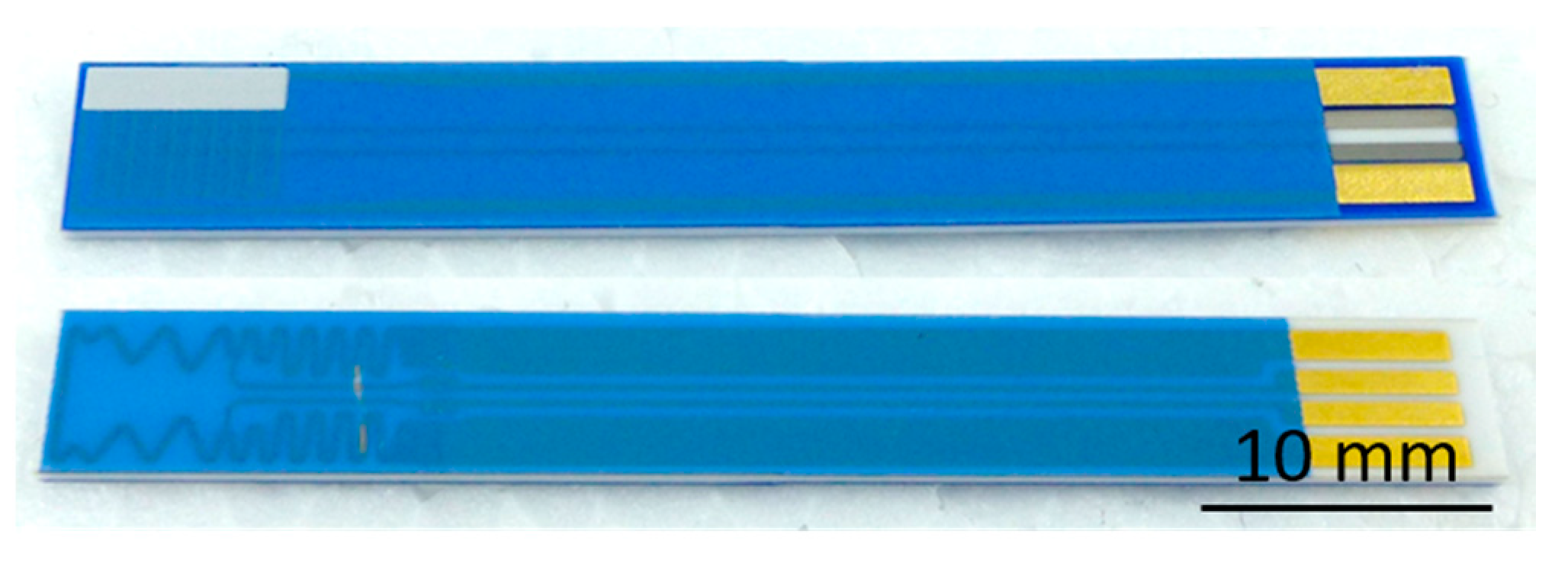

As mentioned above, we manufactured two different types of sensors to measure the influence of LTTT layer thickness on the sensor sensitivity: 110 μm and 230 μm. Upon the LTTT, the thermopile structure (Au/Pt, 15 thermocouples in series) as well as the catalyst (alumina with 1 wt % Pt) were screen-printed and fired (Figure 3).

3. Sensor Characterization

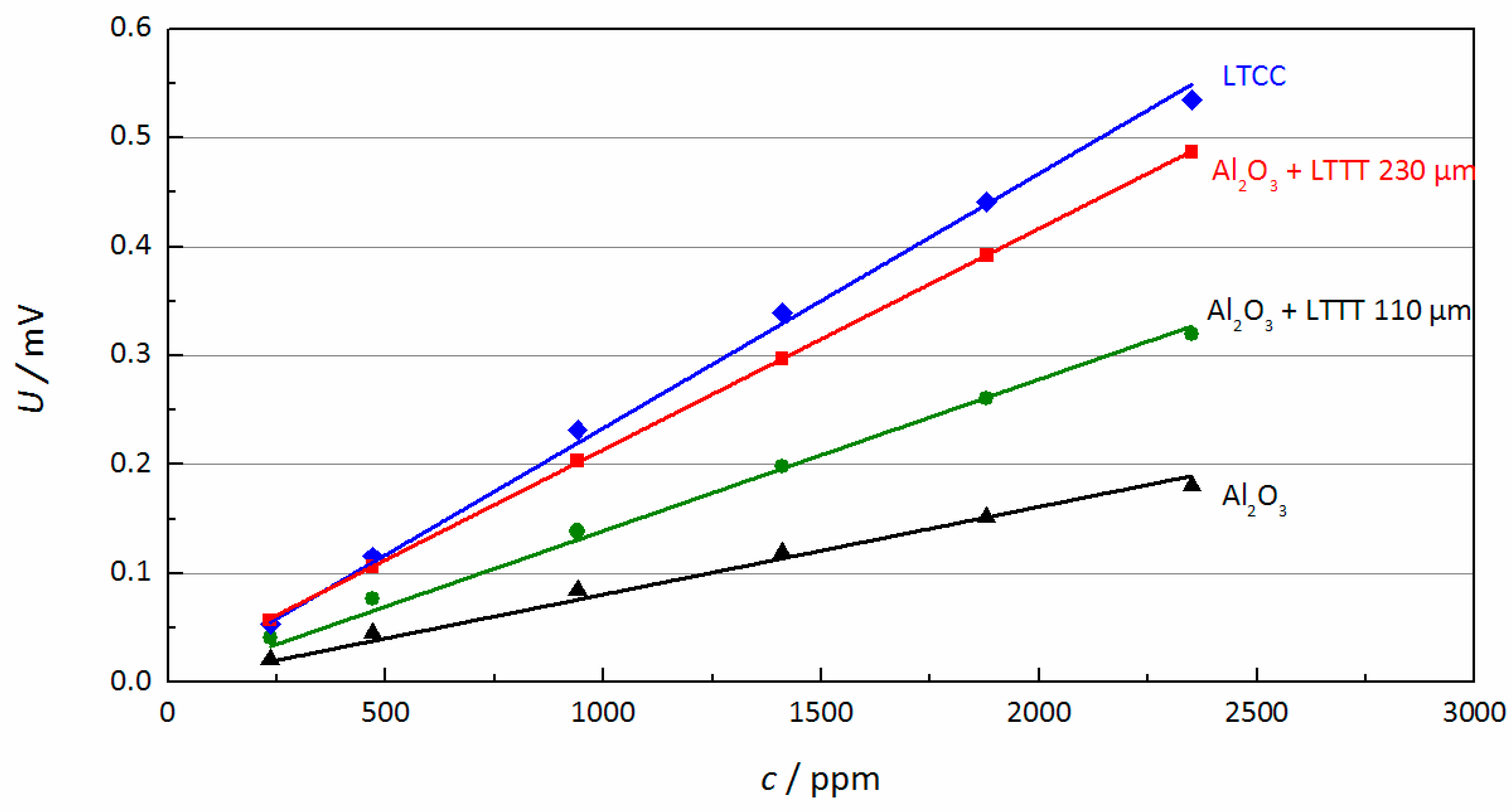

These sensor devices were characterized in a lab test bench by admixing different propene concentrations to a base gas (N₂/10% O₂). Time dependent data were evaluated to characteristic curves (Figure 4).

All sensors showed a linear dependency on the HC concentration, but one can clearly see the influence of the substrate material. The sensitivity for sensors on pure LTCC substrates (λ = 2.8 W/mK) is three times higher than for sensors made of alumina substrates (λ ~ 9 W/mK @ 600 °C, [10]. The introduction of LTTT layers improve significantly the sensors sensitivity compared to the alumina-based devices. For a 110 μm thick LTTT layer, the sensor signal is as twice as high. A 230-μm layer shows characteristics close to LTCC-based sensors.

4. Conclusions

In this study it was shown that the combination of two materials with different thermal properties can significantly improve the sensor sensitivity, maintaining at the same time the necessary mechanical and long-term stability. The presented hydrocarbon sensors can be used not only to monitor automotive exhausts, but can also find applications, for instance, in gas analysis of firewood combustion processes [11].

To enhance the selectivity, a temperature-modulated operation (in the range of 100 to 600 °C) was suggested in [12]. Depending on the catalyst material, different gas species start to react at certain temperatures. So, one can distinguish between various hydrocarbons by measuring their light-off behavior. The here-presented setup is beneficial for such applications due to the possibility to integrate an additional thermocouple for more precise temperature control.
