Optical System Design and Characterization of MEMS Mirror-Based SPAD LiDAR System for Smart Factory Applications ^†

Abstract

This paper presents the optical system design for the MEMS mirror-based SPAD LiDAR system. The transmitter of the proposed LiDAR system consists of related optics for incident beam expansion and a piezoelectric MEMS mirror for a wide-scanning field of view. For the receiver unit, an SPAD array is utilized to collect the laser beam reflected from the target objects at a smart factory. The optical system of the proposed LiDAR system is presented, designed, and analyzed in various ways.

1. Introduction

Compared to the conventional mechanical LiDAR system, light-steering MEMS mirrors have been utilized for compact, cost-effective, and high-performance LiDAR systems [1]. In this paper, a MEMS mirror-based SPAD LiDAR system for smart factory applications is proposed, optimized for real-time safety monitoring of working environments. This paper mainly deals with the significant optical design points for the SPAD LiDAR system using a MEMS mirror.

2. Piezoelectric MEMS Mirror-Based SPAD LiDAR System

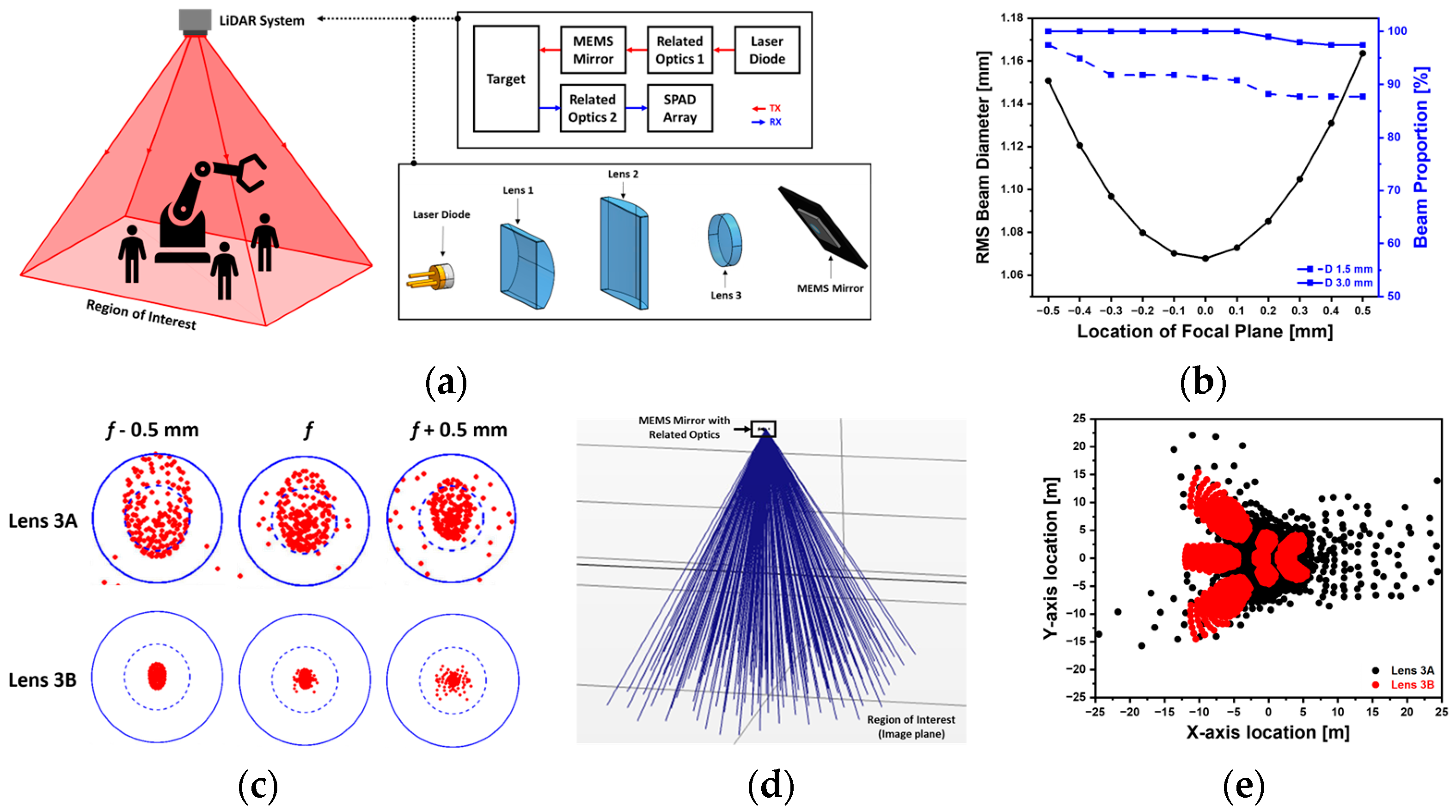

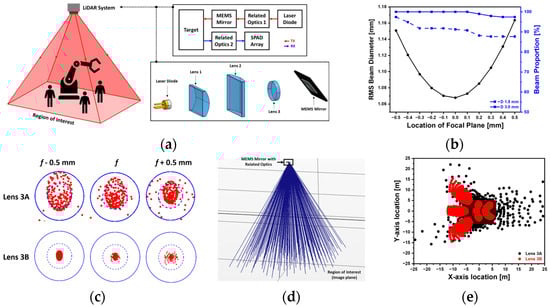

The proposed piezoelectric MEMS mirror-based SPAD LiDAR system is shown in Figure 1a. The 905 nm pulsed laser beams pass through the related optics 1 and are reflected by the MEMS mirror with a total optical scan angle (TOSA) of 90°. The reflected laser beams are captured by the SPAD array and the target distance is estimated by the direct time-of-flight (dToF) method [2]. The emitted laser beams are collimated by the two plano-convex cylindrical lenses (Lenses 1 and 2) and focused by the double-convex lens (Lens 3) to irradiate the mirror’s reflective surface. The MEMS mirror is placed in the focal plane of the related optics and tilted to prevent clipping from the front optics. The laser beam reflected by the MEMS mirror diverges to increase the number of active SPAD pixels per frame and thus increase the detected samples for improved detector performance.

3. Results and Conclusions

Finite element analysis-based ray-tracing simulation (COMSOL v6.1) is utilized to analyze the designed optical systems, and the static and dynamic states of the MEMS mirror device are considered. To minimize the required reflective mirror diameter, the MEMS mirror is located at the focal plane of the related optics, and the beam proportion within the various diameters of the mirror plate is analyzed (Figure 1b).

The desired initial tilting angle (θint) is shown in Equation (1) where θdiv is the divergence angle of Lens 3 and θTOSA is the TOSA of the MEMS mirror. The effect of different lens divergence angles is characterized as shown in

Table 1. Comparisons of Lenses 3A and 3B.

	f	θdiv	θint	Drms	Pφ1.5	Pφ3.0	Vopt	AROI
Lens 3A	12 mm	45°	45°	2.97 mm	34.2%	70.27%	↓	↑
Lens 3B	24 mm	28.07°	37°	0.58 mm	97.93%	98.46%	↑	↓

. For Lens 3B with increased effective focal length (f), the needed diameter of the mirror (Drms) can be reduced by 5.1 times and an enhanced beam proportion (P) can be expected compared to Lens 3A with the cost of the optical system volume (Vopt) (Figure 1c). Although the area illuminated by the resultant laser scan (AROI) is decreased, the target region of interest (ROI) of ±4 × 4 m² can be completely covered and an improved SNR level of the SPAD detector can be expected with increased laser intensity per unit area (Figure 1e). Based on the ray analysis results, further research on the experimental demonstration of the proposed LiDAR system is ongoing. More results and discussion on optimization will be reported in this paper.

θ_int = ⌈θ_div/2 + θ_TOSA/4⌉

(1)
