1. Introduction
The field of quantum computing offers an entirely new paradigm of computation which promises significant asymptotic speedups over classical computers for certain problems [
1,
2,
3,
4] as well as new kinds of highly secure cryptographic protocols [
5,
6,
7]. At the foundation of this new field lies the theory of quantum information which, among other things, provides insight into the structure of the state space of a system of many qubits as well as ways to characterize and mitigate noise. Technological progress is impressive, providing publicly available programmable quantum platforms with a dozen qubits such as IBM Quantum Experience (IBM Q, see [
8]). Recently a team at Google and NASA demonstrated the thrilling superior performance of a 53-qubit quantum processor called Sycamore [
9], and claimed to achieve quantum supremacy (see also [
10,
11,
12] for criticisms).
Bell states are archetypal examples of entangled two-qubit pure quantum states. Statistical mixtures of Bell states are called Bell diagonal states (BDS). They form a very interesting restricted class of states among the space of mixed two-qubit states. In particular, in the general space of mixed two-qubit states, they have been identified as one of the main canonical equivalence classes remaining invariant under local filtering operations [
13,
14,
15,
16]. Despite their relative simplicity, BDS display a rich variety of correlations, and have played a crucial role in the theory of quantum information. Because they form a representative three-dimensional subspace of the full 15-dimensional space of two-qubit mixed states, they are often used as a testing ground for measures of quantum correlation, such as entropic measures [
17] or quantum discord [
18]. Indeed, progress in quantum information theory led physicists to think about measures of quantum correlations beyond entanglement [
19]. During recent decades the nature of entanglement has been the subject of an ever-increasing number of studies, not only because of its intriguing nature related to Bell inequality violations, but also because of its formerly unsuspected complexity, in particular concerning quantum mixtures [
20]. The concept of entanglement which seems trivial for bipartite pure states was found difficult to characterize for quantum mixtures, because of the lack of universal entanglement measure [
20]. Further daunting complexities were found in the case with more than two parties, since inequivalent classes of entanglement under LOCC (Local Operations and Classical Communication) manipulation could be defined [
21]. Further surprises came when the encompassing subject of quantum versus classical correlations was found to be distinct from the entanglement/separability paradigm, and various notions of discord were introduced [
18,
22,
23,
24,
25,
26]. Indeed, separable mixed states can still exhibit useful quantum correlations, even for only two parties. Another previously overlooked concept is steering, the property to steer a quantum state from another location, and it was found to be an even more subtle notion (precisely formalized for the first time in [
27,
28]). Steering is intermediate between non-separability and Bell non-locality, and has duly attracted considerable attention (see [
29] for a recent review). A rewarding consequence of all these discoveries about entanglement and quantum correlations is that most of them prove useful for specific quantum tasks [
20,
26].
BDS are especially interesting in the context of calculating quantum correlations because these in many cases have an analytical expression. For instance, the “quantum discord” of BDS and so-called
X states [
30,
31,
32,
33] has been calculated, and, as it will be shown, for BDS it coincides with “asymmetric relative entropy of discord”. The computation of such correlations is essential in quantum information theory, to classify systems according to the extent they exhibit non-classical behavior. In particular, one application of these ideas is the problem of witnessing non-classicality of inaccessible objects [
34]. Moreover, experimental computations of such correlations for BDS have been reported. For instance [
35,
36] detected a certain amount of quantum discord in magnetic resonance experiments, demonstrating the existence of non-classical correlations without entanglement. Another type of non-classical correlations, first quantum steering, has been observed experimentally [
37,
38], as well as negativity of entanglement [
39].
We propose here the first correct special-purpose quantum circuit for preparation of any arbitrary BDS on quantum computers. Indeed, the previous proposal of Pozzobom and Maziero [
40] falls clearly short of this goal, since it is impossible to cover the intended three-dimensional space of target states with only two parameters. In this work, we present two new circuits, either of which enables the preparation of any BDS, and provide implementations in Qiskit [
41]. Furthermore, while the original circuit [
40] uses four qubits, we show how the task can also be accomplished with only two qubits using unread measurements. The latter requires certain amendments to the standard quantum tomography procedure in Qiskit. The two-qubit circuits rely on post-measurement gates and classically conditioned measurements, which are currently unsupported on IBM Q devices. As such, they highlight the importance of continuing the development of hardware features for quantum computers.
The paper is structured as follows. After introducing BDS and its relevant subset called Werner states (WS) in
Section 2, we propose a parameterization of the whole set of BDS allowing their generation by four-qubit and two-qubit circuits in
Section 3.
Section 4 details the implementation of the circuits with Qiskit [
41], notably for two-qubit circuits which require new tomography functions. Entanglement of formation and concurrence, CHSH non-locality, steering and discord are reviewed and reexamined in
Section 5, and visualized for BDS. In the last section

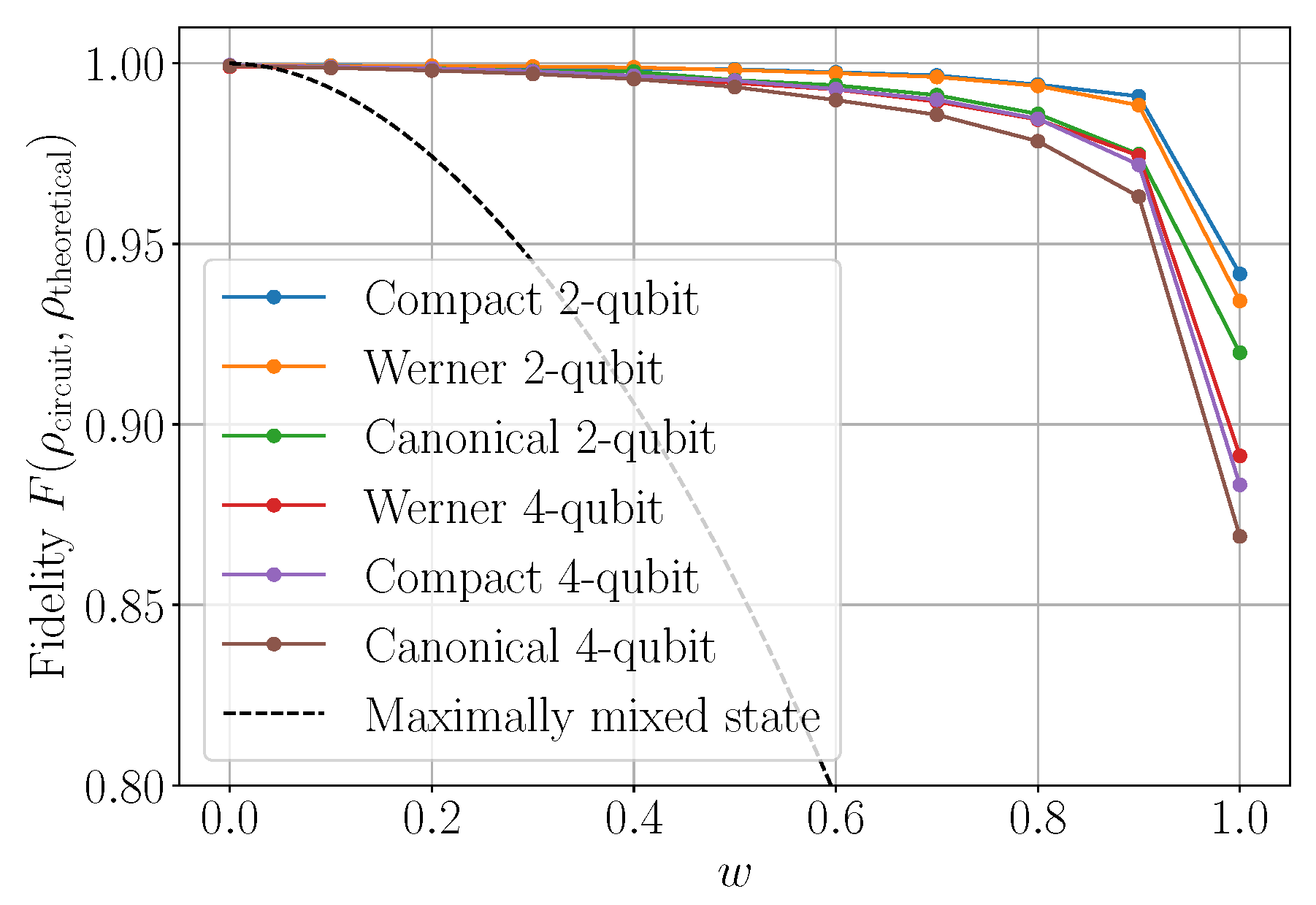

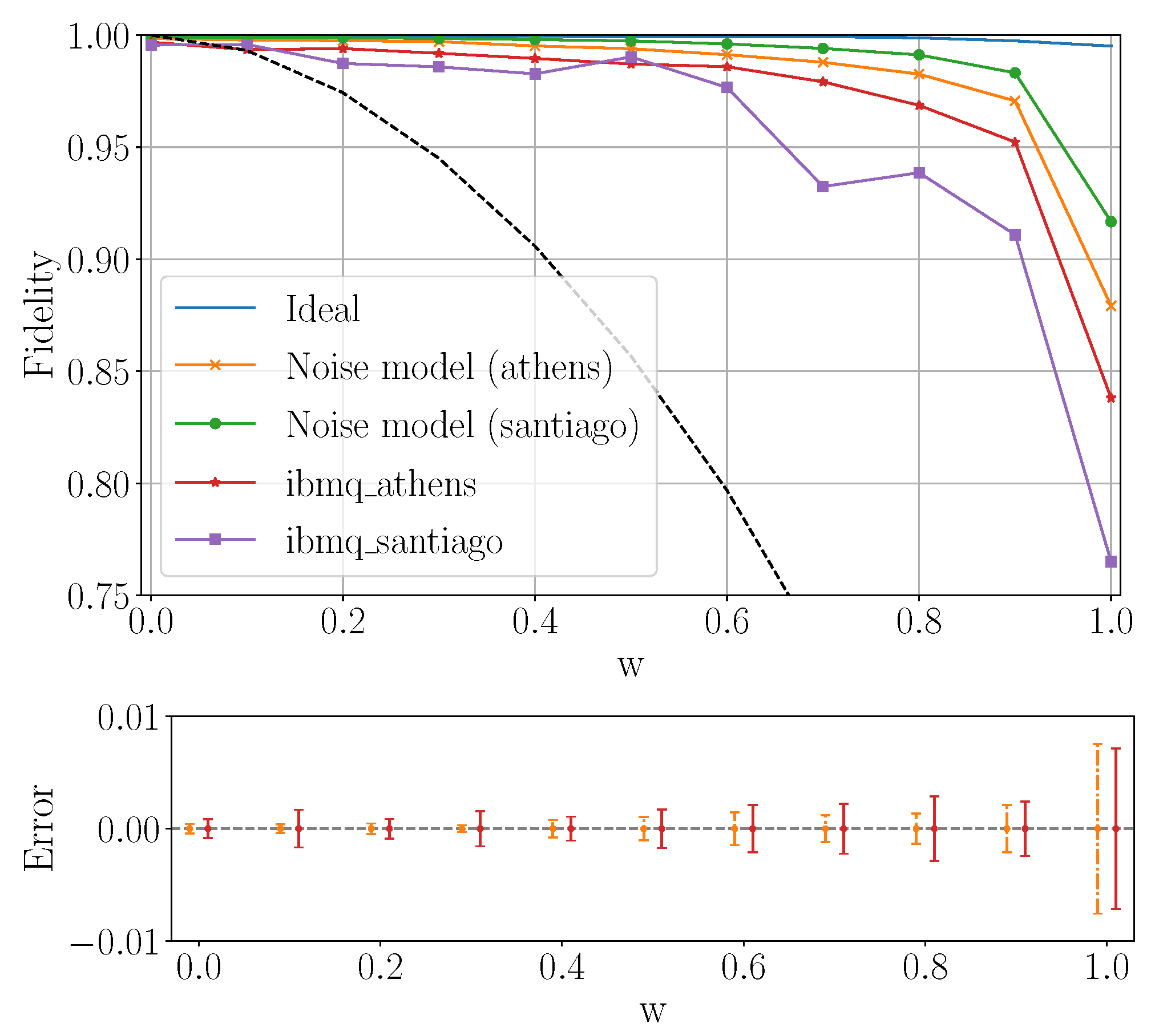

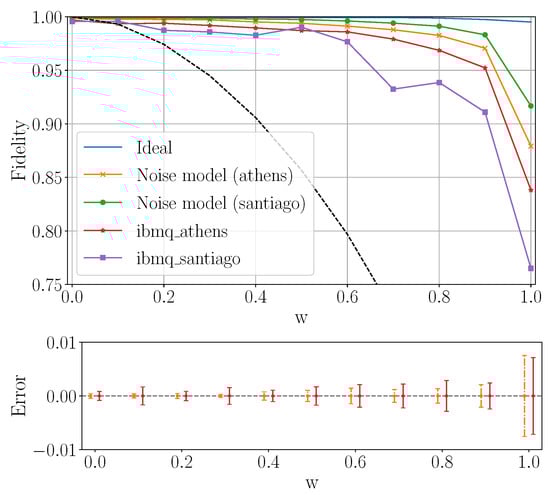

Section 6 we study on the IBM Q platform the achievable fidelity for Werner states, as well as classical correlations, mutual information and discord for BDS. Results of simulations on the IBM Q simulator with noise models for real devices, as well experimental results on real devices are reported and discussed.
2. Bell Diagonal and Werner States and Their Properties
Bell states are defined as maximally entangled basis states of the two-qubit Hilbert space
:
where
(
) is the tensor product basis. They are maximally entangled in the sense of entanglement entropy, which is a quantity defined for any pure bipartite state
of two quantum systems
A and
B as
where
is the Von Neumann entropy and
are the reduced density matrices of the two subsystems. As is well known Schmidt’s theorem implies that their entropies are equal. A pure Bell state has maximal entropy of entanglement 1 since its reduced density matrix is always
,
being the
identity matrix, while a pure product state has vanishing entropy of entanglement.
By definition, the larger class of Bell diagonal states (BDS) is the set of mixed states that are diagonal in the Bell basis, i.e., those given by density operators of the form
where
is a set of probabilities summing to 1.
Any two-qubit density matrix can be expanded based on products of Pauli matrices
,
completed by the identity matrix
where
is the usual scalar product. Among the 15 real expansion parameters we find two vectors
and
in
corresponding to the marginal density matrices, and a
pure correlation matrix
T (matrix elements
). Thus, states with maximally mixed marginals such as BDS fulfill the conditions
and
. Such states are, up to suitable local unitary transformations
, equivalent to states with a diagonal
T matrix [
42], moreover the latter states can always be considered to be convex combinations of the four Bell states [
42], i.e., BDS. The subset of all BDS density matrices (
) is thus a very interesting set which is fully characterized by a solid geometric tetrahedron

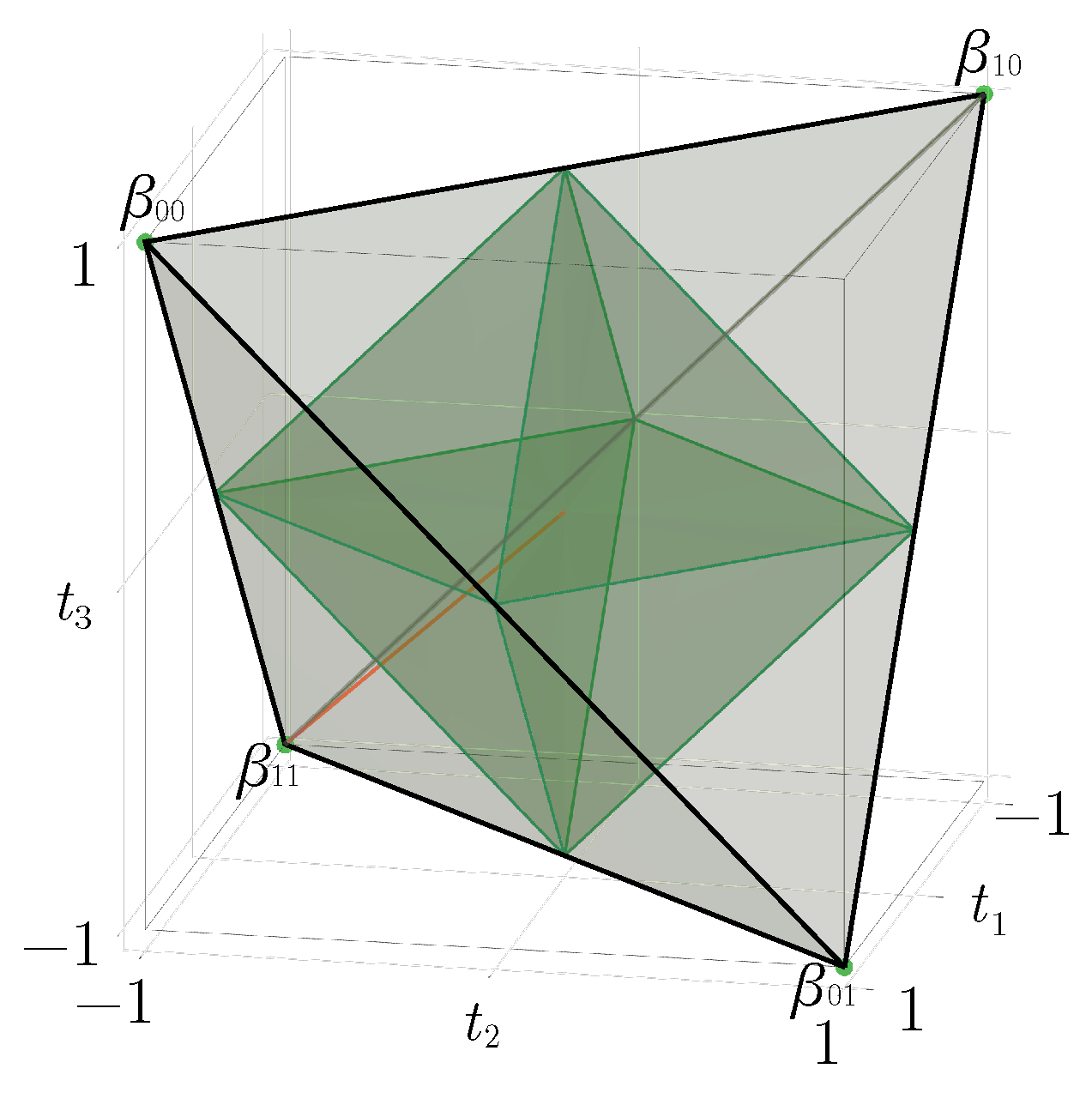

in the “

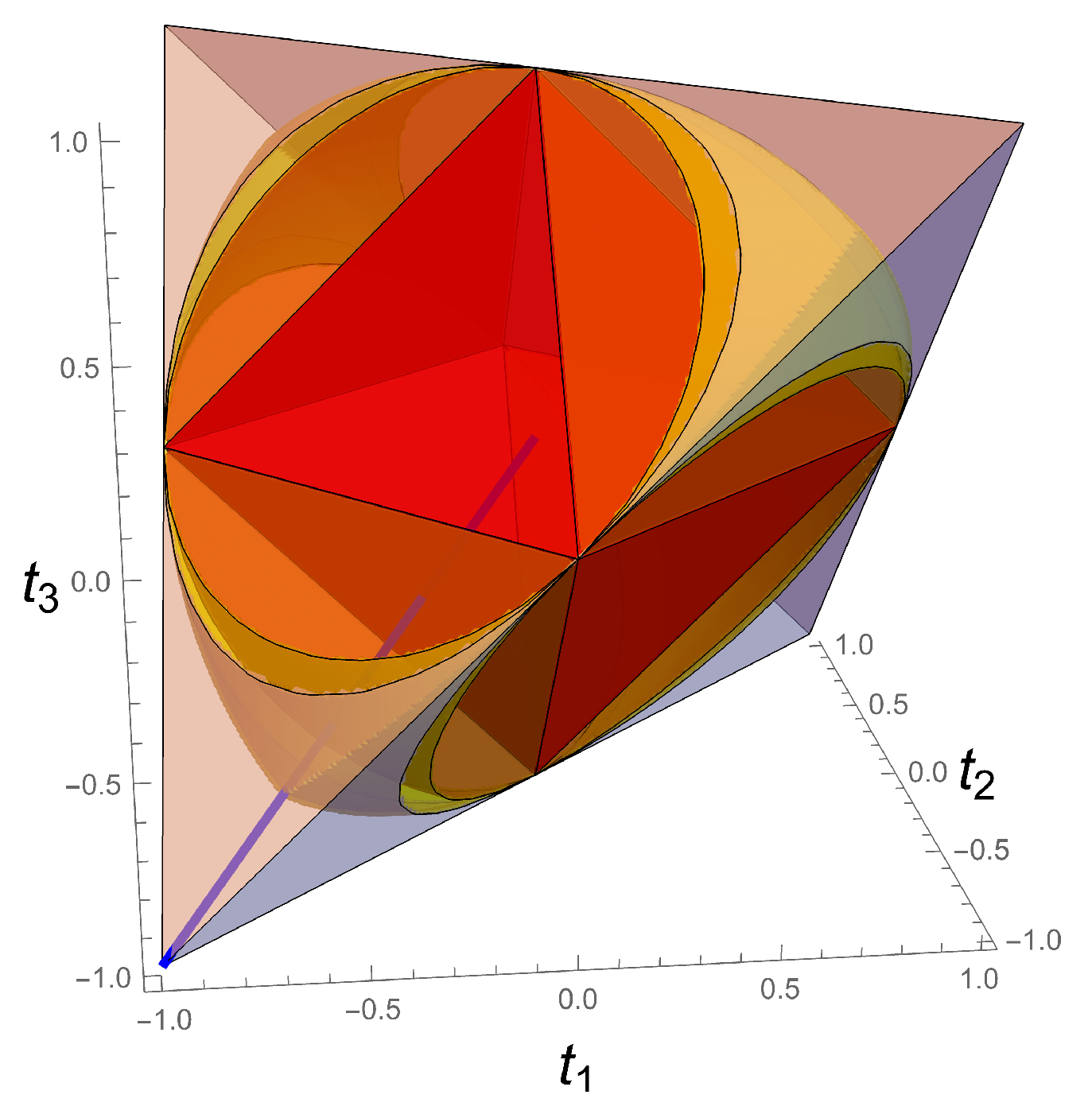

t-configuration” space (see
Figure 1), where each point
correspond to a density matrix with purely diagonal parameters
[
42]
The importance of the tetrahedron geometry and the parameterization
is going to be highlighted by the circuit analysis infra. Let us write the formulas allowing movement from one representation to another:
In
Section 3, we propose circuits that generate all BDS, i.e., in the entire tetrahedron
. Moreover, we characterize these states in terms of various quantum correlation and entanglement measures (
Section 5) and see to what extent these can be tested on the NISQ devices of IBM Q (
Section 6). However, there are still two distinguished subsets of the tetrahedron which are interesting to discuss, namely the
octahedron of separable states and the
line of Werner states.
2.1. The Octahedron of Separable States
As an appetizer let us first remark that the four corners of the tetrahedron are precisely the four Bell states that are maximally entangled in the sense that their entropy of entanglement is maximal. However, the entropy of entanglement
cannot be defined for mixed states. Indeed, any tensor product of two genuinely mixed states
has a reduced density matrix with possibly different reduced von Neumann entropies. To give meaningful measures of “entanglement” and other “quantum correlation” for mixed states it is necessary to generalize the notion of product pure states. For bipartite systems, separable mixed states are usually defined as an arbitrary convex superposition of products of density matrices
Non-separable mixed states are the ones that cannot be represented as such, and are called
entangled. It is clear that for a separable state the partial transpose
must necessarily admit only non-negative eigenvalues (indeed
is positive semidefinite, thus
also is, and therefore (
8) implies that
must be positive semidefinite). This is the so-called Positive Partial Transpose (PPT) criterion of Peres [
43]. Remarkably, for
and
bipartite density matrices
the PPT criterion is necessary and sufficient [
44]. We refer to [
20] for more details.
In the case of BDS we easily see from (
5) that the partial transpose of a BDS parameterized by
is a matrix parameterized by
(because
,
,
). Thus, partially transposed BDS correspond to a reflected tetrahedron obtained from
by a reflection across the
plane. The intersection of this reflected tetrahedron with
is an octahedron
(
Figure 1). All elements of
must correspond to bona-fide density matrices with non-negative eigenvalues. Therefore, points of
necessarily correspond to separable mixed states. We still must check that points of
correspond to non-separable states. First note that under the reflection across the
plane these points are sent outside of
. By the PPT criterion it suffices to see that such a point corresponds to a matrix with at least one negative eigenvalue. This last claim is checked by contradiction. Indeed the (partially transposed) matrix has trace one, so, if all its eigenvalues were
non-negative, they would also be smaller or equal to one, hence the matrix would be a density matrix of the form (
5), hence a BDS belonging to
, a contradiction.
Finally, let us note that the Bell states are the “furthest apart” from the subset of separable BDS, confirming that Bell states are maximally entangled.
The PPT criterion as such is only qualitative and discriminates efficiently separable and entangled mixed states. However, it should be pointed out that the corresponding amount of negativity, defined as
is quantitative in the sense that it is an entanglement monotone (here
is the trace norm). Nevertheless, it does not address the question of a measure of “quantumness” of correlations other than entanglement. This issue is discussed in
Section 5.
2.2. The Line of Werner States
A particularly interesting subset of BDS is formed by Werner states [
45], which for 2 qubits are defined by the parameter
:
Geometrically, they are represented by a straight line inside the BDS tetrahedron (red line in
Figure 1). On the one side, the
-extremity of the segment corresponds to the state
, which is a uniform statistical mixture of all Bell states. The
-extremity refers to the maximally entangled state
. More generally, the PPT criterion applies and shows that Werner states are separable for
and entangled for
. The critical value
corresponds exactly to the intersection of the red line in
Figure 1 with a face of the octahedron.
3. Quantum Circuits for BDS and Werner States
In this section, we propose quantum circuits with output states covering the whole tetrahedron of BDS. We propose various circuits, using four qubits, as well as two qubits, and discuss their relationship with various parameterizations. Specialized circuits for Werner states are also considered. Some of these circuits serve as the basis for our implementation of BDS and their characterization on the IBM Q devices.
3.1. Four-Qubit Circuits and Relevant BDS Parameterizations
Following Pozzobom and Maziero [

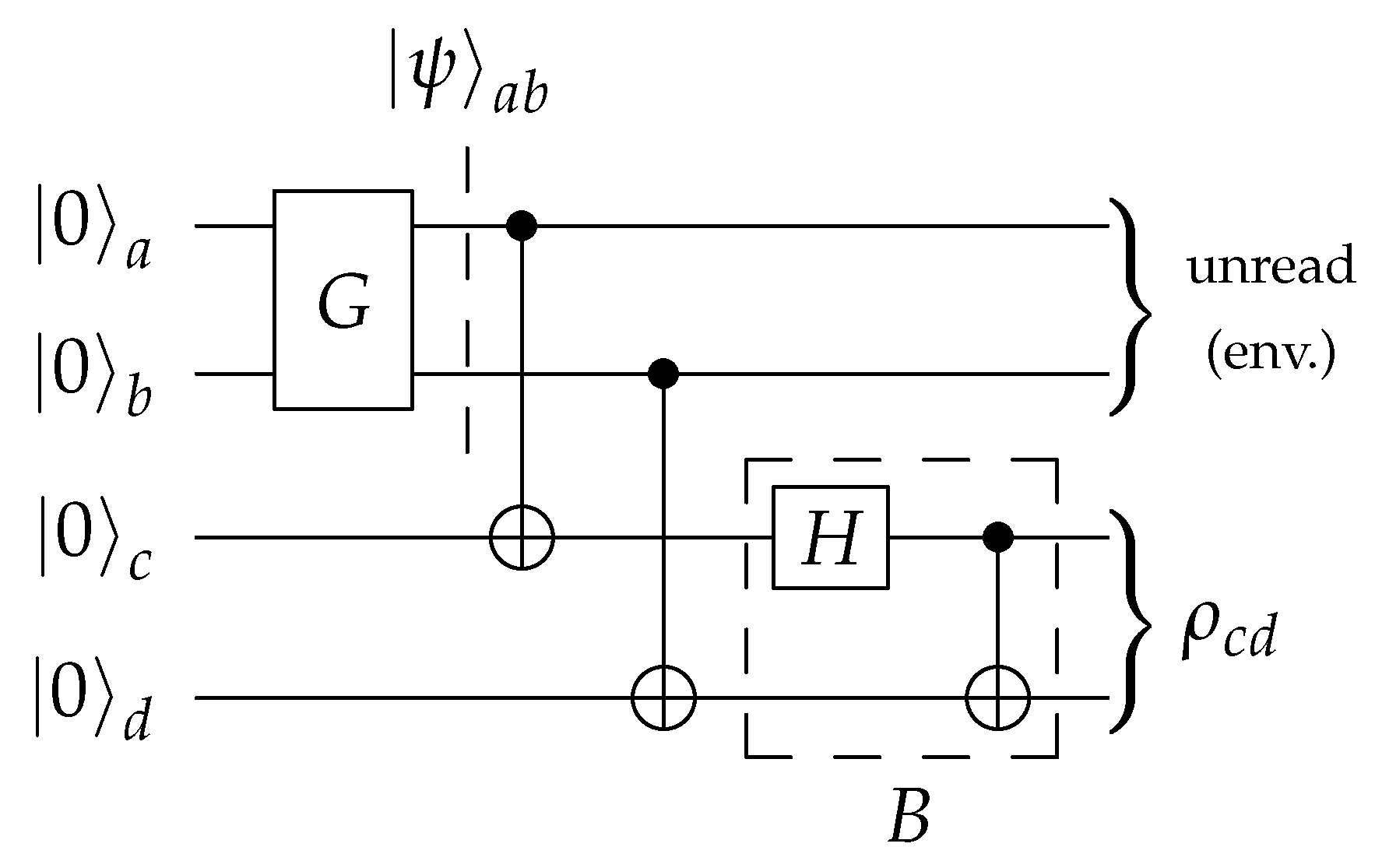

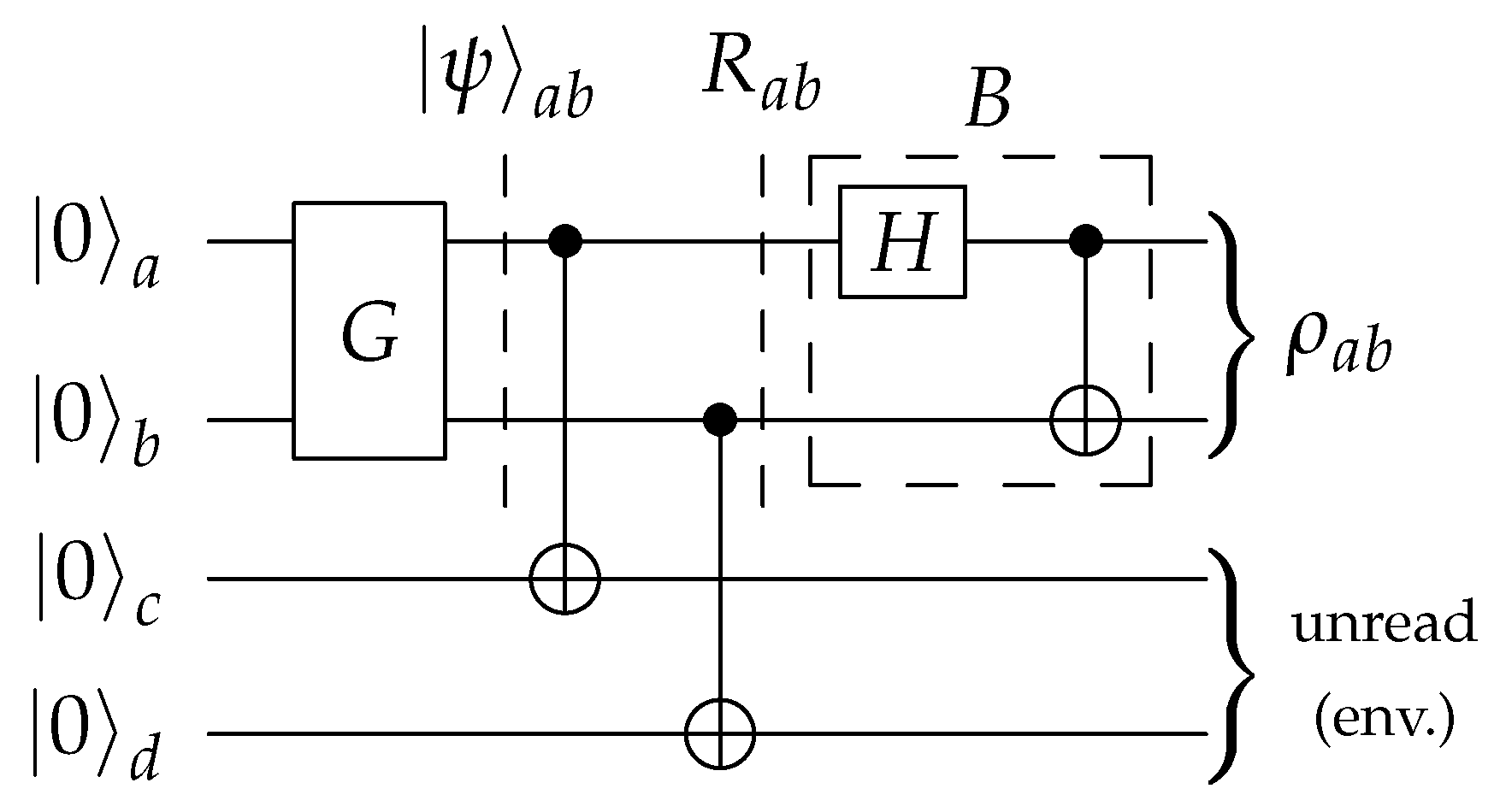

40], we consider a four-qubit circuit of the form portrayed in
Figure 2. The subcircuit
G is tasked with encoding the probabilities
in a two-qubit state
This is mapped to
by the two controlled-NOT (CNOT) gates. Finally, the Bell basis change transformation
B is applied. Please note that we swapped the qubits in
B (regarding [
40]), to fit standard Bell state conventions. It produces
, so that the resulting state is
This is a purification of the BDS
from Equation (
3), meaning that one can retrieve
by considering the first two qubits as part of the environment, which amounts to a partial trace operation:
Now, we turn to the probability encoder

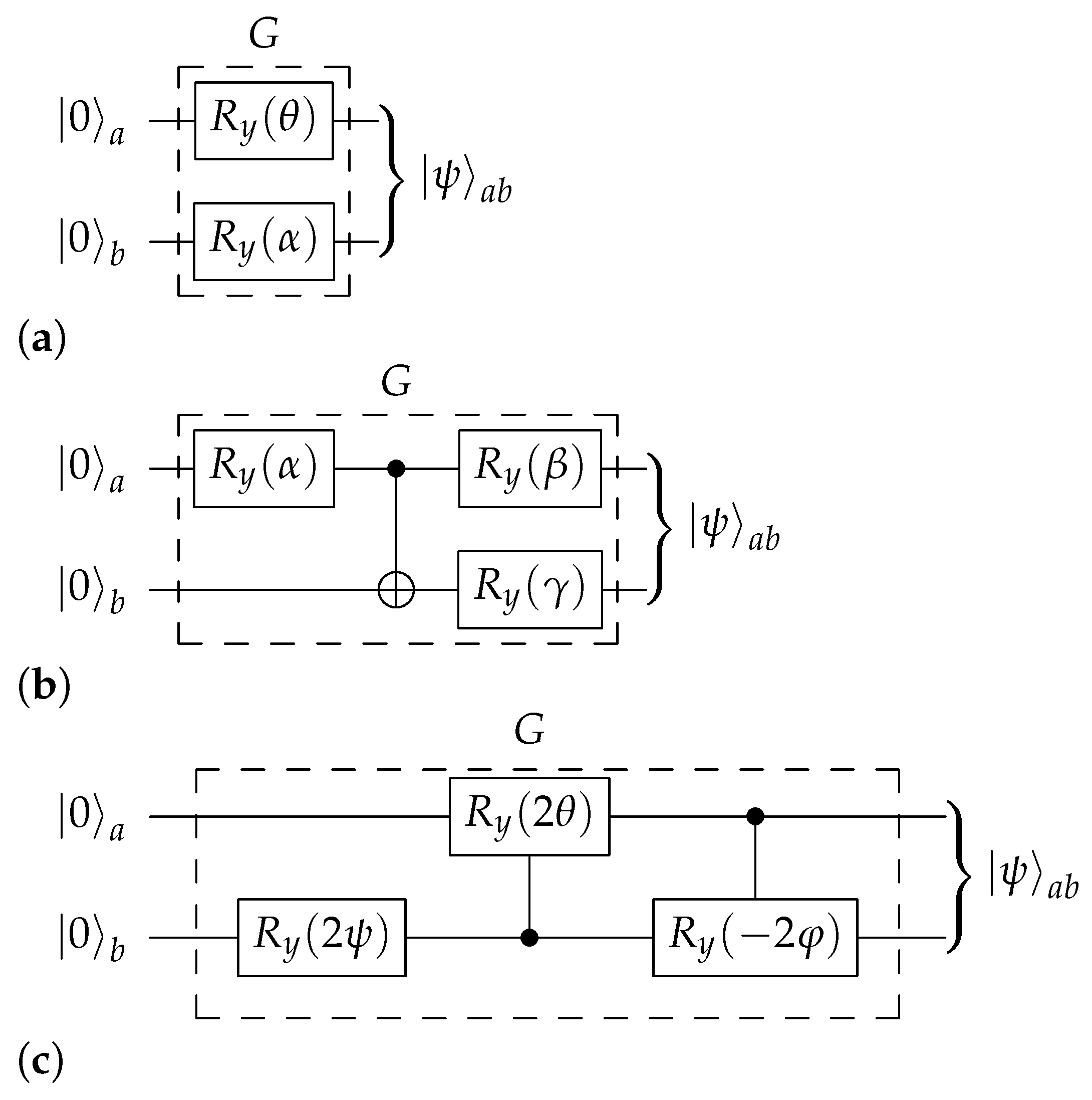

G. Pozzobom and Maziero used the two-parameter subcircuit shown in
Figure 3a. There the
y-rotation gate is given by
in the computational basis. However, as we have already noted, two parameters are not enough to cover all choices of
; in fact, one solely achieves those that can be factored as
for some
and
. This is a direct consequence of the failure of their encoder
G to entangle the two qubits
a and
b.
A better working implementation of
G is displayed in
Figure 3b. It is perhaps the simplest conceivable implementation: it cannot be simplified to use less than three parameters, and it does entangle the two qubits
a and
b; both are necessary features of any working encoder. The output state is given by (
11) with the probabilities
To prepare any given Bell diagonal state, one thus writes it in the form of Equation (
3) and solves (16) to obtain the corresponding parameters
,
and
. It is straightforward to solve Equation (16) numerically. An analytical solution exists as well and is given in
Appendix A.
An alternative realization of
G is displayed in
Figure 3c. It uses two controlled
y-rotation gates, e.g.,
. This circuit realizes the canonical hypersphere coordinates
(note the ordering 00–01–11–10: the two-bit Gray code) which have the advantage of being easily obtainable in terms of
by calculating their cosines in an iterative manner, as follows:
When evaluating these expressions, any quotient is taken to be 1 (in practice, one must also beware of rounding errors). The circuit in question is more transparent than the one suggested supra. Nevertheless, its circuit complexity is higher, since each controlled rotation will typically be implemented using two CNOT gates as well as several one-qubit unitaries. In the sequel, we will provide an operational comparison of the two circuits to assess how severe this problem is.
3.2. Two-Qubit Circuits
The circuit template in

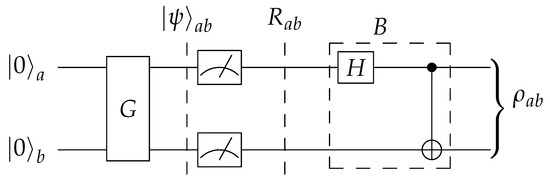

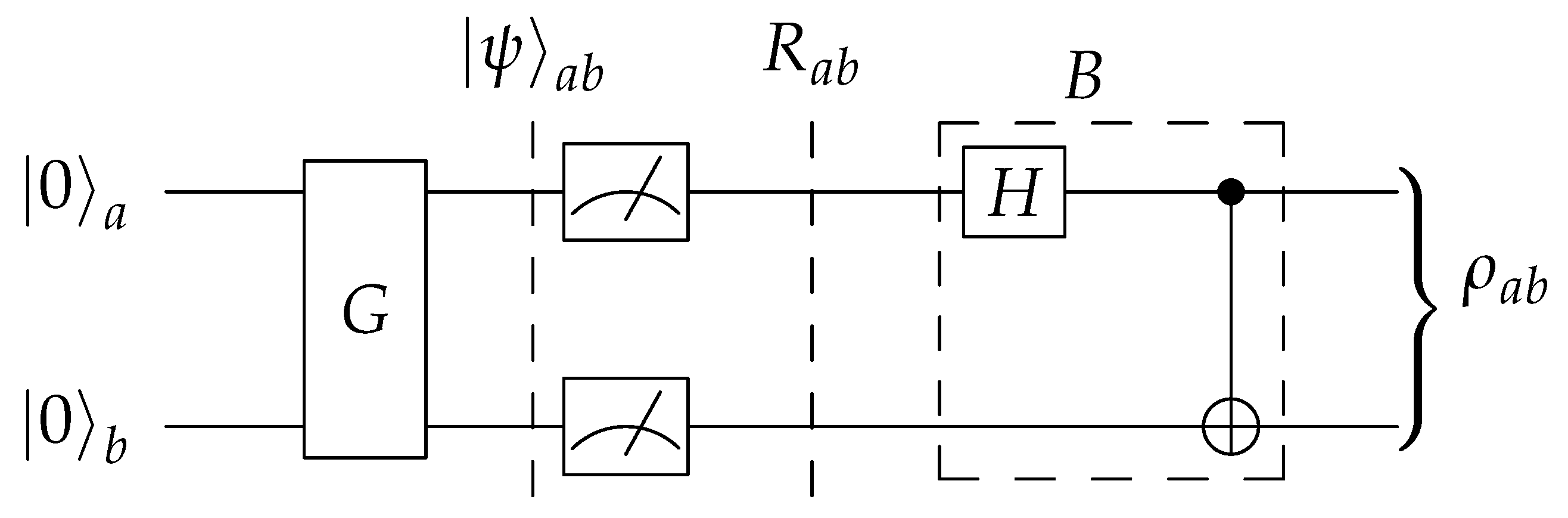

Figure 2 uses four qubits, which seems inefficient as the objective is to prepare a two-qubit output state. In fact, one could remove the two ancillary qubits and instead perform unread measurements on the principal qubits, as shown in
Figure 4. The measurements collapse the pure state
, as given in (
11), into the mixture
of computational basis states. Thus, the combination of
G and the measurements acts as a “quantum random number generator”. Finally, applying
B transforms
R into the prescribed Bell diagonal state (
3):
The two-qubit circuit works through unread measurements, which can be interpreted as unmonitored interactions with the environment.
Figure 4 and
Figure 5 jointly illustrate this equivalence: one can implement an unread measurement of a system as a unitary evolution of that system together with an environment. Moreover, it is evident from the symmetry of Equation (
12) that
Figure 5 describes an equivalent circuit to that of
Figure 2.
Figure 5 thus shows the connection between the two-qubit and four-qubit versions.
Out of the three equivalent circuits described supra., (
Figure 2,
Figure 4 and
Figure 5), we suggest the two-qubit variant. Using four qubits amounts to using precious resources to simulate decoherence on a coherent system rather than making use of decoherence already redundantly available in today’s noisy quantum computers.

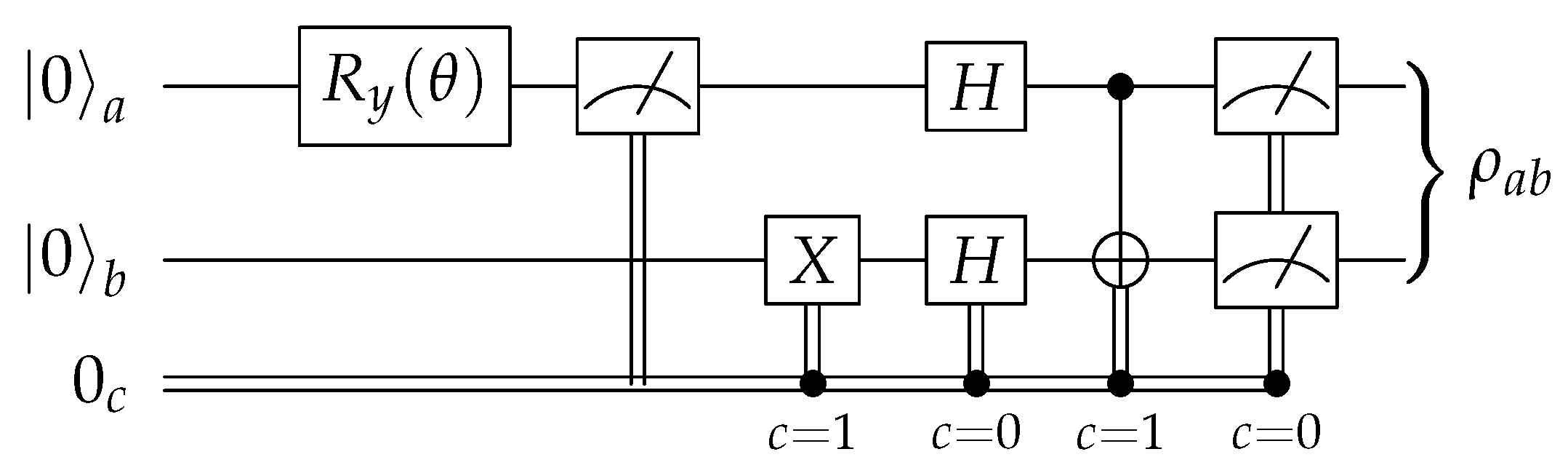

The circuits proposed above can prepare Werner states, as the latter form a subset of the Bell diagonal states. Nevertheless, in cases where the full range of BDS is not needed, specializing the circuit offers opportunities for a further optimization. The circuit shown in
Figure 6 prepares the Werner state given in (
10) using classically controlled quantum operations. First, qubit
a is put into a superposition
, where we selected the parameter
such that
. Then, the state is measured, giving 1 with probability
w and 0 with probability
, storing the outcome in a classical bit
c. This first part is, again, a quantum random number generator. If the outcome is 0, the circuit prepares the maximally mixed state
by generating
and performing an unread measurement. If the outcome is 1, it prepares the pure state
by flipping the lower qubit to |1〉 (the upper one is already |1〉) and applying the Bell basis change
B.
All two-qubit circuits proposed so far rely on applying further quantum gates after performing a measurement on a qubit. Such operations are not supported on present-day IBM devices, and as a result, only the four-qubit circuits may be run on real hardware. However, the two-qubit variants can be simulated in Qiskit, as detailed in the next section.
The last two-qubit circuit of

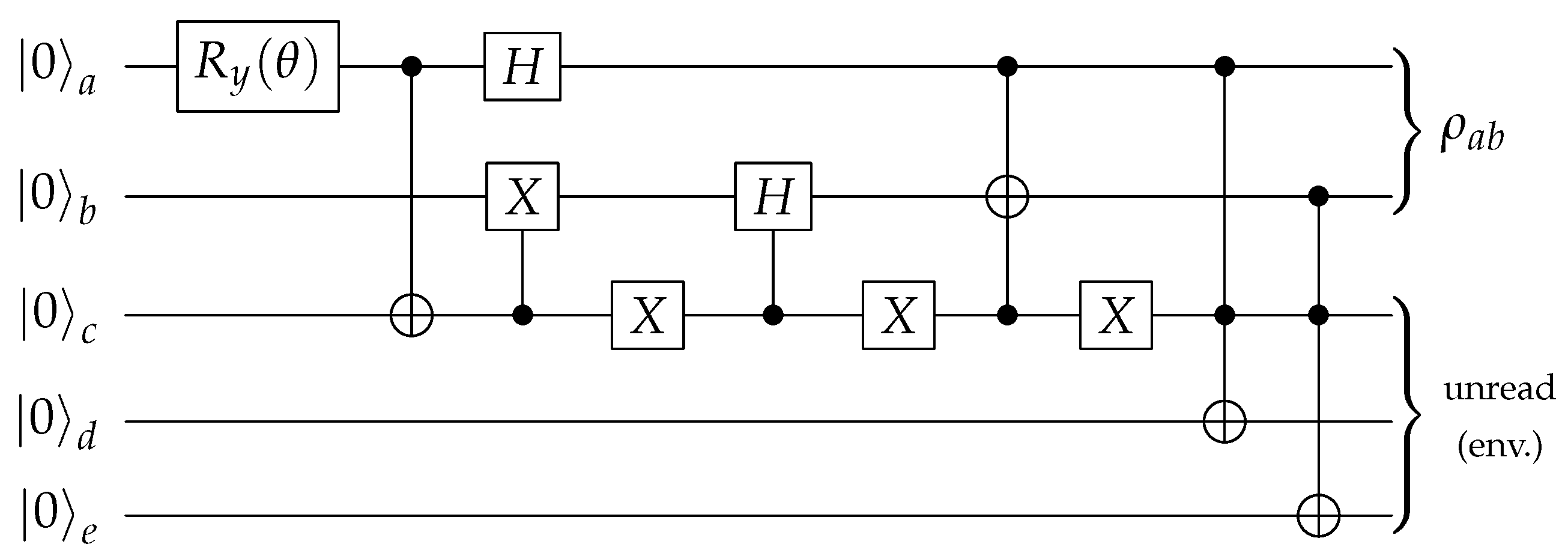

Figure 6 incorporates in addition parallel classical information treatment and classically controlled quantum gates. This too is not yet possible with current hardware, but we show in
Appendix B how it could be replaced by an equivalent fully quantum circuit. There we see that the number of necessary qubits would rise to five, and many more quantum gates and computational steps would be required, making probably such alternatives largely unattractive because of enhanced decoherence.
4. Qiskit Implementation
To run the quantum circuits described in
Section 3 on IBM Q hardware, we have provided implementations using Qiskit [
41], available in a Git repository hosted on GitLab [
46]. The software performs several functions.
The basic functionality is circuit construction. For a choice of probability encoder from
Figure 3 and a four-qubit or two-qubit template (
Figure 2 or
Figure 4), and given the parameters
, the software constructs a Qiskit representation of the quantum circuit for preparing the corresponding BDS, computing the correct circuit parameters such as
in the process. The specialized circuit from
Figure 6 can also be constructed for any given
w.
The software also performs quantum state tomography [
47] to reconstruct the output state of the circuits with a new set of routines. Qiskit has built-in routines for tomography, but they require some amendment for use on circuits that contain classical registers, including
Figure 4 and
Figure 6 (implementing
Figure 4 in Qiskit does require classical registers as destinations for the unread measurement results, although they are implicit in the figure). Specifically, the built-in routines determine the output state of an
n-qubit circuit by performing various operations indexed by
k, on the output and then performing a measurement into an added
n-bit classical register
. Each type of measurement
k is repeated multiple times (
shots), and the results are presented as
counts , where
, giving the number of times the measured bit string was
. If the original circuit had
m classical registers
, the resulting counts
need to be aggregated as
before being passed to the built-in tomographic reconstruction routine. The implementation partly follows [
47]. See also [
48].
A further complication arises when implementing the specialized circuit for Werner states,
Figure 6. This circuit contains a measurement operation conditioned on the value of a classical bit. Such conditional measurements are not officially supported by the Qiskit Aer simulator. However, the circuit can be simulated using a custom version of Qiskit Aer where a small change has been made to the C++ source before compiling [
49]. Our GitLab repository [
46] contains a patch with the necessary changes.
The implementations have been tested for correctness. All four combinations of
Figure 3b,c together with
Figure 2 or
Figure 4 were simulated in Qiskit, without noise, for 340 states uniformly distributed in the BDS tetrahedron. The circuit of
Figure 6 was also run on 100 Werner states, uniformly distributed between
and
. The density matrices of the output states were reconstructed via tomography, as detailed above, with
shots each, and the state fidelity (
43) was computed. For all circuits, the mean fidelity was 99.5% with a standard deviation of 0.5%.
5. Entanglement Measures and Discord
In this section, we shall review entanglement and correlation measures for BDS. These fall in three categories: non-separability (entanglement), non-locality and steering measures. However, going through fundamental operational definitions of all these notions would go out of the scope of this paper (see e.g., [
27,
28]). In
Section 5.1, we focus on main known criteria that allow specific closed form formulas for BDS: entanglement of formation and concurrence, a restricted setting of CHSH-non-locality implied by Bell non-locality, and a highly restricted form of steering for which BDS are a useful testing ground. In
Section 5.2, we further develop the notion of discord which quantifies the non-classical (i.e., quantum) correlations that are not necessarily related to entanglement. The relationship between original discord and asymmetric relative entropy of discord is profoundly reexamined and we show a new general inequality between the two quantities, and prove that for BDS they are equal. Specific expressions are computed as a function of
whenever possible, and their behavior in the whole tetrahedron is illustrated. Finally,
Section 5.3 focuses on the one-parameter family of Werner states which forms a very interesting particular special case. The theoretical results summarized here will serve as benchmarks for the quality of BDS and Werner states created by our circuits on IBM Q.
5.1. Entanglement Measures for BDS
5.1.1. Entanglement of Formation and Concurrence
Entanglement of formation is the first metric of entanglement which properly extends to mixed states the notion of entanglement entropy
introduced in
Section 2. Strictly speaking the entanglement of formation
of a mixed state
is the minimum average entanglement entropy over any ensemble of pure states that would represent the mixed state
(convex roof extension), and is defined as [
50]
For a pure state entanglement of formation reduces to the entanglement entropy.
To understand it better it is useful to recall its remarkable operational meaning. Suppose two distant parties (Alice and Bob) share a large amount of Bell pairs and suppose they want to convert them into roughly n copies of , using only LOCC. Then is roughly the minimum number of shared Bell pairs they need to “burn” (or spend) for this operation. If one views the as a basic unit of entanglement, the “ebit”, this means for example that a pure bipartite state with is “equivalent” (in LOCC sense) to one-tenth of an ebit.
Now, let
a bipartite mixed state. it is possible to show that (asymptotically for
) the minimum number of Bell pairs needed by Alice and Bob to fabricate
n copies of
using only LOCC is roughly
. This remarkable result was first derived by Bennett et al. [
50].
Computing Equation (
21) is a difficult optimization problem. Happily, for arbitrary 2-qubit systems, Wootters [
51] derived a non-trivial closed form formula in terms of the
concurrence. Let
where
are the square roots of the four eigenvalues, in descending order, of the non-Hermitian matrix
where
and
the complex conjugated matrix in the computational basis representation. Then
where
is the binary entropy function (with a range in
since one uses the log in base two)
For separable mixed states it easy to see that the entanglement of formation vanishes, to this end just insert the spectral decompositions of the factors in (
8) and compute the corresponding sum of entanglement entropies.

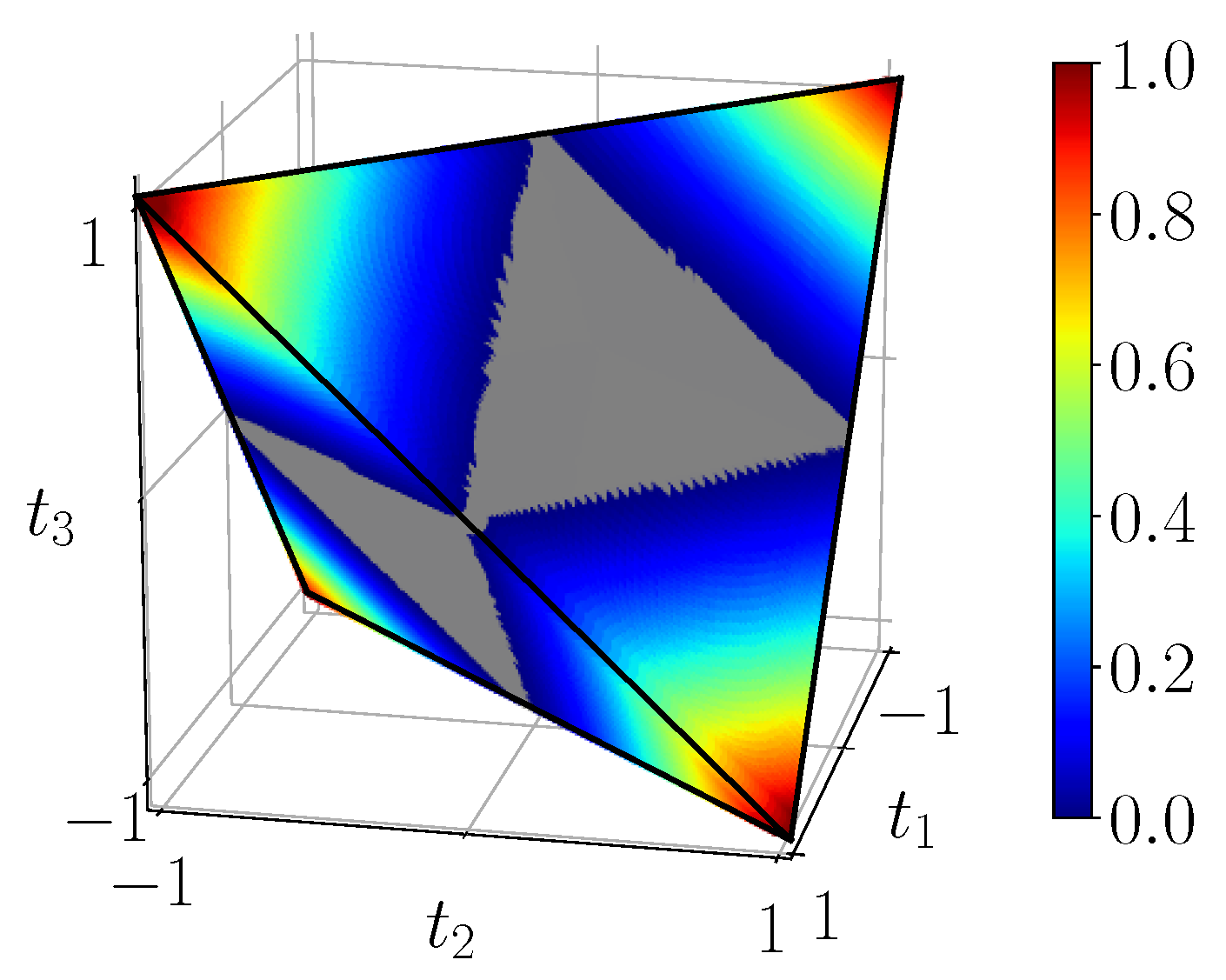

Figure 7 displays the entanglement of formation
for all BDS in the tetrahedron, computed using the simulation circuit of
Figure 3b. It can be shown that it corresponds exactly to the analytical result (
23). We also see that entanglement of formation vanishes on the portion of the faces which are also faces of the octahedron of separable states. On the other hand, for the four extremal Bell states entanglement of formation is maximal and equal to 1 as expected.
The entanglement of formation on the interesting Werner line corresponding to Werner states (inner diagonal) will be better displayed in
Section 5.3 when we illustrate the corresponding explicit formula.
5.1.2. CHSH-Non-Locality
The fundamental definition of non-locality (or Bell-non-locality) expresses the fact that there is no local-hidden-variable (LHV) model allowing an explanation of all experimental joint histograms obtained by local measurements of two parties of a bipartite system. Suppose one wants to assess what is the part of the Hilbert space that displays non-locality. This is a priori difficult since all possible local measurements must be examined. For this reason, one reverts to criteria that give sufficient conditions for non-locality. The best-known such criteria take the form of violation of so-called “Bell inequalities.” Here we consider the simplest such inequality, namely the CHSH inequality.
For a pure state, the CHSH inequality belongs to the class of Bell inequalities and can serve as an operational (experimental) criterion to discriminate between a product (local) and an entangled (non-local) state. Through a series of local measurements on many copies of their shared two qubits, Alice and Bob determine the expected value of
where
are unit vectors in
. Let
it is well known that
is a product state if
. On the other hand, if the pure state is entangled then the latter inequality is “violated,” the Bell states giving
the maximum value
. In view of this, a natural definition of an entanglement measure for pure states is
A generalization of the measure
to general mixed two-qubit sates (
4) has been proposed in [
52]. Consider the quantity
defined from (
25) but where
is replaced by a density matrix
. Define the CHSH-non-locality
as the quantity (
26) where
is accordingly replaced by
. Remarkably CHSH-non-locality
can be computed explicitly and displays the following essential properties:
We have the sum of the two largest eigenvalues (among three) of where .
CHSH-local states naturally satisfy .
The maximum possible value of is attained for pure Bell states.
For BDS from Equation (
5)
so
and (
26) becomes
where
.
This last formula is our main interest here. Non-locality vanishes in the region which is just the convex region corresponding to the intersection of three unit cylinders oriented along the main axes. This region obviously contains the unit ball , which in turn also contains the octahedron . The common points are the 6 vertices of on the coordinate axes.
Therefore, states displaying CHSH-non-locality are also non-separable (or entangled). However, not all non-separable states display CHSH-non-locality.

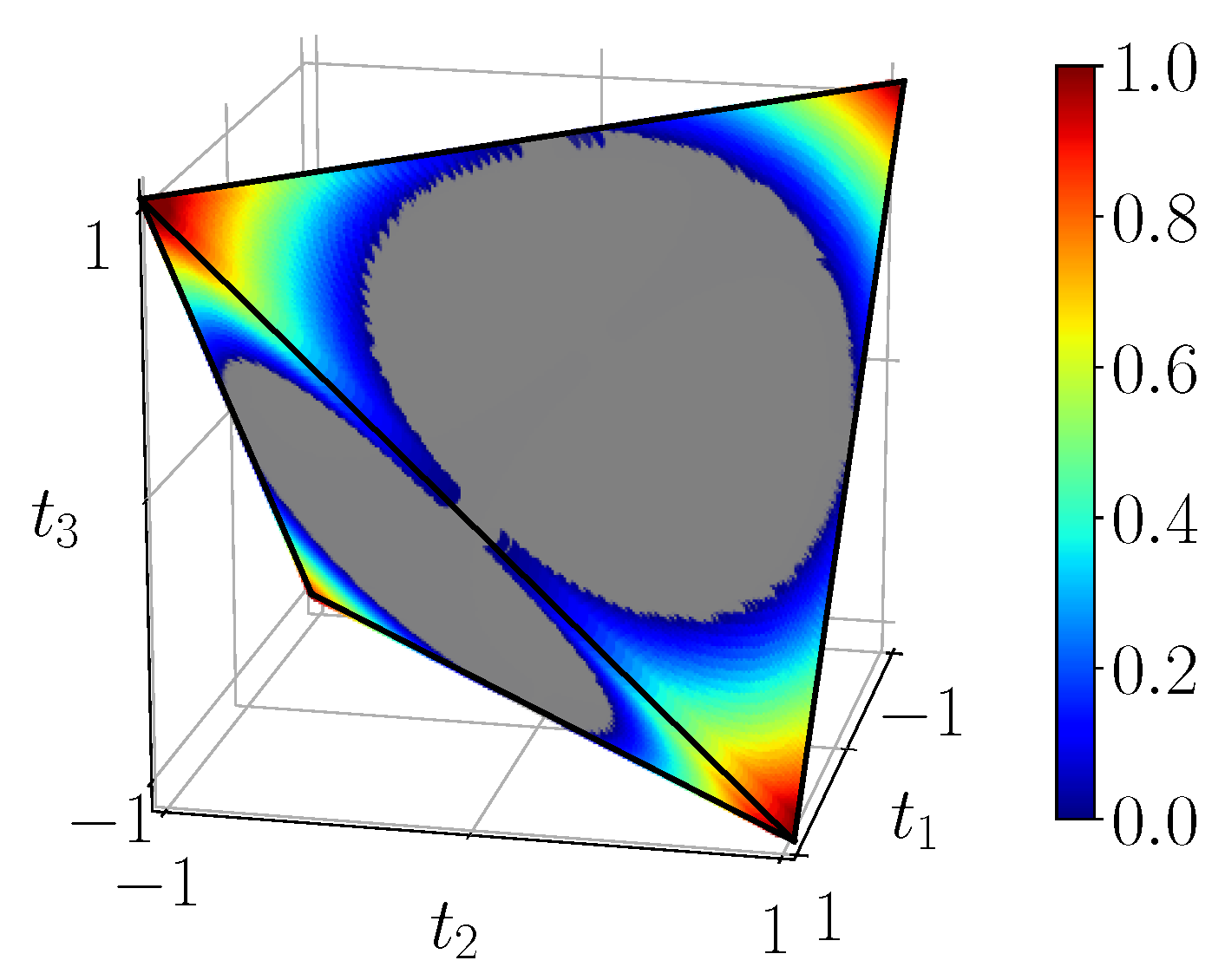

Figure 8 displays the measure
of CHSH-non-locality in the tetrahedron, computed using the simulation circuit of
Figure 3b. This corresponds exactly to the analytical result (
27). We see that CHSH-non-locality vanishes in an “inflated” unit ball (intersection of three unit cylinders) which contains the octahedron
, and is nonzero close to the four corners of the tetrahedron
. At the extremal points corresponding to pure Bell states, it reaches its maximum as expected.
5.1.3. Steering
The notion of steering goes back to one of the most paradoxical aspects of quantum mechanics discussed by EPR and Schrödinger, but was formulated only recently [
27,
28]. It is the ability that A has, by making only local measurements, to prepare or “steer” the state of party B. For example, for a pure Bell state
if A measures its qubit in the basis
and obtains
, then B’s qubit is “steered” to
. Of course, this does not imply signaling and B is completely oblivious to the actions of A, his description of his qubit by his reduced density matrix remaining valid, unless he receives information sent by A. To convince B that his state has been steered by A, B must receive information from A and then do appropriate tests by local measurements on his side.
The notion of steering for mixed states was formalized precisely in [
27] and seen as an intermediate between non-separability and Bell-non-locality. Roughly speaking, we say that A has the ability to steer the state of B if, after having received A’s information, B cannot explain the results by a local-hidden-state (LHS) model (A would not be able to steer a local-hidden-state on B’s side). Again, it is quite difficult to test all possible measurement situations. For example, even when restricting to dichotomic measurements we could imagine that A steers B’s state using only two types of measurements (2-steering), or three types of measurements (3-steering), and so on. A general measure for the steerability of two-qubit states has been found [
53]. Just as for Bell-non-locality, sufficient criteria have been derived for assessing steerability of a state, and in general they take the form of inequalities [
54,
55,
56], but for two-qubit states one has a steering measure [
53].
Steerability of BDS has been discussed before [
57,
58]. It turns out that BDS are “2-steerable” if and only if they are CHSH-non-local [
53,
57,
59] (in fact [
59] shows this is true for all 2-qubit mixed states). They are “3-steerable” as long as
[
53,
57]. Thus, one can consider the measure [
53] of 3-steerability which distinguishes 3-steerability from CHSH-nonlocality, namely
where
is defined by (6), and the factor
comes from the maximum violation of steering inequality (
for
measurements per site [
57]). We see that 3-steering
vanishes in the intersection of the sphere of radius one
with
. This sphere contains
. Therefore, nonzero 3-steering implies nonzero negativity and non-separability. However, the reciprocal is not necessarily true.

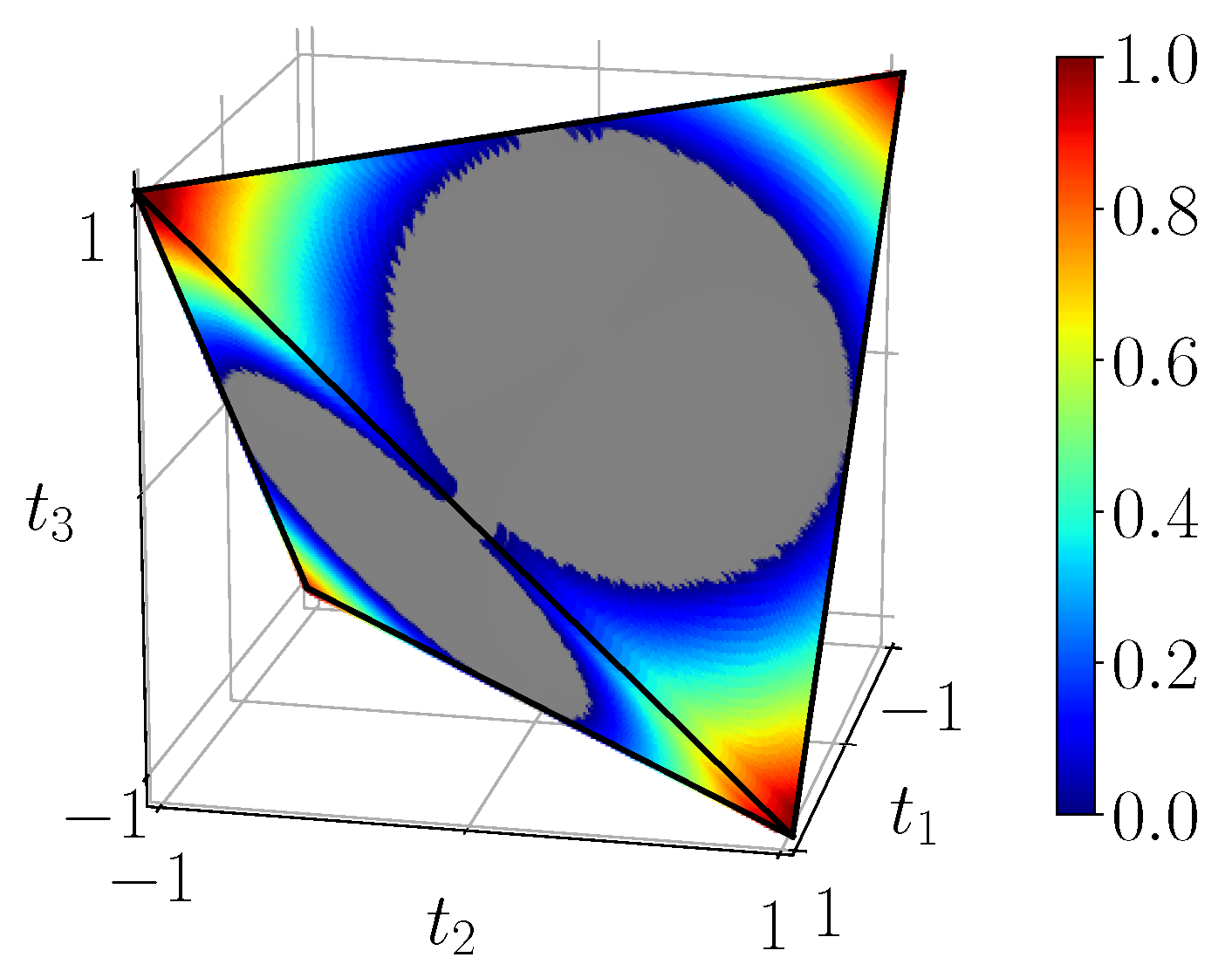

Figure 9 displays the measure of 3-steering
in the tetrahedron, computed using the simulation circuit of
Figure 3b. This agrees again with the analytical Formula (
28). We see the intersection of the unit ball with the tetrahedron inside which steering vanishes. States close to the four corners are 3-steerable and we observe that these domains are slightly bigger than the CHSH-non-locality ones. Unsurprisingly steering is maximized at the Bell states.
5.1.4. Hierarchy between Quantum Correlation Measures: Entanglement, Steering and CHSH-Non-Locality
The general question of hierarchy between different types of quantum correlations has been elusive due to the difficulty of defining good measures (see e.g., discussion of ordering in Refs. [
60,
61]).
However, there is a genuine hierarchy between non-separability, steering and non-locality which was first discussed for all projective measurements in the first seminal papers on steering [
27] (in terms of LHV and LHS models), using certain families of states among which Werner states. For generalized POVM measurements the corresponding proof has been given only recently [
62]. The steering measure for two qubits proposed by [
53] and used above of course strictly obey this hierarchy.
One can explicitly illustrate this here for 3-steering inside the full tetrahedron of BDS, as shown in
Figure 10. From (
28), 3-steering
vanishes in the unit ball. This sphere is strictly bigger than the octahedron
, so there exist non-separable entangled states that do not exhibit steering. Similarly, from (
27) CHSH-non-locality
vanishes in the region corresponding to the intersection of three unit cylinders (oriented along the main axes), region which contains the unit ball. Thus, there exist states that exhibit 3-steering and are not CHSH-non-local (do not violate the CHSH inequality).
Summarizing, the BDS nicely exhibit the following hierarchy: (i) states violating the CHSH inequality exhibit 3-steering; (ii) states exhibiting steering are non-separable or entangled. The neighborhood of the four corners of the tetrahedron display all three properties, and for the Bell states all these entanglement measures are maximal.
Finally, we recall that as pointed out above, the sets of 2-steerable and CHSH-non-local BDS are identical.
5.2. Discord for BDS
It is not obvious how to quantify non-classicality of quantum correlations, which are distinct from entanglement. Ollivier-Zurek [
18] approached this problem by introducing information theoretical measures, and introduced “quantum discord” as the discrepancy between two quantum forms of mutual information. This notion has a few shortcomings, for example it applies only to bipartite systems treated asymmetrically, and other measures of non-classicality have been proposed since then. Among them, one of the most natural and conceptually clear, is the “relative entropy of discord” [
23]. This notion is based on a distance measure between a general multipartite state and its closest “classical state.” In this paragraph we first shortly review these two notions of discord and refer the reader to the review [
24] for a more complete discussion of particular aspects of these and other related notions of quantum correlations. We adopt the terminology used in this review and investigate more in detail the relationship between quantum discord and asymmetric relative entropy of discord, for which we find a general inequality.
For BDS, as we will see in the next paragraph, we find that quantum discord and asymmetric relative entropy of discord become one and the same. This however, according to our inequality, is not even true for general two-qubit systems, and one can only assert that quantum discord is smaller or equal than asymmetric relative entropy of discord.
5.2.1. Quantum Discord
We explain the information theoretical point of view of reference [
18]. The quantum mutual information of a bipartite mixed state
is defined as
This a measure of total correlation which is the closest analog to the fundamental expression of Shannon’s mutual information
defined for two random variables
X and
Y [
63]. However, Shannon’s mutual information can also be written as
, i.e., the difference between Shannon’s entropy of
X and the conditional entropy of
X when
Y is observed [
63]. We seek a quantum analog of this second form of mutual information. Imagine that party
B makes local measurements with a complete set of orthonormal projectors
without recording the measurement outcomes (here we restrict ourselves to projective measurements instead of the more general definition involving POVM). The post-measurement description of the global state is
, the one of party
B is
, and the one of party
A remains equal to
(which is compatible with no-signaling). In this situation the mutual information after the measurement is defined as
This quantity has been called the “classical correlation”. It bears two striking differences with its classical analog. First it depends on the measurement basis (a non-issue in the classical case) and secondly it is not the same when A is measured instead of B (whereas in the classical case we have ).
Although in the classical case (
29) and (
30) both reduce to Shannon’s
, they are not equal for quantum systems. The
quantum discord is defined as the difference between (
29) and the maximum of (
30) over all possible measurement basis, i.e.,
where
.
To summarize, is interpreted as the amount of total correlation between the two parties, as the amount of classical correlation, and as the amount of non-classical correlation.
It is a theorem that all three quantities are non-negative but in general not much more can be said about the relative magnitude of classical and quantum correlations. Clearly is symmetric under exchange of A and B, but this is not the case for and (one sometimes speaks of right-discord when B is measured and left-discord when A is measured). However, note that if the two parties are identical systems these quantities are symmetric. This is the case for BDS.
5.2.2. Asymmetric Relative Entropy of Discord
We first explain the hierarchical point of view of reference [
23] which is based on relative entropy as a distance measure, and which presents discord as a distance to the closest classical state. Although we restrict here to bipartite systems the discussion readily extends to multipartite situations. Classical states are defined as statistical ensembles of perfectly distinguishable orthonormal product states
, that is
and
is a set of probabilities summing to one. Let us call
the set of all possible classical states. The relative entropy of discord is defined as
where the relative entropy is (by definition)
.
This quantity obviously treats A and B symmetrically, and as such it is not equivalent to (
31).
In (
31) the root of the asymmetry between
A and
B lies in the amount of classical correlation (
30), which is measured only with respect to the
B system (
B plays here the role of
A in original papers [
18,
22,
23]). Therefore, to establish a meaningful link between the two kinds of discord it is first necessary to minimize in both cases on the same asymmetric statistical ensemble, consisting of orthonormal product states with respect to
B only, whose elements read:
where
both and the set
are free parameters defining the ensemble
. We recognize
as possible post-measurement states
. The corresponding relative entropy of discord then reads
while standard discord (
31) reads
where
is the conditional entropy expressed as
with
.
Ref. [
23] shows that the two forms of discord are related when one does
not minimize with respect to the measurement basis. Indeed, for any fixed set
we define
and
as the quantities in (
35) and (
36)
without the minimizations over
. Please note that to obtain
one still must minimize over the
dependence of
. Then the following remarkably simple relation holds,
where
is the product of the two reduced density matrices associated with
, which itself is defined as the asymmetric classical state in
which minimizes
when the minimization is carried on over
only (for brevity’s sake the
-dependence of
and
is left implicit). Now, there is a modified version of theorem 2 of [
23] (with a similar proof) which states that for any fixed orthonormal basis
, the minimizer of
over
is attained at
, or equivalently at
. We note that this minimizer is such that
has eigenvectors
with eigenvalues
. Moreover,
, and we find
It should be stressed that this expression, which will be useful later, is
not in general equal to
because
are eigenvectors of
only, moreover it still depends on the basis
. The latter remark also holds for relationship (
37), which, as remarkable as it is, remains insufficient to directly relate the “true” discords
and
since they are defined by
independent minimizations over
.
We would now like to show that still it is possible to find a weaker relation between the two kinds of asymmetric discords in the form of a general and useful inequality. Consider the difference on the right-hand side of (
37) which equals
. We claim that this difference of entropies is
non-positive. Thus, (
37) also is non-positive for all
, which implies that
, hence also
This means that in general original discord cannot be larger than the corresponding asymmetric relative entropy of discord. To show the claim note that from the spectral decomposition
we have
and
where
H is the classical Shannon entropy. It is a standard property of Shannon’s entropy that it may only increase when a so-called doubly stochastic matrix (here
) is applied to a probability distribution (see for example [
64] chap. 1, p. 26).
5.2.3. Application to BDS
Concerning BDS another fundamental result emerges from the previous discussion. Consider the r.h.s. of Equation (
37): on one hand we already know that for BDS
, so
, on the other hand Equation (
38) implies that
is also equal to
for all
. So, one immediately sees that the right-hand side of Equation (
37) vanishes for all
, and thus
in the whole BDS tetrahedron. Therefore, we conclude that
for all BDS quantum discord and asymmetric relative entropy of discord are
equal quantities.
To derive a concrete expression for the BDS quantum discord one should solve the optimization problems (
36) and/or (
33). As we just proved above, both problems have the same solution. Luo [
30] was the first to solve (
36) and gave explicit formulas for the mutual information, classical correlation and discord of BDS.
From the original definition of BDS one notes that the eigenvalues of the density matrix for a point
of
are given by (6), which allows us to immediately write down
. On the other hand,
for every point of
. Therefore
From [
30] we have the remarkably simple result in terms of
where
is the binary entropy function. The quantum discord
is just the difference of the two expressions (
40) and (
41).

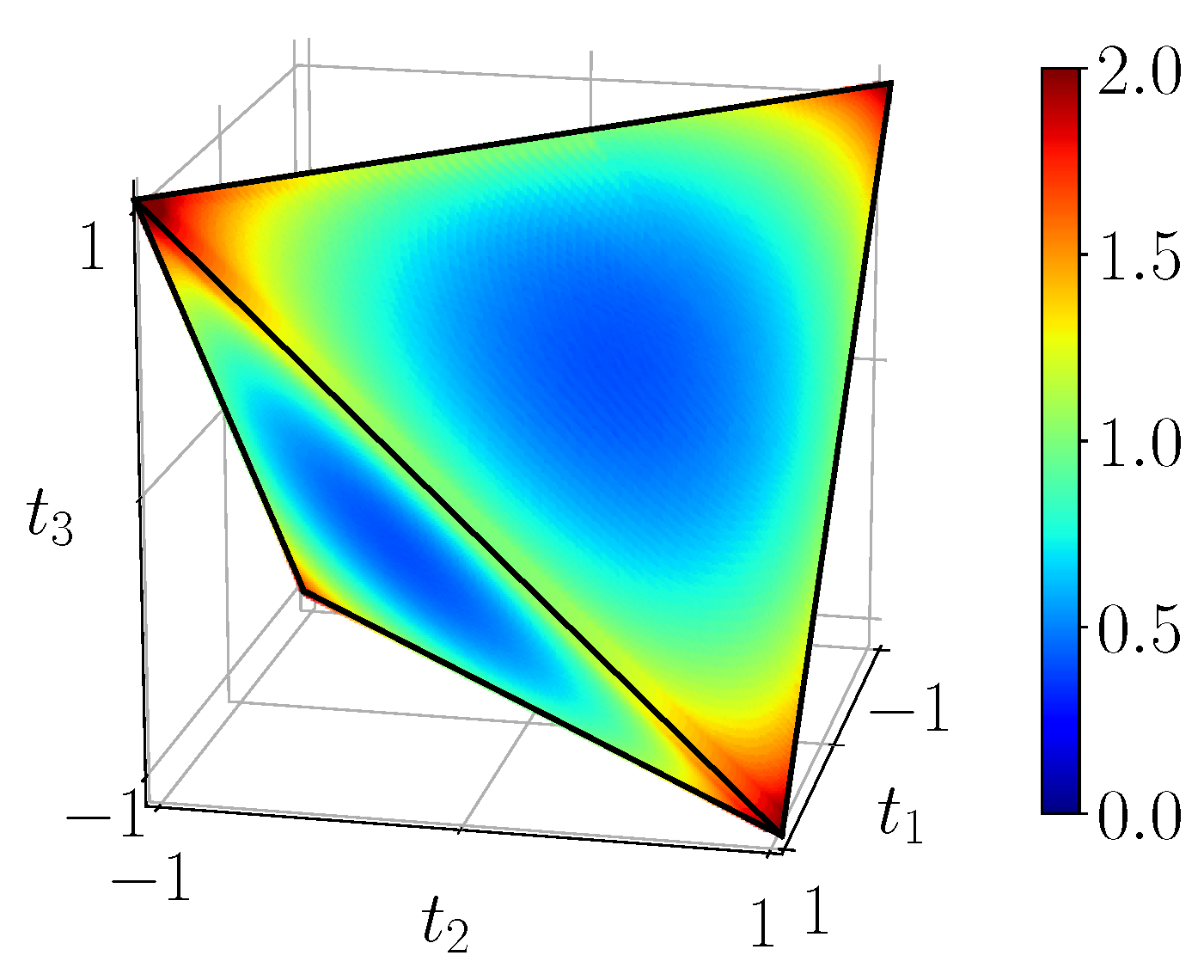

Figure 11 shows the quantum mutual information of BDS computed on the tetrahedron with Equation (
40),

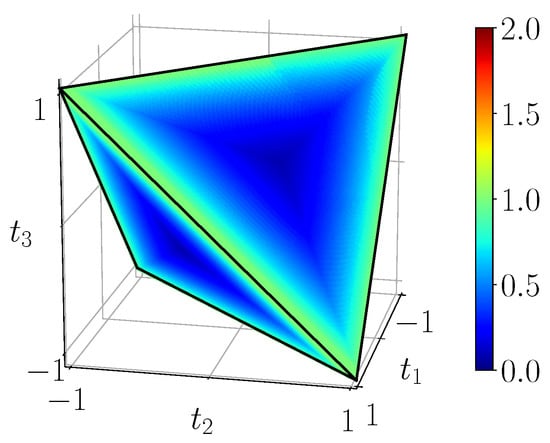

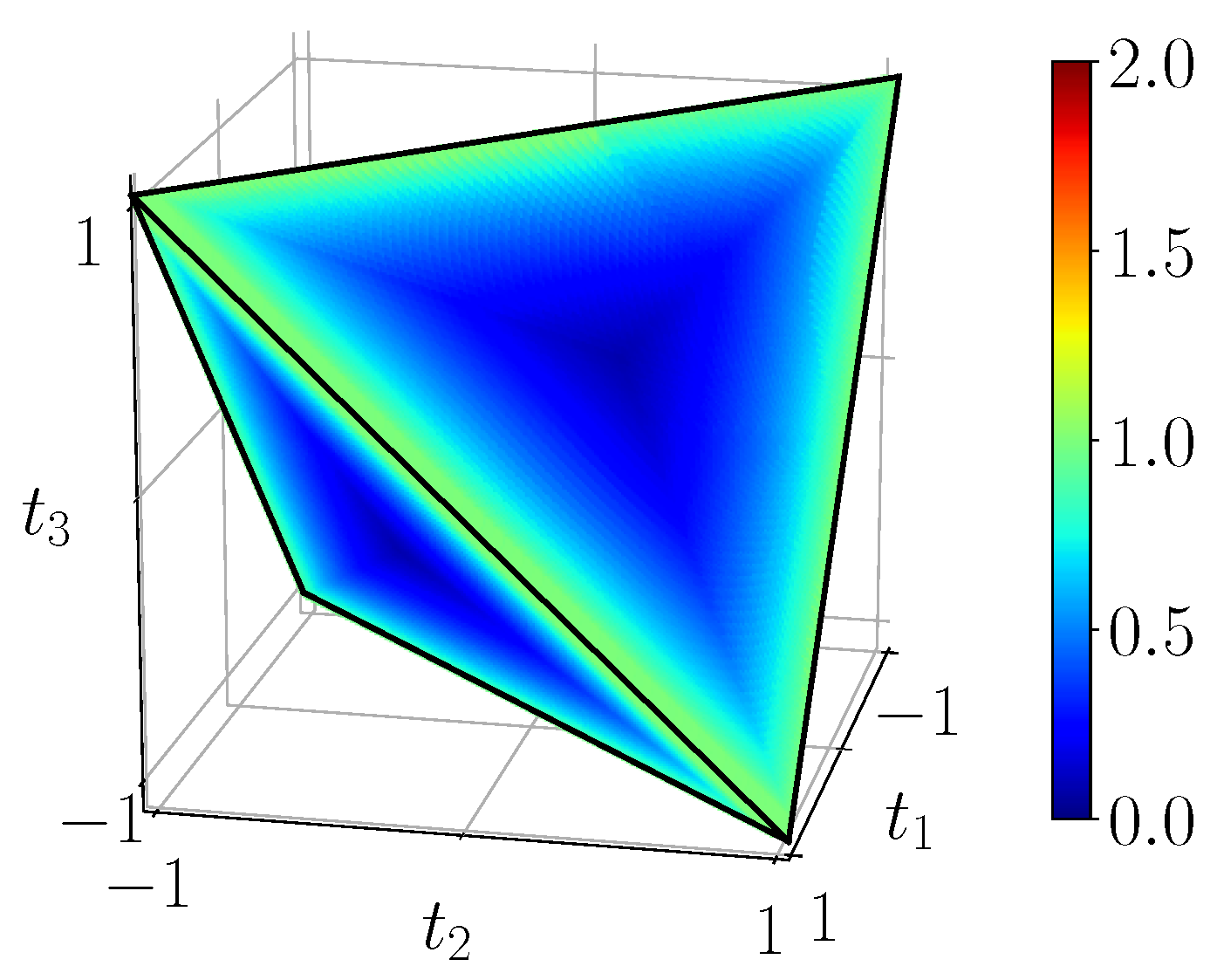

Figure 12 shows their classical correlation according to Equation (
41), and

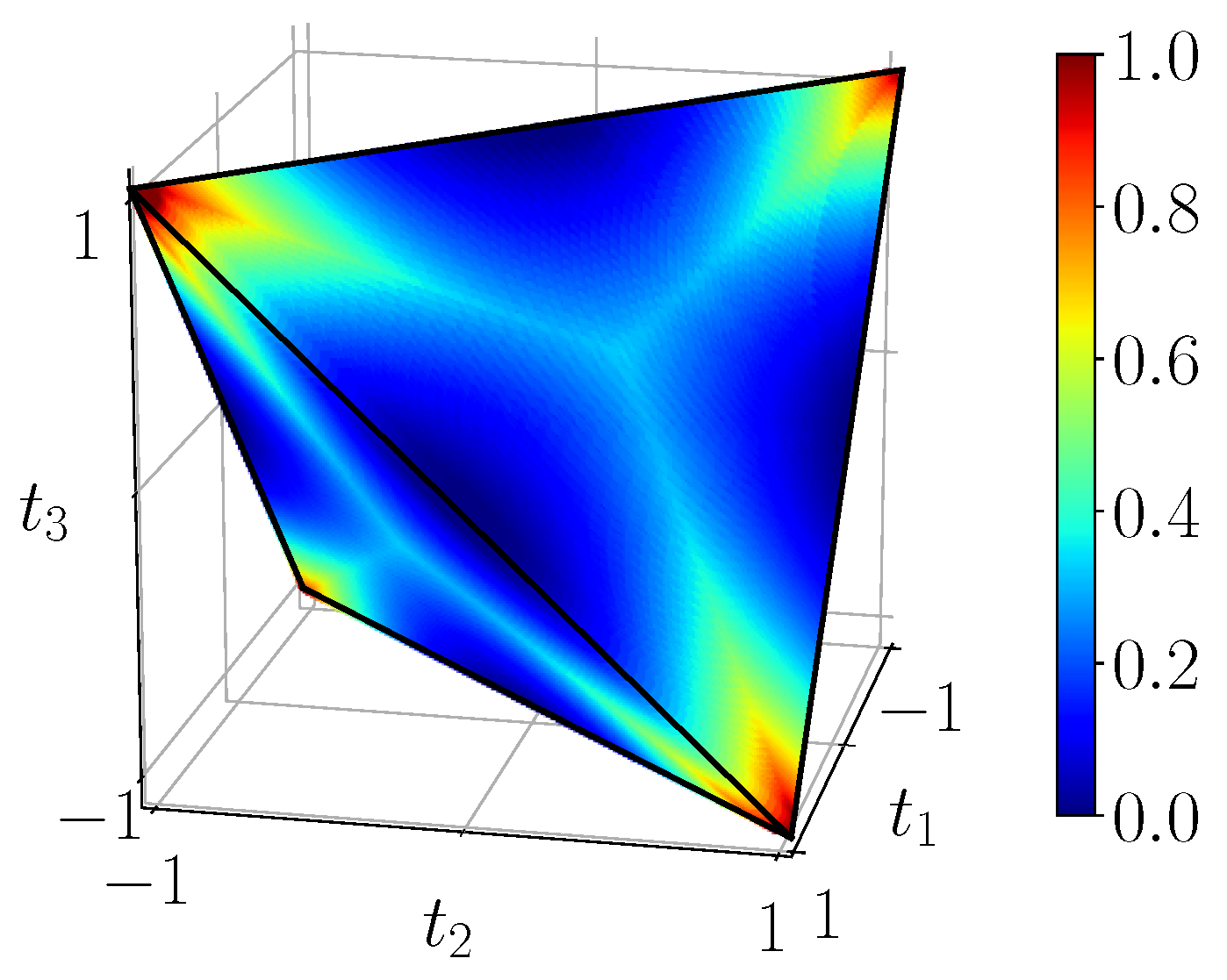

Figure 13 displays their discord which is just their difference.
5.3. The Particular Case of Werner States
We recall that Werner states, defined in (
10), lie on the negative diagonal
,
of
. Formulas for entanglement of formation
, steering, CHSH-non-locality
, 3-steering

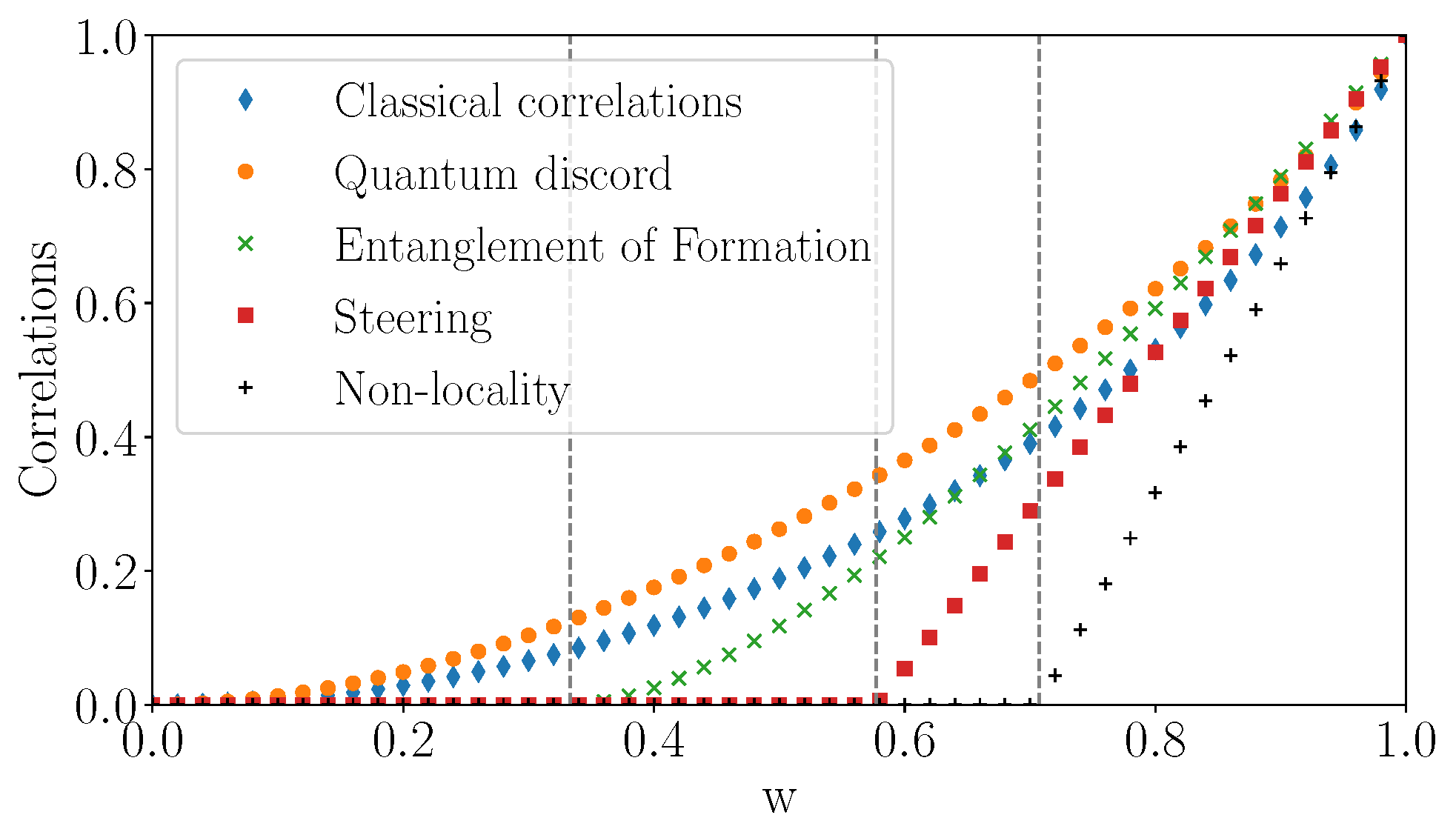

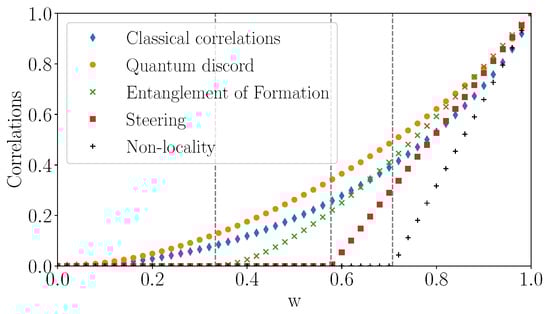

and discord can be easily specialized on this line. The resulting quantities are plotted on
Figure 14. We clearly observe the strict hierarchy discussed earlier: non-locality implies 3-steering which implies non-separability (or entanglement).
Non-separability and entanglement of formation . The PPT criterion shows that Werner states are separable for
and display entanglement for
. The same threshold applies to concurrence (see (
22)) and entanglement of formation (see (
23)). The details are given in
Appendix C.
CHSH-non-locality. CHSH-non-locality vanishes for . Please note that corresponds to the only points in the common intersection of the three unit cylinders oriented along the main axes.
Steering. The threshold for 2-steering is identical to the one of CHSH-non-locality [
53,
57,
59]. On the other hand, 3-steering
vanishes for
and states with larger
w are 3-steerable. We point out that [
27] proved that Werner states cannot be replaced by a LHS model if an only if
(this is the fundamental threshold below which Werner states are not steerable).
Discord and classical correlation. From (
41), the classical correlation is simply
and using (
40) we find the discord
We note that discord is strictly bigger than classical correlation for all w except and 1.
6. IBM Q Results
This section is divided in two parts. We first provide results obtained by simulations augmented with the noise model from IBM Q devices. Then we present experimental runs on real devices.
In this section, we shall focus on only two types of quantities: first the fidelity of achievable density matrices with our circuits, this will allow an estimation of the error. Second, we shall compute the corresponding classical correlations, quantum mutual information and discord. We have chosen these quantum correlations because they are the less trivial quantities, which do not vanish on any portion of the tetrahedron (except eventual singular points).
Fidelity will be displayed only in one-dimensional plots for Werner states on the Werner line, because the error for each value of the parameter w can be easily visualized, as well as because the most important set of states in the tetrahedron are still covered. On the contrary classical correlations, quantum mutual information and discord will be displayed for the whole range of BDS in the tetrahedron.
The density matrices
obtained from noisy simulations and/or experiments are reconstructed by Qskit tomography. Their accuracy can be measured thanks to the fidelity with respect to the theoretical density matrix
of BDS
The worst possible case would correspond to a maximally mixed reconstructed state
. On the Werner line this would yield
This expression serves as a gross benchmark dotted line plotted on
Figure 15 and
Figure 16.
We first turn to simulations which give a first realistic expectation for experimental results, and which also allows the evaluation of some circuits which cannot yet be realized on IBM Q.
6.1. Simulations with Noise Models from IBM Q Quantum Devices
To compare the various quantum circuits that we have proposed in
Section 3, and specifically their expected performance in producing quantum correlations when subject to noise, we have run simulations using Qiskit [
41]. The source code for these is available in our GitLab repository [
46]. Each circuit is executed
times, with noise simulated according to the Qiskit noise model [
65]. Such noise models are generated semi-automatically by Qiskit based on the state of a real IBM Q device at the time of generation. As such, they are subject to change over time, and should in any case not be viewed as accurate representations of noise in real devices. They are, however, useful as a rough benchmark for comparing different quantum circuits.
6.1.1. Fidelity in Noisy Simulations on the Werner Line
Figure 15 shows the fidelity
of Werner states
prepared with the different circuits described in
Section 3, with respect to the corresponding theoretical Werner density matrix
, in the presence of simulated Qiskit noise. The fidelity is computed from the density matrix of the output state, as empirically determined using our adaptation of Qiskit’s built-in routine for quantum tomography; see
Section 4. As may have been expected, two-qubit circuits consistently outperform four-qubit circuits, and the “compact” circuit (
Figure 3b) consistently outperforms the one based on canonical 3-sphere coordinates (
Figure 3c). Perhaps surprisingly, the two-qubit circuit specialized for Werner states (see
Figure 6) generally does not outperform the compact circuit.
6.1.2. Noisy Simulation in the Whole Tetrahedron: Expected Quantum Mutual Information and Discord
We have simulated the 4-qubit as well as 2-qubit circuits of
Section 3 using a Qiskit noise model for the backend
ibmq_london (respectively generated on 2019–12–03 and 2019–12–10 with 1000 shots).

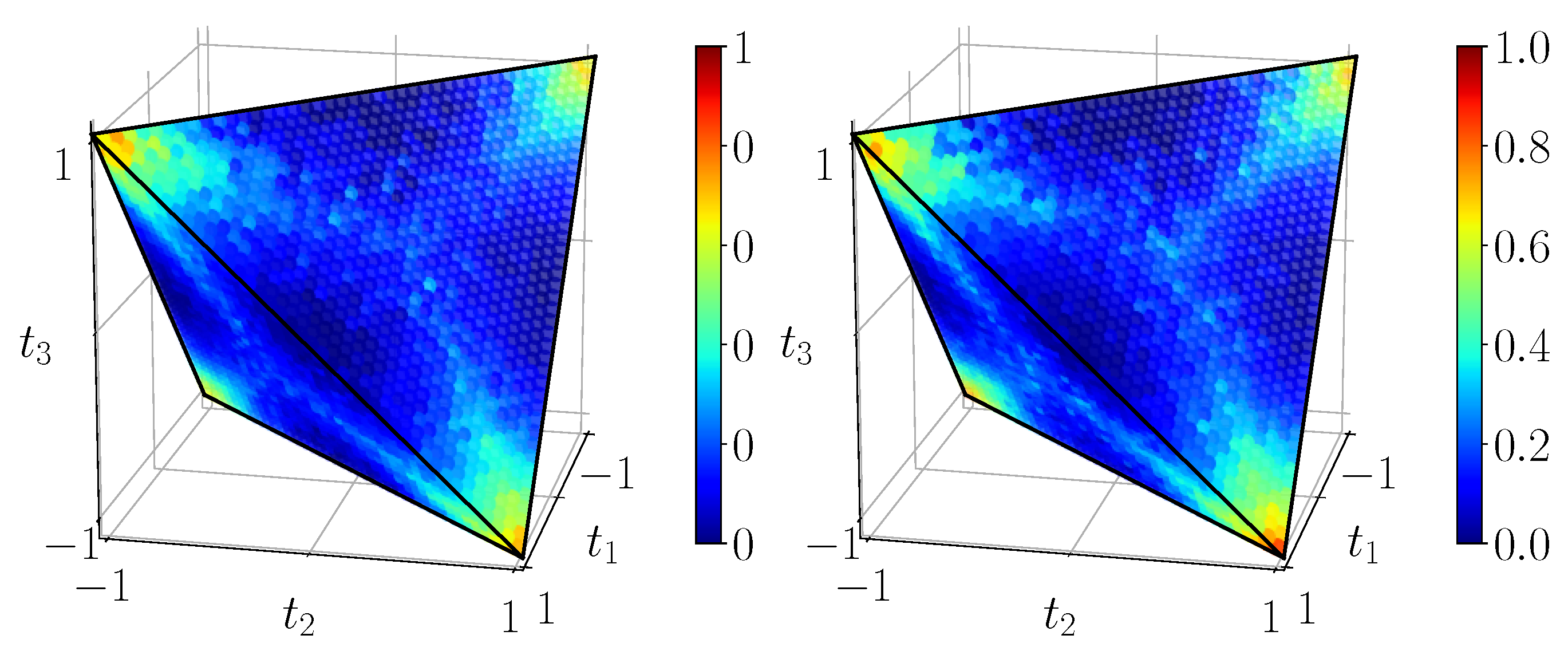

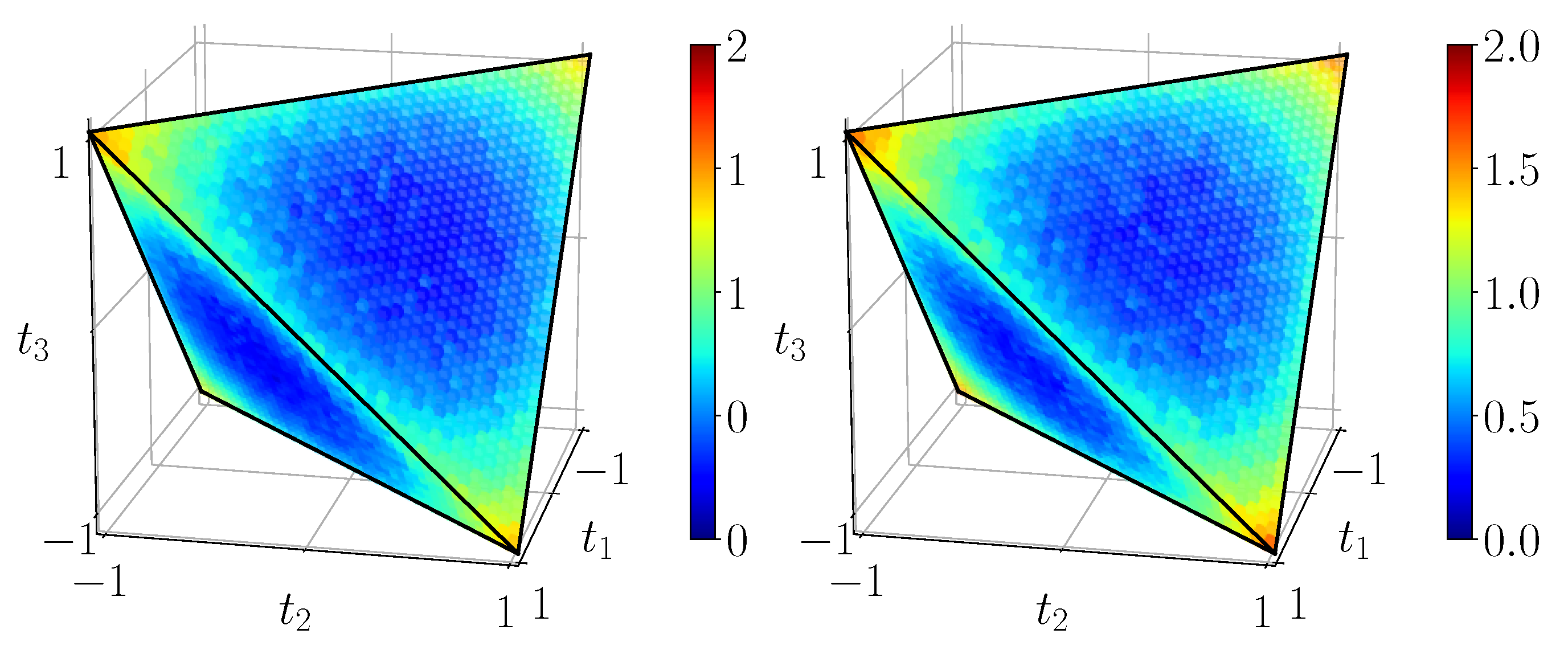

Figure 17 and
Figure 18 display the result for the quantum mutual information and the discord on the whole tetrahedron. In general, we observe that noise reduces these quantities to almost half their theoretical value close to the corners of the tetrahedron. Interestingly, in the corners and along the edges we observe that the 2-qubit circuit is slightly more faithful to the ideal results of
Figure 11 and
Figure 13 in
Section 5.1. The same observations hold also for the classical correlation (not shown here). These results are consistent with the corresponding observations on the Werner line discussed in the previous paragraph.
6.2. Experiments on IBM Q Quantum Devices
We now turn to true quantum experiments on IBM Q. Some of the circuits which cannot yet be implemented are left out. The quantities measured and evaluated will be the same as in the simulations of the previous subsection, namely fidelity of the experimental density matrices (obtained by Qskit tomography) and experimentally achieved classical correlations, quantum mutual information and discord.
6.2.1. Fidelity of Experimental Density Matrices
Figure 16 shows the fidelity in the experiment using the quantum circuit on
Figure 3b on
ibmq_athens and
ibmq_santiago with 5000 shots. This is compared to the ideal noiseless simulation with
qasm-simulator, and the one using a Qiskit noise model based on the properties of each real hardware. The density matrix reconstructed using both
ibmq_athens and
ibmq_santiago with 5000 shots is close to the ideal one for small
w, proving the performance of the real quantum computer in the corresponding domain, although it drops below
and
, respectively, for
. At the time, this result suggests that it is necessary to improve the current noise model to describe the fidelity drop in a more faithful way. In this run, we see that slightly higher fidelity was obtained by
ibmq_athens compared to
ibmq_santiago.

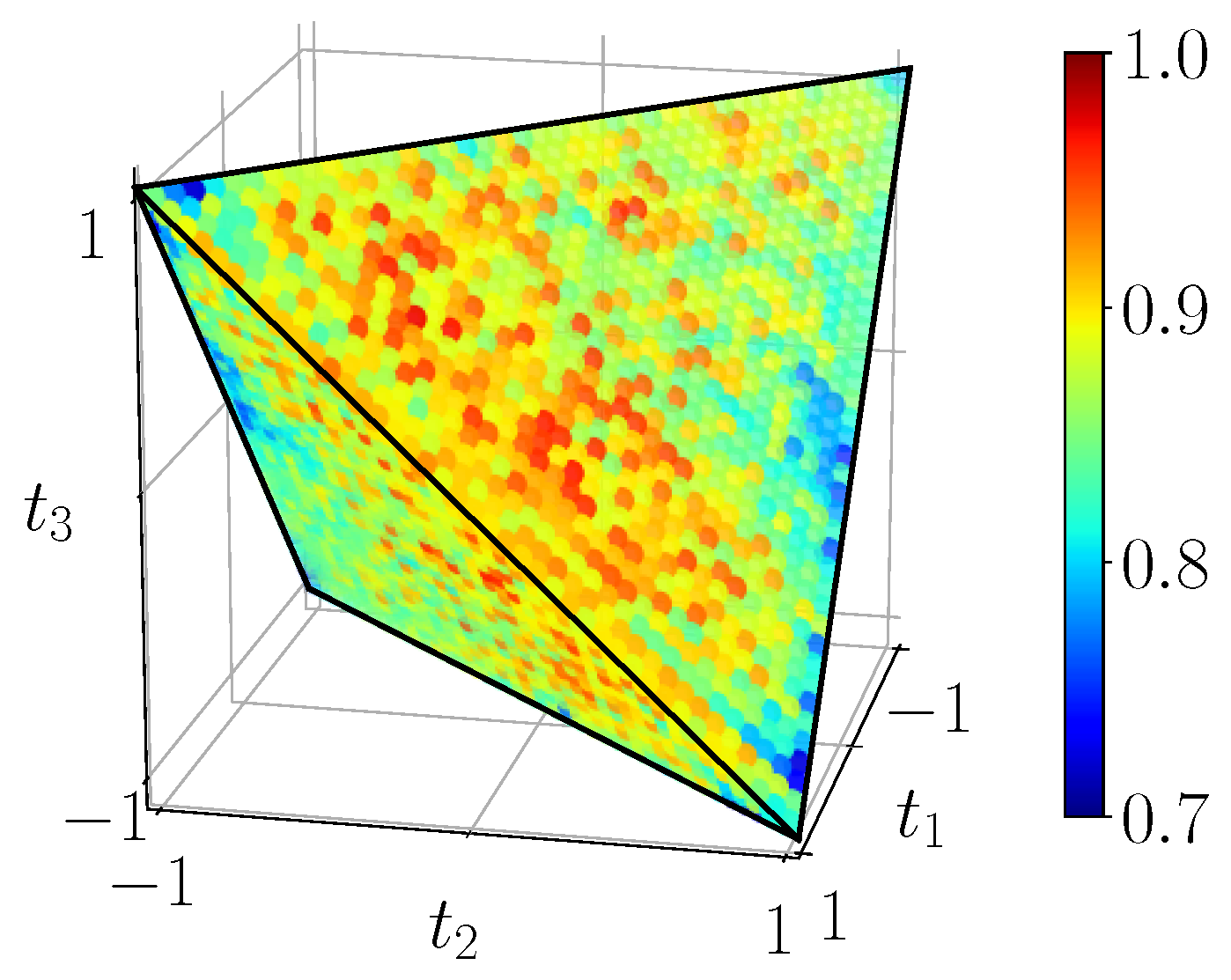

Figure 19 shows the fidelity of states on the full BDS tetrahedron, as computed from the density matrices reconstructed from experiments on the
ibmqx2 backend, running the circuit of
Figure 3b with 1000 shots per measurement. We see that the fidelity is fairly high, ∼0.9, over the whole domain which allows us to proceed with the calculations of quantum correlations in the following.
6.2.2. Experimental Classical Correlations, Quantum Mutual Information and Discord
Several quantities are studied on the real quantum computer. Again, we use the
ibmqx2 backend, running the circuit of
Figure 3b with 1000 shots per measurement.
One can see on

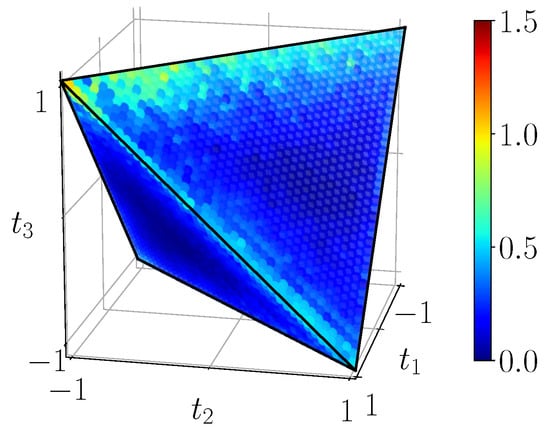

Figure 20 that the experimental classical correlations seem to follow the theoretical predictions, nevertheless exhibiting lower values, especially visible on the edges of the tetrahedron. Quantum mutual information (

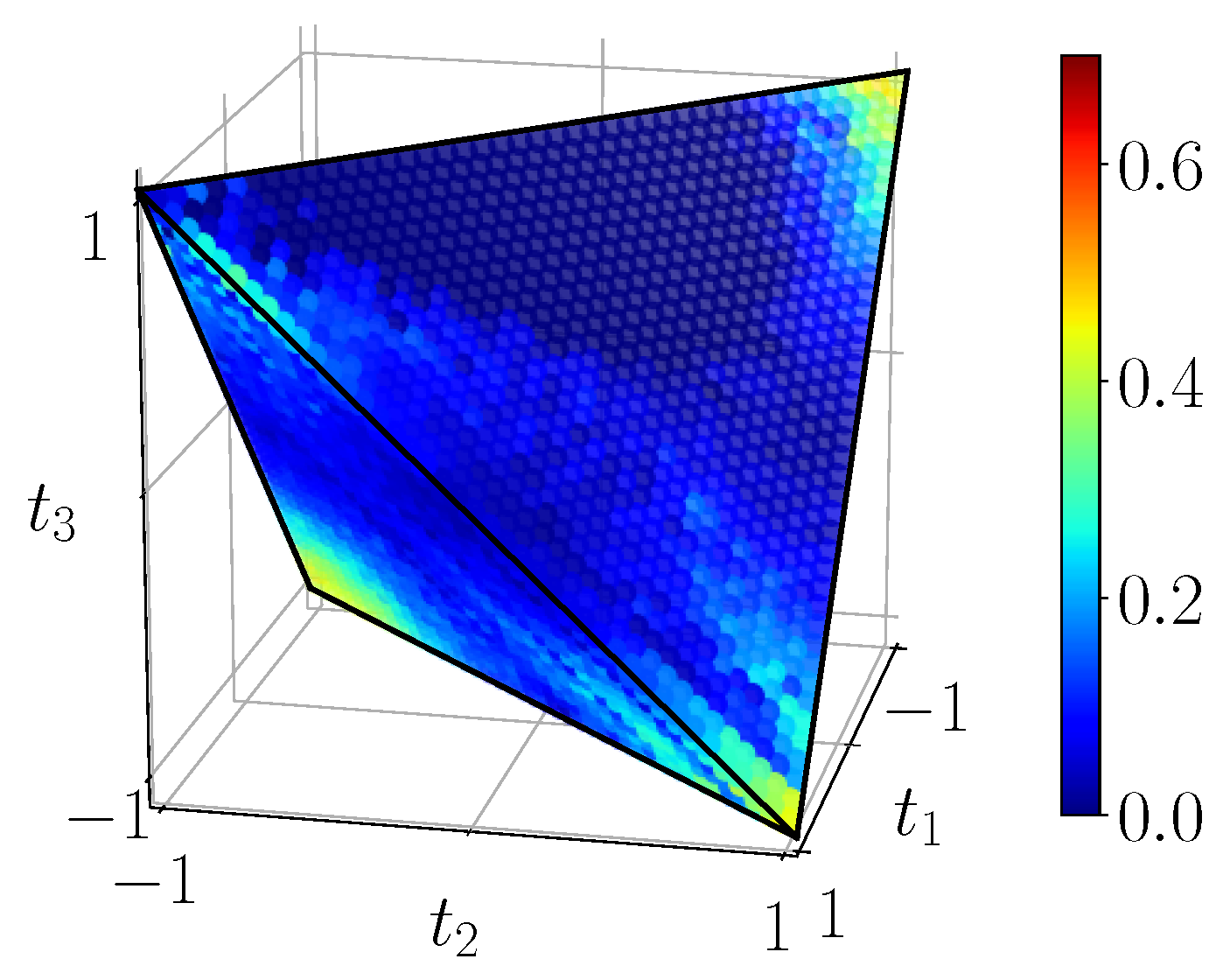

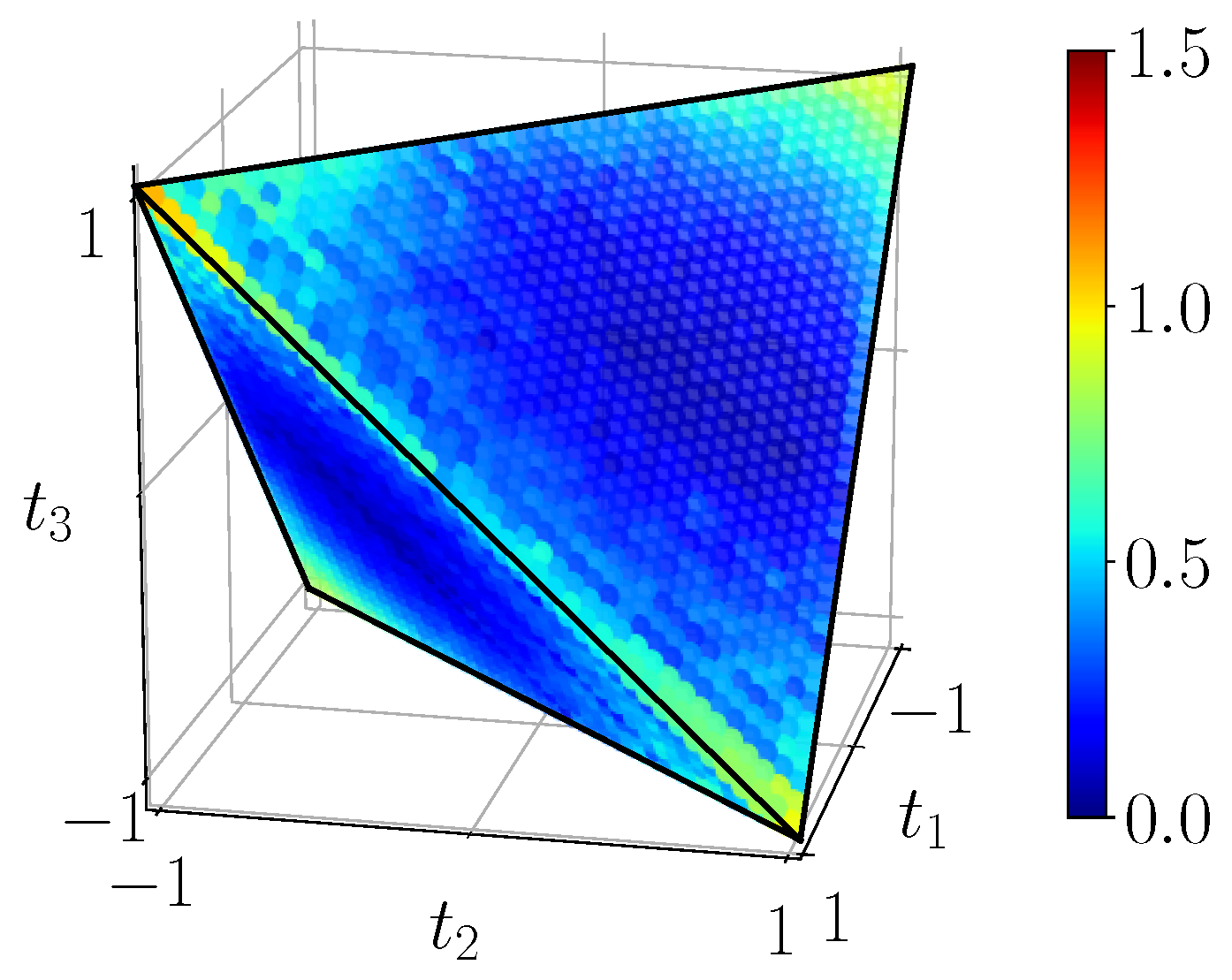

Figure 21) seems to suffer most of the lack of fidelity, indeed, its maximal values are nearly one unit below the theoretical ones. Finally, discord, plotted on
Figure 22, also decreased compared to the theory.
It can be noticed that classical correlations and quantum mutual information reveal an asymmetric behavior in the tetrahedron. The Bell states
and
both have higher values of these quantities than
and
. This asymmetry is however also apparent in the noise simulations (see
Figure 17 and
Figure 18) and thus seems to be explained by the noise model. More work would be needed to track the possible source of this asymmetry at the circuit level (with respect to the preparation of Bell states and edges of the tetrahedron).
7. Conclusions
In the preceding work, we have proposed new quantum circuits for the preparation of the entire class of Bell diagonal states, and in particular Werner states, and tested them in simulations as well as on a real quantum device. To the best of our knowledge, they are the first correct, special-purpose BDS preparation circuits to be described. Furthermore, we have given a comprehensive reexamination of the central role of Bell diagonal states in the study of entropic measures of quantum correlations, in particular quantum discord for which we found a specific equivalence with “asymmetric relative entropy of discord”. More generally, and as a by-product of this work, we also found the remarkable general inequality (
39) between these two quantities: for any quantum state the former never exceeds the latter! We have illustrated the behavior of these measures on the BDS tetrahedron and the Werner line, comparing theory, circuit simulations and experiments.
Currently, two primary qubits and two ancillary qubits seem necessary to prepare BDS on physical IBM Q devices; we recommend the circuit of
Figure 2 combined with
Figure 3b for this purpose. However, this is not a fundamental restriction, but rather a consequence of the current limited capabilities of the hardware. On future quantum computers that support post-measurement gates and classically controlled measurement operations, the ancillary qubits will not be necessary. This highlights the value of developing not only the quantum systems themselves, but also the classical interfaces controlling them. In addition, fully fledged classical control will make it possible to implement key protocols that rely on classical communication, such as quantum teleportation.
We point out that it would be interesting (in future work) to implement the four-qubit circuit template of
Figure 5. Indeed, as explained in
Section 3 it implements the unread measurements as an interaction with two environmental qubits. This could in practice be at an advantage compared to that of
Figure 2, especially so in combination with
Figure 3b. Indeed, it places weaker demands on the topology of the underlying device. The degree to which this is true will of course depend on the particular device, but we speculate that
Figure 5 will typically be at an advantage because it concentrates most operations to the qubits
a and
b, and in particular, reuses the CNOT channel
where
Figure 2 requires an additional CNOT channel
.
We have shown that the IBM Q devices allow for an experimental investigation of a large portion of the Hilbert space of two-qubit systems, in particular for the correlation measures over the whole tetrahedron of BDS in
Section 6. The comparison of experiments and noisy simulations seems to show that the backend noise models provided by Qiskit are too optimistic; this reveals especially near corners of the tetrahedron. This is also visible at the level of the fidelity on the Werner line.
