Implementation of Fault-Tolerant Encoding Circuit Based on Stabilizer Implementation and “Flag” Bits in Steane Code

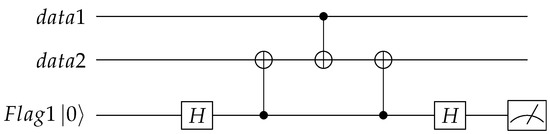

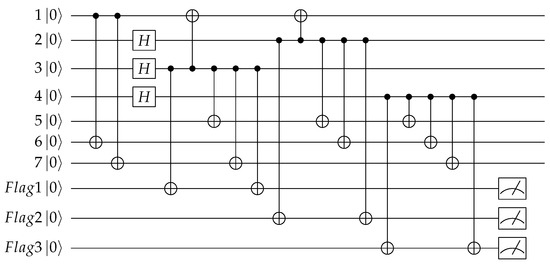

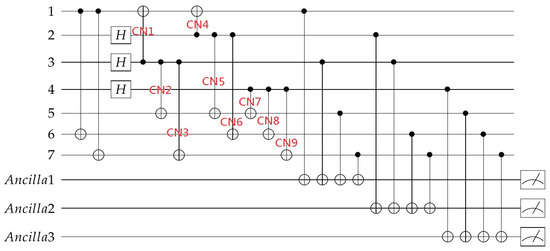

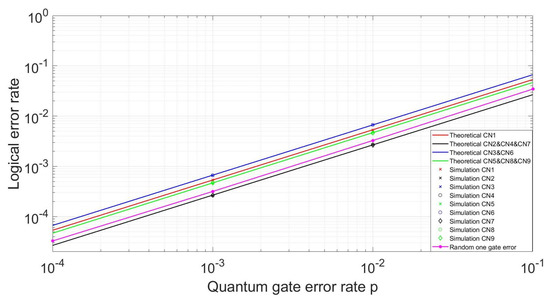

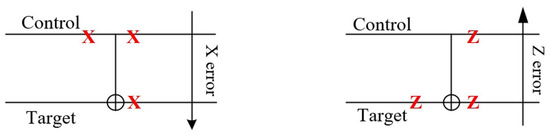

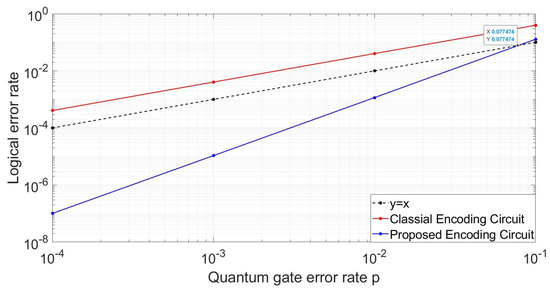

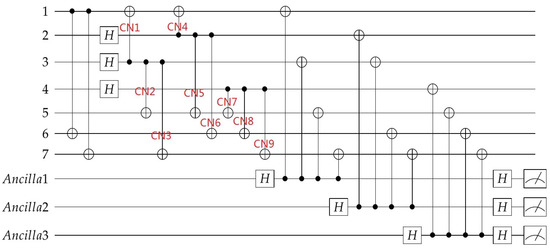

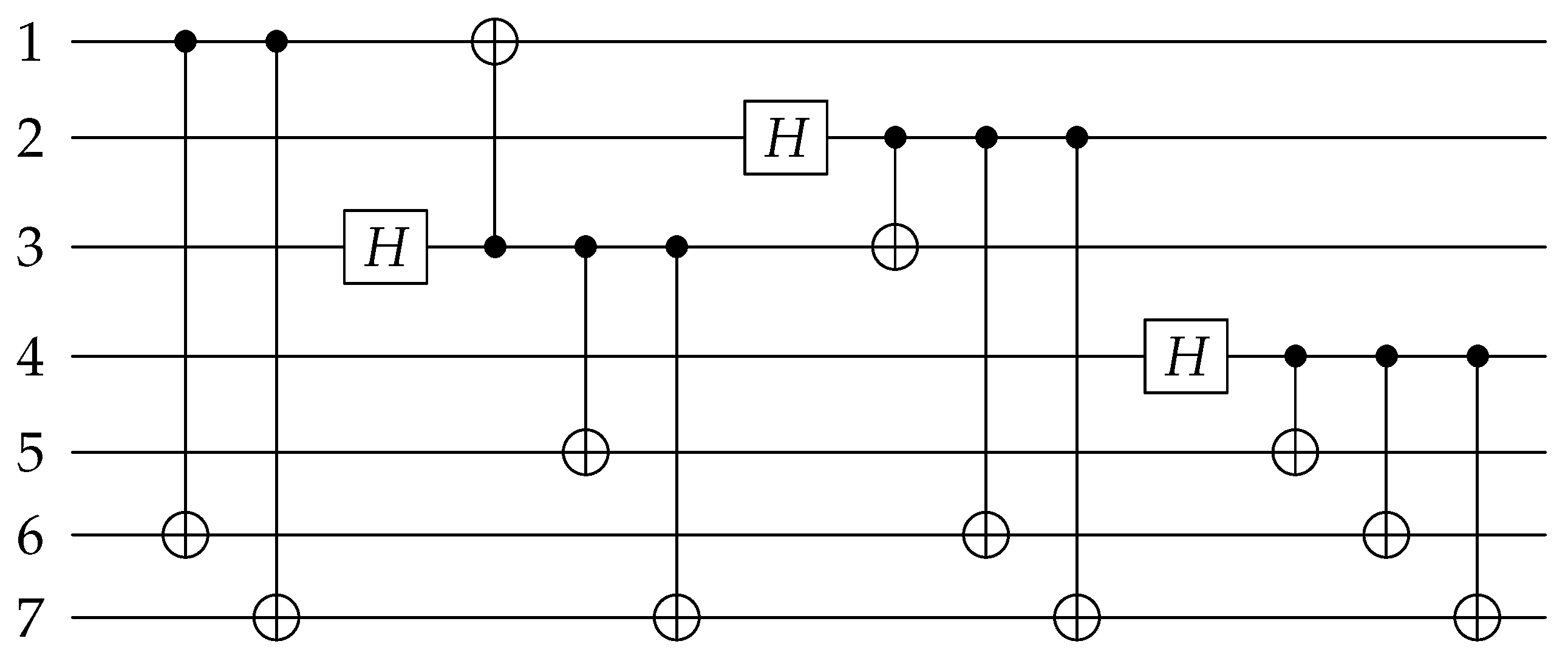

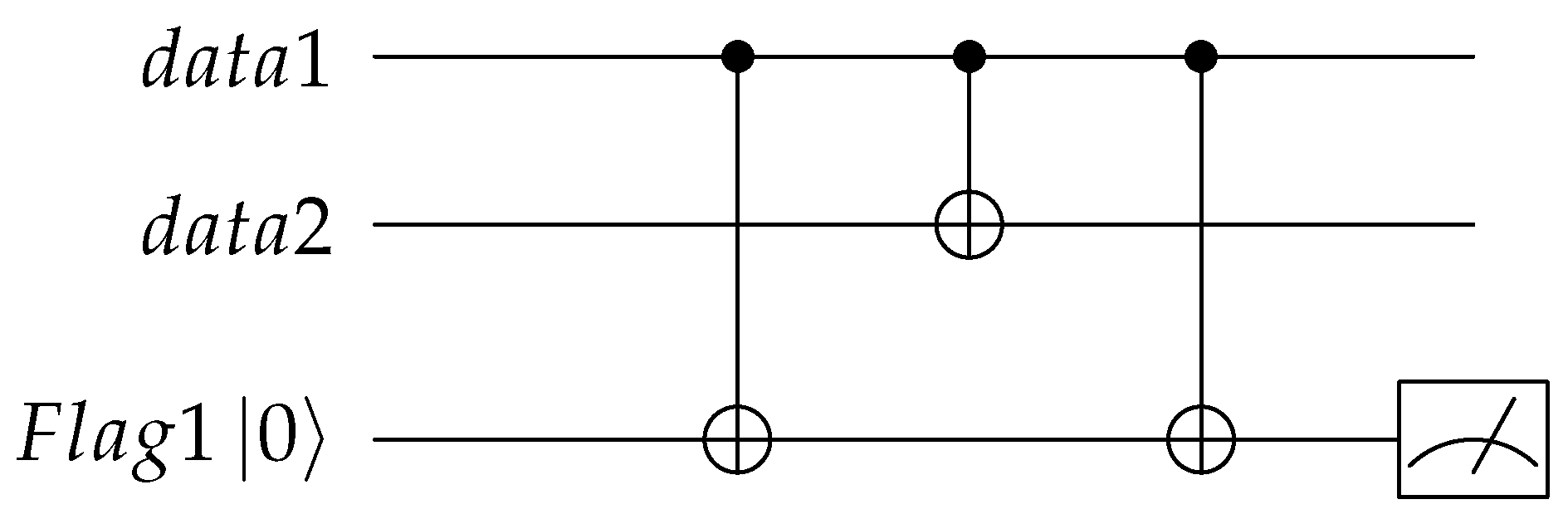

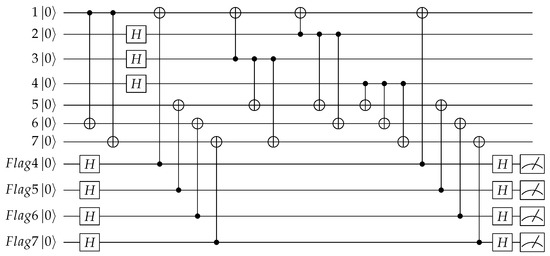

Quantum error correction (QEC) is an effective way to overcome quantum noise and de-coherence, meanwhile the fault tolerance of the encoding circuit, syndrome measurement circuit, and logical gate realization circuit must be ensured so as to achieve reliable quantum computing. Steane code is one of the most famous codes, proposed in 1996, however, the classical encoding circuit based on stabilizer implementation is not fault-tolerant. In this paper, we propose a method to design a fault-tolerant encoding circuit for Calderbank-Shor-Steane (CSS) code based on stabilizer implementation and “flag” bits. We use the Steane code as an example to depict in detail the fault-tolerant encoding circuit design process including the logical operation implementation, the stabilizer implementation, and the “flag” qubits design. The simulation results show that assuming only one quantum gate will be wrong with a certain probability p, the classical encoding circuit will have logic errors proportional to p; our proposed circuit is fault-tolerant as with the help of the “flag” bits, all types of errors in the encoding process can be accurately and uniquely determined, the errors can be fixed. If all the gates will be wrong with a certain probability p, which is the actual situation, the proposed encoding circuit will also be wrong with a certain probability, but its error rate has been reduced greatly from p to $p^2$ compared with the original circuit. This encoding circuit design process can be extended to other CSS codes to improve the correctness of the encoding circuit.
