Article

A Unified Approach to Two-Dimensional Brinkman-Bénard Convection of Newtonian Liquids in Cylindrical and Rectangular Enclosures

by
Pradeep G. Siddheshwar
1,†,
Kanakapura M. Lakshmi
2,*,† and
David Laroze
3,†
1
Centre for Mathematical Needs, Department of Mathematics, CHRIST (Deemed to Be University), Hosur Road, Bengaluru 560029, India
2
Department of Mathematics, School of Physical Sciences, Central University of Karnataka, Kalaburagi 585367, India
3
Instituto de Alta Investigación, Universidad de Tarapacá, Casilla 7D, Arica 1000000, Chile
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Entropy 2024, 26(1), 2; https://doi.org/10.3390/e26010002
Submission received: 11 October 2023 / Revised: 10 December 2023 / Accepted: 11 December 2023 / Published: 19 December 2023
(This article belongs to the Special Issue Statistical Mechanics of Porous Media Flow)

Abstract

:
A unified model for the analysis of two-dimensional Brinkman–Bénard/Rayleigh–Bénard/ Darcy–Bénard convection in cylindrical and rectangular enclosures ( C E / R E ) saturated by a Newtonian liquid is presented by adopting the local thermal non-equilibrium ( L T N E ) model for the heat transfer between fluid and solid phases. The actual thermophysical properties of water and porous media are used. The range of permissible values for all the parameters is calculated and used in the analysis. The result of the local thermal equilibrium ( L T E ) model is obtained as a particular case of the L T N E model through the use of asymptotic analyses. The critical value of the Rayleigh number at which the entropy generates in the system is reported in the study. The analytical expression for the number of Bénard cells formed in the system at the onset of convection as a function of the aspect ratio, S o , and parameters appearing in the problem is obtained. For a given value of S o it was found that in comparison with the case of L T E , more number of cells manifest in the case of L T N E . Likewise, smaller cells form in the D B C problem when compared with the corresponding problem of B B C . In the case of R B C , fewer cells form when compared to that in the case of B B C and D B C . The above findings are true in both C E and R E . In other words, the presence of a porous medium results in the production of less entropy in the system, or a more significant number of cells represents the case of less entropy production in the system. For small and finite S o , the appearance of the first cell differs in the C E and R E problems.

1. Introduction

Rayleigh–Bénard convection ( R B C ) in a fluid-saturated porous medium has been widely studied in the last few decades due to its wide range of applications in many fields, including thermal insulation systems, geothermal reservoirs, cooling of electronic and thermal equipment, etc. Generally, in nature, two types of porous media are seen, viz., high-porosity (loosely packed) and low-porosity (densely packed) media. Mathematically, loosely packed porous media are modelled using the Brinkman–Forchheimer-extended Darcy/Brinkman model. The densely packed porous medium is modelled using the Darcy model. These models consider the geometrical properties of the medium. Observing the thermal properties of the fluid and the porous medium, one adopts either the local thermal equilibrium ( L T E ) or the local thermal nonequilibrium ( L T N E ) model. When the difference exists in the thermal properties of fluid and solid phases, then the consideration of the L T N E model becomes necessary to analyse the system.
We first present a detailed literature survey concerning R B C in a loosely-packed porous medium (Brinkman–Bénard convection— B B C ) followed by that of a densely-packed porous medium (Darcy–Bénard convection— D B C ) occupying a rectangular geometry and a cylindrical geometry with the L T N E assumption. The articles studying B B C with L T N E [1,2,3,4,5,6,7,8] and D B C with L T N E [9,10,11,12,13,14] in rectangular enclosures ( R E ) are covered below. Phanikumar and Mahajan [1] examined the heat transfer characteristics of natural convection flow in a fluid-saturated metal-foam porous medium heated from below. They modelled the porous medium flow using the Brinkman–Forchheimer-extended Darcy model ( B F E D model). They conclude that the L T N E model is a better model to study convection in the fluid-metal-foam porous medium. Postelnicu and Rees [2] performed a linear stability analysis of B B C of a Newtonian liquid using the L T N E model. They found excellent agreement between the asymptotic and the numerical results of heat transfer. Using the L T N E model, Straughan [3] determined the threshold value of convection at which instability occurs by making use of a global nonlinear stability analysis. He showed that the critical value predicted by the nonlinear theory exactly matches the one predicted by the linear theory. Khashan et al. [4] numerically simulated the natural convection problem in fluid-saturated porous cavities, including non-Darcian effects: Brinkman, convecting and Forchheimer terms. The effect of non-Darcian terms is well examined over a wide range of Rayleigh numbers. Postelnicu [5] made a linear stability analysis of D B C with L T N E assumption using single-term and N-term Galerkin methods. Using a single-term Galerkin method, an explicit expression is obtained for the Rayleigh number as a function of the wave number and other parameters. The eigenvalue obtained from this has been used as an initial guess value for the Galerkin method. Siddheshwar and Siddabasappa [6] analytically made linear and non-linear stability analyses of B B C using the L T N E model with rigid and free boundary conditions. The results of the Darcy model are obtained as a limiting case. Liu et al. [7] numerically investigated the flow structure and the heat transfer of B B C in a square lattice. They examined the effect of porosity on the flow properties during the transition of flow from B B C to D B C . Siddheshwar et al. [8] analytically studied the B B C problem of four visco-elastic/one Newtonian fluid-saturated media occupying rectangular/cylindrical enclosures. They developed a common Lorenz model for both C E and R E to analyse the dynamics of the system. We next move on to the literature survey concerning D B C L T N E problems.
Banu and Rees [9] numerically investigated the onset of D B C in a fluid-saturated porous medium using the two-temperature model between fluid and solid phases. The results of the L T E model are recovered by taking the thermal equilibrium limits (asymptotic analyses). Govender and Vadasz [10] performed a linear stability analysis of D B C with Coriolis and gravitational body forces and concluded that the effect of rotation is to stabilise convection even when the system exhibits thermomechanical anisotropy. Postelnicu [11] studied the effect of pressure gradient on the onset of D B C using the Galerkin method and the numerical solver d s o l v e of Maple. The results of the L T E model are recovered for large values of the scaled interface heat transfer parameter. Bidin and Rees [12] made a weakly non-linear analysis of the classical D B C problem to analyse the effect of the L T N E assumption on different planforms of convection. Secondary instabilities like Eckhaus and zig-zag instabilities were also considered. They showed that the roll planform is a stable planform of convection. Siddheshwar et al. [13] investigated both regular and chaotic convection in a densely-packed porous medium saturated by a Newtonian liquid by considering phase lag effects. A novel decomposition method is used to obtain an extended Vadasz-Lorenz model. They found from the study that the phase-lag effects alter the nature of chaos. Bansal and Suthar [14] analysed the onset of D B C using the L T N E model when the temperature of the two boundaries varies sinusoidally. The matrix differential operator theory is adopted to perform the stability analysis, and the critical Rayleigh number as a function of system parameters is obtained. The problem of R B C in R E is well investigated by many researchers and is now documented in books [15,16,17,18,19,20]. Kita [21] showed in his study the principle of maximum entropy as a general rule to study the stability of a R B C in non-equilibrium steady states. Jia et al. [22] studied the characteristics of R B C systems entropy production using the centre mesh systems and the finite volume method. They found from the study that the Rayleigh number and the aspect ratio play a crucial role in the formation of the Bénard cells pattern in the system. We next present the literature survey of C E .
There is no reported literature on B B C with L T N E , D B C with L T N E and B B C with L T E (except the work of Siddheshwar et al. [8], the study is restricted to unicellular convection) in a cylindrical geometry. Thus, we shall now focus our attention on the literature survey of D B C with L T E approximation in cylindrical enclosures ( C E ) and cylindrical annuli ( C A ) [23,24,25,26,27,28,29,30,31,32]. Zebib [23] analytically studied the onset of D B C in cylindrical enclosures. They found that the asymmetric mode is the preferred mode of convection except in the range of aspect ratio (radius/height) [1.09:1.28] at which the axisymmetric mode of convection occurs. Bau and Torrance [24] examined the onset of D B C in cylindrical annuli with two types of top wall boundary conditions, viz., permeable and impermeable. They showed that the system is more stable in the case of impermeable boundary condition compared to the permeable one. Haugen and Tyvand [25] performed a linear stability analysis of D B C with impermeable and conducting boundary conditions. They showed that the axisymmetric mode of convection is always a preferred one. In their analysis, they predicted the number of cells for some ranges of aspect ratios using the stream function plots. Zhang et al. [26] determined the critical Darcy–Rayleigh number for D B C in a cylindrical enclosure saturated by a visco-elastic fluid. They also determined the preferred mode of convection and found it to be a function of the aspect ratio and visco-elastic parameters. Bringedal et al. [27] examined the onset of D B C in a cylindrical porous annulus with impermeable, heat-conducting or insulating boundary conditions. They found that the effect of the inserted solid cylinder on the onset of convection is more dominant in the case of conducting boundary conditions compared to the insulating one. Kuznetsov and Nield [28] analytically investigated the onset of through-flow convection in a porous cylinder with vertical heterogeneity using a single-term Galerkin method. They found from the study that due to the symmetry of the horizontal boundary condition, the through flow is stabilising. Barletta and Storesletten [29] analysed the onset of convection in a densely packed vertical porous cylinder. The Robin boundary condition on temperature is applied to the horizontal boundaries, and the side boundary is assumed to be thermally insulated. The study shows that the Biot number plays an important role in determining the transition of the aspect ratio from one mode to the other. They also showed that the principle of exchange of stabilities is valid in the study. Kang et al. [30] analysed the onset of convection in a visco-elastic fluid-saturated rotating porous annulus. They examined the effect of the Taylor number and visco-elastic parameters on the onset and the mode of convection. Barletta and Storesletten [31] performed a linear stability analysis on D B C in a porous cylinder with permeable and thermally insulated vertical boundaries. Hence, the side wall is constrained by the temperature and pressure distributions. They first report results on D B C in a circular cylinder and then generalise the study to arbitrary cross-sectional cylinders. Siddheshwar and Lakshmi [32] analytically studied the onset and the heat transport by D B C in cylindrical enclosures and cylindrical annuli. They found from the study that the onset is advanced, and the heat transport is enhanced in the case of a cylindrical annulus compared to a cylindrical enclosure when the same volume is considered in the two geometries. The problem of R B C is one of the limiting cases of the B B C problem. Having completed a literature survey of R B C in C E , we found that [33,34,35,36,37,38,39,40] have considered the problem.
From the literature survey on Newtonian fluid occupying a porous medium, we found that the following aspects have not yet been investigated:
  • Analytical study of B B C in C E with L T E / L T N E .
  • Analytical study of R B C in C E .
  • Analytical study of D B C in C E with L T N E .
In addition to the above-mentioned open problems, there are no reported results on aspects concerning the dependence of the number of cells and cell size on the aspect ratio, thermophysical properties and geometrical properties of the porous medium. Most importantly, explicit expression connecting cell size with the parameters representing these properties does not seem to be there. It is the endeavour of this paper to find such an expression and gain insight into the nature of cells that form. Also, our paper intends to report a unified analysis covering all the above-mentioned unconsidered problems in cylindrical and rectangular enclosures.

2. Mathematical Formulation

Analytical study of two-dimensional Rayleigh–Bénard convection in a fluid-saturated sparsely-packed porous medium confined in cylindrical/rectangular enclosures is considered for investigation. The considered porous medium is assumed to be isotropic and made up of spherically shaped porous solids. The lower and upper plates of the enclosures are assumed to be thin and maintained at temperatures T 0 + Δ T and T 0 , respectively, with Δ T > 0 , and are separated by a distance d. The horizontal dimension of the enclosures is taken as b. The chosen coordinate system has s and y axes, respectively, along the radial/horizontal and vertical directions.
u s + δ δ ( 1 s ) + s u s + v y = 0 ,
ρ f ϕ Q * t = * P + μ e * 2 Q * μ f K Q * + ρ f ( ρ f β ) ( T f T 0 ) g ,
( ρ f c f ) ϕ T f t + ( Q * · * ) T f = ϕ k f * 2 T f + h ( T s T f ) ,
( ρ s c s ) ( 1 ϕ ) T s t = k s ( 1 ϕ ) * 2 T s h ( T s T f ) ,
where Q * = u ( s , y , t ) e s ^ + v ( s , y , t ) e y ^ is the two-dimensional velocity vector, δ is the curvature parameter (artificially introduced) which takes two values 0 and 1 corresponding to the problems of cylindrical and rectangular enclosures, respectively. The quantities ϕ = Volume of pores Volume of ( pores + porous matrix ) is the porosity, K = ϕ 3 d s 2 180 ( 1 ϕ ) 2 , d s , ρ , c , μ , t , P , β , g , T , k and h are, respectively, permeability, diameter of the solid spheres (porous medium), density, specific heat at constant pressure, dynamic viscosity, time, pressure, thermal expansion coefficient, acceleration due to gravity, temperature, thermal conductivity and heat transfer coefficient. The operator * = e s ^ s + e y ^ y is the two-dimensional gradient operator. The subscripts f , s , e , and 0 , respectively, represent the quantities pertaining to fluid, solid, effective quantities (in terms of fluid and solid phases’ values) and reference value. The reference value is taken at T = T 0 .
The pressure term in Equation (2) will now be eliminated by operating curl twice, and then on simplifying, we obtain the equation for the y-component of velocity as
ρ f ϕ t ( * 2 v ) = μ e * 4 v μ f K * 2 v + ( ρ f β ) g s 2 T f ,
where * 2 = s 2 + 2 y 2 is the Laplacian operator and s 2 = 2 s 2 + δ s s is the horizontal Laplacian operator.
The dimensional quantities present in Equations (1)–(4) are non-dimensionalised using the following quantities:
τ = χ f d 2 t , ( S , Y ) = s b , y d , ( U , V ) = d ϕ χ f ( u , v ) , ( Θ , Φ ) = ( T f , T s ) Δ T ,
where χ = k ρ c is the thermal diffusivity.
On non-dimensionalising Equations (1)–(4) using Equation (6), we obtain:
1 S o U S + δ S o δ ( 1 S ) + S U S + V Y = 0 ,
1 P r τ ( 2 V ) = Λ 4 V σ 2 2 V + R a S 2 Θ ,
Θ τ = 2 Θ ( Q · ) Θ + H ( Φ Θ ) ,
α Φ τ = 2 Φ H γ ( Φ Θ ) .
The non-dimensional parameters present in Equations (7)–(10) are defined as follows: (Brinkman [41])
P r = ϕ μ f ρ f χ f porosity - modified Prandtl number , α = χ f χ s ( thermal diffusivity ratio ) , H = h d 2 ϕ k f scaled inter - phase heat transfer coefficient , Λ = μ e μ f ( Brinkman number ) , γ = ϕ k f ( 1 ϕ ) k s porosity - weighted thermal conductivity ratio , σ 2 = d 2 K ( porous parameter ) , R a = ρ f β g Δ T d 3 ϕ μ f χ f porosity - modified thermal Rayleigh number , S o = b d ( aspect ratio ) , μ e = μ f ϕ 2.5 .
The operators appearing in Equations (7)–(10) are:
S 2 = 1 S o 2 2 S 2 + 1 S o 2 δ S S , 2 = 1 S o 2 2 S 2 + 1 S o 2 δ S S + 2 Y 2 .
At the quiescent basic state, the system is in an entropy equilibrium condition due to the assumption that the destabilising temperature variations are compensated by the stabilising effect (caused by the viscosity) of the fluid-saturated porous medium. Hence, we assume that the heat is transported by conduction alone, and there is local thermal equilibrium ( L T E ) between the phases. Thus, we take
Q = 0 , Θ = Θ b ( Y ) , Φ = Φ b ( Y ) and Θ b = Φ b .
With the Equation (13), the governing Equations (7)–(10) reduce to:
d 2 Θ b d Y 2 = 0 , d 2 Φ b d Y 2 = 0 .
The basic state Equation (14) is solved subject to the following conditions:
Θ = Θ 0 + 1 , Φ = Φ 0 + 1 at Y = 0 and 0 < S < 1 , Θ = Θ 0 , Φ = Φ 0 at Y = 1 and 0 < S < 1
and the resultant solution is:
Θ b = 1 Y , Φ b = 1 Y .
Now, to check the stability of the system, we superimpose a small perturbation on the quiescent basic state, which generates entropy in the system, as:
Q = Q , Θ = Θ b + Θ , Φ = Φ b + Φ ,
where prime denotes a perturbed quantity. Using Equation (17) in the governing Equations (7)–(10) and then using Equation (16) in the resulting equations, we obtain:
1 S o U S + δ S o δ ( 1 S ) + S U S + V Y = 0 ,
1 P r τ ( 2 V ) = σ 2 2 V + Λ 4 V + R a S 2 Θ ,
Θ τ = 2 Θ ( q · ) Θ + V + H ( Φ Θ ) ,
α Φ τ = 2 Φ H γ ( Φ Θ ) .
Further on, in Equations (18)–(21), we neglect primes for simplicity and solve them subject to the following boundary conditions:
Impermeable, stress-free and isothermal horizontal boundaries
V = 0 , μ e U Y + V S = 0 , Θ = 0 , Φ = 0 on Y = 0 , 1 and 0 < S < 1 .
Impermeable, stress-free and adiabatic vertical boundaries
V = 0 , μ e V S + U Y = 0 , Θ S = 0 , Φ S = 0 on S = 0 , 1 and 0 < Y < 1 .
On simplifying Equations (22) and (23) using the continuity Equation (18), we obtain
V = 2 V Y 2 = 0 , Θ = 0 , Φ = 0 on Y = 0 , 1 and 0 < S < 1 , U = S 2 U = 0 , Θ S = 0 , Φ S = 0 on S = 0 , 1 and 0 < Y < 1 ,
where the boundary S = 0 in the case of C E is a pseudo-boundary.
Having obtained the nondimensional form of governing equations and boundary conditions, we now present the linear stability analysis to determine the critical Rayleigh number at which convection occurs.

3. Linear Stability Analysis under the Assumption of the Principle of Exchange of Stabilities

On linearising Equations (19)–(21) and considering the steady state, we obtain:
σ 2 2 V + Λ 4 V + R a S 2 Θ = 0 ,
2 Θ + V + H ( Φ Θ ) = 0 ,
2 Φ H γ ( Φ Θ ) = 0 .
The Y dependent part of the variable separable eigenfunctions corresponding to the periodically appearing roll planform (velocity) and for isothermal conditions (fluid and solid temperatures) are of the form sin [ π Y ] . Thus, we take
V ( S , Y ) = V * ( S ) sin [ π Y ] , Θ ( S , Y ) = Θ * ( S ) sin [ π Y ] , Φ ( S , Y ) = Φ * ( S ) sin [ π Y ] .
The solution (28) satisfies Y-boundary conditions given in Equation (24). In view of this, for the purpose of calculation, we may now write S 2 π 2 for 2 . With this, Equations (25)–(27) now become:
Λ S 4 V * ( σ 2 + 2 π 2 Λ ) S 2 V * + π 2 ( σ 2 + π 2 Λ ) V * + R a S 2 Θ * = 0 ,
( S 2 π 2 ) Θ * + V * + H ( Φ * Θ * ) = 0 ,
( S 2 π 2 ) Φ * H γ ( Φ * Θ * ) = 0 .
Decoupling of V * , Θ * and Φ * from Equations (29)–(31) and the resulting equations are unified as follows:
S 8 ϖ * q 1 + q 2 Λ + 2 π 2 S 6 ϖ * + ( π 2 + q 1 ) ( 2 π 2 + q 2 Λ ) + σ 2 π 2 R a Λ S 4 ϖ * + R a Λ q 3 π 4 ( q 1 + q 2 Λ ) 2 π 2 q 1 q 2 Λ S 2 ϖ * + π 4 Λ q 1 q 2 ϖ * = 0 ,
where
ϖ * = [ V * Θ * Φ * ] T , q 1 = π 2 + H ( 1 + γ ) , q 2 = σ 2 + π 2 Λ , q 3 = π 2 + H γ .
To solve Equation (32), we need 8 boundary conditions with respect to S on each of V * , Θ * and Φ * . Equation (24) gives us only two boundary conditions on Θ and Φ and four boundary conditions on U. But we need boundary conditions only on V, and hence we convert U boundary conditions present in Equation (24) into V boundary conditions using Equation (18). This procedure gives us:
V * S = S ( S 2 V * ) = 0 on S = 0 , 1 and 0 < Y < 1 .
At this point, we are short of four and six boundary conditions on V * and ( Θ * , Φ * ) , respectively, with respect to S. The additional boundary conditions required are obtained using Equations (29)–(31) and the available boundary conditions. The required boundary conditions on adding new ones on V * , Θ * and Φ * are:
ϖ * S = S ( S 2 ϖ * ) = S ( S 4 ϖ * ) = S ( S 6 ϖ * ) = 0 on S = 0 , 1 and 0 < Y < 1 .
Let us now factorise Equation (32) as follows:
( S 2 + m 2 ) ( S 2 + n 2 ) ( S 2 + p 2 ) ( S 2 + q 2 ) ϖ * = 0 ,
where m 2 , n 2 , p 2 and q 2 are to be determined. On multiplying together the four factors in Equation (36), we obtain
S 8 ϖ * + ( m 2 + n 2 + p 2 + q 2 ) S 6 ϖ * + ( m 2 n 2 + m 2 p 2 + m 2 q 2 + n 2 p 2 + n 2 q 2 + p 2 q 2 ) S 4 ϖ * + ( m 2 n 2 p 2 + m 2 n 2 q 2 + n 2 p 2 q 2 + m 2 p 2 q 2 ) S 2 ϖ * + m 2 n 2 p 2 q 2 ϖ * = 0 .
Now on comparing Equations (32) and (37), we obtain the following relations connecting m 2 , n 2 , p 2 and q 2 :
m 2 + n 2 + p 2 + q 2 = q 1 + q 2 Λ + 2 π 2 ,
m 2 ( n 2 + p 2 + q 2 ) + n 2 p 2 + n 2 q 2 + p 2 q 2 = ( π 2 + q 1 ) ( 2 π 2 + q 2 Λ ) + σ 2 π 2 R a Λ ,
m 2 n 2 p 2 + m 2 n 2 q 2 + n 2 p 2 q 2 + m 2 p 2 q 2 = R a Λ q 3 π 4 ( q 1 + q 2 Λ ) 2 π 2 q 1 q 2 Λ ,
m 2 n 2 p 2 q 2 = π 4 Λ ( q 1 q 2 2 R a ) .
In the above equations, with the intention of retaining only m 2 we rewrite Equations (38), (39) and (41) as
n 2 + p 2 + q 2 = q 1 + q 2 Λ + 2 π 2 m 2 ,
n 2 p 2 + n 2 q 2 + p 2 q 2 = ( π 2 + q 1 ) ( 2 π 2 + q 2 Λ ) + σ 2 π 2 R a Λ m 2 ( n 2 + p 2 + q 2 ) ,
n 2 p 2 q 2 = π 4 Λ ( q 1 q 2 2 R a ) / m 2 .
We next simplify Equation (40) as:
m 2 ( n 2 p 2 + n 2 q 2 + p 2 q 2 ) + n 2 p 2 q 2 = R a Λ q 3 π 4 ( q 1 + q 2 Λ ) 2 π 2 q 1 q 2 Λ .
On using Equations (42)–(44) in the Equation (45), we obtain
( m 2 ) 4 + q 1 + q 2 Λ + 2 π 2 ( m 2 ) 3 + ( π 2 + q 1 ) ( 2 π 2 + q 2 Λ ) + σ 2 π 2 R a Λ ( m 2 ) 2 R a Λ q 3 π 4 ( q 1 + q 2 Λ ) 2 π 2 q 1 q 2 Λ m 2 + π 4 Λ ( q 1 q 2 2 R a ) = 0 .
The Equation (46) may be used to solve for m , but it involves the eigenvalue R a . In view of this we rearrange Equation (46) to obtain the expression for R a in the form:
R a = ( m 2 + π 2 ) 2 m 2 Λ ( m 2 + π 2 ) + σ 2 1 + H m 2 + π 2 + H γ .
The parameter R a is an eigenvalue which characterises the production of entropy in the system once it crosses its threshold value. We call it a critical Rayleigh number, R a c .
At this point, we shift our attention to obtaining the solution of V , Θ and Φ of Equations (25)–(27). In what follows, we shall obtain the solution for the Equation (36) for ϖ * . We hence choose the Helmholtz Equation:
( S 2 + m 2 ) ϖ * = 0 .
The solution of the Helmholtz Equation in (48) is:
ϖ * = A S 1 δ 2 J δ 1 2 [ m S o S ] ,
where A = [ A 0 B 0 C 0 ] T is the matrix of infinitesimal amplitudes of convection, J δ 1 2 [ m S o S ] is the Bessel function of the first kind and of order δ 1 2 . The solution in Equation (49) is used in Equation (28) to obtain the complete solution of ϖ = [ V Θ Φ ] T in the form:
ϖ = A S 1 δ 2 J δ 1 2 [ m S o S ] sin [ π Y ] .
Equation (50) satisfy the boundary condition in Equation (35), provided:
J 1 + δ 2 [ m S o ] = 0 .
From the above proceeding it becomes evident that the critical m , viz., m c , is not just the result of the minimisation of R a with respect to m . It also involves the constraint condition (51). Thus, we have on hand a constraint minimisation problem involving Equations (47) and (51). To simplify the constraint minimisation problem further, we make the substitution a = m S o in Equations (47) and (51). With this substitution, Equations (47) and (51) now take the form:
R a = ( a 2 / S o 2 + π 2 ) 2 a 2 / S o 2 Λ a 2 / S o 2 + π 2 + σ 2 1 + H a 2 / S o 2 + π 2 + H γ ,
J 1 + δ 2 [ a ] = 0 .
There are infinitely more solutions for a that satisfy the condition (53). Among these values of a , a particular value which minimises the Rayleigh number is the required critical value of a , namely a c .
After having evolved the right procedure for obtaining the critical values of a and thereby m c and R a c in the case of the unified problem, we next discuss the results obtained in the study.

4. Results and Discussion

The present article reports various problems of axisymmetric C E and two-dimensional R E in a unified way. Various problems unified into one problem shall be explained in brief now. More details on the limiting cases shall be given later on in the section. Brinkman–Bénard convection ( B B C ) of Newtonian liquids in axisymmetric C E and two-dimensional R E is studied analytically(by artificially introducing the curvature parameter) using the two-temperature model adopted for the L T N E situation. When the thermal properties of the two phases (fluid and solid) are quite different, then the L T N E assumption is required to be considered. In such a case, the two-temperature model will have to be used to study the thermo-fluid dynamics. This situation is all the more true when an enormous temperature is observed in the system. However, when the temperature involved is not that high, then the temperatures of the two phases do not differ much when the values of thermophysical quantities are nearly the same. This situation is termed as L T E . One can mathematically obtain the results of the L T E model from those of the L T N E model by making asymptotic analyses [2,6,9]. In the present analysis, we have considered a loosely packed porous medium. By neglecting factors that characterise the porous medium, we can study the results of the clear fluid case. With the intention of obtaining the results of a densely-packed porous medium, we may consider small permeability and, hence very large values of the porous parameter.

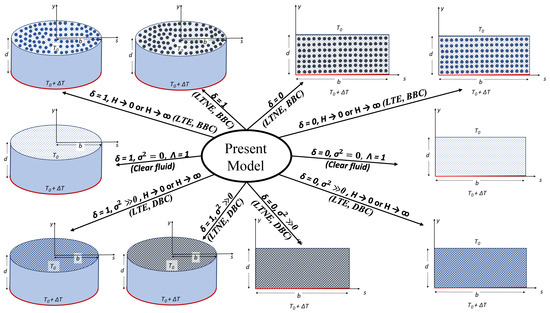

From the above, it is clear that several problems can be unified into a single problem (see Figure 1). In what follows, we present the following problems (limiting cases) in essential detail:
  • Two-dimensional B B C problems in C E and R E with L T N E .
  • Two-dimensional D B C problems in C E and R E with L T N E .
  • Two-dimensional R B C problems in C E and R E .
  • Two-dimensional B B C problems in C E and R E with L T E .
  • Two-dimensional D B C problems in C E and R E with L T E .
As a result of the unified handling, we shall be dealing with ten limiting cases as one and the same is shown in Figure 1.
In the present paper, the material of the porous medium is such that its thermophysical properties are much different from those of the fluid occupying it. Hence, of relevance to this paper is the L T N E situation only. However, for academic completeness, we consider the L T E situation too and arrive at some results. The very general formulation adopted here involves a loosely packed porous medium that allows us to handle both the no porous medium and the densely packed porous medium cases.
To make the results have a practical value, we have made use of the actual thermophysical properties of the fluid and of the porous matrix. The details are provided in the next subsection.

4.1. Thermophysical Properties and the Parameters’ Values concerning a Fluid-Saturated Porous Medium

The fluid and porous media considered in the analysis are water, glass fibre ( G F ), sand, glass balls ( G B ) and aluminium foam ( A F ) porous medium, and their thermophysical properties are present in the articles [42,43]. Among the four porous media considered, G F has high porosity; hence, we use that for a specific investigation concerning B B C . The other three porous media have low porosity; hence, we use them in the study of D B C . Using the thermophysical properties mentioned in Table 1, we shall now calculate various parameters, P r , α , Λ , γ , H and σ 2 appearing in Section 2.
The parameter P r = ϕ μ f ρ f χ f is the porosity-modified Prandtl number. Since P r is a function of ϕ , it is found to be different for G F ( ϕ = 0.88) and other porous media ( ϕ = 0.5 ). The permissible value of P r for different water-saturated porous media is calculated, and the same is recorded in the first column of Table 1. The diffusivity ratio, α = χ f χ s , is calculated and its values are recorded in the second column of Table 1. The values of γ = ϕ k f ( 1 ϕ ) k s are computed for four different fluid-saturated porous media and are recorded in the third column of Table 1. The parameter, Λ = μ e μ f , is the ratio of effective viscosity to the viscosity of the fluid. The effective viscosity is calculated using the phenomenological law, μ e = μ f ϕ 2.5 and Λ values are documented in the fourth column of Table 1.
The four parameters discussed above are dependent only on the thermal properties of the fluid and porous media and do not depend on the height of the enclosures. The parameters H = h d 2 ϕ k f and σ 2 = d 2 K are clearly dependent on the height of the enclosure, where K = ϕ 3 d s 2 180 ( 1 ϕ ) 2 is the permeability of porous media. In the paper, we choose two different heights ( d = 0.02 m, 0.03 m) of enclosures and the obtained parameters’ values that depend on d are tabulated in Table 2. In the experimental work of Liang et al. [33], they mention that asymmetric convection is observed if the height of the enclosure is greater than 0.03 m. Since our study concerns axisymmetric convection, we have chosen d 0.03 m.
To find the permissible value for the parameter H, it is required to find the heat transfer coefficient, h. Kuwahara et al. [44] reported a numerical study to find a correlation for h as a function of P r , Reynold’s number, R e = ρ e d V μ e , and ϕ , where ρ e = ϕ ρ f + ( 1 ϕ ) ρ s is the effective density. The fluid flow velocity, V, in the cases of high-porosity and low-porosity media, is chosen as 0.01 m/s and 0.001 m/s, respectively. The expression of h from Kuwahara et al. [44] is given by
h = k f d s 1 + 4 ( 1 ϕ ) ϕ + 1 2 ( 1 ϕ ) R e 0.6 P r 1 / 3 .
Also, h depends on the diameter of the solid spheres, d s . Here, we have chosen the value of d s in the range of [ 0.005: 0.02 ] m and [ 0.001 : 0.005] m, respectively, for the cases of loosely and densely-packed porous media. The notation [ a : b ] implies that the quantity takes the least value of a and the maximum value of b. Now, using Equation (54), we found the permissible range for H for the considered porous media and the same is tabulated in Table 2. The parameters K and σ 2 are found for the above-mentioned range of values of d s , and the same are also tabulated in Table 2.
Having discussed the thermophysical properties and having estimated the non-dimensional parameters, we now consider the limiting cases: R B C and D B C and obtain the expression of the Rayleigh number in the two cases.

4.2. Expressions of the Rayleigh Number in the Cases of R B C and D B C

We first consider the case of R B C . In the case of no porous medium, the value of ϕ is 1 and, hence, μ e = μ f . For this value of ϕ and μ e , K is infinite and hence the parameters σ 2 and Λ take the values 0 and 1, respectively. Now the Rayleigh number expression (52) in the case of a clear fluid takes the form:
R a = ( a 2 / S o 2 + π 2 ) 3 a 2 / S o 2 .
We next consider the D B C problem. From the recorded values of σ 2 in Table 2, one can observe that the value of σ 2 is very large in the case of densely-packed porous media (sand, G B and A F ) compared to the finite value of σ 2 in the case of a loosely-packed porous medium( G F ). When σ 2 1 , then clearly Λ ( a 2 / S o 2 + π 2 ) σ 2 and hence the second term in σ 2 + Λ ( a 2 / S o 2 + π 2 ) may be neglected.
The Equation (52) now takes the form:
R a D = ( a 2 / S o 2 + π 2 ) 2 a 2 / S o 2 1 + H a 2 / S o 2 + π 2 + H γ ,
where R a D = R a σ 2 is the Darcy–Rayleigh number.
After obtaining R a expressions in the cases of B B C , R B C and D B C , in the next subsection, we shall consider asymptotic analyses to obtain the results of the L T E from the L T N E .

4.3. Asymptotic Analyses: L T N E to L T E

The results of L T E can be extracted from those of L T N E using asymptotic analyses. This is possible in four different ways, as illustrated by [2,6,9]. The routes to L T E from L T N E are:
( i ) H 0 , ( ii ) H , ( iii ) γ , ( iv ) H γ .
The result of extensive asymptotic analyses carried out by Postelnicu and Rees [2] concerns the cases of B B C and D B C . The expression of the Rayleigh number of the L T E case that emerges from an asymptotic analysis in the cases of B B C and D B C is documented in Table 3.
The expression of the Rayleigh number for B B C and D B C clearly indicate that R a is a function of a and S o . In the following section, we determine, through the constraint condition, the value of a that minimises R a for a given value of S o .

4.4. General Solution of the Constraint Condition: J 1 + δ 2 [ a ] = 0

We find the roots of the constraint condition in the cases of five problems, each of C E and R E , that we have unified.
For δ = 0 , the constraint takes the form:
sin [ a ] = 0 .
The roots of Equation (58) are:
a = n π , n = 1 , 2 , .
For δ = 1 , the constraint simplifies to the form:
J 1 [ a ] = 0 .
The Equation (60) yields discrete values as the solution. Let us name them as a 0 , a 1 , a 2 , a 3 , , where a 0 < a 1 < a 2 < a 3 < . The first seven values of a (for δ = 0 and δ = 1 ) are reported in Table 4. From the above, it is clear that a has an explicit expression for R E whereas a has discrete values only in C E , and an explicit expression does not occur as in the case of R E . In attempting to construct an explicit expression for a in C E , we considered 100 discrete values of a , viz., a 0 , a 1 , a 2 , , a 99 . Making a close observation of these values, we found that | a n + 1 a n | 3.1416 ( π ) for n 2 . Making use of this idea to find an explicit expression for a we tried out different linear interpolation functions: a 0 + n π , a 1 + ( n 1 ) π , a 2 + ( n 2 ) π , a 5 + ( n 5 ) π , and found a 2 + ( n 2 ) π to be the line of best fit. Hence, we chose the following:
a = a 2 + ( n 2 ) π , n = 1 , 2 , 3 .
In order to find a unified expression for a in five problems each of C E and R E , we now write Equations (59) and (61) in unified form as:
a = ( a 2 2 π ) δ + n π , n = 1 , 2 , .
We need to mention here that as yet, it is not clear as to what n and m = a S o represent physically. The answer to this shall, however, be provided in a succeeding section using plots of the stream function, but first, we shall discuss how to find R a c .

4.5. Expression for the Critical Rayleigh Number

The substitution of Equation (62) in the Rayleigh number expression (52) gives us:
R a ( n , S o ) = [ ( δ ( a 2 2 π ) + n π ) 2 / S o 2 + π 2 ] 2 ( δ ( a 2 2 π ) + n π ) 2 / S o 2 × Λ [ ( δ ( a 2 2 π ) + n π ) 2 / S o 2 + π 2 ] + σ 2 1 + H ( δ ( a 2 2 π ) + n π ) 2 / S o 2 + π 2 + H γ .
In finding the critical Rayleigh number, R a c , after which entropy generates in the system, for each value of S o we found that n = 1 is not necessarily the value which yields R a c . The value n = 1 yields the minimum Rayleigh number until the aspect ratio crosses the threshold value, S o = 2.17 in C E . At S o = 2.17 , ( R a c ) n = 1 = ( R a c ) n = 2 , after which n = 2 yields R a c . Similarly after S o = 3.50 , n = 3 in C E results minimum R a c .

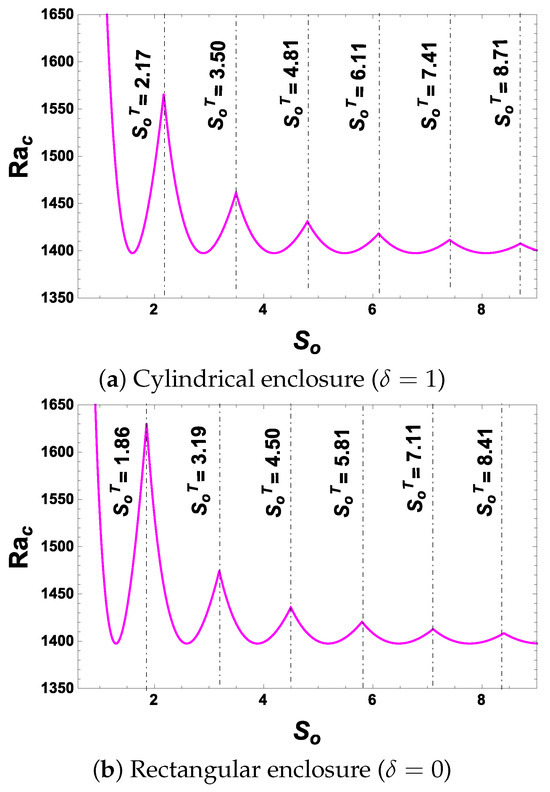

This observation is graphically shown in Figure 2. For different ranges of S o , ascending integer values of n produces R a c . The intersection points of piecewise continuous curves shown in Figure 2 actually represent the points of increase in the value of n (we have as yet not confirmed that n is the number of cells manifesting). To analyse this information from the physics point of view, we shall plot the stream function in the next subsection.

4.6. Streamlines and Physical Interpretation of n and a

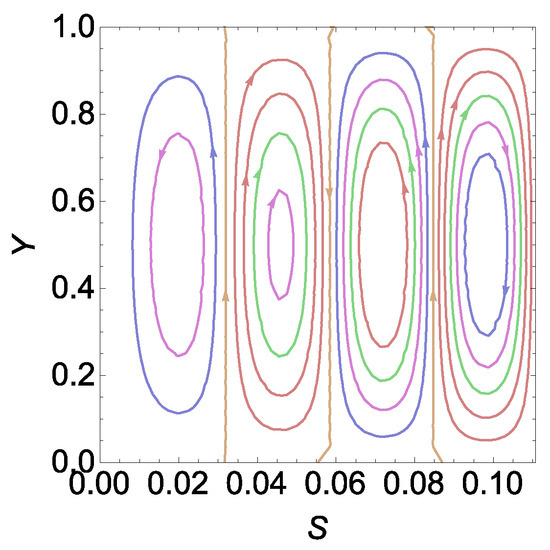

Introducing velocity components U and V in terms of the stream function Ψ ( S , Y ) , we obtain
U = S o [ δ ( 1 S ) + S ] S Ψ Y , V = [ δ ( 1 S ) + S ] S Ψ S .
The velocity components U and V satisfy the continuity Equation (18). We have an explicit solution for V ( S , Y ) , and hence, we use this in obtaining an expression for the stream function to obtain
Ψ = A 0 sin [ π Y ] S 3 δ 2 δ ( 1 S ) + S J δ 1 2 [ a n S ] d S .
The integral constant in Equation (65) is zero since the boundary is a streamline. In Figure 3, we have plotted the stream function for a C E by considering one representative value of S o between two intersecting points in Figure 2a.

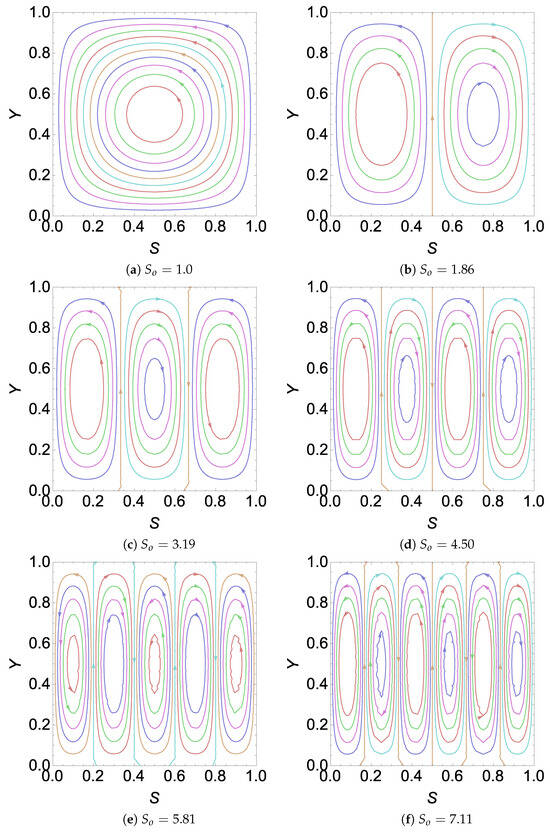

Now, on observing Figure 2a and Figure 3 together, we find that intersection points in Figure 2 represent the points at which the number of cells increases. Quite obviously, we may now infer that n must represent the number of cells for a given S o . Similar arguments can be made for R E by observing Figure 2b and Figure 4. From this observation in Figure 2, Figure 3 and Figure 4, we can find sufficient information to obtain an explicit expression for the number of cells in the cases of C E and R E . The details are given in the next section.

4.7. Explicit Expression for the Number of Cells in C E and R E

The intersection points of different modes (different n) in Figure 2 can be obtained by equating the critical Rayleigh number expressions of succeeding participating curves at their intersecting points. We thus take:
R a ( n , S o ) = R a ( n + 1 , S o ) ,
where S o can now be only an intersection point. Now, using Equation (63) in Equation (66), we obtain an explicit expression for n as a function of S o and other parameters appearing in the problem, in the form:
n = π + π 2 + 4 P 2 π + 2 a 2 π δ ,
where P is the real and positive root (only one, in fact) of the fifth-degree polynomial given by
q 4 2 ( π 2 + q 3 S o 2 ) S o 8 + q 4 S o 8 x + ( q 5 S o 2 + q 6 S o 6 ) x 2 + q 7 S o 2 x 3 + q 8 x 4 + 2 Λ x 5 .
The various quantities in the above polynomial are given by:
q 4 = 2 π 4 q 1 q 2 , q 5 = π 4 q 3 Λ + q 3 π 2 q 2 + Λ ( q 1 + 2 π 2 ) S o 2 , q 6 = π 2 q 3 σ 2 q 1 π 2 Λ + q 2 + q 1 + π 2 q 3 2 π 2 Λ + q 2 π 2 q 2 , q 7 = 4 π 2 Λ q 3 + 2 q 3 Λ q 1 + 2 π 2 + q 2 S o 2 , q 8 = π 2 Λ + Λ q 1 + 2 π 2 + q 2 + 3 Λ q 3 S o 2 .
The ceiling value of n represents the number of cells in the case of B B C with L T N E assumption. The ceil function returns the maximum integer value. The expression of n in the limiting cases of the present study is documented in Table 5.
The various quantities in Table 5 are given by
q 9 = 1 9 ( 1 + 3 S o 2 3 S o 4 ) S o 2 + i 6 3 ( 1 + 9 S o 2 + 27 S o 4 ) S o 3 1 3 , i = 1 , q 10 = 1 + 3 S o 2 , q 11 = 1 3 2 q 16 + 3 q 3 2 S o 4 + 2 q 17 1 3 q 16 2 12 π 6 q 1 S o 6 , q 12 = 1 3 q 17 2 1 3 , q 13 = 1 3 2 ( 2 q 16 + 3 q 3 2 S o 4 ) 2 q 17 1 3 q 16 2 12 π 6 q 1 S o 6 , q 14 = 2 q 3 2 2 π 2 q 3 + π 4 ( q 1 q 3 ) + π 4 q 1 S o 6 + 2 π 2 q 3 2 S o 4 , q 14 = 2 q 3 2 2 π 2 q 3 + π 4 ( q 1 q 3 ) + π 4 q 1 S o 6 + 2 π 2 q 3 2 S o 4 , q 15 = 2 q 13 q 12 + q 14 q 11 + q 12 , q 16 = q 1 q 3 + 2 π 2 ( q 3 q 1 ) π 4 S o 4 + π 2 q 3 S o 2 , q 17 = 2 q 16 3 + 36 π 4 q 16 q 1 2 q 18 + q 3 S o 2 S o 6 + q 19 + 108 π 4 q 1 π 4 q 1 S o 2 q 18 q 3 2 S o 10 , q 18 = π 2 + q 3 S o 2 ,
q 19 = 4 q 16 3 + 18 π 4 q 1 q 16 2 q 18 + q 3 S o 2 S o 6 + 54 π 4 q 1 π 4 q 1 S o 2 q 3 2 q 18 S o 10 2 4 q 16 2 12 π 6 q 1 S o 6 3 , q 20 = π 2 Λ + ( 3 π 2 Λ + σ 2 ) S o 2 , q 21 = 2 Λ 3 π 6 ( 1 9 S o 2 27 S o 4 + 27 S o 6 ) + 6 π 4 Λ 2 σ 2 ( 1 6 S o 2 + 9 S o 4 ) S o 2 , 6 π 2 Λ σ 4 q 10 S o 4 2 σ 6 S o 6 , q 22 = q 21 + 4 q 20 6 + q 21 2 1 3 , q 23 = δ 2 a 2 π .
We note here that the quantity q 10 1 q 10 q 9 q 9 appearing in Table 5 for the case of R B C evaluates to a real value with a very small imaginary part even though q 9 is a complex quantity.
Having obtained the expression for the number of cells in all possible cases, in the next section, we shall find the physical meaning of the parameter m .

4.8. Physical Interpretation of the Parameter m

To analyse the parameter m , we refer to Table 6, for water and four different water-saturated porous media considered wherein number of cells that shall appear for a given value of S o is documented in the cases of C E and R E . The corresponding cell sizes are calculated, and the same is recorded in Table 7.
From the tabulated values, we found that for small S o , the size of the cells is not the same in C E and R E . However, for large values of S o , these are the same for C E and R E . This means that the boundary effects are negligible at large S o , and we observe a uniformity in the cells. Hence, in this situation, the concept of wave number applies. This result is true for B B C with L T N E assumption and also in all its limiting cases.
Now recalling the definition of m = a S o , we may write
m c = δ ( a 2 2 π ) + n π S o .
Here, n may be replaced by the expression of the number of cells given by Equation (67) for B B C L T N E , and similarly, the expression of n of all limiting cases of B B C L T N E documented in Table 5 can be used. Intuition tells us that the parameter m represents the wave number. To have confidence in this concept, we computed the value of m c = δ ( a 2 2 π ) + n π S o for S o in the range [10:100] for C E and R E . The computations reveal that in both C E and R E cases, the value of m c converges to the classical wave number of π 2 . Hence, from now on, we shall refer to m as the wave number. Next, let us consider the stream function, Ψ , in the range [ 0 , δ a 2 + 2 π a c ] in Figure 5 and Figure 6 for C E and R E .
For C E , we have chosen the range [ 0 , a 2 + 2 π a c ] due to the existence of the stagnant region in the first cell compared to all other cells. From Figure 5, it is clear that the range [ 0 , a 2 a c ] represents the initial wavelength, including the stagnant region, and the range [ a 2 a c , 2 π a c ] represents the actual wavelength. In Figure 6, we shall see one wavelength or two counter-rotating cells of R E .
Now, some general observations made from the results of the study for any large S o are:
  • n R B C < n B B C / D B C , m c R B C < m c B B C / D B C ,
  • n B B C < n D B C , m c B B C < m c D B C ,
  • n L T N E > n L T E , m c L T N E > m c L T E ,
  • n d = 0.02m > n d = 0.03m , m c d = 0.02m > m c d = 0.03m .
Additional observations made from the tabulated values of Table 6 and Table 7 are as follows. In the case of L T E , the cell size depends on the permeability of the porous medium and not on its thermophysical properties. Hence, we observe that the cell size is the same for D B C L T E involving the three porous materials considered. This result is also true for B B C L T E . However, in the case of the corresponding problem under the L T N E assumption, we note that the cell size depends on not only the permeability but also the thermophysical properties of the porous medium. In that way, the results of B B C and D B C are different in so far as cell size is concerned when we consider the L T N E assumption. Another point to be observed is that the porous material with the largest thermal conductivity supports a smaller cell size.
Having obtained the expressions for the number of cells in different problems, we have recorded expressions of R a c and n of all the problems (including limiting cases) in Table 8.
The quantities mentioned in Table 8 are present in Equations (33), (69), (70) and (71). Having so far discussed the results of the present paper, in the next section we draw some major conclusions of the study.

5. Conclusions

Two-dimensional analyses of Brinkman–Bénard convection of Newtonian liquid in cylindrical and rectangular geometries are made using the two-temperature model. In the present model, ten individual problems are unified into a single problem:
  • B B C with L T N E in C E and R E ;
  • B B C with L T E in C E and R E ;
  • R B C in C E and R E ;
  • B B C with L T E in C E and R E ;
  • D B C with L T E in C E and R E .
One of the important results is that given the value of the aspect ratio and parameters’ values, we can exactly predict how many cells manifest (in all 10 possible cases). This is without seeking recourse to streamline plots. A number of cells seen in R B C are found to be less when compared with the corresponding problems in a porous medium, i.e., n R B C < n B B C < n D B C . This result is true in both L T N E and L T E and also for C E and R E . On comparing corresponding problems involving L T N E and L T E problems, we may write: n L T N E > n L T E . For large aspect ratio, S o , the value of the wave number converges to π 2 in both C E and R E , i.e., the vertical boundaries effect becomes negligible at large S o . This result coincides with the well-known result of a classical R B C problem, which validates the present model. However, the number of cells that manifest may not be the same for the corresponding problems in C E and R E , even for the case of S o 1 .
Work is in progress to consider the experimental boundary conditions similar to the idealistic boundary conditions considered in this paper. Liang et al. [33] experimentally observed the circular roll patterns in a C E bounded by rigid boundaries. This justifies the consideration of circular roll patterns in the present analysis in the case of C E . At this stage, the exact comparison of the present model with the experimental works is not possible as the present model considers the idealistic boundary conditions. The present study provides a qualitative picture of R B C in 10 different enclosures. The work on realistic boundary conditions is in progress.

Author Contributions

All authors contributed equally to analyzing the data, reaching conclusions, and writing the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

Authors are grateful to the University of Tarapacá for supporting her research.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

Latin Symbols
bhorizontal dimension of the enclosure (m)
cspecific heat at constant pressure ( J kg 1 K 1 )
dheight of the enclosure (m)
d s diameter of the solid spheres (porous materials) ( m )
gacceleration due to gravity ( m s 2 )
Hscaled inter-phase heat transfer coefficient
hinter-phase heat transfer coefficient ( W m 2 K 1 )
kthermal conductivity ( W m 1 K 1 )
mwave number
nmodes/number of cells
Pdynamic pressure ( P a )
P r Prandtl number
Q * velocity vector
( S , Y ) dimensionless form of horizontal and vertical axes
( s , y ) horizontal and vertical axes ( m )
S o aspect ratio
R a porosity-modified thermal Rayleigh number
R e Reynolds number
Ttemperature ( K )
ttime ( s )
( u , v ) velocities ( m s 1 )
( U , V ) nondimensional velocities
Greek symbols
α thermal diffusivity ratio
β thermal expansion coefficient ( K 1 )
χ thermal diffusivity ( m 2 s 1 )
δ curvature parameter
Δ difference in quantities
γ porosity-weighted thermal conductivity ratio
K permeability ( m 2 )
Λ Brinkman number
μ dynamic coefficient of viscosity ( kg / m 1 s 1 )
Φ , Θ dimensionless solid and fluid temperatures
ϕ porosity  0 < ϵ 1
P s i stream function
ρ density ( kg / m 3 )
σ 2 porous parameter
τ dimensionless time
subscripts
bbasic state
ccritical
eeffective quantities
ffluid
ssolid(porous medium)
0reference value
perturbed state
abbreviations
A F aluminium foam
B B C Brinkman-Bénard convection
C E cylindrical enclosure
D B C Darcy-Bénard convection
G B glass balls
G F glass fiber
L T E local thermal equilibrium
L T N E local thermal nonequilibrium
R B C Rayleigh-Bénard convection
R E rectangular enclosure

References

  1. Phanikumar, M.S.; Mahajan, R.L. Non-Darcy natural convection in high porosity metal foams. Int. J. Heat Mass Transfer 2002, 45, 3781–3793. [Google Scholar] [CrossRef]
  2. Postelnicu, A.; Rees, D.A.S. The onset of Darcy–Brinkman convection in a porous layer using a thermal nonequlibrium model—Part I: Stress-free boundaries. Int. J. Energy Res. 2003, 27, 961–973. [Google Scholar] [CrossRef]
  3. Straughan, B. Horizontally isotropic double porosity convection. Proc. Roy. Soc. Lond. A 2006, 462, 409–418. [Google Scholar] [CrossRef]
  4. Khashan, S.A.; Al-Amiri, A.M.; Pop, I. Buoyant convection in a parallelogrammic enclosure filled with a porous medium—General analysis and numerical simulations. Int. J. Heat Mass Transfer 2006, 49, 1039–1049. [Google Scholar] [CrossRef]
  5. Postelnicu, A. The onset of a Darcy–Brinkman convection using a thermal nonequilibrium model. Part II. Int. J. Therm. Sci. 2008, 47, 1587–1594. [Google Scholar] [CrossRef]
  6. Siddheshwar, P.G.; Siddabasappa, C. Unsteady natural convection in a liquid-saturated porous enclosure with local thermal non-equilibrium effect. Transp. Porous Med. 2017, 120, 605–631. [Google Scholar] [CrossRef]
  7. Liu, S.; Jiang, L.; Chong, K.L.; Zhu, X.; Wan, Z.-H.; Verzicco, R.; Stevens, R.J.; Lohse, D.; Sun, C. Turbulent vertical convection under vertical vibration. J. Fluid Mech. 2020, 895, A18-1–A18-25. [Google Scholar] [CrossRef]
  8. Siddheshwar, P.G.; Laroze, D.; Kanchana, C.; Lakshmi, K.M. Two-dimensional Rayleigh–Bénard convection of viscoelastic liquids in Cartesian and cylindrical coordinates: Regular and chaotic regimes. Euro. Phys. J. Plus 2022, 137, 922-1–922-25. [Google Scholar] [CrossRef]
  9. Banu, N.; Rees, D.A.S. Onset of Darcy–Benard convection using a thermal non-equilibrium model. Int. J. Heat Mass Transfer 2002, 45, 2221–2228. [Google Scholar] [CrossRef]
  10. Govender, S.; Vadasz, P. The effect of mechanical and thermal anisotropy on the stability of gravity driven convection in rotating porous media in the presence of thermal non-equilibrium. Transp. Porous Media 2007, 69, 55–66. [Google Scholar] [CrossRef]
  11. Postelnicu, A. Influence of a magnetic field on heat and mass transfer by natural convection from vertical surfaces in porous media considering Soret and Dufour effects. Int. J. Heat Mass Transfer 2010, 53, 68–75. [Google Scholar] [CrossRef]
  12. Bidin, B.; Rees, D.A.S. The onset of convection in an unsteady thermal boundary layer in a porous medium. Int. J. Heat Mass Transfer 2020, 153, 119539-1–119539-12. [Google Scholar] [CrossRef]
  13. Siddheshwar, P.G.; Kanchana, C.; Laroze, D. Study of Rayleigh–Bénard convection in a chemically reactive fluid using a generalized Lorenz model and the cubic–quintic Ginzburg–Landau equation. AIP Phys. Fluids 2021, 33, 044107-1–044107-17. [Google Scholar] [CrossRef]
  14. Bansal, A.; Suthar, O.P. A study on the effect of temperature modulation on Darcy–Bénard convection using a local thermal non-equilibrium model. Phys. Fluids 2022, 34, 044107. [Google Scholar] [CrossRef]
  15. Chandrasekhar, S. Hydrodynamic and Hydromagnetic Stability; Clarendon Press: London, UK, 1961. [Google Scholar]
  16. Platten, J.K.; Legros, J.C. Convection in Liquids; Springer: Berlin, Germany, 1984. [Google Scholar]
  17. Getling, A.V. Rayleigh-Bénard Convection: Structures and Dynamics; Advanced Series in Nonlinear Dynamics; World Scientific: Singapore, 1997. [Google Scholar]
  18. Straughan, B. The Energy Method, Stability, and Nonlinear Convection, 2nd ed.; Springer: New York, NY, USA, 2004. [Google Scholar]
  19. Drazin, P.G.; Reid, D.H. Hydrodynamic Stability; Cambridge University: Cambrigde, UK, 2004. [Google Scholar]
  20. Lappa, M. Thermal Convection: Patterns, Evolution and Stability; John Wiley & Sons Ltd.: Chichester, UK, 2009. [Google Scholar]
  21. Kita, T. Uncommonly high upper critical field of the pyrochlore superconductor below the enhanced paramagnetic limit. J. Phys. Soc. 2006, 75, 124005-1–124005-13. [Google Scholar] [CrossRef]
  22. Jia, C.; Jing, C.; Liu, J. The character of entropy production in Rayleigh–Bénard convection. Entropy 2014, 16, 4960–4973. [Google Scholar] [CrossRef]
  23. Zebib, A. Linear and weakly nonlinear variable viscosity convection in spherical shells. Phys. Fluids 1978, 21, 699–700. [Google Scholar] [CrossRef]
  24. Bau, H.H.; Torrance, K.E. Onset of convection in a permeable medium between vertical coaxial cylinders. Phys. Fluids 1981, 24, 382–385. [Google Scholar] [CrossRef]
  25. Haugen, K.B.; Tyvand, P.A. Onset of Convection in a Porous Rectangle with Buoyancy Along an Open Sidewall. Phys. Fluids 2003, 15, 2661–2667. [Google Scholar] [CrossRef]
  26. Zhang, Z.; Fu, C.; Tan, W.; Wang, C.Y. Onset of oscillatory convection in a porous cylinder saturated with a viscoelastic fluid. Phys. Fluids 2007, 19, 098104–1–098104–4. [Google Scholar] [CrossRef]
  27. Bringedal, C.; Berre, I.; Nordbotten, J.M.; Rees, D.A.S. Linear and nonlinear convection in porous media between coaxial cylinders. Phys. Fluids 2011, 23, 094109-1–094109-11. [Google Scholar] [CrossRef]
  28. Kuznetsov, A.V.; Nield, D.A. The onset of double-diffusive nanofluid convection in a layer of a saturated porous medium. Transp. Porous Med. 2012, 95, 327–336. [Google Scholar] [CrossRef]
  29. Barletta, A.; Storesletten, L. Linear instability of the vertical throughflow in a horizontal porous layer saturated by a power-law fluid. Phys. Fluids 2013, 25, 044101-1–044101-13. [Google Scholar] [CrossRef]
  30. Kang, J.; Niu, J.; Fu, C.; Tan, W. Coriolis effect on thermal convective instability of viscoelastic fluids in a rotating porous cylindrical annulus. Transp. Porous Med. 2013, 98, 349–362. [Google Scholar] [CrossRef]
  31. Barletta, A.; Storesletten, L. Onset of convection in a vertical porous cylinder with a permeable and conducting side boundary. Int. J. Therm. Sci. 2015, 97, 9–16. [Google Scholar] [CrossRef]
  32. Siddheshwar, P.G.; Lakshmi, K.M. Darcy-Bénard convection of Newtonian liquids and Newtonian nanoliquids in cylindrical enclosures and cylindrical annuli. AIP Phys. Fluids 2019, 31, 084102-1–084102-19. [Google Scholar] [CrossRef]
  33. Liang, S.F.; Vidal, A.; Acrivos, A. Buoyancy-driven convection in cylindrical geometries. J. Fluid Mech. 1969, 36, 239–258. [Google Scholar] [CrossRef]
  34. Stork, K.; Muller, U. Convection in boxes: Experiments. J. Fluid Mech. 1975, 71, 231–240. [Google Scholar] [CrossRef]
  35. Charlson, G.S.; Sani, R.L. Thermal convection in a vertical circular cylinder. Int. J. Heat Mass Transfer 1970, 13, 1479–1496. [Google Scholar] [CrossRef]
  36. Charlson, G.S.; Sani, R.L. On thermoconvective instability in a bounded cylindrical fluid layer. Int. J. Heat Mass Transfer 1971, 14, 2157–2160. [Google Scholar] [CrossRef]
  37. Hébert, F.; Hufschmid, R.; Scheel, J.; Ahlers, G. Onset of Rayleigh-Bénard convection in cylindrical containers. Phys. Rev. E 2010, 81, 046318-1–046318-11. [Google Scholar] [CrossRef]
  38. Wang, B.F.; Ma, D.J.; Chen, C.; Sun, D.J. Vascular dysfunction—The disregarded partner of Alzheimer’s disease. J. Fluid Mech. 2012, 711, 27–39. [Google Scholar] [CrossRef]
  39. Yu, J.; Goldfaden, A.; Flagstad, M.; Scheel, J.D. Onset of Rayleigh-Bénard convection for intermediate aspect ratio cylindrical containers. Phys. Fluids 2017, 29, 024107-1–024107-10. [Google Scholar] [CrossRef]
  40. Li, P.X.; Li, B.W.; Chen, L.; Leng, X.Y.; Luo, X.H.; Yu, Y.; Zhang, J.K. 3D DNS of laminar Rayleigh-Bénard convection in a cylinder for incompressible fluid flow. Chinese J. Phys. 2022, 79, 374–394. [Google Scholar] [CrossRef]
  41. Brinkman, H.C. Physics of the Environment. J. Chem. Phys. 1952, 20, 571. [Google Scholar] [CrossRef]
  42. Siddheshwar, P.G.; Veena, B.N. A theoretical study of natural convection of water-based nanoliquids in low-porosity enclosures using single-phase model. J. Nanofluids 2018, 7, 163–174. [Google Scholar] [CrossRef]
  43. Siddheshwar, P.G.; Lakshmi, K.M. Heat Transfer in a Viscoelastic Boundary Layer Flow over a Stretching Sheet with Viscous Dissi- pation and Non-Uniform Heat Source. J. Heat Transfer ASME 2019, 141, 062405-1–062405-13. [Google Scholar]
  44. Kuwahara, F.; Shirota, M.; Nakayama, A. A numerical study of interfacial convective heat transfer coefficient in two-energy equation model for convection in porous media. Int. J. Heat Mass Transfer 2001, 44, 1153–1159. [Google Scholar] [CrossRef]
Figure 1. Schematic representation of the present model.
Figure 1. Schematic representation of the present model.
Entropy 26 00002 g001
Figure 2. Plot of the critical Rayleigh number, R a c , versus the aspect ratio, S o , for H = 5 , γ = 18.7306, Λ = 1.37655 and σ 2 = 10 values. S o T refer to values of S o at intersection points.
Figure 2. Plot of the critical Rayleigh number, R a c , versus the aspect ratio, S o , for H = 5 , γ = 18.7306, Λ = 1.37655 and σ 2 = 10 values. S o T refer to values of S o at intersection points.
Entropy 26 00002 g002
Figure 3. Plot of streamlines, Ψ , for different values of S o with H = 5 , γ = 18.7306, Λ = 1.37655 and σ 2 = 10 in a C E .
Figure 3. Plot of streamlines, Ψ , for different values of S o with H = 5 , γ = 18.7306, Λ = 1.37655 and σ 2 = 10 in a C E .
Entropy 26 00002 g003
Figure 4. Plot of Ψ for different values of S o with H = 5 , γ = 18.7306, Λ = 1.37655 and σ 2 = 10 in a R E .
Figure 4. Plot of Ψ for different values of S o with H = 5 , γ = 18.7306, Λ = 1.37655 and σ 2 = 10 in a R E .
Entropy 26 00002 g004
Figure 5. Plot of Ψ in the region [ 0 , a 2 + 2 π a c ] in a C E .
Figure 5. Plot of Ψ in the region [ 0 , a 2 + 2 π a c ] in a C E .
Entropy 26 00002 g005
Figure 6. Plot of Ψ in the region [ 0 , 2 π a c ] in a R E .
Figure 6. Plot of Ψ in the region [ 0 , 2 π a c ] in a R E .
Entropy 26 00002 g006
Table 1. The values of parameters ( P r , α , γ , Λ ) for water- G F , water-Sand, water- G B and water- A F .
Table 1. The values of parameters ( P r , α , γ , Λ ) for water- G F , water-Sand, water- G B and water- A F .
Pr α γ Λ
water- G F 5.3393 0.9904 18.7306 1.37655
water-Sand 3.0336 0.6603 2.2703 5.6568
water- G B 3.03370.31770.58385.6568
water- A F 3.03370.00170.00305.6568
Table 2. The values of parameters H and σ 2 for water- G F , water-Sand, water- G B and water- A F .
Table 2. The values of parameters H and σ 2 for water- G F , water-Sand, water- G B and water- A F .
d ( m ) H K ( m 2 ) σ 2
water- G F 0.02 [0.5111:2.0446][657.28:10516.5][0.0038:0.0608]
0.03 [599.37:5993.7][0.0085:0.1369]
water-Sand, 0.02 [2.4164:12.0824][0.2777:6.9444][5.7600:144.00]
water- G B ,[2.5713:12.8867]
water- A F [2.5713:12.8867]
water-Sand, 0.03 [1.0148:5.0741][340.556:3405.56][12.960:324.00]
water- G B ,[1.0708:5.3543]
water- A F [1.0708:5.3543]
Table 3. Asymptotic expressions of R a in B B C and D B C cases with L T E assumption and with m = a S o (applicable to both C E and R E ).
Table 3. Asymptotic expressions of R a in B B C and D B C cases with L T E assumption and with m = a S o (applicable to both C E and R E ).
Cases Ra [2]
B B C ( m 2 + π 2 ) 2 m 2 Λ ( m 2 + π 2 ) + σ 2
D B C
( σ 2 1 )
( m 2 + π 2 ) 2 m 2
Table 4. First seven roots of the constraint J δ + 1 2 [ a n ] = 0 in the cases of C E and R E .
Table 4. First seven roots of the constraint J δ + 1 2 [ a n ] = 0 in the cases of C E and R E .
n0123456
a n ( δ = 1 ) 3.831717.0155910.173513.323716.470619.615922.7601
a n ( δ = 0 ) 0 π 2 π 3 π 4 π 5 π 6 π
Table 5. Expression for the number of cells in the limiting cases of B B C - L T N E .
Table 5. Expression for the number of cells in the limiting cases of B B C - L T N E .
ParametersNumber of Cells
D B C
( L T N E )
σ 1 n = 1 2 π π + π 2 + 2 q 11 + q 12 2 q 3 S o 2 + q 15 + q 23
R B C σ 2 = 0 and Λ = 1 n = 1 2 + 1 4 1 6 q 10 1 q 10 q 9 q 9 + q 23
B B C
( L T E )
H 0 or H 1 2 1 + 1 2 3 Λ π 2 q 20 2 2 3 q 20 2 + q 22 2 2 1 3 q 22 + q 23
D B C
( L T E )
σ 1 ,
H 0 or H
1 2 1 + 4 S o 2 1 + q 23
Table 6. Ranges of S o at which the number of cells increases in different water-saturated porous media with H = 5.0 (in the case of L T N E ) and H = 10 4 (in the case of L T E except for A F for which we need to take H = 10 7 ), and d = 0.03 m (in the case of B B C ) (The values in bold are the threshold values referred to as S o T in Figure 2.
Table 6. Ranges of S o at which the number of cells increases in different water-saturated porous media with H = 5.0 (in the case of L T N E ) and H = 10 4 (in the case of L T E except for A F for which we need to take H = 10 7 ), and d = 0.03 m (in the case of B B C ) (The values in bold are the threshold values referred to as S o T in Figure 2.
Water- pm CasesNumber of Cells (Cylindrical Enclosure)
12345678
water- G F B B C - L T N E [0.68, 1.98)[1.98, 3.19)[3.19, 4.39)[4.39, 5.58)[5.58, 6.76)[6.76, 7.95)[7.95, 9.13)[9.13, 10.32)
B B C - L T E [0.68, 1.99)[1.99, 3.20)[3.20, 4.40)[4.40, 5.59)[5.59, 6.78)[6.78, 7.97)[7.97, 9.15)[9.15, 10.34)
water R B C [0.82, 2.37)[2.37, 3.82)[3.82, 5.25)[5.25, 6.67)[6.67, 8.09)[8.09, 9.51)[9.51, 10.92)[10.92, 12.34)
water-sand D B C - L T N E [0.52, 1.59)[1.59, 2.57)[2.57, 3.54)[3.54, 4.50)[4.50, 5.46)[5.46, 6.42)[6.42, 7.38)[7.38, 8.33)
D B C - L T E [0.54, 1.66)[1.66, 2.69)[2.69, 3.70)[3.70, 4.71)[4.71, 5.72)[5.72, 6.72)[6.72, 7.72)[7.72, 8.72)
water- G B D B C - L T N E [0.5, 1.53)[1.53, 2.48)[2.48, 3.42)[3.42, 4.34)[4.34, 5.27)[5.27, 6.20)[6.20, 7.12)[7.12, 8.04)
D B C - L T E [0.54, 1.66)[1.66, 2.69)[2.69, 3.70)[3.70, 4.71)[4.71, 5.72)[5.72, 6.72)[6.72, 7.72)[7.72, 8.72)
water- A F D B C - L T N E [0.49, 1.50)[1.50, 2.43)[2.43, 3.34)(3.34, 4.25)[4.25, 5.16)[5.16, 6.07)[6.07, 6.97)[6.97, 7.88)
D B C - L T E [0.54, 1.66)[1.66, 2.69)[2.69, 3.70)[3.70, 4.71)[4.71, 5.72)[5.72, 6.72)[6.72, 7.72)[7.72, 8.72)
Water- pm CasesNumber of Cells (Rectangular Enclosure)
12345678
water- G F B B C - L T N E (0, 1.70)[1.70, 2.91)[2.91, 4.11)[4.11, 5.30)[5.30, 6.49)[6.49, 7.67)[7.67, 8.86)[8.86, 10.04)
B B C - L T E (0, 1.70)[1.70, 2.92)[2.92, 4.12)[4.12, 5.31)[5.31, 6.50)[6.50, 7.69)[7.69, 8.88)[8.88, 10.06)
water R B C (0, 2.03)[2.03, 3.48)[3.48, 4.92)[4.92, 6.34)[6.34, 7.76)[7.76, 9.18)[9.18, 10.59)[10.59, 12.01)
water-sand D B C - L T N E (0, 1.36)[1.36, 2.34)[2.34, 3.31)[3.31, 4.28)[4.28, 5.24)[5.24, 6.20)[6.20, 7.15)[7.15, 8.11)
D B C - L T E (0, 1.42)[1.42, 2.45)[2.45, 3.47)[3.47, 4.48)[4.48, 5.48)[5.48, 6.49)[6.49, 7.49)[7.49, 8.49)
water- G B D B C - L T N E (0, 1.31)[1.31, 2.26)[2.26, 3.20)[3.20, 4.13)[4.13, 5.06)[5.06, 5.98)[5.98, 6.91)[6.91, 7.83)
D B C - L T E (0, 1.42)[1.42, 2.45)[2.45, 3.47)[3.47, 4.48)[4.48, 5.48)[5.48, 6.49)[6.49, 7.49)[7.49, 8.49)
water- A F D B C - L T N E (0, 1.28)[1.28, 2.22)[2.22, 3.13)[3.13, 4.04)[4.04, 4.95)[4.95, 5.86)[5.86, 6.76)[6.76, 7.66)
D B C - L T E (0, 1.42)[1.42, 2.45)[2.45, 3.47)[3.47, 4.48)[4.48, 5.48)[5.48, 6.49)[6.49, 7.49)[7.49, 8.49)
Table 7. Cell-sizes of first 8 cells in different water-saturated porous media with H = 5.0 (in the case of L T N E ) and H = 10 4 (in the case of L T E except for A F for which we need to take H = 10 7 ), and d = 0.03 m (in the case of B B C ).
Table 7. Cell-sizes of first 8 cells in different water-saturated porous media with H = 5.0 (in the case of L T N E ) and H = 10 4 (in the case of L T E except for A F for which we need to take H = 10 7 ), and d = 0.03 m (in the case of B B C ).
Water- pm CasesCell Aspect Ratios (Cylindrical Enclosure)
12345678
water- G F B B C - L T N E ( d = 0.003 m ) 1.301.211.201.191.181.191.181.19
B B C - L T E ( d = 0.003 m ) 1.311.211.201.191.191.191.181.19
water R B C 1.551.451.431.421.421.421.411.42
water-sand D B C - L T N E 1.070.980.970.960.960.960.960.95
D B C - L T E 1.121.031.011.011.011.001.001.00
water- G B D B C - L T N E 1.030.950.940.920.930.930.920.92
D B C - L T E 1.121.031.011.011.011.001.001.00
water- A F D B C - L T N E 1.010.930.910.910.910.910.900.91
D B C - L T E 1.121.031.011.011.011.001.001.00
Water- pm CasesCell Aspect Ratios (Rectangular Enclosure)
12345678
water- G F B B C - L T N E ( d = 0.03 m ) 1.211.201.191.191.181.191.181.19
B B C - L T E ( d = 0.03 m ) 1.221.201.191.191.191.191.181.19
water R B C 1.451.431.421.421.411.421.411.42
water-sand D B C - L T N E 0.980.970.970.960.960.950.960.96
D B C - L T E 1.031.021.011.001.011.001.001.00
water- G B D B C - L T N E 0.950.940.930.930.920.930.920.92
D B C - L T E 1.031.021.011.001.011.001.001.00
water- A F D B C - L T N E 0.940.910.910.910.910.900.900.91
D B C - L T E 1.031.021.011.001.011.001.001.00
Table 8. Expressions of R a c and n in different problems.
Table 8. Expressions of R a c and n in different problems.
Cases Ra c n [ S o ]
B B C
( L T N E )
[ ( δ ( a 2 2 π ) + n π ) 2 / S o 2 + π 2 ] 2 ( δ ( a 2 2 π ) + n π ) 2 / S o 2 Λ [ ( δ ( a 2 2 π ) + n π ) 2 / S o 2 + π 2 ] + σ 2 ×
1 + H ( δ ( a 2 2 π ) + n π ) 2 / S o 2 + π 2 + H γ
π + π 2 + 4 Q 2 π + δ 2 a 2 π
D B C
( L T N E )
[ ( δ ( a 2 2 π ) + n π ) 2 / S o 2 + π 2 ] 2 ( δ ( a 2 2 π ) + n π ) 2 / S o 2 × 1 + H ( δ ( a 2 2 π ) + n π ) 2 / S o 2 + π 2 + H γ π + π 2 + 4 Q 2 π + δ 2 a 2 π
R B C [ ( δ ( a 2 2 π ) + n π ) 2 / S o 2 + π 2 ] 3 ( δ ( a 2 2 π ) + n π ) 2 / S o 2 n = 1 2 + 1 4 1 6 q 10 1 q 10 q 9 q 9 + δ 2 a 2 π
B B C
( L T E )
[ ( δ ( a 2 2 π ) + n π ) 2 / S o 2 + π 2 ] 2 ( δ ( a 2 2 π ) + n π ) 2 / S o 2 Λ [ ( δ ( a 2 2 π ) + n π ) 2 / S o 2 + π 2 ] + σ 2 1 2 1 + 1 2 3 Λ π 2 q 20 2 2 3 q 20 2 + q 22 2 2 1 3 q 22 + δ 2 a 2 π
D B C
( L T E )
[ ( δ ( a 2 2 π ) + n π ) 2 / S o 2 + π 2 ] 2 ( δ ( a 2 2 π ) + n π ) 2 / S o 2 1 2 1 + 4 S o 2 1 + δ 2 a 2 π
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Siddheshwar, P.G.; Lakshmi, K.M.; Laroze, D. A Unified Approach to Two-Dimensional Brinkman-Bénard Convection of Newtonian Liquids in Cylindrical and Rectangular Enclosures. Entropy 2024, 26, 2. https://doi.org/10.3390/e26010002

AMA Style

Siddheshwar PG, Lakshmi KM, Laroze D. A Unified Approach to Two-Dimensional Brinkman-Bénard Convection of Newtonian Liquids in Cylindrical and Rectangular Enclosures. Entropy. 2024; 26(1):2. https://doi.org/10.3390/e26010002

Chicago/Turabian Style

Siddheshwar, Pradeep G., Kanakapura M. Lakshmi, and David Laroze. 2024. "A Unified Approach to Two-Dimensional Brinkman-Bénard Convection of Newtonian Liquids in Cylindrical and Rectangular Enclosures" Entropy 26, no. 1: 2. https://doi.org/10.3390/e26010002

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
