Synthesis of Homoveratric Acid-Imprinted Polymers and Their Evaluation as Selective Separation Materials
Abstract
:1. Introduction
2. Results and Discussion
2.1. Affinity of Imprinted Polymers Towards Homoveratric Acid
2.1.1. Imprinting Factors
Polymer No. | Amount of Homoveratric Acid Bound to Polymer ± S.D. [μmol/g] | Imprinting Factor | |
---|---|---|---|
MIP | NIP | ||
1 | 0.61 ± 0.02 | 0.78 ± 0.02 | 0.78 |
2 | 2.23 ± 0.13 | 2.64 ± 0.12 | 0.84 |
3 | 5.03 ± 0.32 | 5.55 ± 0.46 | 0.91 |
4 | 0.49 ± 0.01 | 0.22 ± 0.01 | 2.23 |
5 | 7.25 ± 0.84 | 8.13 ± 0.89 | 0.89 |
6 | 0.98 ± 0.03 | 0.82 ± 0.03 | 1.20 |
7 | 3.84 ± 0.02 | 3.92 ± 0.18 | 0.98 |
8 | 3.46 ± 0.20 | 1.01 ± 0.06 | 3.43 |

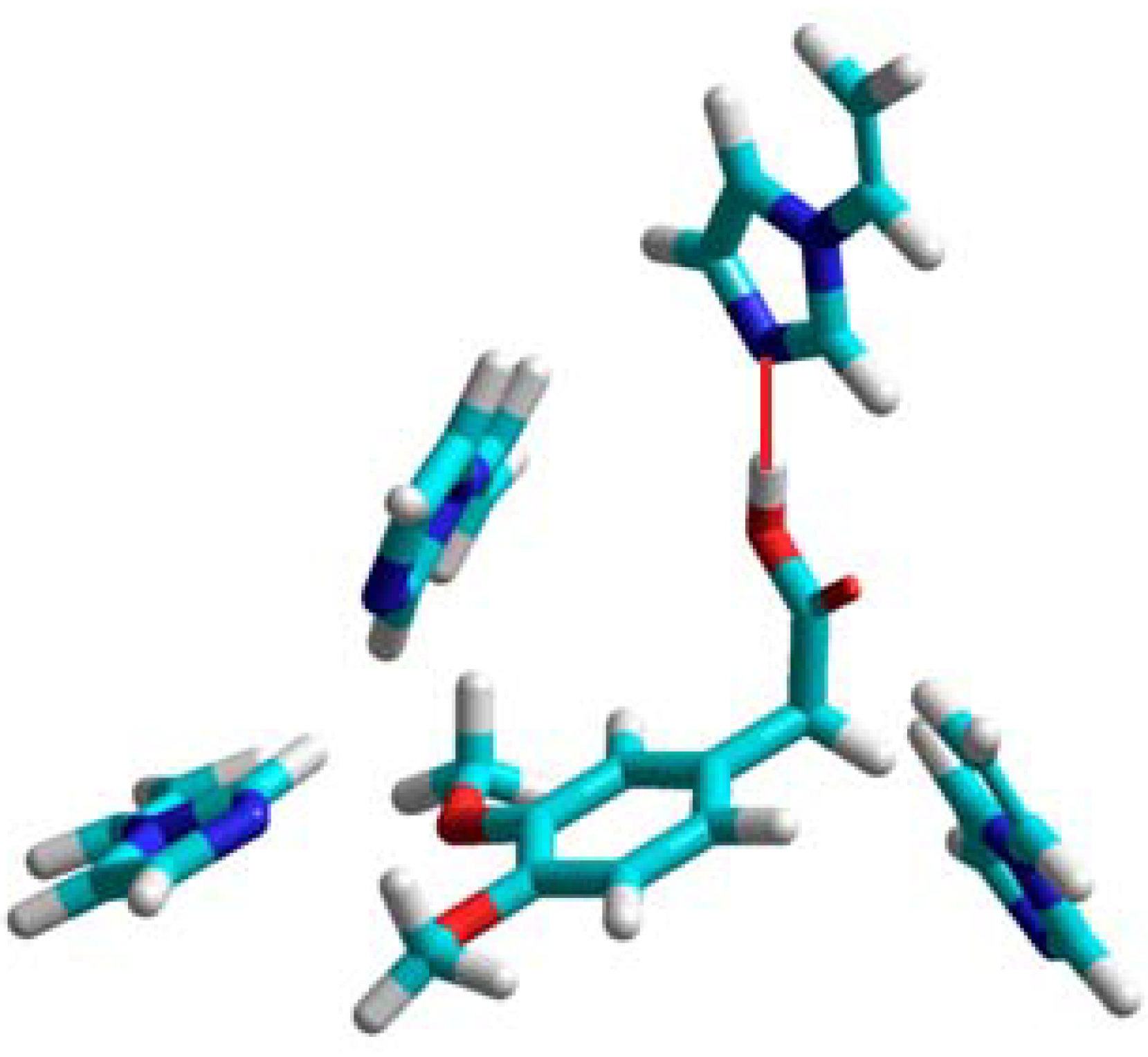

2.1.2. Molecular Modeling of Prepolymerization Complexes
2.2. Evaluation of Imprinting Polymers Using Dynamic Binding Procedure
2.3. Effect of Cross-Linker
Polymer No. | Amount of Homoveratric Acid Bound to Polymer ± S.D. [μmol/g] | Imprinting Factor | |
---|---|---|---|
MIP | NIP | ||
8 | 3.46 ± 0.20 | 1.01 ± 0.06 | 3.43 |
8a | 1.41 ± 0.05 | 1.14 ± 0.06 | 1.24 |
8b | 4.12 ± 0.57 | 4.83 ± 0.64 | 0.85 |

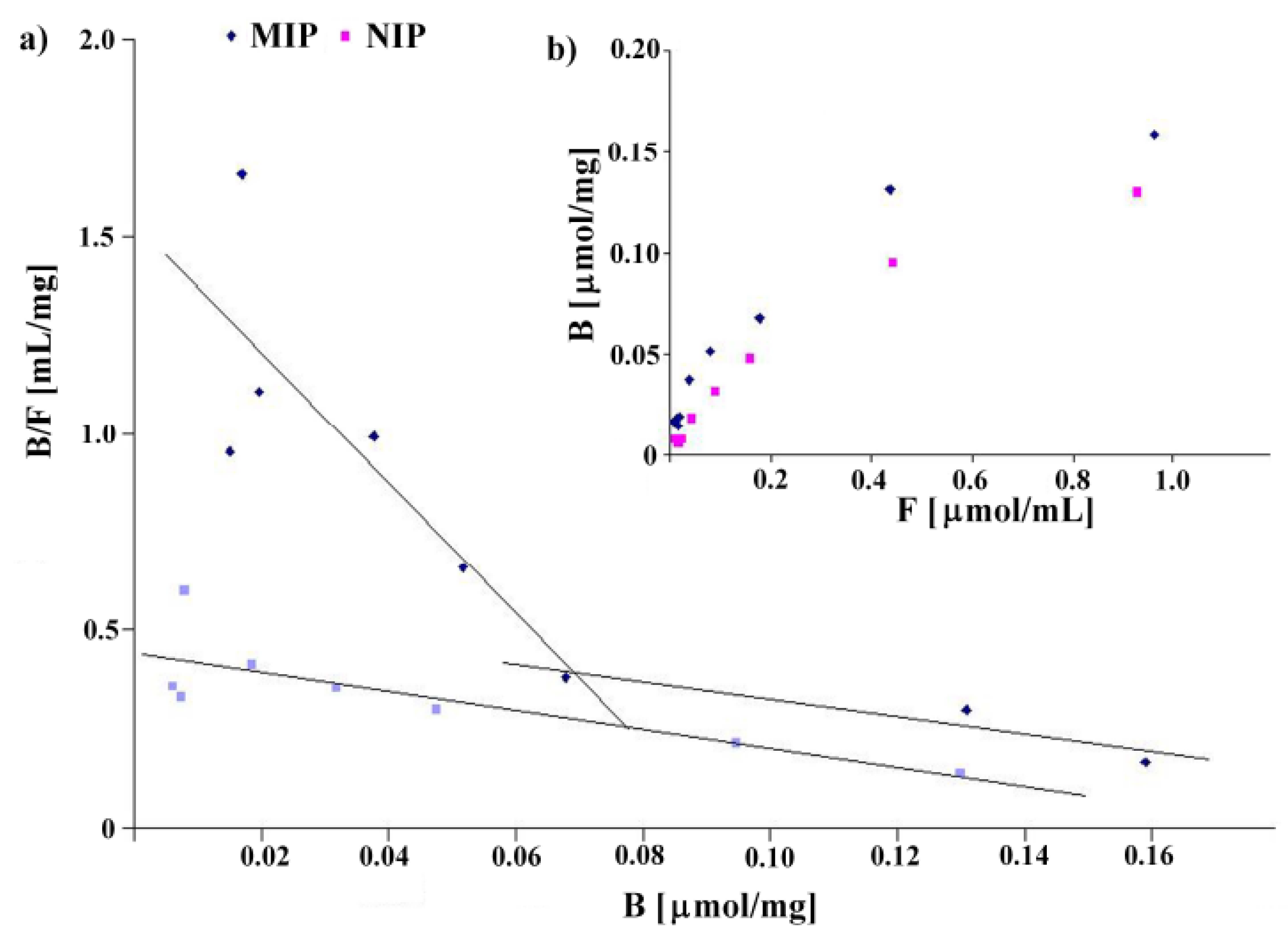

2.4. Binding Characteristics
2.5. Morphology of Particles
2.6. IR Spectra of Selected Polymers

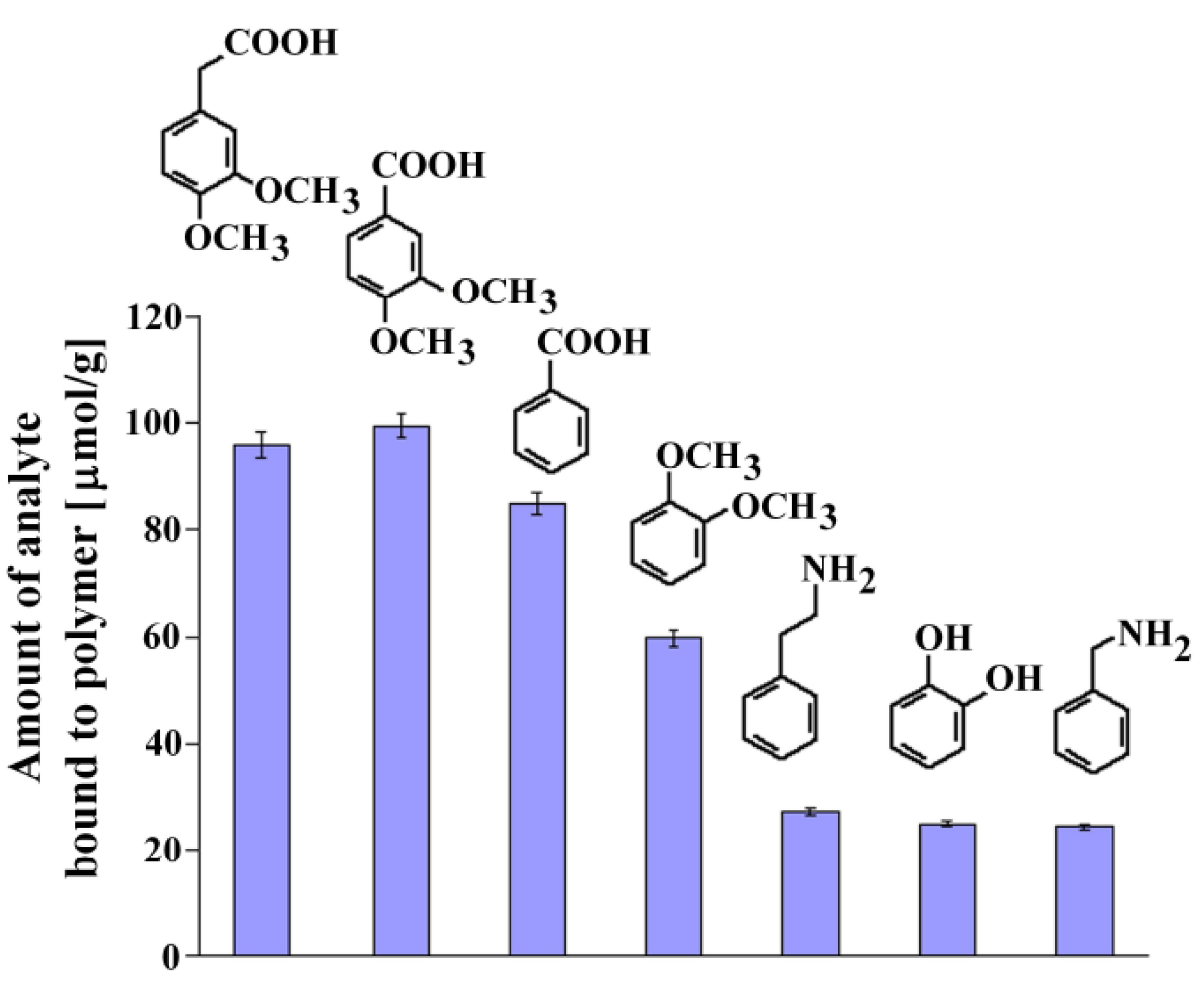

2.7. Molecular Recognition Mechanism

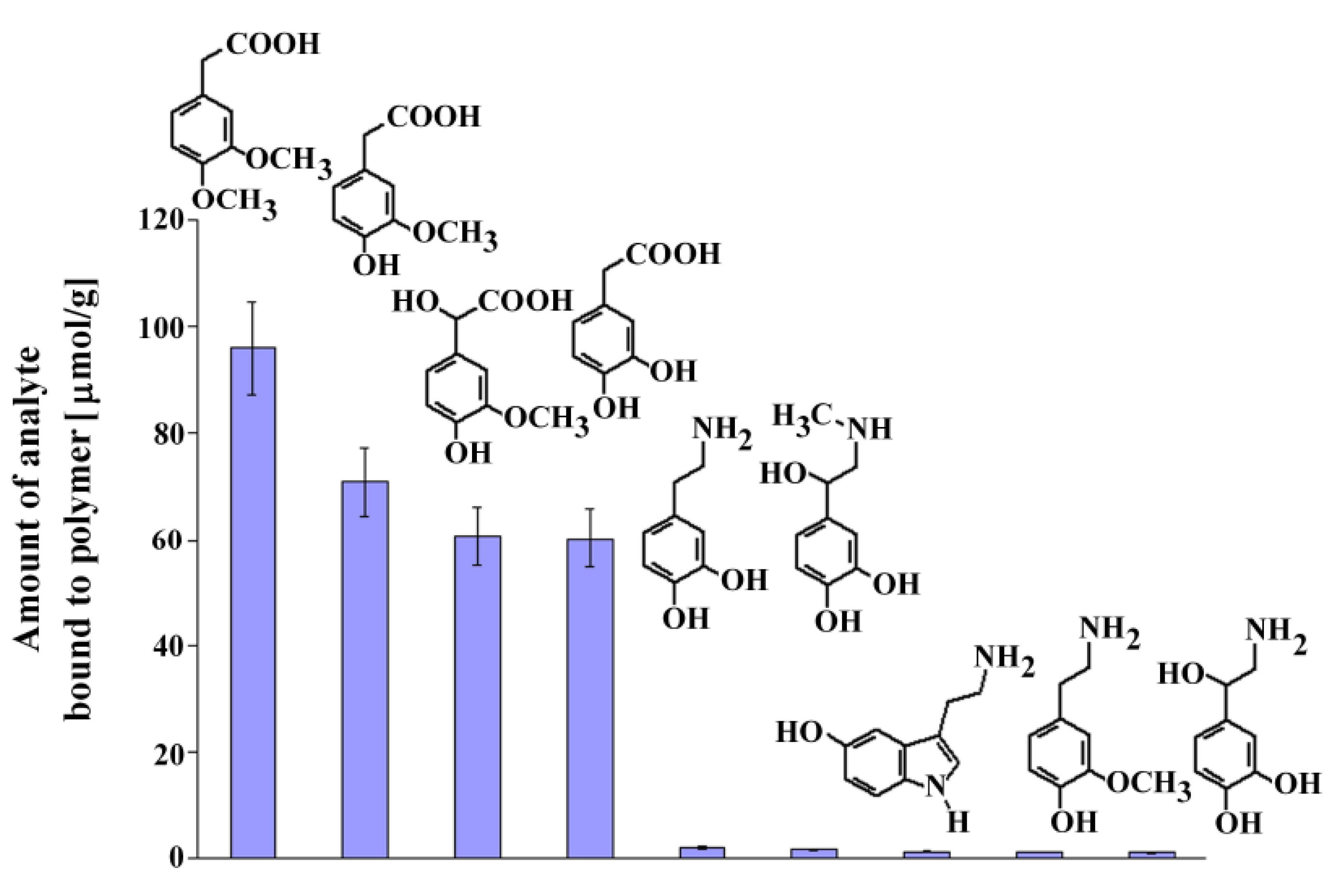

2.8. Selectivity Toward Dopamine and Its Metabolites
2.9. Application of MIP8 to Separation of Homoveratric Acid
Extraction Steps | MIP8 |
---|---|
Found [nmol] | |
1. Conditioning (2 mL, water) | < L.Q.a |
Bound [nmol] | |
2. Loading (total of 10 × 2 mL, 75 μmol/L) | 829 ± 32 |
Found [nmol] | |
3. Washing (1 mL, water) | 69.5 ± 2.7 |
4. Eluting (total of 2 × 2 mL, methanol) | 832 ± 32 |
2.9.1. Preliminary Analysis of Homoveratric Acid Separation from Artificial Urine
Steps | AU1 | AU2 |
---|---|---|
Found [nmol] | ||
1. Conditioning (2 mL, water) | < L.Q.a | < L.Q.a |
Bound [nmol] | ||
2. Loading (total of 10 × 2 mL, 75 μmol/L) | 168.0 ± 6.4 | 317 ± 12 |
Found [nmol] | ||
3. Washing (1 mL, water) | 28.3 ± 1.1 | 36.0 ± 1.4 |
4. Eluting (total of 2 × 2 mL, methanol) | 157 ± 6.0 | 312 ± 12 |
3. Experimental
3.1. General
3.2. Molecular Modeling
3.3. Preparation of Homoveratric Acid Imprinted Polymer
No of MIPs | Template mg [mmol] | Functional Monomermg [mmol] | Cross-linkermL [mmol] | Initiatormg | PorogenmL |
---|---|---|---|---|---|
1 | 2-vinylpyridine (1) | EGDMA | CHC | DMF | |
39.2 [0.2] | 84.1 [0.8] | 0.754 [4.0] | 14.1 | 0.841 | |
2 | 4-vinylpyridine (2) | EGDMA | CHC | DMF | |
39.2 [0.2] | 84.1 [0.8] | 0.754 [4.0] | 14.1 | 0.841 | |
3 | 1-vinylimidazole (3) | EGDMA | CHC | DMF | |
39.2 [0.2] | 75.3 [0.8] | 0.754 [4.0] | 14.1 | 0.827 | |
4 | N-allylaniline (4) | EGDMA | CHC | DMF | |
39.2 [0.2] | 106.6 [0.8] | 0.754 [4.0] | 14.1 | 0.863 | |
5 | N-allylpiperazine (5) | EGDMA | CHC | DMF | |
39.2 [0.2] | 101.0 [0.8] | 0.754 [4.0] | 14.1 | 0.866 | |
6 | allylurea (6) | EGDMA | CHC | DMF | |
39.2 [0.2] | 80.1 [0.8] | 0.754 [4.0] | 14.1 | 0.754 | |
7 | allylthiourea (7) | EGDMA | CHC | DMF | |
39.2 [0.2] | 92.9 [0.8] | 0.754 [4.0] | 14.1 | 0.754 | |
8 | allylamine (8) | EGDMA | CHC | DMF | |
39.2 [0.2] | 45.7 [0.8] | 0.754 [4.0] | 14.1 | 0.814 | |
8a | TGDMA | CHC | DMF | ||
allylamine (8) | 1.145 [4.0] | 14.1 | 1.109 | ||
8b | 39.2 [0.2] | 45.7 [0.8] | TRIM | CHC | DMF |
0.271 [0.8] | 4.7 | 0.331 |
3.4. Binding Experiments
4. Conclusions
Acknowledgements
References and Notes
- Komiyama, M.; Takeuchi, T.; Mukawa, T.; Asanuma, H. Molecular Imprinting: From Fundaments to Applications; Wiley-VCH: Weinheim, Germany, 2003. [Google Scholar]
- Piletsky, S.; Turner, A. Molecular Imprinting of Polymers; Landes-Bioscience: Washington, DC, USA, 2006. [Google Scholar]
- Cormack, P.A.G.; Zurutuza-Elorza, A. Molecularly imprinted polymers: synthesis and characterisation. J. Chromatogr. B 2004, 804, 173–182. [Google Scholar] [CrossRef]
- Alexander, C.; Davidson, L.; Hayes, W. Imprinted polymers: artificial molecular recognition materials with applications in synthesis and catalysis. Tetrahedron 2003, 59, 2025–2057. [Google Scholar] [CrossRef]
- Motherwell, W.B.; Bingham, M.J.; Six, Y. Recent progress in the design and synthesis of artificial enzymes. Tetrahedron 2001, 57, 4663–4686. [Google Scholar] [CrossRef]
- Xu, X.; Zhu, L.; Chen, L. Separation and screening of compounds of biological origin using molecularly imprinted polymers. J. Chromatogr. B 2004, 804, 61–69. [Google Scholar] [CrossRef]
- Ramström, O.; Ye, L.; Krook, M.; Mosbach, K. Screening of a combinatorial steroid library using molecularly imprinted polymers. Anal. Commun. 1998, 35, 9–11. [Google Scholar]
- Alvarez-Lorenzo, C.; Concheiro, A. Molecularly imprinted polymers for drug delivery. J. Chromatogr. B 2004, 804, 231–245. [Google Scholar] [CrossRef]
- Hennion, M.-C. Solid-phase extraction: method development, sorbents, and coupling with liquid chromatography. J. Chromatogr. A 1999, 856, 3–54. [Google Scholar] [CrossRef]
- Sellergren, B. Imprinted chiral stationary phase in high-performance liquid chromatography. J. Chromatogr. A 2001, 906, 227–252. [Google Scholar] [CrossRef]
- Pichon, V.; Chapui-Hugon, F. Role of molecularly imprinted polymers for selective determination of enviromental pollutants–A review. Anal. Chim. Acta 2008, 622, 48–61. [Google Scholar] [CrossRef]
- Chapuis, F.; Mullot, J.U.; Pichon, V.; Tuffal, G.; Hennion, M.-C. Molecularly imprinted polymers for the clean-up of a basic drug from environmental and biologival samples. J. Chromatogr. A 2006, 1135, 127–134. [Google Scholar]
- Pichon, V. Selective sample treatment using molecularly imprinted polymers. J. Chromatogr. A 2007, 1152, 41–53. [Google Scholar]
- Goto, K.; Mochizuki, H.; Hattori, T.; Nakamura, N.; Mizuno, Y. Neurotoxic effects of papaverine, tetrahydropapaverine and dimethoxyphenylethylamine on dopaminergic neurons in ventral mesencephalic-stratial co-culture. Brain Res. 1997, 754, 260–268. [Google Scholar] [CrossRef]
- Koshimura, I.; Imai, H.; Hidano, T.; Endo, K.; Mochizuki, H.; Kondo, T.; Mizuno, Y. Dimethoxyphenyethylamine and tetrahydropapaverine are toxic to the nigrostratial system. Brain Res. 1997, 773, 108–116. [Google Scholar] [CrossRef]
- Gonzalez-Vegas, J.A.; Wolstencroft, J.H. Actions of 3,4-dimethoxyphenylethylamine in relation to the effects of catecholamines on brainstem neurones. Proc. Brit. Pharmacol. Soc. 1971, 41, 395–396. [Google Scholar]
- Knoll, E.; Wisser, H.; Emrich, H.M. 3,4-Dimethoxyphenylethylamine excretion of normals and schizophrenics, behaviour during total fasting. Clin. Chim. Acta 1978, 89, 493–502. [Google Scholar] [CrossRef]
- Birtwistle, J.; Baldwin, D. Role of dopamine in schizophrenia and Parkinson's disease. Br. J. Nurs. 1998, 7, 832–841. [Google Scholar]
- Panoutsopoulos, G.I. Contribution of aldehyde oxidizing enzymes on the metabolism of 3,4-dimethoxy-2-phenylethylamine to 3,4-dimethoxyphenylacetic acid by guinea pig liver slices. Cell Physiol. Biochem. 2006, 17, 47–56. [Google Scholar] [CrossRef]
- Wu, W.N.; Masucci, J.A.; Caldwell, G.W.; Carson, J.R. Excretion and metabolism of the antihypertensive agent, RWJ-226240 (MCN-5691) in dogs. Drug Metab. Dispos. 1998, 26, 115–125. [Google Scholar]
- Jaroszyńska, J. The influence of solvent choice on the recovery of phytogenicphenolic compounds extracted from plants. Pol. J. Environ. Studies 2003, 12, 481–484. [Google Scholar]
- Luliński, P.; Maciejewska, D.; Bamburowicz-Klimkowska, M.; Szutowski, M. Dopamine-Imprinted Polymers: Template-Monomer Interactions, Analysis of Template Removal and Application to Solid Phase Extraction. Molecules 2007, 12, 2434–2449. [Google Scholar] [CrossRef]
- Luliński, P.; Maciejewska, D. Impact of functional monomers, cross-linkers and porogens on morphology and recognition properties of 2-(3,4-dimethoxyphenyl)ethylamine imprinted polymers. Mater. Sci. Eng. C 2011, 31, 281–289. [Google Scholar] [CrossRef]
- Sergeyeva, T.A.; Gorbach, L.A.; Slinchenko, O.A.; Goncharova, L.A.; Piletska, O.V.; Brovko, O.O.; Sergeeva, L.M.; Elska, G.V. Towards development of colorimetric test-systems for phenols detection based on computationally-designed molecularly imprinted polymer membranes. Mater. Sci. Eng. C 2010, 30, 431–436. [Google Scholar] [CrossRef]
- Gholivand, M.B.; Khodadadian, M.; Ahmadi, F. Computer aided-molecular design and synthesis of a high selective molecularly imprinted polymer for solid-phase extraction of furosemide from human plasma. Anal. Chim. Acta 2010, 658, 225–232. [Google Scholar] [CrossRef]
- Atta, N.F.; Hamed, M.M.; Abdel-Mageed, A.M. Computational investigation and synthesis of a sol–gel imprinted material for sensing application of some biologically active molecules. Anal. Chim. Acta 2010, 667, 63–70. [Google Scholar] [CrossRef]
- Okutucu, B.; Telefoncu, A. Optimization of serotonin imprinted polymers and recognition study from platelet rich plasma. Talanta 2008, 76, 1153–1158. [Google Scholar] [CrossRef]
- Liu, Y.; Wang, F.; Tan, T.; Lei, M. Study of the properties of molecularly imprinted polymers by computational and conformational analysis. Anal. Chim. Acta 2007, 581, 137–146. [Google Scholar] [CrossRef]
- Dong, W.; Yan, M.; Zhang, M.; Liu, Z.; Li, Y. A computational and experimental investigation of the interaction between the template and the functional monomer used in the molecularly imprinted polymer. Anal. Chim. Acta 2005, 542, 186–192. [Google Scholar] [CrossRef]
- Mayrovitz, H.N.; Sims, N. Biophysical effects of water and synthetic urine on skin. Adv. Skin Wound Care 2001, 14, 302–308. [Google Scholar] [CrossRef]
- Christmas, K.G.; Gower, L.B.; Khan, S.R. Aggregation and dispersion characteristisc of calcium oxalate monohydrate: effect of urinary species. J. Colloid Interface Sci. 2002, 256, 168–174. [Google Scholar] [CrossRef]
- Chutipongtanate, S.; Thohgboonkerd, V. Systematic comparision of artificial urine formulas for in vitro cellular study. Anal. Biochem. 2010, 402, 110–112. [Google Scholar] [CrossRef]
- Program HyperChem. 7.01. Hypercube, Inc.: Waterloo, Canada, 2002.
- Chopra, D.; Choudhury, A.R.; Guru Row, T.N. 3,4-Dimethoxyphenylacetic acid. Acta Cryst. 2003, E59, o433–o434. [Google Scholar]
- Hachuła, B.; Nowak, M.; Kusz, J. Hydrogen-bonding interactions in (3,4-dimethoxyphenyl)acetic acid monohydrate. Acta Cryst. 2008, C64, o357–o360. [Google Scholar]
- Samples Availability: Contact the authors.
© 2011 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license ( http://creativecommons.org/licenses/by/3.0/).
