Improved Access to Chiral Tetranaphthoazepinium-Based Organocatalysts Using Aqueous Ammonia as Nitrogen Source

by
Auraya Manaprasertsak
1,
Sorachat Tharamak
1,
Christina Schedl
2,
Alexander Roller
3 and
Michael Widhalm
4,*
1
Department of Chemistry, Faculty of Science, Kasetsart University, Bangkok 10900, Thailand
2
Institute of Organic Chemistry, University of Vienna, Währinger Straße 38, 1090 Wien, Austria
3
Institute of Inorganic Chemistry, University of Vienna, Währinger Straße 42, Wien 1090, Austria
4
Institute of Chemical Catalysis, University of Vienna, Währinger Straße 38, 1090 Wien, Austria
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(21), 3844; https://doi.org/10.3390/molecules24213844
Submission received: 4 October 2019 / Revised: 22 October 2019 / Accepted: 23 October 2019 / Published: 25 October 2019
(This article belongs to the Special Issue Development of Asymmetric Synthesis)
Browse Figures
Versions Notes

Abstract

:
The class of 3,3′-diaryl substituted tetranaphthobisazepinium bromides has found wide application as highly efficient C2-symmetrical phase-transfer catalysts (PTCs, Maruoka type catalysts). Unfortunately, the synthesis requires a large number of steps and hampers the build-up of catalyst libraries which are often desired for screening experiments. Here, we present a more economic strategy using dinaphthoazepine 7 as the common key intermediate. Only at this stage various aryl substituents are introduced, and only two individual steps are required to access target structures. This protocol was applied to synthesize ten tetranaphthobisazepinium compounds 1a–1j. Their efficiency as PTCs was tested in the asymmetric substitution of tert-butyl 2-((diphenylmethylene)amino)acetate. Enantioselectivities up to 92% have been observed with new catalysts.

1. Introduction

In many asymmetric transformations the atropisomeric 1,1’-binaphthyl moiety serves as a highly efficient chiral backbone [1]. The possibility to introduce suitable functional groups, particularly at C-2 and C-2’, as well as at C-3 and C-3’ has made the binaphthyl group an indispensable chiral modifyer in stoichiometric and catalytic asymmetric synthesis [2,3,4,5,6,7,8]. While functionalities at C-2 and C-2′ serve particularly as sites for primary interaction in organocatalysis or coordination in transition metal catalysis, substituents at C-3 and C-3′ are introduced for secondary substrate or reagent activation or to tune steric interaction.
One particularly successful subgroup are N-spiro-di- and tetranaphthoazepinium salts 1 (Figure 1) which found application as efficient phase-transfer catalysts (PTCs) [9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24]. Several strategies for their synthetic access have been developed, particularly by Maruoka’s group. All are based on non-racemic 2,2’-dihydroxy-1,1’-binaphthol or 1,1’-binaphthyl-2,2’-dicarboxylic acid or corresponding biphenyl precursors and comprise ortho-metallation steps, introduction of aryl groups at C-3 and C-3’, and manipulation of functional groups at C-2/C-2’ to end up with 2,2′-bromomethyl groups suitable for cyclization with allylamine. Cleavage of the N-allyl substituent is required before dibenzylation with a second 2,2’-bis(bromo)methyl-1,1’-binaphthyl moiety forms the ammonium salts of general structure 1. When starting from non-racemic binaphthol, typically 13 to 15 steps are required to obtain the ammonium salt [25] or in an alternative approach six steps from diacid 2 to obtain the 3,3’ substituted subunit [26]. Although the yields are satisfying, the expenditure of time is still high.
With the aim to facilitate the built-up of ligand libraries [27,28] we recently developed a strategy introducing 3,3′-aryl substituents at a late stage of the synthesis, and replacing allylamine with ammonia. Among others spiro-ammonium salts 1a–1c containing electron donating aryl groups were synthesized in good yield (Scheme 1) [29].
In the present paper we further extend this protocol to the introduction of electron withdrawing or more bulky aryl substituents to give amines 9d–9j. Subsequent cyclisation with 2,2’-bis(bromo)methyl-1,1’-binaphthyl afforded seven tetranaphthobisazepinium bromides 1d–1j which were tested in prototypical organocatalyzed reactions. Moreover, an optical resolution procedure of key intermediate 7 is provided.

2. Results and Discussion

With the intention to introduce various aryl groups at C-3/3′ of the binaphthyl core but at a late stage of the synthesis, diiodoazepine 7 was chosen as key intermediate. Its synthesis started from 1,1’-binaphthyl-2,2’-dicarboxylic acid 2 which is accessible in enantiomerically pure form on the multigram scale from non-racemic 2,2′-dimethyl-1,1′-binaphthyl [30] or 2,2’-binaphthol in two to four steps [31,32,33], respectively or as a racemate applying various procedures from the literature [34]. As we noticed that 1 (R = H, X = Br) can be conveniently prepared from non-racemic 2,2’-bis(bromomethyl)-1,1’-binaphthyl and aqueous ammonia in 94% yield [35], it was easy to apply similar conditions for 3,3’-substituted substrates with the expectation that steric hindrance might stop the reaction at the stage of the secondary amine. (For use of ammonia in the synthesis of symmetrical N-spiroazepine compounds, see [36,37,38].) As precursors 3 and 6 were prepared from 2 in three or four steps (overall yield: 47% for 3, 48% for 6) according to literature [39]. Treatment of dibromides 3 and 6 with aqueous ammonia (25%) in acetonitrile at 60 °C overnight afforded 4 and 7 in 85% and 88% [29], respectively. An alternative approach to 7 via the bis(trimethylsilyl)azepine 4 gave lower yield. An attempted spiro-cyclisation of 4 to 5 failed; only minor amounts of rearranged products could be identified (see Supplementary Materials). Non-racemic 4 and 7 can be prepared from enantiomerically pure precursors (R)- and (S)-2 but requires optical resolution of the diacid. Applying published procedures, this step is quite time consuming and uses toxic or expensive amines as resolving agents, which are often difficult to recycle. Consequently alternatives were considered (see also comments in Supporting Materials of [29]). Instead we found it more economic to work out an optical resolution procedure for the secondary amine 7 preferably using some cheap chiral acid as resolving agent. This seemed most appropriate as it is the common key intermediate for all catalysts and at the end of the synthetic path.
Optical resolution of7: A procedure similar to that published for the enantioseparation of the unsubstituted analogue 3,5-dihydro-4H-dinaphth[2,1-c:1’,2’-e]azepine was applied [40]. A 2:1 mixture of rac-7 and (S,S)-di-O-benzoyltartaric acid in dichloromethane (DCM)/MeOH-deposited colourless needles upon standing for several hours at r.t. An X-ray structure analyses of a single crystal showed a di-(R)-azepium tartrate with local C2-symmetry and one molecule of DCM in the asymmetric unit (Figure 2). After removal of the auxiliary and one recrystallisation (R)- and (S)-7 were isolated in approximately 40% yield. The enantiomeric purity was determined by chiral high-performance liquid chromatography (HPLC) to be ≥99% (see Experimental section) [41].
For the synthesis of azepinium compounds 1 arylation of 7 followed by reaction with non-racemic 2,2′-bisbromomethyl-1,1′-binaphthyl worked well [42]. A practicable route to target structures 1 might be therefore 2 → 6 → 7 (optical resolution) → 9 → 1. The general feasability was previously testet in the synthesis of 1a–1c [29] and was now extended to spiro ammonium compounds 1d–1j from enantiomerically pure 7. Suzuki-Miyaura reactions with appropriate boronic acids or tetramethyldioxaborolanes afforded 9d, 9e, 9i, and 9j in fair to good yield. Only for electron-withdrawing aryl groups the yields for Suzuki coupling were low (49% and 29% for 9f and 9h, respectively). In those cases N-Boc protected diiodide 8 was a proper intermediate (60%–80% for 9f–9h). In contrast, coupling of 7 or 8 with ferroceneboronic acid or bisborolane 11 with 1-bromoferrocene failed to give 9k. The final step, the formation of spiro-ammonium compounds 1, proceeded under standard conditions with satisfying yields except for 1e which gave a bad mixture. The target compound was isolated by only 7% after repeated chromatography. We speculate that, similarly to 4, steric strain in 1e might facilitate subsequent Stevens rearrangement under slightly basic conditions. Two side products with correct high-resolution mass spectrometry (HRMS) and 1H-nuclear magnetic resonance (NMR) multiplets (two AB and one ABX systems corresponding to Ar-CH2-N and Ar-CH2-CH(N)-Ar) have been detected in the product mixture (See Supplementary Materials). To lower steric repulsion within the target molecule we cyclized azepines 4 and 9e with 2,2′-bisbromomethyl-1,1′-biphenyl yielding 5′ and 1e’ in good yield.
Organocatalysis: With this catalyst library in hand we next wanted to create a reactivity/selectivity profile for application in phase-transfer reactions (PTC) under strictly standardised conditions using the well known α-benzylation of tert-butyl 2-((diphenylmethylene)amino)acetate 12 with benzylbromide 13A, one of the most popular conversions to test a new PTC (Scheme 2). Further on, with promising catalysts we were also interested to introduce substituents with functional groups to extend the scope for application.
In a preliminary study new ammonium salts (S,S)-1a–1j, (S)-1e’, and (S)-5′ were tested in the asymmetric benzylation of tert-butyl 2-((diphenylmethylene)amino)acetate 12 under standard PTC conditions (Table 1) [43,44]. For all experiments we compared “expected yields” based on integration and “isolated yields” after chromatography to demonstrate equivalence of methods (Table 1, row 3 and 4). Typically a loss of 1%–5% of product after chromatography was observed. We attribute this to variing quality of column packing, incomplete separation, and changes in adsorbent activity. In addition, interaction of the substrate and product with silicagel resulting in partial cleavage of the imino group might be responsible for reduced isolated yields after purification [45]. Therefore, we considered reporting of the “chemical yield” by comparison of NMR signals of product and added internal standard more reliable and moreover, time-saving than an “isolated yield”.
In agreement with previous findings 1b, 1f, and 1g were most efficient [25]. Literature results could be reproduced in most cases, although reported conditions were in part different from our’s (see notes in Table 1). Elongation of 3,3′-substituents (1c, 1d, see also X-ray structure Figure 3) did not further increase selectivity or activity, in several cases even reduced the asymmetric induction (entry 3,4). Particularly remarkable was the failure of 1e’ yielding an almost racemic product in moderate yield (entry 5). This is also in line with the low ee obtained with 5′ (entry 11). We suspect that two effects might be responsible for destroying the asymmetric induction: (1) the strong predominance of the biphenyl atropomer with a configuration opposite to that of the binaphthyl as it was also found in the X-ray structure of 1e’ (Figure 4), overriding eventually even a higher reactivity of the minor species with “homo-chirality”; and (2) the presence of more spherical and not distinctly directed substituents which might disguise the C2 symmetry of the catalyst. Also, the introduction of hetero aromates (1i, 1j) gave lower ee (entry 9,10).
After this preliminary estimation of reactivity and enantioselectivity of new spiro-ammonium catalysts we choose the more promising candidates 1c and 1d for next investigations and compared their efficiency with known catalysts with different reactivity 1g [25] and 1h [47]. Activated benzylic bromides (13B–F, Scheme 2) were tested under same conditions as in Table 1 to make results comparable (0 °C, 20 h, 1 mol % of catalyst in toluene with 50% KOH, 0.25 mmol scale). In addition, also electrophiles 13G–I with functional groups, eventually of interest for subsequent transformations, were included. As before, in all cases chemical yields based on NMR integration with IS were slightly higher (1%–4%) than those calculated from weighted products, isolated after chromatography (Table 2). Products 14B–F were formed in good to excellent yield and enantioselectivity particularly with 1g. Merely, 1h showed pronounced low reactivity and in two cases unusual poor ee which can be attributed to a significant degree of background reaction. For sterically less demanding electrophiles 13B, 13C, and 13F new ligands 1c and 1d were also effective, very similar to each other and also to the known 3,3′-bis(2-naphthyl) substituted analogue. Using more bulky/less reactive bromides 13D, 13E yields and/or enantioselectivity were lower in some cases. Also a pyridyl substituent could be introduced (14G) with use of catalysts 1c, 1d, 1g, and 1h. In all cases the reaction proceded smoothly giving comparable yield (81%–91%) and up to 83% ee. A more challenging electrophile was 13H which formed only 13% of 14H with 62% ee using the most reactive catalyst 1g under standard conditions. As a side product cyclopropane 15 was produced as a single stereoisomer from a Michael addition followed by cyclisation. To accelerate the reaction KOH was replaced with CsOH. With these conditions complete conversion was achieved yielding 61% of 14H (79% ee) and only 8% of 15. While nearly the same result was obtained with 1h, the enantioselectivtity with 1c and 1d remained low. Also the use of 4-iodocrotonate did not improve the results (for details see Supplementary Materials, Table S2). Finally, we aimed to introduce a N-protected alkenylamino substituent to obtain 14I. In pre-experiments we noticed that use of strongly alkaline media resulted in considerable loss of product through ring opening of the phthalimide. Therefore, solid Cs2CO3 was used instead (33% yield, 88% ee). But even with the more reactive iodide (13I with I replacing Br) the yield was still low (20%–33%) and asymmetric induction moderate (51%–83% ee).
Summarising, we presented an alternative route to non-racemic 3,3′-aryl substituted tetranaphtho-spiro-bisazepinium bromides as demonstrated in the synthesis of 1a–1j in seven to eight steps via 3,3′-substituted dinaphthoazepines 9a–9j [48] using 1,1′-binaphthyl-2,2′-dicarboxylic acid as starting material and 3,3′-diiodo-dinaphthoazepine 7 as the common key intermediate. This scalable synthesis required only two chromatographic purification steps and target structures have been isolated in 23%–25% overall yield. A preliminary study on their use in PTC was conducted using a simplified screening protocol. Moderate to good asymmetric induction of 41%–92% ee has been observed with new catalysts.

3. Materials and Methods

3.1. General Information

Melting points: Kofler melting point apparatus (Reichert Thermovar, Reichert Technologies, Depew, NY, USA), uncorrected. NMR: Bruker AV III 400 spectrometer) at 400.27 MHz (1H) and 100.66 MHz (13C), and Bruker AV III 600 at 600.25 MHz (1H) and 150.95 MHz (13C), respectively (Bruker Biospin, Billerica, MA, USA); chemical shifts δ are reported in ppm rel. to solvent signals (7.26 and 77.00 ppm for CHCl3 and CDCl3, respectively). Coupling patterns are designated as s(inglet), d(oublet), t(riplet), q(uartet), m(ultiplet), ps(eudo), and br(oad). 13C{1H} NMR spectra are recorded in a J-modulated mode; signals are assigned as C, CH, CH2, and CH3. HRMS spectra were obtained on a maXis ESI-Qq-TOF mass spectrometer (Bruker Daltonics, Bremen, Germany) in the positive-ion mode by direct infusion. For HPLC determination of chiral products, an Agilent 1200 chromatograph (Agilent Technologies, Santa Clara, CA, USA) equipped with a diode array detector and autosampler was used. Optical rotations were measured with a Perkin Elmer polarimeter 243 (PerkinElmer, Inc. Waltham, MA, USA) using a 1 dm thermostated cell. Column chromatography (MPLC) was performed on a Isolera One system (Biotage, Uppsala, Sweden) with self-packed columns, SiO2, 40–63 µm.
Heptane, dichloromethane (DCM), and ethyl acetate (EtOAc) were distilled, absolute THF from sodium benzophenone ketyl, Et2O from LiAlH4; acetonitrile, DCM, and triethylamine from CaH2; n-BuLi was used as 1.6 M solution in n-hexane (Aldrich). All the other chemicals were analytical grade and used without further purification.
Reported procedures have been followed to obtain non-racemic 2,2′-bis(bromomethyl)-1,1′-binaphthyl [49], azepine 7 [29], racemic and non-racemic 1,1′-binaphthyl-2,2′-dicarboxylic acid (required for the synthesis of 7) [31,32,33,50,51], 2-([1,1’:4’,1’’-terphenyl]-4-yl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane, and 4,4,5,5-tetramethyl-2-(4-tritylphenyl)-1,3,2-dioxaborolane [52]. Syntheses of 9a [29,53], 9b [29], 9c [29], 1a [25,29,46], 1b [29,46], and 1c [25,29] have been published.

3.2. Synthesis

Spiro cyclisation of (S)-9a–9k with (S)-2,2′-bis(bromomethyl)-1,1′-binaphthyl yielding (S,S)-1a–1k, respectively. (General procedure A): A Schlenk tube, equipped with magnetic stirring bar and glass stopper, was charged with a solution of substrate (0.3 mmol) in MeCN (6 mL) and K2CO3 (83 mg, 2 eq) followed by (S)-2,2′-bis(bromomethyl)-1,1′-binaphthyl (132 mg, 0.3 mmol) and the mixture was degassed. The reaction was left stirring at 85–90 °C (bath) for 24 h. After cooling to r.t., DCM (30 mL) and H2O (30 mL) were added and the phases were separated. The aqueous phase was extracted with DCM (3 × 15 mL). The combined organic extracts were evaporated under reduced pressure and the crude material was purified by MPLC using a solvent gradient (MeOH(0→8%)/DCM).
Synthesis of 1a (76%), 1b (88%), and 1c (81%) was published recently applying the same protocol [29].
(11bS,11b’S)-2,6-Di([1,1’:4’,1’’-terphenyl]-4-yl)-3,3’,5,5’-tetrahydro-4,4’-spirobi[dinaphtho[2,1-c:1’,2’-e]azepin]-4-ium bromide (1d): 83% yield; mp: 255–260 °C (dec.), [α]D20 = +139 (c: 0.56, DCM). 1H-NMR δ: 8.31 (s, 2H); 8.00 (d, J = 8.2 Hz, 2H); 7.80–7.83 (m, 7H); 7.73–7.79 (m, 4H); 7.61 (d, J = 8.2 Hz, 2H); 7.55 (m, 4H); 7.37–7.46 (m, 4H); 7.31 (br.m, 2H); 7.10–7.20 (m, 6H); 7.08 (d, J = 8.6 Hz, 2H); 6.83 (br.m, 2H); 6.47 (d, J = 8.6 Hz, 2H); 4.88 (br.d, J = 13.9 Hz, 2H); 4.32 (d, J = 13.8 Hz, 2H); 4.31 (d, J = 13.9 Hz, 2H); 3.43 (br.d, J = 14.0 Hz, 2H) ppm. Note: in addition a broad band was observed (6.6–8.7 ppm) corresponding to ~9H. 13C-NMR δ: 141.03 (C); 140.93 (C); 140.49 (C); 139.15 (C); 138.92 (C); 138.90 (C); 138.33 (C); 136.20 (C); 134.05 (C); 133.78 (C); 132.43 (CH); 131.06 (C); 131.05 (C); 128.96 (CH); 128.67 (CH); 128.64 (CH); 128.10 (CH); 127.90 (2 CH); 127.66 (CH); 127.59 (CH); 127.57 (CH); 127.38 (CH); 127.28 (CH); 127.14 (CH); 127.12 (CH); 126.67 (CH); 125.49 (C); 122.88 (C); 61.88 (CH2); 56.89 (CH2) ppm. HRMS (ESI) calculated for C80H56N [M − Br]+: 1030.4407, found 1030.4412.
(11bS,11b’S)-2,6-Bis(4-tritylphenyl)-3,3’,5,5’-tetrahydro-4,4’-spirobi[dinaphtho[2,1-c:1’,2’-e]azepin]-4-ium bromide (1e): 7% yield. 1H-NMR δ: 8.23 (s, 2H); 8.00 (d, J = 8.2 Hz, 2H); 7.69 (d, J = 8.2 Hz, 2H); 7.49–7.55 (m, 4H); 7.41 (d, J = 8.4 Hz, 2H); 7.23-7.39 (m, ~40H); 7.17 (br.m, 2H); 7.16 (d, J = 8.6 Hz, 2H); 7.04 (d, J = 8.6 Hz, 2H); 6.86 (d, J = 8.4 Hz, 2H); 4.97 (d, J = 13.7 Hz, 2H); 4.42 (d, J = 13.6 Hz, 4H); 3.73 (br.d, J = 13.6 Hz, 2H) ppm. HRMS (ESI) calculated for C94H68N [M - Br]+: 1210.5347, found 1210.5327.
(S)-2’,6’-Bis(4-tritylphenyl)-3’,5,5’,7-tetrahydrospiro[dibenzo[c,e]azepine-6,4’-dinaphtho[2,1-c:1’,2’-e]azepin]-6-ium bromide (1e’): 66% yield; mp: 260–270 °C (dec.), [α]D20 = -130 (c: 0.68, DCM). 1H-NMR δ: 8.12 (s, 2H); 8.04 (d, J = 8.3 Hz, 2H); 7.81 (d, J = 7.6 Hz, 2H); 7.63 (t, J = 7.5 Hz, 2H); 7.51–7.56 (m, 4H); 7.46 (t, J = 7.5 Hz, 2H); 7.15–7.45 (br.m, ~12H); 7.10–7.18 (m, ~16H); 7.07 (dm, J = 8.6 Hz, 4H); 6.95 (dm, J = 7.6 Hz, 10H); 4.85 (d, J = 13.3 Hz, 2H); 4.65 (d, J = 13.3 Hz, 2H); 4.48 (d, J = 12.8 Hz, 2H); 2.76 (d, J = 12.8 Hz, 2H) ppm. 13C-NMR δ: 146.55 (C); 146.23 (C); 140.52 (C); 139.01 (C); 138.47 (C); 136.52 (C); 134.30 (C); 131.85 (CH); 131.16 (CH); 131.10 (C); 131.08 (CH); 130.96 (CH); 130.86 (CH); 128.98 (CH); 128.84 (CH); 128.03 (CH); 127.77 (CH); 127.45 (CH); 127.17 (CH); 127.07 (C); 126.01 (CH); 124.35 (C); 64.52 (C); 62.62 (CH2); 59.23 (CH2) ppm. HRMS (ESI) calculated for C86H64N [M − Br]+: 1110.5033, found 1110.5033.
(S,S)-2,6-Bis(4-fluorophenyl)-3,3’,5,5’-tetrahydro-4,4’-spirobi[dinaphtho[2,1-c:1’,2’-e]azepin]-4-ium bromide (1f) [25]: 50% yield. 1H-NMR δ: 8.28 (s, 2H); 8.08 (d, J = 8.2 Hz, 2H); 7.87 (d, J = 8.2 Hz, 2H); 7.59 (ddd, J = 8.0, 6.7, 1.1 Hz, 2H); 7.49 (ddd, J = 8.1, 6.7, 1.2 Hz, 2H); 7.41 (d, J = 8.3 Hz, 2H); 7.28 (ddd, J = 8.2, 6.7, 1.2 Hz, 2H); 7.19 (ddd, J = 8.2, 6.7, 1.1 Hz, 2H); 7.10 (dd, J = 9.0, 0.9 Hz, 2H); 7.08 (dd, J = 8.6, 0.9 Hz, 2H); 6.33 (d, J = 8.5 Hz, 2H); 4.93 (d, J = 14.0 Hz, 2H); 4.42 (dd, J = 14.0, 1.4 Hz, 2H); 4.24 (d, J = 13.6 Hz, 2H); 3.72 (dd, J = 13.5, 1.1 Hz, 2H) ppm; Note: in addition a broad band was observed (7.3–8.5 ppm) corresponding to ~8H. 13C-NMR δ: 163.25 (d, JCF = 249.5 Hz, C); 139.31 (C); 138.05 (C); 136.32 (C); 135.50 (d, JCF = 3.5 Hz, C); 133.92 (C); 132.85 (br.d, JCF = 6.6 Hz, CH); 132.56 (CH); 131.11 (d, JCF = 9.4 Hz, C); 128.70 (CH); 128.49 (CH); 128.37 (CH); 128.28 (CH); 127.54 (CH); 127.52 (CH); 127.41 (CH); 126.84 (CH); 126.67 (CH); 124.91 (C); 122.48 (C); 117.04 (d, JCF = 21.7 Hz, CH); 62.46 (CH2); 57.42 (CH2) ppm. HRMS (ESI) calculated for C56H38F2N [M − Br]+: 762.2967, found 762.2951.
(11bS,11b’S)-2,6-Bis(3,4,5-trifluorophenyl)-3,3’,5,5’-tetrahydro-4,4’-spirobi[dinaphtho[2,1-c:1’,2’-e]azepin]-4-ium bromide (1g) [25]: 66% yield. 1H-NMR δ: 8.26 (s, 2H); 8.09 (d, J = 8.2 Hz, 2H); 7.93 (d, J = 8.2 Hz, 2H); 7.63 (ddd, J = 8.0, 6.8, 1.1 Hz, 2H); 7.54 (ddd, J = 8.2, 6.8, 1.2 Hz, 2H); 7.53 (d, J = 8.7 Hz, 2H); 7.33 (ddd, J = 8.4, 6.8, 1.2 Hz, 2H); 7.25 (ddd, J = 8.2, 6.7, 1.2 Hz, 2H); 7.13 (d, J = 8.7 Hz, 2H); 7.09 (d, J = 8.7 Hz, 2H); 6.53 (d, J = 8.4 Hz, 2H); 4.81 (d, J = 14.0 Hz, 2H); 4.64 (d, J = 14.0 Hz, 2H); 4.45 (d, J = 13.8 Hz, 2H); 3.73 (d, J = 13.7 Hz, 2H) ppm. 13C-NMR δ: 151.98 (dm, JCF = 251 Hz, C); 140.29 (dt, JCF = 257, 15.2 Hz, C); 139.54 (C); 136.65 (C); 136.24 (C); 135.73 (m, C); 134.16 (C); 133.80 (C); 132.99 (CH); 131.62 (C); 131.26 (C); 128.72 (CH); 128.67 (CH); 128.53 (CH); 128.39 (CH); 128.16 (CH); 127.83 (CH); 127.50 (CH); 127.47 (CH); 127.20 (CH); 126.60 (CH); 124.85 (C); 122.11 (C); 115.35 (m, CH); 62.62 (CH2); 57.31 (CH2) ppm. HRMS (ESI) calculated for C56H34F6N [M − Br]+: 834.2590, found 834.2595.
(S,S)-2,6-Bis(3,5-bis(trifluoromethyl)phenyl)-3,3’,5,5’-tetrahydro-4,4’-spirobi[dinaphtho[2,1-c:1’,2’-e]azepin]-4-ium bromide (1h) [47]: 62% yield. 1H-NMR δ: ~8.4–9.4 (br.s, ~2H); 8.33 (s, 2H); 8.25 (s, 2H); 8.16 (d, J = 8.3 Hz, 2H); 7.84 (d, J = 8.3 Hz, 2H); 7.69 (ps.t, J = 7.3 Hz, 2H); 7.51 (ps.t, J = 7.7 Hz, 2H); 7.41 (br.ddd, J = 8.3, 6.8, 1.0 Hz, 2H); 7.24 (d, J = 8.9 Hz, 2H); 7.23 (br.ddd, J = 7.9, 6.6, 1.0 Hz, 2H); 7.19 (d, J = 8.7 Hz, 2H); 7.08 (d, J = 8.5 Hz, 2H); 6.24 (d, J = 8.7 Hz, 2H); 4.83 (d, J = 13.9 Hz, 2H); 4.64 (d, J = 14.1 Hz, 2H); 4.54 (d, J = 13.9 Hz, 2H); 3.67 (d, J = 13.7 Hz, 2H) ppm. 13C-NMR δ: 141.96 (C); 139.76 (C); 136.52 (C); 136.06 (C); 134.00 (CH); 133.92 (C); 133.90 (C); 131.94 (C); 131.11 (C); 128.97 (CH); 128.80 (CH); 128.58 (CH); 128.54 (CH); 128.24 (CH); 127.86 (CH); 127.63 (CH); 127.42 (CH); 127.24 (CH); 125.91 (CH); 124.38 (C); 122.35 (br.CH); 121.76 (C); 62.77 (CH2); 57.45 (CH2) ppm. HRMS (ESI) calculated for C60H36F12N [M − Br]+: 998.2651, found 998.2644.
(S,S)-2,6-Di(furan-2-yl)-3,3’,5,5’-tetrahydro-4,4’-spirobi[dinaphtho[2,1-c:1’,2’-e]azepin]-4-ium bromide (1i): 81% yield; mp: >200 °C (dec.), [α]D20 = +288 (c: 0.58, DCM). 1H-NMR δ: 8.50 (s, 2H); 8.11 (d, J = 8.2 Hz, 2H); 7.95 (d, J = 8.2 Hz, 2H), 7.75 (d, J = 8.5 Hz, 2H); 7.72 (dd, J = 1.8, 0.4 Hz, 2H); 7.62 (ddd, J = 8.2, 6.9, 1.2 Hz, 2H); 7.54 (ddd, J = 8.0, 6.6, 1.3 Hz, 2H); 7.32 (ddd, J = 8.2, 6.7, 1.1 Hz, 2H); 7.25 (m, 4H); 7.19 (br.d, J = 8.7 Hz, 2H); 7.10 (br.d, J = 8.6 Hz, 2H); 6.90 (dd, J = 3.4, 1.8 Hz, 2H); 6.49 (d, J = 8.5 Hz, 2H); 5.36 (d, J = 14.4 Hz, 2H); 4.20 (d, J = 14.4 Hz, 2H); 4.19 (d, J = 13.7 Hz, 2H); 3.91 (d, J = 13.7 Hz, 2H) ppm. 13C-NMR δ: 152.05 (C); 144.12 (CH); 138.96 (C); 136.28 (C); 134.01 (C); 133.88 (C); 131.20 (C); 130.95 (C); 130.85 (CH); 130.14 (CH); 128.72 (CH); 128.56 (CH); 128.32 (CH); 128.22 (C); 127.96 (CH); 127.69 (CH); 127.60 (CH); 127.29 (CH); 126.96 (CH); 126.94 (CH); 125.16 (C); 121.93 (C); 113.15 (CH); 112.11 (CH); 62.35 (CH2); 57.13 (CH2) ppm. HRMS (ESI) calculated for C52H36NO2 [M − Br]+: 706.2741, found: 706.2745.
(S,S)-2,6-Di(thiophen-2-yl)-3,3’,5,5’-tetrahydro-4,4’-spirobi[dinaphtho[2,1-c:1’,2’-e]azepin]-4-ium bromide (1j): 88% yield; mp: 245–247 °C; [α]D20 = +124 (c: 0.50, DCM). 1H-NMR δ: 8.41 (s, 2H); 8.08 (d, J = 8.2 Hz, 2H); 7.89 (d, J = 8.2 Hz, 2H); 7.74 (dd, J = 5.3, 0.9 Hz, 2H); 7.62 (ddd, J = 7.9, 6.7, 0.9 Hz, 2H); 7.59 (d, J = 8.5 Hz, 2H); 7.51 (ddd, J = 7.9, 6.7, 0.9 Hz, 2H); 7.50 (br.s, 2H); 7.38 (dd, J = 5.1, 3.7 Hz, 2H); 7.32 (ddd, J = 7.9, 6.7, 1.0 Hz, 2H); 7.22 (ddd, J = 7.9, 6.6, 1.0 Hz, 2H); 7.15 (d, J = 8.8 Hz, 2H); 7.08 (d, J = 8.6 Hz, 2H); 6.47 (d, J = 8.5 Hz, 2H); 5.36 (d, J = 14.1 Hz, 2H); 4.36 (d, J = 14.0 Hz, 2H); 4.22 (d, J = 13.6 Hz, 2H); 3.90 (d, J = 13.4 Hz, 2H) ppm. 13C-NMR δ: 140.98 (C); 139.25 (C); 136.34 (C); 133.99 (C); 133.94 (C); 132.73 (CH); 131.77 (C); 131.12 (C); 131.00 (C); 130.59 (CH); 130.02 (CH); 129.30 (CH); 128.56 (CH); 128.51 (CH); 128.24 (CH); 127.80 (CH); 127.68 (CH); 127.48 (2CH); 127.45 (CH); 126.85 (CH); 126.76 (CH); 125.24 (C); 122.66 (C); 62.66 (CH2); 56.92 (CH2) ppm. HRMS (ESI) calculated for C52H36NS2 [M − Br]+: 738.2284, found: 738.2254.
(S)-2,6-Bis(trimethylsilyl)-4,5-dihydro-3H-dinaphtho[2,1-c:1′,2′-e]azepine (4): To a suspension of dibromide 3 [39] (380 mg, 0.65 mmol) in acetonitrile (25 mL) was added aqueous ammonia (25%, 10 mL) and the mixture was stirred in a pressure tube at 65–70 °C (bath) overnight. The conversion was followed by TLC. Excess of ammonia was evaporated and DCM (40 mL) was added. The organic phase was washed with water and brine, dried (Na2SO4), and evaporated. Purification of the residual oil by column chromatography on silica gel (EtOAc (5→20)/heptane) afforded 243 mg (85%) of 4 as a colourless foam; [α]D20 = +416 (c: 1.00, DCM). 1H-NMR δ: 8.15 (s, 2H); 7.93 (br.d, J = 8.2 Hz, 2H); 7.43 (ddd, J = 8.1, 6.3, 1.2 Hz, 2H); 7.28 (br.d, J = 8.1 Hz, 2H); 7.22 (ddd, J = 8.1, 6.6, 1.2 Hz, 2H); 4.09 (d, J = 12.8 Hz, 2H); 3.47 (d, J = 12.8 Hz, 2H); 1.78 (br.s, 1H); 0.50 (s, 18 H) ppm. 13C-NMR δ: 138.77 (C); 136.50 (C); 136.11 (CH); 135.00 (C); 131.98 (C); 131.96 (C); 128.35 (CH); 127.31 (CH); 126.07 (CH); 125.20 (CH); 47.43 (CH2); 0.55 (CH3) ppm. HRMS (ESI) calculated for C28H34NSi2 [M + H]+: 440.2224, found: 440.2226.
(S)-2′,6′-Bis(trimethylsilyl)-3′,5,5′,7-tetrahydrospiro[dibenzo[c,e]azepine-6,4′-dinaphtho[2,1-c:1′,2′-e]azepin]-6-ium bromide (5′): 72% yield; [α]D20 = +62 (c: 1.00, DCM). 1H-NMR δ: 8.29 (s, 2H); 8.02 (dm, J = 8.3 Hz, 2H); 7.71–7.76 (m, 4H); 7.57-7.63 (m, 4H); 7.34 (ddd, J = 8.5, 6.9, 1.3 Hz, 2H); 7.19 (dm, J = 8.4 Hz, 2H); 4.77 (d, J = 13.3 Hz, 2H); 4.70 (d, J = 13.3 Hz, 2H); 4.39 (d, J = 12.7 Hz, 2H); 3.99 (d, J = 12.6 Hz, 2H); 0.22 (s, 18H) ppm. 13C-NMR δ: 140.94 (C); 138.62 (CH); 138.05 (C); 136.88 (C); 133.42 (C); 131.96 (C); 131.86 (CH); 131.60 (CH); 129.75 (CH); 128.83 (CH); 128.79 (C); 128.75 (CH); 127.93 (CH); 127.78 (CH); 127.31 (CH); 126.72 (C); 63.74 (CH2); 63.74 (CH2); 1.72 (CH3) ppm. HRMS (ESI) calculated for C42H44NSi2 [M − Br]+: 618.3007, found: 618.3020.
Optical resolution of rac-7: To a solution of 547 mg (1.0 mmol) of azepine (±)-7 [29] in 12 mL of DCM and 12 mL of MeOH was added slowly, with gentle mixing, a solution of 93 mg (0.26 mmol) of (+)-(S,S)-O,O-dibenzoyltartaric acid monohydrate in 5 mL of MeOH at room temperature. The mixture was left undisturbed for 6–8 h and then kept at +4 °C overnight. The crystalline material containing (S,S)-(R)ax salt was separated from the mother liquor which was subsequently evaporated. The fractions were stirred in a mixture of DCM/NaOH (2M). The organic phases were separated and dried (Na2SO4) to yield 236 mg (43%) of (R)-7 with 89% ee from the less soluble salt and 290 mg (53%) of (S)-7 with 77%ee from the mother liquor. Enantiomerically enriched (R)-7 was recrystallized from DCM (10 mL)/MeOH (6 mL) to yield 210 mg (38%) of (R)-7 with >99%ee Combined mother liquors containing (S)-enriched 7 were evaporated and treated with 0.5 equiv. of (-)-(R,R)-O,O-dibenzoyltartaric acid monohydrate in MeOH/DCM as before to yield 68% of (S)-7 with 89% ee. Recrystallisation afforded enantiopure (S)-7. The enantiomeric excess was determined by chiral HPLC analysis (Chiralpak ADH, 2-PrOH/heptane (20:80), 20 °C, 0.5 mL min-1; 14.3 min (R), 21.6 min (S)); mp: 261 °C for (S)-7.
tert-Butyl (S)-2,6-diiodo-3,5-dihydro-4H-dinaphtho[2,1-c:1’,2’-e]azepine-4-carboxylate (8): A solution of (S)-7 (558 mg, 1 mmol) in DCM (6 mL) was added to a suspension of amberlyst-15 (56 mg) and boc-anhydride (436 mg, 1 mmol) in EtOH (3 mL) and stirred at r.t. for 10 min. The reaction mixture was filtered and evaporated. The remaining solid was repeatedly leached with pentane/ether to remove excess of boc-anhydride leaving 8 as an off-white solid, sufficiently pure for the next step (yield: 546 mg, 84%, purity 98% by NMR). 1H-NMR (600 MHz) δ: 8.60 (br.s, 2H); 7.81 (d, J = 8.1 Hz, 2H); 7.48 (ps.t, J ~7.5 Hz, 2H); 7.20–7.29 (m, 4H); 5.64 (br.d, J = 13.1 Hz, 1H); 5.49 (br.d, J = 13.5 Hz, 1H); 3.59 (br.d, J = 13.8 Hz, 1H); 3.50 (br.d, J = 13.8 Hz, 1H); 1.57 (s, 9H) ppm. 13C-NMR δ: 153.14 (C); 139.99 (CH); 136.11 (br.C); 136.00 (br.C); 134.98 (br.C); 134.62 (br.C); 134.27 (C); 130.76 (C); 127.38 (CH); 127.13 (CH); 126.84 (br.CH); 126.79 (br.CH); 97.90 (C); 97.63 (C); 80.28 (C); 51.60 (CH2); 50.88 (CH2); 28.49 (CH3) ppm. HRMS (ESI) calculated for C23H16I2NO2 [M − C4H8 + H]+: 591.9265, found: 591.9260.
Suzuki-Miyaura coupling of (S)-7yielding (S)-9 (General Procedure B): A Schlenk tube, equipped with magnetic stirring bar and glass stopper, was charged with a solution of diiodoazepine (274 mg, 0.50 mmol) in toluene (10 mL) and Na2CO3 solution (2 M in H2O, 5.0 mL). Then arylboronic acid (2.00 mmol, 4 equiv.) was added and the mixture was degassed. After the addition of Pd(PPh3)4 (115 mg, 20 mol %), the reaction was left stirring at 80 °C for 6–48 h. The conversion was monitored by TLC (EtOAc/heptane, 30:70). After cooling to r.t., DCM (50 mL) and H2O (30 mL) were added and the phases were separated. The aqueous phase was extracted with DCM (3 × 20 mL). The combined organic phases were washed with KOH solution (10%, 20 mL) and sat. NaCl solution and dried (K2CO3). After evaporation of solvents, the crude material was purified by MPLC using a solvent gradient (EtOAc + 5% triethylamine (0→30%)/heptane).
Suzuki–Miyaura coupling of (S)-8yielding (S)-9(General Procedure C): A Schlenk tube, equipped with magnetic stirring bar, was charged with a solution of boc-protected diiodoazepine 8 (97 mg, 0.15 mmol) and tri-ortho-tolylphosphine (9.1 mg, 20 mol %) in toluene (3 mL) and a Na2CO3 solution (2 M in H2O, 2 mL). Then, arylboronic acid (4 equiv.) was added and the mixture was degassed. After the addition of Pd(OAc)2 (3.4 mg, 10 mol %), the mixture was left stirring at 80 °C for 12–48 h. The reaction was monitored by TLC (EtOAc/heptane, 30:70). After cooling to r.t., DCM (5 mL) and H2O (3 mL) were added and the phases were separated. The aqueous phase was extracted with DCM (3 × 3 mL) and the combined organic phases were washed with KOH solution (10%, 5 mL) and sat. NaCl solution and dried (Na2SO4). After evaporation of solvents DCM (1 mL) and trifluoroacetic acid (1 mL) was added and the solution stirred at r.t. for 2 h. The reaction was carfully neutralized with solid NaHCO3. Extractive work-up was followed by MPLC.
(S)-2,6-Diphenyl-4,5-dihydro-3H-dinaphtho[2,1-c:1′,2′-e]azepine (9a) [53]: 77% yield [29] (General Procedure B).
(S)-2,6-Di(naphthalen-2-yl)-4,5-dihydro-3H-dinaphtho[2,1-c:1′,2′-e]azepine (9b): 68% yield [29] (General Procedure B).
(S)-2,6-Di([1,1′-biphenyl]-4-yl)-4,5-dihydro-3H-dinaphtho[2,1-c:1′,2′-e]azepine (9c): 68% yield [29] (General Procedure B).
(S)-2,6-Di([1,1’:4’,1’’-terphenyl]-4-yl)-4,5-dihydro-3H-dinaphtho[2,1-c:1’,2’-e]azepine (9d): 55% yield (General Procedure B was modified using (dppf)PdCl2, 10 mol %); mp: >260 °C (dec.); [α]D20 = +247 (c: 0.60, DCM). 1H-NMR δ: 8.02 (s, 2H); 7.98 (br.d, J = 8.2 Hz, 2H); 7.65–7.79 (m, 20H); 7.44–7.53 (m, 8H); 7.37 (m, 2H); 7.33 (ddd, J = 8.6, 6.7, 1.3 Hz, 2H); 4.11 (d, J = 12.6 Hz, 2H); 3.43 (d, J = 12.6 Hz, 2H) ppm. 13C-NMR δ: 140.69 (C); 140.44 (C); 140.23 (C); 139.68 (C); 139.55 (C); 139.35 (C); 136.13 (C); 133.36 (C); 132.53 (C); 130.89 (C); 130.19 (CH); 129.67 (CH); 128.82 (CH); 128.32 (CH); 127.57 (CH); 127.55 (CH); 127.46 (CH); 127.36 (CH); 127.05 (CH); 126.83 (CH); 125.84 (CH); 125.79 (CH); 44.67 (CH2) ppm. HRMS (ESI) calculated for C58H42N [M + H]+: 752.3317, found: 752.3289.
(S)-2,6-Bis(4-tritylphenyl)-4,5-dihydro-3H-dinaphtho[2,1-c:1’,2’-e]azepine (9e): 89% yield, white solid; (General Procedure B was modified using (dppf)PdCl2, 10 mol %); mp: 280–290 °C; [α]D20 = +206 (c: 0.84, DCM). 1H-NMR δ: 7.97 (s, 2H); 7.92 (br.d, J = 8.0 Hz, 2H); 7.43–7.49 (m, 6H); 7.41 (br.d, J = 8.6 Hz, 2H); 7.17–7.33 (m, ~36H); 4.03 (d, J = 12.4 Hz, 2H); 3.33 (d, J = 12.4 Hz, 2H) ppm. 13C-NMR δ: 146.76 (C); 145.78 (C); 139.41 (C); 138.81 (C); 136.02 (C); 133.36 (C); 132.47 (C); 131.19 (CH); 131.00 (CH); 130.79 (C); 129.62 (CH); 128.67 (CH); 128.22 (CH); 127.51 (2CH); 125.96 (CH); 125.74 (CH); 125.65 (CH); 64.86 (C); 44.63 (CH2) ppm. HRMS (ESI) calculated for C72H54N [M + H]+: 932.4251, found: 932.4217.
(S)-2,6-Bis(4-fluorophenyl)-4,5-dihydro-3H-dinaphtho[2,1-c:1’,2’-e]azepine (9f): 49% yield (General Procedure B); 60% (General Procedure C); solidifying oil, [α]D20 = +241 (c: 1.01, DCM). 1H-NMR δ: 7.94 (dm, J = 8.4 Hz, 2H); 7.92 (s, 2H); 7.56 (m, 4H); 7.48 (ddd, J = 8.0, 6.7, 1.1 Hz, 2H); 7.42 (dm, J = 8.6 Hz, 2H); 7.28 (ddd, J = 8.3, 6.7, 1.3 Hz, 2H); 7.16 (m, 4H); 3.94 (d, J = 12.6, 2H); 3.33 (d, J = 12.6 Hz, 2H) ppm. 13C-NMR δ: 162.32 (d, JCF = 245 Hz, CF); 138.64 (C); 137.22 (d, JCF = 2.3 Hz, C); 136.03 (C); 133.20 (C); 132.40 (C); 131.20 (d, JCF = 8.0 Hz, CH); 130.80 (C); 129.72 (CH); 128.24 (CH); 127.48 (CH); 125.88 (d, JCF = 7.5 Hz, CH); 115.17 (CH); 115.03 (CH); 44.52 (CH2) ppm. HRMS (ESI) calculated for C34H24F2N [M + H]+: 484.1877, found 484.1877.
(S)-2,6-Bis(3,4,5-trifluorophenyl)-4,5-dihydro-3H-dinaphtho[2,1-c:1’,2’-e]azepine (9g): 80% yield (General Procedure C); solidifying oil, [α]D20 = +244 (c: 0.95, DCM). 1H-NMR δ: 7.96 (br.d, J = 8.0 Hz, 2H); 7.92 (s, 2H); 7.52 (ddd, J = 8.0, 7.6, 1.3 Hz, 2H); 7.41 (dm, J = 8.1 Hz, 2H); 7.31 (ddd, J = 8.0, 6.8, 1.3 Hz, 2H); 7.29 (br.m, 4H); 3.94 (d, J = 12.8 Hz, 2H); 3.33 (d, J = 12.8 Hz, 2H); 7.79 (br.s, ~1H) ppm. 13C-NMR δ: 150.86 (ddd, JCF = 250, 10, 4 Hz, C); 139.26 (dt, JCF = 255, 15 Hz, C); 137.16 (td, JCF = 8, 5 Hz, C); 136.74 (C); 136.18 (C); 132.46 (C); 132.30 (C); 131.03 (C); 129.85 (CH); 128.39 (CH); 127.40 (CH); 126.46 (CH); 126.30 (CH); 113.91 (m, CH); 44.43 (CH2) ppm. HRMS (ESI) calculated for C34H20F6N [M + H]+: 556.1500, found: 556.1496.
(S)-2,6-Bis(3,5-bis(trifluoromethyl))phenyl)-4,5-dihydro-3H-dinaphtho[2,1-c:1’,2’-e]azepine (9h): 29% yield (General Procedure B); 75% yield (General Procedure C). solidifying oil, [α]D20 = +207 (c: 0.99, DCM). 1H-NMR δ: 8.12 (br.s, 4H); 7.99 (dm, J = 8.3 Hz, 2H); 7.98 (s, 2H); 7.94 (m, 2H); 7.54 (ddd, J = 8.1, 6.7, 1.2 Hz, 2H); 7.44 (dm, J = 8.7 Hz, 2H); 7.34 (ddd, J = 8.5, 6.8, 1.4 Hz, 2H); 3.85 (d, J = 12.8 Hz, 2H); 3.39 (d, J = 12.9, 2H) ppm. 13C-NMR δ: 143.18 (C); 136.54 (C); 136.32 (C); 132.34 (C); 132.32 (C); 131.65 (q, JCF = 33.4 Hz, CCF3); 131.17 (C); 130.30 (CH); 129.88 (br.CH); 128.47 (CH); 127.38 (CH); 126.75 (CH); 126.47 (CH); 123.26 (q, JCF = 274 Hz, CCF3); 121.18 (m, CH); 44.48 (CH2) ppm. HRMS (ESI) calculated for C38H22F12N [M + H]+: 720.1561, found 720.1553.
(S)-2,6-Di(furan-2-yl)-4,5-dihydro-3H-dinaphtho[2,1-c:1’,2’-e]azepine (9i): 98% yield (General Procedure B); colorless foam. 1H-NMR δ: 8.20 (s, 2H); 7.95 (br.d, J = 8.2 Hz, 2H); 7.61 (dd, J = 1.8, 0.7 Hz, 2H); 7.47 (ddd, J = 8.0, 6.7, 1.2 Hz, 2H); 7.37 (dm, J = 8.6 Hz, 2H); 7.25 (ddd, J = 8.3, 6.7, 1.3 Hz, 2H); 6.77 (dd, J = 3.4, 0.7 Hz, 2H); 6.57 (dd, J = 3.3, 1.8 Hz, 2H); 4.34 (d, J = 12.6 Hz, 2H); 3.36 (d, J = 12.6 Hz, 2H) ppm. 13C-NMR δ: 153.69 (C); 142.59 (CH); 136.31 (C); 132.51 (C); 132.47 (C); 130.88 (C); 129.02 (CH); 128.49 (CH); 128.35 (C); 127.49 (CH); 126.18 (CH); 125.92 (CH); 111.46 (CH); 109.18 (CH); 44.80 (CH2) ppm. HRMS (ESI) calculated for C30H22NO2 [M + H]+: 428.1651, found: 428.1647.
(S)-2,6-Di(thiophen-2-yl)-4,5-dihydro-3H-dinaphtho[2,1-c:1’,2’-e]azepine (9j): 84% yield (General Procedure B); colorless foam. 1H-NMR δ: 8.09 (s, 2H); 7.94 (d, J = 8.3 Hz, 2H); 7.48 (ddd, J = 8.0, 6.9, 1.0 Hz, 2H); 7.41 (m, 4 H); 7.31 (dd, J = 3.5, 1.1 Hz, 2H); 7.28 (ddd, J = 8.0, 6.7, 1.1 Hz, 2H); 7.15 (dd, J = 5.2, 3.5 Hz, 2H); 4.25, (d, J = 12.6 Hz); 3.34 (d, J = 12.6 Hz) ppm. 13C-NMR δ: 142.22 (C); 136.08 (C); 133.68 (C); 132.29 (C); 131.90 (C); 130.92 (C); 130.87 (CH); 128.33 (CH); 127.46 (CH); 127.42 (CH); 127.38 (CH); 126.14 (CH); 125.98 (CH); 125.60 (CH); 44.56 (CH2) ppm. HRMS (ESI) calculated for C30H22NS2 [M + H]+: 460.1194, found: 460.1185.
tert-Butyl (S)-2,6-bis(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)-3,5-dihydro-4H-dinaphtho[2,1-c: 1’,2’-e]azepine-4-carboxylate (11): A suspension of 8 (324 mg, 0.5 mmol), B2Pin2 (508 mg, 2 mmol), and KOAc (295 mg, 3 mmol) in DMF was degassed. Pd(OAc)2 (11 mg, 0.05 mmol) was added and the mixture was degassed once more and stirred for 20 h at 100 °C (bath). Solvent was removed under reduced pressure and the residue was taken up in DCM (100 mL)/water (100 mL). The aqueous layer was extracted with DCM and combined organics were washed with water and sat. NH4Cl (50 mL). The organic phase was dried over MgSO4, concentrated and subjected to chromatography (EtOAc (0→20%)/heptane; yield 66%, pale yellow oil. The material contained 5–10% of B2Pin2 and was used without further purification. 1H-NMR δ: 8.49 (br.s, 2H); 7.95 (d, J = 8.2 Hz, 2H); 7.42 (m, 2H); 7.20–7.26 (m, 4H); 5.52–6.03 (br.m, 2H); 3.45 (br.d, J = 12.8 Hz, 2H); 1.47 (s, 12H); 1.46 (br.s, ~9H); 1.43 (s, 12H) ppm. 13C-NMR δ: 154.10 (C); 136.68 (C); 132.68 (br. C); 132.04 (C); 128.67 (CH); 127.24 (CH); 126.80 (CH); 125.48 (CH); 84.08 (br. CH2); 83.43 (C); 78.69 (C); 28.47 (CH3); 24.98 (CH3); 24.89 (CH3) ppm. HRMS (ESI) calculated for C39H48B2NO6 [M + H]+: 648.3668, found: 648.3680.
Phase-transfer catalyzed α-substitution of tert-butyl 2-((diphenylmethylene)amino)acetate 12 (Typical procedure with benzylbromide 13A): Stock solution A: 0.025 mmol catalyst in 1 mL DCM, 2.5 × 10−2 M; Stock solution B: 1.480 g of tert-butyl 2-((diphenylmethylene)amino)acetate 12 in 30 mL of toluene, 1.667 × 10−1 M; Stock solution C: 10 g of solid KOH in 10 g distilled water. A 10 mL Schlenk tube with stirring bar was subsequently charged with 100 µL of solution A (0.0025 mmol, 1 mol %), 1.500 mL of solution B (1.310 g; d = 0.873, 0.25 mmol) and 0.5 mL of solution C. The mixture was degassed and cooled to 0 °C. Freshly distilled benzyl bromide was added with a microliter syringe (38 µL, 54 mg, 1.2 equiv.) and the reaction was vigorously stirred for 4 h. Et2O (5 mL) and water (3 mL) was added with stirring and the phases were separated. The aqueous phase was extracted with Et2O (3× 5 mL) and the organic layer was washed with water (5 mL) and brine and dried (MgSO4). Evaporation gave a clear oil to which solid bibenzyl (0.25 mmol, 45.6 mg) was added and the mixture was completely dissolved in CDCl3 (approx. 1 mL). A 1H-NMR spectrum was recorded (400 MHz). Integration gave %yield of product, substrate, and eventually benzophenone as a side product. An aliquot (20–30 µL) was transferred to a HPLC vial and diluted with 2-PrOH to 1 mL. Chiral HPLC analysis applying reported conditions (Chiralcel ODH (250 × 4.6 mm), 2-PrOH/heptane 1:99, 0.5 mL min−1, 25 °C) gave satisfying separation of enantiomers (13.5 min (R)-14A, 23.6 min (S)-14A) without overlap with internal standard (10.7 min), substrate (19.8 min) or benzophenone (17.6 min). Alternatively, the reaction mixture was subjected to MPLC (10 g of SiO2, solvent gradient EtOAc (0%→8%)/heptane) to yield a pure product.
tert-Butyl 2-((diphenylmethylene)amino)-3-(pyridin-2-yl)propanoate (14G): colorless oil. 1H-NMR δ = 8.50 (dm, J = 4.9 Hz, 1H); 7.63 (m, 2H); 7.59 (td, J = 7.6, 1.9 Hz, 1H); 7.41–7.45 (m, 2H); 7.35–7.40 (m, 4 H); 7.25 (dm, J = 7.6 Hz, 1H); 7.15 (ddd, J = 7.5, 4.9, 1.2 Hz, 1H); 6.78 (br.d, J = 6.8 Hz, 2H); 4.53 (dd, J = 9.5, 3.9 Hz, 1H); 3.52 (dd, J = 13.4, 4.0 Hz, 1H); 3.45 (dd, J = 13.3, 9.4 Hz, 1H); 1.52 (s, 9 H) ppm. 13C-NMR δ: 170.66 (C); 170.64 (C); 158.61 (C); 149.12 (CH); 139.52 (C); 136.15 (C); 135.87 (CH); 130.03 (CH); 128.67 (CH); 128.34 (CH); 128.01 (CH); 127.83 (CH); 127.61 (CH); 124.50 (CH); 121.14 (CH); 81.08 (C); 66.28 (CH); 41.91 (CH2); 27.95 (CH3) ppm. HRMS: calcd for C25H27N2O2 [M + H]+: 387.2073; found: 387.2068. HPLC: Chiralpak ADH (250 × 4.6 mm), 2-PrOH/heptane (5:95), 0.5 mL min−1, 25 °C, tR = 13.93 min, 17.55 min.
6-(tert-Butyl) 1-ethyl (E)-5-((diphenylmethylene)amino)hex-2-enedioate (14H): colorless oil. 1H-NMR δ: 7.62–7.65 (m, 2H); 7.41–7.47 (m, 3H); 7.37–7.41 (m, 1H); 7.30–7.34 (m, 2H); 7.15–7.18 (m, 2H); 6.82 (dt, J = 15.6, 7.6 Hz, 1H); 5.84 (dm, J = 15.6 Hz, 1H); 4.16 (qm, J = 7.1 Hz, 2H); 4.07 (dd, J = 7.6, 5.2 Hz, 1H); 2.71–2.82 (m, 2H); 1.44 (s, 9H); 1.26 (t, J = 7.1 Hz, 3H) ppm. 13C-NMR δ = 170.82 (C); 170.18 (C); 145.02 (CH); 139.37 (C); 136.39 (C); 130.35 (CH); 128.81 (CH); 128.63 (CH); 128.48 (CH); 128.00 (CH); 127.76 (CH); 123.58 (CH); 81.47 (C); 64.94 (CH); 60.13 (CH2); 36.26 (CH2); 28.00 (CH3); 14.23 (CH3) ppm. HRMS: calculated for C25H30NO4 [M + H]+: 408.2175; found: 408.2171. HPLC: Chiralpak ADH (250 × 4.6 mm), 2-PrOH/heptane (5:95), 0.5 mL min−1, 25 °C, tR = 9.69 min, 12.42 min.
tert-Butyl (E)-6-(1,3-dioxoisoindolin-2-yl)-2-((diphenylmethylene)amino)hex-4-enoate (14I): colorless oil. 1H-NMR δ: 7.73–7.78 (m, 2H); 7.64–7.69 (m, 2H); 7.53–7.57 (m, 2H); 7.38–7.44 (m, 3H); 7.26–7.30 (m, 1H); 7.16–7.23 (m, 4H); 5.59–5.62 (m, 2H); 4.15–4.25 (m, 2H); 3.94 (t, J = 6.7 Hz, 1H); 2.62 (m, 2H); 1.41 (s, 9H) ppm. 13C-NMR δ: 170.66 (C); 170.37 (C); 167.79 (C); 139.59 (C); 136.69 (C); 133.78 (CH); 132.14 (C); 130.85 (CH); 130.04 (CH); 128.67 (CH); 128.47 (CH); 128.38 (CH); 127.95 (CH); 127.83 (CH); 126.14 (CH); 123.13 (CH); 81.06 (C); 65.63 (CH); 39.37 (CH2); 36.51 (CH2); 28.02 (CH3) ppm. HRMS: calcd for C31H31N2O4 [M + H]+: 495.2284; found: 495.2283. HPLC: Chiralpak ADH (250 × 4.6 mm), 2-PrOH/heptane (5:95), 1.0 mL min−1, 25 °C, tR = 13.11 min, 15.45 min.
Ethyl 2-(2-(tert-butoxy)-1-((diphenylmethylene)amino)-2-oxoethyl)cyclopropane-1-carboxylate (15): colorless oil. 1H-NMR δ: 7.61–7.63 (m, 2H); 7.42–7.47 (m, 3H); 7.37–7.41 (m, 1H); 7.30–7.34 (m, 2H); 7.15–7.18 (m, 2H); 4.13 (q, J = 7.1 Hz, 2H); 3.79 (d, J = 5.8 Hz, 1H); 2.03 (dddd, J = 10.3, 6.4, 5.9, 4.2 Hz, 1H); 1.83 (ddd, J = 9.5, 5.1, 4.3 Hz, 1H); 1.44 (s, 9H); 1.26 (t, J = 7.1 Hz, 3H); 1.18 (ddd, J = 9.5, 5.1, 4.3 Hz, 1H); 0.91 (ddd, J = 8.4, 6.4, 4.3 Hz, 1H) ppm. 13C-NMR δ: 174.06 (C); 170.77 (C); 170.24 (C); 139.33 (C); 136.27 (C); 130.38 (CH); 128.82 (CH); 128.64 (CH); 128.49 (CH); 127.97 (CH); 127.77 (CH); 81.28 (C); 65.44 (CH); 60.36 (CH2); 27.98 (CH3); 25.13 (CH); 17.03 (CH); 14.26 (CH3); 12.02 (CH2) ppm. HRMS: calculated for C25H30NO4 [M + H]+: 408.2175; found: 408.2177.
2-([1,1’:4’,1’’-Terphenyl]-4-yl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane [54]: A literature procedure was followed [52]; 65% yield. 1H-NMR δ: 7.93 (dm, J = 8.3 Hz, 2H); 7.64–7.75 (m, 8H); 7.48 (m, 2H); 7.37 (m, 1H); 1.39 (s, 12H) ppm. 13C-NMR δ: 143.32 (C); 140.66 (C); 140.43 (C); 139.88 (C); 135.31 (CH); 128.80 (CH); 127.55 (CH); 127.49 (CH); 127.36 (CH); 127.04 (CH); 126.30 (CH); 83.81 (C); 24.88 (CH3) ppm. HRMS (ESI) calculated for C24H25BNaO2 [M + Na]+: 379.1845, found 379.1843.
4,4,5,5-Tetramethyl-2-(4-tritylphenyl)-1,3,2-dioxaborolane [52]: 1H-NMR δ: 7.69 (dm, J = 8.5 Hz, 2H); 7.15–7.27 (m, ~17H); 1.33 (s, 12H) ppm. 13C-NMR δ: 150.00 (C); 146.64 (C); 133.94 (CH); 131.13 (CH); 130.54 (CH); 127.50 (CH); 125.89 (CH); 83.73 (C); 65.21 (C); 24.88 (CH3) ppm.
Ethyl (E)-4-iodobut-2-enoate: A literature procedure reported for the methylester was applied [55]. Yield: 77% (pale yellow oil, 10 mmol scale) The compound decomposed slowly at r.t. and was stored at -20 °C. 1H-NMR δ: 7.04 (dt, J = 15.3, 8.2 Hz, 1H); 5.93 (dt, J = 15.3, 1.0 Hz, 1H); 4.20 (q, J = 7.2 Hz, 2H); 3.93 (dd, J = 8.3, 1.1 Hz, 2H); 1.29 (t, J = 7.2 Hz, 3H) ppm. 13C-NMR δ: 143.44 (CH); 123.30 (CH); 60.67 (CH2); 14.19 (CH3); 0.72 (CH2) ppm. HRMS calculated for C6H10IO2 [M + H]+: 240.9725; found 240.9723.
(E)-2-(4-Bromobut-2-en-1-yl)isoindoline-1,3-dione: A literature procedure was applied [56]. 1H-NMR δ: 7.83-7.87 (m, 2H); 7.70-7.74 (m, 2H); 5.94 (dm, J = 15.4 Hz, 2H); 5.83 (dm, J = 15.3 Hz, 2H); 4.30 (dm, J = 5.7 Hz, 2H); 3.90 (dm, J = 7.2 Hz, 2H) ppm. 13C-NMR δ: 167.70 (C); 134.03 (CH); 132.02 (C); 129.95 (CH), 128.33 (CH); 123.34 (CH); 38.57 (CH2); 31.18 (CH2) ppm.
(E)-2-(4-Iodobut-2-en-1-yl)isoindoline-1,3-dione [57]: To a solution of (E)-2-(4-bromobut-2-en-1-yl)isoindoline-1,3-dione (560 mg, 2 mmol) in acetone (10 mL) was added NaI (1.50 g, 10 mmol) and the reaction was stirred at r.t. for 20 h. The mixture was concentrated and the residue was partitioned between EtOAc and water (50 + 50 mL). The organic phase was separated, concentrated under reduced presure, and the crude material subjected to chromatography ((EtOAc (5→25%)/heptane) to yield 486 mg (74%) of product as crystalline solid. 1H-NMR δ: 7.83–7.88 (m, 2H); 7.70–7.75 (m, 2H); 5.99 (dtt, J = 15.2, 7.8, 1.3 Hz, 1H); 5.76 (dtt, J = 15.2, 6.2, 1.0 Hz, 2H); 4.27 (dm, J = 6.2 Hz, 2H); 3.82 (dm, J = 7.9 Hz, 2H) ppm. 13C-NMR δ: 167.70 (C); 134.00 (CH); 131.99 (C); 131.63 (CH); 126.91 (CH); 123.31 (CH); 38.57 (CH2); 3.61 (CH2) ppm. HRMS calculatedfor C12H10INaNO2 [M + Na]+: 349.9654; found: 349.9645.

3.3. X-ray Structure Analysis

Crystals suitable for structure determinations were grown from DCM/heptane (1d, 1e) or DCM/MeOH (during optical resolution of 7). The X-ray intensity data were measured on Bruker D8 Venture and X8 APEX2 diffractometer (Bruker AXS GmbH, Karlsruhe, BRD) equipped with multilayer monochromators, Mo K/α INCOATEC micro focus sealed tubes and Oxford and Cryoflex2 cooling systems at 150 K (1d, 1e) or 100 K (7 tartrate). Crystal data are collected in Table 3. Experimental data and CCDC codes can be found in Supplementary Materials.

Supplementary Materials

The following are available online: Comments on structure of side products upon rearrangements, 1H- and 13C-NMR spectra of all new compounds, comments on screening experiments, UV traces of chiral HPLC separations of racemates of 14A-I, and details of X-ray structure determinations of 1d, 1e, and (S,S)-dibenzoyltartrate of 7.

Author Contributions

A.M. synthesised catalysts and worked out optical resolution of 7. S.T. synthesized catalysts and conducted PTC reactions. C.S. developed HPLC separations and new PTC reactions. A.R. performed X-ray structure analysis. M.W. conceived and designed the experiments and wrote the paper.

Funding

This research received no external funding.

Acknowledgments

S.T. and A.M. are grateful to the Development and Promotion of Science and Technology Talents Project for a scholarship (Royal Government of Thailand scholarship). This work was generously supported by the ASEA-UNINET program. Open Access Funding by the University of Vienna is grateful acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. Wabnitz, T.; Reiser, O. Binaphthyls: Universal Ligands for Catalysis, in Organic Synthesis Highlights IV; Schmalz, H.-G., Ed.; Wiley-VCH Verlag GmbH: Weinheim, Germany, 2000; Chapter 23; pp. 155–165. [Google Scholar]
  2. Pereira, M.M.; Calvete, M.J.F.; Carrilho, R.M.B.; Abreu, A.R. Synthesis of binaphthyl based phosphine and phosphite ligands. Chem. Soc. Rev. 2013, 42, 6990–7027. [Google Scholar] [CrossRef] [PubMed]
  3. Bhadury, P.S.; Yao, Y.; He, Y. Organocatalytic application of axially dissymmetric BINOLs and their conversion into binaphthyl phosphoric acids. Curr. Org. Chem. 2012, 16, 1730–1753. [Google Scholar] [CrossRef]
  4. Ding, K.; Li, X.; Ji, B.; Guo, H.; Kitamura, M. Ten years of research on NOBIN chemistry. Curr. Org. Synth. 2005, 2, 499–545. [Google Scholar] [CrossRef]
  5. Brunel, J.M. BINOL: A Versatile Chiral Reagent. Chem. Rev. 2005, 105, 857–897. [Google Scholar] [CrossRef]
  6. Telfer, S.G.; Kuroda, R. 1,1’-Binaphthyl-2,2’-diol and 2,2’-diamino-1,1’-binaphthyl: Versatile frameworks for chiral ligands in coordination and metallosupramolecular chemistry. Coord. Chem. Rev. 2003, 242, 33–46. [Google Scholar] [CrossRef]
  7. Kocovsky, P.; Vyskocil, S.; Smrcina, M. Non-Symmetrically Substituted 1,1’-Binaphthyls in Enantioselective Catalysis. Chem. Rev. 2003, 103, 3213–3245. [Google Scholar] [CrossRef]
  8. Pu, L. Synthesis and study of binaphthyl-based chiral dendrimers. J. Photochem. Photobiol. A: Chem. 2003, 155, 47–55. [Google Scholar] [CrossRef]
  9. Kaneko, S.; Kumatabara, Y.; Shirakawa, S. A new generation of chiral phase-transfer catalysts. Org. Biomol. Chem. 2016, 14, 5367–5376. [Google Scholar] [CrossRef] [Green Version]
  10. Maruoka, K. Practical Aspects of Recent Asymmetric Phase-Transfer Catalysis. Organic Process Research & Development 2008, 12, 679–697. [Google Scholar]
  11. Ooi, T.; Maruoka, K. Recent Advances in Asymmetric Phase-Transfer Catalysis. Angew. Chem. Int. Ed. 2007, 46, 4222–4266. [Google Scholar] [CrossRef]
  12. Shirakawa, S.; Wang, L.; He, R.; Arimitsu, S.; Maruoka, K. A Base-Free Neutral Phase-Transfer Reaction System. Chem. Asian J. 2014, 9, 1586–1593. [Google Scholar] [CrossRef] [PubMed]
  13. Uyanik, M.; Hayashi, H.; Kazuaki, I. High-turnover hypoiodite catalysis for asymmetric synthesis of tocopherols. Science 2014, 345, 291–294. [Google Scholar] [CrossRef] [PubMed]
  14. Kano, T.; Hayashi, Y.; Maruoka, M. Construction of a Chiral Quaternary Carbon Center by CatalyticAsymmetric Alkylation of 2-Arylcyclohexanones under Phase-Transfer Conditions. J. Am. Chem. Soc. 2013, 135, 7134–7137. [Google Scholar] [CrossRef] [PubMed]
  15. Hua, M.-Q.; Cui, H.-F.; Wang, L.; Nie, J.; Ma, J.-A. Reversal of Enantioselectivity by Tuning the Conformational Flexibility of Phase-Transfer Catalysts. Angew. Chem. Int. Ed. 2010, 49, 2772–2776. [Google Scholar] [CrossRef]
  16. Wang, X.; Lan, Q.; Shirakawa, S.; Maruoka, K. Chiral bifunctional phase transfer catalysts for asymmetric fluorination of β-keto esters. Chem. Commun. 2010, 46, 321–323. [Google Scholar] [CrossRef]
  17. Uyanik, M.; Okamoto, H.; Yasui, T.; Ishihara, K. Quaternary Ammonium (Hypo)iodite Catalysis for Enantioselective Oxidative Cycloetherification. Science 2010, 328, 1376–1379. [Google Scholar] [CrossRef]
  18. Arakawa, Y.; Haraguchi, N.; Itsuno, S. An Immobilization Method of Chiral Quaternary Ammonium Salts onto Polymer Supports. Angew. Chem. Int. Ed. 2008, 47, 8232–8235. [Google Scholar] [CrossRef]
  19. Wang, X.; Kitamura, M.; Maruoka, K. New, Chiral Phase Transfer Catalysts for Effecting Asymmetric Conjugate Additions of α-Alkyl-α-cyanoacetates to Acetylenic Esters. J. Am. Chem. Soc. 2007, 129, 1038–1039. [Google Scholar] [CrossRef]
  20. Ooi, T.; Uematsu, Y.; Kameda, M.; Maruoka, K. Asymmetric phase-transfer catalysis of homo- and heterochiral quaternary ammonium salts: Development and application of conformationally flexible chiral phase-transfer catalysts. Tetrahedron 2006, 62, 11425–11436. [Google Scholar] [CrossRef]
  21. Kitamura, M.; Shirakawa, S.; Maruoka, K. Powerful Chiral Phase-Transfer Catalysts for the Asymmetric Synthesis of α-Alkyl- and α,α-Dialkyl-α-amino Acids. Angew. Chem. Int. Ed. 2005, 44, 1549–1551. [Google Scholar] [CrossRef]
  22. Ooi, T.; Takeuchi, M.; Kato, D.; Uematsu, Y.; Tayama, E.; Sakai, D.; Maruoka, K. Highly Enantioselective Phase-Transfer-Catalyzed Alkylation of Protected α-Amino Acid Amides toward Practical Asymmetric Synthesis of Vicinal Diamines, α-Amino Ketones, and α-Amino Alcohols. J. Am. Chem. Soc. 2005, 127, 5073–5083. [Google Scholar] [CrossRef] [PubMed]
  23. Ooi, T.; Ohara, D.; Tamura, M.; Maruoka, K. Design of New Chiral Phase-Transfer Catalysts with Dual Functions for Highly Enantioselective Epoxidation of α,β-Unsaturated Ketones. J. Am. Chem. Soc. 2004, 126, 6844–6845. [Google Scholar] [CrossRef] [PubMed]
  24. Ooi, T.; Takahashi, M.; Doda, K.; Maruoka, K. Asymmetric Induction in the Neber Rearrangement of Simple Ketoxime Sulfonates under Phase-Transfer Conditions: Experimental Evidence for the Participation of an Anionic Pathway. J. Am. Chem. Soc. 2002, 124, 7640–7641. [Google Scholar] [CrossRef] [PubMed]
  25. Ooi, T.; Kameda, M.; Maruoka, K. Design of N-Spiro C2-Symmetric Chiral Quaternary Ammonium Bromides as Novel Chiral Phase-Transfer Catalysts: Synthesis and Application to Practical Asymmetric Synthesis of α Amino Acids. J. Am. Chem. Soc. 2003, 125, 5139–5151. [Google Scholar] [CrossRef]
  26. Ooi, T.; Uematsu, Y.; Maruoka, K. New, Improved Procedure for the Synthesis of Structurally Diverse N-Spiro C2-Symmetric Chiral Quaternary Ammonium Bromides. J. Org. Chem. 2003, 68, 4576–4578. [Google Scholar] [CrossRef]
  27. Kitamura, M.; Arimura, Y.; Shirakawa, S.; Maruoka, K. Combinatorial approach for the design of new, simplified chiral phase-transfer catalysts with high catalytic performance for practical asymmetric synthesis of α-alkyl-α-amino acids. Tetrahedron Lett. 2008, 49, 2026–2030. [Google Scholar] [CrossRef]
  28. Kitamura, M.; Shirakawa, S.; Arimura, Y.; Wang, X.; Maruoka, K. Combinatorial Design of Simplified High-Performance Chiral Phase-Transfer Catalysts for Practical Asymmetric Synthesis of α-Alkyl- and α,α-Dialkyl-α-Amino Acids. Chem. Asian J. 2008, 3, 1702–1714. [Google Scholar] [CrossRef]
  29. Tharamak, S.; Knittl-Frank, C.; Manaprasertsak, A.; Pengsook, A.; Suchy, L.; Schuller, P.; Happl, B.; Roller, A.; Widhalm, M. Economy of Catalyst Synthesis—Convenient Access to Libraries of Di- and Tetranaphtho Azepinium Compounds. Molecules 2018, 23, 750. [Google Scholar] [CrossRef]
  30. Hayashi, T.; Hayashizaki, K.; Kiyoi, T.; Ito, Y. Asymmetric synthesis catalyzed by chiral ferrocenylphosphine-transition-metal complexes. 6. Practical asymmetric synthesis of 1,1’-binaphthyls via asymmetric cross-coupling with a chiral [(alkoxyalkyl)ferrocenyl]monophosphine/nickel catalyst. J. Am. Chem. Soc. 1988, 110, 8153–8156. [Google Scholar] [CrossRef]
  31. Egami, H.; Sato, K.; Asada, J.; Kawato, Y.; Hamashima, Y. Concise synthesis of binaphthol-derived chiral dicarboxylic acids. Tetrahedron 2015, 71, 6384–6388. [Google Scholar] [CrossRef]
  32. Konishi, H.; Hoshino, F.; Manabe, K. Practical Synthesis of Axially Chiral Dicarboxylates via Pd-Catalyzed External-CO-Free Carbonylation. Chem. Pharm. Bull. 2016, 64, 1438–1441. [Google Scholar] [CrossRef] [PubMed]
  33. Ohta, T.; Ito, M.; Inagaki, K.; Takaya, H. A convenient synthesis of optically pure dimethyl 1,1′-binaphthalene-2,2′-dicarboxylate from 1,1′-binaphthalene-2,2′-diol. Tetrahedron Lett. 1993, 10, 1615–1616. [Google Scholar] [CrossRef]
  34. For example see:Oi, S.; Matsunaga, K.; Hattori, T.; Miyano, S. Convenient Synthesis of 1,1′-Binaphthyl-2.2′-dicarboxylic Acid. Synthesis 1993, 895–898. [Google Scholar] [CrossRef]
  35. Berger, M. Novel Binaphthyl Auxiliaries and Their Application in Asymmetric Intermolecular Bromofunctionalisation of Olefins. Master Thesis, University of Vienna, Vienna, 2014. [Google Scholar]
  36. Vial, L.; Lacour, J. Conformational Preference and Configurational Control of Highly Symmetric Spirobi[dibenzazepinium] Cation. Org. Lett. 2002, 4, 3939–3942. [Google Scholar] [CrossRef] [PubMed]
  37. Kano, T.; Lan, Q.; Wang, X.; Maruoka, K. Effects of Aromatic Substituents on Binaphthyl-Based Chiral Spiro-Type Ammonium Salts in Asymmetric Phase Transfer Reactions. Adv. Synth. Catal. 2007, 349, 556–560. [Google Scholar] [CrossRef]
  38. Shirakawa, S.; Ueda, M.; Tanaka, Y.; Hashimoto, T.; Maruoka, K. Design of Binaphthyl-Modified Symmetrical Chiral Phase-Transfer Catalysts: Substituent Effect of 4,4′,6,6′-Positions of Binaphthyl Rings in the Asymmetric Alkylation of a Glycine Derivative. Chem. Asian J. 2007, 2, 1276–1281. [Google Scholar] [CrossRef]
  39. Widhalm, M.; Abraham, M.; Arion, V.B.; Saarsalu, S.; Maeorg, U. A modular approach to a new class of phosphinohydrazones and their use in asymmetric allylic alkylation reactions. Tetrahedron: Asymmetry 2010, 21, 1971–1982. [Google Scholar] [CrossRef]
  40. Hawkins, J.M.; Fu, G.C. Asymmetric Michael Reactions of 3,5-Dihydro-4H-dinaphth[2,1-c:1’,2’-e]azepine with Methyl Crotonate. J. Org. Chem. 1986, 51, 2820–2822. [Google Scholar] [CrossRef]
  41. Applying similar conditions to 4,5-dihydro-3H-dinaphtho[2,1-c:1’,2’-e]azepine afforded enantiomerically enriched fractions of (R)-enantiomer from the less soluble salt (40%, 78% ee) and (S)-enantiomer from the mother liquor (40%, 78%ee). It is worth to note that two types of crystals form simultaneously with the (R)-enantiomer containing one or two molecules of dinaphthoazepine.
  42. The reversed sequence with 3,3′-diiodo-bisazepinium bromide (analog to structure 1 with iodo substituents instead of Ar) as a precursor for the Suzuki reactions was originally considered, too. But after several attempts it turned out that arylation afforded various products mainly triarylated species with cleavage of the C-N bond even when stoichiometric ammounts of arylboronic acids (2 equiv.) were applied [26].
  43. Shirakawa, S.; Maruoka, K. Chiral Onium Salts (Phase Transfer Reactions). In Comprehensive Enantioselective Organocatalysis: Catalysts, Reactions, and Applications; Dalko, P.I., Ed.; Wiley-VCH Verlag GmbH: Weinheim, Germany, 2013; Chapter 14; pp. 365–379. [Google Scholar]
  44. Tan, J.; Yasuda, N. Contemporary Asymmetric Phase Transfer Catalysis: Large-Scale Industrial Applications. Org. Process Res. Dev. 2015, 19, 1731–1746. [Google Scholar] [CrossRef]
  45. In the 1H-NMR spectra of crude mixtures and also during chromatography varying amounts of benzophenone have been often observed. For instance, when the product was kept in contact with SiO2 over 14 h at r.t. this resulted in formation of 40% of benzophenone. Also when of a solution of the substrate in toluene was kept for 4 weeks at 4 °C 4% of benzophenone was detected (NMR).
  46. Ooi, T.; Kameda, M.; Maruoka, K. Molecular Design of a C2-Symmetric Chiral Phase-Transfer Catalyst for Practical Asymmetric Synthesis of α-Amino Acids. J. Am. Chem. Soc. 1999, 121, 6519–6520. [Google Scholar] [CrossRef]
  47. Ooi, T.; Kameda, M.; Taniguchi, M.; Maruoka, K. Development of Highly Diastereo- and Enantioselective Direct Asymmetric Aldol Reaction of a Glycinate Schiff Base with Aldehydes Catalyzed by Chiral Quaternary Ammonium Salts. J. Am. Chem. Soc. 2004, 126, 9685–9694. [Google Scholar] [CrossRef] [PubMed]
  48. For a potential application of 9a–j in organocatalysis see Kano, T.; Sugimoto, H.; Tokuda, O.; Maruoka, K. Unusual anti-selective asymmetric conjugate addition of aldehydes to nitroalkenes catalyzed by a biphenylbased chiral secondary amine. Chem. Comm. 2013, 49, 7028–7030. [Google Scholar] [CrossRef] [PubMed]
  49. Seki, M.; Yamada, S.; Kuroda, T.; Imashiro, R.; Shimizu, T. A Practical Synthesis of C2-Symmetric Chiral Binaphthyl Ketone Catalyst. Synthesis 2000, 1677–1680. [Google Scholar] [CrossRef]
  50. Mazaleyrat, J.-P. Synthesis and resolution of axially chiral C2-symmetric 1,1′-binaphthyl-substituted tetramethylethylenediamines. Tetrahedron: Asymmetry 1997, 8, 2709–2721. [Google Scholar] [CrossRef]
  51. Kanoh, S.; Hongoh, Y.; Motoi, M.; Suda, H. Convenient Optical Resolution of Axially Chiral 1,1′-Binaphthyl-2,2′-dicarboxylic Acid. Bull. Chem. Soc. Jpn. 1988, 61, 1032–1034. [Google Scholar] [CrossRef]
  52. Vadehra, G.S.; Jiang, X.; Dotson, J.J.; Chu, G.M.; Garcia-Garibay, M.A. High-Yielding and Divergent Paradigm for the Synthesis of D2h-Symmetric Octakis-Substituted Pentiptycenequinones. Org. Lett. 2017, 19, 1838–1841. [Google Scholar] [CrossRef]
  53. Akhatou, A.; Rahimi, M.; Chebou, K.; Ghosez, L.; Hanquet, G. Acid promoted enantioselective oxygen-atom transfer from N-alkyl binaphthyl-derived oxaziridines onto sulfides. Tetrahedron 2007, 63, 6232–6240. [Google Scholar] [CrossRef]
  54. Aquino, M.; Guerrero, M.D.; Bruno, I.; Terencio, M.C.; Paya, M.; Riccio, R. Development of a second generation of inhibitors of microsomal prostaglandin E synthase 1 expression bearing the γ-hydroxybutenolide scaffold. Bioorg. Med. Chem. 2008, 16, 9056–9064. [Google Scholar] [CrossRef]
  55. Guthrie, D.B.; Curran, D.P. Asymmetric Radical and Anionic Cyclizations of Axially Chiral Carbamates. Org. Lett. 2009, 11, 249–251. [Google Scholar] [CrossRef]
  56. Gagnon, H.; Beauchemin, S.; Kwiatkowska, A.; Couture, F.; D’Anjou, F.; Levesque, C.; Dufour, F.; Desbiens, A.R.; Vaillancourt, R.; Bernard, S.; et al. Optimization of Furin Inhibitors To Protect against the Activation of Influenza Hemagglutinin H5 and Shiga Toxin. J. Med. Chem. 2014, 57, 29–41. [Google Scholar] [CrossRef]
  57. Manning, P.T.; Misko, T.P. Preparation of Amino Acid Derivatives as Inhibitors of Inducible Nitric Oxide Synthase for Use in Combination Therapy with Alkylating Agents. PCT Int. Appl. 2005, 25620, A2. [Google Scholar]
Sample Availability: Not available.
Molecules 24 03844 g001 550
Figure 1. N-spiro-di- and tetranaphthoazepinium salts (R = aryl).
Figure 1. N-spiro-di- and tetranaphthoazepinium salts (R = aryl).
Molecules 24 03844 g001
Molecules 24 03844 sch001 550

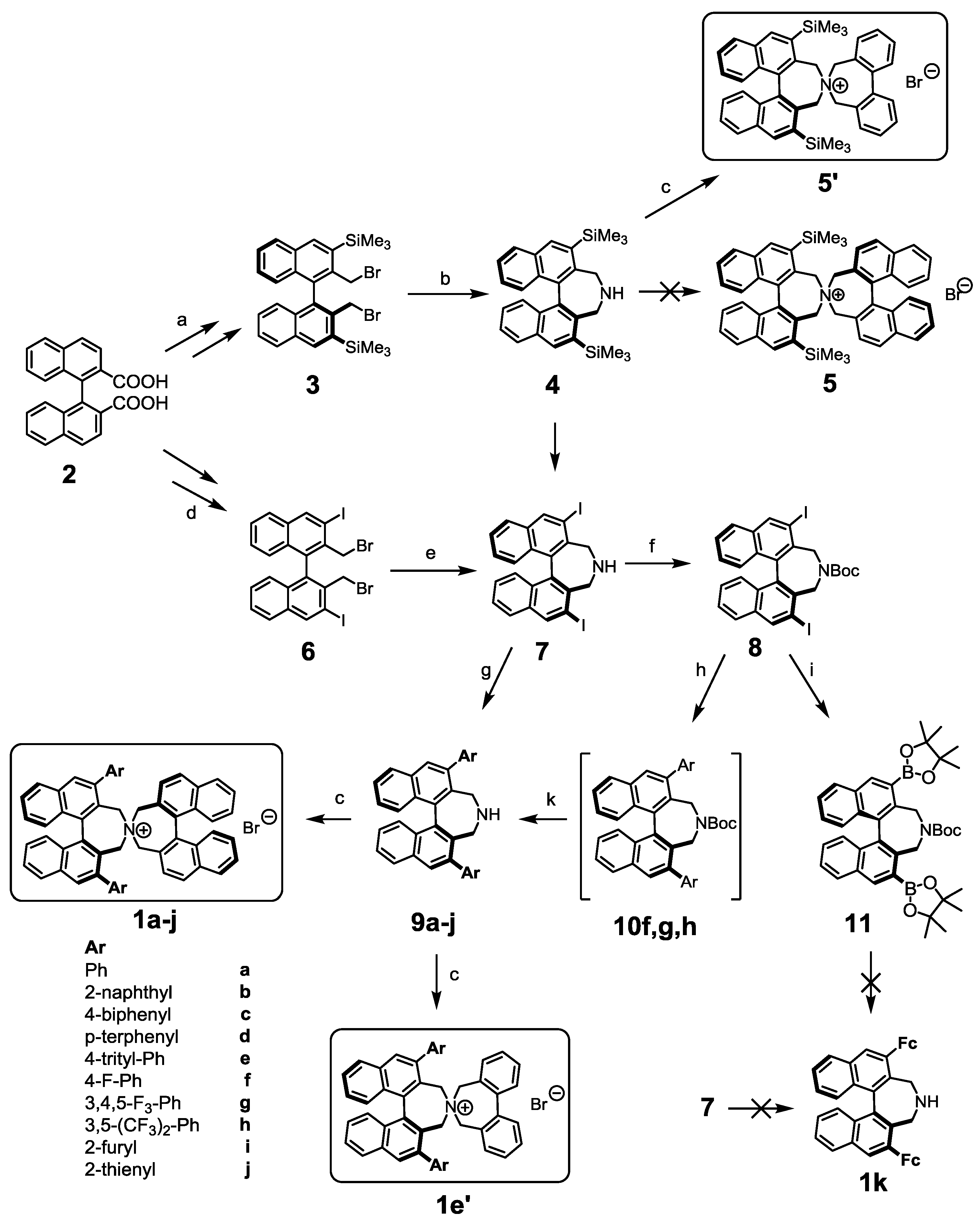

Scheme 1. Synthesis of spiro-azepinium catalysts 1a–j. Legend: a. [39]; b. NH3, MeCN, 65–70 °C, overnight (85%); c. (S)-2,2′-bisbromomethyl-1,1′-binaphthyl or 2,2′-bisbromomethyl-1,1′-biphenyl (1e’, 5′), K2CO3, MeCN, 85–90 °C, overnight (50%–88%); d. [39]; e. [29]; f. Boc2O, Amberlyst-15, EtOH, 10 min (84%); g. ArB(OH)2, Na2CO3, Pd(Ph3P)4 or (dppf)PdCl2 (9d), toluene, 12–24 h, (55%–98%); h. ArB(OH)2, Na2CO3, Pd(OAc)2, tol3P, toluene, 12–24 h; i. B2Pin2, KOAc, Pd(OAc)2, DMF, 100 °C, 20 h (66%); k. trifluoroacetic acid (TFA), dichloromethane (DCM), r.t., 2 h (60%–80% over 2 steps).
Scheme 1. Synthesis of spiro-azepinium catalysts 1a–j. Legend: a. [39]; b. NH3, MeCN, 65–70 °C, overnight (85%); c. (S)-2,2′-bisbromomethyl-1,1′-binaphthyl or 2,2′-bisbromomethyl-1,1′-biphenyl (1e’, 5′), K2CO3, MeCN, 85–90 °C, overnight (50%–88%); d. [39]; e. [29]; f. Boc2O, Amberlyst-15, EtOH, 10 min (84%); g. ArB(OH)2, Na2CO3, Pd(Ph3P)4 or (dppf)PdCl2 (9d), toluene, 12–24 h, (55%–98%); h. ArB(OH)2, Na2CO3, Pd(OAc)2, tol3P, toluene, 12–24 h; i. B2Pin2, KOAc, Pd(OAc)2, DMF, 100 °C, 20 h (66%); k. trifluoroacetic acid (TFA), dichloromethane (DCM), r.t., 2 h (60%–80% over 2 steps).
Molecules 24 03844 sch001
Molecules 24 03844 g002 550
Figure 2. X-ray structure of [(R)-7]2 (S,S)-O,O’-Dibenzoyltartrate. Cation [7]+ and counter ion form two independent hydrogen bonds constructing a rhombus. Bond length and rhombus visualized.
Figure 2. X-ray structure of [(R)-7]2 (S,S)-O,O’-Dibenzoyltartrate. Cation [7]+ and counter ion form two independent hydrogen bonds constructing a rhombus. Bond length and rhombus visualized.
Molecules 24 03844 g002
Molecules 24 03844 sch002 550
Scheme 2. Asymmetric substitution of 12 with 13A–I under phase-transfer catalysis (PTC) conditions.
Scheme 2. Asymmetric substitution of 12 with 13A–I under phase-transfer catalysis (PTC) conditions.
Molecules 24 03844 sch002
Molecules 24 03844 g003 550

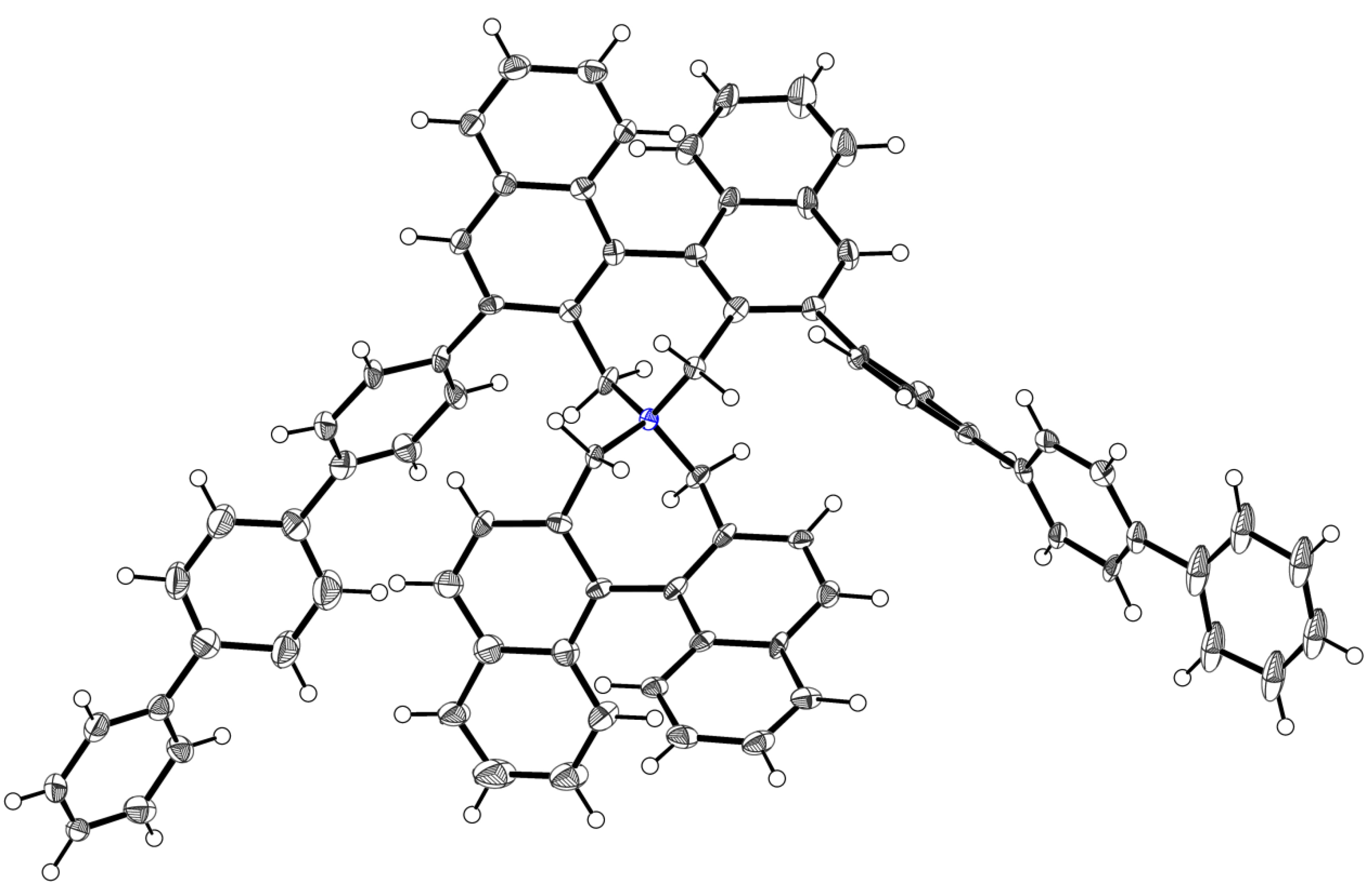

Figure 3. Crystal structure of (R)(R)-1d. Solvent and counter ion omitted for clarity.
Figure 3. Crystal structure of (R)(R)-1d. Solvent and counter ion omitted for clarity.
Molecules 24 03844 g003
Molecules 24 03844 g004 550

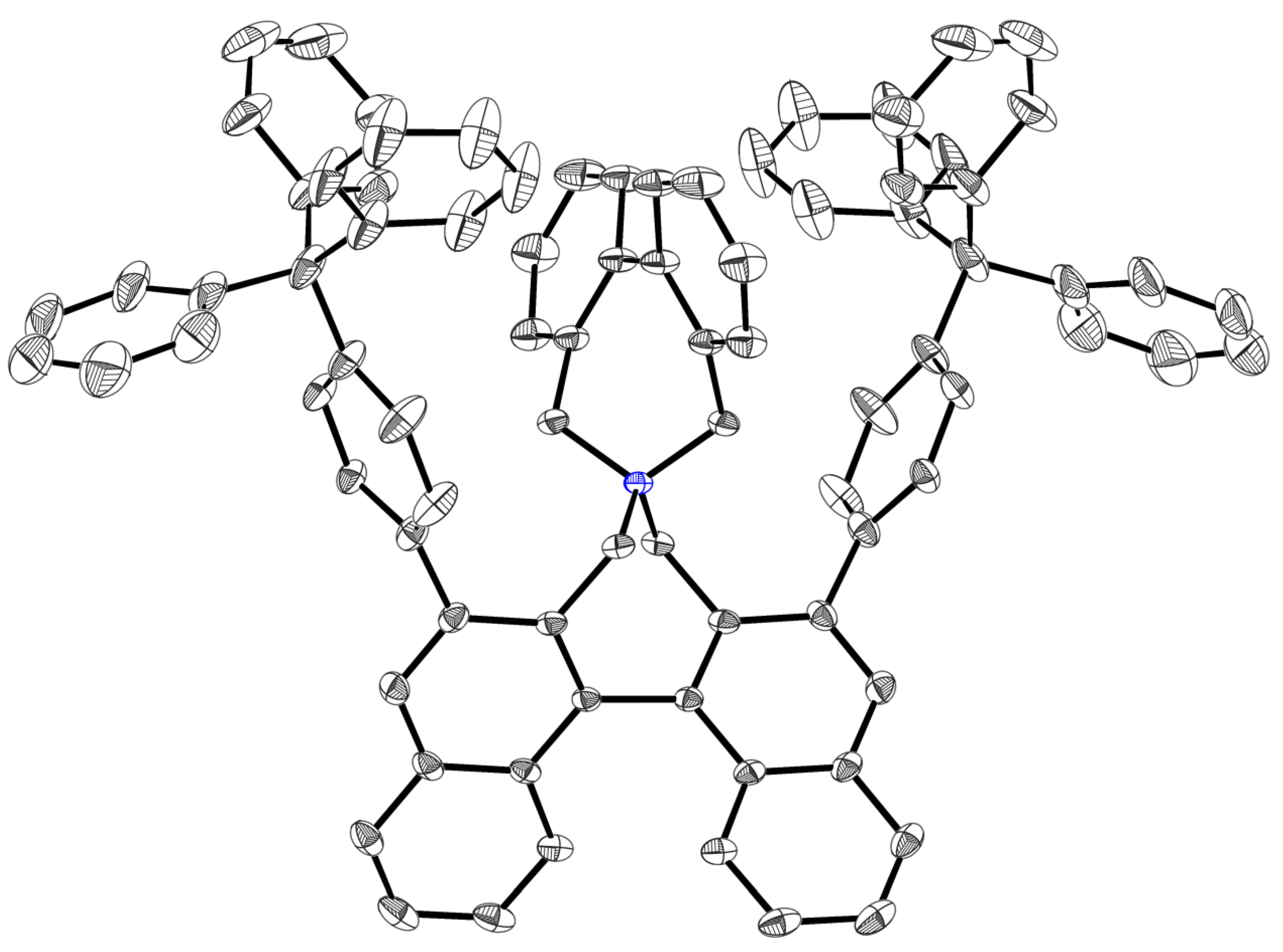

Figure 4. Crystal structure of (R)bina(S)biphe-1e’. Solvent, counter ion and hydrogens omitted for clarity.
Figure 4. Crystal structure of (R)bina(S)biphe-1e’. Solvent, counter ion and hydrogens omitted for clarity.
Molecules 24 03844 g004
Table
Table 1. Asymmetric benzylation of tert-butyl 2-((diphenylmethylene)amino)acetate 12 with 13A under PTC conditions yielding 14A. a.
Table 1. Asymmetric benzylation of tert-butyl 2-((diphenylmethylene)amino)acetate 12 with 13A under PTC conditions yielding 14A. a.
entrycat.yield/% byield/% cee/% d
11ae787486
21bf918994
31c868692
41d928891
51e’7269rac.
61fg827994
71gh908599
81h332892
91i676788
101j878389
115′929161
a 0.25 mmol substrate, 0.30 mmol benzylbromide, 1 mol % of catalyst with (S,S)-configuration, 1.5 mL toluene, 0.5 mL KOH (50%), vigorous stirring at 0 °C for 4 h. b Yield after extractive work-up based on 1H-NMR (nuclear magnetic resonance) integration of signals of product and methylene groups of bibenzyl as internal standard. c Isolated yield after extractive work-up and subsequent chromatography. d Determined by chiral high-performance liquid chromatography (HPLC, Chiralcel ODH), products with (R)-configuration predominating. e 89% ee, 81% isol. yield at 0 °C, 0.5 h [25,46]. f 96% ee, 95% isol.yield at 0 °C, 0.5 h [25]. g 94% ee, 74% isol. yield at 0 °C, 2 h [25]. h 99% ee, 79% isol. yield at 0 °C, 2 h [25].
Table
Table 2. Asymmetric substitution of tert-butyl 2-((diphenylmethylene)amino)acetate (12) with electrophiles 13B-13I under phase-transfer (PT) conditions. a.
Table 2. Asymmetric substitution of tert-butyl 2-((diphenylmethylene)amino)acetate (12) with electrophiles 13B-13I under phase-transfer (PT) conditions. a.
14B14C14D14E14F14G14Hb14Ic
cat.y/ee dy/ee dy/ee dy/ee dy/ee dy/ee dy/ee dy/ee d
1c89/8880/9190/7551/8392/8988/7262/51 e33/57 f
1d90/8886/9190/7455/8891/8891/7156/41 g26/51 f
1g89/98 h71/95 i87/9372/6890/90 j81/8361/79k23/83 f
(33/88)
1h70/9845/5261/8466/1430/9083/7360/8020/83 i
a 0.25 mmol of substrate, 0.30 mmol of electrophile, 1 mol % of catalyst with (S,S)-configuration, 1.5 mL toluene, 0.5 mL KOH (50%), vigorous stirring at 0 °C for 20 h. b CsOH (50%) was used instead of KOH. c Solid Cs2CO3 (5 equiv.) was used instead of KOH. d Yield after extractive work-up based on 1H-NMR integration of signals of product and bibenzyl added as internal standard. Ee determined by chiral HPLC (Chiralcel ODH or Chiralpak ADH), products with (R)-configuration predominating. e 12% of 15 formed. f Instead of 13I the corresponding iodo compound was used which gave higher yield and enantioselectivity with the excepion of cat. 1g where the bromide was superior (in paranthesis). g 13% of 15 formed. h 99% ee, 80% isolated yield, 0 °C, 24 h [25]. i 99% ee 86% over two steps, 0 °C, 24 h [25]. j 99% ee 89% isolated yield, 0 °C, 15 h [25]. k 8% of 15 formed.
Table
Table 3. Crystal data for 1d, 1e, and the less soluble (S,S)-dibenzoyltartrate of 7.
Table 3. Crystal data for 1d, 1e, and the less soluble (S,S)-dibenzoyltartrate of 7.
(R)(R)-1d(R)bina(S)biphe-1e(R)-7
(S,S)-dibenzoyltartrate
M [g/mol]1323.48791.92811.22
Space groupP212121C2C2
a [Å]9.1716(8)21.7990(14)28.7403(11)
b [Å]26.018(2)23.2291(13)12.0555(4)
c [Å]30.298(3)8.8684(5)8.9062(3)
α [°]909090
ß [°]9094.251(2)101.095(2)
γ [°]909090
V [Å3]7229.8(11)4478.3(5)3028.14(18)
Z444
Dcalc [g/cm3]1.2161.1751.779
Rint0.10220.02940.0359
Rsigma0.03990.03000.0175
R1 (I > 2σ(I))0.08120.08020.0362
wR2 (all data)0.24330.22950.0897

Share and Cite

MDPI and ACS Style

Manaprasertsak, A.; Tharamak, S.; Schedl, C.; Roller, A.; Widhalm, M. Improved Access to Chiral Tetranaphthoazepinium-Based Organocatalysts Using Aqueous Ammonia as Nitrogen Source. Molecules 2019, 24, 3844. https://doi.org/10.3390/molecules24213844

AMA Style

Manaprasertsak A, Tharamak S, Schedl C, Roller A, Widhalm M. Improved Access to Chiral Tetranaphthoazepinium-Based Organocatalysts Using Aqueous Ammonia as Nitrogen Source. Molecules. 2019; 24(21):3844. https://doi.org/10.3390/molecules24213844

Chicago/Turabian Style

Manaprasertsak, Auraya, Sorachat Tharamak, Christina Schedl, Alexander Roller, and Michael Widhalm. 2019. "Improved Access to Chiral Tetranaphthoazepinium-Based Organocatalysts Using Aqueous Ammonia as Nitrogen Source" Molecules 24, no. 21: 3844. https://doi.org/10.3390/molecules24213844

Article Metrics

Back to TopTop
