Article

Synthesis and Antimicrobial Evaluation of Novel Pyrazolopyrimidines Incorporated with Mono- and Diphenylsulfonyl Groups

by
Amani M. R. Alsaedi
1,
Thoraya. A. Farghaly
2,* and
Mohamed R. Shaaban
1,2,*
1
Department of Chemistry, Faculty of Applied Science, Umm Al-Qura University, Makkah Almukaramah 21514, Saudi Arabia
2
Department of Chemistry, Faculty of Science, Cairo University, Giza 12613, Egypt
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(21), 4009; https://doi.org/10.3390/molecules24214009
Submission received: 30 September 2019 / Revised: 31 October 2019 / Accepted: 31 October 2019 / Published: 5 November 2019
(This article belongs to the Section Organic Chemistry)

Abstract

:
A novel series of pyrazolo[1,5-a]pyrimidine ring systems containing phenylsulfonyl moiety have been synthesized via the reaction of 2-(phenylsulfonyl)-1-(4-(phenylsulfonyl) phenyl)ethan-1-one, 2-benzenesulfonyl-1-(4-benzenesulfonyl-phenyl)-3-dimethylamino-propenone and 3-(dimethylamino)-1-(4-(phenylsulfonyl)phenyl)prop-2-en-1-one each with various substituted aminoazopyrazole derivatives in one pot reaction strategy. The proposed structure as well as the mechanism of their reactions were discussed and proved with all possible spectral data. The results of antimicrobial activities of the new sulfone derivatives revealed that several derivatives showed activity exceeding the activity of reference drug. Contrary to expectations, we found that derivatives containing one sulfone group are more effective against all bacteria and fungi used than those contain two sulfone groups.

1. Introduction

Pyrazolo[1,5-a]pyrimidine is known to be purine analog that has protruded a vital building block for pharmaceutical drugs. It has several potent biological implementations as antischistosomal, antimetabolites in purine bio-chemical interactions, sedative and antitrypanosomal [1], AMP phosphodiesterase inhibitors [2], anxiolytic [3], benzodiazepine receptor ligands [4], KDR (kinase insert domain receptor) kinase inhibitors [5], HMG-CoA (3-hydroxy-3-methyl-glutaryl-coenzyme A reductase) reductase inhibitors [6], COX-1 (cyclooxygenase-1), COX-2 (cyclooxygenase-2) selective inhibitors [7], HCV (hepatitis C virus) inhibitors [8], serotonin 5-HT6 (5-hydroxytryptamine) receptor antagonists [9], PET (positron emission tomography) tumor imaging agents [10], kinase inhibitors [11], CCR1 (C-C chemokine receptor type 1) antagonists [12], HIV (human immunodeficiency viruses) reverse transcriptase inhibitors [13], and antifungal and antimalarial activities [14]. Many marketed drugs have pyrazolo[1,5-a]pyrimidine nucleus such as indiplon, zaleplon, dorsomorphin, dinaciclib, anagliptin, pyrazophos, lorediplon, and ocinaplon [15] are showed in Figure 1. Another important scaffold is benzene-sulfone moiety which present in several important pharmaceutical and agrochemical molecules due to their distinctive structural and electronic features. As for instance, molecules used as gamma-secretase inhibitors (I) [16], in migraine and prostate cancer, or as the herbicides mesotrione and cafenstrole, all feature aryl sulfone units [17] (Figure 1). Due to the specific physical and chemical properties as well as the biological activities of azobenzene dyes, they have found wide applications in the cosmetic, pharmaceutical, dyeing/textile industry, food, and analytical chemistry [18]. Many of these compounds exhibit biomedical activity because they exhibit various properties such as anti-inflammatory activity, antibacterial activity, cell protection, protease inhibitors (enzymes that play functions in many pathological disorders), or have anti-HIV activity [19,20,21]. Also, it was proved recently that azo-benzene based compounds showed a killing effect on bacteria or fungi through the interaction with their protein receptors, rather than an interaction with membrane [22,23]. On the other hand, the molecular hybridization is specialized with synthesis new compounds from combination of biologically active substances for the production of a new hybrid compound. In several cases, it generates derivatives having effective biological activities more potent than their starting moieties [24].
Inspired by these observations and in resumption of our recent research aiming at the design and synthesis of new bioactive heterocyclic systems [25,26,27,28,29,30,31], we are interested herein to design and synthesize of two new series of pyrazolo[1,5-a]pyrimidine derivatives, 8 and 15 (Figure 2), which have one or two arylsulfonyl and an arylazo groups to investigate their antimicrobial activities. The aim of such synthesis is to study the effect of the combination of such scaffold on the activity of these new series, as we expect to generate a potent active drug as an antimicrobial agent.

2. Results and Discussion

Chemistry

Initially, three consecutive steps were enough to access of the hitherto unreported 3-(dimethylamino)-2-(phenylsulfonyl)-1-(4-(phenylsulfonyl)phenyl)prop-2-en-1-one 6 as a versatile multifunctional building block for construction of the targeted pyrazolo[1,5-a]pyrimidine derivatives. We started with modified method for α-bromination of 1-(4-(phenylsulfonyl)phenyl)ethan-1-one 1 using N-bromosuccinimide (NBS) in the presence of p-toluene sulfonic acid (p-TsOH) and acetonitrile as a solvent either under thermal or microwaves irradiation conditions (Scheme 1). The α-bromoketone 3 was obtained in excellent yield (94%) under pressurized microwave irradiation (MW) for 15 min using 400 W microwaves operating power. Then, treatment of compound 3 with sodium benzene sulfinate in ethanol under thermal as well as microwave conditions afforded the corresponding 2-(phenylsulfonyl)-1-(4-(phenylsulfonyl)phenyl)ethan-1-one 4 in high yield (Scheme 1). The suggested structure of compound 4 as illustrated in Scheme 1 was confirmed from its spectral data. The IR spectrum of compound 4 showed the carbonyl absorption signal vibrating at 1700 cm−1. The 1H NMR spectrum of compound 4 displayed the characteristic signal of the CH2 group which clearly appeared at δ 5.39 ppm in addition to the other protons that are resonating at their expected values (see experimental part). Further evidence that confirm the structure of compound 4 was supported from its 13C NMR which revealed fourteen carbon signals resonating at δ values as follows: 62.6 (CH2), 127.6, 127.7, 128.1, 129.2, 130.0, 130.2, 134.1, 134.3, 139.1, 139.2, 140.2, 145.3 (12 Ar-C), and 188.6 (C=O) ppm.
Thermal or microwaves heating of the 2-(phenylsulfonyl)-1-(4-(phenylsulfonyl)phenyl)ethan-1-one 4 with N,N-dimethylformamide-dimethylacetal (DMF-DMA) 5 using dry xylene as a solvent, afforded a single product identified as the corresponding 3-(dimethylamino)-2-(phenylsulfonyl)-1-(4-(phenylsulfonyl)phenyl)prop-2-en-1-one 6, in high yields (Scheme 2). All spectral data of the formed enaminosulfone 6 were in agreement with the proposed structure. The presence of low frequency of the C=O at 1624 cm−1 in the IR spectrum of enaminosulfone 6 confirm its structure which attributed to the conjugation with the aromatic-C=C and the C=C of the enamine moiety. Also, the 1H NMR spectrum of enaminosulfone 6 clearly displayed two characteristic singlet signals for the two CH3 and =CH protons at 3.29 and 8.11 ppm in addition to an aromatic multiplets in the region δ 7.36–7.99 ppm. It is important to notice that the large value of chemical shift of =CH of enaminone moiety (δ = 8.11 ppm) indicated that enaminone 6 was assigned the E-configuration [32]. This large value of the trans-H can be attributed to the high deshielding effect of the direct interaction with SO2 group. While, Z-isomer analogous structure was reported to appear at δ 6.9 ppm [33].
The reaction of the enaminosulfone 6 with arylazodiaminopyrazole derivatives 7ah was investigated using two different pathways under thermal and microwaves irradiation conditions. Thus, when enaminosulfone 6 was treated with arylazodiaminopyrazoles 7ah in glacial acetic acid, it furnished the corresponding pyrazolopyrimidines derivatives 8ah under thermal as well as microwaves conditions (Scheme 3, Table 1).
1H NMR of the isolated pyrazolopyrimidine derivatives gave a strong evidence for the structure 8 rather than 9. The 1H NMR spectra of all derivatives 8ah were characterized with the existence of singlet signal at δ 9.13–9.23 ppm for the pyrimidine-CH-2 and not CH-4 in structure 9 as shown in Figure 3. The presence of the pyrimidine-CH-2 at δ 9.13–9.23 ppm was confirmed previously by our group via X-ray crystallography of the same ring system [34].
Also, the structure 8 was firmly established for the reaction products by an alternate synthesis. Thus, 2-(phenylsulfonyl)-1-(4-(phenylsulfonyl)phenyl)ethan-1-one 4 was condensed with triethylorthoformate 10 and subsequent condensation of the formed ethoxymethylene derivative 11 with arylazodiaminopyrazole derivatives 7ah gave products identical in all respects (m.p., mixed m.p., and spectra) with those formed from the reaction enaminosulfone 6 with pyrazoles 7. It should be noted that, multi-components condensation of 2-(phenylsulfonyl)-1-(4-(phenylsulfonyl)-phenyl)ethan-1-one 4, DMF-DMA, and arylazodiaminopyrazole derivatives 7ah have failed to afford the products 8ah as shown in Scheme 3. On the other hand, one pot multi-components condensation of 2-(phenylsulfonyl)-1-(4-(phenylsulfonyl)phenyl)ethan-1-one 4, triethylortho-formate 10, and arylazodiamino-pyrazoles 7ah afforded the products 8ah as shown in Scheme 4.
In order to examine the influence of phenyl sulfonyl group pendent to pyrimidine ring on the antimicrobial activity, we have decided to synthesize a series of novel pyrazolo[1,5-a]pyrimidines derivatives 13ah which have an analogue structure to pyrazolo[1,5-a]pyrimidines derivatives 8ah by exclusion of the phenyl sulfonyl moiety in the pyrimidine ring in the pyrazolo[1,5-a]pyrimidine ring system. The latter can be achieved via reaction of another enaminosulfone derivative 12 with arylazodiaminopyrazoles 7ah without catalyst in glacial acetic acid under thermal as well as microwave conditions (Scheme 5). The reaction products were identified as the pyrazolo [1,5-a]pyrimidines derivatives 13ah and not the isomeric products 14 (Table 2).
The structure of the products 13 have been confirmed based on spectral data (Figure 4). The structures of the products 13ah were established on investigation their spectral data and their elemental analyses. For example, all 1H NMR spectra of derivatives 13ah revealed two doublet signals (J ≈ 4.5 Hz) near δ 7.3 and 8.8 due to pyrimidine CH-3 and CH-2 protons, respectively. The other expected products 14 were ruled out on the basis of spectral data such as 1H NMR where the CH-4 protons was expected to resonate at low value of chemical shift δ in their 1H NMR spectrum [35] as well as the literature reports which proved the regioselectivity of such reaction by X-ray crystallographic analysis of the product [32,36].
Attempts to achieve the pyrazolo[1,5-a]pyrimidines derivatives 13ah via alternative pathway through multicomponent condensation of the acetyl derivative 1, triethylorthoformate 10, and arylazodiaminopyrazoles 7ah were not useful in this case (Scheme 5).
From the mechanistic point of view, the multi component synthesis of 8ah was expected to proceed via Michael-type addition in acidic medium of arylazodiaminopyrazoles 7ah to the activated double bond of the ethoxymethylene derivative 11 of 2-(phenylsulfonyl)-1-(4-(phenylsulfonyl)phenyl)ethan-1-one 4 followed by loss of ethanol and subsequent intramolecular cyclization via elimination of water to afford the corresponding pyrazolo[1,5-a] pyrimidines derivatives 8ah, all intermediates were illustrated in Scheme 6. In the same manner and under the same acidic medium, the mechanism of the formation of pyrazolo[1,5-a]pyrimidines derivatives 13ah is shown in Scheme 6 which involves Michael type addition followed by cyclocondensation of the non-isolable Michael adduct 18 by loss of dimethylamine to form another three non-isolable intermediates 1921 then followed by elimination of water molecule to afford the corresponding pyrazolo[1,5-a]pyrimidines derivatives 13ah.

3. Antimicrobial Activity

The antimicrobial activity of twelve new synthesized derivatives 8ad, 8h, 13a, and 13ch were tested against two fungi species (Aspergillus niger and Geotrichum candidum) (Table 3), four Gram-positive bacteria as well as four Gram-negative which listed in Table 4 and Table 5. The reference drugs were commonly applied antibiotics such as Amphotericin B (For Fungi), Ampicillin, and Gentamicin (For Gram-positive and Gram-negative bacteria). The first thing that can be seen from the listed results of antimicrobial activity is that all the studied derivatives did not have any effect on P. aeruginosa and S. pyogenes. For the activity of the tested derivatives against two fungi: There are three pyrazolopyrimidine sulfone derivatives 13c, 13d, and 13g were found more potent than Amphotericin B.
In case of the activity against the Gram-positive bacteria only one derivative 13d exceeds the activity of the reference drug Ampicillin against S. epidermidis (Table 4). While, two derivatives 13d and 13g revealed activity more than the reference drug used against E. coli. Otherwise, three pyrazolopyrimidine derivatives 13c, 13d, and 13g were found more reactive than Gentamicin against S. typhimurium (Table 5).
All the other tested pyrazolopyrimidines revealed activity good to moderate against all tested microbes except P. aeruginosa and S. pyogenes.
Minimum inhibitor concentration of the three most potent pyrazolopyrimidine derivatives 13c, 13d, and 13g listed in Table 6 indicated that derivative 13d is the most effective compound.
It is clear that the presence of one sulfone group in the pyrazolopyrimidine system enhances the antimicrobial activity of the synthesized drugs, and increasing the number of sulfone groups in our case does not increase the biological activity of the compounds. Therefore, we recommend the preparation of pyrazolopyrimidine system with one sulfone group and complete the study by determining the antibacterial activity of most promising compounds on mice models 3. Materials and Methods

3.1. General

Melting points of synthesized compounds were measured on a Gallenkamp melting point apparatus. The infrared spectra were recorded in potassium bromide discs Shimadzu a FT-IR-4100 infrared spectrophotometer (400–4000 cm−1, JASCO, Easton, MD, USA). Nuclear magnetic resonance spectra were recorded in DMSO-d6 or CDCl3 Using a Varian Mercury VXR-300 NMR spectrometer (JEOL, Tokyo, Japan). Chemical shifts δ were related to that of the used solvents. MS spectra were recorded on a Shimadzu GCMS-QP1000 EX mass spectrometer at 70 eV (Tokyo, Japan). The Microwave irradiation was carried out on a CEM mars machine (CEM Corporation, Matthews, NC, USA). CEM has several vessel types that are designed for their ovens: Closed-system vessels including the HP-500 (CEM Corporation, Matthews, NC, USA) (500 psig material design pressure and 260 °C), liners are composed of PFA, and are ideal for many types of samples. HP-500 Plus vessels are ideal for routine digestion applications. Process up to 14 high-pressure vessels per run with temperatures up to 260 °C or pressures up to 500 psi. Elemental analyses were carried out at the microanalytical center of Cairo University, Giza, Egypt.

3.2. Synthesis of 1-(4-benzenesulfonyl-phenyl)-2-bromo-ethanone (3)

3.2.1. Method A: Thermal Method

To a stirred solution of 1-(4-benzenesulfonyl-phenyl)-ethanone (1) (2.6 g, 0.01 mol) and p-toluenesulfonic acid (2) (2 g, 0.01 mol) in acetonitrile (12 mL) was added N-bromosuccinimide (1.78 g, 0.01 mol) portion wise then the reaction mixture was heated for 3 h. After the reaction mixture was cooled, the solvent was evaporated and H2O was added and the product was extracted using chloroform to give 1-(4-benzenesulfonyl-phenyl)-2-bromo-ethanone (3) as pale yellow solid, yield (80%).

3.2.2. Method B: Microwaves Method

In a HP-500 process vial a mixture of 1-(4-benzenesulfonyl-phenyl)-ethanone (1) (2.6 g, 0.01 mol) and p-toluenesulfonic acid (2 g, 0.01 mol) in acetonitile (12 mL) was added N-bromosuccinimide (1.78 g, 0.01 mol) portion wise then the vial was capped properly and was irradiated by microwaves irradiation (400 W power) using pressurized conditions at 90 °C for a period of 15 min. After the reaction mixture was cooled, the solvent was evaporated and H2O was added and the product was extracted using chloroform to give 1-(4-benzenesulfonyl-phenyl)-2-bromo-ethanone (3) as pale yellow solid, yield (94%), mp.: 115–117 °C (EtOH), IR ύ: 3091, 3011 (sp2 C-H), 2951 (sp3 C-H), 1705 (C=O) cm−1; 1H NMR (DMSO-d6) δ 4.99 (s, 2H, CH2), 7.64 (t, J = 7.65 Hz, 2H, Ar-H), 7.72 (t, J = 6.8 Hz, 1H, Ar-H), 8.01 (d, J = 7.65 Hz, 2H, Ar-H), 8.13 (d, J = 8.5 Hz, 2H, Ar-H), 8.18 (d, J = 7.65 Hz, 2H, Ar-H). 13C NMR (DMSO-d6) δ: 34.5 (CH2), 127.7, 127.9, 129.9, 130.0, 134.2, 137.8, 140.2, 145.1 (8 Ar-C), 191.0 (C=O). Ms m/z (%) 340 (M+ + 1, 12), 339 (M+, 20), 299 (73), 267 (68), 253 (37), 246 (48), 220 (65), 168 (32), 120 (15), 93 (100), 77 (42), and 64 (37). Anal. Calcd. For: C14H11BrO3S (339.20) C, 49.57; H, 3.27. Found: C, 49.46; H, 3.19%

3.3. Synthesis of 2-benzenesulfonyl-1-(4-benzenesulfonyl-phenyl)-ethanone (4)

3.3.1. Method A: Thermal Method

A mixture of compound 3 (3.4 g, 0.01 mol) and sodium benzene sulfinate (1.64 g, 0.01 mol) in ethanol (12 mL) in suitable round flask was refluxed for 5 h with constant stirring. After the reaction was completed which evidenced using TLC technique, the reaction mixture was poured into ice cold water, the white precipitate was filtered off, dried, and crystallized from ethanol/n-hexane to give the disulfone derivative 4 as white crystals, yield (95%),

3.3.2. Method B: Microwaves Method

A mixture of compound 3 (3.4 g, 0.01 mol) and sodium benzene sulfinate (1.64 g, 0.01 mol) in ethanol (12 mL) were mixed in a HP-500 process vial. The vail was capped properly and was irradiated by microwaves irradiation (800 W power) using pressurized conditions at 70 °C for a period of 25 min. The reaction mixture was the reaction mixture was poured into ice cold water, the white precipitate was filtered off, dried, and crystallized from ethanol/n-hexane to give the disulfone derivative 4 as white crystals, yield (96%), mp.: 180–182 °C (EtOH), IR ύ: 3100 (sp2 C-H), 2951, 2911 (sp3 C-H), 1700 (C=O) cm1; 1H NMR (DMSO-d6) δ: 5.39 (s, 2H, CH2), and 7.53–8.13(m, 14H, Ar–H). 13C NMR (DMSO-d6) δ: 62.6 (CH2), 127.6, 127.7, 128.1, 129.2, 130.0, 130.2, 134.1, 134.3, 139.1, 139.2, 140.2, 145.3 (12 Ar-C), 188.6 (C=O). Ms m/z (%) 400 (M+, 48), 362 (55), 330 (100), 324 (23), 287 (63), 243 (41), 219 (41), 183 (16), 140 (40), 118 (19), 106 (9), and 41 (68). Anal. Calcd. For: C20H16O5S2 (400.47) C, 59.98; H, 4.03. Found: C, 59.84; H, 3.98%.

3.4. Synthesis of 2-benzenesulfonyl-1-(4-benzenesulfonyl-phenyl)-3-dimethylamino-propenone (6) and 1-(4-benzenesulfonyl-phenyl)-3-dimethylamino-propenone (12)

3.4.1. Method A: Thermal Method

A mixture of 2-benzenesulfonyl-1-(4-benzenesulfonyl-phenyl)-ethanone (4) or 1-(4-(phenylsulfonyl)- phenyl)ethan-1-one (1) (0.005 mol) and DMF-DMF (0.7 g, 0.005 mol) in xylene (20 mL) was heated under reflux for the sufficient time of reaction (checked by TLC). After the reaction was completed, the solvent was evaporated and the residue was triturated with hexane to give a solid product that was collected by filtration and crystallized from the proper solvent to give enaminodi-sulfone 6 or enaminosulfone 12, with isolated yields 83% and 94%, respectively.

3.4.2. Method B: Microwaves Method

A mixture of 2-benzenesulfonyl-1-(4-benzenesulfonyl-phenyl)-ethanone (4) or 1-(4-(phenylsulfonyl)- phenyl)ethan-1-one (1) (0.005 mol), DMF-DMF (0.7 g, 0.005 mol), and xylene (20 mL) were mixed in a HP-500 process vial. The vail was capped properly and was irradiated by microwaves irradiation (400 W power) using pressurized conditions at 110 °C for a period of 30–40 min. the excess xylene was evaporated and the residue was triturated with hexane to give a solid product that was collected by filtration and crystallized from ethanol to give enaminosulfone 6 or enaminone 12, with isolated yields 91% and 96%, respectively.
The physical and spectral data of the synthesized compounds 6 and 12 are listed below.
2-benzenesulfonyl-1-(4-benzenesulfonyl-phenyl)-3-dimethylamino-propenone (6), mp.: 212–214 °C, IR ύ: 3059 (sp2 C-H), 2933 (sp3 CH), 1624 (C=O) cm−1; 1H NMR (DMSO-d6) δ: 3.29 (s, 6H, 2CH3), 7.36–7.99 (m, 14H, Ar-H), 8.11 (s, 1H, =CH). 13C NMR (DMSO-d6) δ: 34.3 (CH3), 106.2, 120.6, 126.1, 127.4, 127.9, 128.5, 129.7, 130.5, 133.5, 140.5, 143.4, 143.9, 144.3, 156.1, and 187.2 (C=O). Ms m/z (%) 455 (M+, 39), 440 (13), 431 (100), 429 (100), 412 (25), 378 (31), 314 (13), 237 (24), 218 (35), 144 (82), 141 (26), 77 (34), and 43 (26). Anal. Calcd. For: C23H21NO5S2 (455.55) C, 60.64; H, 4.65; N, 3.07. Found: C, 60.54; H, 4.49; N, 3.12%.
1-(4-benzenesulfonyl-phenyl)-3-dimethylamino-propenone (12), mp.: 225–227 °C, IR ύ: 3100 (sp2-CH), 2921 (sp3-CH), 1644 (C=O) cm−1; 1H NMR (DMSO-d6) δ: 2.91, 3.15 (2s, 6H, 2CH3), 5.77 (d, J = 12 Hz, 1H, =CH), 7.59–7.73 and 7.89–8.11 (m, 9H, Ar-H), and 7.74 (d, J = 12 Hz, 1H, =CH). 13C NMR (DMSO-d6) δ: 44.6 (2CH3), 91.0, 127.3, 128.2, 129.7, 133.8, 140.8, 142.4, 144.7, 154.9, and 184.0 (C=O). Ms m/z (%) 315 (M+, 8), 302 (71), 272 (14), 258 (6), 245 (16), 218 (9), 140 (7), 99 (15), 77 (24), 56 (100), and 44 (88). Anal. Calcd. For: C17H17NO3S (315.39) C, 64.74; H, 5.43; N, 4.44. Found: C, 64.59; H, 5.21; N, 4.36%.

3.5. Synthesis of 2-benzenesulfonyl-1-(4-benzenesulfonyl-phenyl)-3-ethoxy-propenone (11)

Fusion of disulfone derivative 4 (0.4 g, 0.001 mol) and triethylorthoformate (1 mL) in round flask was achieved on hotplate for 15 min to form clear solution. After the solution was left to cool, the solid formed was collected by filtration and crystallized from ethanol to give white crystals, yield (80%), mp.: 165–167 °C, IR ύ: 3101 (sp2-CH), 2911 (sp3-CH), 1700 (C=O) cm−1.; Ms m/z (%) 456 (M+, 100), 274 (99), 103 (54), Anal. Calcd.For: C23H20O6S2 (456.53) C, 60.51; H, 4.42. Found: C, 60.38; H, 4.25%.

3.6. Synthesis of pyrazolo[1,5-a]pyrimidine derivatives 8ah and 13ah

3.6.1. Thermal Methods

Method A: Enaminodisulfone 6 or enaminosulfone 12 (0.001 mol) was reacted with the appropriate arylazodiaminopyrazoles 7ah (0.001 mol) in 20 mL glacial acetic acid under reflux for 7 h. The reaction mixture was left to cool and the precipitated solid product was collected by filtration, washed with EtOH, dried and finally recrystallized from DMF/EtOH to afford the corresponding pyrazolo[1,5-a]pyrimidines 8ah or 13ah. The physical and spectral data of the synthesized compounds 8ah and 13ah are listed below.
Method B (for compounds 8ah only): A solution of disulfone derivative 4 (0.4 g, 0.001 mol) and an equivalent molar ratio of the appropriate arylazodiaminopyrazoles 7ah in triethylorthoformate (20 mL), was heated under reflux for 7 h. The excess solvent was removed by distillation under reduced pressure and the residue was left to cool. The precipitated solid product was collected by filtration, washed with EtOH, dried, and finally recrystallized from DMF/EtOH to afford the corresponding pyrazolo[1,5-a]pyrimidines 8ah.
Method C (for compounds 8ah only): Compound 11 (0.001 mol) was reacted with the appropriate arylazodiaminopyrazoles 7ah (0.001 mol) in 20 mL glacial acetic acid under reflux for 7 h. The reaction mixture was left to cool and the precipitated solid product was collected by filtration, washed with EtOH, dried, and finally recrystallized from DMF/EtOH to afford the corresponding pyrazolo[1,5-a]pyrimidines 8ah.

3.6.2. Microwaves Methods

Method A: A mixture of Enaminone 6 or enaminone 12 (0.001 mol) and the appropriate arylazodiaminopyrazoles 7ah (0.001 mol) in in 20 mL glacial acetic acid were mixed in a HP-500 process vial. The vail was capped properly and was irradiated by microwaves irradiation (800 W power) using pressurized conditions at 110 °C for 15 min. The reaction mixture was left to cool and the precipitated solid product was collected by filtration, washed with EtOH, dried, and finally recrystallized from DMF/EtOH to afford the corresponding pyrazolo[1,5-a]pyrimidines 8ah or 13ah. The physical and spectral data of the synthesized compounds 8ah and 13ah are listed below.
Method B (for compounds 8ah only): A mixture of disulfone derivative 4 (0.4 g, 0.001 mol) and an equivalent molar ratio of the appropriate arylazodiaminopyrazoles 7ah in triethylorthoformate (20 mL), was mixed in a HP-500 process vial. The vail was capped properly and was irradiated by microwaves irradiation (800 W power) using pressurized conditions at 110 °C for 15 min. The reaction mixture was left to cool and the precipitated solid product was collected by filtration, washed with EtOH, dried, and finally recrystallized from DMF/EtOH to afford the corresponding pyrazolo[1,5-a]pyrimidines 8ah. The physical and spectral data of the synthesized compounds 8ah and 13ah are listed below.
Method C (for compounds 8ah only): A mixture of compound 11 (0.001 mol) and the appropriate arylazodiaminopyrazoles 7ah (0.001 mol) in in 20 mL glacial acetic acid were mixed in a HP-500 process vial. The vail was capped properly and was irradiated by microwaves irradiation (800 W power) using pressurized conditions at 110 °C for 15 min. The reaction mixture was left to cool and the precipitated solid product was collected by filtration, washed with EtOH, dried, and finally recrystallized from DMF/EtOH to afford the corresponding pyrazolo[1,5-a]pyrimidines 8ah.
6-Benzenesulfonyl-7-(4-benzenesulfonyl-phenyl)-3-(4-chloro-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamine (8a)
Yellow solid, mp.: 235–237 °C, IR ύ: 3464, 3362 (NH2), 3100 (sp2-CH), 2900 (sp3-CH), 1616 (C=N) cm−1; 1H NMR (DMSO-d6) δ: 7.17–7.89 (m, 12H, Ar-H and NH2), 7.56 (d, J = 8 Hz, 2H, Ar-H), 7.86 (d, J = 8 Hz, 2H, Ar-H), 7.92 (d, J = 8 Hz, 2H, Ar-H), 8.09 (d, J = 8 Hz, 2H, Ar-H), 9.17 (s, 1H, pyrimidine-H). 13C NMR (DMSO-d6) δ: 115.6, 120.6, 122.1, 123.0, 126.7, 127.0, 127.7, 128.9, 129.1, 129.9, 130.9, 132.3, 133.6, 134.1, 140.1, 140.5, 142.8, 144.9, 147.9, 148.7, 151.4, 153.9. Ms m/z (%) 628 (M+, 16), 557 (14), 521(28), 508 (93), 483 (15), 410 (38), 381 (98), 346 (16), 335 (100), 274 (17), 236 (27), 217 (13). Anal. Calcd. For: C30H21ClN6O4S2 (629.11) C, 57.27; H, 3.36; N, 13.36. Found: C, 57.09; H, 3.16; N, 13.27%.
6-Benzenesulfonyl-7-(4-benzenesulfonyl-phenyl)-3-(3-methyl-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamine (8b)
Pale brown solid, mp.: 233–235 °C, IR ύ: 3459, 3337 (NH2), 3096 (sp2-CH), 2980 (sp3-CH), 1609 (C=N) cm−1; 1H NMR (DMSO-d6) δ: 2.39 (s, 3H, CH3), 7.15–7.80 (m, 16H, Ar-H and NH2), 7.99 (d, J = 9 Hz, 2H, Ar-H), 8.09 (d, J = 9 Hz, 2H, Ar-H), and 9.16 (s, 1H, pyrimidine-H).13C NMR (DMSO-d6) δ: 20.9 (CH3), 115.4, 119.2, 121.5, 121.8, 126.8, 127.0, 127.8, 128.9, 129.1, 130.0, 130.2, 131.0, 132.4, 133.7, 134.2, 138.5, 140.2, 140.6, 142.7, 144.9, 147.8, 148.5, 152.7, and 154.0. Ms m/z (%) 610 (M+ + 2, 13), 608 (M+, 23), 593 (14), 541 (100), 532 (23), 517 (32), 489 (16), 391 (34), 326 (9), 235 (16), 217 (9), 140 (15), 129 (90), 95 (43), and 76 (10). Anal. Calcd. For: C31H24N6O4S2 (608.69) C, 61.17; H, 3.97; N, 13.81. Found: C, 61.03; H, 3.82; N, 13.69%.
6-Benzenesulfonyl-7-(4-benzenesulfonyl-phenyl)-3-(3-chloro-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamine (8c)
Yellow crystals, mp.: 260–262 °C, IR ύ: 3408, 3280 (NH2), 3068 (sp2-CH) 1616 (C=N); 1H NMR (DMSO-d6) δ: 3.57 (s, 2H, NH2), 7.16 (t, J = 7.65 Hz, 2H, Ar-H), 7.30 (d, J = 8.5 Hz, 2H, Ar-H), 7.46 (d, J = 7.65 Hz, 2H, Ar-H), 7.53–7.86 (m, 7H, Ar-H), 7.95 (s, 1H, Ar-H), 7.99 (d, J = 7.65 Hz, 2H, Ar-H), 8.10 (d, J = 7.65 Hz, 2H, Ar-H), and 9.19 (s, 1H, N=CH). 13C NMR (DMSO-d6) δ: 115.8, 120.4, 120.9, 122.4, 126.9, 127.1, 127.9, 128.8, 129.0, 130.0, 130.1, 131.0, 132.4, 133.8, 134.0, 134.3, 140.1, 140.6, 142.8, 145.1, 148.1, 148.8, 153.9, and 154.0. Ms m/z (%) 628 (M+−1, 18), 552 (27), 520 (11), 483 (17), 409 (26), 345 (15), 274 (10), 236 (15), 216 (17), 111 (8), and 72 (100). Anal. Calcd. For: C30H21ClN6O4S2 (629.11) C, 57.27; H, 3.36; N, 13.36. Found: C, 57.08; H, 3.21 N, 13.29%.
6-Benzenesulfonyl-7-(4-benzenesulfonyl-phenyl)-3-(2-chloro-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamine (8d)
Yellow solid, mp.: 250–252 °C, IR ύ:br. 3458 (NH2), 1612 (C=N); 1H NMR (DMSO-d6) 5.40 (s, 2H, NH2), 7.17–7.82 (m, 14H, Ar-H), 7.98 (d, J = 8 Hz, 2H, Ar-H), 8.09 (d, J = 8 Hz, 2H, Ar-H), and 9.22 (s, 1H, pyrimidine-H). 13C NMR (DMSO-d6) δ: 111.9, 116.4, 116.7, 122.7, 126.8, 127.8, 127.1, 127.6, 128.1, 128.9, 130.3, 130.7, 132.2, 132.3, 134.2, 138.0, 139.9, 140.5, 142.8, 145.2, 147.8, 149.0, 153.7, and 156.7. Ms m/z (%) 629 (M+, 32), 579 (100), 552 (49), 519 (17), 504 (35), 489 (15), 412 (7), 346 (34), 275 (8), 141 (6), and 111 (19). Anal. Calcd. For: C30H21ClN6O4S2 (629.11) C, 57.27; H, 3.36; N, 13.36. Found: C, 57.07; H, 3.30; N, 13.15%.
6-Benzenesulfonyl-7-(4-benzenesulfonyl-phenyl)-3-(3-methoxy-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamine (8e)
Dark yellow solid, mp.: 200–202 °C, IR ύ br. 3450 (NH2), 1618 (C=N); 1H NMR (DMSO-d6) δ: 3.57 (s, 3H, OCH3), 5.40 (s, 2H, NH2), 7.56–8.12 (m, 18H, Ar-H), and 9.17 (s, 1H, pyrimidine-H). Ms m/z (%) 624 (M+, 50), 453 (87), 439 (99), 318 (94), and 274 (100). Anal. Calcd.For: C31H24N6O5S2 (624.69) C, 59.60; H, 3.87; N, 13.45. Found: C, 59.46; H, 3.73; N, 13.21%.
6-Benzenesulfonyl-7-(4-benzenesulfonyl-phenyl)-3-phenylazo-pyrazolo[1,5-a]pyrimidin-2-ylamine (8f)
Dark yellow solid, mp.: 270–272 °C, IR ύ: br, 3456 (NH2), 1614 (C=N); 1H NMR (DMSO-d6) δ: 7.15–7.89 (m, 15H, Ar–H), 7.98 (d, J = 8 Hz, 2H, Ar-H), 8.09 (d, J = 8 Hz, 2H, Ar-H), and 9.18 (s, 1H, pyrimidine-H). 13C NMR (DMSO-d6) δ: 115.4, 121.6, 121.9, 126.9, 127.1, 127.9, 129.0, 129.2, 129.6, 130.1, 131.0, 132.5, 133.8, 134.3, 140.2, 140.6, 142.8, 145.0, 147.9, 148.6, 152.7, and 154.0. Ms m/z (%) 594 (M+, 20), 580 (18), 523 (22), 490 (32), 457 (49), 375 (100), 273 (28), 218 (28), 142 (24), and 77 (27). Anal. Calcd. For: C30H22N6O4S2 (594.66) C, 60.59; H, 3.73; N, 14.13. Found: C, 60.46; H, 3.61; N, 14.02%.
6-Benzenesulfonyl-7-(4-benzenesulfonyl-phenyl)-3-(2-nitro-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamine (8g)
Dark red solid, mp.: 285–287 °C, IR ύ: 3446, 3340 (NH2), 1620, 1585 (C=N).; 1H NMR (DMSO-d6) δ: 7.16–8.12 (m, 20H, Ar–H), 9.23 (s, 1H, pyrimidine-H). 13C NMR (DMSO-d6) δ:117.3, 117.4, 120.5, 123.3, 124.4, 126.8, 127.1, 127.8, 128.9, 129.5, 129.9, 130.9, 132.2, 133.6, 133.8, 134.2, 139.9, 140.6, 142.9, 144.6, 145.3, 146.0, 149.4, and 153.6. Ms m/z (%) 639 (M+, 23), 620 (19), 563 (15), 516 (13), 494 (14), 438 (99), 423 (32), 148 (21), 137 (17), 123 (12), 77 (8), and 60 (100). Anal. Calcd. For: C30H21N7O6S2 (639.66) C, 56.33; H, 3.31; N, 15.33. Found: C, 56.18; H, 3.29; N, 15.08%.
6-Benzenesulfonyl-7-(4-benzenesulfonyl-phenyl)-3-(4-methoxy-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamine (8h)
Pale brown solid, mp.: 220–222 °C (EtOH), IR ύ: br. 3450 (NH2), 1616 (C=N); 1H NMR (DMSO-d6) δ: 3.83 (s, 3H, OCH3), 7.05 (d, J = 8 Hz, 2H, Ar-H), 7.14–7.47 (m, 10H, Ar-H), 7.53 (s, 2H, NH2), 7.85 (d, J = 8 Hz, 2H, Ar-H), 7.97 (d, J = 8 Hz, 2H, Ar-H), 8.09 (d, J = 8 Hz, 2H, Ar-H), and 9.13 (s, 1H, pyrimidine-H). 13C NMR (DMSO-d6) δ: 55.5, 114.4, 115.0, 121.4, 123.1, 126.8, 127.0, 127.8, 128.9, 129.9, 130.9, 132.5, 133.6, 134.1, 140.3, 140.6, 142.8, 144.8, 146.8, 147.2, 148.2, 154.2, and 160.6. Ms m/z (%) 624 (M+, 24), 550 (16), 488 (18), 407 (47), 273 (38), 217 (44), 159 (100), 133 (6), and 80 (28). Anal. Calcd. For: C31H24N6O5S2 (624.69) C, 59.60; H, 3.87; N, 13.45. Found: C, 59.42; H, 3.70; N, 13.31%.
7-(4-Benzenesulfonyl-phenyl)-3-(4-chloro-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamine (13a)
Orange crystals, mp.: 280–282 °C (EtOH), IR ύ: 3421, 3298 (NH2), 3099 (sp2-CH), 2900 (sp3-CH), 1616 (C=N) cm−1; 1H NMR (DMSO-d6) δ: 7.30 (d, J = 3.9 Hz, 1H, Pyrimidine-H), 7.52 (d, J = 9 Hz, 2H, Ar-H), 7.68–7.70 (m, 7H, Ar-H and NH2), 7.83 (d, J = 9 Hz, 2H, Ar-H), 8.04–8.25 (m, 4H, Ar-H), 8.63 (d, J = 3.9 Hz, and 1H, Pyrimidine-H). 13C NMR (DMSO-d6) δ: 110.0, 114.9, 122.8, 127.4, 127.7, 129.18, 130.0, 131.0, 132.7, 134.2, 135.2, 140.6, 142.9, 143.5, 147.6, 150.9, 151.7, and 151.9. Ms m/z (%) 488 (M+, 14), 414 (14), 363 (24), 270 (17), 255 (29), 218 (13), 140 (9), 131 (100), 121 (74), 110 (24), and 102 (29). Anal. Calcd. For: C24H17ClN6O2S (488.95) C, 58.95; H, 3.50; N, 17.19. Found: C, 58.76; H, 3.41; N, 17.06%.
7-(4-Benzenesulfonyl-phenyl)-3-m-tolylazo-pyrazolo[1,5-a]pyrimidin-2-ylamine (13b)
Red solid, mp.: 235–237 °C (AcOH), IR ύ: 3421, 3274 (NH2), 3165 (sp2-CH), 2919 (sp3-CH), 1616 (C=N) cm−1; 1H NMR (DMSO-d6) δ: 2.39 (s, 3H, CH3), 7.18 (d, J = 7.65 Hz, 2H, Ar-H), 7.25 (s, 2H, NH2), 7.27 (d, J = 5.1 Hz, 1H, Pyrimidine-H), 7.37 (t, J = 7.65 Hz, 2H, Ar-H), 7.62 (d, J = 7.65 Hz, 1H, Ar-H), 7.64 (s, 1H, Ar-H), 7.69 (t, J = 7.65 Hz, 1H, Ar-H), 7.75 (t, J = 7.65 Hz, 1H, Ar-H), 8.06 (d, J = 7.65 Hz, 1H, Ar-H), 8.18 (d, J = 7.65 Hz, 2H, Ar-H), 8.23 (d, J = 7.65 Hz, 2H, Ar-H), 8.63 (d, J = 5.1 Hz, 1H, Pyrimidine-H). 13C NMR (DMSO-d6) δ: 20.9 (CH3), 109.5, 114.6, 118.9, 120.5, 121.2, 127.3, 127.6, 128.8, 129.3, 129.9, 134.0, 135.2, 138.4, 140.6, 142.9, 143.3, 147.5, 150.6, 151.8, 152.9. Ms m/z (%) 468 (M+, 8), 454 (14), 395 (11), 377 (15), 311 (12), 250 (7), 215 (7), 171 (74), 142 (2), 91 (14), 81 (100). Anal. Calcd. For: C25H20N6O2S (468.53) C, 64.09; H, 4.30; N, 17.94. Found: C, 63.89; H, 4.21; N, 17.85%.
7-(4-Benzenesulfonyl-phenyl)-3-(3-chloro-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamine (13c)
Red crystals, mp.: 245–247 °C (AcOH), IR ύ: 3421, 3274 (NH2), 3067 (sp2-CH), 1616 (C=N) cm−1; 1H NMR (DMSO-d6) δ: 7.26–8.23 (m, 16H, Ar-H and NH2), 8.61 (d, J = 4.5 Hz, 1H, pyrimidine-H).13C NMR (DMSO-d6) δ: 110.0, 115.1, 120.2, 120.3, 127.3, 127.6, 127.8, 129.9, 130.5, 130.9, 133.8, 134.0, 135.1, 140.6, 142.9, 143.4, 147.7, 150.9, 151.9, and 154.2. Ms m/z (%) 488 (M+, 8), 458 (19), 412 (19), 377 (11), 273 (44), 249 (100), 218(7), 161 (14), 143 (37), 111 (59), and 108 (74). Anal. Calcd. For: C24H17ClN6O2S (488.95) C, 58.95; H, 3.50; N, 17.19. Found: C, 58.88; H, 3.41; N, 17.01%.
7-(4-Benzenesulfonyl-phenyl)-3-(2-chloro-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamine (13d)
Orange crystals, mp.: 280–282 °C (AcOH), IR ύ: 3398, 3298 (NH2), 3164 (sp2-CH), 2997 (sp3-CH), 1615 (C=N) cm−1; 1H NMR (DMSO-d6) δ: 7.32 (d, J = 4 Hz, 1H, pyrimidine-H), 7.46 (s, 2H, NH2), 7.67–8.24 (m, 13H, Ar-H), and 8.66 (d, J = 4 Hz, 1H, pyrimidine-H). 13C NMR (DMSO-d6) δ: 110.6, 116.4, 116.43, 127.4, 127.7, 128.0, 129.8, 130.0, 130.3, 131.1, 131.5, 134.2, 135.1, 140.6, 143.0, 143.8, 147.8, 148.2, 151.3, and 151.9. Ms m/z (%) 488 (M+, 8), 452 (13), 411 (100), 378 (28), 364 (20), 272 (30), 254 (17), 213 (25), 111 (26), and 90 (27). Anal. Calcd. For: C24H17ClN6O2S (488.95) C, 58.95; H, 3.50; N, 17.19. Found: C, 58.82; H, 3.34; N, 17.06%.
7-(4-Benzenesulfonyl-phenyl)-3-(3-methoxy-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamine (13e)
Red solid, mp.: 258–260 °C (AcOH), IR ύ: 3437, 3298 (NH2), 3155 (sp2-CH), 2909 (sp3-CH), 1612 (C=N) cm−1; 1H NMR (DMSO-d6) δ: 3.83 (s, 3H, OCH3), 6.94–6.95 (m, 1H, Ar-H), 7.27 (s, 2H, NH2), 7.29 (d, J = 4.5 Hz, 1H, pyrimidine-H), 7.39–7.44 (m, 3H, Ar-H), 7.68 (t, J = 7.65 Hz, 2H, Ar-H), 7.74 (t, J = 6.8 Hz, 1H, Ar-H), 8.06 (d, J = 7.65 Hz, 2H, Ar-H), 8.18 (d, J = 8.5 Hz, 2H, Ar-H), 8.23 (d, J = 8.5 Hz, 2H, Ar-H), and 8.64 (d, J = 4.5 Hz, 1H, pyrimidine-H). 13C NMR (DMSO-d6) δ: 55.2, 105.5, 109.6, 114.1, 114.6, 114.9, 127.3, 127.6, 129.7, 129.9, 130.9, 134.0, 135.2, 140.6, 142.9, 143.3, 147.5, 150.7, 151.9, 154.2, and 160.0. Ms m/z (%) 484 (M+, 15), 454 (24), 407 (11), 379 (17), 360 (100), 349 (12), 327 (10), 267 (7), 218 (15), 160 (7), 136 (41), and 78(17). Anal. Calcd. For: C25H20N6O3S (484.53) C, 61.97; H, 4.16; N, 17.34. Found: C, 61.76; H, 4.00; N, 17.15%.
7-(4-Benzenesulfonyl-phenyl)-3-phenylazo-pyrazolo[1,5-a]pyrimidin-2-ylamine (13f)
Red solid, mp.: 215–217 °C (AcOH), IR ύ: 3420, 3270 (NH2), 3162 (sp2-CH), 2998 (sp3-CH), 1616 (C=N) cm−1; 1H NMR (DMSO-d6) δ: 7.22–8.24 (m, 17H, Ar-H and NH2), 8.60 (d, J = 4.5 Hz, 1H, pyrimidine-H). 13C NMR (DMSO-d6) δ: 114.7, 121.1, 127.3, 127. 6, 129.0, 129.2, 129.9, 130.9, 131.1, 134.0, 135.1, 140.6, 142.9, 143.3, 147.5, 150.6, 151.8, and 152.9. Ms m/z (%) 454 (M+, 19), 438 (27), 364 (7), 361 (27), 349 (16), 313 (14), 237 (10), 217 (14), 208 (27), and 106 (100). Anal. Calcd. For: C24H18N6O2S (454.50) C, 63.42; H, 3.99; N, 18.49. Found: C, 63.32; H, 3.88; N, 18.32%.
7-(4-Benzenesulfonyl-phenyl)-3-(2-nitro-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamineylamine (13g)
Red solid, mp.: 265–267 °C (AcOH), IR ύ: 3410, 3294 (NH2), 3165 (sp2-CH), 2900 (sp3-CH), 1617 (C=N) cm−1; 1H NMR (DMSO-d6) δ: 7.46 (d, J = 4.5 Hz, 1H, pyrimidine-H), 7.60 (t, J = 7 Hz, 1H, Ar-H), 7.73–7.83 (m, 6H, Ar-H and NH2), 7.95 (dd, J = 8, 1.7Hz, 1H, Ar-H), 8.05 (dd, J = 8, 1.7Hz, 1H, Ar-H), 8.11 (dd, J = 8, 1.7Hz, 2H, Ar-H), 8.24 (d, J = 8.5 Hz, 2H, Ar-H), 8.27 (d, J = 8.5 Hz, 2H, Ar-H), and 8.76 (d, J = 4.5 Hz, 1H, pyrimidine-H). Ms m/z (%) 499 (M+, 58), 453 (11), 422 (28), 378 (27), 362 (5), 218 (6), 208 (100), 151(11), 142 (5), 122 (10), and 77 (30). Anal. Calcd. For: C24H17N7O4S (499.50) C, 57.71; H, 3.43; N, 19.63. Found: C, 57.56; H, 3.40; N, 19.52%.
7-(4-Benzenesulfonyl-phenyl)-3-(4-methoxy-phenylazo)-pyrazolo[1,5-a]pyrimidin-2-ylamine (13h)
Red, yield (94%), mp.: 255–257 °C (AcOH), IR ύ: 3447, 3337 (NH2), 3066 (sp2-CH), 2900 (sp3-CH), 1611 (C=N) cm−1; 1H NMR (DMSO-d6) δ: 3.83 (s, 3H, OCH3), 7.06 (d, J = 8.5 Hz, 2H, Ar-H), 7.17 (s, 2H, NH2), 7.24 (d, J = 5.1 Hz, 1H, pyrimidine-H), 7.68 (t, J = 7.65 Hz, 2H, Ar-H), 7.74 (t, J = 7.65 Hz, 1H, Ar-H), 7.81 (d, J = 8.5 Hz, 2H, Ar-H), 8.06 (d, J = 8.5 Hz, 2H, Ar-H), 8.18 (d, J = 8.5 Hz, 2H, Ar-H), 8.23 (d, J = 8.5 Hz, 2H, Ar-H), and 8.61(d, J = 4.5 Hz, 1H, pyrimidine-H). 13C NMR (DMSO-d6) δ: 55.4, 109.1, 114.1, 114.3, 122.6, 127.3, 127.6, 129.9, 130.8, 134.0, 135.3, 140.6, 142.9, 143.2, 147.1, 147.2, 150.4, 151.9, 159.9. Ms m/z (%) 484 (M+, 22), 454 (16), 406 (23), 377 (24), 351 (90), 327 (22), 251 (50), 134(5), 124 (43), 105 (19), and 58 (100). Anal. Calcd. For: C25H20N6O3S (484.53) C, 61.97; H, 4.16; N, 17.34. Found: C, 61.78; H, 4.03; N, 17.25%.

3.7. Biological Methods

Antimicrobial Activity Test

The antimicrobial activity of the synthesized compounds have been determined using the agar diffusion well method which is a suitable for such biological activity measurement. Culture collection of the Regional Center for Mycology and Biotechnology (RCMB), Al-Azhar University, Cairo, Egypt provided all strains in this study. For fungi, the microbes’ inoculums were spread using sterile cotton swab with uniform manner on a sterile petri dish malt extract agar. In case of bacteria, the microbes’ inoculums were spread on the nutrient agar. 100 μL of a given sample was added to each well which is ten mm diameter holes cut in the agar gel, twenty mm apart from each other). All systems prepared were incubated for 1–2 days at 37 °C for antibacterial activity measurements and at a temperature of 28 °C for antifungal measurements. The microorganism’s growth was observed after the latter incubation. The inhibition zone of the bacterial and fungal growth have been measured as IZD in millimeter. Finally, all the mentioned tests were performed in triplicate for all compounds.
In case of estimation the MIC of the examined samples, micro-dilution test was performed in 96-well plates. Two-fold dilutions of each sample were prepared in the test wells, the final drug concentrations being (125–0.004) µg/mL, control wells were prepared with culture medium only and microbial suspension only. The plates were sealed and incubated for 24 h at 37 °C for bacteria and for 48 h at 28 °C for fungi, after each incubation time, MIC was detected as the lowest sample concentration that prevented microbial growth. Each MIC was determined three times.

4. Conclusions

In conclusion, we have synthesized new series of pyrazolo[1,5-a]pyrimidine derivatives incorporated phenylsulfonyl and arylazo moieties using a simple methodology. The synthetic methodology included the use of conventional heating and microwaves irradiation under pressurized conditions in a safe manner. The antimicrobial activities of novel compounds are evaluated and three compounds 13c, 13d, and 13g demonstrated the highest antibacterial activity against all Gram-positive and -negative bacteria. Other sulfone derivatives showed fair to low antibacterial and antifungal activities. In general, derivatives containing one phenylsulfonyl group are more effective against all most antibacterial and antifungal species used than that contain two phenylsulfonyl groups.

Author Contributions

M.R.S. Conceived and designed the experiments, analyzed and interpreted the data, contributed reagents and materials, and wrote the paper. T.A.F. Conceived and designed the experiments, analyzed and interpreted the data, and wrote the paper. A.M.R.A. Performed the experiments, analyzed, and interpreted the data.

Funding

All authors would like to thank Deanship of Scientific Research at Umm Al-Qura University for supporting this work (Project code: 18-SCI-5-06-0005).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Novinson, T.; Bhooshan, B.; Okabe, T.; Revankar, G.R.; Robins, R.K.; Senga, K.; Wilson, H.R. Novel heterocyclic nitrofurfural hydrazones. In vivo antitrypanosomal activity. J. Med. Chem. 1976, 19, 512–516. [Google Scholar] [CrossRef]
  2. Fraley, M.E.; Rubino, R.S.; Hoffman, W.F.; Hambaugh, S.R.; Arrington, K.L.; Hungate, R.W.; Bilodeau, M.T.; Tebben, A.J.; Rutledge, R.Z.; Kendall, R.L.; et al. Optimization of a pyrazolo [1,5-a]pyrimidine class of KDR kinase inhibitors: Improvements in physical properties enhance cellular activity and pharmacokinetics. Bioorg. Med. Chem. Lett. 2002, 12, 3537–3541. [Google Scholar] [CrossRef]
  3. Selleri, S.; Bruni, F.; Costagli, C.; Costanzo, A.; Guerrini, G.; Ciciani, G.; Gratteri, P.; Besnard, F.; Costa, B.; Montali, M.; et al. A novel selective GABAA a1 receptor agonist displaying sedative and anxiolytic-like properties in rodents. J. Med. Chem. 2005, 48, 6756–6760. [Google Scholar] [CrossRef]
  4. Selleri, S.; Bruni, F.; Costagli, C.; Costanzo, A.; Guerrini, G.; Ciciani, G.; Costa, B.; Martini, C. 2-Arylpyrazolo[1,5-a]pyrimidin-3-yl acetamides. New potent and selective peripheral benzodiazepine receptor ligands. Bioorg. Med. Chem. 2001, 9, 2661–2671. [Google Scholar] [CrossRef]
  5. Novinson, T.; Hanson, R.; Dimmitt, M.K.; Simon, L.N.; Robins, R.K.; O’Brien, D.E. 3-Substituted 5,7-dimethylpyrazolo[1,5-a]pyrimidines, 3′5′-cyclic AMP phosphor-diesterase inhibitors. J. Med. Chem. 1974, 17, 645–648. [Google Scholar] [CrossRef] [PubMed]
  6. Suzuki, M.; Iwasaki, H.; Fujikawa, Y.; Sakashita, M.; Kitahara, M.; Sakoda, R. Synthesis and biological evaluations of condensed pyridine and condensed pyrimidine-based HMG-CoA reductase inhibitors. Bioorg. Med. Chem. Lett. 2001, 11, 1285–1288. [Google Scholar] [CrossRef]
  7. Almansa, C.; De Arriba, A.F.; Cavalcanti, F.L.; Gomez, L.A.; Miralles, A.; Merlos, M.; Garcia-Rafanell, J.; Forn, J. Synthesis and SAR of a new series of COX-2-selective inhibitors: Pyrazolo[1,5-a]pyrimidines. J. Med. Chem. 2001, 44, 350–361. [Google Scholar] [CrossRef]
  8. Hwang, J.Y.; Windisch, M.P.; Jo, S.; Kim, K.; Kong, S.; Kim, H.C.; Kim, S.; Kim, H.; Lee, M.E.; Kim, Y.; et al. Discovery and characterization of a novel 7-aminopyrazolo[1,5-a]pyrimidine analog as a potent hepatitis C virus inhibitor. Bioorg. Med. Chem. Lett. 2012, 22, 7297–7301. [Google Scholar] [CrossRef] [PubMed]
  9. Ivachtchenko, A.V.; Dmitriev, D.E.; Golovina, E.S.; Kadieva, M.G.; Koryakova, A.G.; Kysil, V.M.; Mitkin, O.D.; Okun, I.M.; Tkachenko, S.E.; Vorobiev, A.A. (3-Phenylsulfonylcycloalkano[e and d]pyrazolo[1,5-a]pyrimidin-2-yl)amines: Potent and selective antagonists of the serotonin 5-HT6 receptor. J. Med. Chem. 2010, 53, 5186–5196. [Google Scholar] [CrossRef] [PubMed]
  10. Xu, J.; Liu, H.; Li, G.; He, Y.; Ding, R.; Wang, X.; Feng, M.; Zhang, S.; Chen, Y.; Li, S.; et al. Synthesis and biological evaluation of 7-(2-chlorophenyl- amino)-5-((2-[18F]fluoro-ethyoxy)methyl)pyrazolo[1,5-a]pyrimidine-3-carbonitrile as PET tumor imaging agent. Z. Naturforsch. B. Chem. Sci. 2012, 67, 827–834. [Google Scholar] [CrossRef]
  11. Hanan, E.J.; Abbema, A.V.; Barrett, K.; Blair, W.S.; Blaney, J.; Chang, C.; Eigenbrot, C.; Flynn, S.; Gibbons, P.; Hurley, C.A.; et al. Discovery of potent and selective pyrazolopyrimidine Janus kinase 2 inhibitors. J. Med. Chem. 2012, 55, 10090–10107. [Google Scholar] [CrossRef] [PubMed]
  12. Saito, T.; Obitsu, T.; Kondo, T.; Matsui, T.; Nagao, Y.; Kusumi, K.; Matsumura, N.; Ueno, S.; Kishi, A.; Katsumata, S.; et al. 6,7-Dihydro-5H-cyclopenta[d]pyrazolo[1,5-a]pyrimidines and their derivatives as novel corticotropin-releasing factor 1 receptor antagonists. Bioorg. Med. Chem. 2011, 19, 5432–5445. [Google Scholar] [CrossRef] [PubMed]
  13. Tian, Y.; Du, D.; Rai, D.; Wang, L.; Liu, H.; Zhan, P.; Clercq, C.; Pannecouque, E.D.; Liu, X. Fused heterocyclic compounds bearing bridgehead nitrogen as potent HIV-1 NNRTIs. Part 1: Design, synthesis and biological evaluation of novel 5,7-disubstituted pyrazolo[1,5-a]pyrimidine derivatives. Bioorg. Med. Chem. 2014, 22, 2052–2059. [Google Scholar] [CrossRef] [PubMed]
  14. Ishak, C.Y.; Metwally, N.H.; Wahbi, H.I. In vitro antimicrobial and antifungal activity of pyrimidine and pyrazolo[1,5-a]pyrimidine. Int. J. Pharm. Phytopharm. Res. 2013, 2, 407–411. [Google Scholar]
  15. Cherukupalli, S.; Karpoormath, R.; Chandrasekaran, B.; Hampannavar, G.A.; Thapliyal, N.; Palakollu, V.N. An insight on synthetic and medicinal aspects of pyrazolo[1,5-a] pyrimidine scaffold. Eur. J. Med. Chem. 2017, 126, 298–352. [Google Scholar] [CrossRef]
  16. Teall, M.; Oakley, P.; Harrison, T.; Shaw, D.; Kay, E.; Elliott, J.; Gerhard, U.; Castro, J.L.; Shearman, M.; Ball, R.G.; et al. Aryl sulfones: A new class of γ-secretase inhibitors. Bioorg. Med. Chem. Lett. 2005, 15, 2685–2688. [Google Scholar] [CrossRef]
  17. Tfelt-Hansen, P.; De Vries, P.; Saxena, P.R. Triptans in migraine: A comparative review of pharmacology, pharmacokinetics and efficacy. Drugs 2000, 60, 1259–1287. [Google Scholar] [CrossRef]
  18. Chung, K.-T. Azo dyes and human health: A review. J. Environ. Sci. Health C Environ. Carcinog. Ecotoxicol. Rev. 2016, 34, 233–261. [Google Scholar] [CrossRef]
  19. Walker, R. Metabolism of azo group: A review of literature. Food Cosmet. Toxicol. 1970, 8, 659–676. [Google Scholar] [CrossRef]
  20. Moanta, A.; Radu, S. Spectroscopic analysis and antimicrobial activity of some 4-phenylazo-phenoxyacetic acids. Rev. Roum. Chem. 2009, 54, 151–156. [Google Scholar]
  21. Garjani, A.; Davaran, S.; Rashidi, M.; Malek, N. Protective effects of some azo derivatives of 5-aminosalicylic acid and their pegylated prodrugs on acetic acid-induced rat colitis. DARU J. Pharm. Sci. 2004, 12, 24–30. [Google Scholar]
  22. Concilio, S.; Sessa, L.; Petrone, A.M.; Porta, A.; Diana, R.; Iannelli, P.; Piotto, S. Structure Modification of an Active Azo-Compound as a Route to New Antimicrobial Compounds. Molecules 2017, 22, 875. [Google Scholar] [CrossRef] [PubMed]
  23. Sessa, L.; Concilio, S.; Iannelli, P.; De Santis, F.; Porta, A.; Piotto, S. Antimicrobial azobenzene compounds and their potential use in biomaterials. AIP Conf. Proc. 2016, 1727, 020018. [Google Scholar] [Green Version]
  24. Viegas-Junior, C.; Danuello, A.; Bolzani, V.S.; Barreiro, E.J.; Fraga, C.A.M. Molecular Hybridization: A Useful Tool in the Design of New Drug Prototypes. Curr. Med. Chem. 2007, 14, 1829–1852. [Google Scholar] [CrossRef]
  25. Amin, M.M.; Shaaban, M.R.; Al-Qurashi, N.T.; Mahmoud, H.K.; Farghaly, T.A. Indomethacin Analogs: Synthesis, Anti-inflammatory and Analgesic Activities of Indoline Derivatives. Mini-Rev. Med. Chem. 2018, 18, 1409–1421. [Google Scholar] [CrossRef]
  26. Farghaly, T.A.; Abdallah, M.A.; Masaret, G.S.; Muhammad, Z.A. New and efficient approach for synthesis of novel bioactive [1,3,4]thiadiazoles incorporated with 1,3-thiazole moiety. Eur. J. Med. Chem. 2015, 320–333. [Google Scholar] [CrossRef]
  27. Althagafi, I.I.; Abouzied, A.S.; Farghaly, T.A.; Al-Qurashi, N.T.; Alfaifi, M.Y.; Shaaban, M.R.; Abdel Azizd, M.R. Novel Nano-sized bis-indoline Derivatives as Antitumor Agents. J. Heterocycl. Chem. 2019, 56, 391–399. [Google Scholar] [CrossRef]
  28. Salem, M.E.; Darweesh, A.F.; Shaaban, M.R.; Elwahy, A.H.M. Synthesis of novel bis- and poly(hydrazinylthiazole) linked to benzofuran or benzothiazole as new hybrid molecules. Arkivoc 2019, v, 73–88. [Google Scholar] [CrossRef]
  29. Alsharekh, M.M.; Althagafi, I.I.; Shaaban, M.R.; Farghaly, T.A. Microwave assisted and thermal synthesis of nanosized thiazolyl-phenothiazine derivatives and their biological activities. Res. Chem. Inter. 2019, 45, 127–154. [Google Scholar] [CrossRef]
  30. Shaaban, M.R.; Saleh, T.S.; Farag, A.M. Synthesis and antimicrobial evaluation of novel pyrazolo [1,5-a] pyrimidine, triazolo[1,5-a] pyrimidineand pyrimido [1,2-a] benzimidazole derivatives. Heterocycles 2007, 71, 1765–1777. [Google Scholar]
  31. Shaaban, M.R.; Saleh, T.S.; Mayhoub, A.S.; Mansour, A.; Farag, A.M. Synthesis and analgesic/anti-inflammatory evaluation of fused heterocyclic ring systems incorporating phenylsulfonyl moiety. Bioorg. Med. Chem. 2008, 16, 6344–6452. [Google Scholar] [CrossRef] [PubMed]
  32. Farghaly, T.A.; Abdel Hafez, N.A.; Ragab, E.A.; Awad, H.M.; Abdalla, M.M. Synthesis, anti-HCV, antioxidant, and peroxynitrite inhibitory activity of fused benzosuberone derivatives. Eur. J. Med. Chem. 2010, 45, 492–500. [Google Scholar] [CrossRef] [PubMed]
  33. Bennett, P.; Donnelly, J.A.; Meaney, D.C.; Boyle, P.O. Stereochemistry of cyclopropyl ketones from the reaction of dimethylsulphoxonium methylide with 3-benzylidenechroman-4-ones. J. Chem. Soc. Perkin Trans. I 1972, 1554–1559. [Google Scholar] [CrossRef]
  34. Dawood, D.H.; Abbas, E.M.H.; Farghaly, T.A.; Ali, M.M.; Ibrahim, M.F. ZnO Nanoparticles catalyst in Synthesis of Bioactive Fused Pyrimidines as Anti-breast Cancer Agents Targeting VEGFR-2. Med. Chem. 2019, 15, 277–286. [Google Scholar] [CrossRef]
  35. Shaaban, M.R.; Saleh, T.S.; Mayhoube, A.S.; Farag, A.M. Single step synthesis of new fused pyrimidine derivatives and their evaluation as potent Aurora-A kinase inhibitors. Eur. J. Med. Chem. 2011, 46, 3690–3695. [Google Scholar] [CrossRef]
  36. Selleri, S.; Bruni, F.; Costagli, C.; Costanzo, A.; Guerrini, G.; Ciciani, G.; Costa, B.; Martini, C. Synthesis and BZR Affnity of Pyrazolo[1,5-a]pyrimidine Derivatives. Part 1: Study of the Structural Features for BZR Recognition. Bioorg. Med. Chem. 1999, 7, 2705–2711. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds 8ah and 13ah are available from the authors.

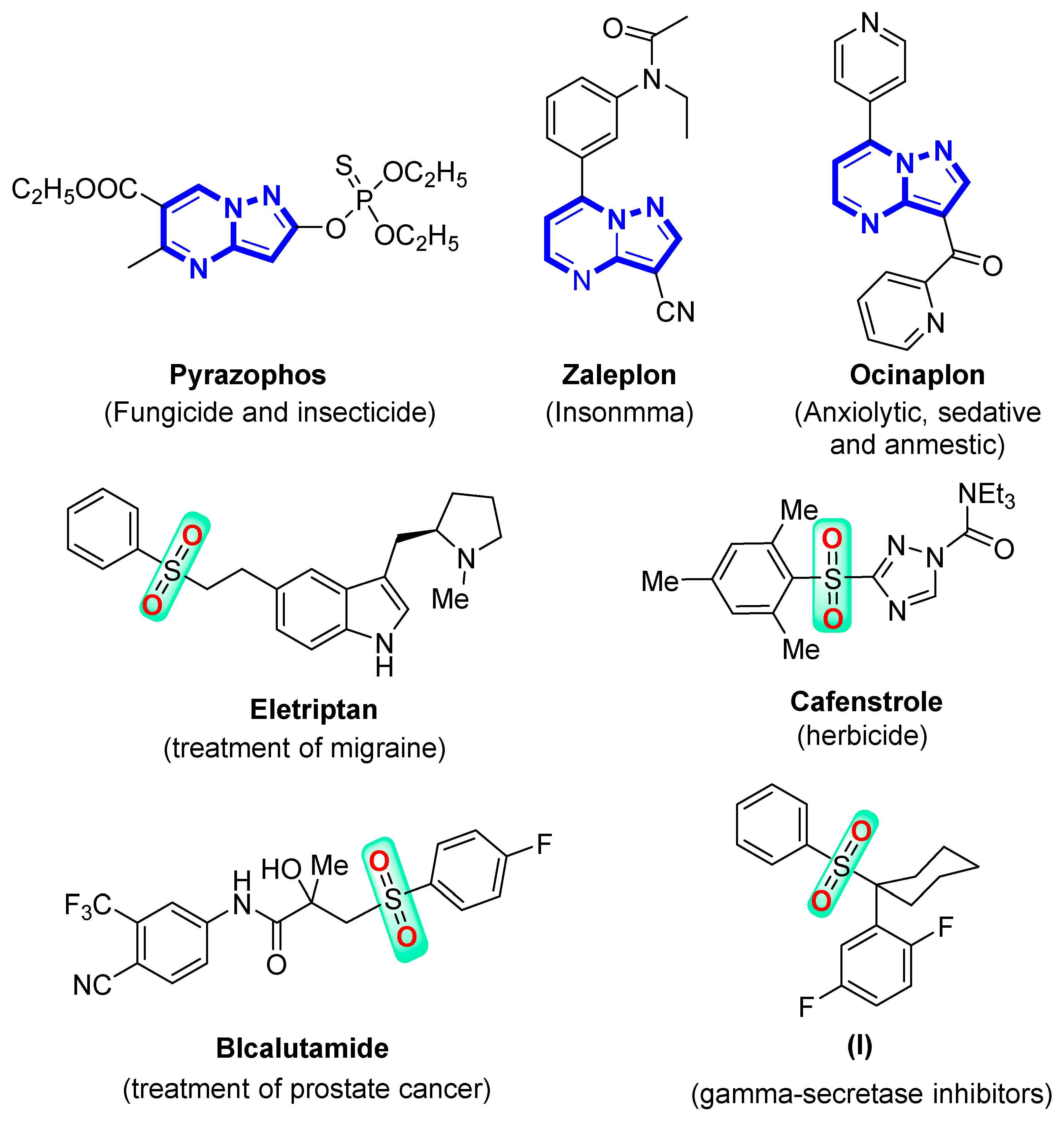

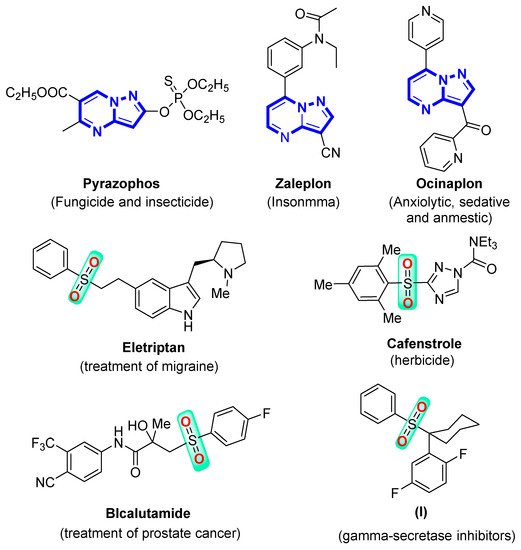

Figure 1. Biological activity of some pyrazolopyrimidines and drugs having benzenesulfone moiety.
Figure 1. Biological activity of some pyrazolopyrimidines and drugs having benzenesulfone moiety.
Molecules 24 04009 g001

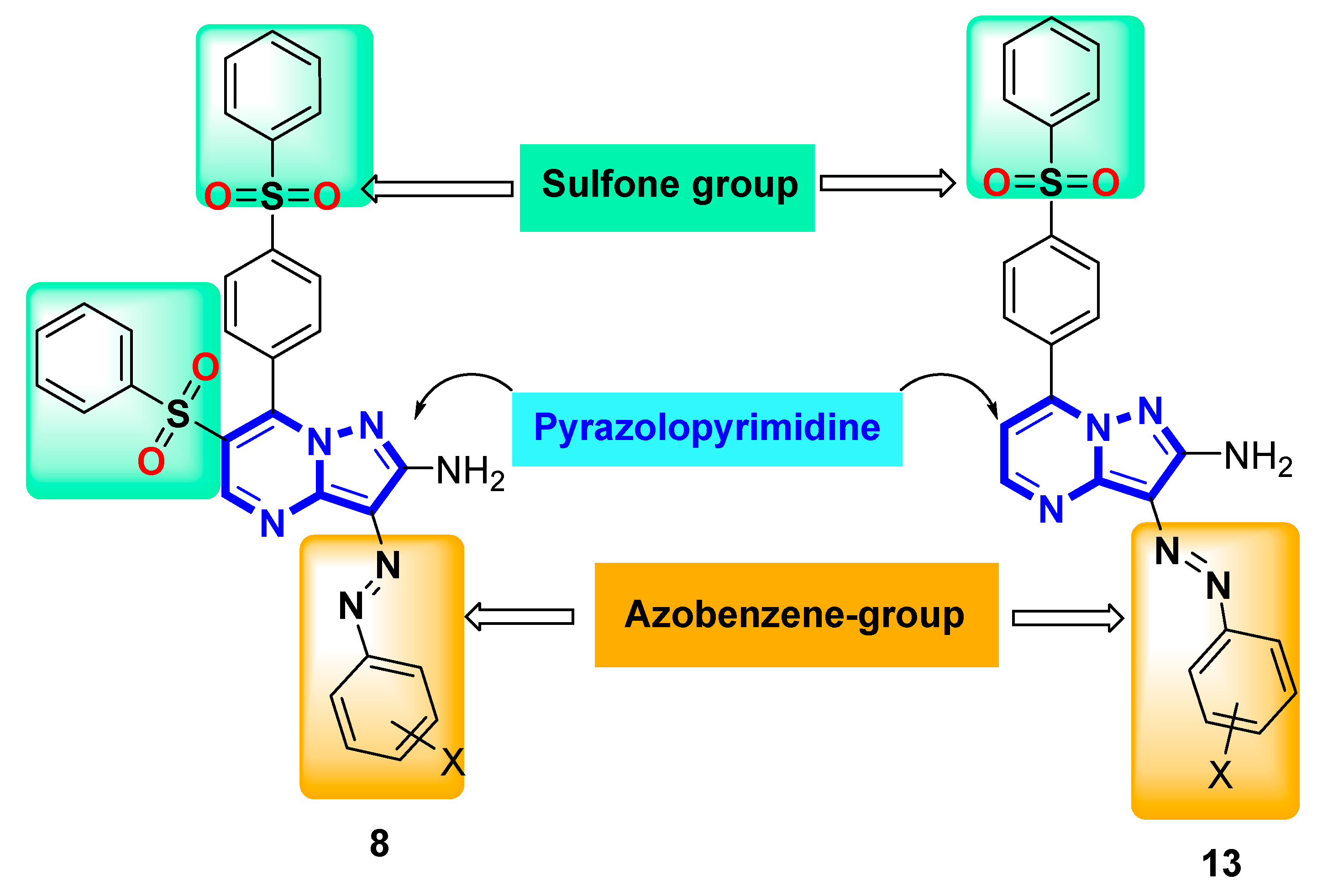

Figure 2. The structure of the new pyrazolopyrimidines 8 and 13.
Figure 2. The structure of the new pyrazolopyrimidines 8 and 13.
Molecules 24 04009 g002

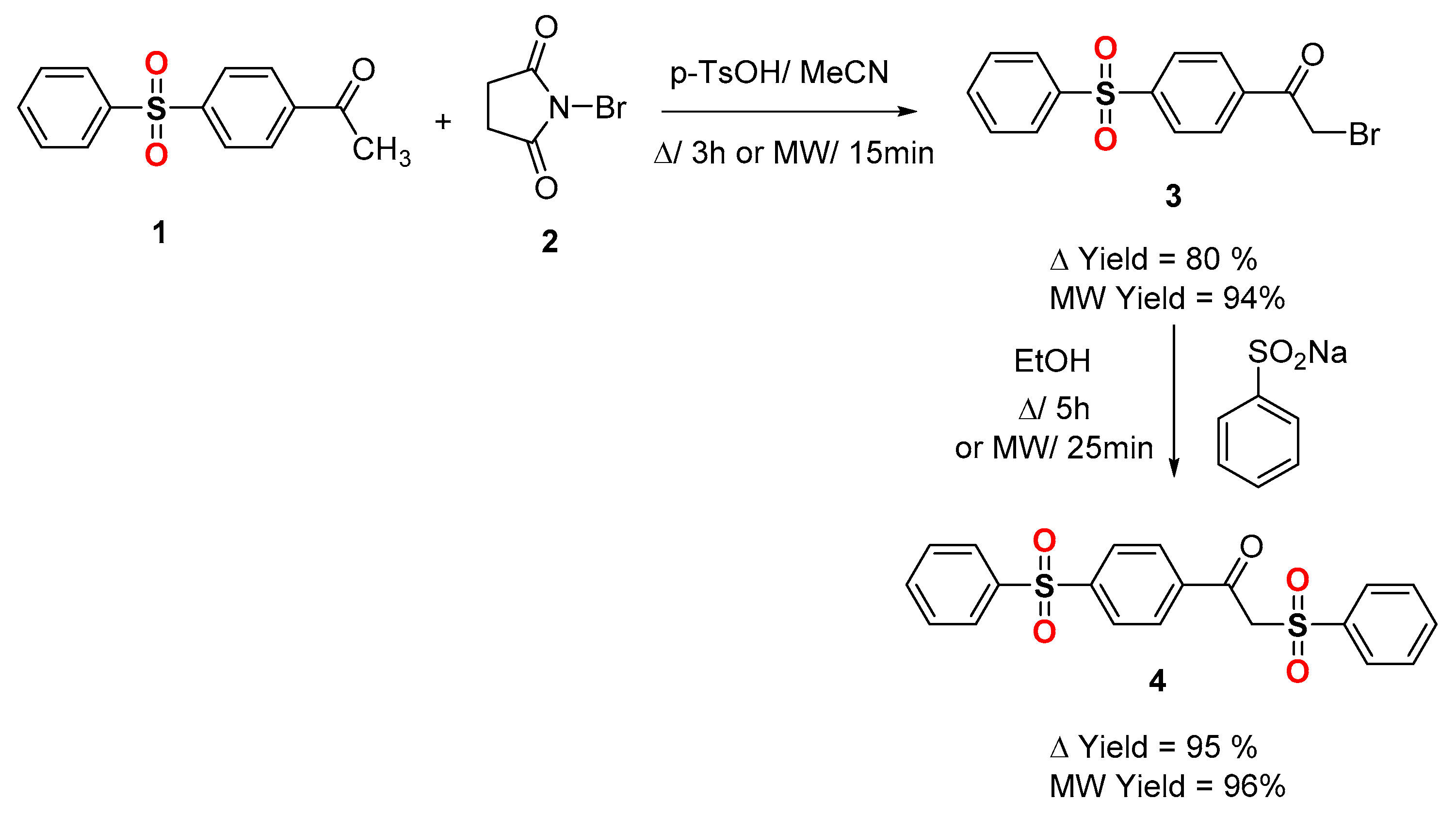

Scheme 1. Synthesis of compound 4.
Scheme 1. Synthesis of compound 4.
Molecules 24 04009 sch001

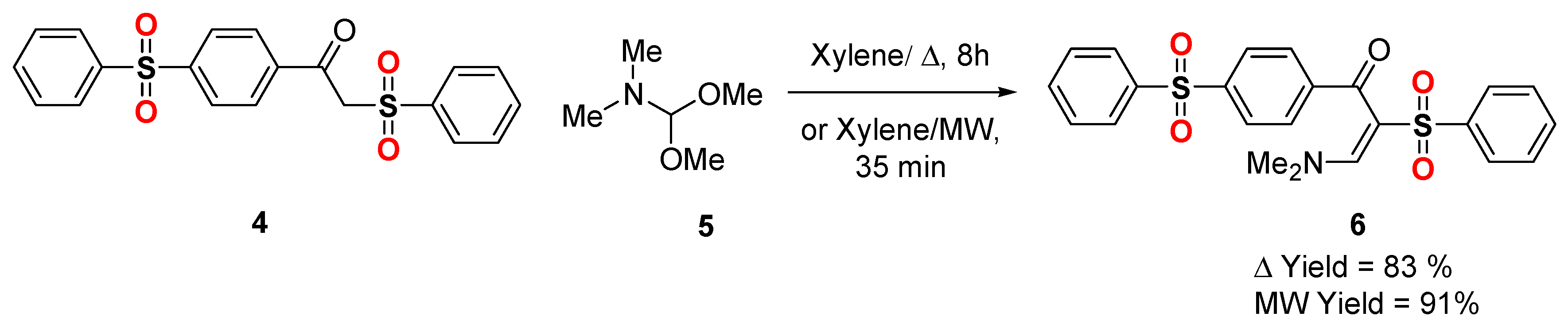

Scheme 2. Synthesis of enaminosulfone 6.
Scheme 2. Synthesis of enaminosulfone 6.
Molecules 24 04009 sch002

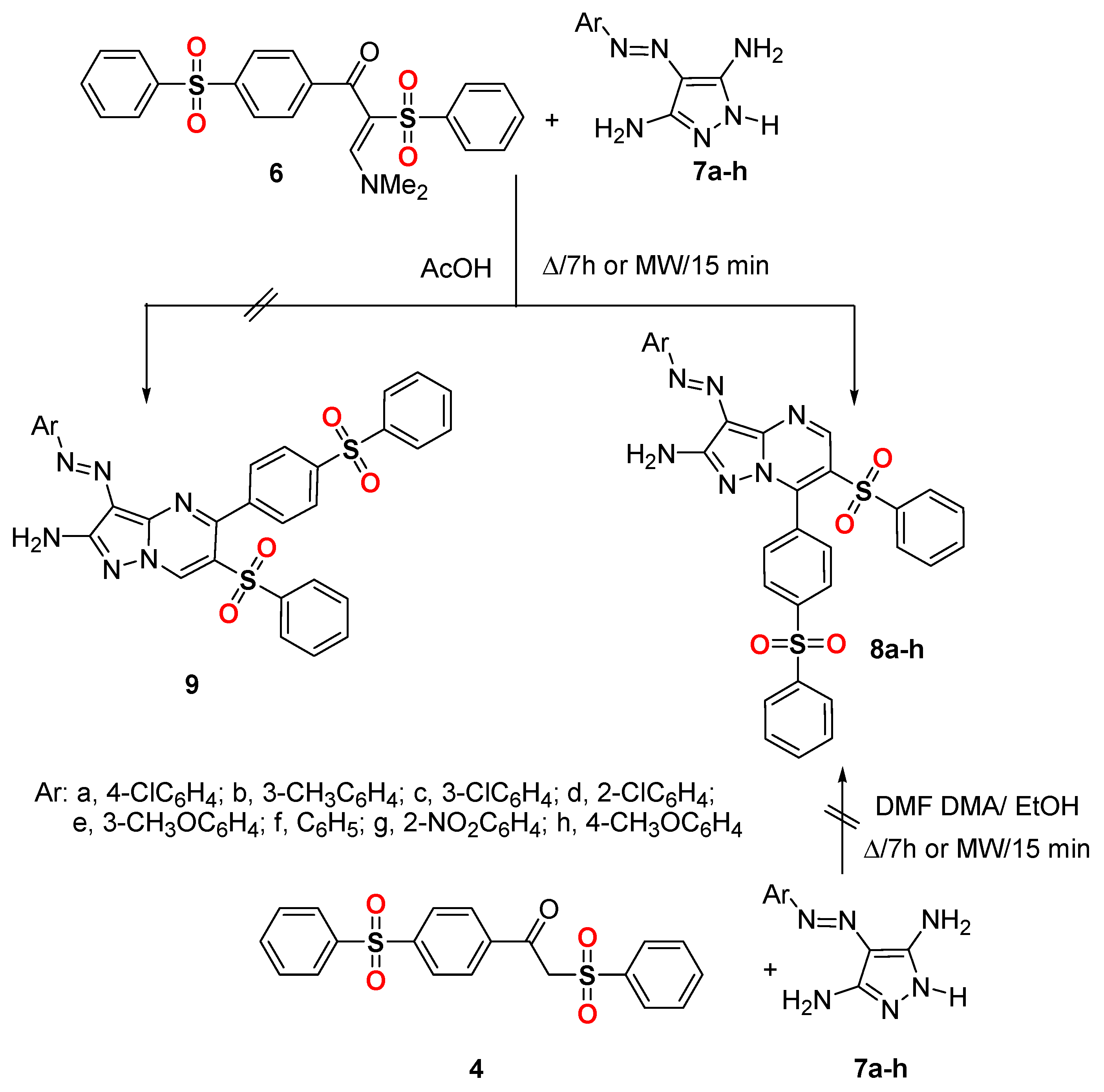

Scheme 3. Synthesis of pyrazolopyrimidines 8ah.
Scheme 3. Synthesis of pyrazolopyrimidines 8ah.
Molecules 24 04009 sch003

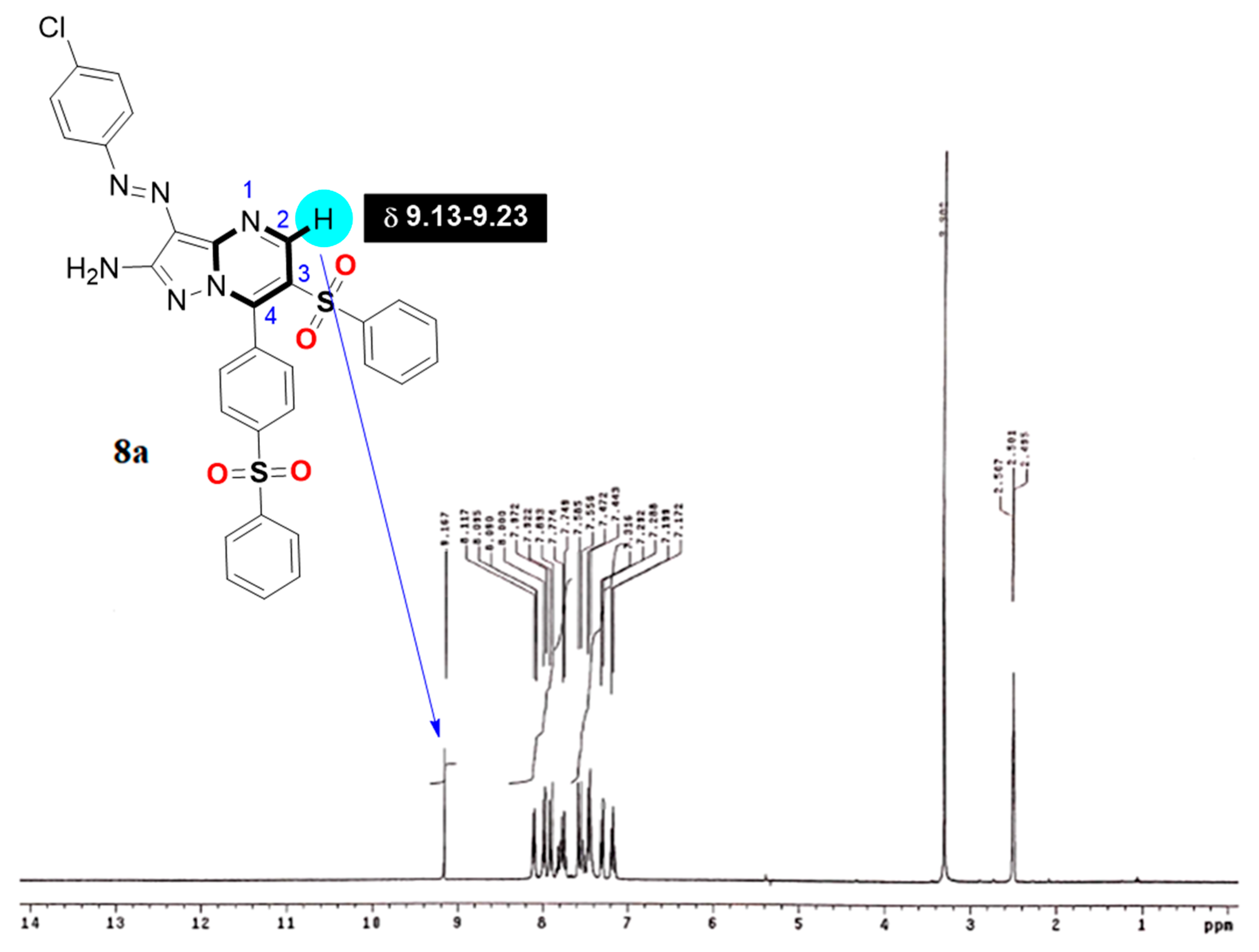

Figure 3. 1H NMR of compound 8a.
Figure 3. 1H NMR of compound 8a.
Molecules 24 04009 g003

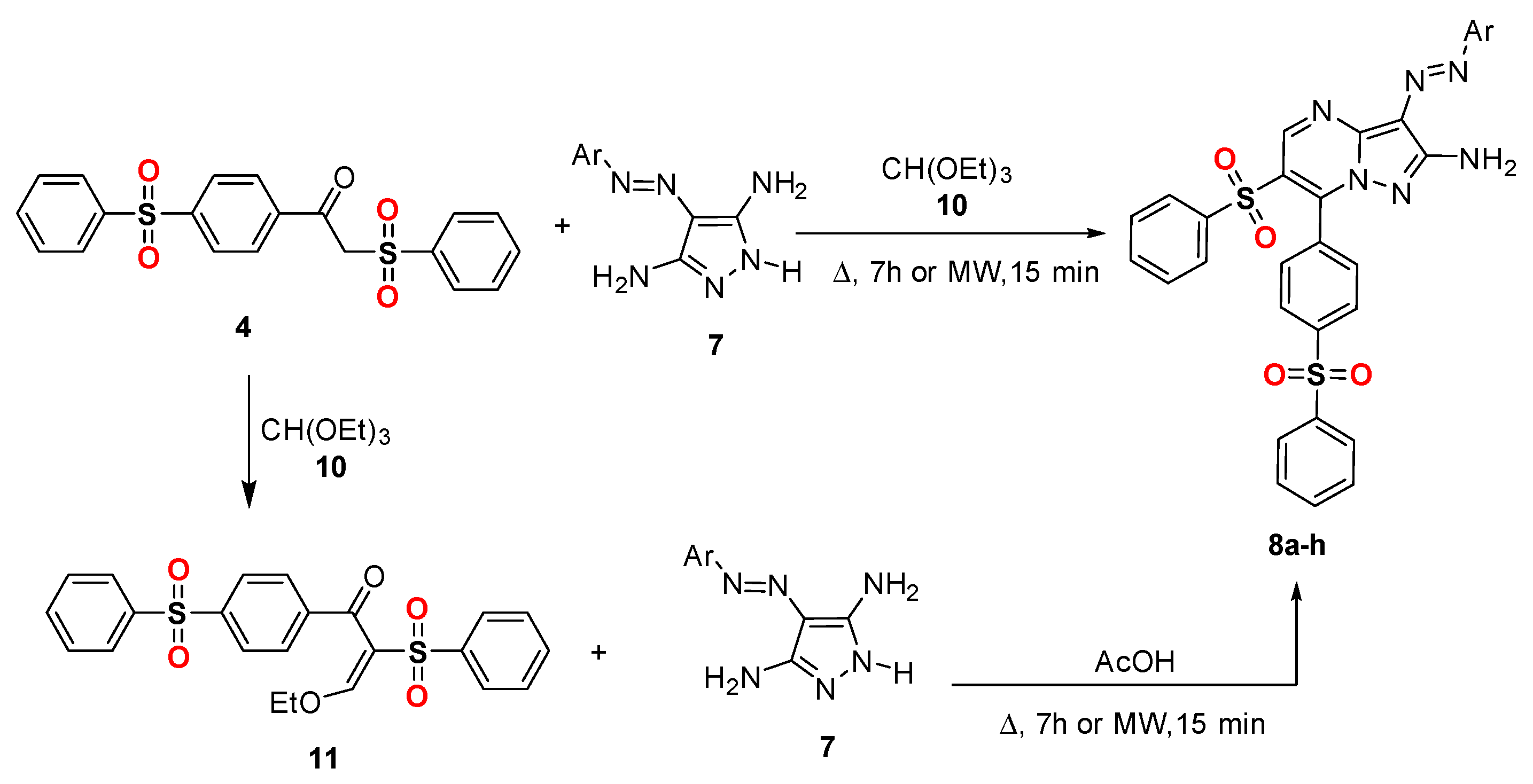

Scheme 4. Alternative synthesis of pyrazolopyrimidines 8ah.
Scheme 4. Alternative synthesis of pyrazolopyrimidines 8ah.
Molecules 24 04009 sch004

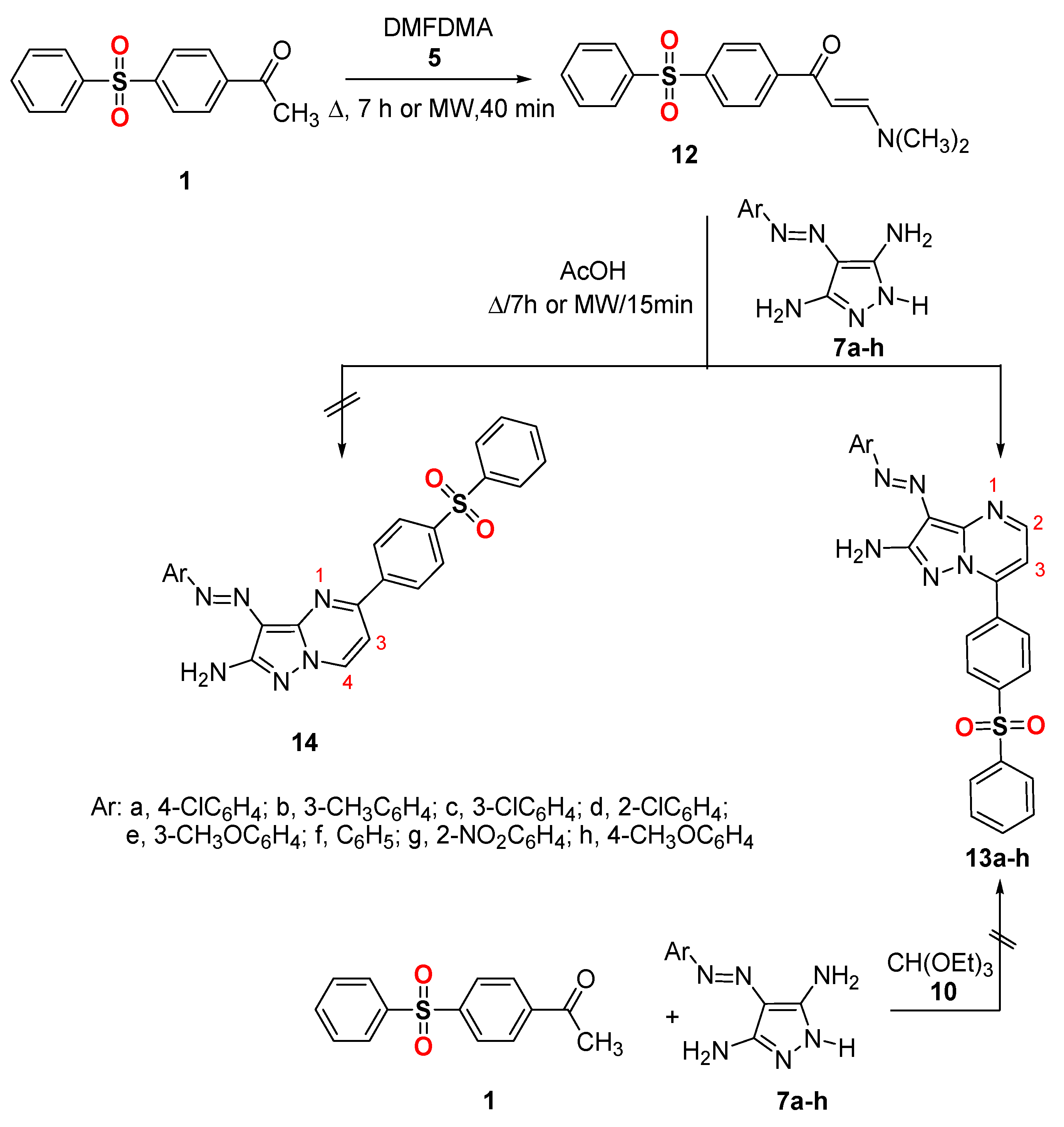

Scheme 5. Synthesis of compounds 13ah.
Scheme 5. Synthesis of compounds 13ah.
Molecules 24 04009 sch005

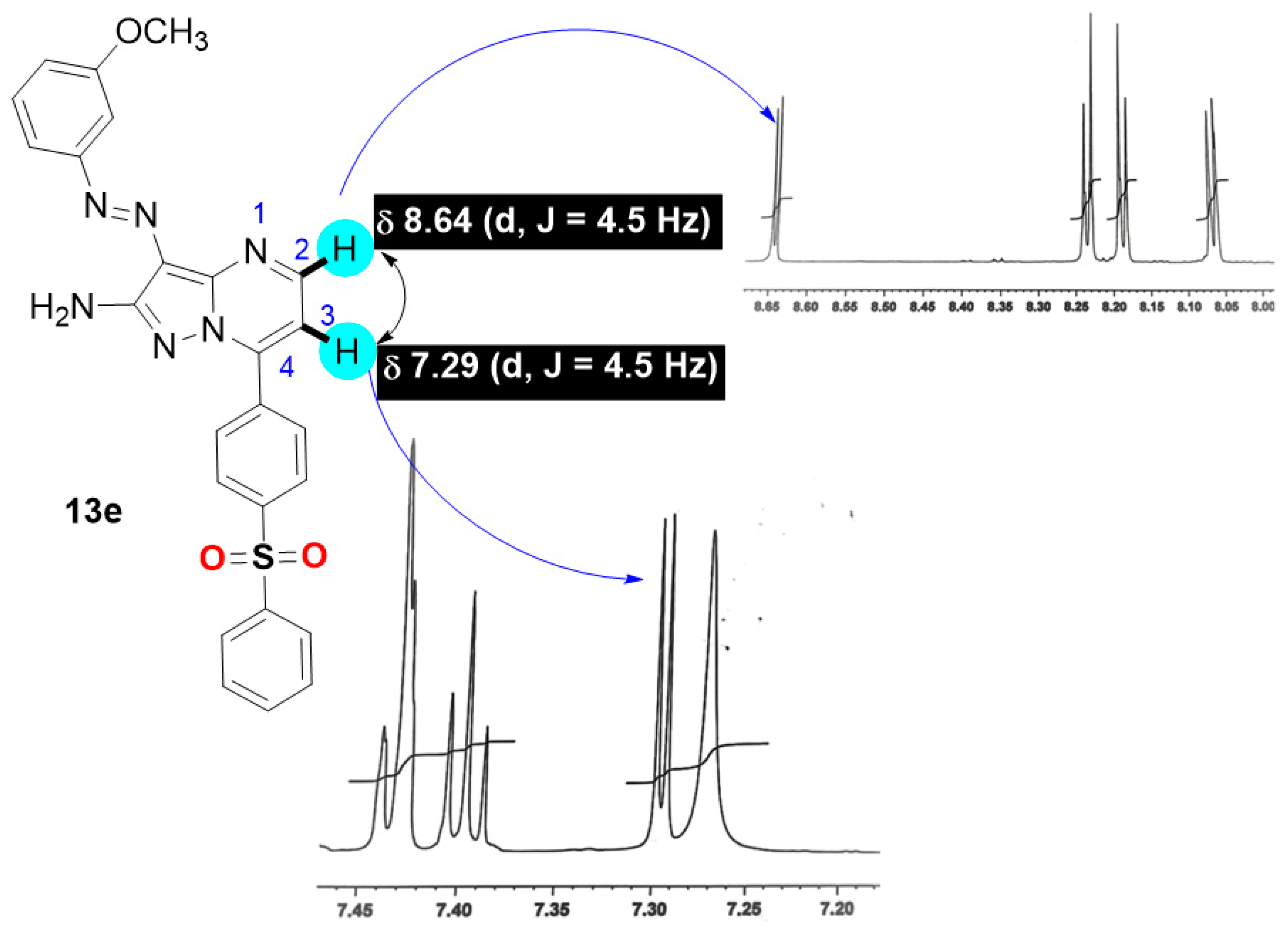

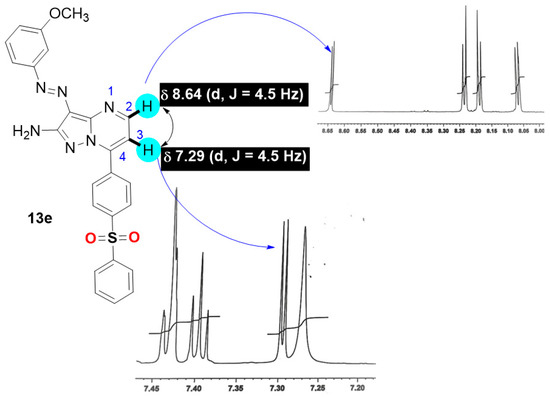

Figure 4. 1H NMR of compound 13e.
Figure 4. 1H NMR of compound 13e.
Molecules 24 04009 g004

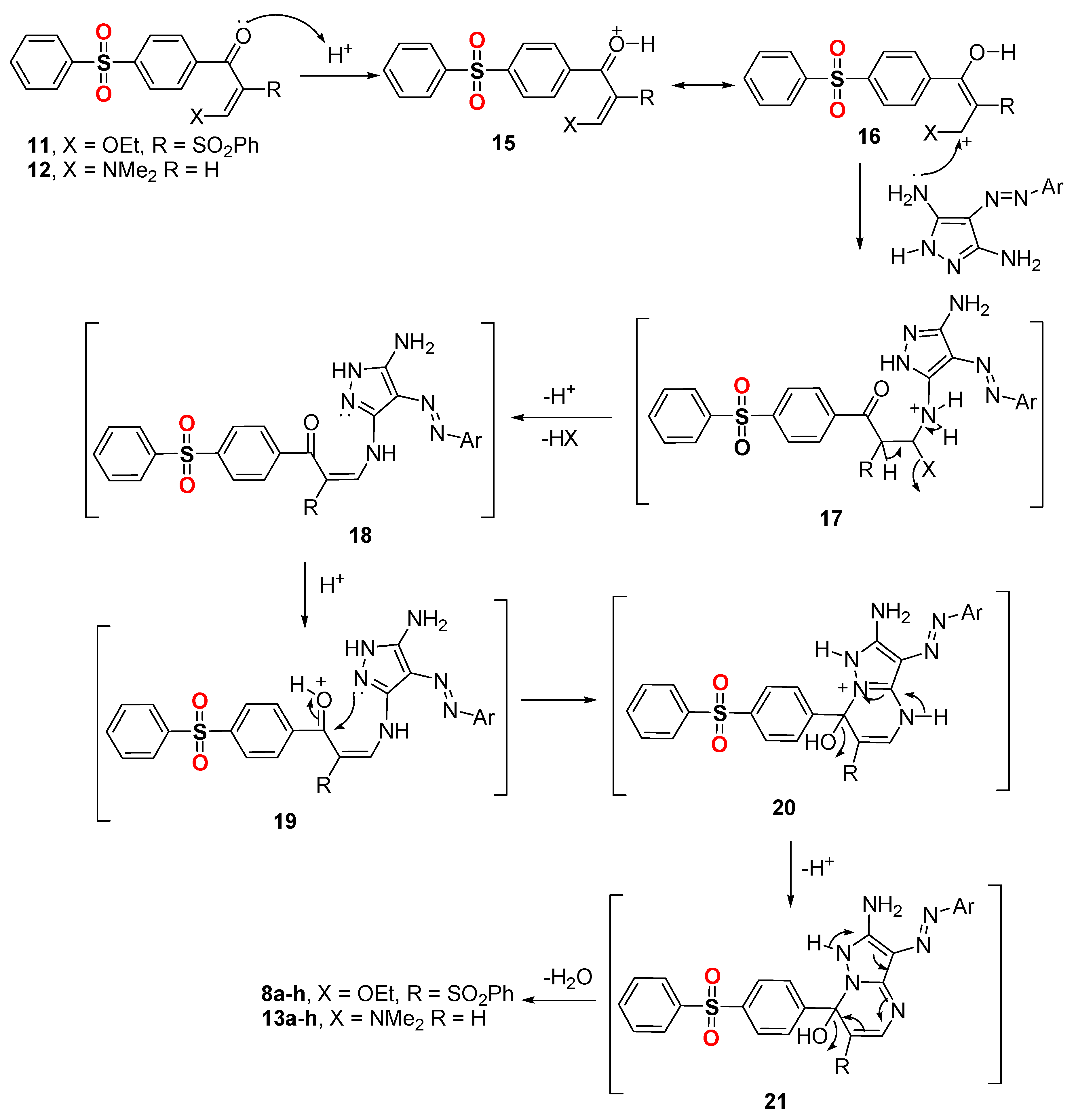

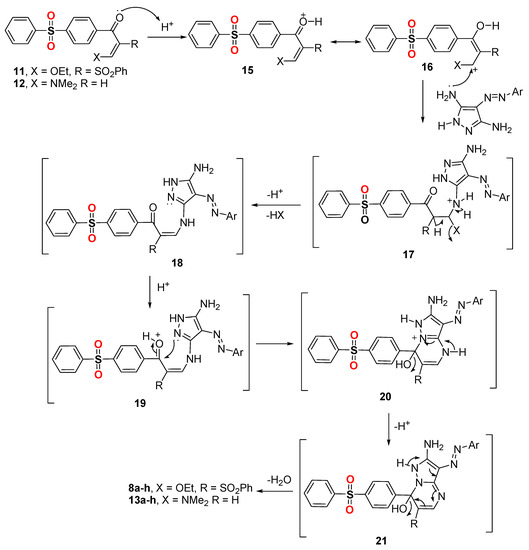

Scheme 6. The general mechanism of formation of compounds 8ah and 13ah from ethoxymethylene derivative 11 and enaminone 12.
Scheme 6. The general mechanism of formation of compounds 8ah and 13ah from ethoxymethylene derivative 11 and enaminone 12.
Molecules 24 04009 sch006
Table 1. A comparison between the conventional and microwave heating for the synthesis of compounds 8ah.
Table 1. A comparison between the conventional and microwave heating for the synthesis of compounds 8ah.
Compound No.ArConventional HeatingMicrowave Heating
Yield%Yield%
8a4-ClC6H4-7795
8b3-CH3C6H4-8595
8c3-ClC6H4-7791
8d2-ClC6H4-7890
8e3-CH3OC6H4-8090
8fC6H5-7590
8g2-NO2C6H4-9091
8h4-CH3OC6H4-9595
Table 2. A comparison between the conventional and microwave heating for the synthesis of compounds 13ah.
Table 2. A comparison between the conventional and microwave heating for the synthesis of compounds 13ah.
Compound No.ArConventional HeatingMicrowave Heating
Yield%Yield%
13a4-ClC6H4-9298
13b3-CH3C6H4-9097
13c3-ClC6H4-9094
13d2-ClC6H4-8597
13e3-CH3O C6H4-9093
13fC6H5-8090
13g2-NO2C6H4-9296
13h4-CH3O C6H4-9498
Table 3. The antifungal activity of the tested derivatives 8ad, 8h, 13a, and 13ch.
Table 3. The antifungal activity of the tested derivatives 8ad, 8h, 13a, and 13ch.
Compound No.Aspergillus Niger *Geotrichum Candidum *
8a15.5 ± 1.217.4 ± 0.72
8b15.2 ± 0.6017.2 ± 0.63
8c17.6 ± 1.218.5 ± 0.63
8d18.3 ± 0.6319.3 ± 0.58
8h22.4 ± 2.124.3 ± 2.1
13a23.1 ± 0.7222.6 ± 0.72
13c25.1 ± 1.222.6 ± 1.2
13d21.4 ± 1.225.2 ± 1.2
13e22.3 ± 1.220.4 ± 0.58
13f22.6 ± 0.7223.6 ± 1.20
13g26.3 ± 0.6323.2 ± 0.63
13h19.2 ± 0.7217.3 ± 0.72
Amphotericin B23.3 ± 0.5825.2 ± 0.72
* The zone of inhibition (IZD) is measured in millimeter.
Table 4. The antimicrobial activity of the tested derivatives (μg/mL) against Gram-positive bacteria.
Table 4. The antimicrobial activity of the tested derivatives (μg/mL) against Gram-positive bacteria.
Compound No.S. aureusS. epidermidisB. subtilisS. pyogenes
8a16.3 ± 0.6315.8 ± 0.5816.9 ± 0.53NA
8b18.4 ± 0.8515.7 ± 1.218.6 ± 0.63NA
8c17.6 ± 0.6316.4 ± 0.7221.3 ± 0.53NA
8d19.7 ± 0.5818.3 ± 0.5820.7 ± 1.2NA
8h21.1 ± 1.220.8 ± 0.6724.3 ± 0.58NA
13a20.8 ± 0.4320.6 ± 0.5825.4 ± 0.53NA
13c23.4 ± 0.6321.8 ± 0.7223.6 ± 0.63NA
13d22.7 ± 0.6322.6 ± 0.7225.5 ± 0.63NA
13e19.8 ± 0.6316.7 ± 0.5823.6 ± 0.53NA
13f21.4 ± 0.5817.7 ± 0.7226.5 ± 0.58NA
13g22.7 ± 1.222.3 ± 0.5823.7 ± 0.72NA
13h13.5 ± 1.215.3 ± 0.4418.2 ± 0.58NA
Ampicillin23.7 ± 0.6322.4 ± 1.232.4 ± 0.7224.5 ± 0.63
* The zone of inhibition (IZD) is measured in millimeter.
Table 5. The antimicrobial activity of the tested derivatives (μg/mL) against Gram-negative bacteria.
Table 5. The antimicrobial activity of the tested derivatives (μg/mL) against Gram-negative bacteria.
Compound No.P. aeruginosaE. coliK. pneumoniaeS. typhimurium
8aNA15.6 ± 1.211.8 ± 0.4418.5 ± 0.72
8bNA17.5 ± 0.5814.8 ± 1.216.7 ± 0.63
8cNA18.7± 1.215.9 ± 1.217.4 ± 0.58
8dNA18.6 ± 0.6317.6 ± 0.5820.2 ± 0.72
8hNA23.2 ± 0.5821.3 ± 0.5819.8 ± 1.2
13aNA22.4 ± 0.5320.4 ± 0.5321.6 ± 0.63
13cNA24.3 ± 1.222.5 ± 1.226.3 ± 0.58
13dNA25.7 ± 1.226.6 ± 1.226.2 ± 0.58
13eNA19.8 ± 1.218.4 ± 0.5321.1 ± 0.63
13fNA23.2 ± 0.7219.5 ± 0.6322.5 ± 0.63
13gNA25.5 ± 1.223.3 ± 1.226.6 ± 0.72
13hNA19.3 ± 0.6316.3 ± 0.6319.3 ± 0.58
Gentamicin22.3 ± 0.5825.4 ± 1.22.6 ± 0.6323.3 ± 0.58
* The zone of inhibition (IZD) is measured in millimeter.
Table 6. Minimum inhibitory concentration (μg/mL) for compounds 15c, 15d, and 15g.
Table 6. Minimum inhibitory concentration (μg/mL) for compounds 15c, 15d, and 15g.
Compound No.13c13d13gReference
Fungi Amphotericin B
Aspergillus niger3.90.981.950.98
Geotrichum candidum7.811.953.90.49
G+ Bacteria Ampicillin
St. aureus3.93.915.630.98
St. epidermidis15.637.8131.251.95
B. subtilis0.980.491.950.49
St. pyogenesNANANA0.49
G- Bacteria Gentamicin
P. aeruginosaNANANA1.95
E. coli3.90.493.90.49
K. pneumoniae7.813.915.630.98
S. typhimurium3.91.953.90.98

Share and Cite

MDPI and ACS Style

Alsaedi, A.M.R.; Farghaly, T.A.; Shaaban, M.R. Synthesis and Antimicrobial Evaluation of Novel Pyrazolopyrimidines Incorporated with Mono- and Diphenylsulfonyl Groups. Molecules 2019, 24, 4009. https://doi.org/10.3390/molecules24214009

AMA Style

Alsaedi AMR, Farghaly TA, Shaaban MR. Synthesis and Antimicrobial Evaluation of Novel Pyrazolopyrimidines Incorporated with Mono- and Diphenylsulfonyl Groups. Molecules. 2019; 24(21):4009. https://doi.org/10.3390/molecules24214009

Chicago/Turabian Style

Alsaedi, Amani M. R., Thoraya. A. Farghaly, and Mohamed R. Shaaban. 2019. "Synthesis and Antimicrobial Evaluation of Novel Pyrazolopyrimidines Incorporated with Mono- and Diphenylsulfonyl Groups" Molecules 24, no. 21: 4009. https://doi.org/10.3390/molecules24214009

APA Style

Alsaedi, A. M. R., Farghaly, T. A., & Shaaban, M. R. (2019). Synthesis and Antimicrobial Evaluation of Novel Pyrazolopyrimidines Incorporated with Mono- and Diphenylsulfonyl Groups. Molecules, 24(21), 4009. https://doi.org/10.3390/molecules24214009

Article Metrics

Back to TopTop
