Separation, Identification, and Antioxidant Activity of Polyphenols from Lotus Seed Epicarp

by
Zhili Ma
1,
Yi Huang
2,
Wen Huang
2,
Xi Feng
3,
Fang Yang
1,* and
Deyuan Li
1,*
1
School of Laboratory Medicine, Hubei University of Chinese Medicine, Wuhan, Hubei 430065, China
2
College of Food Science and Technology, Huazhong Agricultural University, Wuhan, Hubei 430070, China
3
Department of Nutrition, Food Science and Packaging, California State University, San Jose, CA 95192, USA
*
Authors to whom correspondence should be addressed.
Molecules 2019, 24(21), 4007; https://doi.org/10.3390/molecules24214007
Submission received: 29 September 2019 / Revised: 24 October 2019 / Accepted: 4 November 2019 / Published: 5 November 2019
(This article belongs to the Special Issue Extraction of Bioactive Molecules from Food By-Products and Their Utilization as Functional Ingredients)
Browse Figures
Versions Notes

Abstract

:
Lotus seed epicarp, the main by-product of lotus seed processing, is abundant in polyphenols. In this study, polyphenols in lotus seed epicarp were separated by Sephadex LH-20 gel filtration chromatography to yield Fraction-I (F-I), Fraction-II (F-II), and Fraction-III (F-III). The polyphenol compounds in the three fractions were identified by UPLC-MI-TOF-MS. Six kinds of polyphenol compounds including cyanidin-3-O-glucoside, procyanidin trimer, and phlorizin were identified in F-I, and prodelphinidin dimer B, procyanidin dimer, and quercetin hexoside isomer were found in F-II. However, there was only procyanidin dimer identified in F-III. The in vitro antioxidant activities of the three fractions were also investigated. We found F-I, F-II, and F-III had strong potential antioxidant activities in the order of F-III > F-II > F-I. Our results suggested that polyphenols from lotus seed epicarp might be suitable for use as a potential food additive.

1. Introduction

Lotus (Nelumbo nucifera Gaertn.) is an important aquatic economic crop in China, and it has been widely cultivated in Asia [1,2]. Almost every part of lotus (roots, leaves, flowers, and seeds) not only can be used as a food-stuff, but also have multiple medicinal functions [3]. In China, lotus leaves and seeds are publicly identified as both food and medicine resources. There is much research concerned with lotus leaves and seeds [4,5,6,7]. It has been reported that the extract from lotus leaves and seeds have multiple bioactivities, such as being anti-oxidant [8,9], anti-inflammatory [10], immuno-modulatory [11], and anti-obesity [12] etc. The bioactivities of lotus are due to the functional components in lotus including polysaccharides, polyphenols, flavonoids etc.
From the view of converting food waste into by-products, several kinds of bioactive flavonoid, proanthocyanidin, and phenolic compounds have been extracted and identified from the receptaculum nelumbinis [13,14,15]. As an inedible part of lotus, lotus seed epicarp also has attracted additional attention. Lotus seed epicarp, the main by-product of lotus seed processing, is also abundant in polyphenols and worthy to be used as a functional food. Lotus seed epicarp extract has been used as a potential antioxidant and anti-obesity additive in Chinese Cantonese Sausage, which was the first use of lotus seed epicarp extract in meat product [16]. Liu, et al. [17] reported that polyphenols from lotus seed epicarp at three different ripening stages have good anti-radical abilities, and they identified some phenolic compounds from lotus seed epicarp. Recently, Liu, et al. [18] found that the anti-radical activity of polyphenols from lotus seed epicarp increases by probiotic bacteria bioconversion. Yan, et al. [19] reported that polyphenols from lotus seed epicarp have antiproliferation ability on human hepatoma G2 (HepG2) cells. However, little is known about the purification and identification of the key bioactive polyphenols from lotus seed epicarp.
The aims of this study were to separate polyphenols from lotus seed epicarp into different fractions, characterize the phenolic profiles of polyphenol fractions by UPLC-MI-TOF-MS. The antioxidant activities of polyphenol fractions were also determined.

2. Results and Discussion

2.1. Purification and Identification of Lotus Seed Epicarp Polyphenols

As shown in Figure 1, the lotus seed epicarp polyphenols obtained after AB-8 macroporous resin were then separated with a Sephadex LH-20 gel filtration chromatography and three fractions (Fraction-I (F-I), Fraction-II (F-II), and Fraction-III (F-III)) were separately collected. In order to figure out the structure of the main polyphenols in the three fractions, UPLC-MS/MS was employed to identify the polyphenol compounds.
A total of six phenolic compounds were identified in the three selected fractions. However, Liu, Ma, Ibrahim, Li, Yang and Huang [17] identified four kinds of polyphenols from lotus seed epicarp, and Yan, Luo, Cong, Zhang, Ma and Duan [19] found eight kinds of polyphenols from fresh lotus seed epicarp. These differences may be caused by varied purification and identification methods. Three kinds of polyphenol compounds were identified from the sample of F-I, which were cyanidin-3-O-glucoside, procyanidin trimer and phlorizin. As shown in Table 1, compound 1 (RT = 4.68 min) showed a molecular ion ([M−H]−) at mass/charge ratio (m/z) of 449.1087. The main fragment at m/z of 287.0558 was identified as cyanidin by the neutral loss of a dehydrated glucose from compound 1 [20]. The result was consistent with the report of cyanidin-3-O-glucoside by Tian, et al. [21]. Compound 2 showed the molecular ion ([M−H]−) at m/z of 865.1975 and two fragments at m/z of 449.1088, 287.0557, which was the result of its direct cleavage of the inter flavanic bond, and was identified as the procyanidin trimer [22]. Compound 3 (RT = 7.75 min) showed a molecular ion ([M−H]−) at m/z of 435.1293, and the main fragment at m/z of 273.0761 was phloretin by the loss of glucose from compound 3. Therefore, compound 3 was identified as phlorizin [23].
Three major polyphenol compounds including prodelphinidin dimer B, procyanidin dimer, and quercetin hexoside isomer were identified from F-II. According to Table 1, compound 4 (RT = 2.56 min) showed the molecular ion ([M−H]−) at m/z of 593.1306 and was a monomeric unit of catechin and gallocatechin. The fragment ion m/z 407.0770 was due to a retro-Diels-Alder (RDA) fission of ring C and further elimination of a molecule of water, while the ion m/z 289.0715 was after a quinone-methide (QM) cleavage of the interflavan bond [24,25]. Compound 5 (RT = 4.53) showed a molecular ion ([M−H]−) at m/z of 577.1346 was identified as a procyanidin dimer which was a monomeric unit of catechin and epicatechin [26,27]. The produced two fragments at m/z of 407.07732 and 289.07161 were the same with that of prodelphinidin dimer B [25]. Compound 6 (RT = 4.53) had a ion [M−H]− at m/z 463.0875 and yielded fragment ions at m/z 301.0336 and 300.0268 corresponding to losses of a hexose moiety [28]. Therefore, compound 6 was assigned as quercetin-3-O-glucoside [27].
As shown in Table 1, the main polyphenol compound in F-III was procyanidin dimer. Both compound 7 (RT = 4.91) and compound 8 (RT = 5.42) with the molecular ion ([M−H]−) at m/z of 577.1347 were identified as a procyanidin dimer.

2.2. Antioxidant Activity

2.2.1. ABTS+ Radical Scavenging Ability of Polyphenol Fractions

The 2,2′-azino-bis-3-ethylbenzthiazoline-6-sulphonic acid (ABTS+) radical scavenging abilities of the three polyphenol fractions from lotus seed epicarp (F-I, F-II, and F-III) are shown in Figure 2. Compared to Vc, the ABTS+ radical scavenging capacities of the three polyphenol fractions were higher than that of Vc (p < 0.05). The IC50 values of F-I, F-II, and F-III were 5.04, 4.22, and 3.96 μg/mL, respectively. The result was lower than that of purified polyphenols from lotus seed epicarp (45.27 μg/mL) reported by Liu, Ma, Ibrahim, Li, Yang and Huang [17]. The better ABTS+ radical scavenging capacities of our polyphenol fractions might be due to the synergistic effect of various polyphenols. Generally, the ABTS+ radical scavenging capacities increased in the order of: F-III > F-II > F-I. Furthermore, at the concentration of 10 μg/mL, the ABTS+ radical scavenging rates of F-I, F-II, and F-III were 89.16%, 94.60%, and 96.38%, respectively. Our results indicate that the three polyphenol fractions from lotus seed epicarp had potential anti-radical activity on the ABTS+ radical.

2.2.2. DPPH radical scavenging ability of polyphenol fractions

The 1,1-diphenyl-2-picryl-hydrazyl (DPPH) radical scavenging abilities of F-I, F-II, F-III and Vc are shown in Figure 3. The DPPH radical scavenging rates of the three polyphenol fractions firstly increased to the peak rate at the concentration of 15 μg/mL, and then the scavenging rates decreased steadily. F-III had a better anti-radical activity on DPPH than that of Vc, whereas the DPPH radical scavenging rates of F-I and F-II were lower than that of Vc at the same concentration. The IC50 values of F-I, F-II, and F-III were 3.50, 4.75, and 2.26 μg/mL, respectively. The DPPH radical scavenging activity increased in the order of: F-III > F-I > F-II. Moreover, at a concentration of 15 μg/mL, the DPPH radical scavenging rates of F-I, F-II, and F-III reached 93.90%, 94.11%, and 95.03%, respectively. Our results thus indicated that the three polyphenol fractions from lotus seed epicarp had positive scavenging capacities on the DPPH radical.

2.2.3. FRAP of Polyphenol Fractions

The ferric ion reducing antioxidant power (FRAP) of the three polyphenol fractions are shown in Figure 4. The FRAP values of F-I, F-II, and F-III were 1.41, 1.70, and 2.00 mMFe2+/µg, respectively. The results indicated that the FRAP of the polyphenol fractions increased in the order of: F-III > F-II > F-I (p < 0.05). The FRAP values were higher than other reported polyphenols [29,30]. Our results suggest that three polyphenol fractions from lotus seed epicarp had high FRAP levels.
The antioxidant activities of polyphenols from lotus seed epicarp were measured using FRAP assay as well as DPPH and ABTS+ radicals scavenging methods. These methods were widely used to measure antioxidant activity of natural compounds in vitro [31]. These tests have indicated different mechanisms of antioxidant action. The ABTS+ assay is superior to the DPPH assay when applied to samples containing hydrophilic, lipophilic, and highly pigmented antioxidant compounds [32]. We found that the three polyphenol fractions from lotus seed epicarp had strong antioxidant activities in vitro. Similar results were also reported about sweet potato leaf polyphenols [33]. In addition, there were significant differences among the three polyphenol fractions in the antioxidant activity assays. The F-III had the highest antioxidant activity, which may have been caused by the higher level of procyanidin dimer in F-III. Similar results have also been reported in that the procyanidin dimer is the most active free radical scavenging polyphenol [34,35].

3. Materials and Methods

3.1. Materials and Chemicals

Dried lotus seed epicarp (at full ripening stage with a water content of 10.3%) was from a local farm in HuNan province and then ground into powder, sieved through 100 meshes, and stored at −20 °C for further study.
AB-8 macroporous resin was purchased from Solarbio Co. (Beijing, China). Sephadex LH-20 was purchased from GE Healthcare Co. (Uppsala, Sweden). DPPH radical, ABTS+ radical, trolox and Folin–Ciocalteu reagent were purchased from Shanghai yuanye Bio-Technology Co., Ltd (Shanghai, China). Analytically pure anhydrous sodium carbonate, ascorbic acid, gallic acid monohydrate, sodium chloride, and potassium persulfate were obtained from Sinopharm Chemical Reagent Co., Ltd. (Beijing, China). Acetonitrile, methanol, and formic acid of chromatographic grade were purchased from Tedia (Shanghai, China).

3.2. Preparation of Crude Polyphenols from Lotus Seed Epicarp

Lotus seed epicarp powder was soaked in 60% ethanol solution at 1:20 ratio (w/v) in a 50 °C water bath for 90 min. The resulting solution was concentrated and lyophilized for further tests.

3.3. Determination of Total Phenolic Contents

Total phenolic content (TPC) was measured by a reported method [36]. Crude polyphenols from lotus seed epicarp was dissolved in ddH2O to a concentration of 1 mg/mL. Gallic acid standards or samples (20 μL) were incubated at room temperature for 1 min with 100 μL of 10-fold diluted Folin–Ciocalteu reagent in 96-well plates followed by reaction with 80 μL of 75 g/L Na2CO3 for 30 min and then absorbance at 765 nm was determined. All samples were measured in triplicate.

3.4. Gel Filtration System Purification of Lotus Seed Epicarp Polyphenols

Crude polyphenols from lotus seed epicarp was dissolved in ddH2O to a concentration of 5 mg/mL. After centrifugation at 10,000× g for 5 min, the supernatant was applied to a column of AB-8 macroporous resin. The column was eluted with ddH2O as mobile phase for 5 BV, and then followed by elution with 50% ethanol solution at a flow of 2 mL/min. The effluent was collected and subsequently dried with a rotary evaporator and lyophilizer.
The resulting purified polyphenols were loaded onto Sephadex LH-20 gel filtration chromatography column as described by Liu, Ma, Ibrahim, Li, Yang and Huang [17]. In short, the polyphenols were dissolved in methanol to a concentration of 50 mg/mL and centrifuged at 12,000× g for 5 min, and then the supernatant was separated with a Sephadex LH-20 gel filtration chromatography column which was eluted with methanol at a flow of 0.5 mL/min. Each fraction of 8 mL was collected. Elution curves were obtained by measuring absorbance at 280 nm using an on-line spectrophotometer. The three fractions were collected and further analyzed by ultra performance liquid chromatography tandem mass spectrometry (UPLC-MS).

3.5. UPLC-MS Analysis of Lotus Seed Epicarp Polyphenols

For RP-HPLC separations a Waters 2690 system (Waters Corporation, Milford, USA) equipped with an automatic sample injector was used. Separations were performed at 0.4 mL/min with eluent A consisted of 0.1% acetic acid in milli-Q water (v/v); eluent B of acetonitrile. The sample was filtered through a 0.22 mm syringe filter and injected into Acquity UPLC BEH C18 (2.1 mm × 100 mm, 1.7 μm) column. LC/UV traces were recorded on-line with a Waters 2690 PDA detector with detection at 280 nm. The elution program were as follows: 0–8 min, 5% B–35% B, 8–9 min, 35% B–50% B, 9–11 min, 50%–80% B, 11–12 min, 80% B–5% B. Mass spectrometry conditions: ESI− ion source, spectra were recorded over the mass/charge (m/z) range 50–1000; capillary voltage: 2.5 kV, ion source temperature: 135 °C, solvent removal temperature: 350 °C, solvent removal gas velocity: 600 L/h, cone hole gas flow rate: 50 L/h, collision energy: 20~30 eV. Capillary temperature was 365 °C, and pressure of ESI nebulizing gas (N2) was 275.79 kPa (40 psi); flow rate of drying gas (N2) was 10.00 L/min.

3.6. Antioxidant Assay of Lotus Seed Epicarp Polyphenols

3.6.1. DPPH Radical Scavenging Activity

The capacity of lotus seed epicarp polyphenols (LSEP) purified by Sephadex LH-20 to scavenge DPPH free radicals was assessed as described by Chen, Ma and Kitts [36]. LSEP purified by Sephadex LH-20 were dissolved in ddH2O and diluted in methanol to 100 µg/mL. Samples were incubated with 0.1 mM DPPH in the final volume of 200 μL at room temperature for 10 min in darkness and then absorbance at 519 nm was determined. Vc was used as standard. The percentage inhibition of the DPPH free radical was calculated as % Inhibition = (Ac−As)/(Ac−Ab) × 100, where Ac = absorbance of 0.1 mM DPPH alone in methanol, As = absorbance of 0.1 mM DPPH with sample in methanol, Ab = absorbance of methanol solvent in absence of DPPH and sample. The IC50 values were calculated using OriginPro software (OriginLab Corporation, Northampton, MA, USA).

3.6.2. ABTS+ Radical Scavenging Activity

Assays of ABTS proceeded essentially as described by Chen et al. [36]. ABTS (5 mL, 7 mM) was mixed with K2S2O8 (88 μL of 140 mM) overnight at room temperature in the dark. The stock ABTS solution (0.6 mL) was diluted with ddH2O (40 mL) and absorbance adjusted to 0.7 at 734 nm to make the ABTS working solution. The samples were prepared as the methods mentioned above. Samples of 20 μL in total were reacted with ABTS working solution (180 μL) at room temperature in darkness for 10 min, before recording absorbance readings taken at 734 nm by spectrophotometry. Vc was used as standard. The percentage inhibition of the ABTS+ radical was calculated as % Inhibition = (Ac−As)/(Ac−Ab) ×100, where Ac = absorbance of ABTS+ alone in methanol, As = absorbance of ABTS+ with sample in methanol, Ab = absorbance of methanol solvent in absence of ABTS+ and sample. The IC50 values were calculated using OriginPro software (OriginLab Corporation, Northampton, MA, USA).

3.6.3. Ferric Ion Reducing Antioxidant Power (FRAP) Assay

The FRAP was evaluated using the reported method [37,38]. In brief, the FRAP working solution was prepared to mix acetate buffer (pH 3.6, 300 mM), 2,4,6-tris (2-pyridyl)-s-triazime (TPTZ) solution (10 mM) and FeCl3 solution (20 mM) with a volume ratio 10:1:1. Afterwards, 5 μL sample solution and 180 μL FRAP working solution was mixed with reaction at room temperature for 6 min. The absorbance was determined at 593 nm. Different concentrations of FeSO4 were used as standards. The concentration of FeSO4 (mM Fe2+/μg) was indirectly expressed as with equivalent antioxidant activity of sample.

3.7. Statistical Analysis

The result was expressed as mean values and standard deviation (SD). The variance was determined by the one-way analysis of variance (ANOVA) and differences between the samples were measured by Duncan’s test (0.05).

4. Conclusions

In this study, we separated polyphenols from lotus seed epicarp into three fractions—F-I, F-II, and F-III. Six kinds of polyphenol compounds in the three fractions were identified by UPLC-MI-TOF-MS. Cyanidin-3-O-glucoside, procyanidin trimer, and phlorizin were identified in F-I, prodelphinidin dimer B, procyanidin dimer, and quercetin hexoside isomer were found in F-II, whereas only procyanidin dimer was identified in F-III. We found that the three polyphenol fractions from lotus seed epicarp had strong FRAP values as well as positive scavenging abilities against DPPH and ABTS radicals. Moreover, F-III had the best antioxidant activity among the three polyphenol fractions. The polyphenols from lotus seed epicarp might be a good candidate as a natural food additive. However, the application of polyphenols from lotus seed epicarp in food preservation remains to be further studied.

Author Contributions

Z.M. designed the experiments, analyzed the data, and wrote the paper; Y.H. performed the HPLC analysis; Z.M., X.F., F.Y., and D.L. wrote the paper; Z.M. and W.H. analyzed the data.

Acknowledgments

The authors greatly appreciate the Scientific Research Plan of Hubei Provincial Department of Education (No. Q20182002).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, L.; Tu, Z.-C.; Wang, H.; Kou, Y.; Wen, Q.-H.; Fu, Z.-F.; Chang, H.-X. Response surface optimization and physicochemical properties of polysaccharides from Nelumbo nucifera leaves. Int. J. Biol. Macromol. 2015, 74, 103–110. [Google Scholar] [CrossRef] [PubMed]
  2. Karki, R.; Jung, M.-A.; Kim, K.-J.; Kim, D.-W. Inhibitory Effect of Nelumbo nucifera (Gaertn.) on the Development of Atopic Dermatitis-Like Skin Lesions in NC/Nga Mice. Evid. -Based Complementary Altern. Med. 2012, 2012, 7. [Google Scholar] [CrossRef] [PubMed]
  3. Limwachiranon, J.; Huang, H.; Shi, Z.; Li, L.; Luo, Z. Lotus Flavonoids and Phenolic Acids: Health Promotion and Safe Consumption Dosages. Compr. Rev. Food Sci. Food Saf. 2018, 17, 458–471. [Google Scholar] [CrossRef] [Green Version]
  4. Hu, W.; Jiang, Y.; Xue, Q.; Sun, F.; Zhang, J.; Zhou, J.; Niu, Z.; Li, Q.; Li, F.; Shen, T. Structural characterisation and immunomodulatory activity of a polysaccharide isolated from lotus (Nelumbo nucifera Gaertn.) root residues. J. Funct. Foods 2019, 60, 103457. [Google Scholar] [CrossRef]
  5. Zhu, Z.; Li, S.; He, J.; Thirumdas, R.; Montesano, D.; Barba, F.J. Enzyme-assisted extraction of polyphenol from edible lotus (Nelumbo nucifera) rhizome knot: Ultra-filtration performance and HPLC-MS2 profile. Food Res. Int. 2018, 111, 291–298. [Google Scholar] [CrossRef]
  6. Chen, G.-L.; Fan, M.-X.; Wu, J.-L.; Li, N.; Guo, M.-Q. Antioxidant and anti-inflammatory properties of flavonoids from lotus plumule. Food Chem. 2019, 277, 706–712. [Google Scholar] [CrossRef]
  7. Lin, S.; Wang, Z.; Lin, Y.; Ge, S.; Hamzah, S.S.; Hu, J. Bound phenolics from fresh lotus seeds exert anti-obesity effects in 3T3-L1 adipocytes and high-fat diet-fed mice by activation of AMPK. J. Funct. Foods 2019, 58, 74–84. [Google Scholar] [CrossRef]
  8. Yi, Y.; Huang, X.-Y.; Zhong, Z.-T.; Huang, F.; Li, S.-Y.; Wang, L.-M.; Min, T.; Wang, H.-X. Structural and biological properties of polysaccharides from lotus root. Int. J. Biol. Macromol. 2019, 130, 454–461. [Google Scholar] [CrossRef]
  9. Huang, B.; Ban, X.; He, J.; Tong, J.; Tian, J.; Wang, Y. Hepatoprotective and antioxidant activity of ethanolic extracts of edible lotus (Nelumbo nucifera Gaertn.) leaves. Food Chem. 2010, 120, 873–878. [Google Scholar] [CrossRef]
  10. Li, F.; Sun, X.-Y.; Li, X.-W.; Yang, T.; Qi, L.-W. Enrichment and separation of quercetin-3-O-β-d-glucuronide from lotus leaves (nelumbo nucifera gaertn.) and evaluation of its anti-inflammatory effect. J. Chromatogr. B 2017, 1040, 186–191. [Google Scholar] [CrossRef]
  11. Song, Y.-R.; Han, A.-R.; Lim, T.-G.; Lee, E.-J.; Hong, H.-D. Isolation, purification, and characterization of novel polysaccharides from lotus (Nelumbo nucifera) leaves and their immunostimulatory effects. Int. J. Biol. Macromol. 2019, 128, 546–555. [Google Scholar] [CrossRef] [PubMed]
  12. Ahn, J.H.; Kim, E.S.; Lee, C.; Kim, S.; Cho, S.-H.; Hwang, B.Y.; Lee, M.K. Chemical constituents from Nelumbo nucifera leaves and their anti-obesity effects. Bioorganic Med. Chem. Lett. 2013, 23, 3604–3608. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, H.; Belwal, T.; Jiang, L.; Hu, J.; Limwachiranon, J.; Li, L.; Ren, G.; Zhang, X.; Luo, Z. Valorization of lotus byproduct (Receptaculum Nelumbinis) under green extraction condition. Food Bioprod. Process. 2019, 115, 110–117. [Google Scholar] [CrossRef]
  14. Kim, M.-J.; Shin, H.-S. Antioxidative effect of lotus seed and seedpod extracts. Food Sci. Biotechnol. 2012, 21, 1761–1766. [Google Scholar] [CrossRef]
  15. Xu, J.; Rong, S.; Xie, B.; Sun, Z.; Zhang, L.; Wu, H.; Yao, P.; Hao, L.; Liu, L. Procyanidins Extracted From the Lotus Seedpod Ameliorate Age-Related Antioxidant Deficit in Aged Rats. J. Gerontol.: Ser. A 2010, 65A, 236–241. [Google Scholar] [CrossRef] [Green Version]
  16. Qi, S.; Zhou, D. Lotus seed epicarp extract as potential antioxidant and anti-obesity additive in Chinese Cantonese Sausage. Meat Sci. 2013, 93, 257–262. [Google Scholar] [CrossRef]
  17. Liu, Y.; Ma, S.-s.; Ibrahim, S.A.; Li, E.-h.; Yang, H.; Huang, W. Identification and antioxidant properties of polyphenols in lotus seed epicarp at different ripening stages. Food Chem. 2015, 185, 159–164. [Google Scholar] [CrossRef]
  18. Liu, Y.; Hui, X.; Ibrahim, A.S.; Huang, W. Increasing Antiradical Activity of Polyphenols from Lotus Seed Epicarp by Probiotic Bacteria Bioconversion. Molecules 2018, 23, 2667. [Google Scholar] [CrossRef]
  19. Yan, Z.; Luo, X.; Cong, J.; Zhang, H.; Ma, H.; Duan, Y. Subcritical water extraction, identification and antiproliferation ability on HepG2 of polyphenols from lotus seed epicarp. Ind. Crop. Prod. 2019, 129, 472–479. [Google Scholar] [CrossRef]
  20. Corinti, D.; Maccelli, A.; Crestoni, M.E.; Cesa, S.; Quaglio, D.; Botta, B.; Ingallina, C.; Mannina, L.; Tintaru, A.; Chiavarino, B.; et al. IR ion spectroscopy in a combined approach with MS/MS and IM-MS to discriminate epimeric anthocyanin glycosides (cyanidin 3-O-glucoside and -galactoside). Int. J. Mass Spectrom. 2019, 444, 116179. [Google Scholar] [CrossRef]
  21. Tian, Q.; Giusti, M.M.; Stoner, G.D.; Schwartz, S.J. Screening for anthocyanins using high-performance liquid chromatography coupled to electrospray ionization tandem mass spectrometry with precursor-ion analysis, product-ion analysis, common-neutral-loss analysis, and selected reaction monitoring. J. Chromatogr. A 2005, 1091, 72–82. [Google Scholar] [CrossRef] [PubMed]
  22. Sáez, V.; Gayoso, C.; Riquelme, S.; Pérez, J.; Vergara, C.; Mardones, C.; von Baer, D. C18 core-shell column with in-series absorbance and fluorescence detection for simultaneous monitoring of changes in stilbenoid and proanthocyanidin concentrations during grape cane storage. J. Chromatogr. B 2018, 1074–1075, 70–78. [Google Scholar]
  23. Lijia, X.; Guo, J.; Chen, Q.; Baoping, J.; Zhang, W. Quantitation of phlorizin and phloretin using an ultra high performance liquid chromatography–electrospray ionization tandem mass spectrometric method. J. Chromatogr. B 2014, 960, 67–72. [Google Scholar] [CrossRef] [PubMed]
  24. Friedrich, W.; Eberhardt, A.; Galensa, R. Investigation of proanthocyanidins by HPLC with electrospray ionization mass spectrometry. Eur. Food Res. Technol. 2000, 211, 56–64. [Google Scholar] [CrossRef]
  25. Gangopadhyay, N.; Rai, D.K.; Brunton, N.P.; Gallagher, E.; Hossain, M.B. Antioxidant-guided isolation and mass spectrometric identification of the major polyphenols in barley (Hordeum vulgare) grain. Food Chem. 2016, 210, 212–220. [Google Scholar] [CrossRef] [Green Version]
  26. Teleszko, M.; Nowicka, P.; Wojdyło, A. Effect of cultivar and storage temperature on identification and stability of polyphenols in strawberry cloudy juices. J. Food Compos. Anal. 2016, 54, 10–19. [Google Scholar] [CrossRef]
  27. Nowicka, A.; Kucharska, A.Z.; Sokół-Łętowska, A.; Fecka, I. Comparison of polyphenol content and antioxidant capacity of strawberry fruit from 90 cultivars of Fragaria × ananassa Duch. Food Chem. 2019, 270, 32–46. [Google Scholar] [CrossRef]
  28. Hu, K.; Dars, A.G.; Liu, Q.; Xie, B.; Sun, Z. Phytochemical profiling of the ripening of Chinese mango (Mangifera indica L.) cultivars by real-time monitoring using UPLC-ESI-QTOF-MS and its potential benefits as prebiotic ingredients. Food Chem. 2018, 256, 171–180. [Google Scholar] [CrossRef]
  29. Zhang, D.-Y.; Wan, Y.; Hao, J.-Y.; Hu, R.-Z.; Chen, C.; Yao, X.-H.; Zhao, W.-G.; Liu, Z.-Y.; Li, L. Evaluation of the alkaloid, polyphenols, and antioxidant contents of various mulberry cultivars from different planting areas in eastern China. Ind. Crop. Prod. 2018, 122, 298–307. [Google Scholar] [CrossRef]
  30. Wootton-Beard, P.C.; Moran, A.; Ryan, L. Stability of the total antioxidant capacity and total polyphenol content of 23 commercially available vegetable juices before and after in vitro digestion measured by FRAP, DPPH, ABTS and Folin–Ciocalteu methods. Food Res. Int. 2011, 44, 217–224. [Google Scholar] [CrossRef]
  31. Samsonowicz, M.; Regulska, E.; Karpowicz, D.; Leśniewska, B. Antioxidant properties of coffee substitutes rich in polyphenols and minerals. Food Chem. 2019, 278, 101–109. [Google Scholar] [CrossRef] [PubMed]
  32. Menghini, L.; Leporini, L.; Vecchiotti, G.; Locatelli, M.; Carradori, S.; Ferrante, C.; Zengin, G.; Recinella, L.; Chiavaroli, A.; Leone, S.; et al. stigmas and byproducts: Qualitative fingerprint, antioxidant potentials and enzyme inhibitory activities. Food Res. Int. 2018, 109, 91–98. [Google Scholar] [CrossRef] [PubMed]
  33. Xi, L.; Mu, T.; Sun, H. Preparative purification of polyphenols from sweet potato (Ipomoea batatas L.) leaves by AB-8 macroporous resins. Food Chem. 2015, 172, 166–174. [Google Scholar] [CrossRef]
  34. Zhou, P.; Zhang, L.; Li, W.; Zhang, S.; Luo, L.; Wang, J.; Sun, B. In vitro evaluation of the anti-digestion and antioxidant effects of grape seed procyanidins according to their degrees of polymerization. J. Funct. Foods 2018, 49, 85–95. [Google Scholar] [CrossRef]
  35. Muñoz-Labrador, A.; Prodanov, M.; Villamiel, M. Effects of high intensity ultrasound on disaggregation of a macromolecular procyanidin-rich fraction from Vitis vinifera L. seed extract and evaluation of its antioxidant activity. Ultrason. Sonochemistry 2019, 50, 74–81. [Google Scholar] [CrossRef]
  36. Chen, X.-M.; Ma, Z.; Kitts, D.D. Effects of processing method and age of leaves on phytochemical profiles and bioactivity of coffee leaves. Food Chem. 2018, 249, 143–153. [Google Scholar] [CrossRef]
  37. Mohd Hazli, U.H.A.; Abdul-Aziz, A.; Mat-Junit, S.; Chee, C.F.; Kong, K.W. Solid-liquid extraction of bioactive compounds with antioxidant potential from Alternanthera sesillis (red) and identification of the polyphenols using UHPLC-QqQ-MS/MS. Food Res. Int. 2019, 115, 241–250. [Google Scholar] [CrossRef]
  38. Benzie, I.F.F.; Strain, J.J. The Ferric Reducing Ability of Plasma (FRAP) as a Measure of “Antioxidant Power”: The FRAP Assay. Anal. Biochem. 1996, 239, 70–76. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds LSEP are available from the authors.
Molecules 24 04007 g001 550

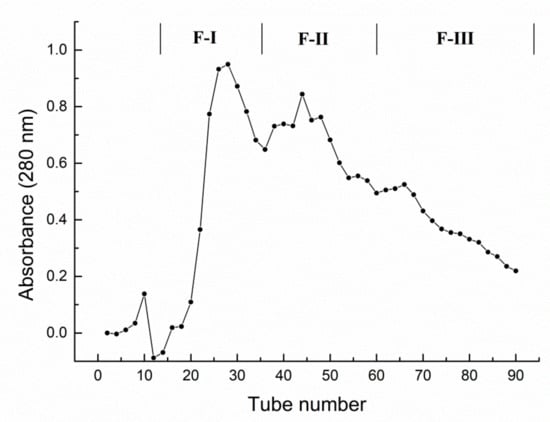

Figure 1. Separation of polyphenols from lotus seed epicarp by Sephadex LH-20 gel column into Fraction-I (F-I), Fraction-II (F-II), and Fraction-III (F-III).
Figure 1. Separation of polyphenols from lotus seed epicarp by Sephadex LH-20 gel column into Fraction-I (F-I), Fraction-II (F-II), and Fraction-III (F-III).
Molecules 24 04007 g001
Molecules 24 04007 g002 550

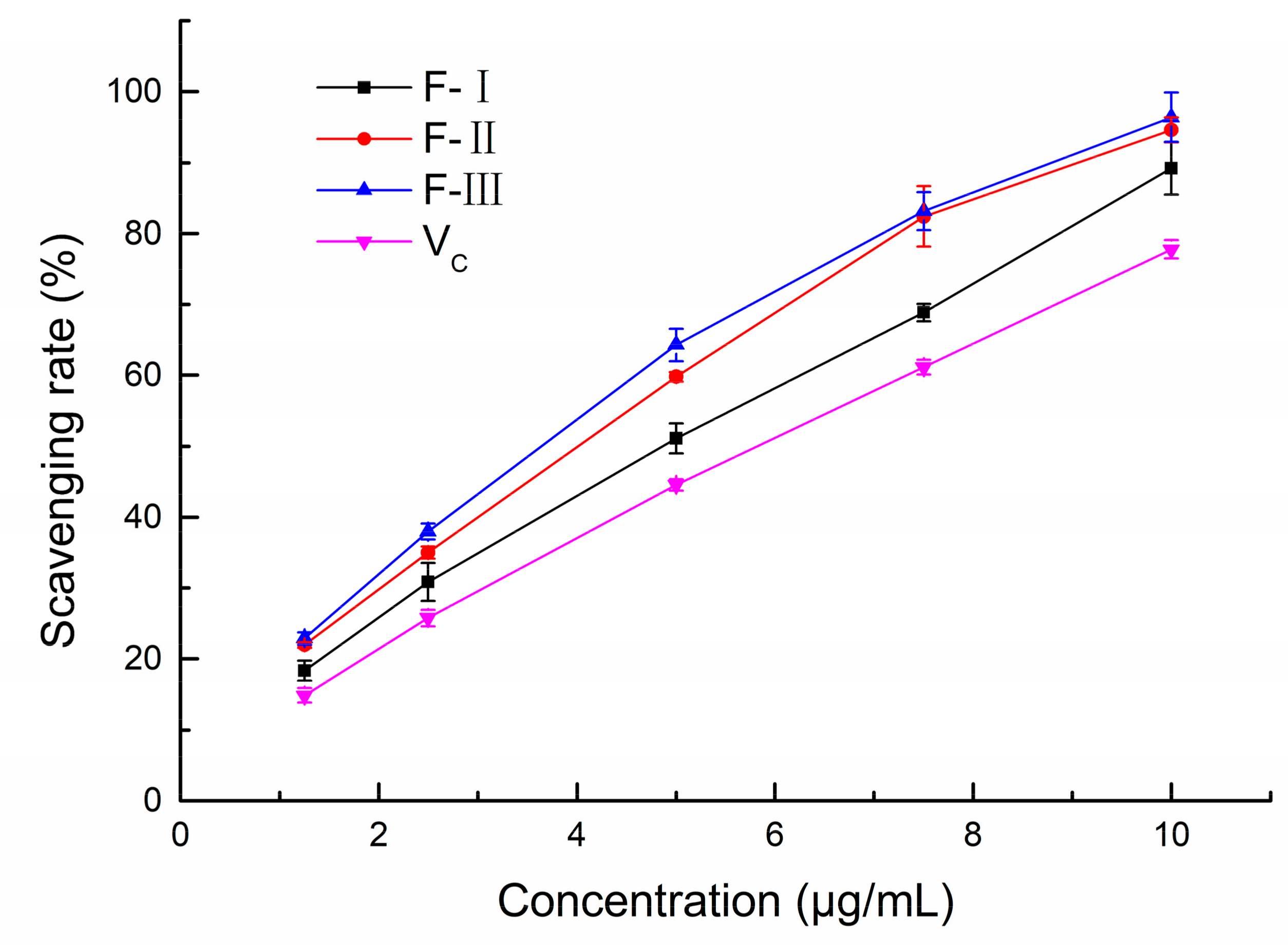

Figure 2. The capacities of three polyphenol fractions and vitamin C on 2,2′-azino-bis-3-ethylbenzthiazoline-6-sulphonic acid (ABTS+) radicals.
Figure 2. The capacities of three polyphenol fractions and vitamin C on 2,2′-azino-bis-3-ethylbenzthiazoline-6-sulphonic acid (ABTS+) radicals.
Molecules 24 04007 g002
Molecules 24 04007 g003 550

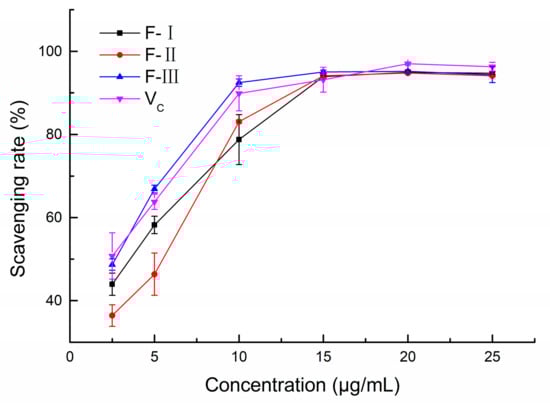

Figure 3. The capacities of three polyphenol fractions and vitamin C on 1,1-diphenyl-2-picryl-hydrazyl (DPPH) free radicals.
Figure 3. The capacities of three polyphenol fractions and vitamin C on 1,1-diphenyl-2-picryl-hydrazyl (DPPH) free radicals.
Molecules 24 04007 g003
Molecules 24 04007 g004 550

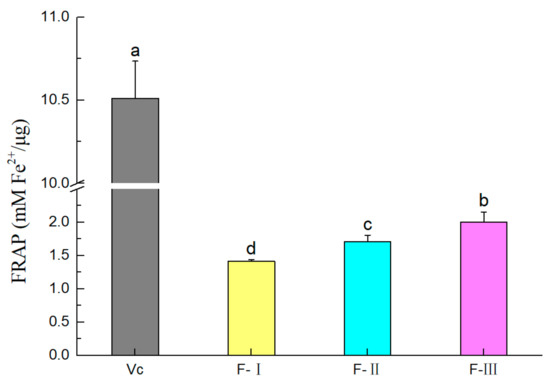

Figure 4. The ferric ion reducing antioxidant power (FRAP) abilities of three polyphenol fractions and vitamin C. Different letters (a–d) indicate significant differences (p < 0.05).
Figure 4. The ferric ion reducing antioxidant power (FRAP) abilities of three polyphenol fractions and vitamin C. Different letters (a–d) indicate significant differences (p < 0.05).
Molecules 24 04007 g004
Table
Table 1. Identification of compounds in three polyphenol fractions from lotus seed epicarp.
Table 1. Identification of compounds in three polyphenol fractions from lotus seed epicarp.
CompoundFractionRetention Time (min)[M−H]− (m/z)Typical MS/MS
Ions (m/z)		FormulaIdentification
1F-I4.68449.1087287.0558C21H21O11Cyanidin-3-O-glucoside
2F-I5.15865.1975449.1088, 287.0557C45H38O18Procyanidin trimer
3F-I7.75435.1293273.0761C21H24O10Phlorizin
4F-II2.56593.1306407.0770, 289.0715C30H26O13Prodelphinidin dimer B
5F-II4.53577.1346407.0770, 289.0715C30H26O12Procyanidin dimer
6F-II6.23463.0875301.0336, 300.0268C21H20O12Quercetin hexoside isomer
7F-III4.91577.1347407.0770, 289.0711C30H26O12Procyanidin dimer
8F-III5.42577.1347407.0770, 289.0713C30H26O12Procyanidin dimer
