Article

Control of Crystalline-Amorphous Structures of Polyhedral Oligomeric Silsesquioxanes Containing Two Types of Ammonium Side-Chain Groups and Their Properties as Protic Ionic Liquids

by
Ryoya Hasebe
and
Yoshiro Kaneko
*
Graduate School of Science and Engineering, Kagoshima University, 1-21-40 Korimoto, Kagoshima 890-0065, Japan
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(24), 4553; https://doi.org/10.3390/molecules24244553
Submission received: 21 November 2019 / Revised: 9 December 2019 / Accepted: 11 December 2019 / Published: 12 December 2019
(This article belongs to the Special Issue Synthesis of Functional Silicon Compounds)
Browse Figures
Versions Notes

Abstract

:
Polyhedral oligomeric silsesquioxanes (POSSs), Am-POSS(x,y), prepared by hydrolytic condensation, contains two types of ammonium side-chain groups, where the numbering of x and y represents the type of ammonium ions in the POSS structure, corresponding to primary (1), secondary (2), tertiary (3), and quaternary (4) ammonium ions. Mixtures of the two starting materials selected from organotrialkoxysilanes containing primary, secondary, and tertiary amines and a quaternary ammonium salt [(RO)3Si(CH2)3R′, R = CH3 or CH2CH3, R′ = NH2, NHCH3, N(CH3)2, and N(CH3)3Cl] were dissolved in dimethyl sulfoxide (DMSO). The hydrolytic condensation was performed in the presence of bis(trifluoromethansulfonyl)imide (HNTf2) and water. All Am-POSS(x,y) structures consisted of a cage-type octamer (T8-POSS), as confirmed by 29Si NMR spectrometry and matrix-assisted laser desorption ionization-time of flight mass spectrometry (MALDI-TOF MS). Differential scanning calorimetry (DSC) and X-ray diffraction (XRD) analyses indicated that Am-POSS(1,3), Am-POSS(1,4), and Am-POSS(2,4) had amorphous structures. These POSSs have two or three differences in the number of methyl groups between the two types of ammonium side-chains. Conversely, Am-POSS(1,2), Am-POSS(2,3), and Am-POSS(3,4) had crystalline structures. The difference in the number of methyl groups between the two types of ammonium side-chains in these POSSs is only one. Therefore, the crystalline-amorphous structure of Am-POSS(x,y) is controlled by the side-chain group combinations. Furthermore, Am-POSS(1,3), Am-POSS(1,4), and Am-POSS(2,4) are protic ionic liquids with relatively low flow temperatures.

Graphical Abstract

1. Introduction

Polyhedral oligomeric silsesquioxanes (POSSs), which are generally prepared by the hydrolytic condensation of trifunctional silane compounds, such as organotrialkoxysilanes and organotrichlorosilanes, have attracted much attention in recent years as compounds having both inorganic and organic characteristics. In addition to the remarkable thermal and chemical stability derived from siloxane-bond frameworks, good dispersibility and solubility are provided due to regulated cage structures and suitable side-chain groups [1,2,3,4]. POSSs are, therefore, in great demand as dispersible inorganic compounds for the development of organic—inorganic hybrid materials [5,6,7,8,9,10].
Well-known POSSs are typically crystalline, cage-type octamers, because of their isotropic cubic structure. The amorphization of POSSs is one of the recent interesting topics in basic research and material applications. For example, amorphous POSS dimers [11] and polymers [12,13,14] are prepared by linking a plurality of POSSs, and are applied as transparent thermostable materials. There are some examples of large-sized POSSs (e.g., cage-type decamers) [15,16] and incomplete POSSs [17], which are also amorphous.
As a simple method to amorphize POSSs, we have prepared POSS with randomly arranged two types of ammonium side-chain groups (3-aminopropyl and 3-(2-aminoethylamino)propyl groups protonated with trifluoromethanesulfonic acid (HOTf)) [18]. In addition, it was also found that quaternary ammonium and imidazolium salt-containing POSS is amorphous, having no melting point (Tm) [19]. This POSS had a glass transition point (Tg) of −8 °C, and the temperature at which it tilted and flowed was 30 °C, showing the property of room temperature ionic liquid (IL).
As mentioned above, amorphous POSSs with randomly arranged two types of side-chain groups exhibited characteristics that are relevant for various material applications. However, no detailed investigation has been performed on how side-chain combinations affect the amorphous or crystalline morphology.
In this study, the effect of combinations of the two side-chains on the crystalline-amorphous structure of the POSSs containing two types of ammonium side-chain groups (Am-POSS(x,y)) was investigated, where the numbering of x and y represents the type of ammonium ions in the POSS structure, corresponding to primary (1), secondary (2), tertiary (3), and quaternary (4) ammonium ions. In addition, the properties of Am-POSS(x,y) as ionic liquids (ILs) were evaluated.

2. Results and Discussion

2.1. Preparation and Characterization of POSSs Containing One Type of Ammonium Side-Chain Group (Am-POSS(x))

For comparison, prior to the preparation and characterization of Am-POSS(x,y), POSSs containing one type of ammonium side-chain group (Am-POSS(x), where the numbering of x represented the type of ammonium ion in the POSS structure, corresponding to primary (1), secondary (2), tertiary (3), and quaternary (4) ammonium ions) were prepared and characterized. In our previous studies on the preparation of ammonium-functionalized POSSs using superacid catalysts, the solvent water was yielded a mixture of cage-type octamer (main product) and decamer (minor product) [20], while applying the solvent dimethyl sulfoxide (DMSO) selectively provided only a cage-type octamer in higher yield at short reaction times [21]. Therefore, DMSO was used as a solvent in this study.
Am-POSS(x)s were prepared in DMSO by the hydrolytic condensation of 3-aminopropyltrimethoxysilane (APTMS), 3-(methylamino)propyltrimethoxysilane (MAPTMS), 3-(dimethylamino)propyltrimethoxysilane (DMAPTMS), and trimethyl [3-(triethoxysilyl)propyl]ammonium chloride (TMTESPAC), respectively, in the presence of bis(trifluoromethansulfonyl)imide (HNTf2) and water (the feed molar ratio of amine:HNTf2:H2O was 1.0:1.5:5.0) (Scheme 1). Solubilities of Am-POSS(x) are summarized in Table 1. All POSSs were soluble in highly polar organic solvents but insoluble in low polarity organic solvents. POSSs, except Am-POSS(1), was also insoluble in water.
The 1H NMR spectra of Am-POSS(x) in DMSO-d6 showed the signals attributable to the side-chains of the corresponding POSSs (Figure 1). The signals for the methoxy or ethoxy group of the starting materials were not observed (Figure 1), pointing out that the starting materials were not present in the products. The energy-dispersive X-ray (EDX) pattern of Am-POSS(4) contained no peaks originating from Cl (ca. 2.6 and 2.8 keV). The Si:S atom ratios were estimated to be 1.00:1.95 for Am-POSS(1), 1.00:2.02 for Am-POSS(2), 1.00:1.96 for Am-POSS(3), and 1.00:2.00 for Am-POSS(4), respectively, indicating that the molar ratios of ammonium cations to NTf2 anions in all products were ca. 1:1 (Figure S1).
The 29Si NMR spectra of Am-POSS(x) in DMSO-d6 at 40 °C showed only the sharp signals due to the T3 structure (CSi(OSi)n(OH)3–n, n = 3) in the range between δ −66.6 and −67.3 ppm. These peaks are attributable to cage-type octamer (T8-POSS) (Figure 2). To support these 29Si NMR results, the matrix-assisted laser desorption ionization-time of flight mass spectrometry (MALDI-TOF MS) was performed on these POSSs. The MALDI-TOF MS of Am-POSS(1), Am-POSS(2), Am-POSS(3), and Am-POSS(4) showed several peaks corresponding to the masses of T8-POSS (Figures S2–S5). These results indicated that the products consisted of T8-POSS only, no other POSSs, such as cage-type decamer (T10-POSS) and cage-type dodecamer (T12-POSS), were present in the products.

2.2. Evaluation of Crystalline-Amorphous Structures of Am-POSS(x)

The X-ray diffraction (XRD) patterns of all Am-POSS(x) showed sharp diffraction peaks, indicating their crystalline structures (Figure 3). In addition, in the differential scanning calorimetry (DSC) curves of Am-POSS(1), Am-POSS(2), Am-POSS(3), and Am-POSS(4), the endothermic peaks due to Tms were observed at 186 and 209 °C (Figure 4a), −1, 134, and 180 °C (Figure 4b), 94 and 124 °C (Figure 4c), and 174 °C (Figure 4d), respectively. Multiple endothermic peaks were observed for POSSs, except Am-POSS(4), potentially caused by the different crystalline forms of these POSSs. A more detailed study on the crystalline forms of these POSSs containing one type of ammonium side-chain group is currently in progress.

2.3. Preparation and Characterization of POSSs Containing Two Types of Ammonium Side-Chain Groups (Am-POSS(x,y))

Am-POSS(x,y)s were prepared by the hydrolytic condensation of a mixture of two starting materials selected from APTMS, MAPTMS, DMAPTMS, and TMTESPAC. DMSO was used as a solvent together with HNTf2 and water (the feed molar ratio of amine: HNTf2:H2O was 1.0:1.5:5.0) (Scheme 2). Solubilities of Am-POSS(x,y) are summarized in Table 2. All Am-POSS(x,y) were soluble in highly polar organic solvents but insoluble in water and low polarity organic solvents.
The 1H NMR spectra of Am-POSS(x,y) in DMSO-d6 showed the signals attributable to the side-chains of both the two selected organotrialkoxysilane components (Figure 5). The signals for the methoxy or ethoxy group of the two starting materials were not observed (Figure 5). The compositional ratio of the two starting material components in Am-POSS(x,y) was estimated to be ca. 1:1, considering the integrated ratio of the signals in the 1H NMR spectrum, i.e., (a + a′):e′ (4.00:2.96) for Am-POSS(1,2), (a + a″):c″ (4.00:2.01) for Am-POSS(1,3), c:c‴ (2.00:2.07) for Am-POSS(1,4), (a′ + a″):c″ (4.00:1.99) for Am-POSS(2,3), c′:c‴ (2.00:2.00) for Am-POSS(2,4), and (a″ + a‴):c‴ (4.00:2.02) for Am-POSS(3,4). The EDX patterns of Am-POSS(1,4), Am-POSS(2,4), and Am-POSS(3,4) contained no peaks originating from Cl (ca. 2.6 and 2.8 keV). The Si:S atom ratios were estimated to be 1.00:1.98 for Am-POSS(1,2), 1.00:2.03 for Am-POSS(1,3), 1.00:2.00 for Am-POSS(1,4), 1.00:2.06 for Am-POSS(2,3), 1.00:2.00 for Am-POSS(2,4), and 1.00:1.98 for Am-POSS(3,4), respectively, indicating that the molar ratios of ammonium cations to NTf2 anions in all products were ca. 1:1 (Figure S6).
The 29Si NMR spectra of Am-POSS(x,y) in DMSO-d6 at 40 °C showed only the sharp signals in the range between δ −66.6 and −67.3 ppm, corresponding to the T3 structure (Figure 6). These peaks correspond to cage-type octamer (T8-POSS). To support these 29Si NMR results, MALDI-TOF MS was performed on these POSSs. The MALDI-TOF MS of all Am-POSS(x,y) showed several peaks ascribed to the masses of T8-POSS (Figures S7–S12). In most POSSs, the number of combinations of the two side-chain groups ranged from 1:7 to 7:1. This indicates that the products consisted of T8-POSS only, no other POSSs, such as T10- and T12-POSSs were present.

2.4. Evaluation of Crystalline-Amorphous Structures of Am-POSS(x,y)

In the DSC curves of Am-POSS(1,3), Am-POSS(1,4), and Am-POSS(2,4), baseline shifts due to Tgs were observed at −6 °C (Figure 7b, Run 2 in Table 3), 15 °C (Figure 7c, Run 3 in Table 3), and 1 °C (Figure 7e, Run 5 in Table 3), respectively, and endothermic peaks due to Tms were not observed, suggesting amorphous structures. Conversely, Am-POSS(1,2), Am-POSS(2,3), and Am-POSS(3,4) had Tms at 154 °C (Figure 7a, Run 1 in Table 3), 104 °C (Figure 7d, Run 4 in Table 3), and 86 and 118 °C (Figure 7f, Run 6 in Table 3), respectively, indicating crystalline structures. In the XRD patterns of these products, immediately recorded after preparation, sharp diffraction peaks were observed only for Am-POSS(1,2) (Figure 8a). Repeating the XRD after more than two weeks resulted in sharp diffraction peaks for Am-POSS(2,3) and Am-POSS(3,4) (Figure 9d,f). Although the crystallization rate was different, Am-POSS(1,2), Am-POSS(2,3), and Am-POSS(3,4) are crystalline compounds. On the other hand, Am-POSS(1,3), Am-POSS(1,4), and Am-POSS(2,4) did not show any diffraction peaks, indicating that these compounds have amorphous structures. These XRD results did support the DSC results.
Based on the DSC and XRD results, we concluded that crystalline and amorphous POSSs were selectively prepared, depending on the combination of side-chain groups. Am-POSS(1,3), Am-POSS(1,4), and Am-POSS(2,4) have two or three differences in the number of methyl groups between two types of ammonium side-chains. Because of the low molecular symmetry of the POSSs containing two different randomly distributed side-chain groups, crystallization was suppressed, leading to amorphous structures. Conversely, the molecular symmetry of Am-POSS(1,2), Am-POSS(2,3), and Am-POSS(3,4) were maintained because of the difference in the numbers of methyl groups between the two types of ammonium side-chains was only one. Therefore, it seems difficult to suppress the crystallization of these POSSs.

2.5. Evaluation of Am-POSS(x,y) as ILs

ILs are generally defined as salts that melt below 100 °C (there is also a definition of less than 150 °C). The fundamental thermodynamic properties of ILs have been extensively studied [22,23,24] for applications, such as green solvents [25,26,27,28] and electrolyte materials [29,30,31]. ILs present unique properties, such as high thermal stability, low vapor pressure, and high ionic conductivity. ILs are classified as aprotic ILs (AILs) or protic ILs (PILs), depending on the absence or presence of active protons. PILs are prepared by a simple neutralization (proton transfer) reaction between a Brønsted acid and a Brønsted base [32,33]. Upon heating, PILs formation can be easily reversed to obtain the original acid and base, showing inferior thermal stability to that of AILs. Therefore, the thermal stability of PILs needs to be improved.
A POSS with IL properties was first developed by Chujo, Tanaka, and co-workers [34]. This POSS contained anionic carboxylate side-chains and imidazolium cations as counterions, and its melting point (Tm) was 23 °C. Another IL containing a POSS structure was reported by Feng, Zhang, and co-workers. It contained cationic imidazolium side-chains and dodecyl sulfate anions as counterions and had a Tm of 18 °C [35]. We have also reported the preparation of ILs containing randomly structured silsesquioxanes [36,37] and POSS with two types of side-chains [19]. However, all these ILs containing silsesquioxane frameworks were not PILs but AILs.
Although our group reported that cyclic oligosiloxanes containing 3-aminopropyl or 3-(2-aminoethylamino)propyl side-chain groups protonated with HNTf2 were of PILs nature [38], POSS containing the same side-chain groups did not show IL characteristics, because of the high crystallinity. The amorphous Am-POSS(1,3), Am-POSS(1,4), and Am-POSS(2,4) prepared in this study have active protons and showed PILs characteristics.
The flow temperatures of POSSs were confirmed as follows: Samples in glass vessels were maintained in a horizontal position at 200 °C for 15 min, and then cooled to room temperature (ca. 25 °C). Next, the vessels were kept horizontally at various temperatures (with 5 °C intervals) for 10 min and then tilted for 15 min. Following this procedure, it was confirmed that Am-POSS(1,2), Am-POSS(1,3), Am-POSS(1,4), Am-POSS(2,3), Am-POSS(2,4), and Am-POSS(3,4) flowed at 140 °C (Figure 10a, Run 1 in Table 3), 45 °C (Figure 10b, Run 2 in Table 3), 60 °C (Figure 10c, Run 3 in Table 3), 95 °C (Figure 10d, Run 4 in Table 3), 45 °C (Figure 10e, Run 5 in Table 3), and 95 °C (Figure 10f, Run 6 in Table 3), respectively. These results indicated that amorphous Am-POSS(1,3), Am-POSS(1,4), and Am-POSS(2,4) were PILs with relatively low flow temperatures, while crystalline Am-POSS(1,2), Am-POSS(2,3), and Am-POSS(3,4) were PILs with relatively high flow temperatures.
Finally, the thermal stabilities of Am-POSS(x,y) were investigated by thermogravimetric analyses (TGA) (Figure S13). The pyrolysis temperatures of 5% (Td5) and 10% (Td10) weight losses of Am-POSS(x,y) are summarized in Table 3. It was found that the Td5 values of all Am-POSS(x,y) exceeded 370 °C. These values indicate excellent thermal stabilities and results from the suppression of the molecular tumbling by the silsesquioxane framework [34].

3. Materials and Methods

3.1. Materials

APTMS, MAPTMS, DMAPTMS, TMTESPAC, tris(2,4-pentanedionato)chromium(III) [Cr(acac)3], and tetramethylsilane (TMS) were purchased from Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan). HNTf2 was purchased from Kanto Chemical Co., Inc. (Tokyo, Japan). 2,5-Dihydroxybenzoic acid (DHB) was purchased from Bruker Daltonik Gmbh (Bremen, Germany). Other reagents and solvents were purchased from FUJIFILM Wako Pure Chemical Co., Ltd. (Osaka, Japan). All reagents and solvents were used without further purification.

3.2. Preparation of Am-POSS(1)

A mixture of a 0.5 mol·L−1 DMSO solution of HNTf2 (6.0 mL, 3.0 mmol) and water (0.180 g, 10.0 mmol) was added to APTMS (purity: 96%, 0.374 g, 2.0 mmol) while stirring at room temperature (ca. 25 °C). The resulting solution was further stirred for 2 h. This solution was then heated at ca. 60 °C on a hot plate for 15 h using a disposal tray made of polypropylene (PP), as shown in Figure S14, and the resulting viscous liquid was maintained at 100 °C for 2 h. Subsequently, the crude product was dissolved in methanol (3 mL) at room temperature (ca. 25 °C), and this solution was poured into an acetone-chloroform mixed solvent (1:19 v/v, 180 mL). The insoluble part was isolated by decantation and washed with chloroform (ca. 50 mL, 5 times). To collect the material in a glass container, after dissolving it in methanol, the solution was transferred into a glass container and evaporated. The resulting product was then maintained at 200 °C for 5 h to yield 0.761 g of a white solid product (97% yield based on the ideal chemical formula of one unit of this product, i.e., [SiO1.5(CH2)3NH3 (CF3SO2)2N, FW = 391.4]). 1H NMR (400 MHz, DMSO-d6): δ 7.75–7.42 (3H, br, –SiCH2CH2CH2NH3), δ 2.81–2.65 (2H, br, –SiCH2CH2CH2NH3), δ 1.62–1.40 (2H, br, –SiCH2CH2CH2NH3), δ 0.65 (2H, t, J = 8.24 Hz, –SiCH2CH2CH2NH3). 29Si NMR (79.4 MHz, DMSO-d6): δ −66.6 (T3, T8-POSS).

3.3. Preparation of Am-POSS(2)

Am-POSS(2) was prepared similar to Am-POSS(1), except that the starting material was MAPTMS (purity: 95%, 0.407 g, 2.0 mmol). A white solid product (0.679 g) was obtained (84% yield based on the ideal chemical formula of one unit of this product, i.e., [SiO1.5(CH2)3NH2CH3 (CF3SO2)2N, FW = 405.4]). 1H NMR (400 MHz, DMSO-d6): δ 8.35–8.09 (2H, br, –SiCH2CH2CH2NH2CH3), δ 2.89–2.75 (2H, br, –SiCH2CH2CH2NH2CH3), δ 2.57 (3H, t, J = 5.50 Hz, –SiCH2CH2CH2NH2CH3), δ 1.65–1.46 (2H, br, –SiCH2CH2CH2NH2CH3), δ 0.65 (2H, t, J = 8.24 Hz, –SiCH2CH2CH2NH2CH3). 29Si NMR (79.4 MHz, DMSO-d6): δ −66.8 (T3, T8-POSS).

3.4. Preparation of Am-POSS(3)

Am-POSS(3) was prepared similar to Am-POSS(1), except that the starting material was DMAPTMS (purity: 96%, 0.432 g, 2.0 mmol). A white solid product (0.807 g) was obtained (96% yield based on the ideal chemical formula of one unit of this product, i.e., [SiO1.5(CH2)3NH(CH3)2 (CF3SO2)2N, FW = 419.4]). 1H NMR (400 MHz, DMSO-d6): δ 9.37–9.05 (1H, br, –SiCH2CH2CH2NH(CH3)2), δ 3.03–2.90 (2H, br, –SiCH2CH2CH2NH(CH3)2), δ 2.83–2.65 (6H, br, –SiCH2CH2CH2NH(CH3)2), δ 1.71–1.46 (2H, br, –SiCH2CH2CH2NH(CH3)2), δ 0.64 (2H, t, J = 8.47 Hz, –SiCH2CH2CH2NH(CH3)2). 29Si NMR (79.4 MHz, DMSO-d6): δ −67.0 (T3, T8-POSS).

3.5. Preparation of Am-POSS(4)

Am-POSS(4) was prepared similar to Am-POSS(1), except that the starting material was TMTESPAC (purity: 98%, 0.612 g, 2.0 mmol). A white solid product (0.855 g) was obtained (99% yield based on the ideal chemical formula of one unit of this product, i.e., [SiO1.5(CH2)3N(CH3)3 (CF3SO2)2N, FW = 433.5]). 1H NMR (400 MHz, DMSO-d6): δ 3.26–3.15 (2H, br, –SiCH2CH2CH2N(CH3)3), δ 3.03 (9H, s, –SiCH2CH2CH2N(CH3)3), δ 1.76–1.54 (2H, br, –SiCH2CH2CH2N(CH3)3), δ 0.64 (2H, t, J = 8.47 Hz, –SiCH2CH2CH2N(CH3)3). 29Si NMR (79.4 MHz, DMSO-d6): δ −67.3 (T3, T8-POSS).

3.6. Preparation of Am-POSS(1,2)

Am-POSS(1,2) was prepared similar to Am-POSS(1), except that the starting material was a mixture of APTMS (purity: 96%, 0.187 g, 1.0 mmol) and MAPTMS (purity: 95%, 0.203 g, 1.0 mmol). A white solid product (0.761 g) was obtained (96% yield based on the ideal average chemical formula of one unit of this product, i.e., {[SiO1.5(CH2)3NH3 (CF3SO2)2N, FW = 391.4] × 0.50 + [SiO1.5(CH2)3NH2CH3 (CF3SO2)2N, FW = 405.4] × 0.50 = 398.4}). 1H NMR (400 MHz, DMSO-d6): δ 8.34–8.09 (2H, br, –SiCH2CH2CH2NH2CH3 of the MAPTMS component), δ 7.74–7.44 (3H, br, –SiCH2CH2CH2NH3 of the APTMS component), δ 2.89–2.78 (2H, br, –SiCH2CH2CH2NH2CH3 of the MAPTMS component), δ 2.78–2.68 (2H, br, –SiCH2CH2CH2NH3 of the APTMS component), δ 2.57 (3H, t, J = 5.27 Hz, –SiCH2CH2CH2NH2CH3 of the MAPTMS component), δ 1.68–1.40 (2H, br, –SiCH2CH2CH2NH2CH3 of the MAPTMS component and –SiCH2CH2CH2NH3 of the APTMS component), δ 0.76–0.47 (2H, br, –SiCH2CH2CH2NH2CH3 of the MAPTMS component and –SiCH2CH2CH2NH3 of the APTMS component). 29Si NMR (79.4 MHz, DMSO-d6): δ −66.6 and −66.8 (T3, T8-POSS).

3.7. Preparation of Am-POSS(1,3)

Am-POSS(1,3) was prepared similar to Am-POSS(1), except that the starting material was a mixture of APTMS (purity: 96%, 0.187 g, 1.0 mmol) and DMAPTMS (purity: 96%, 0.216 g, 1.0 mmol). A brown and viscous solid product (0.804 g) was obtained (99% yield based on the ideal average chemical formula of one unit of this product, i.e., {[SiO1.5(CH2)3NH3 (CF3SO2)2N, FW = 391.4] × 0.50 + [SiO1.5(CH2)3NH(CH3)2 (CF3SO2)2N, FW = 419.4] × 0.50 = 405.4}). 1H NMR (400 MHz, DMSO-d6): δ 9.38–9.05 (1H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component), δ 7.79–7.40 (3H, br, –SiCH2CH2CH2NH3 of the APTMS component), δ 3.03–2.90 (2H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component), δ 2.83–2.65 (6H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component and 2H, br, –SiCH2CH2CH2NH3 of the APTMS component), δ 1.70–1.41 (2H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component and –SiCH2CH2CH2NH3 of the APTMS component), δ 0.77–0.42 (2H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component and –SiCH2CH2CH2NH3 of the APTMS component). 29Si NMR (79.4 MHz, DMSO-d6): δ −66.6 and −67.0 (T3, T8-POSS).

3.8. Preparation of Am-POSS(1,4)

Am-POSS(1,4) was prepared similar to Am-POSS(1), except that the starting material was a mixture of APTMS (purity: 96%, 0.187 g, 1.0 mmol) and TMTESPAC (purity: 98%, 0.306 g, 1.0 mmol). A dark brown and viscous solid product (0.809 g) was obtained (98% yield based on the ideal average chemical formula of one unit of this product, i.e., {[SiO1.5(CH2)3NH3 (CF3SO2)2N, FW = 391.4] × 0.49 + [SiO1.5(CH2)3N(CH3)3 (CF3SO2)2N, FW = 433.5] × 0.51 = 412.9}). 1H NMR (400 MHz, DMSO-d6): δ 7.75–7.43 (3H, br, –SiCH2CH2CH2NH3 of the APTMS component), δ 3.25–3.13 (2H, br, –SiCH2CH2CH2N(CH3)3 of the TMTESPAC component), δ 3.08–2.92 (9H, br, –SiCH2CH2CH2N(CH3)3 of the TMTESPAC component), δ 2.81–2.68 (2H, br, –SiCH2CH2CH2NH3 of the APTMS component), δ 1.78–1.60 (2H, br, –SiCH2CH2CH2N(CH3)3 of the TMTESPAC component), δ 1.60–1.42 (2H, br, –SiCH2CH2CH2NH3 of the APTMS component), δ 0.78–0.44 (2H, br, –SiCH2CH2CH2N(CH3)3 of the TMTESPAC component and –SiCH2CH2CH2NH3 of the APTMS component). 29Si NMR (79.4 MHz, DMSO-d6): δ −66.6 and −67.3 (T3, T8-POSS).

3.9. Preparation of Am-POSS(2,3)

Am-POSS(2,3) was prepared similar to Am-POSS(1), except that the starting material was a mixture of MAPTMS (purity: 95%, 0.203 g, 1.0 mmol) and DMAPTMS (purity: 96%, 0.216 g, 1.0 mmol). A brown and viscous product (0.779 g) was obtained (94% yield based on the ideal average chemical formula of one unit of this product, i.e., {[SiO1.5(CH2)3NH2CH3 (CF3SO2)2N, FW = 405.4] × 0.50 + [SiO1.5(CH2)3NH(CH3)2 (CF3SO2)2N, FW = 419.4] × 0.50 = 412.4}). 1H NMR (400 MHz, DMSO-d6): δ 9.34–9.09 (1H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component), δ 8.34–8.10 (2H, br, –SiCH2CH2CH2NH2CH3 of the MAPTMS component), δ 3.03–2.90 (2H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component), δ 2.88–2.79 (2H, br, –SiCH2CH2CH2NH2CH3 of the MAPTMS component), δ 2.79–2.65 (6H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component), δ 2.57 (3H, t, J = 5.04 Hz, –SiCH2CH2CH2NH2CH3 of the MAPTMS component), δ 1.71–1.39 (2H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component and –SiCH2CH2CH2NH2CH3 of the MAPTMS component), δ 0.75–0.43 (2H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component and –SiCH2CH2CH2NH2CH3 of the MAPTMS component). 29Si NMR (79.4 MHz, DMSO-d6): δ −67.0 and −67.1 (T3, T8-POSS).

3.10. Preparation of Am-POSS(2,4)

Am-POSS(2,4) was prepared similar to Am-POSS(1), except that the starting material was a mixture of MAPTMS (purity: 95%, 0.203 g, 1.0 mmol) and TMTESPAC (purity: 98%, 0.306 g, 1.0 mmol). A dark brown and viscous product (0.828 g) was obtained (99% yield based on the ideal average chemical formula of one unit of this product, i.e., {[SiO1.5(CH2)3N H2CH3 (CF3SO2)2N, FW = 405.4] × 0.50 + [SiO1.5(CH2)3N(CH3)3 (CF3SO2)2N, FW = 433.5] × 0.50 = 419.5}). 1H NMR (400 MHz, DMSO-d6): δ 8.36–8.07 (2H, br, –SiCH2CH2CH2NH2CH3 of the MAPTMS component), δ 3.25–3.14 (2H, br, –SiCH2CH2CH2N(CH3)3 of the TMTESPAC component), δ 3.10–2.95 (9H, br, –SiCH2CH2CH2N(CH3)3 of the TMTESPAC component), δ 2.89–2.77 (2H, br, –SiCH2CH2CH2NH2CH3 of the MAPTMS component), δ 2.60–2.53 (3H, br, –SiCH2CH2CH2NH2CH3 of the MAPTMS component), δ 1.76–1.60 (2H, br, –SiCH2CH2CH2N(CH3)3 of the TMTESPAC component), δ 1.60–1.46 (2H, br, –SiCH2CH2CH2NH2CH3 of the MAPTMS component), δ 0.78–0.45 (2H, br, –SiCH2CH2CH2N(CH3)3 of the TMTESPAC component and –SiCH2CH2CH2NH2CH3 of the MAPTMS component). 29Si NMR (79.4 MHz, DMSO-d6): δ −66.8 and −67.3 (T3, T8-POSS).

3.11. Preparation of Am-POSS(3,4)

Am-POSS(3,4) was prepared similar to Am-POSS(1), except that the starting material was a mixture of DMAPTMS (purity: 96%, 0.216 g, 1.0 mmol) and TMTESPAC (purity: 98%, 0.306 g, 1.0 mmol). A dark brown and viscous product (0.799 g) was obtained (94% yield based on the ideal average chemical formula of one unit of this product, i.e., {[SiO1.5(CH2)3N H(CH3)2 (CF3SO2)2N, FW = 419.4] × 0.50 + [SiO1.5(CH2)3N(CH3)3 (CF3SO2)2N, FW = 433.5] × 0.50 = 426.5}). 1H NMR (400 MHz, DMSO-d6): δ 9.35–9.12 (1H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component), δ 3.25–3.15 (2H, br, –SiCH2CH2CH2N(CH3)3 of the TMTESPAC component), δ 3.09–3.00 (9H, br, –SiCH2CH2CH2N(CH3)3 of the TMTESPAC component), δ 3.00–2.91 (2H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component), δ 2.81–2.68 (6H, br, –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component), δ 1.77–1.47 (2H, br, –SiCH2CH2CH2N(CH3)3 of the TMTESPAC component and –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component), δ 0.77–0.44 (2H, br, –SiCH2CH2CH2N(CH3)3 of the TMTESPAC component and –SiCH2CH2CH2NH(CH3)2 of the DMAPTMS component). 29Si NMR (79.4 MHz, DMSO-d6): δ −67.2 and −67.3 (T3, T8-POSS).

3.12. Measurements

The 1H and 29Si NMR spectra were recorded using an ECX-400 spectrometer (JEOL RESONANCE Inc., Tokyo, Japan). The absence of Cl and the elemental ratios of Si:S in the products were confirmed by EDX analyses using an XL30 scanning electron microscope (FEI Company, Hillsboro, OR, USA). The MALDI-TOF MS analyses of the products were performed using a Voyager Biospectrometry Workstation Ver. 5.1 (SHIMADZU Corporation, Kyoto, Japan) with 2,5-dihydroxybenzoic acid (DHB) as the matrix under positive ion mode. The DSC analyses were performed on a DSC-60 Plus (SHIMADZU Corporation, Kyoto, Japan). The samples placed in an aluminum capsule were cooled to −140 °C at a rate of 20 °C min−1 under a nitrogen flow (300 mL min−1) and then heated from −140 °C to 240 °C at the same rate. The Tg and Tm values were determined as the onset of the baseline shift and as the tops of the endothermic peaks, respectively, in the curves of the third scan (from −140 °C to 240 °C at a rate of 20 °C min−1) to eliminate the heat history in the samples. The XRD patterns were recorded at a scanning speed of 2θ = 9.0° min−1 using an X’Pert Pro diffractometer (PANalytical, Almelo, Netherlands) with Ni-filtered Cu Kα radiation (0.15418 nm). The TGA was performed on a TGA-50 (SHIMADZU Corporation, Kyoto, Japan) at a heating rate of 10 °C min−1 up to 1000 °C under nitrogen flow (100 mL min−1). The pyrolysis temperatures were determined from the 5% (Td5) and 10% (Td10) weight losses.

4. Conclusions

Am-POSS(x,y) were successfully prepared by the hydrolytic condensation in DMSO of mixtures of two starting materials, which were selected from the organotrialkoxysilanes containing primary, secondary, and tertiary amines and a quaternary ammonium salt, in the presence of HNTf2 and water. The products consisted of T8-POSS only. The DSC curves of Am-POSS(1,3), Am-POSS(1,4), and Am-POSS(2,4) did not show the endothermic peaks due to Tms, indicating their amorphous structures. Conversely, those of Am-POSS(1,2), Am-POSS(2,3), and Am-POSS(3,4) showed the endothermic peaks due to Tms, indicating their crystalline structures. XRD data also supported these results. These results indicate that the crystalline or amorphous structure of Am-POSS(x,y) can be controlled by the side-chain group combinations. Am-POSS(1,3), Am-POSS(1,4), and Am-POSS(2,4) were PILs with relatively low flow temperatures, while Am-POSS(1,2), Am-POSS(2,3), and Am-POSS(3,4) were PILs with relatively high flow temperatures.

Supplementary Materials

The following are available online at https://www.mdpi.com/1420-3049/24/24/4553/s1, Figure S1: EDX patterns of Am-POSS(x)., Figure S2: MALDI-TOF MS analysis of Am-POSS(1)., Figure S3: MALDI-TOF MS analysis of Am-POSS(2)., Figure S4: MALDI-TOF MS analysis of Am-POSS(3)., Figure S5: MALDI-TOF MS analysis of Am-POSS(4)., Figure S6: EDX patterns of Am-POSS(x,y)., Figure S7: MALDI-TOF MS analysis of Am-POSS(1,2)., Figure S8: MALDI-TOF MS analysis of Am-POSS(1,3)., Figure S9: MALDI-TOF MS analysis of Am-POSS(1,4)., Figure S10: MALDI-TOF MS analysis of Am-POSS(2,3)., Figure S11: MALDI-TOF MS analysis of Am-POSS(2,4)., Figure S12: MALDI-TOF MS analysis of Am-POSS(3,4)., Figure S13: TGA thermograms of Am-POSS(x,y)., Figure S14: Photograph of the apparatus.

Author Contributions

Conceptualization, R.H. and Y.K.; methodology, R.H.; formal analysis, R.H.; investigation, R.H.; resources, Y.K.; data curation, R.H.; writing—original draft preparation, R.H.; writing—review and editing, Y.K.; supervision, Y.K.; project administration, Y.K.; funding acquisition, Y.K.

Funding

This work was supported by JSPS KAKENHI (Grant-in-Aid for Challenging Exploratory Research) Number 15K13711.

Acknowledgments

We acknowledge the support of Y. Suda, M. Wakao, and H. Shinchi of the Graduate School of Science and Engineering, Kagoshima University (Japan) in MALDI-TOF MS measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Baney, R.H.; Itoh, M.; Sakakibara, A.; Suzuki, T. Silsesquioxanes. Chem. Rev. 1995, 95, 1409–1430. [Google Scholar] [CrossRef]
  2. Loy, D.A.; Baugher, B.M.; Baugher, C.R.; Schneider, D.A.; Rahimian, K. Substituent effects on the sol−gel chemistry of organotrialkoxysilanes. Chem. Mater. 2000, 12, 3624–3632. [Google Scholar] [CrossRef] [Green Version]
  3. Cordes, D.B.; Lickiss, P.D.; Rataboul, F. Recent developments in the chemistry of cubic polyhedral oligosilsesquioxanes. Chem. Rev. 2010, 110, 2081–2173. [Google Scholar] [CrossRef] [PubMed]
  4. Tanaka, K.; Chujo, Y. Advanced functional materials based on polyhedral oligomeric silsesquioxane (POSS). J. Mater. Chem. 2012, 22, 1733–1746. [Google Scholar] [CrossRef]
  5. Feher, F.J.; Wyndham, K.D. Amine and ester-substituted silsesquioxanes: Synthesis, characterization and use as a core for starburst dendrimers. Chem. Commun. 1998, 323–324. [Google Scholar] [CrossRef]
  6. Naka, K.; Sato, M.; Chujo, Y. Stabilized spherical aggregate of palladium nanoparticles prepared by reduction of palladium acetate in octa(3-aminopropyl)octasilsesquioxane as a rigid template. Langmuir 2008, 24, 2719–2726. [Google Scholar] [CrossRef]
  7. Laine, R.M.; Roll, M.F. Polyhedral phenylsilsesquioxanes. Macromolecules 2011, 44, 1073–1109. [Google Scholar] [CrossRef]
  8. Kuo, S.W.; Chang, F.C. POSS related polymer nanocomposites. Prog. Polym. Sci. 2011, 36, 1649–1696. [Google Scholar] [CrossRef]
  9. Samthong, C.; Laine, R.M.; Somwangthanaroj, A. Synthesis and characterization of organic/inorganic epoxy nanocomposites from poly(aminopropyl/phenyl)silsesquioxanes. J. Appl. Polym. Sci. 2013, 128, 3601–3608. [Google Scholar] [CrossRef] [Green Version]
  10. Sharma, A.K.; Sloan, R.; Ramakrishnan, R.; Nazarenko, S.I.; Wiggins, J.S. Structure-property relationships in epoxy hybrid networks based on high mass fraction pendant POSS incorporated at molecular level. Polymer 2018, 139, 201–212. [Google Scholar] [CrossRef]
  11. Araki, H.; Naka, K. Syntheses of dumbbell-shaped trifluoropropyl-substituted POSS derivatives linked by simple aliphatic chains and their optical transparent thermoplastic films. Macromolecules 2011, 44, 6039–6045. [Google Scholar] [CrossRef]
  12. Araki, H.; Naka, K. Syntheses and properties of star-and dumbbell-shaped POSS derivatives containing isobutyl groups. Polym. J. 2012, 44, 340–346. [Google Scholar] [CrossRef]
  13. Maegawa, T.; Irie, Y.; Fueno, H.; Tanaka, K.; Naka, K. Synthesis and polymerization of a para-disubstituted T8-caged hexaisobutyl-POSS monomer. Chem. Lett. 2014, 43, 1532–1534. [Google Scholar] [CrossRef]
  14. Tokunaga, T.; Koge, S.; Mizumo, T.; Ohshita, J.; Kaneko, Y. Facile preparation of a soluble polymer containing polyhedral oligomeric silsesquioxane units in its main chain. Polym. Chem. 2015, 6, 3039–3045. [Google Scholar] [CrossRef]
  15. Chimjarn, S.; Kunthom, R.; Chancharone, P.; Sodkhomkhum, R.; Sangtrirutnugul, P.; Ervithayasuporn, V. Synthesis of aromatic functionalized cage-rearranged silsesquioxanes (T8, T10, and T12) via nucleophilic substitution reactions. Dalton Trans. 2015, 44, 916–919. [Google Scholar] [CrossRef] [PubMed]
  16. Imai, K.; Kaneko, Y. Preparation of ammonium-functionalized polyhedral oligomeric silsesquioxanes with high proportions of cagelike decamer and their facile separation. Inorg. Chem. 2017, 56, 4133–4140. [Google Scholar] [CrossRef] [PubMed]
  17. Yuasa, S.; Sato, Y.; Imoto, H.; Naka, K. Thermal properties of open-cage silsesquioxanes: The effect of substituents at the corners and opening moieties. Bull. Chem. Soc. Jpn. 2019, 92, 127–132. [Google Scholar] [CrossRef]
  18. Tokunaga, T.; Shoiriki, M.; Mizumo, T.; Kaneko, Y. Preparation of low-crystalline POSS containing two types of alkylammonium groups and its optically transparent film. J. Mater. Chem. C 2014, 2, 2496–2501. [Google Scholar] [CrossRef]
  19. Harada, A.; Koge, S.; Ohshita, J.; Kaneko, Y. Preparation of a thermally stable room temperature ionic liquid containing cage-like oligosilsesquioxane with two types of side-chain groups. Bull. Chem. Soc. Jpn. 2016, 89, 1129–1135. [Google Scholar] [CrossRef]
  20. Kaneko, Y.; Shoiriki, M.; Mizumo, T. Preparation of cage-like octa(3-aminopropyl)silsesquioxane trifluoromethanesulfonate in higher yield with a shorter reaction time. J. Mater. Chem. 2012, 22, 14475–14478. [Google Scholar] [CrossRef]
  21. Matsumoto, T.; Kaneko, Y. Selective and high-yielding preparation of ammonium-functionalized cage-like octasilsesquioxanes using superacid catalyst in dimethyl sulfoxide. Chem. Lett. 2018, 47, 864–867. [Google Scholar] [CrossRef]
  22. Heintz, A.; Kulikov, D.V.; Verevkin, S.P. Thermodynamic properties of mixtures containing ionic liquids. 1. Activity coefficients at infinite dilution of alkanes, alkenes, and alkylbenzenes in 4-methyl-n-butylpyridinium tetrafluoroborate using gas−liquid chromatography. J. Chem. Eng. Data 2001, 46, 1526–1529. [Google Scholar] [CrossRef]
  23. Heintz, A.; Kulikov, D.V.; Verevkin, S.P. Thermodynamic properties of mixtures containing ionic liquids. Activity coefficients at infinite dilution of polar solutes in 4-methyl-N-butyl-pyridinium tetrafluoroborate using gas–liquid chromatography. J. Chem. Thermodyn. 2002, 34, 1341–1347. [Google Scholar] [CrossRef]
  24. Emel’yanenko, V.N.; Verevkin, S.P.; Heintz, A. The gaseous enthalpy of formation of the ionic liquid 1-butyl-3-methylimidazolium dicyanamide from combustion calorimetry, vapor pressure measurements, and ab initio calculations. J. Am. Chem. Soc. 2007, 129, 3930–3937. [Google Scholar] [CrossRef]
  25. Welton, T. Room-temperature ionic liquids. Solvents for synthesis and catalysis. Chem. Rev. 1999, 99, 2071–2083. [Google Scholar] [CrossRef]
  26. Hallett, J.P.; Welton, T. Room-temperature ionic liquids: Solvents for synthesis and catalysis. 2. Chem. Rev. 2011, 111, 3508–3576. [Google Scholar] [CrossRef]
  27. Huddleston, J.G.; Willauer, H.D.; Swatloski, R.P.; Visser, A.E.; Rogers, R.D. Room temperature ionic liquids as novel media for ‘clean’ liquid–liquid extraction. Chem. Commun. 1998, 1765–1766. [Google Scholar] [CrossRef]
  28. Dzyuba, S.V.; Bartsch, R.A. Recent advances in applications of room-temperature ionic liquid/supercritical CO2 systems. Angew. Chem. Int. Ed. 2003, 42, 148–150. [Google Scholar] [CrossRef]
  29. Armand, M.; Endres, F.; MacFarlane, D.R.; Ohno, H.; Scrosati, B. Ionic-liquid materials for the electrochemical challenges of the future. Nat. Mater. 2009, 8, 621–629. [Google Scholar] [CrossRef]
  30. Ganapatibhotla, L.V.N.R.; Zheng, J.; Roy, D.; Krishnan, S. PEGylated imidazolium ionic liquid electrolytes: Thermophysical and electrochemical properties. Chem. Mater. 2010, 22, 6347–6360. [Google Scholar] [CrossRef]
  31. Tsurumaki, A.; Kagimoto, J.; Ohno, H. Properties of polymer electrolytes composed of poly(ethylene oxide) and ionic liquids according to hard and soft acids and bases theory. Polym. Adv. Technol. 2011, 22, 1223–1228. [Google Scholar] [CrossRef]
  32. Greaves, T.L.; Drummond, C.J. Protic ionic liquids: Properties and applications. Chem. Rev. 2008, 108, 206–237. [Google Scholar] [CrossRef] [PubMed]
  33. Greaves, T.L.; Drummond, C.J. Protic ionic liquids: Evolving structure–property relationships and expanding applications. Chem. Rev. 2015, 115, 11379–11448. [Google Scholar] [CrossRef] [PubMed]
  34. Tanaka, K.; Ishiguro, F.; Chujo, Y. POSS ionic liquid. J. Am. Chem. Soc. 2010, 132, 17649–17651. [Google Scholar] [CrossRef] [PubMed]
  35. Tan, J.; Ma, D.; Sun, X.; Feng, S.; Zhang, C. Synthesis and characterization of an octaimidazolium-based polyhedral oligomeric silsesquioxanes ionic liquid by an ion-exchange reaction. Dalton Trans. 2013, 42, 4337–4339. [Google Scholar] [CrossRef] [PubMed]
  36. Ishii, T.; Mizumo, T.; Kaneko, Y. Facile preparation of ionic liquid containing silsesquioxane framework. Bull. Chem. Soc. Jpn. 2014, 87, 155–159. [Google Scholar] [CrossRef]
  37. Ishii, T.; Enoki, T.; Mizumo, T.; Ohshita, J.; Kaneko, Y. Preparation of imidazolium-type ionic liquids containing silsesquioxane frameworks and their thermal and ion-conductive properties. RSC Adv. 2015, 5, 15226–15232. [Google Scholar] [CrossRef]
  38. Hirohara, T.; Kai, T.; Ohshita, J.; Kaneko, Y. Preparation of protic ionic liquids containing cyclic oligosiloxane frameworks. RSC Adv. 2017, 7, 10575–10582. [Google Scholar] [CrossRef] [Green Version]
Sample Availability: Samples of the compounds may be available from the authors.
Molecules 24 04553 sch001 550
Scheme 1. Preparation of POSSs containing one type of ammonium side-chain group: (a) Am-POSS(1), (b) Am-POSS(2), (c) Am-POSS(3), and (d) Am-POSS(4).
Scheme 1. Preparation of POSSs containing one type of ammonium side-chain group: (a) Am-POSS(1), (b) Am-POSS(2), (c) Am-POSS(3), and (d) Am-POSS(4).
Molecules 24 04553 sch001
Molecules 24 04553 g001 550

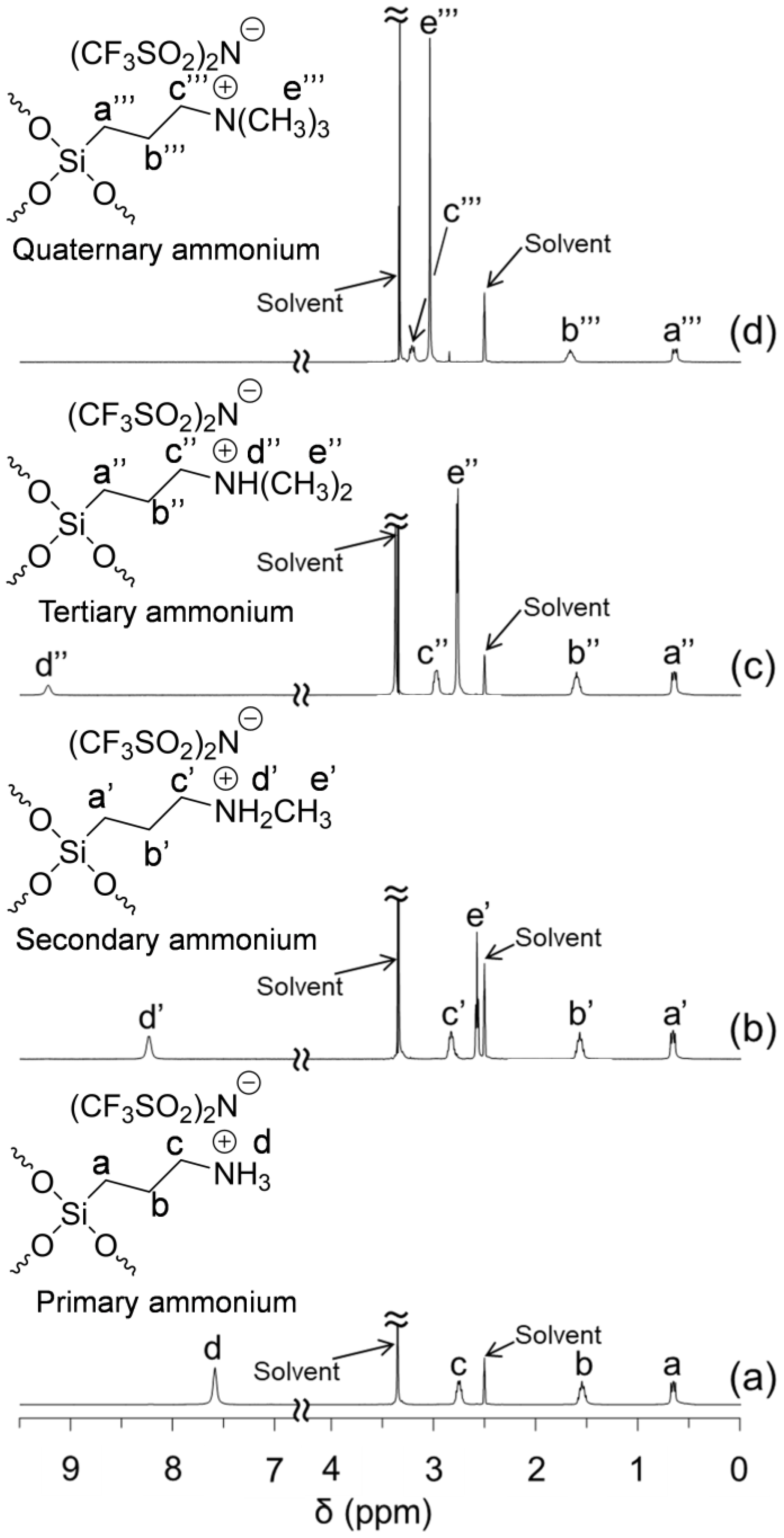

Figure 1. 1H NMR spectra of (a) Am-POSS(1), (b) Am-POSS(2), (c) Am-POSS(3), and (d) Am-POSS(4) in DMSO-d6. Chemical shifts were referenced to DMSO (δ 2.5).
Figure 1. 1H NMR spectra of (a) Am-POSS(1), (b) Am-POSS(2), (c) Am-POSS(3), and (d) Am-POSS(4) in DMSO-d6. Chemical shifts were referenced to DMSO (δ 2.5).
Molecules 24 04553 g001
Molecules 24 04553 g002 550

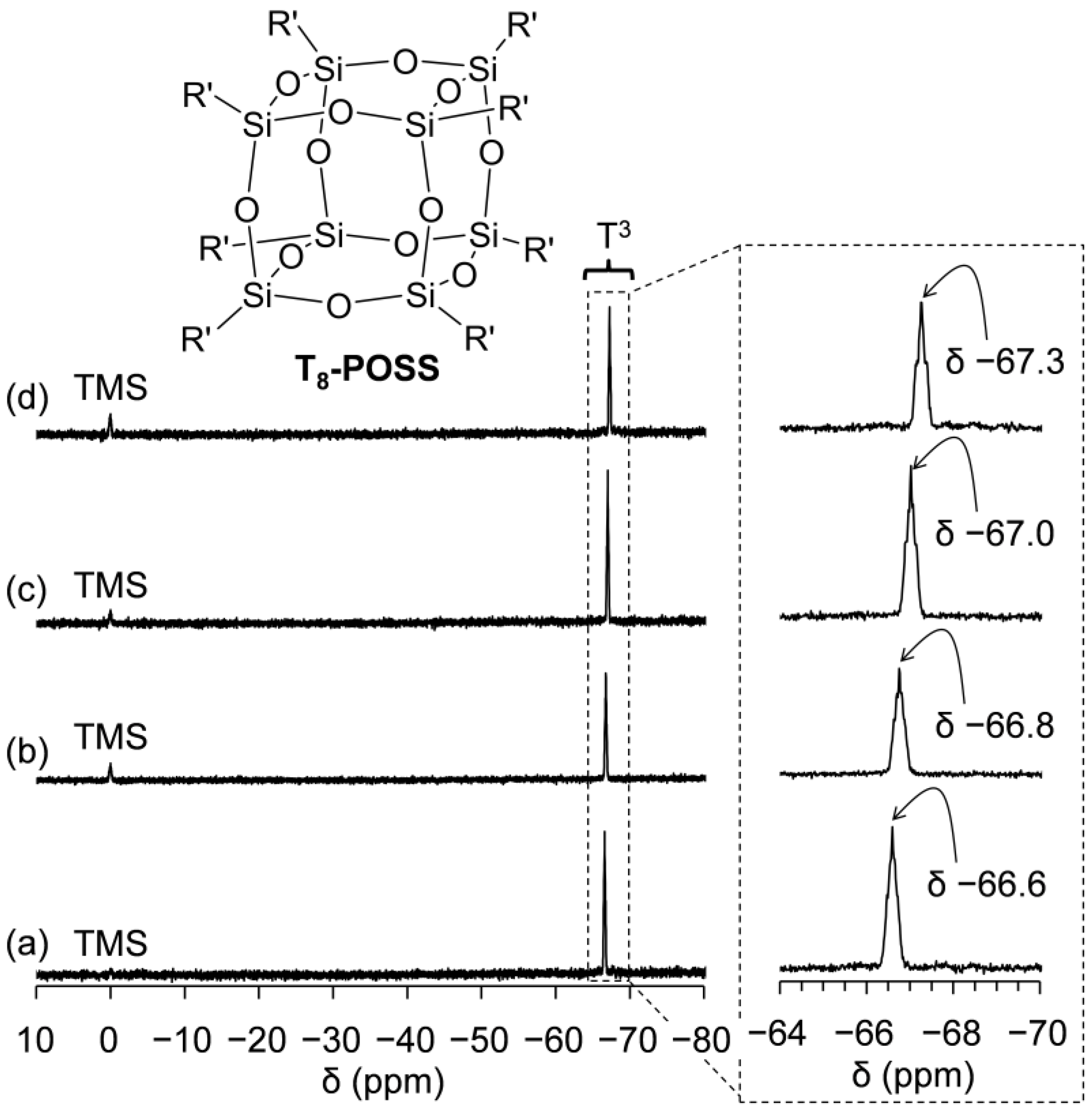

Figure 2. 29Si NMR spectra of (a) Am-POSS(1), (b) Am-POSS(2), (c) Am-POSS(3), and (d) Am-POSS(4) in DMSO-d6 at 40 °C. Chemical shifts were referenced to tetramethylsilane (TMS) (δ 0.0).
Figure 2. 29Si NMR spectra of (a) Am-POSS(1), (b) Am-POSS(2), (c) Am-POSS(3), and (d) Am-POSS(4) in DMSO-d6 at 40 °C. Chemical shifts were referenced to tetramethylsilane (TMS) (δ 0.0).
Molecules 24 04553 g002
Molecules 24 04553 g003 550

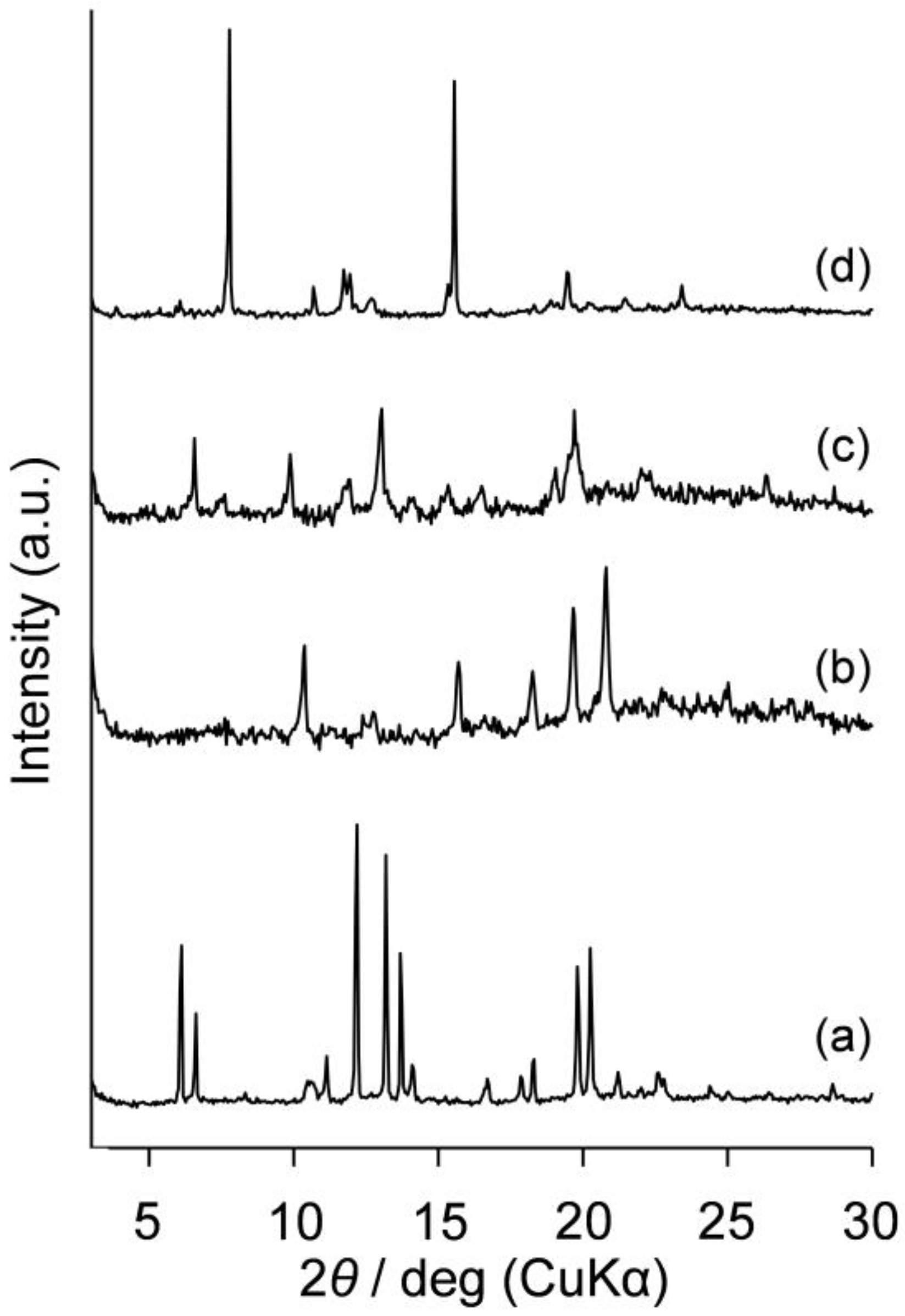

Figure 3. XRD patterns (immediately after preparation) obtained at room temperature (ca. 25 °C) of (a) Am-POSS(1), (b) Am-POSS(2), (c) Am-POSS(3), and (d) Am-POSS(4). The amount of each product on the glass was ca. 1.0 mg·cm−2.
Figure 3. XRD patterns (immediately after preparation) obtained at room temperature (ca. 25 °C) of (a) Am-POSS(1), (b) Am-POSS(2), (c) Am-POSS(3), and (d) Am-POSS(4). The amount of each product on the glass was ca. 1.0 mg·cm−2.
Molecules 24 04553 g003
Molecules 24 04553 g004 550
Figure 4. DSC curves of (a) Am-POSS(1), (b) Am-POSS(2), (c) Am-POSS(3), and (d) Am-POSS(4).
Figure 4. DSC curves of (a) Am-POSS(1), (b) Am-POSS(2), (c) Am-POSS(3), and (d) Am-POSS(4).
Molecules 24 04553 g004
Molecules 24 04553 sch002 550
Scheme 2. Preparation of POSSs containing two types of ammonium side-chain groups: (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4).
Scheme 2. Preparation of POSSs containing two types of ammonium side-chain groups: (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4).
Molecules 24 04553 sch002
Molecules 24 04553 g005 550
Figure 5. 1H NMR spectra of (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4) in DMSO-d6. Chemical shifts were referenced to DMSO (δ 2.5).
Figure 5. 1H NMR spectra of (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4) in DMSO-d6. Chemical shifts were referenced to DMSO (δ 2.5).
Molecules 24 04553 g005
Molecules 24 04553 g006 550

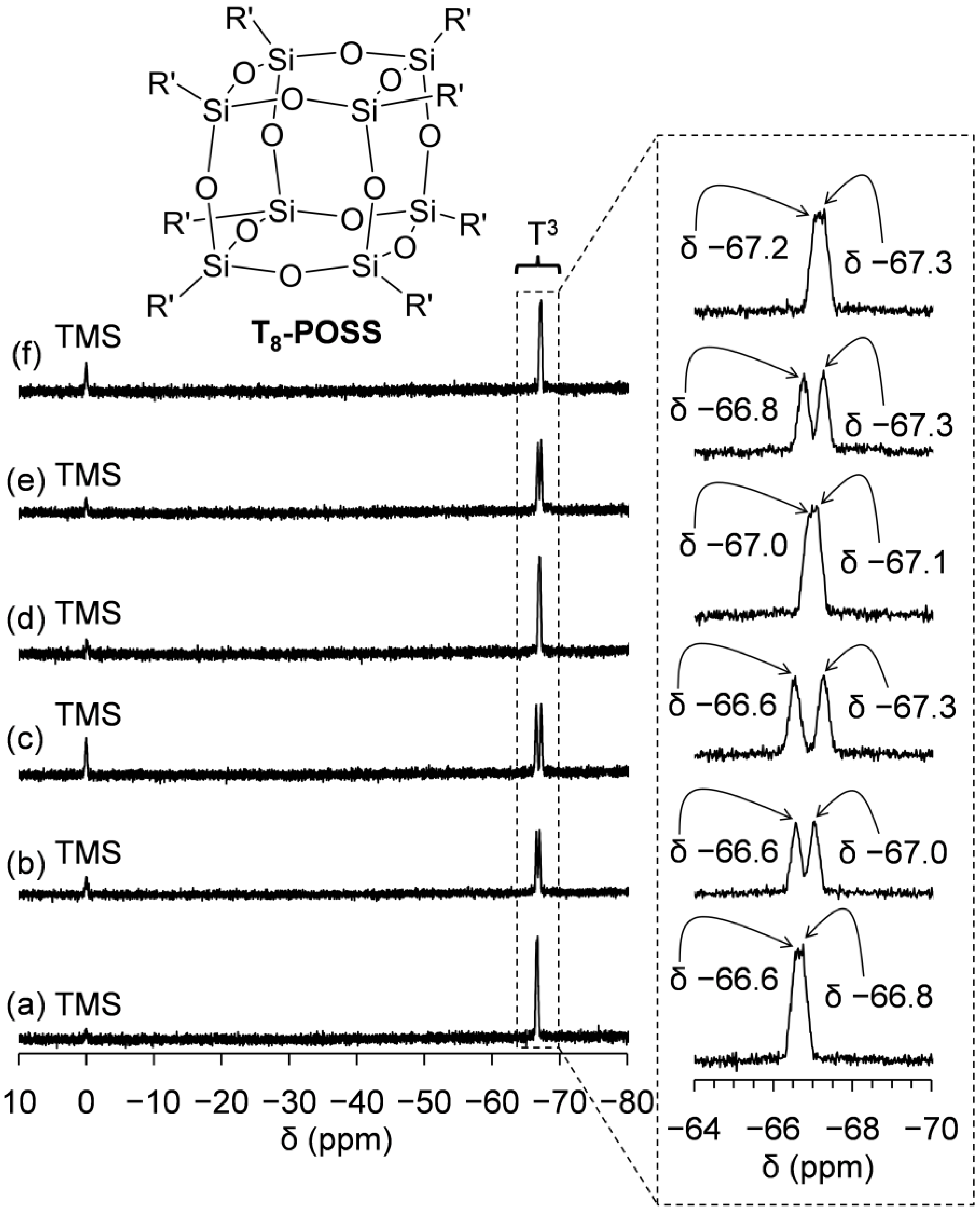

Figure 6. 29Si NMR spectra of (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4) in DMSO-d6 at 40 °C. Chemical shifts were referenced to tetramethylsilane (TMS) (δ 0.0).
Figure 6. 29Si NMR spectra of (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4) in DMSO-d6 at 40 °C. Chemical shifts were referenced to tetramethylsilane (TMS) (δ 0.0).
Molecules 24 04553 g006
Molecules 24 04553 g007 550
Figure 7. DSC curves of (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4).
Figure 7. DSC curves of (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4).
Molecules 24 04553 g007
Molecules 24 04553 g008 550
Figure 8. XRD patterns (immediately after preparation) obtained at room temperature (ca. 25 °C) of (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4). The amount of each product on the glass was ca. 1.0 mg·cm−2.
Figure 8. XRD patterns (immediately after preparation) obtained at room temperature (ca. 25 °C) of (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4). The amount of each product on the glass was ca. 1.0 mg·cm−2.
Molecules 24 04553 g008
Molecules 24 04553 g009 550
Figure 9. XRD patterns (standing for more than 2 weeks) obtained at room temperature (ca. 25 °C) of (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4). The amount of each product on the glass was ca. 1.0 mg·cm−2.
Figure 9. XRD patterns (standing for more than 2 weeks) obtained at room temperature (ca. 25 °C) of (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4). The amount of each product on the glass was ca. 1.0 mg·cm−2.
Molecules 24 04553 g009
Molecules 24 04553 g010 550
Figure 10. Photographs of flow temperature measurements using (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4).
Figure 10. Photographs of flow temperature measurements using (a) Am-POSS(1,2), (b) Am-POSS(1,3), (c) Am-POSS(1,4), (d) Am-POSS(2,3), (e) Am-POSS(2,4), and (f) Am-POSS(3,4).
Molecules 24 04553 g010
Table
Table 1. The solubility of Am-POSS(x).
Table 1. The solubility of Am-POSS(x).
Am-POSS(x)WaterDMSODMFMethanolAcetoneAcetonitrileChloroformToluenen-Hexane
Am-POSS(1)++++++−−−
Am-POSS(2)−+++++−−−
Am-POSS(3)−+++++−−−
Am-POSS(4)−+++++−−−
+: Soluble at room temperature, −: Insoluble at room temperature; DMSO: Dimethyl sulfoxide, DMF: N,N-dimethylformamide.
Table
Table 2. The solubility of Am-POSS(x,y).
Table 2. The solubility of Am-POSS(x,y).
Am-POSS(x,y)WaterDMSODMFMethanolAcetoneAcetonitrileChloroformToluenen-Hexane
Am-POSS(1,2)−+++++−−−
Am-POSS(1,3)−+++++−−−
Am-POSS(1,4)−+++++−−−
Am-POSS(2,3)−+++++−−−
Am-POSS(2,4)−+++++−−−
Am-POSS(3,4)−+++++−−−
+: Soluble at room temperature, −: Insoluble at room temperature; DMSO: Dimethyl sulfoxide, DMF: N,N-dimethylformamide.
Table
Table 3. Thermal properties of Am-POSS(x,y).
Table 3. Thermal properties of Am-POSS(x,y).
RunAm-POSS(x,y)Tg/°C (a)Tm/°C (a)Flow Temp./°C (b)Td5/°C (c)Td10/°C (c)
1Am-POSS(1,2)ND (d)154140384397
2Am-POSS(1,3)−6ND (d)45374395
3Am-POSS(1,4)15ND (d)60380401
4Am-POSS(2,3)ND (d)10495371387
5Am-POSS(2,4)1ND (d)45378395
6Am-POSS(3,4)−286,11895383400
(a) Determined as the onset of baseline shift in the curve of 3rd scan by DSC measurement. (b) Determined by visual observation. (c) Determined by TGA. (d) Not detected.

Share and Cite

MDPI and ACS Style

Hasebe, R.; Kaneko, Y. Control of Crystalline-Amorphous Structures of Polyhedral Oligomeric Silsesquioxanes Containing Two Types of Ammonium Side-Chain Groups and Their Properties as Protic Ionic Liquids. Molecules 2019, 24, 4553. https://doi.org/10.3390/molecules24244553

AMA Style

Hasebe R, Kaneko Y. Control of Crystalline-Amorphous Structures of Polyhedral Oligomeric Silsesquioxanes Containing Two Types of Ammonium Side-Chain Groups and Their Properties as Protic Ionic Liquids. Molecules. 2019; 24(24):4553. https://doi.org/10.3390/molecules24244553

Chicago/Turabian Style

Hasebe, Ryoya, and Yoshiro Kaneko. 2019. "Control of Crystalline-Amorphous Structures of Polyhedral Oligomeric Silsesquioxanes Containing Two Types of Ammonium Side-Chain Groups and Their Properties as Protic Ionic Liquids" Molecules 24, no. 24: 4553. https://doi.org/10.3390/molecules24244553

APA Style

Hasebe, R., & Kaneko, Y. (2019). Control of Crystalline-Amorphous Structures of Polyhedral Oligomeric Silsesquioxanes Containing Two Types of Ammonium Side-Chain Groups and Their Properties as Protic Ionic Liquids. Molecules, 24(24), 4553. https://doi.org/10.3390/molecules24244553

Article Metrics

Back to TopTop
