Article

Optimal Extraction of Ocimum basilicum Essential Oil by Association of Ultrasound and Hydrodistillation and Its Potential as a Biopesticide Against a Major Stored Grains Pest

by
Eridiane da Silva Moura
1,
Lêda Rita D’Antonino Faroni
1,*,
Fernanda Fernandes Heleno
1,
Alessandra Aparecida Zinato Rodrigues
1,
Lucas Henrique Figueiredo Prates
1 and
Maria Eliana Lopes Ribeiro de Queiroz
2
1
Department of Agricultural Engineering, Universidade Federal de Viçosa, Viçosa 36570-900, Minas Gerais, Brazil
2
Department of Chemistry, Universidade Federal de Viçosa, Viçosa 36570-900, Minas Gerais, Brazil
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(12), 2781; https://doi.org/10.3390/molecules25122781
Submission received: 24 April 2020 / Revised: 9 June 2020 / Accepted: 12 June 2020 / Published: 16 June 2020
(This article belongs to the Special Issue Chemical Compositions and Biological Activities of Essential Oils)
Browse Figures
Review Reports Versions Notes

Abstract

:
The essential oil of basil (Ocimum basilicum) has significant biological activity against insect pests and can be extracted through various techniques. This work aimed to optimize and validate the extraction process of the essential oil of O. basilicum submitted to different drying temperatures of the leaves and extracted by the combination of a Clevenger method and ultrasound. The biological activity of the extracted oil under different conditions was evaluated for potential control of Sitophilus zeamais. The extraction method was optimized according to the sonication time by ultrasound (0, 8, 19, 31 and 38 min) and hydrodistillation (20, 30, 45, 60 and 70 min) and drying temperature (20, 30, 45, 60 and 70 °C). The bioactivity of the essential oil was assessed against adults of S. zeamais and the effects of each variable and its interactions on the mortality of the insects were evaluated. The best yield of essential oil was obtained with the longest sonication and hydrodistillation times and the lowest drying temperature of leaves. Higher toxicity of the essential oil against S. zeamais was obtained by the use of ultrasound for its extraction. The identification and the relative percentage of the compounds of the essential oil were performed with a gas chromatograph coupled to a mass selective detector. The performance of the method was assessed by studying selectivity, linearity, limits of detection (LOD) and quantification (LOQ), precision and accuracy. The LOD and LOQ values for linalool were 2.19 and 6.62 µg mL−1 and for estragole 2.001 and 6.063 µg mL−1, respectively. The coefficients of determination (R2) were >0.99. The average recoveries ranged between 71 and 106%, with coefficient of variation ≤6.4%.

Graphical Abstract

1. Introduction

Basil (Ocimum basilicum) is one of the most widely used aromatic plants. Due to its chemical composition, it is used in perfumery, cooking, food industry, toothpaste, in the production of cosmetics and medicine [1]. Currently, the essential oil of O. basilicum has been studied as an alternative in the control of stored grain pests [2]. The essential oil of O. basilicum exhibit a wide variety of chemical compounds, depending on the variations of the chemotypes, leaf, flowers and plant origin [3]. Its main components include estragole, linalool and eugenol [4].
Considering that the quality of the oil is related to its chemical composition, the choice of an adequate extraction method is extremely important [5]. The employed method should not influence the composition and avoiding the decomposition of compounds of interest, in order to maintain the quality of the final product [6,7].
Several techniques are used for the extraction of essential oils, such as: classic distillation of water vapor, percolation, extraction of solid fluid and the supercritical fluid extraction method [8]. Steam distillation (SD) is presented in one of the most conventional methods, hydrodistillation (HD), where the vapor evolves from the herb’s suspension in the balloon. Hydrodistillation is carried out using the Clevenger apparatus [9]. Despite of being the most widely used method, it has some important deficiencies, such as the difficulty of controlling heat transfer in a constant manner throughout the process and extensive time of extraction. Thus, resulting in higher operational costs and can induce the hydrolysis of some essential oil constituents. All of that might reduce yield and cause losses of volatile compounds due to prolonged heating [10].
More modern versions of the essential oil extraction system have been used. Microwave heating can be used for distillation or pre-treatment [11,12]. As pre-treatment, it is possible to use enzymatic digestion, where different fiber breakdowns (cellulase, hemicellulase, xylanase), pectin degradation (pectinase) or other enzymes (such as protease) are used [13,14]. Microwave-assisted hydrodistillation (MHD) usually involves the use of freshly harvested parts of plants, since the required water vapor is provided by the natural moisture of the plant.
Ultrasonication is another promising technique that has been applied in the pre-treatment of plant parts. It is applied to avoid the use of solvents and reduce the processing time for the extraction of essential oils [5]. The technique has also been applied to improve the extraction of polysaccharides and essential oils from plant material, mainly through the phenomenon of cavitation [15,16]. The mechanical effect of ultrasound might accelerate the release of organic compounds contained in the plant’s body due to cell action, wall rupture, intensification of mass transfer and greater ease of solvent access to cell content [16].
The use of ultrasound increases the purity of extracted components in less time and at lower temperatures [17]. Its effectiveness in intensifying the essential oil extraction process has been already proved [18,19,20], as well as in the adaptation of conventional devices [21].
In view given the importance of the extraction process in the yield and quality of essential oils, the objective of this work was to optimize and validate the extraction process of the essential oil of O. basilicum submitted to different drying temperatures of the leaves and extracted by the combination of Clevenger method and ultrasound. The optimization aimed to increase the yield of the extracted oil and maintain its quality. Considering the possible application as biopesticides, the toxicity of the essential oil was evaluated to adults of Sitophilus zeamais.

2. Results

2.1. Optimization of the Extraction Process

2.1.1. Yield of Essential Oil

The Pareto graph with data of the yield of the essential oil of O. basilicum leaves in relation to dry matter when subjected to drying at different temperatures of the leaves, different hydrodistillation, and ultrasound times is shown in Figure 1, respectively. The results of the factorial design show that the investigated variables (drying temperature, ultrasound time and hydrodistillation time) were significant (p ≤ 0.05) for the yield of O. basilicum essential oil (Figure 1, Figure 2 and Figure 3).
According to Figure 1, the higher yields of essential oil were proportional to the increase in drying temperature, hydrodistillation time and ultrasound time. The highest yield of essential oil and greater toxicity on adults of S. zeamais were obtained in treatments 7, 12, 14, 25 and 27 (Table 1) with ultrasound times of 19, 31 and 38 min, hydrodistillation time of 45, 60 and 70 min and drying temperature 30, 45, 60 and 70 °C. The lowest yield of essential oil was obtained in treatments 9 and 26, in which there was no use of ultrasound in the extraction, which shows that the longer the exposure time to ultrasound and hydrodistillation, the greater the yield of essential oil. The yield of the EO of O. basilicum also increased with the increase in the drying temperature of its leaves (Figure 3).

2.1.2. Toxicity to S. zeamais

Results of the central composite planning show that the variables investigated (drying temperature, time of sonication by ultrasound and hydrodistillation time) were significant (p ≤ 0.05) for the toxicity of the essential oil of O. basilicum to S. zeamais (Figure 4). Linear effects for sonication time, hydrodistillation time, drying temperature, and the linear interaction of sonication time and drying temperature were signigicant. On the other hand, quadratic effects for sonication time and and hydrodistillation were also significant.
The mortality of S. zeamais was higher when the essential oil was extracted with a longer time of ultrasound and hydrodistillation (Figure 5). Which means that in addition to increasing the yield of EO, such extraction conditions increase its toxicity to adults of S. zeamais.

2.2. Major Component Identification

The chemical composition of the essential oil of the leaves of O. basilicum was carried out using GC-MS. The main constituents were identified by comparison of the mass spectrum of the compounds with the NIST 14 library spectra and by calculating the Kovats index for a series of saturated alkanes (C7–C30) (49451-U, 99.0%, Supelco, Bellefonte, PA, USA). Chromatographic analysis showed the presence of two major constituents in the basil EO (Table 2). Estragole is the major compound, representing 85% of the identified compounds, followed by linalool at 12%, respectively (Figure 6).

Quantification of Major Components

The optimized association of ultrasound and hydrodistillation was applied to quantify linalool and estragole in samples of essential oil of O. basilicum by GC-FID. The five extraction conditions were used which provided a higher yield of essential oil associated with greater toxicity of insects.
The concentration of each compound was calculated based on their chromatographic area and the analytical curve of each compound. The highest amount of linalool (12.2 mg mL−1) and estragole (51.6 mg mL−1) was obtained in the samples extracted with an ultrasound time of 31 min, 60 min of hydrodistillation and drying temperature of leaves of 30 °C (Table 3). These conditions of extraction of the compounds were applied in the method validation process.

2.3. Method Validation

2.3.1. Selectivity

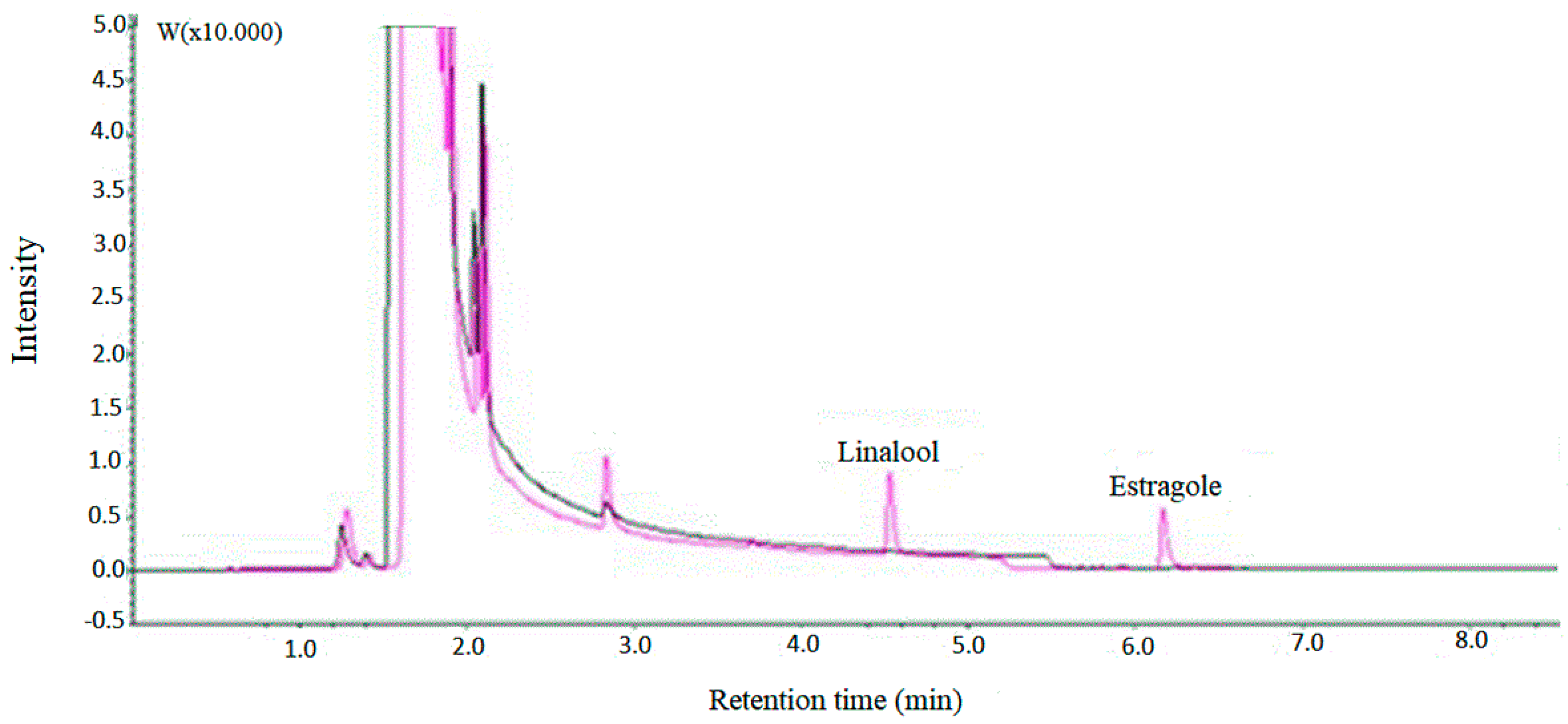

To assess selectivity, the optimized method was applied to samples of linalool and estragole. The chromatograms for these samples are shown in Figure 7. The comparison of the two chromatograms shows that there are no coincident peaks between the original sample of toluene and the sample with the compounds, thus the analytes of interest are not affected by the analytes of the original sample, which proves the good selectivity of the proposed method.

2.3.2. Linearity and Limits of Detection and Quantification

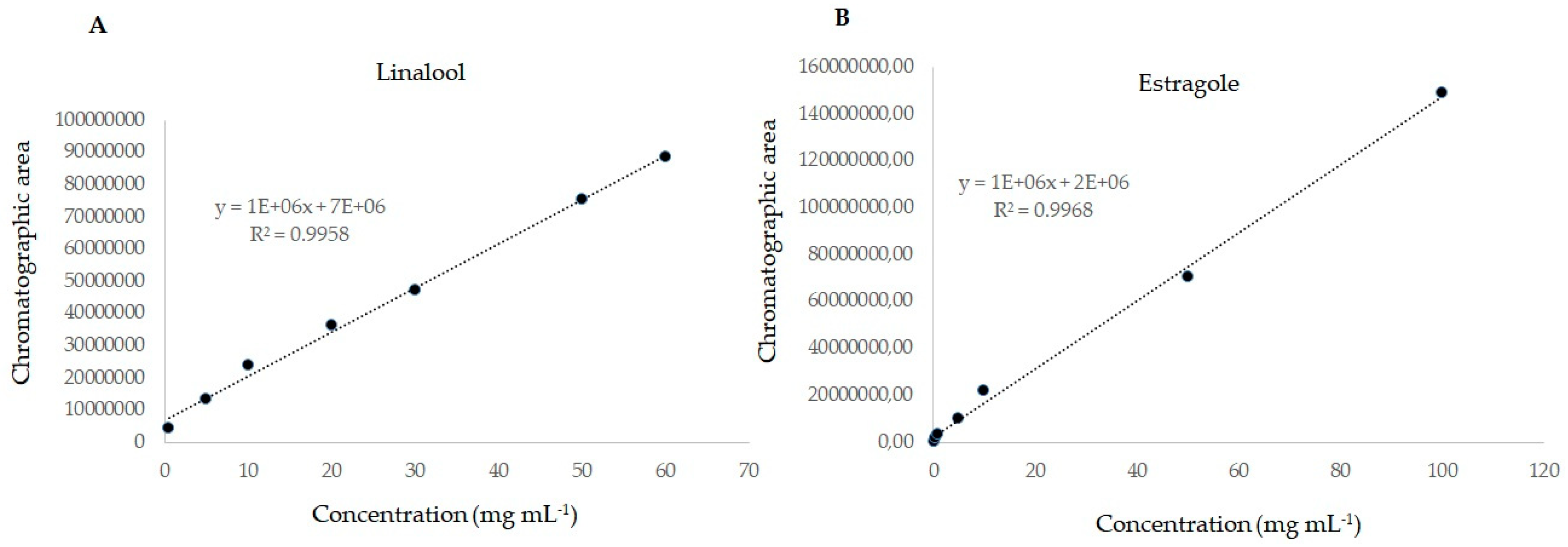

The analytical curve is described by the relationship between the theoretical concentration of the analyte in the sample and the chromatographic area. Linearity was evaluated by analyzing samples of linalool and estragole in different concentrations (0.5; 5; 10; 20; 30; 50 and 60 mg mL−1 for linalool) (0.25; 0.5; 1; 5; 10; 50 and 100 mg mL−1 for estragole) and subjected to the extraction and analysis method. The data were used to construct analytical curves (n = 7, analyzed in triplicates) relating the chromatographic area of the analytes versus their concentrations. The determination coefficient (R2) obtained for both compounds were >0.99, which indicates the good linearity of the method for the concentration range evaluated (Figure 8A,B).
The limits of detection (LOD) and quantification (LOQ) of the method were calculated as the concentration giving a signal-to-noise ratio of three (S/N = 3) and ten (S/N = 10), respectively. In this study, the LOD and LOQ obtained for linalool was 2.19 and 6.62 µg mL−1 and for estragole was 2.001 and 6.063 µg mL−1, respectively.

2.3.3. Precision and Accuracy

Precision and accuracy were assessed at the levels of 14 µg mL−1 (2 × LOQ), 35 µg mL−1 (5 × LOQ) and 70 µg mL−1 (10 × LOQ) in seven replicates (Table 4). The method showed good extraction efficiency and analytical frequency at the concentrations used with a coefficient of variation ≤6.4%. For the three concentration levels evaluated, the average recovery ranged from 71 to 77% for linalool and of 74 to 106% for estragole. Recoveries between 70 and 120% and coefficients of variation lower than 20% for analytes are considered satisfactory, indicating the accuracy and precision of the method [23].

3. Discussion

The increase in yield of EO of O. basilicum after using ultrasound in the extraction process might be due to the cavitation generated by sound waves, releasing heat, causing the rupture of plant cells and, therefore, increasing the extraction efficiency [24,25]. Similarly, the yield of Salvia essential oil also increased after its extraction with the use of ultrasound sonication [26]. Considering the low mechanical resistance of the cell membranes of the glands that contain essential oils, it is possible to extract them efficiently in a short period of time with the use of ultrasound [19].
The use of ultrasound as a pre-treatment, for example, allows a reduction of about 70% in the extraction time in relation to conventional hydrodistillation. In addition, these conditions allow an increase in the extraction of bioactive compounds and consequently improve the antioxidant and antimicrobial activity of the essential oils obtained [5]. Using ultrasound to extract the essential oil of Mentha piperita L., Origanum majorana L., and Chamomilla recutita L. increased the yield by 12% [27].
The yield of EO of O. basilicum increased with the increase in the drying temperature of its leaves. Similar results were obtained for lemongrass essential oil, whose yield increased with an increase in the drying temperature [28]. The effect of drying temperature on the yield of the essential oil of Tanaecium nocturnum was evaluated by Pimentel et al. and the authors concluded that the increase on drying temperature (30–40 °C) did not affect the oil content, but caused losses and variations in the amounts of its compounds [29].
The longer time of ultrasound and hydrodistillation in the extraction of basil essential oil caused greater mortality in S. zeamais, which means that in addition to increasing the yield of EO, such extraction conditions increased its toxicity to adults of S. zeamais. The optimized extraction conditions provided higher yield and also higher bioactivity of the essential oil against a major insect pest of stored grains. This may be due to the use of ultrasound that increased the extraction of bioactive compounds and, consequently, improved the biological activity of the essential oil obtained [5]. As observed in the literature, the chirality of linalool may influence its biological activity. Although not assessed in the present study, the enantiomeric ratio of chiral compounds might account for the differences observed in the biological activity of the essential oil extracted under different conditions against S. zeamais [30,31,32].
Essential oils have a wide application in perfume and flavouring industries and have been studied for their application in pest management, for example, as biopesticides [33,34,35]. The bioactivity of essential oils in pest management of stored grains is linked not only to their lethality, but also to behavioural changes aiming the increase in food safety and quality [33,36,37,38]. Together with other factors, like the diffusion of volatile components [39,40] and the persistence of components after application [41], the compositition of essential oils is important to predict its bioactivity.
The chromatographic analysis of the basil EO shows that estragole and linalool are the major compounds of the oil. While estragole represents 85% of the identified compounds, linalool accounts for 12% of the identified compounds. Similar results were found by [42,43,44,45]. However, the composition of essential oils has great variability in terms of chemical and biological aspects, depending on the climatic condition, location, genetic variability, sections of the plant used for extractions and harvesting time of the plant material [46,47]. Genetic and environmental factors, as well as plant ontogenesis, also have a determining effect on the composition and quality of the essential oil of O. basilicum [45].
The validated analytical method herein proposed for analysis of the essential oil showed good selectivity. Selectivity is used to ensure that the peak response of the analyte (assessed at the characteristic retention time) comes from the analyte and not from other compounds present in the sample [48]. The proposoed method also showed good linearity for both components in the evaluated concentration ranges (R2 > 0.99). The linearity of a method’s response corresponds to its ability to demonstrate that the results obtained (chromatographic areas) are directly proportional to the concentration of the analyte in the sample within a specific range [49].
The highest amount of linalool and estragole was obtained in the samples extracted with an ultrasound time of 31 min, 60 min of hydrodistillation and a drying temperature of 30 °C. Generally low drying temperatures (up to 30 °C) tend to preserve the chemical composition of essential oils since high temperatures can cause losses and chemical changes in their volatile compounds [50]. As observed in the literature, the increase in the drying temperature (40, 50, 60 and 70 °C) caused a decrease in the relative proportion of monoterpenes and sesquiterpenes of the essential oil of Ocimum selloi [51].
According to Randuz et al. the variability on compounds concentration can be caused by oxidation and reduction reactions, and rearrangements caused during the drying process at high temperatures [48]. In samples submitted to drying at 70 °C, it was observed that all the constituents of the EO of O. basilicum suffered reductions in their levels, indicating possible losses due to volatilization [52].
The higher quality of essential oil extracted with the use of ultrasound can be attributed to lower degradation of thermosensitive compounds [19,27,53]. In addition, changes in composition are related to facilitated release of essential oils from secretory glands or to transformations of unstable chemical compounds during ultrasound application [54,55]. The use of ultrasound in the pre-treatment to extract essential oil from lavender flowers resulted in a 10% increase in the concentration of linalool [20]. In the extraction of essential oil from Daucus carota, the use of ultrasound in the pre-treatment promoted an increase in the concentration of monoterpenes and sesquiterpenes [55]. Altogether, it’s shown that the use of ultrasound affects the chemical composition of essential oils.

4. Material and Methods

4.1. Reagents

Toluene HPLC-grade solvent (Sigma-Aldrich, 99.9%, Darmstadt, Germany) was used to dillute linalool and estragole analytical standards (Sigma-Aldrich, 99.9%). Standard solution of alkanes (C7–C30) (49451-U, Supelco, 99.0%), was also purchased from Sigma-Aldrich. Working solutions at the appropriate concentrations were prepared directly from the stock solutions of the standards and used for the construction of analytical curves of linalool and estragole. All standard solutions were stored at −18 °C.

4.2. Samples

Samples of O. basilicum, produced without the use of pesticides, were purchased directly from a producer in Viçosa (Minas Gerais, Brazil). Immediately after harvesting, the samples were packed in polyethylene bags and taken to the Post-Harvest Laboratories of the Agricultural Engineering Department of the Universidade Federal de Viçosa (UFV), where the drying of fresh leaves and the extraction experiments of O. basilicum essential oil were conducted.

4.3. Samples Preparation

A greenhouse with forced air circulation (Didática SP 1152 L, São Paulo, Brazil) was used for drying O. basilicum leaves. Six perforated trays with 100 g of fresh leaves each were used. During the drying process, the trays were weighed at intervals of 30 min on a semi-analytical scale (Gehaka, São Paulo, Brazil, model BG 4400, with accuracy of ±0.01/0.1 g), in order to control the drying until they reached constant weight. Five drying temperatures of leaves (20, 30, 45, 60 and 70 °C) were used and the experiment was conducted using factorial design (Table 5).

4.4. Optimization of Essential Oil Extraction

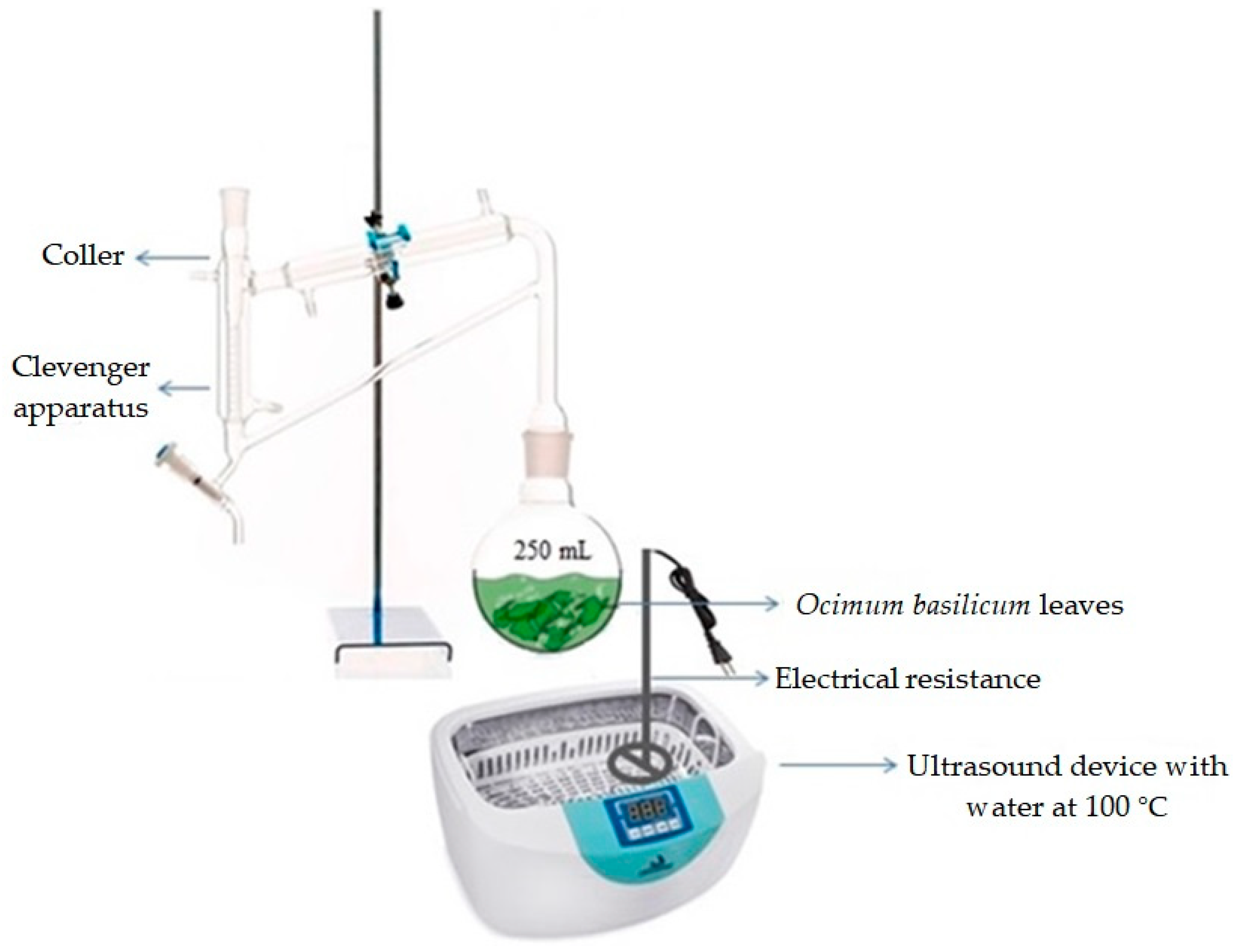

For the extraction of the essential oil of O. basilicum, a new method was developed based on the association of hydrodistillation and ultrasound techniques. The extractions were carried out by hydrodistillation using a Clevenger-type apparatus with samples of 20 g of hand-grounded leaves dried under different temperatures. The crushed leaves were placed in a 250 mL flask. The balloon was attached to Clevenger and placed in an ultrasound device (Cristófoli, Paraná, Brazil), where it was submerged in water at 100 °C and subjected to different sonication (0, 8, 19, 31 and 38 min) and hydrodistillation (20, 30, 45, 60 and 70 min) times (Figure 9). At the end of this period, the essential oil was collected and separated from the hydrolate by freezing. The extracted oil was quantified and its yield was calculated.

4.5. Factorial Planning

The extraction of essential oil was optimized in order to reduce the extraction time and maintain the quality of the oil using a central composite design with six repetitions at the central point (Table 1). Three variables were studied: ultrasound sonication time (UST), hydrodistillation time (HDT) and leaves drying temperature (DT). The variables were studied at two levels and the analyzes were performed in triplicate. The effects of each variable and the interactions between variables on oil yield and mortality of S. zeamais, were calculated using the software Statistica 12.0 (StatSoft Corp., Tulsa, OK, USA). The data were presented in graphs generated using the SigmaPlot 12.5 software (Systat Software, San Jose, CA, USA).

4.6. Yield of Essential Oil

The percentage of yield calculation was performed following the method recommended by the Instituto Adolfo Lutz [56] (Equation (1)):
Essential oil content = (V/m) × 100
where: V = volume of essential oil distilled (mL) and m = initial weight of plant material (g).
The data were submitted to analysis of variance (ANOVA) and their means compared by Tukey’s test at 5% probability, using the Statistica 12.0 software. Samples of the essential oil of O. basilicum that obtained the highest yield according to the extraction conditions and greater toxicity on adults of S. zeamais (Table 1) were used to identify and quantify the main components of the oil and to validate the extraction method.

4.7. Fumigation Toxicity Bioassay

The bioassays were performed in 0.8 L glass flasks (8 cm in diameter × 15 cm in height) with 50 adults of non-sexed S. zeamais, in four replicates. The concentration of essential oil used was 20 μL L−1 of air. The working solutions with samples of the the essential oil were prepared using toluene as solvent and applied with a microsyringe (Hamilton, Reno, NV, USA) on filter-paper discs with a diameter of 4.4 cm placed in Petri dishes (diameter 6.5 cm). The Petri dishes were covered with organza fabric and placed at the bottom of the flasks. 25 μL of pure solvent (toluene) was used as a control. After the distribution of the insects, the flasks were closed with a screw-on metallic cap and sealed with parafilm PM996 (American, Neenah, USA) to avoid leakage of volatiles from the essential oil during the exposure period. The flasks were kept for 24 h in a B.O.D. (model 347 CD, Fanem, São Paulo, Brazil) at a temperature of 27 ± 2 °C. After this period, dead and live insects were counted. The mortality of S. zeamais exposed to the essential oil was corrected in relation to the mortality of insects exposed to the solvent using Abbott’s formula [57].

4.8. Majority Component Identification by GC-MS

The identification and the relative percentage of the compounds of the essential oil were carried out at the Chemistry Department of the of Universidade Federal de Viçosa (UFV), Brazil. The essential oil of O. basilicum was analyzed by gas chromatography coupled to mass spectrometry (GC-MS) using a QP2010 system (Shimadzu, Japan) under the following conditions: capillary column of fused silica (30 m length and 0.25 mm of internal diameter) with RTX®-5MS stationary phase (0.25 µm film thickness) and helium as carrier gas with a flow rate of 1.0 mL/min. Injector temperature of 220 °C and initial temperature of the column as 60 °C. Heating rate was set to increase 2 °C min−1 up to 200 °C, and 5 °C min−1 up to 250 °C. The mass spectra were obtained by electron impact at 70 eV, with a scan from 29 to 400 (m/z). Samples of the extracted oil were diluted in toluene to the concentration of 10 mg mL−1 and 1 µL was injected with a split ratio of 1:20. The total analysis time was 80 min. The identification of the compounds was carried out by comparing the mass spectra in the NIST library, visual interpretation of the mass spectra and confirmed by Kovats Index (KI) calculation and comparison with the literature [22]. The KI of each compound was calculated based on the retention time of the compounds and the alkanes of the standard solution of alkanes. The relative percentage of each compound was calculated using the ratio between the area of each peak and the total area of all constituents in the sample.

4.9. Quantification of Major Components

A GC2010 gas chromatograph (Shimadzu) equipped with a flame ionization detector (GC-FID) was used for the quantification of the main components of samples of O. Basilicum essential oil. The best extraction conditions obtained from factorial planning were evaluated by comparing the peak area values (chromatographic responses) for the analytes of interest in each assay. Chromatographic separation was performed on a DB-5 capillary column (Agilent Technologies, Palo Alto, CA, USA), with a stationary phase composed of 5% phenyl and 95% dimethylsiloxane (30 m × 0.25 mm, 0.10 µm film thickness). Nitrogen (99.999%, Air Products, São Paulo, Brazil) was used as carrier gas in a flow of 1.82 mL min−1 and a split ratio of 1:5. Injector and detector temperatures were set at 220 and 300 °C, respectively. The initial column temperature was 60 °C with heating rate at 7 °C min−1 up to 120 °C and maintained at this temperature for 1 min. The total time of analysis was 8.5 min. Five solutions of essential oil were injected at a concentration of 10 mg mL−1 in toluene, in three repetitions. Chromatographic parameters were managed using CGsolution software (Shimadzu, Kyoto, Japan). The compounds were identified by comparing the retention times of the peaks obtained for samples of the essential oil and those of the standards. The concentration of each compound was calculated based on their chromatographic area and the analytical curve of each compound.

4.10. Validation of the Method

The optimized method was validated using the best conditions for the extraction of the main components from the essential oil of O. basilicum. The validation of the analysis of linalool and estragole extracted by combined ultrasound and hydrodistillation techniques and their analysis by (GC-FID) was based on the following parameters: selectivity, linearity, limit of detection (LOD), limit of quantification (LOQ), accuracy (recovery assays), and precision (repeatability).
The validation of the method was developed according to the standards of the guide [25]. Solutions of both compounds in concentrations ranging from 0.25 to 100 mg mL−1 were used to construct the analytical curve of linalool and estragole. The limits of detection and quantification of the analytical curve of linalool and estragole were determined by means of signal-to-noise.

4.11. Statistical Analysis

Data related to the yield of essential oil and mortality of S. zeamais were subjected to analysis of variance (ANOVA) and regression analysis by surface response as a function of hydrodistillation time, ultrasound time and drying temperature. The analytical curve for quantification of linalool and estragole were subjected to ANOVA and regression analysis. The graphs were plotted using the SigmaPlot 12.5 software (Systat Software, San Jose, CA, USA). All statistical tests were performed considering a confidence level of 95% by Statistica 12.0 software (StatSoft Corp., Tulsa, OK, USA).

5. Conclusions

The method of extracting the essential oil of O. basilicum by the association of ultrasound and hydrodistillation techniques was developed and validated. In general, the highest amount of linalool and estragole was obtained in the samples extracted with an ultrasound time of 31 min, 60 min of hydrodistillation and drying temperature of leaves of 30 °C. The bioactivity of the essential oil was assessed by its toxicity to S. zeamais, which increased with the use of ultrasound in the extraction process.
The validation of the optimized method assessed for its selectivity, limits of detection and quantification, linearity, accuracy and precision showed that the proposed method is sensitive, precise and accurate (mean recoveries were between 71 and 106%), with coefficient of variation ≤6.4%. Values of LOD and LOQ for linalool were 2.19 and 6.62 µg mL−1 and for estragole 2.001 and 6.063 µg mL−1, respectively. Clevenger method and ultrasound were, for the first time, combined into a method for the extraction of essential oil of O. basilicum.

Author Contributions

L.R.D.F., F.F.H. advised the conduction of the experiments. E.d.S.M., F.F.H., A.A.Z.R., L.H.F.P. and M.E.L.R.d.Q. conducted the experiments and drafted the 1st version of the text. L.R.D.F. reviewed and edited the final version of the manuscript. All authors have read and agree to the published version of the manuscript.

Funding

This research was funded by Fundação de Amparo à Pesquisa do Estado de Minas Gerais (FAPEMIG), Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq), and Coordenação de Aperfeiçoamento de Pessoal de Nível Superior—Brazil (CAPES)—Finance Code 001. The APC was funded by “Graduate Program in Agricultural Engineering” of Universidade Federal de Viçosa (UFV)—PPGEA-UFV.

Acknowledgments

The authors are grateful to the Department of Chemistry and Department of Agricultural Engineering of the Federal University of Viçosa (Brazil) for support and research facilities. The authors would like to thank the Brazilian Agencies: Fundação de Amparo à Pesquisa do Estado de Minas Gerais (FAPEMIG), Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq). Also, this study was financed in part by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior—Brazil (CAPES)—Finance Code 001.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

References

  1. Ҫeliku, N.; Bardhi, M.; Teqja, Z.; Kopali, B.; Doda, Q.; Nelaj, D. The results of the first year study of basil subspecies (Ocimum Basilicum, L.) for the yield of dry mass by the plants organs and the total yield. Int. J. Interdiscip. Res. Innov. (Online) 2017, 7, 1–6. [Google Scholar]
  2. Ouko, R.O.; Koech, S.C.; Arika, W.M.; Njagi, S.M.; Oduor, R.O.; Ngugi, M.P. Bioefficacy of organic extracts of Ocimum basilicum against Sitophilus zeamais. Entomol. Ornithol. Herpetol. 2017, 6, 1–7. [Google Scholar]
  3. El-Soud, N.H.A.; Deabes, M.; El-Kassem, L.A.; Khalil, M. Chemical composition and antifungal activity of Ocimum basilicum L. essential oil. Open Access Maced. J. Med. Sci. 2015, 82, 1–6. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Rao, B.R.; Kotharia, S.K.; Rajput, D.K.; Patel, R.P.; Darokar, M.P. Chemical and biological diversity in fourteen selections of four Ocimum species. Nat. Prod. Commun. 2011, 6, 1705–1710. [Google Scholar]
  5. Nora, F.M.D.; Borges, C.D. Ultrasound pretreatment as an alternative to improve essential oils extraction. Ciênc. Rural. 2017, 47, e20170173. [Google Scholar] [CrossRef] [Green Version]
  6. Bakkali, F.; Averbecka, S.; Averbecka, D.; Idaomar, M. Biological effects of essential oils—A review. Food Chem. Toxicol. 2008, 46, 446–475. [Google Scholar] [CrossRef] [PubMed]
  7. Djouahri, A.; Boudarene, L.; Meklati, B.Y. Effect of extraction method on chemical composition, antioxidant and anti-inflammatory activities of essential oil from the leaves of Algerian Tetraclinis articulata (Vahl) masters. Ind. Crop. Prod. 2013, 44, 32–36. [Google Scholar] [CrossRef]
  8. Roohinejad, S.; Koubaa, M.; Barba, F.J.; Leong, S.J.; Khelfa, A.; Greiner, R.; Chemat, F. Extraction methods of essential oils from herbs and spices. In Essential Oils in Food Processing. Chemistry, Safety and Applications; Wiley Blackwell: Hoboken, NJ, USA, 2018. [Google Scholar]
  9. Clevenger, J.F. Apparatus for the determination of volatile oil. J. Am. Pharm Assoc. 1928, 17, 345–349. [Google Scholar] [CrossRef]
  10. Doneanu, C.; Anitescu, G. Supercritical carbon dioxide extraction of Angelica archangelica L. root oil. J. Supercrit. Fluids 1998, 12, 59–67. [Google Scholar] [CrossRef]
  11. Kapás, Á.; András, C.D.; Dobre, T.G.; Vass, E.; Székely, G.; Stroescu, M.; Lányi, S.; Ábrahám, B. The kinetic of essential oil separation from fennel by microwave assisted hydro-distillation (MWHD). Sci. Bull. B Chem. Mater. Sci. UPB 2011, 73, 113–120. [Google Scholar]
  12. Navarrete, A.; Wallraf, S.; Mato, R.B.; Cocero, M.J. Improvement of essential oil steam distillation by microwave pretreatment. Ind. Eng. Chem. 2011, 50, 4667–4671. [Google Scholar] [CrossRef]
  13. Bhat, M.K. Cellulases and related enzymes in biotechnology. Biotechnol. Adv. 2000, 18, 355–383. [Google Scholar] [CrossRef]
  14. Kashyap, D.R.; Vohra, P.K.; Chopra, S.; Tewari, R. Applications of pectinases in the commercial sector. A review. Bioresour. Technol. 2001, 77, 215–227. [Google Scholar] [CrossRef]
  15. Mason, T.J. Ultrasound in synthetic organic chemistry. Chem. Soc. Rev. 1997, 26, 443–451. [Google Scholar] [CrossRef]
  16. Vinatoru, M.; Toma, M.; Mason, T.J. Ultrasound-assisted extraction of bioactive principles from plants and their constituents. In Advances in Sonochemistry; Mason, T.J., Ed.; JAI Press: Stamford, CT, USA, 1999; Volume 5, pp. 209–247. [Google Scholar]
  17. Salisova, M.; Toma, S.; Mason, T.J. Comparison of conventional and ultrasonically-assisted extraction of pharmaceutically active compounds from Salvia officinalis. Ultrason Sonochem. 1997, 4, 131–134. [Google Scholar] [CrossRef]
  18. Wang, H.W.; Liu, Y.Q.; Wei, S.L.; Yan, Z.J.; Lu, K. Comparison of microwave assisted and conventional hydrodistillation in the extraction of essential oil from mango (Mangifera indica L.) flowers. Molecules 2010, 15, 7715–7723. [Google Scholar] [CrossRef] [Green Version]
  19. Assami, K.; Pingret, D.; Chemat, S.; Meklatia, B.Y.; Chemat, F. Ultrasound induced intensification and selective extraction of essential oil from Carum carvi L. seeds. Chem. Eng. Process. 2012, 62, 99–105. [Google Scholar] [CrossRef]
  20. Filly, A.; Fernandez, X.; Minuti, M.; Visinoni, F.; Cravotto, G.; Chemata, F. Solvent-free microwave extraction of essential oil from aromatic herbs: From laboratory to pilot and industrial scale. Food Chem. 2014, 150, 193–198. [Google Scholar] [CrossRef] [Green Version]
  21. Luque-García, J.L.; Luque De Castro, M.D.; Luque-Garcıa, J.L.; Luque De Castro, M.D. Ultrasound-assisted soxhlet extraction: An expeditive approach for solid sample treatment: Application to the extraction of total fat from oleaginous seeds. J. Chromatogr. A 2014, 1034, 237–242. [Google Scholar]
  22. Adams, R.P. Identification of Essential Oil Components by Gas. Cromatography/Mass Spectroscopy, 4th ed.; Allured publishing corporation: Carol Stream, IL, USA, 2007. [Google Scholar]
  23. European Commission Directorate-General for Health and Food Safety. Guidance Document on Analytical Quality Control and Method Validation Procedures for Pesticide Residues and Analysis in Food and Feed, SANTE/11813/2017, 21–22 November, 2017. Available online: https://ec.europa.eu/food/sites/food/files/plant/docs/pesticides_mrl_guidelines_wrkdoc_2017-11813.pdf (accessed on 2 July 2019).
  24. Castro, M.D.L.; Priego-Capote, F.; Peralbo-Molina, A. The role of ultrasound in analytical derivatizations. J. Chromatogr. 2011, 879, 1189–1195. [Google Scholar]
  25. Zou, T.B.; Jia, Q.; Li, H.W.; Wang, C.X.; Wu, H.F. Response surface methodology for ultrasound-assisted extraction of astaxanthin from Haematococcus pluvialis. Mar. Drugs 2013, 11, 1644–1655. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Franzen, F.L.; Fries, L.L.M.; Oliveira, M.S.R.; Lidório, H.F.; Menegaes, J.F.; Lopes, S.J. Teor e rendimento de extratos de flores obtidos por diferentes métodos e períodos de extração. Acta Iguazu. 2018, 7, 9–21. [Google Scholar]
  27. Kowalski, R.; Kowalska, J.; Agnieszka, J.; Nawrocka, A.; Metyk, D. Effect of the ultrasound-assisted preliminary maceration on the efficiency of the essential oil distillation from selected herbal raw materials. Ultrason Sonochem. 2015, 24, 214–220. [Google Scholar] [CrossRef] [PubMed]
  28. Akhihiero, E.T.; Ayodele, B.V.; Akpojotor, G.E. Effect of particle size and temperature variation on the yield of essential oil from lemon grass using steam distillation. Afr. J. Phys. 2013, 6, 1–9. [Google Scholar]
  29. Pimentel, F.A.; Cardoso, M.G.; Zacaroni, L.M.; Andrade, M.A.; Guimarães, L.G.L.; Salgado, A.P.S.P.; Freire, J.M.; Muniz, F.R.; Morais, A.R.; Nelson, D.L. Influência da temperatura de secagem sobre o rendimento e a composição química do óleo essencial de Tanaecium nocturnum (Barb. Rodr.) Bur. & K. Shum. Quím. Nova 2008, 31, 523–526. [Google Scholar]
  30. Sousa, D.P.; Nobrega, F.F.F.; Santos, C.C.M.P.; Almeida, R.N. Anticonvulsant activity of the linalool enantiomers and racemate: Investigation of chiral influence. Nat. Prod. Commun. 2010, 5, 1847–1851. [Google Scholar] [CrossRef] [Green Version]
  31. Aprotosoaie, A.C.; Hăncianu, M.; Costache, L.L.; Miron, A. Linalool: A review on a key odorant molecule with valuable biological properties. Flavour. Fragr. J. 2014, 29, 193–219. [Google Scholar] [CrossRef]
  32. Uitterhaegen, E.; Burianová, K.; Ballas, S.; Véronèse, T.; Merah, O.; Talou, T.; Stevens, C.V.; Evon, P.; Simon, V. Characterization of volatile organic compound emissions from self-bonded boards resulting from a coriander biorefinery. Ind. Crop. Prod. 2018, 122, 57–65. [Google Scholar] [CrossRef] [Green Version]
  33. Isman, M.B.; Miresmailli, S.; MacHial, C. Commercial opportunities for pesticides based on plant essential oils in agriculture, industry and consumer products. Phytochem. Rev. 2011, 10, 197–204. [Google Scholar] [CrossRef]
  34. Spochacz, M.; Chowański, S.; Walkowiak-Nowicka, K.; Szymczak, M.; Adamski, Z. Plant-derived substances used against beetles–pests of stored crops and food–and their mode of action: A review. Compr. Rev. Food Sci. Food Saf. 2018, 17, 1339–1366. [Google Scholar] [CrossRef] [Green Version]
  35. Trivedi, A.; Nayak, N.; Kumar, J. Recent advances and review on use of botanicals from medicinal and aromatic plants in stored grain pest management. J. Entomol. 2018, 6, 295–300. [Google Scholar]
  36. Koutsaviti, A.; Antonopoulou, V.; Vlassi, A.; Antonatos, S.; Michaelakis, A.; Papachristos, D.P.; Tzakou, O. Chemical composition and fumigant activity of essential oils from six plant families against Sitophilus oryzae (Col: Curculionidae). J. Pest. Sci. 2017, 91, 1–14. [Google Scholar] [CrossRef]
  37. Silva, S.M.; Haddi, K.; Viteri Jumbo, L.O.; Oliveira, E.E. Progeny of the maize weevil, Sitophilus zeamais, is affected by parental exposure to clove and cinnamon essential oils. Entomol. Exp. Appl. 2017, 163, 220–228. [Google Scholar] [CrossRef]
  38. Souza, L.P.; Faroni, L.R.A.; Lopes, L.M.; Sousa, A.H.; Prates, L.H.F. Toxicity and sublethal effects of allyl isothiocyanate to Sitophilus zeamais on population development and walking behavior. J. Pest. Sci. 2018, 91, 761–770. [Google Scholar] [CrossRef]
  39. Paes, J.L.; Faroni, L.R.A.; Martins, M.A.; Dhingra, O.D.; Silva, T.A. Diffusion and sorption of allyl isothiocyanate in the process of fumigation of maize. Rev. Bras. Eng. Agríc. Amb. 2011, 15, 296–301. [Google Scholar] [CrossRef] [Green Version]
  40. Prates, L.H.F.; Faroni, L.R.D.A.; Heleno, F.F.; de Queiroz, M.E.L.R.; de Sousa, A.H.; de Assis Silva, M.V. Eugenol diffusion coefficient and its potential to control Sitophilus zeamais in rice. Sci. Rep. 2019, 9, 1–11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Vilela, A.D.O.; Faroni, L.R.; Sousa, A.H.; Pimentel, M.A.; Gomes, J.L. Toxicological and physiological effects of allyl isothiocyanate upon Callosobruchus maculatus. J. Stored Prod. Res. 2020, 87, 101625. [Google Scholar] [CrossRef]
  42. Nagaia, A.; Duarte, L.M.L.; Santos, D.Y.A.C. Influence of viral infection on essential oil composition of Ocimum basilicum (Lamiaceae). Nat. Prod. Commun. 2011, 6, 1189–1192. [Google Scholar] [CrossRef] [Green Version]
  43. Kunwar, G.; Pande, C.; Tewari, G.; Singh, C.; Kharkwal, G.C. Effect of heavy metals on terpenoid composition of Ocimum basilicum L. and Mentha spicata L. J. Essent. Oil Bear. Plants 2015, 4, 818–825. [Google Scholar] [CrossRef]
  44. Wilson, L.E.; Duncan, N.C.; Crain, D.A. Comparison of aquaponics and hydroponics on basil (Ocimum basilicum) morphometrics and essential oil composition. RURALS Rev. Undergrad. Res. Agric. Life Sci. 2017, 11, 3. [Google Scholar]
  45. Toncer, O.; Karaman, S.; Diraz, E.; Tansi, S. Essential oil composition of Ocimum basilicum L. at different phenological stages in semi-arid eenvironmental conditions. Fresenius Environ. Bull. 2017, 26, 5441–5446. [Google Scholar]
  46. Saharkhiz, M.J.; Ghani, A.; Hassanzadeh Khayyat, M. Changes in essential oil content and composition of clary sage (Salvia sclarea) aerial parts during different phenological stages. Med. Aromat Plant. Sci. Biotechnol. 2009, 3, 90–93. [Google Scholar]
  47. Anlas, C.; Ustuner, O.; Alkan, F.U.; Bakirel, T.; Aydogan, M.N.; Erel, S.B. Comparative study on the antioxidant activities and phenolic contents of different extracts of Achillea nobilis subsp. sipylea and Alcea apterocarpa (Fenzl) Boiss, endemic plants in Turkey. Fresenius Environ. Bull. 2017, 26, 1423–1430. [Google Scholar]
  48. Randuz, L.L.; Melo, E.C.; Berbert, P.A.; Barbosa, L.C.A.; Santos, R.H.S.; Rocha, R.P. Influência da temperature do ar de secagem na quantidade do óleo essencial extraído de giaco (Mikania glomerata). Rev. Bras. Armazenamento 2003, 28, 41–45. [Google Scholar]
  49. Ermer, J.; Miller, J.H.M. Method Validation in Pharmaceutical Analysis: A Guide to Best Practice; WILEY-VCH Verlag GmbH & Co. KgaA: Weinheim, Germany, 2005; p. 403. [Google Scholar]
  50. Mejri, J.; Aydib, A.; Abderrabbab, M.; Mejric, M. Emerging extraction processes of essential oils: A review. Asian J. Green Chem. 2015, 1–22. [Google Scholar]
  51. David, E.F.S.; Pizzolato, M.; Facanali, R.; Morais, L.A.S.; Ferri, A.F.; Marques, M.O.M.; Ming, L.C. Influência da temperatura de secagem no rendimento e composição química do óleo essencial de Ocimum selloi Benth. Rev. Bras. Plantas Med. 2006, 8, 66–70. [Google Scholar]
  52. Soares, R.D.; Chaves, M.A.; Silva, A.A.L.; Silva, M.V.; Souza, B.S. Influência da temperatura de secagem e velocidade do ar na secagem e manjericão (O. basilicum) com relação aos teores de óleos essenciais e linalol. Ciênc Agrotec. 2007, 31, 1108–1113. [Google Scholar] [CrossRef]
  53. Velickovic, D.T.; Milenovic, D.M.; Ristic, M.S.; Veljkovic, V.B. Ultrasonic extraction of waste solid residues from the Salvia sp. essential oil hydrodistillation. Biochem. Eng. J. 2008, 42, 97–104. [Google Scholar] [CrossRef]
  54. ANVISA-Agência Nacional de Vgilância Sanitária. Guia Para Validaçao de Métodos Analíticos e Bioanalíticos; ANVISA-Agência Nacional de Vgilância Sanitária: Brasilia, Brazil, 2017.
  55. Smigielski, K.B.; Malgozarta, M.; Alina, K.S.; Radoslaw, G. The effect of ultrasound-assisted maceration of the bioactivity, chemical composition and yield of essential oil from waste carrot seeds (Daucus Carota). J. Essent. 2014, 17, 1075–1086. [Google Scholar] [CrossRef]
  56. Zenebon, O.; Pascuet, N.S.; Tiglea, P. Metodos físico-químicos para análise de alimentos. In Condimentos e Vinagres, 4th ed.; Instituto Adolfo Lutz: São Paulo, Brazil, 2008; pp. 888–889. [Google Scholar]
  57. Abbott, W.S. A method of computing the effectiveness of an insecticide. J. Econ. Entomol. 1925, 18, 265–266. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.
Molecules 25 02781 g001 550

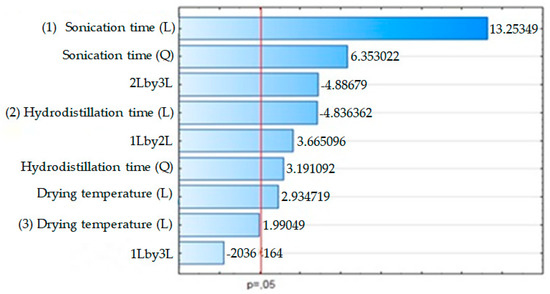

Figure 1. Pareto graph of standardized effects for the performance variables of O. basilicum essential oil as a function of drying temperature, hydrodistillation time and ultrasound time.
Figure 1. Pareto graph of standardized effects for the performance variables of O. basilicum essential oil as a function of drying temperature, hydrodistillation time and ultrasound time.
Molecules 25 02781 g001
Molecules 25 02781 g002 550

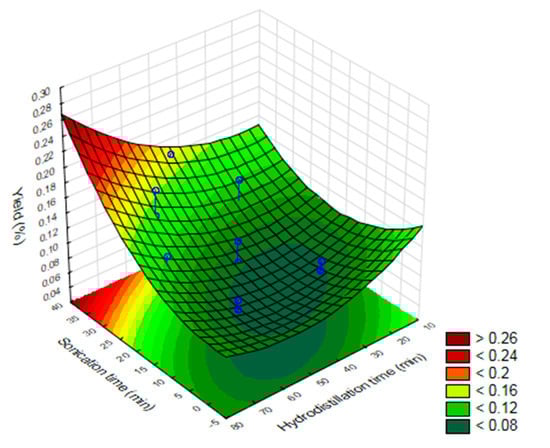

Figure 2. Response surface of the optimization of the extraction of the essential oil of O. basilicum by the Clevenger method associated with ultrasound as a function of hydrodistillation time and ultrasound time.
Figure 2. Response surface of the optimization of the extraction of the essential oil of O. basilicum by the Clevenger method associated with ultrasound as a function of hydrodistillation time and ultrasound time.
Molecules 25 02781 g002
Molecules 25 02781 g003 550

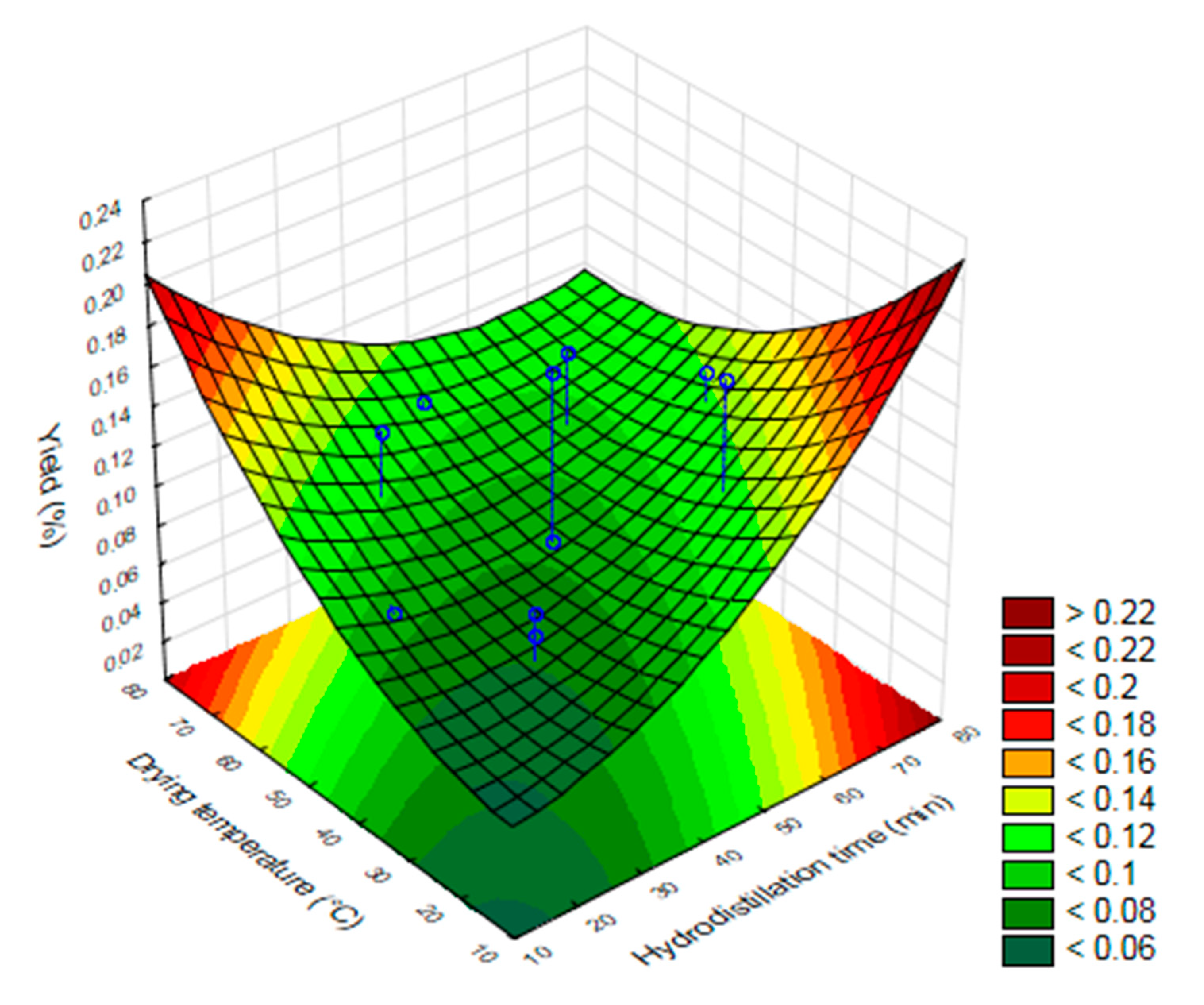

Figure 3. Response surface of the optimization of the extraction of the essential oil of O. basilicum by the clevenger method associated with the ultrasound as a function of the hydrodistillation time and drying temperature.
Figure 3. Response surface of the optimization of the extraction of the essential oil of O. basilicum by the clevenger method associated with the ultrasound as a function of the hydrodistillation time and drying temperature.
Molecules 25 02781 g003
Molecules 25 02781 g004 550

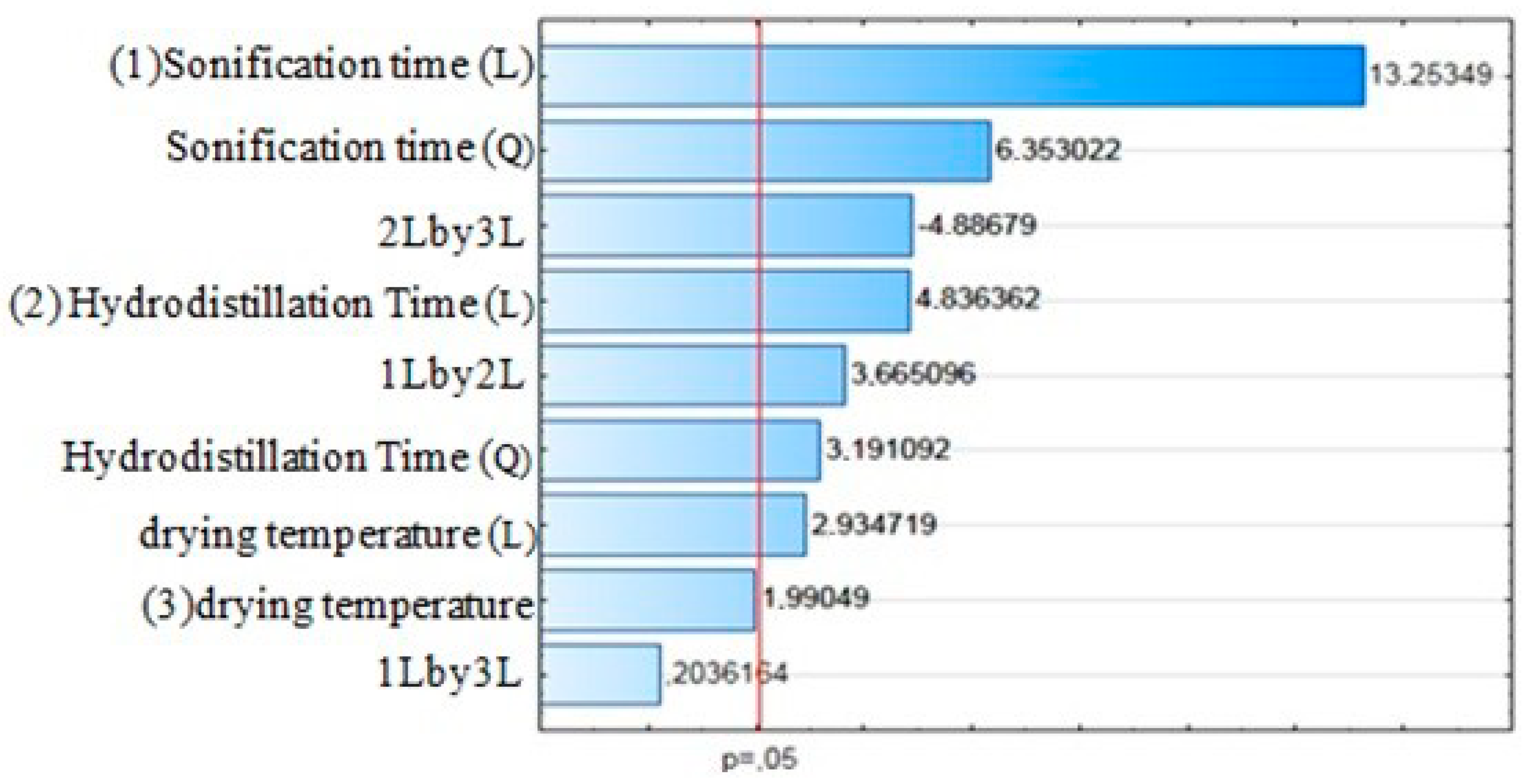

Figure 4. Pareto chart of standardized effects for the mortality variable of S. zeamais by the essential of O. Basilicum as a function of drying temperature, hydrodistillation time and ultrasound time.
Figure 4. Pareto chart of standardized effects for the mortality variable of S. zeamais by the essential of O. Basilicum as a function of drying temperature, hydrodistillation time and ultrasound time.
Molecules 25 02781 g004
Molecules 25 02781 g005 550

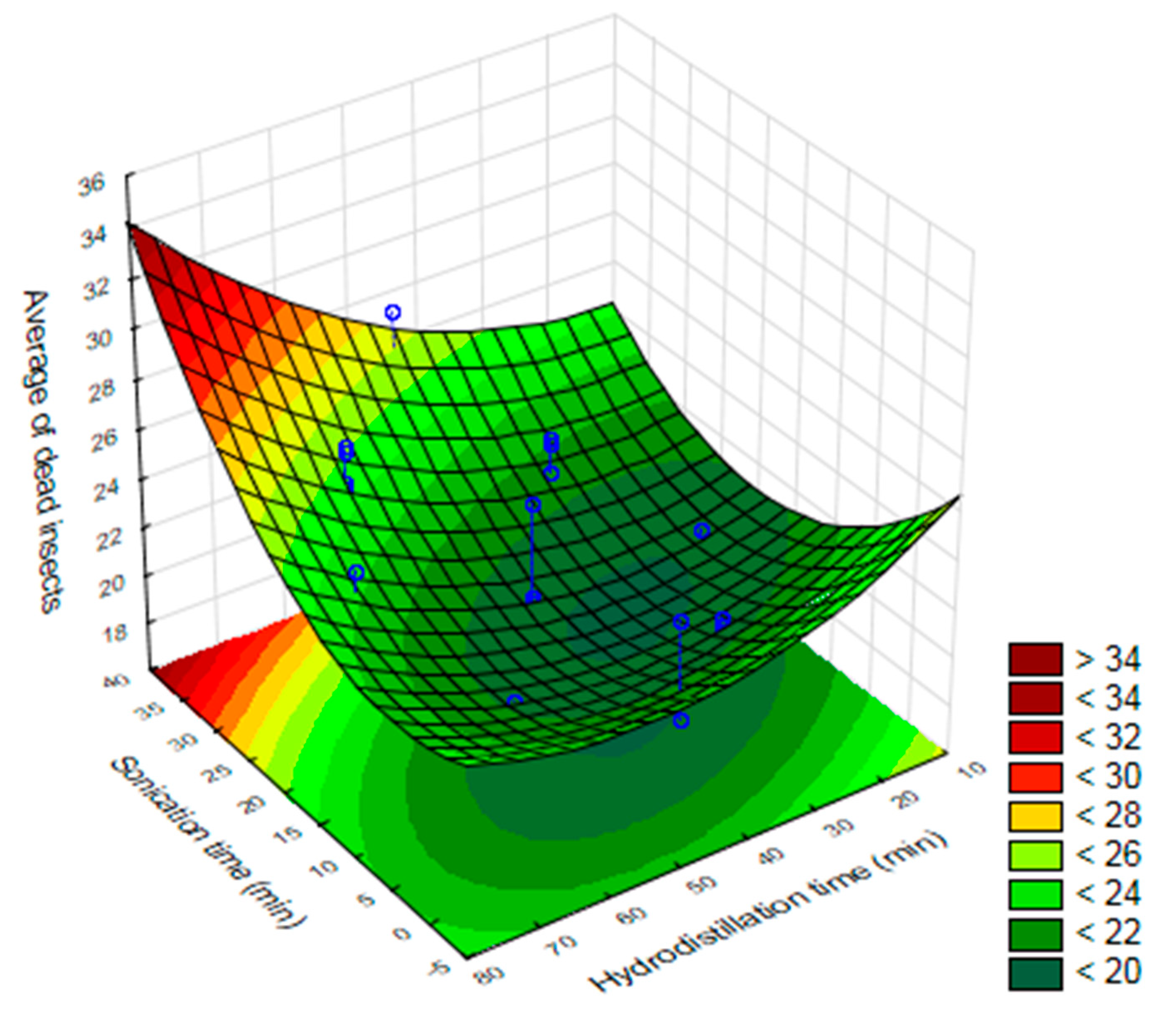

Figure 5. Response surface of the optimization of the extraction of the essential oil of O. basilicum for the mortality variable of S. zeamais as a function of hydrodistillation time and ultrasound time.
Figure 5. Response surface of the optimization of the extraction of the essential oil of O. basilicum for the mortality variable of S. zeamais as a function of hydrodistillation time and ultrasound time.
Molecules 25 02781 g005
Molecules 25 02781 g006 550

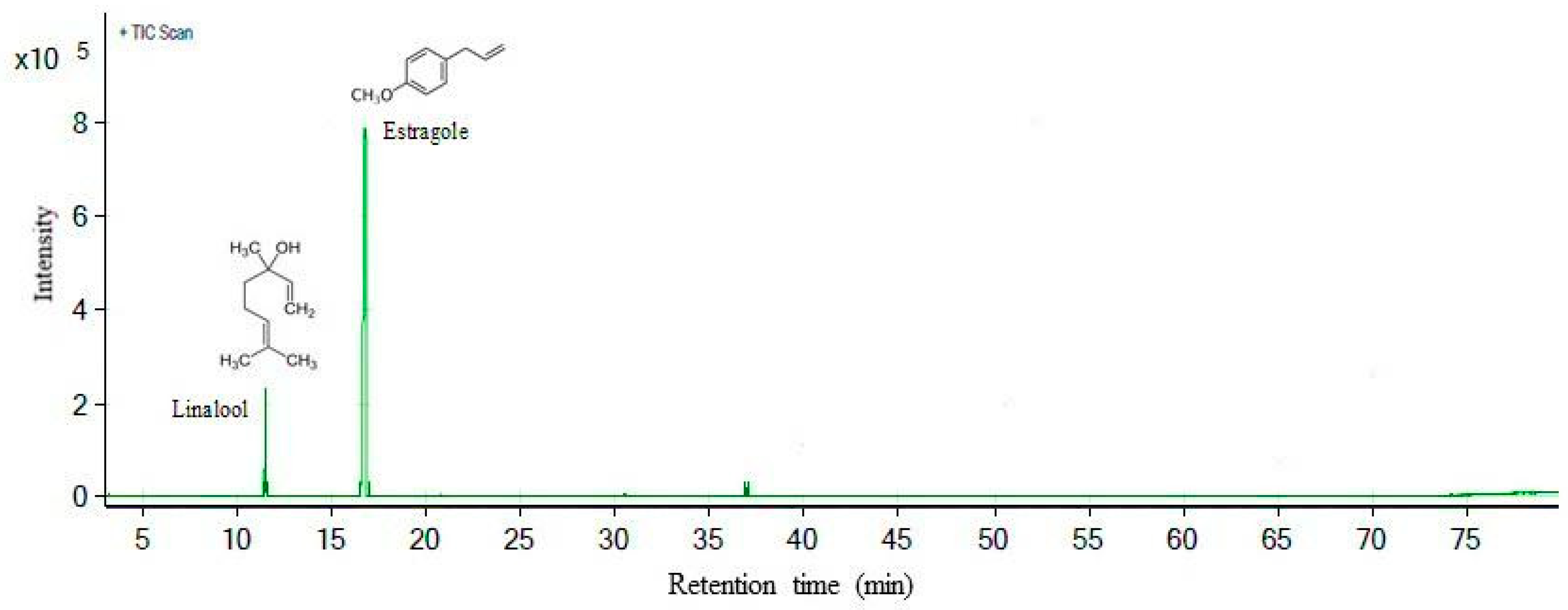

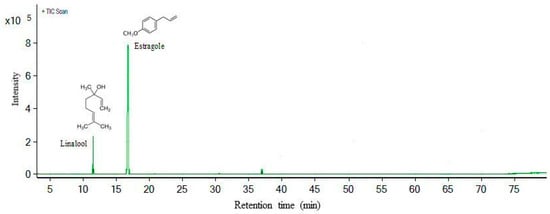

Figure 6. Chromatogram of the identification of the main components of the essential oil of O. basilicum by GC-MS. where: retention time of 11.50 min corresponds to linalool and retention time of 16.75 min corresponds to estragole.
Figure 6. Chromatogram of the identification of the main components of the essential oil of O. basilicum by GC-MS. where: retention time of 11.50 min corresponds to linalool and retention time of 16.75 min corresponds to estragole.
Molecules 25 02781 g006
Molecules 25 02781 g007 550
Figure 7. Chromatogram obtained from a pure toluene sample (black), followed by the chromatogram (pink) obtained from the sample containing linalool (retention time 4.57 min) and estragole (retention time 6.38 min) after extraction and analysis by GC-FID.
Figure 7. Chromatogram obtained from a pure toluene sample (black), followed by the chromatogram (pink) obtained from the sample containing linalool (retention time 4.57 min) and estragole (retention time 6.38 min) after extraction and analysis by GC-FID.
Molecules 25 02781 g007
Molecules 25 02781 g008 550
Figure 8. Analytical curve of the chromatographic response as a function of the concentration of linalool (A) and estragole (B) in mg mL−1 of toluene.
Figure 8. Analytical curve of the chromatographic response as a function of the concentration of linalool (A) and estragole (B) in mg mL−1 of toluene.
Molecules 25 02781 g008
Molecules 25 02781 g009 550
Figure 9. Scheme of the method used to extract the essential oil of O. basilicum.
Figure 9. Scheme of the method used to extract the essential oil of O. basilicum.
Molecules 25 02781 g009
Table
Table 1. Effect of ultrasound time, hydrodistillation time and drying temperature on the yield of O. basilicum essential oil and its toxicity on adults of S. zeamais.
Table 1. Effect of ultrasound time, hydrodistillation time and drying temperature on the yield of O. basilicum essential oil and its toxicity on adults of S. zeamais.
ExperimentReplicateSonication Time (min)HD Time (min)Drying Temperature (°C)Mortality (Average of Dead Insects)Average Oil Yield (%)
118 (‒)30 (‒)30 (‒)200.08
218 (‒)30 (‒)30 (‒)210.09
318 (‒)60 (+)60 (+)200.09
418 (‒)60 (+)60 (+)210.08
5131(+)30 (‒)30 (‒)210.09
6131 (+)30 (‒)60 (+)230.13
7 *131(+)60 (+)30 (‒)240.16
8131(+)60 (+)60 (+)250.13
910 (0)45 (0)45 (0)200.07
10138 (+α)45 (0)45 (0)250.16
11119 (0)20 (-α)45 (0)210.08
12 *119 (0)70 (+α)45 (0)250.09
13119 (0)45 (0)20 (-α)200.08
14 *119 (0)45 (0)70 (+α)240.11
15119 (0)45 (0)45 (0)200.08
16119 (0)45 (0)45 (0)200.08
17119 (0)45 (0)45 (0)210.08
1828 (‒)30 (‒)30 (‒)200.08
1928 (‒)60 (+)30 (‒)210.09
2028 (‒)30 (‒)60 (+)200.09
2128 (‒)60 (+)60 (+)210.08
22231 (+)30 (‒)30 (‒)210.09
23231 (+)60 (+)60 (+)230.13
24231 (+)30 (‒)30 (‒)230.16
25 *231 (+)60 (+)60 (+)260.13
2620 (-α)45 (0)45 (0)240.06
27 *238 (+α)45 (0)45 (0)280.16
28219 (0)45 (0)45 (0)200.08
29219 (0)45 (0)45 (0)240.13
30219 (0)45 (0)20 (-α)200.08
31219 (0)70 (+α)70 (+α)240.11
32219 (0)45 (0)45 (0)200.08
33219 (0)45 (0)45 (0)200.08
34219 (0)45 (0)45 (0)210.08
HD—Hydrodistillation. * Experiments highlighted (samples of the essential oil of O. basilicum that obtained the highest yield and greater toxicity on adults of S. zeamais).
Table
Table 2. Chemical composition and relative percentage of the compounds identified in the essential oil of O. basilicum using gas chromatography analysis coupled with mass spectrometry (GC-MS).
Table 2. Chemical composition and relative percentage of the compounds identified in the essential oil of O. basilicum using gas chromatography analysis coupled with mass spectrometry (GC-MS).
Constituenta RI Literature b RI CalculatedRelative Percentage (%)
Estragole1195116985
Linalool1095107112
a Relative retention index taken from [22] and/or NIST 14. b Retention index experimentally determined using homologous series of C7–C30 alkanes (Kovats index).
Table
Table 3. Quantification of linalool and estragole from samples of essential oil of O. basilicum that obtained the highest yield through extraction by the association of hydrodistillation and ultrasound techniques.
Table 3. Quantification of linalool and estragole from samples of essential oil of O. basilicum that obtained the highest yield through extraction by the association of hydrodistillation and ultrasound techniques.
Extraction ConditionsLinalool (mg mL−1)Estragole (mg mL−1)
19UST 45HDT 70DT6.931.8
31UST 60HDT 60DT8.737.6
38UST 45HDT 45DT9.439.8
19UST 70HDT 45DT10.547.8
31UST 60HDT 30DT12.251.6
UST—Ultrasound Time (min); HDT—Hydrodistillation Time (min) and DT—Drying Temperature (°C).
Table
Table 4. Accuracy and precision of the method of quantification of linalool and estragole by chromatograph equipped with flame ionization detector (GC-FID).
Table 4. Accuracy and precision of the method of quantification of linalool and estragole by chromatograph equipped with flame ionization detector (GC-FID).
Essential OilAccuracy
(n = 7)		Repeatability
(Intra-Day, n = 7)
Recovery (%)Coefficient of Variation (%)
2 × LOQ5 × LOQ10 × LOQ2 × LOQ5 × LOQ10 × LOQ
Linalool
Estragole		71.075.077.04.26.41.0
74.083.0106.00.20.10.2
n—number of replicates; LOQ—limit of quantification.
Table
Table 5. Central composite design with six repetitions at the central point (C) to investigate the effect of ultrasonication time, hydrodistillation time and drying temperature on the yield of O. basilicum essential oil and its toxicity on adults of S. zeamais.
Table 5. Central composite design with six repetitions at the central point (C) to investigate the effect of ultrasonication time, hydrodistillation time and drying temperature on the yield of O. basilicum essential oil and its toxicity on adults of S. zeamais.
ExperimentReplicateSonication Time (min)Hydrodistillation
Time (min)		Leaf Drying
Temperature (°C)
118 (−)30 (−)30 (−)
218 (−)30 (−)30 (−)
318 (−)60 (+)60 (+)
418 (−)60 (+)60 (+)
5131(+)30 (−)30 (−)
6131 (+)30 (−)60 (+)
7131(+)60 (+)30 (−)
8131(+)60 (+)60 (+)
910 (0)45 (0)45 (0)
10138 (+α)45 (0)45 (0)
11119 (0)20 (−α)45 (0)
12119 (0)70 (+α)45 (0)
13119 (0)45 (0)20 (−α)
14119 (0)45 (0)70 (+α)
15119 (0)45 (0)45 (0)
16119 (0)45 (0)45 (0)
17119 (0)45 (0)45 (0)
1828 (−)30 (−)30 (−)
1928 (−)60 (+)30 (−)
2028 (−)30 (−)60 (+)
2128 (−)60 (+)60 (+)
22231 (+)30 (−)30 (−)
23231 (+)60 (+)60 (+)
24231 (+)30 (−)30 (−)
25231 (+)60 (+)60 (+)
2620 (−α)45 (0)45 (0)
27238 (+α)45 (0)45 (0)
28219 (0)45 (0)45 (0)
29219 (0)45 (0)45 (0)
30219 (0)45 (0)20 (−α)
31219 (0)70 (+α)70 (+α)
32219 (0)45 (0)45 (0)
33219 (0)45 (0)45 (0)
34219 (0)45 (0)45 (0)

Share and Cite

MDPI and ACS Style

da Silva Moura, E.; D’Antonino Faroni, L.R.; Fernandes Heleno, F.; Aparecida Zinato Rodrigues, A.; Figueiredo Prates, L.H.; Lopes Ribeiro de Queiroz, M.E. Optimal Extraction of Ocimum basilicum Essential Oil by Association of Ultrasound and Hydrodistillation and Its Potential as a Biopesticide Against a Major Stored Grains Pest. Molecules 2020, 25, 2781. https://doi.org/10.3390/molecules25122781

AMA Style

da Silva Moura E, D’Antonino Faroni LR, Fernandes Heleno F, Aparecida Zinato Rodrigues A, Figueiredo Prates LH, Lopes Ribeiro de Queiroz ME. Optimal Extraction of Ocimum basilicum Essential Oil by Association of Ultrasound and Hydrodistillation and Its Potential as a Biopesticide Against a Major Stored Grains Pest. Molecules. 2020; 25(12):2781. https://doi.org/10.3390/molecules25122781

Chicago/Turabian Style

da Silva Moura, Eridiane, Lêda Rita D’Antonino Faroni, Fernanda Fernandes Heleno, Alessandra Aparecida Zinato Rodrigues, Lucas Henrique Figueiredo Prates, and Maria Eliana Lopes Ribeiro de Queiroz. 2020. "Optimal Extraction of Ocimum basilicum Essential Oil by Association of Ultrasound and Hydrodistillation and Its Potential as a Biopesticide Against a Major Stored Grains Pest" Molecules 25, no. 12: 2781. https://doi.org/10.3390/molecules25122781

Article Metrics

Back to TopTop
