Strong Affinity of Triazolium-Appended Dipyrromethenes (TADs) for BF₄⁻

Abstract

Because BF₄⁻ is a labile, non- or weakly coordinating anion, it is generally chosen by chemists who do not want the anion to interfere with the associated cation. Herein, we demonstrate that BF₄⁻ actually strongly binds to triazole-appended dipyrromethenes (TADs). In particular, HETCOR NMR experiments and DFT calculations were used to rationalize the results observed with anion titrations. Hence, special care should be taken when considering that BF₄⁻ is innocent.

1. Introduction

Anions play major roles in various areas including industry (e.g., radioactive wastes), environment (e.g., nitrate related pollution), or biological systems (anion transport and sensing). Accordingly, the development of robust and selective systems is of prime interest. While studying anion recognition by positively charged hosts, researchers usually use fluorinated anions such as BF₄⁻ and PF₆⁻ as the counter anions [1,2,3,4], because these weakly coordinating anions do not compete with the coordination of more basic anions such as halides, carboxylates, nitrates, and so on. However, some rare examples are found in the literature in which these supposedly “innocent” fluorinated anions are involved in the assembly of cage complexes, [5,6,7,8,9] suggesting that they should not be considered as totally innocent.

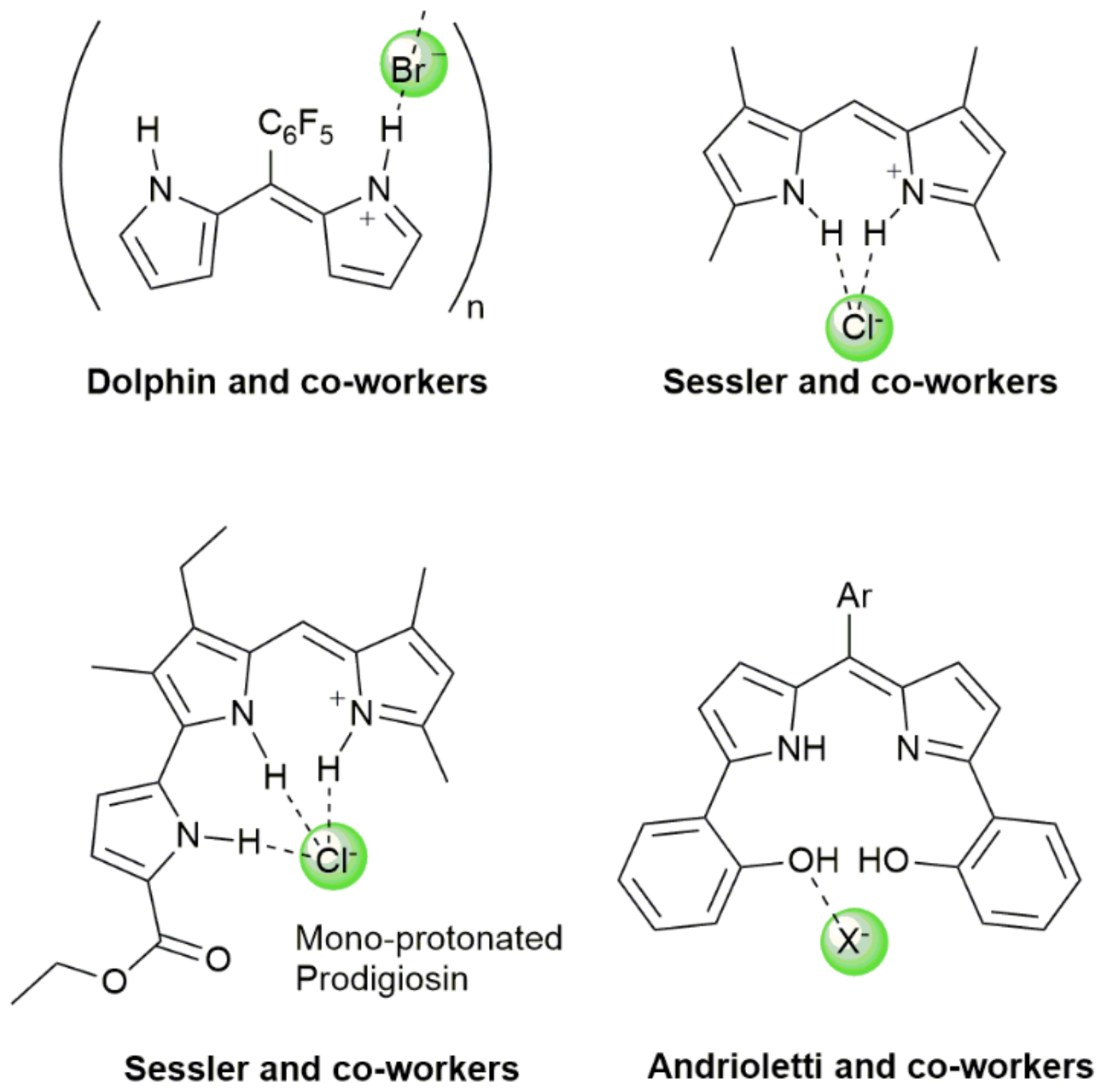

In parallel, several groups became interested in the ability of the dipyrromethene motif to coordinate anions (Figure 1) [10]. It is now admitted that only the protonated form of dipyrromethene is active. Hence, Dolphin and co-workers [11] evidenced a hydrogen bond network between the acidic pyrrolic hydrogen and a bromide anion. Sessler, Magda and co-workers demonstrated that prodigiosin displays a low affinity for chloride ions in contrary to its monoprotonated form in which the two pyrrole NHs strongly bind Cl⁻ [12]. Finally, our group recently designed dipyrromethenes substituted at the α-pyrrolic positions by two phenol rings. The recognition of anions such as Cl⁻, Br⁻, HSO₄⁻, and NO₃⁻ was possible only through the phenols, without any involvement of the neutral pyrroles [13].

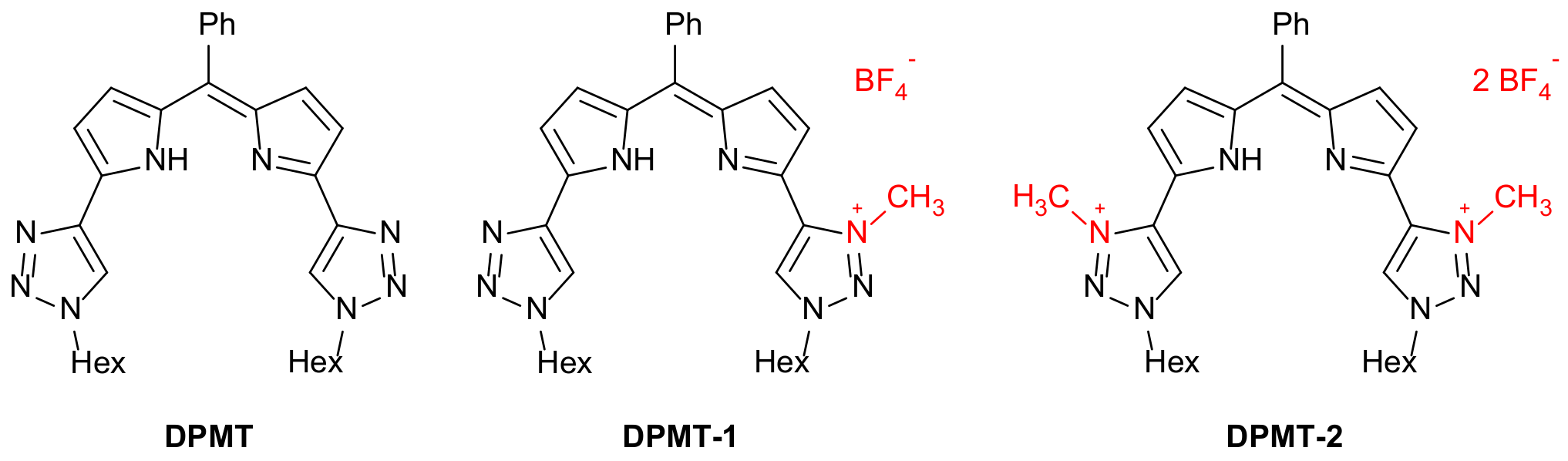

During the course of our recent studies on the development of triazole-appended dipyrromethenes (TADs) as powerful fluorescent dyes [14], we developed the synthesis of a dipyrromethene decorated with coordinating triazole heterocycles. Indeed, thanks to the presence of the three nitrogen atoms of the triazole moiety, the C5-H proton becomes acidic and prone to be involved in hydrogen-bonding with anions [15]. In addition, triazoliums are known to be highly efficient in the anion recognition thanks to the even more acidic C5 proton of the quaternarized triazolium ring, which participates in hydrogen bond interactions [16,17]. Consequently, after considering the precedents in the literature, we investigated the bis-triazole dipyrromethene (DPMT) ligand and its derivatives as potential anion receptors (Figure 2).

2. Results and Discussion

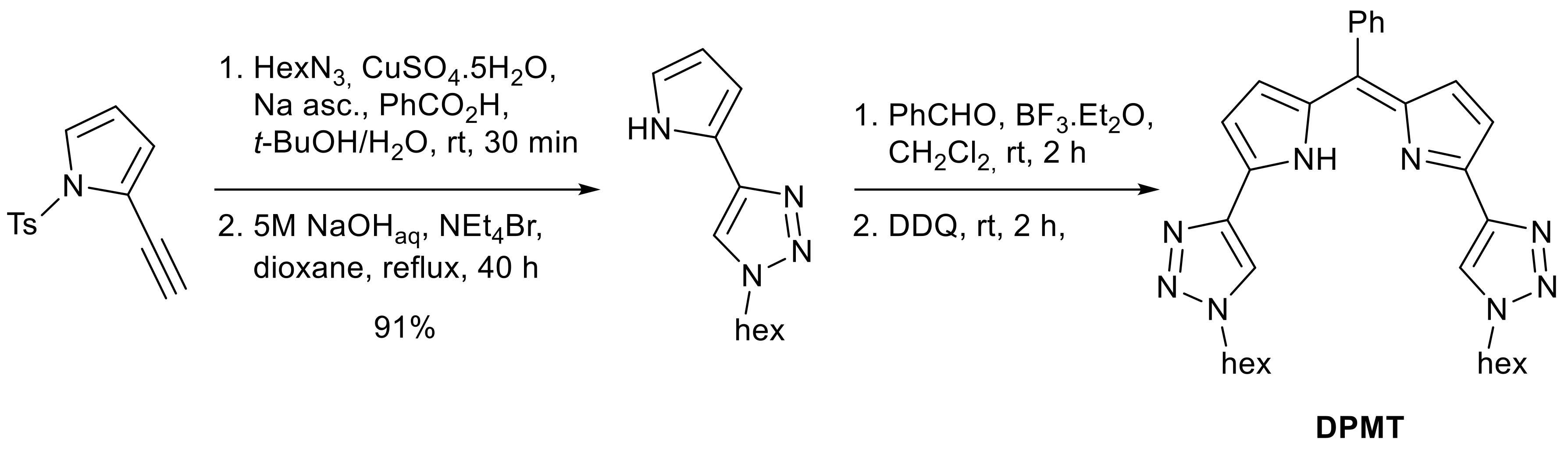

The neutral ligand was synthesized according to the procedure previously described by one of the authors (Scheme 1) [14].

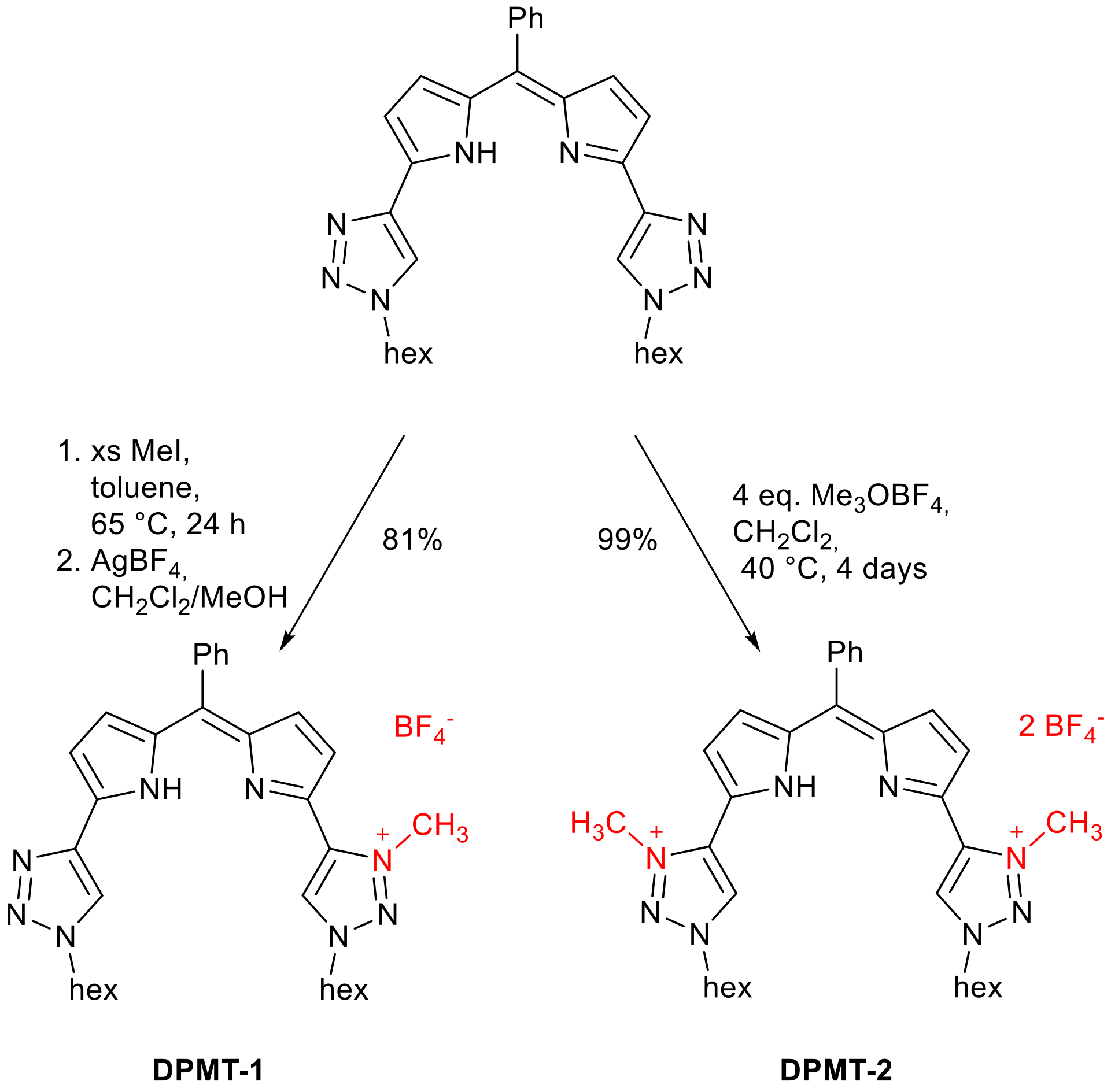

The mono-alkylated triazolium was prepared by the addition of methyl iodide, while the bis-triazolium was synthesized using the Meerwein’s salt (Scheme 2) [18]. At last, the tetrafluoroborate anion was chosen as the final counter anion, because it is known to generally display low affinity for anion receptors [1,2,3,4].

Several anions in various concentrations were added as tetrabutylammonium salts (TBA⁺X⁻ with X = Cl, F, Br, I, NO₃, HSO₄, H₂PO₄, CH₃COO), and the solutions were analyzed by ¹H NMR titrations in CDCl₃ (see Supplementary Materials). As expected, the neutral DPMT did not display any noticeable affinity for any anions in contrary with DPMT-1 and DPMT-2. Interestingly, the ¹H-NMR analyses of DPMT-1 and DPMT-2 revealed that the C5-H proton of the triazolium ring(s) shifted downfield suggesting its (their) putative involvement in the anion binding. Conversely, no significant change was observed for the C-H of the neutral triazole ring of DPMT-1, which indicates that it is not involved in the binding of Cl⁻, as observed with the DPMT.

Remarkably, both the DPMT-1 and DPMT-2 hosts display 1:1 stoichiometries with the different anions, as indicated by the Job Plots experiments (see the Supplementary Materials). Hence, the two triazoliums do not behave independently in DPMT-2.

Table 1. Apparent association constants for the binding of various anions to DPMT-1 and DPMT-2 in CDCl₃.

X− (TBAX)	K1 (DPMT-1)	K2 (DPMT-2)
F−	Degradation	Degradation
Cl−	630	164
Br−	652	129
I−	460	98
NO3−	444	148
HSO4−	Degradation	Degradation
H2PO4−	Degradation	Degradation
AcO−	Degradation	Degradation

gathers the different titration association constants calculated with a series of anions.

DPMT-1 and DPMT-2 appeared to be relatively unstable in the presence of acidic (HSO₄⁻ and H₂PO₄⁻) as well as basic (F⁻ and CH₃COO⁻) anions as the two ligands rapidly degraded in their presence. Possibly, the more basic anions deprotonate the C5-H of the triazolium affording the corresponding free carbenes that degrade in the reaction mixture. Among the other anions studied, Cl⁻ and Br⁻ afforded the highest association constants (Table 1).

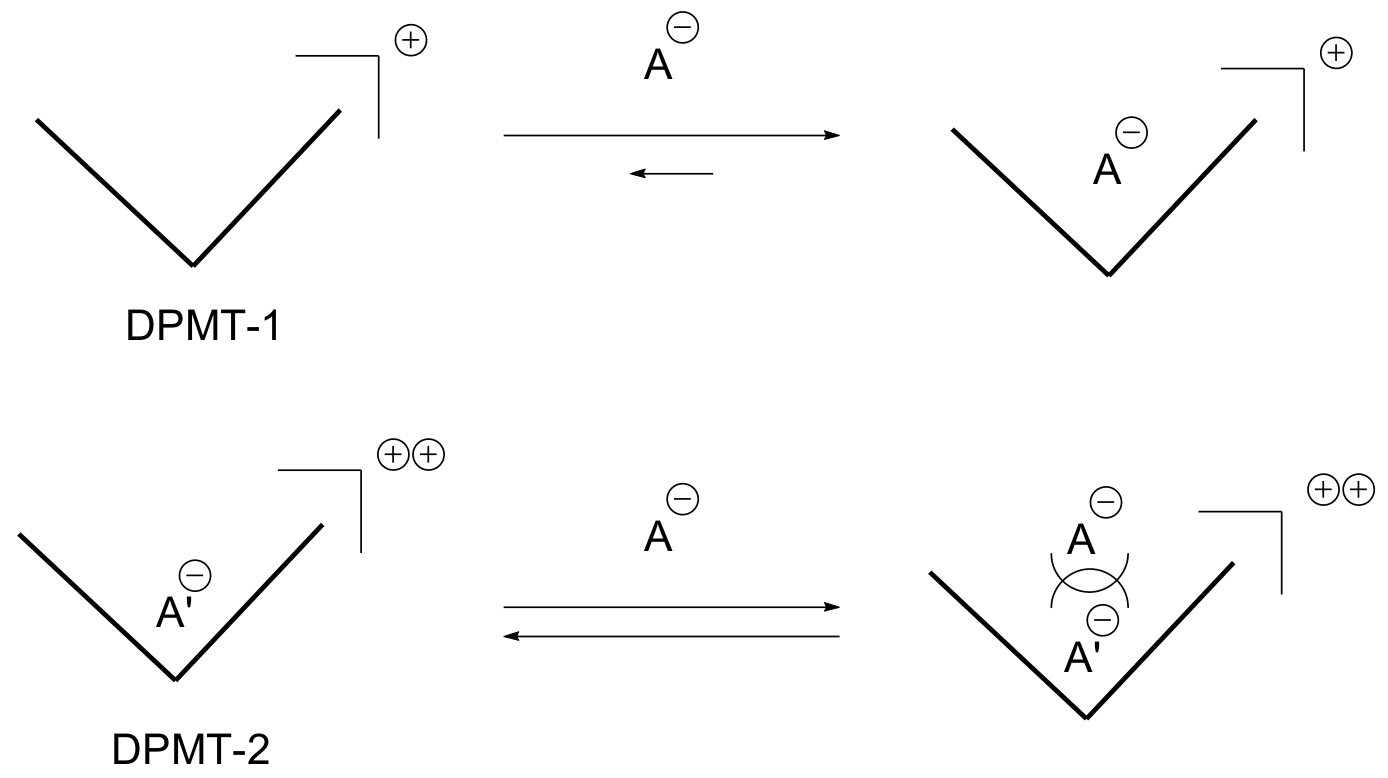

Noticeably, for all the anions, DPMT-2 displayed slightly lower association constants than those observed with DPMT-1. Whilst possibly counter-intuitive, this observation can be explained by the detrimental effect of the firstly bound anion in the cavity of DPMT-2 (Figure 3), hence disfavoring the coordination of the second guest. In addition, such a hypothesis accounts for the 1:1 stoichiometry. Consequently, in the DPMT-2 case, the incoming anion has to approach a ligand that already hosts a negatively charged guest.

As already discussed, fluorine-containing anions are usually employed as non-interfering counter anions, but manifold studies revealed the ability of these anions to afford supramolecular assemblies and metal-coordinated complexes [5,6,7,8,9].

To confirm this hypothesis, HOESY ¹H-¹⁹F NMR experiments were performed (see the Supplementary Materials). These analyses evidenced heteronuclear through-space connections, between ¹H and ¹⁹F in our case. Indeed, two strong NMR cross peaks were observed on the HOESY spectrum of DPMT-1. This observation clearly showed the strong interaction between the two CH-triazole/triazolium protons and the nearby fluorine atoms of BF₄⁻. In the case of DPMT-2, two interactions were also observed: one between the CH-triazolium protons and BF₄⁻ and one between the methyl groups of the methylated triazole rings and BF₄⁻. These two spectra thus confirmed the strong interaction between BF₄⁻ and DPMT-1 and DPMT-2.

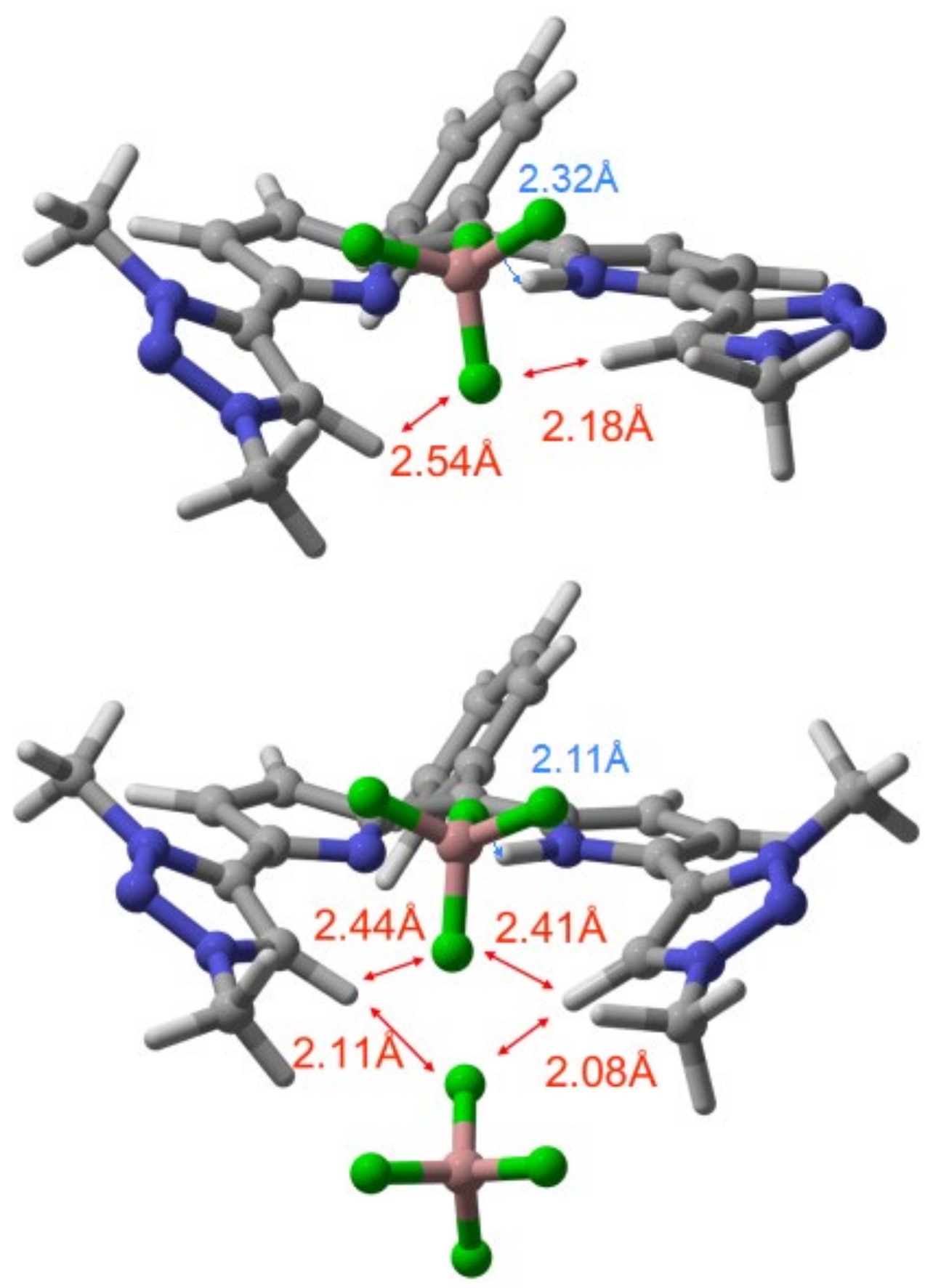

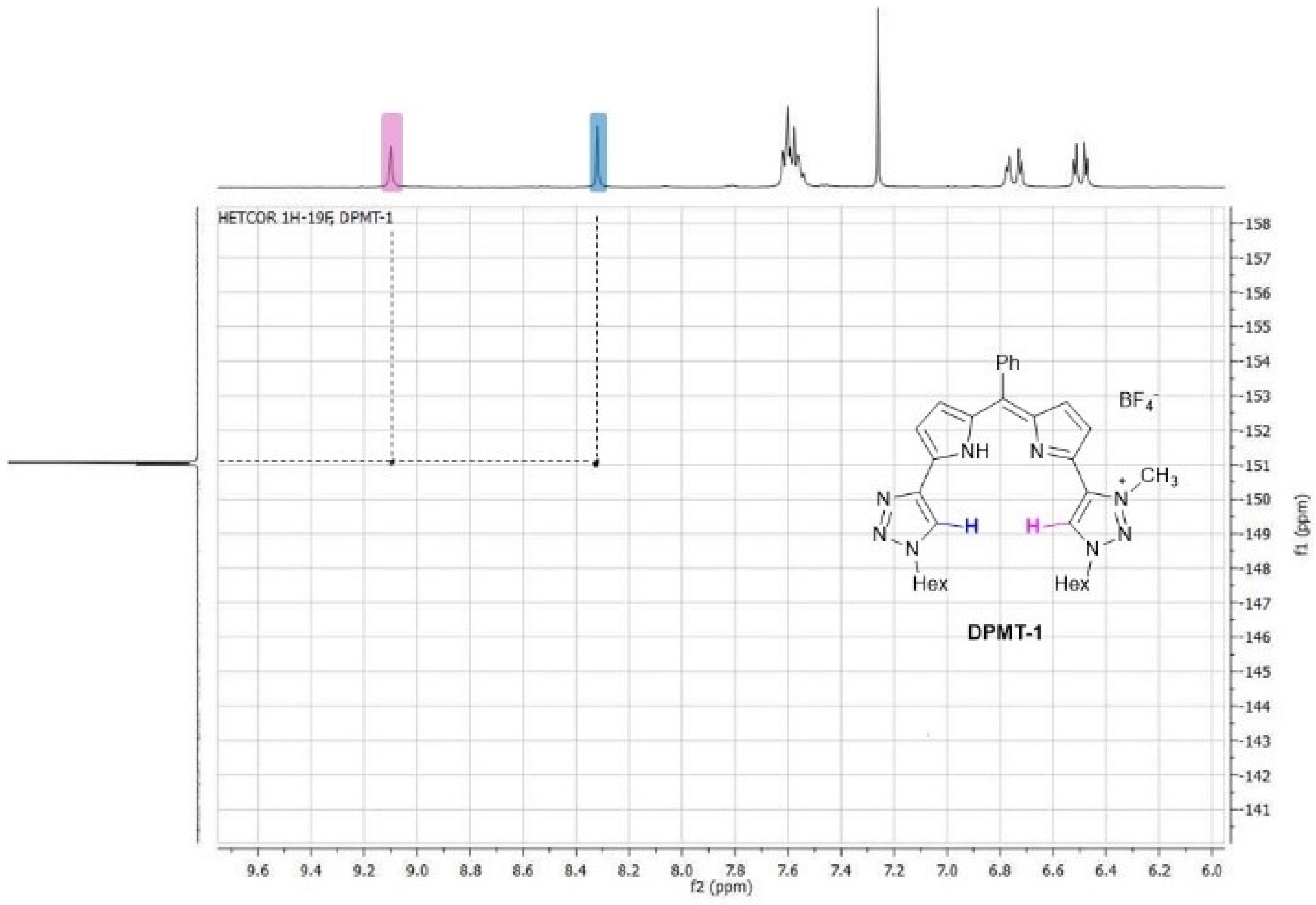

Next, HETCOR ¹H-¹⁹F NMR experiments were recorded as this 2D experiments allow the detection of heteronuclear connectivity through single-bond couplings. Interestingly, two strong correlation peaks were evidenced on the spectra (Figure 4 and Supplementary Materials). Hence, the non-covalent interaction between the triazole/triazolium protons and the fluorine atoms of BF₄⁻ is so strong that it can evidenced using HETCOR experiments. This observation was further confirmed by the optimization of the corresponding most stable geometries at the M062X-Def2TZVPP level of theory (Figure 5) using a continuum solvent for the chloroform solvent. In DPMT-1, the triazolium ring slightly rotates out off the plane of the dipyrromethene. BF₄⁻ sits in the resulting cavity, with a distance as low as 2.18 Å to the triazole proton and 2.32 Å from the pyrrole proton. The computed complexation Gibbs Free energy is −66.6 kJ/mol. In DPMT-2, the structure of the ligand is even more distorted and forms a pocket where the BF₄⁻ anion is favorably interacting (ΔG = −118.4 kJ/mol) with the two triazolium protons at a F…H distance of 2.43 Å and 2.29 Å and with the pyrrole proton at a F…H distance of 2.08 Å. To fully neutralize the charge, a second anion may also be interacting with the DMPT-2 ligand but outside the pocket. It can weakly bind to the pyrrole and the methyl hydrogens with a gain of ΔG = −50.2 kJ/mol. In a more stable configuration (ΔG = −69.6 kJ/mol), the second anion faces the first one from the opposite side of the ligand plane (Figure 5) and interacts with the two triazolium protons with two short F…H distances of 2.11 Å and 2.07 Å.

The association constants calculated in the Table 1 are thus distorted because of the competition between X⁻ and BF₄⁻ to bind the cation.

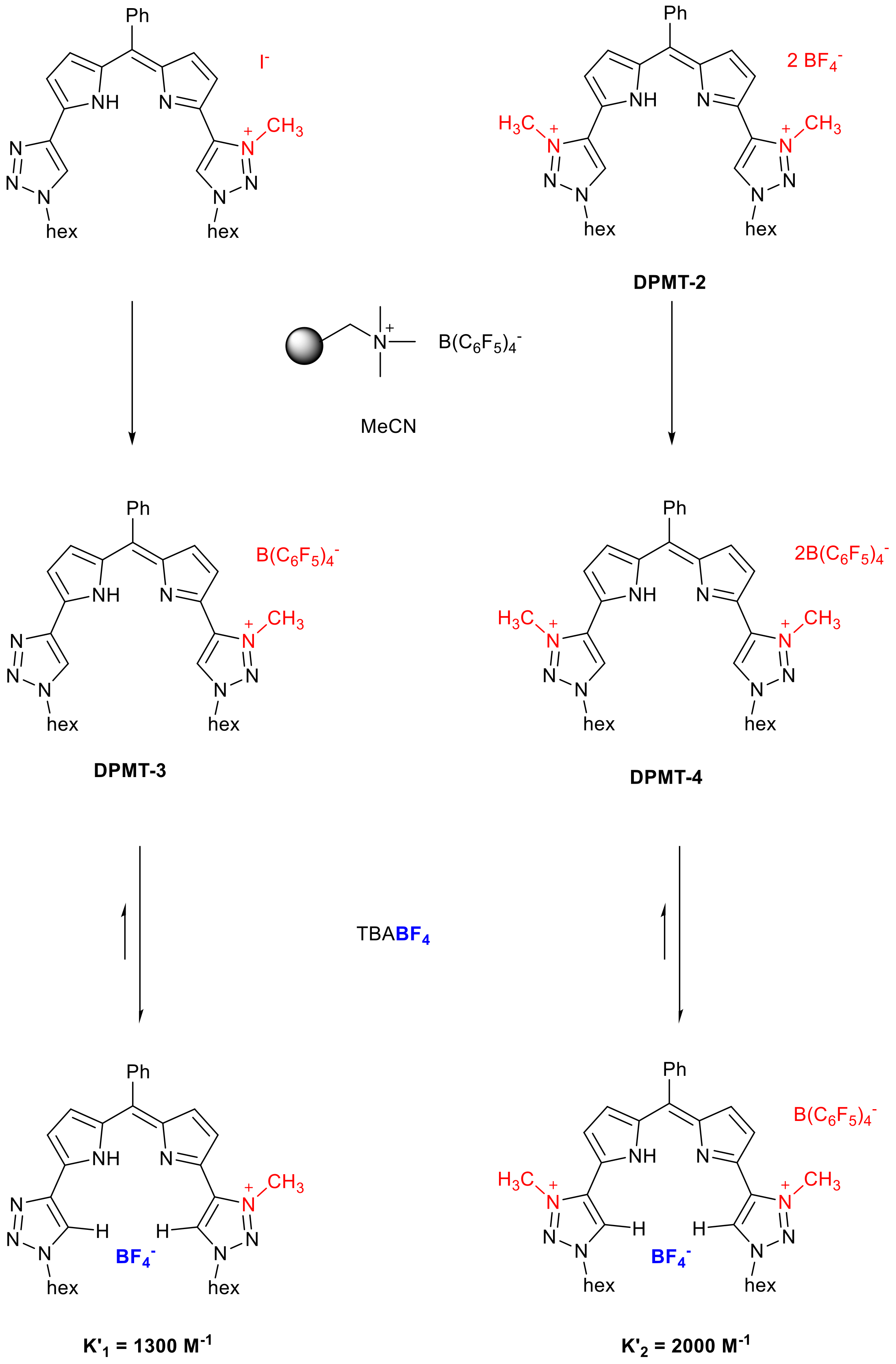

The next step was dedicated to the determination of the association constant of BF₄⁻ to the ligand. Two new ligands DPMT-3 and DPMT-4, displaying B(C₆F₅)⁻ as the non-coordinating counter anion, were obtained using an appropriately conditioned ion-exchange resin (Scheme 3). NMR titrations were performed using TBABF₄ and revealed association constants for BF₄⁻ of 1300 (DPMT-3) and 2000 (DPMT-4). These values are relatively important for the binding of an anion such as BF₄⁻ and justify the lower K observed for DPMT-2 than DPMT-1. Hence, the real association constants K″₁ and K″₂, relative to the binding of the anions X⁻ to DPMT-1 and DPMT-2, respectively, were calculated according to the formula: K” = K × K’ (

Table 2. Corrected association constants for binding of various anions to DPMT-1 and DPMT-2 in CDCl₃.

X− (TBAX)	K1 (DPMT-1)	K2 (DPMT-2)
Cl−	8 × 105	3 × 105
Br−	8.5 × 105	2.5 × 105
I−	6 × 105	2 × 105
NO3−	5 × 105	3 × 105

).

As expected, all the association constants are high (within the 10⁵ M⁻¹ range) and meet with reported values concerning charged ligands, but the presence of the two cations within the same molecule is not beneficial, as the association constants are within the same range for both the mono-triazolium host and the bis-triazolium.

3. Materials and Methods

Materials and Methods should be described with sufficient details to allow others to replicate and build on published results. Please note that publication of your manuscript implicates that you must make all materials, data, computer code, and protocols associated with the publication available to readers. Please disclose at the submission stage any restrictions on the availability of materials or information. New methods and protocols should be described in detail while well-established methods can be briefly described and appropriately cited.

4. Conclusions

It is a common knowledge that BF₄⁻ is a weakly coordinating anion. Accordingly, it is often used as a “reference guest” that will be easily displaced by almost any anion. In this communication, we demonstrate that a great care should be taken when assuming that BF₄⁻ will not interfere. Indeed, in the case of triazole-appended dipyrromethenes, BF₄⁻ binds so tightly to the TAD scaffold that ¹H-¹⁹F NMR cross peaks between the triazole CH protons and the fluorine atoms of BF₄⁻ are observed. M062X-Def2TZVPP computations in chloroform confirmed that both DPMT-1 and DMT-2 adopt a favorable conformation allowing a BF₄⁻ anion to nicely fit in the TAD cavity in close interaction with the neighboring CH triazole protons. Hence, in the case of the TAD ligands, BF₄⁻ is not an innocent anion.
