Flame Retardancy and Thermal Behavior of an Unsaturated Polyester Modified with Kaolinite–Urea Intercalation Complexes
Abstract
:1. Introduction
2. Results and Discussion
2.1. Characterization of Kaolinite and KUIC
2.2. Flame Retardancy

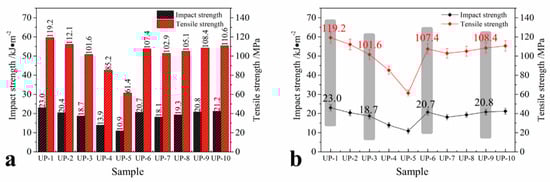

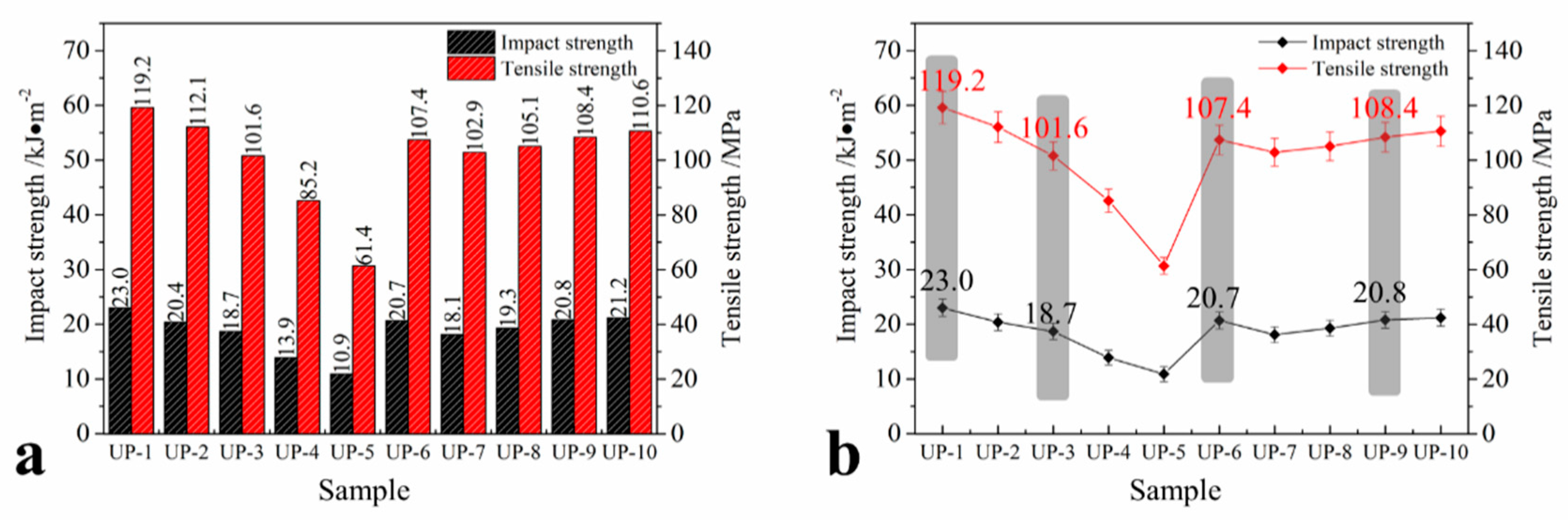

2.3. Mechanical Properties
2.4. Cone Calorimeter Test
2.5. Thermal Degradation

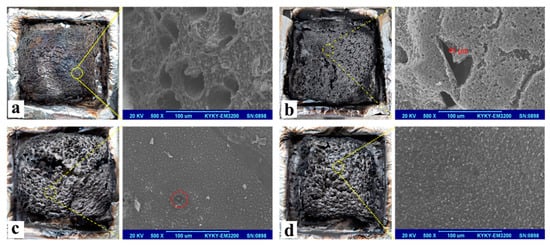

2.6. Morphology of Residual Char

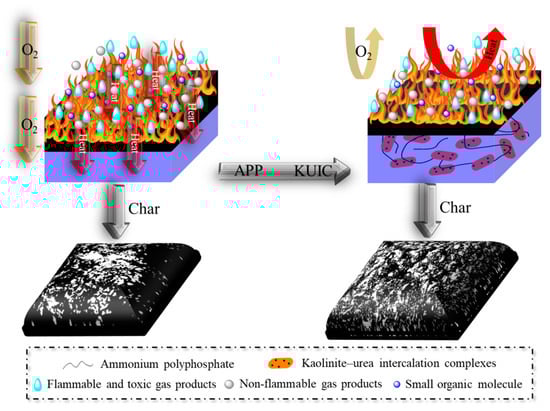

2.7. Flame Retardant Mechanism
3. Materials and Methods
3.1. Materials

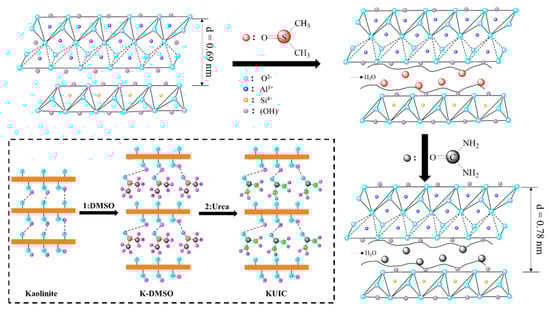

3.2. Preparation KUIC of UP/APP/KUIC Composites
3.3. Testing
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Barile, C.; Casavola, C.; De Cillis, F. Mechanical comparison of new composite materials for aerospace applications. Compos. Part B Eng. 2019, 162, 122–128. [Google Scholar] [CrossRef]
- Wang, Z.Y.; Guo, H.J.; Zhou, H.; Ouyang, X.F.; Jiang, D.; Li, J.H.; Guo, Q.P.; Tang, J.; Yang, C.C. Effect of the Chain Structure of Self-Emulsifying Polyester Sizing Agent on ILSS of Carbon Fiber/Unsaturated Polyester Resin Composites. Polymers 2019, 11, 1528. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Wazarkar, K.; Kathalewar, M.; Sabnis, A. Flammability Behavior of Unsaturated Polyesters Modified With Novel Phosphorous Containing Flame Retardants. Polym. Compos. 2017, 38, 1483–1491. [Google Scholar] [CrossRef]
- Nazaré, S.; Kandola, B.K.; Horrocks, A.R. Flame-retardant unsaturated polyester resin incorporating nanoclays. Polym. Advan. Technol. 2006, 17, 294–303. [Google Scholar] [CrossRef]
- Kandola, B.K.; Krishnan, L.; Deli, D.; Ebdon, J.R. Blends of unsaturated polyester and phenolic resins for application as fire-resistant matrices in fibre-reinforced composites. Part 2: Effects of resin structure, compatibility and composition on fire performance. Polym. Degrad. Stab. 2015, 113, 154–167. [Google Scholar] [CrossRef]
- Reuter, J.; Greiner, L.; Schonberger, F.; Doring, M. Synergistic flame retardant interplay of phosphorus containing flame retardants with aluminum trihydrate depending on the specific surface area in unsaturated polyester resin. J. Appl. Polym. Sci. 2019, 136, 47270. [Google Scholar] [CrossRef]
- Kuzdzal, E.; Cichy, B.; Kicko-Walczak, E.; Rymarz, G. Rheological and fire properties of a composite of unsaturated polyester resin and halogen-free flame retardants. J. Appl. Polym. Sci. 2017, 134, 44371. [Google Scholar] [CrossRef]
- Yu, Y.; Chen, Z.Q.; Zhang, Q.W.; Jiang, M.W.; Zhong, Z.H.; Chen, T.T.; Jiang, J.C. Modified montmorillonite combined with intumescent flame retardants on the flame retardancy and thermal stability properties of unsaturated polyester resins. Polym. Adv. Technol. 2019, 30, 998–1009. [Google Scholar] [CrossRef]
- Jiang, M.W.; Zhang, Y.S.; Yu, Y.; Zhang, Q.W.; Huang, B.J.; Chen, Z.Q.; Chen, T.T.; Jiang, J.C. Flame retardancy of unsaturated polyester composites with modified ammonium polyphosphate, montmorillonite, and zinc borate. J. Appl. Polym. Sci. 2019, 136, 47180. [Google Scholar] [CrossRef]
- Khalili, P.; Tshai, K.Y.; Hui, D.; Kong, I. Synergistic of ammonium polyphosphate and alumina trihydrate as fire retardants for natural fiber reinforced epoxy composite. Compos. Part B Eng. 2017, 114, 101–110. [Google Scholar] [CrossRef]
- Petsom, A.; Roengsumran, S.; Ariyaphattanakul, A.; Sangvanich, P. An oxygen index evaluation of flammability for zinc hydroxystannate and zinc stannate as synergistic flame retardants for acrylonitrile–butadiene–styrene copolymer. Polym. Degrad. Stab. 2003, 80, 17–22. [Google Scholar] [CrossRef]
- Cid, F.; Kochifas, P.; Mansilla, H.D.; Santander, P.; Yanez, J.; Amarasiriwardena, D. New subcritical fluid nebulizer (ScFN) for improving the determination of inorganic tin in gunshot residues by flame furnace-atomic absorption spectrometry. Microchem. J. 2016, 125, 29–33. [Google Scholar] [CrossRef]
- Lin, Y.; Yu, B.; Jin, X.; Song, L.; Hu, Y. Study on thermal degradation and combustion behavior of flame retardant unsaturated polyester resin modified with a reactive phosphorus containing monomer. RSC Adv. 2016, 6, 49633–49642. [Google Scholar] [CrossRef]
- Wang, D.; Kan, Y.C.; Yu, X.J.; Liu, J.J.; Song, L.; Hu, Y. In situ loading ultra-small Cu2O nanoparticles on 2D hierarchical TiO2-graphene oxide dual-nanosheets: Towards reducing fire hazards of unsaturated polyester resin. J. Hazard. Mater. 2016, 320, 504–512. [Google Scholar] [CrossRef] [PubMed]
- Zatorski, W.; Salasinska, K. Combustibility studies of unsaturated polyester resins modified by nanoparticles. Polimery 2016, 61, 815–823. [Google Scholar] [CrossRef]
- Ran, G.; Liu, X.; Guo, J.; Sun, J.; Li, H.; Gu, X.; Zhang, S. Improving the flame retardancy and water resistance of polylactic acid by introducing polyborosiloxane microencapsulated ammonium polyphosphate. Compos. Part B Eng. 2019, 173, 106772. [Google Scholar] [CrossRef]
- Qin, Z.; Yang, R.; Zhang, W.; Li, D.; Jiao, Q. Synergistic barrier effect of aluminum phosphate on flame retardant polypropylene based on ammonium polyphosphate/dipentaerythritol system. Mater. Des. 2019, 181, 107913. [Google Scholar] [CrossRef]
- Tabatabai, H.; Janbaz, M.; Nabizadeh, A. Mechanical and thermo-gravimetric properties of unsaturated polyester resin blended with FGD gypsum. Constr. Build. Mater. 2018, 163, 438–445. [Google Scholar] [CrossRef]
- Cinausero, N.; Howell, B.; Schmaucks, G.; Marosi, G.; Brzozwski, Z.; Cuesta, J.L.; Nelson, G.; Camino, G.; Wilkie, C.; Fina, A. Fire Retardancy of Polymers: New Strategies and Mechanisms; Royal Society of Chemistry: London, UK, 2008. [Google Scholar]
- Tang, Q.; Xie, X.L.; Li, C.J.; Zhen, B.W.; Cai, X.L.; Zhang, G.Z.; Zhou, C.H.; Wang, L.J. Medium-chain triglyceride/water Pickering emulsion stabilized by phosphatidylcholine-kaolinite for encapsulation and controlled release of curcumin. Colloids Surf. B Biointerface 2019, 183, 110414. [Google Scholar] [CrossRef]
- Zhu, B.L.; Qi, C.L.; Zhang, Y.H.; Bisson, T.; Xu, Z.H.; Fan, Y.J.; Sun, Z.X. Synthesis, characterization and acid-base properties of kaolinite and metal (Fe, Mn, Co) doped kaolinite. Appl. Clay Sci. 2019, 179, 105138. [Google Scholar] [CrossRef]
- Chen, J.J.; Han, J.C. Comparative performance of carbon nanotubes and nanoclays as flame retardants for epoxy composites. Results Phys. 2019, 14, 102481. [Google Scholar] [CrossRef]
- Marliana, M.M.; Hassan, A.; Yuziah, M.Y.N.; Khalil, H.P.S.A.; Inuwa, I.M.; Syakir, M.I.; Haafiz, M.K.M. Flame Retardancy, Thermal and Mechanical Properties of Kenaf Fiber Reinforced Unsaturated Polyester/Phenolic Composite. Fibers Polym. 2016, 17, 902–909. [Google Scholar] [CrossRef]
- Pavlidou, S.; Papaspyrides, C.D. A review on polymer–layered silicate nanocomposites. Prog. Polym. Sci. 2008, 33, 1119–1198. [Google Scholar] [CrossRef]
- Liu, Q.F.; Zhang, S.; Cheng, H.F.; Wang, D.; Li, X.G.; Hou, X.J.; Frost, R.L. Thermal behavior of kaolinite-urea intercalation complex and molecular dynamics simulation for urea molecule orientation. J. Therm. Anal. Calorim. 2014, 117, 189–196. [Google Scholar] [CrossRef]
- Elbokl, T.A.; Detellier, C. Kaolinite–poly (methacrylamide) intercalated nanocomposite via in situ polymerization. Can. J. Chem. 2009, 87, 272–279. [Google Scholar] [CrossRef]
- Li, Y.; Zhang, B.; Pan, X. Preparation and characterization of PMMA–kaolinite intercalation composites. Compos. Sci. Technol. 2008, 68, 1954–1961. [Google Scholar] [CrossRef]
- Madejova, J.; Komadel, P. Baseline studies of the clay minerals society source clays. Clay Clay Min. 2001, 49, 410–432. [Google Scholar] [CrossRef]
- Ledoux, R.L.; White, J.L. Infrared studies of hydrogen bonding interaction between kaolinite surfaces and intercalated potassium acetate, hydrazine, formamide, and urea. J. Colloid Interface Sci. 1966, 21, 127–152. [Google Scholar] [CrossRef]
- Hoang, D.; Nguyen, T.; An, H.; Kim, J. Organo-phosphorus flame retardants for unsaturated polyester derived from recycled poly (ethylene terephthalate). Macromol. Res. 2016, 24, 537–546. [Google Scholar] [CrossRef]
- Jia, P.Y.; Hu, L.H.; Zhang, M.; Zhou, Y.H. TG-FTIR and TG-MS analysis applied to study the flame retardancy of PVC-castor oil-based chlorinated phosphate ester blends. J. Therm. Anal. Calorim. 2016, 124, 1331–1339. [Google Scholar] [CrossRef]
- Gao, M.; Wu, W.; Yan, Y. Thermal degradation and flame retardancy of epoxy resins containing intumescent flame retardant. J. Therm. Anal. Calorim. 2009, 95, 605–608. [Google Scholar] [CrossRef]
- Yang, J.X.; Kong, X.J.; Xu, D.H.; Xie, W.J.; Wang, X.L. Evolution of the polydispersity of ammonium polyphosphate in a reactive extrusion process: Polycondensation mechanism and kinetics. Chem. Eng. J. 2019, 359, 1453–1462. [Google Scholar] [CrossRef]
- Grexa, O.; Lubke, H. Flammability parameters of wood tested on a cone calorimeter. Polym. Degrad. Stab. 2001, 74, 427–432. [Google Scholar] [CrossRef]
- Cai, J.; Heng, H.M.; Hu, X.P.; Xu, Q.K.; Miao, F. A facile method for the preparation of novel fire-retardant layered double hydroxide and its application as nanofiller in UP. Polym. Degrad. Stab. 2016, 126, 47–57. [Google Scholar] [CrossRef]
- Shao, Z.B.; Deng, C.; Tan, Y.; Chen, M.J.; Chen, L.; Wang, Y.Z. Flame retardation of polypropylene via a novel intumescent flame retardant: Ethylenediamine-modified ammonium polyphosphate. Polym. Degrad. Stab. 2014, 106, 88–96. [Google Scholar] [CrossRef]
- Li, S.M.; Ren, J.; Yuan, H.; Yu, T.; Yuan, W.Z. Influence of ammonium polyphosphate on the flame retardancy and mechanical properties of ramie fiber-reinforced poly (lactic acid) biocomposites. Polym. Int. 2010, 59, 242–248. [Google Scholar]
- Xiao, F.P.; Guo, R.; Wang, J.G. Flame retardant and its influence on the performance of asphalt—A review. Constr. Build. Mater. 2019, 212, 841–861. [Google Scholar] [CrossRef]
- Tsunematsu, K.; Tateyama, H. Delamination of Urea-Kaolinite Complex by Using Intercalation Procedures. Rep. Kyushu Natl. Ind. Res. Inst. 2001, 82, 1589–1591. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors. |

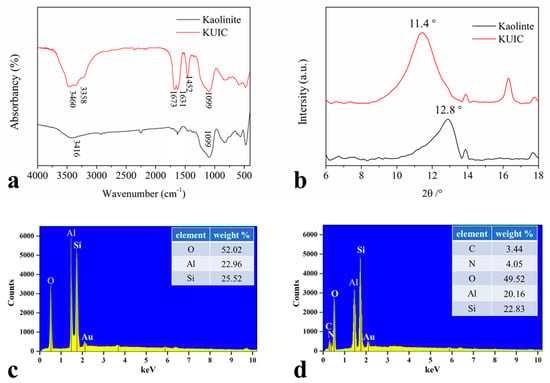

Kaolinite/cm−1 | KUIC/cm−1 | FTIR of Vibration Properties |
---|---|---|
- | 3460 | symmetric stretching modes of -N-H |
3416 | stretching mode of -O-H | |
- | 3358 | asymmetric stretching modes of -N-H |
1673 | stretching mode of -C=O | |
- | 1631 | deformation vibration of -N-H |
- | 1452 | stretching vibration of -C-N |
1099 | 1099 | deformation vibration of -Si-O |

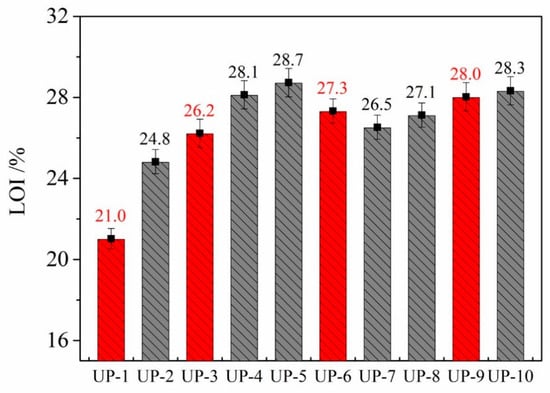

Sample | ω(APP)/% | ω(Kaolinite)/% | ω(KUIC)/% | LOI/% | Δ(LOI)/% | EFF | SE |
---|---|---|---|---|---|---|---|
UP-1 | - | - | - | 21.0 | - | - | - |
UP-3 | 15 | - | - | 26.2 | 5.2 | 0.35 | - |
UP-6 | 12 | 3 | - | 27.3 | 6.3 | 0.42 | 1.20 |
UP-7 | 14 | - | 1 | 26.5 | 5.5 | 0.37 | 1.06 |
UP-8 | 13 | - | 2 | 27.1 | 6.1 | 0.41 | 1.17 |
UP-9 | 12 | - | 3 | 28.0 | 7.0 | 0.47 | 1.34 |
UP-10 | 11 | - | 4 | 28.3 | 7.3 | 0.49 | 1.40 |
UP-1 | UP-3 | UP-6 | UP-9 | |
---|---|---|---|---|

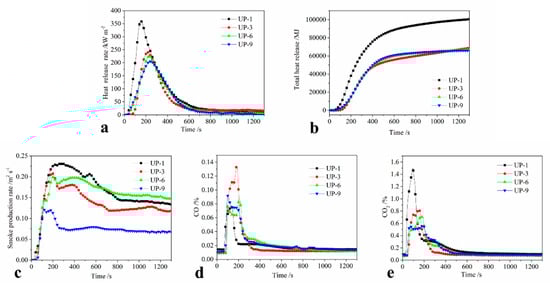

peak HRR/kW·m−2 | 361.2 ± 1.6 | 240.7 ± 3.7 | 225.9 ± 2.5 | 205.4 ± 1.9 |
THR/MJ | 103751 ± 45 | 69125 ± 23 | 67178 ± 51 | 66114 ± 37 |
peak SPR/m2·s−1 | 0.23 ± 0.06 | 0.21 ± 0.04 | 0.20 ± 0.05 | 0.12 ± 0.03 |
TSP/m2·kg−1 | 197.5 ± 4.1 | 190.2 ± 3.4 | 161.2 ± 1.7 | 121.7 ± 2.1 |
CO yield/% | 0.07 ± 0.01 | 0.13 ± 0.03 | 0.08 ± 0.02 | 0.09 ± 0.03 |
CO2 yield/% | 1.50 ± 0.21 | 0.81 ± 015 | 0.71 ± 0.11 | 0.55 ± 0.10 |

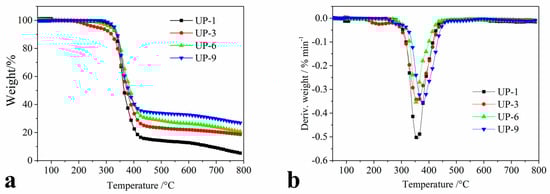

No. | IDT /°C | IPDT /°C | WL /% | CY /% | Tmax /°C | Rmax %/min |
---|---|---|---|---|---|---|
UP-1 | 321 | 364 | 78.0 | 9.1 | 359 | 0.51 |
UP-3 | 252 | 375 | 69.1 | 20.6 | 359 | 0.35 |
UP-6 | 305 | 380 | 65.6 | 22.1 | 351 | 0.33 |
UP-9 | 310 | 386 | 62.8 | 24.5 | 378 | 0.36 |
No. | UP/phr | Curing agent/phr | Accelerator/phr | APP/phr | Kaolinite/phr | KUIC/phr |
---|---|---|---|---|---|---|
UP-1 | 94 | 3 | 3 | - | - | - |
UP-2 | 84.6 | 2.7 | 2.7 | 10 | - | - |
UP-3 | 79.9 | 2.55 | 2.55 | 15 | - | - |
UP-4 | 75.2 | 2.4 | 2.4 | 20 | - | - |
UP-5 | 70.5 | 2.25 | 2.25 | 25 | - | - |
UP-6 | 79.9 | 2.55 | 2.55 | 12 | 3 | - |
UP-7 | 79.9 | 2.55 | 2.55 | 14 | - | 1 |
UP-8 | 79.9 | 2.55 | 2.55 | 13 | - | 2 |
UP-9 | 79.9 | 2.55 | 2.55 | 12 | - | 3 |
UP-10 | 79.9 | 2.55 | 2.55 | 11 | - | 4 |
