Understanding the Deactivation Phenomena of Small-Pore Mo/H-SSZ-13 during Methane Dehydroaromatisation

by
Miren Agote-Arán
1,2,
Anna B. Kroner
2,
David S. Wragg
3,
Wojciech A. Sławiński
3,4,
Martha Briceno
5,
Husn U. Islam
5,
Igor V. Sazanovich
6,
María E. Rivas
5,
Andrew W. J. Smith
5,
Paul Collier
5,
Inés Lezcano-González
1,7,* and
Andrew M. Beale
1,7,*
1
Chemistry Department, University College of London Gordon Street, London WC1H 0AJ, UK
2
Diamond Light Source Ltd., Harwell Science and Innovation Campus, Didcot OX11 0DEU, UK
3
Department of Chemistry, NGAP Centre for Research Based Innovation, University of Oslo, N-0315 Oslo, Norway
4
Faculty of Physics, University of Warsaw, Pasteura 1 Street, 02-093 Warsaw, Poland
5
Johnson Matthey Technology Centre, Blount’s Court, Sonning Common, Reading RG4 9NH, UK
6
Central Laser Facility, Research Complex at Harwell, Science and Technology Facilities Council, Harwell Campus, Didcot OX11 0QX, UK
7
Research Complex at Harwell, STFC Rutherford Appleton Laboratory, Didcot OX11 0FA, UK
*
Authors to whom correspondence should be addressed.
Molecules 2020, 25(21), 5048; https://doi.org/10.3390/molecules25215048
Submission received: 11 August 2020 / Revised: 13 October 2020 / Accepted: 27 October 2020 / Published: 30 October 2020
(This article belongs to the Special Issue Zeolitic Microporous Materials and Their Applications)
Browse Figures
Versions Notes

Abstract

:
Small pore zeolites have shown great potential in a number of catalytic reactions. While Mo-containing medium pore zeolites have been widely studied for methane dehydroaromatisation (MDA), the use of small pore supports has drawn limited attention due to the fast deactivation of the catalyst. This work investigates the structure of the small pore Mo/H-SSZ-13 during catalyst preparation and reaction by operando X-ray absorption spectroscopy (XAS), in situ synchrotron powder diffraction (SPD), and electron microscopy; then, the results are compared with the medium pore Mo/H-ZSM-5. While SPD suggests that during catalyst preparation, part of the MoOx anchors inside the pores, Mo dispersion and subsequent ion exchange was less effective in the small pore catalyst, resulting in the formation of mesopores and Al2(MOO4)3 particles. Unlike Mo/H-ZSM-5, part of the Mo species in Mo/H-SSZ-13 undergoes full reduction to Mo0 during MDA, whereas characterisation of the spent catalyst indicates that differences also exist in the nature of the formed carbon deposits. Hence, the different Mo speciation and the low performance on small pore zeolites can be attributed to mesopores formation during calcination and the ineffective ion exchange into well dispersed Mo-oxo sites. The results open the scope for the optimisation of synthetic routes to explore the potential of small pore topologies.

Graphical Abstract

1. Introduction

Methane dehydroaromatisation (MDA) reaction converts methane directly into aromatics and light hydrocarbons, giving H2 as a co-product. The route has a great potential for the efficient valorisation of natural gas, but its commercialisation is impeded by the rapid catalyst deactivation due to carbon deposit formation. Since the first report on MDA by Wang et al. [1], most of the catalysts studied for this reaction comprise Mo supported in medium pore H-ZSM-5 zeolite with MFI structure [2]. The extensive work performed in Mo/H-ZSM-5 include the optimisation of synthetic procedures [3,4,5,6], modelling studies [7,8,9,10], the development of engineering solutions [11,12,13], and structural investigations to study the active role of Mo, zeolite, or carbon deposits [14,15,16,17,18,19,20,21,22,23,24,25,26,27]. While other zeolite topologies have been investigated, these studies often focus in medium pore zeolites mostly because the dimensions of such pores are believed to provide shape selectivity to benzene, which comprises up to 80% of the MDA products [28,29]. Nonetheless, good catalytic performance and significant yield to aromatics have been also reported for non-microporous supports [30]. Recent structural studies point out that the evolution of Mo speciation—from isolated Mo-oxo species to carburised Mo clusters—under reaction conditions is also an important factor in MDA product distribution [15,20,21]. Furthermore, the reported migration of Mo species from H-ZSM-5 pores to the outer surface during MDA is likely to restrain the shape selective effects of the zeolite [14,20,31].
In the recent years, small pore zeolites have received great attention in a number of catalytic reactions; such structures allow tuning the product selectivity while providing high thermal stability. In the case of MDA, the use of small pores could potentially increase selectivity to C2 molecules such as ethane or ethylene, which are also intermediates of the reaction. Compared to aromatics, light hydrocarbons are of greater importance for the chemical industry, as they are the precursors of a range of polymers (i.e., polyvinyl chloride, polyethylene), solvents, surfactants, or anaesthetic agents. A better thermal stability is also advantageous for MDA, which occurs at >650 °C. In addition, it has been suggested that zeolites with relatively large cages but small pores could restrict the sintering of supported metal clusters, which would be beneficial to prevent Mo-based catalyst deactivation. Under reaction conditions, growing metal particles can become entrapped in the zeolite once the size of the particle exceeds the diameter of the cage window, and further sintering and migration is prevented [32]. Nonetheless, very few studies have been reported using small pore zeolites for methane activation in non-oxidative conditions. Zhang et al. reported 0.7% methane conversion when using small pore Mo/SAPO-34 with a CHA structure, which is one order of magnitude lower than for the Mo/H-ZSM-5 values obtained in the same study [33]. The selectivity to benzene (calculated excluding coke formation) was lower for the small pore (73%) than for the medium pore (91%). Consistent with the pore dimensions, higher selectivity to small C2 molecules was achieved on Mo/SAPO-34 (10%) compared with Mo/H-ZSM-5 (4.5%). A recent publication on Mo/H-SSZ-13, also with CHA structure [34], reported low conversions (≈0.7%) and practically no aromatics formation with most of the methane being converted to carbon deposits. The high selectivity to carbon deposits on Mo/CHA was attributed to the inability of benzene to leave the small CHA pore openings, resulting in an increased selectivity to carbon deposits. However, up to date, no detailed structural studies have been reported on small pore materials to account for their catalytic performance.
The MFI topology comprises a three-dimensional channel arrangement with two 10 ring channel systems [35,36]: straight channels running parallel to (010) with a pore diameter ≈5.3 × 5.5 Å and interconnected to these, sinusoidal channels parallel to (100) of ≈5.1 × 5.4 Å diameter. As such, the MFI structure presents no cages or cavities. The CHA framework also presents a three-dimensional channel system [37,38]; it is composed of 6-membered ring pores arranged in an AABBCC sequence. This stacking comprises double 6-membered ring (D6R) units connected to ellipsoidal large cages of 6.7 × 10 Å, which results in 8-membered ring (8R) windows of 3.8 × 3.8 Å. Considering the kinetic diameter of different molecules involved in MDA [39,40], the pores in the CHA structure are too small for aromatic molecules to diffuse through; if zeolite topologies plays a role in product distribution, an increased selectivity to light hydrocarbons would be expected. On the other hand, the cages are large enough to host benzene and toluene, which could lead to carbon deposit formation. Yet, groups that investigated MCM-22 zeolite for dehydroaromatisation claim that the longer catalyst lifetime obtained with this zeolite is in fact due to its large cage system [29,41]. They propose that the cages preferentially accommodate carbon deposits, leaving the rest of the pore and channel system free for molecule circulation.
The present work studies the properties of small pore Mo/H-SSZ-13 compared with the widely studied medium pore Mo/H-ZSM-5, using comparable Mo loadings (≈4 wt %) and Si/Al ratios (of 14 to 17). The location of Mo after catalyst preparation is studied by synchrotron powder diffraction, while its evolution during a series of reaction—regeneration cycles is investigated by operando X-ray absorption and supported by further characterisation such as microscopy, thermogravimetric analysis, and Raman spectroscopy.

2. Results

2.1. Study of the Calcination Process

The location of Mo on H-SSZ-13 during calcination was studied by in situ synchrotron powder diffraction (SPD). X-ray diffraction data were collected during calcination of the as-prepared catalyst (up to 600 °C, 6 °C/min under 20% O2/He). The observed, calculated, and difference patterns obtained from Rietveld refinement are given in Figure S1 in the electronic supporting information (ESI); the experimental parameters and goodness-of-fit factors are given in Table S1, while the atomic coordinates and selected bond distances and angles can be found in Tables S2–S4. The non-framework electron density observed in difference Fourier maps is assumed to be due to water (below about 200 °C) and Mo (above 400 °C, after the MoO3 precursor peaks began to disappear from the diffraction patterns). This was fitted using dummy atoms as described by Wragg et al. [42].
The Rietveld analysis results for the calcination process of the SSZ-13 and MoO3 physical mixture are summarised in Figure 1. As the temperature increases up to 200 °C, zeolite dehydration takes place, and the electron density in the 8-membered rings (8R) of the CHA structure (left axis) drops drastically as a result of water removal from the framework. As calcination advances, the MoO3 precursor crystals start to disappear around 400 °C (right axis). According to previous diffraction studies [25,43], this loss of precursor crystallinity is attributed to the migration of MoOx into the zeolite micropores. As the weight percentage of MoO3 drops, the electron density at the 8R site increases slightly (≈570 °C), suggesting that some Mo occupies these sites. The increase could be ascribed to the ion exchange at the zeolite Brønsted acid sites, with the attachment of Mo in the vicinity of 8R. This hypothesis is further supported by studies performed by Borry et al., who measured the H2O evolution rate by mass spectrometry during the calcination of MoO3 and H-ZSM-5 mixtures and reported ion exchange and anchoring of Mo to occur within this temperature range [25]. The observed increase in electron density at the 8R site is small and occurs when much of the MoO3 has already disappeared, suggesting that some Mo remains outside the zeolite pores after calcination, as described in the earlier studies mentioned above.
The high-resolution secondary electron images for the parent H-SSZ-13 (Figure 2a) show ≈10 µm crystals with cubic morphology. The images taken for Mo/H-SSZ-13 after calcination (Figure 2b) exhibit defects as well as smaller particles likely arising as a result of the mechanical destruction during the grinding step of the synthesis (i.e., 30 min of mixing of zeolite and MoO3 in a mortar). High-magnification secondary electron images of calcined Mo/H-SSZ-13 (Figure 2c) reveal the presence of large mesopores (up to 50 nm) on the zeolite; the corresponding backscattered electron images show bright particles on the zeolite surface corresponding to molybdenum-rich particles of varying sizes (up to 100 nm). These observations indicate that MoO3 reacts with the zeolite during calcination, resulting in the extraction of framework Al and the formation of Al2(MoO4)3 particles, which is a phenomena also reported for Mo/H-ZSM-5 [44]. This was corroborated by transmission electron microscopy combined with energy dispersive X-ray elemental analysis (TEM-EDX) which showed the particles on the zeolite surface to be composed of Mo and Al (see Figure S3); however, we note that the EDX spectra taken in different regions of the crystals confirm the dispersion of part of Mo in the H-SSZ-13 despite the formation of Al2(MoO4)3 particles.

2.2. Operando X-Ray Absorption Spectroscopy

The Mo evolution during MDA reaction was followed by operando X-ray absorption spectroscopy (XAS). In a first experiment, the as-prepared samples (MoO3 and zeolite physical mixture) were calcined at 700 °C for 30 min under 20% O2/He. Then, the MDA reaction was performed by flowing 50% CH4/Ar at 700 °C for 90 min (GHSV = 3000 h−1). During the reaction, XAS spectra were continuously collected while the gas composition in the outlet was measured by online mass spectrometry (MS).
To clearly visualise differences in metal speciation in Mo/H-SSZ-13 and Mo/H-ZSM-5, Figure 3 compares the Mo K-edge XAS spectra before and after reaction at 700 °C; the figure also includes reference spectra for Al2(MoO4)3, Mo2C, and metallic Mo. The full set of XAS data collected during reaction can be found in Figure S4 in the ESI, together with the MS trends which verify that the species observed correspond to the Mo centres present under MDA conditions.
The X-ray absorption near edge structure (XANES) of the calcined Mo/H-ZSM-5 and Mo/H-SSZ-13 were comparable (Figure 3a); both catalysts show an adsorption edge at ≈20014 eV (1s → 5p transition) and an intense pre-edge peak at 20,005 eV (1s → 4d quadrupole transition) [26]. These features were analogous to the Al2(MoO4)3 reference, which contains isolated tetrahedral MoO4 units. The Fourier transform X-ray absorption fine structures (FT-EXAFS) shown in Figure 3b exhibit similar features with a main peak around 1.3 Å corresponding to scattering from near neighbour O atoms. According to previous reports, the ion-exchanged Mo species on the zeolites corresponds to Mo-oxo centres in tetrahedral environment comprising two bridging Mo-O bonds and two shorter terminal Mo=O bonds [16,20,26]. Compared with Al2(MoO4)3, both Mo/zeolite samples exhibit a lower intensity of the O scattering peak as well as a shift to lower radial distances (1.2 Å instead of 1.3 Å); these features are consistent with the presence of ion exchanged Mo-oxo species with shorter Mo=O bonds. In the case of Mo/H-SSZ-13, we expect a contribution of Al2(MoO4)3, which—as described above—arises due to the strong zeolite dealumination taking place during the calcination step. Ion exchanged Mo-oxo species show a similar tetrahedral local structure to Al2(MoO4)3, resulting in comparable spectra that makes the quantification of these two species difficult by XAS.
After 90 min of reaction, both Mo/H-SSZ-13 and Mo/H-ZSM-5 show XANES spectra similar to Mo2C implying a carburisation of molybdenum species, as reported previously [2,29]. The FT-EXAFS of Mo/H-ZSM-5 in Figure 3c comprises two peaks at 1.4 and 2.7 Å consistent with scattering from C and Mo neighbours in Mo2C reference. Interestingly, the FT-EXAFS of Mo/H-SSZ-13 reveals no contribution at 2.7 Å. A close inspection of the EXAFS (Figure S6b in the ESI) shows that while both catalysts exhibit oscillations comparable to Mo2C, Mo/H-SSZ-13 presents additional features that coincide with metallic Mo (Mo0). The absence of a Mo-Mo scattering peak in the Mo/H-SSZ-13 FT-EXAFS is attributed to the destructive interaction between Mo2C and Mo0 EXAFS oscillations. These results point out that part of Mo centres in H-SSZ-13 undergo full reduction to Mo0 under MDA conditions, which has not been previously observed in other topologies.
In a second experiment, the regeneration of Mo/H-SSZ-13 was studied by performing three consecutive reaction–regeneration cycles. The cycles consisted of an initial calcination at 700 °C in air (cycle 1, calc.) followed by MDA at 650 °C (cycle 1, MDA 650 °C). Then, the catalyst was regenerated by burning off the coke with 20% O2/He flow (cycle 2, calc.). After a second MDA reaction at 650 °C (cycle 2, MDA 650 °C) and consequent regeneration (cycle 3, calc.), a last MDA reaction was performed at 780 °C (cycle 3, MDA 780 °C). The MDA cycles were 70 min long, while regenerations with O2 were performed for 10 min.
Figure 4a shows the Mo K-edge XANES spectra after each calcination and MDA reaction step. All the spectra after oxygen treatment are identical, indicating the reoxidation of the carburised Mo. Such regeneration is possibly due to the oxidation of Mo carbides to volatile MoO3, which diffuses back into the zeolite pores, resulting in ion exchange to form Mo-oxo sites; of course, we cannot rule out that during regenerations, Al2(MoO4)3 is formed again due to reaction with extraframework alumina. Regarding the reaction cycles, the spectra after the third MDA at 780 °C shows an absorption edge at lower energies than the cycles at 650 °C; this indicates a higher degree of Mo reduction at increased MDA temperatures. To gain insight into the effect of reaction temperature, Figure 4b compares the FT-EXAFS features after 70 min of MDA performed at 700 °C in the first experiment with the cycles performed at 650 °C (Cycle 1) and 780 °C (Cycle 3). The figure shows a decreased intensity of Mo-C scattering peak (1.4 Å) with increasing temperature, which is accompanied with an increasing contribution of the Mo-Mo scattering path in Mo0 (≈2.3 Å). This was also supported by inspection of EXAFS (Figure S6c) where the features corresponding to Mo0 became increasingly pronounced with the temperature.
The integer Mo oxidation state of Mo/H-SSZ-13 was evaluated during the two experiments described above (700 °C MDA, and the consecutive reaction-regeneration cycles at 650 to 780 °C). This analysis was carried out by following the same procedure reported in previous works [15,20] where the correlation between the edge position—at the half-step height of the absorption edge—and oxidation state was obtained by a linear fit using references with known oxidation states (MoO2, MoO3, and Mo2C). As listed in Table 1, the Mo oxidation state of the as-prepared sample was 5.9, which is consistent with the MoO3 precursor with Mo6+. After each calcination cycle, the oxidation Mo also appears in oxidised form, exhibiting an integral oxidation state of 5.8; as discussed above, this would correspond to a mixture of species (i.e., ion exchange Mo-oxo and Al2(MoO4)3. After 70 min of MDA, oxidation states of 2.4, 2.1, and 1.8 were obtained for reactions performed at 650, 700, and 780 °C cycles respectively, which is in line with the increased degree of Mo reduction with the reaction temperature.
Table 1 also lists the Mo K-edge absorption edge steps obtained in the consecutive cycles. The edge step exhibits a gradual drop over the course of the experiment and particularly after each calcination, suggesting that Mo concentration in the sample (field of view) decreases as a result of the sublimation of Mo oxide species.

2.3. Laboratory MDA Investigations

The elemental analysis of calcined Mo/H-SSZ-13 and Mo/H-ZSM-5 (Table S5) indicated similar Mo contents of 3.9 and 3.8 wt % respectively, and Si/Al ratios of 14.0 and 16.8. The activity of both catalysts was compared by performing the MDA reaction for 90 min (50% CH4/Ar, GHSV = 1500 h−1, 700 °C). The MS data collected are shown in Figure 5a. For simplicity, only the mass trends corresponding to the main reaction products are presented (i.e., H2, C2Hx, and C6H6), plots containing all recorded mass trends can be found in Figure S5 in the ESI. Both catalysts exhibit an induction period in which H2 is formed but no hydrocarbon production is detected; CO, CO2, and H2O evolution is also seen in the induction period (shown in Figure S5). It is widely accepted that during this stage, oxidic Mo species undergo reduction and carburisation, which is in line with the XAS data shown in Figure 3 and Figure 4. After ≈ 7 min, the induction period gives way to the aromatisation stage, wherein C2Hx, H2 and aromatic (i.e., C6H6) formation is seen. While normalised C2Hx signal intensities in both catalysts are comparable, the C6H6 detection is noticeably weaker in the small pore catalysts. This suggests that unlike the C2 molecules, the formation of aromatics in Mo/H-SSZ-13 is partially inhibited. With a gradual decrease over time, C6H6 production is seen even after 90 min of reaction, while other authors report no aromatisation on Mo/H-SSZ-13 at such reaction times. This may be due to the differences arising in catalyst preparation; i.e., the formation of mesopores during calcination can favour the diffusion of aromatics in our catalyst during reaction. Initial H2 levels are comparable in both samples; the H2 production in Mo/H-SSZ-13 steeply decreases, evidencing a significantly faster deactivation. The thermogravimetric analysis (TGA) of the catalysts after 90 min of reaction show a higher carbon content for Mo/H-SSZ-13 (with 6.2 wt %) than for Mo/H-ZSM-5 (3.0 wt %), which points out the increased selectivity to carbon deposits in line with the observed rapid deactivation.
The derivative of the TGA curves (Figure 5b) shows that the carbon deposit burning off temperature is significantly higher for Mo/H-SSZ-13 than for Mo/H-ZSM-5 with maximum rates of combustion at 557 and 433 °C, respectively. This temperature difference cannot be attributed solely to the different carbon concentration found in the catalysts; Mo/H-SSZ-13 samples recovered after different MDA reaction times (7 to 90 min) with varying carbon deposit content (0 to 6.2 wt %) all exhibit comparatively higher carbon burning off temperatures with maximums of combustion rates >500 °C (Figure S7, Table S5).
The high carbon burning off temperature in Mo/H-SSZ-13 can be attributed to the location of carbon deposits—i.e., gas diffusion hindrance through small pores may delay the coke combustion inside the zeolite pores. Alternatively, Mo/H-SSZ-13 could lead to the formation of carbon deposits of a more stable nature. The Raman (Figure 5c) spectra of 90 min reacted catalyst do not reveal clear differences in the nature of carbon deposits. Both spectra exhibit the D4 band at 1200 cm−1 ascribed to either sp2-sp3 hybridised C-C and C=C stretching vibrations of polyenes [45], the D1 band ≈1360 cm−1 is attributed to in-plane breathing vibrations of sp2-bonded carbon, and the G band at 1611 cm−1 corresponds to in-plane stretching vibrations of pairs of sp2 C atoms. The position of the latter appears at higher wavenumbers than expected (generally reported ≈1580 cm−1) which can be attributed to the contribution from the D2 band (≈1620 cm−1) corresponding to edges of graphitic nanocrystallites [46,47]. This suggests the presence of very small carbon crystallites with a high number of edges [47,48] in Mo/H-SSZ-13 and Mo/H-ZSM-5. Furthermore, the intense D1 band is indicative of high structural disorder in carbon deposits of both samples.
Microscopy images (Figure 6) of deactivated catalysts (after 10 h of MDA) reveal the presence of molybdenum-rich particles (3 to 50 nm). These particles seem to be smaller and more abundant than for the calcined Mo/H-SSZ-13, suggesting that they arise from the sintering and migration of MoCx species during MDA reaction, as seen in the medium pore catalysts [20]. The TEM images also allow distinguishing a carbon deposit layer covering the Mo particles and the zeolite crystal surface (Figure 6d). Interestingly, TEM-EDX analysis of reacted Mo/H-SSZ-13 sample show the presence of large carbon nanotubes or nanofibers with a diameter of ≈120 nm and variable length of several microns (Figure 6e,f). Such carbon species were not observed in Mo/H-ZSM-5, although Hensen et al. have previously reported smaller nanotubes (≈20 nm) on 10 h MDA reacted Mo/H-ZSM-5 [31].

3. Summary and Conclusions

Mass spectrometry results revealed a decreased benzene formation on small pore Mo/H-SSZ-13 catalyst; besides, higher carbon deposit content was detected for the 90 min spent Mo/H-SSZ-13 (6.2 wt %) catalyst as compared with the widely investigated Mo/H-ZSM-5 (3.0 wt %). In line with previous reports [34], this indicates increased selectivity to carbon deposits for the small pore catalyst consistent with its faster deactivation. To gain insight into such a fast deactivation process, structural differences in both catalysts were evaluated by operando XAS experiments. In addition to the formation of Mo carbides during reaction, a reduction to metallic Mo was observed in Mo/H-SSZ-13, which has not been seen in Mo/H-ZSM-5 and other zeolite topologies. The consecutive reaction—regeneration cycles performed at different temperatures revealed that the degree of reduction increases with increasing MDA temperature.
Studies on the Mo/H-SSZ-13 calcination process imply that differences exist in the initial Mo distribution after calcination of the physical mixture of the zeolite and the MoO3 precursor. While SPD shows that a fraction of Mo migrates into the vicinity of the 8R sites of the CHA structure during calcination, part of the Mo is seen to remain outside the zeolite pores, as shown by the obtained electron densities. In agreement, electron microscopy reveals that the ion exchange process is less effective in the small pore system, as strong zeolite dealumination was observed leading to Al2(MoO4)3 particles formation on the H-SSZ-13 zeolite surface.
The characterisation of spent catalysts also indicates differences in both systems. The carbon burning off temperatures obtained by TGA for samples after 90 min of MDA imply that carbon deposits formed on small pore catalysts are more stable than in medium pores. Although no significant differences were seen in the Raman spectra, TEM images recorded for the 10 h reacted samples reveal the formation of large carbon nanotubes or fibres on Mo/H-SSZ-13.
Being able to tune the MDA product distribution by using different zeolite topologies would bring a new scope into the MDA reaction, especially if selectivity to light olefins was enhanced by the use of small pore zeolites. However, the very few MDA studies using small pore supports have reported poor catalytic performance, and further structural investigations are required to properly assess the potential of small pores in MDA. Or results shows that the low performance observed on small pore zeolites is driven by the difficulty of dispersing Mo inside the pores cavities and the subsequent effects (i.e., framework dealumination followed the concomitant formation of both mesopores and Al2(MoO4)3 particles). Hence, this work encourages the careful optimisation of the synthesis methods aiming for an improved Mo ion exchange process in small pore zeolites. In this regard, one-pot synthesis strategies combined with mild calcination could be considered. Obtaining comparable Mo dispersion as in medium pore zeolites will allow for an accurate assessment of the zeolite topology effects on MDA product distribution and to better understand the full potential of small pore zeolites as a selective catalyst toward light olefins. In addition, the results also call for further investigations on the causes of Mo reduction into the metallic state and its implications on the nature of carbon deposits formed under MDA.

4. Materials and Methods

Synthesis: The ZSM-5 (MFI structure) was purchased from Zeolyst (CBV3024E) in its ammonium form. The proton form was obtained by calcination in static air at 550 °C for 6 h, using a heating rate of 2 °C/min. H-SSZ-13 (CHA structure) was prepared in fluoride media with trimethyl-1-adamantamonium hydroxide as the structure directing agent following previously reported methods [49,50,51]. Mo/H-SSZ-13 and Mo/H-ZSM-5 catalysts were prepared by mechanically mixing MoO3 (Sigma Aldrich, 99.95%) powder and the zeolite in an agate mortar for 0.5 h. The resulting physical mixtures are named as as-prepared catalysts. Then, the samples were calcined in air at 700 °C for 30 min using a ramp of 5 °C/min.
Synchrotron powder diffraction (SPD): Data were collected at a BM01 beam line (the Swiss-Norwegian beamline) of the European Synchrotron Facility (ESRF).The diffractometer is based on a Huber goniometer with a Pilatus 2 M detector. X-rays with a wavelength of 0.69811 Å were used, which were selected by 2 Rh coated mirrors, as well as a silicon (111) double crystal monochromator. The beamline setup is described in detail elsewhere [52]. Data were collected at a sample to detector distance of 260 mm—calibrated using NIST SRM660b lanthanum hexaboride—and a 2-q range of 2 to 478 was used in the Rietveld analysis. As-prepared Mo/H-SSZ-13 was packed between plugs of quartz wool in 0.5 mm quartz capillaries and mounted in a Norby-type flow cell [53]. The samples were calcined by heating to a temperature of 600 °C with a heating rate of 6 °C/min and held for 8 h before cooling down to room temperature. A hot air blower was used to heat the sample, and calcination was done under 10 mL/min flow of 20% O2 in He (GHSV = 750 h−1). Data were collected with a collection time of 10 s per frame and converted to 1-D powder patterns using Fit2D [54] and the SNBL scaling software [55]. Rietveld and difference Fourier analysis was carried out with the TOPAS software (version 5), and the initial model for the framework was taken from the zeolite structure database; the MoO3 model was taken from the ICDD database. After refinement of the framework model to obtain reasonable starting parameters, difference Fourier maps were used to locate the Mo atoms. The scaling factor was obtained using the high-angle data, which are not significantly affected by adsorption of molecules in a zeolite framework [56]. This was fixed for determination of the difference maps using the whole powder pattern. In the final Rietveld refinements, all framework atom positions were refined without restrains along with isotropic thermal parameters for the silicon and oxygen atoms, background, peak broadening, scale factor, lattice parameters, zero point correction, and occupancies for the non-framework atoms. The same difference Fourier mapping method was used on a dataset collected below 100 °C to find the main positon for adsorbed water in the framework (coordinates: 0.49942, 0.24971, 0.76584), with MoO3 present as a secondary phase. The entire temperature series for heating from room temperature to 600 °C under flowing 20% oxygen/He was refined simultaneously using a parametric approach [57], starting with the basic model from the fit at 600 °C. An initial round of surface refinement (all parameters refined freely for all diffraction patterns except for zero error, which had a single value for the entire dataset) established that the disappearance of MoO3 from the mixture was extremely noisy, but it could be fitted with sigmoidal function (BoltzIV function in Origin 2020). Then, a parametric refinement was carried out in which the scale factors of the MoO3 phase were determined using the sigmoidal equation obtained from Origin:
y = x − vrev ∗ gmax / 1 + exp x − vhalf / dx
with the coefficients vrev, gmax, vhalf, and dx refined in the least squares minimization. This reduced the number of parameters governing the MoO3 scale factors from 450 to 4. The smoothing of the MoO3 weight fraction led to improvements in the 8R occupancy noise levels (see Figure S2).
X-ray absorption spectroscopy (XAS): Studies were performed on a B18 beamline at Diamond Light Source [58] at Harwell Campus, United Kingdom. The storage beam energy was 3 GeV, and the ring current 300 mA. Mo K-edge spectra (in the range of 19,797 to 21,000 eV) were collected in transmission mode using ion chamber detectors with a fast scanning Si(111) double crystal monochromator, with a Mo foil placed between It and Iref. X-ray beam dimensions at the sample position were ca. 1 × 1 mm2. In situ experiments were performed using a setup developed by A. B. Kroner et al. [59]. Mo K-edge XAS spectra were collected under operando MDA conditions where the reaction products were detected by an online mass spectrometer (OmniStar GSD 320O1). The first experiment consisted of MDA studies using Mo/H-ZSM-5 and Mo/H-SSZ-13. In these measurements, the as-prepared samples (0.425–0.150 mm sieve fractions) were placed in 3 mm diameter quartz capillaries and calcined in situ at 700 °C for 30 min (20% O2 in He and heating ramp of 5 °C/min). After flushing with Ar for 15 min, 50% CH4/Ar mixture was flowed, and the MDA reaction was carried out at 700 °C for 90 min with a gas hour space velocity (GHSV) of 3000 h−1. In a second experiment, XAS data were collected on a Mo/H-SSZ-13 during operando MDA reaction—reactivation cycles at different temperatures. Regeneration was carried out by flowing 20% O2/He. The cycles consisted of the following experimental sequence:
Cycle 1, calc.: calcination of the as-prepared sample at 700 °C for 30 min (5 °C/min).
Cycle 1, MDA 650 °C: temperature was adjusted to 650 °C. Lines were flushed with Ar for 15 min; then, MDA was performed for 70 min at 650 °C.
Cycle 2, calc.: regeneration for 10 min at 650 °C.
Cycle 2, MDA 650 °C: after 15 min Ar flush, MDA was performed for 70 min at 650 °C.
Cycle 3, calc.: the temperature was increased to 780 °C followed by 10 min regeneration.
Cycle 3, MDA 780 °C: after 10 min Ar flush, MDA was performed for 70 min at 780 °C.
XAS data analysis was performed using the Demeter software package [60], and the range used for Fourier transform of the EXAFS was 3 < k < 9; all FT-EXAFS presented in this manuscript is non-phase corrected.
Catalytic activity: First, 0.6 g of as-prepared catalyst (150–425 µm sieve fraction) was introduced into a tubular quartz reactor (internal diameter = 0.7 mm). The sample was fixed in the isothermal zone of the oven by quartz wool. A total gas flow of 30 mL/min was fed by means of mass flow controllers (GHSV = 1500 h−1). The as-prepared physical mixtures were first calcined under 20% O2/He flow by heating up to 700 °C for 30 min using a heating rate of 5 °C/min. After flowing pure Ar for 30 min, a methane dehydroaromatisation reaction was initiated by flowing 50% CH4/Ar. The reaction products were analysed by an online mass spectrometer (OmniStar GSD 320O1). All MS data intensity presented in this manuscript are normalised to the Ar signal and are plotted in logarithmic scale.
Scanning electron microscopy (SEM) analysis was done in a Zeiss ultra 55 Field emission electron microscope. Compositional analysis and low-resolution general imaging were carried out with accelerating voltage of 20 kV, 30–60 micron aperture, and 7–8 mm working distance. High-resolution images were also taken with an accelerating voltage of 1.6 kV, 20–30 micron aperture, and 2–3 mm working distance.
Transmission Electron Microscopy images (TEM) were taken in an JEM 2800 (Scanning); voltage was 200 kV and the aperture was 70 and 40 µm. Bright-field imaging mode was done using a charge-coupled device CCD camera in high magnification, while dark-field (Z-contrast) imaging was carried out in scanning mode using an off-axis annular detector. The secondary electron signal was acquired simultaneously with the other TEM images providing topological information of the sample. Compositional analysis was performed by X-ray emission detection (EDX) in the scanning mode.
Thermogravimetric measurements were carried out in a TA Q50 instrument; all samples were heated up to 950 °C using a temperature ramp of 5 °C/min under an air flow of 60 mL/min and held at 950 °C for 5 min.
Kerr-gated Raman spectroscopy measurements were carried out in the Ultra setup in the Central Laster Facility to study the nature of carbonaceous deposits on reacted catalysts. The measurements were carried out using 400 nm Raman probe beam. Then, an 800 nm pulsed laser beam was used to activate the CS2 Kerr gate. Toluene impregnated H-ZSM-5 was used for Raman shift calibration.
Elemental analysis was carried out using inductively coupled plasma optical emission spectroscopy (ICP-OES) in a Perkin Elmer Optical Emission Spectrometer Optima 3300 RL.

Supplementary Materials

The following are available online. Figure S1. Rietveld fit for Mo-SSZ-13 using Mo positions established by difference Fourier mapping. The inset shows the quality of the fit at high angle. Table S1. Rietveld refinement details for calcined (in situ, 600 °C, 8 h, air) Mo-SSZ-13. The refinement was done with TOPAS 5. Table S2. Atomic coordinates for calcined (in situ, 600 °C, 8 h, air) Mo-SSZ-13. Table S3. Bond lengths (Å) for calcined (in situ, 600 °C, 8 h, air) Mo-SSZ-13. Table S4. Bond Angles (Degrees) for calcined (in situ, 600 °C, 8 h, air) Mo-SSZ-13. Figure S2. Improvement of noise levels in MoO3 weight percentage (a) and 8R occupancy between surface and parametric refinement of the calcination data series (b). Figure S3. TEM microscopy for calcined Mo/H-SSZ-13 (700 °C in air, 30 min); a) dark-field image with the corresponding EDX maps, and b) EDX spectra at different regions of zeolite crystal. Figure S4. Data collected during operando MDA (700 °C, 50 % CH4/Ar, 3000 h−1, 90 min) studies on Mo/zeolites: Mo K-edge XANES spectra for Mo/H-SSZ-13 (a) and Mo/H-ZSM-5 (b); and mass traces recorded by MS for Mo/H-SSZ-13 (c) and Mo/H-ZSM-5 (d). Figure S5. MS data under methane dehydroaromatisation reaction products collected for Mo/H-SSZ-13 (a) and Mo/A-ZSM-5 (b) (50 % CH4/Ar, 1500 h−1, 700 °C, 90 min); the data is shown in logarithmic scale and all signals are normalised to the carrier gas signal (Ar). Figure S6. Mo K-edge EXAFS spectra showing: (a) calcined Mo/zeolite compared to Al2(MoO4)3; (b) Mo/zeolites after 90 min of MDA compared to Mo2C and metallic Mo; and (c) M Mo/H-SSZ-13 after 70 min of MDA reaction at 650 (cycle 1), 700 and 780 °C (cycle 3) compared to Mo and Mo2C references. Figure S7. Derivative of the TGA curves for Mo/zeolite catalysts recovered after different MDA reaction times. Solid line corresponds to Mo/H-SSZ-13 and dotted line to Mo/H-ZSM-5. Table S5. ICP results for Mo/HZSM-5 and Mo/H-SSZ-13 after calcination at 700 °C, as well as the TGA results for Mo/H-SSZ-13 reacted at different MDA reaction times (50% CH4/Ar, 1500 h−1, 700 °C).

Author Contributions

Conceptualisation, A.M.B. and I.L.-G. Sample preparation and testing, M.A.-A. Operando synchrotron based experiments were performed by A.B.K., A.M.B., D.S.W., H.U.I., I.L.-G., M.A.-A. and W.A.J.S. XAS data processing was done by M.A.-A., SPD analysis by D.S.W. and W.A.S., and SEM/TEM analyses by M.B. Ker gated measurements were performed by I.V.S. Project supervision, A.M.B., A.B.K., I.L.-G., M.E.R., P.C. and A.W.J.S. The manuscript was written by M.A.-A., with input from all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This study received financial support from EPSRC (M.A.A., a UCL Impact PhD award, Diamond Light Source and Johnson Matthey.

Acknowledgments

This research used resources from RCaH. Diamond Light Source is kindly thanked for the awarded beamtime (SP11623). Diego Gianolio and Nicolas Grosjean are acknowledged for the assistance during the experiments.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Wang, L.; Tao, L.; Xie, M.; Xu, G.; Huang, J.; Xu, Y. Dehydrogenation and aromatization of methane under non-oxidizing conditions. Catal. Lett. 1993, 21, 35–41. [Google Scholar]
  2. Spivey, J.J.; Hutchings, G. Catalytic aromatization of methane. Chem. Soc. Rev. 2014, 43, 792–803. [Google Scholar]
  3. Xu, Y.; Liu, S.; Wang, L.; Xie, M.; Guo, X. Methane activation without using oxidants over Mo/HZSM-5 zeolite catalysts. Catal. Lett. 1995, 30, 135–149. [Google Scholar]
  4. Fournier, M.; Louis, C.; Che, M.; Chaquin, P.; Masure, D. Polyoxometallates as models for oxide catalysts Part I. An UV-visible reflectance study of polyoxomolybdates: Influence of polyhedra arrangement on the electronic transitions and comparison with supported molybdenum catalysts. J. Catal. 1989, 119, 400–414. [Google Scholar] [CrossRef]
  5. Vollmer, I.; Li, G.; Yarulina, I.; Kosinov, N.; Hensen, E.J.; Houben, K.; Mance, D.; Baldus, M.; Gascon, J.; Kapteijn, F. Relevance of the Mo-precursor state in H-ZSM-5 for methane dehydroaromatization. Catal. Sci. Technol. 2018, 8, 916–922. [Google Scholar] [CrossRef] [Green Version]
  6. Rahman, M.; Sridhar, A.; Khatib, S.J. Impact of the presence of Mo carbide species prepared ex situ in Mo/HZSM-5 on the catalytic properties in methane aromatization. Appl. Catal. A Gen. 2018, 558, 67–80. [Google Scholar] [CrossRef]
  7. Karakaya, C.; Zhu, H.; Kee, R.J. Kinetic modeling of methane dehydroaromatization chemistry on Mo/Zeolite catalysts in packed-bed reactors. Chem. Eng. Sci. 2015, 123, 474–486. [Google Scholar] [CrossRef]
  8. Wong, K.S.; Thybaut, J.W.; Tangstad, E.; Stöcker, M.W.; Marin, G.B. Methane aromatisation based upon elementary steps: Kinetic and catalyst descriptors. Microporous Mesoporous Mater. 2012, 164, 302–312. [Google Scholar]
  9. Yin, F.; Li, M.R.; Wang, G.C. Periodic density functional theory analysis of direct methane conversion into ethylene and aromatic hydrocarbons catalyzed by Mo4C2/ZSM-5. Phys. Chem. Chem. Phys. 2017, 19, 22243–22255. [Google Scholar]
  10. Li, G.; Vollmer, I.; Liu, C.; Gascon, J.; Pidko, E.A. Structure and Reactivity of the Mo/ZSM-5 Dehydroaromatization Catalyst: An Operando Computational Study. ACS Catal. 2019, 9, 8731–8737. [Google Scholar]
  11. Kosinov, N.; Coumans, F.J.A.G.; Uslamin, E.; Kapteijn, F.; Hensen, E.J.M. Selective Coke Combustion by Oxygen Pulsing During Mo/ZSM-5-Catalyzed Methane Dehydroaromatization. Angew. Chem. 2016, 128, 15310–15314. [Google Scholar]
  12. Morejudo, S.H.; Zanón, R.; Escolástico, S.; Yuste-Tirados, I.; Malerød-Fjeld, H.; Vestre, P.K.; Coors, W.G.; Martínez, A.; Norby, T.; Serra, J.M.; et al. Direct conversion of methane to aromatics in a catalytic co-ionic membrane reactor. Science 2016, 353, 563–566. [Google Scholar] [CrossRef]
  13. Kosinov, N.; Uslamin, E.A.; Meng, L.; Parastaev, A.; Liu, Y.; Hensen, E.J.M. Reversible Nature of Coke Formation on Mo/ZSM-5 Methane Dehydroaromatization Catalysts. Angew. Chem. Int. Ed. 2019, 58, 7068–7072. [Google Scholar]
  14. Gao, J.; Zheng, Y.; Fitzgerald, G.B.; de Joannis, J.; Tang, Y.; Wachs, I.E.; Podkolzin, S.G. Structure of Mo2Cxand Mo4Cx Molybdenum Carbide Nanoparticles and Their Anchoring Sites on ZSM-5 Zeolites. J. Phys. Chem. C 2014, 118, 4670–4679. [Google Scholar]
  15. Lezcano-González, I.; Oord, R.; Rovezzi, M.; Glatzel, P.; Botchway, S.W.; Weckhuysen, B.M.; Beale, A.M. Molybdenum Speciation and its Impact on Catalytic Activity during Methane Dehydroaromatization in Zeolite ZSM-5 as Revealed by Operando X-Ray Methods. Angew. Chem. Int. Ed. 2016, 55, 5215–5219. [Google Scholar]
  16. Gao, J.; Zheng, Y.; Jehng, J.-M.; Tang, Y.; Wachs, I.E.; Podkolzin, S.G. Identification of molybdenum oxide nanostructures on zeolites for natural gas conversion. Science 2015, 348, 686–690. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Kosinov, N.; Wijpekma, S.G.A.; Uslamin, E.; Rohling, R.; Coumans, J.A.G.F.; Mezari, B.; Parastaev, A.; Poryvaev, S.A.; Fedin, V.M.; Evgeny, A.P.; et al. Confined carbon mediates dehydroaromatization of methane over Mo/ZSM-5. Angew. Chem. Int. Ed. 2018, 57, 1016–1020. [Google Scholar]
  18. Rahman, M.; Infantes-Molina, A.; Hoffman, A.S.; Bare, S.R.; Emerson, K.L.; Khatib, S.J. Effect of Si/Al ratio of ZSM-5 support on structure and activity of Mo species in methane dehydroaromatization. Fuel 2020, 278, 118290. [Google Scholar]
  19. Dubray, F.; Moldovan, S.; Kouvatas, C.; Grand, J.; Aquino, C.; Barrier, N.; Gilson, J.P.; Nesterenko, N.; Minoux, D.; Mintova, S. Direct Evidence for Single Molybdenum Atoms Incorporated in the Framework of MFI Zeolite Nanocrystals. J. Am. Chem. Soc. 2019, 141, 8689–8693. [Google Scholar] [CrossRef]
  20. Agote-Arán, M.; Kroner, A.B.; Islam, H.U.; Sławiński, W.A.; Wragg, D.S.; Lezcano-González, I.; Beale, A.M. Determination of Molybdenum Species Evolution during Non-Oxidative Dehydroaromatization of Methane and its Implications for Catalytic Performance. Chem. Catal. Chem. 2018, 11, 473–480. [Google Scholar] [CrossRef]
  21. Agote-Arán, M.; Fletcher, R.E.; Briceno, M.; Kroner, A.B.; Sazanovich, I.V.; Slater, B.; Rivas, M.E.; Smith, A.W.J.; Collier, P.; Lezcano-González, I.; et al. Implications of the Molybdenum Coordination Environment in MFI Zeolites on Methane Dehydroaromatisation Performance. Chem. Catal. Chem. 2019, 12, 294–304. [Google Scholar] [CrossRef] [Green Version]
  22. Kosinov, N.; Uslamin, E.A.; Coumans, F.J.A.G.; Wijpkema, A.S.G.; Rohling, R.Y.; Hensen, E.J.M. Structure and Evolution of Confined Carbon Species during Methane Dehydroaromatization over Mo/ZSM-5. ACS Catal. 2018, 8, 8459–8467. [Google Scholar] [CrossRef] [Green Version]
  23. Vollmer, I.; Kosinov, N.; Szécsényi, Á.; Li, G.; Yarulina, I.; Abou-Hamad, E.; Gurinov, A.; Ould-Chikh, S.; Aguilar-Tapia, A.; Hazemann, J.-L.; et al. A site-sensitive quasi-in situ strategy to characterize Mo/HZSM-5 during activation. J. Catal. 2019, 370, 321–331. [Google Scholar] [CrossRef]
  24. Vollmer, I.; Van Der Linden, B.; Ould-Chikh, S.; Tapia, A.A.; Yarulina, I.; Abou-Hamad, E.; Sneider, Y.G.; Suarez, A.I.O.; Hazemann, J.-L.; Kapteijn, F.; et al. On the dynamic nature of Mo sites for methane dehydroaromatization. Chem. Sci. 2018, 9, 4801–4807. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Borry, R.W.; Kim, Y.H.; Huffsmith, A.; Reimer, A.J.A.; Iglesia, E. Structure and Density of Mo and Acid Sites in Mo-Exchanged H-ZSM5 Catalysts for Nonoxidative Methane Conversion. J. Phys. Chem. B 1999, 103, 5787–5796. [Google Scholar] [CrossRef] [Green Version]
  26. Li, W.; Meitzner, G.D.; Borry, R.W.; Iglesia, E. Raman and X-Ray Absorption Studies of Mo Species in Mo/H-ZSM5 Catalysts for Non-Oxidative CH4 Reactions. J. Catal. 2000, 191, 373–383. [Google Scholar] [CrossRef] [Green Version]
  27. Ding, W.; Li, S.; Meitzner, G.D.; Iglesia, E. Methane Conversion to Aromatics on Mo/H-ZSM5: Structure of Molybdenum Species in Working Catalysts. J. Phys. Chem. B 2001, 105, 506–513. [Google Scholar] [CrossRef]
  28. Matus, E.; Ismagilov, I.Z.; Sukhova, O.B.; Zaikovskii, V.I.; Tsikoza, L.T.; Ismagilov, Z.R.; Moulijn, J.A. Study of Methane Dehydroaromatization on Impregnated Mo/ZSM-5 Catalysts and Characterization of Nanostructured Molybdenum Phases and Carbonaceous Deposits. Ind. Eng. Chem. Res. 2007, 46, 4063–4074. [Google Scholar] [CrossRef]
  29. Ma, S.; Guo, X.; Zhao, L.; Scott, S.; Bao, X. Recent progress in methane dehydroaromatization: From laboratory curiosities to promising technology. J. Energy Chem. 2013, 22, 1–20. [Google Scholar] [CrossRef]
  30. Guo, X.; Fang, G.; Li, G.; Ma, C.; Fan, H.; Yu, L.; Wu, X.; Deng, D.; Wei, M.; Tan, D.; et al. Direct, Nonoxidative Conversion of Methane to Ethylene, Aromatics, and Hydrogen. Science 2014, 344, 616–619. [Google Scholar] [CrossRef]
  31. Tempelman, C.H.; Hensen, E.J. On the deactivation of Mo/HZSM-5 in the methane dehydroaromatization reaction. Appl. Catal. B Environ. 2015, 176–177, 731–739. [Google Scholar] [CrossRef]
  32. Sachtler, W.M.H. Transition Metal Clusters and Isolated Atoms in Zeolite Cages; Springer Science and Business Media LLC: Amsterdam, The Netherlands, 1990; pp. 69–85. [Google Scholar]
  33. Zhang, C.; Li, S.; Yuan, Y.; Zhang, W.; Wu, T.; Lin, L. Aromatization of methane in the absence of oxygen over Mo-based catalysts supported on different types of zeolites. Catal. Lett. 1998, 56, 207–213. [Google Scholar] [CrossRef]
  34. Kosinov, N.; Coumans, F.J.A.G.; Uslamin, E.A.; Wijpkema, A.S.G.; Mezari, B.; Hensen, E.J.M. Methane Dehydroaromatization by Mo/HZSM-5: Mono- or Bifunctional Catalysis? ACS Catal. 2017, 7, 520–529. [Google Scholar] [CrossRef]
  35. Olson, D.H.; Kokotailo, G.T.; Lawton, S.L.; Meier, W.M. Crystal structure and structure-related properties of ZSM-5. J. Phys. Chem. 1981, 85, 2238–2243. [Google Scholar] [CrossRef]
  36. MFI. Framework Type. Available online: http://europe.iza-structure.org/IZA-SC/framework.php?STC=MFI (accessed on 1 November 2017).
  37. Harding, B.M.; Kariuki, M.M. Framework Type CHA. Acta Crystallogr. 1994, 34, 852–854. [Google Scholar]
  38. CHA. Framework Type. Available online: http://europe.iza-structure.org/IZA-SC/framework.php?STC=CHA (accessed on 1 November 2017).
  39. Webster, C.E.; Drago, R.S.; Zerner, M.C. Molecular dimensions for adsorptives. J. Am. Chem. Soc. 1998, 120, 5509–5516. [Google Scholar] [CrossRef]
  40. Baertsch, C.D.; Funke, H.H.; Falconer, A.J.L.; Noble, R.D. Permeation of Aromatic Hydrocarbon Vapors through Silicalite−Zeolite Membranes. J. Phys. Chem. 1996, 100, 7676–7679. [Google Scholar] [CrossRef]
  41. Ma, D.; Shu, Y.; Han, X.; Liu, X.; Xu, A.Y.; Bao, X. Mo/HMCM-22 Catalysts for Methane Dehydroaromatization: A Multinuclear MAS NMR Study. J. Phys. Chem. B 2001, 105, 1786–1793. [Google Scholar] [CrossRef]
  42. Wragg, D.S.; Akporiaye, D.; Fjellvåg, H. Direct observation of catalyst behaviour under real working conditions with X-ray diffraction: Comparing SAPO-18 and SAPO-34 methanol to olefin catalysts. J. Catal. 2011, 279, 397–402. [Google Scholar] [CrossRef]
  43. Knözinger, H.; Jezlorowski, H. Scopus—Document Details; Volume 82; Issue 18; 1978. Available online: https://www-scopus-com.libproxy.ucl.ac.uk/record/display.uri?eid=2-s2.0-33947093887&origin=resultslist&sort=plf-f&src=s&st1=jezlorowski&st2=&sid=5bba066550cfcf9c834519eb9dc477d3&sot=b&sdt=b&sl=62&s=AUTHOR-NAME%28jezlorowski%29+AND+PUBYEAR+%3E+1974+AND+PUB (accessed on 20 October 2017).
  44. Kosinov, N.N.; Coumans, F.J.; Li, G.G.; Uslamin, E.; Mezari, B.B.; Wijpkema, A.S.; Pidko, E.A.; Hensen, E.J. Stable Mo/HZSM-5 methane dehydroaromatization catalysts optimized for high-temperature calcination-regeneration. J. Catal. 2017, 346, 125–133. [Google Scholar] [CrossRef]
  45. Dippel, B.; Janderb, H.; Heintzenberga, J. NIR FT Raman spectroscopic study of flame soot. Phys. Chem. Chem. Phys. 1999, 1, 4707–4712. [Google Scholar] [CrossRef]
  46. Sadezky, A.; Muckenhuber, H.; Grothe, H.; Niessner, R.; Pöschl, U. Raman microspectroscopy of soot and related carbonaceous materials: Spectral analysis and structural information. Carbon 2005, 43, 1731–1742. [Google Scholar] [CrossRef]
  47. Ferrari, A.C.; Robertson, J. Interpretation of Raman spectra of disordered and amorphous carbon. Phys. Rev. B 2000, 61, 14095–14107. [Google Scholar] [CrossRef] [Green Version]
  48. Hoekstra, J.; Beale, A.M.; Soulimani, F.; Versluijs-Helder, M.; Geus, J.W.; Jenneskens, L.W. Base Metal Catalyzed Graphitization of Cellulose: A Combined Raman Spectroscopy, Temperature-Dependent X-ray Diffraction and High-Resolution Transmission Electron Microscopy Study. J. Phys. Chem. 2015, 119, 10653–10661. [Google Scholar] [CrossRef]
  49. Beale, A.M.; Lezcano-Gonzalez, I.; Slawinksi, W.A.; Wragg, D.S. Correlation between Cu ion migration behaviour and deNO x activity in Cu-SSZ-13 for the standard NH3-SCR reaction. Chem. Commun. 2016, 52, 6170–6173. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Moliner, M.; Franch, C.; Palomares, E.; Grill, M.; Corma, A. Cu–SSZ-39, an active and hydrothermally stable catalyst for the selective catalytic reduction of NOx. Chem. Commun. 2012, 48, 8264–8266. [Google Scholar] [CrossRef] [PubMed]
  51. Díaz-Cabañas, M.-J.; Barrett, P.A.; Camblor, M.A. Synthesis and structure of pure SiO2 chabazite: The SiO2 polymorph with the lowest framework density. Chem. Commun. 1998, 17, 1881–1882. [Google Scholar] [CrossRef]
  52. BM01 ESRF Swiss Norwegian Beamline. Available online: http://www.esrf.eu/UsersAndScience/Experiments/CRG/BM01/bm01-a (accessed on 2 October 2017).
  53. Norbyb, P. In-Situ Time Resolved Synchrotron Powder Diffraction Studies of Syntheses and Chemical Reactions. Mater. Sci. Forum 1996, 228, 147–152. [Google Scholar] [CrossRef]
  54. Hammersley, A.P.; Svensson, S.O.; Hanfland, M.; Fitch, A.N.; Hausermann, D. Two-dimensional detector software: From real detector to idealised image or two-theta scan. High Press. Res. 1996, 14, 235–248. [Google Scholar] [CrossRef]
  55. SNBL Software. Available online: http://www.esrf.eu/home/UsersAndScience/Experiments/CRG/BM01/bm01/image.htm/snbl-tool-box.html (accessed on 29 October 2020).
  56. McCusker, L.B.; Von Dreele, R.B.; Cox, D.E.; Louër, D.; Scardi, P. Rietveld refinement guidelines. J. Appl. Crystallogr. 1999, 32, 36–50. [Google Scholar] [CrossRef] [Green Version]
  57. Stinton, G.W.; Evans, J.S.O. Parametric Rietveld refinement. J. Appl. Crystallogr. 2007, 40, 87–95. [Google Scholar] [CrossRef] [Green Version]
  58. Dent, A.J.; Cibin, G.; Ramos, S.; Smith, A.D.; Scott, S.M.; Varandas, L.; Jones, C.P.; Pearson, M.R.; Krumpa, N.A. R B18: A core XAS spectroscopy beamline for Diamond. J. Phys. Conf. Ser. 2009, 190, 012039. [Google Scholar] [CrossRef]
  59. Kroner, A.B.; Mohammed, K.M.H.; Gilbert, M.; Duller, G.; Cahill, L.; Leicester, P.; Woolliscroft, R.; Shotton, E.J. A Flexible Gas Flow Reaction Cell for in Situ X-Ray Absorption Spectroscopy Studies. AIP Conf. Proc. 2016, 1741, 030014. [Google Scholar]
  60. Ravel, B.; Newville, M. ATHENA, ARTEMIS, HEPHAESTUS: Data analysis for X-ray absorption spectroscopy using IFEFFIT. J. Synchrotron Radiat. 2005, 12, 537–541. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Sample Availability: Samples of the compounds are available from the authors.
Molecules 25 05048 g001 550

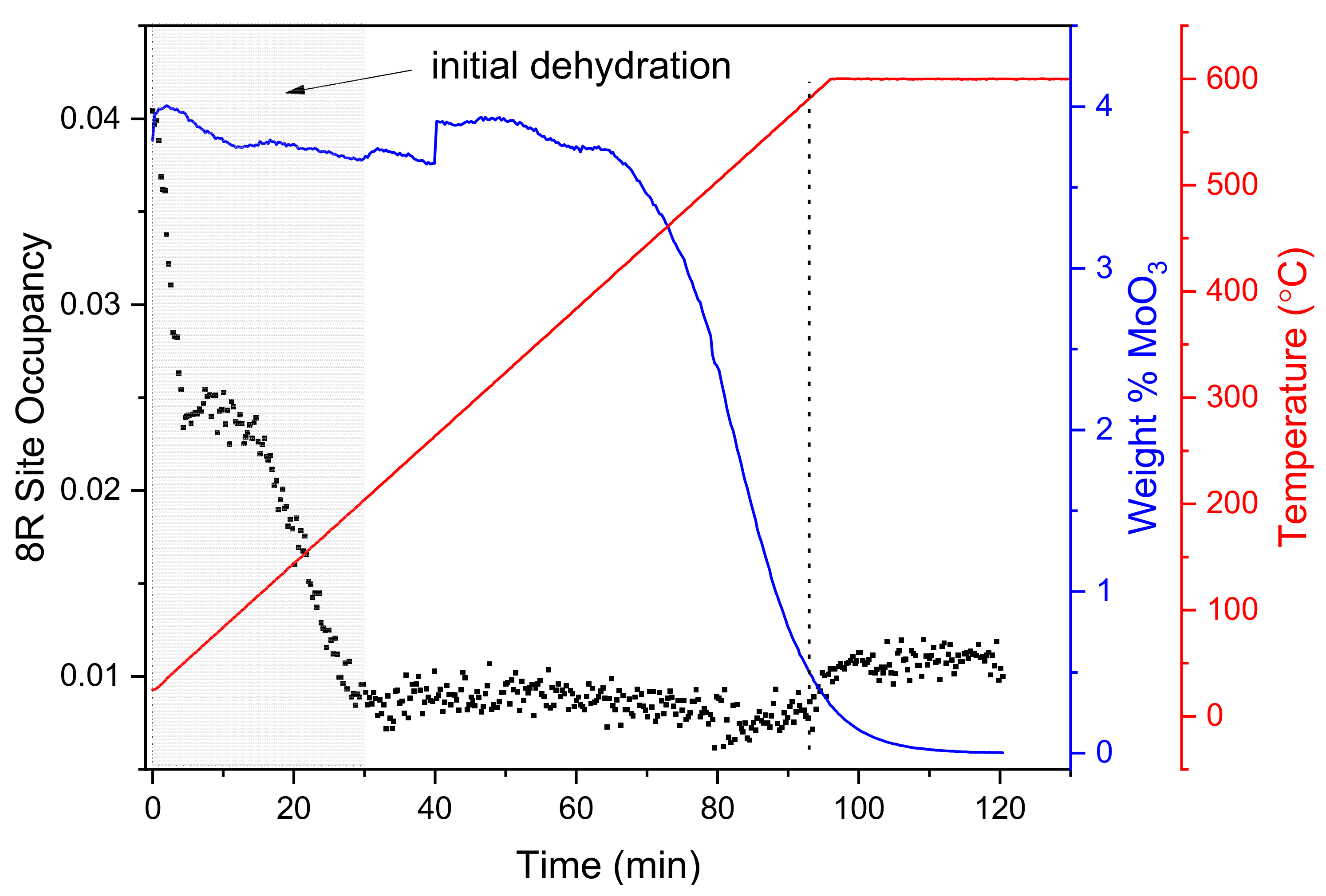

Figure 1. Synchrotron powder diffraction (SPD) results for MoO3 and H-SSZ-13 physical mixture showing the Mo occupancy in the 8-membered ring (8R) position of the CHA structure (black dots) during calcination (room temperature to 600 °C in 20% O2/He). The wt % of crystalline MoO3 precursor (blue line) during calcination and the sample temperature (red line) are indicated in the right axes. The region of the experiment in which water is leaving the zeolite framework (up to ≈200 °C) is indicated by grey shading, the dotted vertical line indicates the point where the 8R site occupancy begins to increase as the wt % of MoO3 decreases.
Figure 1. Synchrotron powder diffraction (SPD) results for MoO3 and H-SSZ-13 physical mixture showing the Mo occupancy in the 8-membered ring (8R) position of the CHA structure (black dots) during calcination (room temperature to 600 °C in 20% O2/He). The wt % of crystalline MoO3 precursor (blue line) during calcination and the sample temperature (red line) are indicated in the right axes. The region of the experiment in which water is leaving the zeolite framework (up to ≈200 °C) is indicated by grey shading, the dotted vertical line indicates the point where the 8R site occupancy begins to increase as the wt % of MoO3 decreases.
Molecules 25 05048 g001
Molecules 25 05048 g002 550
Figure 2. SEM images acquired for (a) parent zeolite H-SSZ-13, (b) Mo/H-SSZ-13 after calcination in air (700 °C, 5 °C/min, 30 min), and (c) comparison of secondary and backscattering electron images at different magnifications for calcined Mo/H-SSZ-13.
Figure 2. SEM images acquired for (a) parent zeolite H-SSZ-13, (b) Mo/H-SSZ-13 after calcination in air (700 °C, 5 °C/min, 30 min), and (c) comparison of secondary and backscattering electron images at different magnifications for calcined Mo/H-SSZ-13.
Molecules 25 05048 g002
Molecules 25 05048 g003 550

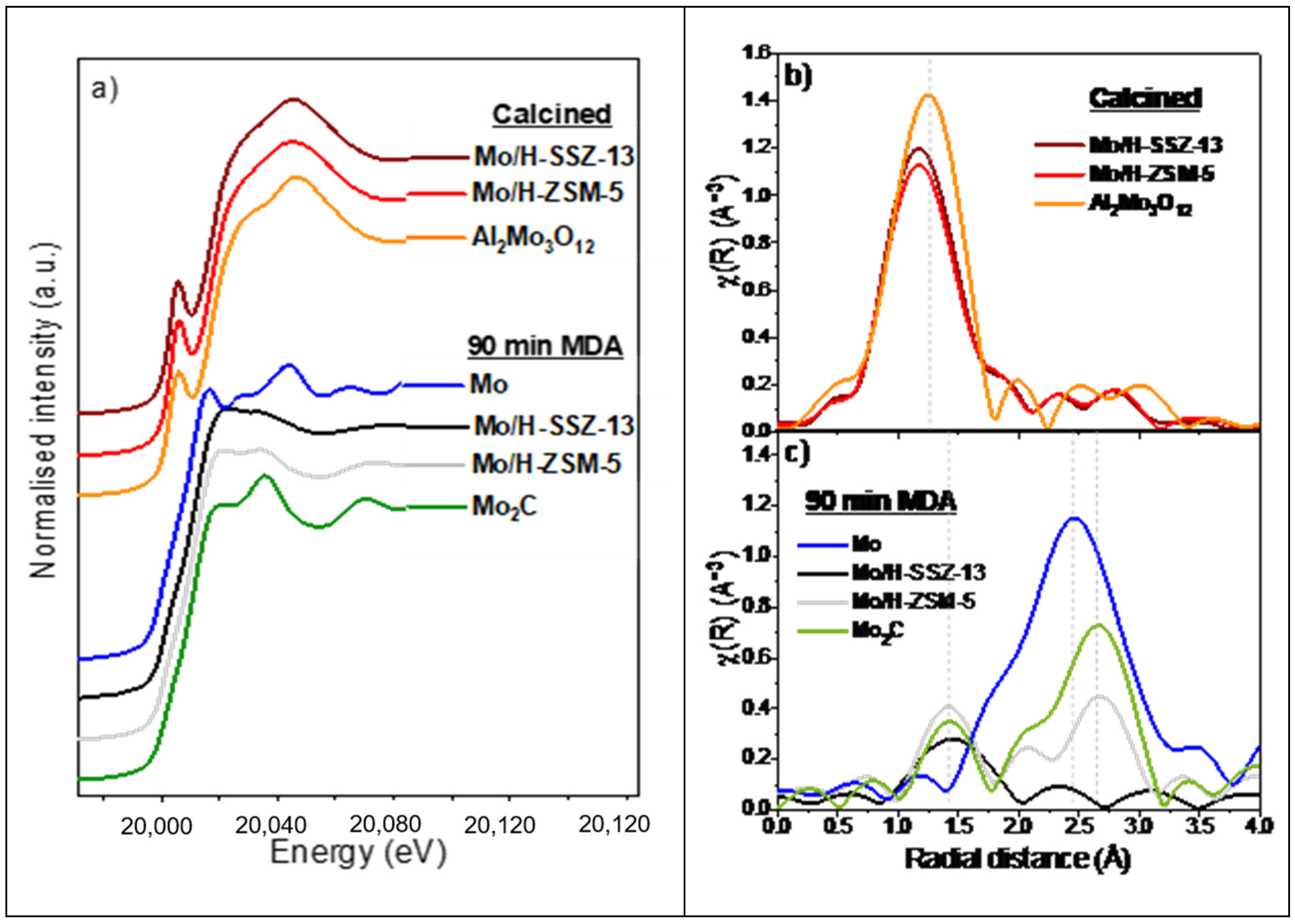

Figure 3. Mo K-edge XAS spectra showing: (a) XANES of Mo/zeolites after calcination and after 90 min of methane dehydroaromatisation (MDA) reaction (700 °C, 50% CH4/Ar, gas hour space velocity (GHSV) = 300 h−1) together with Al2(MoO4)3, Mo, and Mo2C references; (b) FT-EXAFS of calcined Mo/zeolite compared to Al2(MoO4)3; and (c) FT-EXAFS of Mo/zeolites after 90 min of MDA compared to Mo2C and metallic Mo. The maxima in the FT-EXAFS of the reference spectra is indicated by vertical dashed lines.
Figure 3. Mo K-edge XAS spectra showing: (a) XANES of Mo/zeolites after calcination and after 90 min of methane dehydroaromatisation (MDA) reaction (700 °C, 50% CH4/Ar, gas hour space velocity (GHSV) = 300 h−1) together with Al2(MoO4)3, Mo, and Mo2C references; (b) FT-EXAFS of calcined Mo/zeolite compared to Al2(MoO4)3; and (c) FT-EXAFS of Mo/zeolites after 90 min of MDA compared to Mo2C and metallic Mo. The maxima in the FT-EXAFS of the reference spectra is indicated by vertical dashed lines.
Molecules 25 05048 g003
Molecules 25 05048 g004 550

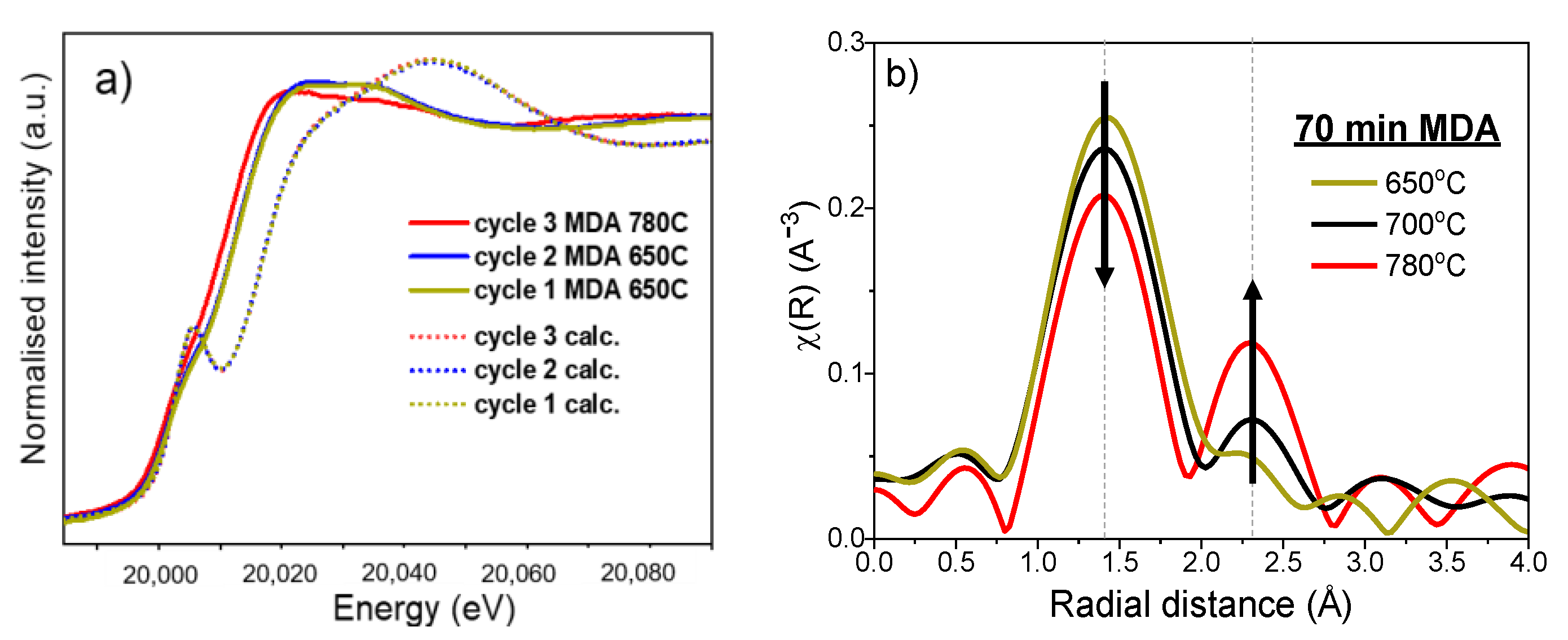

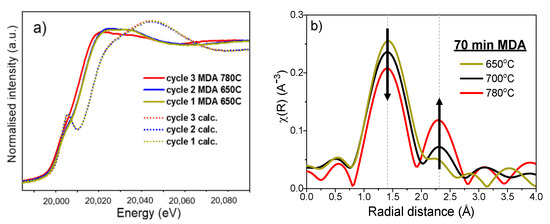

Figure 4. (a) Mo K-edge XANES obtained of Mo/H-SSZ-13 during the consecutive calcination and MDA cycles, and (b) Mo K-edge FT-EXAFS of Mo/H-SSZ-13 after 70 min of MDA reaction at 650 (cycle 1), 700, and 780 °C (cycle 3).
Figure 4. (a) Mo K-edge XANES obtained of Mo/H-SSZ-13 during the consecutive calcination and MDA cycles, and (b) Mo K-edge FT-EXAFS of Mo/H-SSZ-13 after 70 min of MDA reaction at 650 (cycle 1), 700, and 780 °C (cycle 3).
Molecules 25 05048 g004
Molecules 25 05048 g005 550

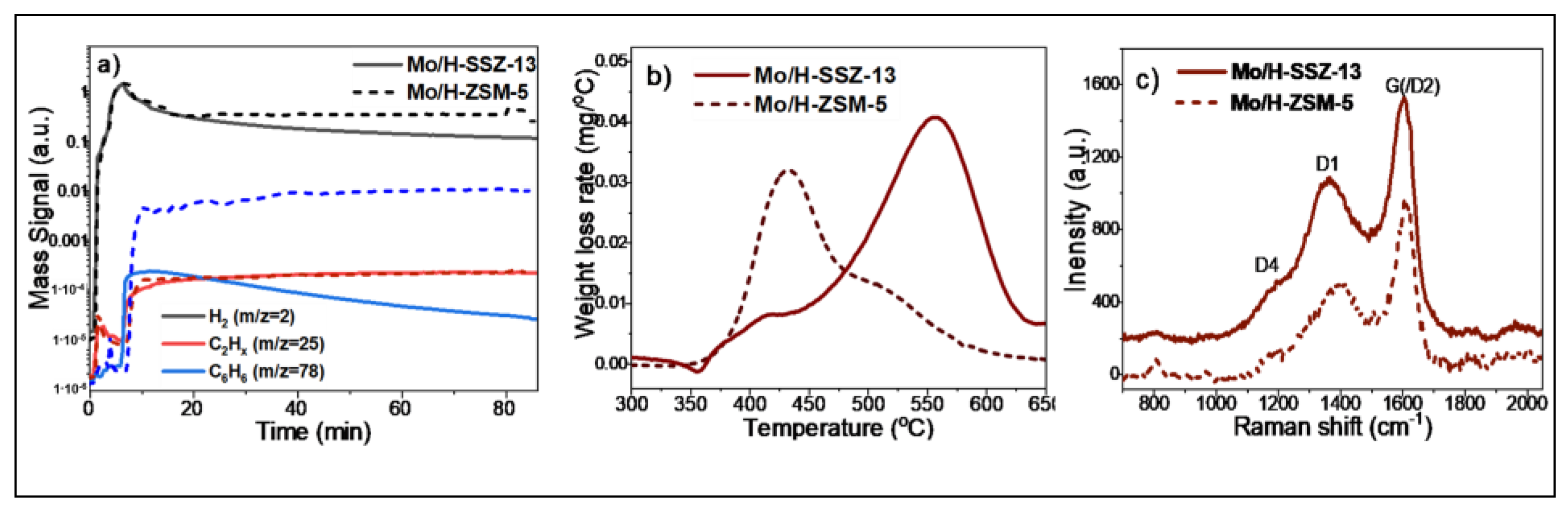

Figure 5. (a) MS data under methane dehydroaromatisation reaction products collected for Mo/H-SSZ-13 and Mo/H-ZSM-5 (50% CH4/Ar, 1500 h−1, 700 °C, 90 min); the data are shown in logarithmic scale, and all signals are normalised to the carrier gas signal (Ar); (b) The derivative of the TGA curves for the catalysts recovered after 90 min of reaction; and (c) Raman spectra for the catalysts recovered after 90 min of reaction.
Figure 5. (a) MS data under methane dehydroaromatisation reaction products collected for Mo/H-SSZ-13 and Mo/H-ZSM-5 (50% CH4/Ar, 1500 h−1, 700 °C, 90 min); the data are shown in logarithmic scale, and all signals are normalised to the carrier gas signal (Ar); (b) The derivative of the TGA curves for the catalysts recovered after 90 min of reaction; and (c) Raman spectra for the catalysts recovered after 90 min of reaction.
Molecules 25 05048 g005
Molecules 25 05048 g006 550
Figure 6. Microscopy images for Mo/H-SSZ-13 after 10 h of reaction. High-resolution SEM secondary (a) and backscattered (b) electron images; TEM images at two different magnifications (c,d); dark field TEM image of filamentous carbon (e); and the TEM-EDX elemental maps of filamentous carbon (f).
Figure 6. Microscopy images for Mo/H-SSZ-13 after 10 h of reaction. High-resolution SEM secondary (a) and backscattered (b) electron images; TEM images at two different magnifications (c,d); dark field TEM image of filamentous carbon (e); and the TEM-EDX elemental maps of filamentous carbon (f).
Molecules 25 05048 g006
Table
Table 1. Oxidation state, Mo K-edge energies, and edge step values for Mo/H-SSZ-13 after calcination and 70 min of MDA at different temperatures.
Table 1. Oxidation state, Mo K-edge energies, and edge step values for Mo/H-SSZ-13 after calcination and 70 min of MDA at different temperatures.
ExperimentStage of the CycleOxidation EstateEdge Position (eV)Edge Step
Exp. 1As-prepared5.920,014.60.360
Calcined5.820,014.30.158
MDA 700 °C2.120,007.40.161
Exp. 2As-prepared5.820,014.40.410
Cycle 1, calc.5.820,014.50.194
Cycle 1, MDA 650 °C2.420,008.10.197
Cycle 2, calc.5.820,014.30.180
Cycle 2, MDA 650 °C2.520,008.20.178
Cycle 3, calc.5.820,014.30.158
Cycle 3, MDA 780 °C1.820,006.90.157
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Agote-Arán, M.; Kroner, A.B.; Wragg, D.S.; Sławiński, W.A.; Briceno, M.; Islam, H.U.; Sazanovich, I.V.; Rivas, M.E.; Smith, A.W.J.; Collier, P.; et al. Understanding the Deactivation Phenomena of Small-Pore Mo/H-SSZ-13 during Methane Dehydroaromatisation. Molecules 2020, 25, 5048. https://doi.org/10.3390/molecules25215048

AMA Style

Agote-Arán M, Kroner AB, Wragg DS, Sławiński WA, Briceno M, Islam HU, Sazanovich IV, Rivas ME, Smith AWJ, Collier P, et al. Understanding the Deactivation Phenomena of Small-Pore Mo/H-SSZ-13 during Methane Dehydroaromatisation. Molecules. 2020; 25(21):5048. https://doi.org/10.3390/molecules25215048

Chicago/Turabian Style

Agote-Arán, Miren, Anna B. Kroner, David S. Wragg, Wojciech A. Sławiński, Martha Briceno, Husn U. Islam, Igor V. Sazanovich, María E. Rivas, Andrew W. J. Smith, Paul Collier, and et al. 2020. "Understanding the Deactivation Phenomena of Small-Pore Mo/H-SSZ-13 during Methane Dehydroaromatisation" Molecules 25, no. 21: 5048. https://doi.org/10.3390/molecules25215048

Article Metrics

Back to TopTop
