Fe(III) Complexes Based on Mono- and Bis-pyrazolyl-s-triazine Ligands: Synthesis, Molecular Structure, Hirshfeld, and Antimicrobial Evaluations
Abstract
:1. Introduction
2. Results and Discussion
2.1. Structure Description
2.1.1. Crystal Structure Description of [Fe(PipBPT)Cl2][FeCl4] (1)
2.1.2. Crystal Structure Description of [Fe(MorphBPT)Cl2][FeCl4] (2)
2.1.3. Crystal Structure Description of [H(bisMorphPT)][FeCl4] bisMorphPT.2H2O (3)
2.2. Analysis of Molecular Packing
2.3. Antimicrobial Activity of the Studied Compounds
2.3.1. Inhibition Zones
2.3.2. Minimum Inhibitory Concentration (MIC) and Minimum Bactericidal Concentration (MBC)
3. Experimental
3.1. Materials and Physical Measurements
3.2. Syntheses

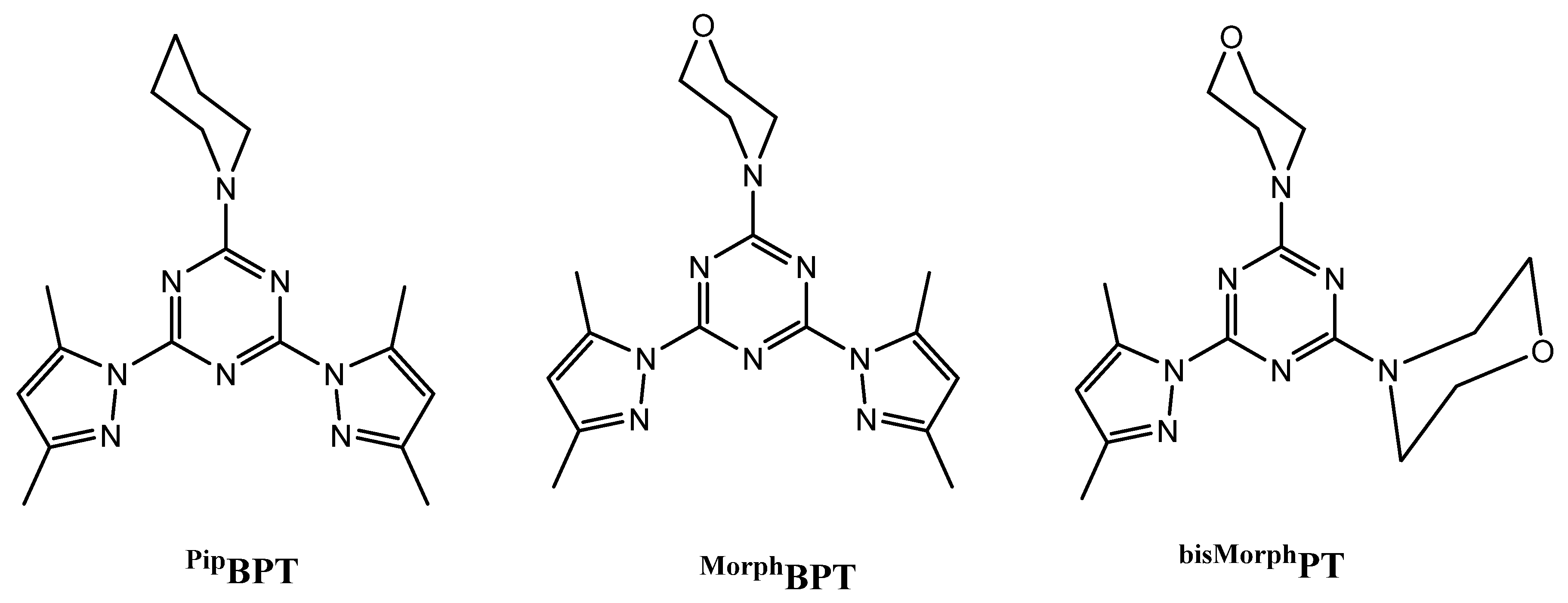

3.2.1. Synthesis of s-Triazine-Based Ligands
3.2.2. Synthesis of Fe(III) Complexes
3.3. Crystal Structure Determination
3.4. Antimicrobial Studies
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Egorova, K.S.; Ananikov, V.P. Toxicity of Metal Compounds: Knowledge and Myths. Organometallics 2017, 36, 4071–4090. [Google Scholar] [CrossRef] [Green Version]
- Egorova, K.S.; Ananikov, V.P. Which Metals are Green for Catalysis? Comparison of the Toxicities of Ni, Cu, Fe, Pd, Pt, Rh, and Au Salts. Angew. Chem. Int. Ed. 2016, 55, 12150–12162. [Google Scholar] [CrossRef] [PubMed]
- Bauer, E.B. Iron Catalysis II. Top. Organomet. Chem. 2015, 50, 1–18. [Google Scholar]
- Bolm, C.; Legros, J.; Le Paih, J.; Zani, L. Iron-Catalyzed Reactions in Organic Synthesis. Chem. Rev. 2004, 104, 6217–6254. [Google Scholar] [CrossRef] [PubMed]
- Bauer, I.; Knölker, H.-J. Iron Catalysis in Organic Synthesis. Chem. Rev. 2015, 115, 3170–3387. [Google Scholar] [CrossRef]
- Wei, D.; Darcel, C. Iron Catalysis in Reduction and Hydrometalation Reactions. Chem. Rev. 2019, 119, 2550–2610. [Google Scholar] [CrossRef]
- Ludwig, J.R.; Schindler, C.S. Catalyst: Sustainable Catalysis. Chemistry 2017, 2, 313–316. [Google Scholar] [CrossRef] [Green Version]
- Soliman, S.M.; El-Faham, A. One pot synthesis of two Mn(II) perchlorate complexes with s-triazine NNN-pincer ligand; molecular structure, Hirshfeld analysis and DFT studies. J. Mol. Struct. 2018, 1164, 344–353. [Google Scholar] [CrossRef]
- Soliman, S.M.; El-Faham, A. Synthesis, characterization, and structural studies of two heteroleptic Mn(II) complexes with tridentate N,N,N-pincer type ligand. J. Coord. Chem. 2018, 71, 2373–2388. [Google Scholar] [CrossRef]
- Soliman, S.M.; El-Faham, A. Synthesis, molecular structure and DFT studies of two heteroleptic nickel(II) s-triazine pincer type complexes. J. Mol. Struct. 2019, 1185, 461–468. [Google Scholar] [CrossRef]
- Soliman, S.M.; El-Faham, A. Synthesis, X-ray structure, and DFT studies of five and eight-coordinated Cd(II) complexes with s-triazine N-pincer chelate. J. Coord. Chem. 2019, 72, 1621–1636. [Google Scholar] [CrossRef]
- Soliman, S.M.; Almarhoon, Z.; El-Faham, A. Synthesis, Molecular and Supramolecular Structures of New Cd(II) Pincer-Type Complexes with s-Triazine Core Ligand. Crystals 2019, 9, 226. [Google Scholar] [CrossRef] [Green Version]
- Soliman, S.M.; Almarhoon, Z.; El-Faham, A. Bis-pyrazolyl-s-triazine Ni(II) pincer complexes as selective Gram positive antibacterial agents; synthesis, structural and antimicrobial studies. J. Mol. Struct. 2019, 1195, 315–322. [Google Scholar] [CrossRef]
- Crisponi, G.; Remelli, M. Iron chelating agents for the treatment of iron overload. Coord. Chem. Rev. 2008, 252, 1225–1240. [Google Scholar] [CrossRef]
- Brittenham, G.M. Hematology: Basic Principles and Practice; Hoffman, R., Benz, E., Shattil, S., Furie, B., Cohen, H., Eds.; Churchill Livingstone: New York, NY, USA, 1991; p. 327. [Google Scholar]
- Al-Resayes, S.I.; Shakir, M.; Shahid, N.; Azam, M.; Khan, A.U. Synthesis, spectroscopic characterization and in vitro antimicrobial studies of Schiff base ligand, H2L derived from glyoxalic acid and 1,8-diaminonaphthalene and its Co(II), Ni(II), Cu(II) and Zn(II) complexes. Arab. J. Chem. 2016, 9, 335–343. [Google Scholar] [CrossRef] [Green Version]
- Wenzel, M.; Patra, M.; Senges, C.H.R.; Ott, I.; Stepanek, J.J.; Pinto, A.; Prochnow, P.; Vuong, C.; Langklotz, S.; Metzler-Nolte, N.; et al. Analysis of the Mechanism of Action of Potent Antibacterial Hetero-tri-organometallic Compounds: A Structurally New Class of Antibiotics. ACS Chem. Biol. 2013, 8, 1442–1450. [Google Scholar] [CrossRef]
- Patra, M.; Gasser, G.; Metzler-Nolte, N. Small organometallic compounds as antibacterial agents. Dalton Trans. 2012, 41, 6350–6358. [Google Scholar] [CrossRef] [Green Version]
- Albada, H.B.; Prochnow, P.; Bobersky, S.; Bandow, J.E.; Metzler-Nolte, N. Highly active antibacterial ferrocenoylated or ruthenocenoylated Arg-Trp peptides can be discovered by an L-to-D substitution scan. Chem. Sci. 2014, 5, 4453–4459. [Google Scholar] [CrossRef]
- Pansuriya, P.B.; Patel, M.N. Iron(III) complexes: Preparation, characterization, antibacterial activity and DNA-binding. J. Enzyme Inhib. Med. Chem. 2008, 23, 230–239. [Google Scholar] [CrossRef]
- Farooq, M.; Sharma, A.; Almarhoon, Z.; Al-Dhfyan, A.; El-Faham, A.; Abu Taha, N.; Wadaan, M.A.M.; de laTorre, B.G.; Albericio, F. Design and synthesis of mono-and di-pyrazolyl-s-triazine derivatives, their anticancer profile in human cancer cell lines, and in vivo toxicity in zebrafish embryos. Bioorg. Chem. 2019, 87, 457–464. [Google Scholar] [CrossRef]
- Sharma, A.; Ghabbour, H.; Khan, S.T.; de la Torre, B.G.; Albericio, F.; El-Faham, A. Novel Pyrazolyl-s-Triazine Derivatives, Molecular Structure and Antimicrobial Activity. J. Mol. Struct. 2017, 1145, 244–253. [Google Scholar] [CrossRef]
- Addison, A.W.; Rao, T.N.; Reedijk, J.; Rijn, J.V.; Verschoor, G.C. Synthesis, structure, and spectroscopic properties of copper(II) compounds containing nitrogen–sulphur donor ligands; the crystal and molecular structure of aqua[1,7-bis(N-methylbenzimidazol-2′-yl)-2,6-dithiaheptane]copper(II) perchlorate. J. Chem. Soc. Dalton Trans. 1984, 1349–1356. [Google Scholar] [CrossRef]
- De Souza, S.M.; Delle Monache, F.; Smânia, A. Antibacterial activity of coumarins. Z. Nat. C 2005, 60, 693–700. [Google Scholar] [CrossRef] [PubMed]
- Arshad, M.; Bhat, A.R.; Hoi, K.K.; Choi, I.; Athar, F. Synthesis, characterization and antibacterial screening of some novel 1, 2, 4-triazine derivatives. Chin. Chem. Lett. 2017, 28, 1559–1565. [Google Scholar] [CrossRef]
- Hassan, M.T.; Sareh, Z.J. Synthesis, Characterization and in Vitro Antimicrobial Screening of the Xanthate Derivatives and their Iron(II) Complexes. Iran. J. Chem. Chem. Eng. 2017, 36, 43–54. [Google Scholar]
- Dhokale, N.T.; Karale, B.K.; Nagawadw, A.V. Synthesis, Characterization and Antibacterial Studies on Mn(II) and Fe(II) Complexes of N, O-Donor Salicyloyl Pyrazole Oxime Schiff Bases. Orient. J. Chem. 2017, 33, 165–172. [Google Scholar] [CrossRef] [Green Version]
- Sheldrick, G.M.; SADABS. Program for Empirical Absorption Correction of Area Detector Data; University of Göttingen: Göttingen, Germany, 1996. [Google Scholar]
- Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
- Spek, A.L. Structure validation in chemical crystallography. Acta Crystallogr. Sect. D 2009, 65, 148–155. [Google Scholar] [CrossRef]
- Turner, M.J.; McKinnon, J.J.; Wolff, S.K.; Grimwood, D.J.; Spackman, P.R.; Jayatilaka, D.; Spackman, M.A. Crystal Explorer 17. 2017. University of Western Australia. Available online: http://hirshfeldsurface.net (accessed on 12 June 2017).
- Spackman, M.A.; Jayatilaka, D. Hirshfeld surface analysis. CrystEngComm 2009, 11, 19–32. [Google Scholar] [CrossRef]
- Spackman, M.A.; McKinnon, J.J. Fingerprinting intermolecular interactions in molecular crystals. CrystEngComm 2002, 4, 378–392. [Google Scholar] [CrossRef]
- Bernstein, J.; Davis, R.E.; Shimoni, L.; Chang, N.-L. Patterns in hydrogen bonding: Functionality and graph set analysis in crystals. Angew. Chem. Int. Ed. Engl. 1995, 34, 1555–1573. [Google Scholar] [CrossRef]
- McKinnon, J.J.; Jayatilaka, D.; Spackman, M.A. Towards quantitative analysis of intermolecular interactions with Hirshfeld surfaces. Chem. Commun. 2007, 3814–3816. [Google Scholar] [CrossRef] [PubMed]
Compound | 1 | 2 | 3 |
---|---|---|---|
Empirical formula | C18H24Cl6Fe2N8 | C17H22Cl6Fe2N8O | C32H51Cl4FeN14O6 |
Formula weight (g/mol) | 676.85 | 678.82 | 925.51 |
Temperature (K) | 119(2) | 124(2) | 293(2) |
λ (Å) | 0.71073 | 0.71073 | 0.71073 |
Crystal system | Monoclinic | Orthorhombic | Triclinic |
Space group | P21/c | Pbcm | P-1 |
Unit cell dimensions | |||
a (Å) | 8.9549(3) | 8.5201(3) | 12.4352(15) |
b (Å) | 15.7871(6) | 13.7094(5) | 12.8632(16) |
c (Å) | 19.9063(7) | 23.2383(9) | 15.6509(19) |
α (°) | 90 | 90 | 76.955(3) |
β (°) | 99.457(2) | 90 | 89.531(3) |
γ (°) | 90 | 90 | 66.926(3) |
Volume (Å3) | 2775.9(2) | 2714.4(2) | 2234.7(5) |
Z | 4 | 4 | 2 |
Density (calculated, g/cm3) | 1.620 | 1.661 | 1.370 |
Absorption coefficient (mm−1) | 1.647 | 1.687 | 0.633 |
F(000) | 1368 | 1368 | 958 |
Crystal size (mm3) | 0.29 × 0.16 × 0.09 | 0.04 × 0.12 × 0.15 | 0.26 × 0.20 × 0.08 |
θ range (°) | 2.31 to 25.49 | 2.81 to 24.99 | 2.33 to 25.09 |
Index ranges | −10 ≤ h ≤ 10, −19 ≤ k ≤ 19, −24 ≤ l ≤ 24 | −10 ≤ h ≤ 10, −16 ≤ k ≤ 16, −27 ≤ l ≤ 27 | −14 ≤ h ≤ 14, −15 ≤ k ≤ 15, −18 ≤ l ≤ 18 |
Reflections collected | 38,064 | 21,560 | 64,462 |
Independent reflections | 5139 [R(int) = 0.0427] | 2453 [R(int) = 0.0294] | 7915 [R(int) = 0.0769] |
Completeness to theta (%) | 99.8 | 99.90 | 99.5 |
Refinement method | Full-matrix least-squares on F2 | ||
Data/restraints/parameters | 5139/0/311 | 2453/0/207 | 7909/0/528 |
Goodness-of-fit on F2 | 1.045 | 1.083 | 1.008 |
Final R indices [I > 2sigma(I)] | R1 = 0.0238, wR2 = 0.0530 | R1 = 0.0397, wR2 = 0.0988 | R1 = 0.0932, wR2 = 0.2007 |
R indices (all data) | R1 = 0.0334, wR2 = 0.0571 | R1 = 0.0440, wR2 = 0.1024 | R1 = 0.1654, wR2 = 0.2464 |
Largest diff. peak and hole | 0.291 and −0.306 | 0.621 and −1.035 | 0.87and −0.64 |
CCDC No. | 2044018 | 2044016 | 2044017 |
Atoms | Distance (Å) | Atoms | Distance (Å) |
Fe1-N1 | 2.0295(15) | Fe2-Cl3 | 2.1840(6) |
Fe1-N3 | 2.0940(16) | Fe2-Cl4 | 2.1836(6) |
Fe1-N2 | 2.1092(16) | Fe2-Cl5 | 2.1791(6) |
Fe1-Cl1 | 2.1699(6) | Fe2-Cl6 | 2.1873(6) |
Fe1-Cl2 | 2.1766(6) | ||
Atoms | Angle (°) | Atoms | Angle (°) |
N1-Fe1-N3 | 73.24(6) | N2-Fe1-Cl1 | 100.76(5) |
N1-Fe1-N2 | 73.65(6) | N1-Fe1-Cl2 | 133.34(5) |
N3-Fe1-N2 | 146.46(6) | N3-Fe1-Cl2 | 99.11(5) |
N1-Fe1-Cl1 | 117.06(5) | N2-Fe1-Cl2 | 99.58(5) |
N3-Fe1-Cl1 | 98.84(5) | Cl1-Fe1-Cl2 | 109.58(3) |
Atoms | D-H (Å) | H…A (Å) | D…A (Å) | D-H…A (°) |
---|---|---|---|---|
Complex 1 | ||||
C3-H3…Cl3 i | 0.95 | 2.77 | 3.622(2) | 149 |
C5-H5B…Cl6 i | 0.98 | 2.8 | 3.723(2) | 158 |
C8-H8…Cl1ii | 0.95 | 2.78 | 3.428(2) | 126 |
i 1 + x,y,z i 1 + x,y,z ii 1-x,-y,1-z and | ||||
Complex 2 | ||||
C5-H5…Cl4A i | 0.95 | 2.79 | 3.651(5) | 152 |
C9A-H9A1…Cl1A ii | 0.99 | 2.55 | 2.916(7) | 101 |
i x,-1 + y,z and ii 1-x,1/2 + y,3/2-z |
Atoms | Distance (Å) | Atoms | Distance (Å) |
Fe1-N1 | 2.038(3) | Fe2-Cl4B | 2.085(3) |
Fe1-N2 1 | 2.099(3) | Fe2-Cl3 2 | 2.1667(10) |
Fe1-N2 | 2.099(3) | Fe2-Cl3 | 2.1668(10) |
Fe1-Cl1A | 2.250(3) | Fe2-Cl4A | 2.329(3) |
Fe1-Cl2A | 2.262(5) | ||
Fe1-Cl1B | 2.151(2) | ||
Fe1-Cl2B | 2.090(6) | ||
Atoms | Angle (°) | Atoms | Angle (°) |
N1-Fe1-N2 1 | 73.66(7) | Cl2B-Fe1-N2 | 101.82(8) |
N1-Fe1-N2 | 73.66(7) | N1-Fe1-Cl1B | 149.41(12) |
N2 1-Fe1-N2 | 146.19(13) | Cl2B-Fe1-Cl1B | 90.49(17) |
N1-Fe1-Cl1A | 130.50(12) | N2 1-Fe1-Cl1B | 101.81(7) |
N21-Fe1-Cl1A | 97.28(7) | N2-Fe1-Cl1B | 101.81(7) |
N2-Fe1-Cl1A | 97.28(7) | Cl1A-Fe1-Cl2A | 122.17(15) |
N1-Fe1-Cl2A | 107.33(16) | Cl4B-Fe2-Cl3 2 | 106.87(8) |
N2 1-Fe1-Cl2A | 98.86(8) | Cl4B-Fe2-Cl3 | 120.70(11) |
N2-Fe1-Cl2A | 98.86(8) | Cl32-Fe2-Cl3 | 109.97(6) |
N1-Fe1-Cl2B | 120.10(17) | Cl32-Fe2-Cl4A | 105.43(8) |
Cl2B-Fe1-N2 1 | 101.82(8) | Cl3-Fe2-Cl4A | 102.31(10) |
Test Compounds | Microbes | ||||
---|---|---|---|---|---|
Staphylococcus aureus | Staphylococcus epidermidis | Escherichia coli | Pseudomonas aeruginosa | Candida albicans | |
PipBPT | 11 | 17 | - | 13 | 12 |
MorphBPT | - | - | - | - | - |
bisMorphPT | - | - | - | - | - |
1 | 25 | 23 | 19 | 22 | 18 |
2 | 18 | 19 | 16 | 17 | 14 |
3 | 17 | 16 | 14 | 15 | 12 |
Fluconazole | - | - | - | - | 14 |
Gentamycin | 28 | 22 | 21 | 19 | - |
Compounds | Organism | Concentration | ||
---|---|---|---|---|
100 | 200 | 300 | ||
1 | E. coli | 16 | 19 | 21 |
P. aeruginosa | 20 | 22 | 23 | |
S. aureus | 19 | 25 | 26 | |
S. epidermidis | 18 | 23 | 25 | |
C. albicans | 14 | 18 | 20 | |
PipBPT | E. coli | - | - | - |
P. aeruginosa | 13 | 15 | 18 | |
S. aureus | 17 | 18 | 19 | |
S. epidermidis | 11 | 13 | 15 | |
C. albicans | 10 | 11 | 13 | |
2 | E. coli | 14 | 16 | 18 |
P. aeruginosa | 14 | 17 | 18 | |
S. aureus | 14 | 18 | 19 | |
S. epidermidis | 15 | 19 | 20 | |
C. albicans | 12 | 14 | 16 | |
3 | E. coli | 12 | 15 | 17 |
P. aeruginosa | 12 | 15 | 17 | |
S. aureus | 14 | 17 | 19 | |
S. epidermidis | 13 | 16 | 17 | |
C. albicans | 11 | 12 | 15 |
Microbes | [Fe(PipBPT)Cl2][FeCl4] (1) | [Fe(MorphBPT)Cl2][FeCl4] (2) | [H(bisMorphPT)][FeCl4]. bisMorphPT (3) | |||
---|---|---|---|---|---|---|
MIC | MBC | MIC | MBC | MIC | MBC | |
S. epidermidis | 8.3 | 16.6 | 9.7 | 19.4 | 18.8 | 37.5 |
S. aureus | 8.7 | 17.5 | 9.8 | 19.6 | 18.8 | 37.5 |
E. coli | 8.7 | 17.5 | 9.8 | 19.6 | 18.8 | 37.5 |
P. aeruginosa | 8.2 | 16.5 | 9.8 | 19.6 | 18.8 | 37.5 |
C. albicans | 18.8 | 100.0 | 37.5 | 150.0 | 37.5 | 150.0 |
Sample Availability: Samples of the compounds are available from the authors. |
