Introduction of Mercaptoethyl at Sorafenib Pyridine-2-Amide Motif as a Potentially Effective Chain to Further get Sorafenib-PEG-DGL

Abstract

The crystal structure of the sorafenib and B-RAF complex indicates that the binding cavity occupied by the pyridine-2-carboxamide in sorafenib has a large variable space, making it a reasonable modification site. In order to identify novel compounds with anti-cancer activity, better safety and polar groups for further application, five sorafenib analogs with new pyridine-2-amide side chains were designed and synthesized. Preliminary pharmacologic studies showed that these compounds displayed much lower toxicities than that of sorafenib. Among them, compound 10b bearing mercaptoethyl group kept relevant antiproliferation potency compared to sorafenib in Huh7 and Hela cell lines with values of IC₅₀ 58.79 and 63.67 μM, respectively. As a small molecule inhibitor targeting protein tyrosine kinases, thiol in compound 10b would be an active group to react with maleimide in a mild condition for forming nanoparticles Sorafenib-PEG-DGL, which could be developed as a delivery vehicle to improve the concentration of anti-tumor therapeutic agents in the target cancer tissue and reduce side effects in the next study.

Academic Editor: Fawaz Aldabbagh

1. Introduction

Protein tyrosine kinases (PTKs) are key enzymes in many signal transduction pathways and play a crucial role in various cell regulatory processes [1,2]. Numerous small molecule inhibitors for PTKs have been developed as antitumor drugs in the past ten years [3]. Sorafenib, approved by the Food and Drug Administration (FDA) in 2005, has shown to be effective against several solid tumors and a standard treatment for HCC (hepatocellular carcinoma) [4] and renal cancer. Sorafenib is a multikinase inhibitor that blocks several targets including Fms-like tyrosine kinase-3 (FLT3), platelet-derived growth factor (PDGF), vascular endothelial growth factor (VEGF), c-Kit and B-RAF signaling [5] in both tumor cells and the surrounding endothelial cells [6,7,8]. The underlying mechanism is believed to involve competitive inhibition of the ATP binding to the catalytic domains of the various kinases [9].

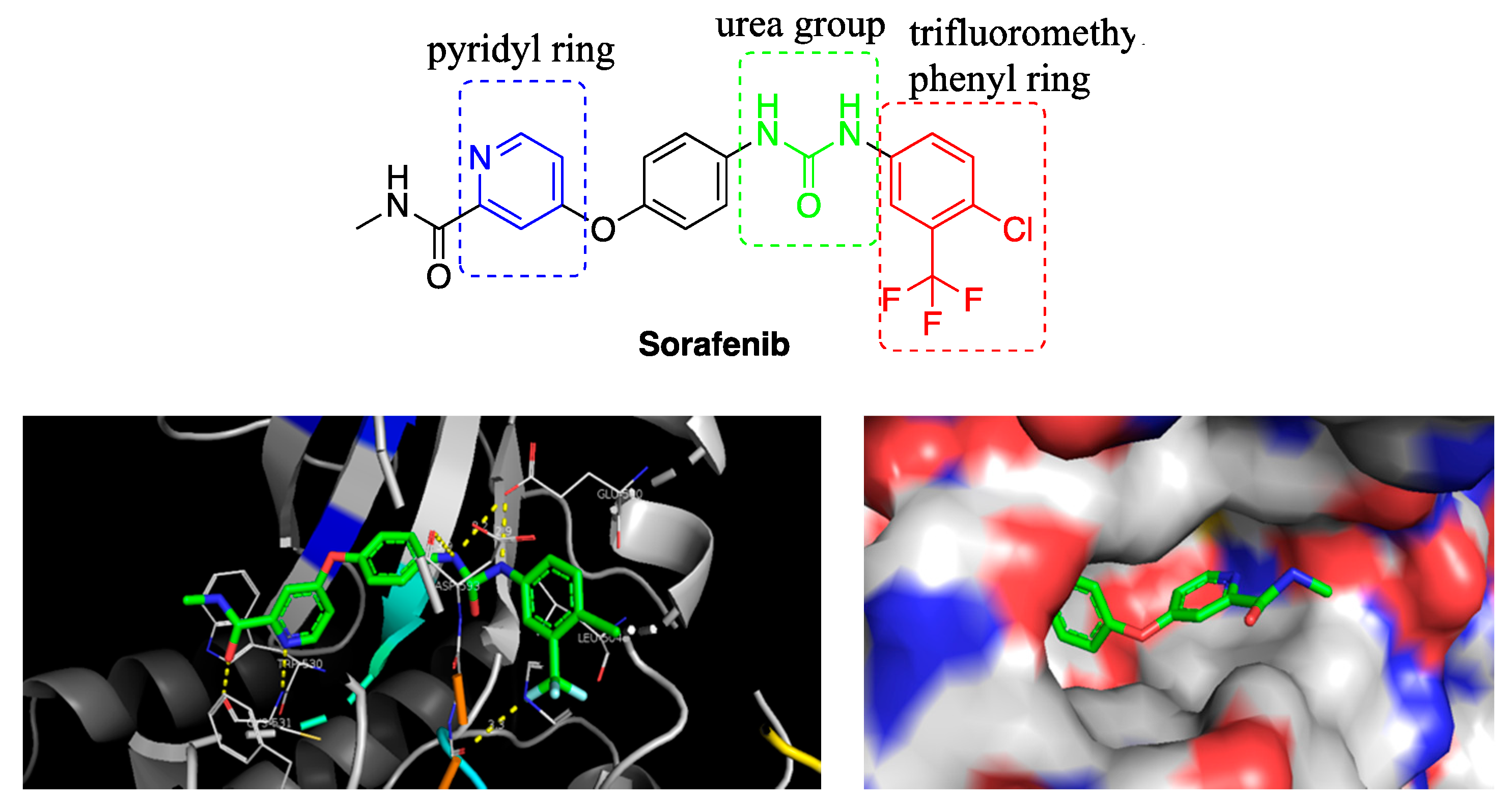

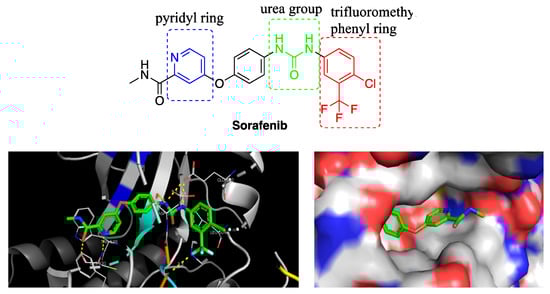

The crystal structure of sorafenib and B-RAF kinase complex (PDB code: 1UWH) shows that sorafenib spans the length of interfacial cleft of bilobal architecture and buries deep between C and N loop [10]. As shown in Figure 1, the pyridyl ring of sorafenib occupies the ATP-binding pocket, forming a hydrogen bond with Cys531 and interacting with aromatic residues of Trp530 and Phe582. On the other end of sorafenib, the lipophilic trifluoromethyl phenyl ring inserts into a hydrophobic pocket formed between αC and αE helices and N-terminal regions of DFG (Asp-Phe-Gly) motif and the catalytic loop. What is more, the urea group forms three hydrogen bonds with catalytic residue Gln500 and the main chain nitrogen of Asp593. The binding mode implies that the pyridyl ring, urea group and trifluoromethyl phenyl ring are key to binding affinity, and the methyl group of amide in the pyridine-2-amide motif may allow to be further modified by other substituents.

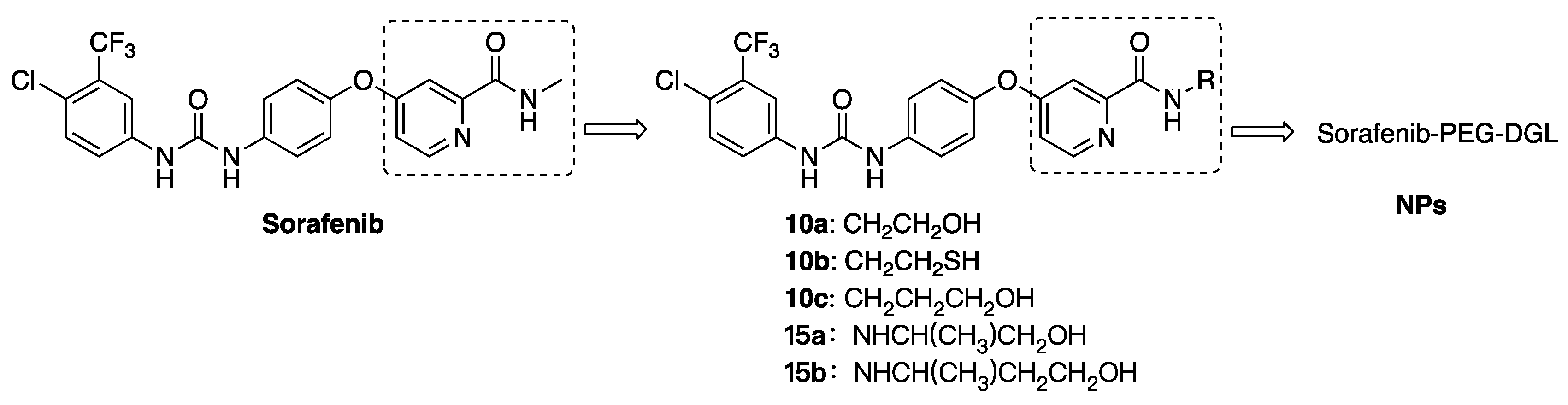

In 2012, Feng’s group claimed a series of 2-picolinyl hydrazide-containing sorafenib analogs exhibiting better antitumor activity against pancreatic cancer and HCC cell lines than that of sorafenib [11]. The results suggested that the modification of the pyridine-2-amide motif was reasonable, which encouraged us to replace the methyl group of pyridin-2-amide with several alkyl side chains containing hydroxyl or thiol group and synthesize five new derivatives (Figure 2, 10a–c and 15a–b). The research work of this structure optimization aimed at maintaining their strong antiproliferation activity as well as exploring an effective side chain containing OH or SH for preparing NPs (nanoparticles) in the next study. After the structures of 10a–c and 15a–b were confirmed by ¹H-NMR, ¹³C-NMR and ESI-HRMS spectra, they further were screened for cytotoxicity against seven solid cancer cell lines and two nontumorigenesis cell lines with sorafenib as a control by MTT assays. The results indicated that the length of side chains had moderate influence on the antitumor activity of target compounds. In addition, compound 10b would be chosen for synthesizing Sorafenib-PEG-DGL in the next study because of its potential antitumor activity and mercaptoethyl group, which could react with maleimide (MAL) in a mild condition.

2. Results and Discussion

2.1. Chemistry

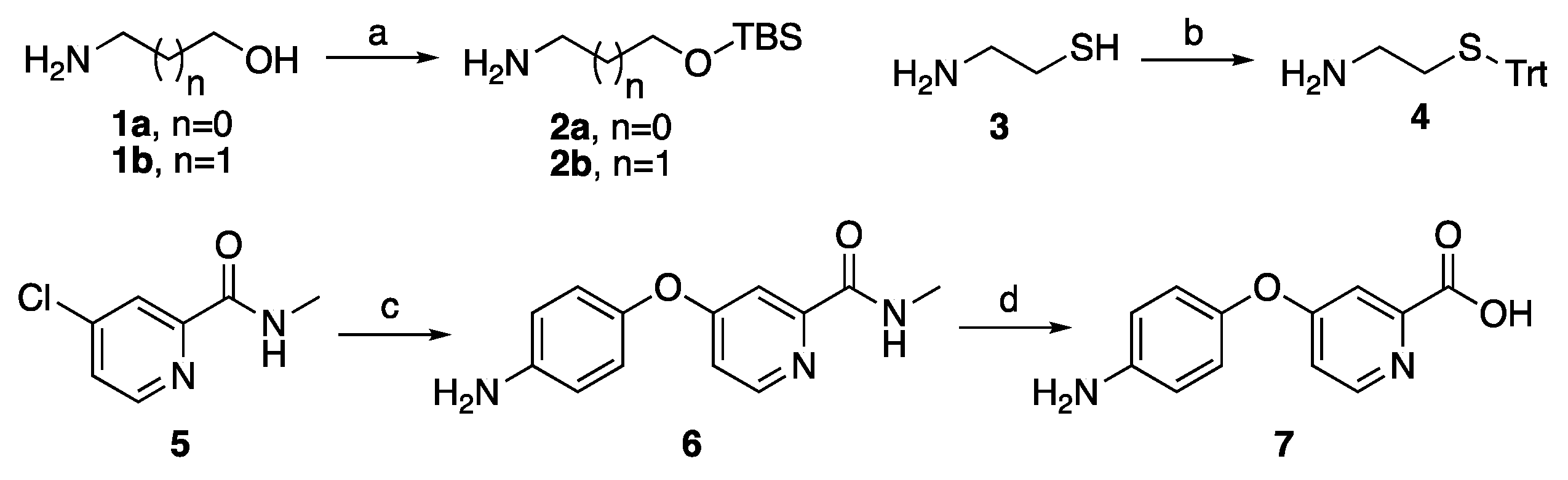

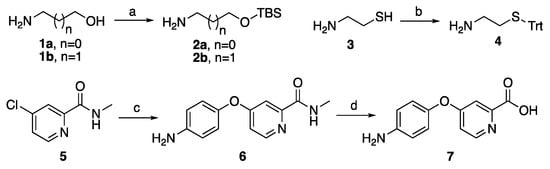

Ethanolamine, 3-aminopropan-1-ol and 2-mercaptoethylamine as side chains were introduced into sorafenib. Meanwhile, as Scheme 1 described, tertbutyldimethylsilane chloride (TBSCl) and triphenylmethanol firstly reacted with OH or SH to get 2a–b and 4 for avoiding the by-products caused by OH or SH group over-reaction. Moreover, the key intermediate 7 was synthesized from starting material N-methyl-4-chloropyridine-2-carboxamide (5), which reacted with 4-aminophenol to form compound 6 in the presence of potassium tert-butoxide and K₂CO₃, following demethylated in 2.5 mol/L KOH in 81% overall yield.

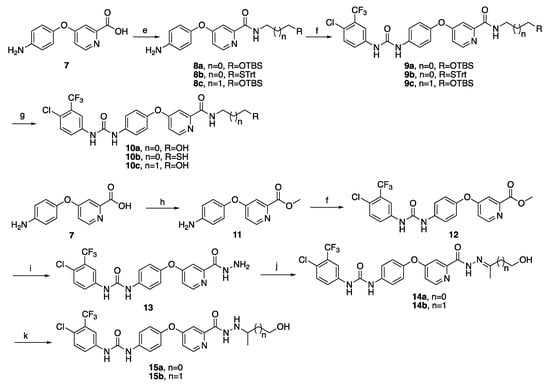

The synthesis of target compounds 10a–c and 15a–b starting from the intermediate 7 was depicted in Scheme 2. Compound 7 was treated with 2a–b and 4 to provide intermediates 8a–c in the room temperature, using 1-hydroxybenzotriazole (HOBt), 1-ethyl-3-(3-dimethyllaminopropyl) carbodiimide hydrochloride(EDC^.HCl) or diisopropyl ethyl amine (DIEA) as condensing agents. Then, 8a–c were reacted with 4-chloro-3-trifluoromethylphenyl isocyanate to give compounds 9a–c, which were deprotected to give target compounds 10a–c under the condition of tetrabutylammonium fluoride (TBAF)/THF or triisopropylsilane (TIS)/TFA. Moreover, the methylation of carboxyl group of 7 with methanol in thionyl chloride afforded ester compound 11, which was treated with 4-chloro-3-trifluoromethylphenyl isocyanate to form compound 12 in high yield. Then, compound 12 was reacted with hydrazine hydrate to obtain compound 13, further condensed with hydroxyacetone or 4-hydroxy-2-butanone using acetic acid (HAc) as a catalyst in EtOH to provide intermediates 14a–b. Finally, the reduction of compounds 14a–b with sodium cyanoborohydride (NaBH₃CN) gave target compounds 15a–b.

2.2. In Vitro Antitumor Activities

As shown in

Table 1. Antiproliferation activities against seven cancer cell lines for 10a–c and 15a–b.

	IC50 (μM)
Compound	HepG2	Huh7	MCF-7	MDA-MB-231	Hela	A549	B16F10
10a	70.67	318.8	471.2	NAa	NA	287.3	NA
10b	282.2	58.79	159.3	294.6	63.67	446.6	NA
10c	90.1	88.35	268.1	329.9	232.7	NA	449.3
15a	80.14	NA	NA	NA	NA	46.23	NA
15b	NA	NA	NA	NA	NA	NA	NA
Sorafenib	24.07	19.49	37.23	12.26	49.46	17.44	17.34

a: NA for IC₅₀> 500 μM.

, five target compounds (10a–c and 15a–b) were tested in seven cancer cells for their effects on cell viability using the MTT assays. These compounds 10a–c bearing amide group at the 2-position of pyridine retained cytotoxic activity against two hepatocellular carcinoma cell lines HepG2 and Huh7. Compound 10b displayed the best activity against Huh7 with the IC₅₀ value of 58.79 μM. What is more, thiol-containing 10b also exhibited better antitumor activity against MDA-MB-231 (triple negative breast cancer) and Hela (human cervical carcinoma) cell lines than that of 10a bearing hydroxyl group. Compared to 10a–c, compounds 15a–b containing hydrazine side chain almost lost the antiproliferation activity against Huh7, MCF-7, MDA-MB-231 and Hela cell lines. Especially, compound 15b having the longest side chain hardly showed the cytotoxic effects on the viability in all tested cancer cell lines. All newly synthesized compounds displayed much weaker activity against mouse melanoma cell line B16F10 compared to sorafenib.

Notably, compounds 10a–c and 15a–b expressed far lower toxicities than sorafenib in HUVEC (Human Umbilical Vein Endothelial Cells) and 293T (Human Adrenal microvascular Endothelial Cells), indicating that these novel compounds have a noteworthy selectivity between tumor and nontumorigenesis cell lines (

Table 2. Antiproliferation activities for 10a–c and 15a–b in nontumorigenesis cells.

IC50 (μM)	10a	10b	10c	15a	15b	Sorafenib
HUVEC	582.6	197.3	329.4	320.5	1246	35.45
293T	643.3	135.3	454.4	1576	559.4	16.07

).

2.3. Molecular Modeling

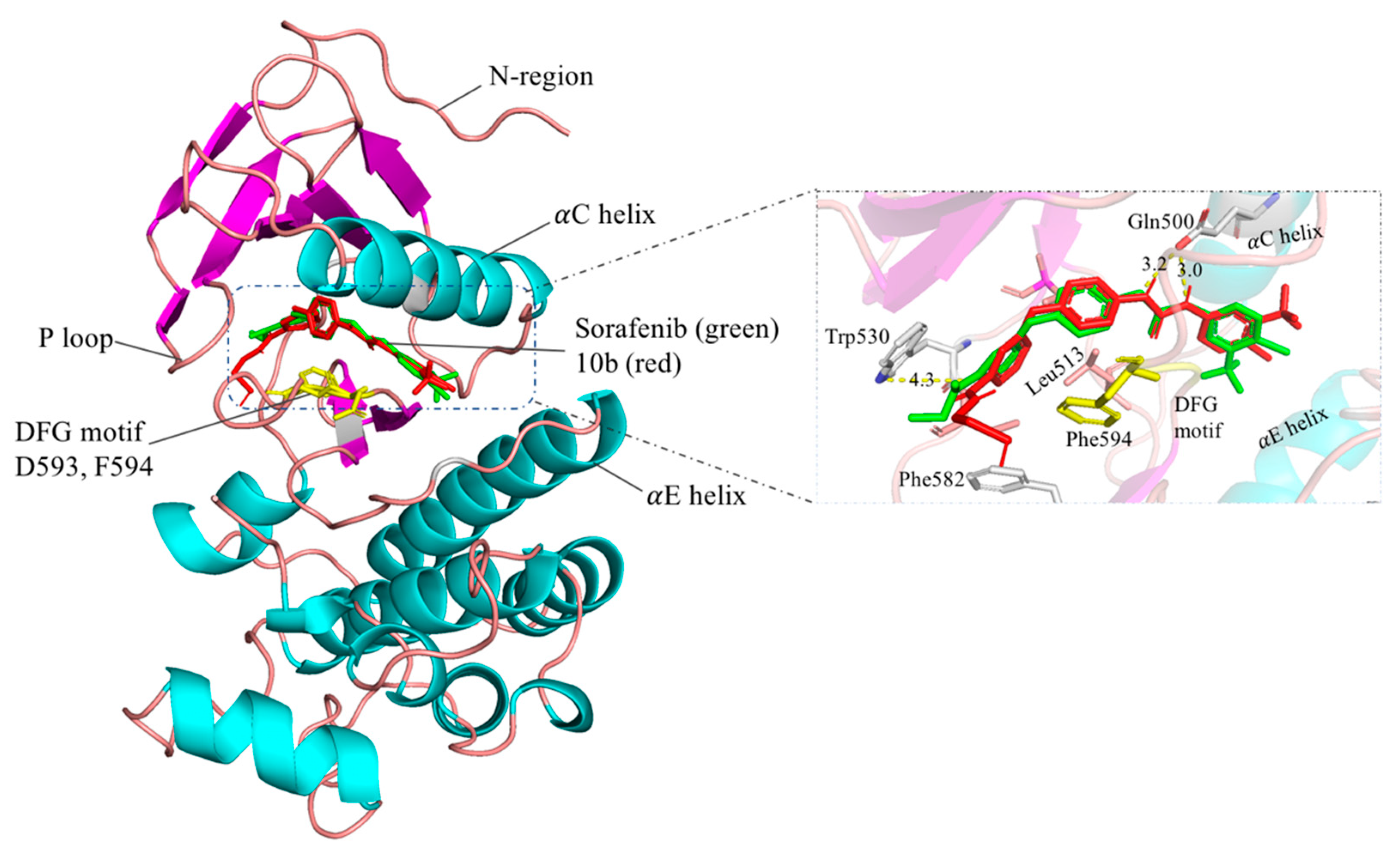

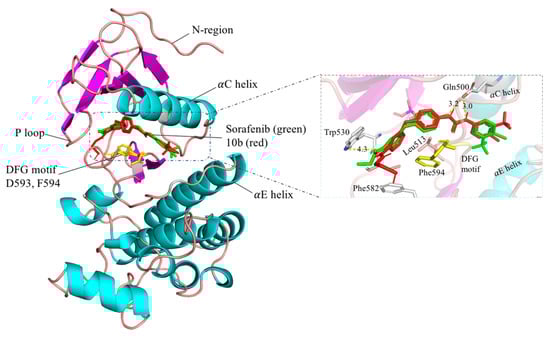

Furthermore, we docked compound 10b into the B-RAF crystal structure (PDB: 1UWH) using Autodock Vina 1.1.2 [12]. The docking mode showed that compound 10b also inserted into interfacial cleft between the N and C lobes, binding to the same active site as sorafenib (Figure 3). The urea group formed hydrogen bonds with a carboxyl of residue Gln500 and the main chain nitrogen of Asp593. The central phenyl ring of 10b contacted with the residues Leu513 and Phe594, contributing to the van der Waals interaction. However, the trifluoromethylphenyl ring in compound 10b distributed closely to the αC helix instead of the hydrophobic pocket that formed between the αC and αE helices and N-terminal regions of the DFG motif, which might explain the slightly decreased activity. Altogether, the binding mode suggested that 10b could form a strong binding in the active site of B-RAF. Therefore, the compound 10b bearing thiol group might be as an effective compound to react with maleimide (MAL) in the mild condition for further application [13].

3. Materials and Methods

3.1. General Information

Chemicals were purchased from the following suppliers: Sinopharm, Adamas and Sigma Aldrich. Solvents were dried before use, if required. Air- and moisture-sensitive reactions were carried out under nitrogen atmosphere. Room temperature (rt) refers to 20–25 °C. The progress of a reaction was monitored by thin layer chromatography (TLC) using pre-coated TLC sheets purchased from Sinopharm. Detected spots were observed under UV light at λ 254 nm and 365 nm. Melting points were measured on a SGW X-4 microscopy melting point apparatus without correction. ¹H spectral data were recorded with a Varian Mercury Plus 400 MHz spectrometer and ¹³C-NMR spectral data were recorded with a Bruker DRX 600MHz spectrometer, both at 303 K using TMS as an internal standard. All chemical shifts were reported in ppm (δ) and coupling constants (J) were in hertz (Hz). Mass spectra were recorded on Agilent Technologies 1260 infinity LC/MS instrument. The chromatograms were conducted on silica gel (100−200 mesh) and visualized under UV light at λ 254 and 365 nm (Supplementary Materials).

3.2. Synthesis

General Procedure for the Preparation of 2a–b. To dimethyl isopropyl chlorosilane (TBSCl, 3.15 g, 21.0 mmol) in dichloromethane (DCM, 10 mL) was added to a mixture of ethanolamine or 3-aminopropan-1-ol (20.0 mmol) and imidazole (2.72 g, 40.0 mmol) in DCM (40 mL) in room temperature. The mixture was reacted for 3 h and then poured into water (60 mL), extracted with DCM (3 × 30 mL). The combined organic layers were washed with brine, dried over Na₂SO₄, filtered and the filtrate was concentrated. The residue was dried to give 2a–b.

2-((Tert-butyldimethylsilyl)oxy)ethan-1-amine (2a): The title compound was obtained starting from ethanolamine (1a). Analytical data for 2a (colorless liquid, 98% yield): ¹H-NMR (400 MHz, CDCl₃) δ 3.68–3.58 (m, 2H, NH₂CH₂CH₂O-), 2.78 (dd, 2H, NH₂CH₂CH₂O-, J = 9.4, 4.6 Hz), 0.91 (s, 9H, -SiC(CH₃)₃), 0.07 (s, 6H, -Si(CH₃)₂).

3-((Tert-butyldimethylsilyl)oxy)propan-1-amine (2b): The title compound was obtained starting from 3-aminopropan-1-ol (1b). Analytical data for 2b (colorless liquid, 99% yield): ¹H-NMR (400 MHz, CDCl₃) δ 3.70 (t, 2H, -CH₂CH₂O-, J = 6.0 Hz), 2.80 (t, 2H, NH₂CH₂-, J = 6.7 Hz), 1.71-1.61 (m, 2H, -CH₂CH₂CH₂O-), 0.89 (s, 9H, -SiC(CH₃)₃), 0.05 (s, 6H, -Si(CH₃)₂).

2-(Tritylthio)ethanamine (4): Triphenylmethyl (3, Trt, 2.29 g, 8.8 mmol) was added to a solution of 2-mercaptoethylamine (1.0 g, 8.8 mmol) in trifluoroacetate (TFA, 10 mL) in room temperature. The mixture was reacted for 1 h and turned to red. Then, it was poured into water (40 mL), extracted with ethyl acetate (EA, 3 × 20 mL). The combined organic layers were washed with brine, dried over Na₂SO₄, filtered and the filtrate was concentrated. A white precipitate was filtered and recrystallized from EA to produce 4 (white solid, 90% yield, mp 93–95 °C). ESI-MS m/z 320.2 [M + H]⁺; ¹H-NMR (400 MHz, CDCl₃) δ 7.74 (brs, 2H, -NH₂), 7.41 (d, 5H, ArH, J = 7.3 Hz), 7.27 (m, 6H, ArH), 7.22–7.17 (m, 4H, ArH), 2.59 (t, 2H, -CH₂CH₂S-, J = 6.6 Hz), 2.26-2.19 (m, 2H, NH₂CH₂CH₂-).

N-methyl-4-(4-aminophenoxy)picolinamide (6): Potassium tert-butoxide (1.4 g, 11.3 mmol) was added to a solution of 4-aminophenol (1.0 g, 9.1 mmol) in DMF (15 mL) under nitrogen atmosphere. The mixture was stirred for 3 h in room temperature and N-methyl-4-chloropyridine-2-carboxamide (5, 1.2 g, 7.1 mmol) and K₂CO₃ (0.6 g, 4.2 mmol) was added. Then, the suspension was stirred at 80 °C for 3 h and poured into water (40 mL), extracted with ethyl acetate (EA, 3 × 30 mL). The combined organic layers were washed with brine, dried over Na₂SO₄, filtered and the filtrate was concentrated to afford 6 (yellow oil, 92% yield). ESI-MS m/z 244.2 [M + H]⁺; ¹H-NMR (400 MHz, CDCl₃) δ 8.33 (d, 1H, ArH, J = 5.5 Hz,), 8.01 (brs, 1H, -CONHCH₃), 7.67 (d, 1H, ArH, J = 1.9 Hz), 6.92 (dd, 1H, ArH, J₁ = 5.5 Hz, J₂ = 2.4 Hz), 6.88 (d, 2H, ArH, J = 8.6 Hz), 6.71 (d, 2H, ArH, J = 8.6 Hz), 3.00 (d, 3H, -NHCH₃, J = 5.1 Hz).

4-(4-Aminophenoxy)-2-pyridine carboxylic acid (7): To a stirred solution of K₂CO₃ (2.5 mol/L, 20 mL), 6 (1.70 g, 7.0 mmol) was added. After 5 h of refluxing reaction, the solution was carefully adjusted to pH 5 by the addition of 2N HCl. The reaction mixture was evaporated and the residue was purified by column chromatography on silica gel (100−200 mesh, and visualized under UV light at λ 254 and 365 nm; eluent, DCM/MeOH 5:1) to give 7 (white solid, 90% yield, mp 207–209 °C). ESI-MS m/z 231.1 [M + H]⁺; ¹H-NMR (400 MHz, DMSO-d₆) δ 8.52 (d, 1H, ArH, J = 4.2 Hz), 7.36 (s, 1H, ArH), 7.12 (s, 1H, ArH), 6.88 (d, 2H, ArH, J = 7.6 Hz), 6.64 (d, 2H, ArH, J = 7.5 Hz).

General Procedure for the Preparation of 8a–c. 1-Hydroxybenzotriazole (HOBt, 100 mg, 0.7 mmol), 3-(3-dimethylaminopropyl)-1-ethylcarbodiimide hydrochloride (EDC^.HCl, 150 mg, 0.78 mmol) and diisopropylamine (0.4 mL, 2.34 mmol) were combined in a stirred mixture of 7 (100 mg, 0.43 mmol) in DCM (15 mL). After adding compound 2a–b or 4 and stirring reaction for 10 h at room temperature, the mixture was poured into water (30 mL), extracted with DCM (3 × 15 mL). The combined organic layers were washed with brine, dried over Na₂SO₄, filtered and the filtrate was concentrated. The residue was purified by column chromatography on silica gel (100−200 mesh, and visualized under UV light at λ 254 and 365 nm; eluent, PE/EA) to give 8a–c.

N-(2-((tert-butyldimethylsilyl)oxy)ethyl)-4-(4-aminophenoxy)picolinamide (8a): The title compound was obtained starting from 2a and 7. Analytical data for 8a (yellow liquid, 86% yield): ESI-MS m/z 388.2 [M + H]⁺; ¹H-NMR (400 MHz, CDCl₃) δ 8.35 (d, 2H, ArH, J = 5.6 Hz), 7.66 (brs, 1H, -CONH-), 6.89 (d, 2H, ArH, J = 8.8 Hz), 6.71 (d, 2H, ArH, J = 8.7 Hz), 3.77 (t, 2H, -CH₂CH₂O-, J = 5.3 Hz), 3.70 (s, 2H, -NH₂), 3.56 (dd, 2H, -NHCH₂CH₂-, J₁ = 10.3 Hz, J₂ = 4.6 Hz), 0.91 (s, 9H, -SiC(CH₃)₃), 0.07 (s, 6H, -Si(CH₃)₂).

N-(2-(tritylthio)ethyl)-4-(4-aminophenoxy)picolinamide (8b): The title compound was obtained starting from 4 and 7. Analytical data for 8b (yellow liquid, 88% yield): ESI-MS m/z 554.2 [M + H]⁺; ¹H-NMR (400 MHz, CDCl₃) δ 8.34 (d, 1H, ArH, J = 5.6 Hz), 8.13 (t, 1H, -CONH-, J = 5.7 Hz), 7.61 (d, 1H, ArH, J = 1.3 Hz), 7.42 (d, 5H, ArH, J = 7.6 Hz), 7.28–7.17 (m, 10H, ArH), 6.93 (dd, 1H, ArH, J₁ = 5.6 Hz, J₂ = 2.5 Hz), 6.88 (d, 2H, ArH, J = 9.4 Hz), 6.70 (d, 2H, ArH, J = 8.7 Hz), 3.70 (brs, 2H, -NH₂), 3.28 (q, 2H, -NHCH₂-, J = 6.6 Hz), 2.48 (t, 2H, -CH₂CH₂S-, J = 6.6 Hz).

N-(3-((tert-butyldimethylsilyl)oxy)propyl)-4-(4-aminophenoxy)picolinamide (8c): The title compound was obtained starting from 2b and 7. Analytical data for 8c (yellow liquid, 84% yield): ESI-MS m/z 402.2 [M + H]⁺; ¹H-NMR (400 MHz, CDCl₃) δ 8.32 (d, 2H, ArH, J = 5.6 Hz), 7.65 (s, 1H, ArH), 6.88 (d, 2H, ArH, J = 8.9 Hz), 6.71 (d, 2H, ArH, J = 8.3 Hz), 4.68 (brs, 2H, -NH₂), 3.77 (t, 2H, -CH₂CH₂O-, J = 5.7 Hz), 3.55 (q, 2H, -NHCH₂CH₂-, J = 6.0 Hz), 1.88–1.77 (m, 2H, -CH₂CH₂CH₂-), 0.91 (s, 9H, -SiC(CH₃)₃), 0.08 (s, 6H, -Si(CH₃)₂).

General Procedure for the Preparation of 9a–c and 12. A mixture of compound 8a–c or 11 (1.5 mmol) in DCM (10 mL) was stirred at room temperature, while a solution of 4-chloro-3-trifluoromethylphenyl isocyanate (1.5 mmol) in DCM (5 mL) was slowly added in ice-bath condition. Afterwards, stirring was continued for 2 h at room temperature. The reaction mixture was poured into water (30 mL), extracted with DCM (3 × 15 mL). The combined organic layers were washed with brine, dried over Na₂SO₄, filtered and the filtrate was concentrated. The residue was purified by column chromatography on silica gel (eluent, PE/EA) to give 9a–c and 12.

N-(2-((tert-butyldimethylsilyl)oxy)ethyl)-4-(4-(3-(4-chloro-3-(trifluoromethyl)phenyl)ureido)phenoxy) picolinamide (9a): The title compound was obtained starting from 8a. Analytical data for 9a (white solid, 86% yield, mp 133–135 °C): ESI-MS m/z 610.1 [M + H]⁺; ¹H-NMR (400 MHz, CDCl₃) δ 8.75 (s, 1H, -CONH-), 8.48 (d, 1H, ArH, J = 5.7 Hz), 8.45 (s, 1H, -NHCONH-), 8.19 (s, 1H, -NHCONH-), 7.66 (d, 2H, ArH, J = 8.5 Hz), 7.52 (s, 1H, ArH), 7.34 (dd, 2H, ArH, J₁ = 16.6 Hz, J₂ =8.1 Hz), 7.27 (t, 1H, ArH, J = 3.4 Hz), 7.18 (s, 1H, ArH), 6.97 (d, 2H, ArH, J = 7.7 Hz), 3.79 (t, 2H, -CH₂CH₂O-, J = 4.4 Hz), 3.57 (dd, 2H, -NHCH₂-, J₁ = 9.5 Hz, J₂ = 4.5 Hz), 0.90 (s, 9H, -SiC(CH₃)₃), 0.06 (s, 6H, -Si(CH₃)₂).

N-(2-(tritylthio)ethyl)-4-(4-(3-(4-chloro-3-(trifluoromethyl)phenyl)ureido)phenoxy)picolinamide (9b): The title compound was obtained starting from 8b. Analytical data for 9b (white solid, 93% yield, mp 107–109 °C): ESI-MS m/z 754.2 [M + H]⁺; ¹H-NMR (400 MHz, CDCl₃) δ 8.48 (d, 2H, ArH, J = 1.6 Hz), 8.08 (s, 1H, -NHCONH-), 7.93 (s, 1H, -NHCONH-), 7.69 (s, 1H, -CONH-), 7.48 (dd, 3H, ArH, J₁ = 12.3 Hz, J₂ = 8.6 Hz), 7.35 (m, 5H, ArH), 7.29 (d, 2H, ArH, J = 2.6 Hz), 7.23–7.15 (m, 10H, ArH), 6.95 (d, 2H, ArH, J = 4.0 Hz), 3.28–3.23 (m, 2H, -NHCH₂-), 2.48–2.43 (m, 2H, -CH₂CH₂S-).

N-(3-((tert-butyldimethylsilyl)oxy)propyl)-4-(4-(3-(4-chloro-3-(trifluoromethyl)phenyl)ureido)phenoxy) picolinamide (9c): The title compound was obtained starting from 8c. Analytical data for 9c (white solid, 90% yield, mp 118–120 °C): ESI-MS m/z 624.2 [M + H]⁺; ¹H-NMR (400 MHz, CDCl₃) δ 8.83 (d, 1H, -CONH-, J = 5.5 Hz), 8.53 (s, 1H, -NHCONH-), 8.44 (d, 1H, ArH, J = 5.3 Hz), 8.24 (s, 1H, -NHCONH-), 7.70 (d, 2H, ArH, J = 7.4 Hz), 7.54 (s, 1H, ArH), 7.41–7.34 (m, 3H, ArH), 7.15 (s, 1H, ArH), 6.99 (t, 2H, ArH, J = 7.0 Hz), 3.78 (dd, 2H, -CH₂CH₂O-, J₁ = 12.1 Hz, J₂ = 5.4 Hz), 3.58 (dd, 2H, -NHCH₂-, J₁ = 12.8 Hz, J₂ = 7.6 Hz), 1.87–1.81 (m, 2H, -CH₂CH₂CH₂O-), 0.90 (s, 9H, -SiC(CH₃)₃), 0.08 (s, 6H, -Si(CH₃)₂).

Methyl 4-(4-(3-(4-chloro-3-(trifluoromethyl)phenyl)ureido)phenoxy)picolinate (12): The title compound was obtained starting from 11. Analytical data for 12 (white solid, 76% yield, mp 172–174 °C): ESI-MS m/z 466.2 [M + H]⁺; ¹H-NMR (400 MHz, CDCl₃) δ 8.52–8.44 (m, 2H, ArH), 8.40 (s, 1H, ArH), 7.69 (s, 2H, -NHCONH-), 7.63 (d, 1H, ArH, J = 8.5 Hz), 7.45 (d, 2H, ArH, J = 8.6 Hz), 7.36 (d, 1H, ArH, J = 8.6 Hz), 7.00 (d, 2H, ArH, J = 8.7 Hz), 6.97 (dd, 1H, ArH, J₁ = 4.9 Hz, J₂ = 2.4 Hz), 4.02 (s, 3H, -COOCH₃).

General Procedure for the Preparation of 10a and 10c. Tetrabutylammonium fluoride trihydrate (416 mg, 1.3 mmol) was added to a solution of 9a or 9c (1.3 mmol) in tetrahydrofuran (10 mL). The mixture was stirred at room temperature for 1 h and then poured into water (30 mL), extracted with DCM (3 × 15 mL). The combined organic layers were washed with brine, dried over Na₂SO₄, filtered and the filtrate was concentrated. The residue was purified by column chromatography on silica gel (100−200 mesh, and visualized under UV light at λ 254 and 365 nm; eluent, PE/EA) to offer 10a and 10c.

N-(2-hydroxyethyl)-4-(4-(3-(4-chloro-3-(trifluoromethyl)phenyl)ureido)phenoxy)picolinamide (10a): The title compound was obtained starting from 9a. Analytical data for 10a (white solid, 96% yield, mp 193–195 °C): ESI-MS m/z 495.1 [M + H]⁺; ¹H-NMR (400 MHz, DMSO-d₆) δ 9.24 (s, 1H, -NHCONH-), 9.03 (s, 1H, -NHCONH-), 8.71 (t, 1H, -CONH-, J = 5.9 Hz), 8.52 (d, 1H, ArH, J = 5.6 Hz), 8.13 (s, 1H, ArH), 7.70-7.57 (m, 4H, ArH), 7.38 (d, 1H, ArH, J = 2.0 Hz), 7.18 (d, 3H, ArH, J = 8.6 Hz), 4.80 (t, 1H, -OH, J = 5.4 Hz), 3.50 (q, 2H, -CH₂CH₂OH, J = 5.8 Hz), 3.38–3.31 (m, 2H, -CH₂CH₂OH). ¹³C-NMR (151 MHz, DMSO-d₆) δ 165.93, 163.10, 152.37, 152.17, 150.27, 147.75, 139.23, 136.96, 131.90, 126.72, 126.51, 123.62, 123.02, 122.24, 121.34, 120.42, 116.73, 114.09, 108.61, 59.48, 41.50. ESI-HRMS (m/z) [M + H]⁺ calcd for C₂₂H₁₈ClF₃N₄O₄ 459.1041, obsd 459.1046, ppm error 0.9.

N-(3-hydroxypropyl)-4-(4-(3-(4-chloro-3-(trifluoromethyl)phenyl)ureido)phenoxy)picolinamide (10c): The title compound was obtained starting from 9c. Analytical data for 10c (white solid, 96% yield, mp 103–105 °C): ESI-MS m/z 509.2 [M + H]⁺; ¹H-NMR (400 MHz, DMSO-d₆) δ 9.98 (s, 1H, -NHCONH-), 9.64 (s, 1H, -NHCONH-), 8.83 (t, 1H, -CONH-, J = 4.4 Hz), 8.50 (d, 1H, ArH, J = 5.4 Hz), 8.12 (s, 1H, ArH), 7.64 (d, 2H, ArH, J = 7.7 Hz), 7.59 (d, 2H, ArH, J = 8.2 Hz), 7.39 (s, 1H, ArH), 7.20–7.11 (m, 3H, ArH), 4.55 (t, 1H, -OH, J = 4.7 Hz), 3.44 (dd, 2H, -CH₂CH₂OH, J₁ = 11.0 Hz, J₂ = 5.6 Hz), 3.32 (t, 2H, -NHCH₂-, J = 4.5 Hz), 1.70-1.60 (m, 2H, -CH₂CH₂OH). ¹³C-NMR (151 MHz, DMSO-d₆) δ 165.92, 163.08, 152.45, 152.35, 150.27, 147.70, 139.32, 137.04, 131.93, 126.74, 126.54, 123.64, 122.84, 122.14, 121.83, 121.36, 120.23, 116.54, 113.96, 108.68, 58.68, 36.44, 32.03. ESI-HRMS (m/z) [M + H]⁺ calcd for C₂₃H₂₀ClF₃N₄O₄ 509.1198, obsd 509.1203, ppm error 1.1.

N-(2-mercaptoethyl)-4-(4-(3-(4-chloro-3-(trifluoromethyl)phenyl)ureido)phenoxy) picolinamide (10b): Compound 9b (100 mg, 0.13 mmol) was dissolved in DCM (15 mL). Triisopropylsilane (95 mg, 0.6 mmol) and TFA (0.3 mmol) were added and the mixture was stirred at room temperature overnight. The mixture was extracted with DCM (3 × 20 mL). The combined organic layers were washed with brine, dried over Na₂SO₄, filtered and the filtrate was concentrated. The residue was purified by column chromatography on silica gel (eluent, DCM/MeOH 10:1) to offer 10b (white solid, 84% yield, mp 129–131 °C). ESI-MS m/z 511.1 [M + H]⁺; ¹H NMR (400 MHz, DMSO-d₆) δ 10.41 (s, 1H, -NHCONH-), 9.99 (s, 1H, -NHCONH-), 9.02-8.99 (m, 1H, -CONH-), 8.52 (dd, 1H, ArH, J = 5.4, 2.4 Hz), 8.12 (d, 2H, ArH, J = 1.2 Hz), 7.65 (s, 2H, ArH), 7.59 (dd, 2H, ArH, J = 8.7, 2.4 Hz), 7.41 (t, 1H, ArH, J = 2.7 Hz), 7.20-7.13 (m, 3H, ArH), 4.66 (t, 1H, -SH, J = 4.7 Hz), 3.49 (d, 2H, -CH₂SH, J = 4.6 Hz), 2.63 (dd, 2H, -NHCH₂-, J₁ = 14.6 Hz, J₂ = 5.7 Hz). ¹³C-NMR (151 MHz, DMSO-d₆) δ 165.94, 163.21, 158.03, 157.83, 152.57, 152.10, 150.31, 147.54, 139.51, 137.24, 131.95, 122.54, 121.92, 121.36, 119.89, 118.23, 116.24, 114.02, 108.90, 72.16, 60.13. ESI-HRMS (m/z) [M + H]⁺ calcd for C₂₂H₁₈ClF₃N₄O₃S 511.0813, obsd 511.0824, ppm error 2.2.

Methyl 4-(4-aminophenoxy)picolinate (11): To compound 7 (1.0 g, 4.3 mmol) in methanol (30 mL) was added dichlorosulfoxide (1.1 mL) slowly in an ice-bath. The reaction mixture was stirred and refluxed overnight. The reaction mixture was concentrated under reduced pressure then extracted with ethyl acetate (3 × 30 mL). The organic layer was washed with brine, dried over anhydrous Na₂SO₄, filtered and concentrated under reduced pressure to afford 11 (white solid, 84% yield, mp 113–115 °C). ESI-MS m/z 245.1 [M + H]⁺; ¹H-NMR (400 MHz, CDCl₃) δ 8.53 (d, 1H, ArH, J = 5.7 Hz), 7.62 (d, 1H, ArH, J = 2.2 Hz), 6.97 (dd, 1H, ArH, J₁ = 5.6 Hz, J₂ = 1.0 Hz), 6.89 (d, 2H, ArH, J = 8.7 Hz), 6.73 (d, 2H, ArH, J = 8.7 Hz), 3.97 (s, 3H, -COOCH₃).

1-(4-Chloro-3-(trifluoromethyl)phenyl)-3-(4-((2-(hydrazinecarbonyl)pyridin-4-yl)oxy)phenyl)urea (13): A mixture of 12 (500 mg, 1.1 mmol) and hydrazine hydrate (0.16 mL) in ethanol (10 mL) was stirred at 90 °C for 2 h. The reaction mixture was concentrated under reduced pressure then extracted with ethyl acetate (3 × 30 mL). The organic layer was washed with brine, dried over anhydrous Na₂SO₄, filtered and concentrated under reduced pressure. The solid residue was recrystallized from ethanol to afford 13 (gray solid, 95% yield, mp 119-121 °C). ESI-MS m/z 466.1 [M + H]⁺; ¹H-NMR (400 MHz, DMSO-d₆) δ 9.93 (s, 1H, -CONHNH₂), 9.25 (s, 1H, -NHCONH-), 9.04 (s, 1H, -NHCONH-), 8.49 (d, 1H, ArH, J = 5.5 Hz), 8.13 (s, 1H, ArH), 7.68–7.58 (m, 4H, ArH), 7.35 (t, 1H, ArH, J = 5.0 Hz), 7.19 (d, 2H, ArH, J = 8.8 Hz), 7.13 (dd, 1H, ArH, J₁ = 5.3Hz, J₂ = 2.4 Hz), 4.56 (brs, 2H, -CONHNH₂).

General Procedure for the Preparation of 14a–b. A mixture of 13 (50 mg, 0.11 mmol) and hydroxyacetone (10 μL, 0.15 mmol) or 4-hydroxy-2-butanone (10 μL, 0.15 mmol) in ethanol (8 mL) was stirred at 90 °C for 24h, using acetic acid as a catalyst. The reaction mixture was concentrated under reduced pressure. The residue was purified by recrystallization from ethanol or methanol to afford 14a–b.

(E)-1-(4-Chloro-3-(trifluoromethyl)phenyl)-3-(4-((2-(2-(1-hydroxypropan-2-ylidene)hydrazine-1-carbonyl)pyridin-4-yl)oxy)phenyl)urea (14a): The title compound was obtained starting from hydroxyacetone. Analytical data for 14a (white solid, 75% yield, mp 198–200 °C): ESI-MS m/z 522.2 [M + H]⁺; ¹H NMR (400 MHz, DMSO-d₆, ratio 73:27, the minor signals are marked with an asterisk, mixture signals are marked with double asterisks) δ 12.68 (s, 0.73H), 10.77* (s, 0.22H), 9.25** (s, 1H), 9.03** (s, 1H), 8.57* (d, 0.29H, J = 5.5 Hz), 8.51 (d, 0.62H, J = 5.6 Hz), 8.13** (s, 1H), 7.73–7.55** (m, 4H), 7.42** (s, 1H), 7.20** (d, 3H, J = 7.0 Hz), 6.11 (t, 0.68H, J = 4.9 Hz), 5.24* (t, 0.23H, J = 5.9 Hz), 4.34 (d, 1.49H, J = 4.8 Hz), 4.04* (d, 0.54H, J = 6.1 Hz), 1.98* (s, 0.86H), 1.91 (s, 2.14H).

(E)-1-(4-Chloro-3-(trifluoromethyl)phenyl)-3-(4-((2-(2-(4-hydroxybutan-2-ylidene)hydrazine-1-carbonyl)pyridin-4-yl)oxy)phenyl)urea (14b): The title compound was obtained starting from 4-hydroxy-2-butanone. Analytical data for 14b (white solid, 70% yield, mp 205–207 °C): ESI-MS m/z 536.2 [M + H]⁺; ¹H-NMR (400 MHz, DMSO-d₆, ratio 75:25, the minor signals are marked with an asterisk, mixture signals are marked with double asterisks) δ 11.47 (s, 0.75H), 10.73* (s, 0.25H), 9.25** (s, 1H), 9.03** (s, 1H), 8.54** (dd, 1H, J = 13.9, 5.8 Hz), 8.13** (s, 1H), 7.64** (dt, 4H, J = 17.9, 8.8 Hz), 7.41** (d, 1H, J = 2.5 Hz), 7.20** (d, 3H, J = 8.6 Hz), 5.36 (t, 0.75H, J = 4.4 Hz), 4.62* (t, 0.25H, J = 5.4 Hz), 3.76–3.60** (m, 2H), 2.50–2.45** (m, 2H), 2.04 (s, 2.33H), 1.98* (s, 0.54H). ¹³C-NMR (151 MHz, DMSO-d₆) δ 166.00, 160.49, 159.09*, 152.38, 151.96*, 150.49, 147.68, 139.24, 137.02, 131.91, 126.72, 126.52*, 123.63, 123.03*, 122.26, 121.82, 121.38*, 120.46, 116.74, 114.36, 108.85, 58.28*, 57.67, 41.71*, 34.30, 23.23, 15.67*. ESI-HRMS (m/z) [M + H]⁺ calcd for C₂₄H₂₁ClF₃N₅O₄ 536.1307, obsd 536.1312, ppm error 1.0.

General Procedure for the Preparation of 15a–b. To a stirred solution of 14a–b (0.057 mmol) in Methanol (5 mL) at room temperature was added sodium cyanoborohydride (7.6 mg, 0.11 mmol) and acetic acid (3.3 μL). The mixture was reacted at room temperature overnight and then poured into water (10 mL), extracted with ethyl acetate (3 × 15 mL). The combined organic layers were washed with brine, dried over Na₂SO₄, filtered and the filtrate was concentrated. The residue was purified by column chromatography on silica gel (100−200 mesh, and visualized under UV light at λ 254 and 365 nm; eluent, DCM/MeOH) to give 15a–b.

1-(4-Chloro-3-(trifluoromethyl)phenyl)-3-(4-((2-(2-(1-hydroxypropan-2-yl)hydrazine-1-carbonyl)pyridin-4-yl)oxy)phenyl)urea (15a): The title compound was obtained starting from 14a. Analytical data for 15a (white solid, 87% yield, mp 139–141 °C): ESI-MS m/z 524.2 [M + H]⁺; ¹H-NMR (400 MHz, DMSO-d₆) δ 10.14 (brs, 1H, -CONH-), 9.49 (brs, 1H, -NHCONH-), 9.25 (brs, 1H, -NHCONH-), 8.50 (dd, 1H, ArH, J₁ = 5.4 Hz, J₂ = 1.6 Hz), 8.13 (s, 1H, ArH), 7.69-7.56 (m, 4H, ArH), 7.35 (s, 1H, ArH), 7.18 (dd, 3H, ArH, J₁ = 9.1 Hz, J₂ = 1.4 Hz), 5.13 (brs, 1H, -OH), 4.65 (t, 1H, -NHCH-, J = 5.3 Hz), 3.33–3.25 (m, 2H, -CHCH₂OH), 2.96 (d, 1H, -NHCH-, J = 4.3 Hz), 0.95 (d, 3H, =CHCH₃, J = 5.0 Hz). ¹³C-NMR (151 MHz, DMSO-d₆) δ 165.83, 161.76, 152.46, 151.80, 150.45, 147.66, 139.35, 137.08, 131.91, 126.72, 123.63, 122.90, 122.13, 121.83, 121.35, 120.28, 116.60, 113.98, 108.83, 63.84, 56.44, 15.38. ESI-HRMS (m/z) [M + H]⁺ calcd for C₂₃H₂₁ClF₃N₅O₄ 524.1307, obsd 524.1311, ppm error 0.8.

1-(4-Chloro-3-(trifluoromethyl)phenyl)-3-(4-((2-(2-(4-hydroxybutan-2-yl)hydrazine-1-carbonyl)pyridin-4-yl)oxy)phenyl)urea (15b): The title compound was obtained starting from 14b. Analytical data for 15b (white solid, 87% yield, mp 89–92 °C): ESI-MS m/z 538.2 [M + H]⁺; ¹H-NMR (400 MHz, DMSO-d₆) δ 10.06 (d, 1H, -CONH-, J = 7.0 Hz), 9.24 (s, 1H, -NHCONH-), 9.02 (s, 1H, -NHCONH-), 8.51 (d, 1H, ArH, J = 5.6 Hz), 8.13 (s, 1H, ArH), 7.64 (d, 2H, ArH, J = 6.1 Hz), 7.60 (d, 2H, ArH, J = 8.7 Hz), 7.35 (s, 1H, ArH), 7.19 (d, 2H, ArH, J = 8.8 Hz), 7.16 (dd, 1H, ArH, J₁ = 5.5 Hz, J₂ = 2.1 Hz), 4.97 (t, 1H, -OH, J = 6.0 Hz), 4.44 (t, 1H, -CH₂CH₂O-, J = 5.0 Hz), 3.58–3.38 (m, 1H, -CH₂CH₂O-), 3.09–2.95 (m, 1H, -NHCHCH₃), 1.63 (m, 1H, -CHCH₂CH₂-), 1.43–1.31 (m, 1H, -CHCH₂CH₂-), 0.98 (d, 3H, =CHCH₃, J = 6.3 Hz). ¹³C-NMR (151 MHz, DMSO-d₆) δ 165.82, 161.81, 152.38, 151.92, 150.44, 147.73, 139.24, 136.98, 131.91, 126.73, 126.52, 123.63, 123.03, 122.25, 121.82, 121.37, 120.43, 116.76, 113.99, 108.77, 58.26, 52.86, 37.53, 18.70. ESI-HRMS (m/z) [M + H]⁺ calcd for C₂₄H₂₃ClF₃N₅O₄ 538.1463, obsd 538.1464, ppm error 0.1.

3.3. In Vitro Anti-Proliferative Assay

The in vitro anti-proliferation of the chemical compounds was measured by the MTT reagent. Briefly, 5 × 10³ cells in 100 μL of medium per well were plated in 96-well plates. After being incubated for 24 h at 37 °C, the cells were treated with different concentration of tested compound or DMSO (as negative control) for 48 h. Then the medium with compound or DMSO was replaced with 200 μL of fresh medium containing 10% MTT (5 mg/mL in PBS) in each well and incubated at 37 °C for 4 h. Last, the MTT-containing medium was discarded and 150 μL of DMSO per well was added to dissolve the formazan crystals newly formed. Absorbance of each well was determined by a microplate reader (Synergy H4, Bio-Tek) at a 570 nm wavelength. The inhibition rates of proliferation were calculated with the following equation:

Inhibition ratio (%) = (OD_DMSO−OD_compd)/(OD_DMSO−OD_blank) × 100

(1)

The concentration of the compounds that inhibited cell growth by 50% (IC₅₀) was calculated using GraphPad Prism, version 6.0.

4. Conclusions

Based on sorafenib and B-ARF crystal complex, there is a space for the modification of the 2-pyridine motif of sorafenib using alkyl chains to develop new anti-cancer agents. In order to introduce active side chains including thiol or hydroxyl for the synthesis of Sorafenib-PEG-DGL in the next study, five novel sorafenib derivatives (10a–b, 15a–b) with oxygen or sulphur alkyl side-chain on pyridine-2-amide scaffold were prepared and evaluated their anti-cancer activities in vitro. The preliminary structure and activity relationships indicated that pyridine-2-amide was essential for antitumor activity and pyridine-2-hydrazine led to the loss of activity. The length of side chain had moderate influence on the antiproliferation activity against tumor cells. Among them, compound 10b bearing thiol alkyl group showed a good antiproliferation activity, which provided us a promising candidate for the future preparing nanoparticles. Moreover, the docking mode of 10b and B-RAF also confirmed its interaction with the active sites of kinases. Taken together, 10b might be a prospective compound to be developed as a promising Sorafenib-PEG-DGL.
