Article

The Sorption Performance of Cetyl Trimethyl Ammonium Bromide-Capped La0.9Sr0.1FeO3 Perovskite for Organic Pollutants from Industrial Processes

by
Shimaa M. Ali
1,2,* and
Areej A. Eskandrani
2
1
Chemistry Department, Faculty of Science, Cairo University, Giza 12613, Egypt
2
Chemistry Department, Faculty of Science, Taibah University, Medinah 30002, Saudi Arabia
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(7), 1640; https://doi.org/10.3390/molecules25071640
Submission received: 5 February 2020 / Revised: 28 March 2020 / Accepted: 31 March 2020 / Published: 2 April 2020
(This article belongs to the Section Physical Chemistry)

Abstract

:
La0.9Sr0.1FeO3 perovskite, prepared by the microwave-assisted method, was capped with cetyl trimethyl ammonium bromide (CTAB) cationic surfactant, and applied as a sorbent for the removal of the anionic Congo red (CR) dye from aqueous solutions. X-ray diffraction (XRD) patterns showed that the perovskite structure was not affected by capping; however, the particle size increased. There was a hipsochromic shift in the value of λmax of the CR absorption spectrum in the presence of CTAB, which indicated the formation of an oppositely charged dye–surfactant complex. The adsorption efficiency of CTAB-capped La0.9Sr0.1FeO3 was independent of the pH of the solution—equilibrium was reached after a few minutes. The value of the maximum adsorption capacity, qm, was 151.52 mg·g−1, which was 10-times higher than that of the pure perovskite. The proposed sorbent maintained its excellent sorption ability in the presence of the sample matrix; therefore, it can be regenerated and reused with unchanged performance.

1. Introduction

Surfactants are organic compounds that can be used to decrease the surface tension of liquids. A surfactant consists of both hydrophilic (heads) and hydrophobic (tails) groups; therefore, it can be used in detergents, wetting and foaming agents, dispersants, etc. It can be classified according to the charge of its hydrophilic groups into cationic, anionic, non-ionic, and Zwitter-ionic surfactants [1]. Surfactants have various important applications in many fields, they can be added during the synthesis of nanoparticles to prevent coagulation, since they act as a stabilizer. This is particularly important in the synthesis of magnetic nanoparticles [2,3,4,5]. Surfactants and their composites can be used for water and wastewater decontamination, where they can be used to remove oppositely charged toxic metal ions and organic compounds via strong electrostatic attractions [6,7,8]. They can also be used for the corrosion protection of metals that can from an oxide layer, where surfactants can be adsorbed onto the oxide layer, providing a protective coating for the metal [9,10,11]. Surfactants were also used to improve the electrochemical sensing performance of many compounds and drugs [12,13,14,15] and catalytic processes [16,17,18,19,20].
Perovskites are mixed nano-oxides of the general formula ABO3, where A is a lanthanide or an alkali earth metal and B is a transition metal. Perovskites are interesting materials because a wide range of properties can result from a large number of possible metal ion combinations that can form the perovskite structure [21,22]. Perovskites have several important applications, for example in catalysis, sensors [23,24,25], and as sorbents for water decontamination [26,27,28].
Organic dyes constitute a major source of pollution in wastewater produced from many industries, which poses a threat to the water quality and the life of living beings [29]. The removal of organic dyes using perovskite sorbents was reported in the literature. SrTiO3 nanoparticles were used for the removal of the anionic congo red (CR) [30], and the cationic malachite green dye [31]. Silica-coated LaMnO3 perovskite was used for the removal of cationic methylene blue and anionic methyl orange dyes [32]. La0.5Pb0.5MnO3 [33] and La0.5Ca0.5NiO3 [34] were used for the removal of Eosin dye and reactive blue, respectively.
Cetyl trimethyl ammonium bromide (CTAB) is a cationic surfactant, CTAB-modified materials can be used for the removal of the anionic CR dye from aqueous solutions, such as CTAB/chitosan [35], CTAB/chitosan hydrogel beads [36], CTAB/tea waste [37], CTAB/hectorite [38], CTAB/kaolin [39], CTAB/bentonite [40], and CTAB/graphene oxide [41].
Most perovskites have a negative charge under neutral conditions [26]; therefore, a cationic surfactant can be easily adsorbed onto the perovskite surface and used for the removal of negatively charge ions or anionic dyes from water. The combination of CTAB and perovskites has not been previously reported. Therefore, in this work, La0.9Sr0.1FeO3 perovskite, prepared by the microwave-assisted method, will be capped by CTAB and then employed as an adsorbent for CR dye from aqueous solutions and real samples. Factors affecting the adsorption process such as pH, contact time, initial dye concentration, and temperature will be studied and optimized. The sorption performance of CTAB-capped La0.9Sr0.1FeO3 perovskite is compared with the pure perovskite and with other reported CTAB-capped materials. A method for the sorbent regeneration and reuse is examined.

2. Results and Discussions

2.1. Characterization of CTAB-capped La0.9Sr0.1FeO3 Perovskite

Structural characterizations of pure and CTAB-capped La0.9Sr0.1FeO3 perovskites were carried out by XRD and FTIR, to show the effect of surfactant capping on the perovskite structure and to prove that the modification was successfully performed. Figure 1A shows XRD patterns of pure and CTAB-capped samples. Similar XRD patterns were noticed for both samples, indicating that surfactant capping did not affect the perovskite structure. By comparing data to the standard LaFeO3, ICDD card number: 88-641, all diffraction peaks were indexed to corresponding planes, as indicated in Figure 1A.
The phase identification showed that a single orthorhombic phase of LaFeO3 was formed, with higher d-values than those of the standard LaFeO3 sample. This was due to the partial replacement of the smaller La3+ ions with the larger Sr2+ ions [26]. However, two differences can be observed between XRD spectra of pure and CTAB-capped perovskites, peaks were narrower and shifted to higher d-values due to the surfactant modification, which indicated that the particle size is higher in the CTAB-capped sample compared to that in pure CTAB. The calculated average particle sizes, using the Schererr equation [42] were 30.8, 45.3 nm, for pure and CTAB-capped samples, respectively. The second difference is the lower peak intensities in the case of the CTAB-capped sample, which indicated that there was an interaction between the perovskite and CTAB, this interaction was also indicated in the FTIR data.
Figure 1B shows FTIR spectra of pure and CTAB-capped La0.9Sr0.1FeO3 perovskites. The characteristic Fe-O stretching band of the perovskite FeO6 octahedral group appeared in both samples at 559 cm−1 [26]. Furthermore, a strong band at 3404 cm−1 can be observed, which was assigned to the O-H stretching vibration of adsorbed water. Additional bands at 2918 and 2850 cm−1 appeared only in the FTIR spectrum of the CTAB-capped sample. These bands were due to the C-H stretching vibration of -CH3 and -CH2 groups of CTAB, respectively. A weak band appeared at 1468 cm−1, which was assigned to N+-CH3 absorption—this band had a strong signal in the FTIR spectrum of pure CTAB [6,43]. However, in the case of the CTAB-capped perovskite FTIR spectrum, the intensity of this band was weak, which indicated that there was an interaction between the perovskite and CTAB through its ammonium moiety. The appearance of these bands proved that the CTAB surfactant modification of La0.9Sr0.1FeO3 perovskite was successful. At a pH value > the point of zero charge, the perovskite acquired negative charges, which can attract the ammonium moieties in CTAB, resulting in the CTAB-capped perovskite [26,31].
The measured BET surface area values for pure and CTAB-capped La0.9Sr0.1FeO3 were 3.9 and 2.3 m2·g−1, respectively. The CTAB modification decreased the perovskite surface area.
The surface morphology of prepared samples was studied by SEM. Figure 2 shows SEM images of pure and CTAB-capped La0.9Sr0.1FeO3 samples. The pure La0.9Sr0.1FeO3 consisted of an interconnected bone-like network, Figure 2A. Upon the surfactant modification, SEM imaging, Figure 2B, shows that perovskite grains were more conjoined, thereby reducing interfacial spaces, as compared to the pure sample, Figure 2A. This clearly showed the decreased porosity and, therefore, the decreased surface area of the perovskite by the modification with CTAB.

2.2. Application of CTAB-capped La0.9Sr0.1FeO3 Perovskite as a Sorbent for CR Dye

The absorption characteristic of the non-adsorbed CR dye in the solution was different when different sorbents were used—pure and CTAB-capped La0.9Sr0.1FeO3 perovskites. Figure 3 shows the visible spectrum of the remaining CR dye, non-adsorbed in the solution, after batch experiments were performed using different sorbents. In the case of using the pure La0.9Sr0.1FeO3, the visible spectrum was normal with a maximum wavelength, λmax, of 498 nm, as reported in the literature [26]. On the other hand, the use of CTAB-capped La0.9Sr0.1FeO3 resulted in a decreased λmax value, at 466 nm, showing a hipsochromic shift. CR dye is an anionic dye, while CTAB is a cationic surfactant; therefore, an oppositely charged dye–surfactant complex is formed. This can cause a dye dimerization in the presence of the surfactant and a decrease in the dye absorbance value. It was reported that the dye dimerization could occur at a high dye concentration or in the presence of large molecules [44]. It can be seen that in the presence of CTAD—the surfactant-capped perovskite—the absorbance value of the non-adsorbed CR dye was largely decreased compared to that of the pure perovskite sorbent, which reflected the enhanced sorption ability of La0.9Sr0.1FeO3 for the anionic CR dye as a result of being capped with a cationic CTAB surfactant.

2.2.1. Effect of pH on the Adsorption Performance

It is well known that the pH value can greatly affect the removal efficiency of a sorbent. For most perovskites, the point of zero charge is about 5 [26,31]. Therefore, the perovskite is positively charged at pH < 5, and it is expected to have its highest sorption ability for the anionic dye under acidic conditions. Figure 4. shows the dependence of the removal % of CTAB-capped La0.9Sr0.1FeO3 for CR on the pH of the dye solution. It can be shown that the adsorption performance was independent of the pH. A high value of the removal % was noticed at any pH value. This can be explained on the basis that the positively charged CTAB-perovskite sorbent can attract the negatively charged CR dye regardless of the pH value. Therefore, the proposed sorbent is suitable to be used in applications as it possesses a superior performance, irrespective of the operating pH. In the next sections, the optimum pH value will be taken to be 6, since it is close to neutral conditions and shows a removal % of 98.8%.

2.2.2. Kinetic Study

The effect of the contact time was examined by estimating the adsorbed dye concentrations at different times, extended to 2 h, to identify the equilibrium position and to investigate the kinetics of the adsorption process. Figure 5A shows the relation between the removal % of CR by CTAB-capped La0.9Sr0.1FeO3 and the contact time. It can be shown that the equilibrium is reached very fast, the removal % is ~97% at the start of the experiment. This reflected the possibility of applying the present sorbent in the field use, as it offered a rapid dye uptake.
The 1st and 2nd order models are given by Equations (1) and (2), respectively [45,46,47,48]:
log ( q e q t ) = l o g q e K 1 2.303 t
t q t = 1 K 2 q e + t q e
where qe, qt were the adsorbed amounts in mg·g−1 at equilibrium, and at time t (min), respectively. K1 and K2 were first- and second-order rate constants, respectively.
It was found that the adsorption data did not fit the pseudo 1st order model at all, while it perfectly fitted the pseudo 2nd order model, as shown in Figure 5B. This implied that the surface reaction between the positively charged surfactant-capped perovskite and the negatively charged dye was the rate-determining step rather than the adsorption of dye on the sorbent active sites. In addition, it reflected the possibility of a dynamic equilibrium between the adsorbate and surface sites during the diffusion through the sorbent pores [49]. The experimental qe value calculated from the pseudo 2nd order model matches well with the theoretical value, 5.21 and 5.16 mg·g−1, respectively. The calculated value of the rate constant, K2, was 0.42 g·mg−1·min−1.

2.2.3. The Effect of the Initial Dye Concentration

Batch experiments were conducted by using different initial dye concentrations, 10–100 ppm, to examine the effect of the dye concentration. Figure 6A shows the relation between the removal % and the initial concentration of CR dye; the removal % increased as the dye concentration increased.
Adsorption data were fitted to Langmuir and Freundlich isotherms to deduce the mechanism of adsorption and to estimate the maximum adsorption capacity, qm, of CTAB-capped La0.9Sr0.1FeO3 for CR dye. Langmuir and Freundlich isotherms can be expressed by the following equations, respectively [35,45,46,47,48]:
C e q e = 1 q m b + C e q m
l n q e = l n K f + 1 n l n C e
where b was Langmuir constant, Kf and n were Freundlich isotherm constants.
Figure 6B,C represent Langmuir and Freudlich isotherms, respectively. Correlation coefficient values were 0.9863 and 0.9994, respectively. This showed that the adsorption data were better fitted using the Freundlich isotherm, i.e., the CR adsorption was a monolayer on heterogeneous sites of the CTAB-capped perovskite. The calculated qm value was 151.52 mg·g−1. In a previous study, Ali and Al-Oufi reported the qm value of pure La0.9Sr0.1FeO3 as 13.89 mg·g−1 [26], indicating that CTAB modification enhanced the sorption performance of La0.9Sr0.1FeO3 for CR dye by approximately 10 times. Despite the decreased particle size, surface area, and porosity of the perovskite upon surfactant capping, the CTAB-capped sample showed a superior adsorption ability with respect to the pure perovskite.
The calculated value of the Langmuir constant, b, was 0.0058 L·mg−1, and the Freundlich constants, Kf and n, were 0.99 and 1.09, respectively. The separation factor, RL, (dimensionless) can be calculated from the following equation [35]:
R L = 1 1 + b C o
The value of RL can indicate whether the adsorption was favored or not, where RL = 0 (irreversible), 1 > RL > 0 (favored adsorption), RL = 1 (linear), and RL > 1 (unfavorable). The calculated RL value was 0.63, which indicated the favorable adsorption of CR dye on the CTAB-capped La0.9Sr0.1FeO3 perovskite.

2.2.4. The Adsorption Mechanism

The proposed adsorption mechanism involved three steps: (1) the electrostatic attractions between the positively charged CTAB heads and the negatively charged perovskite surface, forming a monolayer of CTAB-capped perovskite with tails pointed outwards. (2) Formation of a surfactant bilayer through tail–tail hydrophobic interactions, with positively charged heads pointed outwards. (3) Strong electrostatic attractions between positively charged heads and negatively charged CR dye [37], Scheme 1.
In addition, a comparison with other CTAB-capped sorbents for CR dye is presented in Table 1. It can be shown that CTAB-capped La0.9Sr0.1FeO3 perovskite exhibited a considerable high-sorption performance. Although it did not show the highest qm value among the CTAB-modified materials presented, the proposed sorbent maintained its high performance at all pH values and showed a rapid dye uptake.
The sorption performance of the proposed sorbent for CR dye in the presence of a real sample matrix, taken from factory wastewater in Cairo, Egypt, was investigated. The calculated qm value was 143.23 mg·g−1; therefore, CTAB-capped perovskite maintained its excellent performance despite the matrix interferences.

2.2.5. Temperature Effect

Figure 7A shows the dependence of the removal % of CTAB-capped La0.9Sr0.1FeO3 for CR on temperature. The removal % continued to increase with the temperature increase.
Standard enthalpy and entropy changes, ΔHo and ΔSo, therefore, can be calculated by constructing the transition-state plot, according to the transition-state equation [35,45,46,47,48]:
ln K = Δ S o R Δ H o R ( 1 T )
K = C A d C e
where K was the equilibrium constant, CAd and Ce were concentrations of adsorbed dye on the sorbent and non-adsorbed dye in solution, respectively.
The transition-state plot is shown in Figure 7B. Calculated values of ΔHo and ΔSo were 10.95 kJ·mol−1 and 54.12 J·mol−1·K−1, respectively. This indicated that the adsorption is exothermic and the disorder is increased by the adsorption of CR on the CTAB-capped perovskite surface.
The value of the standard Gibbs free energy change, ΔGo, can be calculated using the following equation:
Δ G o = Δ H o T Δ S o
The calculated ΔGo value, was −4.91 kJ·mol−1, i.e., a spontaneous adsorption at room temperature.
The value of the activation energy, Ea, can be calculated from the slope of the Arrhenius plot, which is shown in Figure 7C. The value was found to be 47.84 kJ·mol−1, which indicated that the adsorption of CR on CTAB-capped La0.9Sr0.1FeO3 perovskite is a chemisorption—it involved an electrostatic attraction between the positively charged sorbent and the negatively charged dye [26].

2.2.6. The Sorption Performance by Repeated Use and its Regeneration

CTAB-capped La0.9Sr0.1FeO3 perovskite was used for several cycles to examine its sorption ability with repeated use. Figure 8 shows the change of the removal % for CR dye with the number of use cycles, indicated by the black columns. The removal % is decreased from 98.8 to 83.5% after the 5th cycle, indicating a removal efficiency decrease by about 15.5% after five operating cycles. This reflected an acceptable performance of CTAB-capped La0.9Sr0.1FeO3 sorbent.
A possible sorbent regeneration can be performed by stirring the used sorbent in 1 mmol L−1 of aqueous surfactant solution for 1 h, before each use. The change of the removal % with the number of use cycles for the regenerated sorbent, is shown by the gray columns in Figure 8. It can be shown that the regenerated sorbent maintained its excellent performance even after five cycles of use, as indicated by the unchanged removal % values.

3. Materials and Method

3.1. Materials

La(NO3)3·6H2O (99.9%), Fe(NO3)3·9H2O (99.9%), Sr(NO3)2 (99.9%), and C6H8O7 (99%), NH4OH (33%), HNO3 (65%), and CTAB (99%) were purchased from Sigma Aldrich. CR dye, C32H22N6Na2O6S2 (Brixworth, Northants, United Kingdom). All chemicals were used as-received.

3.2. Microwave-assisted Citrate Combustion Synthesis of La0.9Sr0.1FeO3 Perovskite

La(NO3)3·6H2O, Sr(NO3)2, and Fe(NO3)3·9H2O were mixed in a molar ratio of 0.9:0.1:1.0, and dissolved in distilled water. Citric acid was added to the metal ion solution, the pH value of which was previously adjusted to 8, at the same ratio to that of the total metal ions. The mixture was heated until combustion occurred in a microwave oven (700 watt for 30 min.). The resultant black powder was calcined at 900 °C for 3 h [26]. CTAB capping was performed by immersing the final calcined powder in 1 mmol L−1 of aqueous CTAB solution for 1 h with stirring.

3.3. Adsorption Test

A quantity of 0.05 g CTAB-capped perovskite/25 mL dye solution was shaken at 150 rpm for 1 d at an ambient temperature. The solution was then centrifuged at 3500 rpm for 1h. The concentration of the remaining, non-adsorbed dye was calculated by measuring the absorbance of clear solution by the UV-Vis spectrometer (Evolution 300, United Kingdom) at λMax of 466 nm.
The removal % of the CR dye can be estimated according to the following equation [44,45,46,47,48]:
Removal   % = C o C e C o × 100
The adsorbed CR amount, at the equilibrium, qe (mg g−1), was calculated from the following:
q e = ( C o C e ) V W
where Co and Ce were the initial and equilibrium concentrations of the dye (mg L−1), V was the solution volume (L) and W was the sorbent mass (g).
Uncertainties of adsorption experiment parameters were listed in Table S1.

3.4. Characterization Instruments

X-ray diffractograms were used for the phase identification (XRD-7000, Shimadzu), at 40 kV and 30 mA, using a CuKα incident beam (λ = 0.154 nm). FTIR spectroscopy was used for identification of characteristic functional groups, (IRAffinity-1S, Shimadzu).
Scanning electron microscopy was used to examine the surface morphology (Superscan SS-550, Shimadzu), with an accelerating voltage = 25 kV.
Micromeritics ASAP 2020 was used to evaluate Brunauer–Emmet–Teller (BET) surface area values, with N2 adsorption isotherms at −196 °C at a relative pressure (P/Po) of 0.2.

4. Conclusions

La0.9Sr0.1FeO3 can be successively capped with a cationic surfactant CTAB. The capping did not alter the perovskite chemical structure but resulted in a larger particle size with decreased porosity and BET surface area. CTAB-capped La0.9Sr0.1FeO3 can be used as an excellent sorbent for anionic CR dye, due to the formation of an oppositely charged dye–CTAB complex. The proposed sorbent has many advantages over reported CTAB-capped sorbents; it maintained its high performance at any pH value, showed fast dye uptake, and the removal % was high—approximately 97% at the start of the adsorption. The adsorption followed the Freundlich isotherm, which indicated a monolayer chemical adsorption of CR dye on heterogeneous CTAB-capped perovskite sites. The calculated qm value was 151.52 mg·g−1, which was 10 times higher than that of the pure perovskite. The calculated Ea value was 47.84 kJ·mol−1, reflecting a chemical surface reaction. CTAB-capped La0.9Sr0.1FeO3 also showed an unaffected performance in the presence of the sample matrix, qm = 143.23 mg·g−1, which highly recommended it for applications in the field. It can be easily regenerated with unchanged removal ability, thus, offering an economic benefit.

Supplementary Materials

The following are available online, Table S1: Uncertainties of adsorption experiment parameters.

Author Contributions

S.M.A. designed, performed the experiments, and analyzed the data; S.M.A. and A.A.E. contributed reagents/materials/analysis tools; S.M.A. wrote the paper; S.M.A. and A.A.E. revised and approved submitted paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declared that they have no conflict of interest.

References

  1. Knepper, T.P.; Berna, J.L. Chapter 1 Surfactants: Properties, production, and environmental Aspects. Compr. Anal. Chem. 2003, 40, 1–49. [Google Scholar]
  2. Heinz, H.; Pramanik, C.; Heinz, O.; Ding, Y.; Mishra, R.K.; Marchon, D.; Flatt, R.J.; Estrela-Lopis, I.; Llop, J.; Moya, S.; et al. Nanoparticle decoration with surfactants: Molecular interactions, assembly, and applications. Surf. Sci. Rep. 2017, 72, 1–58. [Google Scholar] [CrossRef]
  3. Emran, K.M.; Ali, S.M.; Al-Oufi, A.L.L. Synthesis and characterization of nano-conducting copolymer composites: Efficient sorbents for organic pollutants. Molecules 2017, 22, 772. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Bakshi, M.S. How Surfactants Control Crystal Growth of Nanomaterials. Cryst. Growth. Des. 2016, 162, 1104–1133. [Google Scholar] [CrossRef]
  5. Kim, D.K.; Zhang, Y.; Voit, W.; Rao, K.V.; Muhammed, M. Synthesis and characterization of surfactant-coated superparamagnetic monodispersed iron oxide nanoparticles. J. Magn. Magn. Mater. 2001, 225, 30–36. [Google Scholar] [CrossRef]
  6. Elfeky, S.A.; Mahmoud, S.E.; Youssef, A.F. Applications of CTAB modified magnetic nanoparticles for removal of chromium (VI) from contaminated water. J. Adv. Res. 2017, 8, 435–443. [Google Scholar] [CrossRef] [PubMed]
  7. Li, N.; Fu, F.; Lu, J.; Ding, Z.; Tang, B.; Pang, J. Facile preparation of magnetic mesoporous MnFe2O4@SiO2−CTAB composites for Cr(VI) adsorption and reduction. Environ. Pollut. 2017, 220, 1376–1385. [Google Scholar] [CrossRef]
  8. Zhao, B.; Xiao, W.; Shang, Y.; Zhu, H.; Han, R. Adsorption of light green anionic dye using cationic surfactant-modified peanut husk in batch mode. Arab. J. Chem. 2017, 10, S3595–S3602. [Google Scholar] [CrossRef]
  9. Malik, M.A.; Hashim, M.A.; Nabi, F.; AL-Thabaiti, S.A.; Khan, Z. Anti-corrosion ability of surfactants: A review. Int. J. Electrochem. Sci. 2011, 6, 1927–1948. [Google Scholar]
  10. Sliem, M.H.; Afifi, M.; Radwan, A.B.; Fayyad, E.M.; Shibl, M.F.; Heakal, F.E.T.; Abdullah, A.M. AEO7 Surfactant as an Eco-Friendly Corrosion Inhibitor for Carbon Steel in HCl solution. Sci Rep. 2019, 9, 2319. [Google Scholar] [CrossRef] [Green Version]
  11. Migahed, M.A.; Al-Sabagh, A.M. Beneficial role of surfactants as corrosion inhibitors in petroleum industry. Chem. Eng. Commun. 2009, 196, 1054–1075. [Google Scholar] [CrossRef]
  12. Zahid, A.; Lashin, A.; Rana, U.A.; Al-Arifi, N.; Ullah, I.; Dionysiou, D.D.; Qureshi, R.; Waseem, A.; Kraatz, H.B.; Shah, A. Development of surfactant based electrochemical sensor for the trace level detection of mercury. Electrochim. Acta. 2016, 190, 1007–1014. [Google Scholar] [CrossRef]
  13. Manjunatha, J.G. Surfactant modified carbon nanotube paste electrode for the sensitive determination of mitoxantrone anticancer drug. J. Electrochem. Sci. Eng. 2017, 7, 39–49. [Google Scholar] [CrossRef] [Green Version]
  14. Zhu, L.; Cao, Y.; Cao, G. Electrochemical sensor based on magnetic molecularly imprinted nanoparticles at surfactant modified magnetic electrode for determination of bisphenol A. Biosens. Bioelectron. 2014, 54, 258–261. [Google Scholar] [CrossRef] [PubMed]
  15. Khan, A.F.; Brownson, D.A.C.; Foster, C.W.; Smith, G.C.; Banks, C.E. Surfactant exfoliated 2D hexagonal Boron Nitride (2D-hBN) explored as a potential electrochemical sensor for dopamine: Surfactants significantly influence sensor capabilities. Analyst 2017, 142, 1756–1764. [Google Scholar] [CrossRef] [Green Version]
  16. Almora-Barrios, N.; Vilé, G.; Garcia-Ratés, M.; Pérez-Ramírez, J.; López, N. Electrochemical Effects at Surfactant–Platinum Nanoparticle Interfaces Boost Catalytic Performance. ChemCatChem 2017, 9, 604–609. [Google Scholar] [CrossRef] [Green Version]
  17. Wang, Z.; Liu, P.; Han, J.; Cheng, C.; Ning, S.; Hirata, A.; Fujita, T.; Cen, M. Engineering the internal surfaces of three-dimensional nanoporous catalysts by surfactant-modified dealloying. Nat. Commun. 2017, 8, 1066. [Google Scholar] [CrossRef]
  18. Ma, C.; Chen, Y.; Chen, J. Surfactant-assisted preparation of FeCu catalyst for Fischer-Tropsch synthesis. J. Braz. Chem. Soc. 2015, 26, 1520–1526. [Google Scholar] [CrossRef]
  19. Hu, N.; Rusling, J.F. Surfactant-Intercalated Clay Films for Electrochemical Catalysis. Reduction of Trichloroacetic Acid. Anal. Chem. 1991, 63, 2163–2168. [Google Scholar] [CrossRef]
  20. Rusling, J.F. Controlling Electrochemical Catalysis with Surfactant Microstructures. Acc. Chem. Res. 1991, 24, 75–81. [Google Scholar] [CrossRef]
  21. Assirey, E.A. Perovskite synthesis, properties and their related biochemical and industrial application. Saudi Pharm. J. 2019, 27, 817–829. [Google Scholar] [CrossRef]
  22. Kulkarni, S.A.; Mhaisalkar, S.G.; Mathews, N.; Boix, P.P. Perovskite Nanoparticles: Synthesis, Properties, and Novel Applications in Photovoltaics and LEDs. Small Methods 2019, 3, 1800231. [Google Scholar] [CrossRef] [Green Version]
  23. Atta, N.F.; Galal, A.; Ali, S.M. The effect of the lanthanide ion-type in LnFeO3 on the Catalytic activity for the Hydrogen evolution in acidic medium. Int. J. Electrochem. Sci. 2014, 9, 2132–2148. [Google Scholar]
  24. Ali, S.M.; Abdel Al-Rahman, Y.M.; Galal, A. Catalytic activity toward oxygen evolution of LaFeO3 prepared by the microwave assisted citrate method. J. Electrochem. Soc. 2012, 159, F600–F605. [Google Scholar] [CrossRef]
  25. Ali, S.M.; Abdel Al-Rahman, Y.M. Catalytic activity of LaBO3 for OER in HClO4 medium: An approach to the molecular orbital theory. J. Electrochem. Soc. 2016, 163, H81–H88. [Google Scholar] [CrossRef]
  26. Ali, S.M.; Al-Oufi, B. A Synergistic Sorption Capacity of La0.9Sr0.1FeO3 Perovskite for Organic Dyes by Cellulose Modification. Cellulose 2020, 27, 429–440. [Google Scholar] [CrossRef]
  27. Luu, M.D.; Dao, N.N.; Nguyen, D.V.; Pham, N.C.; Vu, T.N.; Doan, T.D. A new perovskite-type NdFeO3 adsorbent: Synthesis, characterization, and As(V) adsorption. Adv. Nat. Sci. Nanosci. Nanotechnol. 2016, 7, 025015–025027. [Google Scholar] [CrossRef]
  28. Tavakkoli, H.; Yazdanbakhsh, M. Fabrication of two perovskite-type oxide nanoparticles as the new adsorbents in efficient removal of a pesticide from aqueous solutions: Kinetic, thermodynamic, and adsorption studies. Microporous Mesoporous Mater. 2013, 176, 86–94. [Google Scholar] [CrossRef]
  29. Carmen, Z.; Daniel, S. Textile Organic Dyes Characteristics, Polluting Effects and Separation/Elimination Procedures from Industrial Effluents–A Critical Overview. In Organic Pollutants Ten Years after Stockholm Convention, Environmental and Analytical Update; InTech: Rijeka, Croatia, 2012. [Google Scholar]
  30. Srilakshmi, C. Microwave Synthesis of Perovskite Based High Surface Area SrTiO3 Nanoparticles: Application for Adsorption of Congo Red Dye in Water. Nano. Lett. 2018, 2, 10–15. [Google Scholar]
  31. Bhagya, N.P.; Prashanth, P.A.; Raveendra, R.S.; Sathyanarayani, S.; Ananda, S.; Nagabhushana, B.M.; Nagabhushana, H. Adsorption of hazardous cationic dye onto the combustion derived SrTiO3 nanoparticles: Kinetic and isotherm studies. J. Asian Ceram. Soc. 2016, 4, 68–74. [Google Scholar] [CrossRef] [Green Version]
  32. Farhadi, S.; Mahmoudi, F.; Amini, M.M.; Dusek, M.; Jarosova, M. Synthesis and characterization of a series of novel perovskite-type LaMnO3/Keggin-type polyoxometalate hybrid nanomaterials for fast and selective removal of cationic dyes from aqueous solutions. Dalt. Trans. 2017, 46, 3252–3264. [Google Scholar] [CrossRef] [PubMed]
  33. Tavakkoli, H.; Beiknejad, D.; Tabari, T. Fabrication of perovskite-type oxide La0.5Ca0.5CoO3−δ nanoparticles and its Dye removal performance. Desalin. Water Treat. 2014, 4, 116–125. [Google Scholar]
  34. Yazdanbakhsh, M.; Tavakkoli, H.; Hosseini, S.M. Characterization and evaluation catalytic efficiency of La0.5Ca0.5NiO3 nanopowders in removal of reactive blue 5 from aqueous solution. Desalination 2011, 281, 388–395. [Google Scholar] [CrossRef]
  35. Shadeera, R.; Nagapadma, M.; Ramakoteswara, R. Removal of Harmful Textile Dye Congo Red from Aqueous Solution Using Chitosan and Chitosan Beads Modified with CTAB. J. Eng. Res. Appl. 2015, 5, 75–82. [Google Scholar]
  36. Chatterjee, S.; Lee, D.S.; Lee, M.W.; Woo, S.H. Enhanced adsorption of congo red from aqueous solutions by chitosan hydrogel beads impregnated with cetyl trimethyl ammonium bromide. Bioresour. Technol. 2009, 100, 2803–2809. [Google Scholar] [CrossRef]
  37. Foroughi-Dahr, M.; Abolghasemi, H.; Esmaieli, M.; Nazari, G.; Rasem, B. Experimental study on the adsorptive behavior of Congo red in cationic surfactant-modified tea waste. Process Saf. Environ. Prot. 2015, 95, 226–236. [Google Scholar] [CrossRef]
  38. Xia, C.; Jing, Y.; Jia, Y.; Yue, D.; Ma, J.; Yin, X. Adsorption properties of congo red from aqueous solution on modified hectorite: Kinetic and thermodynamic studies. Desalination 2011, 265, 81–87. [Google Scholar] [CrossRef]
  39. Zenasni, M.A.; Meroufel, B.; Merlin, A.; George, B. Adsorption of Congo Red from Aqueous Solution Using CTAB-Kaolin from Bechar Algeria. J. Surf. Eng. Mater. Adv. Technol. 2014, 4, 332–341. [Google Scholar] [CrossRef] [Green Version]
  40. Youssef, A.M.; Al-Awadhi, M.M. Adsorption of Acid Dyes onto Bentonite and Surfactant-modified Bentonite. J. Anal. Bioanal. Tech. 2013, 4, 1–7. [Google Scholar] [CrossRef]
  41. Su, J.; He, S.; Zhao, Z.; Liu, X.; Li, H. Efficient preparation of cetyltrimethylammonium bromide-graphene oxide composite and its adsorption of Congo red from aqueous solutions. Colloids Surfaces A Physicochem. Eng. Asp. 2018, 554, 227–236. [Google Scholar] [CrossRef]
  42. Muniz, F.T.L.; Miranda, M.A.R.; Santos, C.M.D.; Sasaki, J.M. The Scherrer equation and the dynamical theory of X-ray diffraction. Acta Crystallogr. Sect. A Found. Adv. A 2016, 72, 385–390. [Google Scholar] [CrossRef] [PubMed]
  43. Su, G.; Yang, C.; Zhu, J.J. Fabrication of gold nanorods with tunable longitudinal surface plasmon resonance peaks by reductive dopamine. Langmuir 2015, 31, 817–823. [Google Scholar] [CrossRef] [PubMed]
  44. Bielska, M.; Sobczyńska, A.; Prochaska, K. Dye-surfactant interaction in aqueous solutions. Dye Pigments 2009, 80, 201–205. [Google Scholar] [CrossRef]
  45. Ahmed, M.A.; Ali, S.M.; El-Dek, S.I.; Galal, A. Magnetite-hematite nanoparticles prepared by green methods for heavy metal ions removal from water. Mater. Sci. Eng. B Solid-State Mater. Adv. Technol. 2013, 178, 741–755. [Google Scholar] [CrossRef]
  46. Ali, S.M.; Emran, K.M.; Al-Oufi, A.L.L. Adsorption of organic pollutants by nano-conducting polymers composites: Effect of the supporting nano-oxide type. J. Mol. Liq. 2017, 233, 89–99. [Google Scholar] [CrossRef]
  47. Ali, S.M.; Galal, A.; Atta, N.F.; Shammakh, Y. Toxic heavy metal ions removal from wastewater by nano-magnetite: Case study nile river water. Egypt J. Chem. 2017, 60, 601–612. [Google Scholar] [CrossRef] [Green Version]
  48. Ali, S.M. Fabrication of a nanocomposite from an agricultural waste and its application as a biosorbent for organic pollutants. Int. J. Environ. Sci. Technol. 2018, 15, 1169–1178. [Google Scholar] [CrossRef]
  49. Hubbe, M.A.; Azizian, S.; Douven, S. Implications of apparent pseudo-second-order adsorption kinetics onto cellulosic materials: A review. BioResources 2019, 14, 7582–7626. [Google Scholar]
Sample Availability: Samples of the compounds, pure and CTAB-capped La0.9Sr0.1FeO3 perovskites are available from the authors.

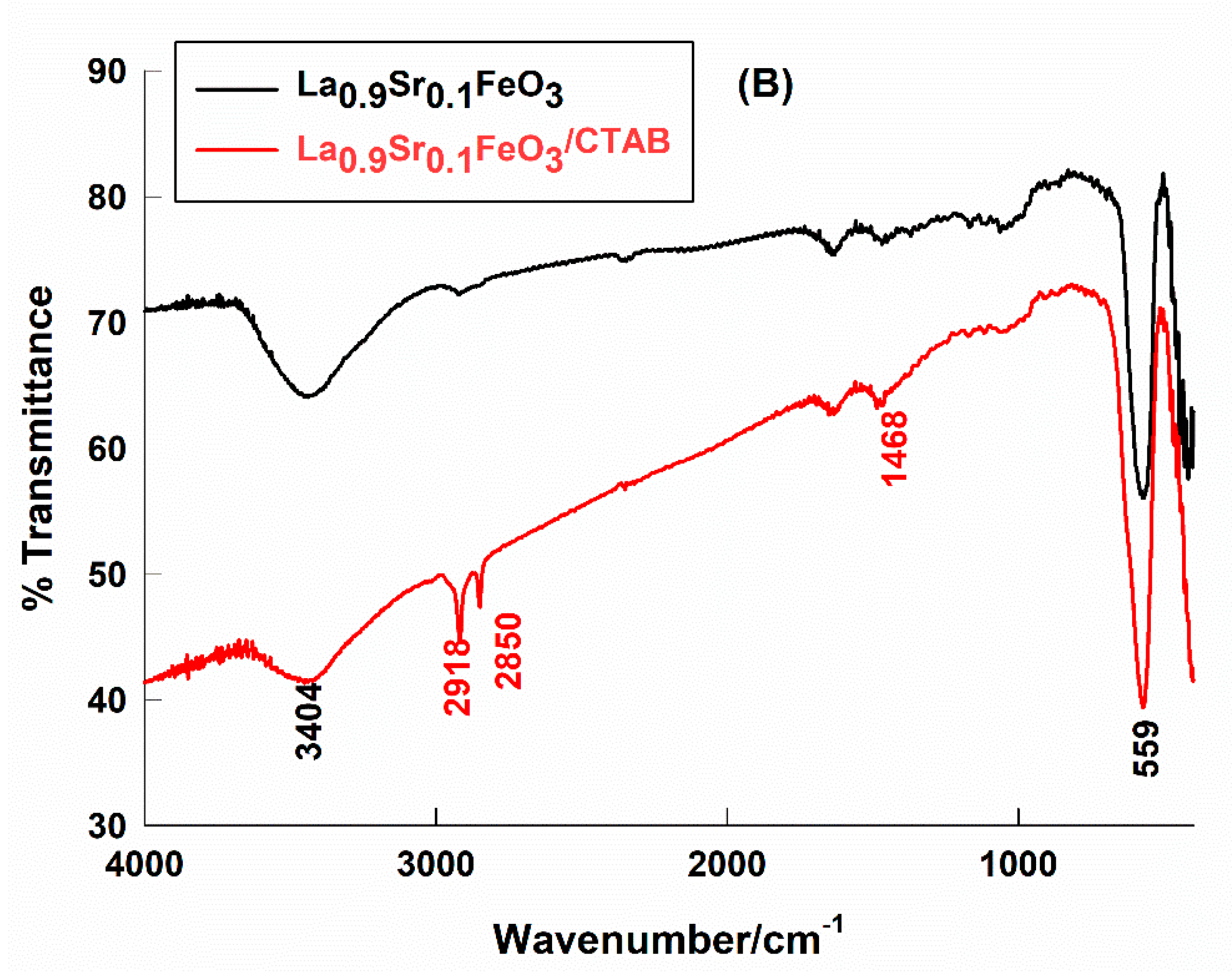

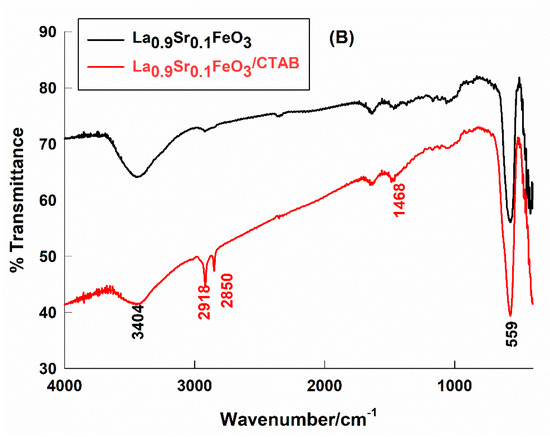

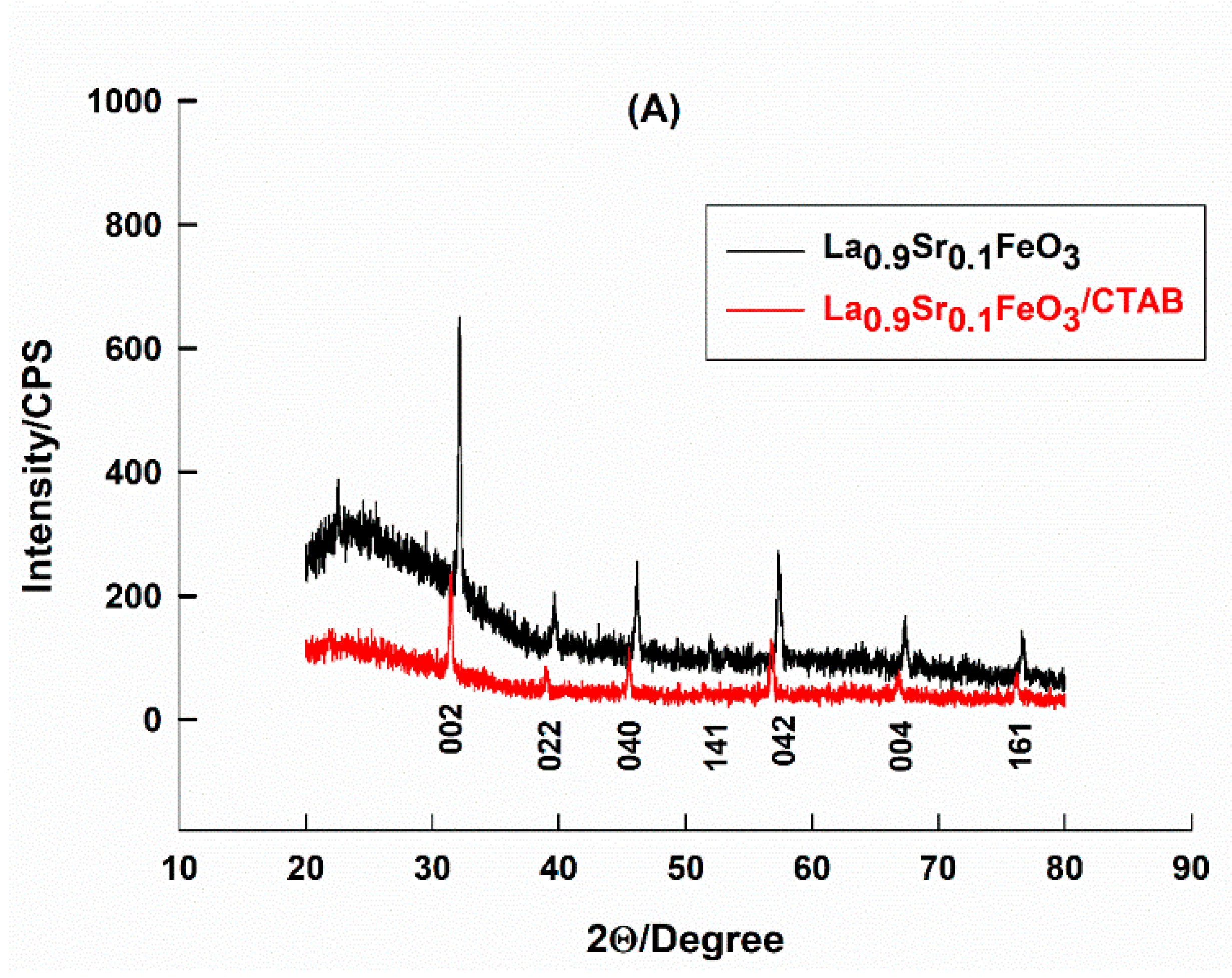

Figure 1. XRD patterns (A) and FTIR spectra (B) of pure and CTAB-capped La0.9Sr0.1FeO3. Corresponding Miller indices and wavenumbers are indicated.
Figure 1. XRD patterns (A) and FTIR spectra (B) of pure and CTAB-capped La0.9Sr0.1FeO3. Corresponding Miller indices and wavenumbers are indicated.
Molecules 25 01640 g001aMolecules 25 01640 g001b
Figure 2. SEM images of pure (A), and CTAB-capped La0.9Sr0.1FeO3 (B), with 30,000 times magnification.
Figure 2. SEM images of pure (A), and CTAB-capped La0.9Sr0.1FeO3 (B), with 30,000 times magnification.
Molecules 25 01640 g002
Figure 3. Visible absorption spectra of remaining CR dye in solutions by using (A) pure, and (B) CTAB-capped La0.9Sr0.1FeO3 sorbents at pH = 6, the dye concentration = 10 ppm, contact time = 24 h, at 25 °C.
Figure 3. Visible absorption spectra of remaining CR dye in solutions by using (A) pure, and (B) CTAB-capped La0.9Sr0.1FeO3 sorbents at pH = 6, the dye concentration = 10 ppm, contact time = 24 h, at 25 °C.
Molecules 25 01640 g003

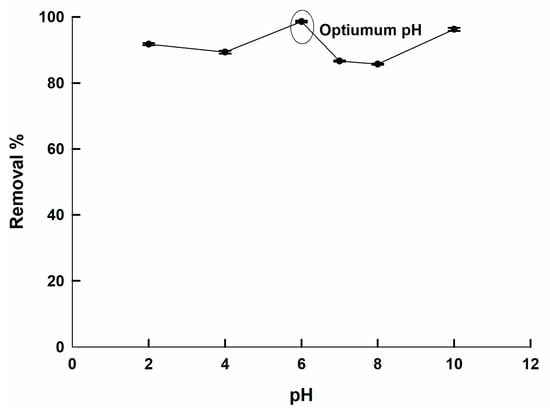

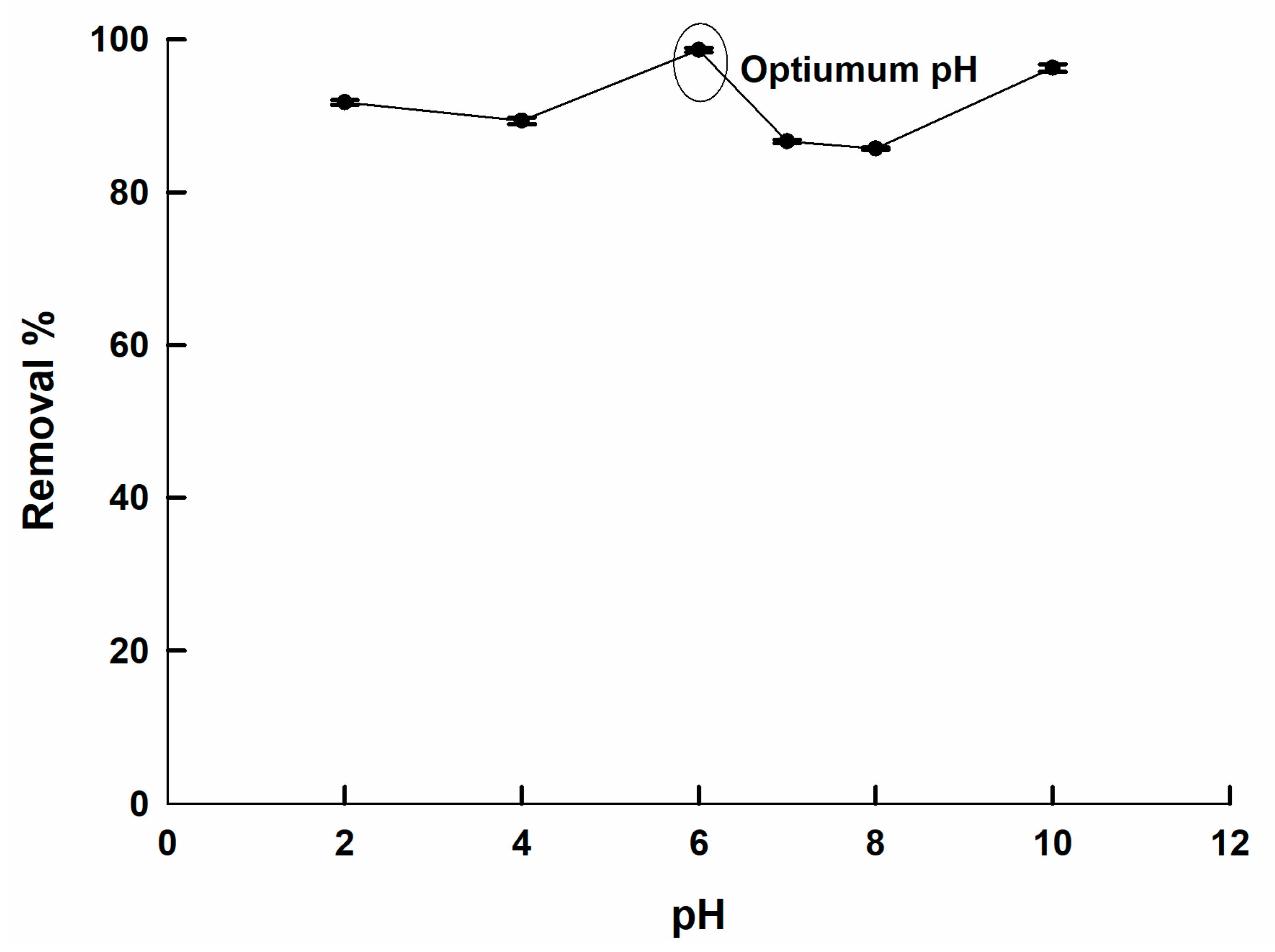

Figure 4. The relation between the CR removal % of by CTAB-capped La0.9Sr0.1FeO3 and the solution pH, the dye concentration = 30 ppm, contact time = 24 h, at 25 °C.
Figure 4. The relation between the CR removal % of by CTAB-capped La0.9Sr0.1FeO3 and the solution pH, the dye concentration = 30 ppm, contact time = 24 h, at 25 °C.
Molecules 25 01640 g004

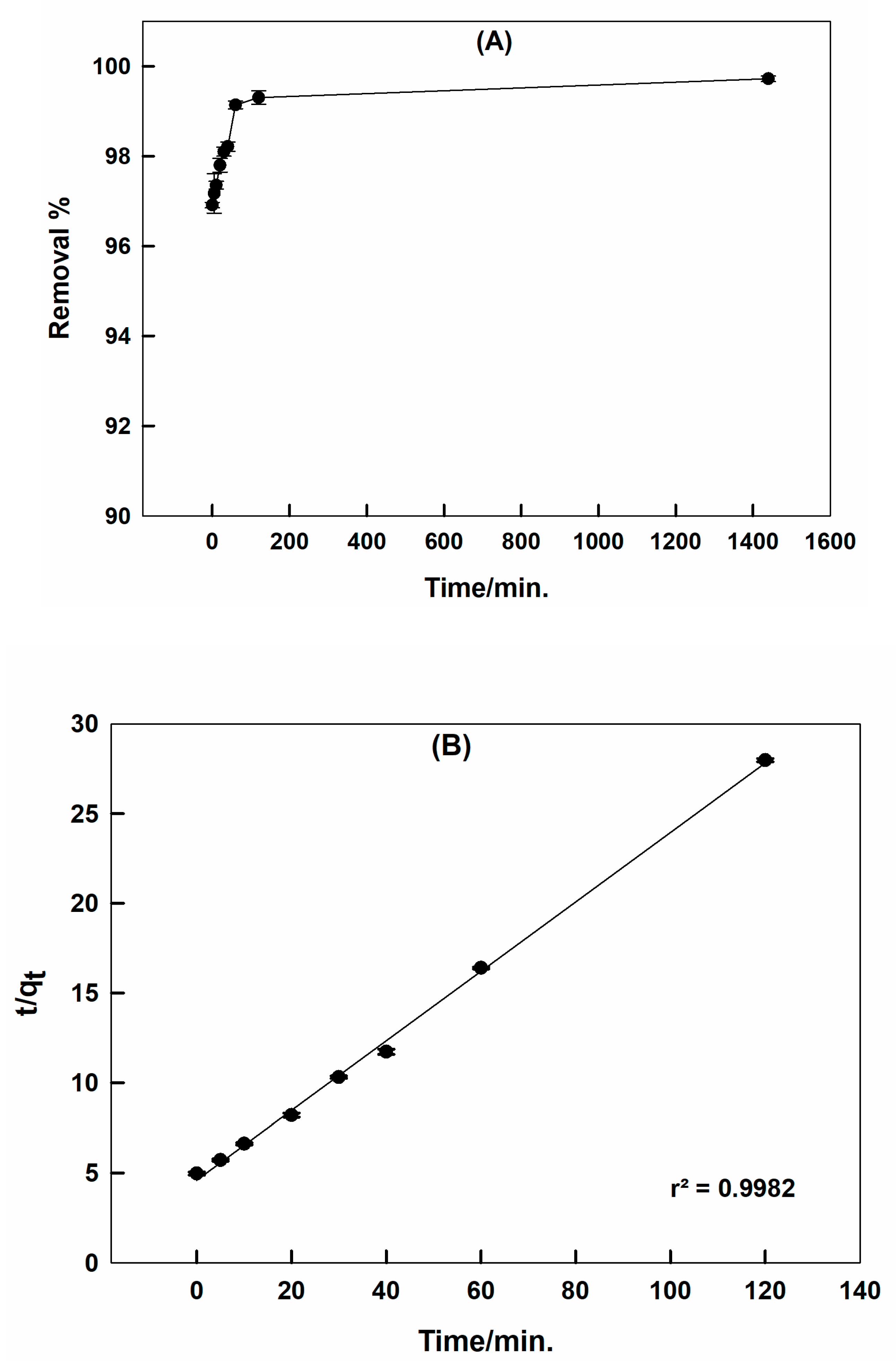

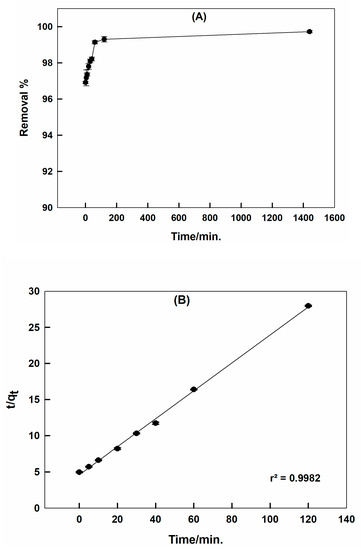

Figure 5. The relation between the CR removal % by CTAB-capped La0.9Sr0.1FeO3 and the contact time; pH = 6, the dye concentration = 30 ppm, at 25 °C (A), and pseudo 2nd order model (B).
Figure 5. The relation between the CR removal % by CTAB-capped La0.9Sr0.1FeO3 and the contact time; pH = 6, the dye concentration = 30 ppm, at 25 °C (A), and pseudo 2nd order model (B).
Molecules 25 01640 g005

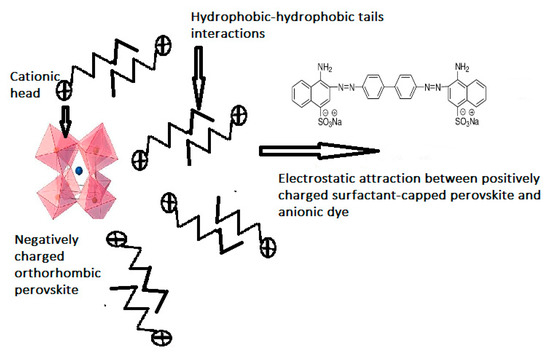

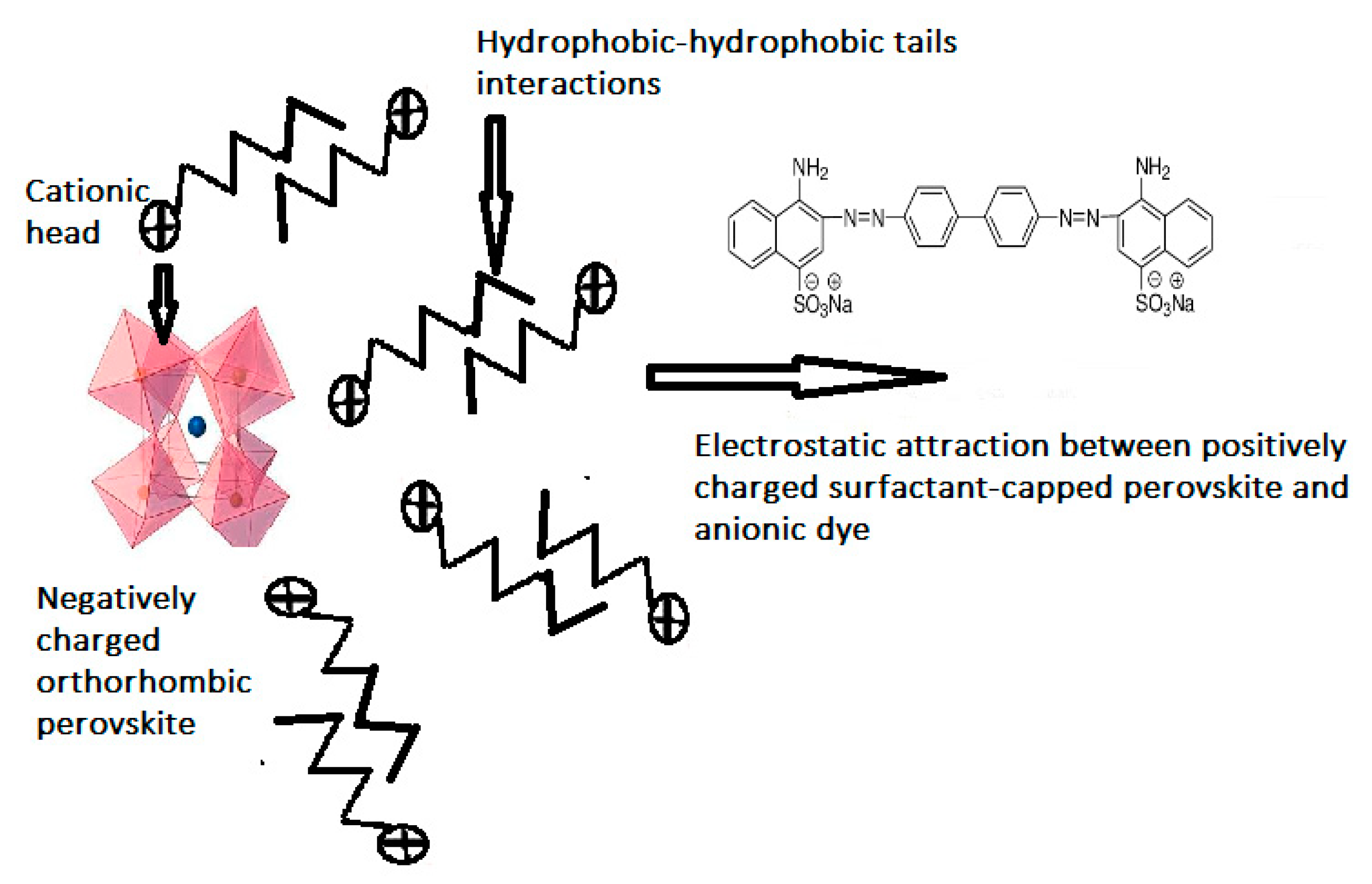

Scheme 1. Represented CR Adsorption mechanism by CTAB-capped La0.9Sr0.1FeO3.
Scheme 1. Represented CR Adsorption mechanism by CTAB-capped La0.9Sr0.1FeO3.
Molecules 25 01640 sch001

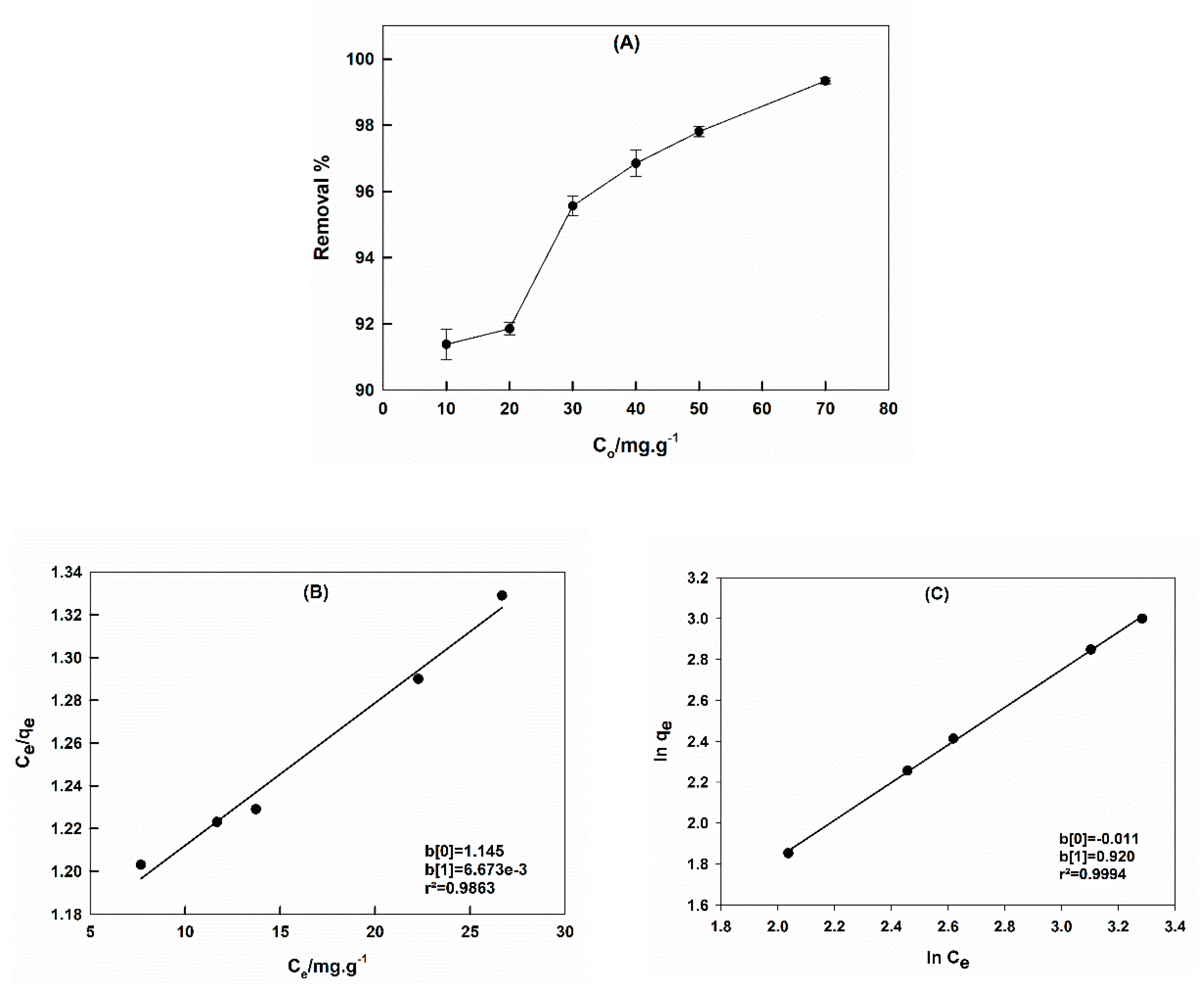

Figure 6. The relation between the CR removal by CTAB-capped La0.9Sr0.1FeO3 and the initial CR concentration; pH = 6, contact time = 1 h, at 25 °C (A). Langmuir (B) and (C) Freundlich isotherms.
Figure 6. The relation between the CR removal by CTAB-capped La0.9Sr0.1FeO3 and the initial CR concentration; pH = 6, contact time = 1 h, at 25 °C (A). Langmuir (B) and (C) Freundlich isotherms.
Molecules 25 01640 g006

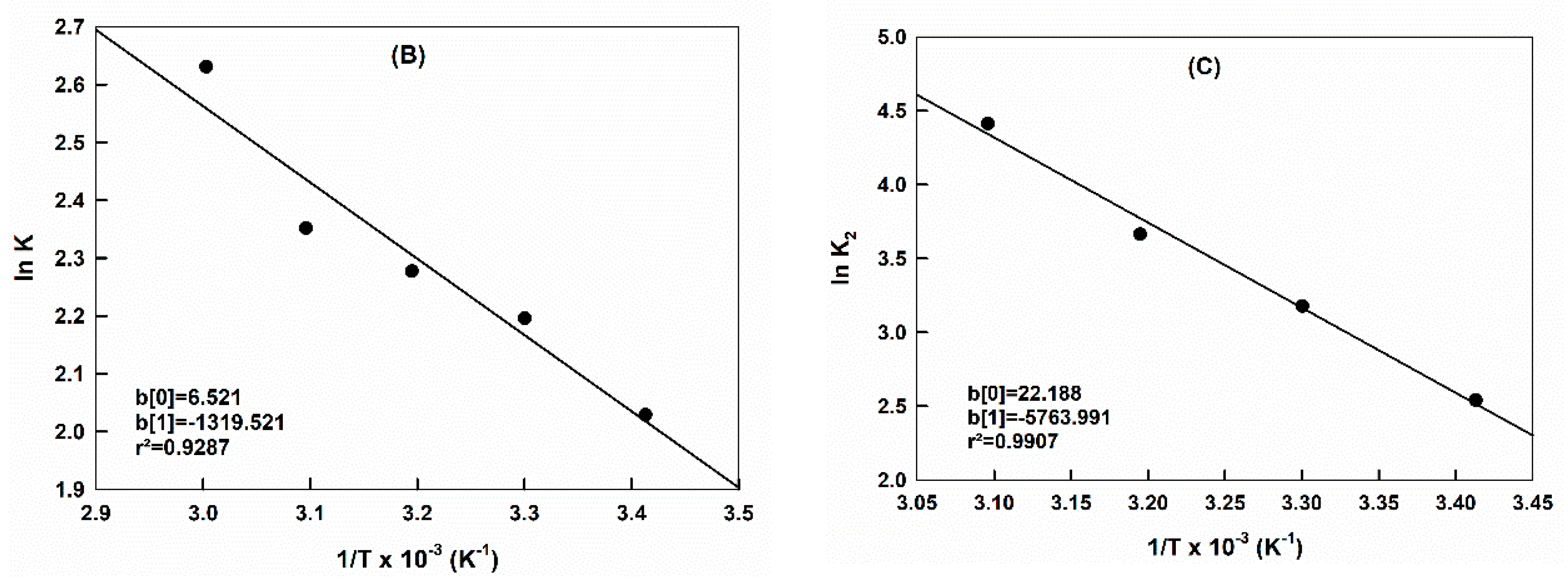

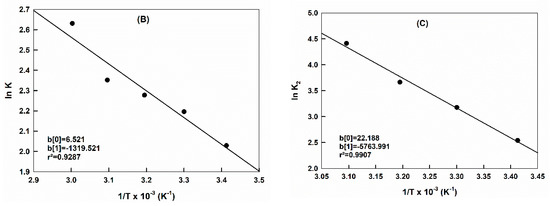

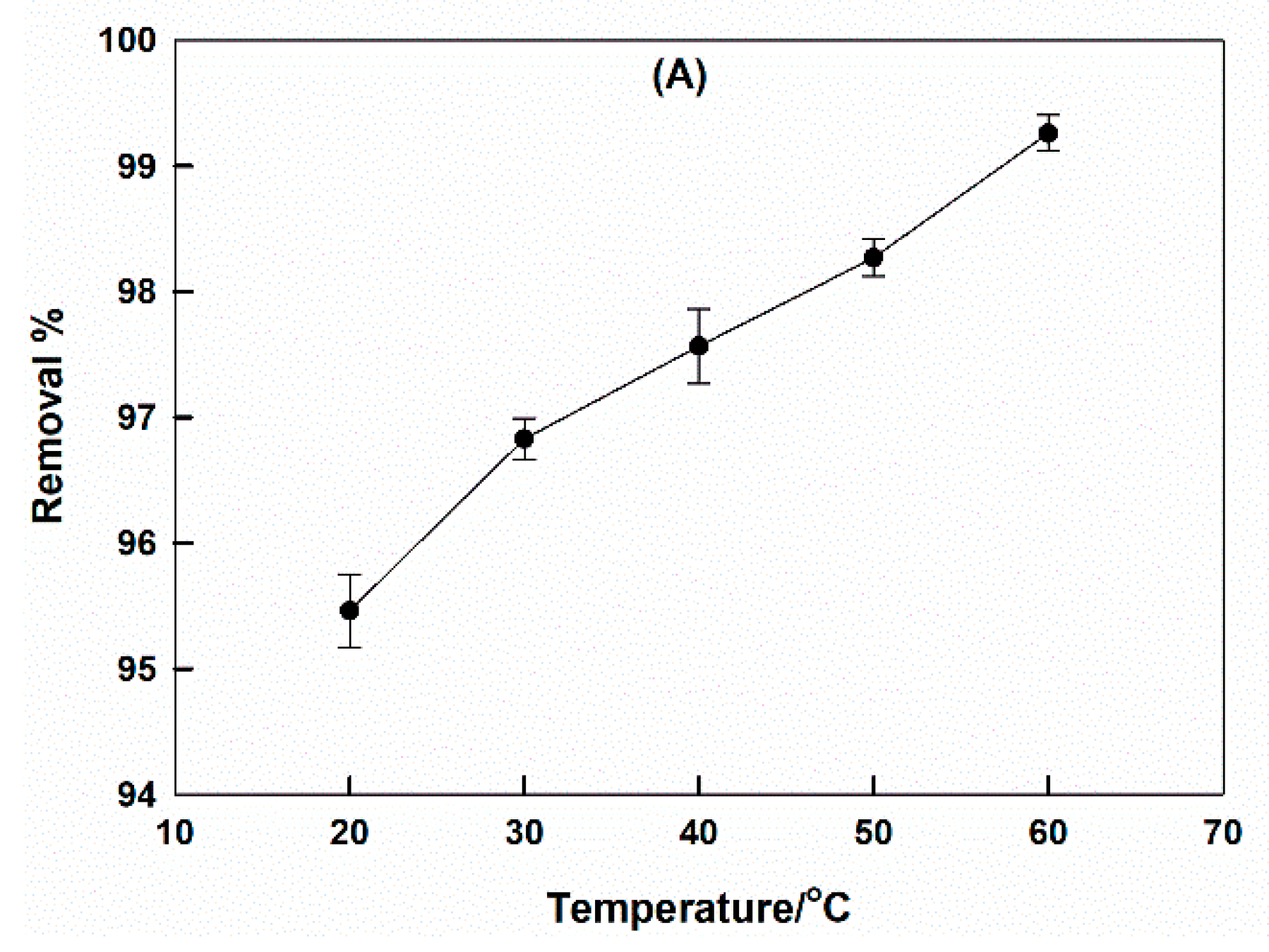

Figure 7. The relation between CR removal by CTAB-capped La0.9Sr0.1FeO3 with temperature; pH = 6, the dye concentration = 30 ppm, contact time = 1 h (A), transition-state (B), and Arrhenius (C) plots.
Figure 7. The relation between CR removal by CTAB-capped La0.9Sr0.1FeO3 with temperature; pH = 6, the dye concentration = 30 ppm, contact time = 1 h (A), transition-state (B), and Arrhenius (C) plots.
Molecules 25 01640 g007aMolecules 25 01640 g007b

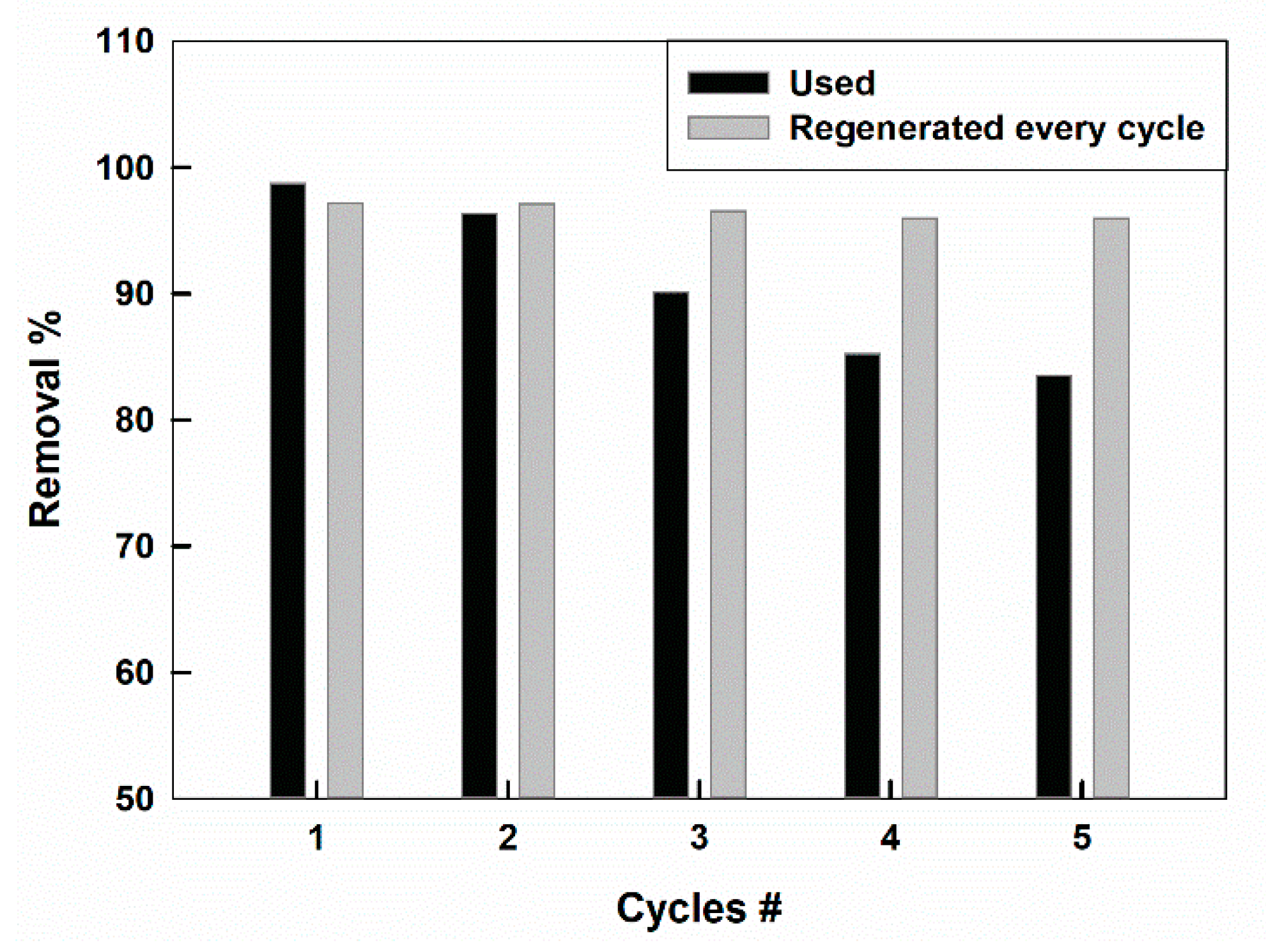

Figure 8. The removal % of (black) used and (gray) regenerated CTAB-capped La0.9Sr0.1FeO3 as a function of the number of use cycles.
Figure 8. The removal % of (black) used and (gray) regenerated CTAB-capped La0.9Sr0.1FeO3 as a function of the number of use cycles.
Molecules 25 01640 g008
Table 1. A comparison of the sorption performance of CTAB-capped La0.9Sr0.1FeO3 with reported CTAB-modified materials for the CR removal.
Table 1. A comparison of the sorption performance of CTAB-capped La0.9Sr0.1FeO3 with reported CTAB-modified materials for the CR removal.
Sorbentqm (mg·g−1)Optimum pH ConditionsEquilibrium Time/min.Reference
CTAB-chitosan beads94.4Acidic240[35]
CTAB-chitosan hydrogel beads433.1Acidic240[36]
CTAB-Tea waste106.4Independent30[37]
CTAB-Hectorite182.0Independent120[38]
CTAB-Kaolin24.5Alkaline10[39]
Bentonite-CTAB210.0Independent90[40]
graphene oxide-CTAB2767.0Acidic60[41]
CTAB-La0.9Sr0.1FeO3151.5IndependentLess than 5This work
