Synthesis and Facile Dearomatization of Highly Electrophilic Nitroisoxazolo[4,3-b]pyridines

Abstract

A number of novel 6-R-isoxazolo[4,3-b]pyridines were synthesized and their reactions with neutral C-nucleophiles (1,3-dicarbonyl compounds, π-excessive (het)arenes, dienes) were studied. The reaction rate was found to be dependent on the nature of the substituent 6-R. The most reactive 6-nitroisoxazolo[4,3-b]pyridines are able to add C-nucleophiles in the absence of a base under mild conditions. In addition, these compounds readily undergo [4+2]-cycloaddition reactions on aromatic bonds C=C(NO₂) of the pyridine ring, thus indicating the superelectrophilic nature of 6-NO₂-isoxazolo[4,3-b]pyridines.

1. Introduction

The nitro group is considered to be a versatile and unique functional group in organic chemistry. Synthetic and natural compounds containing nitro groups display great structural diversity [1,2], and they exhibit a wide range of biological activities [3] including antibiotic [1], antitumor [1,4], and anti-HIV activities [5,6,7]. In addition, nitroarenes are used as agrochemical preparations [8,9], energetic compounds [10] and in the production of innovative materials [11].

It is well known that the introduction of one or more nitro groups in aromatic or heteroaromatic nucleus increases the electron-deficient character of the molecule. Such compounds have been extensively studied in recent decades due to their interesting, sometimes exceptional, properties. Their high susceptibility to undergoing nucleophilic addition or substitution processes with very weak nucleophiles has raised considerable interest, leading to numerous synthetic, biological, and analytical applications [12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31].

Such compounds possess extremely high reactivity towards carbon and heteroatomic nucleophiles, therefore a special term, “superelectrophile”, was coined in order to distinguish them from other electrophilic aromatics [26,32]. Typical examples of such compounds are given below (Figure 1).

In addition, these compounds are capable to undergo [4+2]-cycloadditions to the C=C(NO₂) aromatic bond, behaving as electron-poor dienophiles with dienes, or as heterodienes with electron-rich dienophiles within normal or inverse electronic demands, respectively [16,33,34,35]. The above-mentioned interactions with nucleophiles or dienes resulted in dearomatization of the initial aromatic nitro compound. At the same time, dearomatization as a method of converting accessible, cheap, and simple aromatic compounds into more saturated, inaccessible and promising intermediates of greater molecular complexity is a very important approach in modern organic chemistry [36,37].

This work is part of our ongoing research on highly electrophilic systems and the application of the dearomatization strategy in the synthesis of new polyfunctional azaheterocycles [38,39,40,41,42,43,44,45,46,47,48]. We have previously shown that nitropyridines fused with π-deficient heterocycles (furoxan A, selenadiazole B), Scheme 1, react with neutral nucleophiles with the formation of 1,4-addition products—dihydropyridine derivatives [45,46,48].

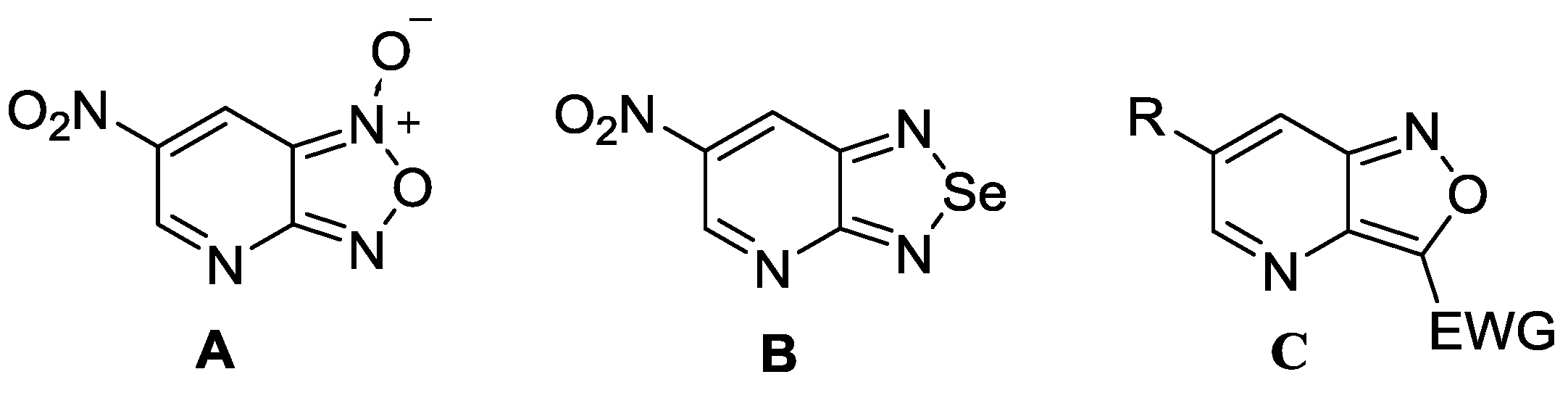

Another possible condensed pyridines structurally close to heterocyclic systems A and B and presumably having a similar electron-deficient character are isoxazolo[4,3-b]pyridines C, Figure 2. The present work is devoted to the synthesis of pyridine derivatives condensed with an isoxazole ring and study of their interaction with various neutral C-nucleophiles as well as their behavior in [4+2]-cycloaddition reactions.

2. Results and Discussion

2.1. Synthesis of 6-R-Isoxazolo[4,3-b]pyridines 3a–j

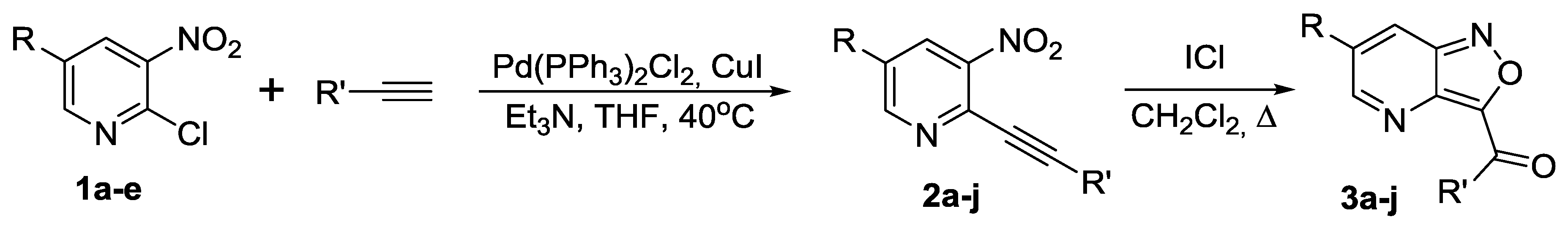

6-R-Isoxazolo[4,3-b]pyridines 3a–j were synthesized according to a two-steps procedure, previously described in the literature for 3j [49]. Commercially available 2-chloro-3-nitropyridines 1a–e used as starting compounds were involved in Sonogashira cross-coupling with terminal alkynes to give 2-alkynylpyridines 2a–j. In turn, the cycloisomerization of compounds 2a–j in the presence of catalytic amounts of iodine(I) chloride gave the desired 6-R-3-acylisoxazolo[4,3-b]pyridines 3a–j in good yields, Scheme 2,

Table 1. Isolated yields of compounds 2a–j and 3 a–j.

Compound 1	R	R′	Product 2, Yield (%)	Product 3, Yield (%)
1a	NO2	Ph	2a, 72	3a, 85
1a	NO2	4-Me-C6H4	2b, 63	3b, 87
1a	NO2	4-F-C6H4	2c, 61	3c, 72
1a	NO2	c-C3H5	2d, 84	3d, 74
1a	NO2	c-C5H9	2e, 82	3e, 71 *
1a	NO2	n-C5H11	2f, 35	3f, 80 *
1b	CO2Me	Ph	2g, 76	3g, 65
1c	CF3	Ph	2h, 42	3h, 73
1d	Cl	Ph	2i, 40	3i, 60
1e	H	Ph	2j, 82	3j, 80

* The yield is shown for the crude product.

.

In the case of compounds 2e and 2f, ¹H NMR spectroscopy showed that, along with the expected isoxazolo[4,3-b]pyridines, the formation of minor unidentified products (5–10%) occurred. All attempts to isolate target compounds in their pure forms failed, therefore compounds 3e,f were used without further purification. The structure of compounds 2 and 3 was established on the basis of NMR and HRMS data, and for compounds 2a, 2c, 3b it was additionally confirmed by X-Ray analysis.

2.2. X-ray of 2a, 2c, 3b

The crystals of 2a and 2c are isostructural with minor differences in the unit cell parameters. All bonds, bond angles and torsion angles are typical as confirmed by a Mogul geometry check [50]. The bond angles at the triple bond C2-C7-C8 (176.11(14) and 176.37(15)°) and C7-C8-C9 (174.20(14) and 171.90(16)° in 2a and 2c) deviate from the idealized value of 180° for linear conformation. The angles between the average planes of nitro groups and pyridine group are within the range 7.09(17)–12.44(14)°, despite the presence of the short intramolecular contact O1···C7 (2.6763(17) and 2.6580(18) Å in 2a and 2c). Pyridine and phenyl rings are nearly co-planar with interplane angles equal to 5.97(5) and 5.61(5)°. In crystal packing, a head-to-tail arrangement of the molecules is observed with π-stacking interaction between formally acceptor dinitro substituted pyridine ring and phenyl moieties (C···C from ca. 3.3 Å). All other intermolecular contacts are weak and non-directional.

The crystal of 3b is a first example of determined crystal structure containing isoxazolo[4,3-b]pyridine ring, Figure 3. The distribution of bond distances in the heterocycle (N1-O2 1.4109(18), O2-C3 1.3487(19), C3-C3A 1.378(2), N1-C7A 1.330(2), C3A-C7A 1.426(2) Å) is quite similar to the one found in a number of benzo[c]isoxazoles found in Cambridge Structural Database and confirms the canonical structure shown in Figure 3. Due to steric reasons, the heterocycle and tolyl substituents are non-coplanar with O2-C3-C8-C9 torsion angle equal to 48.4(2)°. In crystal molecules, infinite π-stacks (C···C from ca. 3.4 Å) of alternating molecules with head-to-tail arrangement of heterocycles and tolyl fragments are formed.

2.3. Nucleophilic Addition to 6-R-Isoxaxolo[4,3-b]pyridines

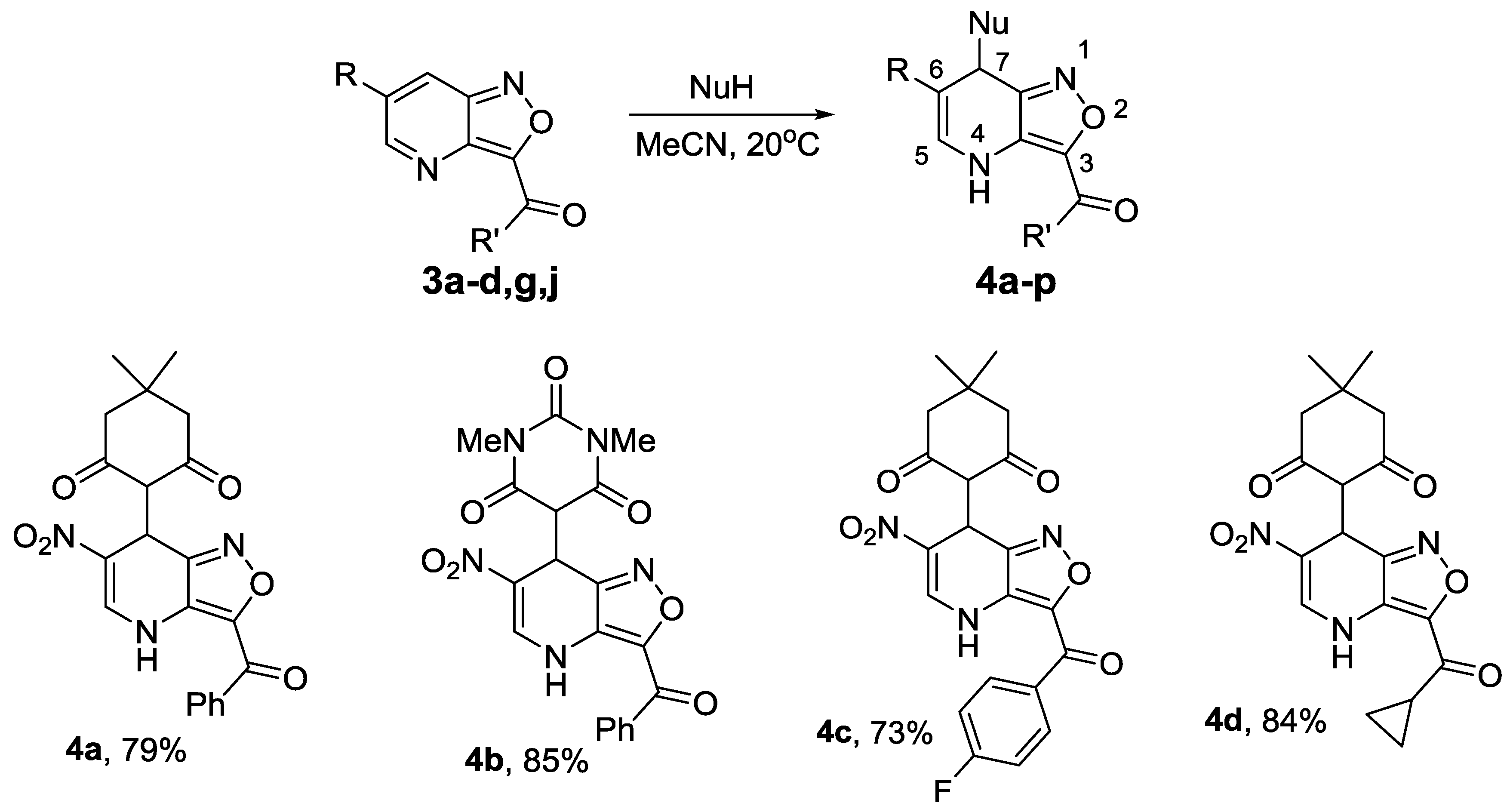

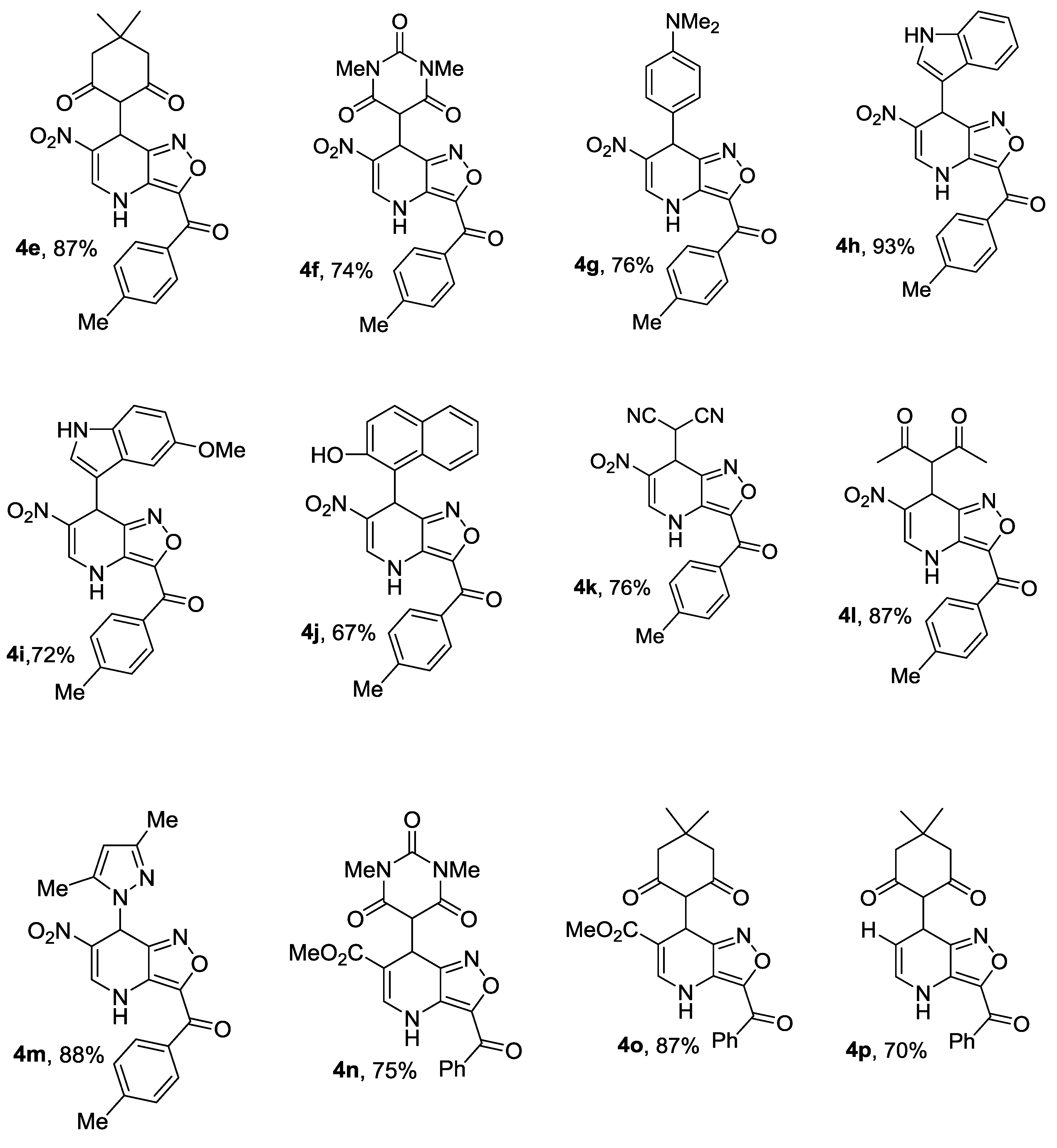

We studied the interaction of isoxazolo[4,3-b]pyridines 3 with neutral C-nucleophiles: CH acids and π-excessive (het)arenes. It was found that nitro derivatives 3a–d react with all ranges of used nucleophiles under mild conditions (MeCN, room temperature, base-free), forming 1,4-addition products, 4a–m, Scheme 3. As in the case of A [45], β-dicarbonyl compounds react with 3 in enolic form. The reaction rate was similar to that of superelectrophiles A and B [45,46] (Scheme 1), thus indicating the high electrophilicity of isoxazolo[4,3-b]pyridine system. Some of the reactions proceeded almost immediately after mixing the reagents, the others were completed within an hour.

The methoxycarbonyl derivative 3g forms adducts 4n,o with 1,3-dicarbonyl compounds somewhat slower: full conversion of starting material required 2–3 h without the addition of a base. 6-Unsubstituted isoxazolopyridine 3j gave the adduct 4p with most acidic dimedone after 4 h stirring, Scheme 3. Surprisingly, we were unable to isolate any adducts of isoxazolo[4,3-b]pyridines 3h and 3i containing electron-withdrawing Cl and CF₃ groups in position 6. The application of more drastic conditions (MeCN, 80 °C) was not effective; the starting compounds were recovered. The reason for the observed reactivity is not clear, however, we can conclude that the ability of 6-R-isoxazolo[4,3-b]pyridines to add neutral C-nucleophiles depends on the substituent 6-R and decreases in the following order

$${\mathrm{NO}}_2>{\mathrm{CO}}_2\mathrm{Me}>\mathrm{H}\gg \mathrm{Cl},{\mathrm{CF}}_3$$

The structures of compounds 4 were established on the basis of NMR spectroscopy and HRMS data. In ¹H NMR spectra of adducts 4, the signals corresponding to H(7) protons in the range of 5.0–5.5 ppm, as well as downfield signals of NH protons (9.8–10.4 ppm) and H(5) at 8.1 ppm, were observed as doublets with close coupling constants. This confirms the nucleophilic addition at position 7 and is consistent with the results obtained previously for other highly electrophilic azolopyridines [45,46,48].

2.4. 6-NO₂-Isoxazolo[4,3-b]pyridines in Diels-Alder Reactions

The ability to add weak (neutral) nucleophiles is one of the features inherent to superelectrophilic aromatic systems. However, increasing the electrophilicity leads to a decrease in aromaticity. Therefore, (hetero)aromatic superelectrophiles are prone to undergo [4+2]-cycloaddition with dienes or nucleophilic dienophiles [16,26,32,33,34,35].

We found that only 6-NO₂-isoxazolo[4,3-b]pyridines 3a–f are able to give cycloaddition products in Diels-Alder reactions with 2,3-dimethyl-1,3-butadiene while compounds 3g–j with other substituents at position 6 were unreactive. This once again highlights the originality of the nitro group among other electron-withdrawing functional groups and its impact on the electrophilicity of the aromatic systems.

Reactions of compounds 3a–f with 2,3-dimethyl-1,3-butadiene were carried out in CH₂Cl₂ or CHCl₃ at room temperature (Scheme 4,

Table 2. Isolated yields of compounds 6a–g.

Compound 3	R′	R″	Product 6, Yield (%)
3a	Ph	OH	6a, 74
3b	4-Me-C6H4	OH	6b, 80
3c	4-F-C6H4	OH	6c, 73
3d	c-C3H5	OH	6d, 80
3e	c-C5H9	OH	6e, 51
3f	n-C5H11	OH	6f, 35
3b	4-Me-C6H4	OEt	6g, 42

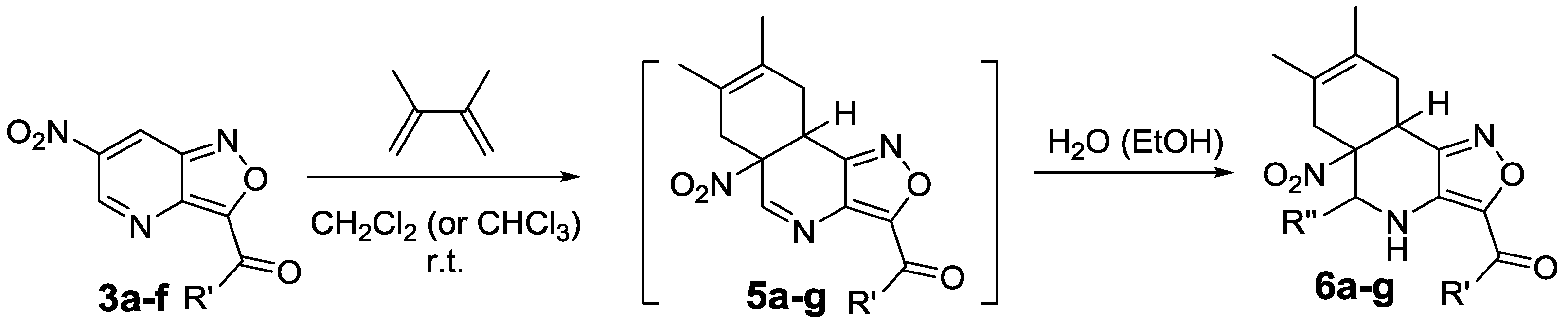

). The C=C–NO₂ fragment of a pyridine ring acts as a dienophile and the process proceeds in accordance with normal electron demands. However, in all cases, instead of the expected adducts 5, we isolated compounds 6a–g —products of the further addition of H₂O to a C=N-double bond.

The intermediate adducts 5a–g are likely to be unstable and exhibit an extremely high tendency to react with nucleophiles (e.g., water) to form compounds 6a–g in good yields. Carrying out the reaction in an inert atmosphere, the additional purification of all solvents did not allow us to isolate compounds 5. Apparently the formation of products 6 occurs on contact with air moisture at the isolation step. Reaction of 3b with dimethylbutadiene in chloroform (stabilized with 1.5% EtOH) gave compound 6g—the product of EtOH addition. In our opinion, this fact indirectly confirms the hypothesis of the high electrophilicity of compounds 5.

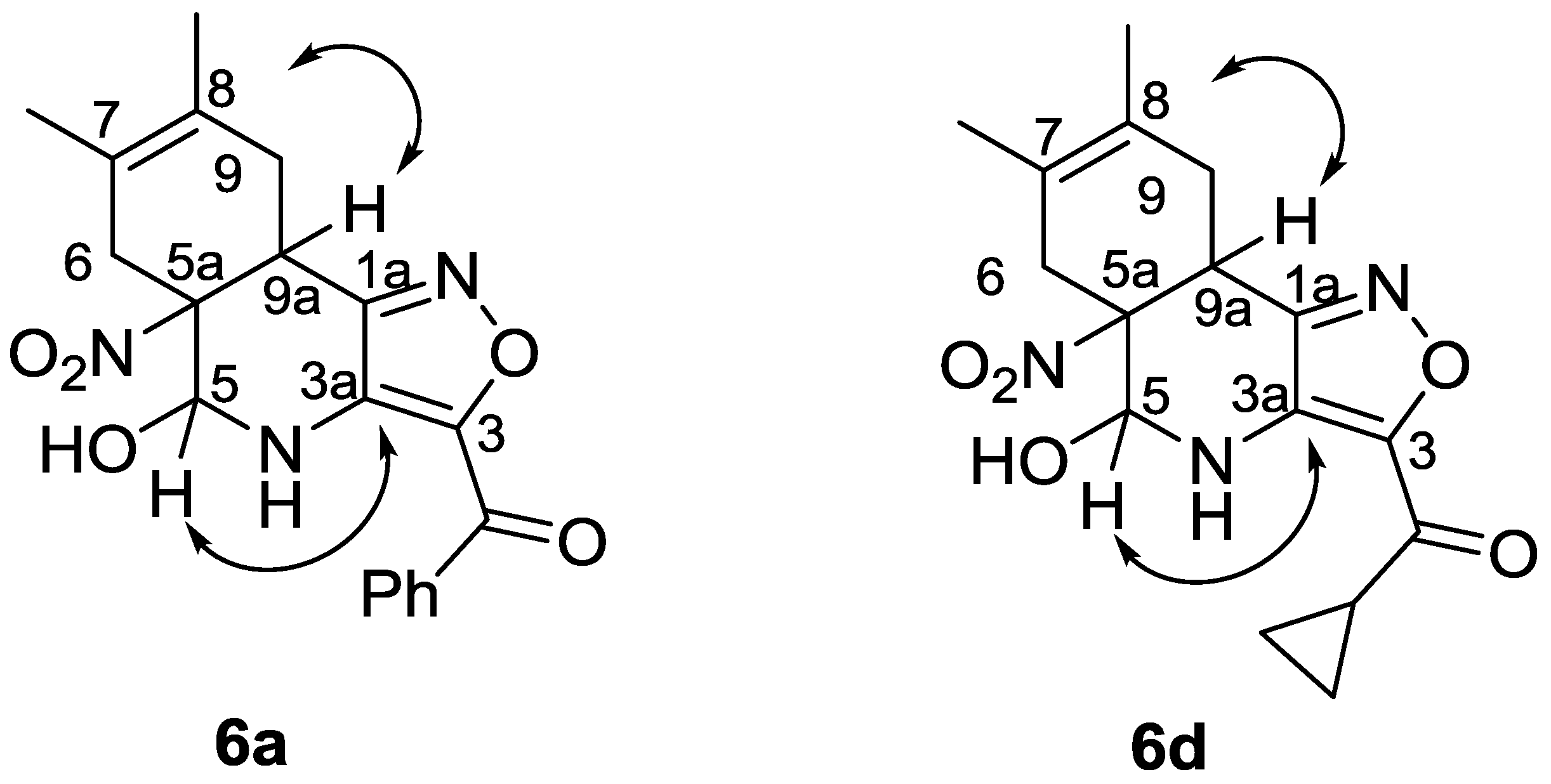

The structure of cycloadducts 6 was proved by 2D NMR spectroscopy experiments (COSY, ¹H-¹³C HMBC, ¹H-¹³C HSQC). For compounds 6a and 6d, the full assignment of hydrogen and carbon atoms in the NMR spectra was made. NMR experiments confirmed the proposed addition of a diene at the C=C(NO₂) bond, Figure 4.

Cross peaks corresponding to H(5)-C(3a), as well as H(9a)-C(1a) and H(9a)-C(8) interactions were observed in the ¹H-¹³C HMBC spectra of these compounds. In addition, we observed the coupling of two nonequivalent protons H(9) with the H(9a) proton. Such interactions were described earlier for similar cycloadducts of pyridofuroxan A (Figure 2) [34]. These data allowed us to make an unambiguous conclusion about the direction of cycloaddition and hydration.

3. Conclusions

A number of new 6-R-isoxazolo[4,3-b]pyridines were synthesized, starting from 2-chloro-3-nitropyridines. It was found that, in reactions with neutral C-nucleophiles, the reactivity of 6-R-isoxazolo[4,3-b]pyridines depends on the nature of the substituent 6-R. 6-Nitro derivatives were found to add 1,3-dicarbonyl compounds and π-excessive arenes and hetarenes to the pyridine ring under mild conditions to form the corresponding 1,4-adducts. In addition, reactions with 2,3-dimethyl-1,3-butadiene led to [2+4]-adducts on the aromatic bonds C=C(NO₂) of the pyridine ring. The condensed 3,4-dihydropyridines thus formed easily, adding the molecule of water to C=N double bond to give polyfunctionalized tetrahydropyridine derivatives. All the above properties of 6-nitroisoxazolo[4,3-b]pyridines make it possible to classify compounds of this class as superelectrophiles.

4. Materials and Methods

4.1. General Information

All chemicals were of commercial grade and used directly without purification. Melting points were measured on a Stuart SMP 20 apparatus. ¹H and ¹³C NMR spectra were recorded on Bruker AC-200 (at 200 and 50 MHz, respectively), Bruker AM-300 (at 300.13 and 75.13 MHz, respectively), Bruker Avance DRX 500 (at 500 and 125 MHz, respectively) or Bruker Avance II 600 spectrometer (at 600 and 150 MHz, respectively) in DMSO-d₆ or CDCl₃. IR spectra were recorded on BrukerAlpha spectrometer, and the samples were prepared as KBr pellets. HRMS spectra were recorded on a Bruker micrOTOF II mass spectrometer using ESI. All reactions were monitored by TLC analysis using ALUGRAM SIL G/UV254 plates, which were visualized by UV light. Compounds 1a–e were purchased from commercial suppliers. Compounds 2j and 3j were synthesized according to the method [48]. X-ray data collection was performed on a Bruker APEX II diffractometer equipped with Apex II CCD detector and operating with MoKα radiation (λ = 0.71073 Å). Frames were integrated using the Bruker SAINT software package [51] by a narrow-frame algorithm. A semi-empirical absorption correction was applied with the SADABS program [52] using the intensity data of equivalent reflections. The structures were solved with a dual-space approach with SHELXT program [53] and refined by the full-matrix least-squares technique against F²_hkl in anisotropic approximation with SHELXL [54] software package. All hydrogen atoms were placed in calculated positions and refined in the riding model, with U_iso(H) constrained to be 1.5U_eq and 1.2U_eq of the parent methyl and all other carbon atoms. Detailed crystallographic information is given in Table S3 in Supplementary Materials. Crystallographic data have been deposited to the Cambridge Crystallographic Data Centre, CCDC 1983530-1983532 can be retrieved free of charge via https://www.ccdc.cam.ac.uk/structures.

4.2. Synthesis of Compounds 2a–i

A mixture of the appropriate 2-chloropyridine 1 (5 mmol), PdCl₂(PPh₃)₂ (0.17 g; 5 mol-%), and Et₃N (1.01 g; 10 mmol) was suspended in anhydrous THF (20 mL). The appropriate acetylene (5.5 mmol) was then injected under argon, followed by addition of CuI (0.02 g; 2.5 mol-%). The reaction mixture was stirred under argon at 40 °C temperature until full completion (1–3 h, completion observed by TLC). Solvent was evaporated under the reduced pressure; the crude residue was purified by column chromatography (elution by chloroform).

3,5-Dinitro-2-(phenylethynyl)pyridine (2a). 72%. Orange powder. M.p. 183–185 °C. ¹H NMR (300 MHz, CDCl₃): δ 7.45–7.54 (m, 3H, Ph_.), 7.74–7.76 (d, J = 7.2 Hz, 2H, Ph), 9.17 (s, 1H, H4), 9.63 (s, 1H, H6). ¹³C NMR (75 MHz, DMSO-d₆): δ 85.1, 100.9, 119.9, 128.7, 129.2, 131.3, 132.4, 142.3, 146.2, 148.3. HRMS (ESI) calc. for [C₁₃H₈N₃O₄]⁺ [M + H]⁺ 270.0509, found 270.0514.

3,5-Dinitro-2-(p-tolylethynyl)pyridine (2b). 63%. Orange powder. M.p. 203–205 °C. ¹H NMR (300 MHz, CDCl₃): δ 2.46 (s, 3H, Me), 7.30 (d, J = 8.0 Hz, 2H, p-Tolyl), 7.66 (d, J = 8.0 Hz, 2H, p-Tolyl), 9.18 (d, J = 2.2 Hz, 1H, H4), 9.63 (d, J = 2.2 Hz, 1H, H6). ¹³C NMR (75 MHz, DMSO-d₆): δ 21.3, 84.9, 101.6, 116.8, 128.6, 129.8, 132.4, 139.8, 141.7, 142.1, 146.0, 148.3. HRMS (ESI) calc. for [C₁₄H₁₀N₃O₄]⁺ [M + H]⁺ 284.0666, found 284.0669.

3,5-Dinitro-2-((4-fluorophenyl)ethynyl)pyridine (2c). 61%. Orange powder. M.p. 170–172 °C. ¹H NMR (200 MHz, DMSO-d₆): δ 7.40 (t, J = 8.5 Hz, 2H, 4F-Ph), 7.78 (dd, J = 7.9, 5.7 Hz, 2H, 4F-Ph), 9.21 (d, J = 2.2 Hz, 1H, H4), 9.65 (d, J = 2.2 Hz, 1H, H6). ¹³C NMR (75 MHz, DMSO-d₆): δ 85.0, 99.8, 128.8, 116.7 (d, ²J_C–F = 22.5 Hz), 116.6, 116.0, 130.6, 135.2 (d, ³J_C–F = 9.2 Hz), 139.6, 142.3, 146.1, 147.2, 148.4, 163.5 (d, ¹J_C–F = 251.5 Hz). HRMS (ESI) calc. for [C₁₃H₇FN₃O₄]⁺ [M + H]⁺ 288.0415, found 288.0417.

2-(Cyclopropylethynyl)-3,5-dinitropyridine (2d). 84%. Orange powder. M.p. 128–130 °C. ¹H NMR (300 MHz, CDCl₃): δ 1.09–1.18 (m, 4H), 1.68 (dt, J = 13.1, 6.6 Hz, 1H), 9.08 (d, J = 2.1 Hz, 1H, H4), 9.53 (d, J = 2.1 Hz, 1H, H6). ¹³C NMR (75 MHz, DMSO-d₆): δ 0.4, 9.9, 72.1, 109.5, 128.4, 141.7, 148.0. HRMS (ESI) calc. for [C₁₀H₈N₃O₄]⁺ [M + H]⁺ 234.0509, found 234.0517.

2-(Cyclopentylethynyl)-3,5-dinitropyridine (2e). 32%. Orange oil. ¹H NMR (300 MHz, CDCl₃): δ 1.75–1.64 (m, 2H), 1.87 (m, 4H), 2.10 (m, 2H), 3.04 (p, J = 7.2 Hz, 1H), 9.08 (d, J = 2.1 Hz, 1H, H4), 9.55 (d, J = 2.1 Hz, 1H, H6). ¹³C NMR (75 MHz, CDCl₃): δ 25.3, 31.2, 33.2, 76.5, 112.5, 127.9, 141.3, 142.0, 146.1, 147.7. HRMS (ESI) calc. for [C₁₂H₁₂N₃O₄]⁺ [M + H]⁺ 262.0822, found 262.0816.

2-(Hept-1-yn-1-yl)-3,5-dinitropyridine (2f). 35%. Orange oil. ¹H NMR (300 MHz, CDCl₃): δ 0.78–1.06 (m, 3H), 1.25–1.55 (m, 4H), 1.74 (p, J = 7.0 Hz, 2H), 2.63 (t, J = 7.1 Hz, 2H), 9.08 (d, J = 2.1 Hz, 1H, H4), 9.56 (d, J = 2.1 Hz, 1H, H6). ¹³C NMR (75 MHz, CDCl₃): δ 14.0, 20.4, 22.3, 27.5, 31.2, 108.8, 112.6, 128.0, 128.4, 141.5, 142.2, 147.8 HRMS (ESI) calc. for [C₁₂H₁₄N₃O₄]⁺ [M + H]⁺ 264.0979, found 264.0970.

Methyl-5-nitro-6-(phenylethynyl)nicotinate (2g) 76%. Orange powder. M.p. 117–119 °C. ¹H NMR (300 MHz, CDCl₃): δ 4.05 (s, 3H, Me), 7.42–7.52 (m, 3H, Ph.), 7.71–7.74 (d, J = 7.2 Hz, 2H, Ph), 8.95 (d, J = 1,3 Hz, 1H, H4), 9.39 (d, J = 1.3 Hz, 1H, H6). ¹³C NMR (75 MHz, CDCl₃): δ 53.2, 85.4, 101.4, 121.0, 125.0, 128.7, 130.7, 133.0, 133.5, 140.5, 146.5, 153.9, 163.5. HRMS (ESI) calc. for [C₁₅H₁₁N₂O₄]⁺ [M + H]⁺ 283.0713, found 283.0721.

3-Nitro-2-(phenylethynyl)-5-(trifluoromethyl)pyridine (2h) 42% Yellow powder. M.p. 124–126 °C. ¹H NMR (300 MHz, CDCl₃): δ 7.47 (m, 3H, Ph), 7.73 (d, J = 6.5 Hz, 2H, Ph), 8.65 (s, 1H, H4), 9.09 (s, 1H, H6). ¹³C NMR (126 MHz, CDCl₃): δ 84.8, 101.5, 120.9, 124.4 (q, ¹J_C–F = 273.0 Hz), 125.8, 128.8, 130.4 (q, ³J_C–F = 3.7 Hz), 131.0, 133.1, 140.6, 146.1, 149.9 (q, ³J_C–F = 3.5 Hz). HRMS (ESI) calc. for [C₁₄H₈F₃N₂O₂]⁺ [M + H]⁺ 293.0532, found 293.0542.

5-Chloro-3-nitro-2-(phenylethynyl)pyridine (2i) 40%. M.p. 103–105 °C. ¹H NMR (300 MHz, CDCl₃): δ 7.41–7.48 (m, 3H, Ph_.), 7.69–7.71 (d, J = 6.8 Hz, 2H, Ph), 8.41 (d, J = 1.6 Hz, 1H, H4), 8.81 (d, J = 1.6 Hz, 1H, H6). ¹³C NMR (75 MHz, CDCl₃): δ 84.5, 99.3, 121.3, 128.7, 130.4, 130.9, 132.3, 132.8, 135.5, 152.7. HRMS (ESI) calc. for [C₁₃H₈ClN₂O₂]⁺ [M + H]⁺ 259.0269, found 259.0259.

4.3. Synthesis of Compounds 3a–i

Iodine monochloride (19.5 mg, 0.12 mmol) was added to a solution of the appropriate compound 2 (4 mmol) in dichloromethane (20 mL), and the resulting solution was heated under reflux until full completion (4–8 h.). Solvent was evaporated under the reduced pressure; the crude residue was purified by column chromatography (elution by dichloromethane).

(6-Nitroisoxazolo[4,3-b]pyridin-3-yl)(phenyl)methanone (3a) 85% Yellowish powder. M.p. 135–137 °C. ¹H NMR (300 MHz, CDCl₃): δ 7.63 (t, J = 7.7 Hz, 2H, Ph_.), 7.77 (t, J = 7.4 Hz, 1H, Ph), 8.23 (d, J = 7.4 Hz, 2H, Ph) 9.08 (d, J = 2.2 Hz, 1H, H5), 9.55 (d, J = 2.2 Hz, 1H, H7). ¹³C NMR (75 MHz, CDCl₃): δ 122.7, 129.7, 131.2, 134.9, 135.7, 135.9, 144.7, 149.6, 150.4, 163.0, 181.1. HRMS (ESI) calc. for [C₁₃H₈N₃O₄]⁺ [M + H]⁺ 270.0509, found 270.0508.

(6-Nitroisoxazolo[4,3-b]pyridin-3-yl)(p-tolyl)methanone (3b) 87% Yellowish powder. M.p. 158–160 °C. ¹H NMR (300 MHz, CDCl₃): δ 2.52 (s, 3H, Me), 7.43 (d, J = 8.1 Hz, 2H, p-Tolyl), 8.14 (d, J = 8.2 Hz, 2H, p-Tolyl), 9.07 (d, J = 2.2 Hz, 1H, H5), 9.53 (d, J = 2.2 Hz, 1H, H7). ¹³C NMR (151 MHz, CDCl₃): δ 22.1, 122.1, 129.9, 130.8, 132.8, 134.1, 144.0, 146.5, 148.8, 149.7, 162.8, 180.0. HRMS (ESI) calc. for [C₁₄H₁₀N₃O₄]⁺ [M + H]⁺ 284.0666, found 284.0669.

(4-Fluorophenyl)(6-nitroisoxazolo[4,3-b]pyridin-3-yl)methanone (3c) 72%. Yellowish powder. M.p. 115–117 °C. ¹H NMR (300 MHz, CDCl₃): δ 7.33 (d, J = 8.5 Hz, 2H, 4F-Ph), 8.32 (dd, J = 8.8, 5.3 Hz, 2H, 4F-Ph), 9.09 (d, J = 2.2 Hz, 1H, H5), 9.55 (d, J = 2.2 Hz, 1H, H7). ¹³C NMR (75 MHz, DMSO-d₆): δ 116.5 (d, ²J_C–F = 22.2 Hz), 122.1, 131.8, 133.5 (d, ³J_C–F = 9.8 Hz), 134.3, 144.2, 149.1, 149.8, 163.8 (d, ¹J_C–F = 225.4 Hz), 168.7, 178.8. HRMS (ESI) calc. for [C₁₃H₇FN₃O₄]⁺ [M + H]⁺ 288.0415, found 288.0411.

Cyclopropyl(6-nitroisoxazolo[4,3-b]pyridin-3-yl)methanone (3d) 74%. Yellowish powder. M.p. 118–120 °C. ¹H NMR (300 MHz, CDCl₃): δ 1.32-1.37 (m, 2H), 1.53–1.56 (m, 2H), 3.43–3.51 (m, 1H), 9.06 (d, J = 2.2 Hz, 1H, H5), 9.54 (d, J = 2.2 Hz, 1H, H7). ¹³C NMR (75 MHz, CDCl₃): δ 14.3, 20.3, 122.3, 133.4, 148.9, 150.0, 161.4, 188.0. HRMS (ESI) calc. for [C₁₀H₈N₃O₄]⁺ [M + H]⁺ 234.0509, found 234.0521.

Methyl-3-benzoylisoxazolo[4,3-b]pyridine-6-carboxylate (3g) 65%. Yellowish powder. M.p. 114–116 °C. ¹H NMR (300 MHz, CDCl₃): δ 4.07 (s, 3H, Me), 7.61 (t, J = 7.6 Hz, 2H, Ph_.), 7.74 (t, J = 7.4 Hz, 1H, Ph), 8.25 (d, J = 7.5 Hz, 2H, Ph), 8.85 (d, J = 1.7 Hz, 1H, H5), 9.36 (d, J = 1.7 Hz, 1H, H7). ¹³C NMR (75 MHz, CDCl₃): δ 53.3, 127.6, 127.8, 128.9, 130.6, 134.6, 135.7, 150.8, 155.0, 161.4, 164.2, 165.8, 180.8. HRMS (ESI) calc. for [C₁₅H₁₁N₂O₄]⁺ [M + H]⁺ 283.0713, found 283.0709.

Phenyl(6-(trifluoromethyl)isoxazolo[4,3-b]pyridin-3-yl)methanone (3h) 73%. Yellowish powder. M.p. 117–119 °C. ¹H NMR (300 MHz, CDCl₃): δ 7.62 (t, J = 7.6 Hz, 2H, Ph), 7.75 (t, J = 7.3 Hz, 1H, Ph), 8.24 (d, J = 7.8 Hz, 2H, Ph), 8.52 (s, 1H, H5), 8.98 (s, 1H, H7). ¹³C NMR (75 MHz, CDCl₃): δ 122.5 (q, ¹J_C-F = 273.6 Hz) 123.5 (q, ²J_C-F = 3.1 Hz), 126.1, 128.4, 128.7, 129.1, 130.0, 130.6, 134.1, 134.8, 135.6, 149.7, 151.1, 151.1, 161.9, 180.8. HRMS (ESI) calc. for [C₁₄H₈F₃N₂O₂]⁺ [M + H]⁺ 293.0532, found 293.0533.

(6-Chloroisoxazolo[4,3-b]pyridin-3-yl)(phenyl)methanone (3i) 60%. Beige powder. M.p. 120–122 °C. ¹H NMR (300 MHz, CDCl₃): δ 7.61 (t, J = 7.6 Hz, 2H, Ph_.), 7.74 (t, J = 7.4 Hz, 1H, Ph), 8.14 (d, J = 1.7 Hz, 1H, H5), 8.23 (d, J = 7.5 Hz, 2H, Ph), 8,71 (s, 1H, H7). ¹³C NMR (75 MHz, CDCl₃): δ 121.8, 129.0, 130.6, 131.9, 133.8, 134.7, 135.7, 151.5, 155.5, 161.1, 180.9. HRMS (ESI) calc. for [C₁₃H₈ClN₂O₂]⁺ [M + H]⁺ 259.0269, found 259.0276.

4.4. Synthesis of Compounds 4a–p

A mixture of the appropriate isoxazole 3 (0.5 mmol) and nucleophile (0.5 mmol) was dissolved in anhydrous CH₃CN (5 mL). The reaction mixture was stirred at r.t. until full completion (1–3 h, by TLC). The solution was diluted with water (25 mL), and the obtained precipitate was filtered off.

2-(3-Benzoyl-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-7-yl)-5,5-dimethylcyclohexane-1,3-dione (4a) 79%. Yellow powder. M.p. 244–246 °C. ¹H NMR (DMSO-d₆): δ 0.93 (s, 6H, 2Me), 2.25 (br.s, 4H, 2CH₂ ), 5.75 (br.s, 1H, H7), 7.64 (t, J = 7.5 Hz, 2H, Ph), 7.75 (t, J = 7.3 Hz, 1H, Ph), 8.02 (d, J = 5.7 Hz, 1H, H5), 8.14 (d, J = 7.7 Hz, 2H, Ph), 10.56 (d, J = 6.1 Hz, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 27.3, 28.0, 31.8, 42.6, 49.8, 50.0, 126.8, 129.1, 129.3, 134.2, 135.2, 137.5, 137.6, 146.3, 157.5, 172.6, 173.1, 180.8. HRMS (ESI) calc. for [C₂₁H₂₀N₃O₆]⁺ [M + H]⁺ 410.1347, found 410.1340.

5-(3-Benzoyl-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-7-yl)-1,3-dimethylpyrimidine-2,4,6-(1H,3H,5H)-trione (4b) 85%. Yellow powder. M.p. 234–235 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 3.03 (s, 3H, Me), 3.17 (s, 3H, Me), 4.65 (s, 1H, CH), 5.52 (s, 1H, H7), 7.64 (t, J = 7.2 Hz, 2H, Ph), 7.76 (t, J = 7.2 Hz, 1H, Ph), 8.13 (d, J = 7.1 Hz, 3H, Ph and H5), 10.93 (d, J = 3.7 Hz, 1H, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 28.1, 28.3, 33.5, 33.8, 33.9, 52.4, 129.1, 129.4, 134.4, 139.7, 151.1, 166.2, 166.6, 180.6. HRMS (ESI) calc. for [C₁₉H₁₆N₅O₇]⁺ [M + H]⁺ 426.1044, found 426.1037.

2-(3-(4-Fluorobenzoyl)-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-7-yl)-5,5-dimethylcyclohexane-1,3-dione (4c) 73%. Yellow powder. M.p. 251–253 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 0.93 (s, 6H, 2Me), 2.24 (br.s, 4H, 2CH₂), 5.75 (s, 1H, H7), 7.48 (t, J = 8.8 Hz, 2H, 4F-Ph), 8.01 (s, 1H, H5), 8.23 (dd, J = 8.7, 5.6 Hz, 2H, 4F-Ph), 10.54 (d, J = 1.5 Hz, 1H, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 27.4, 27.5, 31.7, 116.2 (d, ²J_C–F = 22.1 Hz), 126.6, 126.8, 131.8, 132.4 (d, ³J_C–F = 9.8 Hz), 137.3, 146.1, 157.4, 165.4 (d, ¹J_C–F = 253.5 Hz) 179.1. HRMS (ESI) calc. for [C₂₁H₁₉FN₃O₆]⁺ [M + H]⁺ 428.1252, found 428.1256.

2-(3-(Cyclopropanecarbonyl)-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-7-yl)-5,5-dimethylcyclohexane-1,3-dione (4d) 84%. Yellow powder. M.p. 258–260 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 0.92 (s, 6H, 2Me), 1.16 (s, 4H, 2CH₂ (c-Pr)), 2.26 (br.s, 4H, 2CH₂), 2.65 (s, 1H, CH), 5.71 (br.s, 1H, H7), 7.95 (s, 1H, H5), 10.39 (br.s, 1H, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 12.0, 12.3, 18.2, 27.6, 31.7, 122.8, 126.1, 137.5, 146.2, 157.65, 189.6. HRMS (ESI) calc. for [C₁₈H₂₀N₃O₆]⁺ [M + H]⁺ 374.1346, found 374.1341.

5,5-Dimethyl-2-(3-(4-methylbenzoyl)-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-7-yl)-cyclohexane-1,3-dione (4e) 87%. Yellow powder. M.p. 225–227 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 0.93 (s, 6H, 2Me), 2.43 (s, 3H, Me, p-Tolyl), 5.75 (s, 1H, H7), 7.45 (d, J = 7.2 Hz, 2H, p-Tolyl), 7.98–8.13 (m, 3H, p-Tolyl and H5), 10.49 (d, J = 6.7 Hz, 1H, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 21.3, 27.2, 31.7, 129.4, 129.6, 132.6, 144.9, 157.3, 180.2. HRMS (ESI) calc. for [C₂₂H₂₂N₃O₆]⁺ [M + H]⁺ 424.1503, found 424.1505.

1,3-Dimethyl-5-(3-(4-methylbenzoyl)-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-7-yl)-pyrimidine-2,4,6(1H,3H,5H)-trione (4f) 74%. Yellow powder. M.p. 241–243 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 2.43 (s, 3H, Me, p-Tolyl), 3.03 (s, 3H, Me), 3.17 (s, 3H, Me), 4.64 (s, 1H, CH), 5.51 (s, 1H, H7), 7.45 (d, J = 8.1 Hz, 2H, p-Tolyl), 8.06 (d, J = 8.1 Hz, 2H, p-Tolyl), 8.14 (d, J = 6.4 Hz, 1H, H5), 10.90 (d, J = 6.5 Hz, 1H, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 21.3, 28.1, 28.3, 33.8, 52.4, 124.1, 125.4, 129.6, 129.7, 132.3, 139.7, 145.3, 148.1, 151.1, 155.1, 166.2, 166.6, 180.1. HRMS (ESI) calc. for [C₂₀H₁₈N₅O₇]⁺ [M + H]⁺ 440.1201, found 440.1197.

(7-(4-(Dimethylamino)phenyl)-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-3-yl)(p-tolyl)-methanone (4g) 76%. Orange powder. M.p. 237–239 °C. ¹H NMR (200 MHz, DMSO-d₆): δ 2.40 (s, 3H, Me, p-Tolyl), 2.83 (s, 6H, 2Me), 5.62 (s, 1H, H7), 6.64 (d, J = 8.7 Hz, 2H, Ar), 7.08 (d, J = 8.4 Hz, 2H, p-Tolyl), 7.42 (d, J = 8.1 Hz, 2H, Ar ), 8.04 (d, J = 8.1 Hz, 2H, p-Tolyl), 8.21 (s, 1H. H5), 10.68 (s, 1H, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 21.3, 37.6, 40.1, 112.5, 124.4, 127.2, 127.7, 129.1, 129.5, 129.6, 132.4, 137.2, 145.0, 148.1, 149.7, 156.8, 180.1. HRMS (ESI) calc. for [C₂₂H₂₁N₄O₄]⁺ [M + H]⁺ 405.1557, found 405.1564.

(7-(1H-indol-3-yl)-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-3-yl)(p-tolyl)methanone (4h) 93%. Yellow powder. M.p. 221–223 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 2.40 (s, 3H, Me), 6.03 (s, 1H, H7), 6.99–7.38 (m, 7H, indole and p-Tolyl), 8.05 (s, 2H, p-Tolyl), 8.23 (s, 1H, H5), 10.75 (s, 1H, NH), 11.07 (s, 1H, NH). ¹³C NMR (126 MHz, DMSO-d₆): δ 21.3, 30.4, 66.3, 111.8, 114.2, 118.1, 119.0, 121.3, 123.4, 123.6, 124.7, 125.0, 126.7, 129.5, 129.6, 132.4, 136.4, 136.9, 145.0, 147.9, 156.4, 180.1. HRMS (ESI) calc. for [C₂₂H₁₇N₄O₄]⁺ [M + H]⁺ 401.1243, found 401.1240.

(7-(5-Methoxy-1H-indol-3-yl)-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-3-yl)(p-tolyl)-methanone (4i) 72%. Yellow powder. M.p. 181–183 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 2.41 (s, 3H, Me), 3.71 (s, 3H, OMe), 6.00 (s, 1H, H7), 6.74 (d, J = 9.3 Hz, 1H, indole H6), 6.92 (s, 1H, indole H4), 7.24 (m, 2H, indole H2 and H7), 7.43 (d, J = 7.5 Hz, 2H, p-Tolyl), 8.06 (d, J = 7.8 Hz, 2H, p-Tolyl), 8.23 (s, 1H, H5), 10.78 (s, 1H, NH), 10.91 (s, 1H, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 21.3, 30.4, 55.2, 66.3, 100.2, 111.1, 112.5, 114.1, 124.1, 124.8, 125.4, 126.7, 129.6, 129.7, 131.6, 132.5, 136.9, 145.1, 153.3, 156.5, 180.2. HRMS (ESI) calc. for [C₂₃H₁₉N₄O₅]⁺ [M + H]⁺ 431.1349, found 431.1340.

(7-(2-Hydroxynaphthalen-1-yl)-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-3-yl)(p-tolyl)-methanone (4j) 67%. Yellow powder. M.p. 204–206 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 2.41 (s, 3H, Me), 6.62 (s, 1H, H7), 7.00 (d, J = 9.2 Hz, 1H, Ar H3), 7.35 (t, J = 7.5 Hz, 1H, Ar H6), 7.44 (d, J = 8.0 Hz, 2H, p-Tolyl), 7.58 (t, J = 7.8 Hz, 1H, Ar H5), 7.72 (d, J = 8.8 Hz, 1H, Ar H8), 7.81 (d, J = 8.2 Hz, 1H, Ar ), 8.06 (d, J = 8.2 Hz, 2H, p-Tolyl), 8.17 (s, 1H, H7), 8.53 (d, J = 8.9 Hz, 1H, Ar H4), 9.89 (s, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 20.2, 29.4, 117.2, 117.7, 121.4, 121.7, 125.6, 125.8, 126.7, 127.0, 128.2, 128.3, 128.4, 128.5, 131.4, 131.8, 136.3, 136.5, 143.9, 145.2, 151.9, 152.1, 156.3, 179.1. HRMS (ESI) calc. for [C₂₄H₁₈N₃O₅]⁺ [M + H]⁺ 428.1240, found 428.1237.

2-(3-(4-Methylbenzoyl)-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-7-yl)malononitrile (4k) 76%. Yellow powder. M.p. 214–216 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 2.45 (s, 3H, Me), 5.59 (s, 1H, CH), 5.67 (s, 1H, H7), 7.49 (d, J = 6.1 Hz, 2H, p-Tolyl), 8.12 (d, J = 6.7 Hz, 2H, p-Tolyl), 8.32 (s, 1H. H5), 11.23 (s, 1H, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 21.4, 27.9, 35.1, 112.1, 112.2, 120.5, 124.7, 129.7, 132.1, 140.8, 145.5, 149.5, 151.6, 180.0. Found, %: C, 58.39; H, 3.22; N, 20.07; C₁₇H₁₁N₅O₄ Calc., %: C, 58.46; H, 3.17; N, 20.05.

3-(3-(4-Methylbenzoyl)-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-7-yl)pentane-2,4-dione (4l) 87%. Yellow powder. M.p. 188–190 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 2.05 (s, 3H, Me, p-Tolyl), 2.42 (d, J = 6.4 Hz, 6H, 2Me), 4.90 (s, 1H, CH), 5.30 (s, 1H, H7), 7.45 (d, J = 8.1 Hz, 2H, p-Tolyl), 8.07 (d, J = 7.1 Hz, 3H, p-Tolyl and H5), 10.80 (s, 1H, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 21.3, 29.6, 31.1, 32.0, 66.9, 124.1, 126.3, 129.6, 132.3, 139.6, 145.2, 154.9, 180.1, 203.2, 204.8. HRMS (ESI) calc. for [C₁₉H₁₇N₃O₆+NH₄]⁺ [M + NH₄]⁺ 401.1453, found 401.1456.

(7-(3,5-Dimethyl-1H-pyrazol-1-yl)-6-nitro-4,7-dihydroisoxazolo[4,3-b]pyridin-3-yl)(p-tolyl)-methanone (4m) 88%. Yellow powder. M.p. 202–204 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 1.95 (s, 3H, Me), 2.05 (s, 3H, Me, p-Tolyl), 2.42 (s, 3H, Me), 5.82 (s, 1H, H7), 7.14 (s, 1H), 7.44 (d, J = 8.1 Hz, 2H, p-Tolyl), 8.07 (d, J = 8.1 Hz, 2H, p-Tolyl), 8.34 (s, 1H) 11.19 (s, 1H, NH). Found, %: C, 58.25; H, 4.22; N, 19.07; C₁₈H₁₅N₅O₄ Calc., %: C, 59.18; H, 4.14; N, 19.17.

Methyl-3-benzoyl-7-(1,3-dimethyl-2,4,6-trioxohexahydropyrimidin-5-yl)-4,7-dihydroisoxazo-lo[4,3-b]pyridine-6-carboxylate (4n) 75%. Beige powder. M.p. 170–172 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 3.03 (s, 3H, Me), 3.13 (s, 3H, Me), 3.63 (s, 3H, CO₂Me), 4.43 (s, 1H, CH), 5.07 (s, 1H, H7), 7.44 (d, J = 5.4 Hz, 1H, H5), 7.63 (t, J = 7.3 Hz, 2H, Ph), 7.74 (t, J = 7.0 Hz, 1H, Ph), 8.12 (d, J = 7.7 Hz, 2H, Ph), 10.2 (d, J = 5.3 Hz, 1H, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 28.0, 28.1, 33.3, 51.3, 54.0, 99.1, 127.2, 129.0, 129.2, 134.0, 135.2, 138.9, 151.4, 154.9, 166.4, 167.8, 180.5. HRMS (ESI) calc. for [C₂₁H₁₉N₄O₇]⁺ [M + H]⁺ 439.1248, found 439.1242.

Methyl-3-benzoyl-7-(4,4-dimethyl-2,6-dioxocyclohexyl)-4,7-dihydroisoxazolo[4,3-b]pyridine-6-carboxylate (4o) 87%. Beige powder. M.p. 232–234 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 0.93 (s, 6H, 2Me), 2.16 (br.s, 4H, 2CH₂), 3.53 (s, 3H, CO₂Me), 5.36 (s, 1H, H7), 7.33 (s, 1H, H5), 7.61 (t, J = 7.3 Hz, 2H, Ph), 7.70 (t, J = 7.1 Hz, 1H, Ph), 8.11 (d, J = 7.6 Hz, 2H, Ph), 9.73 (d, J = 5.0 Hz, NH). ¹³C NMR (75 MHz, DMSO-d₆): δ 26.1, 27.3, 28.3, 31.7, 40.0, 50.7, 102.6, 128.7, 128.8, 129.0, 133.7, 135.6, 136.6, 136.7, 144.5, 157.4, 166.3, 180.4. HRMS (ESI) calc. for [C₂₃H₂₃N₂O₆]⁺ [M + H]⁺ 423.1551, found 423.1545.

2-(3-Benzoyl-4,7-dihydroisoxazolo[4,3-b]pyridin-7-yl)-5,5-dimethylcyclohexane-1,3-dione (4p) 70%. Beige powder. M.p. 180–182 °C. ¹H NMR (300 MHz, DMSO-d₆): δ 0.91 (s, 3H, Me), 0.99 (s, 3H, Me), 2.08–2.40 (m, 4H, 2CH₂), 4.33 (s, 1H, CH), 5.76 (s, 1H, H7), 7.56-7.67 (m, 4H, Ph and H6), 8.08 (d, J = 6.4 Hz, 2H, Ph), 8.44 (s, 1H, H5). ¹³C NMR (75 MHz, DMSO-d₆): δ 19.4, 24.6, 27.0, 28.5, 31.9, 41.3, 49.7, 77.0, 110.4, 124.2, 126.8, 128.7, 128.8, 128.9, 130.3, 133.2, 134.4, 156.5, 169.5, 180.0, 194.2. HRMS (ESI) calc. for [C₂₁H₂₁N₂O₄]⁺ [M + H]⁺ 365.1496, found 365.1494.

4.5. Synthesis of Compounds 6a–g

2,3-Dimethylbutadiene (0.5 mL, 4.5 mmol) was added to a solution of the appropriate isoxazolopyridine 3 (0.5 mmol) in dichloromethane (or CHCl₃) (5 mL). The reaction mixture was stirred at r.t. until full completion (normally 4–8 h, TLC control). The solution was diluted with hexane (15 mL), and the obtained precipitate was filtered off.

(5-Hydroxy-7,8-dimethyl-5a-nitro-4,5,5a,6,9,9a-hexahydroisoxazolo[4,3-c]isoquinolin-3-yl)-(phenyl)methanone (6a) 74%. Beige powder. M.p. 173–175 °C. ¹H NMR (300 MHz, CDCl₃): δ 1.56 (s, 3H, Me), 1.67 (s, 3H, Me), 2.45 (d, J = 18.1 Hz, 1H), 2.77–3.06 (m, 3H), 3.27 (d, J = 3.9 Hz, 1H, OH), 4.35 (d, J = 6.8 Hz, 1H), 5.41 (t, J = 4.0 Hz, 1H), 6.68 (d, J = 3.3 Hz, 1H), 7.55 (t, J = 7.6 Hz, 2H, Ph), 7.65 (t, J = 7.3 Hz, 1H, Ph), 8.27 (d, J = 7.2 Hz, 2H, Ph). ¹³C NMR (75 MHz, CDCl3): δ 18.8, 19.0, 29.3, 30.2, 35.1, 78.6, 89.3, 119.6, 124.2, 128.9, 129.8, 131.5, 133.9, 135.6, 146.7, 154.3, 181.8. HRMS (ESI) calc. for [C₁₉H₂₀N₃O₅] + [M + H]⁺ 370.1397, found 370.1397.

(5-Hydroxy-7,8-dimethyl-5a-nitro-4,5,5a,6,9,9a-hexahydroisoxazolo[4,3-c]isoquinolin-3-yl)-(p-tolyl)methanone (6b) 80%. Beige powder. M.p. 148–150 °C. ¹H NMR (300 MHz, CDCl₃): δ 1.56 (s, 3H, Me), 1.66 (s, 3H, Me), 2.47–3.06 (m, 7H, 2CH₂+Me(p-Tolyl), 3.25 (d, J = 3.9 Hz, 1H, OH), 4.34 (d, J = 6.9 Hz, 1H), 5.39 (t, J = 3.6 Hz, 1H), 6.65 (d, J = 4.0 Hz, 1H, NH), 7.35 (d, J = 8.2 Hz, 2H, p-Tolyl), 8.20 (d, J = 8.1 Hz, 2H, p-Tolyl). ¹³C NMR (75 MHz, CDCl₃): δ 18.8, 19.0, 21.9, 29.3, 30.2, 35.1, 78.7, 89.4, 119.6, 124.2, 129.6, 130.0, 131.3, 133.1, 144.9, 146.8, 154.3, 181.4. HRMS (ESI) calc. for [C₂₀H₂₂N₃O₅]⁺ [M + H]⁺ 384.1553, found 384.1548.

(4-Fluorophenyl)(5-hydroxy-7,8-dimethyl-5a-nitro-4,5,5a,6,9,9a-hexahydroisoxazolo[4,3-c]-isoquinolin-3-yl)methanone (6c) 73%. Beige powder. M.p. 177–179 °C. ¹H NMR (300 MHz, CDCl₃): δ 1.56 (s, 3H, Me), 1.67 (s, 3H, Me), 2.47(d, J = 17.4Hz, 1H), 2.78–2.91 (m, 3H, 2CH₂), 3.18 (d, J = 3.6 Hz, 1H, OH), 4.34 (d, J = 6.9 Hz, 1H), 5.41 (t, J = 3.3 Hz, 1H), 6.65 (d, J = 3.2 Hz, 1H, NH), 7.23 (t, J = 8.6 Hz, 2H, 4F-Ph), 8.34 (dd, J = 8.7, 5.4 Hz, 2H, 4F-Ph). ¹³C NMR (75 MHz, CDCl₃): δ 18.8, 19.0, 29.4, 30.2, 35.1, 78.6, 89.3, 116.2 (d, ²J_C–F = 21.9 Hz), 119.6, 124.2, 131.5, 131.9, 132.0, 132.6 (d, ³J_C–F = 9.5 Hz), 146.5, 154.3, 166.2 (d, ¹J_C–F = 256.5 Hz) 180.0. HRMS (ESI) calc. for [C₁₉H₁₉FN₃O₅]⁺ [M + H]⁺ 388.1303, found 388.1316.

Cyclopropyl-(5-hydroxy-7,8-dimethyl-5a-nitro-4,5,5a,6,9,9a-hexahydroisoxazolo[4,3-c]-isoquinolin-3-yl)methanone (6d) 80%. Beige powder. M.p. 148–150 °C. ¹H NMR (300 MHz, CDCl₃): δ 1.12–1.27 (m, 4H, c-Pr), 1.55 (s, 3H, Me), 1.65 (s, 3H, Me), 2.43 (d, J = 18.6 Hz, 1H), 2.61-3.00 (m, 4H, 2CH₂+1H(c-Pr)), 3.67 (s, 1H, OH), 4.30 (d, J = 6.9 Hz, 1H), 5.31 (d, J = 3.5 Hz, 1H), 6.19 (d, J = 3.4 Hz, 1H, NH). ¹³C NMR (75 MHz, CDCl₃): δ 12.2, 12.4, 18.2, 18.8, 18.9, 29.3, 30.1, 35.1, 78.6, 89.3, 119.5, 124.2, 127.4, 146.8, 154.7, 191.5. HRMS (ESI) calc. for [C₁₆H₂₀N₃O₅+NH₄]⁺ [M + NH₄]⁺ 351.1663, found 351.1668.

Cyclopentyl(5-hydroxy-7,8-dimethyl-5a-nitro-4,5,5a,6,9,9a-hexahydroisoxazolo[4,3-c]-isoquinolin-3-yl)methanone (6e) 51%. Beige powder. M.p. 105–107 °C. 1H NMR (300 MHz, CDCl₃): δ 1.55 (s, 3H, Me), 1.60–1.73 (m, 7H, Me+2CH₂), 1.80–2.08 (m, 4H, 2CH₂), 2.43 (d, J = 18.0 Hz, 1H), 2.76-3.04 (m, 3H, 2CH₂), 3.39 (s, 1H, OH), 3.47-3.59 (m, 1H, CH), 4.29 (d, J = 7.1 Hz, 1H), 5.34 (d, J = 3.3 Hz, 1H), 6.23 (d, J = 3.3 Hz, 1H, NH). ¹³C NMR (75 MHz, CDCl₃): δ 18.8, 19.0, 26.4, 29.1, 29.2, 29.3, 30.2, 35.1, 47.9, 78.6, 89.3, 119.5, 124.2, 128.3, 146.2, 154.5, 194.5. HRMS (ESI) calc. for [C₁₈H₂₂N₃O₅]^- [M − H]⁻ 360.1568, found 360.1565.

1-(5-Hydroxy-7,8-dimethyl-5a-nitro-4,5,5a,6,9,9a-hexahydroisoxazolo[4,3-c]isoquinolin-3-yl)-hexan-1-one (6f) 35%. Beige powder. M.p. 96–98 °C. ¹H NMR (300 MHz, CDCl₃): δ 0.92 (t, J = 6.4 Hz, 3H, Me(n-C₅H₁₁)), 1.33–1.42 (m, 4H, 2CH_2, n-C₅H₁₁), 1.55 (s, 3H, Me), 1.73 (m, 5H, Me+CH₂(n-C₅H₁₁)), 2.42 (d, J = 18.2 Hz, 1H), 2.55–2.99 (m, 5H, 2CH₂+CH₂(n-C₅H₁₁)), 3.52 (br.s, 1H, OH), 4.29 (d, J = 6.4 Hz, 1H), 5.34 (d, J = 3.6 Hz, 1H), 6.24 (d, J = 3.3 Hz, 1H, NH). ¹³C NMR (75 MHz, CDCl₃): δ 14.0, 18.7, 19.0, 22.5, 23.5, 29.4, 30.2, 31.6, 35.1, 39.4, 78.7, 89.4, 119.6, 124.2, 128.1, 146.4, 154.6, 192.0. HRMS (ESI) calc. for [C₁₈H₂₆N₃O₅]⁺ [M + H]⁺ 364.1866, found 364.1875.

(5-Ethoxy-7,8-dimethyl-5a-nitro-4,5,5a,6,9,9a-hexahydroisoxazolo[4,3-c]isoquinolin-3-yl)-(p-tolyl)methanone (6g) 42%. Yellowish powder. M.p. 134–136 °C. ¹H NMR (300 MHz, CDCl₃): δ 1.13 (t, J = 7.0 Hz, 3H, Et), 1.54 (s, 3H, Me), 1.65 (s, 3H, Me), 2.47–3.07 (m, 7H, 2CH₂+Me(p-Tolyl), 3.50–3.32 (m, 1H, CH_2, Et), 3.84–3.67 (m, 1H, CH_2, Et), 4.30 (d, J = 6.8 Hz, 1H), 4.95 (d, J = 4.0 Hz, 1H), 6.78 (d, J = 3.4 Hz, 1H, NH), 7.35 (d, J = 8.1 Hz, 2H, p-Tolyl), 8.22 (d, J = 8.2 Hz, 2H, p-Tolyl). ¹³C NMR (75 MHz, CDCl₃): δ 14.7, 18.8, 19.0, 22.0, 29.7, 30.2, 35.2, 63.9, 84.5, 88.9, 119.3, 124.2, 129.6, 130.0, 131.4, 133.2, 144.8, 146.9, 154.6, 181.2. HRMS (ESI) calc. for [C₂₂H₂₅N₃O₅]⁺ [M + H]⁺ 412.1866, found 412.1859.
