Predicting Drug Resistance Using Deep Mutational Scanning

Abstract

Drug resistance is a major healthcare challenge, resulting in a continuous need to develop new inhibitors. The development of these inhibitors requires an understanding of the mechanisms of resistance for a critical mass of occurrences. Recent genome editing technologies based on high-throughput DNA synthesis and sequencing may help to predict mutations resulting in resistance by testing large mutagenesis libraries. Here we describe the rationale of this approach, with examples and relevance to drug development and resistance in malaria.

1. Introduction

In 1946, Alexander Fleming stated: “There is probably no chemotherapeutic drug to which in suitable circumstances the bacteria cannot react by in some way acquiring ‘fastness’ [resistance]” [1]. Today, resistance to drugs is considered unavoidable as multi-drug resistant infections become a serious problem and possibly mark the post-antibiotic age [2,3]. This inevitable resistance leads to an arms race where new-generation drugs are being developed continuously, only to be rendered useless upon the development of resistance in the target system.

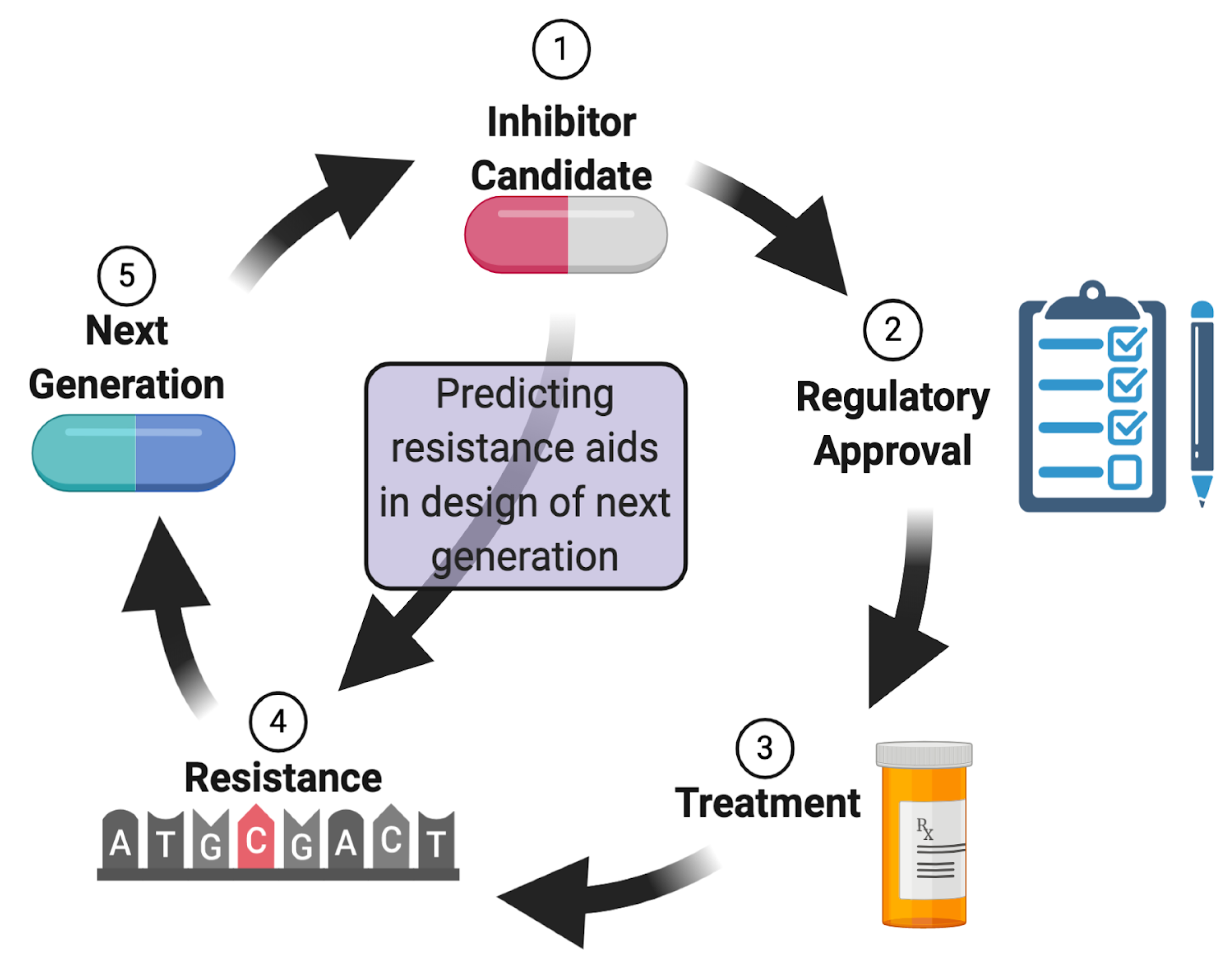

This drug development cycle takes a tremendous amount of time and funds, as the resistance mechanism must be deciphered from initial anecdotal occurrences that appear spontaneously in the field (Figure 1). After the discovery of the exact resistance mechanism, new compounds or molecular derivatives of the original drugs must be tested for effectiveness both towards the wild type and resistant mutant. Finally, the selected inhibitor must undergo regulatory scrutiny until it is ultimately approved. As the trivial solutions are exhausted, every successive cycle is harder and more expensive than the preceding cycles, requiring the new drug to be effective against the wild type and each resistant form.

To accelerate this cycle, new and higher-throughput methods for discovery must be employed. One possible solution is to predict the resistance-conferring mutations by actively mutating the target gene and selecting for resistant mutants through directed evolution. Naturally, the more comprehensive and systematic the mutagenesis is, the higher the chances of achieving a complete prediction.

Here, we discuss various approaches for performing deep mutational scans and address the benefits and limitations of each strategy. We go on to give examples of how these tools have been successfully used to predict mutationally acquired resistance mechanisms in cases relevant to malaria. Lastly, we discuss how such technologies may further advance the understanding of resistance and identify drug–target pairs.

2. Directed Evolution

Directed evolution experiments mimic the principles of natural selection at laboratory timescales. The induction of genetic diversity is followed by screening or selection steps to deplete the unfit mutants while preserving the more fit mutants that will be the target for the next round of mutagenesis [4]. Genomic diversity may occur naturally [5] or can be induced randomly using radiation, mutagenic chemicals, or engineered mutator strains [6,7,8,9]. More focused random mutagenesis methods include error-prone PCR and DNA shuffling (Figure 2). For error-prone PCR, the reaction is performed under non-ideal conditions or by using mutated polymerases to reduce overall fidelity and increase the mutation rate [10]. In DNA shuffling, multiple variants of a gene are used to create chimeras with modified properties [11]. On the other end of the spectrum are rational design approaches where structure-based computer-aided designs focus on a particular set of mutations that are predicted to achieve the desired trait [12,13,14]. Between random mutagenesis and rational design lie semi-rational approaches such as saturation mutagenesis. This method is employed when specific sites are a target, but the final identity of these sites cannot be predicted, and all, or a subset, of amino acids are converted to each other possible amino acid at that position [15,16]. Several approaches to controlling the size of saturated libraries have been reported [17,18,19], aiming to reduce downstream screening efforts.

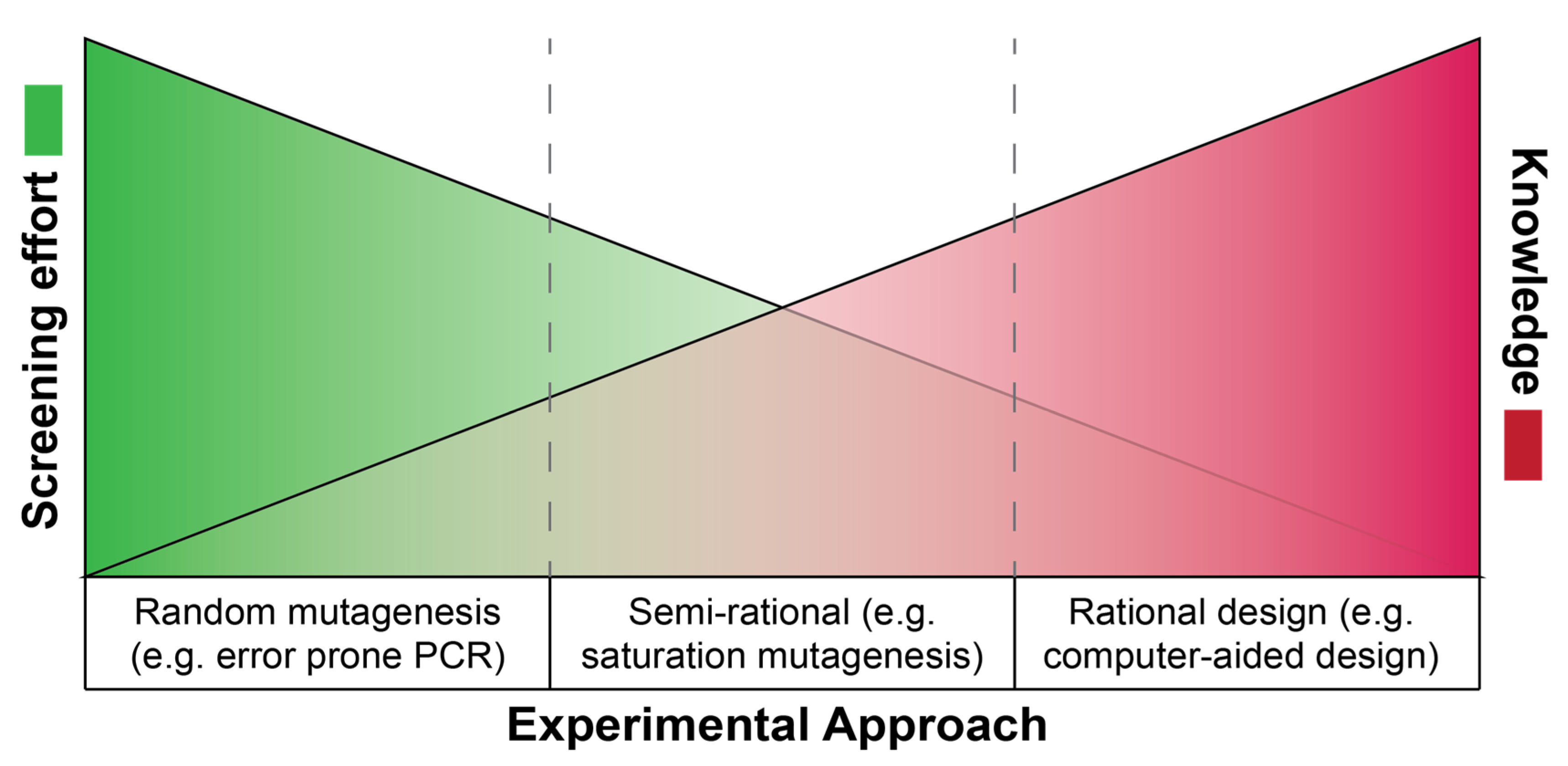

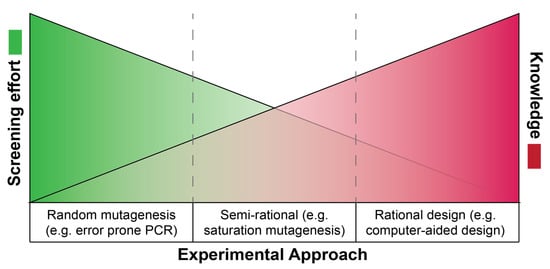

The exact method for introducing this genetic diversity generally depends on two factors: (1) the available throughput for mutant testing and (2) the amount of knowledge available for the target gene. In the investigation of resistance, however, the throughput is mostly irrelevant since selection can be used for any library size, leaving the knowledge level as the primary consideration. Genes with no prior literature will be subjected to random mutagenesis approaches. In contrast, genes that have been studied extensively will be mutated in specific target regions. Targets for rational design may be derived from three-dimensional structures, computational sequence analysis, and naturally occurring mutations in homologous genes or domains, among others. Massively parallel DNA synthesis coupled with next-generation sequencing can support the systematic sequence-to-activity mapping by saturating every amino acid in a gene, generating a library of complete single amino acid polymorphisms. Following the selection step, where the library is treated with the drug of interest, the surviving population will harbor mutations that confer resistance—some of which may be unintuitive. Hence, the level of library completeness correlates with the confidence of isolating the complete repertoire of the resistance-conferring mutants.

3. Library Design

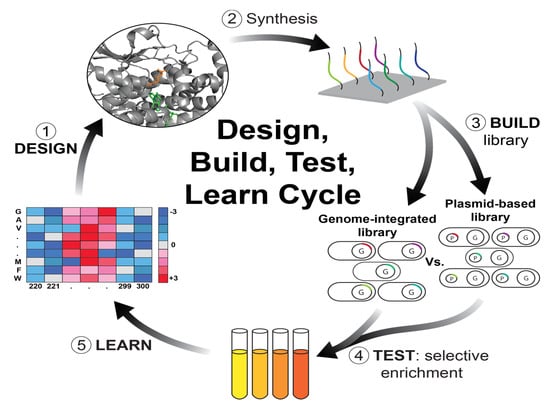

Strategies using deep scanning saturation mutagenesis libraries employ the “Design–Build–Test–Learn” cycle adopted from computational and engineering sciences (Figure 3) [20], and have been applied for several genes, spanning antibiotic-resistance genes in bacteria to oncogenes in human cells [21,22,23,24,25,26]. The complete mutational landscape of the beta-lactamase gene at single amino acid resolution was made by Firnberg [27] and Stiffler [28], providing a high-resolution picture of mutational fitness and drug resistance.

These libraries were made on plasmids, allowing the study of genes that are not necessarily expressed naturally in the subject organism. Assuredly, it is simpler to construct a library of variants and express them on a plasmid than to integrate each mutant onto the genome. However, lack of native regulation and variation in plasmid copy numbers leading to stochastic distributions of protein products can, in turn, affect fitness estimates [29,30,31,32]. Direct genome editing, when applicable, handles these concerns, but large-scale editing was, until recently, technologically infeasible. One possible approach for integrating mutants onto the genome involves error-prone PCR to generate a diverse library of mutants coupled to a CRISPR/Cas9 system to select for recombinants [33,34]. These approaches benefit from being relatively straightforward and inexpensive since they do not require large-scale DNA synthesis and rely on a single, pre-validated guide RNA. While these approaches ultimately rely upon random errors to generate the diversity of the library members, sufficiently large samples may statistically cover most single nucleotide substitutions. For applications where complete coverage of an entire gene or specific target regions is needed, a strategy utilizing synthetic libraries may be necessary. Examples of such approaches involving the genomic incorporation of synthetic libraries utilizing CRISPR/Cas9 systems as a selection tool are CRISPR-Enabled Trackable Genome Engineering (CREATE) and HI-CRISPR, among others [35,36,37,38,39]. Using the CREATE technology, we were able to search for point mutations in the ispC/dxr gene that confer resistance to the antimalarial fosmidomycin (3-(N-formyl-N-hydroxyamino)propylphosphonic acid (FSM), uncovering mutations not elucidated in previous error-prone PCR strategies (see below) [40,41].

An important consideration for library design is whether to perform complete or restricted saturation. In some cases, the best performing mutants, also termed the highest peaks of the mutational landscape [42], require a significant change in the chemical properties of the target amino acid, thus requiring a change in two or three bases in the codon [43,44,45]. While complete saturation mutagenesis, allowing access to the entire amino acid repertoire, may be necessary for basic studies and protein engineering efforts, for the study of naturally-occurring resistance phenotypes, it may only be required to restrict the library to single base changes, thus reducing downstream labor and cost. Another approach to reducing library size is to rationally select the targets for mutagenesis rather than systematically mutating the complete gene [40]. Such rationally designed libraries are only possible when a large enough body of knowledge is present, as described above. While this approach risks missing important mutations, it may balance between comprehensiveness and manageability.

While it has been shown that in some cases a single mutation might be enough [46], double and more mutants conferring increased resistance to various inhibitors have been reported [47,48,49]. Ideally, this space should be explored; however, a complete double mutation library (or more) is significantly more extensive and might prove unfeasible with current technologies. Another approach is to accumulate mutations iteratively by cycling through mutagenesis and selection to climb up the mutational landscape rather than testing all possible mutations [50,51].

4. The Example of Deoxyxylulose Phosphate Reductoisomerase

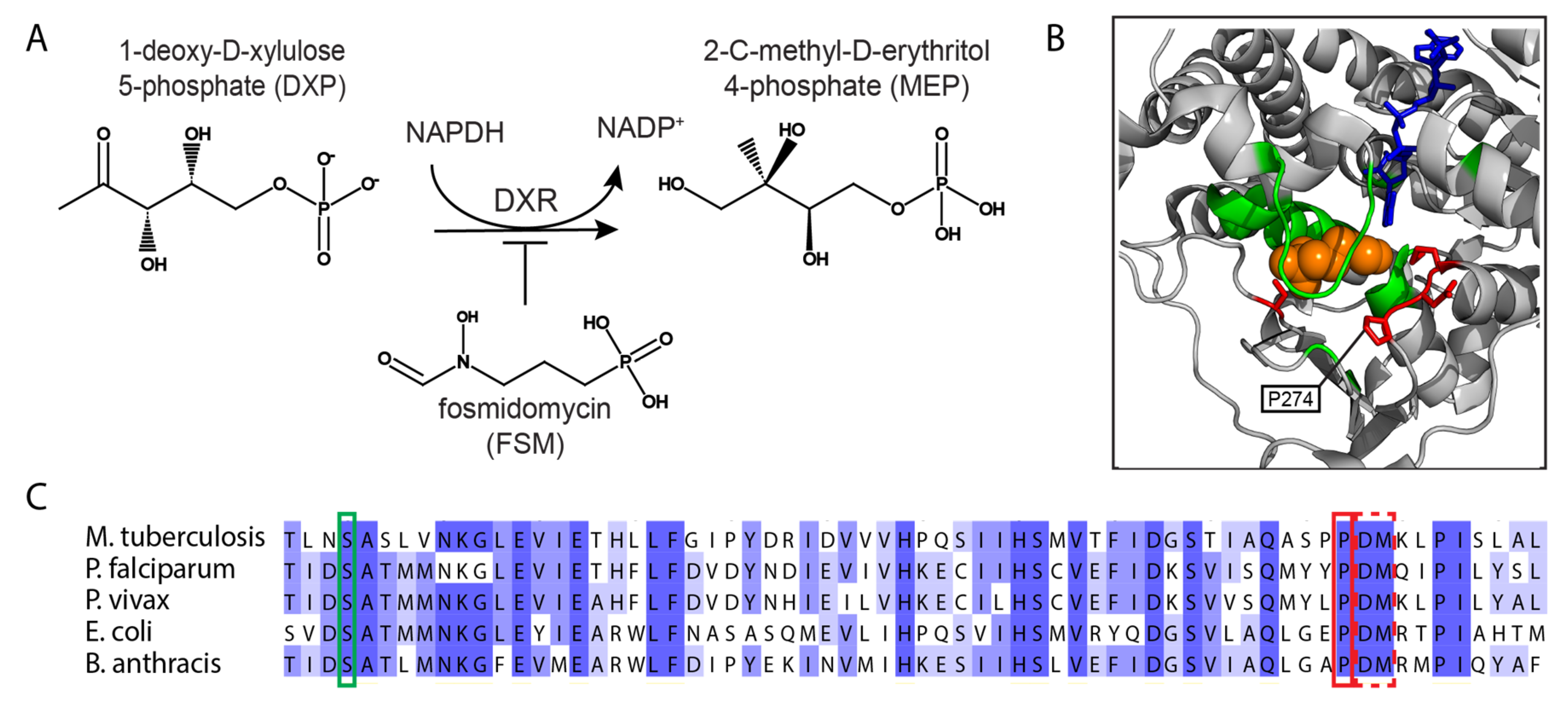

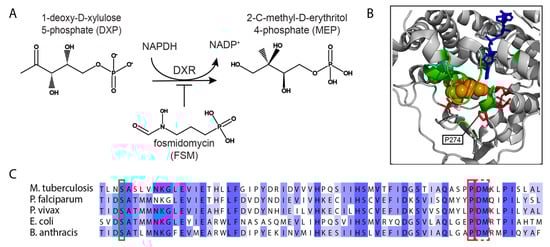

Deoxyxylulose phosphate reductoisomerase (DXR) is a key early enzyme in the non-mevalonate pathway, which catalyzes both the intramolecular rearrangement and reduction of 1-deoxy-d-xylulose 5-phosphate (DXP) to 2-C-methyl-d-erythritol 4-phosphate (MEP) (Figure 4A). The mevalonate pathway was long considered the exclusive pathway that produces isoprenoids such as steroid hormones, carotenoids, and ubiquinone or menaquinone. However, studies in the late 1980s and early 1990s suggested that an alternative non-mevalonate-related pathway exists—mainly in bacteria, plant plastids, and in a plastid-like organelle in Plasmodium falciparum, as well as other protozoan parasites of the phylum Apicomplexa [52]. Since most eukaryotes, including humans, use the mevalonate pathway, the non-mevalonate pathway is an appealing target for inhibition [53].

FSM was first isolated from Streptomyces lavendulae in 1980 [54,55] as a new antibacterial and was shown to inhibit isoprenoid biosynthesis in 1989 [56]. FSM showed an antibacterial spectrum that was consistent with the non-mevalonate pathway, leading to the isolation of its target, DXR [57]. Ten years later, FSM was considered as a potential antimalarial as the MEP pathway is highly conserved in Plasmodium species [58,59,60].

While FSM is effective in malaria, previous studies have demonstrated P. falciparum gaining resistance to FSM through changes in metabolic flux via the MEP pathway and amplification of the DXR gene [61,62]. Contrary to P. falciparum, both Mycobacterium tuberculosis and Toxoplasma gondii are natively resistant to FSM due to a lack of cellular drug intake [63,64]. DXR is a highly conserved enzyme in the non-mevalonate pathway, and FSM is effective to some extent in E. coli, with several reports of resistance related to lack of intake [65] and FSM export from the cell [66]. A DXR point mutation conferring resistance was identified via error-prone PCR in E. coli [41]. In addition, several P. falciparum dxr mutations were correlated with increased half-maximal inhibitory concentration (IC₅₀) of FSM; however, further studies are required to determine causality [67]. As high-throughput tools for engineering P. falciparum have yet to be demonstrated, we took advantage of the conserved nature of DXR between P. falciparum and E. coli and their similar mechanism of inhibition by FSM to study resistance mechanisms in E. coli as a proxy for P. falciparum.

In our study, we examined a published crystal structure of the E. coli DXR bound to FSM and selected the sites proximal to the FSM, DXP, and NADPH binding domains for saturation (Figure 4B). Thirty-three amino acids were selected for complete saturation to form an overall library of 660 mutants (amino acids were also silently mutated for control purposes). These mutations were generated directly at the E. coli genome level as previously reported [35]. Editing cassettes were synthesized using massively parallel DNA synthesis, and these cassettes were used as templates for recombineering using the lambda phage system [68,69]. Each editing cassette harbored two mutations: the first was the desired mutation while the second was a silent CRISPR protospacer-adjacent motif (PAM) mutation. Since the PAM is essential for the CRISPR system to fully recognize its target sequences, successfully edited cells will not be targeted, and their genome will not undergo a double-strand break—a lethal event in E. coli [70]. Following the construction of the genome-edited library, the cells were incubated in the presence of FSM to enrich for mutations that confer resistance, then were deep-sequenced to identify the mutations. Indeed, several mutations that induce FSM resistance were identified [40]. Importantly, thanks to the conserved nature of dxr, the identified sites also exist in other organisms, including P. falciparum and P. vivax strains (Figure 4C).

Among the resistant mutations, the mutation of a proline to a charged amino acid in position 274 was repeatedly identified. Indeed, the mutation of this proline to positively charged amino acids lysine and arginine resulted in increased half-maximal effective concentration (EC₅₀) values compared to the wild type DXR (6.7, 5.5, and 1.2, respectively). The resistance mechanism of these mutations may be explained by the structural analysis performed by Yajima et al. where the proline residue and the FSM backbone sandwiched Trp212 in between, thus stabilizing the loop formation [71]. This structure is further stabilized by Met214 and His209. Interestingly, Met214, His209, and Trp212 were all targeted in the library, but none of them were enriched following FSM treatment. Other resistant mutations that were identified in positions 186 and 230 are less straightforward and will require further analysis to elucidate their resistance mechanism.

5. The Use of Surrogate Organisms

The approach of using E. coli as a platform for the discovery of drug-resistant mutations has several advantages and disadvantages. High-throughput genome editing methods have primarily been developed for laboratory strains such as E. coli and S. cerevisiae. While some methods are being adapted for an increasing number of non-model organisms and advances in Plasmodium genome editing have been reported [72,73,74], technologies for the high-throughput genome editing of Plasmodium strains will likely always lag after canonical model organisms. In addition, working with model organisms allows for experimentation in a standard molecular biology laboratory without extraordinary biohazard requirements. The distinct disadvantage of working on a different and distant organism is that there is no assurance that the same mutants will confer resistance in the actual organism of interest. Moreover, drug compatibility between species is not guaranteed, as in the case of MMV00813, which inhibits Plasmodium IspD, but has little effect on the E. coli ortholog [75]. We assume that E. coli can, in some cases, serve as a surrogate to narrow down the mutant candidates that will later need to be verified in the target organism. An alternative approach could involve using CRISPR-based tools such as those described by Bassalo et al. to integrate the P. falciparum ispC gene onto the E. coli genome in place of its native counterpart [76]. The P. falciparum and E. coli DXR genes are highly conserved; therefore, it is conceivable that the Plasmodium DXR may be functional in the context of an E. coli host. With the native E. coli ispC gene replaced with the Plasmodium sequence, saturation mutagenesis of critical residues in the active site of DXR may be performed and the library of mutants can be screened for FSM resistance in the context of a non-pathogenic model organism. However, it should be noted that in order to increase the probability of successful expression, sequence adaptations such as codon optimization (or harmonization), while maintaining the mRNA secondary structure may be required [77,78,79,80].

6. Discussion and Future Directions

High-throughput mutagenesis technologies are powerful tools for the prediction of mutations conferring drug resistance. However, these technologies still require further optimization, mainly in terms of editing efficiency [81]. For example, when using CRISPR systems, different guide RNA designs vary in performance, leading to a wide editing efficiency distribution across mutations [82,83]. Another consideration is that since the whole library is tested in a single culture, the dominant mutant is not only the one that grants resistance, but is also the one that has the least damage to its fitness. This additional factor might obscure important resistant mutants with lower growth rates [34,84], and may partially explain why, in our search for FSM-resistant mutations, we failed to isolate the previously reported S222T mutant, despite it being included in the library [41].

We propose that this technology can be further matured to be exploited at multi-gene and genome scales to deconvolute multi-mutational genotypes and pair inhibitors with their molecular targets. Chemical genetics approaches have been successfully applied to elucidate novel pairs of inhibitor molecules and their specific targets in P. falciparum [85,86,87,88,89,90,91,92,93]. Typically, these screens begin with applying inhibitors to the organism, followed by sequencing the genome of resistant strains to identify where mutations have arisen. Wherever possible, these studies are further validated with biochemical assays to substantiate the relationship between the inhibitor–target pair, as not all enriched mutations may result in the resistant phenotype. Demultiplexing all mutations found in resistant strains and individually inducing them will help to resolve the resistance-driving mutations from the mutational noise.

Common resistance mechanisms may additionally be targeted for the development of inhibitors. For example, when challenging E. coli with rifampicin, mutations in both its specific target, the RNA polymerase beta subunit (rpoB), and a gene implicated in multiple resistance mechanisms (marR) were found to confer resistance [35]. Thus, building more comprehensive genome-wide mutant libraries may help to pair broader categories of inhibitors to their specific targets and elucidate mechanisms of resistance.

Further systematic approaches may also potentially be used for pairing inhibitors to their targets. For example, if a drug is known to inhibit a specific essential pathway as with FSM [56], saturation of the complete pathway can be done to identify the target gene. Finally, libraries may also be genome-wide, spanning complete open reading frames, promoters, and other genetic elements. Complete agnostic approaches for genome-wide targeting have been performed at the gene resolution to identify genes essential for cancer cell growth and resistance, but a deeper, single-nucleotide resolution is still technologically challenging due to the library size [94,95,96]. Current barriers to accomplishing truly genome-wide libraries include transformation and editing efficiencies in the host organism, as mentioned above. The continuous improvement of these aspects may make such comprehensive libraries feasible in the future.

Mapping resistant mutations is an important first step in the search for the next generation of drugs. These data should then be integrated into structural predictions and drug–target docking simulations to elucidate the molecular resistance mechanism. Drug derivatives and similar molecules can then be tested in silico to narrow down potential candidates that would later be tested against the original mutational library. In this scenario, a successful candidate will result in significantly less resistant mutations than the original drug.

While we focus here on malaria, these approaches are not limited to Plasmodium strains. Molecules that were shown to be effective against malaria have been demonstrated to inhibit the growth of numerous other pathogens, including Trypanosomatids, Toxoplasma gondii, Entamoeba histolytica, Perkinsus marinus, and Cryptosporidium parvum [97,98,99,100], and the field as a whole may benefit from studying inhibitors that target multiple pathogens [101]. Moreover, the principles discussed here are also relevant for resistance phenotypes in general, from bacterial infections to the resistance of tumor cells in cancer patients.
