Tuning Photodynamic Properties of BODIPY Dyes, Porphyrins’ Little Sisters
Abstract
:1. Introduction
2. Results

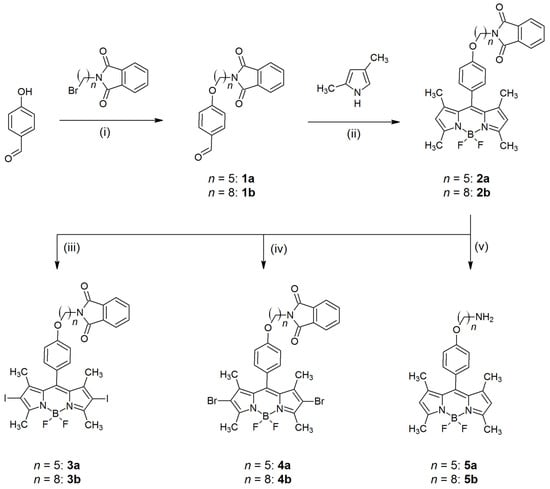

2.1. Synthesis and Characterization

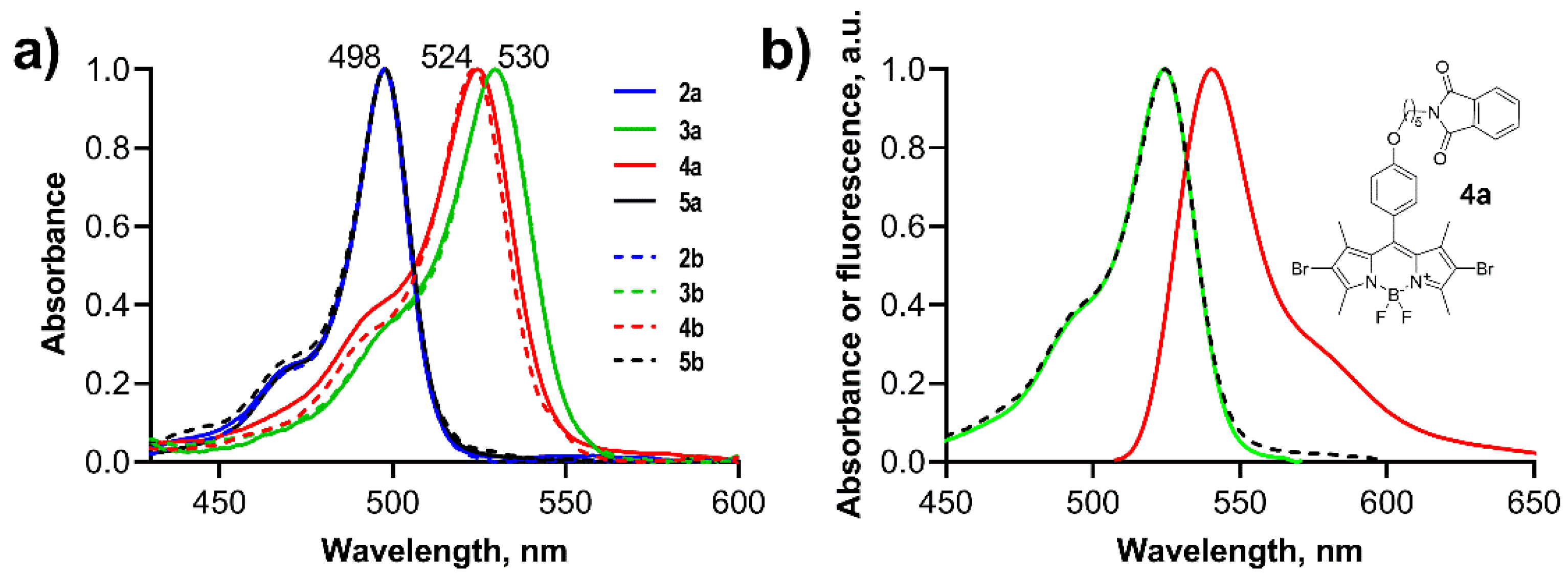

2.2. Spectral Features and Photophysical Properties
2.3. In Vitro Assessment of Biological Activity
3. Materials and Methods
3.1. Synthesis
3.1.1. General
4-[5-(1,3-Dihydro-1,3-dioxo-2H-isoindol-2-yl)pentyloxy]benzaldehyde (1a)
4-[8-(1,3-Dihydro-1,3-dioxo-2H-isoindol-2-yl)octyloxy]benzaldehyde (1b)
1,3,5,7-Tetramethyl-8-{4-[5-(phthalimidyl)pentyloxy]phenyl}-4,4-difluoro-4-bora-3a,4a-diaza-s-indacene (2a)
1,3,5,7-Tetramethyl-8-{4-[8-(phthalimidyl)octyloxy]phenyl}-4,4-difluoro-4-bora-3a,4a-diaza-s-indacene (2b)
2,6-Diiodo-1,3,5,7-tetramethyl-8-{4-[5-(phthalimidyl)pentyloxy]phenyl}-4,4-difluoro-4-bora-3a,4a-diaza-s-indacene (3a)
2,6-Diiodo-1,3,5,7-tetramethyl-8-{4-[8-(phthalimidyl)octyloxy]phenyl}-4,4-difluoro-4-bora-3a,4a-diaza-s-indacene (3b)
2,6-Dibromo-1,3,5,7-tetramethyl-8-{4-[5-(phthalimidyl)pentyloxy]phenyl}-4,4-difluoro-4-bora-3a,4a-diaza-s-indacene (4a)
2,6-Dibromo-1,3,5,7-Tetramethyl-8-{4-[8-(phthalimidyl)octyloxy]phenyl}-4,4-difluoro-4-bora-3a,4a-diaza-s-indacene (4b)
1,3,5,7-Tetramethyl-8-[4-(5-aminopentyloxy)phenyl]-4,4-difluoro-4-bora-3a,4a-diaza-s-indacene (5a)
1,3,5,7-Tetramethyl-8-[4-(8-aminooctyloxy)phenyl]-4,4-difluoro-4-bora-3a,4a-diaza-s-indacene (5b)
3.2. Photophysical Measurements
3.3. Photobleaching Experiments
3.4. Cell Culture and Sample Preparation
3.5. Cytotoxicity Experiments
3.6. Subcellular Localization

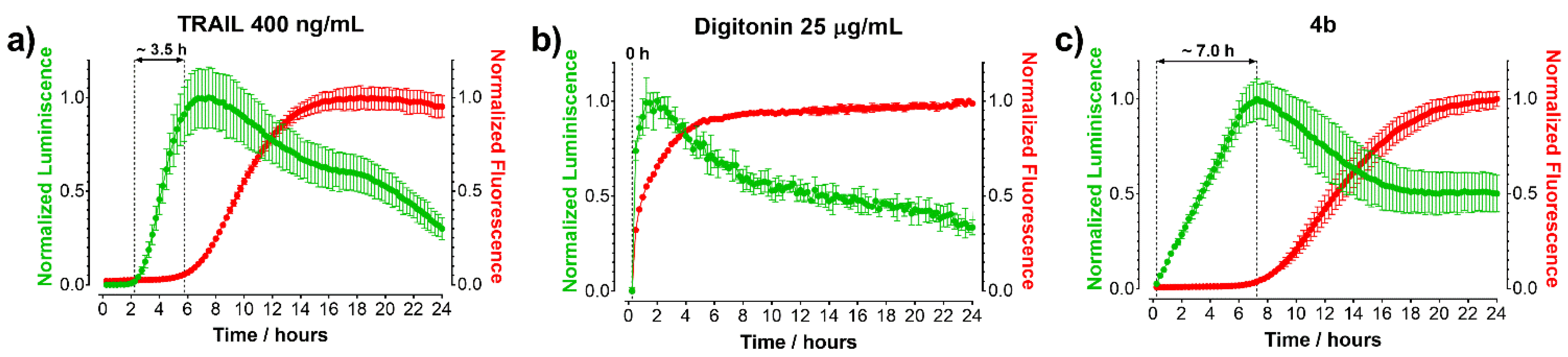

3.7. Real-Time Monitoring of Annexin V Binding and the Loss of Cell Membrane Integrity
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Sample Availability
References
- Matsuo, Y.; Ogumi, K.; Jeon, I.; Wang, H.; Nakagawa, T. Recent progress in porphyrin- and phthalocyanine-containing perovskite solar cells. RSC Adv. 2020, 10, 32678–32689. [Google Scholar] [CrossRef]
- Urbani, M.; de la Torre, G.; Nazeeruddin, M.K.; Torres, T. Phthalocyanines and porphyrinoid analogues as hole- and electron-transporting materials for perovskite solar cells. Chem. Soc. Rev. 2019, 48, 2738–2766. [Google Scholar] [CrossRef]
- Li, C.Y.; Zhang, X.B.; Qiao, L.; Zhao, Y.; He, C.M.; Huan, S.Y.; Lu, L.M.; Jian, L.X.; Shen, G.L.; Yu, R.Q. Naphthalimide-Porphyrin Hybrid Based Ratiometric Bioimaging Probe for Hg2+: Well-Resolved Emission Spectra and Unique Specificity. Anal. Chem. 2009, 81, 9993–10001. [Google Scholar] [CrossRef]
- Pereira, C.F.; Figueira, F.; Mendes, R.F.; Rocha, J.; Hupp, J.T.; Farha, O.K.; Simoes, M.M.Q.; Tome, J.P.C.; Paz, F.A.A. Bifunctional Porphyrin-Based Nano-Metal-Organic Frameworks: Catalytic and Chemosensing Studies. Inorg. Chem. 2018, 57, 3855–3864. [Google Scholar] [CrossRef] [PubMed]
- Xue, X.D.; Lindstrom, A.; Li, Y.P. Porphyrin-Based Nanomedicines for Cancer Treatment. Bioconjugate Chem. 2019, 30, 1585–1603. [Google Scholar] [CrossRef] [PubMed]
- Almeida-Marrero, V.; Gonzalez-Delgado, J.A.; Torres, T. Emerging Perspectives on Applications of Porphyrinoids for Photodynamic Therapy and Photoinactivation of Microorganisms. Macroheterocycles 2019, 12, 8–16. [Google Scholar] [CrossRef]
- Sobotta, L.; Skupin-Mrugalska, P.; Piskorz, J.; Mielcarek, J. Porphyrinoid photosensitizers mediated photodynamic inactivation against bacteria. Eur. J. Med. Chem. 2019, 175, 72–106. [Google Scholar] [CrossRef] [PubMed]
- Ogilby, P.R. Singlet oxygen: There is indeed something new under the sun. Chem. Soc. Rev. 2010, 39, 3181–3209. [Google Scholar] [CrossRef] [PubMed]
- Dougherty, T.J.; Gomer, C.J.; Henderson, B.W.; Jori, G.; Kessel, D.; Korbelik, M.; Moan, J.; Peng, Q. Photodynamic therapy. J. Natl. Cancer Inst. 1998, 90, 889–905. [Google Scholar] [CrossRef] [Green Version]
- Lo, P.C.; Rodriguez-Morgade, M.S.; Pandey, R.K.; Ng, D.K.P.; Torres, T.; Dumoulin, F. The unique features and promises of phthalocyanines as advanced photosensitisers for photodynamic therapy of cancer. Chem. Soc. Rev. 2020, 49, 1041–1056. [Google Scholar] [CrossRef] [PubMed]
- Kamkaew, A.; Lim, S.H.; Lee, H.B.; Kiew, L.V.; Chung, L.Y.; Burgess, K. BODIPY dyes in photodynamic therapy. Chem. Soc. Rev. 2013, 42, 77–88. [Google Scholar] [CrossRef]
- Ulrich, G.; Ziessel, R.; Harriman, A. The Chemistry of Fluorescent Bodipy Dyes: Versatility Unsurpassed. Angew. Chem. Int. Ed. 2008, 47, 1184–1201. [Google Scholar] [CrossRef]
- Boens, N.; Verbelen, B.; Ortiz, M.J.; Jiao, L.; Dehaen, W. Synthesis of BODIPY dyes through postfunctionalization of the boron dipyrromethene core. Coord. Chem. Rev. 2019, 399, 213024. [Google Scholar] [CrossRef]
- Bañuelos, J. BODIPY Dye, the Most Versatile Fluorophore Ever? Chem. Rec. 2016, 16, 335–348. [Google Scholar] [CrossRef] [PubMed]
- Qin, Y.; Liu, X.; Jia, P.P.; Xu, L.; Yang, H.B. BODIPY-based macrocycles. Chem. Soc. Rev. 2020, 49, 5678–5703. [Google Scholar] [CrossRef] [PubMed]
- Ni, Y.; Wu, J.S. Far-red and near infrared BODIPY dyes: Synthesis and applications for fluorescent pH probes and bio-imaging. Org. Biomol. Chem. 2014, 12, 3774–3791. [Google Scholar] [CrossRef]
- Benniston, A.C.; Copley, G. Lighting the way ahead with boron dipyrromethene (Bodipy) dyes. Phys. Chem. Chem. Phys. 2009, 11, 4124–4131. [Google Scholar] [CrossRef] [PubMed]
- Yuan, L.; Lin, W.Y.; Zheng, K.B.; He, L.W.; Huang, W.M. Far-red to near infrared analyte-responsive fluorescent probes based on organic fluorophore platforms for fluorescence imaging. Chem. Soc. Rev. 2013, 42, 622–661. [Google Scholar] [CrossRef] [PubMed]
- Kowada, T.; Maeda, H.; Kikuchi, K. BODIPY-based probes for the fluorescence imaging of biomolecules in living cells. Chem. Soc. Rev. 2015, 44, 4953–4972. [Google Scholar] [CrossRef]
- Zhang, W.Q.; Ahmed, A.; Cong, H.L.; Wang, S.; Shen, Y.Q.; Yu, B. Application of multifunctional BODIPY in photodynamic therapy. Dyes Pigm. 2021, 185, 108937. [Google Scholar] [CrossRef]
- Turksoy, A.; Yildiz, D.; Akkaya, E.U. Photosensitization and controlled photosensitization with BODIPY dyes. Coord. Chem. Rev. 2019, 379, 47–64. [Google Scholar] [CrossRef]
- Grosjean, P.; Wagnieres, G.; Fontolliet, C.; van den Bergh, H.; Monnier, P. Clinical photodynamic therapy for superficial cancer in the oesophagus and the bronchi: 514 nm compared with 630 nm light irradiation after sensitization with Photofrin II. Br. J. Cancer 1998, 77, 1989–1995. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Sharma, U.; Kumar, P.; Kumar, N.; Singh, B. Recent Advances in the Chemistry of Phthalimide Analogues and their Therapeutic Potential. Mini-Rev. Med. Chem. 2010, 10, 678–704. [Google Scholar] [CrossRef] [PubMed]
- Alanazi, A.M.; El-Azab, A.S.; Al-Suwaidan, I.A.; ElTahir, K.E.H.; Asiri, Y.A.; Abdel-Aziz, N.I.; Abdel-Aziz, A.A.M. Structure-based design of phthalimide derivatives as potential cyclooxygenase-2 (COX-2) inhibitors: Anti-inflammatory and analgesic activities. Eur. J. Med. Chem. 2015, 92, 115–123. [Google Scholar] [CrossRef] [PubMed]
- Dos Santos, J.L.; Lanaro, C.; Chelucci, R.C.; Gambero, S.; Bosquesi, P.L.; Reis, J.S.; Lima, L.M.; Cerecetto, H.; Gonzalez, M.; Costa, F.F.; et al. Design, Synthesis, and Pharmacological Evaluation of Novel Hybrid Compounds to Treat Sickle Cell Disease Symptoms. Part II: Furoxan Derivatives. J. Med. Chem. 2012, 55, 7583–7592. [Google Scholar] [CrossRef]
- Dick, D.L.; Rao, T.V.S.; Sukumaran, D.; Lawrence, D.S. Molecular encapsulation: Cyclodextrin-based analogs of heme-containing proteins. J. Am. Chem. Soc. 1992, 114, 2664–2669. [Google Scholar] [CrossRef]
- Piskorz, J.; Dlugaszewska, J.; Porolnik, W.; Teubert, A.; Mielcarek, J. Boron-dipyrromethene derivatives bearing N-alkyl phthalimide and amine substituents of potential application in the photoinactivation of bacteria. Dyes Pigm. 2020, 178, 108322. [Google Scholar] [CrossRef]
- Awuah, S.G.; You, Y. Boron dipyrromethene (BODIPY)-based photosensitizers for photodynamic therapy. RSC Adv. 2012, 2, 11169–11183. [Google Scholar] [CrossRef]
- Zhao, J.Z.; Xu, K.J.; Yang, W.B.; Wang, Z.J.; Zhong, F.F. The triplet excited state of Bodipy: Formation, modulation and application. Chem. Soc. Rev. 2015, 44, 8904–8939. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Durantini, A.M.; Heredia, D.A.; Durantini, J.E.; Durantini, E.N. BODIPYs to the rescue: Potential applications in photodynamic inactivation. Eur. J. Med. Chem. 2018, 144, 651–661. [Google Scholar] [CrossRef]
- Fischer, M.; Georges, J. Fluorescence quantum yield of rhodamine 6G in ethanol as a function of concentration using thermal lens spectrometry. Chem. Phys. Lett. 1996, 260, 115–118. [Google Scholar] [CrossRef]
- Redmond, R.W.; Gamlin, J.N. A compilation of singlet oxygen yields from biologically relevant molecules. Photochem. Photobiol. 1999, 70, 391–475. [Google Scholar] [CrossRef] [PubMed]
- Atilgan, S.; Ekmekci, Z.; Dogan, A.L.; Guc, D.; Akkaya, E.U. Water soluble distyryl-boradiazaindacenes as efficient photosensitizers for photodynamic therapy. Chem. Commun. 2006, 4398–4400. [Google Scholar] [CrossRef] [PubMed]
- Piskorz, J.; Porolnik, W.; Kucinska, M.; Dlugaszewska, J.; Murias, M.; Mielcarek, J. BODIPY-Based Photosensitizers as Potential Anticancer and Antibacterial Agents: Role of the Positive Charge and the Heavy Atom Effect. ChemMedChem 2021, 16, 399–411. [Google Scholar] [CrossRef] [PubMed]
- Caruso, E.; Gariboldi, M.; Sangion, A.; Gramatica, P.; Banfi, S. Synthesis, photodynamic activity, and quantitative structure-activity relationship modelling of a series of BODIPYs. J. Photochem. Photobiol. B 2017, 167, 269–281. [Google Scholar] [CrossRef] [PubMed]
- He, H.; Lo, P.-C.; Yeung, S.-L.; Fong, W.-P.; Ng, D.K.P. Preparation of unsymmetrical distyryl BODIPY derivatives and effects of the styryl substituents on their in vitro photodynamic properties. Chem. Commun. 2011, 47, 4748–4750. [Google Scholar] [CrossRef] [PubMed]
- Machacek, M.; Demuth, J.; Cermak, P.; Vavreckova, M.; Hruba, L.; Jedlickova, A.; Kubat, P.; Simunek, T.; Novakova, V.; Zimcik, P. Tetra(3,4-pyrido)porphyrazines Caught in the Cationic Cage: Toward Nanomolar Active Photosensitizers. J. Med. Chem. 2016, 59, 9443–9456. [Google Scholar] [CrossRef]
- Tabero, A.; García-Garrido, F.; Prieto-Castañeda, A.; Palao, E.; Agarrabeitia, A.R.; García-Moreno, I.; Villanueva, A.; de la Moya, S.; Ortiz, M.J. BODIPYs revealing lipid droplets as valuable targets for photodynamic theragnosis. Chem. Commun. 2020, 56, 940–943. [Google Scholar] [CrossRef]
- Li, G.; Li, J.; Otsuka, Y.; Zhang, S.; Takahashi, M.; Yamada, K. A BODIPY-Based Fluorogenic Probe for Specific Imaging of Lipid Droplets. Materials 2020, 13, 677. [Google Scholar] [CrossRef] [Green Version]
- Novakova, V.; Miletin, M.; Filandrová, T.; Lenčo, J.; Růžička, A.; Zimcik, P. Role of Steric Hindrance in the Newman-Kwart Rearrangement and in the Synthesis and Photophysical Properties of Arylsulfanyl Tetrapyrazinoporphyrazines. J. Org. Chem. 2014, 79, 2082–2093. [Google Scholar] [CrossRef] [PubMed]
Cpd. | X | λmax, nm (log ε) | λF, nm | ΦF (absol) | ΦF (relat)b | τF, ns | ΦΔc |
---|---|---|---|---|---|---|---|
2a | -H | 498 (4.77) | 507 | 0.52 | 0.49 | 3.27 | 0.036 |
3a | -I | 530 (4.36) | 546 | 0.022 | 0.024 | 0.17 | 0.77 |
4a | -Br | 525 (4.72) | 540 | 0.21 | 0.19 | 1.37 | 0.57 |
5a | -H | 498 (4.90) | 507 | 0.43 | 0.44 | 3.25 | 0.063 |
2b | -H | 498 (4.96) | 507 | 0.44 | 0.42 | 2.88 | 0.057 |
3b | -I | 530 (3.70) | 547 | 0.030 | 0.023 | 0.17 | 0.75 |
4b | -Br | 523 (4.04) | 538 | 0.23 | 0.22 | 1.54 | 0.56 |
5b | -H | 498 (4.00) | 507 | 0.50 | 0.47 | 3.22 | 0.071 |

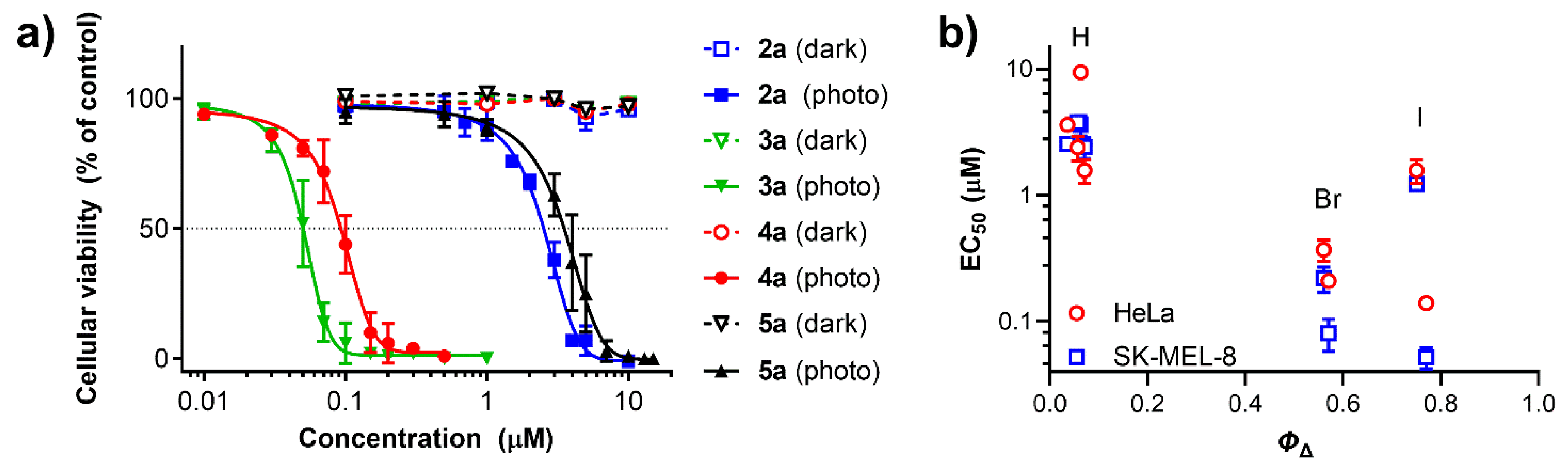

Cpd. | X | EC50 (μM) | TC50 (μM) | TC50/EC50 | ||
---|---|---|---|---|---|---|
HeLa | SK-MEL-28 | SK-MEL-28 | SK-MEL-28 | |||
2a | -H | 3.60 ± 0.19 | 2.55 ± 0.14 | >10b | >3.92 | |
3a | -I | 0.14 ± 0.01 | 0.052 ± 0.01 | >10 b | >192 | |
4a | -Br | 0.21 ± 0.02 | 0.081 ± 0.023 | >10 b | >123 | |
5a | -H | 9.4 ± 0.70 | 3.6 ± 0.66 | >10 b | >2.78 | |
2b | -H | 2.4 ± 0.53 | 3.79 ± 0.20 | >10 b | >2.64 | |
3b | -I | 1.57 ± 0.33 | 1.23 ± 0.14 | >10 b | >8.13 | |
4b | -Br | 0.37 ± 0.07 | 0.22 ± 0.05 | >10 b | >45.5 | |
5b | -H | 1.57 ± 0.33 | 2.42 ± 0.46 | >10 b | >4.13 | |
Methylene blue c | 5.15 ± 1.93 | 22.7 ± 7.9 d | 4.4 d | |||
S3AlOHPc c | 2.07 ± 0.29 | 127 ± 7.8 d | 60 d | |||
Pp IX c | 0.80 ± 0.13 | >10 b,d | >10 d | |||
temoporfin c | 0.045 ± 0.007 | 20.6 ± 2.5 d | 460 d |
