Non-Specific GH30_7 Endo-β-1,4-xylanase from Talaromyces leycettanus

Abstract

This study describes the catalytic properties of a GH30_7 xylanase produced by the fungus Talaromyces leycettanus. The enzyme is an ando-β-1,4-xylanase, showing similar specific activity towards glucuronoxylan, arabinoxylan, and rhodymenan (linear β-1,3-β-1,4-xylan). The heteroxylans are hydrolyzed to a mixture of linear as well as branched β-1,4-xylooligosaccharides that are shorter than the products generated by GH10 and GH11 xylanases. In the rhodymenan hydrolyzate, the linear β-1,4-xylooligosaccharides are accompanied with a series of mixed linkage homologues. Initial hydrolysis of glucuronoxylan resembles the action of other GH30_7 and GH30_8 glucuronoxylanases, resulting in a series of aldouronic acids of a general formula MeGlcA²Xyl_n. Due to the significant non-specific endoxylanase activity of the enzyme, these acidic products are further attacked in the unbranched regions, finally yielding MeGlcA²Xyl_2-3. The accommodation of a substituted xylosyl residue in the −2 subsite also applies in arabinoxylan depolymerization. Moreover, the xylose residue may be arabinosylated at both positions 2 and 3, without negatively affecting the main chain cleavage. The catalytic properties of the enzyme, particularly the great tolerance of the side-chain substituents, make the enzyme attractive for biotechnological applications. The enzyme is also another example of extraordinarily great catalytic diversity among eukaryotic GH30_7 xylanases.

1. Introduction

Xylan is one of the most plentiful polysaccharides on the Earth. It is a major hemicellulose of hardwoods and the second most abundant hemicellulose in softwoods. It also forms a substantial portion of cereals and herbaceous plant cell walls. In general, the xylan backbone is composed of 1,4-linked β-D-xylopyranosyl residues (Xylp). They may be decorated with α-D-glucuronic acid, 4-O-methyl-α-D-glucuronic acid and α-L-arabinofuranosyl residues. Moreover, the Xylp residues may be acetylated. The pattern of xylan main chain substitution is species, tissue, and season specific; modulates the physico-chemical properties of the polymer; and renders the hemicellulose water soluble by preventing self-association of the xylan chains [1].

Xylan substitution also has a dramatic impact on its enzymatic digestibility. The depolymerization is catalyzed by endo-β-1,4-xylanases (EC 3.2.1.8). Most of the known xylanases belonging to GH10 and GH11 families act on unbranched or scarcely substituted regions of xylan [2]. Highly decorated xylans are attacked by some GH98 and GH5 xylanases capable of hydrolyzing a glycosidic linkage connecting two substituted Xylp residues [3]. Moreover, it seems that these enzymes not only tolerate but require a certain type of decoration, e.g. 3-O-arabinosylation, of Xylp residue accommodated in the −1 subsite [4]. There are also xylanases that require decoration with uronic acids for their action. The latter catalysts can be found in the GH30 family, specifically in subfamilies GH30_7 and GH30_8 [5].

A vast majority of prokaryotic GH30_8 members are (Me)GlcA appendage-dependent enzymes called glucuronoxylanases (EC 3.2.1.136), although some non-specific endoxylanases belong to the subfamily too [6]. The glucuronoxylan specificity is determined by a very strong interaction of the enzyme -2b subsite with the glucuronic acids, which results in the generation of a series of aldouronic acids of the general formula (Me)GlcA²Xyl_n [7,8]. The same acidic products are formed by eukaryotic GH30_7 glucuronoxylanases although the recognition of (Me)GlcA residue is not entirely the same. However, the substrate and product specificity among GH30_7 members are more diverse since the subfamily also encompasses non-specific endo-β-1,4-xylanases, reducing-end xylose-releasing enzymes, and non-reducing end-acting xylobiohydrolases [6]. The rationale for the catalytic diversity among various GH30_7 enzymes is not fully understood. In this work, we studied the catalytic properties of an earlier patented but insufficiently characterized GH30 xylanase from Talaromyces leycettanus [9]. The enzyme shows unique properties with regard to tolerance of the main chain substitution and particularly to the decoration of Xylp residue accommodated in the −2 subsite, resulting in an exceptionally high degree of hydrolysis of different types of xylan. The enzyme thus shows a great potential in numerous biotechnological applications.

2. Results

2.1. Optimum and Stability of the Enzyme

Optimal conditions for the enzyme action were tested using beechwood glucuronoxylan as a substrate. The enzyme has an acidic pH optimum 3.0–3.5, while at pH values 2.0 and 5.0 it showed about 75 and 60% of activity (Figure S1). Approaching neutral pH values resulted in a rapid loss of enzyme activity, which was below 10% at pH 6.0. This acidophilic nature of the enzyme has already been reported [9]. Although the enzyme is most active at acidic pH, it remains active upon storage in a relatively broad pH range of 3.0–7.0 [9]. In the 15 min enzyme assay, the enzyme showed a sharp temperature optimum of 60 °C. At higher temperatures, the activity dropped (e.g. to 40% at 70 °C). About 50% of the maximum activity was determined at 40 °C; however, at room temperature (23 °C), the enzyme was almost inactive (approximately 1% activity) (Figure S1). A similar temperature profile has been published [9]. We also examined the temperature stability of the enzyme for the first time. At the temperature optimum, 60 °C, the enzyme gradually lost activity, exhibiting about half activity after 3 h. At 50 °C, the enzyme was fully stable for 2 h and then the activity started to decline. At 40 °C, the enzyme retained activity for 3 h, but upon a longer incubation, the activity was reduced (Figure S1).

2.2. Substrate Specificity and Mode of Action

Examination of the substrate specificity of T. leycettanus xylanase (TlXyn30A) on various types of xylan showed that the enzyme efficiently depolymerized hardwood glucuronoxylan, cereal arabinoxylan, as well as algal mixed linkage β-1,3-β-1,4-xylan (rhodymenan), with specific activities (12.4, 3.5, and 3.1 U/mg, respectively).

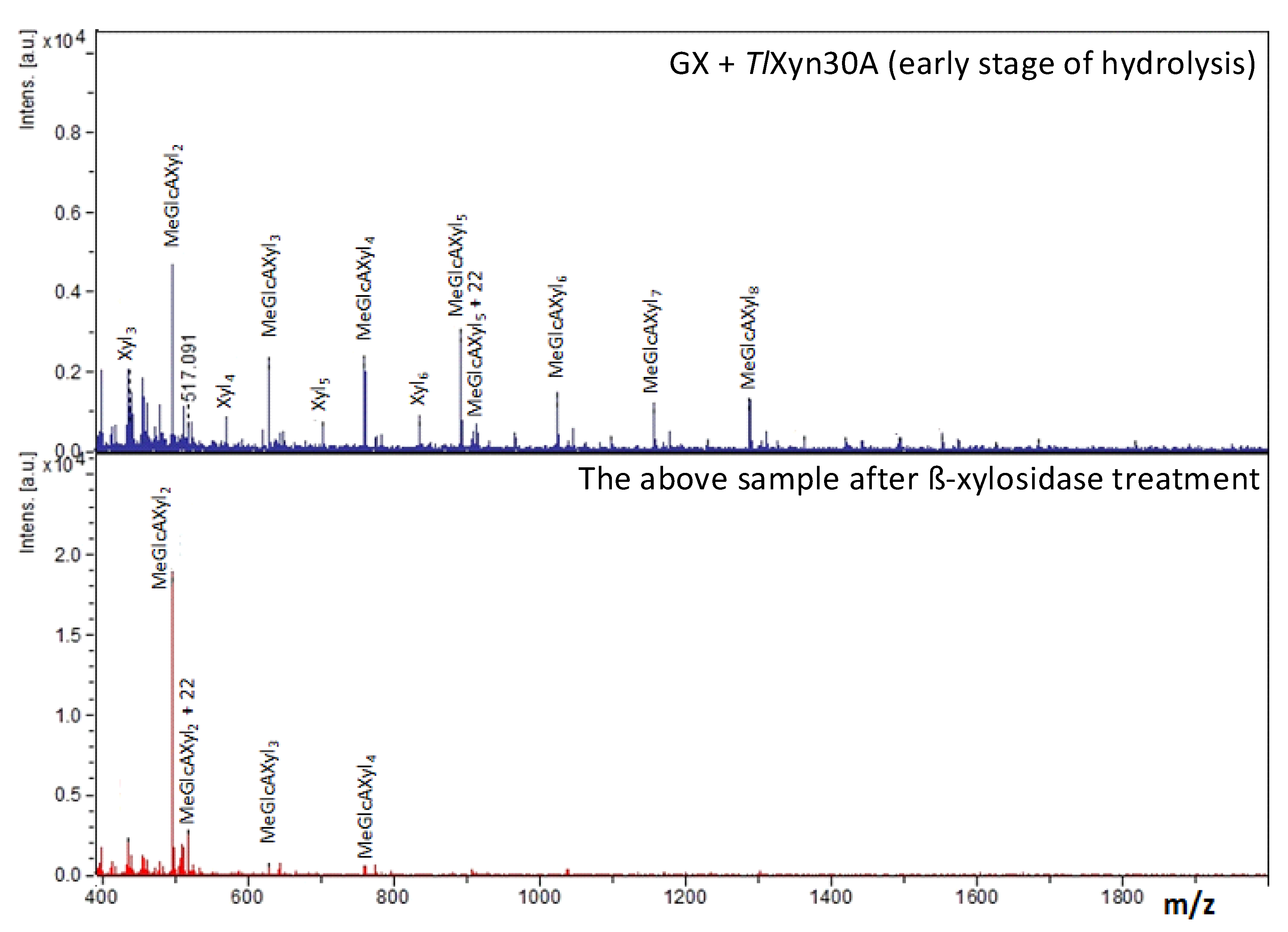

The hydrolysis products were analyzed by TLC and MALDI-ToF MS. Glucuronoxylan was initially hydrolyzed to a series of products that migrated differently to linear β-1,4-xylooligosaccharides, suggesting that all the products are branched with MeGlcA (Figure 1). Indeed, treatment of an early stage reaction mixture (after a heat-inactivation of TlXyn30A) with a GH3 β-xylosidase liberating xylose (Xyl) from the non-reducing end resulted in their conversion to a single oligosaccharide, aldotriouronic acid, having a structure MeGlcA²Xyl₂ (Figure 2). This finding serves as evidence that the initial hydrolysis products generated by TlXyn30A are acidic oligosaccharides of the general structure MeGlcA²Xyl_n, i.e., the fragments have a MeGlcA residue attached to the second Xylp residue from the reducing end.

The aldouronic acids MeGlcA²Xyl_n did not accumulate in the reaction mixture, but their gradual degradation led to larger linear β-1,4-xylooligosaccharides of a degree of polymerization up to 12, which were further trimmed mainly to xylobiose (Xyl₂) accompanied by small amounts of Xyl and xylotriose (Xyl₃). Consequently, the limit hydrolyzate contained a single major aldouronic acid MeGlcA²Xyl₂ with traces of two larger homologs, MeGlcA²Xyl₃ and MeGlcA²Xyl₄.

TLC monitoring of arabinoxylan hydrolysis indicated that after 5 min, when the acidic products generated from GX were clearly visible on the TLC plate, no detectable oligosaccharides were formed from AX. The initial products of AX hydrolysis were a series of larger arabinoxylooligosaccharides (Figure 1). Upon a longer incubation (24 h), the amount of these products decreased on account of the appearance of a broad palette of shorter products, mostly arabinoxylooligosaccharides resistant towards β-xylosidase. A small amount of Xyl₂ present in the hydrolysate disappeared after the application of β-xylosidase.

Rhodymenan (β-1,3-β-1,4-xylan) was hydrolyzed at a rate comparable to AX and was converted to at least two series of oligomeric products. A minor series consists of linear β-1,4-xylooligosaccharides. The series of mixed linkage β-1,3-β-1,4-xylooligosaccharides comprising a single β-1,3-linkage showed a substantially higher chromatographic mobility than β-1,4-xylooligosaccharides. The shortest mixed linkage xylooligosaccharide is an isomeric xylotriose having a structure Xylpβ3Xylpβ4Xyl, based on our previous publication [5]. After 24 h of incubation, the number as well as the quantity of the larger oligosaccharides was markedly reduced on account of an increase in Xyl, Xyl₂, and the isomeric xylotriose as the main final products, indicating an ability of TlXyn30A to hydrolyze certain β-1,3-xylosidic linkages. New faint spots also appeared, which likely correspond to xylooligosaccharides having several β-1,3-linkages. All the products were converted to xylose upon the addition of β-xylosidase (Figure 1).

The enzyme also catalyzed a considerably deeper hydrolysis of acetylglucuronoxylan (not shown) when compared to the performance of other types of endo-β-1,4-xylanases (GH10, GH11, and specific GH30 glucuronoxylanases). This result supported the conclusions obtained with other types of xylan that TlXyn30A unusually well tolerates xylan side residues.

2.3. Hydrolysis of Short Aldouronic Acids and Linear Xylooligosaccharides

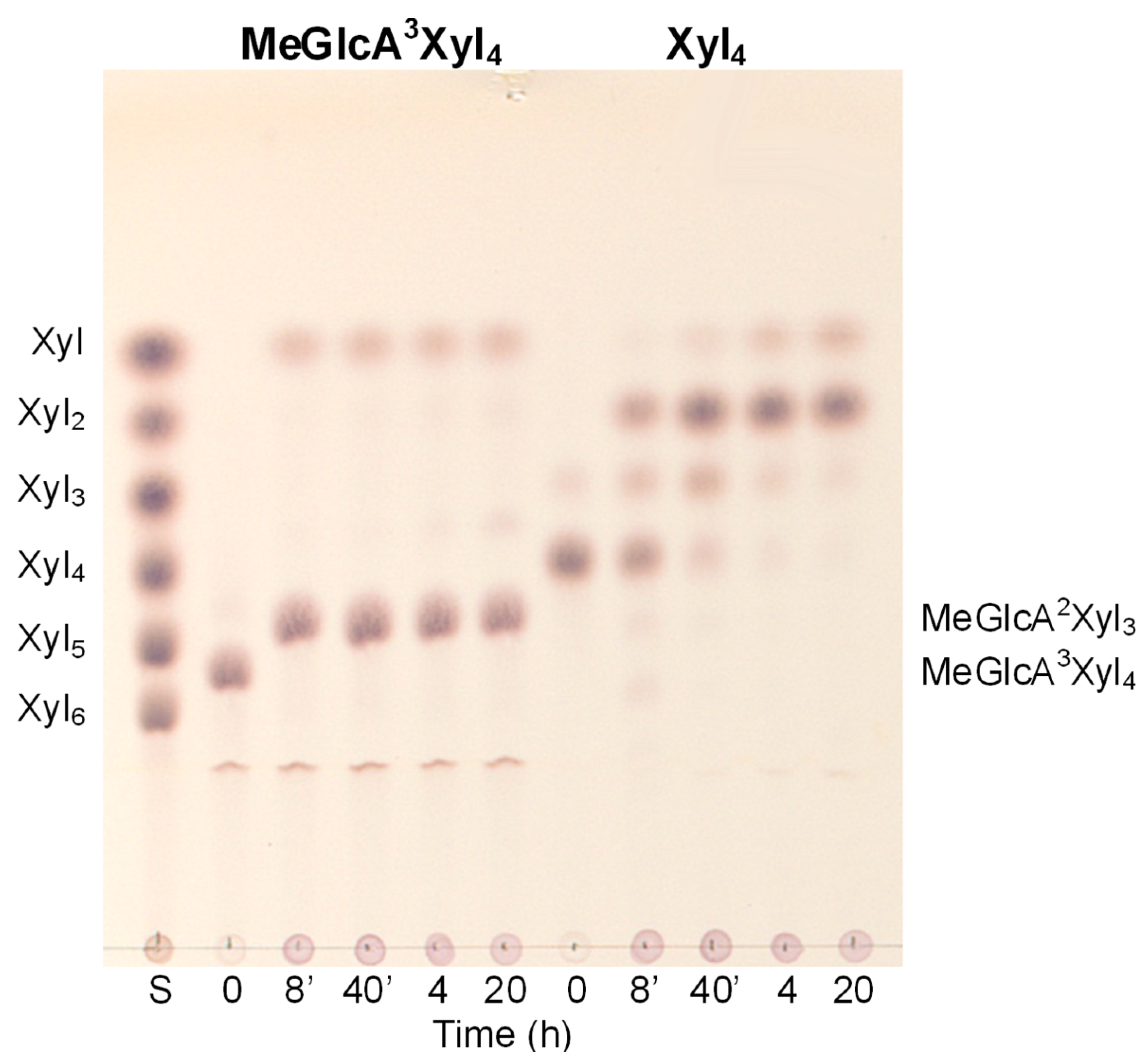

TlXyn30A was further examined on naturally occurring low-molecular-weight substrates (Figure 3 and Figure 4). Glucuronoxylan-derived aldouronic acids produced by GH10 and GH11 xylanases, MeGlcA³Xyl₃ (Figure 4A, compound 1, wherein m = 1 and n = 0) and MeGlcA³Xyl₄ (Figure 4A, compound 1, wherein m,n = 1), both served as the substrates (starting from this point, the reader is referred to Figure 4A for compound numbering). Both acidic oligosaccharides were shortened by one xylose from the reducing end, yielding MeGlcA²Xyl₂ and MeGlcA²Xyl₃, respectively (Figure 3 and Figure 4A). The cleavage pattern of the short aldouronic acids confirms that the enzyme accommodates MeGlcA-substituted Xylp residue in the −2 subsite.

The hydrolysis rate of the short aldouronic acids was significantly faster than that of unbranched xylooligosaccharides (Figure 3). It is in line with the glucuronoxylanase and endoxylanase activity observed on GX. Among linear xylooligosaccharides, only Xyl₂ was found to be resistant to the enzyme action, which is consistent with its accumulation in the GX and rhodymenan hydrolyzates. Xyl₃ (compound 5) served as a relatively poor substrate, requiring more than 4 h for its entire conversion to an equimolar mixture of Xyl₂ and Xyl. It is noteworthy that the conversion is not a simple hydrolysis, since larger oligosaccharides, mostly Xyl₅, were detected in an early stage of the reaction, when a higher trisaccharide concentration was used. The transglycosylation pathway was also observed during Xyl₄ (compound 4) degradation, where the initial products were solely Xyl₂ and Xyl₃. The tetrasaccharide was consumed within approximately 1 h and the later formation of monomeric Xyl coincided with the disappearance of Xyl₃. Similarly, Xyl₅ and Xyl₆ were initially predominantly converted to an oligosaccharide mixture comprising from disaccharide to the oligosaccharide shorter by one Xyl residue than the substrate. The shortening continued to Xyl₂ as a final product accompanied with a small amount of Xyl. This mode of action on all linear xylooligosaccharides was not compatible with xylobiohydrolases acting from the non-reducing end and confirms that TlXyn30A behaves as a retaining endo-β-1,4-xylanase, exhibiting complex reaction pathways that include glycosyl transfer reactions.

2.4. Arabinofuranosyl Side Residues Tolerated in the −2 Subsite

We were eager to learn whether arabinosylation at position 2 or 3 of Xylp residue is tolerated by the enzyme. Therefore, singly and doubly decorated xylooligosaccharides arabinosylated on the first or second Xylp residue from the non-reducing end were treated with the enzyme. 3′-Arabinosylated xylobiose (Arafα3Xylpβ4Xyl; compound 23) was left intact (Figure 4A). Quite surprisingly, the enzyme was able to hydrolyze all other tested arabinoxylooligosaccharides comprising at least three xylosyl units (compounds 6–10). All of them were attacked at the second xylosidic linkage from the branch towards the reducing end (Figure 4A), resulting in the liberation of Xyl regardless of the arabinose attached to position 2 and/or 3. A similar accommodation of arabinosylated Xylp residue in the −2 subsite has been reported for a non-specific Clostridium acetobutylicum GH30_8 endoxylanase CaXyn30A [10]. The latter enzyme hydrolyzed 2-O-singly and 2,3-doubly arabinosylated xylooligosaccharides faster than 3-arabinosylated, linear, and MeGlcA-substituted counterparts.

2.5. Action of TlXyn30A on Artificial Compounds

The enzyme was also tested on several 4-nitrophenyl glycosides. Of them, 4-nitrophenyl glycosides of cellobioside and lactoside were not attacked. In contrast, xylobioside (compound 3) was readily hydrolyzed, predominantly to Xyl₂ (Figure 4A), indicating that the aromatic aglycone was bound in the +1 subsite. The most interesting result was obtained with 4-nitrophenyl xylotrioside (compound 2), forming two productive enzyme-substrate complexes. In the first one, the aromatic aglycone was bound in the +1 subsite (similarly to nitrophenyl xylobioside), resulting in the liberation of the aglycone and Xyl₃. In the second complex, Xyl₂ was liberated from the non-reducing end with a simultaneous release of 4-nitrophenyl xyloside. The first cleavage mode was, however, much more frequent (Figure 4A), speaking for endoxylanase action and against xylobiohydrolase activity.

Other compounds examined as the substrates were methyl glycosides of positional isomers of Xyl₂ and Xyl₃ (Figure 4A). As expected, β-1,2-xylobioside (compound 14) as well as β-1,3-xylobioside (compound 15) did not serve as substrates. β-1,4-Xylobioside (compound 25) was hydrolyzed extremely slowly to Xyl₂, which was hardly observed only after 24 h of incubation. β-1,4-Xylotrioside (compound 11) was hydrolyzed, albeit slowly (about 60% conversion after 4 h) and mainly to methyl xyloside and Xyl₂. Liberation of methanol and Xyl₃ was negligible. We further examined the effect of the glycosidic bond between β-1,4-xylobiose and methyl xyloside (Figure 4A). Isomeric linear β-xylotriosides having β-1,2- or β-1,3-linkage at the reducing end (compounds 12 and 13) were markedly worse substrates (15% conversion after 24 h), although the hydrolysis products were similar to that of orthodox β-1,4-xylotrioside (compound 11), i.e. β-1,4-xylobiose and methyl xyloside. This finding indicates that TlXyn30A has a certain ability to hydrolyze β-1,2- as well as β-1,3-xylosidic linkages; however, the natural β-1,4-linkage hydrolysis is clearly preferred.

Other isomeric methyl xylotriosides listed in (Figure 4A) were not hydrolyzed, including methyl β-1,4-xylobiosides in which any of the two xylose residues were substituted (e.g. xylosylated or α-L-arabinosylated) at position 2 or 3.

3. Discussion

3.1. Catalytic Properties

The studied TlXyn30A xylanase behaves as a typical endo-acting enzyme, efficiently hydrolyzing several types of xylan. However, hardwood glucuronoxylan is still a preferred substrate since the enzyme recognizes to some extent the MeGlcA side residues. The polysaccharide is initially hydrolyzed to a mixture of aldouronic acids MeGlcA²Xyl_n, suggesting the accommodation of MeGlcA-substituted Xylp residue in the −2 subsite. Such recognition of the MeGlcA side chain was also confirmed by the enzyme action on short aldouronic acids MeGlcA³Xyl₃ and MeGlcA³Xyl₄. This mode of TlXyn30A initial action is identical to that of other GH30 glucuronoxylanases irrespective of their fungal (GH30_7) or bacterial (GH30_8) origin [6]. However, a distinct feature of TlXyn30A is that the aldouronic acids are further converted to shorter products and finally to aldotriouronic acid MeGlcA²Xyl₂ with a tiny admixture of aldotetraouronic acid MeGlcA²Xyl₃ (Figure 5). This implies that aglycone-binding subsites +1 and +2 are capable of accommodating MeGlcA-decorated xylose residue. Such shortening of larger aldouronic acids is typical for GH30_7 xylobiohydrolases [5] and some eukaryotic glucuronoxylanases that exhibit xylobiohydrolase activity. The latter may be exemplified by Talaromyces cellulolyticus Xyn30B showing minor xylobiohydrolase activity [11] and Thermothelomyces thermophila Xyn30A, for which xylobiohydrolase action is roughly equal to glucuronoxylanase activity [12]. These two enzymes yield a roughly equimolar mixture of MeGlcA²Xyl₃ and MeGlcA²Xyl₂ as limit glucuronoxylan hydrolysis products, and the short aldouronic acids are a result of stepwise liberation of Xyl₂ from the non-reducing end of the initially formed MeGlcA²Xyl_n. This is not the case of the glucuronoxylan hydrolyzate generated by TlXyn30A, where MeGlcA²Xyl₂ is much more abundant than MeGlcA²Xyl₃. The reason for this difference is that TlXyn30A exhibits non-specific endoxylanase activity, instead of xylobiohydrolase activity. The non-specific endoxylanase-type mode of action, rather than xylobiohydrolase, is also observed during the cleavage of linear xylooligosaccharides.

The recognition of MeGlcA-substituted Xylp residue in the −2 subsite of TlXyn30A is not the only substitution that the enzyme can tolerate. Hydrolysis of both 2-O- and 3-O-singly as well as 2,3-di-O-arabinosylated xylooligosaccharides showed that the arabinosylation at these positions does not abolish the enzyme action, and all types of arabinosylated xylose can also be accommodated in the −2 subsite (Figure 4B). Based on the relatively fast chromatographic mobility of the shortest arabinoxylan fragments generated by TlXyn30A and their resistance to the GH3 β-xylosidases, which is unable to liberate the non-reducing end terminal Xylp residue linked to 3-O-arabinoxylated Xylp residue [13], we suggest that the arabinoxylooligosaccharides are of two types with regard of the non-reducing end. Those singly substituted at position 2 are terminated by the 2-O-arabinosylated Xylp residue, while those comprising 3-O-singly or 2,3-doubly arabinosylated Xylp residue (the vast majority of the fragments) may be terminated at the non-reducing end with an additional non-substituted xylose. Despite the uncertainty about the structure of arabinoxylooligosaccharides, efficient AX degradation to the short fragments is a unique and important capability of the enzyme in view of biotechnological applications.

The mode of cleavage of arabinosylated and glucuronylated xylooligosaccharides showed that a prerequisite for their hydrolysis is the presence of at least two unsubstituted Xylp residues from the branch towards the reducing end. In all cases, the decorated Xylp residue is accommodated in the −2 subsite and the pair of unsubstituted Xylp residues are bound to −1 and +1 subsites. The occupation of the +1 subsite by a short aliphatic aglycone, such as the methyl group, is not sufficient for the formation of a productive enzyme-substrate complex. This fact was documented by the resistance of methyl glycoside of 3′-arabinosylxylobiose (compound 24) to TlXyn30A (Figure 4A) and extremely slow hydrolysis of methyl β-1,4-xylobioside (compound 25). This was in contrast to a single productive binding of methyl β-1,4-trioside (compound 11), which was more efficiently cleaved to methyl xyloside and Xyl₂. It is worth mentioning the strong affinity of the +1 subsite for aromatic aglycones, specifically for the 4-nitrophenyl moiety, which results in liberation of the chromophore from 4-nitrophenyl xylobioside and trioside (compounds 3 and 2) (Figure 4A). In addition, the binding of the aromatic aglycone in the +1 subsite enhances the hydrolysis to such an extent that the aromatic glycosides derived from both linear β-1,4-xylooligosaccharides are hydrolyzed as efficiently as the short aldouronic acids MeGlcA³Xyl₃ and MeGlcA³Xyl₄.

3.2. Structure–Function Relationship

TlXyn30A is composed of an N-terminal catalytic GH30 domain that is linked to a C-terminal CBM1 domain. The presence of the cellulose-binding domain indicates that the enzyme plays a role in the degradation of complex lignocellulose material, wherein hemicellulose xylan is present in close proximity to cellulose. Of the characterized GH30_7 enzymes, TcXyn30C has a similar architecture [14], although both full-length proteins and catalytic domains are about 50% identical. A similar identity of the catalytic domain was found for other characterized GH30_7 single-domain enzymes, namely Hypocrea jecorina glucuronoxylanase XynVI (54.8%) and Thermothelomyces thermophila glucuronoxylanase/xylobiohydrolase TtXyn30A (53.0%). The catalytic domain of TlXyn30A has the highest homology (up to 75% identity and 85% similarity) to the sequences found in the genomes of several Aspergillus species, such as A. terreus (Uniprot ID: Q0CUH3), A. thermomutatus (A0A397HZ03), A. turcosus (A0A421D0F6), A. udagawae (A0A0K8KZ21), A. lentulus (A0A0S7DIT3), A. clavatus (A1C6U9), and A. novofumigatus (A0A2I1BUY5), of which the A. thermomutatus and A. clavatus proteins comprise the CBM1 domain at the C-terminus. Such a high homology suggests that the aforementioned proteins are most probably uncharacterized GH30_7 xylanases that appear to be widespread among Aspergillus species.

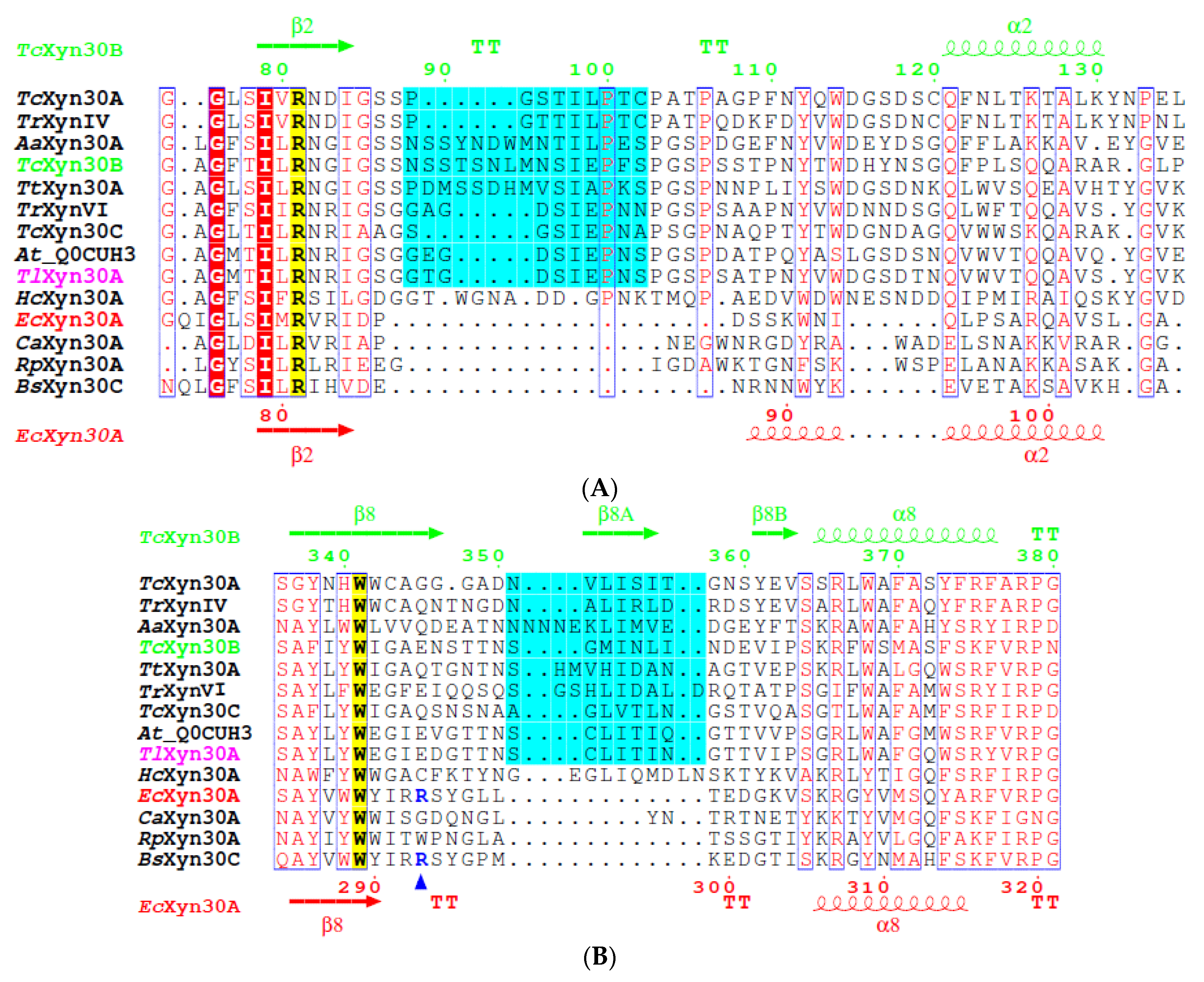

All the above mentioned Aspergillus proteins as well as TlXyn30A contain an arginine residue (eukaryotic arginine) that is conserved in the GH30_7 sequences, including TcXyn30B, for which it has been shown to interact with the carboxyl group of the MeGlcA moiety of the glucuronoxylan-type substrate [15]. The MeGlcA carboxyl group is also hydrogen bonded to TcXyn30B Glu345 and Ser351 [15]. In the corresponding positions, the same amino acid residues are also found in the sequence of TlXyn30A (Figure 6B), thus explaining its preference for GX and the mode of its initial cleavage to aldouronic acids MeGlcA²Xyl_n. However, other factors finely tuning the substrate specificity, in particular the xylobiohydrolase activity of the GH30_7 enzymes, are the length and primary structure of the β2-α2 loop in the GH30_7 members. If the loop is long enough, it may interfere with the accommodation of the substituted Xylp residue in the −3 subsite and also obstruct the occupation of more distant negative binding subsites by larger substrates, thus endowing the enzyme with xylobiohydrolase activity [5]. The loop of all the GH30_7 enzymes exhibiting xylobiohydrolase activity, namely TcXyn30B, TtXyn30A, and AaXyn30A, is five amino acids longer than that of TlXyn30A (Figure 6A) and also the Aspergillus proteins of high sequence identity. The shorter β2-α2 loop of TlXyn30A could be the reason that the loop does not represent any obstacle to bind larger substrates to distant negative subsites, which is a prerequisite for the endoxylanase activity of the enzyme.

4. Materials and Methods

4.1. Enzymes

Gene cloning and expression as well as encoded protein purification and verification of the purity of Talaromyces leycettanus CBS 398.68 GH30 xylanase (55 kDa by SDS PAGE) were described previously [9]. GH3 β-xylosidase is a recombinant Aspergillus niger enzyme expressed in Saccharomyces cerevisiae [16].

4.2. Substrates

Beechwood 4-O-methylglucuronoxylan (GX) was prepared as described earlier [17]. Isolation of aspenwood acetylglucuronoxylan by steam explosion was also reported [18]. Rhodymenan, an algal linear β-1,3-β-1,4-xylan from Palmaria palmata, was a kind gift of Prof. M. Claeyssens (University of Ghent, Ghent, Belgium). Wheat arabinoxylan (Ara:Xyl 38:62, medium viscosity), 4-nitrophenyl glycosides of xylose, xylobiose (compound 3) and xylotriose (compound 2), linear β-1,4-xylooligosaccharides (Xyl₂-Xyl₆) and arabinoxylooligosaccharides A3X4X (α-L-Araf-1,3-β-D-Xylp-1,4-D-Xyl; compound 23), A2X4X4X (α-L-Araf-1,2-β-D-Xylp-1,4-β-D-Xylp-1,4-D-Xyl; compound 6), A3[A2]X4X4X (α-L-Araf-1,3-[α-L-Araf-1,2]-β-D-Xylp-1,4-β-D-Xylp-1,4-D-Xyl; compound 7), X4[A3]X4X4X (β-D-Xylp-1,4-[α-L-Araf-1,3]-β-D-DXylp-1,4-β-D-Xylp-1,4-D-Xyl; compound 9), X4[A2A3]X4X4X (β-D-Xylp-1,4-[α-L-Araf-1,2][α-L-Araf-1,3]-β-D-Xylp-1,4-β-D-Xylp-1,4-D-Xyl; compound 10) and a mixture of X4[A3]X4X4X (compound 9) and X4[A2]X4X4X (β-D-Xylp-1,4-[α-L-Araf-1,2]-β-D-Xylp-1,4-β-D-Xylp-1,4-D-Xyl; compound 8) were purchased from Megazyme International (Bray, Ireland). Xylose was from Serva (Heidelberg, Germany). MeGlcA³Xyl₃ and MeGlcA³Xyl₄ were prepared from beechwood GX as described previously [19]. Methyl glycosides of (arabino)xylooligosaccharides—α-L-Araf-1,3-β-D-Xylp-O-Me (A3XMe; compound 22), β-D-Xylp-1,4-[α-L-Araf-1,3]-β-D-Xylp-O-Me (X4[A3]XMe; compound 20)), α-L-Araf-1,3-β-D-Xylp-1,4-β-D-Xylp-O-Me (A3X4XMe; compound 24)), β-D-Xylp-1,4-β-D-Xylp-O-Me (X4XMe; compound 25)), β-D-Xylp-1,4-β-D-Xylp-1,4-β-D-Xylp-O-Me (X4X4XMe; compound 11)), β-D-Xylp-1,4-β-D-Xylp-1,3-β-D-Xylp-O-Me (X4X3XMe; compound 13)), β-D-Xylp-1,4-β-D-Xylp-1,2-β-D-Xylp-O-Me (X4X2XMe; compound 12)), β-D-Xylp-1,2-β-D-Xylp-1,4-β-D-Xylp-O-Me (X2X4XMe; compound 21)), β-D-Xylp-1,3-β-D-Xylp-O-Me (X3XMe; compound 15)), β-D-Xylp-1,2-β-D-Xylp-O-Me (X2XMe; compound 14)), β-D-Xylp-1,4-[β-D-Xylp-1,2]-β-D-Xylp-O-Me (X4[X2]XMe; compound 16)), β-D-Xylp-1,4-[β-DXylp-1,3]-β-D-Xylp-O-Me (X4[X3]XMe; compound 18)), β-D-Xylp-1,3-β-D-Xylp-1,4-β-D-Xylp-O-Me (X3X4XMe; compound 26)), α-DXylp-1,3-β-D-Xylp-1,4-β-D-Xylp-O-Me (αX3X4XMe; compound 27)), α-D-Xylp-1,4-β-D-Xylp-1,3-β-D-Xylp-O-Me (αX4X3XMe; compound 19))) α-D-Xylp-1,4-β-D-Xylp-1,2-β-D-Xylp-O-Me (αX4X2XMe; compound 17))—were synthesized previously [20,21,22,23,24,25] and were generously supplied by Dr. Ján Hirsch (Institute of Chemistry, Slovak Academy of Sciences, Bratislava, Slovakia).

4.3. Determination of pH and Temperature Optimum and Temperature Stability

pH optimum was determined at 40 °C using a 15-min incubation of 69 nM TlXyn30A with 1% solution of GX in 40 mM Britton-Robinson (pH 3.5–5.5) or 50 mM sodium phosphate buffers (pH 6.0–8.0). The optimum temperature was determined in the same way in 40 mM Britton-Robinson buffer, pH 3.5, and temperatures ranging from 23 to 90 °C. Temperature stability was tested in 40 mM Britton-Robinson buffer, pH 3.5, at 40–60 °C for up to 5 h. During the incubation, aliquots were taken at different time points and the residual activity was immediately determined as described above (1% GX, pH 3.5, 40 °C, 15 min).

4.4. Hydrolysis of Polysaccharides and Oligosaccharides

Specific activity on polysaccharides was determined by the Somogyi–Nelson procedure [26] as the amount of generated reducing sugars. GX, AX, and Rho solution (1%; w/v) were incubated at 37 °C with TlXyn30A (34 nM) in 50 mM sodium acetate buffer, pH 3.5. At time intervals, 100-μL aliquots were taken for the determination of reducing sugars. One unit of enzyme activity was defined as the enzyme amount liberating in 1 min 1 μmol of reducing sugars expressed as an equivalent of xylose.

For TLC (thin-layer chromatography) analysis, the polysaccharide solutions (1% GX, Rho, AraX) were incubated with 0.45 μM TlXyn30A at 40 °C. After 2 h, a fresh enzyme was added to a final concentration of 2.11 μM. During the reaction course, aliquots of 5 μL were spotted on silica gel-coated aluminum sheets (Merck, Darmstadt, Germany). After 24 h, the reaction was terminated by heating at 100 °C for 5 min. Subsequent treatment with β-xylosidase (1 U/mL) was done overnight at 40 °C. Low-molecular-weight substrates, i.e. linear xylooligosaccharides (Xyl₂–Xyl₆), aldouronic acids MeGlcA³Xyl₃ and MeGlcA³Xyl₄, arabinoxylooligosaccharides, methyl and 4-nitrophenyl glycosides, were used at 2.5 mM. Their hydrolysis with 6.25 μM TlXyn30A was conducted in 50 mM sodium acetate buffer, pH 3.5, at 35 °C, and 2-μL aliquots were spotted on the TLC plate. The TLC plate was developed either twice in a solvent system of ethyl acetate/acetic acid/2-propanol/formic acid/water 25:10:5:1:15 (v/v) (polysaccharides, aldouronic acids, and linear xylooligosaccharides) or once in a solvent system of n-butanol/ethanol/water 10:8:5 (v/v), and the sugars were visualized with the orcinol reagent.

4.5. MALDI-ToF MS

The hydrolysates were decationized by Dowex 50 (H⁺ form) and 1 µL was mixed with 1 µL of the matrix (1% solution of 2,5-dihydroxybenzoic acid in 30% acetonitrile) directly on the MS target plate. After air-drying, the samples were analyzed by a UltrafleXtreme MALDI ToF/ToF mass spectrometer (Bruker Daltonics, Bremen, Germany) operating in reflectron positive mode.

5. Conclusions

Although T. leycettanus GH30_7 xylanase behaves as a typical endo-β-1,4-xylanase, its catalytic properties are unique in comparison with other types of non-specific endoxylanases. The enzyme hydrolyzes all types of xylan to a higher degree than GH10, GH11, and other GH30 xylanases. The shortest and most abundant fragment yielded by TlXyn30A from glucuronoxylan (MeGlcA²Xyl₂) is smaller by one and two xylosyl residues than the shortest aldouronic acids generated by GH10 and GH11 xylanases, respectively. Unbranched regions of the polysaccharides and larger oligosaccharides as well as linear β-1,4-xylooligosaccharides are degraded mainly to Xyl₂. This is important in view of possible biotechnological applications of the enzyme.
