Article

A Reusable Efficient Green Catalyst of 2D Cu-MOF for the Click and Knoevenagel Reaction

by
Kaushik Naskar
1,
Suvendu Maity
1,
Himadri Sekhar Maity
2 and
Chittaranjan Sinha
1,*
1
Department of Chemistry, Jadavpur University, Kolkata 700032, India
2
Department of Chemistry, Indian Institute of Technology, Kharagpur 721302, India
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(17), 5296; https://doi.org/10.3390/molecules26175296
Submission received: 27 July 2021 / Revised: 24 August 2021 / Accepted: 26 August 2021 / Published: 31 August 2021
(This article belongs to the Special Issue Advances in Chemical Crystallography: A Themed Issue Honoring Professor Alexandra M. Z. Slawin on the Occasion of Her 60th Birthday)
Browse Figures
Versions Notes

Abstract

:
[Cu(CPA)(BDC)]n (CPA = 4-(Chloro-phenyl)-pyridin-4-ylmethylene-amine; BDC = 1,4-benzenedicarboxylate) has been synthesized and structurally characterized by single crystal X-Ray diffraction measurement. The structural studies establish the copper (II) containing 2D sheet with (4,4) square grid structure. The square grid lengths are 10.775 and 10.769 Å. Thermal stability is assessed by TGA, and subsequent PXRD data establish the crystallinity. The surface morphology is evaluated by FE-SEM. The N2 adsorption−desorption analysis demonstrates the mesoporous feature (∼6.95 nm) of the Cu-MOF. This porous grid serves as heterogeneous green catalyst with superficial recyclability and thermal stability and facilitates organic transformations efficiently such as, Click and Knoevenagel reactions in the aqueous methanolic medium.

1. Introduction

Metal-organic frameworks (MOFs) are burgeoning targets for their potential applications in gas separation and storage [1,2,3], energy research [4,5,6,7,8,9,10], sensing of ions and molecules [11,12,13], bio-imaging [14], drug delivery [15,16], reusable and recycling sustainable catalyses [17,18], magnetism [19,20], etc. In the last few decades, such materials have received more attention towards development of more flexible catalytic materials owing to their varying symmetric and large pore volume, high surface area, tunable pore size and versatile functionality together with the diversity of metal knots and their redox states, functional groups, and the retention of crystallinity after catalytic reactions.
Zeolite imidazolate frameworks (ZIFs) [21,22,23] have arisen as a novel type of highly porous materials along with the advantages in the field of conventional MOF catalyst. By using ZIFs as solid acid catalysts, several organic transformation reactions have been carried out, such as Knoevenagel condensation [24,25], aldol condensation [26,27], Suzuki cross-coupling [28,29], Friedel–Crafts alkylation [30,31], and epoxide ring-opening reaction [32,33]. Current research in this area has been mostly focused to develop low-cost reusable recycling green catalysts to support sustainable development. Designing of multifunctional CPs or MOFs as catalyst to investigate the catalytic efficiency of various organic transformation reactions is the main focus of present research [34,35].
The copper ions play key roles in various types of biological process, such as galactose, tyrosine radical, hemocyanin, etc., also having the ability to transform various organic reactions because of its variable types of redox behaviors. The copper ion containing catalysts can be incorporated in different redox forms which may be available relatively at lower potential such as, (a) Cu(I) salts (usually in the presence of a base and/or a ligand) [36], (b) in situ reduction of Cu(II) salts (e.g., copper sulphate with sodium ascorbate or ascorbic acid) [37], (c) in situ oxidation of Cu(0) metal [38], and (d) easy comproportionation of Cu(0) and Cu(II), generally limited to special applications (e.g., biological systems) [39]. Daturi et al. demonstrated mixed valence state containing MOFs of CuII/CuI ions in the HKUST-1 [40]. Moreover, Steiner and Zhang revealed that the mixed valence state Cu-MOF had dual pore size distribution and presented superior water stability compared to HKUST-1 [41]. These studies provide guidance of the catalytic activity of Cu-based MOFs. In recent times, Cu-MOFs (e.g., supported heterogeneous catalyst) have been upgraded to diminish the contamination of metal with the end product and to reuse it.
Generally, Cu(I)-catalyzed azide-alkyne cycloaddition (CuAAC) reaction, where copper present in (+1) oxidation state, is one of the best methods for the preparation of 1,4-disubstituted-1,2,3-triazoles in a regioselective manner, (as a sole regioisomer) either in aqueous or in organic medium. 1,2,3-Triazoles have received considerable interest because of their useful applications in the field of pharmaceutical agents, agrochemicals, photographic materials, etc. Moreover, in situ reduction of copper(II) complexes to copper(I) in the presence of reducing agent (e.g., sodium ascorbate, alcohols, etc.) is the most common and reliable Click reaction conditions during the assembly of diverse molecules [42]. Beside the Click chemistry, copper catalyzed Knoevenagel condensation is widely used reaction in manufacturing numerous chemical compounds which are useful for pharmaceuticals industries [43,44]. In general, this type of reaction is catalyzed by weak bases such as primary, secondary, and tertiary amines under homogeneous conditions, or it may go upward by using 40 mol% catalysts with having difficulties in catalyst recycling and recovery.
Herein, we have successfully fabricated a mesoporous 2D Cu-MOF, [Cu(CPA)(BDC)]n (CPA = 4-Chloro-phenyl)-pyridin-4-ylmethylene-amine; BDC = 1,4-benzenedicarboxylate) which can facilitate organic transformation reactions highly efficient for Click and Knoevenagel reactions in aqueous medium. The Cu-MOF was produced and well-characterized by PXRD, TGA, SXRD, SEM, BET, etc. and reusable as a heterogeneous green catalyst. Moreover, Cu-MOF offers several advantages like thermal stability and superficial recyclability in contrast with conventional catalysts (Scheme 1).

2. Experimental Section

2.1. Synthesis of (4-Chloro-phenyl)-pyridin-4-ylmethylene-amine (CPA)

In the literature, there are few reported procedures [45,46] for the CPA ligand synthesis, but herein, we have modified the synthetic procedure for better yield. A mixture of the appropriately Pyridine-4-carbaldehyde (5 mmol) and the appropriately substituted aniline (5 mmol) in dry toluene (50 mL) is refluxed for 5 h in the presence of molecular sieves (75 g; Davison, grade 514Å, effective pore size 4, 8–12 mesh beads). At the end of the reaction, the molecular sieves are filtered, washed with toluene, and the combined filtrates rotary evaporated to remove toluene. The syrupy residual material is crystallized from hexane or hexane-petroleum ether mixture to yield 97.2%, faint yellow crystalline product; IR spectrum (KBr pellet): νimine C=N, 1629; aromatic C=N, 1617; C-Cl and 687 cm−1 (Figure S1); 1H-NMR (DMSO-d6, 400 MHz): δ = 7.37 (2H, d, J = 8.4 Hz), 7.52 (2H, d, J = 8.4 Hz), 7.85 (2H, d, J = 4.4 Hz), 8.17 (1H, s), 8.77 (2H, d, J = 4.4 Hz) (Figure S2); ESI-MS, m/z 217.1077 [M + H]+ (Figure S3); elemental analysis (%) calcd for C12H9ClN2: C, 66.52; H, 4.19; N, 12.93. Found: 66.67; H, 4.25; N, 12.98.

2.2. Synthesis of Cu-MOF, [Cu(CPA)(BDC)]n

A solution of CPA (0.043 g, 0.2 mmol) in MeOH (5 mL) was slowly and cautiously layered to a solution of Cu(NO3)2.3H2O (0.048 g, 0.2 mmol), in H2O (5 mL) using 5 mL of 1:1 (=v/v) buffer solution of MeOH and H2O, followed by layering of BDC (0.033 g, 0.2 mmol) neutralizing with Et3N (0.021 g, 0.2 mmol) in 5 mL of EtOH. The greenish-blue-colored crystals were obtained after several days with yield 70% (0.031 g). IR spectrum (KBr pellet, cm−1): νas(COO¯), 1623; νsys(COO¯), 1392 and ν(C-Cl), 687 (Figure S1). Elemental analysis (%) calcd for C20H12.42 ClCuN2O4: C 54.13, H 2.82, N 6.31; found: C 54.06, H 2.95, N 6.28.

2.3. Crystal Structure Determination of Cu-MOF

Single dark green coloured crystals suitable for data collection obtained during synthesis were chosen under an optical microscope and mounted on glass fibres and data collection using a Bruker SMART APEX II diffractometer equipped with graphite-monochromated MoKα radiation (λ = 0.71073 Å) at 293 K. Least-squares refinements of all reflections within the hkl range −12 ≤ h ≤ 12, −18 ≤ k ≤ 18, −16 ≤ l ≤ 16 (1) used to evaluate the crystal-orientation matrices and unit cell parameters. The collected data (I > 2σ(I)) were integrated using the SAINT program [47], and the absorption correction was made with SADABS [48]. The molecular structure was solved using the SHELXL-2016/6 [49] package. Non-hydrogen atoms were refined with anisotropic thermal parameters. Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms. All calculations were carried out using the SHELXL-2016/6 [49], SHELXT 2014/4 [50], and PLATON 99 [51] programs. The crystallographic data of Cu-MOF are depicted in Table 1.

2.4. Characterization of MOF Catalyst

The Cu-MOF catalyst samples were measured using a Bruker D8 ADVANCE X-ray diffractometer system with Cu-Kα radiation (λ  =  1.541 Å). Powder X-ray diffraction (PXRD) was executed at room temperature, and most of the PXRD patterns of as-synthesized were well-matched with the simulated patterns from single-crystal data. Thus, it signified that the bulk purity of the sample was retained. In addition, the PXRD was verified after the catalytic performance to clarifying the robustness of Cu-MOF shown in Figure S4. The thermal stability of 1 was performed within the temperature range of 32–650 °C under N2 atmosphere via PerkinElmer–TGA 4000 thermogravimetric analyzer and TGA analysis revealed that Cu-MOF is moderately stable up to ~360 °C (Figure S5). To authenticate, morphology of catalyst samples (before and after) was observed by using the Field Emission Scanning Electron Microscopy (FESEM; JEOL, JSM-6700F) (Figure S6).

2.5. Gas Adsorption Measurements

The nitrogen adsorption−desorption isotherm was studied by using the dehydrated Cu-MOF sample in a Micromeritics ASAP 2420 surface area analyzer at liquid nitrogen temperature (77 K) (see Figure 1a). Prior to gas adsorption, in a tube, pretreated sample was placed and degassed for 4 h at 120 °C to remove the adsorbed solvent.

2.6. Catalytic Response

Click Reaction: In a 50 mL round bottom flask, benzyl bromide (1 mmol), sodium azide (1.1 mmol), phenylacetylene derivatives (1 mmol), sodium ascorbate (5 mol%), K2CO3 (0.5 equivalent), and 10 mol% Cu-MOF were placed, followed by 5 mL of H2O-MeOH (1:4) solvent mixture. The flask was connected through a reflux condenser and heated to ~70 °C. After the completion of the reaction, the product was separated by solvent extraction process. The products were purified by column chromatography. Finally, products were characterized via 1H-NMR by using a 500 MHz Bruker NMR and 13C-NMR spectroscopy (Figure S7).
Knoevenagel Reaction: A solution of different substituted benzaldehyde and active methylene compounds such as malononitrile and ethyl cyanoacetate (1:1.2, molar ratio), where the nucleophilic addition occurs by the active hydrogen compound to a carbonyl group followed by a dehydration reaction, and a molecule of water is eliminated. The product is often an α,β-unsaturated ketone in the presence of Cu-MOF (3 mol %) was stirred under room temperature conditions for 15 min (Figure S8). The solid yellow product was isolated with an excellent yield. Similarly, Knoevenagel products were also characterized through 1H-NMR and 13C-NMR spectroscopy by using a 400 MHz and 500 MHz Bruker NMR (See Figure S9). Moreover, the kinetic transformation of the reaction was analyzed through GC. The comparative catalytic activities of some MOFs for the Knoevenagel condensation reaction are summarized in Table S1.

3. Results and Discussion

3.1. Structural Descriptions of [Cu(CPA)(BDC)]n,

The Single Crystal X-ray crystallographic analysis shows that Cu-MOF was crystallized in the monoclinic space group P21/n with Z = 4. The asymmetric unit comprises half of the secondary building unit in Figure 2. The paddle-wheel unit of [Cu2(O2CC)4] was repeated along with having a crystallographic inversion center in it. In Cu-MOF, the geometry around each Cu(II) is distortional pentagonal pyramid geometry where four carboxylate groups are bridged by the BDC2−, and in the axial site of the Cu(II), atoms are coordinated by a CPA as a terminal ligand as shown in Figure 2.
Structural motif of Cu-MOF demonstrates the coordination of BDC2− to Cu(II) metal nodes as bidentate chelating mode and acts as a carboxylato-O donor to Cu(II) (Cu(1)–O(1), 1.955(3) Å; Cu(1)-O(2), 1.958(3) Å; Cu(1)-O(3), 1.961(4) Å; and Cu(1)-O(4), 1.964(3) Å) and the remaining coordinations (axial sites) are originated from the Pyridyl-N donor of CPA ligand (Cu(1)-N(1), 2.137(9) Å; Cu(1)-N(1A), 2.177(8) Å) (Table S2). The paddle-wheel units are further extended by dicarboxylate (BDC2−) bridged spacer ligands to construct the 2D sheet with (4, 4) square grid structure as shown in Figure 3a.
Moreover, these square grid lengths are slightly differ by 10.775 and 10.769 Å as shown in Figure 3a. The axial CPA ligands are projected on both sides of each layer. The empty voids in Cu-MOF are due to the square grids that are interlinked by π–π interactions of CPA ligands from the adjacent layers (Figure 3b). The π–π stacking distances are ~3.974 Å which are facilitated to decrease the interlayer distance between benzene rings, (CPA)⋯benzene rings (BDC) and thus leading to construct 3D self-assembled framework structure. The solvent-accessible void volume (246.7 Å3) has been estimated to be 11.5% of the total unit cell volume (2152.7 Å3).
The N2 adsorption−desorption isotherm for Cu-MOF was shown in Figure 1a at 77 K. The Cu-MOF exhibits BET specific surface area ~65.32 m2 g−1. The observed N2 adsorption-desorption isotherm is of type-IV category attributing to typically mesoporous structure. A hysteresis loop was observed in the relative pressure (p/p0) range from 0.73 to 0.99, which is of H2-type typically observed for different size/shape of pores inside particles. Interestingly, such hysteresis loop originated in Cu-MOF may be because of swelling of the network structure by the presence of condensed nitrogen. Again, Nitrogen adsorption/desorption Howarth–Kawazoe (HK) pore size distributions indicated the mesopores with diameter ranges from 7 to 16 nm likely due to the interparticle voids. However, the resulting π–π stacking layered structure has strengthened significant pores in the Cu-MOFs, which may allow the guest molecules to achieve the catalytic performance.

3.2. Catalytic Activity of Cu-MOF

3.2.1. Optimization of Click Reaction

To further explore the catalytic activity of the Cu-MOF catalyst, we have chosen the synthesis of various 1,2,3 triazole derivatives catalyzed by Cu-MOF. In order to get an understanding into the optimum catalytic conditions, the reaction of sodium azide, phenylacetylene, benzyl bromide, and sodium ascorbate has been used as a model reaction. The outcome with variation of solvent, temperature, and amount of Cu-MOF catalyst on the reaction is studied in Table 2. In this reaction, the copper catalyst catalyzed azide-alkyne cycloaddition reaction via redox reaction, where Cu-MOF catalyst acts as heterogeneous catalyst. Generally, this click reaction oxidation state of copper ion changes from Cu(II) to Cu(I). [40] The similar kind of role of copper ion is observed in the catalytic reaction.
A variety of solvents are used for this reaction in the presence of 5 mol% of Cu-MOF catalyst (Table 2, entries 1–11). The yield of the reaction using H2O-MeOH (1:4) is maximum at 70 °C in comparison to other solvents or mixtures of solvents. After choosing H2O-MeOH as the solvent for the reaction, the amount of Cu-MOF catalyst and the effect of temperature are also investigated. The yield of 1-benzyl-4-phenyl-1H-1,2,3-triazole is 83% when the catalyst amount is 5 mol%. As evident from Table 2, on increasing the amount of catalyst to 10 mol%, the yield reaches 93%. With an increase in the amount of Cu-MOF catalyst from 10 to 15 mol%, the yield of 1-benzyl-4-phenyl-1H-1,2,3-triazole does not change significantly. Thus, we have performed the reaction in the presence of 10 mol% catalyst as the optimum amount. At room temperature, the yield of the product is 11% (entry 19). Increase in the reaction temperature increases the yield of the product which has been optimized at 90 °C. Even in the absence of Cu-MOF catalyst, no product is isolated (entry 13). Therefore, 10 mol% catalyst at 70 °C in H2O-MeOH (1:4) has been chosen under optimum conditions for the synthesis of 1,2,3-triazole derivatives.

3.2.2. Substrate Scope

To investigate the generality and versatility of this method, the optimized reaction conditions are subsequently applied to the reaction of a variety of organic halides with different aliphatic and aromatic terminal alkynes (Table 3). It is observed that all reactions underwent efficiently and provided the corresponding products in good to excellent yield within a reasonable time. Electron donating and electron withdrawing substituents in the aromatic ring of the terminal alkyne do not affect significantly the product yield (Table 3, entries 2 and 4). Even the terminal alkyne containing halo-substituted aromatic ring undergoes this reaction very efficiently. The hetero-aryl substituted acetylene, 3-ethynylthiophene shows clean reaction to produce the corresponding 1-benzyl-4-(thiophen-3-yl)-1,2,3-triazole (Table 3, entry 5). Variation of halide moiety in benzyl halides shows that the benzyl bromide is more reactive than benzyl chloride under the optimized reaction conditions. According to the results précised in Table 3, the regioselectivity of the reaction is high in all cases, with only 1,4-regioisomers being produced.
The catalyst leaching has been studied as follows. The reaction is thus terminated by removal of the catalyst from the reaction mixture at half the reaction time. Residual mixture is kept separated for reaction under the same conditions. Our results indicate that the yield of product does not increase. To determine the amount of copper leaching from the catalyst, ICP-AES analysis of the liquid phase is conducted. The result of ICP-AES analysis shows no detectable amount of copper in the liquid phase. This result indicates that copper ions are not leached from the catalyst surface during the reaction.

3.3. Knoevenagel Condensation Catalytic Experiments

The well-known Knoevenagel condensation is a reaction between an active methylene compound and a carbonyl compound (aldehydes or ketones). This important C−C coupling reaction which is widely used in the synthesis of fine chemicals has also been investigated. The Cu-MOF plays an important role during the reaction of different substituted benzaldehyde with malononitrile and ethyl cyanoacetate (1:1.2, molar ratio) in the presence of Cu-MOF (3 mol %). As inspired by the green chemistry principles, the above reaction is needed to carry out under room temperature conditions. The catalytic transformation is executed in H2O:MeOH (3:1) (the mixed solvent solution) for 15 min in aerobic condition, and the solid yellow product is isolated with excellent yield (summarized in Table 4). Aliquots are withdrawn from the reaction mixture at different time intervals and thus are analyzed by GC giving kinetic data during the course of the reaction. The GC analysis also indicates that the condensation reaction has finished in 15 min. The Cu-MOF works as the heterogeneous catalysts during this organic transformation. Using this catalyst in the above reaction, the important observations are very little reaction time, room temperature, aqueous medium and high yield product. Such type of reaction can be considered as green chemistry.

3.4. Recyclability Cu-MOF Catalyst

A recovery and reusability study of the catalyst is performed for the production of 1-benzyl-4-phenyl-1H-1,2,3-triazole. The Cu-MOF catalyst is recovered and dried after washing with ethanol followed by acetone before reuse. We have found recyclability up to four runs although there is marginal linear loss of activity of the catalyst due to lower mass recovery in each step (Figure 4). The Au@Cu(II)-MOF effective heterogeneous catalyst for successive oxidation of alcohol and condensation reactions produce the good yield in toluene at 110 °C in air with more than 95% which is stable up to 5th cycle [52]. The other catalyst Pd(0)@UiO-68-AP which does not contain copper ion exhibits bifunctional heterogeneous catalyst for stepwise organic transformations. This promotes benzyl alcohol oxidation–Knoevenagel condensation in a stepwise way with very good yield (99%) in MeOH at room temperature [53].
The heterometallic 3D networks containing [Co3+–Zn2+] and [Co3+–Cd2+] exhibit interesting network topologies including an unprecedented one. However, these networks act as the heterogeneous and reusable catalysts for the Knoevenagel condensation reactions as well as cyanation reactions of assorted aldehydes with good yields [54]. Copper is a non noble and inexpensive abundant metal. Therefore, the use of copper ion in metal organic framework is highly encouraged to develop new catalysts for green reaction.

4. Conclusions

In summary, Cu-MOF catalyst acts as a highly efficient, eco-friendly, bifunctional, and heterogeneous catalytic nature. Therefore, this catalyst readily promotes Knoevenagel condensation reactions and also accelerates Click Reaction to form 1,2,3 triazole derivatives with good catalytic activity as well as excellent conversions even in water and MeOH at room temperature using a low amount of catalyst and a short reaction time. The porous square grid structure of Cu-MOF performs this bifunctional activity in solid catalysts for a broad scope of organic reactions.

Supplementary Materials

The following are available online. Figure S1: IR spectrum of CPA and Cu-MOF (1). Figure S2: 1H-NMR of CPA. Figure S3: ESI-MS of CPA. Figure S4: PXRD plots of Cu-MOF. Figure S5: Thermogravimetric analysis plots of Cu-MOF. Figure S6: FE-SEM image of crystalline morphologies of Cu-MOF. Table S1: The catalytic activity of Some MOFs in the Knoevenagel condensation reaction. Table S2: List of selective bond lengths and bond angles of Cu-MOF, List of 1H-NMR and 13C-NMR spectroscopy of Click Reactions (Figure S7). Figure S8: Solvent dependent catalytic assay of Knoevenagel Reaction. Figure S9: List of 1H-NMR and 13C-NMR spectroscopy of Knoevenagel Reactions.

Author Contributions

K.N., S.M. and C.S. conceived and designed the project; K.N. and H.S.M. performed the experiments; K.N. and S.M. did the crystallography. All authors have read and agreed to the published version of the manuscript.

Funding

The authors are grateful for the financial support by the Council of Scientific and Industrial Research (CSIR, Sanction No. 01(2894)/17/EMR-II), New Delhi, India, and JU RUSA 2.0 Scheme (R-11/100/19).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Katz, M.J.; Howarth, A.J.; Moghadam, P.Z.; DeCoste, J.B.; Snurr, R.Q.; Huppa, J.T.; Farha, O.K. High volumetric uptake of ammonia using Cu-MOF-74/Cu-CPO-27. Dalton Trans. 2016, 45, 4150–4153. [Google Scholar] [CrossRef]
  2. Li, H.; Wang, K.; Sun, Y.; Lollar, C.T.; Li, J.; Zhou, H.-C. Recent advances in gas storage and separation using metal–organic frameworks. Mater. Today 2018, 21, 108–121. [Google Scholar] [CrossRef]
  3. Forgan, R.S.; Smaldone, R.A.; Gassensmith, J.J.; Furukawa, H.; Cordes, D.B.; Li, Q.; Wilmer, C.E.; Botros, Y.Y.; Snurr, R.Q.; Slawin, A.M.Z.; et al. Nanoporous Carbohydrate Metal–Organic Frameworks. J. Am. Chem. Soc. 2012, 134, 406–417. [Google Scholar] [CrossRef]
  4. Wang, H.; Zhu, Q.-L.; Zou, R.; Xu, Q. Metal-Organic Frameworks for Energy Applications. Chem 2017, 2, 52–80. [Google Scholar] [CrossRef] [Green Version]
  5. Rice, A.M.; Leith, G.A.; Ejegbavwo, O.A.; Dolgopolova, E.A.; Shustova, N.B. Heterometallic Metal–Organic Frameworks (MOFs): The Advent of Improving the Energy Landscape. ACS Energy Lett. 2019, 4, 1938–1946. [Google Scholar] [CrossRef]
  6. Naskar, K.; Dey, A.; Maity, S.; Ray, P.P.; Ghosh, P.; Sinha, C. Biporous Cd(II) Coordination Polymer via in Situ Disulfide Bond Formation: Self-Healing and Application to Photosensitive Optoelectronic Device. Inorg. Chem. 2020, 59, 5518–5528. [Google Scholar] [CrossRef]
  7. Naskar, K.; Dey, A.; Dutta, B.; Ahmed, F.; Sen, C.; Mir, M.H.; Roy, P.P.; Sinha, C. Intercatenated Coordination Polymers (ICPs) of Carboxylato Bridged Zn(II)-Isoniazid and Their Electrical Conductivity. Cryst. Growth Des. 2017, 17, 3267–3276. [Google Scholar] [CrossRef]
  8. Naskar, K.; Dey, A.; Maity, S.; Bhunia, M.K.; Ray, P.P.; Sinha, C. Novel porous polycatenated Iodo–cadmium coordination polymer for iodine sorption and electrical conductivity measurement. Cryst. Growth Des. 2019, 19, 2206–2218. [Google Scholar] [CrossRef]
  9. Naskar, K.; Sil, S.; Sahu, N.; Dutta, B.; Slawin, A.M.Z.; Ray, P.P.; Sinha, C. Enhancement of Electrical Conductivity due to Structural Distortion from Linear to Nonlinear Dicarboxylato-Bridged Zn(II) 1D-Coordination Polymers. Cryst. Growth Des. 2019, 19, 2632–2641. [Google Scholar] [CrossRef]
  10. Maity, S.; Naskar, K.; Bhowmik, T.; Bera, A.; Weyhermüller, T.; Sinha, C.; Ghosh, P. Coordination polymers of Ag(I) and Hg(I) ions with 2,2′-azobispyridine: Synthesis, characterization and enhancement of conductivity in the presence of Cu(II) ions. Dalton Trans. 2020, 49, 8438–8442. [Google Scholar] [CrossRef] [PubMed]
  11. Maity, K.; Mukherjee, D.; Sen, M.; Biradha, K. Fluorescent Dye-Based Metal–Organic Framework Piezochromic and Multicolor-Emitting Two-Dimensional Materials for Light-Emitting Devices. ACS Appl. Nano Mater. 2019, 2, 1614–1620. [Google Scholar] [CrossRef]
  12. Khatua, S.; Goswami, S.; Biswas, S.; Tomar, K.; Jena, H.S.; Konar, S. Stable Multiresponsive Luminescent MOF for Colorimetric Detection of Small Molecules in Selective and Reversible Manner. Chem. Mater. 2015, 27, 5349–5360. [Google Scholar] [CrossRef]
  13. Naskar, K.; Bhanja, A.K.; Paul, S.; Pal, K.; Sinha, C. Trace Quantity Detection of H2PO4− by Fluorescent Metal–Organic Framework (FMOF) and Bioimaging Study. Cryst. Growth Des. 2020, 20, 6453–6460. [Google Scholar] [CrossRef]
  14. Robison, L.; Zhang, L.; Drout, R.J.; Li, P.; Haney, C.R.; Brikha, A.; Noh, H.; Mehdi, B.L.; Browning, N.D.; Dravid, V.P.; et al. A Bismuth Metal–Organic Framework as a Contrast Agent for X-ray Computed Tomography. ACS Appl. Bio Mater. 2019, 2, 1197–1203. [Google Scholar] [CrossRef]
  15. Zhao, H.; Hou, S.; Zhao, X.; Liu, D. Adsorption and pH-Responsive Release of Tinidazole on Metal–Organic Framework CAU-1. J. Chem. Eng. Data 2019, 64, 1851–1858. [Google Scholar] [CrossRef]
  16. Lin, S.X.; Pan, W.L.; Niu, R.J.; Liu, Y.; Chen, J.X.; Zhang, W.H.; Lang, J.P.; Young, D.J. Effective loading of cisplatin into a nanoscale UiO-66 metal-organic framework with preformed defects. Dalton Trans. 2019, 48, 5308–5314. [Google Scholar] [CrossRef] [PubMed]
  17. Liang, J.; Liang, Z.B.; Zou, R.Q.; Zhao, Y.L. Heterogeneous Catalysis in Zeolites, Mesoporous Silica, and Metal-Organic Frameworks. Adv. Mater. 2017, 29, 1701139. [Google Scholar] [CrossRef]
  18. Dhakshinamoorthy, A.; Garcia, H. Metal–organic frameworks as solid catalysts for the synthesis of nitrogen-containing heterocycles. Chem. Soc. Rev. 2014, 43, 5750–5765. [Google Scholar] [CrossRef]
  19. Abdelbaky, M.S.M.; Amghouz, Z.; Blanco, D.M.; García-Granda, S.; García, J.R. Crystal structure and characterization of a novel layered copper-lithium phosphonate with antiferromagnetic intrachain Cu(II)•••Cu(II) interactions. J. Solid State Chem. 2017, 248, 61–67. [Google Scholar] [CrossRef]
  20. Jana, S.; Ray, A.; Chandra, A.; El Fallah, M.S.; Das, S.; Sinha, C. Studies on Magnetic and Dielectric Properties of Antiferromagnetically Coupled Dinuclear Cu(II) in a One-Dimensional Cu(II) Coordination Polymer. ACS Omega 2020, 5, 274–280. [Google Scholar] [CrossRef]
  21. Park, K.S.; Ni, Z.; Côté, A.P.; Choi, J.Y.; Huang, R.; Uribe-Romo, F.J.; Chae, H.K.; O’Keeffe, M.; Yaghi, O.M. Exceptional chemical and thermal stability of zeolitic imidazolate frameworks. Proc. Natl. Acad. Sci. USA 2006, 103, 10186–10191. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Qutaish, H.; Lee, J.; Hyeon, Y.; Han, S.A.; Lee, I.-H.; Heo, Y.-U.; Whang, D.; Moon, J.; Park, M.-S.; Kim, J.H. Design of cobalt catalysed carbon nanotubes in bimetallic zeolitic imidazolate frameworks. Appl. Surf. Sci. 2021, 547, 149134. [Google Scholar] [CrossRef]
  23. Hayashi, H.; Côté, A.P.; Furukawa, H.; O’Keeffe, M.; Yaghi, O.M. Zeolite A imidazolate frameworks. Nat. Mater. 2007, 6, 501–506. [Google Scholar] [CrossRef] [PubMed]
  24. Zanon, A.; Chaemchuen, S.; Verpoort, F. Zn@ZIF-67 as Catalysts for the Knoevenagel Condensation of Aldehyde Derivatives with Malononitrile. Catal. Lett. 2017, 147, 2410–2420. [Google Scholar] [CrossRef]
  25. Horiuchi, Y.; Toyao, T.; Fujiwaki, M.; Dohshi, S.; Kim, T.-H.; Matsuoka, M. Zeolitic imidazolate frameworks as heterogeneous catalysts for a one-pot P–C bond formation reaction via Knoevenagel condensation and phospha-Michael addition. RSC Adv. 2015, 5, 24687–24690. [Google Scholar] [CrossRef]
  26. Fan, H.; Yang, Y.; Song, J.; Ding, G.; Wu, C.; Yang, G.; Han, B. One-pot sequential oxidation and aldol-condensation reactions of veratryl alcohol catalyzed by the Ru@ZIF-8 + CuO/basic ionic liquid system. Green Chem. 2014, 16, 600–604. [Google Scholar] [CrossRef]
  27. Vermoortele, F.; Ameloot, R.; Vimont, A.; Serre, C.; De Vos, D. An amino-modified Zr-terephthalate metal–organic framework as an acid–base catalyst for cross-aldol condensation. Chem. Commun. 2011, 47, 1521–1523. [Google Scholar] [CrossRef] [Green Version]
  28. Kim, S.; Jee, S.; Choi, K.M.; Shin, D.-S. Single-atom Pd catalyst anchored on Zr-based metal-organic polyhedra for Suzuki-Miyaura cross coupling reactions in aqueous media. Nano Res. 2021, 14, 486–492. [Google Scholar] [CrossRef]
  29. Gong, X.-F.; Zhang, L.-Y.; Zhang, H.-X.; Cui, Y.-M.; Jin, F.-C.; Liu, Y.; Zhai, Y.-F.; Li, J.-H.; Liu, G.-Y.; Zeng, Y.-F. Highly Active Heterogeneous PdCl2/MOF Catalyst for Suzuki–Miyaura Cross-Coupling Reactions of Aryl Chloride. Z. Anorg. Allg. Chem. 2020, 646, 1336–1341. [Google Scholar] [CrossRef]
  30. Nguyen, L.T.L.; Le, K.K.A.; Phan, N.T.S. A Zeolite Imidazolate Framework ZIF-8 Catalyst for Friedel-Crafts Acylation. Chin. J. Catal. 2012, 33, 688–696. [Google Scholar] [CrossRef]
  31. Calleja, G.; Sanz, R.; Orcajo, G.; Briones, D.; Leo, P.; Martínez, F. Copper-based MOF-74 material as effective acid catalyst in Friedel–Crafts acylation of anisole. Catal. Today 2014, 227, 130–137. [Google Scholar] [CrossRef]
  32. Nagarjun, N.; Concepcion, P.; Dhakshinamoorthy, A. MIL-101(Fe) as an active heterogeneous solid acid catalyst for the regioselective ring opening of epoxides by indoles. Mol. Catal. 2020, 482, 110628. [Google Scholar] [CrossRef]
  33. Srivastava, D.; Rani, P.; Srivastava, R. ZIF-8-Nanocrystalline Zirconosilicate Integrated Porous Material for the Activation and Utilization of CO2 in Insertion Reactions. Chem. Asian J. 2020, 15, 1132–1139. [Google Scholar] [CrossRef]
  34. Lee, J.Y.; Farha, O.K.; Roberts, J.; Scheidt, K.A.; Nguyen, S.B.T.; Hupp, J.T. Metal–organic framework materials as catalysts. Chem. Soc. Rev. 2009, 38, 1450. [Google Scholar] [CrossRef]
  35. Liu, J.; Chen, L.; Cui, H.; Zhang, J.; Zhang, L.; Su, C.-Y. Applications of metal–organic frameworks in heterogeneous supramolecular catalysis. Chem. Soc. Rev. 2014, 43, 6011–6061. [Google Scholar] [CrossRef] [Green Version]
  36. Gawande, M.B.; Goswami, A.; Felpin, F.-X.; Asefa, T.; Huang, X.; Silva, R.; Zou, X.; Zboril, R.; Varma, R.S. Cu and Cu-Based Nanoparticles: Synthesis and Applications in Catalysis. Chem. Rev. 2016, 116, 3722–3811. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Berg, R.; Straub, B.F. Advancements in the mechanistic understanding of the copper-catalyzed Azide—Alkyne cycloaddition. Beilstein J. Org. Chem. 2013, 9, 2715–2750. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Cao, J.; Rinaldi, A.; Plodinec, M.; Huang, X.; Willinger, E.; Hammud, A.; Hieke, S.; Beeg, S.; Gregoratti, L.; Colbea, C.; et al. In situ observation of oscillatory redox dynamics of copper. Nat. Commun. 2020, 11, 3554. [Google Scholar] [CrossRef] [PubMed]
  39. Fu, F.; Martinez, A.; Wang, C.; Ciganda, R.; Yate, L.; Escobar, A.; Moya, S.; Fouquet, E.; Ruiz, J.; Astruc, D. Exposure to air boosts CuAAC reactions catalyzed by PEG-stabilized Cu nanoparticles. Chem. Commun. 2017, 53, 5384–5387. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Szanyi, J.; Daturi, M.; Clet, G.; Baerc, D.R.; Peden, C.H.F. Well-studied Cu–BTC still serves surprises: Evidence for facile Cu2+/Cu+ interchange. Phys. Chem. Chem. Phys. 2012, 14, 4383–4390. [Google Scholar] [CrossRef]
  41. Ahmed, A.; Robertson, C.M.; Steiner, A.; Whittles, T.; Ho, A.; Dhanak, V.; Zhang, H. Cu(i)Cu(ii)BTC, a microporous mixed-valence MOF via reduction of HKUST-1. RSC Adv. 2016, 6, 8902–8905. [Google Scholar] [CrossRef]
  42. Pasini, D. The Click Reaction as an Efficient Tool for the Construction of Macrocyclic Structures. Molecules 2013, 18, 9512–9530. [Google Scholar] [CrossRef]
  43. Schneider, E.M.; Zeltner, M.; Kränzlin, N.; Grass, R.N.; Stark, W.J. Base-free Knoevenagel condensation catalyzed by copper metal surfaces. Chem. Commun. 2015, 51, 10695–10698. [Google Scholar] [CrossRef] [Green Version]
  44. Pandey, R.; Singh, D.; Thakur, N.; Raj, K.K. Catalytic C–H Bond Activation and Knoevenagel Condensation Using Pyridine-2,3 Dicarboxylate-Based Metal–Organic Frameworks. ACS Omega 2021, 6, 13240–13259. [Google Scholar] [CrossRef]
  45. Tehrania, A.A.; Morsalia, A.; Kubicki, M. The role of weak hydrogen and halogen bonding interactions in the assembly of a series of Hg(II) coordination polymers. Dalton Trans. 2015, 44, 5703–5712. [Google Scholar] [CrossRef] [PubMed]
  46. Kouznetsov, V.V.; Robles-Castellanos, M.L.; Sojo, F.; Rojas-Ruiz, F.A.; Arvelo, F. Diverse C-6 substituted 4-methyl-2-(2-, 3- and 4-pyridinyl)quinolines: Synthesis, in vitro anticancer evaluation and in silico studies. Med. Chem. Res. 2017, 26, 551–561. [Google Scholar] [CrossRef]
  47. SMART and SAINT; Bruker AXS Inc.: Madison, WI, USA, 1998.
  48. Bruker; SADABS; Bruker AXS Inc.: Madison, WI, USA, 2001.
  49. Sheldrick, G.M. SHELXL 2014, SHELXL-2016/6 and SHELXL-2017/1; Program for Crystal Structure Solution, University of Göttingen: Göttingen, Germany, 2017. [Google Scholar]
  50. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Cryst. 2015, A71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  51. Spek, A.L. Structure validation in chemical crystallography. Acta Cryst. 2009, D65, 148–155. [Google Scholar] [CrossRef] [PubMed]
  52. Wang, J.-S.; Jin, F.-Z.; Ma, H.-C.; Li, X.-B.; Liu, M.-Y.; Kan, J.-L.; Chen, G.-J.; Dong, Y.-B. Au@Cu(II)-MOF: Highly Efficient Bifunctional Heterogeneous Catalyst for Successive Oxidation–Condensation Reactions. Inorg. Chem. 2016, 55, 6685–6691. [Google Scholar] [CrossRef] [PubMed]
  53. Li, Y.-A.; Yang, S.; Liu, Q.-K.; Chen, G.-J.; Ma, J.-P.; Dong, Y.-B. Pd(0)@UiO-68-AP: Chelation-directed bifunctional heterogeneous catalyst for stepwise organic transformations. Chem. Commun. 2016, 52, 6517–6520. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Srivastava, S.; Aggarwal, H.; Gupta, R. Three-Dimensional Heterometallic Coordination Networks: Syntheses, Crystal Structures, Topologies, and Heterogeneous Catalysis. Cryst. Growth Des. 2015, 15, 4110–4122. [Google Scholar] [CrossRef]
Molecules 26 05296 sch001 550

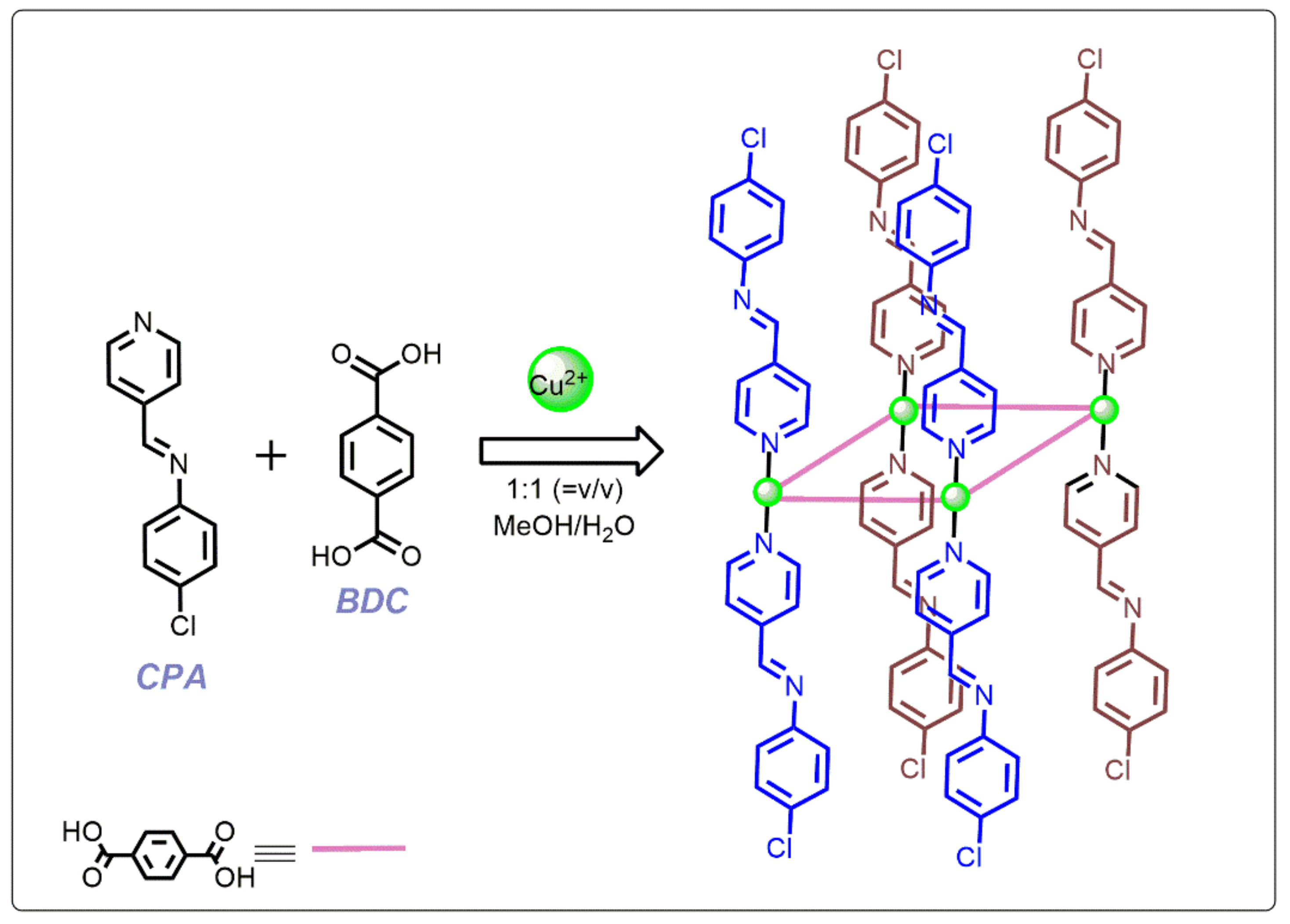

Scheme 1. Schematic representation of synthesis of Cu-MOF (BDC = 1,4-benzenedicarboxylate).
Scheme 1. Schematic representation of synthesis of Cu-MOF (BDC = 1,4-benzenedicarboxylate).
Molecules 26 05296 sch001
Molecules 26 05296 g001a 550Molecules 26 05296 g001b 550
Figure 1. (a) N2 adsorption isotherms for Cu-MOF at 77 K and (b) Howarth–Kawazoe (HK) pore-size distribution calculated from N2 adsorption at 77 K for Cu-MOF.
Figure 1. (a) N2 adsorption isotherms for Cu-MOF at 77 K and (b) Howarth–Kawazoe (HK) pore-size distribution calculated from N2 adsorption at 77 K for Cu-MOF.
Molecules 26 05296 g001aMolecules 26 05296 g001b
Molecules 26 05296 g002 550
Figure 2. X-ray crystal structure illustrates the copper paddle-wheel secondary building unit in Cu-MOF.
Figure 2. X-ray crystal structure illustrates the copper paddle-wheel secondary building unit in Cu-MOF.
Molecules 26 05296 g002
Molecules 26 05296 g003 550

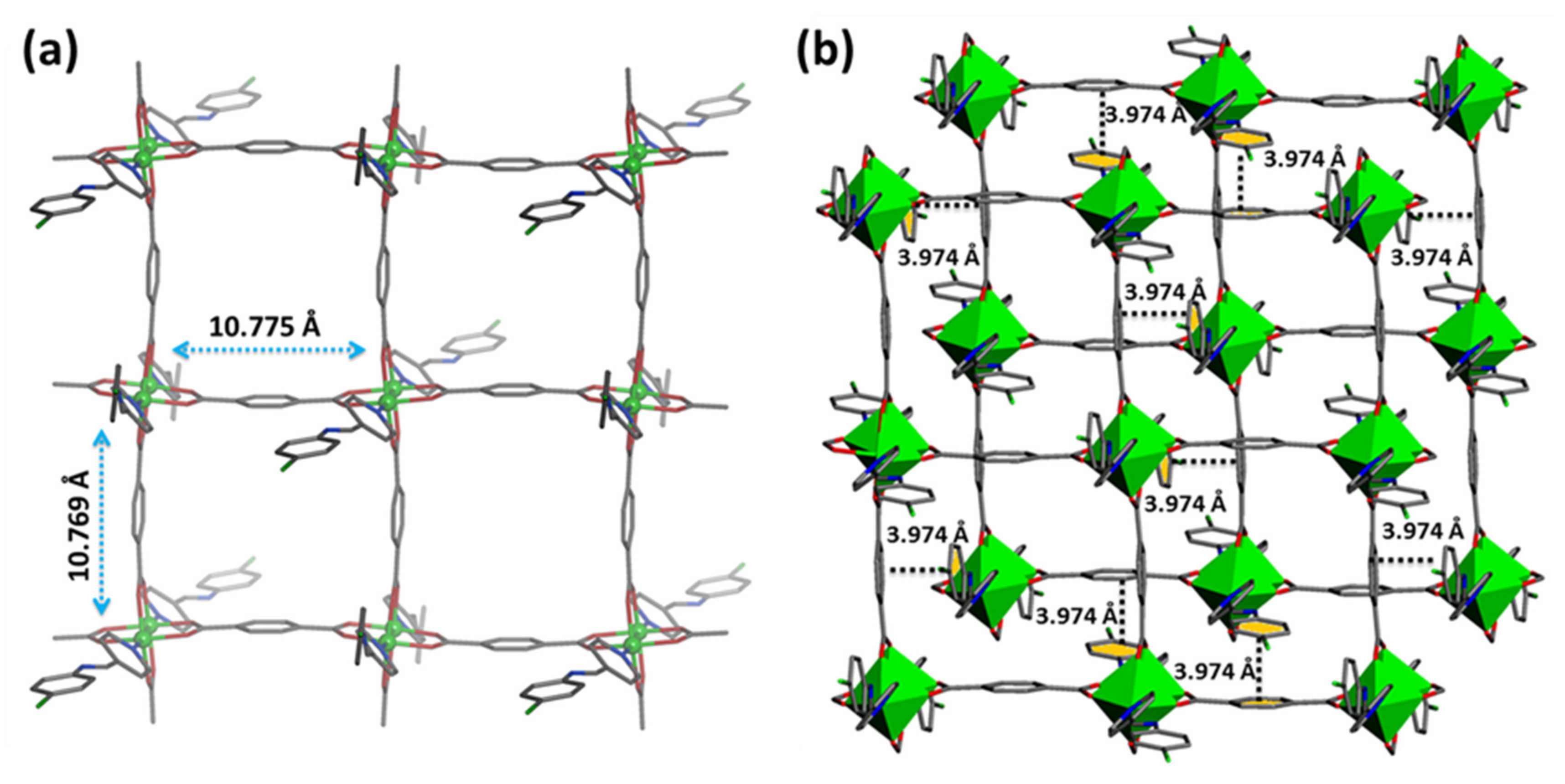

Figure 3. (a) a portion of the (4,4) net structure and (b) a perspective view of the 3D supramolecular aggregate of Cu-MOF by π–π interactions.
Figure 3. (a) a portion of the (4,4) net structure and (b) a perspective view of the 3D supramolecular aggregate of Cu-MOF by π–π interactions.
Molecules 26 05296 g003
Molecules 26 05296 g004 550
Figure 4. Recyclability chart of Cu-MOF upto 4th cycle.
Figure 4. Recyclability chart of Cu-MOF upto 4th cycle.
Molecules 26 05296 g004
Table
Table 1. Crystal data and refinement parameters for Cu-MOF.
Table 1. Crystal data and refinement parameters for Cu-MOF.
CCDC No.2094389
formulaC20H12.4 ClCuN2O4
formula weight443.74
crystal systemmonoclinic
space groupP21/n
a (Å)10.2699 (4)
b (Å)15.3188 (6)
c (Å)14.1931 (6)
β (°)105.404 (2)
V (Å3)2152.68 (15)
T (K)293 (2)
Z4
Dcalcd (g/cm3)1.369
µ (mm−1)1.164
λ(Å)0.71073
θ range (°)2.98–25.01
total reflections3795
unique reflections2336
refined parameters296
R1 a [I > 2σ(I)]0.0533
wR2b0.1569
Goodness-of-fit1.008
difference between peak and hole (e·Å−3)0.595−0.443
a R1 = Σ||Fo| − |Fc||/Σ|Fo|, b wR2 = [Σw(Fo2 − Fc2)2/Σw(Fo2)2]/2, for 1, w = 1/[σ2(Fo2) + (0.0771P)2+ 3.2709P], where P = (Fo2 + 2Fc2)/3.
Table

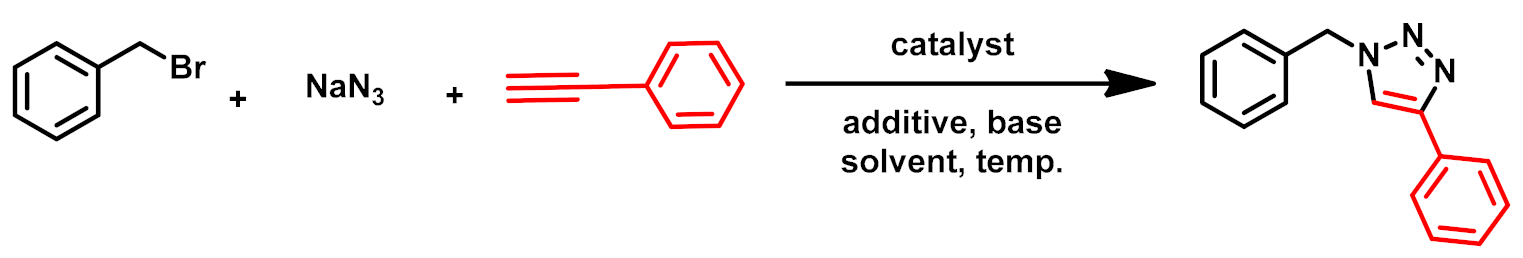

Table 2. Optimization of reaction conditions a.
Table 2. Optimization of reaction conditions a.

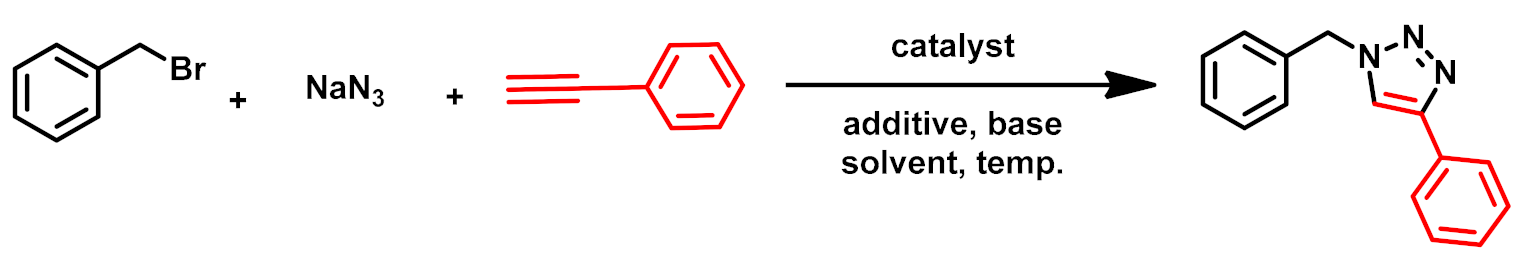

Molecules 26 05296 i001
EntryCatalystAmount of CatalystSolventTime (h)T (°C)Yield (%) b
1Cu-MOF5 mol%Neat770trace
2Cu-MOF5 mol%DMF77042
3Cu-MOF5 mol%THF77043
4Cu-MOF5 mol%CH3CN77048
5Cu-MOF5 mol%H2O77068
6Cu-MOF5 mol%Toluene77029
7Cu-MOF5 mol%Ethanol77064
8Cu-MOF5 mol%Methanol77059
9Cu-MOF5 mol%H2O-MeOH77083
10Cu-MOF5 mol%H2O-THF77049
11Cu-MOF5 mol%H2O-DMF77055
12Cu-MOF5 mol%H2O-MeOH97039
13----H2O-MeOH1280--
14Cu-MOF3 mol%H2O-MeOH77054
15Cu-MOF5 mol%H2O-MeOH770 c83
16Cu-MOF5 mol%H2O-MeOH770 d22
17Cu-MOF10 mol%H2O-MeOH77093
18Cu-MOF15 mol%H2O-MeOH77093
19Cu-MOF10 mol%H2O-MeOH7rt11
20Cu-MOF10 mol%H2O-MeOH79093
21Cu-MOF10 mol%H2O-MeOH770 e93
22Cu-MOF10 mol%H2O-MeOH770 f57
a Reaction conditions: phenylacetylene (1 mmol), benzyl bromide (1 mmol), sodium azide (1.1 mmol), sodium ascorbate (5 mol%), K2CO3 (0.5 equivalent), solvent (5 mL). b Isolated yield. c 10 mol% sodium ascorbate. d Without sodium ascorbate. e K2CO3 (1 equivalent), f Without K2CO3.
Table

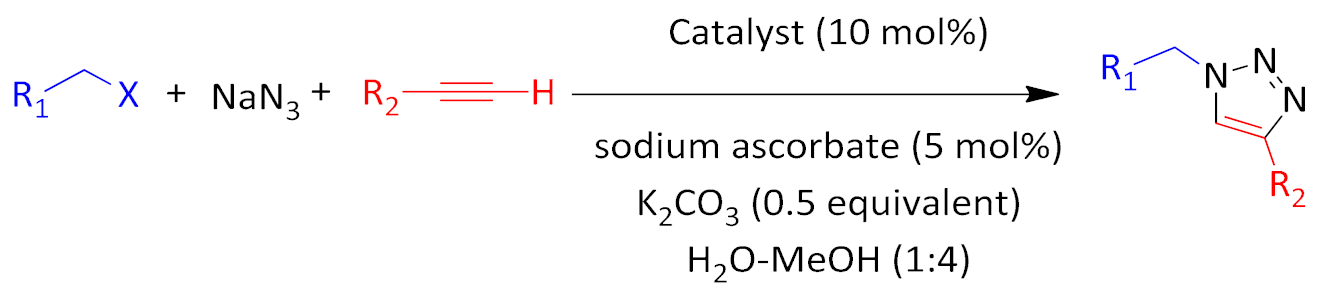

Table 3. Cu-MOF catalyzed one-pot azide preparation from organic halide followed by cycloaddition with terminal alkyne.
Table 3. Cu-MOF catalyzed one-pot azide preparation from organic halide followed by cycloaddition with terminal alkyne.
Molecules 26 05296 i002
EntryAliphatic HalideAlkyneTriazoleYield (%) a
1 Molecules 26 05296 i003 Molecules 26 05296 i004 Molecules 26 05296 i00584
93
2 Molecules 26 05296 i006 Molecules 26 05296 i007 Molecules 26 05296 i00881
89
3 Molecules 26 05296 i009 Molecules 26 05296 i010 Molecules 26 05296 i01178
4 Molecules 26 05296 i012 Molecules 26 05296 i013 Molecules 26 05296 i01480
5 Molecules 26 05296 i015 Molecules 26 05296 i016 Molecules 26 05296 i01782
aReaction conditions: phenylacetylene (1 mmol), benzyl bromide (1 mmol), sodium azide (1.1 mmol), sodium ascorbate (5 mol%), K2CO3 (0.5 equivalent), H2O-MeOH (5 mL).
Table
Table 4. Knoevenagel condensation catalytic experiments.
Table 4. Knoevenagel condensation catalytic experiments.
Molecules 26 05296 i018
EntryR1TimeProductConversion (%)
1.-OH15 min Molecules 26 05296 i019>99
2.-OH15 min Molecules 26 05296 i020>98

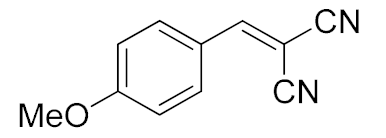

3.-OMe15 min Molecules 26 05296 i021>99

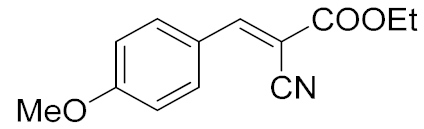

4.-OMe15 min Molecules 26 05296 i022>97

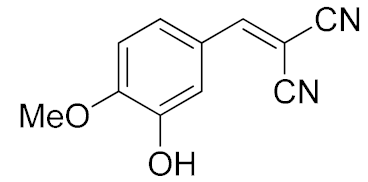

5.-OMe, -OH15 min Molecules 26 05296 i023>99

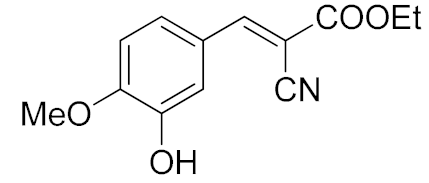

6.-OMe, -OH15 min Molecules 26 05296 i024>99
7.-OMe, -OH15 min Molecules 26 05296 i025>99

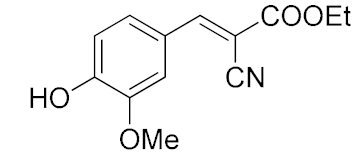

8.-OMe, -OH15 min Molecules 26 05296 i026>98
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Naskar, K.; Maity, S.; Maity, H.S.; Sinha, C. A Reusable Efficient Green Catalyst of 2D Cu-MOF for the Click and Knoevenagel Reaction. Molecules 2021, 26, 5296. https://doi.org/10.3390/molecules26175296

AMA Style

Naskar K, Maity S, Maity HS, Sinha C. A Reusable Efficient Green Catalyst of 2D Cu-MOF for the Click and Knoevenagel Reaction. Molecules. 2021; 26(17):5296. https://doi.org/10.3390/molecules26175296

Chicago/Turabian Style

Naskar, Kaushik, Suvendu Maity, Himadri Sekhar Maity, and Chittaranjan Sinha. 2021. "A Reusable Efficient Green Catalyst of 2D Cu-MOF for the Click and Knoevenagel Reaction" Molecules 26, no. 17: 5296. https://doi.org/10.3390/molecules26175296

Article Metrics

Back to TopTop
