Article

A Water-Soluble Sodium Pectate Complex with Copper as an Electrochemical Catalyst for Carbon Dioxide Reduction

by
Kirill V. Kholin
1,2,*,
Mikhail N. Khrizanforov
1,
Vasily M. Babaev
1,
Guliya R. Nizameeva
3,
Salima T. Minzanova
1,
Marsil K. Kadirov
1 and
Yulia H. Budnikova
1,3
1
Arbuzov Institute of Organic and Physical Chemistry, FRC Kazan Scientific Center, Russian Academy of Sciences, 420088 Kazan, Russia
2
Department of Nanotechnology in Electronics, Kazan National Research Technical University Named after A.N. Tupolev-KAI, 420111 Kazan, Russia
3
Department of Physics, Kazan National Research Technological University, 420015 Kazan, Russia
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(18), 5524; https://doi.org/10.3390/molecules26185524
Submission received: 2 August 2021 / Revised: 5 September 2021 / Accepted: 8 September 2021 / Published: 11 September 2021
Browse Figures
Versions Notes

Abstract

:
A selective noble-metal-free molecular catalyst has emerged as a fruitful approach in the quest for designing efficient and stable catalytic materials for CO2 reduction. In this work, we report that a sodium pectate complex of copper (PG-NaCu) proved to be highly active in the electrocatalytic conversion of CO2 to CH4 in water. Stability and selectivity of conversion of CO2 to CH4 as a product at a glassy carbon electrode were discovered. The copper complex PG-NaCu was synthesized and characterized by physicochemical methods. The electrochemical CO2 reduction reaction (CO2RR) proceeds at −1.5 V vs. Ag/AgCl at ~10 mA/cm2 current densities in the presence of the catalyst. The current density decreases by less than 20% within 12 h of electrolysis (the main decrease occurs in the first 3 h of electrolysis in the presence of CO2). This copper pectate complex (PG-NaCu) combines the advantages of heterogeneous and homogeneous catalysts, the stability of heterogeneous solid materials and the performance (high activity and selectivity) of molecular catalysts.

Graphical Abstract

1. Introduction

The selectivity and the yields of products of the electrochemical CO2 reduction reaction (CO2RR) at room temperature, as shown by many studies, strongly depend on the material of the working electrode, on which the target reaction takes place, and the solvent used [1,2]. The main disadvantages of these heterogeneous electrochemical processes are the need to apply a relatively high potential (~−1.90 V vs. the standard hydrogen electrode (SHE)) and a low current density response. However, in an aqueous medium, the equilibrium potential of the CO2RR is much more positive. For example, the standard electrode potential for the reaction:
CO2 + H2O + 2e− → HCOO− + OH−
is −0.43 V vs. SHE at pH 7.0 [3].
However, CO2 reduction in water can be difficult (overpotential is more than 1 V in many cases) and the actual electrode potentials are overwhelmingly much more negative than the equilibrium potential [4]. The reason for this phenomenon is that the reaction proceeds through the formation of an intermediate—the radical anion CO2− at an extremely negative potential. These problems can be eliminated by using efficient, cheap, selective and stable catalysts, which are constantly being searched for by researchers. Most of the products that can be obtained through the catalytic electrochemical reduction of CO2 in water in the presence of catalysts can be seen in Figure 1.
Researchers have studied a fairly large number of metal complexes that are catalysts for the electrochemical reduction of CO2 [5,6,7,8]. Several well-known water-soluble complexes can be listed: Mn polypyridyl complex [9], rhenium tricarbonyl complex with hydroxymethyl groups [10], 1,10-phenanthroline-copper complex [11], iron tetraphenylporphyrin functionalized with trimethylammonium groups [12], nickel cyclam complex [13], iridium pincer complex [14]. However, most catalytically active complexes dissolve only in organic solvents. It leads to the need to add proton donors at a low concentration (3–5% usually). In turn, water itself is a source of protons, moreover, it is the cheapest and most readily available solvent.
Thus, it is important to look for complexes with catalytically active metal centers, but soluble in water. Sodium pectate has the ability to coordinate various metal centers [15,16,17,18,19,20]. Electrochemical and electrocatalytic properties of sodium pectate complexes are very interesting but have not been studied absolutely. Ligands in such complexes are obtained from pectin, a cheap and readily available natural polysaccharide. In addition, polysaccharides themselves exhibit a catalytic effect in the hydrogen evolution reaction in some cases, as has recently been found out [21,22,23,24]. This article is devoted to the sodium pectate complex with copper and its catalytic activity in the CO2RR. We discovered that this water-soluble catalyst (PG-NaCu) is highly active in the CO2RR and selectively converts CO2 to CH4 as product in water solutions.
It is well known that copper electrodes, as well as nanostructured copper and copper oxides, promote the electrocatalytic conversion of CO2 to deep reduced products such as methane, ethylene, and ethanol [1,25,26,27]. However, there are a number of examples of the electrocatalytic conversion of CO2 to CH4, C2H4, C2O4 on single copper ions [28,29,30,31,32]. The most common mechanism of such deep reduction of CO2 can be noted. In all cases, Cu(I) is the catalytically active site. CO2 molecule binds to copper and accepts an electron and a proton with the forming of COOH (Cu(I) becomes Cu(II)). Next, sequential transfer of seven electrons and protons leads to the formation of methane and two water molecules (through the CO and CHO intermediates) [29]. Cu(II) is then reduced back to Cu(I). An interesting effect was observed in one of the works [28], when the distance between Cu centers has a significant impact on a final product of CO2RR. If copper ions are distant from each other, CH4 is formed. When a pair of copper centers are located close, each of them binds one CO2 molecule with the further formation of C2H4. The formation of C2O4 in the presence of a dinuclear Cu(I) complex occurs by a similar principle in another article [30].

2. Results and Discussion

2.1. Synthesis of the Sodium Pectate Complex with Copper

Synthesis of the complex was carried out according to the already known method refs. [15,19,20]. Pectin was dissolved in 1.5 L of water (55 °C), then 0.1 N NaOH solution was added to the pectin, increasing the pH to 9, and then the solution was left for 2 h at 55 °C. Then, a solution of CuSO4 with 0.016 mol/L concentration was added to the sodium pectate (PG-Na) solution. In 20–30 min, the target product was precipitated with double volume of ethanol, centrifuged and dried.
For research, we obtained the PG-NaCu complex by using a 20% replacement of sodium ions in sodium pectate with copper ions. The replacement rate was selected in such a way as to both maximize the number of Cu centers and ensure water solubility of the complex. The obtained compound PG-NaCu is amorphous powder. Synthesis and the simplified structure of the complex of sodium pectate with copper is shown in Figure 2.

2.2. Electrocatalytic CO2RR Tests Using the PG-NaCu Catalyst

We used an electrolysis cell with a large volume of the above-solution space so that it was possible to take samples of the gases formed and carry out their qualitative and quantitative analysis. The area of the working electrode was 1 cm2. Sodium phosphate buffer Na2HPO4/NaH2PO4 was used as a supporting electrolyte. The electrolysis was carried out at a potential of −1.5 V for 12.5 h in homogeneous conditions and CO2 saturated water (the first hour of electrolysis with water saturation with argon).
Figure 3a shows the result of determining the catalytic CO2RR products in the presence of the PG-NaCu complex after different electrolysis times. The calculations of Faraday efficiency were carried out using the values of the concentration of the products found in the selected gas samples and the amount of charge passed through the cell.
F E   =     Q t Q f   ×   100 %
Q f   =   ∫ t 0 t 1 I d t
Q t = n e N A ν = n F ν
where n is the number of electrons in an electrochemical reaction. For example:
CO 2 + 2 e − + 2 H +   →   CO   +   H 2 O
CO 2 + 8 e − + 8 H +   → CH 4 + 2 H 2 O
It was found that methane (19.1–20.0%) is the main product of the CO2 reduction reaction catalyzed by PG-NaCu. Ethane was also detected (1.2–2.5%). Ethene, propane, and CO are present in insignificant amounts (less than 1% in total). No traces of alcohols (CH3OH, C2H5OH) were found. Hydrogen is also released in large quantities at this potential (76–79%).
The detected products are in agreement with the literature examples of the catalytic CO2RR on single copper ions [28,29,30,31,32]. As shown below in Section 2.7 and Section 2.8, Cu(II) in the sodium pectate complex is reduced to Cu(I) acting as a single catalytic site. Apparently, the long distance between Cu centers plays a decisive role in the predominance of C1 product over C2 and C3 products.
Figure 3b shows the chronoamperometry data during electrolysis and the amount of charge passed through the cell. The highest current density after saturation of the solution with carbon dioxide reaches 10.6 mA/cm2. Further, within 12.5 h the current density decreases by less than 20% (moreover, the main decrease occurs in the first 3 h of electrolysis in the presence of CO2), which characterizes good catalytic stability of the PG-NaCu complex. Such current density is quite high for molecular CO2RR electrocatalysts [33], and especially for water-soluble electrocatalysts [9,10,11]. The latter are characterized by current densities of a few mA/cm2 or less at close potentials. It should be noted that the immobilization of water-soluble complexes on carbon nanotubes or graphene makes it possible to increase the current density, but it cannot be attributed to the homogeneous catalysis. CO2RR catalysts based on metallic copper and copper oxides can exhibit much higher catalytic activity with a current density in the range of 100–400 mA/cm2 [25,34]. Having discovered such intriguing properties of the complex, we decided to study it in more detail.

2.3. Infrared Spectroscopy

When the Cu pectin metal complex was obtained, the state of carboxyl groups was monitored by infrared (IR) spectroscopy in the range of stretching vibrations of the COO− group (1600–1800 cm−1) [35,36,37]. The presence of absorption bands in the IR spectrum of citrus pectin in the range of 1700–1750 cm−1, related to the stretching vibrations of carbonyls of carboxyl and ester groups, as well as the presence of characteristic absorption bands in the range of 950–1200 cm−1, related to the vibrations of the pyranose ring, confirms the belonging to pectin substances.
In the IR spectrum of sodium pectate (PG-Na) (Figure S1), there is an absorption band in the region of stretching vibrations of the ionic form ν(COO−) at 1610 cm−1 and there is no absorption band of stretching vibrations ν(C = O) of carboxyl or ester groups at 1745–1750 cm−1.
Similarly, the IR spectra of the pectin metal complex PG-NaCu (Figure 4) have characteristic absorption bands of the COO− group. The main characteristic band positions (cm−1) for PG-Na and PG-NaCu are shown in Table S1.

2.4. Inductively Coupled Plasma Atomic Emission Spectroscopy

The study of the elemental composition of the complex showed that the expected metals content corresponded to the experimental one. The found relative molar content of sodium and copper ions in the PG-NaCu sample was 4.10/1.

2.5. Thermal Analysis

The study of the obtained complex was continued using the combined methods of thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC). As the temperature rises, in the DSC curve for PG-NaCu shown in Figure 5, an endothermic peak can be observed at T ≈ 67 °C. In this case, the weight loss of the sample on the TGA curve was almost 11%. With a further increase in temperature, a peak of the exothermic process is already observed. The temperature of this peak is ≈247 °C, and the corresponding weight loss is already as much as 39%. The enthalpy of reaction, found by integrating the exothermic peak on the DSC curve, was 184 J/g. By analogy with the data obtained for some sodium polygalacturonates and their metal complexes [38,39,40], it can be concluded that the first endothermic peak corresponds to the loss of water by the PG-NaCu sample, and the second exothermic peak is associated with the decarboxylation of the sample and the release of carbon dioxide. All process parameters for PG-Na can be seen in Figure S2. The fundamental difference of PG-Na from the complex is that the sample almost completely loses its mass at a temperature of 1000 °C, while in the case of the copper compound at the same temperature, 14% of the mass remains.

2.6. Electron Spin Resonance Spectroscopy

The electron spin resonance (ESR) spectrum of the PG-NaCu powder at a temperature of 150 K was obtained and subsequently simulated (Figure 6) to understand the coordination environment of the paramagnetic low-spin Cu (II) 3d9 ions in the PG-NaCu complex.
The parameters obtained from the simulation are shown below:
  • g1 = 2.395; aCu = 122 G; ∆H = 80 G
  • g2 = 2.096; ∆H = 130 G
  • g3 = 2.073; ∆H = 40 G.
The g-factors for the complex are close in their values to the g-factors of the known coordination complexes of Cu(II) with organic acids, in particular, copper citrate [15,41], for which the first coordination sphere of the metal has the structure of a tetragonally distorted octahedron.

2.7. Electrochemistry in Homogeneous Conditions (PG-NaCu in Water Solution)

We attempted to carry out both homogeneous and heterogeneous electrocatalysis with the complex. As mentioned in the introduction, the potential of the CO2RR in an aqueous medium is much less negative than in organic solvents. However, many molecular catalysts for the CO2 reduction reaction are water insoluble. Therefore, researchers often use mixtures of organic solvents with water to carry out homogeneous catalysis [42]. From this point of view, sodium pectate complexes are very convenient, since they are water soluble.
First of all, we will focus on the results with the PG-NaCu complex in homogeneous conditions. The Eonset potential of hydrogen evolution from water at glassy carbon electrode (GCE) in the absence of the complex is −1.55 V vs. Ag/AgCl both in a solution saturated with argon and in a solution saturated with carbon dioxide (black curve in Figure 7a). The Eonset of the same reaction in the presence of the copper complex is already −1.25 V vs. Ag/AgCl (red curve in Figure 7a), i.e., the decrease in overvoltage of this reaction takes place. When the solution is bubbled with carbon dioxide, an even greater shift of the potential Eonset occurs, but in this case, one deals with the potential of the multielectron reaction of CO2 reduction, which is realized at slightly lower negative potentials than the reaction of hydrogen evolution. The Eonset of this reaction reaches −1.05 V vs. Ag/AgCl (blue curve in Figure 7a). It should be noted that the current observed at potentials more negative than the Eonset potential in the presence of carbon dioxide are an integral characteristic of two simultaneously occurring and competing processes—the reaction of CO2 reduction and hydrogen evolution.
Figure 7a shows the sharp increase in reduction current after Eonset in cyclic voltammograms (CVs), but no peaks of the complex reduction are observed. In fact, a quasi-reversible peak is observed at potentials close to 0 V (Figure 7b), but its current is almost a thousand times less than the current at −1.5 V. The low value of the peak current is explained by the slow diffusion of the PG-NaCu molecules to the working electrode due to their large size and high molecular weight. Such a system can be called pseudo-homogeneous, and it combines the advantages of homogeneous and heterogeneous systems. On the one hand, these complexes are quite stable and have many relatively closely spaced copper centers within one molecule, on the other hand, they provide catalytic activity and selectivity inherent in molecular catalysts. As can be seen from the CV, a reduction peak potential of the complex PG-NaCu under homogeneous conditions in water is only −0.2 V vs. Ag/AgCl. Reduction peaks with this potential are typical for the Cu(II)/Cu(I) redox pair. For example, a water-soluble 1,10-phenanthroline-Cu complex (it is an electrocatalyst for the CO2RR too) has a reduction Cu(II)/Cu(I) peak with a potential of +0.53 V vs. RHE [11]. Using the equation for electrode potentials converting:
E (vs. Ag/AgCl) = E (vs. RHE) − 0.197 − 0.059 (pH)
We can calculate the potential Ephen-Cu (vs. Ag/AgCl) = −0.08 V, which is close to the PG-NaCu reduction peak potential. The solution saturation with carbon dioxide does not lead to any shift in the potential of the peak.
The reduction of copper complexes can sometimes lead to the electrodeposition of metallic Cu (0) or copper oxides on electrodes [43]. There are many examples of both molecular copper catalysts for the CO2 reduction [44,45,46] and CO2 reduction catalysts based on metallic copper or copper oxides [25,26,27]. We assert that in the case of the PG-NaCu complex and at potentials more positive than −1.5 V (vs. Ag/AgCl), there is no deposition of copper or copper oxide on the glassy carbon electrode. There is some evidence for this.
−
Firstly, we do not observe any adsorption peaks on the cyclic voltammograms, which would indicate copper electrodeposition on the electrode.
−
Secondly, we carried out a study of the electrode surface before electrolysis, after 30 min and after 12.5 h of electrolysis in the presence of PG-NaCu (Figure S4) using scanning electron microscopy. The electrode was gently washed with deionized water after electrolysis to remove electrolyte residues and only then microscopy was performed. In cases before electrolysis and after 30 min of electrolysis, the surface turned out to be identical without any particles or films. In the case of 12.5 h electrolysis, the presence of a very small number of nanoparticles on the electrode was found. Moreover, energy-dispersive X-ray spectroscopy showed no copper on the electrode surface in all the cases (in the case of 12.5 h of electrolysis, the amount of copper may have been below the sensitivity threshold) (Figure S5).
−
Thirdly, we observe a similar catalytic activity of the copper complex under heterogeneous conditions (as will be shown below), where the formation of copper or copper oxide particles or films is unlikely.

2.8. Electrochemistry in Heterogeneous Conditions (PG-NaCu in Solid Composite of Carbon Paste Electrode)

Next, we investigated the electrochemical properties of the sodium pectate complex with Cu in heterogeneous conditions. A carbon-paste electrode based on an ionic gel (tri(tert-butyl)(dodecyl)phosphonium tetrafluoroborate) was used. The advantages of this electrode are high electrical conductivity and a wide electrochemical window (5.6 V). This is one of the largest electrochemical windows for ionic liquids, while the paste shows sufficient stability over time and reproducibility of recorded electrochemical signals. The electrode makes it possible to determine the current-voltage characteristics of redox-active insoluble and soluble compounds, which was demonstrated for an insoluble compound poly-tris(μ2-1,1′-ferrocenediyl-phenylhydrophosphinato-phenylphosphinato)-iron(III) [47,48]. A glassy carbon electrode with a composite deposited on it mixed with a complex was placed in an electrochemical cell, where water was used as solvent.
In the CV diagram, during the reduction in water, a quasi-reversible peak is observed corresponding to the transition of Cu(II) to Cu(I) with a peak potential of only −0.25 V vs. Ag/AgCl (red curve in Figure 8). In general, we observe a result similar to the homogeneous case with a slight difference in the potentials of the reduction and reoxidation peaks. The peak currents are higher than in homogeneous conditions, which is explained by the large number of the PG-NaCu molecules in the paste.
It should be noted that the potential value of the hydrogen evolution reaction shifts to the positive region when a copper complex is added into the carbon paste. The Eonset potential of water reduction without the use of PG-NaCu is −1.60 V, the Cu complex shifts the Eonset potential by 350 mV (−1.25 V). It is worth noting here that in homogeneous conditions, we obtained a close value for the Eonset.
When an aqueous solution is saturated with carbon dioxide, the Eonset becomes equal to −1.15 V (blue curve in Figure 8) and corresponds to the initial potential of carbon dioxide reduction, and at a potential of −1.50 V, the current density exceeds 14 mA/cm2, while the amount of PG-NaCu in the electrode is only 0.1 μg of the substance. There is also a slight shift in the Cu(II)/Cu(I) reduction peak towards negative potentials.

3. Materials and Methods

3.1. Synthesis of the Sodium Pectate Complex with Copper

We used citrus pectin of the “Classic C-401” brand produced by Herbstreith and Fox (Turnstraße 37, Neuenbürg/Württ, D-75305, Germany) as an organic matrix for copper ions introduction. The measured molecular weight of the citrus pectin is 17.6 kDa. CuSO4·5H2O, NaOH and other reagents with a purity of more than 99.9% were used for the synthesis.

3.2. Fourier-Transform Infrared Spectroscopy

IR spectra were recorded on IR-Fourier spectrophotometer IRS-113 (Bruker, 40 Manning Road, Billerica, MA 01821, USA) with 1 cm−1 resolution in the range 400–4000 cm−1, the substance being pressed with KBr in tablets.

3.3. Inductively Coupled Plasma Optical Emission Spectroscopy

In total, 10 mg of the complex powder was placed in 20 mL of a 0.2 molar solution of HNO3 to prepare extracts of the complexes. Na and Cu concentrations were identified in the complex extract using simultaneous inductively coupled plasma optical emission spectrometer (ICP-OES) model iCAP 6300 DUO by Thermo Fisher Scientific Company (168 Third Avenue, Waltham, MA 02451, USA) equipped with a CID detector. Together, the radial and axial view configurations enable optimal peak height measurements with suppressed spectral noises [49]. The concentration of Na and Cu ions was determined, respectively, by the spectral lines 588.995 and 324.754 nm. We used Sc as internal standard (10 ppm in the sample), and all the standards were by the Perkin Elmer corporation.

3.4. Thermal Analysis

The thermal decomposition of PG-Na and PG-NaCu was studied by simultaneous thermal analysis (thermogravimetry/differential scanning calorimetry, TG/DSC) in which the variation of the sample mass as a function of temperature and the corresponding heats are recorded. We used a combined TGA/DSC/DTA analyzer SDT Q600 (TA Instruments, USA). The samples (about 12 mg) were placed in corundum crucibles and heated to 1000 °C together with an empty crucible as the reference. The TG/DSC measurements were carried out at a heating rate of 5 K/min in a nitrogen flow of 100 mL/min.

3.5. Electron Spin Resonance

ESR measurements were carried out on an ELEXSYS E500 (Bruker) ESR spectrometer of the X-range. ESR spectra were simulated using the WINEPR SimFonia software (Bruker) [50,51].

3.6. Electrochemistry

Electrochemical measurements were taken on a BASi Epsilon EClipse electrochemical analyzer (2701 Kent Avenue, West Lafayette, IN 47906, USA). A conventional three-electrode system [52,53,54] was used with glassy carbon as the working electrode, the Ag/AgCl (3 M KCl aqueous solution) electrode as the reference electrode, and a Pt wire as the counter electrode. The pH of solutions undergoing electrochemical studies was maintained with 0.1 M sodium phosphate buffer Na2HPO4/NaH2PO4 (pH = 7). It was also a supporting electrolyte. The complex concentration in the solution for electrochemistry under homogeneous conditions was 1 mg/L. The gases were supplied to solutions by the bubbling method. The argon and carbon dioxide purity were higher than 99.99%.

3.7. Scanning Electron Microscopy

Microscopy measurements were carried out on an EVO LS-10 scanning electron microscope (Carl Zeiss, Carl-Zeiss-Strasse 22, 73447 Oberkochen, Germany) in high vacuum (HV) mode. SE detector and lanthanum hexaboride cathode were used to obtain surface images. Chemical analysis of the glass carbon surfaces was done using Energy-Dispersive X-ray Spectroscopy detector (Oxford instrument, Tubney Woods, OX13 5QX Abingdon, UK).

3.8. Gas Chromatography

Detection and quantification of selected gases (CO and hydrocarbons) were performed by a Crystal 2000 M gas chromatograph (Chromatek, 94 Stroiteley Str., 424000 Yoshkar-Ola, Russia), with a 1 mL sample loop. The gas chromatograph was fitted with two columns (5% NaOH on Al2O3 and CaA zeolites) and two flame ionization detectors (one of which was fitted with a methanizer). Calibration curves were constructed using certified methane/air and CO/air calibration gas mixtures. Nitrogen was used as the carrier gas. The temperature was held at 60 °C.

4. Conclusions

Thus, we were the first to propose the use of copper pectin complexes as selective noble-metal-free electrocatalysts for the conversion of CO2 to methane (yield of CH4 is 20.0%, other C-products are present in minor amounts). In homogeneous conditions this catalyst works on the verge of heterogeneous and homogeneous catalysis. It can be said that it is nanoheterogeneous since it combines the advantages of a molecular catalyst, soluble in water, as well as heterogeneous due to a large molecular weight (it is a natural polymer). The advantages of the catalyst are its stability, selectivity, the ability to achieve good operating current densities 10.5 mA/cm2.

Supplementary Materials

The following are available online, Figure S1: Fourier-transform infrared spectroscopy spectrum of sodium pectate (PG-Na), Table S1: The main characteristic band positions (cm−1) for the PG-Na and the PG-NaCu (20%), Figure S2: Thermogravimetry and differential scanning calorimetry curves for sodium pectate (PG-Na), Figure S3: Temperature dependence of the electron spin resonance spectrum of the sodium pectate complex with copper, Figure S4: SEM images of the glass carbon electrode surface before electrolysis (a), after 30 min (b) and after 12.5 h (c, d) of electrolysis at −1.5 V vs. Ag/AgCl in the presence of the PG-NaCu. The electrode was gently washed with deionized water after electrolysis to remove electrolyte residues and only then microscopy was performed, Figure S5: Energy-dispersive X-ray spectroscopy of the glass carbon electrode surface before electrolysis (a) after 30 min (b) and after 12.5 h (c) of electrolysis at −1.5 V vs. Ag/AgCl in the presence of PG-NaCu. Carbon is detected in all cases. Very weak oxygen peak is detected in the case of 12.5 h of electrolysis.

Author Contributions

Conceptualization, K.V.K.; methodology, K.V.K., M.N.K., V.M.B., G.R.N. and S.T.M.; formal analysis, K.V.K., M.N.K., V.M.B. and G.R.N.; investigation, K.V.K., M.N.K., V.M.B., G.R.N. and M.K.K.; resources, K.V.K.; data curation, K.V.K.; writing—original draft preparation, K.V.K. and Y.H.B.; writing—review and editing, K.V.K., M.N.K., V.M.B., G.R.N., S.T.M., M.K.K. and Y.H.B.; visualization, K.V.K., M.N.K., V.M.B., G.R.N., S.T.M., M.K.K.; supervision, K.V.K.; project administration, K.V.K.; funding acquisition, K.V.K. All authors have read and agreed to the published version of the manuscript.

Funding

The reported study was funded by RFBR, project number 20-33-70060. Preparation of the pectin biopolymers was supported by the government assignment for FRC Kazan Scientific Center of RAS. Kholin K.V. performed electrochemical and EPR studies at Arbuzov Institute of Organic and Physical Chemistry and SEM studies at Kazan National Research Technical University. The gas chromatography studies performed using the equipment of the Assigned Spectral-Analytical Center of FRC Kazan Scientific Center of RAS. The study performed using the equipment of the Center for Collective Use “Nanomaterials and Nanotechnology” of the Kazan National Research Technological University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Hori, Y.; Wakebe, H.; Tsukamoto, T.; Koga, O. Electrocatalytic process of CO selectivity in electrochemical reduction of CO2 at metal electrodes in aqueous media. Electrochim. Acta 1994, 39, 1833–1839. [Google Scholar] [CrossRef]
  2. Jitaru, M.; Lowy, D.; Toma, M.; Toma, B.C.; Oniciu, L. Electrochemical reduction of carbon dioxide on flat metallic cathodes. J. Appl. Electrochem. 1997, 27, 875–889. [Google Scholar] [CrossRef]
  3. Hori, Y.; Suzuki, S. Electrolytic Reduction of Carbon Dioxide at Mercury Electrode in Aqueous Solution. Bull. Chem. Soc. Jpn. 1982, 55, 660–665. [Google Scholar] [CrossRef] [Green Version]
  4. Hori, Y. Electrochemical CO2 reduction on metal electrodes. In Modern Aspects of Electrochemistry; Vayenas, C.G., White, R.E., Gamboa-Aldeco, M.E., Eds.; Springer: New York, NY, USA, 2008; Volume 42, pp. 89–189. [Google Scholar] [CrossRef]
  5. Benson, E.E.; Kubiak, C.P.; Sathrum, A.J.; Smieja, J.M. Electrocatalytic and homogeneous approaches to conversion of CO2 to liquid fuels. Chem. Soc. Rev. 2008, 38, 89–99. [Google Scholar] [CrossRef]
  6. Elouarzaki, K.; Kannan, V.; Jose, V.; Sabharwal, H.S.; Lee, J. Recent Trends, Benchmarking, and Challenges of Electrochemical Reduction of CO2 by Molecular Catalysts. Adv. Energy Mater. 2019, 9, 1900090. [Google Scholar] [CrossRef]
  7. Liu, D.-C.; Zhong, D.-C.; Lu, T.-B. Non-noble metal-based molecular complexes for CO2 reduction: From the ligand design perspective. EnergyChem 2020, 2, 100034. [Google Scholar] [CrossRef]
  8. Takeda, H.; Cometto, C.; Ishitani, O.; Robert, M. Electrons, Photons, Protons and Earth-Abundant Metal Complexes for Molecular Catalysis of CO2 Reduction. ACS Catal. 2016, 7, 70–88. [Google Scholar] [CrossRef]
  9. Walsh, J.J.; Neri, G.; Smith, C.L.; Cowan, A.J. Water-Soluble Manganese Complex for Selective Electrocatalytic CO2 Reduction to CO. Organometallics 2018, 38, 1224–1229. [Google Scholar] [CrossRef]
  10. Nakada, A.; Ishitani, O. Selective Electrocatalysis of a Water-Soluble Rhenium(I) Complex for CO2 Reduction Using Water as an Electron Donor. ACS Catal. 2017, 8, 354–363. [Google Scholar] [CrossRef]
  11. Wang, J.; Gan, L.; Zhang, Q.; Reddu, V.; Peng, Y.; Liu, Z.; Xia, X.; Wang, C.; Wang, X. A Water-Soluble Cu Complex as Molecular Catalyst for Electrocatalytic CO2 Reduction on Graphene-Based Electrodes. Adv. Energy Mater. 2018, 9, 1803151. [Google Scholar] [CrossRef]
  12. Costentin, C.; Robert, M.; Savéant, J.-M.; Tatin, A. Efficient and selective molecular catalyst for the CO2-to-CO electrochemical conversion in water. Proc. Natl. Acad. Sci. USA 2015, 112, 6882–6886. [Google Scholar] [CrossRef] [Green Version]
  13. Beley, M.; Collin, J.P.; Ruppert, R.; Sauvage, J.P. Electrocatalytic reduction of carbon dioxide by nickel cyclam2+ in water: Study of the factors affecting the efficiency and the selectivity of the process. J. Am. Chem. Soc. 1986, 108, 7461–7467. [Google Scholar] [CrossRef] [PubMed]
  14. Kang, P.; Meyer, T.J.; Brookhart, M. Selective electrocatalytic reduction of carbon dioxide to formate by a water-soluble iridium pincer catalyst. Chem. Sci. 2013, 4, 3497–3502. [Google Scholar] [CrossRef]
  15. Minzanova, S.; Mironov, V.; Vyshtakalyuk, A.; Tsepaeva, O.; Mironova, L.; Mindubaev, A.; Nizameev, I.; Kholin, K.; Milyukov, V. Complexation of pectin with macro- and microelements. Antianemic activity of Na, Fe and Na, Ca, Fe complexes. Carbohydr. Polym. 2015, 134, 524–533. [Google Scholar] [CrossRef] [PubMed]
  16. Selvarengan, P.; Kubicki, J.; Guégan, J.-P.; Châtellier, X. Complexation of carboxyl groups in bacterial lipopolysaccharides: Interactions of H+, Mg2+, Ca2+, Cd2+, and UO22+ with Kdo and galacturonate molecules via quantum mechanical calculations and NMR spectroscopy. Chem. Geol. 2010, 273, 55–75. [Google Scholar] [CrossRef]
  17. Minzanova, S.T.; Mironov, V.F.; Mironova, L.G.; Nizameev, I.R.; Kholin, K.; Voloshina, A.D.; Kulik, N.V.; Nazarov, N.G.; Milyukov, V.A. Synthesis, Properties, and Antimicrobial Activity of Pectin Complexes with Cobalt and Nickel. Chem. Nat. Compd. 2016, 52, 26–31. [Google Scholar] [CrossRef]
  18. Cescutti, P.; Rizzo, R. Divalent cation interactions with oligogalacturonides. J. Agric. Food Chem. 2001, 49, 3262–3267. [Google Scholar] [CrossRef] [PubMed]
  19. Kuzmann, E.; Garg, V.; De Oliveira, A.; Klencsar, Z.; Szentmihályi, K.; Fodor, J.; May, Z.; Homonnay, Z. Mössbauer study of the effect of pH on Fe valence in iron–polygalacturonate as a medicine for human anaemia. Radiat. Phys. Chem. 2014, 107, 195–198. [Google Scholar] [CrossRef]
  20. Assifaoui, A.; Lerbret, A.; Huynh, U.T.D.; Neiers, F.; Chambin, O.; Loupiac, C.; Cousin, F.; Uyen, H.T.D. Structural behaviour differences in low methoxy pectin solutions in the presence of divalent cations (Ca2+ and Zn2+): A process driven by the binding mechanism of the cation with the galacturonate unit. Soft Matter 2015, 11, 551–560. [Google Scholar] [CrossRef]
  21. Strmečki, S.; Dautović, J.; Plavšić, M. Constant current chronopotentiometric stripping characterisation of organic matter in seawater from the northern Adriatic, Croatia. Environ. Chem. 2014, 11, 158. [Google Scholar] [CrossRef]
  22. Strmečki, S.; Plavšić, M. Adsorptive transfer chronopotentiometric stripping of sulphated polysaccharides. Electrochem. Commun. 2012, 18, 100–103. [Google Scholar] [CrossRef]
  23. Strmečki, S.; Plavšić, M.; Ćosović, B.; Ostatná, V.; Paleček, E. Constant current chronopotentiometric stripping of sulphated polysaccharides. Electrochem. Commun. 2009, 11, 2032–2035. [Google Scholar] [CrossRef]
  24. Paleček, E.; Římánková, L. Chitosan catalyzes hydrogen evolution at mercury electrodes. Electrochem. Commun. 2014, 44, 59–62. [Google Scholar] [CrossRef]
  25. Wang, X.; Klingan, K.; Klingenhof, M.; Möller, T.; de Araújo, J.F.; Martens, I.; Bagger, A.; Jiang, S.; Rossmeisl, J.; Dau, H.; et al. Morphology and mechanism of highly selective Cu(II) oxide nanosheet catalysts for carbon dioxide electroreduction. Nat. Commun. 2021, 12, 794. [Google Scholar] [CrossRef] [PubMed]
  26. De Luna, P.; Quintero-Bermudez, R.; Dinh, C.-T.; Ross, M.B.; Bushuyev, O.S.; Todorović, P.; Regier, T.; Kelley, S.O.; Yang, P.; Sargent, E.H. Catalyst electro-redeposition controls morphology and oxidation state for selective carbon dioxide reduction. Nat. Catal. 2018, 1, 103–110. [Google Scholar] [CrossRef] [Green Version]
  27. Van Oversteeg, C.H.; Rosales, M.T.; Helfferich, K.H.; Ghiasi, M.; Meeldijk, J.D.; Firet, N.J.; Ngene, P.; Donegá, C.D.M.; de Jongh, P.E. Copper sulfide derived nanoparticles supported on carbon for the electrochemical reduction of carbon dioxide. Catal. Today 2020, 377, 157–165. [Google Scholar] [CrossRef]
  28. Guan, A.; Chen, Z.; Quan, Y.; Peng, C.; Wang, Z.; Sham, T.-K.; Yang, C.; Ji, Y.; Qian, L.; Xu, X.; et al. Boosting CO2 Electroreduction to CH4 via Tuning Neighboring Single-Copper Sites. ACS Energy Lett. 2020, 5, 1044–1053. [Google Scholar] [CrossRef]
  29. Gao, Y.; Zhang, L.; Gu, Y.; Zhang, W.; Pan, Y.; Fang, W.; Ma, J.; Lan, Y.-Q.; Bai, J. Formation of a mixed-valence Cu(i)/Cu(ii) metal–organic framework with the full light spectrum and high selectivity of CO2 photoreduction into CH4. Chem. Sci. 2020, 11, 10143–10148. [Google Scholar] [CrossRef] [PubMed]
  30. Angamuthu, R.; Byers, P.; Lutz, M.; Spek, A.L.; Bouwman, E. Electrocatalytic CO2 Conversion to Oxalate by a Copper Complex. Science 2010, 327, 313–315. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Weng, Z.; Jiang, J.; Wu, Y.; Wu, Z.; Guo, X.; Materna, K.L.; Liu, W.; Batista, V.S.; Brudvig, G.W.; Wang, H. Electrochemical CO2 Reduction to Hydrocarbons on a Heterogeneous Molecular Cu Catalyst in Aqueous Solution. J. Am. Chem. Soc. 2016, 138, 8076–8079. [Google Scholar] [CrossRef]
  32. Wang, Y.; Chen, Z.; Han, P.; Du, Y.; Gu, Z.; Xu, X.; Zheng, G. Single-Atomic Cu with Multiple Oxygen Vacancies on Ceria for Electrocatalytic CO2 Reduction to CH4. ACS Catal. 2018, 8, 7113–7119. [Google Scholar] [CrossRef]
  33. Francke, R.; Schille, B.; Roemelt, M. Homogeneously Catalyzed Electroreduction of Carbon Dioxide—Methods, Mechanisms, and Catalysts. Chem. Rev. 2018, 118, 4631–4701. [Google Scholar] [CrossRef] [PubMed]
  34. De Gregorio, G.L.; Burdyny, T.; Loiudice, A.; Iyengar, P.; Smith, W.A.; Buonsanti, R. Facet-Dependent Selectivity of Cu Catalysts in Electrochemical CO2 Reduction at Commercially Viable Current Densities. ACS Catal. 2020, 10, 4854–4862. [Google Scholar] [CrossRef] [Green Version]
  35. Assifaoui, A.; Loupiac, C.; Chambin, O.; Cayot, P. Structure of calcium and zinc pectinate films investigated by FTIR spectroscopy. Carbohydr. Res. 2010, 345, 929–933. [Google Scholar] [CrossRef]
  36. Chatjigakis, A.; Pappas, C.; Proxenia, N.; Kalantzi, O.; Rodis, P.; Polissiou, M. FT-IR spectroscopic determination of the degree of esterification of cell wall pectins from stored peaches and correlation to textural changes. Carbohydr. Polym. 1998, 37, 395–408. [Google Scholar] [CrossRef]
  37. Synytsya, A. Fourier transform Raman and infrared spectroscopy of pectins. Carbohydr. Polym. 2003, 54, 97–106. [Google Scholar] [CrossRef]
  38. Minzanova, S.T.; Khamatgalimov, A.R.; Ryzhkina, I.S.; Murtazina, L.I.; Mironova, L.G.; Kadirov, M.K.; Vyshtakalyuk, A.B.; Milyukov, V.A.; Mironov, V.F. Synthesis and physicochemical properties of antianemic iron and calcium complexes with sodium polygalacturonate. Dokl. Phys. Chem. 2016, 467, 45–48. [Google Scholar] [CrossRef]
  39. Aburto, J.; Moran, M.; Galano, A.; Torres-García, E. Non-isothermal pyrolysis of pectin: A thermochemical and kinetic approach. J. Anal. Appl. Pyrolysis 2015, 112, 94–104. [Google Scholar] [CrossRef]
  40. Rezvanian, M.; Ahmad, N.; Amin, M.C.I.M.; Ng, S.-F. Optimization, characterization, and in vitro assessment of alginate-pectin ionic cross-linked hydrogel film for wound dressing applications. Int. J. Biol. Macromol. 2017, 97, 131–140. [Google Scholar] [CrossRef]
  41. Gryaznova, T.V.; Kholin, K.V.; Nikanshina, E.O.; Khrizanforova, V.; Strekalova, S.O.; Fayzullin, R.R.; Budnikova, Y.H. Copper or Silver-Mediated Oxidative C(sp2)–H/N–H Cross-Coupling of Phthalimide and Heterocyclic Arenes: Access to N-Arylphthalimides. Organometallics 2019, 38, 3617–3628. [Google Scholar] [CrossRef]
  42. Walsh, J.J.; Smith, C.L.; Neri, G.; Whitehead, G.; Robertson, C.; Cowan, A.J. Improving the efficiency of electrochemical CO2 reduction using immobilized manganese complexes. Faraday Discuss. 2015, 183, 147–160. [Google Scholar] [CrossRef] [Green Version]
  43. Liu, T.; Vilar, R.; Eugénio, S.; Grondin, J.; Danten, Y. Electrodeposition of copper thin films from 1-ethyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide. J. Appl. Electrochem. 2014, 45, 87–93. [Google Scholar] [CrossRef]
  44. Weng, Z.; Wu, Y.; Wang, M.; Jiang, J.; Yang, K.; Huo, S.; Wang, X.-F.; Ma, Q.; Brudvig, G.W.; Batista, V.S.; et al. Active sites of copper-complex catalytic materials for electrochemical carbon dioxide reduction. Nat. Commun. 2018, 9, 415. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Guo, Z.; Yu, F.; Yang, Y.; Leung, C.-F.; Ng, S.-M.; Ko, C.-C.; Cometto, C.; Lau, T.; Robert, M. Photocatalytic Conversion of CO2 to CO by a Copper(II) Quaterpyridine Complex. ChemSusChem 2017, 10, 4009–4013. [Google Scholar] [CrossRef] [PubMed]
  46. Jiang, W.-X.; Liu, W.-X.; Wang, C.-L.; Zhan, S.-Z.; Wu, S.-P. A bis(thiosemicarbazonato)-copper complex, a new catalyst for electro- and photo-reduction of CO2 to methanol. New J. Chem. 2020, 44, 2721–2726. [Google Scholar] [CrossRef]
  47. Khrizanforov, M.N.; Arkhipova, D.M.; Shekurov, R.; Gerasimova, T.; Ermolaev, V.; Islamov, D.R.; Miluykov, V.A.; Kataeva, O.N.; Khrizanforova, V.; Sinyashin, O.; et al. Novel paste electrodes based on phosphonium salt room temperature ionic liquids for studying the redox properties of insoluble compounds. J. Solid State Electrochem. 2015, 19, 2883–2890. [Google Scholar] [CrossRef]
  48. Gryaznova, T.; Dudkina, Y.; Khrizanforov, M.; Sinyashin, O.; Kataeva, O.; Budnikova, Y. Electrochemical properties of diphosphonate-bridged palladacycles and their reactivity in arene phosphonation. J. Solid State Electrochem. 2015, 19, 2665–2672. [Google Scholar] [CrossRef]
  49. Fedorenko, S.; Grechkina, S.L.; Mustafina, A.R.; Kholin, K.; Stepanov, A.S.; Nizameev, I.R.; Ismaev, I.E.; Kadirov, M.K.; Zairov, R.R.; Fattakhova, A.N.; et al. Tuning the non-covalent confinement of Gd(III) complexes in silica nanoparticles for high T1-weighted MR imaging capability. Colloids Surf. B Biointerfaces 2017, 149, 243–249. [Google Scholar] [CrossRef]
  50. Kadirov, M.K.; Budnikova, Y.G.; Kholin, K.; Valitov, M.I.; Krasnov, S.A.; Gryaznova, T.V.; Sinyashin, O. Spin-adduct of the P4·− radical anion during the electrochemical reduction of white phosphorus. Russ. Chem. Bull. 2010, 59, 466–468. [Google Scholar] [CrossRef]
  51. Khrizanforova, V.V.; Kholin, K.V.; Khrizanforov, M.N.; Kadirov, M.K.; Budnikova, Y.H. Electrooxidative CH/PH functionalization as a novel way to synthesize benzo[b]phosphole oxides mediated by catalytic amounts of silver acetate. New J. Chem. 2017, 42, 930–935. [Google Scholar] [CrossRef] [Green Version]
  52. Budnikova, Y.G.; Gryaznova, T.V.; Kadirov, M.K.; Tret’yakov, E.V.; Kholin, K.; Ovcharenko, V.I.; Sagdeev, R.Z.; Sinyashin, O. Electrochemistry of nitronyl and imino nitroxides. Russ. J. Phys. Chem. A 2009, 83, 1976–1980. [Google Scholar] [CrossRef]
  53. Kadirov, M.; Tretyakov, E.; Budnikova, Y.; Valitov, M.; Holin, K.; Gryaznova, T.; Ovcharenko, V.; Sinyashin, O. Electrochemistry of the sterically hindered imidazolidine zwitterion and its paramagnetic derivative. J. Electroanal. Chem. 2008, 624, 69–72. [Google Scholar] [CrossRef]
  54. Kadirov, M.K.; Tret’yakov, E.V.; Budnikova, Y.G.; Kholin, K.; Valitov, M.I.; Vavilova, V.N.; Ovcharenko, V.I.; Sagdeev, R.Z.; Sinyashin, O. Cyclic voltammetry of nitronyl- and iminonitroxyls detected by electron spin resonance. Russ. J. Phys. Chem. A 2009, 83, 2163–2169. [Google Scholar] [CrossRef]
Molecules 26 05524 g001 550

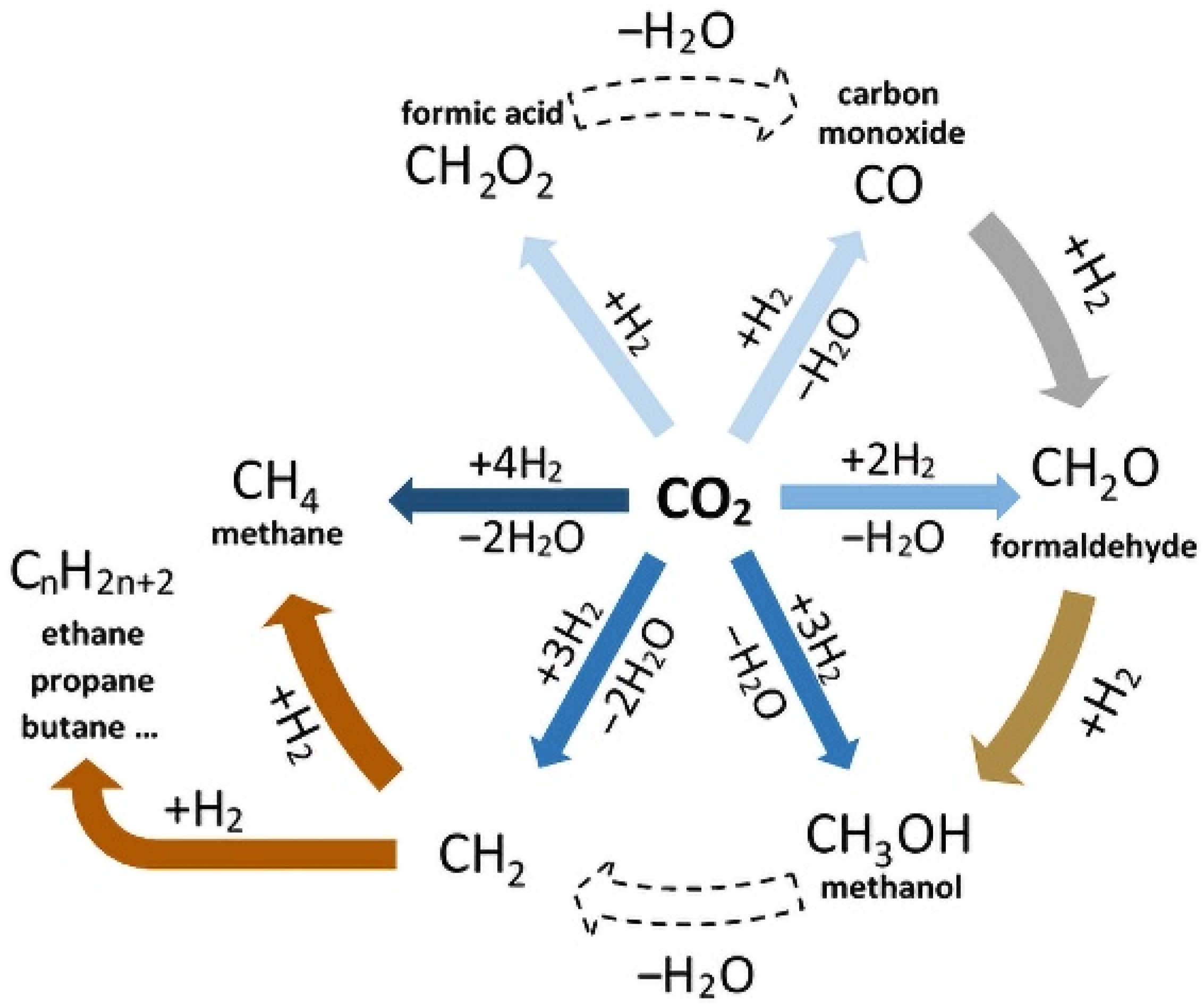

Figure 1. Main possible products of catalytic electrochemical reduction of CO2 in an aquatic environment.
Figure 1. Main possible products of catalytic electrochemical reduction of CO2 in an aquatic environment.
Molecules 26 05524 g001
Molecules 26 05524 g002 550

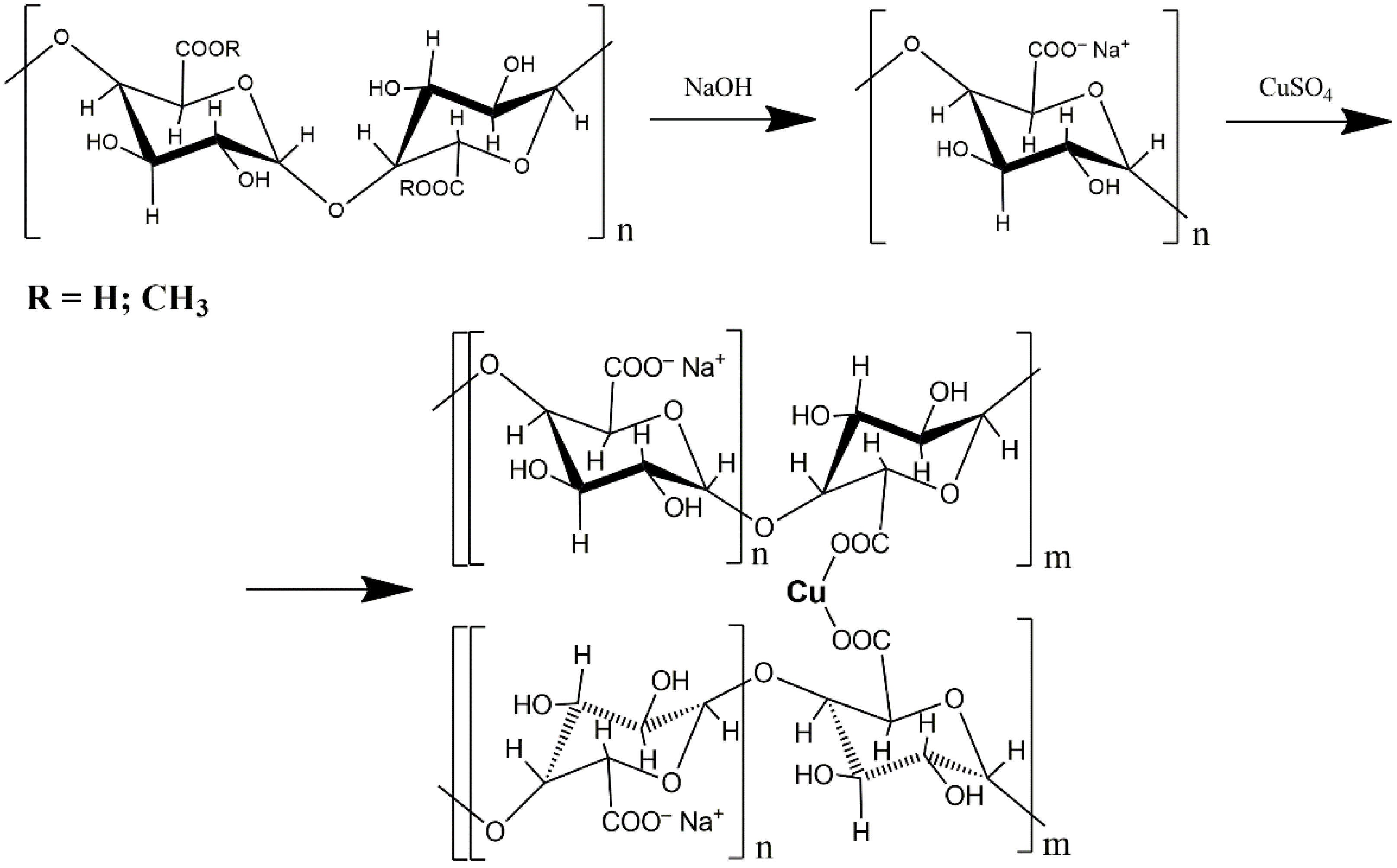

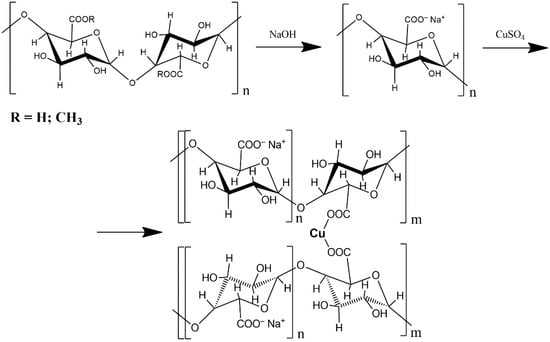

Figure 2. Synthesis of the sodium pectate complex with copper.
Figure 2. Synthesis of the sodium pectate complex with copper.
Molecules 26 05524 g002
Molecules 26 05524 g003 550

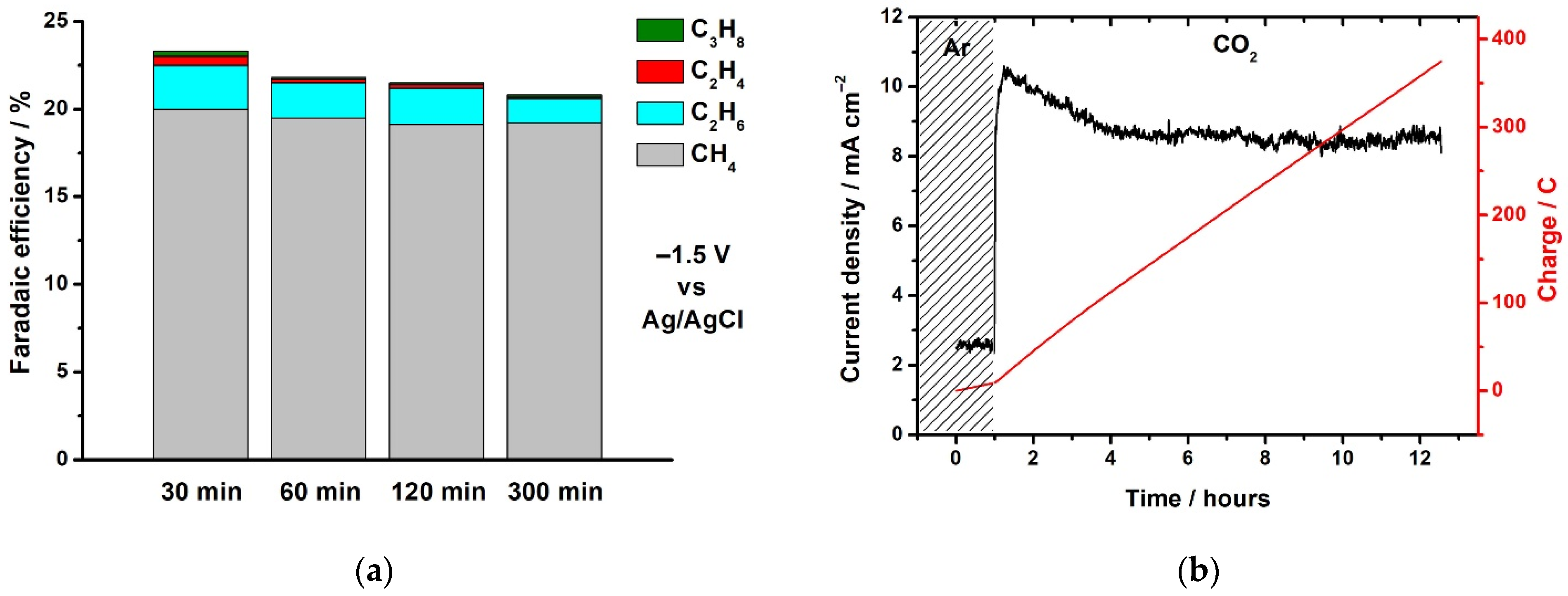

Figure 3. (a) Products of the CO2RR in the presence of the PG-NaCu complex at −1.5 V vs. Ag/AgCl after different electrolysis times, (b) current density (black trace, left) and charge (red trace, right) during bulk electrolysis (E = −1.5 V vs. Ag/AgCl) in homogeneous conditions with the PG-NaCu complex in Ar (the first hour) and CO2 saturated water.
Figure 3. (a) Products of the CO2RR in the presence of the PG-NaCu complex at −1.5 V vs. Ag/AgCl after different electrolysis times, (b) current density (black trace, left) and charge (red trace, right) during bulk electrolysis (E = −1.5 V vs. Ag/AgCl) in homogeneous conditions with the PG-NaCu complex in Ar (the first hour) and CO2 saturated water.
Molecules 26 05524 g003
Molecules 26 05524 g004 550

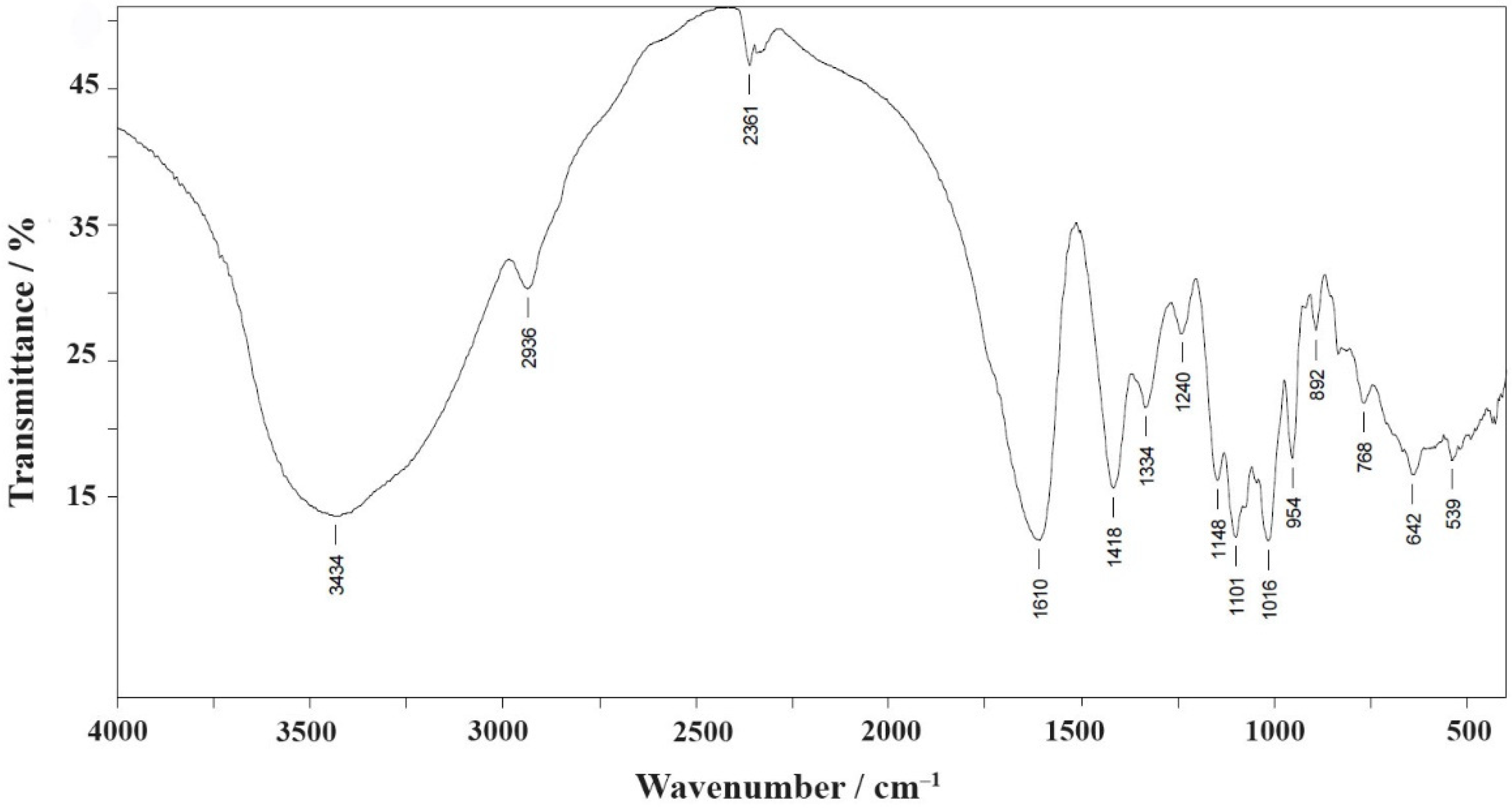

Figure 4. Fourier-transform infrared spectroscopy spectrum of the copper pectin complex (PG-NaCu).
Figure 4. Fourier-transform infrared spectroscopy spectrum of the copper pectin complex (PG-NaCu).
Molecules 26 05524 g004
Molecules 26 05524 g005 550

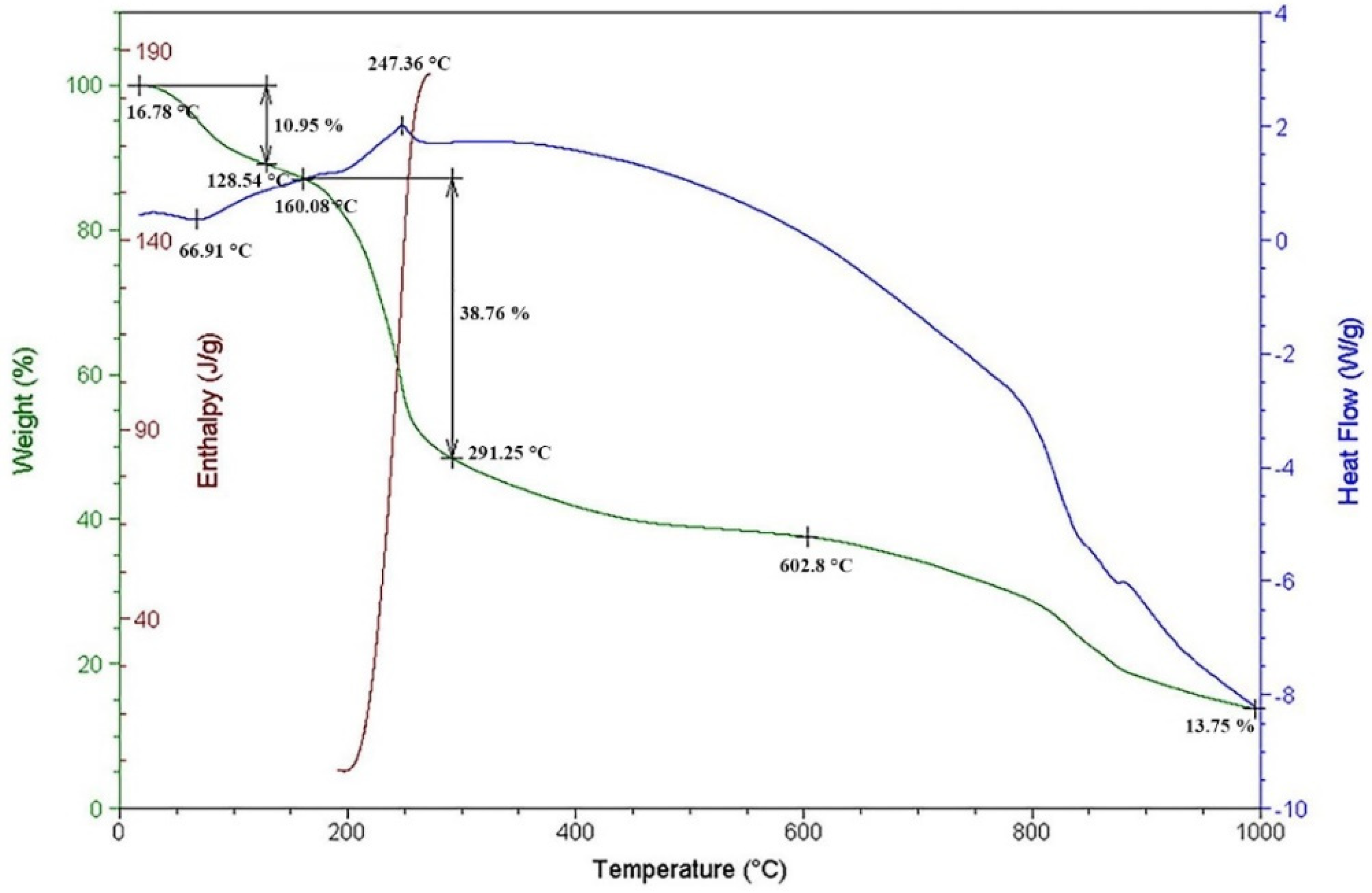

Figure 5. Thermogravimetry and differential scanning calorimetry curves for the sodium pectate complex with copper.
Figure 5. Thermogravimetry and differential scanning calorimetry curves for the sodium pectate complex with copper.
Molecules 26 05524 g005
Molecules 26 05524 g006 550

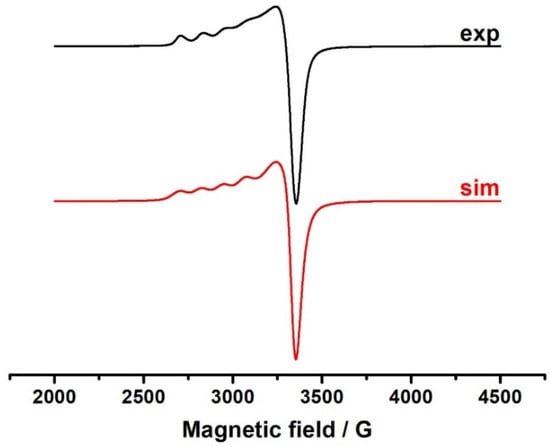

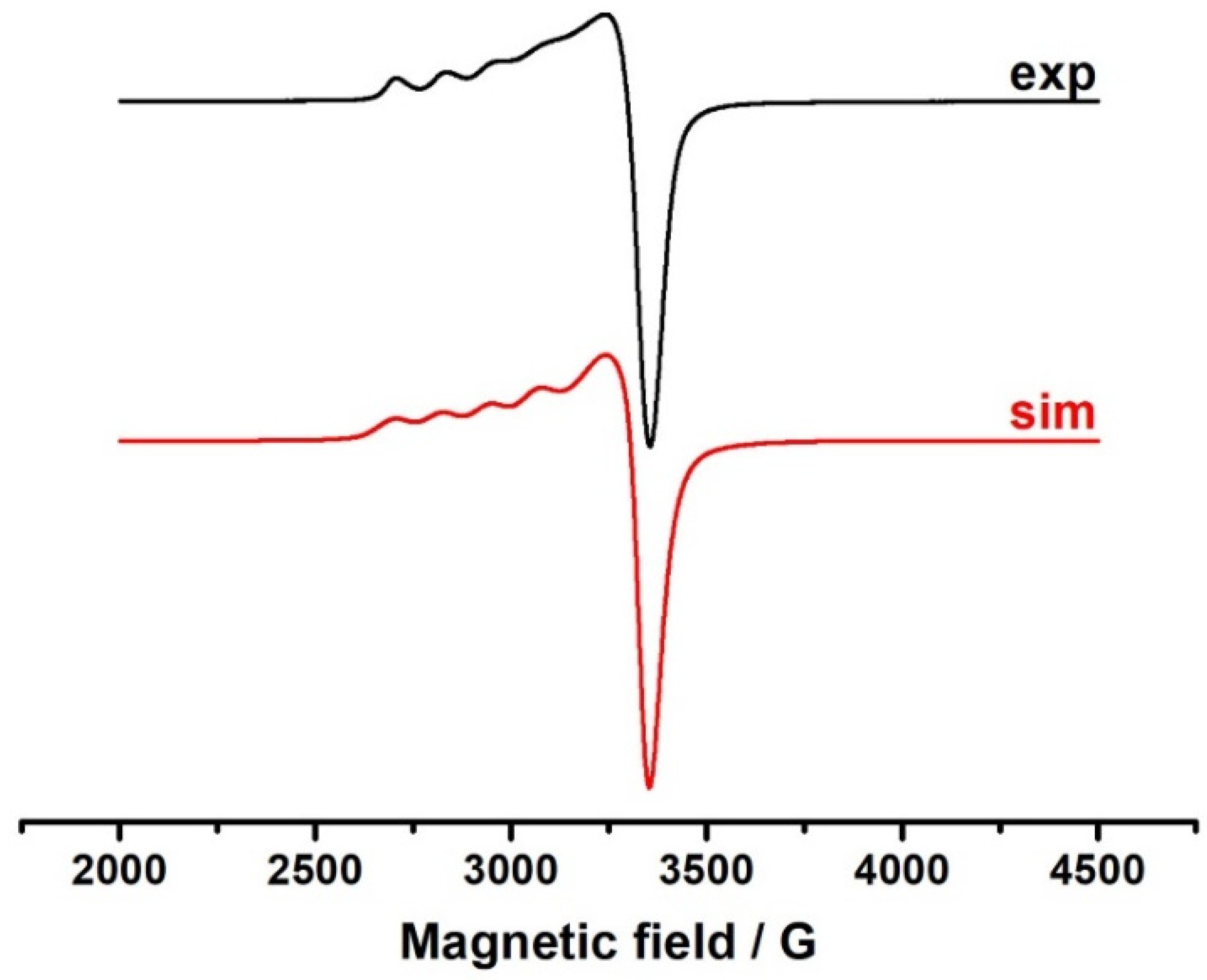

Figure 6. ESR spectrum of the PG-NaCu powder at a temperature of 150 K and its simulation.
Figure 6. ESR spectrum of the PG-NaCu powder at a temperature of 150 K and its simulation.
Molecules 26 05524 g006
Molecules 26 05524 g007 550

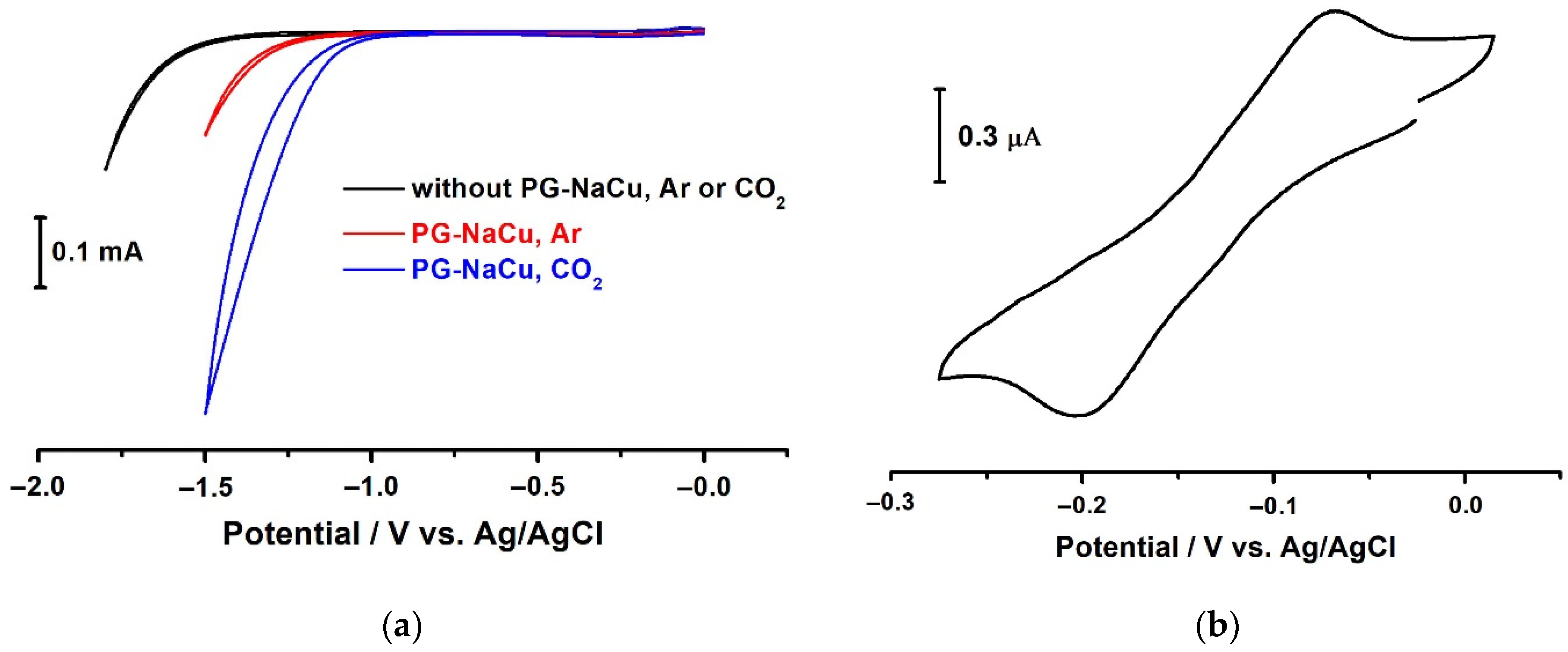

Figure 7. (a) CVs recorded at a glassy carbon electrode (GCE) in the presence of the PG-NaCu complex when bubbling argon (red curve) or carbon dioxide (blue curve) through the H2O solution, 0.1 V/s. Black line is background in the absence of PG-NaCu, (b) CV recorded at a glassy carbon electrode (GCE) in the presence of the PG-NaCu complex when bubbling argon through the H2O solution, 0.1 V/s.
Figure 7. (a) CVs recorded at a glassy carbon electrode (GCE) in the presence of the PG-NaCu complex when bubbling argon (red curve) or carbon dioxide (blue curve) through the H2O solution, 0.1 V/s. Black line is background in the absence of PG-NaCu, (b) CV recorded at a glassy carbon electrode (GCE) in the presence of the PG-NaCu complex when bubbling argon through the H2O solution, 0.1 V/s.
Molecules 26 05524 g007
Molecules 26 05524 g008 550

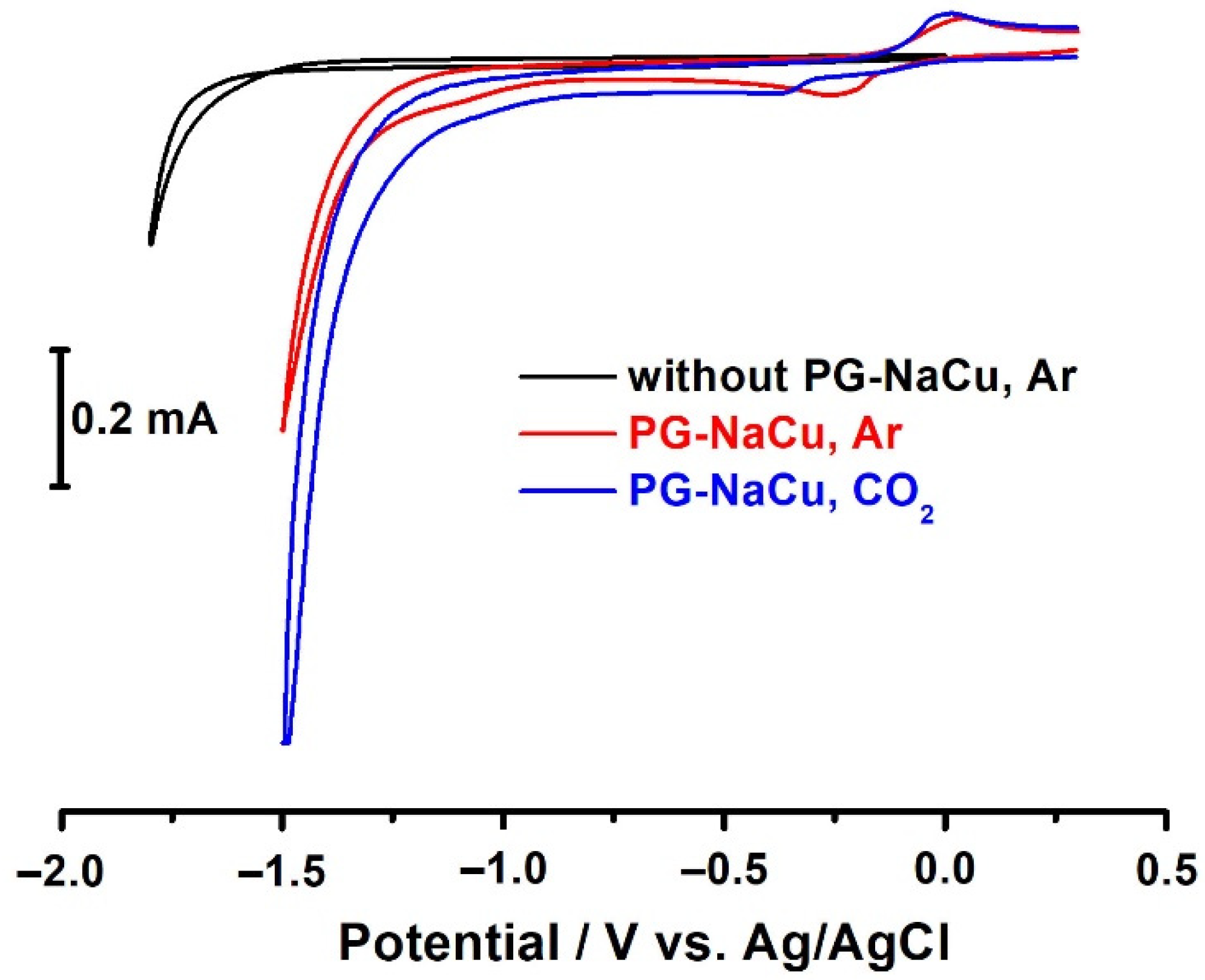

Figure 8. CVs recorded at a carbon-paste electrode (CPE) with the PG-NaCu complex when bubbling argon (red curve) or carbon dioxide (blue curve) through the H2O solution, 0.1 V/s. Black line is background at pure CPE.
Figure 8. CVs recorded at a carbon-paste electrode (CPE) with the PG-NaCu complex when bubbling argon (red curve) or carbon dioxide (blue curve) through the H2O solution, 0.1 V/s. Black line is background at pure CPE.
Molecules 26 05524 g008
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kholin, K.V.; Khrizanforov, M.N.; Babaev, V.M.; Nizameeva, G.R.; Minzanova, S.T.; Kadirov, M.K.; Budnikova, Y.H. A Water-Soluble Sodium Pectate Complex with Copper as an Electrochemical Catalyst for Carbon Dioxide Reduction. Molecules 2021, 26, 5524. https://doi.org/10.3390/molecules26185524

AMA Style

Kholin KV, Khrizanforov MN, Babaev VM, Nizameeva GR, Minzanova ST, Kadirov MK, Budnikova YH. A Water-Soluble Sodium Pectate Complex with Copper as an Electrochemical Catalyst for Carbon Dioxide Reduction. Molecules. 2021; 26(18):5524. https://doi.org/10.3390/molecules26185524

Chicago/Turabian Style

Kholin, Kirill V., Mikhail N. Khrizanforov, Vasily M. Babaev, Guliya R. Nizameeva, Salima T. Minzanova, Marsil K. Kadirov, and Yulia H. Budnikova. 2021. "A Water-Soluble Sodium Pectate Complex with Copper as an Electrochemical Catalyst for Carbon Dioxide Reduction" Molecules 26, no. 18: 5524. https://doi.org/10.3390/molecules26185524

APA Style

Kholin, K. V., Khrizanforov, M. N., Babaev, V. M., Nizameeva, G. R., Minzanova, S. T., Kadirov, M. K., & Budnikova, Y. H. (2021). A Water-Soluble Sodium Pectate Complex with Copper as an Electrochemical Catalyst for Carbon Dioxide Reduction. Molecules, 26(18), 5524. https://doi.org/10.3390/molecules26185524

Article Metrics

Back to TopTop
