Rp-HPLC Determination of Quercetin in a Novel D-α-Tocopherol Polyethylene Glycol 1000 Succinate Based SNEDDS Formulation: Pharmacokinetics in Rat Plasma

by
Osama A. A. Ahmed
1,2,3,*,
Hany M. El-Bassossy
4,
Heba M. El-Sayed
5 and
Soad S. Abd El-Hay
5
1
Department of Pharmaceutics, Faculty of Pharmacy, King Abdulaziz University, Jeddah 21589, Saudi Arabia
2
Center of Excellence for Drug Research and Pharmaceutical Industries, King Abdulaziz University, Jeddah 21589, Saudi Arabia
3
Mohamed Saeed Tamer Chair for Pharmaceutical Industries, King Abdulaziz University, Jeddah 21589, Saudi Arabia
4
Department of Pharmacology and Toxicology, Faculty of Pharmacy, Zagazig University, Zagazig 44519, Egypt
5
Department of Analytical Chemistry, Faculty of Pharmacy, Zagazig University, Zagazig 44519, Egypt
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(5), 1435; https://doi.org/10.3390/molecules26051435
Submission received: 7 February 2021 / Revised: 23 February 2021 / Accepted: 2 March 2021 / Published: 6 March 2021
(This article belongs to the Special Issue Bioanalysis and Biological Matrix Sampling)
Browse Figures
Versions Notes

Abstract

:
Despite its proven efficacy in diverse metabolic disorders, quercetin (QU) for clinical use is still limited because of its low bioavailability. D-α-Tocopherol polyethylene glycol 1000 succinate (TPGS) is approved as a safe pharmaceutical adjuvant with marked antioxidant and anti-inflammatory activities. In the current study, several QU-loaded self-nanoemulsifying drug delivery systems (SNEDDS) were investigated to improve QU bioavailability. A reversed phase high performance liquid chromatography (RP-HPLC) method was developed, for the first time, as a simple and sensitive technique for pharmacokinetic studies of QU in the presence of TPGS SNEDDS formula in rat plasma. The analyses were performed on a Xterra C18 column (4.6 × 100 mm, 5 µm) and UV detection at 280 nm. The analytes were separated by a gradient system of methanol and phosphate buffer of pH 3. The developed RP-HPLC method showed low limit of detection (LODs) of 7.65 and 22.09 ng/mL and LOQs of 23.19 and 66.96 ng/mL for QU and TPGS, respectively, which allowed their determination in real rat plasma samples. The method was linear over a wide range, (30–10,000) and (100–10,000) ng/mL for QU and TPGS, respectively. The selected SNEDDS formula, containing 50% w/w TPGS, 30% polyethylene glycol 200 (PEG 200), and 20% w/w pumpkin seed oil (PSO), showed a globule size of 320 nm and −28.6 mV zeta potential. Results of the pharmacokinetic studies showed 149.8% improvement in bioavailability of QU in SNEDDS relative to its suspension. The developed HPLC method proved to be simple and sensitive for QU and TPGS simultaneous determination in rat plasma after oral administration of the new SNEDDS formula.

1. Introduction

Quercetin (QU), 3,3′,4′,5,7-pentahydroxyflavone (Figure 1A), is a natural substance belonging to the flavonoids family present in food including chamomile, honey, and passionflower [1]. QU confers diverse health benefits like anti-inflammatory and antioxidant activities. Such effects are very important for prevention and even treatments of a wide array of diseases and disorders like diabetes [2], metabolic syndrome, and cardiovascular diseases [3]. However, low aqueous solubility and bioavailability is considered a barrier for the clinical application of QU [4].
The diverse health benefits of QU draw the attention of scientific community to improve QU delivery through a colon-targeted system [5]. Additionally, different nano-based QU delivery systems were utilized [6,7,8,9,10] for reviews [11,12]. The different delivery systems which formulated to enhance QU bioavailability such as nanoparticles, nano emulsion, and solid dispersion have limitations concerning their affordability, safety, efficacy, and stability. Therefore, a new formulation was needed to overcome these drawbacks.
The ability of self-nanoemulsifying drug delivery systems (SNEDDS) to improve lipophilic drugs’ oral bioavailability has drawn attention to this field. The enhancement in bioavailability is related to the spontaneously formed emulsion in the aqueous gastrointestinal tract medium that improves drugs dissolution. The bioavailability-enhancing property is also associated with a reduction of the first pass effect and hence a reduction in liver drug metabolism [13,14,15].
D-α-Tocopherol polyethylene glycol 1000 succinate, TPGS (Figure 1B), is a vitamin E derivative characterized by its aqueous solubility. It is synthesized by tocopherol acid succinate esterification with polyethylene glycol 1000 (PEG 1000). The amphiphilic character of TPGS enhances drug solubility [16]. TPGS was approved by The United States Food and Drug Administration (US FDA) as a safe pharmaceutical formulation adjuvant [17]. Being a derivative of vitamin E, TPGS has marked antioxidant and anti-inflammatory activities [16]. TPGS is useful as a carrier molecule for drug delivery. TPGS also exerts intrinsic therapeutic effects with possible synergistic interactions with formulated active ingredients. TPGS was determined by HPLC-UV methods in its commercially available products or biological fluids [18,19].
Different HPLC techniques described determination of QU alone or in combination with other flavonoids or related compounds in spiked or real human or rat plasma [20,21,22,23,24,25,26]. However, flaws of the reported methods, the expensive, inaccessible liquid chromatography-mass spectrometry (LC-MS) methods and the time-consuming HPLC-UV ones, were noticed.
The team of this work have developed for the first time, to the best of our knowledge, a simple, sensitive, and cost-effective HPLC-UV method for determination of QU in the presence of TPGS in rat plasma to study the pharmacokinetic properties of the new QU-loaded TPGS-based SNEDDS.

2. Results and Discussion

The developed HPLC method was sensitive to determine quercetin in plasma after administration of the multicomponent novel SNEDDS nano formulation. Therefore, it enabled us to carry out the pharmacokinetic study and evaluate the current novel formulation. The reported LC-MS methods showed a low LOQ but required sophisticated and expensive techniques, which are not easily available in most laboratories. In comparison with the reported HPLC-UV methods, our proposed method offers a lower LOD (7.65 vs. 16.67–200 ng/mL of the reported methods) as well as a shorter runtime. In addition, none of the reported methods determined Qu and TPGS simultaneously.

2.1. Method Development

Separation of QU and TPGS was achieved by a simple RP-HPLC method either in pure form or in rat plasma. The pharmacokinetic parameters of QU in the new QU-loaded TPGS-based SNEDDS formulation were successfully studied by the applied method. Different chromatographic conditions were investigated to accomplish the best separation and sensitivity. Five different columns, namely Zorbax C18 column (150 × 4.6 mm, 5 µm), Equisil BDS, C18, (150 × 4.6 mm, 5 µm), Reprosil Gold, C18, (250 × 4.6 mm, 5 µm), Chromollith®, C18, (100 × 4.6 mm, 5 µm), and Xterra C18 column (100 × 4.6 mm, 5 µm) were used as the stationary phases. The best separation within a reasonable time with no interference from plasma peaks was achieved using the Xterra C18 column. Different temperatures (30–45 °C) were studied, but no significant differences were observed. The examined UV detection wavelengths ranged from 210 to 370 nm. Both the isocratic and gradient elution modes were tried using different percentages of methanol or acetonitrile (35% to 98%) with water or a phosphate buffer of different pH (3–5) to get the best separation conditions. Isocratic elution failed in good separation of TPGS and gave poorly shaped broad peaks, especially when using the Reprosil Gold C18 column. The optimum mobile phase consisted of methanol (A) and phosphate buffer of pH 3 ± 0.1 (B). Gradient elution of 50/50 (A/B, v/v) for 5 min, 98/2 (A/B, v/v) for 5 min, and 50/50 (A/B, v/v) for 5 min at a flow rate of 1 mL/min, and the total run was carried out at 25 ± 5 °C with UV detection at 280 nm. The HPLC chromatogram of QU and TPGS under the best conditions is shown in (Figure 2).
Protein precipitation was applied for sample clean-up as the simplest and most time saving technique. Methanol, acetonitrile, methanol: 0.1% formic acid in water, 60:40, v/v [22] were tried as precipitating agents in a ratio of 1:5 (plasma:organic precipitant) or by liquid–liquid extraction using ethyl acetate [4]. Ethyl acetate achieved maximum sensitivity for both analytes. Sample dilution is the main disadvantage [27]. This was overcome by evaporation to dryness, then reconstitution in 100 µL methanol.

2.2. Validation of the HPLC Method

2.2.1. Specificity

Method selectivity was confirmed by analyzing the extracted spiked plasma. Comparing the chromatogram of QU in rat plasma samples (Figure 3A) with those of a blank sample (Figure 3B) showed no interfering peaks from plasma around the retention times of QU and TPGS. In addition, the developed method was effectively applied for determination of QU and TPGS in rat plasma after the novel SNEDDS formulation was administered orally.

2.2.2. System Suitability

Method system suitability was studied by analyzing retention time, capacity factor, symmetry, resolution, and number of theoretical plates, as shown in Table 1.

2.2.3. Linearity, LOD, and LOQ

Calibration curves were constructed by analyzing a series of calibration standards in the concentration ranges of (30–10,000), (100–10,000) ng/mL for QU and TPGS, respectively. The resulting peak area was plotted against the corresponding concentration (Figure 4). The calibration curves showed a high value of the determination coefficient; r2 ≥ 0.9996 (Table 2).
Recovery percentages for the analytes show acceptable values. They were within ± 8% of their theoretical values (Table 3). The high sensitivity of our method represented by the low LOD and LOQ values for both Qu and TPGS enables their determination in real plasma samples with high reliability (Table 2).

2.2.4. Accuracy and Precision

QC samples were analyzed as under Section 3.3. Accuracy studies were used to determine the recoveries of plasma samples spiked with studied analytes. Method accuracy was confirmed by the acceptable % recoveries and small relative error (RE%) as shown in Table 4.
Additionally, the intra-day and inter-day precision of the assay was performed using the same QC samples, which were injected in three replicates on the same day and on three different days. The low relative standard deviation values (RSD%) indicated the high precision of the method (Table 4).

2.2.5. Matrix Effect (ME)

The reported studies revealed the extensive binding of QU to human plasma proteins; the protein binding percentage is 99.4 ± 0.1% [28]. Matrix components effect on QU quantitation was investigated by spiked plasma sample analysis. ME (%) was computed using the peak area of QU extracted from spiked plasma samples (Ai) ratio with those of the pure standard solutions (Ar), according to the equation ME (%) = Ai/Ar × 100. The calculated ME% for Qu was 98.93 ± 4.91% with no significant interference from matrix components.

2.2.6. Stability

A stability assay comprising freeze–thaw stability for matrix-based samples was conducted using QC samples. RSD of the mean test responses was within 3% in all stability tests. No degradation was observed through three freeze (−80 °C)–thaw (room temperature) cycles. In addition, plasma samples of QU were stable for at least 15 days at −80 °C, respectively.

2.3. Formulation Studies

Different SNEDDS formulations were investigated as indicated in Table 5. The prepared SNEDDS formulations showed variations in globule size and zeta potential. The polydispersity index (PDI) ranged from 0.23 (F3) to 0.7 (F2), which indicates variation in globule size distribution according to formula composition, Table 5. The results revealed that at a high oil concentration, the globule size exceeded the nano-range (>1000 nm), while at a low oil concentration, the globule size decreased to <100 nm. Although SNEDDS formula F4 showed the lowest globule size, formula F5 was selected based on the highest possible PSO and TPGS concentrations with the lowest/moderate globule size (Table 5). The prepared formula was selected for in-vivo studies. The prepared QU-SNEDDS formulation showed a globule size of 320 nm (Figure 5A) and zeta potential of −28.6 mV (Figure 5B). The nano-pharmaceutical formula of QU SNEDSS consists of safe ingredients forming a nano-emulsion. The PSO utilized is a natural oil, and TPGS and PEG are approved by the FDA. All ingredients of the formulation have a reported antioxidant activity [16,29,30]. The antioxidant, solubilizer, and permeation enhancement activity of TPGS can improve the bioavailability of loaded hydrophobic drugs [14,31]. TPGS has a P-glycoprotein (P-gp) inhibition activity that could augment the efficacy of QU [32].

2.4. Pharmacokinetic Study in Rats

The plasma QU concentration time curve for the QU suspension compared with QU SNEDDS formula within a 24 h period is displayed in (Figure 6). The results revealed enhanced QU delivery from the selected QU SNEDDS formula compared to a QU suspension (Figure 6A). The pharmacokinetic results revealed significant (p < 0.05) improvement in Cmax, Tmax, and AUCt results for QU SNEDDS formula when compared to QU suspension results. QU SNEDDS formula showed elevated Cmax value of 491.3 ± 172.2 µg/L compared to QU suspension value of 163.2 ± 74 µg/L (Figure 6B). Additionally, the QU SNEDDS formula reduced Tmax to 0.5 ± 0.0 h compared to 0.83 ± 0.26 h (Figure 6C). In addition, the AUCt data were significantly improved with 2286 ± 500.1 µg h/L and 1525.7 ± 378.8 for QU SNEDDS formula and QU suspension, respectively (Figure 6D). The plasma and pharmacokinetics findings revealed significant improvements in QU bioavailability on administration of QU SNEDDS formula by 149.8% relative to that of QU suspension.
The improvement in pharmacokinetic results of the QU-SNEDDS formula could be a result of SNEDDS ability to enhance the permeability of the gut membrane for the transport of oily compounds [33]. The instant self-emulsification offers QU in small globule solubilized form that massively increases the surface area (space) for QU absorption in the gastrointestinal tract [34]. Compared to regular formulations, QU SNEDDS offers a more stable and efficient formulation for improving the absorption rate and extent [31,35,36,37].

3. Materials and Methods

3.1. Chemicals and Reagents

QU (purity ≥95), TPGS (BioXtra) and polyethylene glycol 200 (PEG 200) were purchased from Sigma-Aldrich (St. Louis, MI, USA). HPLC grade acetonitrile, methanol, formic acid, and ethyl acetate were provided by Lichrosolv (Darmstadt, Germany). A double distilled water system from Milli-Q® (Burlington, MA, United States) was used.

3.2. Apparatus and Analytical Conditions

Chromatographic separation was done on a Waters LC 2695 system (Milford, MA, USA) with a quaternary, low-pressure mixing pump, inline vacuum degassing, and a Waters 996 PDA detector (200–600 nm). Data collection and analysis were done by Empower software (version 3, Waters Corporation, Milford, MA, USA). Mixture separation was achieved using an Xterra C18 column (4.6 × 100 mm, 5 µm, Waters, Milford, MA, USA). The column temperature was maintained at 25 ± 5 °C. A mobile phase composed of methanol (A) and phosphate buffer of pH 3 ± 0.1 (B) was used. The analytes were separated by the gradient elution of A/B (v/v) as follows: 50/50 for 5 min, 98/2 for 5 min, then 50/50 for 5 min; the total run time was 15 min. The injection volume was 10 µL and UV detection was done at 280 nm.

3.3. Preparation of Stock and Working Solutions

QU and TPGS stock solutions were prepared as 1 mg/mL in methanol. The working solutions of both analytes were prepared by dilution with methanol at concentrations of (300–100,000), (1000–100,000) ng/mL for QU and TPGS, respectively. The calibration solutions in the concentration ranges of (30–10,000), (100–10,000) ng/mL for QU and TPGS, respectively, were prepared by mixing 10 µL of working solutions with 90 µL of rat blank plasma. Then, 500 µL of ethyl acetate was added, vortex mixed for 3 min, and the mixture was set aside for 10 min then centrifuged at 4 °C at 15,000 rpm for 15 min. The upper organic phase was transferred to another Eppendorf tube and dried under nitrogen at room temperature (25 °C), reconstituted in 100 μL of methanol, vortex mixed for 2 min, and then transferred to autosampler vial. Then, 10 µL was injected. A blank was prepared using 100 µL rat blank plasma, then the procedure was completed as before. The quality control samples (QC) samples at low, medium, and high concentrations (100, 3000, and 10,000 ng/mL) for QU and TPGS were injected three times in the same day and for three different consecutive days.

3.4. Sample Preparation

Rat plasma (100 µL) was added to a 1.5 mL Eppendorf tube. Then, the procedure was completed as under Section 3.3.

3.5. Method Validation

The developed method’s specificity, linearity, limit of detection (LOD), limit of quantification (LOQ), matrix effect (ME), inter-day and intra-day precision, accuracy, and stability were verified according to the US FDA guidelines for bioanalytical method validation [38].

3.6. Formulation Studies

Different concentrations of PSO, TPGS, and PEG 200 were utilized in the formulation of QU SNEDDS preparations. QU loading in the prepared SNEDDS formulations was fixed at 25 mg/1 g SNEDDS formula, and the components of the SNEDDS formula (PSO, TPGS and PEG 200) were added up to 100%. QU-SNEDDS formula was prepared as previously reported with slight modifications [39]. QU (25 mg) was added to the specified amount of PSO and PEG 200 indicated in Table 5 and mixed. TPGS was melted at 40 °C and added to the mixture that kept at 40 °C. The mixture was vortexed for 3 min and subjected to probe sonication for 1 min. The percentage of SNEDDS components were kept at 100% (1 g total weight).

QU-SNEDDS Globule Size and Zeta Potential Determination

Size and zeta potential of the QU-SNEDDS formulations as well as PDI were investigated by Nano-ZSP, Marlvern Instrument, Worcestershire, UK, using a dynamic light scattering technique; 100 μL of each QU-loaded SNEDDS was diluted with 10 mL of 0.1 N HCl then vortexed for 60 s and then analyzed.

3.7. Application to Pharmacokinetic Study in Rats

3.7.1. Experimental Animals

Male Wistar (6–8-week-old, 180–200 g) rats were obtained from Faculty of Pharmacy animal house (Zagazig University, Egypt). Transparent polypropylene cages were utilized (four rats in each cage) with access to standard rodent pellets and purified water. Appropriate animal housing conditions of rotating 12 h light and dark, 22 ± 3 °C, 50–60% relative humidity, and suitable ventilation were applied. The protocol for the experimental work was approved by the Institutional Animal Care and Use Committee at Zagazig University (ZU-IACUC, approval number: ZU-IACUC/3/F/122/2020).

3.7.2. Design of Pharmacokinetic Study

The animals were randomly divided into three experimental groups (seven animals each): a standard QU group (Q) administered 25 mg/kg QU suspension; a nano formula vehicle group (V) that received the same volumes of SNEDDS ingredients including TPGS without QU; and the nano formula group (NQ) that was administered 25 mg/kg of QU in the form of a nano-pharmaceutical formulation. All preparations were administered once by oral gavage, then 0.5 mL blood was collected from the retro-orbital plexus vein in heparinized tubes under light ether anesthesia after 0.5, 1, 2, 4, 6, and 24 h after administration for determination of QU by HPLC. Blood samples were then centrifugated at 10,000 rpm for 10 min at 4 °C to separate plasma. Samples were kept at −80 °C until analysis.

3.7.3. Pharmacokinetic Analysis

Analysis of plasma concentration versus time data were utilized for the analysis of pharmacokinetic parameters. The calculated pharmacokinetic parameters were maximum plasma concentration (Cmax), time to reach Cmax (Tmax), and area under plasma concentration–time curve (AUCt).

3.7.4. Statistical Analysis

The analysis was carried using Graph Pad Prism (version 5.0, Graph Pad, San Diego, CA, USA) and the pharmacokinetics results were represented as mean ± SEM. Statistical comparison between QU raw and QU SNEDDS was done using unpaired Student t test, and the p < 0.05 value was taken into consideration as significant.

4. Conclusions

QU has proven its health benefits in prevention and even treatments of a wide array of diseases and disorders such as diabetes, metabolic syndrome, and cardiovascular dis-eases. However, its clinical use remains limited because of its low aqueous solubility and bioavailability. Among the tested several QU-loaded self-nanoemulsifying drug delivery systems (SNEDDS), only D-α-Tocopherol polyethylene glycol 1000 succinate based SNEDDS showed a globule size of 320 nm and −28.6 mV zeta potential. The developed simple but sensitive RP-HPLC method enabled simultaneous determination of QU and TPGS in rat plasma after oral administration of the novel SNEDD formula. Application of the proposed RP-HPLC method to pharmacokinetic studies revealed the improvement in QU bioavailability by 149.8% relative to that of QU suspension. Therefore, the formulated QU-SNEDDS can be considered as an effective formulation to overcome the poor bioavailability of QU.

5. Patents

This SNEDDS preparation of quercetin is protected under USSN 16/741,826, United States Patent and Trademark Office (USPTO).

Author Contributions

Conceptualization: O.A.A.A. and H.M.E.-B. methodology: O.A.A.A., H.M.E.-B., H.M.E.-S., and S.S.A.E.-H.; software: H.M.E.-S. and S.S.A.E.-H.; validation: H.M.E.-S. and S.S.A.E.-H.; formal analysis: O.A.A.A., H.M.E.-S., and S.S.A.E.-H.; investigation: H.M.E.-B., H.M.E.-S., and S.S.A.E.-H.; resources: O.A.A.A.; data curation: H.M.E.-S. and S.S.A.E.-H.; writing—original draft preparation: H.M.E.-B., H.M.E.-S., and S.S.A.E.-H.; writing—review and editing: O.A.A.A., H.M.E.-B., H.M.E.-S., and S.S.A.E.-H.; visualization: H.M.E.-B.; supervision: O.A.A.A. and H.M.E.-B.; project administration: O.A.A.A.; funding acquisition: O.A.A.A. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Science, Technology, and Innovation Plan (NSTIP) strategic technologies program in the Kingdom of Saudi Arabia, Project No. 14-BIO929-03. The authors acknowledge the technical support of Science and Technology unit, King Abdulaziz University.

Institutional Review Board Statement

The experimental protocol was approved by the Institutional Animal Care and Use Committee at Zagazig University (ZU-IACUC, approval number: ZU-IACUC/3/F/122/2020).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Jan, A.T.; Kamli, M.R.; Murtaza, I.; Singh, J.B.; Ali, A.; Haq, Q.M.R. Dietary Flavonoid Quercetin and Associated Health Benefits—An Overview. Food Rev. Int. 2010, 26, 302–317. [Google Scholar] [CrossRef]
  2. Mahmoud, M.F.; Hassan, N.A.; El Bassossy, H.M.; Fahmy, A. Quercetin protects against diabetes-induced exaggerated vasoconstriction in rats: Effect on low grade inflammation. PLoS ONE 2013, 8, e63784. [Google Scholar] [CrossRef] [PubMed]
  3. Ahmed, O.A.A.; Azhar, A.S.; Tarkhan, M.M.; Balamash, K.S.; El-Bassossy, H.M. Antiglycation Activities and Common Mechanisms Mediating Vasculoprotective Effect of Quercetin and Chrysin in Metabolic Syndrome. Evid.-Based Complement Altern. Med. 2020, 2020, 3439624. [Google Scholar] [CrossRef] [PubMed]
  4. Khursheed, R.; Singh, S.K.; Wadhwa, S.; Gulati, M.; Awasthi, A. Enhancing the potential preclinical and clinical benefits of quercetin through novel drug delivery systems. Drug Discov. Today 2020, 25, 209–222. [Google Scholar] [CrossRef]
  5. Singhal, A.; Jain, H.; Singhal, V.; Elias, E.J.; Showkat, A. Colon-targeted quercetin delivery using natural polymer to enhance its bioavailability. Pharmacogn. Res. 2011, 3, 35–39. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Zhang, K.; Zhang, M.; Liu, Z.; Zhang, Y.; Gu, L.; Hu, G.; Chen, X.; Jia, J. Development of quercetin-phospholipid complex to improve the bioavailability and protection effects against carbon tetrachloride-induced hepatotoxicity in SD rats. Fitoterapia 2016, 113, 102–109. [Google Scholar] [CrossRef] [PubMed]
  7. Singh, D.; Rawat, M.S.; Semalty, A.; Semalty, M. Quercetin-phospholipid complex: An amorphous pharmaceutical system in herbal drug delivery. Curr. Drug Discov. Technol. 2012, 9, 17–24. [Google Scholar] [CrossRef] [PubMed]
  8. Jaisamut, P.; Wanna, S.; Limsuwan, S.; Chusri, S.; Wiwattanawongsa, K.; Wiwattanapatapee, R. Enhanced Oral Bioavailability and Improved Biological Activities of a Quercetin/Resveratrol Combination Using a Liquid Self-Microemulsifying Drug Delivery System. Planta Med. 2020. [Google Scholar] [CrossRef] [PubMed]
  9. Riva, A.; Ronchi, M.; Petrangolini, G.; Bosisio, S.; Allegrini, P. Improved Oral Absorption of Quercetin from Quercetin Phytosome(R), a New Delivery System Based on Food Grade Lecithin. Eur. J. Drug Metab. Pharm. 2019, 44, 169–177. [Google Scholar] [CrossRef] [Green Version]
  10. Cortesi, R.; Cappellozza, E.; Drechsler, M.; Contado, C.; Baldisserotto, A.; Mariani, P.; Carducci, F.; Pecorelli, A.; Esposito, E.; Valacchi, G. Monoolein aqueous dispersions as a delivery system for quercetin. Biomed. Microdevices 2017, 19, 41. [Google Scholar] [CrossRef] [PubMed]
  11. Vinayak, M.; Maurya, A.K. Quercetin Loaded Nanoparticles in Targeting Cancer: Recent Development. Anticancer. Agents Med. Chem. 2019, 19, 1560–1576. [Google Scholar] [CrossRef] [PubMed]
  12. Li, S.J.; Liao, Y.F.; Du, Q. Research and application of quercetin-loaded nano drug delivery system. Zhongguo Zhong Yao Za Zhi 2018, 43, 1978–1984. [Google Scholar] [CrossRef] [PubMed]
  13. Ahmed, O.A.; El-Say, K.M.; Aljaeid, B.M.; Badr-Eldin, S.M.; Ahmed, T.A. Optimized vinpocetine-loaded vitamin E D-alpha-tocopherol polyethylene glycol 1000 succinate-alpha lipoic acid micelles as a potential transdermal drug delivery system: In vitro and ex vivo studies. Int. J. Nanomed. 2019, 14, 33–43. [Google Scholar] [CrossRef] [Green Version]
  14. Yang, C.; Wu, T.; Qi, Y.; Zhang, Z. Recent Advances in the Application of Vitamin E TPGS for Drug Delivery. Theranostics 2018, 8, 464–485. [Google Scholar] [CrossRef] [PubMed]
  15. Zou, T.; Gu, L. TPGS emulsified zein nanoparticles enhanced oral bioavailability of daidzin: In vitro characteristics and in vivo performance. Mol. Pharm. 2013, 10, 2062–2070. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, Z.; Tan, S.; Feng, S.S. Vitamin E TPGS as a molecular biomaterial for drug delivery. Biomaterials 2012, 33, 4889–4906. [Google Scholar] [CrossRef] [PubMed]
  17. Constantinides, P.P.; Han, J.; Davis, S.S. Advances in the Use of Tocols as Drug Delivery Vehicles. Pharm. Res. 2006, 23, 243–255. [Google Scholar] [CrossRef]
  18. Kong, L.Y.; Su, B.G.; Bao, Z.B.; Xing, H.B.; Yang, Y.W.; Ren, Q.L. Direct quantification of mono- and di-d-α-tocopherol polyethylene glycol 1000 succinate by high performance liquid chromatography. J. Chromatogr. A 2011, 1218, 8664–8671. [Google Scholar] [CrossRef]
  19. Good, R.L.; Roupe, K.A.; Fukuda, C.; Clifton, G.D.; Fariss, M.W.; Davies, N.M. Direct high-performance liquid chromatographic analysis of d-tocopheryl acid succinate and derivatives. J. Pharm. Biomed. 2005, 39, 33–38. [Google Scholar] [CrossRef]
  20. Yu, W.; Wen, D.; Cai, D.; Zheng, J.; Gan, H.; Jiang, F.; Liu, X.; Lao, B.; Yu, W.; Guan, Y.; et al. Simultaneous determination of curcumin, tetrahydrocurcumin, quercetin, and paeoniflorin by UHPLC-MS/MS in rat plasma and its application to a pharmacokinetic study. J. Pharm. Biomed. Anal. 2019, 172, 58–66. [Google Scholar] [CrossRef]
  21. Zupanets, I.A.; Pidpruzhnykov, Y.V.; Sabko, V.E.; Bezugla, N.P.; Shebeko, S.K. UPLC-MS/MS quantification of quercetin in plasma and urine following parenteral administration. Clin. Phytoscience 2019, 5, 11. [Google Scholar] [CrossRef]
  22. Pilarova, V.; Plachka, K.; Chrenkova, L.; Najmanova, I.; Mladenka, P.; Svec, F.; Novak, O.; Novakova, L. Simultaneous determination of quercetin and its metabolites in rat plasma by using ultra-high performance liquid chromatography tandem mass spectrometry. Talanta 2018, 185, 71–79. [Google Scholar] [CrossRef]
  23. Jones, D.J.; Lim, C.K.; Ferry, D.R.; Gescher, A. Determination of quercetin in human plasma by HPLC with spectrophotometric or electrochemical detection. Biomed. Chromatogr. 1998, 12, 232–235. [Google Scholar] [CrossRef]
  24. Liu, B.; Anderson, D.; Ferry, D.R.; Seymour, L.W.; de Takats, P.G.; Kerr, D.J. Determination of quercetin in human plasma using reversed-phase high-performance liquid chromatography. J. Chromatogr. B Biomed. Appl. 1995, 666, 149–155. [Google Scholar] [CrossRef]
  25. Müller-Sepúlveda, A.; Letelier, M.E.; San Martin, B.; saavedra-Saavedra, I. Simultaneous determination of different flavonoids in human plasma by a simple hplc assay. J. Chil. Chem. Soc. 2016, 61, 3164–3169. [Google Scholar] [CrossRef] [Green Version]
  26. Biasutto, L.; Marotta, E.; Garbisa, S.; Zoratti, M.; Paradisi, C. Determination of quercetin and resveratrol in whole blood--implications for bioavailability studies. Molecules 2010, 15, 6570–6579. [Google Scholar] [CrossRef] [Green Version]
  27. Ahuja, S. 1—Overview: Handbook of Pharmaceutical Analysis by HPLC. In Separation Science and Technology; Ahuja, S., Dong, M.W., Eds.; Academic Press: Cambridge, MA, USA, 2005; Volume 6, pp. 1–17. [Google Scholar]
  28. Boulton, D.W.; Walle, U.K.; Walle, T. Extensive binding of the bioflavonoid quercetin to human plasma proteins. J. Pharm. Pharm. 1998, 50, 243–249. [Google Scholar] [CrossRef] [PubMed]
  29. Nawirska-Olszanska, A.; Kita, A.; Biesiada, A.; Sokol-Letowska, A.; Kucharska, A.Z. Characteristics of antioxidant activity and composition of pumpkin seed oils in 12 cultivars. Food Chem. 2013, 139, 155–161. [Google Scholar] [CrossRef]
  30. Carini, R.; Poli, G.; Dianzani, M.U.; Maddix, S.P.; Slater, T.F.; Cheeseman, K.H. Comparative evaluation of the antioxidant activity of alpha-tocopherol, alpha-tocopherol polyethylene glycol 1000 succinate and alpha-tocopherol succinate in isolated hepatocytes and liver microsomal suspensions. Biochem. Pharm. 1990, 39, 1597–1601. [Google Scholar] [CrossRef]
  31. Guo, Y.; Luo, J.; Tan, S.; Otieno, B.O.; Zhang, Z. The applications of Vitamin E TPGS in drug delivery. Eur. J. Pharm. Sci. 2013, 49, 175–186. [Google Scholar] [CrossRef]
  32. Dintaman, J.M.; Silverman, J.A. Inhibition of P-glycoprotein by D-alpha-tocopheryl polyethylene glycol 1000 succinate (TPGS). Pharm. Res. 1999, 16, 1550–1556. [Google Scholar] [CrossRef] [PubMed]
  33. Cho, Y.H.; Lee, S.Y.; Jeong, D.W.; Choi, E.J.; Kim, Y.J.; Lee, J.G.; Yi, Y.H.; Cha, H.S. Effect of pumpkin seed oil on hair growth in men with androgenetic alopecia: A randomized, double-blind, placebo-controlled trial. Evid.-Based Complement Alternat. Med. 2014, 2014, 549721. [Google Scholar] [CrossRef] [Green Version]
  34. Bu, H.; He, X.; Zhang, Z.; Yin, Q.; Yu, H.; Li, Y. A TPGS-incorporating nanoemulsion of paclitaxel circumvents drug resistance in breast cancer. Int. J. Pharm. 2014, 471, 206–213. [Google Scholar] [CrossRef]
  35. Gulam, M.; Zeenat, I.K.; Tripta, B.; Sushama, T. Preparation and Characterization of Oil in Water Nano-Reservoir Systems for Improved Oral Delivery of Atorvastatin. Curr. Nanosci. 2009, 5, 428–440. [Google Scholar] [CrossRef]
  36. Ujhelyi, Z.; Kalantari, A.; Vecsernyes, M.; Roka, E.; Fenyvesi, F.; Poka, R.; Kozma, B.; Bacskay, I. The enhanced inhibitory effect of different antitumor agents in self-microemulsifying drug delivery systems on human cervical cancer HeLa cells. Molecules 2015, 20, 13226–13239. [Google Scholar] [CrossRef] [PubMed]
  37. Ujhelyi, Z.; Fenyvesi, F.; Varadi, J.; Feher, P.; Kiss, T.; Veszelka, S.; Deli, M.; Vecsernyes, M.; Bacskay, I. Evaluation of cytotoxicity of surfactants used in self-micro emulsifying drug delivery systems and their effects on paracellular transport in Caco-2 cell monolayer. Eur. J. Pharm. Sci. 2012, 47, 564–573. [Google Scholar] [CrossRef]
  38. Guidance for Industry: Bioanalytical Method Validation; U.S. Department of Health and Human Services Food and Drug Administration: Rockville, MD, USA, 2018.
  39. Alhakamy, N.A.; Fahmy, U.A.; Ahmed, O.A.A. Attenuation of Benign Prostatic Hyperplasia by Optimized Tadalafil Loaded Pumpkin Seed Oil-Based Self Nanoemulsion: In Vitro and In Vivo Evaluation. Pharmaceutics 2019, 11, 640. [Google Scholar] [CrossRef] [Green Version]
Molecules 26 01435 g001 550

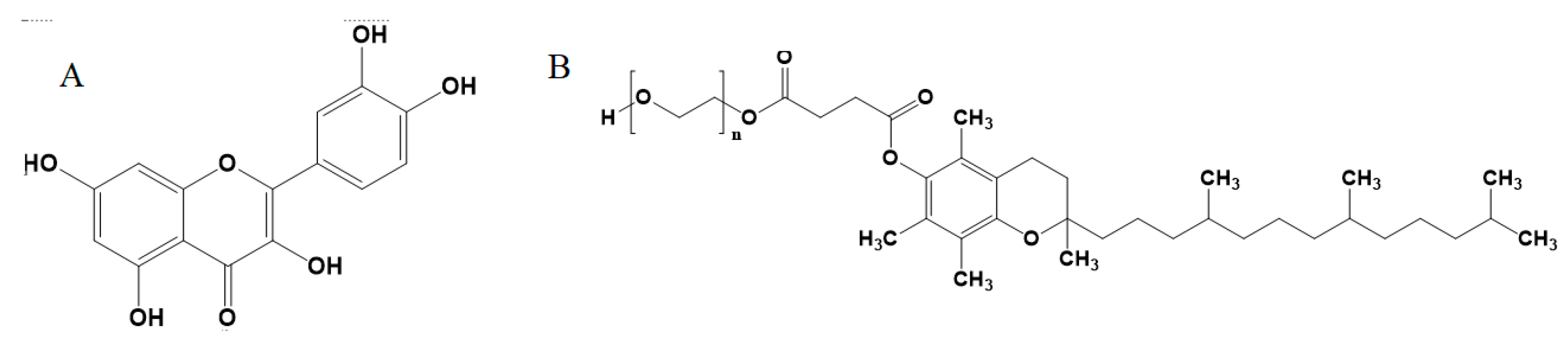

Figure 1. Chemical structure of quercetin, A, and D-α-Tocopherol polyethylene glycol 1000 succinate (TBGS), B.
Figure 1. Chemical structure of quercetin, A, and D-α-Tocopherol polyethylene glycol 1000 succinate (TBGS), B.
Molecules 26 01435 g001
Molecules 26 01435 g002 550

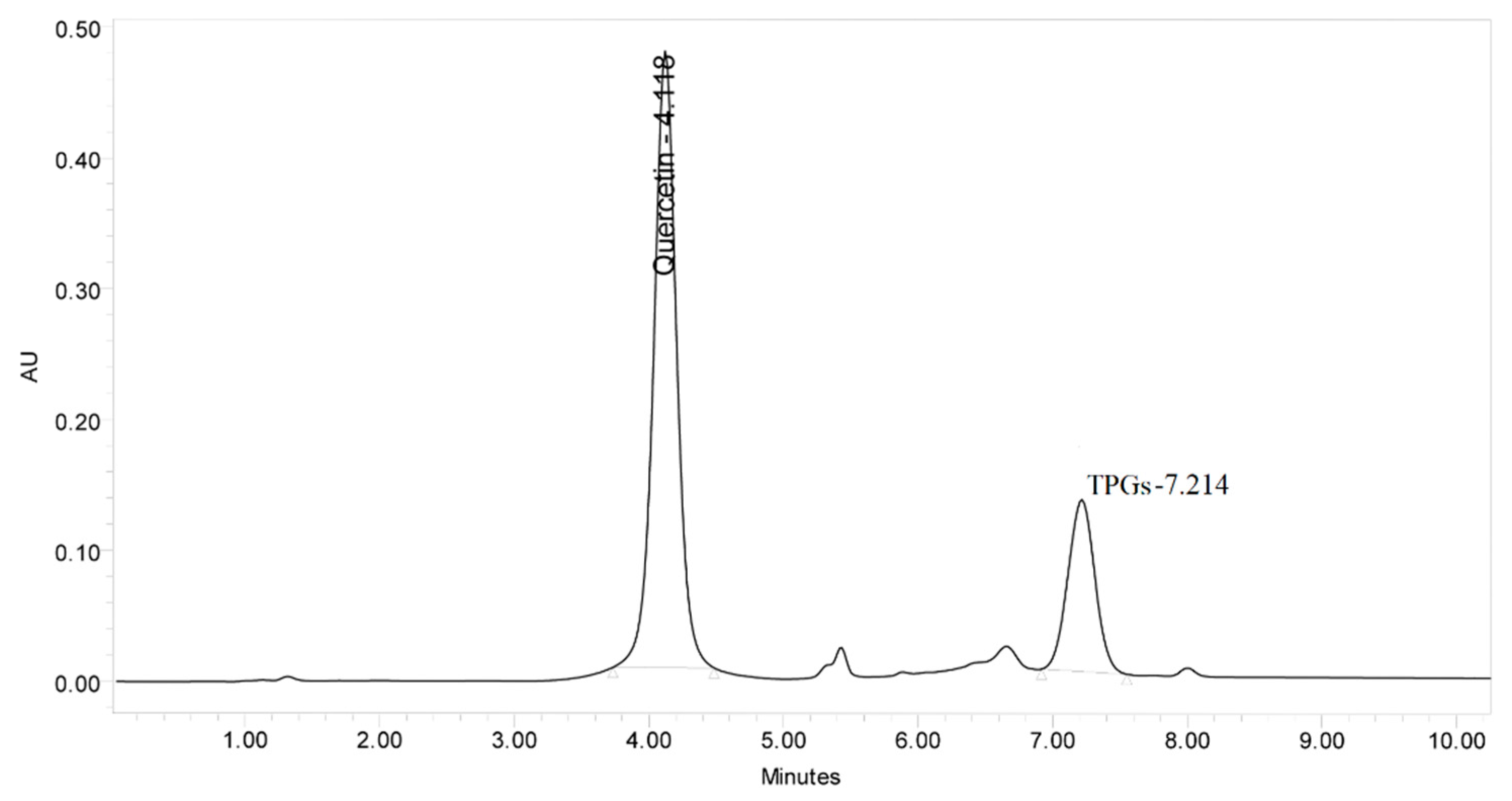

Figure 2. Representative chromatogram of a standard mix of 100 µg/mL quercetin and D-α-Tocopherol polyethylene glycol 1000 succinate (TPGS) using gradient elution of methanol (A) and phosphate buffer of pH 3 ± 0.1 (B), 50/50 (A/B, v/v) for 5 min, 98/2 (A/B, v/v) for 5 min, and 50/50 (A/B, v/v) for 5 min at flow rate 1 mL/min, 280 nm, and at 25 ± 5 °C.
Figure 2. Representative chromatogram of a standard mix of 100 µg/mL quercetin and D-α-Tocopherol polyethylene glycol 1000 succinate (TPGS) using gradient elution of methanol (A) and phosphate buffer of pH 3 ± 0.1 (B), 50/50 (A/B, v/v) for 5 min, 98/2 (A/B, v/v) for 5 min, and 50/50 (A/B, v/v) for 5 min at flow rate 1 mL/min, 280 nm, and at 25 ± 5 °C.
Molecules 26 01435 g002
Molecules 26 01435 g003 550

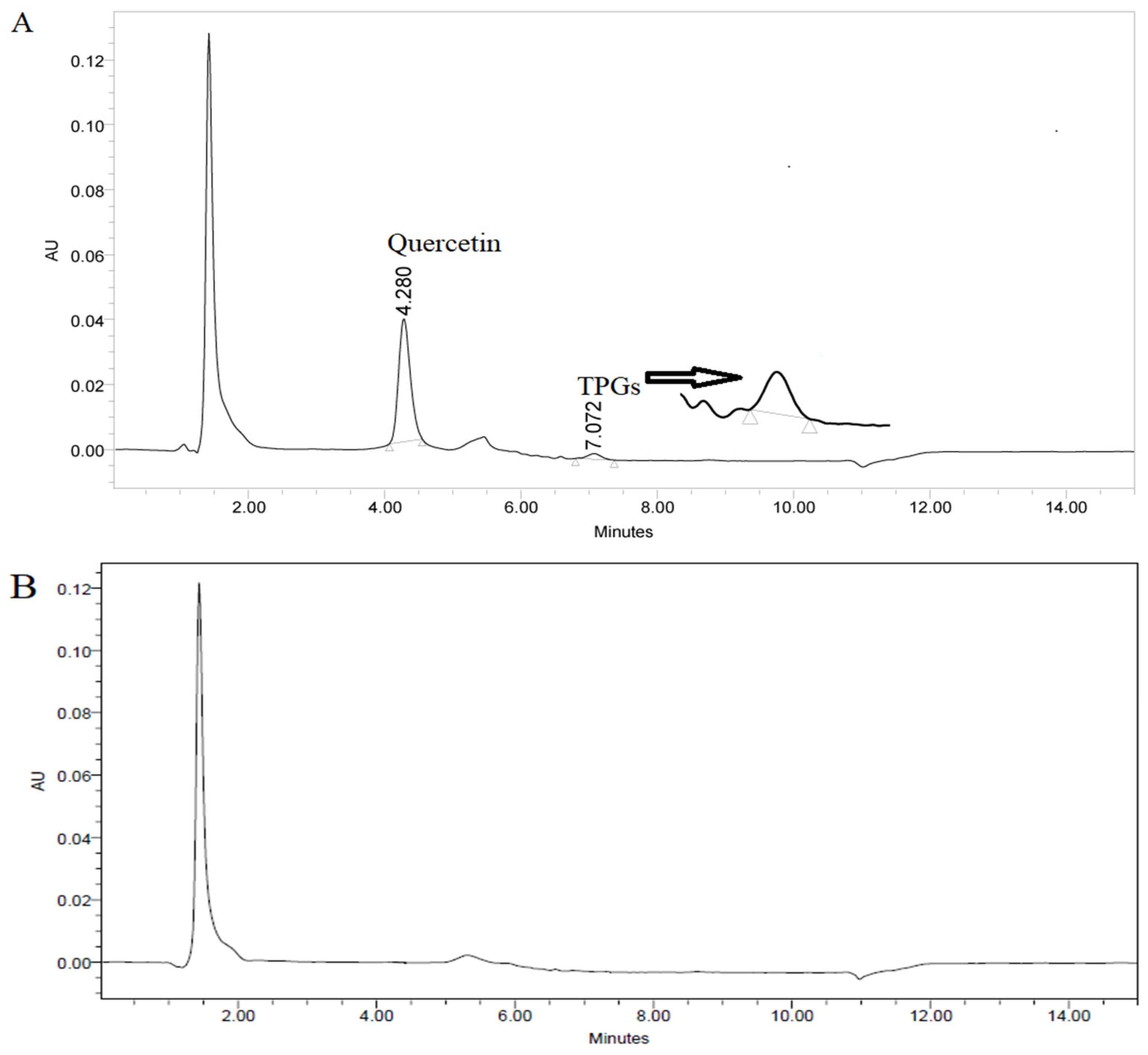

Figure 3. Representative chromatogram of 10 µg/mL quercetin and D-α-Tocopherol polyethylene glycol 1000 succinate (TPGS) in rat plasma under the optimized conditions, A against the blank plasma, B.
Figure 3. Representative chromatogram of 10 µg/mL quercetin and D-α-Tocopherol polyethylene glycol 1000 succinate (TPGS) in rat plasma under the optimized conditions, A against the blank plasma, B.
Molecules 26 01435 g003
Molecules 26 01435 g004 550
Figure 4. Calibration curves for Quercetin, A, and D-α-Tocopherol polyethylene glycol 1000 succinate (TPGS), B.
Figure 4. Calibration curves for Quercetin, A, and D-α-Tocopherol polyethylene glycol 1000 succinate (TPGS), B.
Molecules 26 01435 g004
Molecules 26 01435 g005 550
Figure 5. Globule size, A, and zeta potential, B, of the selected SNEDDS formulation (F5).
Figure 5. Globule size, A, and zeta potential, B, of the selected SNEDDS formulation (F5).
Molecules 26 01435 g005
Molecules 26 01435 g006 550
Figure 6. Plasma concentration of quercetin (QU) within 24 h after administration of QU SNEDDS formula and QU suspension, A. Comparison of Cmax, B, Tmax, C, and AUCt, D. Data presented as mean ± SEM, n = 7 animals, * Significantly different (p < 0.05).
Figure 6. Plasma concentration of quercetin (QU) within 24 h after administration of QU SNEDDS formula and QU suspension, A. Comparison of Cmax, B, Tmax, C, and AUCt, D. Data presented as mean ± SEM, n = 7 animals, * Significantly different (p < 0.05).
Molecules 26 01435 g006
Table
Table 1. System suitability parameters of the proposed HPLC-UV method in spiked rat plasma.
Table 1. System suitability parameters of the proposed HPLC-UV method in spiked rat plasma.
ParameterQuercetinTPGS
Retention time (Rt)4.11 ± 0.027.21 ± 0.14
Capacity Factor (k’)1.743.81
Resolution (Rs)-9.26
Selectivity (α)-2.18
Symmetry factor1.031.034
No of theoretical plates (N) (plates/m)2.91 × 1035.96 × 103
Table
Table 2. Validation parameters of the proposed HPLC-UV method in spiked rat plasma.
Table 2. Validation parameters of the proposed HPLC-UV method in spiked rat plasma.
ParameterQuercetinTPGS
Linearity range (ng/mL)30–10,000100–10,000
Regression equation parameters
Y= ax + b
Slope (a)4.2540.231
Intercept (b)−215.964.763
Determination Coefficient (r2)0.99990.9996
Limit of detection LOD (ng/mL)7.6522.09
Limit of quantitation LOQ (ng/mL)23.1966.96
Table
Table 3. Assay results for the determination of the studied analytes in spiked rat plasma.
Table 3. Assay results for the determination of the studied analytes in spiked rat plasma.
QuercetinTPGs
Added Concentration (ng/mL)Found
Concentration (ng/mL) *		Recovery (%)Added
(ng/mL)		Found
(ng/mL) *		Recovery (%)
100102.97102.9710096.0196.02
300308.60102.87300308.32103.25
500521.30104.26700750.16107.35
700696.0899.4430003096.73103.24
30002926.6297.5510,0009980.9399.79
10,00010,020.94100.21
Mean 101.22 101.93
SD 2.56 4.25
RSD 2.525 4.170
* Average of three determinations.
Table
Table 4. Accuracy and precision evaluation of the proposed method.
Table 4. Accuracy and precision evaluation of the proposed method.
AnalyteConcentration (ng/mL Plasma)AccuracyPrecision
Mean% Recovery* RE%Intra-Day
RSD%		Inter-Day
RSD%
Quercetin100100.270.270.7780.894
3000100.990.990.3461.782
10,000101.221.220.7890.304
TPGS100100.910.911.5422.594
300099.56−0.431.4232.633
10,00099.81−0.190.8200.300
* Mean recovery for three determinations.
Table
Table 5. SNEDDS formulations and their observed globule size.
Table 5. SNEDDS formulations and their observed globule size.
Formula
#		PSOTPGSPEG 200Size
(nm) ± SD		PDI
± SD		Zeta Potential
mV ± SD
F10.10.30.6165.3 ± 26.10.29± 0.02−21.2 ± 4.3
F20.40.30.3>10000.7 ± 0.2−27.4 ± 6.8
F30.20.40.4362 ± 29.00.23 ± 0.05−29.3 ± 3.8
F40.10.50.482.6 ± 25.30.35 ± 0.03−26.2 ± 5.2
F50.20.50.3320 ± 34.30.37 ± 0.07−28.6 ± 4.1
F60.30.30.4490 ± 59.80.42 ± 0.03−30.2 ± 3.8
Sample Availability: Samples of the compounds are not available from the authors.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ahmed, O.A.A.; El-Bassossy, H.M.; El-Sayed, H.M.; El-Hay, S.S.A. Rp-HPLC Determination of Quercetin in a Novel D-α-Tocopherol Polyethylene Glycol 1000 Succinate Based SNEDDS Formulation: Pharmacokinetics in Rat Plasma. Molecules 2021, 26, 1435. https://doi.org/10.3390/molecules26051435

AMA Style

Ahmed OAA, El-Bassossy HM, El-Sayed HM, El-Hay SSA. Rp-HPLC Determination of Quercetin in a Novel D-α-Tocopherol Polyethylene Glycol 1000 Succinate Based SNEDDS Formulation: Pharmacokinetics in Rat Plasma. Molecules. 2021; 26(5):1435. https://doi.org/10.3390/molecules26051435

Chicago/Turabian Style

Ahmed, Osama A. A., Hany M. El-Bassossy, Heba M. El-Sayed, and Soad S. Abd El-Hay. 2021. "Rp-HPLC Determination of Quercetin in a Novel D-α-Tocopherol Polyethylene Glycol 1000 Succinate Based SNEDDS Formulation: Pharmacokinetics in Rat Plasma" Molecules 26, no. 5: 1435. https://doi.org/10.3390/molecules26051435

Article Metrics

Back to TopTop
