Direct and Indirect Bactericidal Effects of Cold Atmospheric-Pressure Microplasma and Plasma Jet

by
Ahmad Guji Yahaya
1,*,
Tomohiro Okuyama
2,
Jaroslav Kristof
3,
Marius Gabriel Blajan
3 and
Kazuo Shimizu
1,2,3
1
Graduate School of Science and Technology, Shizuoka University, Hamamatsu 832-8561, Japan
2
Graduate School of Integrated Science and Technology, Shizuoka University, Hamamatsu 432-8561, Japan
3
Organization for Innovation and Social Collaboration, Shizuoka University, Hamamatsu 432-8561, Japan
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(9), 2523; https://doi.org/10.3390/molecules26092523
Submission received: 30 January 2021 / Revised: 19 April 2021 / Accepted: 21 April 2021 / Published: 26 April 2021
Browse Figures
Review Reports Versions Notes

Abstract

:
The direct and indirect bactericidal effects of dielectric barrier discharge (DBD) cold atmospheric-pressure microplasma in an air and plasma jet generated in an argon-oxygen gas mixture was investigated on Staphylococcus aureus and Cutibacterium acnes. An AC power supply was used to generate plasma at relatively low discharge voltages (0.9–2.4 kV) and frequency (27–30 kHz). Cultured bacteria were cultivated at a serial dilution of 10−5, then exposed to direct microplasma treatment and indirect treatment through plasma-activated water (PAW). The obtained results revealed that these methods of bacterial inactivation showed a 2 and 1 log reduction in the number of survived CFU/mL with direct treatment being the most effective means of treatment at just 3 min using air. UV–Vis spectroscopy confirmed that an increase in treatment time at 1.2% O2, 98.8% Ar caused a decrease in O2 concentration in the water as well as a decrease in absorbance of the peaks at 210 nm, which are attributed NO2− and NO3− concentration in the water, termed denitratification and denitritification in the treated water, respectively.

1. Introduction

Conventional methods for sterilization such as wet/dry heat, chemical gases, or irradiation have several disadvantages [1]. These include negatively altering the physical and biological performance of material properties such as molecular weight, morphology, and volume of sensitive materials, including polymeric biomaterials [2,3,4,5]. Atmospheric plasmas were first used for sterilization of contaminated matter by [6]. This technology led to the development of many plasma devices for microbial inactivation on solid surfaces [7]. Cold atmospheric plasma (CAP) technology is a promising tool for surface decontamination and hand disinfection in public health and hospital care, which does not have the above-mentioned disadvantages [8,9,10,11]. CAP is a weakly ionized gas that can operate under atmospheric conditions near or just above room temperature [12]. Most plasmas are created when extra energy is added to a gas, knocking electrons free from atoms. Only a small fraction of gaseous atoms and molecules, which are the main carriers of heat, collide with the highly energetic free electrons resulting in further excitation, ionization, and dissociation, while the plasma remains cold [11]. These properties permit the disinfection or sterilization of thermosensitive materials and allow in vivo applications, opening a new and larger spectrum of possible applications [7,8,13,14,15,16,17,18]. Microplasma is a type of dielectric barrier discharge (DBD) atmospheric-pressure plasma that can be generated at a relatively low discharge voltage of about 1 kV. The micrometer-order discharge gap allows microplasma to be generated at atmospheric pressure and voltages from 0.4 kV depending on the discharge parameters [19].
Plasma jets also belong to the large family of cold atmospheric pressure plasmas; they are discharged plasma that can extend beyond the plasma generation region into the surrounding ambient environments, and they could be generated at a discharge voltage around 2 kV, with discharge gaps in the order of millimeters [19]
Multiple research results [20,21,22,23,24] have revealed that the reactive species generated by the plasma play the most important role in the plasma sterilization process. Multiple kinds of active species are considered to enhance the antimicrobial effects of plasma in general; they include various types of electrons, ions, radicals, UV light, electric fields, and metastable [25]. Depending on plasma generation setup, humidity, pressure, and gas used, highly reactive oxygen-nitrogen species (RONS; O, O2− O3, OH, OOH, and H2O2; and NO, NO2, NO3, N2O3, N2O4, and ONOO–) in a liquid or gas phase can be generated, and these species can efficiently inactivate micro-organisms by damaging their nucleic acids, lipids, and proteins [26,27,28,29].
This research investigated the low discharge voltage bactericidal potential of direct microplasma treatment in comparison with indirect plasma jet treatment through plasma-activated water (PAW) using the most abundant gas (air, argon, and oxygen) on Staphylococcus aureus and Cutibacterium acnes. We also investigated some properties of PAW such as the effects of increasing O2 concentration in the working gas mixture. In addition, the effect of increasing the treatment time on the concentration of O2 and RONS in water and the effect of O3 concentration on denitrification were also discussed.
The direct plasma jet’s area of bacterial inactivation is narrow, and completely depends on the electrode’s cross-sectional area. To improve that, PAW was used and termed “indirect treatment”. A low discharge voltage is advantageous since it means a smaller power supply, less electrical insulation, and portable devices. Multiple papers [30,31,32,33] demonstrated direct and indirect plasma sterilization possibilities at high discharge voltages up to 40 kV through PAW. This can be lowered by altering the plasma discharge parameters such as frequency, waveform, gas, and discharge gap.
S. aureus is a major human pathogenic bacterium that causes a wide variety of clinical manifestations [34]. These types of infections are commonly acquired in both community and hospital settings, and treatment remains challenging in the management due to the emergence of multi-drug resistant strains such as MRSA (methicillin-resistant Staphylococcus aureus) [35,36]. Propionibacterium acnes is a facultative anaerobic Gram-positive rod, abundant on the human skin, and mainly associated with the sebaceous glands of the shoulder and axilla [37]. It is most commonly associated with the chronic skin disease acne vulgaris. However, it may also cause bone and joint infections, including implant-associated infections. P. acnes has been recognized as an emerging cause of shoulder infections [38,39].

2. Results

The bactericidal properties of direct (microplasma) treatment on C. acne and S. aureus using air and indirect treatment through PAW on S. aureus using an argon-oxygen mixture as working gases at multiple mixtures by percentage, power supply, and frequencies were studied. For both methods of treatments, the bacterial concentration was a serial dilution at 10−5. The following exclusions were made: The effect of temperature on the bacterial inactivation process for both microplasma and plasma jet were neglected. This was because the highest electrode temperature recorded for both plasmas was less than 30 °C during the entire treatment process. The bactericidal effect of the electric field was also not considered, even though the bacterial fluid was not allowed to completely dry off before microplasma treatment and the distance between the electrode and samples was maintained at 2 mm. In this situation, the main functional species of atmospheric pressure plasma sterilization were the chemical substances produced by the plasma [20,21,22,23,24]. After 48 h of incubation, the mannitol salt agar changed color from red to yellow; this was because of sugar fermentation caused by S. aureus.

2.1. Direct Treatment

Figure 1a shows the results for direct microplasma treatment on S. aureus and Figure 1b shows the results for C. acne. These images were taken against a black background 48 and 72 h, respectively, after treatment. So, the dark portions on the images are regions of no bacterial growth and little changes in coloration were from different light exposures. The samples exposed to direct microplasma treatment at an AC frequency of 27 kHz with discharge voltage of 900 V using synthetic air at 2 L/min from a cylinder showed a 2-log reduction, which is equivalent to 99% reduction in CFU/mL (see Figure 1d (left)). The concentration of (+ and −) ions in the post-discharge region, 3 cm below the grounded grid, during the direct microplasma treatment discharge at 900 V were 1.9 × 107 ion·cm−3 and 6.6 × 106 ion·cm−3, respectively. Positive ions are generally N2+, while negative ions are O2−; these lifetimes are relatively short, but can reach the target surface [40]. The concentration of +/− ions in the microplasma post-discharge region may also depend on their reactions with external particles in the atmosphere.

2.2. Indirect Treatment

The bactericidal effects of PAW on S. aureus are shown in Figure 1c. These samples were treated at a discharge voltage of 2.4 kV for 1.2% O2 at an AC frequency of 30 kHz. The treatment time for PAW was 15, 30, and 45 min at a distance of 2 mm from the plasma source. These images were taken 48 h after treatment and incubation at 37 °C. To determine the change in properties of the treated water after exposure to plasma jet, the pH and temperature at different conditions were checked. The pH level slightly decreased to 6 from neutral and the temperature decreased from 25.1 to 22.7 °C. The PAW treatment showed a bactericidal effect of 1 log reduction at 45 min, which is a 90% reduction in number of colonies survived (see Figure 1d (right)).

2.3. Ozone Generated by Direct and Indirect Treatment

The ozone level recorded during the direct microplasma treatment in the air using an AC power supply at a discharge voltage of 900 V (0-peak) and a frequency of 27 kHz was 47 ppm. For indirect treatment using a plasma jet, the ozone generated was lower—15.5 ppm at 0.8% O2 and 27.1 ppm at 1.2% O2.

2.4. Power and Streamer Discharge for Direct and Indirect Treatment

The discharge voltage for 0.8% O2 was 2.2 kV and 1.2% O2 was 2.4 kV; both had the same frequency of 30 kHz. Figure 2b shows the discharge voltage and corresponding discharge current waveform with the width of the capacitive current waveform’s peak at 10 μs for a treatment time of 15, 30, and 45 min. From these values, we also calculated that the actual active time of the plasma jet streamers irradiation in 900, 1800, and 2700 s was 270, 540, and 810 s, respectively.
Discharge power was calculated using the charge–voltage curve (Lissajous curve) for high-frequency AC voltage. The applied voltage was measured with a Tektronix high-voltage probe (voltage ratio 1000:1), and the transferred charge was measured from the ground ceramic capacitor (100 nF), which was connected in series with the microplasma and plasma jet electrode. Figure 2c,d shows the Lissajours figure for microplasma and plasma jet discharge with the obtained optimum power of 3.31 W at 900 V, 27 kHz, and air working gas; and 0.56 W at 2.4 kV, 30 kHz, and 1.2% O2 working gas, respectively.
A streamer discharge is a type of transient electrical discharge that forms at the surface of a conductive electrode carrying a high voltage in an insulating medium such as air. From the data obtained from an oscilloscope (see Figure 2a), the approximate width of the capacitive current waveform’s peak from its base was 10 μs per circle (two peaks) at a frequency of 27 kHz and treatment time of 1, 2, and 3 min. From these values, we calculated that the actual active time of the microplasma streamers irradiation in 60, 120, and 180 s was 16.2, 32.4, and 48.6 s, respectively.

2.5. UV-Vis Spectroscopy of Treated Water

Long-lived RONS (H2O2, NO2−, and NO3−) in liquid phase are the main species contributing to the UV absorbance between 190 and 340 nm [41]. To confirm this result, the spectral line references by [41] of H2O2, NO2−, and NO3− were obtained from standard solutions of H2O2, NaNO2, and NaNO3, respectively, under different concentrations. Each standard solution has a specific maximum absorption wavelength. H2O2 may be below 190 nm and those of NaNO2 and NaNO3 at about 210 nm [42]. Figure 3 (left) and (right) shows the spectral lines obtained from PAW with 0.8% O2 with 99.2% Ar and 1.2% O2 with 98.8% Ar treatment, respectively. The spectra of H2O2 and OH- at 0.8% O2 were below 190 nm and those of NO2− and NO3− were at 210 nm. A negative part of the spectrum at 190 nm was also observed to decrease with an increase in treatment time from 15 to 45 min; this was attributed to the decrease in oxygen concentration in the water.
Oxygen is naturally present inside water; after Ar-O2 plasma treatment, part of the O2 is replaced by Ar. Absorbance of the samples measured were compared with a reference sample (distilled water, containing some oxygen). If the amount of oxygen in the analyzed samples was lower than in the reference samples, it resulted in negative O2 absorbance. A similar effect was observed by [42,43]. An increase in treatment time caused decrease in O2 concentration in the water as well as a decrease in absorbance of the peaks at 210 nm, which are attributed NO2− and NO3− concentration in the water termed denitratification and denitritification in the treated water, respectively.
The effect of dissolved oxygen concentration on the rates of denitratification and denitritification were also investigated in [44,45], which reported similar findings.

2.6. Effect of Ozone on RONS

The concentration of ozone almost doubled in the indirect treatment using a plasma jet from 15.5 ppm at 0.8% O2 to 27.1 ppm at 1.2% O2. The absorbance of the peaks at 210 nm, which are attributed NO2− and NO3− concentration, decreased with an increase in O3 concentration; this could be attributed to the oxidation of NO2− by O3. Similar findings were reported by [46,47].

3. Materials and Methods

3.1. Direct Treatment

Dielectric barrier discharge (DBD) atmospheric microplasma [19], [22,23] (see Figure 4a) was generated at a discharge voltage of 900 V using an alternating current (AC) power supply at a frequency of 27 kHz. The electrode was gold plated with a diameter of 30 mm, a back layer of 50 µm, and a gap distance (interval between HV and ground) of 25 µm. The electrode’s configuration was a grid-shaped gold wire with an interval of 3.5 mm (see Figure 4b). The wire width was 1.2 mm on the high voltage side and 0.2 mm on the ground side. The electrode had 9 perforated holes of 2 mm between the wires, allowing the passage of gas that could transport microplasma-induced active species to the target. The air flow was set at 2 L/min by a flow meter (Yamato, Tokyo, Japan) and the treatment times were 1, 2, and 3 min. The distance between the electrode and samples on the surface of the petri dish was set at 2 mm via a grounded micrometric sample holder. The temperature of the electrode was confirmed using a thermal camera (TVS-200, Avio, Yokohama, Japan). Ions and ozone generated were measured with an ion counter (NKMH-103, Hokuto, Tokyo, Japan) and ozone monitor (EG-2001, Ebara Jitsugyo, Kanagawa, Japan), respectively.

3.2. Indirect Treatment

An atmospheric pressure plasma jet (see Figure 4b) used for PAW treatment was generated in an airtight chamber at a discharge voltage of 2.2 kV for 0.8% O2 and 2.4 kV for 1.2% O2, both at an AC frequency of 30 kHz using a Neon transformer (M-5, Alpha Neon, Gifu, Japan). The treatment times for PAW were 15, 30, and 45 min at a distance of 2 mm from the plasma source. PAW samples treated at 2.4 kV, 1.2% O2 at an AC frequency of 30 kHz for 15, 30, and 45 min at a distance of 2 mm from the plasma source were used for S. aureus inactivation.
The setup was constructed from a needle-type powered (tungsten steel) electrode with a diameter and length of 0.8 and 110 mm, respectively. The electrode was enclosed in a quartz tube with an inner diameter of 2.5 mm, outer diameter of 4.3 mm, and length of 110 mm. The distance between the electrode and petri dish containing 5 mL of distilled water was set to 2 mm via a micrometric sample holder attached to the chamber. The flow of the gas mixture was maintained at 3 L/min by a flow meter containing 98.8% Ar and 1.2% O2, and 99.2% Ar and 0.8% O2 measured by an oxygen monitor (OXY-1, Jikco, Osaka, Japan). This setup was used to treat 5 mL of fresh distilled water from (RFD260NC, Advantec, Tokyo, Japan) a water distillation apparatus for 15, 30, and 45 min. The temperature of the electrode was confirmed, and ions and ozone generated were also measured. A UV-Vis spectrometer (V-670 Jasco, Pfungstadt, Germany) was used to analyze the absorbance of the reactive species dissolved in the distilled water after treatment.

3.3. Preparation of Bacterial Liquid

3.3.1. Staphylococcus aureus

A bacterial strain of S. aureus NBRC 13276 obtained from the NITE biological resource center, Chiba, Japan, was used in this research; 1.3 g of Diago condensate powder 702 was diluted in 100 mL distilled water in a beaker then stirred until the mixture became homogeneous. The solution was transferred from the beaker into a glass bottle and heated in an autoclave (HRS-232, Hirayama, Saitama, Japan) at 121 °C for 30 min and allowed to cool at room temperature. After this process, 0.2 mL of liquid containing the bacteria was transferred with a syringe into a glass bottle containing 100 mL of liquid 702. This solution was incubated for 3 days at 37 °C.

3.3.2. Cutibacterium acnes

C. acnes NBRC 107605 obtained from the NITE biological resource center, Chiba, Japan, was used in this research. To culture the bacteria used in this research, 1.77 g of Gam broth powder (05422, Nissui, Tokyo, Japan) was mixed with 30 mL of distilled water (RFD260NC, Advantec, Tokyo, Japan), then autoclaved (HRS-232, Hirayama, Saitama, Japan) at 121 °C for 30 min, then allowed to cool at room temperature. After this process, 0.2 mL of initial unknown bacterial concentration liquid was transferred with a syringe into a glass bottle containing 30 mL of Gam broth solution, then incubated for 3 days at 37 °C.

3.4. Samples Preparation

For S. aureus, mannitol Salt Agar 05236 was diluted with distilled water in a beaker (110 g of powder to 100 mL of distilled water). For C. acne, Gam Agar (05420, Nissui, Tokyo, Japan) was diluted with distilled water in a beaker (11.1 g of powder to 150 mL of distilled water) until the composition became homogeneous. These solutions were heated and sterilized in an autoclave at 121 and 115 °C, respectively, for 30 min. After cooling down, it was poured into petri dishes and left until the agar completely solidified. For the direct treatment, 50 µL of diluted bacteria at a concentration of 10−5 was spread onto agar in each petri dish, then treated with direct microplasma, while for the indirect treatment, 100 µL of PAW was added onto 50 µL of diluted bacteria at the same concentration. To show the bactericidal effect of both direct microplasma treatment and PAW on the samples, five (5) samples per condition were used. Finally, the samples were incubated at 37 °C for 48 h and 72 h for S. aureus and C. acnes, respectively.

4. Conclusions

We demonstrated the bactericidal efficiency of DBD microplasma through direct treatment and indirect bacterial inactivation through plasma activated water at low discharge voltages on S. aureus and C. acne. Under the experimental parameters used in this research, we conclude that direct microplasma treatment with air as a working gas, at a discharge voltage of 900 V and 27 kHz frequency, has a better bactericidal effect with 2 log reduction in CFU/mL (99%) at 3 min over PAW treated at 2.4 kV discharge voltage and 30 kHz frequency with 1 log (90%) reduction at 45 min. PAW treatment according to our setup generated less ozone concentration of 27.1 ppm at 1.2% O2 compared with 47.0 ppm for microplasma treatment using air. An increase in O2 percentage in gas mixture increased the discharge voltage in the indirect (plasma jet) treatment. An increase in treatment time caused a decrease in O2 concentration in the treated water at 2.4 kV using 1.2% O2 and 98.8% Ar, which also caused a decrease in the absorbance of the peaks at 210 nm, which are attributed NO2− and NO3− concentration in the treated water. The concentration of ozone almost doubled in the indirect treatment using plasma jet from 15.5 ppm at 0.8% O2 to 27.1 ppm at 1.2% O2, leading to the oxidation of NO2−. Finally, since the plasma jet’s bactericidal effects are limited to its surface area; activated medium such as PAW may increase the bacterial inactivation area larger than the electrode’s cross-sectional area, since a liquid medium could be spread on large surfaces.

Author Contributions

Conceptualization, A.G.Y., T.O., and M.G.B.; methodology, A.G.Y., T.O., and M.G.B.; software A.G.Y.; validation, A.G.Y., T.O., M.G.B., J.K., and K.S.; formal analysis, A.G.Y.; investigation, A.G.Y. and T.O.; resources, K.S.; data curation, A.G.Y., T.O., M.G.B., J.K., and K.S.; writing—original draft preparation, A.G.Y.; writing—review and editing, A.G.Y., T.O., M.G.B., J.K., and K.S.; supervision, project administration, and funding acquisition, K.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Shimizu Laboratory, Organization for Innovation and Social Collaboration, Shizuoka University, Hamamatsu Campus, Japan.

Acknowledgments

The authors would like to show great appreciation to Yuko Shimamura and Shuichi Masuda of University of Shizuoka for fruitful discussion.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Klämpfl, T.G.; Isbary, G.; Shimizu, T.; Li, Y.-F.; Zimmermann, J.L.; Stolz, W.; Schlegel, J.; Morfill, G.E.; Schmidt, H.-U. Cold Atmospheric Air Plasma Sterilization against Spores and Other Microorganisms of Clinical Interest. Appl. Environ. Microbiol. 2012, 78, 5077–5082. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Athanasiou, K. Sterilization, toxicity, biocompatibility and clinical applications of polylactic acid/ polyglycolic acid copolymers. Biomaterials 1996, 17, 93–102. [Google Scholar] [CrossRef]
  3. Lerouge, S.; Tabrizian, M.; Wertheimer, M.R.; Marchand, R.; Yahia, L. Safety of plasma-based sterilization: Surface modifications of polymeric medical devices induced by Sterrad and Plazlyte processes. Biol. Med. Mater. Eng. 2002, 12, 3–13. [Google Scholar]
  4. E Holy, C.; Cheng, C.; E Davies, J.; Shoichet, M.S. Optimizing the sterilization of PLGA scaffolds for use in tissue engineering. Biomaterials 2000, 22, 25–31. [Google Scholar] [CrossRef]
  5. Matthews, I.P.; Gibson, C.; Samuel, A.H. Sterilisation of implantable devices. Clin. Mater. 1994, 15, 191–215. [Google Scholar] [CrossRef]
  6. Laroussi, M. Sterilization of contaminated matter with an atmospheric pressure plasma. IEEE Trans. Plasma Sci. 1996, 24, 1188–1191. [Google Scholar] [CrossRef]
  7. Kayes, M.M.; Critzer, F.J.; Kelly-Wintenberg, K.; Roth, J.R.; Montie, T.C.; Golden, D.A. Inactivation of Foodborne Pathogens Using A One Atmosphere Uniform Glow Discharge Plasma. Foodborne Pathog. Dis. 2007, 4, 50–59. [Google Scholar] [CrossRef]
  8. Ehlbeck, J.; Schnabel, U.; Von Woedtke, T.; Brandenburg, R.; Weltmann, K.D.; Polak, M.; Winter, J.; Von dem Hagen, T. Low temperature atmospheric pressure plasma sources for microbial decontamination. J. Appl. Phys. 2011, 44, 18. [Google Scholar] [CrossRef] [Green Version]
  9. Kong, M.G.; Kroesen, G.; Morfill, G.; Nosenko, T.; Shimizu, T.; Van Dijk, J.; Zimmermann, J.L. Plasma medicine: An introductory review. New J. Phys. 2009, 11, 115012. [Google Scholar] [CrossRef]
  10. Laroussi, M. Low Temperature Plasma-Based Sterilization: Overview and State-of-the-Art. Plasma Process. Polym. 2005, 2, 391–400. [Google Scholar] [CrossRef]
  11. Stoffels, E.; Sakiyama, Y.; Graves, D.B. Cold Atmospheric Plasma: Charged Species and Their Interactions with Cells and Tissues. IEEE Trans. Plasma Sci. 2008, 36, 1441–1457. [Google Scholar] [CrossRef]
  12. Yahaya, A.G.; Tomomichi, A.; Mustafa, F.; Jaroslav, K.; Blajan, M.; Shimizu, K. Skin treatment: Sterilization and Drug Delivery by Microplasma. In Proceedings of the 6th Internarional Symposium toward the Future of Advanced Researches in Shizuoka University 2020(ISFAR-SU2020), Hamamatsu, Japan, 5 March 2020; p. 54. [Google Scholar]
  13. Suschek, C.V.; Opländer, C. The application of cold atmospheric plasma in medicine: The potential role of nitric oxide in plasma-induced effects. Clin. Plasma Med. 2016, 4. [Google Scholar] [CrossRef]
  14. Park, S.; Choe, W.; Moon, S.Y.; Yoo, S.J. Electron characterization in weakly ionized collisional plasmas: From principles to techniques. Adv. Phys. X 2018, 4. [Google Scholar] [CrossRef] [Green Version]
  15. Kolb, J.F.; Mohamed, A.-A.H.; Price, R.O.; Swanson, R.J.; Bowman, A.; Chiavarini, R.L.; Stacey, M.; Schoenbach, K.H. Cold atmospheric pressure air plasma jet for medical applications. Appl. Phys. Lett. 2008, 92, 241501. [Google Scholar] [CrossRef] [Green Version]
  16. Lu, X.; Wu, S.; Gou, J.; Pan, Y. An atmospheric-pressure, high-aspect-ratio, cold micro-plasma. Sci. Rep. 2014, 4, 7488. [Google Scholar] [CrossRef] [Green Version]
  17. Recek, N.; Andjelic, S.; Hojnik, N.; Filipič, G.; Lazović, S.; Vesel, A.; Primc, G.; Mozetič, M.; Hawlina, M.; Petrovski, G.; et al. Microplasma Induced Cell Morphological Changes and Apoptosis of Ex Vivo Cultured Human Anterior Lens Epithelial Cells—Relevance to Capsular Opacification. PLoS ONE 2016, 11, e0165883. [Google Scholar] [CrossRef] [Green Version]
  18. Takahashi, R.; Shimizu, K.; Numabe, Y. Effects of microplasma irradiation on human gingival fibroblasts. Odontology 2015, 103, 194–202. [Google Scholar] [CrossRef]
  19. Shimizu, K.; A Tran, N.; Hayashida, K.; Blajan, M. Comparison of atmospheric microplasma and plasma jet irradiation for increasing of skin permeability. J. Phys. D Appl. Phys. 2016, 49, 315201. [Google Scholar] [CrossRef]
  20. Pai, K.; Timmons, C.; Roehm, K.D.; Ngo, A.; Narayanan, S.S.; Ramachandran, A.; Jacob, J.D.; Ma, L.M.; Madihally, S.V. Investigation of the Roles of Plasma Species Generated by Surface Dielectric Barrier Discharge. Sci. Rep. 2018, 8, 1–13. [Google Scholar] [CrossRef] [Green Version]
  21. Nicol, M.J.; Brubaker, T.R.; Ii, B.J.H.; Simmons, A.N.; Kazemi, A.; Geissel, M.A.; Whalen, C.T.; Siedlecki, C.A.; Bilén, S.G.; Knecht, S.D.; et al. Antibacterial effects of low-temperature plasma generated by atmospheric-pressure plasma jet are mediated by reactive oxygen species. Sci. Rep. 2020, 10, 1–11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Shimizu, K.; Blajan, M.; Tatematsu, S. Basic Study of Remote Disinfection and Sterilization Effect by Using Atmospheric Microplasma. IEEE Trans. Ind. Appl. 2012, 48, 1182–1188. [Google Scholar] [CrossRef]
  23. Shimizu, K.; Komuro, Y.; Tatematsu, S.; Blajan, M. Study of Sterilization and Disinfection in Room Air by Using Atmospheric Microplasma. Pharm. Anal. Acta 2011, S1. [Google Scholar] [CrossRef] [Green Version]
  24. Mitra, S.; Nguyen, L.N.; Akter, M.; Park, G.; Choi, E.H.; Kaushik, N.K. Impact of ROS Generated by Chemical, Physical, and Plasma Techniques on Cancer Attenuation. Cancers 2019, 11, 1030. [Google Scholar] [CrossRef] [Green Version]
  25. Fridman, A. Plasma Chemistry; Cambridge University Press: Cambridge, UK, 2012. [Google Scholar]
  26. Kim, S.J.; Chung, T.H. Cold atmospheric plasma jet-generated RONS and their selective effects on normal and carcinoma cells. Sci. Rep. 2016, 6, 20332. [Google Scholar] [CrossRef] [Green Version]
  27. Bogaerts, A.; Yusupov, M.; Razzokov, J.; Van der Paal, J. Plasma for cancer treatment: How can RONS penetrate through the cell membrane? Answers from computer modeling. Front. Chem. Sci. 2019, 13, 253–263. [Google Scholar] [CrossRef]
  28. Hwang, I.; Jeong, J.; You, T.; Jung, J. Water electrode plasma discharge to enhance the bacterial inactivation in water. Biotechnol. Biotechnol. Equip. 2018, 32, 530–534. [Google Scholar] [CrossRef] [Green Version]
  29. De Backer, J.; Razzokov, J.; Hammerschmid, D.; Mensch, C.; Hafideddine, Z.; Kumar, N.; Van Raemdonck, G.; Yusupov, M.; Van Doorslaer, S.; Johannessen, C.; et al. The effect of reactive oxygen and nitrogen species on the structure of cytoglobin: A potential tumor suppressor. Redox Biol. 2018, 19, 1–10. [Google Scholar] [CrossRef]
  30. Oehmigen, K.; Hähnel, M.; Brandenburg, R.; Wilke, C.; Weltmann, K.-D.; Von Woedtke, T. The Role of Acidification for Antimicrobial Activity of Atmospheric Pressure Plasma in Liquids. Plasma Process. Polym. 2010, 7, 250–257. [Google Scholar] [CrossRef]
  31. Kaushik, N.K.; Ghimire, B.; Li, Y.; Adhikari, M.; Veerana, M.; Kaushik, N.; Jha, N.; Adhikari, B.; Lee, S.-J.; Masur, K.; et al. Biological and medical applications of plasma-activated media, water and solutions. Biol. Chem. 2018, 400, 39–62. [Google Scholar] [CrossRef]
  32. Yun, S.; Yoon, S.-Y.; Hong, E.J.; Giri, S.S.; Kim, S.G.; Han, S.J.; Kwon, J.; Oh, W.T.; Bin Lee, S.; Park, S.C. Effect of plasma-activated water, used as a disinfectant, on the hatch rate of dormant cysts of the Artemia salina. Aquaculture 2020, 523, 735232. [Google Scholar] [CrossRef]
  33. Lerouge, S.; Wertheimer, M.R.; Yahia, L. Plasma Sterilization: A Review of Parameters, Mechanisms, and Limitations. Plasmas Polym. 2001, 6, 175–188. [Google Scholar] [CrossRef]
  34. Lowy, F.D. Staphylococcus aureusInfections. N. Engl. J. Med. 1998, 339, 520–532. [Google Scholar] [CrossRef]
  35. Centers for Disease Control and Prevention (CDC). Outbreaks of community-associated methicillin-resistant Staphylococcus aureus skin infections—Los Angeles County, California, 2002-2003. MMWR Morb. Mortal Wkly. Rep. 2003, 52, 88. [Google Scholar]
  36. Boucher, H.W.; Corey, G.R. Epidemiology of Methicillin-ResistantStaphylococcus aureus. Clin. Infect. Dis. 2008, 46, S344–S349. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Patel, A.; Calfee, R.P.; Plante, M.; Fischer, S.A.; Green, A. Propionibacterium acnes colonization of the human shoulder. J. Shoulder Elb. Surg. 2009, 18, 897–902. [Google Scholar] [CrossRef] [PubMed]
  38. Levy, P.Y.; Fenollar, F.; Stein, A.; Borrione, F.; Cohen, E.; LeBail, B.; Raoult, D. Propionibacterium acnesPostoperative Shoulder Arthritis: An Emerging Clinical Entity. Clin. Infect. Dis. 2008, 46, 1884–1886. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Frangiamore, S.J.; Saleh, A.; Grosso, M.J.; Alolabi, B.; Bauer, T.W.; Iannotti, J.P.; Ricchetti, E.T. Early Versus Late Culture Growth of Propionibacterium acnes in Revision Shoulder Arthroplasty. J. Bone Jt. Surg. Am. Vol. 2015, 97, 1149–1158. [Google Scholar] [CrossRef] [PubMed]
  40. Del Greco, F.P.; Kaufman, F. Lifetime and reactions of OH radicals in discharge-flow systems. Discuss. Faraday Soc. 1962, 33, 128–138. [Google Scholar] [CrossRef]
  41. Szili, E.J.; Oh, J.-S.; Hong, S.-H.; Hatta, A.; Short, R.D. Probing the transport of plasma-generated RONS in an agarose target as surrogate for real tissue: Dependency on time, distance and material composition. J. Phys. D Appl. Phys. 2015, 48, 202001. [Google Scholar] [CrossRef]
  42. Oh, J.-S.; Szili, E.J.; Hatta, A.; Ito, M.; Shirafuji, T.; Oh, I. Ito Tailoring the Chemistry of Plasma-Activated Water Using a DC-Pulse-Driven Non-Thermal Atmospheric-Pressure Helium Plasma Jet. Plasma 2019, 2, 10. [Google Scholar] [CrossRef] [Green Version]
  43. Oh, J.-S.; Szili, E.J.; Gaur, N.; Hong, S.-H.; Furuta, H.; Short, R.D.; Hatta, A. In-situ UV Absorption Spectroscopy for Monitoring Transport of Plasma Reactive Species through Agarose as Surrogate for Tissue. J. Photopolym. Sci. Technol. 2015, 28, 439–444. [Google Scholar] [CrossRef] [Green Version]
  44. Gómez, M. Effect of dissolved oxygen concentration on nitrate removal from groundwater using a denitrifying submerged filter. J. Hazard. Mater. 2002, 90, 267–278. [Google Scholar] [CrossRef]
  45. Nakajima, M.; Hayamizu, T.; Nishimura, H. Effect of oxygen concentration on the rates of denitratification and denitrification in the sediments of an eutrophic lake. Water Res. 1984, 18, 335–338. [Google Scholar] [CrossRef]
  46. Schroeder, J.; Croot, P.; Von Dewitz, B.; Waller, U.; Hanel, R. Potential and limitations of ozone for the removal of ammonia, nitrite, and yellow substances in marine recirculating aquaculture systems. Aquac. Eng. 2011, 45, 35–41. [Google Scholar] [CrossRef]
  47. Rahmadi, P.; Kim, Y.R. Effects of different levels of ozone on ammonia, nitrite, nitrate, and dissolved organic carbon in sterilization of seawater. Desalin. Water Treat. 2013, 52, 4413–4422. [Google Scholar] [CrossRef]
Molecules 26 02523 g001 550
Figure 1. Bactericidal effect of direct microplasma treatment (a,b) and indirect treatment with PAW (c). (a) S. aureus; i. control, ii. 1 min, iii. 2 min, iv. 3 min. (b) C. acnes; i. control, ii. 1 min, iii. 2 min, iv. 3 min. (c) S. aureus; i. control, ii. 15 min, iii. 30 min, iv. 45 min. (d) Log reduction in survived bacterial colonies in CFU/mL for (left) direct treatment (right) and indirect treatment (PAW).
Figure 1. Bactericidal effect of direct microplasma treatment (a,b) and indirect treatment with PAW (c). (a) S. aureus; i. control, ii. 1 min, iii. 2 min, iv. 3 min. (b) C. acnes; i. control, ii. 1 min, iii. 2 min, iv. 3 min. (c) S. aureus; i. control, ii. 15 min, iii. 30 min, iv. 45 min. (d) Log reduction in survived bacterial colonies in CFU/mL for (left) direct treatment (right) and indirect treatment (PAW).
Molecules 26 02523 g001
Molecules 26 02523 g002a 550Molecules 26 02523 g002b 550

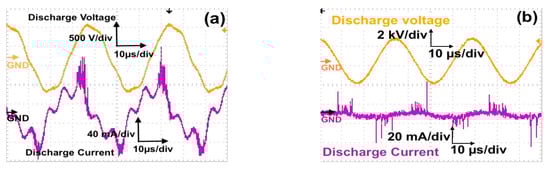

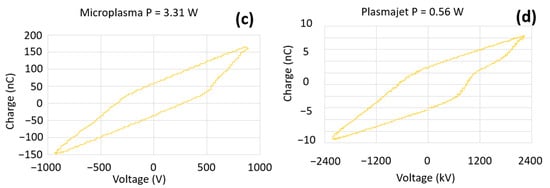

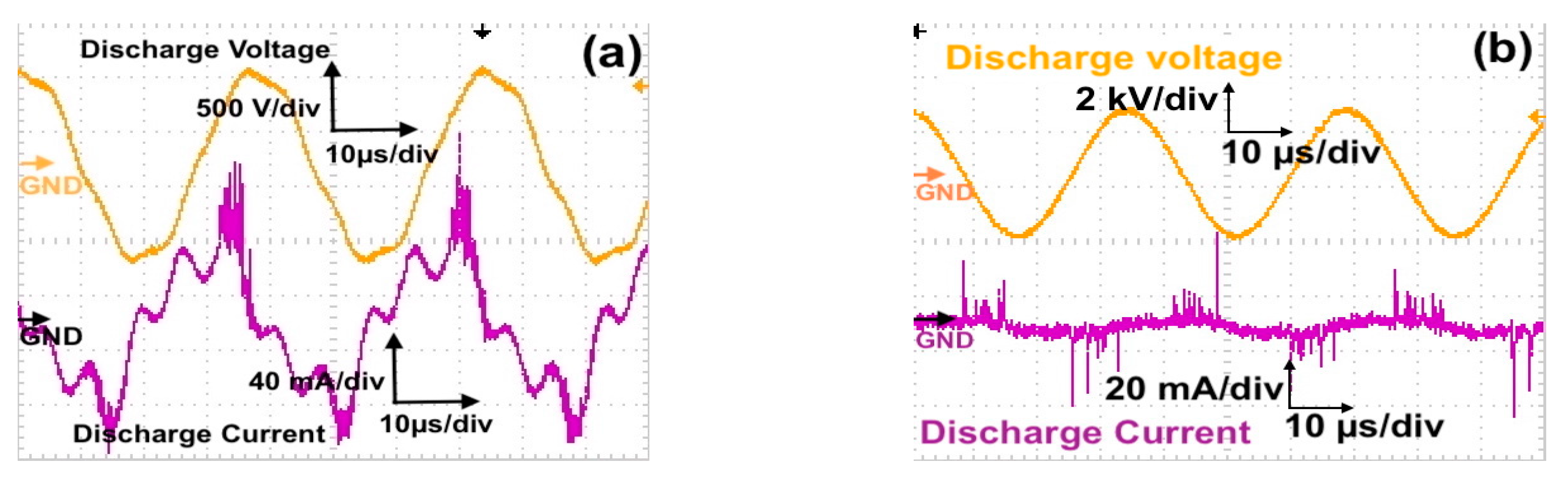

Figure 2. Discharge voltage and corresponding discharge current of (a) direct microplasma 900 V, air 2 L/min; (b) indirect treatment (plasma Jet) 2.4 kV, 1.2% O2 3 L/min. Lissajours curve for (c) microplasma at 900 V, 27 kHz; (d) plasma jet at 2.4 kV, 30 kHz.
Figure 2. Discharge voltage and corresponding discharge current of (a) direct microplasma 900 V, air 2 L/min; (b) indirect treatment (plasma Jet) 2.4 kV, 1.2% O2 3 L/min. Lissajours curve for (c) microplasma at 900 V, 27 kHz; (d) plasma jet at 2.4 kV, 30 kHz.
Molecules 26 02523 g002aMolecules 26 02523 g002b
Molecules 26 02523 g003 550

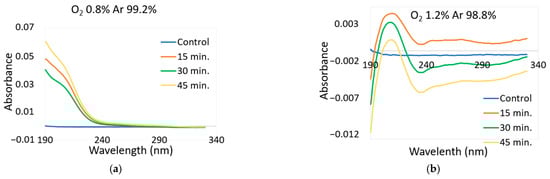

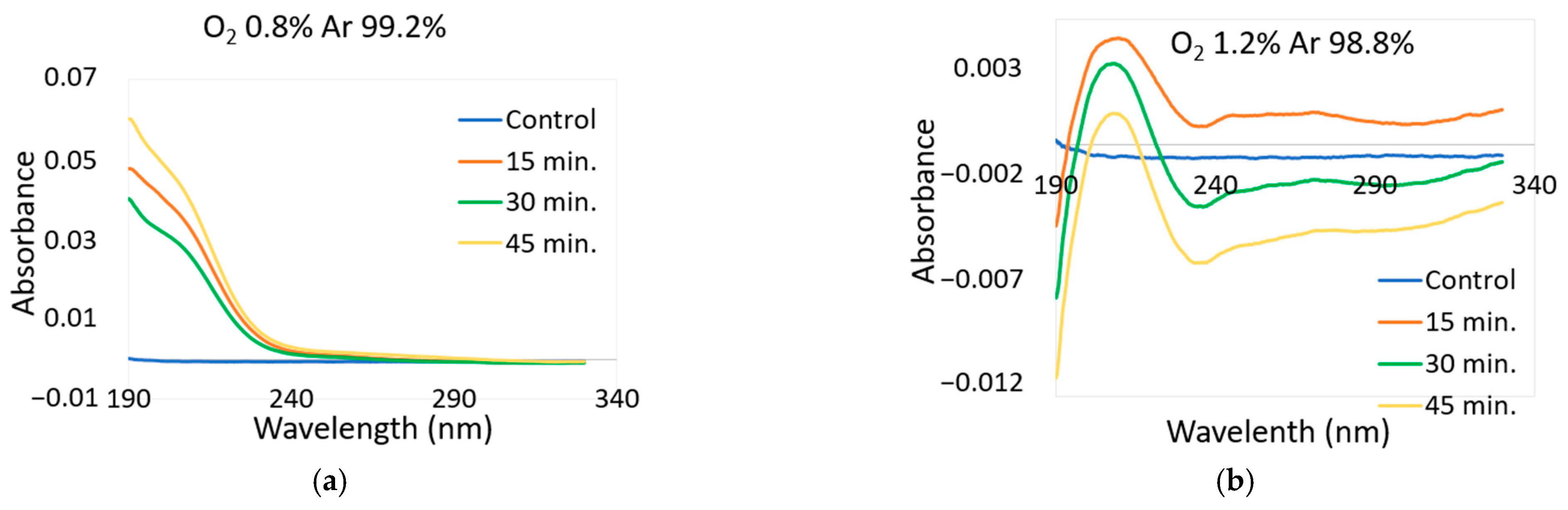

Figure 3. UV absorption spectra for PAW: (a) 0.8% O2 and 99.2% Ar; (b) 1.2% O2 and 98.8% Ar.
Figure 3. UV absorption spectra for PAW: (a) 0.8% O2 and 99.2% Ar; (b) 1.2% O2 and 98.8% Ar.
Molecules 26 02523 g003
Molecules 26 02523 g004 550

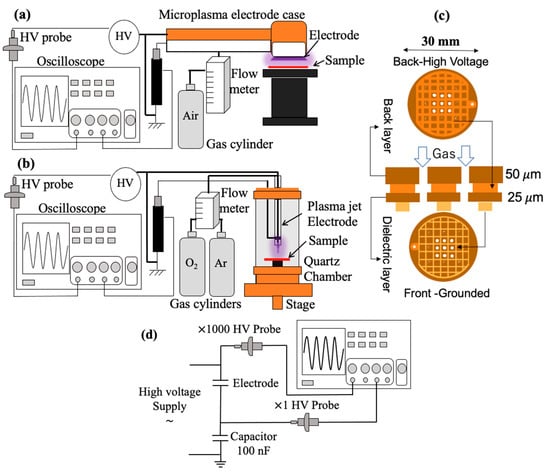

Figure 4. (a) DBD microplasma setup, (b) DBD microplasma electrode geometry, (c) plasma jet setup, and (d) transferred charge measurement setup.
