Characterization of Saponins from Various Parts of Platycodon grandiflorum Using UPLC-QToF/MS

by
So-Jeong Lee
,
Heon-Woong Kim
,
Suji Lee
,
Ryeong Ha Kwon
,
Hyemin Na
,
Ju Hyung Kim
,
Chi-Do Wee
,
Seon Mi Yoo
and
Sang Hoon Lee
*
Department of Agro-food Resources, National Institute of Agricultural Science, Rural Development Administration, Wanju-gun 55365, Jeollabuk-do, Korea
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(1), 107; https://doi.org/10.3390/molecules27010107
Submission received: 29 November 2021 / Revised: 15 December 2021 / Accepted: 21 December 2021 / Published: 24 December 2021
(This article belongs to the Section Food Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
Platycodon grandiflorum (PG) is known as a high-potential material in terms of its biological activity. The objective of this report is to provide chromatographic and mass fragment ion data of 38 simultaneously identified saponins, including novel compounds, by analyzing them through ultra-performance liquid chromatography coupled with quadrupole time-of-flight mass spectrometry (UPLC-QToF/MS). In so doing, we investigated their diverse conditions, including morphological parts (stems, roots, buds, and leaves), peeling (or not), and blanching of PG. The total contents of individual saponins indicated an order of roots (containing peel, 1674.60 mg/100 g, dry weight) > buds (1364.05) > roots (without peel, 1058.83) ≈ blanched roots (without peel, 945.17) ≈ stems (993.71) ≈ leaves (881.16). When considering three types of aglycone, the platycodigenin group (55.04 ~ 68.34%) accounted for the largest proportion of the total content, whereas the platycogenic acid A group accounted for 17.83 ~ 22.61%, and the polygalacic acid group represented 12.06 ~ 22.35%. As they are classified as major compounds, novel saponins might be utilized for their role in healthy food for human consumption. Additionally, during blanching, the core temperature of PG was satisfied with the optimal condition, thus activating the enzymes related to biotransformation. Furthermore, through the use of this comprehensive data, additional studies related to buds, as well as roots or the characterization of individual saponins, can be conducted in a rapid and achievable manner.

1. Introduction

Platycodon grandiflorum belongs to the Campanulaceae family, and it has been widely used as a traditional herb medicine to treat cough and sore throat; it has also been used as a food source, especially in northeast Asian countries, such as South Korea and China [1,2,3,4,5,6]. Raw PG roots are consumed in salads, whereas pickled fresh roots are used in juice, the traditional dish kimchi, jeonggwa, and as a functional food taken in pill form, or cooked by blanching or steaming [1,7,8]. Platycodi Radix (PR), i.e., the roots of PG, have reported biological properties, such as anti-inflammatory, antitumor, hepa protection, and antiobesity effects [9,10,11,12,13,14].
Plants synthesize different bioactive secondary metabolites such as saponins, alkaloids, flavonoids, terpenoids, and tannins. Among these, saponins, which are derived from ‘sapo’, a Latin word meaning ‘soap’, are largely subdivided into two classes: a triterpenoid (30 carbon atoms) and a steroid (27 carbon atoms). Additionally, based on the carbon of the aglycone, saponins are classified into 12 types, including dammaranes and oleananes [15,16,17,18]. Saponin derivatives are found in a large number of plants, such as Glycine max, Panax ginseng, Codonopsis lanceolata, Camellia sinensis, Puerariae lobata, and Centella asiatica, including Platycodon grandiflorum [19,20,21,22,23]. Previous reports show the total saponin content of Panax ginseng to be 57.2 ~ 121.8 mg/g, dry weight (DW) [24,25]. Until recently, saponins of Platycodon grandiflorum have been reported to have biological activities related to anti-inflammation in certain respiratory diseases. These corresponding symptoms become influential by spreading coronavirus (COVID-19) around the world, a disease that can have a lethal effect on the respiratory system. Therefore, this study focuses on analyzing saponins in Platycodon grandiflorum to support follow-up studies.
Many previous studies reported the characterization of saponins from Platycodi Radix using HPLC (high performance liquid chromatography) [9,26,27,28,29]. In recent years, UPLC (ultra-performance liquid chromatography) coupled with MS (mass spectrometry) has shown itself to be an appropriate instrument to analyze various saponin derivatives [12,30,31,32,33]. Based on a previous study, the identification and quantification of analytes using an MRM (multiple reaction monitoring) mode has been implemented to achieve a higher sensitivity [34].
In terms of previous research, there has yet to be a report comprehensively describing the four different parts of the plant, including the stems, leaves, roots, and buds, as well as a description of the materials used for blanching. Even though other studies have been conducted with various parts of PG, no study has simultaneously analyzed 38 saponins using UPLC-QTOF-mass spectrometry [4,14,32,35,36]. Therefore, in this study, using UPLC combined with QTOF-mass spectrometry analysis, 38 saponins were identified or tentatively characterized with four different parts, including the blanching process. Thus, considering the change in saponin content in these materials, along with the transformation in their structure, platycodin (major saponin in PG) pathways are examined in light of previous studies [37,38,39,40].

2. Results and Discussion

2.1. Identification of Saponins from P. grandiflorum

In this study, the identification of saponin derivatives was compared with the nine correct standards by retention time (RT), whereas mass fragmentation was measured using the MRM (multiple reaction method). The standards were deapi-platycoside E, platycoside E, deapi-platycodin D3, platycodin D3, deapi-platycodin D (not detected in samples), platycodin D2, platycodin D, polygalacin D (not detected), and 2”-O-acetyl platyconic acid A, respectively, in the elution order of RT. As a result, peak 2, 3, 8, 10, 24, 25, and 38 were confirmed accurately and identified as deapi-platycoside E, platycoside E, deapi-platycodin D3, platycodin D3, platycodin D2, platycodin D, and 2”-O-acetyl platyconic acid A, respectively. The remains of the peaks were identified by comparing the mass fragmentation and RT of the compounds in a previously constructed saponin library (Supplementary Materials; Table S1). A total of 38 saponin derivatives, including major saponins (platycodin D and platycodin E known as PG saponins), were identified from P. grandiflorum using ultra-performance liquid chromatography coupled with electrospray ionization tandem mass spectrometry (UPLC-ESI-MS) (Table S2).

2.2. Quantification of Saponins from P. grandiflorum

The contents of platycodin-related saponins in Platycodon grandiflorum were calculated using tubeimoside I (100 ppm) as an internal standard. The 38 saponins we identified were divided into three types in the aglycone group (Figure 1). Total saponin content is presented in Table 1, and the contents of the four parts ranged from 881.16 ± 5.15 to 1674.60 ± 25.45 mg/100 g dry weight (DW) in Platycodon grandiflroum. The chromatograms of representative samples are presented in Figure 2 and Figure 3.
The results of total saponin contents of the individual parts were in the following order: roots (containing peel, 1674.60 mg/100 g, dry weight (DW)) > buds (1364.05) ≈ roots (without peel, 1058.83) ≈ stems part (993.71) ≈ blanched roots (without peel, 945.17) ≈ leaves (881.16). This result indicated that the total saponin levels were diverse according to individual parts of PG (p < 0.05), except for between the stem and root parts (without peel) (p > 0.05). As the ability to remove the PG peel was hindered, the total saponin content was significantly reduced (p < 0.05). This result was assumed to be due to the fact that the peel comprised a considerable number of saponins. In addition, the aerial parts, including stems and leaves, contained phenolic acid or flavonoids, instead of saponins, which induced a difference in the total saponin content between the roots and other parts [35,41]. Previous studies reported that the total contents of individual saponin derivatives were 6410 ~ 13,197 (mg/100 g, DW) by quantifying based on corresponding external standards using HPLC [39,42,43]. Despite the use of external standards, an accurate confirmation of those compounds may be necessary for selecting authentic standards. HPLC could be limited in distinguishing simultaneously eluted saponins based on retention time. Other reports suggested that the total contents of crude saponins were 2524 and 23,400 (mg/100 g, DW) [44,45]; the analysis method for crude saponins induces a large difference in contents. In addition, quantification based on the internal standard, such as the method used in this study without external standards, could generate inaccurate data in terms of determining saponin contents only. Consequently, this study focused on the accurate identification of individual saponins using UPLC-QToF/MS, which is known as an instrument that indicates high resolutions, and then illustrated the proportion of individual saponin derivatives by comparing each sample in reference to quantification data based on the internal standard. In the case of stem parts, the deapi-platycodin D3 (peak 8, 0.13%) indicated the lowest proportion (%) of the total content, whereas 3”-O-acetyl platycurodin D (peak 23, 8.32%) was the highest proportion among the constituents. The two saponins are based on the aglycone of platycodigenin (m/z 520). Accordingly, numerous studies using LC–MS show that deapi-platycodin D3 is clearly a minor compound [37,46,47]. The observed result of the bud parts was 2”-O-acetyl polygalacin D3 (peak 21, 0.36%), which presented the lowest proportion (%); this structure also belongs to the polygalacic acid (m/z 504) group. In contrast, as based on platycogenic acid A (m/z 534), the novel 2”-O-acetyl platyconic acid A (peak 38, 10.25%) showed the highest proportion (%) of the total content. In the leaves, 2”-O-acetyl platyconic acid A (peak 38, 11.55%) was revealed as having the most obvious intensity, with the same in the bud case; conversely, the deapi-platycodin D2 (peak 19, 0.37%) showed the lowest concentration of intensity. Additionally, these compounds are associated with the aglycone of platycogenic acid A (m/z 534) and platycodigenin (m/z 520), respectively. Overall, in stems, buds, and leaves, the novel 2”-O-acetyl platyconic acid A (peak 38, 10.28, 10.25, 11.55%) showed the most major saponin concentrations; this compound is based on the aglycone structure of platycogenic acid A (m/z 534). The result of the roots (containing peel) was tentatively assigned as 3”-O-acetyl platyconic acid A3 (peak 13, 0.11%), which indicated the lowest intensity and was based on platycodigenin (m/z 520) aglycone; however, 3”-O-acetyl platycodin D (peak 27, 8.62%) showed the highest concentration. After removing the peel of PG, the highest and lowest compounds were platycoside E (peak 3, 9.62%) and 3”-O-acetyl platycoside E (peak 5, 0.02%), and both were related to platycodigenin (m/z 520) aglycone in this sample. Ultimately, saponins showing predominant contents in each sample were in the aglycone of the group in platycodigenin (m/z 520), followed by platycogenic acid A (m/z 534).
In addition, among the aglycone groups, the triterpenoid saponin related to platycodigenin (55.04–68.34%) was significantly more abundant than platycogenic acid A (17.83–22.61%) and polygalacic acid (12.06–22.35%). The compounds were related to the aglycone of platycodigenin (m/z 520), and 10 saponins of the 22 derivatives belonged to this group, indicating their significant difference (p < 0.05). They are the following compounds: platycoside G2 (peak 1), platycoside G1 (peak 2), platycoside E (peak 3), 3”-O-acetyl platycoside E (peak 5), platycoside P (peak 6), deapi-platycodin D3 (peak 8), 2”-O-acetyl platycoside E (peak 9), deapi-2”-O-acetyl platycodin D3 (peak 15), deapi-platycodin D2 (peak 19), and 2”-O-acetyl platycurodin D (peak 33); these do not include the undetected saponins. Additionally, in the platycogenic acid A (m/z 534) group, 2”-O-acetyl platyconic acid C (peak 29) and platyconic acid A (peak 31) indicated significant differences (p < 0.05). The remaining 3”-O-acetyl platyconic acid A (peak 32) and 2”-O-acetyl platyconic acid A (peak 38) groups showed no meaningful differences (p > 0.05). Moreover, in the case of polygalacic acid (m/z 504), only four compounds, including platycoside D (peak 4), deapi-polygalacin E (peak 7), 3”-O-acetyl polygalacin D3 (peak 16), and 2”-O-acetyl polygalacin D3 (peak 21), indicated meaningful differences (p < 0.05), whereas the others in this group were compounds that showed no significant differences (p > 0.05).
By focusing on these novel compounds in the aglycone group of polygalacic acids, deapi-polygalacin E (peak 7, 3.01%) was detected as a significant proportion of the total saponin contents in the stems, which was comparable to other parts. Additionally, 2”-O-acetyl platyconic acid A3 (peak 18, 4.54%) was predominantly indicated in the buds. In the case of the platycogenic acid A group, 2”-O-acetyl platyconic acid A (peak 38, 8.02 ~ 11.55%) and 3”-O-acetyl platyconic acid A (peak 32, 7.58 ~ 11.06%) were detected as major saponins. Finally, the results of platycodigenin aglycone group showed that platycurodin D (peak 20) occupied a significant proportion of the stems and buds, representing 6.54% and 5.03% of the total contents, respectively.
Previous studies reported that platycodin D or polygalacin D were the most dominant saponin derivative, and the contents of each compound indicated values as diverse as 246.2 ~ 1196.9 (mg/100 g, DW) and 191.6 ~ 1241.0 (mg/100 g, DW) when changing soil conditions, dividing the root, and changing the cultivated region [31,48,49,50,51,52,53]. However, Lu et al. showed that for the individual saponin content of various cultivated regions, some provinces revealed platycoside E (69.1 ~ 346.2 mg/100 g, DW) to be the most prevalent compound; however, other regions showed platycodin D (40.9 ~ 511.3 mg/100 g, DW) to be the predominant compound [42]. Therefore, these results indicated that the content and composition of individual saponins could differ dramatically by region. Many previous reports suggested that platycodin D and polygalacin D were major compounds. However, this study showed that 2”-O-acetyl platyconic acid A (peak 38, 101.78 ~ 139.78 mg/100 g, DW), a tentatively identified novel saponin, was detected as the most prevalent compound in the stem, bud, and leaves of PG using UPLC-QToF/MS. Additionally, the predominant saponins in the roots containing peel were 3”-O-acetyl platycodin D (peak 27, 144.40 mg/100 g, DW) and platycoside E (peak 3, 101.90 mg/ 100 g, DW) in the roots without the peel, respectively.
With reference to the table detailing saponin contents in roots (without peel) and blanched roots (without peel), the total saponin was reduced from 1058.83 (mg/100 g, DW) to 945.17 (mg/100 g, DW) after blanching (Table 1). Additionally, in the polygalacic acid group (m/z 504), one of the three groups, tentatively identified as novel compound 3”-O-acetyl platyconic acid A3 (peak 13), was removed entirely due to blanching. The proportion of polygalacin D3 (peak 14), 2”-O-acetyl polygalacin D (peak 37), and 3”-O-acetyl polygalacin D2 (peak 28) on the total saponin in each sample decreased after the process. Conversely, the contents of 3”-O-acetyl polygalacin D3 (peak 16), 2”-O-acetyl polygalacin D3 (peak 21), 3”-O-acetyl polygalacin D (peak 30), and 2”-O-acetyl polygalacin D2 (peak 36) were higher than before blanching. These results indicate that acetylation from polygalacin D3 to two compounds, including 3”-O-acetyl polygalacin D3 (peak 16) and 2”-O-acetyl polygalacin D3 (peak 21), might occur during the blanching process. Additionally, the trans-acetylation from 2”-O-acetyl polygalacin D (peak 37) to 3”-O-acetyl polygalacin D (peak 30), as well as from 3”-O-acetyl polygalacin D2 (peak 28) to 2”-O-acetyl polygalacin D2 (peak 36), was assumed to occur simultaneously due to the migration between 3”-O-acetyl and 2”-O-acetyl by each specific enzyme. In the case of the platycogenic acid A group (m/z 534), platyconic acid A (peak 31) decreased after the process, whereas the proportional contents of 3”-O-acetyl platyconic acid A (peak 32) and 2”-O-acetyl platyconic acid A (peak 38) increased. Finally, in the platycodigenin group (m/z 520), platycoside G2 (peak 1) lacked xyloside from platycoside G1 (peak 2), and was reduced in the blanching procedure; in contrast, the latter increased. By the mechanism of de-xylosylation and acetylation, deapi-platycodin D2 (peak 19) might be converted to corresponding platycoside P (peak 6) and deapi-3”-O-acetyl platycodin D2 (peak 22), respectively. Similarly, the phenomenon of decreasing platycurodin D (peak 20), platycodin D (peak 25), and platycodin D2 (peak 24) was presumed to change into 3 or 2”-O-acetyl platycurodin D (peak 23, 33), 3 or 2”-O-acetyl platycodin D (peak 27, 35), and 2”-O-acetyl platycodin D2 (peak 34) during the process with the use of acetic acid. Additionally, 2”-O-acetyl platycodin D2 (peak 34) might be converted from 3”-O-acetyl platycodin D2 (peak 26) by the migration of the acetic acid position from 3-OH to 2-OH by a trans-acetylation mechanism. Previous studies reported that specific enzymes have the ability to transform from platycoside E (peak 3) and platycodin D3 (peak 10) to platycodin D (peak 25) through the removal of glucoside [2,53,54]. Likewise, xylosylation was predicted to occur with a similar mechanism during the blanching process. Additionally, in the case of astragaloside from Radix Astragali in the saponin group, the optimal temperature for acetyl estrase’s activity was 35 °C, and it was stable at temperatures lower than 45 °C [55]. Nyakudya et al. noted the platycodin pathway in the enzymatic transformation by human intestinal microorganisms; this finding reinforces the acetylation mechanism, as well as de-glycosylation, including glucose and xylose, in PG [39]. Ma et al. reported that the cytochrome P450 (CYPs), polygalacic acid, platycodigenin, and platycogenic acid A are converted by one another; they also found that glycosyl transferase affects the detachment of carbohydrates in PG [38]. Therefore, in this study, using a blanching procedure, the mechanism of acetylation might have occurred in the provided temperature (35 ~ 45 °C) over a short time (2 min) because the core temperature of PG is satisfied with these specific conditions. Additionally, de-xylosylation could be illustrated in the phenomenon of de-glycosylation.
In all of the published literature, it is clear that Platycodon grandiflorum saponins (PGS) are oleanane types of triterpenoids [46,56]. PGS have hepato-protective effects by blocking the bioactivation of CCl4 and scavenging free radicals while inhibiting CYP2E1 activity [57]. In addition, PGS can also be immunological adjuvants. One of the PGS, platycodin D2, has potential to be a safe adjuvant that increases Th1 and Th2 cytokines [35,58]. Platycodin D could be used for the treatment of cancer via the induction of apoptosis in human leukocytes [11]. Moreover, it may be a potent adjuvant for increasing immune responses against the hepatitis B antigen [59]. 2”-O-acetyl polygalacin D2 and platycodin D were reported to reduce neuroinflammation [60]. Platycodin D3 regulates the production of NO (nitric oxide) and TNF-α, resulting in inflammatory pulmonary diseases [61,62]. Furthermore, a previous study reported a relationship between structure and function on seven major saponins from PG, and the result of this study was that platycodin D could be a major constituent for its strong immunological adjuvant properties and hemolytic activity [63].
In the above mentioned reports, major saponins, such as platycodin D and polygalacin D, were detected by a comparatively less accurate method: liquid chromatography (LC). This method is less accurate than LC coupled mass spectrometry (MS), which was used in this study. The results of this study provide the chromatographic and mass fragment data of individual saponins, tentatively identified by an accurate method: UPLC-QToF/MS. Accordingly, the compounds detected by this method include 2”-O-acetyl platyconic A (peak 38), 3”-O-acetyl platycodin D (peak 27), and platycoside E (peak 3) as the most prevalent constituents, which themselves could be separated and purified to produce health functional foods; moreover, the significantly large proportion of 2”-O-acetyl platyconic A could be used in various industries. In addition, in terms of their meaningful difference in saponin content, buds may be utilized in health functional foods.

3. Materials and Methods

3.1. Chemicals and Reagents

Methanol and water (HPLC grade) were purchased from Fisher Scientific (Fair Lawn, NJ, USA). Deapi-platycoside E, platycodin D3, platycodin D, and polygalacin D were purchased from Target Molecule Corporation (Boston, MA, USA), and platycoside E, platycodin D2, deapi-platycodin D3, and deapi-platycodin D were purchased from Med Chem Express (Monmouth, NJ, USA), whereas 3”-O-acetylplatyconic acid A from ALB Tech (Albany, NY, USA) was used as an external standard for identification. Tubeimoside I was used as the internal standard (100 ppm).

3.2. Plant Materials

Roots of P. grandiflorum were collected from Hoengseong, Korea in 2020. Leaves, stems, and buds of P. grandiflorum were obtained from Icheon, Korea in 2019. One part of the roots was blanched at 100 °C for 2 min after being washed with water, and the remains were only washed without blanching. Then, all samples were freeze-dried, pulverized, and stored in a deep freezer before analysis.

3.3. Extraction of Saponins

Then, 0.1 g of powered samples was extracted, first with 1.5 mL, and then with 1 mL extraction solvent (70% methanol). The mixture of the two extractions was vortexed, centrifuged for 10 min at 13,000 rpm, 10 °C, and the supernatant was filtered using a syringe filter (PVDF 0.2 µm, 13 mm, Whatman, Kent, England). The saponin extract was concentrated using N2 gas and redissolved with 15 mL of water. A solid-phase extraction method using a Hypersep C18 cartridge (Thermo Scientific, Rockwood, TN, USA) was initiated to isolate saponin derivates from the extract. The cartridge was activated with methanol (3 mL), followed by water (6 mL) for conditioning. The redissolved saponin extract was loaded on the cartridge, and then the diluted solution containing ISTD (internal standard; 100 ppm) was loaded on the cartridge. After washing the cartridge with water (6 mL), the crude saponin extract was eluted by methanol (15 mL) and concentrated using N2 gas. The final extract was redissolved with 500 µL of the extraction solvent (70% methanol) and filtered by a syringe filter (PVDF 0.2 µm, 13 mm, Whatman, Kent, England).

3.4. UPLC-DAD-QToF/MS Analysis

Saponin derivative profiling was performed by UPLC-DAD-QToF/MS (Sciex Co., Framingham, MA, USA) (Table 2 and Table 3). Identification and quantification of saponins were conducted by an analysis software version (Sciex Co., USA).

3.5. Identification and Quantification of Saponin Derivatives

The saponin library for Platycodon grandiflorum was constructed by data from the previous literature, as confirmed by MS and NMR analyses (Table S1). Saponin derivatives were identified by the data of these libraries, comprising compound names, used parts, molecular weight, and MS fragment ion patterns. Based on 9 standards confirmed and selected by multiple reaction monitoring (MRM) of Platycodon grandiflorum, 39 saponin derivatives were identified. Quantification was implemented by calculating the relative peak area of compounds compared with the internal standard (tubeimoside I, 100 ppm).

3.6. Statistical Analysis

One-way ANOVA was performed to confirm a significant difference between individual averages using Duncan’s multiple range test (p < 0.05) in SPSS (version 25.0, SPSS Inc., Chicago, IL, USA).

4. Conclusions

The objective of this study was to provide comprehensive data related to the chromatographic and mass fragment ion patterns of the 38 saponin derivatives in relation to four parts of Platycodon grandiflorum: stems, roots, leaves, and buds. Our method was based on a library constructed of the findings from previous literature, and newly detected data in this study allowed us to tentatively identify novel compounds to support further studies. In this study, except for the well-known major saponins, such as platycodin D, tentatively identified novel saponins indicated larger peaks than those in the abovementioned major compounds. Though the roots of PG have been comprehensively studied, studies on the buds and individual saponins, including novel and minor compounds, remain necessary; furthermore, their activities in relation to human health should also be studied. In conclusion, we provided chromatographic and mass fragment ion pattern data of 38 saponins from four parts of PG; peeling (or not) and blanching may be used in diverse experiments related to their characterization, and may aid in the production of functional food for human consumption.

Supplementary Materials

The following are available online: Table S1: Chemical library of 70 saponin derivatives based on previous literature sources. Table S2: Characterization of 38 saponin derivatives in Platycodon grandiflorum.

Author Contributions

S.H.L. conceived of the project; S.-J.L., H.-W.K., and S.H.L. designed the experiments; S.L., R.H.K., H.N., J.H.K., C.-D.W., and S.M.Y. prepared the samples; S.-J.L., R.H.K., H.N., and J.H.K. analyzed the data; S.-J.L. wrote the article. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Institute of Agricultural Sciences, rural development administration of Korea; Saponin database project (PJ014176012021).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the results and findings of this study is available from the corresponding author upon request.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Jeong, C.-H.; Choi, G.N.; Kim, J.H.; Kwak, J.H.; Kim, D.O.; Kim, Y.J.; Heo, H.J. Antioxidant activities from the aerial parts of Platycodon grandiflorum. Food Chem. 2010, 118, 278–282. [Google Scholar] [CrossRef]
  2. Jeong, E.-K.; Ha, I.J.; Kim, Y.S.; Na, Y.-C. Glycosylated platycosides: Identification by enzymatic hydrolysis and structural determination by LC-MS/MS. J. Sep. Sci. 2014, 37, 61–68. [Google Scholar] [CrossRef]
  3. Liu, Y.-Y.; Wang, Y.; Lv, W.-Q.; Li, D.; Wang, L.-J. Freeze-thaw and ultrasound pretreatment before microwave combined drying affects drying kinetics, cell structure and quality parameters of Platycodon grandiflorum. Ind. Crops Prod. 2021, 164, 113391. [Google Scholar] [CrossRef]
  4. Wang, C.; Zhang, N.; Wang, Z.; Qi, Z.; Zheng, B.; Li, P.; Liu, J. Rapid characterization of chemical constituents of Platycodon grandiflorum and its adulterant Adenophora stricta by UPLC-QTOF-MS/MS. J. Mass Spectrom. 2017, 52, 643–656. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, C.; Zhang, N.; Wang, Z.; Qi, Z.; Zhu, H.; Zheng, B.; Li, P.; Liu, J. Nontargeted metabolomic analysis of four different parts of Platycodon grandiflorum grown in Northeast China. Molecules 2017, 22, 1280. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Xu, B.-J.; Zheng, Y.-N.; Sung, C.-K. Quality control and evaluation of Platycodon grandiflorum: Implications for future management. Nat. Prod. Sci. 2004, 10, 141–151. [Google Scholar]
  7. Lee, Y.-J.; Lee, H.-O.; Kim, J.-Y.; Kwon, K.-H.; Cha, H.-S.; Kim, B.-S. Quality characteristics of frozen doraji (Platycodon grandiflorum) according to various blanching treatment conditions. Korean J. Food Preserv. 2011, 18, 661–668. [Google Scholar] [CrossRef]
  8. Yuk, T.; Sung, J.; Han, H.M.; Kim, Y.; Jeong, H.S.; Lee, J. Effect of different cooking methods on phytochemical content and antioxidant capacity of Platycodon grandiflorum root. Food Sci. Biotechnol. 2015, 24, 1597–1602. [Google Scholar] [CrossRef]
  9. Choi, Y.H.; Yoo, D.S.; Cha, M.R.; Choi, C.W.; Kim, Y.S.; Choi, S.U.; Lee, K.R.; Ryu, S.Y. Antiproliferative Effects of Saponins from the Roots of Platycodon grandiflorum on Cultured Human Tumor Cells. J. Nat. Prod. 2010, 73, 1863–1867. [Google Scholar] [CrossRef]
  10. Kim, J.-Y.; Park, K.-W.; Moon, K.-D.; Lee, M.-K.; Choi, J.; Yee, S.-T.; Shim, K.-H.; Seo, K.-I. Induction of apoptosis in HT-29 colon cancer cells by crude saponin from Platycodi Radix. Food Chem. Toxicol. 2008, 46, 3753–3758. [Google Scholar] [CrossRef]
  11. Kim, M.-O.; Moon, D.-O.; Choi, Y.H.; Shin, D.Y.; Kang, H.S.; Choi, B.T.; Lee, J.-D.; Li, W.; Kim, G.-Y. Platycodin D induces apoptosis and decreases telomerase activity in human leukemia cells. Cancer Lett. 2008, 261, 98–107. [Google Scholar] [CrossRef]
  12. Qiu, L.; Xiao, Y.; Liu, Y.Q.; Peng, L.X.; Liao, W.; Fu, Q. Platycosides P and Q, two new triterpene saponins from Platycodon grandiflorum. J. Asian Nat. Prod. Res. 2018, 21, 419–425. [Google Scholar] [CrossRef]
  13. Zhao, H.L.; Sim, J.-S.; Shim, S.H.; Ha, Y.W.; Kang, S.S.; Kim, Y.S. Antiobese and hypolipidemic effects of platycodin saponins in diet-induced obese rats: Evidences for lipase inhibition and calorie intake restriction. Int. J. Obes. 2005, 29, 983–990. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Zhao, L.-C.; Liu, Y.; Wang, Z.; Tang, N.; Leng, J.; Zheng, B.; Liu, Y.-Y.; Li, W. Liquid chromatography/mass spectrometry analysis and hepatoprotective effect of steamed Platycodi Radix on acute alcohol-induced liver injury. Int. J. Pharmacol. 2018, 14, 952–962. [Google Scholar] [CrossRef] [Green Version]
  15. Arif, T.; Bhosale, J.D.; Kumar, N.; Mandal, T.K.; Bendre, R.S.; Lavekar, G.S.; Dabur, R. Natural products–antifungal agents derived from plants. J. Nat. Prod. 2009, 11, 621–638. [Google Scholar] [CrossRef] [PubMed]
  16. Faizal, A.; Geelen, D. Saponins and their role in biological processes in plants. Phytochem. Rev. 2013, 12, 877–893. [Google Scholar] [CrossRef]
  17. Miettinen, K.; Inigo, S.; Kreft, L.; Pollier, J.; De Bo, C.; Botzki, A.; Coppens, F.; Bak, S.; Goossens, A. The TriForC database: A comprehensive up-to-date resource of plant triterpene biosynthesis. Nucleic Acids Res. 2018, 46, 586–594. [Google Scholar] [CrossRef] [Green Version]
  18. Vincken, J.-P.; Heng, L.; de Groot, A.; Gruppen, H. Saponins, classification and occurrence in the plant kingdom. Phytochem. Rev. 2007, 68, 275–297. [Google Scholar] [CrossRef]
  19. Arao, T.; Kinjo, J.; Nohara, T.; Isobe, R. Oleanene-type triterpene glycosides from Puerariae Radix. II. isolation of saponins and the application of tandem mass spectrometry to their structure determination. Chem. Pharm. Bull. 1995, 43, 1176–1179. [Google Scholar] [CrossRef] [Green Version]
  20. Du, Y.E.; Lee, J.S.; Kim, H.M.; Ahn, J.-H.; Jung, I.H.; Ryu, J.H.; Choi, J.-H.; Jang, D.S. Chemical constituents of the roots of Codonopsis lanceolata. Arch. Pharm. Res. 2018, 41, 1082–1091. [Google Scholar] [CrossRef]
  21. Myose, M.; Warashina, T.; Miyase, T. Triterpene saponins with hyaluronidase inhibitory activity from the seeds of Camellia sinensis. Chem. Pharm. Bull. 2012, 60, 612–623. [Google Scholar] [CrossRef] [Green Version]
  22. Shimoyamada, M.; Harada, K.; Okubo, K. Saponin composition in developing soybean seed (Glycine max (L.) Merrill, cv. Mikuriyaao). Agric. Biol. Chem. 1991, 55, 1403–1405. [Google Scholar]
  23. Shin, B.-K.; Kwon, S.W.; Park, J.H. Chemical diversity of ginseng saponins from Panax ginseng. J. Ginseng Res. 2015, 39, 287–298. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Jeong, G.-T.; Park, D.-H.; Ryu, H.-W.; Hwang, B.; Woo, J.-C.; Kim, D.; Kim, S.-W. Production of antioxidant compounds by culture of Panax ginseng C.A. meyer hairy roots. In Twenty-Sixth Symposium on Biotechnology for Fuels and Chemicals; Humana Press: Totowa, NJ, USA, 2005; pp. 1147–1158. [Google Scholar]
  25. Kim, B.-G.; Choi, S.-Y.; Kim, M.-R.; Suh, H.J.; Park, H.J. Changes of ginsenosides in Korean red ginseng (Panax ginseng) fermented by Lactobacillus plantarum M1. Process Biochem. 2010, 45, 1319–1324. [Google Scholar] [CrossRef]
  26. Choi, Y.H.; Yoo, D.S.; Choi, C.W.; Cha, M.-R.; Kim, Y.S.; Lee, H.S.; Lee, K.R.; Ryu, S.Y. Platyconic acid A, a genuine triterpenoid saponin from the roots of Platycodon grandiflorum. Molecules 2008, 13, 2871–2879. [Google Scholar] [CrossRef]
  27. Fu, W.-W.; Fu, J.-N.; Zhang, W.-M.; Sun, L.-X.; Pei, Y.-H.; Liu, P. Platycoside O, a new triterpenoid saponin from the roots of Platycodon grandiflorum. Molecules 2011, 16, 4371–4378. [Google Scholar] [CrossRef] [Green Version]
  28. Fu, W.-W.; Shimizu, N.; Dou, D.-Q.; Takeda, T.; Fu, R.; Pei, Y.-H.; Chen, Y.-J. Five new triterpenoid saponins from the roots of Platycodon grandiflorum. Chem. Pharm. Bull. 2006, 54, 557–560. [Google Scholar] [CrossRef] [Green Version]
  29. Fu, W.-W.; Shimizu, N.; Takeda, T.; Dou, D.-Q.; Chen, B.; Pei, Y.-H.; Chen, Y.-J. New A-ring lactone triterpenoid saponins from the roots of Platycodon grandiflorum. Chem. Pharm. Bull. 2006, 54, 1285–1287. [Google Scholar] [CrossRef] [Green Version]
  30. Ji, S.; Wang, Q.; Qiao, X.; Guo, H.-C.; Yang, Y.-F.; Bo, T.; Xiang, C.; Guo, D.-A.; Ye, M. New triterpene saponins from the roots of Glycyrrhiza yunnanensis and their rapid screening by LC/MS/MS. J. Pharm. Biomed. Anal. 2014, 90, 15–26. [Google Scholar] [CrossRef]
  31. Lee, D.Y.; Choi, B.-R.; Lee, J.W.; Um, Y.; Yoon, D.; Kim, H.-G.; Lee, Y.-S.; Kim, G.-S.; Lee, Y.-H.; Baek, N.-I. Simultaneous determination of various platycosides in four Platycodon grandiflorum cultivars by UPLC-QTOF/MS. Appl. Biol. Chem. 2019, 62, 1–10. [Google Scholar] [CrossRef]
  32. Lee, J.W.; Ji, S.-H.; Kim, G.-S.; Song, K.-S.; Um, Y.; Kim, O.T.; Lee, Y.; Hong, C.P.; Shin, D.-H.; Kim, C.-K.; et al. Global profiling of various metabolites in Platycodon grandiflorum by UPLC-QTOF/MS. Int. J. Mol. Sci. 2015, 16, 26786–26796. [Google Scholar] [CrossRef] [Green Version]
  33. Ouyang, H.; Zhou, M.; Guo, Y.; He, M.; Huang, H.; Ye, X.; Feng, Y.; Zhou, X.; Yang, S. Metabolites profiling of Pulsatilla saponin D in rat by ultra performance liquid chromatography-quadrupole time-of-flight mass spectrometry (UPLC/Q-TOF-MS/MS). Fitoterapia 2014, 96, 152–158. [Google Scholar] [CrossRef]
  34. Wang, Q.; Xiao, B.-X.; Pan, R.-L.; Liu, X.-M.; Liao, Y.-H.; Feng, L.; Cao, F.-R.; Chang, Q. An LC-MS/MS method for simultaneous determination of three Polygala saponin hydrolysates in rat plasma and its application to a pharmacokinetic study. J. Ethnopharmacol. 2015, 169, 401–406. [Google Scholar] [CrossRef] [PubMed]
  35. Xie, Y.; Pan, H.; Sun, H.; Li, D. A promising balanced Th1 and Th2 directing immunological adjuvant, saponins from the root of Platycodon grandiflorum. Vaccine 2008, 26, 3937–3945. [Google Scholar] [CrossRef] [PubMed]
  36. Kim, Y.-K.; Sathasivam, R.; Kim, Y.B.; Kim, J.K.; Park, S.U. Transcriptomic analysis, cloning, characterization, and expression analysis of triterpene biosynthetic genes and triterpene accumulation in hairy roots of Platycodon grandiflorum exposed to methyl jasmonate. ACS Omega 2021, 6, 12820–12830. [Google Scholar] [CrossRef] [PubMed]
  37. Ha, Y.W.; Na, Y.-C.; Ha, I.J.; Kim, D.-H.; Kim, Y.S. Liquid chromatography/mass spectrometry-based structural analysis of new platycoside metabolites transformed by human intestinal bacteria. J. Pharm. Biomed. Anal. 2010, 51, 202–209. [Google Scholar] [CrossRef] [PubMed]
  38. Ma, C.-H.; Gao, Z.-J.; Zhang, J.-J.; Zhang, W.; Shao, J.-H.; Hai, M.-R.; Chen, J.-W.; Yang, S.-C.; Zhang, G.-H. Candidate genes involoved in the biosynthesis of triterpenoid saponins in Platycodon grandiflorum identified by transcriptome analysis. Front. Plant Sci. 2016, 7, 673. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Nyakudya, E.; Jeong, J.H.; Lee, N.K.; Jeong, Y.S. Platycosides from the roots of Platycodon grandiflorum and their health benefits. Prev. Nutr. Food Sci. 2014, 19, 59–68. [Google Scholar] [CrossRef]
  40. Su, X.; Liu, Y.; Han, L.; Wang, Z.; Cao, M.; Wu, L.; Jiang, W.; Meng, F.; Guo, X.; Yu, N.; et al. A candidate gene identified in converting platycoside E to platycodin D from Platycodon grandiflorus by transcriptome and main metabolites analysis. Sci. Rep. 2021, 11, 1–7. [Google Scholar] [CrossRef]
  41. Mazol, I.; Micha, G.; Wojciech, C. Polyphenolic compounds from Platycodon grandiflorum A. DC. Acta Pol. Pharm. 2004, 61, 203–208. [Google Scholar]
  42. Lu, H.; Ju, M.; Chu, S.; Xu, T.; Huang, Y.; Chan, Q.; Peng, H.; Gui, S. Quantitative and chemical fingerprint analysis for the quality evaluation of Platycodi Radix collected from various regions in China by HPLC coupled with chemometrics. Molecules 2018, 23, 1823. [Google Scholar] [CrossRef] [Green Version]
  43. Yan, Y.Z.; Xue, J.C.; Wu, J.R.; Yoo, D.S.; Lee, S.Y.; Kim, Y.K.; Uddin, M.R.; Park, S.U. Variation of triterpenoid saponin content in Platycodon grandiflorum (Jacq.) A.D.C. Chem. Asian J. 2012, 24, 1268–1270. [Google Scholar]
  44. Chang, Y.-J.; Kim, E.; Choi, Y.-S.; Jeon, K.-H.; Kim, Y.-B. Development process for decreasing bitterness of doraji (Platycodon grandiflorum). J. Korean Soc. Food. Sci. Nutr. 2015, 44, 1550–1557. [Google Scholar] [CrossRef] [Green Version]
  45. Kim, S.-Y.; Lee, Y.-J.; Park, D.-S.; Kim, H.-R.; Cho, Y.S. Comparison of quality characteristics of Platycodon grandiflorum according to steaming and fermentation. Korean J. Food Preserv. 2015, 22, 851–858. [Google Scholar] [CrossRef] [Green Version]
  46. Kim, S.J.; Arasu, M.V.; AL-Dhabi, N.A.; Yoo, D.S.; Park, M.H.; Shin, Y.S.; Lee, S.W. Quantitative determination of triterpenoidal saponins in Platycodi radix and its variation in different regions of Korean Peninsula: A herbal plant used as traditional medicine. Chem. Asian J. 2013, 25, 7093–7097. [Google Scholar] [CrossRef]
  47. Ling, Y.; Zheng, Y.; Liu, K.; Zhang, Q.; Lu, Y. Structure characterization and identification of triterpenoid saponins from the root of Platycodon grandiflorum by HPLC/ESI-QTOF-MS/MS. Chem. Asian J. 2014, 26, 6839–6844. [Google Scholar] [CrossRef]
  48. Jeon, S.-H.; No, I.-R.; Kim, Y.-G.; Cho, Y.-S. Effects of organic fertilizer application on growth and medicinal ingredients of Platycodon grandiflorum Radix. Korea J. Org. Agric. 2016, 24, 511–524. [Google Scholar] [CrossRef]
  49. Jeon, S.-H.; No, I.-R.; Kim, Y.-G.; Cho, Y.-S. Effect of mulching materials on the growth and medicinal ingredients in Platycodon grandiflorum Radix organic cultivation. Korea J. Org. Agric. 2017, 25, 187–201. [Google Scholar]
  50. Jeon, S.-H.; No, I.-R.; Kim, Y.-G.; Chun, H.-S.; Cho, Y.-S. Effects of growth and medicinal ingredients of Platycodon grandiflorum Radix by organic and chemical fertilizers. Korea J. Org. Agric. 2017, 25, 403–417. [Google Scholar]
  51. Jeon, S.-H.; No, I.-R.; Kim, Y.-G.; Shim, D.-B.; Cho, Y.-S. Effect of green manure crop on growth and medicinal ingredients of Platycodon grandiflorum Radix. Korea J. Org. Agric. 2018, 26, 233–243. [Google Scholar] [CrossRef]
  52. Lee, B.J.; Jeon, S.H.; Lee, S.W.; Chun, H.S.; Cho, Y.S. Soil physico-chemistry and saponins content of Platycodon grandiflorum Radix cultured from different sites in Gyeongnam province. KJMCS 2014, 22, 463–468. [Google Scholar] [CrossRef] [Green Version]
  53. Ha, I.J.; Ha, Y.W.; Kang, M.; Lee, J.; Park, D.; Kim, Y.S. Enzymatic transformation of platycosides and one-stop separation of platycodin D by high-speed countercurrent chromatography. J. Sep. Sci. 2010, 33, 1916–1922. [Google Scholar] [CrossRef] [PubMed]
  54. Kil, T.-G.; Kang, S.-H.; Kim, T.-H.; Shin, K.-C.; Oh, D.-K. Enzymatic biotransformation of balloon flower root saponins into bioactive platycodin D by deglucosylation with Caldicellulosiruptor bescii β-glucosidase. Mol. Sci. 2019, 20, 3854. [Google Scholar] [CrossRef] [Green Version]
  55. Zhou, W.; Liu, X.; Ye, L.; Feng, M.; Zhou, P.; Shi, X. The biotransformation of astragalosides by a novel acetyl estrase from Absidia corymbifera AS2. Process Biochem. 2014, 49, 1464–1471. [Google Scholar] [CrossRef]
  56. Yoo, D.S.; Choi, Y.H.; Cha, M.R.; Lee, B.H.; Kim, S.-J.; Yon, G.H.; Hong, K.S.; Jang, Y.S.; Lee, H.S.; Kim, Y.S.; et al. HPLC-ELSD analysis of 18 platycosides from balloon flower roots (Platycodi Radix) sourced from various regions in Korea and geographical clustering of the cultivation areas. Food Chem. 2011, 129, 645–651. [Google Scholar] [CrossRef]
  57. Lee, K.J.; Choi, J.H.; Kim, H.G.; Han, E.H.; Hwang, Y.P.; Lee, Y.C.; Chung, Y.C.; Jeong, H.G. Protective effect of saponins derived from the roots of Platycodon grandiflorum against carbon tetrachloride induced hepatotoxicity in mice. Food Chem. Toxicol. 2008, 46, 1778–1785. [Google Scholar] [CrossRef]
  58. Xie, Y.; Deng, W.; Sun, H.; Li, D. Platycodin D2 is a potential less hemolytic saponin adjuvant eliciting Th1 and Th2 immune responses. Int. Immunopharmacol. 2008, 8, 1143–1150. [Google Scholar] [CrossRef]
  59. Xie, Y.; Sun, H.-X.; Li, D. Platycodin D is a potent adjuvant of specific cellular and humoral immune responses against recombinant hepatitis B antigen. Vaccine 2009, 27, 757–764. [Google Scholar] [CrossRef]
  60. Choi, J.H.; Yoo, K.-Y.; Park, O.K.; Lee, C.H.; Won, M.-H.; Hwang, I.K.; Ryu, S.Y.; Kim, Y.S.; Yi, J.-S.; Bae, Y.-S.; et al. Platycodin D and 2”-O-acetyl-polygalacin D2 isolated from Platycodon grandiflorum protect ischemia/reperfusion injury in the gerbil hippocampus. Brain Res. 2009, 1279, 197–208. [Google Scholar] [CrossRef] [PubMed]
  61. Ryu, J.; Lee, H.J.; Park, S.H.; Kim, J.; Lee, D.; Lee, S.K.; Kim, Y.S.; Hong, J.-H.; Seok, J.H.; Lee, C.J. Effects of the root of Platycodon grandiflorum on airway mucin hypersecretion in vivo and platycodin D3 and deapi-platycodin on production and secretion of airway mucin in vitro. Phytomedicine 2014, 21, 529–533. [Google Scholar] [CrossRef] [PubMed]
  62. Wang, C.; Levis, G.B.S.; Lee, E.B.; Levis, W.R.; Lee, D.W.; Kim, B.S.; Park, S.Y.; Park, E. Platycodin D and D3 isolated from the root of Platycodon grandiflorum modulate the production of nitric oxide and secretion of TNF-α in activated RAW 264.7 cells. Int. Immunopharmacol. 2004, 4, 1039–1049. [Google Scholar] [CrossRef]
  63. Sun, H.; Chen, L.; Wang, J.; Wang, K.; Zhou, J. Structure-function relationship of the saponins from the roots of Platycodon grandiflorum for hemolytic and adjuvant activity. Int. Immunopharmacol. 2011, 11, 2047–2056. [Google Scholar] [CrossRef] [PubMed]
Molecules 27 00107 g001 550

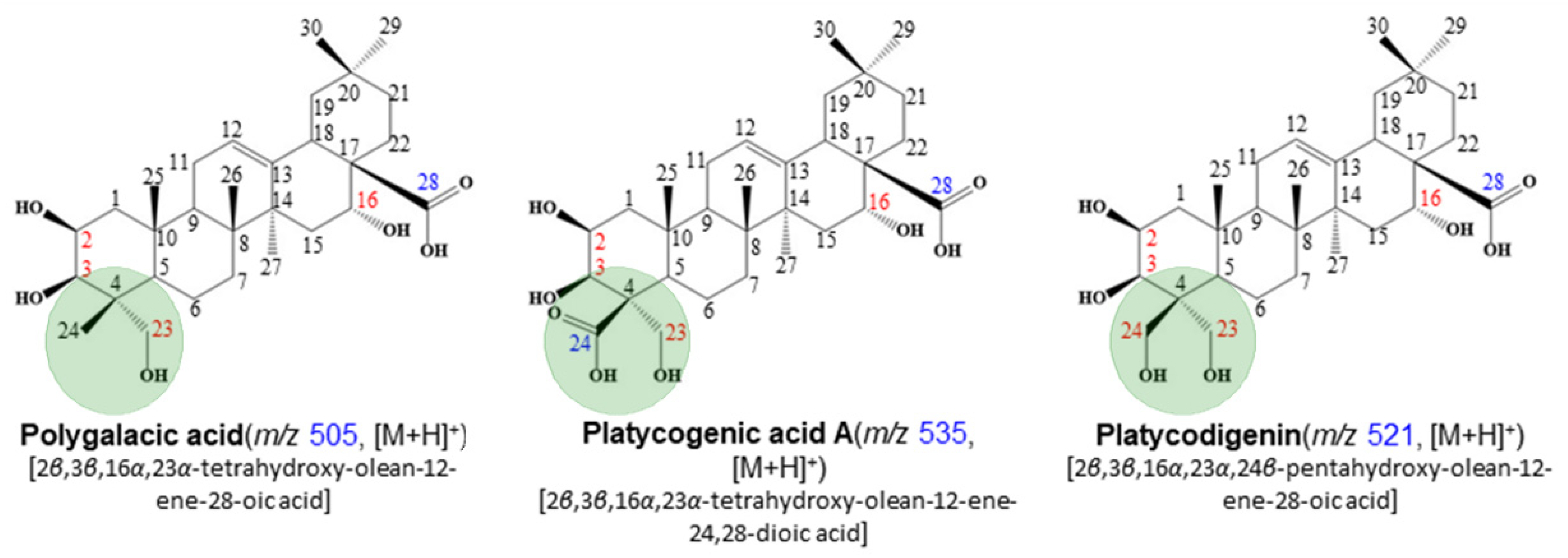

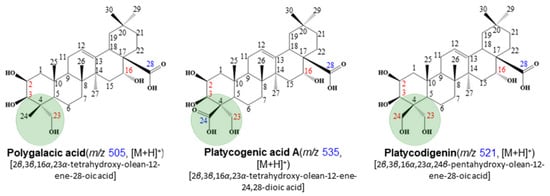

Figure 1. Three types of aglycone groups (polygalacic acid, platycogenic acid A, platycodigenin).
Figure 1. Three types of aglycone groups (polygalacic acid, platycogenic acid A, platycodigenin).
Molecules 27 00107 g001
Molecules 27 00107 g002 550

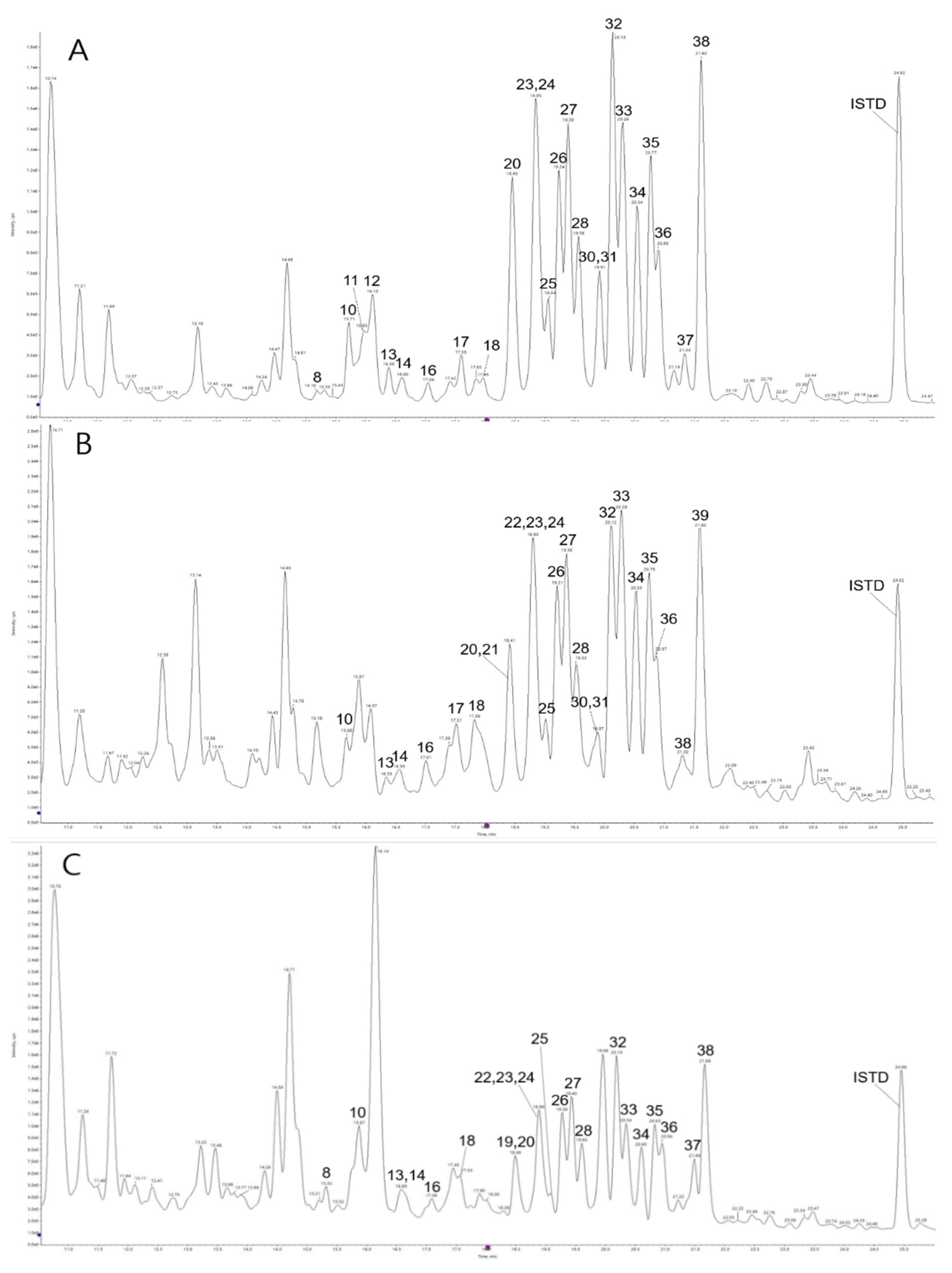

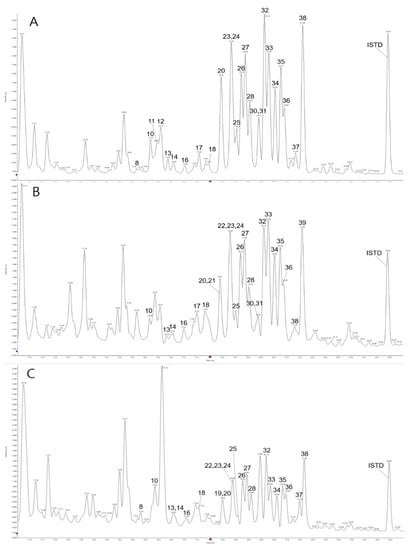

Figure 2. UPLC chromatograms of saponins from Platycodon grandiflorum. (A) stems part, (B) buds parts, and (C) leaves part.
Figure 2. UPLC chromatograms of saponins from Platycodon grandiflorum. (A) stems part, (B) buds parts, and (C) leaves part.
Molecules 27 00107 g002
Molecules 27 00107 g003 550

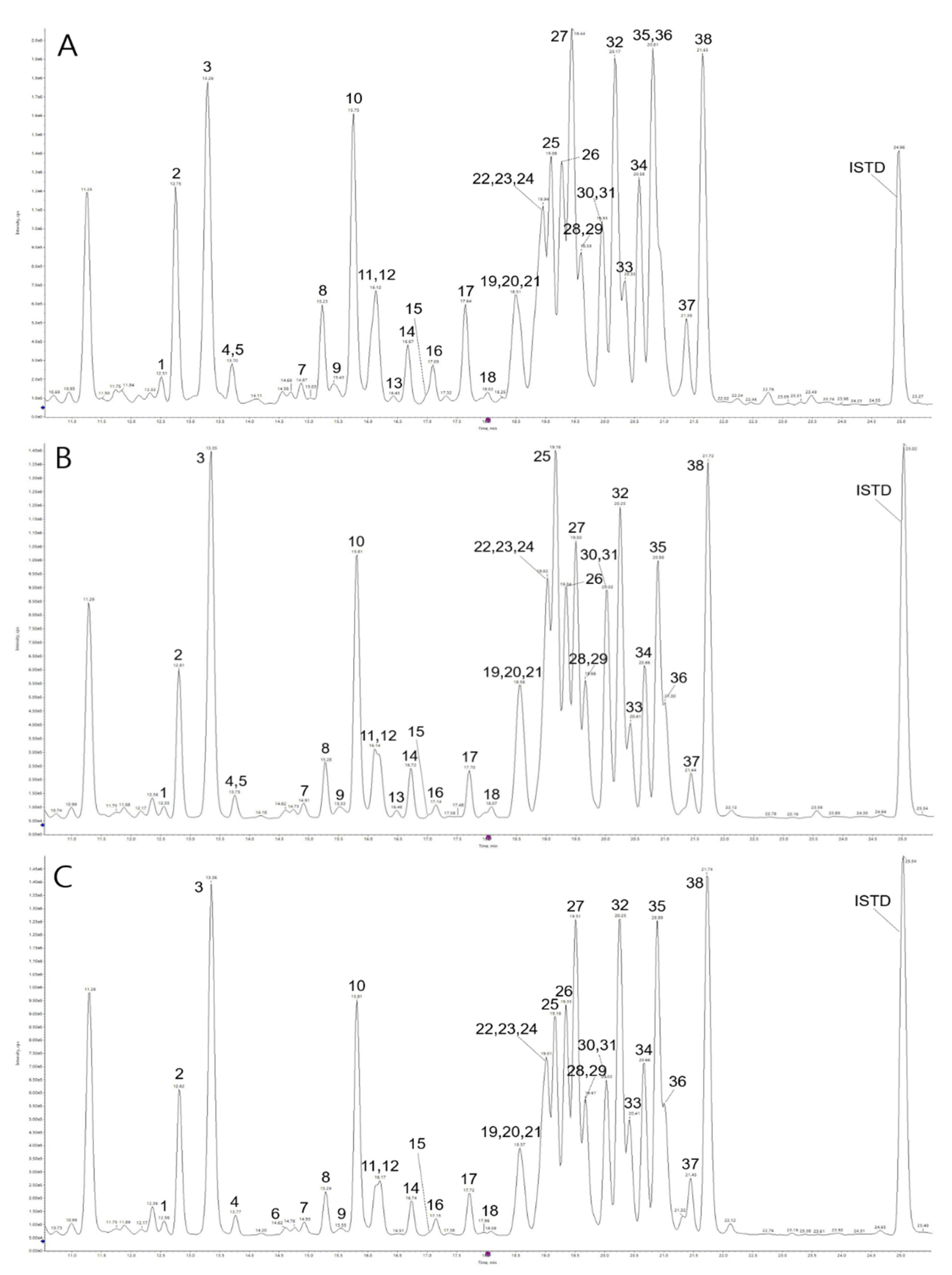

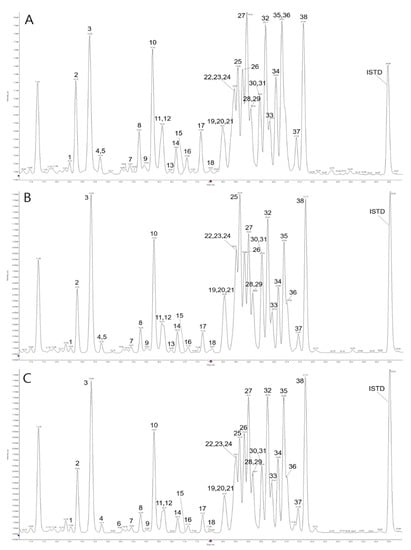

Figure 3. UPLC chromatograms of 38 saponins from Platycodon grandiflorum. (A) roots (containing peel), (B) roots (without peel), and (C) blanched roots (without peel).
Figure 3. UPLC chromatograms of 38 saponins from Platycodon grandiflorum. (A) roots (containing peel), (B) roots (without peel), and (C) blanched roots (without peel).
Molecules 27 00107 g003
Table
Table 1. Saponin derivatives contents (mg/100 g, DW) of P. grandiflorum. Each value was calculated as mean ± SD (n = 3) using the internal standard (tubeimoside I 100 ppm); ND means “not detected”; contents were expressed in mg/100 g DW (dry weight). Different small letters with mean values (n = 3) reveal a significant difference (at p < 0.05) by Duncan’s multiple range test.
Table 1. Saponin derivatives contents (mg/100 g, DW) of P. grandiflorum. Each value was calculated as mean ± SD (n = 3) using the internal standard (tubeimoside I 100 ppm); ND means “not detected”; contents were expressed in mg/100 g DW (dry weight). Different small letters with mean values (n = 3) reveal a significant difference (at p < 0.05) by Duncan’s multiple range test.
AglyconesPeak No. (1)StemsBudsLeavesRoots
(Containing Peel)		Roots
(without Peel)		Blanched Roots
(without Peel)
Polygalacic acid
(m/z 504)		4NDNDND11.97 ± 0.35 a5.88 ± 0.49 b4.60 ± 0.34 c
7NDNDND7.14 ± 0.15 a3.95 ± 0.19 b3.15 ± 0.06 c
1129.89 ± 3.67 aNDND12.19 ± 0.70 b11.56 ± 1.06 b7.47 ± 0.45 c
1310.54 ± 1.30 a6.53 ± 0.56 b4.85 ± 2.55 b1.90 ± 0.20 c2.02 ± 0.49 cND
1411.51 ± 2.02 b18.34 ± 3.25 a18.11 ± 1.94 a18.80 ± 0.29 a11.68 ± 0.56 b7.51 ± 0.16 c
166.41 ± 0.97 d15.46 ± 1.48 b17.56 ± 1.94 a8.98 ± 0.30 c2.52 ± 0.40 e2.93 ± 0.23 e
189.02 ± 1.82 bc61.97 ± 11.76 a16.37 ± 4.79 b3.83 ± 0.48 c3.17 ± 0.41 c0.97 ± 0.16 c
21ND4.96 ± 0.28 bND6.18 ± 0.30 a2.00 ± 0.24 d2.43 ± 0.06 c
2844.36 ± 2.86 b65.53 ± 7.09 a47.98 ± 3.28 b42.28 ± 4.49 b29.96 ± 1.31 c26.22 ± 0.51 c
3013.22 ± 1.40 c16.94 ± 3.76 bND35.96 ± 0.75 a12.39 ± 1.30 c16.37 ± 0.45 b
3637.51 ± 1.04 c57.12 ± 7.97 a46.63 ± 5.02 b55.71 ± 1.33 a29.99 ± 6.74 c32.61 ± 0.52 c
3714.01 ± 2.33 cd19.72 ± 7.81 c45.45 ± 3.09 a26.73 ± 2.40 b12.61 ± 1.48 d12.09 ± 0.41 d
Subtotal176.48 ± 11.66 c266.56 ± 26.94 a196.95 ± 11.93 c233.41 ± 4.97 b127.73 ± 12.26 d116.33 ± 1.39 d
Platycogenic acid A
(m/z 534)		29NDNDND9.09 ± 2.05 a6.95 ± 0.41 b5.95 ± 0.23 b
3117.15 ± 2.60 c11.55 ± 2.84 dND28.25 ± 1.84 b43.43 ± 3.53 a18.90 ± 1.07 c
32100.99 ± 7.24 b125.92 ± 4.94 a97.42 ± 3.12 b126.91 ± 3.01 a80.98 ± 7.62 c85.44 ± 5.35 c
38102.18 ± 1.51 b139.78 ± 12.81 a101.78 ± 5.71 b134.30 ± 0.91 a87.79 ± 3.14 c90.84 ± 1.31 c
Subtotal220.32 ± 9.73 c277.24 ± 15.34 b199.20 ± 8.77 d298.55 ± 2.83 a219.15 ± 8.82 c201.13 ± 5.47 d
Platycodigenin (m/z 520)1NDNDND8.69 ± 0.05 a2.82 ± 0.12 c3.07±0.19 b
2NDNDND69.69 ± 2.33 a34.19 ± 0.83 b31.62 ± 0.44 c
3NDNDND139.10 ± 3.00 a101.90 ± 3.51 b94.68 ± 3.05 c
5NDNDND1.96 ± 0.25 a0.18 ± 0.04 bND
6NDNDNDNDND1.73 ± 0.11 a
81.28 ± 0.75 dND7.44 ± 5.58 c32.72 ± 1.33 a13.04 ± 0.61 b9.71 ± 0.30 bc
9NDNDND10.19 ± 0.34 a4.76 ± 0.40 b2.46 ± 0.11 c
1026.28 ± 3.96 c29.59 ± 1.75 c57.62 ± 41.45 bc101.21 ± 6.13 a69.83 ± 2.35 b56.32 ± 0.93 bc
1223.94 ± 21.17 bNDND44.19 ± 0.85 a18.85 ± 2.01 b14.15 ± 0.25 bc
15NDNDND6.11 ± 0.32 a1.90 ± 0.30 b1.55 ± 0.16 c
1712.80 ± 1.75 c30.92 ± 5.84 bND36.93 ± 0.47 a11.96 ± 1.54 c9.75 ± 0.35 c
19NDND3.24 ± 0.36 d25.33 ± 0.60 a19.94 ± 1.03 b10.53 ± 0.10 c
2065.01 ± 2.95 a68.65 ± 8.04 a37.89 ± 3.59 b21.15 ± 0.60 c24.23 ± 0.14 c13.86 ± 0.69 d
22ND46.52 ± 36.97 a12.37 ± 0.56 b24.41 ± 1.58 ab6.90 ± 1.46 b9.51 ± 0.35 b
2382.66 ± 3.88 a71.87 ± 46.73 a51.96 ± 4.47 ab23.41 ± 2.13 bc11.68 ± 2.03 c16.72 ± 1.13 bc
2422.39 ± 1.78 bc26.05 ± 17.72 bc17.17 ± 1.20 c48.10 ± 0.91 a50.18 ± 2.48 a32.92 ± 1.32 b
2524.74 ± 2.06 d27.89 ± 4.08 d8.97 ± 0.53 e85.93 ± 2.02 b93.19 ± 7.50 a50.59 ± 1.14 c
2662.75 ± 3.21 c94.67 ± 4.48 a61.79 ± 5.51 c82.98 ± 2.59 b57.48 ± 4.15 cd52.40 ± 1.63 d
2778.64 ± 1.80 cd105.65 ± 4.28 b67.48 ± 3.28 e144.40 ± 4.29 a73.97 ± 6.88 de81.54 ± 1.06 c
3381.17 ± 4.37 b134.72 ± 6.54 a62.52 ± 2.61 c37.38 ± 3.36 d21.74 ± 1.13 e25.60 ± 1.08 e
3449.89 ± 3.05 c93.62 ± 4.73 a41.38 ± 2.69 d77.16 ± 2.21 b38.37 ± 3.73 d40.05 ± 0.85 d
3565.39 ± 3.99 cd90.09 ± 6.35 b55.17 ± 5.51 d123.33 ± 4.00 a54.84 ± 13.52 d68.87 ± 1.11 c
Subtotal596.91 ± 40.90 d820.24 ± 35.85 b485.01 ± 23.31 e1144.37 ± 18.86 a711.95 ± 28.26 c627.71 ± 8.24 d
Total993.71 ± 57.27 cd1364.05 ± 73.40 b881.16 ± 5.15 e1674.60 ± 25.45 a1058.83 ± 45.69 c945.17 ± 11.08 de
(1) 1, platycoside G2; 2, platycoside G1(deapi-platycoside E); 3, platycoside E; 4, platycoside D; 5, 3”-O-acetyl platycoside E; 6, platycoside P; 7, platycoside I(deapi-polygalacin E); 8, deapi-platycodin D3; 9, 2”-O-acetyl platycoside E; 10, platycodin D3; 11, platyconic acid A3; 12, 3”-O-acetyl platycodin D3; 13, 3”-O-acetyl platyconic acid A3; 14, polygalacin D3; 15, deapi-2”-O-acetyl platycodin D3; 16, 3”-O-acetyl polygalacin D3; 17, 2”-O-acetyl platycodin D3; 18, 2”-O-acetyl platyconic acid A3; 19, deapi-platycodin D2(platycoside A); 20, platycurodin D; 21, 2”-O-acetyl polygalacin D3; 22, deapi-3”-O-acetyl platycodin D2; 23, 3”-O-acetyl platycurodin D(platycodin L); 24, platycodin D2; 25, platycodin D; 26, 3”-O-acetyl platycodin D2; 27, 3”-O-acetyl platycodin D(platycodin C); 28, 3”-O-acetyl polygalacin D2; 29, 2”-O-acetyl platyconic acid C(platyconic acid D); 30, 3”-O-acetyl polygalacin D; 31, platyconic acid A; 32, 3”-O-acetyl platyconic acid A; 33, 2”-O-acetyl platycurodin D(platycodin K); 34, 2”-O-acetyl platycodin D2(platycodin V); 35, 2”-O-acetyl platycodin D(platycodin A); 36, 2”-O-acetyl polygalacin D2; 37, 2”-O-acetyl polygalacin D; 38, 2”-O-acetyl platyconic acid A.
Table
Table 2. MS parameters for saponin analysis.
Table 2. MS parameters for saponin analysis.
ItemsConditions
Ion source gas (psi)50
Curtain gas (psi)30
Ion source temperature (°C)450
Declustering potential (V)80
Collision energy (V)15 ± 10
Spray voltage (V)5500
CE spread (V)10
Ionization modePositive
Mass range (m/z)100–2000
Table
Table 3. UPLC separation conditions for saponin analysis.
Table 3. UPLC separation conditions for saponin analysis.
ItemsConditions
ColumnCORTECS ® UPLC ® T3, 2.1 × 15 0 mm, 1.6 μm
Pre-columnCORTECS ® UPLC ® Vanguard T3, 2.1 × 50 mm, 1.6 μm
Column temperature30 °C
Detector190–400 nm (representative wavelength, 203 nm)
Mobile phaseA: 0.1% Formic acid in water
B: 0.1% Formic acid in acetonitrile
Injection volume1 µL
Flow0.35 mL/min
Running time60 min
Gradient condition0–10 min (15–25% B), 10–40 min (25–50% B), 40–45 min (50–15% B), 50–60 min (15% B)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lee, S.-J.; Kim, H.-W.; Lee, S.; Kwon, R.H.; Na, H.; Kim, J.H.; Wee, C.-D.; Yoo, S.M.; Lee, S.H. Characterization of Saponins from Various Parts of Platycodon grandiflorum Using UPLC-QToF/MS. Molecules 2022, 27, 107. https://doi.org/10.3390/molecules27010107

AMA Style

Lee S-J, Kim H-W, Lee S, Kwon RH, Na H, Kim JH, Wee C-D, Yoo SM, Lee SH. Characterization of Saponins from Various Parts of Platycodon grandiflorum Using UPLC-QToF/MS. Molecules. 2022; 27(1):107. https://doi.org/10.3390/molecules27010107

Chicago/Turabian Style

Lee, So-Jeong, Heon-Woong Kim, Suji Lee, Ryeong Ha Kwon, Hyemin Na, Ju Hyung Kim, Chi-Do Wee, Seon Mi Yoo, and Sang Hoon Lee. 2022. "Characterization of Saponins from Various Parts of Platycodon grandiflorum Using UPLC-QToF/MS" Molecules 27, no. 1: 107. https://doi.org/10.3390/molecules27010107

Article Metrics

Back to TopTop
