Article

Spectroscopic Behaviour of Copper(II) Complexes Containing 2-Hydroxyphenones

by
Emmie Chiyindiko
1,
Ernst H. G. Langner
1,* and
Jeanet Conradie
1,2,*
1
Department of Chemistry, University of the Free State, P.O. Box 339, Bloemfontein 9300, South Africa
2
Department of Chemistry, UiT—The Arctic University of Norway, N-9037 Tromsø, Norway
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(18), 6033; https://doi.org/10.3390/molecules27186033
Submission received: 31 July 2022 / Revised: 29 August 2022 / Accepted: 7 September 2022 / Published: 16 September 2022
(This article belongs to the Special Issue Optical Properties of Metal Complexes)

Abstract

:
Theoretical investigations by density functional theory (DFT) and time-dependent DFT (TD-DFT) methods shed light on how the type of ligand or attached groups influence the electronic structure, absorption spectrum, electron excitation, and intramolecular and interfacial electron transfer of the Cu(II) complexes under study. The findings provide new insight into the designing and screening of high-performance dyes for dye-sensitized solar cells (DSSCs).

Graphical Abstract

1. Introduction

Copper(II/I) redox shuttles and copper dyes have received much interest as redox couples and dye sensitizers, respectively, for dye-sensitized solar cells (DSSCs) applications in recent years [1]. These first examples of full-copper solar cells, using copper(I) dyes with a copper(II/I) redox shuttle [2,3], create a new path for cheap and environmentally friendly DSSCs. Especially 4-coordinated copper(I) complexes, containing polypyridyl ligands, showed promising properties as dyes in DSSC [4,5,6,7].
Theoretical calculations using density functional theory are a handy tool to predict the UV-vis properties of both organic (for example LEG4 [8] and phenothiazine based dyes [9]) and metal-containing dyes. DFT calculations are reported for different transition metal complexes suitable to be used as dyes in DSSC, for example the well-known experimentally efficient Zn-porphyrin based sensitizer YD2-o-C8 [10], the well-known N3 ruthenium(II) sensitizer [5], and copper(II) complexes containing bipyridine- and phenanthroline-based ligands [1]. During such theoretical studies, UV/vis spectra are computed [11,12], absorbance maxima in the solar range are identified, and the molecular orbitals (MOs) involved in excitations relating to the absorbance maxima identified. Knowledge of the MOs involved in excitations can identify the type of excitation such as metal-to-ligand charge-transfer (MLCT) [11,13,14], ligand-to-metal charge-transfer (LMCT), ILCT (intra-ligand charge transfer) [12], and ligand-to-ligand charge transfer (LLCT) bands [9]. DFT calculated properties to evaluate the dye performance in DSSCs, such as charge transfer characteristics, light harvesting efficiency (LHE), the excited-state lifetime (τ), driving force of electron injection (ΔGinject) and dye regeneration (ΔGregenerate), are often reported [5,11,13,14,15,16,17]. DFT calculations can assist in the design of complexes with improved photo conversion. We recently reported on the experimental synthesis and electrochemical properties of a series of 4-coordinated copper(II) complexes containing 2-hydroxyphenones. Since 4-coordinated copper(I) complexes, containing polypyridyl ligands, showed promising properties as dye, in this contribution we focus on the UV-vis spectroscopic properties of 4-coordinated copper(II) complexes containing 2-hydroxyphenones (see Scheme 1). Results obtained by density functional theory (DFT) and time-dependent DFT (TD-DFT) methods are theoretically evaluated to provide a new insight into the designing and screening of high-performance dyes for DSSCs.

2. Results and Discussion

The Cu(II) complexes of this study are d9 complexes of d-electron occupation d x y 2 d x z 2 d y z 2 d z 2 2 d x 2 y 2 1 ; see Figure 1 for a molecular orbital (MO) energy level diagram of Cu(HBP)2 (5) with the mainly d-based and ligand-based MO energy levels identified, showing the mainly d-based MOs. Since the HOMO is ligand-based and the LUMO copper-based, the maximum wavelength UV-vis excitation peak of Cu(HBP)2, (5), will be of ligand-to-metal charge- transfer (LMCT) character. Low energy UV-vis excitation peaks of Cu(HBP)2, (5), that do not involve the LUMO, will be ligand-to-ligand charge transfer (LLCT) character.

2.1. Experimental and Calculated UV-Vis

Complexes (1)–(9) exhibit experimentally a large absorbance peak in the region 340–450 nm and a small peak in the range of 550–800 nm (see Figure 2a–c with data in Table 1). Since complexes (1)–(9) showed experimental absorption in the visible wavelength range, they could be considered as dyes in DSSC. Different DFT functionals and basis set combinations were used to identify the DFT method that best reproduced the experimental UV/vis absorbance maximum 401.0 nm of Cu(HBP)2 (5), the results are shown in Figure 3. The selected long range-corrected (LC) pure functionals, as well as some hybrid functionals overestimated the excitation energy (wavelength too low), while pure functionals (PW91, BP86, PBE) and asymptotically correct XC potentials (SAOP and LB94) overestimated the excitation energy. The B3LYP functional performed best, followed by PW6B95D3 and PBEh1PB. The B3LYP optimized ground state geometry were in good agreement with an available experimental crystal structure of (5) [18].
The TDDFT simulated UV/vis spectra, obtained by selected computational methods (details of the DFT methods are provided in Section 3.1), are shown in Figure 2, with more detail of the B3LYP/6-311G(d,p)/def2-TZVPP method in Figure 4. There are 3 main bands in each of the calculated spectra, of which the indicated band 1 and band 2 correspond to the experimentally observed absorbance peaks in the regions 340–450 nm (band 2) and 550–800 nm (band 1). In the 340–450 nm (band 2) region, the calculated absorbance peaks generally consist of 2 closely overlapping peaks. The wavelength of the lowest energy oscillator in this region was used to be compared with the experimental wavelengths (Figure 3 and Table 1). The large experimental peaks of complexes (1)–(9) in the region 340–450 nm (band 2), are best reproduced by band 2 of the B3LYP/6-311G(d,p)/def2-TZVPP method with an average deviation (AD) from experiment of 2.4 nm. The PW6B95D3/CEP-121G and PBEh1PB/CEP-121G methods gave AD of band 2 values of complexes (1)–(9), from experiment values, of 6.3 and 9.1 nm, respectively. The M06/CEP-121G and M06/SDD TD-DFT methods, using the B3LYP/6-311G(d,p)/def2-TZVPP optimized geometry gave AD of band 2 values from experiment values of 9.2 and 9.8 nm, respectively. The PW6B95D3/CEP-121G and PBEh1PB/CEP-121G methods did not show any absorbance peak above 450 nm (band 1), while the B3LYP/6-311G(d,p)/def2-TZVPP method, as well as the M06/CEP-121G and M06/SDD TD-DFT methods, using the B3LYP/6-311G(d,p)/def2-TZVPP optimized geometries, did show the small experimentally observed band 1 peaks, though at a wavelength 150–200 nm lower than experimentally observed (see Figure 2). The B3LYP/6-311G(d,p)/def2-TZVPP results, the best agreement with the experiment, will thus be discussed in more detail. The B3LYP/6-311G(d,p)/def2-TZVPP calculated maximum absorption wavelengths (λA,max), oscillator strength (f), and energy are summarized in Table 1 for the main absorbance peaks calculated for (1)–(9).
The B3LYP/6-311G(d,p)/def2-TZVPP method shows three obvious calculated absorption bands for complexes (1)–(9), which are located at the 240–340, 340–450 and 450–600 nm regions (see Figure 2b and Table 1). The small peaks of the UV/vis spectra in the range of 450–600 nm (band 1, the maximum wavelength peak, λmax), originate from LMCT transitions; see the assignments of the orbitals involved in the main transitions during the excitation of (1)–(9) in Table 2. These peaks correspond to the experimentally very small peaks observed at 550–800 nm for complexes (1)–(9) (Figure 2(aiii)).
The main MOs involved the transition of the maximum absorbance peak, λA,max, of (5), are visualized is Figure 5 and summarized in Table 2 for molecules (1)–(9). The natural transition orbitals (NTOs) involved the main transitions of the λA,max peak of (5), are visualized in Figure 6. The NTO method provides a compact orbital representation of the orbitals involved in a transition from the electronic ground to the electronic excited state [19]. The NTO transition occurs from a small set of particle (occupied)–hole (unoccupied) pairs [20]. Both the MOs evaluation and the NTOs show than the large experimental peaks observed in the region 340–450 nm (Figure 2(aii)) that correspond to the calculated band 2 peaks (Figure 2, Table 1) in the same 340–450 nm range, are LLCT bands.
Good agreement was obtained between the TDDFT calculated oscillators of band 2 and experimental absorbance maxima in this range (indicated in Table 1 and visualized in Figure 4). Complexes with electron withdrawing ligands (complexes (1)–(4)) absorb light at higher wavelengths, while electron-donating ligands (complexes (6)–(9)) shift absorbance to lower wavelengths than (5) containing the unsubstituted HBP ligand. For molecules (1)–(4), the main contributions to the band 2 maximum absorbance, λA,max, transition are from HOMO (β-HOMO) to LUMO + 4 (β-LUMO + 2) and from HOMO-1 (α-HOMO) to LUMO + 3 (α-LUMO + 1), with similar ligand character than observed for (5). However, for the complexes containing electron donating ligands molecules (6)–(9), the band 2 transitions include some LMCT character as well. The red shift to a longer wavelength of the band 2 transitions, are allocated to the involvement of the metal based LUMO in the excitation. Excitation to the LUMO contributes ca. 11% for molecules (6) and (7) and 36 or 45% for molecules (8) and (9), respectively. Molecules (1)–(6) contain 2-hydroxybenzophenone ligands, while molecule (8) contains a 2′-hydroxyacetophenone (HAP) and molecule (9) a 2′-hydroxypropiophenone (HPP) ligand.

2.2. DSSC Application

The absorption ranges of the dyes (1)–(9) fall in the visible region, thus ensuring effective solar energy usage (see Figure 2). We therefore present and discuss theoretical calculated properties of (1)–(9), as needed for dyes in DSSC containing the (I3/I) redox mediator and TiO2 semiconductor. The B3LYP/6-311G(d,p)/def2-TZVPP calculated light harvesting efficiency (LHE), excited state lifetime (τ in ns), HOMO energies (EHOMO), LUMO energies (ELUMO), ΔGinject (eV) and ΔGregenerate (eV) values are tabulated in Table 3, with the HOMO and LUMO energies visualized in Figure 7. Table 4 gives the same calculated properties for dyes theoretically investigated as photochromic dyes for DSSC in literature [21,22,23,24] (see Figure 8 for the structures of the dyes).
HOMO and LUMO energies are of interest since they generally are involved in the lowest energy electronic transitions. The photo-induced electron transfer from the dye to the excited state of dye is followed by electron injection into the semiconductor surface. By comparing the computed EHOMO and ELUMO of the dyes with the potential of the CB of the TiO2 semi-conductor, and with the potential of the most widely used electrolyte redox couple I /I3 [25], respectively, the propelling force of electron injection (ΔGinject) and dye regeneration (ΔGregenerate) in DSSCs is evaluated [9]. More negative HOMO energies than the I /I3 redox couple imply a fast regeneration of the oxidized dyes. More positive LUMO energies than the ECB of TiO2 could ensure an effective injection of excited electrons [26]. The HOMO and LUMO energies of (1)–(9) are compared to the energy of the CB of TiO2 and the redox potential of the (I3/I) redox couple in Figure 7.
The B3LYP/6-311G(d,p)/def2-TZVPP calculated HOMO–LUMO gaps of complexes (1)–(9) fluctuate in the range of 2.95–3.19 eV, as shown in Figure 7. The changes in the LUMO levels (within 0.46 eV) rather than the HOMO levels (within 0.25 eV) mainly cause the differences in energy gap. Specifically, complexes (6) and (7) have the maximal HOMO–LUMO gap of 3.19 eV, while complex (1) has the minimum value of 2.95 eV. Comparing the unsubstituted hydroxybenzophenone Cu complex (5) (gap = 3.09 eV), the largest difference in the gap of 0.10 eV is observed with (6) and (7), indicating that the addition of an electron donating ester substituent, increases the LUMO level and thus leads to a larger HOMO–LUMO gap for (6) and (7). The HOMO–LUMO gap decreases significantly (up to 0.14 eV for (1)) with addition of electron withdrawing halide substituent groups. With the solar energy maximum occurring near 500 nm, a lower energy gap is likely to result in high photocurrents in the DSSC. This suggests that lower energy gaps are more suitable as photosensitizers in the DSSCs [27,28]. The HOMO and LUMO levels of the Cu(II) complexes fit well with the CB of TiO2 and the redox potential of the (I3/I) electrolyte. Figure 7 shows the HOMOs are suitably lower than the redox potential of I/I3 electrolyte (−4.8 eV) [5], which would be useful for the regeneration of the excited dyes; while the LUMOs are aptly higher than CB of TiO2 (4.0 eV) [29], enabling the efficient electron injection into the semiconductor.
The visible and near UV regions are the most essential region for photon-to-current conversion to obtain information about the electronic transitions and its corresponding molecular orbital properties. The LHE of the dye sensitizer should be as high as possible to maximize the photocurrent response [21,28]. The oscillator strength of the dye associated with the wavelength corresponds to the peak absorbance through intramolecular charge transfer (ICT). A high f generally results in a higher LHE, while a small HOMO–LUMO energy gap increases the light-capturing capacity and improves the efficiency of the DSSCs. The f value of the dye with alkoxy groups ((7), Table 1) was higher than that reported for some other dyes (Table 4), which suggested that the LHE of complex (7) would also be greater compared to other dyes. The LHE should be as high as possible to maximize the short-circuit current density (JSC) [22].
The Gibbs energy change for electron injection ∆Ginject affects the electron injection rate and therefore the current density JSC in DSSCs. The ∆Ginject values of all the dyes were favourable for injection into the TiO2 (conduction band) CB edge. On the other hand, the redox levels of the electrolyte are higher than the ground state of the dye, leading to favourable ∆Greg for regeneration of dyes. The larger the absolute values of ∆Ginject and ∆Greg, the greater will be the ease with which the charge transfers between the conduction band of the dye and the electrolyte [21].
These results indicate that the copper-based complexes (1)–(9) might be effective sensitizers for a next-generation dye-sensitized solar cell. However, since Kohn−Sham Mos involved in the main excitations are all symmetrical round copper (Figure 5), the distance between the centroid of the hole and the electron after excitation will be small. Excitation would thus mainly lead to intramolecular electron recombination with low efficiency electron injection into the semiconductor [17]. Structural modifications (e.g., mixed ligand complexes) are needed before these complexes could qualify as dyes in the framework of DSSCs.

2.3. Relationships Involving Experimental UV-Vis Peaks

From the experimental optic UV-vis data, the experimental optical energy gap (ΔEexp, optical) related to an experimental UV-vis peak can be calculated, using different approaches such as using λA,max, λonset or energy obtained from a Tauc plot, as illustrated in Figure 9a,b for molecule (5). The high intensity experimental peak (peak identified as band 2 in Figure 2a at 401 nm for (5)) was used to obtain ΔEexp, optical, A-max = 3.1 eV, ΔEexp, optical, onset = 2.6 eV and ΔEexp, optical, Tauc = 2.8 eV for (5). The results are different and depend on the selected approach. Similarly, the theoretically calculated energy gap depends on the DFT method used. When calculating the theoretical energy gap, the specific Mos involved in the theoretical transition (e.g., at 401.2 nm for (5)), which agree with the experimental UV-Vis peak (401 nm for (5)), need to be used [30]; namely 37.7% HOMO-1 to LUMO + 3 (Egap = 3.68 eV) and 36.4% HOMO to LUMO + 4 (Egap = 3.67 eV) transitions for (5) (see Figure 4). The average of the Egap of the main transitions involved in theoretically calculated peak (ΔEcalc, A-max), relates to the experimentally calculated Egap of the same peak (ΔEexp, A-max) for molecules (1)–(7), as well as to the excitation energy of the λA,max peak (see Figure 10, data in Table 5). The obtained experimentally determined Egap and the DFT calculated Egap do not coincide with each other, but they show similar tendencies.

3. Materials and Methods

The bis(2-hydroxyphenone)copper(II) complexes (1)–(9) were synthesized and characterized as described in our previous publication [18]. UV/vis spectra were recorded on a Varian Cary 50 Conc ultra-violet/visible spectrophotometer.

3.1. DFT Calculations

The molecules (1)–(9) were optimized using the density functional theory (DFT) program Gaussian 16 [32] and different DFT functionals and basis set combinations. The DFT methods used are indicated as functional/basis1/basis2 where functional is the DFT functional used, basis2 is the basis set used for Cu, and basis1 is the basis set used for C, H and O. If no basis2 is indicated, basis1 is also used for Cu. The five methods showing “B3LYP go” in brackets in Figure 3 used the optimized B3LYP geometry in the TD-DFT calculation with the indicated method. For all the other methods, geometry optimization as well as TD-DFT calculations were done with the indicated method. For example, the B3LYP/6-311G(d,p)/def2-TZVPP method uses the hybrid B3LYP functional [33,34], the triple-ζ 6-311G(d,p) basis set for the lighter atoms (C, H, Cl, F, O) and the def2-TZVPP basis set [35] for the core and valence electrons of Cu. The PW6B95D3/CEP-121G and PBEh1PB/CEP-121G methods use PW6B95D3 [36] and PBEh1PBE [37] functionals, respectively, both with the CEP-121G basis set [38,39,40] for all atoms. TD-DFT calculations were performed on molecules (1)–(9) [41,42,43], using the same level of theory as for the optimization, except when indicated that the B3LYP optimized geometries were used.
All calculations were performed in DMSO as implicit solvent, the experimental solvent used for the UV-vis spectra. The improved IEF-PCM solvation model, the integral equation formalism (IEF) version of the Polarizable Continuum Model (PCM), was used to model solvation effects [44,45]. The input coordinates for the compounds were constructed using Chemcraft [46].
From the TD-DFT results, the following properties related to DSSC were obtained or calculated:
  • λmax with the corresponding calculated transition energy E (cm−1) and the calculated oscillator strength (f) of the excited state;
  • Excited state lifetime (τ in ns) [16];
  • Light harvesting efficiency (LHE) [47,48];
  • The injection driving force of a dye (ΔGinject) [9];
  • The regeneration driving force of a dye (ΔGregenerate) [9];
  • Using the equation below:
τ (in s) = 1.499/(f E2)
LHE = 1 10 f
Δ G inject = E dye * E CB = E dye E λ max E CB
Δ G regenerate = ( E e l e c t r o l y t e   ) ( E dye )
where E dye * is the oxidation potential of the excited dye (approximated by energy difference E dye E λ max ), Edye is the oxidation potential of the dye (approximated by HOMO energy), ECB is the reduction potential of the conduction band edge (TiO2 with ECB = −4.0 eV vs. vacuum or −0.5 eV vs. NHE [29] is used in this study), E λ max   is the electronic vertical transition energy corresponding to λmax potential, and E e l e c t r o l y t e   is the redox potential of the electrolyte (the I/I3 redox couple is used in this study, with E I / I 3   = −4.8 eV vs. vacuum or 0.3 eV vs. NHE) [25].

3.2. Calculations Involving Experimental Data

From the experimental UV-vis, the experimental band gap energy can be calculated from the formula ΔEopt = hc/λ = 1240/λ, where the wavelength λ is obtained from (i) the maximum absorbance wavelength λmax, (ii) the λonset or (iii) from a Tauc plot denoting the onset of absorption [49] (see Section 2.3). The Tauc plot of (αEp)2 versus Ep is according to the following equation [50,51,52,53]:
αEp = K(Ep − Eg′)1/2
where α represents the absorption coefficient, K is a constant, Ep is photon energy and Eg′ is the band-gap energy. Values for α and Ep are determined by:
α = 2.303 A/d
Ep = hc/λ
where A is the absorption (arbitrary units) and d is the sample thickness, which for a cuvette is 1 cm, h Planck’s constant with hc = 1240 eV and λ representing the wavelength in nm. The band-gap energy, Eg, was determined by linear extrapolation of absorption edges on the graph of (αEp)2 versus Ep to the x-axis where y = 0.

4. Conclusions

The lowest energy excitation of the Cu(HBP)2 complexes, involving a ligand-based MO and a metal based LUMO, are of LMCT character, while all other low energy excitations that do not involve the LUMO, will be LLCT bands. TDDFT results and properties related to DSSC (λA,max, τ, LHE, ΔGinject and ΔGregenerate) indicated that these Cu(HBP)2 complexes show promising performance, and with structural modifications can be made suitable for applications in the next-generation DSSCs.

Author Contributions

E.C.: Synthesis, Investigation, Data curation, Methodology, Formal analysis, Writing—Original draft. J.C.: Conceptualization, Supervision, Resources, Data curation, Formal analysis, Validation, Methodology, Funding acquisition, Project administration, Writing- Reviewing and Editing. E.H.G.L.: Funding acquisition, Reviewing and Editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Central Research Fund of the University of the Free State (UFS), the Sasol University Collaboration Programme and the National Research Foundation (NRF) in South Africa (grant nos. 129270 and 132504). The APC was funded by the Open Access Publications Fund of the UFS.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The High-Performance Computing facility of the UFS, the CHPC of South Africa (Grant no CHEM0947) and the Norwegian Supercomputing Program (UNINETT Sigma2, Grant No. NN9684K) are acknowledged for computer time.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Conradie, J. Polypyridyl copper complexes as dye sensitizer and redox mediator for dye-sensitized solar cells. Electrochem. Commun. 2022, 134, 107182. [Google Scholar] [CrossRef]
  2. Dragonetti, C.; Magni, M.; Colombo, A.; Melchiorre, F.; Biagini, P.; Roberto, D. Coupling of a copper dye with a copper electrolyte: A fascinating springboard for sustainable dye-Sensitized solar cells. ACS Appl. Mater. Interfaces 2018, 1, 751–756. [Google Scholar] [CrossRef]
  3. Karpacheva, M.; Malzner, F.J.; Wobill, C.; Büttner, A.; Constable, E.C.; Housecroft, C.E. Cuprophilia: Dye-sensitized solar cells with copper(I) dyes and copper(I)/(II) redox shuttles. Dyes Pigment. 2018, 156, 410–416. [Google Scholar] [CrossRef]
  4. Bessho, T.; Constable, E.C.; Graetzel, M.; Hernandez Redondo, A.; Housecroft, C.E.; Kylberg, W.; Nazeeruddin, M.K.; Neuburger, M.; Schaffner, S. An element of surprise—Efficient copper-functionalized dye-sensitized solar cells. Chem. Commun. 2008, 32, 3717–3719. [Google Scholar] [CrossRef]
  5. Lu, X.; Wei, S.; Wu, C.M.L.; Li, S.; Guo, W. Can polypyridyl Cu(I)-based complexes provide promising sensitizers for dye-sensitized solar cells? A theoretical insight into Cu(I) versus Ru(II) sensitizers. J. Phys. Chem. C 2011, 115, 3753–3761. [Google Scholar] [CrossRef]
  6. Bozic-Weber, B.; Brauchli, S.Y.; Constable, E.C.; Fürer, S.O.; Housecroft, C.E.; Malzner, F.J.; Wright, I.A.; Zampese, J.A. Improving the photoresponse of copper(i) dyes in dye-sensitized solar cells by tuning ancillary and anchoring ligand modules. Dalt. Trans. 2013, 42, 12293–12308. [Google Scholar] [CrossRef]
  7. Sandroni, M.; Favereau, L.; Planchat, A.; Akdas-Kilig, H.; Szuwarski, N.; Pellegrin, Y.; Blart, E.; Le Bozec, H.; Boujtita, M.; Odobel, F. Heteroleptic copper(I)-polypyridine complexes as efficient sensitizers for dye sensitized solar cells. J. Mater. Chem. A 2014, 2, 9944–9947. [Google Scholar] [CrossRef]
  8. Li, Y.; Lv, Y.; Liu, Y.; Gao, H.; Shi, Q.; Li, Y. DFT and TD-DFT investigations of organic dye with different π-spacer used for solar cell. J. Mater. Sci. Mater. Electron. 2017, 28, 9642–9652. [Google Scholar] [CrossRef]
  9. Xu, Z.; Li, Y.; Zhang, W.; Yuan, S.; Hao, L.; Xu, T.; Lu, X. DFT/TD-DFT study of novel T shaped phenothiazine-based organic dyes for dye-sensitized solar cells applications. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2019, 212, 272–280. [Google Scholar] [CrossRef]
  10. Han, L.-H.; Zhang, C.-R.; Zhe, J.-W.; Jin, N.-Z.; Shen, Y.-L.; Wang, W.; Gong, J.-J.; Chen, Y.-H.; Liu, Z.-J. Understanding the Electronic Structures and Absorption Properties of Porphyrin Sensitizers YD2 and YD2-o-C8 for Dye-Sensitized Solar Cells. Int. J. Mol. Sci. 2013, 14, 20171–20188. [Google Scholar] [CrossRef]
  11. Baldenebro-Lopez, J.; Flores-Holguin, N.; Castorena-Gonzalez, J.; Almaral-Sanchez, J.; Glossman-Mitnik, D. Theoretical Study of Copper Complexes: Molecular Structure, Properties, and Its Application to Solar Cells. Int. J. Photoenergy 2013, 2013, 613064. [Google Scholar] [CrossRef]
  12. Lazorski, M.S.; Castellano, F.N. Advances in the light conversion properties of Cu(I)-based photosensitizers. Polyhedron 2014, 82, 57–70. [Google Scholar] [CrossRef]
  13. Lu, X.; Wu, C.M.L.; Wei, S.; Guo, W. DFT/TD-DFT investigation of electronic structures and spectra properties of Cu-based dye sensitizers. J. Phys. Chem. A 2010, 114, 1178–1184. [Google Scholar] [CrossRef]
  14. Wei, S.; Shi, X.; Lu, X.; Shao, Y.; Jin, D.; Deng, Z.; Zhao, Z.; Li, K.; Guo, W. Cu(I)-based sensitizers featuring 6,6’-dimethyl-4,4’-dicarboxylate-2,2′-bipyridine with functionalized 2,9-dimethyl-1,10-phenanthroline ligands: A structural, electronic and spectral investigation. Sci. Adv. Mater. 2015, 7, 1361–1367. [Google Scholar] [CrossRef]
  15. Wei, S.; Shao, Y.; Shi, X.; Lu, X.; Li, K.; Zhao, Z.; Guo, C.; Zhu, H.; Guo, W. Heteroleptic Cu(I) complexes integrating functionalized chromophores for dye-sensitized solar cells: An in-depth analysis of electronic structure, spectrum, excitation, and intramolecular electron transfer. Org. Electron. 2016, 29, 142–150. [Google Scholar] [CrossRef]
  16. Xu, Z.; Lu, X.; Li, Y.; Wei, S. Theoretical Analysis on Heteroleptic Cu(I)-Based Complexes for Dye-Sensitized Solar Cells: Effect of Anchors on Electronic Structure, Spectrum, Excitation, and Intramolecular and Interfacial Electron Transfer. Molecules 2020, 25, 3681. [Google Scholar] [CrossRef]
  17. Conradie, J. DFT Study of bis(1,10-phenanthroline)copper complexes: Molecular and electronic structure, redox and spectroscopic properties and application to Solar Cells. Electrochim. Acta 2022, 418, 140276. [Google Scholar] [CrossRef]
  18. Chiyindiko, E.; Langner, E.H.G.; Conradie, J. Electrochemical behaviour of copper(II) complexes containing 2-hydroxyphenones. Electrochim. Acta 2022, 424, 140629. [Google Scholar] [CrossRef]
  19. Martin, R.L. Natural transition orbitals. J. Chem. Phys. 2003, 118, 4775–4777. [Google Scholar] [CrossRef]
  20. Feng, R.; Yu, X.; Autschbach, J. Spin–Orbit Natural Transition Orbitals and Spin-Forbidden Transitions. J. Chem. Theory Comput. 2021, 17, 7531–7544. [Google Scholar] [CrossRef]
  21. Megala, M.; Rajkumar, B.J.M. Theoretical study of anthoxanthin dyes for dye sensitized solar cells (DSSCs). J. Comput. Electron. 2016, 15, 557–568. [Google Scholar] [CrossRef]
  22. Rashid, M.A.M.; Hayati, D.; Kwak, K.; Hong, J. Theoretical Investigation of Azobenzene-Based Photochromic Dyes for Dye-Sensitized Solar Cells. Nanomaterials 2020, 10, 914. [Google Scholar] [CrossRef] [PubMed]
  23. Zhao, D.; Lu, Q.; Su, R.; Li, Y.; Zhao, M. Light harvesting and optical-electronic properties of two quercitin and rutin natural dyes. Appl. Sci. 2019, 9, 2567. [Google Scholar] [CrossRef]
  24. Fitri, A.; Benjelloun, A.T.; Benzakour, M.; Mcharfi, M.; Hamidi, M.; Bouachrine, M. Theoretical design of thiazolothiazole-based organic dyes with different electron donors for dye-sensitized solar cells. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2014, 132, 232–238. [Google Scholar] [CrossRef] [PubMed]
  25. Cahen, D.; Hodes, G.; Grätzel, M.; Guillemoles, J.F.; Riess, I. Nature of Photovoltaic Action in Dye-Sensitized Solar Cells. J. Phys. Chem. B 2000, 104, 2053–2059. [Google Scholar] [CrossRef]
  26. Luo, J.H.; Li, Q.S.; Yang, L.N.; Sun, Z.Z.; Li, Z.S. Theoretical design of porphyrazine derivatives as promising sensitizers for dye-sensitized solar cells. RSC Adv. 2014, 4, 20200–20207. [Google Scholar] [CrossRef]
  27. Zhang, C.R.; Liu, L.; Zhe, J.W.; Jin, N.Z.; Ma, Y.; Yuan, L.H.; Zhang, M.L.; Wu, Y.Z.; Liu, Z.J.; Chen, H.S. The role of the conjugate bridge in electronic structures and related properties of tetrahydroquinoline for dye sensitized solar cells. Int. J. Mol. Sci. 2013, 14, 5461–5481. [Google Scholar] [CrossRef]
  28. Abdullah, M.I.; Janjua, M.R.S.A.; Mahmood, A.; Ali, S.; Ali, M. Quantum chemical designing of efficient sensitizers for dye sensitized solar cells. Bull. Korean Chem. Soc. 2013, 34, 2093–2098. [Google Scholar] [CrossRef]
  29. Asbury, J.B.; Wang, Y.-Q.; Hao, E.; Ghosh, H.N.; Lian, T. Evidences of hot excited state electron injection from sensitizer molecules to TiO2 nanocrystalline thin films. Res. Chem. Intermed. 2001, 27, 393–406. [Google Scholar] [CrossRef]
  30. Soltani, M.; Minakar, R.; Memarian, H.R.; Sabzyan, H. Cyclic Voltammetric Study of 3,5-Diaryl-1-phenyl-2-pyrazolines. J. Phys. Chem. A 2019, 123, 2820–2830. [Google Scholar] [CrossRef]
  31. Baerends, E.J.; Gritsenko, O.V.; Van Meer, R. The Kohn-Sham gap, the fundamental gap and the optical gap: The physical meaning of occupied and virtual Kohn-Sham orbital energies. Phys. Chem. Chem. Phys. 2013, 15, 16408–16425. [Google Scholar] [CrossRef] [PubMed]
  32. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision B.01; Gaussian Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  33. Becke, A.D. Density-functional exchange-energy approximation with correct asymptotic behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef] [PubMed]
  34. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [PubMed]
  35. Weigend, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297. [Google Scholar] [CrossRef] [PubMed]
  36. Zhao, Y.; Truhlar, D.G. Design of Density Functionals That Are Broadly Accurate for Thermochemistry, Thermochemical Kinetics, and Nonbonded Interactions. J. Phys. Chem. A 2005, 109, 5656–5667. [Google Scholar] [CrossRef]
  37. Ernzerhof, M.; Perdew, J.P. Generalized gradient approximation to the angle- and system-averaged exchange hole. J. Chem. Phys. 1998, 109, 3313–3320. [Google Scholar] [CrossRef]
  38. Stevens, W.J.; Basch, H.; Krauss, M. Compact effective potentials and efficient shared-exponent basis sets for the first- and second-row atoms. J. Chem. Phys. 1984, 81, 6026–6033. [Google Scholar] [CrossRef]
  39. Stevens, W.J.; Krauss, M.; Basch, H.; Jasien, P.G. Relativistic compact effective potentials and efficient, shared-exponent basis sets for the third-, fourth-, and fifth-row atoms. Can. J. Chem. 1992, 70, 612–630. [Google Scholar] [CrossRef]
  40. Cundari, T.R.; Stevens, W.J. Effective core potential methods for the lanthanides. J. Chem. Phys. 1993, 98, 5555–5565. [Google Scholar] [CrossRef]
  41. Stratmann, R.E.; Scuseria, G.E.; Frisch, M.J. An efficient implementation of time-dependent density-functional theory for the calculation of excitation energies of large molecules. J. Chem. Phys. 1998, 109, 8218–8224. [Google Scholar] [CrossRef]
  42. Scalmani, G.; Frisch, M.J.; Mennucci, B.; Tomasi, J.; Cammi, R.; Barone, V. Geometries and properties of excited states in the gas phase and in solution: Theory and application of a time-dependent density functional theory polarizable continuum model. J. Chem. Phys. 2006, 124, 094107. [Google Scholar] [CrossRef]
  43. De Angelis, F.; Fantacci, S.; Selloni, A. Alignment of the dye’s molecular levels with the TiO2 band edges in dye-sensitized solar cells: A DFT–TDDFT study. Nanotechnology 2008, 19, 424002. [Google Scholar] [CrossRef] [PubMed]
  44. Marenich, A.V.; Cramer, C.J.; Truhlar, D.G. Universal Solvation Model Based on Solute Electron Density and on a Continuum Model of the Solvent Defined by the Bulk Dielectric Constant and Atomic Surface Tensions. J. Phys. Chem. B 2009, 113, 6378–6396. [Google Scholar] [CrossRef] [PubMed]
  45. Skyner, R.E.; Mcdonagh, J.L.; Groom, C.R.; Mourik, T. Van A review of methods for the calculation of solution free energies and the modelling of systems in solution. Phys. Chem. Chem. Phys. 2015, 17, 6174–6191. [Google Scholar] [CrossRef] [PubMed]
  46. Chemcraft—Graphical Software for Visualization of Quantum Chemistry Computations. Available online: https://www.chemcraftprog.com/ (accessed on 30 July 2022).
  47. Khalid, M.; Hussain, R.; Hussain, A.; Ali, B.; Jaleel, F.; Imran, M.; Assiri, M.A.; Khan, M.U.; Ahmed, S.; Abid, S.; et al. Electron donor and acceptor influence on the nonlinear optical response of diacetylene-functionalized organic materials (DFOMs): Density functional theory calculations. Molecules 2019, 24, 2096. [Google Scholar] [CrossRef]
  48. Saminadayar, K.; Tatarenko, S.; Kheng, K.; Huard, V.; Martrou, D. Growth and doping of Te-based II–VI layers and quantum structures by molecular beam epitaxy. In Handbook of Advanced Electronic and Photonic Materials and Devices; Elsevier: Amsterdam, The Netherlands, 2001; pp. 1–80. ISBN 978-0-12-513745-4. [Google Scholar]
  49. Budnikova, Y.H.; Dudkina, Y.B.; Kalinin, A.A.; Balakina, M.Y. Considerations on electrochemical behavior of NLO chromophores: Relation of redox properties and NLO activity. Electrochim. Acta 2021, 368, 137578. [Google Scholar] [CrossRef]
  50. Tauc, J.; Grigorovici, R.; Vancu, A. Optical Properties and Electronic Structure of Amorphous Germanium. Phys. Status Solidi 1966, 15, 627–637. [Google Scholar] [CrossRef]
  51. Tauc, J. Optical properties and electronic structure of amorphous Ge and Si. Mater. Res. Bull. 1968, 3, 37–46. [Google Scholar] [CrossRef]
  52. Makuła, P.; Pacia, M.; Macyk, W. How To Correctly Determine the Band Gap Energy of Modified Semiconductor Photocatalysts Based on UV–Vis Spectra. J. Phys. Chem. Lett. 2018, 9, 6814–6817. [Google Scholar] [CrossRef]
  53. Mogale, R.; Conradie, J.; Langner, E.H.G. Trans–Cis Kinetic Study of Azobenzene-4,4′-dicarboxylic Acid and Aluminium and Zirconium Based Azobenzene-4,4′-dicarboxylate MOFs. Molecules 2022, 27, 1370. [Google Scholar] [CrossRef]

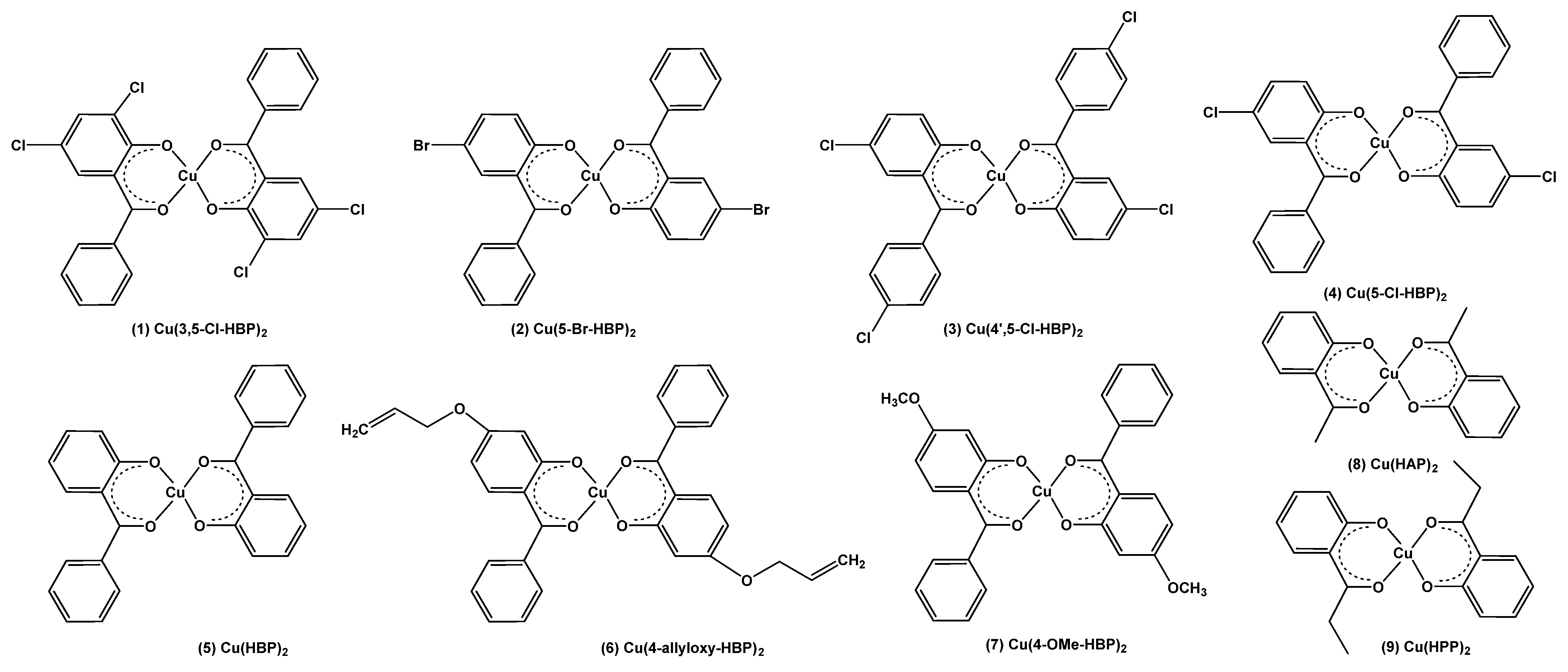

Scheme 1. Structure and numbering of the Cu(L)2 complexes of this study. L = 2-hydroxyphenone ligand.
Scheme 1. Structure and numbering of the Cu(L)2 complexes of this study. L = 2-hydroxyphenone ligand.
Molecules 27 06033 sch001

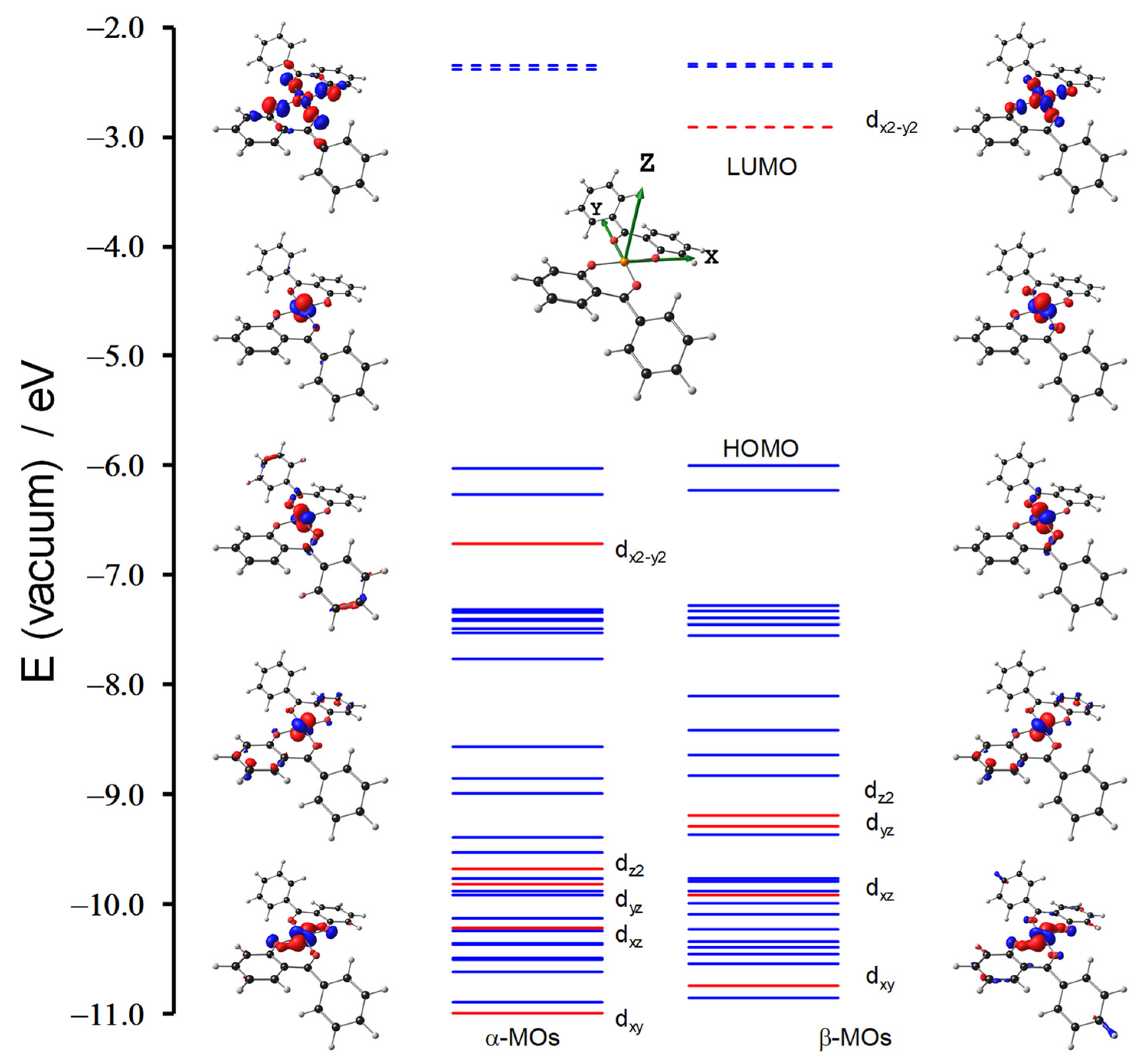

Figure 1. B3LYP/6-311G(d,p)/def2-TZVPP calculated Kohn−Sham MO energy level diagram of Cu(HBP)2 (5) with the mainly copper-d-based MOs shown. The energy of occupied and unoccupied MO energy levels is shown with solid and dotted lines, respectively. Mainly copper-d-based and ligand-based MOs are shown in red and blue, respectively. A contour of 0.06 e/Å3 was used for the orbital plot. Colour code of atoms (online version): Cu (orange), C (grey), O (red), H (white).
Figure 1. B3LYP/6-311G(d,p)/def2-TZVPP calculated Kohn−Sham MO energy level diagram of Cu(HBP)2 (5) with the mainly copper-d-based MOs shown. The energy of occupied and unoccupied MO energy levels is shown with solid and dotted lines, respectively. Mainly copper-d-based and ligand-based MOs are shown in red and blue, respectively. A contour of 0.06 e/Å3 was used for the orbital plot. Colour code of atoms (online version): Cu (orange), C (grey), O (red), H (white).
Molecules 27 06033 g001

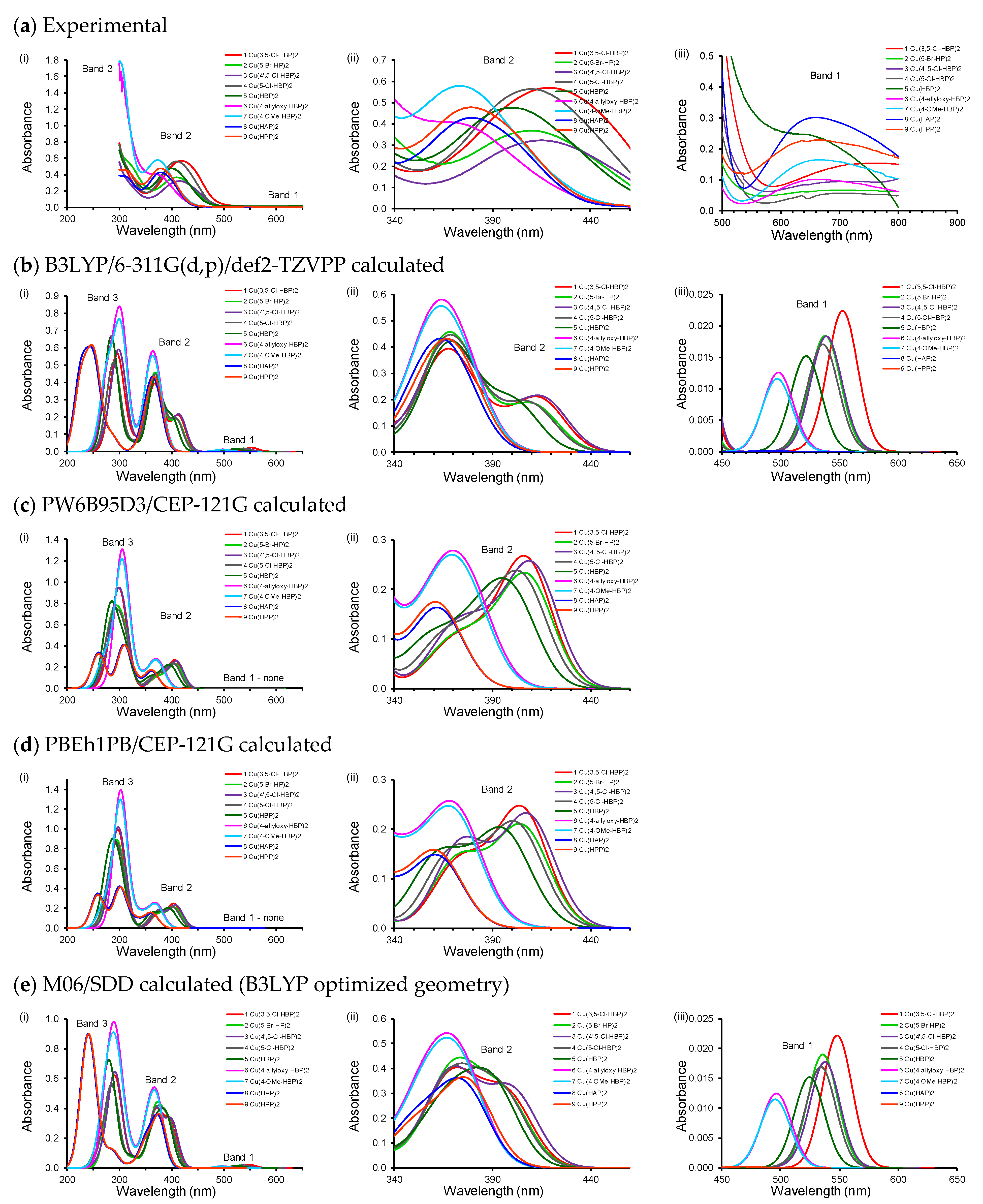

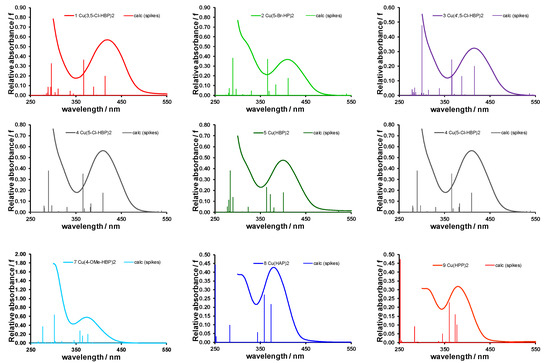

Figure 2. (a) Experimental absorption spectra of the Cu(II) complexes (1)–(9) in DMSO in region (i) 300–650 nm, (ii) 340–450 nm and (iii) 500–800 nm; (be): Simulated absorption spectra of the Cu(II) complexes (1)–(9), calculated with the (b) B3LYP/6-311G(d,p)/def2-TZVPP, (c) PW6B95D3/CEP-121G, (d) PBEh1PB/CEP-121G and (d) M06/SDD methods, all using DMSO as implicit solvent.
Figure 2. (a) Experimental absorption spectra of the Cu(II) complexes (1)–(9) in DMSO in region (i) 300–650 nm, (ii) 340–450 nm and (iii) 500–800 nm; (be): Simulated absorption spectra of the Cu(II) complexes (1)–(9), calculated with the (b) B3LYP/6-311G(d,p)/def2-TZVPP, (c) PW6B95D3/CEP-121G, (d) PBEh1PB/CEP-121G and (d) M06/SDD methods, all using DMSO as implicit solvent.
Molecules 27 06033 g002

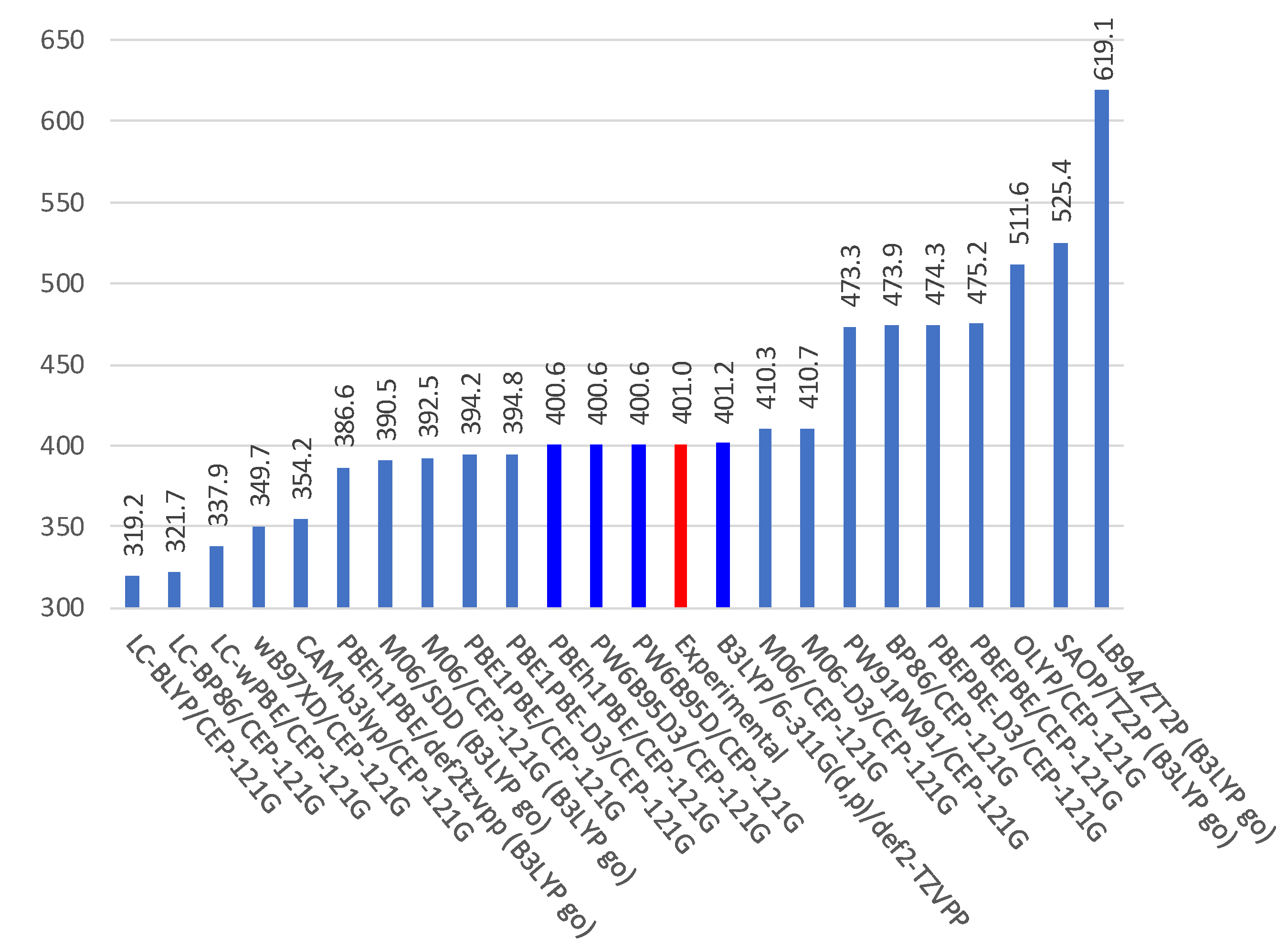

Figure 3. Calculated absorbance maxima (nm on y-axis) in the region 320–620 nm using the indicated DFT method (x-axis), compared to the experimental absorbance maxima 401.0 nm of Cu(HBP)2 (5), indicated in red. DFT methods in best agreement with experiment are shown in dark blue. The DFT methods used are indicated as functional/basis1/basis2 where functional is the DFT functional used, basis2 is the basis set used for Cu, and basis1 is the basis set used for C, H and O. If no basis2 is indicated, basis1 is also used for Cu. The five methods showing “B3LYP go” in brackets used the optimized B3LYP geometry in the TD-DFT calculation with the indicated method. For all the other methods, geometry optimization as well as TD-DFT calculations were done with the indicated method.
Figure 3. Calculated absorbance maxima (nm on y-axis) in the region 320–620 nm using the indicated DFT method (x-axis), compared to the experimental absorbance maxima 401.0 nm of Cu(HBP)2 (5), indicated in red. DFT methods in best agreement with experiment are shown in dark blue. The DFT methods used are indicated as functional/basis1/basis2 where functional is the DFT functional used, basis2 is the basis set used for Cu, and basis1 is the basis set used for C, H and O. If no basis2 is indicated, basis1 is also used for Cu. The five methods showing “B3LYP go” in brackets used the optimized B3LYP geometry in the TD-DFT calculation with the indicated method. For all the other methods, geometry optimization as well as TD-DFT calculations were done with the indicated method.
Molecules 27 06033 g003

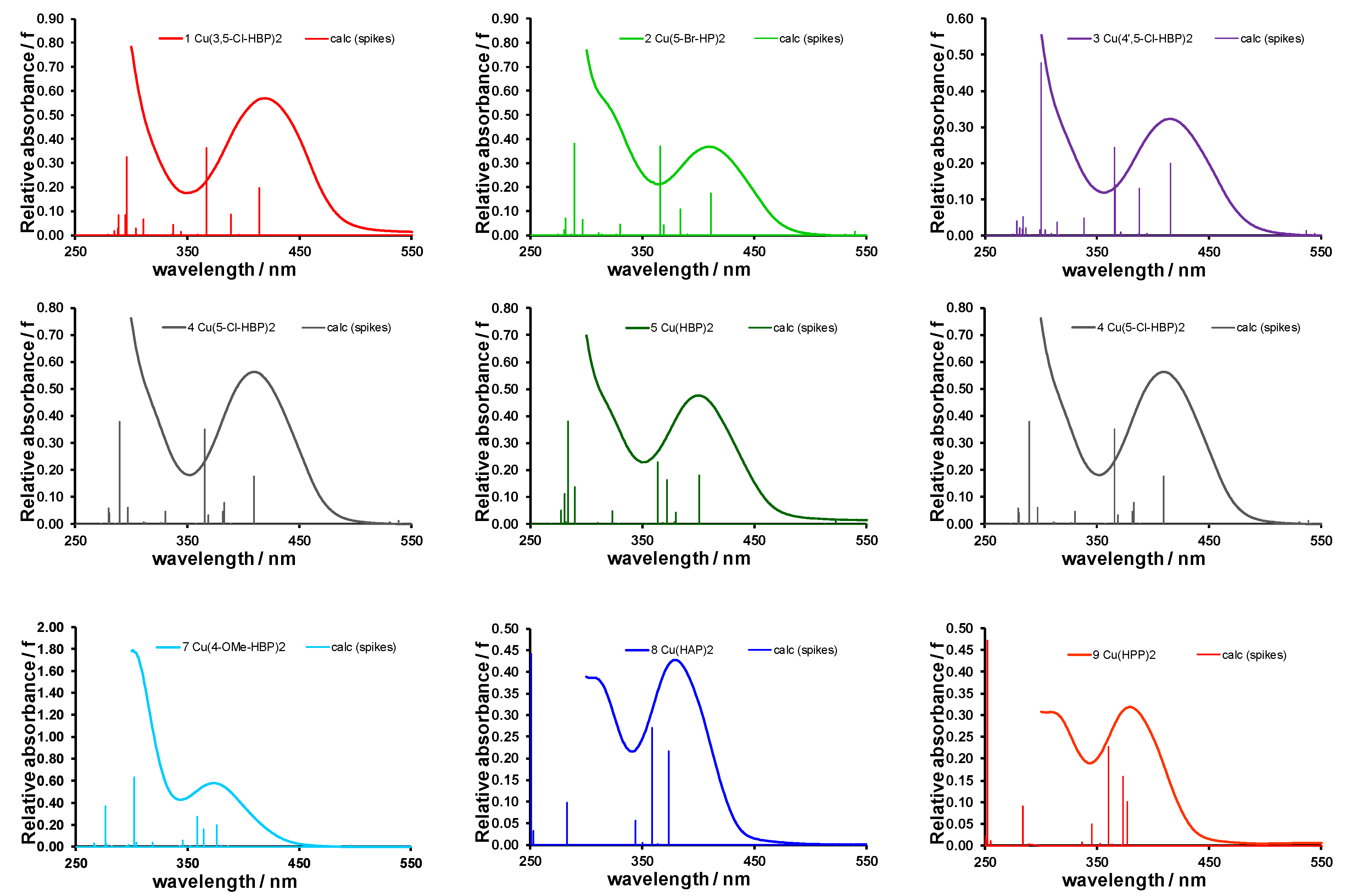

Figure 4. Experimental absorption spectra of the Cu(II) complexes (1)–(9) in DMSO (smooth curves) overlaid with the B3LYP/6-311G(d,p)/def2-TZVPP calculated oscillators (bar graphs of wavenumber versus the oscillator strengths).
Figure 4. Experimental absorption spectra of the Cu(II) complexes (1)–(9) in DMSO (smooth curves) overlaid with the B3LYP/6-311G(d,p)/def2-TZVPP calculated oscillators (bar graphs of wavenumber versus the oscillator strengths).
Molecules 27 06033 g004

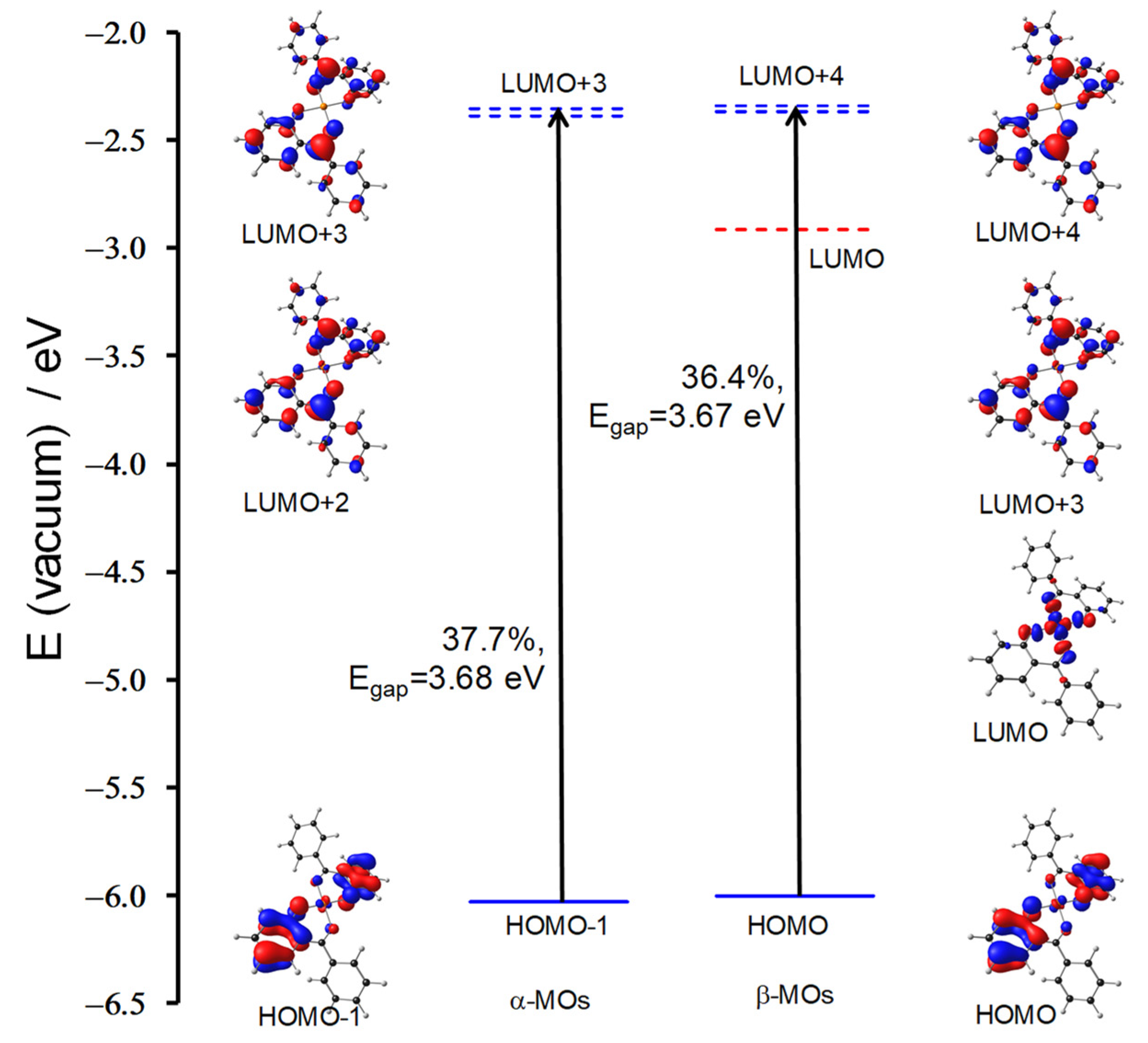

Figure 5. B3LYP/6-311G(d,p)/def2-TZVPP calculated Kohn−Sham MO energy level diagram illustrating the main MO transitions involved in the calculated peak at 401.2 nm, corresponding to the experimental peak at 401 nm, of (5): (i) HOMO-1 to LUMO + 3 and (ii) HOMO to LUMO + 4. The energy of occupied and unoccupied MO energy levels is shown with solid and dotted lines, respectively. Mainly copper-d-based and ligand-based MOs are shown in red and blue, respectively. Selected MOs are visualized. A contour of 0.06 e/Å3 was used for the orbital plot. Colour code of atoms (online version): Cu (orange), C (grey), O (red), H (white).
Figure 5. B3LYP/6-311G(d,p)/def2-TZVPP calculated Kohn−Sham MO energy level diagram illustrating the main MO transitions involved in the calculated peak at 401.2 nm, corresponding to the experimental peak at 401 nm, of (5): (i) HOMO-1 to LUMO + 3 and (ii) HOMO to LUMO + 4. The energy of occupied and unoccupied MO energy levels is shown with solid and dotted lines, respectively. Mainly copper-d-based and ligand-based MOs are shown in red and blue, respectively. Selected MOs are visualized. A contour of 0.06 e/Å3 was used for the orbital plot. Colour code of atoms (online version): Cu (orange), C (grey), O (red), H (white).
Molecules 27 06033 g005

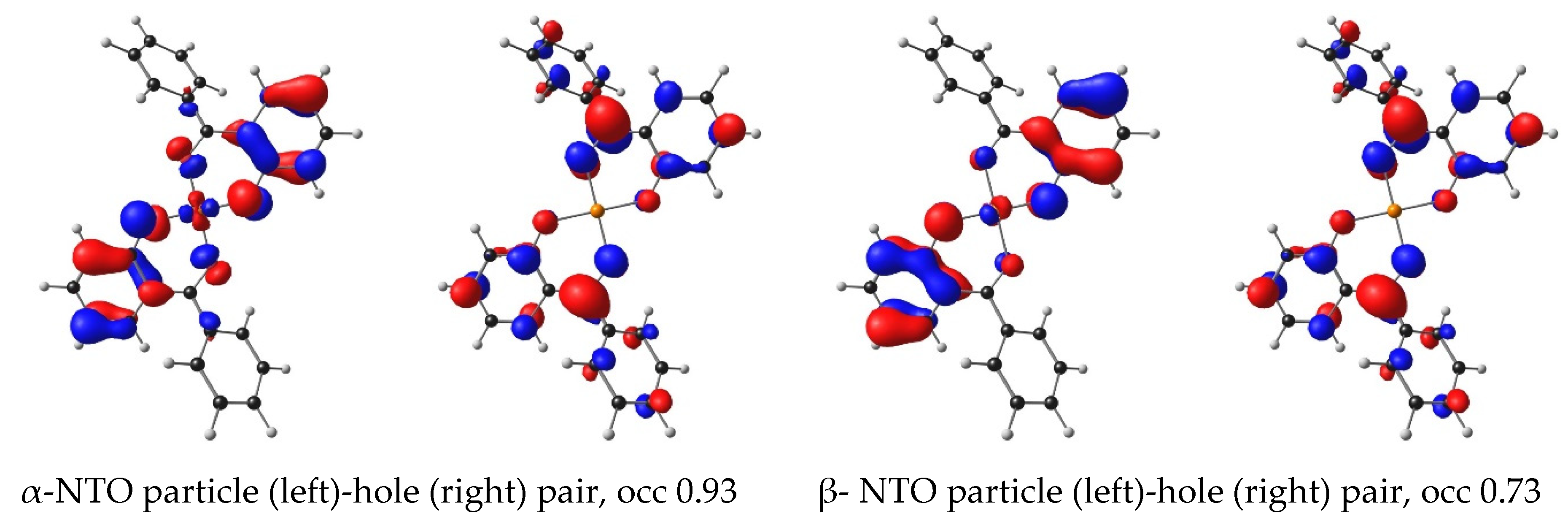

Figure 6. B3LYP/6-311G(d,p)/def2-TZVPP calculated NTOs involved in the calculated peak at 401.2 nm, corresponding to the experimental peak at 401 nm, of (5). The electron occupation of the occupied (particle) and unoccupied (hole) NTO pairs are indicated. A contour of 0.04 e/Å3 was used for the orbital plot. Colour code of atoms (online version): Cu (orange), C (grey), O (red), H (white).
Figure 6. B3LYP/6-311G(d,p)/def2-TZVPP calculated NTOs involved in the calculated peak at 401.2 nm, corresponding to the experimental peak at 401 nm, of (5). The electron occupation of the occupied (particle) and unoccupied (hole) NTO pairs are indicated. A contour of 0.04 e/Å3 was used for the orbital plot. Colour code of atoms (online version): Cu (orange), C (grey), O (red), H (white).
Molecules 27 06033 g006

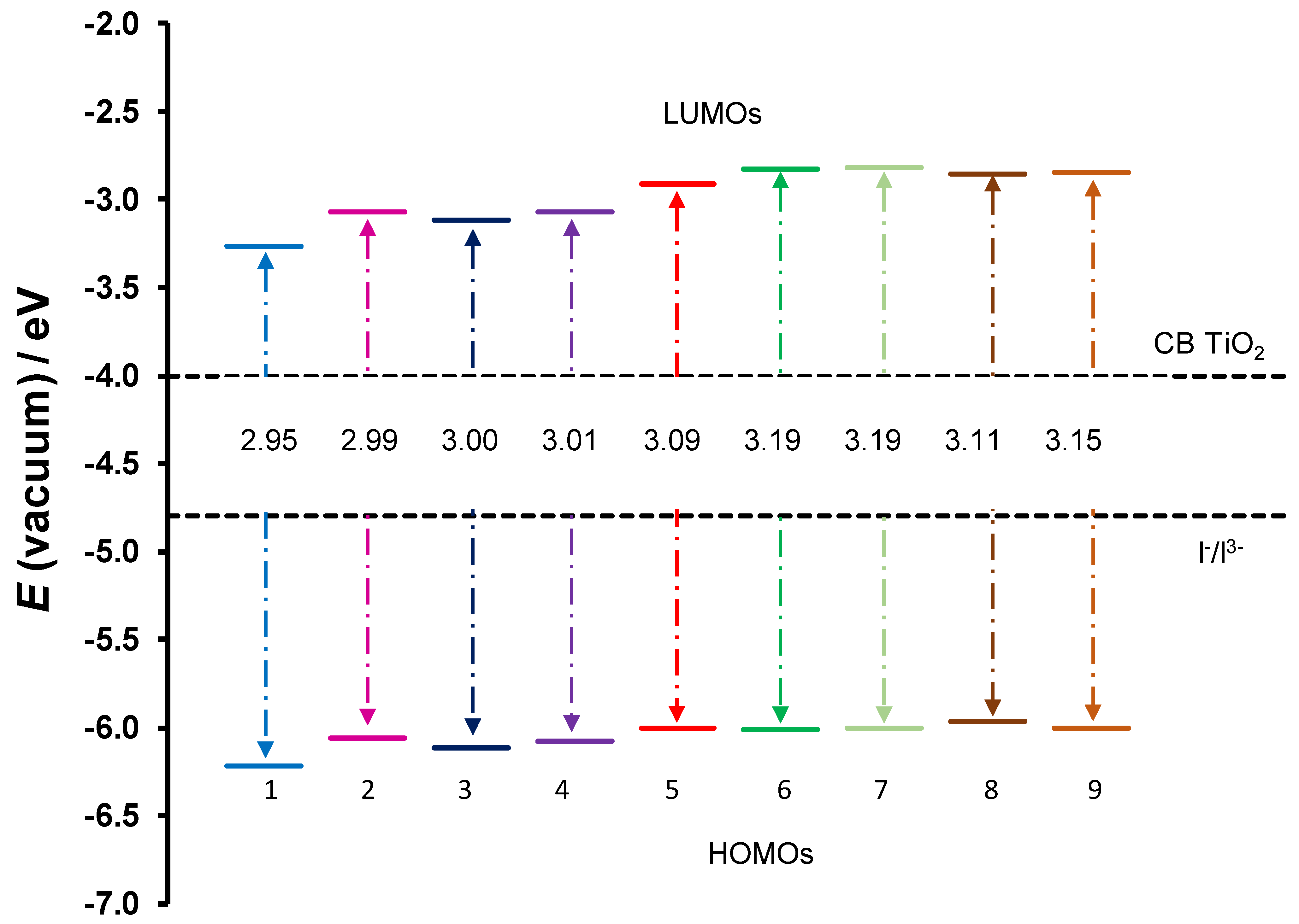

Figure 7. Energy levels and HOMO–LUMO gaps of the Cu(II) complexes calculated at the B3LYP/6-311G(d,p)/def2-TZVPP level in DMSO solution, compared to the CB of TiO2 (−4.0 eV) and the redox potential of the I/I3 electrolyte (−4.8 eV).
Figure 7. Energy levels and HOMO–LUMO gaps of the Cu(II) complexes calculated at the B3LYP/6-311G(d,p)/def2-TZVPP level in DMSO solution, compared to the CB of TiO2 (−4.0 eV) and the redox potential of the I/I3 electrolyte (−4.8 eV).
Molecules 27 06033 g007

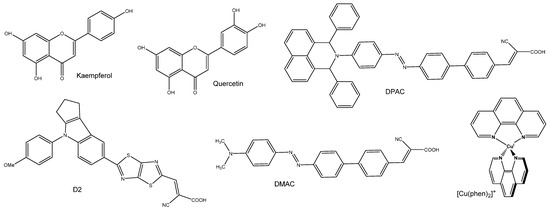

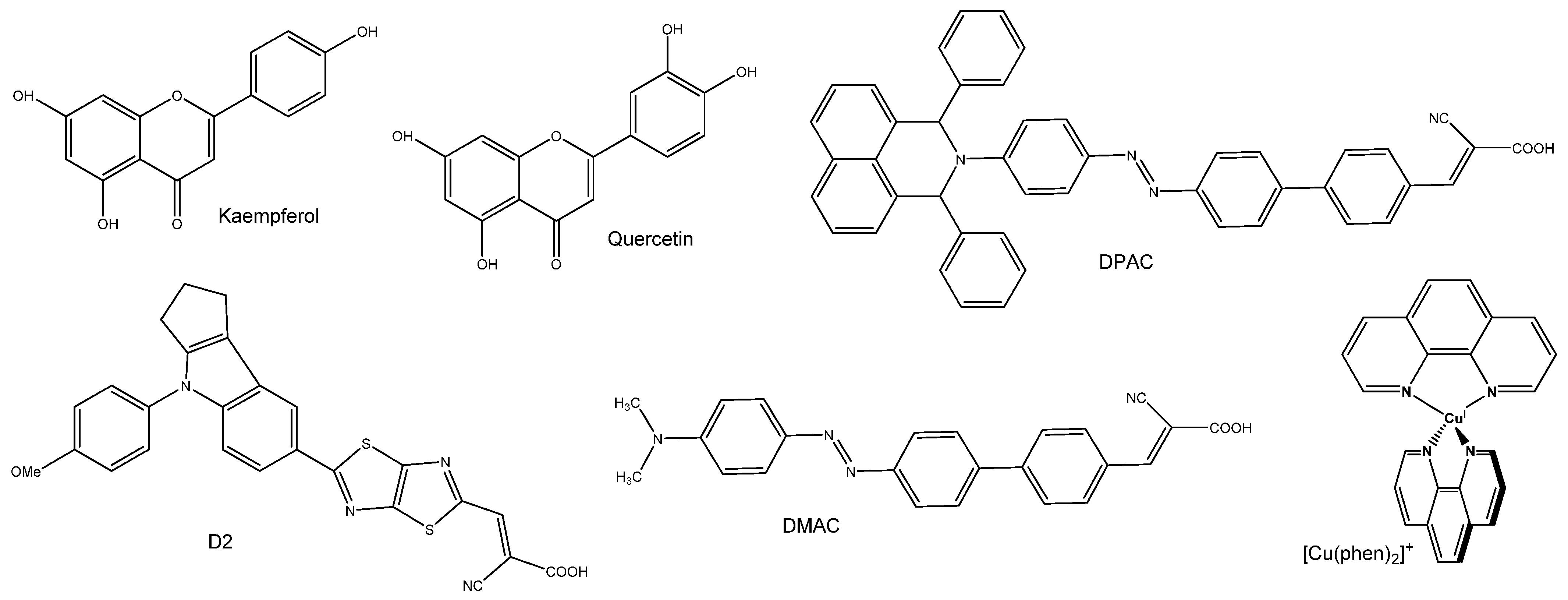

Figure 8. Structures of dyes theoretically investigated as photochromic dyes for DSSC.
Figure 8. Structures of dyes theoretically investigated as photochromic dyes for DSSC.
Molecules 27 06033 g008

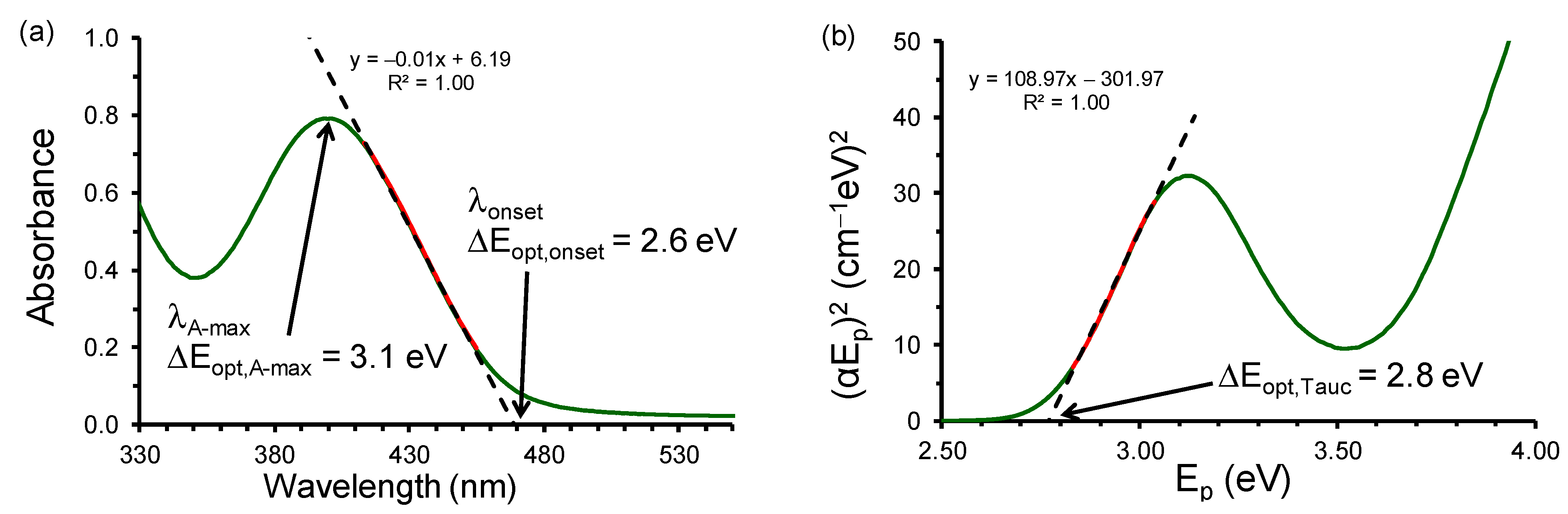

Figure 9. (a) The experimental UV of (5) in DMSO illustrating the determination of the onset (469 nm) and maximum absorbance (401 nm) positions that were used to calculate the experimental optical band gap (ΔEopt). (b) Tauc plot of (5) showing the determination of the experimental optical band gap (ΔEopt,Tauc).
Figure 9. (a) The experimental UV of (5) in DMSO illustrating the determination of the onset (469 nm) and maximum absorbance (401 nm) positions that were used to calculate the experimental optical band gap (ΔEopt). (b) Tauc plot of (5) showing the determination of the experimental optical band gap (ΔEopt,Tauc).
Molecules 27 06033 g009

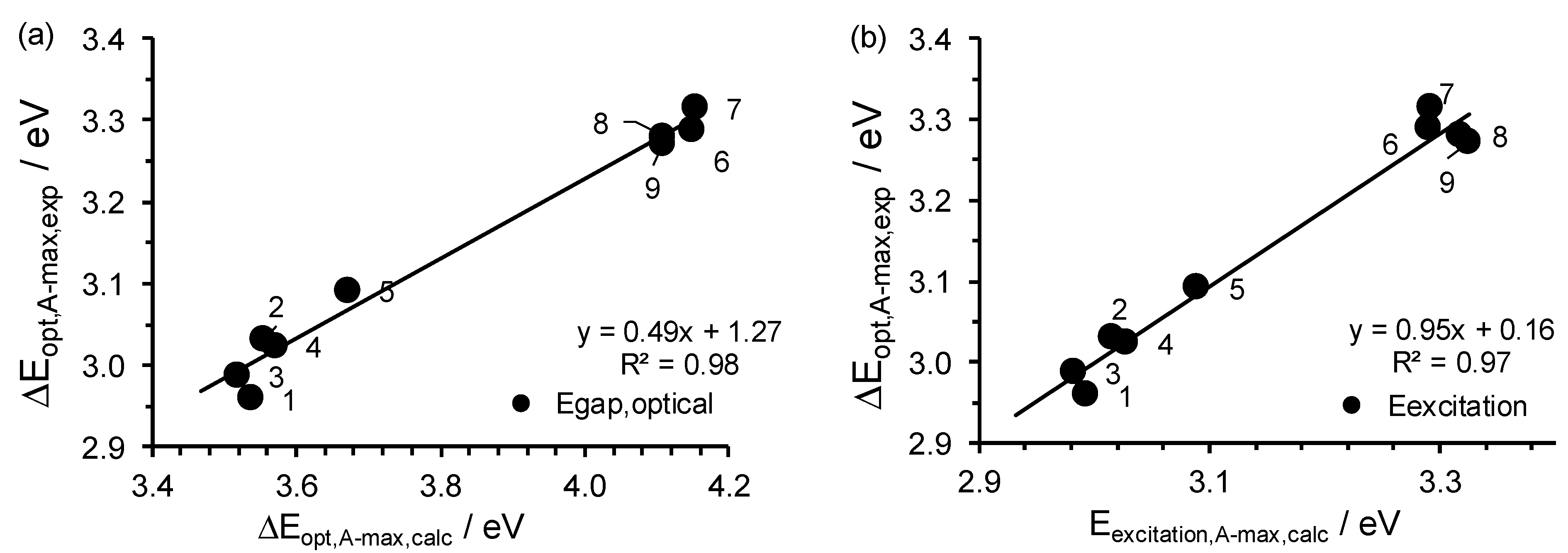

Figure 10. Relationship between experimentally determined optical band gap from the maximum absorbance (ΔEopt,A-max,exp) and (a) the B3LYP/6-311G(d,p)/def2-TZVPP calculated band gap between the main MOs involved in the electronic transition (ΔEopt,A-max,calc, average value of Egap as shown in Figure 4 for (5)), (b) the excitation energy of the λA,max peak (Data in Table 5).
Figure 10. Relationship between experimentally determined optical band gap from the maximum absorbance (ΔEopt,A-max,exp) and (a) the B3LYP/6-311G(d,p)/def2-TZVPP calculated band gap between the main MOs involved in the electronic transition (ΔEopt,A-max,calc, average value of Egap as shown in Figure 4 for (5)), (b) the excitation energy of the λA,max peak (Data in Table 5).
Molecules 27 06033 g010
Table 1. B3LYP/6-311G(d,p)/def2-TZVPP calculated absorbance maximum wavelength (λmax,calc), oscillator strengths (f), as well as the experimental maximum wavelength (λmax) and maximum absorbance (λA,max) peaks.
Table 1. B3LYP/6-311G(d,p)/def2-TZVPP calculated absorbance maximum wavelength (λmax,calc), oscillator strengths (f), as well as the experimental maximum wavelength (λmax) and maximum absorbance (λA,max) peaks.
Calculated Experimental
ComplexA,max,calc) (nm) with f (Calculated Oscillator Strength) in BracketsλA,max (nm)λmax (nm)
Band 3Band 2aBand 2bBand 1expexp
1Cu(3,5-Cl)2296.1(0.33)366.7(0.36);414.2(0.20)552.9(0.02)419750
2Cu(5-Br)2289.6(0.38)366.1(0.37);411.1(0.17)539.6(0.01)409720
3Cu(4’,5-Cl)2300.0(0.48)365.5(0.24);415.7(0.20)536.6(0.01)415723
4Cu(5-Cl)2289.7(0.38)365.7(0.35);409.4(0.18)538.6(0.01)410707
5Cu(HBP)2284.2(0.38)364.0(0.23);401.2(0.18)522.4(0.01)401674
6Cu(4-allyloxy)2302.1(0.51)359.1(0.27);376.8(0.19)498.0(0.01)377660
7Cu(4-OMe)2302.2(0.63)358.8(0.27);376.6(0.19)497.1(0.01)374658
8Cu(HAP)2250.7(0.44)358.8(0.27);373.6(0.22)489.6(0.00)378655
9Cu(HPP)2252.0(0.47)360.1(0.23);372.9(0.16) 379650
Table 2. Computed maximum wavelengths (λmax,calc), transition energy (ΔE in eV), oscillator strength (f) and assignments of main transitions involved in the excitation of Cu(L)2 complexes (1)–(9).
Table 2. Computed maximum wavelengths (λmax,calc), transition energy (ΔE in eV), oscillator strength (f) and assignments of main transitions involved in the excitation of Cu(L)2 complexes (1)–(9).
No. E (eV)λmax,calc (nm)ffromto% ContributionAssignmentΔEcalc (eV) Transition
1Cu(3,5-Cl)22.99414.150.20HOMO−1LUMO + 342.5LLCT3.54
HOMOLUMO + 441.7LLCT3.54
2Cu(5-Br)23.02411.080.17HOMO−1LUMO + 341.3LLCT3.56
HOMOLUMO + 441.3LLCT3.55
3Cu(4’,5-Cl)22.98415.680.20HOMO−1LUMO + 341.8LLCT3.52
HOMOLUMO + 442.1LLCT3.51
4Cu(5-Cl)23.03409.390.18HOMO−1LUMO + 341.1LLCT3.58
HOMOLUMO + 441.2LLCT3.57
5Cu(HBP)22.37522.390.97HOMO−2LUMO87.59LMCT3.31
5Cu(HBP)23.09401.210.18HOMO−1LUMO + 337.7LLCT3.68
HOMOLUMO + 436.4LLCT3.67
6Cu(4-allyloxy)23.29376.800.19HOMO−1LUMO + 325.6LLCT3.90
HOMO−17LUMO10.9LMCT4.66
HOMOLUMO + 428.8LLCT3.89
7Cu(4-OMe)23.29376.610.19HOMO−1LUMO + 326.9LLCT3.90
HOMO−17LUMO11.9LMCT4.67
HOMOLUMO + 429.0LLCT3.89
8Cu(HAP)23.32373.630.22HOMO−1LUMO + 321.3LLCT3.93
HOMO−5LUMO44.6LMCT4.50
HOMOLUMO + 426.2LLCT3.89
9Cu(HPP)23.33372.860.16HOMO−1LUMO + 317.7LLCT3.95
HOMO−5LUMO35.9LMCT4.47
HOMOLUMO + 521.0LLCT3.91
Table 3. B3LYP/6-311G(d,p)/def2-TZVPP calculated light harvesting efficiency (LHE), excited state lifetime (τ), EHOMO, ELUMO, ΔGinject and ΔGregenerate.
Table 3. B3LYP/6-311G(d,p)/def2-TZVPP calculated light harvesting efficiency (LHE), excited state lifetime (τ), EHOMO, ELUMO, ΔGinject and ΔGregenerate.
ComplexLHE τ (ns) EHOMOELUMO∆Ginject∆Greg
Band 3Band 2aBand 2bBand 1Band 3Band 2aBand 2bBand 1(eV)(eV)(eV)
(Band 2b)
(eV)
1Cu(3,5-Cl)20.530.570.360.054.05.613.1206.4−3.27−6.220.781.42
2Cu(5-Br)20.580.570.330.033.35.414.6294.9−3.07−6.060.961.26
3Cu(4’,5-Cl)20.670.430.370.032.88.213.0317.4−3.11−6.110.871.31
4Cu(5-Cl)20.580.550.340.033.35.714.2381.4−3.07−6.080.951.28
5Cu(HBP)20.580.410.340.033.28.613.4292.2−3.07−6.081.011.28
6Cu(4-allyloxy)20.690.470.350.032.77.111.5295.1−2.83−6.011.281.21
7Cu(4-OMe)20.760.460.360.032.27.110.9319.3−2.82−6.011.281.21
8Cu(HAP)20.640.460.390.002.17.19.735,931.1−2.86−5.971.351.17
9Cu(HPP)20.660.410.310.002.08.613.1 −2.85−6.001.321.20
Table 4. Published values of absorbance maximum wavelength (λmax,calc), oscillator strengths (f), light harvesting efficiency (LHE), excited state lifetime (τ), EHOMO, ELUMO, ΔGinject and ΔGregenerate for the indicated dyes theoretically investigated as photochromic dyes for DSSC (structures in Figure 8).
Table 4. Published values of absorbance maximum wavelength (λmax,calc), oscillator strengths (f), light harvesting efficiency (LHE), excited state lifetime (τ), EHOMO, ELUMO, ΔGinject and ΔGregenerate for the indicated dyes theoretically investigated as photochromic dyes for DSSC (structures in Figure 8).
Dyeλmax,calc (nm)fLHEτ (ns)EHOMO (eV)ELUMO (eV)HOMO–LUMO Gap (eV)∆Ginject (eV)∆Greg (eV)Ref
Quercetin3520.540.712.17−5.69−1.713.971.830.84[21]
Quercetin3560.400.602.355.83 1.65 [23]
Kaempferol3650.590.752.00−5.39−1.583.812.200.54[21]
DMAC (trans)4302.050.991.43−5.23−2.762.481.650.43[22]
DMAC (cis)3470.990.901.99−5.23−2.692.541.400.43[22]
DPAC (trans)4401.800.951.52−5.23−2.802.421.660.43[22]
DPAC (cis)3410.800.842.57−5.20−2.722.481.350.40[22]
D24331.480.97 5.572.71 1.29 [24]
[Cu(phen)2]+4430.2500.4411.8 3.880.781.22[17]
Table 5. B3LYP/6-311G(d,p)/def2-TZVPP Egap and experimentally determined Egap (from UV-vis absorbance maximum wavelength λA,max).
Table 5. B3LYP/6-311G(d,p)/def2-TZVPP Egap and experimentally determined Egap (from UV-vis absorbance maximum wavelength λA,max).
No.ComplexλA,maxEexcitationΔEDFT-calc, A-max aΔEexp, optical, A-max
1Cu(3,5-Cl)2414.22.993.542.96
2Cu(5-Br)2411.13.023.553.03
3Cu(4’,5-Cl)2415.72.983.522.99
4Cu(5-Cl)2409.43.033.573.02
5Cu(HBP)2401.23.093.673.09
6Cu(4-allyloxy)2376.83.293.893.29
7Cu(4-OMe)2376.63.293.903.32
8Cu(HAP)2373.63.324.113.28
9Cu(HPP)2372.93.334.113.27
a Average value of main transitions involved in the excitation. Egap value obtained from Kohn−Sham MO energies, differs from the Eexcitation, since Kohn−Sham MO energies gaps are approximations to excitation energies [31].
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chiyindiko, E.; Langner, E.H.G.; Conradie, J. Spectroscopic Behaviour of Copper(II) Complexes Containing 2-Hydroxyphenones. Molecules 2022, 27, 6033. https://doi.org/10.3390/molecules27186033

AMA Style

Chiyindiko E, Langner EHG, Conradie J. Spectroscopic Behaviour of Copper(II) Complexes Containing 2-Hydroxyphenones. Molecules. 2022; 27(18):6033. https://doi.org/10.3390/molecules27186033

Chicago/Turabian Style

Chiyindiko, Emmie, Ernst H. G. Langner, and Jeanet Conradie. 2022. "Spectroscopic Behaviour of Copper(II) Complexes Containing 2-Hydroxyphenones" Molecules 27, no. 18: 6033. https://doi.org/10.3390/molecules27186033

APA Style

Chiyindiko, E., Langner, E. H. G., & Conradie, J. (2022). Spectroscopic Behaviour of Copper(II) Complexes Containing 2-Hydroxyphenones. Molecules, 27(18), 6033. https://doi.org/10.3390/molecules27186033

Article Metrics

Back to TopTop
