Cyclometallated Palladium(II) Complexes: An Approach to the First Dinuclear Bis(iminophosphorane)phosphane-[C,N,S] Metallacycle

by
Marcos Rúa-Sueiro
,
Paula Munín-Cruz
,
Adolfo Fernández
,
Juan M. Ortigueira
,
María Teresa Pereira
and
José M. Vila
*
Departamento de Química Inorgánica, Universidade de Santiago de Compostela, E-15782 Santiago de Compostela, Spain
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(20), 7043; https://doi.org/10.3390/molecules27207043
Submission received: 23 September 2022 / Revised: 13 October 2022 / Accepted: 14 October 2022 / Published: 19 October 2022
(This article belongs to the Special Issue Organometallic Complexes: Fundamentals and Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Treatment of bis(iminophosphorane)phosphane ligands 2a–2e with Li2PdCl4 gave a set of novel diphosphane-derived complexes bearing two metallacycle rings, each one enclosing a P=N double bond: the unprecedented bis(iminophosphorane)phosphane-[C,N,S] palladacycles. In the case of the ligand derived from bis(diphenylphosphino)methane, 2a, both the single and the double palladacycle complexes were obtained. Reaction of 3a with bis(diphenylphosphino)ethane did not yield the expected product with the diphosphane bonded to both palladium atoms, but rather the novel coordination compound 5. The crystal structures of 3c and 5 are described.

Graphical Abstract

1. Introduction

The chemistry of cyclometallated compounds, with particular emphasis on the palladacycles, has been of great relevance since their beginning, mostly due to the applications they present: specifically, they behave as pre-catalysts in cross-coupling reactions with C-C bond formation, as, for example, the Suzuki–Miyaura [1,2] or the Mizoroki–Heck reactions [3,4]; they can present activity as antitumor or anticancer agents [5,6,7], with some displaying activity similar to cis-platinum. They may also have interesting luminescent properties [8,9]. We have extensively studied the synthesis and characterization of palladacycles [10] and more recently those containing thiosemicarbazone [11,12,13] and Schiff base ligands [14,15], giving further insights into their chemistry. On the other hand, iminophosphoranes, also known as phosphazenes, are a type of organic ligand of general formula R3P=NR’ widely used in coordination chemistry [16,17,18,19]. They may incorporate additional donor atoms becoming quite versatile ligands; they are synthesized by the Staudinger reaction [20]. In recent years, iminophosphorane chemistry has undergone a remarkable breakthrough [21] inclusive of the functionalized iminophosphoranes useful in homogeneous catalysis, which may be conveniently modified to achieve the most desirable properties of the corresponding complexes [22,23]. These ligands are a very good choice for synthesizing cyclometallated compounds, and have been known for quite some time [24]. The main feature that makes them optimal for coordinating to metal centers is the polarity in the P=N double bond. Nitrogen bears a negative partial charge inducing a strong σ donor and weak π acceptor character which allows the formation of strong bonds with palladium. Moreover, these ligands are known to also coordinate to metal centers through the carbon in the ortho position to phosphorus to give preferentially endo species [25]. These ligands display other interesting properties: they can be used as synthetic intermediates in the Aza–Wittig reaction [26,27], generating heterocycles that act as intermediates in drug synthesis; they are also widely used as superbases [28] with a low nucleophilicity, which can be modulated according to their substituents. Additionally, they exhibit very low toxicity, and it has been found that when coordinated to transition metals they can exhibit high antitumor activity [29,30].
In Scheme 1, some relevant examples of iminophosphorane palladacycles are depicted which show the terdentate [C,N,S] aniline complex by Grévy [31] I, the [C,N,S] [21] and [C,N] [16] structures II and III by Urriolabeitia, and the terdentate [C,N,O] [32] IV and tetradentate [C,N:C,N] [33] V dinuclear complexes by Vila. In all cases, the corresponding iminophosphorane was prepared from the azide by using a PR3 ligand, where appropriate, in the ensuing palladacycles, with a bridging diphosphine; the latter holds together the two palladium iminophosphorane moieties. Likewise, although the related bis(iminophosphorane) ligands are known [33,34,35,36], the ensuing dipalladacycles VI are to the best of our knowledge still outstanding. Hence, at variance with the hitherto known examples, the preparation of the first bis(iminophosphorane)phosphane palladacycle complexes seemed to be a challenging quest as well as a new approach to this chemistry for a number of reasons: (a) in type VI complexes, the phosphorus atoms are multifunctional, being part of the palladacycle ring and of the bridging diphosphane; (b) their number is brought down to two, cf. to the previous known examples, where there were two sets of independent phosphorus nuclei. [32]; (c) additional reactivity can be carried out, e.g., by exchanging the terminal chloride ligands for mono- or diphosphanes, the latter case opening the possibility of folding the starting dinuclear structure of the complex. The results of such a process are reported herein.

2. Results and Discussion

For the convenience of the reader, the compounds and reactions are shown in Scheme 2. The compounds described in this paper were characterized by elemental analysis (C, H, N, S); IR, 1H and 31P−{1H} NMR spectroscopy (see the Section 4); and by X-ray single crystal diffraction. Ligands 2a–2e were readily synthesized by the Staudinger reaction from the corresponding triphenylphosphane and 2-thiomethyl azide. The sp2 carbon atoms available for metallation are on the phosphorus phenyl rings, giving the endo type species. The IR spectra show the υ(P=N) stretch ca. 1330 cm−1 and total absence of any band assignable to azide vibrations modes. The 1H and 31P−{1H} NMR resonances were assigned accordingly (see Section 4), the latter showing a singlet resonance at 0–10 ppm in agreement with equivalent phosphorus nuclei. Treatment of 2a–2e with Li2PdCl4 gave the hitherto unknown bis(iminophosphorane)phosphane-[C,N,S] palladacycles 3a–3e.
Thus, treatment of 2a with Li2PdCl4, made in situ from LiCl and PdCl2, in a 2:1 molar ratio and sodium acetate in methanol gave an untreatable mixture, which was not further pursued. However, analogous treatment of 2a in a 1:2 molar ratio in refluxing methanol for 18 h gave a solution and a solid which were conveniently separated. From the solution, the resulting residue after solvent removal was recrystallized from dichloromethane to give the single palladacycle complex 4; the solid was dissolved in dichloromethane, filtered through silica gel and after work up recrystallized from hexane to give the double palladacycle complex 3a. Further attempts to prepare 3a or 4 independently were unsuccessful. Reaction of 2b–2e with Li2PdCl4 in a 1:2 molar ratio and sodium acetate in methanol with stirring gave complexes 3b–3e as yellow to pale-yellow air-stable solids; single palladacycle complexes were not observed in any of the reactions. We assume that the differing behavior of ligand 2a in 3a as opposed to 2b–2c, in 3b–3c could be due to certain steric hindrance imposed by the shorter PCnP carbon chain in the former case, making stronger reaction conditions necessary to produce double metalation, i.e., long refluxing hours, whereas in the latter cases, a milder process at r.t. readily gives the double-nuclear palladacycle. For 3d the PCP carbon is a sp2 carbon, hence with a greater PCP bond angle of 120°, cf. 109.5° 3a, thus lowering the steric barrier. For 3e, in spite of the theoretical PNP angle of 109.5° for the N(sp3), only coordination of the diphosphine in the bridging mode was observed. Although presently we have no sound explanation for this behavior, this seems to be a rather frequent arrangement of the phosphine (see the SI section for references regarding this issue). The single palladated complexes have so far not been pursued further in the hope of finding a suitable synthetic procedure to give the pure compounds. Notwithstanding, we have observed a rather mild shift in the non-metalated P=N group at 41.70 ppm: the possibility of a P=O group in view of the microanalytical and spectroscopic data, which are in accordance with the proposed formulation for compound 4.
The IR spectra show the υ(P=N) band ca. 1220 cm−1 shifted by ca. −100 cm−1 compared to the starting ligand, as well as the band assigned to the υ(Pd–Cl) vibration mode ca. 325 cm−1, in accordance with a terminal chloride ligand. In the 1H NMR spectra resonances, ca. 4.5 (doublet of doublets) and 2.63 (broad singlet) ppm were assigned to the PCH2P 3a and PN(Me)P 3e protons, respectively, whereas the P(CH2)2P 3b and P(CH2)3P 3c resonances were multiplets. In the case of 3d, the C(=CH2) resonances were two apparent triplets for the proton part of the AA’XX’spin system generated by the P2C(=CH2) nuclei. As for the complex 4, the PCH2P resonance (proton ABXY system) was an apparent doublet at 3.26 ppm. The H5 resonance was high field shifted with respect to the parent ligand and showed coupling to the phosphorus nuclei (4JPH5 ca. 10 Hz). The 31P NMR spectra showed a singlet resonance for the two equivalent phosphorus nuclei ca. 48–58 ppm. For complex 3c, for which two singlets ca. 57 ppm were observed, we suggest the presence of two isomers syn and anti, Scheme 3. Likewise, the 1H NMR spectrum for 3c also showed two similar sets of proton resonances. For complex 4, there were two singlet resonances at 41.70 and 51.36 ppm in the 31P NMR spectrum, consequent of two non-equivalent phosphorus nuclei.
Suitable crystals of 3c were grown by slowly evaporating an acetone solution of the compound. Crystal data are given in the Supporting Information. The ORTEP illustration of complex 3c is shown in Figure 1. The compound crystalizes in the orthorhombic space group Pnma with two acetone solvent molecules. The crystals consist of discrete molecules separated by van der Waals distances, bearing two palladacycle moieties symmetry related by a 2-fold axis passing through the C(21) carbon atom of the iminophosphorane ligand. The crystallographic independent palladium atom is bonded to four different atoms in a slightly distorted square—planar disposition: a P=N nitrogen atom, an aryl carbon atom, a sulfur from the thiomethyl aniline, and finally by a chloride ligand. The metal coordination planes [C,N,S,Cl] form a dihedral angle of 22.24°. All bond lengths and angles are within the expected values, with allowance for lengthening of the Pd(1)–S(1) bond, 2.358 Å. The bond angles at palladium are close to 90° with the smaller values for the bite angles for the tridentate ligand [C(1)-Pd(1)-N(1) = 88.5° and N(1)-Pd(1)-S(1) = 84.99°] consequent upon chelation and the sum of angles at palladium is 360.16°. The large distance between the metallated rings and the thioaniline rings precludes any π-π stacking interactions between the metalated rings.
In view of the arrangement of the rings at palladium in the crystal structure of 3c, our ensuing hypothesis was that it could be possible to link the metal atoms of the folded compound with a diphosphane after removing the chloride ligands. For this purpose, compound 3a was chosen, having the shortest carbon chain between the phosphorus atoms; also, considering the deviation of the metallated rings from their ideal parallel arrangement (probably more increased in solution), Ph2P(CH2)2PPh2 (dppe) was selected as the attempted binding diphosphane between the metal centers. The resulting species would be related to the known A-frame structures [14]. Thus, reaction of complex 3a with dppe and ammonium hexafluorophosphate in acetone under stirring condition for 18 h at room temperature gave a sticky solid, for which the spectroscopic data indicated to be a complex mixture of products, which were not further pursued. However, the chloroform solution of this solid gave suitable crystals for X-ray structural analysis that proved to be not the expected product with the diphosphane bonded to both palladium atoms, but rather a different and new coordination compound, labelled 5. (see Scheme 2).
Compound 5 crystallizes in the P21/n space group with two chloroform solvent molecules; the ORTEP illustration is shown in Figure 2. The molecular structure of 5 consists of discrete molecules with the palladium atom bonded to two pairs of nitrogen and sulfur atoms in a cis arrangement, pertaining to a tetradentate-[N,S,N,S] bis(iminophosphorane) ligand, in a distorted square-planar geometry. The sum of coordination bond angles at palladium is 359.67°. As for the bond distance, the most noteworthy feature is the somewhat longer Pd-N distance of 2.075 Å compared to the analogous bond length in 3c, consequent on the greater trans influence of the sulfur atom in 5 as opposed to the chloride ligand in 3c. Similarly, the Pd(1)-S(1) bond length, 2.267 Å, is slightly shorter due to the stronger trans influence of the phenyl carbon atom in 3c vs. the P=N nitrogen atom in 5. The PCP and palladium coordination planes, [P(1)C(15)P(2)] and [N(1)N(2)S(1)S(2)], respectively are at an angle of 74.43°; whilst the two rings at palladium [Pd(1)S(1)C(6)C(5)N(1)] and [Pd(1)S(2)C(13)C(12)N(2)] are at 22.8°. In relation to the similarity of the structures, it should be noted that there are two phosphorus atoms pertaining to a single six-membered coordination ring and four non-substituted phenyl rings in 5, as opposed to two phosphorus atoms, each one embedded in a metallacycle ring and two non-substituted phenyls in 3c, highlighting the difference in the diphosphane as a bidentate ligand vs. its bis(iminophosphorane) counterpart. Even assuming that complex 5 has been obtained serendipitously, representing an intriguing reactivity, and that it seems to stem from a re-protonation of the palladium-phenyl moiety of complex 3a, two issues may be considered. First of all, if complex 5 can be prepared directly from the reaction of the iminophosphorane precursor 2a and the palladium(II) reagent without the added base; secondly, to provide a reasonable answer, or at least a tentative route, of the formation for 5. As for the former question, this would provide a satisfactory explanation and solve the intrigue in its formation, however leading to a much less interesting chemistry. Nevertheless, all attempts to the mentioned synthesis of complex 5 via this route have been to no avail, which brings us to the second point, in other words, of finding or proposing a plausible explanation for this new reactivity pattern; understanding that the process should be made repeatable to determine the proper reaction conditions. This poses quite a challenge, as with many by chance reactions. Notwithstanding, and in the absence of further data at this time, we suggest that after chloride abstraction by ammonium hexafluorphosphate and re-protonation of the phenyl ring, one Pd(II) is chelated by the dppe phosphane; ligand 2a then coordinates to the second Pd(II) center to give complex 5. This research, together with the reactivity of complexes 3b–3e with dppe and related diphosphanes, is currently underway.

3. Conclusions

In conclusion, a new family of bis(iminophosphorane) metallacycles derived from diphosphanes, which contain two five-membered metallacycle rings in the endo arrangement, have been successfully synthesized. The phosphorus atoms are multifunctional, being part of the palladacycle ring and of the bridging diphosphane For this purpose, the synthetic method of cyclometallation using bis(iminophosphorane) ligands has been followed; the corresponding ligands were synthesized using the Staudinger reaction. The crystal structural analysis for 3c confirms the spectroscopic results, providing satisfactory evidence regarding the orientation of the metallated rings, which show a close-to-parallel arrangement. Treatment of compound 3a with the ammonium hexafluorophosphate salt and diphosphine dppe did not give the hoped dinuclear complex with bridging dppe, but rather the formation of the chelate coordination compound 5. The attempt to prepare complex 5 by direct treatment of 2a and an appropriate palladium salt was unsuccessful at reproducing the result here reported. Further studies are presently in progress in order to shed more light on this process and those concerning complexes 3b–3e.

4. Experimental Section

4.1. General Procedures

Solvents were purified by standard methods [37]. The reactions were carried out under dry nitrogen. 2-(methylsulfanyl)aniline, Ph2PCH2PPh2 (dppm), Ph2P(CH2)2PPh2 (dppe), Ph2P(CH2)3PPh2 (dppp), Ph2PC(CH2)PPh2 (vdpp), lithium chloride and palladium chloride (II) were purchased from commercial sources; Ph2PN(Me)PPh2 (dppma) was a personal loan to Professor JM Vila. Elemental analyses were performed with a Thermo Finnigan elemental analysis and model Flash 1112. IR spectra were recorded on Jasco model FT/IR-4600 spectrophotometer. 1H NMR and spectra in solution were recorded in acetone-d6 or CDCl3 at room temperature on Varian Inova 400 spectrometers operating at 400 MHz using 5 mm o.d. tubes; chemical shifts, in ppm, are reported downfield relative to TMS using the solvent signal as reference acetone-d6 δ 1H: 2.05 ppm, CDCl3 δ 1H: 7.26 ppm). 31P NMR spectra in solution were recorded in acetone-d6 or CDCl3 at room temperature on Varian Inova 400 spectrometer operating at 162 MHz using 5 mm o.d. tubes and are reported in ppm relative to external H3PO4 (85%). Coupling constants are reported in Hz. All chemical shifts are reported downfield from standards.

4.2. Preparation of the Ligands

Synthesis of 1
2-(methylsulfanyl)aniline (500 mg, 3.59 mmol) was added in a mixture of water (2 cm3), ethyl acetate (8 cm3) and hydrochloric acid (1 cm3). The solution was cool below 5 °C and a cold solution of NaNO2 (421 mg, 6.10 mmol, 70% excess) was slowly added to the mixture, which was stirred for 30 min. Then, a cold solution of NaN3 (397 mg, 6.10 mmol, 70% excess) was slowly added, taking care to not overheat it above 5 °C, and the solution was stirred for 30 min. The reaction mixture was extracted with 3 × 10 cm3 of ethyl acetate and the organic phase was washed with water and dried under vacuum. Yield: 445 mg, 75%. Anal. calculated: C: 50.9, H: 4.3, N: 25.4, S: 19.4%; found: C: 50.7, H: 4.4, N: 25.3, S: 19.2%; C7H7N3S (165.21 g/mol); IR (cm−1): υas(N3) 2123, υs(N3) 1280. 1H NMR (acetone-d6, δ/ppm): 7.14–7.25 (m, 4H, H1H2H3H4), 2.42 (s, 3H, SCH3).
Synthesis of 1,1′-methylenebis(N-(2-(methylthio)phenyl)-1,1-diphenyl-λ5-phosphanimine) 2a.
A 2:1 mixture of MeSC6H4N3 (300 mg, 1.82 mmol) and Ph2PCH2PPh2 (349 mg, 0.91 mmol) in diethyl ether (15 cm3) was refluxed for 24 h, with N2 bubbling. After stirring for 24 h at room temperature, a yellow solid was formed, which was filtered off and dried under vacuum. Yield: 323 mg, 54%. Anal. calculated: C: 71.1, H: 5.5, N: 4.3, S: 9.7%; found: C: 71.1, H: 5.6, N: 4.3, S: 9.7%; C39H36N2P2S2 (658.80 g/mol); IR (cm−1): υ(P=N) 1332. 1H NMR (CDCl3, δ/ppm, J/Hz): 7.82 (dd, 8H, Ho, 3JHo/P = 11.7, 3JHo/Hm = 7.7), 7.30 (m, 12H, Hm/Hp), 7.04 (d, 2H, H4, 3JH4/H3 = 7.2), 6.72 (m, 4H, H2/H3), 6.21 (d, 2H, H1, 3JH1/H2 = 7.2), 3.85 (m, 2H, PCH2), 2.48 (s, 6H, SCH3). 31P-{1H} NMR (CDCl3, δ/ppm): 22.37 (s, PPh2).
Synthesis of 1,1′-(ethane-1,2-diyl)bis(N-(2-(methylthio)phenyl)-1,1-diphenyl-λ5-phosphan-imine) 2b.
A 2:1 mixture of MeSC6H4N3 (100 mg, 0.61 mmol) and Ph2P(CH2)2PPh2 (121 mg, 0.30 mmol) in diethyl ether (10 cm3) was refluxed for 24 h, with N2 bubbling. After stirring for 24 h at room temperature, a white solid was formed, that was filtered off and dried under vacuum. Yield: 168 mg, 82%. Anal. calculated: C: 71.4, H: 5.7, N: 4.2, S: 9.5%; found: C: 71.3, H: 5.5, N: 4.1, S: 9.2%; C40H38N2P2S2 (672.83 g/mol); IR (cm−1): υ(P=N) 1325. 1H NMR (acetone-d6, δ/ppm, J/Hz): 7.76 (m, 8H, Ho), 7.51 (m, 4H, Hp), 7.44 (m, 8H, Hm), 6.98 (d, 2H, H4, 3JH4/H3 = 6.6), 6.66 (dd, 2H, H2, 3JH2/H1 = 7.2, 3JH2/H3 = 6.9), 6.58 (dd, 2H, H3, 3JH3/H2 = 6.9, 3JH3/H4 = 6.6), 6.15 (d, 2H, H1, 3JH1/H2 = 7.3), 2.74 (d, 4H, PCH2, 3JH/P = 13.3), 2.37 (s, 6H, SCH3). 31P-{1H} NMR (acetone-d6, δ/ppm): 5.72 (s, PPh2).
Synthesis of 1,1′-(propane-1,3-diyl)bis(N-(2-(methylthio)phenyl)-1,1-diphenyl-λ5-phosphan-imine) 2c.
A 2:1 mixture of MeSC6H4N3 (100 mg, 0.61 mmol) and Ph2P(CH2)3PPh2 (125 mg, 0.30 mmol) in diethyl ether (10 cm3) was refluxed for 24 h, with N2 bubbling. After stirring for 24 h at room temperature, a yellow solid was formed, that was filtered off and dried under vacuum. Yield: 141 mg, 68%. Anal. calculated: C: 71.7, H: 5.9, N: 4.1, S: 9.3%, found: C: 71.2, H: 5.7, N: 4.3, S: 9.1%; C41H40N2P2S2 (686.85 g/mol); IR (cm−1): υ(P=N) 1331. 1H NMR (acetone-d6, δ/ppm, J/Hz): 7.68 (dd, 8H, Ho, 3JHo/P = 12.0, 3JHo/Hm = 6.8), 7.33 (t, 4H, Hp, 3Hp/Hm = 6.6), 7.27 (m, 8H, Hm, N = 6.7), 6.86 (d, 2H, H4, 3JH4/H3 = 6.7), 6.53 (m, 4H, H2H3), 6.15 (d, 2H, H1, 3JH1/H2 = 7.1), 2.71 (dd, 4H, PCH2, 3JH/P = 16.3, 3JH/H = 7.6), 2.18 (s, 6H, SCH3), 1.48 (m, 2H, PCH2CH2). 31P-{1H} NMR (acetone-d6, δ/ppm): 5.39 (s, PPh2).
Synthesis of 1,1′-(ethene-1,1-diyl)bis(N-(2-(methylthio)phenyl)-1,1-diphenyl-λ5-phosphan-imine) 2d.
A 2:1 mixture of MeSC6H4N3 (100 mg, 0.61 mmol) and Ph2PC(=CH2)PPh2 (121 mg, 0.31 mmol) in diethyl ether (10 cm3) was refluxed for 24 h, with N2 bubbling. After stirring for 24 h at room temperature, a yellow solid was formed, that was filtered off and dried under vacuum. Yield: 193 mg, 95%. Anal. calculated: C: 71.6, H: 5.4, N: 4.2, S: 9.6%, found: C: 71.3, H: 5.5, N: 4.2, S: 9.2%; C40H36N2P2S2 (670.81 g/mol); IR (cm−1): υ(P=N) 1339. 1H NMR (acetone-d6, δ/ppm, J/Hz): 7.69 (dd, 8H, Ho, 3JHo/P = 12.2, 3JHo/Hm = 7.3), 7.55 (t, 4H, Hp, 3JHp/Hm = 7.4), 7.46 (dt, 8H, Hm, 3JHm/Ho = 7.3, 3JHm/Hp = 7.4, 4JHm/P = 2.9), 6.95 (d, 2H, H4, 3JH4/H3 = 6.7), 6.58 (m, 4H, H2H3), 6.15 (d, 2H, H1, 3JH1/H2 = 7.7), 4.55 (d, 1H, PCCH2, 2JH/H = 1.5), 4.18 (d, 1H, PCCH2, 2JH/H = 1.5), 2.38 (s, 6H, SCH3). 31P-{1H} NMR (acetone-d6, δ/ppm): 3.57 (s, PPh2).
Synthesis of N-methyl-N’-(2-(methylthio)phenyl)-N-(N-(2-(methylthio)phenyl)-P,P-diphenyl-phosphorimidoyl)-P,P-diphenylphosphinimidic amide 2e.
A 2:1 mixture of MeSC6H4N3 (50 mg, 0.30 mmol) and Ph2PNCH3PPh2 (61 mg, 0.15 mmol) in diethyl ether (10 cm3) was refluxed for 24 h, with N2 bubbling. After stirring for 24 h at room temperature, a red solid was formed, that was filtered off and dried under vacuum. Yield: 65.7 mg, 64%. Anal. calculated: C: 69.5, H: 5.5, N: 6.2, S: 9.5%, found: C: 69.9, H: 5.7, N: 6.1, S: 9.2%; C39H37N3P2S2 (673.81 g/mol); IR (cm−1): υ(P=N) 1342. 1H NMR (acetone-d6, δ/ppm, J/Hz): 7.95 (dd, 8H, Ho, 3JHo/P = 12.6, 3JHo/Hm = 7.4), 7.39 (t, 4H, Hp, 3JHp/Hm = 7.5), 7.28 (dt, 8H, Hm, 3JHm/Ho = 7.5, 3JHm/Hp = 7.5, 4JHm/P = 2.9), 6.98 (d, 2H, H4, 3JH4/H3 = 6.5), 6.68 (m, 4H, H2H3), 6.43 (d, 2H, H1, 3JH1/H2 = 8.1), 2.55 (s, 3H, NCH3), 2.35 (s, 6H, SCH3). 31P-{1H} NMR (acetone-d6, δ/ppm): 6.23 (s, PPh2).

4.3. Preparation of the Complexes

Synthesis of 3a
First the palladium salt must be synthesized “in situ”, adding lithium chloride (21.6 mg, 0.51 mmol) and palladium chloride (45.2 mg, 0.26 mmol) under nitrogen in 15 cm3 of deoxygenated methanol for 2 h at 50 °C. After that, the ligand 2a (84 mg, 0.13 mmol) and sodium acetate (20.9 mg, 0.26 mmol) were added. After stirring for 22 h at 30 °C, a yellow solid was formed, that was centrifugated and dried under vacuum. The solution was evaporated, the residue was dissolved in dichloromethane, filtered under silica and recrystallized from hexane. The yellow solid corresponds to compound 3a, and the residue obtained from the solution corresponds to compound 4.
Yield: 39,6 mg, 33%. Anal. calculated: C: 49.8, H: 3.6, N: 3.0, S: 6.8%, found: C: 48.9, H: 3.6, N: 2.9, S: 6.8%; C39H34Cl2N2P2Pd2S2 (940.52 g/mol); IR (cm−1): υ(P=N) 1298. 1H NMR (CDCl3, δ/ppm, J/Hz): 7.83 (m, 4H, Ho), 7.60–7.40 (m, 10H, H5/H6/H7/H8/Hp), 7.34 (d, 2H, H4, 3JH4/H3 = 7.7), 7.20 (m, 4H, Hm), 6.75 (m, 2H, H2), 6.61 (m, 2H, H3), 6.14 (d, 2H, H1, 3JH1/H2 = 8.1), 3.05 (s, 6H, SCH3). 31P-{1H} NMR (CDCl3, δ/ppm): 49.40 (s, PPh2).
Product 4
Yield: 43.2 mg, 36%. Anal. calculated: C: 58.6, H: 4.4, N: 3.5, S: 8.0%, found: C: 58.7, H: 4.4, N: 3.5, S: 8.0%; C39H35ClN2P2PdS2 (799.66 g/mol); IR (cm−1): υ(P=N) 1331, 1297. 1H NMR (CDCl3, δ/ppm, J/Hz): 8.19 (dd, 4H, Ho, 3JHo/P = 12.1, 3JHo/Hm = 7.6), 7.79 (m, 4H, HAr), 7.20–7.46 (m, 10H, HAr), 6.79–7.15 (m, 6H, HAr), 6.66 (m, 2H, HAr), 6.37 (d, 1H, H1, 3JH1/H2 = 8.1), 2.76 (s, 3H, SCH3), 2.54 (s, 3H, SCH3). 31P-{1H} NMR (CDCl3, δ/ppm): 51.36 (s, PPh2), 41.70 (s, PPh2).
Synthesis of 3b
The palladium salt was made analogously as above from lithium chloride (18.9 mg, 0.45 mmol) and palladium chloride (39.5 mg, 0.22 mmol). Then, the ligand 2b (75 mg, 0.11 mmol) and sodium acetate (18.3 mg, 0.22 mmol) were added. After stirring for 22 h at 30 °C, a red solid was formed, which was washed with acetone-dichloromethane and dried under vacuum. Yield: 89,4 mg, 84%. Anal. calculated: C: 50.3, H: 3.8, N: 3.0, S: 6.7%, found: C: 48.8, H: 3.6, N: 2.9, S: 6.3%; C40H36Cl2N2P2Pd2S2 (954.55 g/mol); IR (cm−1): υ(P=N) 1297. 1H NMR (acetone-d6, δ/ppm, J/Hz): 7.98 (d, 2H, H8, 3JH8/H7 = 8.1), 7.87 (d, 4H, Ho, 3JHo/Hm = 7.7), 7.56 (t, 2H, Hp, 3JHp/Hm = 7.5), 7.45 (m, 4H, Hm, N = 7.6), 7.27 (m, 2H, H6), 7.12 (d, 2H, H5, 3JH5/H6 = 7.9), 7.05 (d, 2H, H4, 3JH4/H3 = 7.7), 6.93 (m, 2H, H7), 6.87 (m, 2H, H2), 6.71 (m, 2H, H3), 6.59 (d, 2H, H1, 3JH1/H2 = 7.6), 3.53 (m, 4H, PCH2), 2.62 (s, 6H, SCH3). 31P-{1H} NMR (acetone-d6, δ/ppm): 56.38 (s, PPh2).
Synthesis of 3c
The palladium salt was made analogously as above from lithium chloride (18.5 mg, 0.44 mmol) and palladium chloride (38.7 mg, 0.22 mmol). Then, the ligand 2c (75 mg, 0.11 mmol) and sodium acetate (17.9 mg, 0.22 mmol) were added. After stirring for 22 h at 30 °C, an orange solid was formed and was washed with acetone-dichloromethane and dried under vacuum. Yield: 85.7 mg, 81%. Anal. calculated: C: 50.8, H: 4.0, N: 2.9, S: 6.6%, found: C: 49.5, H: 3.8, N: 2.6, S: 6.2%; C41H38Cl2N2P2Pd2S2 (968.58 g/mol); IR (cm−1): υ(P=N) 1292. 1H NMR (acetone-d6, δ/ppm, J/Hz): 7.89 (d, 4H, Ho, 3JHo/Hm = 7.6), 7.84 (d, 4H, Ho, 3JHo/Hm = 7.6), 7.69–7.41 (m, 24H, H5/H6/H7/H8/Hp/H4), 7.15 (m, 8H, Hm), 7.01 (m, 4H, H2), 6.76 (m, 4H, H3) 6.56 (d, 2H, H1, 3JH1/H2 = 8.3), 6.52 (d, 2H, H1, 3JH1/H2 = 8.3), 3.34 (m, 8H, PCH2), 2.65 (s, 6H, SCH3), 2.63 (s, 6H, SCH3). 31P-{1H} NMR (acetone-d6, δ/ppm): 57.99 (s, PPh2), 57.25 (s, PPh2).
Synthesis of 3d
The palladium salt was made analogously as above from lithium chloride (20.2 mg, 0,48 mmol) and palladium chloride (42.3 mg, 0.24 mmol). Then, the ligand 2d (80 mg, 0.12 mmol) and sodium acetate (19.6 mg, 0.24 mmol) were added. After stirring for 22 h at 30 °C, a brown solid was formed that was washed with acetone-dichloromethane and dried under vacuum. Yield: 92.9 mg, 82%. Anal. calculated: 50.4, H: 3.6, N: 2.9, S: 6.7%, found: C: 49.8, H: 3.8, N: 3.0, S: 6.3%; C40H34Cl2N2P2Pd2S2 (952.53 g/mol); IR (cm−1): υ(P=N) 1291. 1H NMR (acetone-d6, δ/ppm, J/Hz): 8.00 (m, 2H, H8), 7.72–7.52 (m, 18H, H4/H5/H6/H7/Ho/Hm/Hp), 6.89 (m, 2H, H2), 6.73 (m, 4H, H1/H3), 4.32 (m, 1H, PCCH2), 3.86 (m, 1H, PCCH2), 2.73 (s, 6H, SCH3). 31P-{1H} NMR (acetone-d6, δ/ppm): 52.72 (s, PPh2).
Synthesis of 3e
The palladium salt was made analogously as above from lithium chloride (8.8 mg, 0.21 mmol) and palladium chloride (18.4 mg, 0.10 mmol). Then, the ligand 2e (35 mg, 0.05 mmol) and sodium acetate (8.5 mg, 0.10 mmol) were added. After stirring for 22 h at 30 °C, a green solid was formed that was washed with acetone-dichloromethane and dried under vacuum. Yield: 32.8 mg, 66%. Anal. calculated: C: 49.0, H: 3.7, N: 4.4, S: 6.7%, found: C: 47.2, H: 3.3, N: 4.6, S: 6.5%; C39H35Cl2N3P2Pd2S2 (955.54 g/mol); IR (cm−1): υ(P=N) 1299. 1H NMR (acetone-d6, δ/ppm, J/Hz): 8.19 (d, 2H, H8, 3JH8/H7 = 8.0), 8.09 (d, 4H, Ho, 3JHo/Hm = 8.6), 7.77 (t, 2H, Hp, 3JHp/Hm = 8.5), 7.60 (m, 4H, Hm, N = 8.6), 7.45 (m, 2H, H6), 7.37 (m, 2H, H5), 7.29 (d, 2H, H4, 3JH4/H3 = 7.3), 7.16 (m, 2H, H7), 7.07 (m, 2H, H2), 6.98 (m, 2H, H3), 6.77 (d, 2H, H1, 3JH1/H2 = 7.3), 2.71 (s, 6H, SCH3), 2.63 (s, 3H, NCH3). 31P-{1H} NMR (acetone-d6, δ/ppm): 48.41 (s, PPh2).
Product 5
Compound 3a (94.0 mg, 0.10 mmol), dppe (19.9 mg, 0.05 mmol) and NH4PF6 (16.3 mg, 0.1 mmol) were added in acetone (15 cm3). The resulting mixture was stirred at room temperature for 18 h, and an untreatable solid was formed which was filtered off. The solid was dissolved in chloroform, which produced single crystals of compound 5.

4.4. Crystal Structure Analysis and Details on Data Collection and Refinement

CCDC 2113724(3c) and 2114034(5). See Supplementary Materials.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27207043/s1, Tables S1–S6. References [38,39] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, J.M.V. and M.R.-S.; methodology, A.F.; software, M.R.-S.; validation, J.M.V., P.M.-C. and M.R.-S.; formal analysis, J.M.O.; investigation J.M.V.; resources, J.M.O.; data curation, A.F.; writing—original draft preparation, J.M.V.; writing—review and editing, J.M.V.; visualization, A.F and M.R.-S.; supervision, J.M.V.; project administration, M.T.P.; funding acquisition, M.T.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was made possible thanks to the financial support received from the Xunta de Galica (Galicia, Spain) under the Grupos de Referencia Competitiva Programme (Project GRC2019/14).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Dharani, S.; Kalaiarasi, G.; Sindhuja, D.; Lynch, V.M.; Shankar, R.; Karvembu, R.; Prabhakaran, R. Tetranuclear palladacycles of 3-acetyl-7-methoxy-2H-chromen-2-one derived schiff bases: Efficient catalysts for suzuki–miyaura coupling in an aqueous medium. Inorg. Chem. 2019, 58, 8045–8055. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, X.; Wang, H.; Yuan, J.; Guo, S. Palladacycles incorporating a carboxylate-functionalized phosphine ligand: Syntheses, characterization and their catalytic applications toward suzuki couplings in water. Transit. Met. Chem. 2017, 42, 727–738. [Google Scholar] [CrossRef]
  3. Maji, A.; Singh, O.; Singh, S.; Mohanty, A.; Maji, P.K.; Ghosh, K. Palladium-based catalysts supported by unsymmetrical xyc–1 type pincer ligands: C5 arylation of imidazoles and synthesis of octinoxate utilizing the mizoroki–heck reaction. Eur. J. Inorg. Chem. 2020, 2020, 1596–1611. [Google Scholar] [CrossRef]
  4. López-Mosquera, C.; Grabulosa, A.; Rocamora, M.; Font-Bardia, M.; Muller, G. Cyclopalladated compounds with polyhalogenated benzylphosphanes for the mizoroki-heck reaction. Eur. J. Inorg. Chem. 2020, 2020, 2470–2484. [Google Scholar] [CrossRef]
  5. Carreira, M.; Calvo-Sanjuán, R.; Sanaú, M.; Marzo, I.; Contel, M. Organometallic palladium complexes with a water-soluble iminophosphorane ligand as potential anticancer agents. Organometallics 2012, 31, 5772–5781. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Yousef, T.A.; Abu El-Reash, G.M. Synthesis, and biological evaluation of complexes based on thiosemicarbazone ligand. J. Mol. Struct. 2020, 1201, 127180. [Google Scholar] [CrossRef]
  7. Pike, S.; Lord, R.; Kergreis, A. Influence of ligand and nuclearity on the cytotoxicity of cyclometallated C^ N^ C platinum (II) complexes. Chem. Eur. J. 2020, 26, 14938–14946. [Google Scholar] [CrossRef]
  8. Yasuda, J.; Inoue, K.; Mizuno, K.; Arai, S.; Uehara, K.; Kikuchi, A.; Yan, Y.-N.; Yamanishi, K.; Kataoka, Y.; Kato, M.; et al. Photooxidation reactions of cyclometalated palladium(ii) and platinum(II) complexes. Inorg. Chem. 2019, 58, 15720–15725. [Google Scholar] [CrossRef]
  9. Iliş, M.; Micutz, M.; Cîrcu, V. Luminescent palladium(ii) metallomesogens based on cyclometalated schiff bases and n-benzoyl thiourea derivatives as co-ligands. J. Organomet. Chem. 2017, 836–837, 81–89. [Google Scholar] [CrossRef]
  10. Fernández-Figueiras, A.; Lucio-Martínez, F.; Munín-Cruz, P.; Ortigueira, J.M.; Polo-Ces, P.; Reigosa, F.; Pereira, M.T.; Vila, J.M. From chemical serendipity to translational chemistry: New findings in the reactivity of palladacycles. Chem. Open 2018, 7, 754–763. [Google Scholar] [CrossRef]
  11. Lucio-Martínez, F.; Adrio, L.A.; Polo-Ces, P.; Ortigueira, J.M.; Fernández, J.J.; Adams, H.; Pereira, M.T.; Vila, J.M. Palladacycle catalysis: An innovation to the Suzuki–Miyaura cross-coupling reaction. Dalton Trans. 2016, 45, 17598–17601. [Google Scholar] [CrossRef] [PubMed]
  12. Martínez, J.; Cabaleiro-Lago, E.M.; Ortigueira, J.M.; Pereira, M.T.; Frieiro, P.; Lucio, F.; Vila, J.M. Synthesis and reactivity of thiosemicarbazone palladacycles. Crystal structure analysis and theoretical calculations. Inorg. Chim. Acta 2016, 449, 20–30. [Google Scholar] [CrossRef]
  13. Lucio-Martínez, F.; Bermúdez, B.; Ortigueira, J.M.; Adams, H.; Fernández, A.; Pereira, M.T.; Vila, J.M. A highly effective strategy for encapsulating potassium cations in small crown ether rings on a dinuclear palladium complex. Chem. Eur. J. 2017, 23, 6255–6258. [Google Scholar] [CrossRef] [PubMed]
  14. Frieiro-Gomis, P.; Lucio-Martínez, F.; Munín-Cruz, P.; Ortigueira, J.M.; Pereira, M.T.; Polo-Ces, P.; Vázquez-García, D.; Vila, J.M. The chelate-to-bridging shift of phosphane dipalladacycles: Convenient synthesis of double a-frame tetranuclear complexes. Chem. Comm. 2018, 54, 2662–2665. [Google Scholar] [CrossRef]
  15. Adrio, L.; Antelo, J.M.; Ortigueira, J.M.; Fernández, J.J.; Fernández, A.; Teresa Pereira, M.; Vila, J.M. The chemistry of n-benzylidene-1,4-phenylenediamine palladacycles: The crystal and molecular structure of the first tetranuclear palladacycle with bridging Ph2PCH2PPh2 ligands. J. Organomet. Chem. 2009, 694, 1273–1282. [Google Scholar] [CrossRef]
  16. Aguilar, D.; Gonzalez, G.; Villuendas, P.; Urriolabeitia, E.P. Bis-cyclometalated complexes of pd(ii) and pd(iv) from iminophosphoranes: Synthesis, structure and reactivity. J. Organomet. Chem. 2014, 767, 27–34. [Google Scholar] [CrossRef]
  17. León, T.; Parera, M.; Roglans, A.; Riera, A.; Verdaguer, X. P-stereogenic secondary iminophosphorane ligands and their rhodium (i) complexes: Taking advantage of nh/ph tautomerism. Angew Chem. Int. Ed. 2012, 124, 7057–7061. [Google Scholar] [CrossRef]
  18. Cheisson, T.; Mazaud, L.; Auffrant, A. Ruthenium complexes featuring cooperative phosphine–pyridine–iminophosphorane (pnn) ligands: Synthesis, reactivity and catalytic activity. Dalton Trans. 2018, 47, 14521–14530. [Google Scholar] [CrossRef]
  19. Martínez-De-León, C.G.; Flores Vallejo, R.d.C.; Rodríguez-Álvarez, A.; Villareal, M.L.; Grévy, J.-M. Synthesis, characterization and cytotoxic activity of cationic half-sandwich Ru(II) complexes stabilized by iminophosphorane N,N,S and N,N,Se tridentate ligands. New J. Chem. 2020, 44, 20676–20687. [Google Scholar] [CrossRef]
  20. Staudinger, H.; Meyer, J. New organic compounds of phosphorus. III. Phosphinemethylene derivatives and phosphinimines. Helv. Chim. Acta 1919, 2, 635–646. [Google Scholar] [CrossRef]
  21. Aguilar, D.; Bielsa, R.; Contel, M.; Lledós, A.; Navarro, R.; Soler, T.; Urriolabeitia, E.P. Regioselective ortho palladation of stabilized iminophosphoranes in exo positions: Scope, limitations, and mechanistic insights. Organometallics 2008, 27, 2929–2936. [Google Scholar] [CrossRef]
  22. Dyer, H.; Picot, A.; Vendier, L.; Auffrant, A.; Le Floch, P.; Sabo-Etienne, S. Tridentate and tetradentate iminophosphorane-based ruthenium complexes in catalytic transfer hydrogenation of ketones. Organometallics 2011, 30, 1478–1486. [Google Scholar] [CrossRef]
  23. Picot, A.; Dyer, H.; Buchard, A.; Auffrant, A.; Vendier, L.; Le Floch, P.; Sabo-Etienne, S. Interplay between hydrido/dihydrogen and amine/amido ligands in ruthenium-catalyzed transfer hydrogenation of ketones. Inorg. Chem. 2010, 49, 1310–1312. [Google Scholar] [CrossRef]
  24. Alper, H. Cyclopalladation of phosphine imides. J. Organomet. Chem. 1977, 127, 385–389. [Google Scholar] [CrossRef]
  25. Aguilar, D.; Navarro, R.; Soler, T.; Urriolabeitia, E.P. Regioselective functionalization of iminophosphoranes through Pd-mediated C–H bond activation: C–C and C–X bond formation. Dalton Trans. 2010, 39, 10422–10431. [Google Scholar] [CrossRef] [PubMed]
  26. Tárraga, A.; Molina, P.; Curiel, D.; López, J.L.; Velasco, M.D. Aza-wittig reactions of iminophosphoranes derived from ferrocenylazido ketones: Preparation and electrochemical study of novel ferrocenyl-substituted azaheterocycles. Tetrahedron 1999, 55, 14701–14718. [Google Scholar] [CrossRef]
  27. Nie, Y.-B.; Wang, L.; Ding, M.-W. Synthesis of 1,2,4,5-tetrasubstituted imidazoles by a sequential aza-Wittig/Michael/isomerization reaction. J. Org. Chem. 2012, 77, 696–700. [Google Scholar] [CrossRef]
  28. Krawczyk, H.; Dzięgielewski, M.; Deredas, D.; Albrecht, A.; Albrecht, Ł. Chiral iminophosphoranes—An emerging class of superbase organocatalysts. Chem. Eur. J. 2015, 21, 10268–10277. [Google Scholar] [CrossRef]
  29. Frik, M.; Fernández-Gallardo, J.; Gonzalo, O.; Mangas-Sanjuan, V.; González-Alvarez, M.; Serrano del Valle, A.; Hu, C.; González-Alvarez, I.; Bermejo, M.; Marzo, I. Cyclometalated iminophosphorane gold (III) and platinum (II) complexes. A highly permeable cationic platinum (II) compound with promising anticancer properties. J. Med. Chem. 2015, 58, 5825–5841. [Google Scholar] [CrossRef] [Green Version]
  30. Ramírez-Rave, S.; Ramírez-Apan, M.T.; Tlahuext, H.; Morales-Morales, D.; Toscano, R.A.; Grévy, J.-M. Non-symmetric CNS-Pt(II) pincer complexes including thioether functionalized iminophosphoranes. Evaluation of their in vitro anticancer activity. J. Organomet. Chem. 2016, 814, 16–24. [Google Scholar] [CrossRef]
  31. Ramirez-Rave, S.; Estudiante-Negrete, F.; Toscano, R.A.; Hernandez-Ortega, S.; Morales-Morales, D.; Grevy, J.-M. Synthesis and characterization of new Pd (II) non-symmetrical pincer complexes derived from thioether functionalized iminophosphoranes. Evaluation of their catalytic activity in the Suzuki–Miyaura couplings. J. Organomet. Chem. 2014, 749, 287–295. [Google Scholar] [CrossRef]
  32. Fernández-Figueiras, A.; Lucio-Martínez, F.; Munín-Cruz, P.; Polo-Ces, P.; Reigosa, F.; Adams, H.; Pereira, M.T.; Vila, J.M. Palladium iminophosphorane complexes: The pre-cursors to the missing link in triphenylphosphane chalcogenide metallacycles. Dalton Trans. 2018, 47, 15801–15807. [Google Scholar] [CrossRef] [PubMed]
  33. Munín-Cruz, P.; Reigosa, F.; Rúa-Sueiro, M.; Ortigueira, J.M.; Pereira, M.T.; Vila, J.M. Chemistry of tetradentate [C,N : C,N] iminophosphorane palladacycles: Preparation, reactivity and theoretical calculations. Chem. Open 2020, 9, 1190–1194. [Google Scholar] [CrossRef] [PubMed]
  34. Crujeiras, P.; Rodríguez-Rey, J.L.; Sousa, A. Deactivation of the coordinating ability of the iminophosphorane group by effect of ortho-carborane. Dalton Trans. 2017, 46, 257–593. [Google Scholar] [CrossRef]
  35. Aleksanyan, D.V.; Churusova, S.G.; Klemenkova, Z.S.; Aysin, R.R.; Rybalkina, E.Y.; Nelyubina, Y.V.; Artyushin, O.I.; Peregudov, A.S.; Kozlov, V.A. Extending the application scope of organophosphorus(V) compounds in palladium(II) pincer chemistry. Organometallics 2019, 38, 1062–1080. [Google Scholar] [CrossRef]
  36. Kilpin, K.J.; Henderson, W.; Nicholson, B.K. Synthesis and reactivity of gold(III) complexes containing cycloaurated iminophosphorane ligands. Inorg. Chim. Acta 2009, 362, 3669–3676. [Google Scholar] [CrossRef] [Green Version]
  37. Armarego, W.L. Purification of Laboratory Chemicals; Butterworth-Heinemann: Amsterdam, Netherlands, 2017; ISBN 978-185-617-567-8. [Google Scholar]
  38. Sheldrick, G.M. A short history of SHELX. Acta Crystallographica Section A: Foundations of Crystallography. Acta Crystallogr. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [Green Version]
  39. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2011, 44, 339–341. [Google Scholar] [CrossRef]
Molecules 27 07043 sch001 550
Scheme 1. Examples of isolated complexes containing a palladated iminophosphorane ligand, (I–V); and a cyclometallated bis(iminophosphorane)phosphane complex, (VI).
Scheme 1. Examples of isolated complexes containing a palladated iminophosphorane ligand, (I–V); and a cyclometallated bis(iminophosphorane)phosphane complex, (VI).
Molecules 27 07043 sch001
Molecules 27 07043 sch002 550
Scheme 2. Reaction sequence leading to the synthesis of double iminophosphorane palladacycles. Phenyl rings on the phosphorus atoms in 6 have been omitted for clarity.
Scheme 2. Reaction sequence leading to the synthesis of double iminophosphorane palladacycles. Phenyl rings on the phosphorus atoms in 6 have been omitted for clarity.
Molecules 27 07043 sch002
Molecules 27 07043 sch003 550

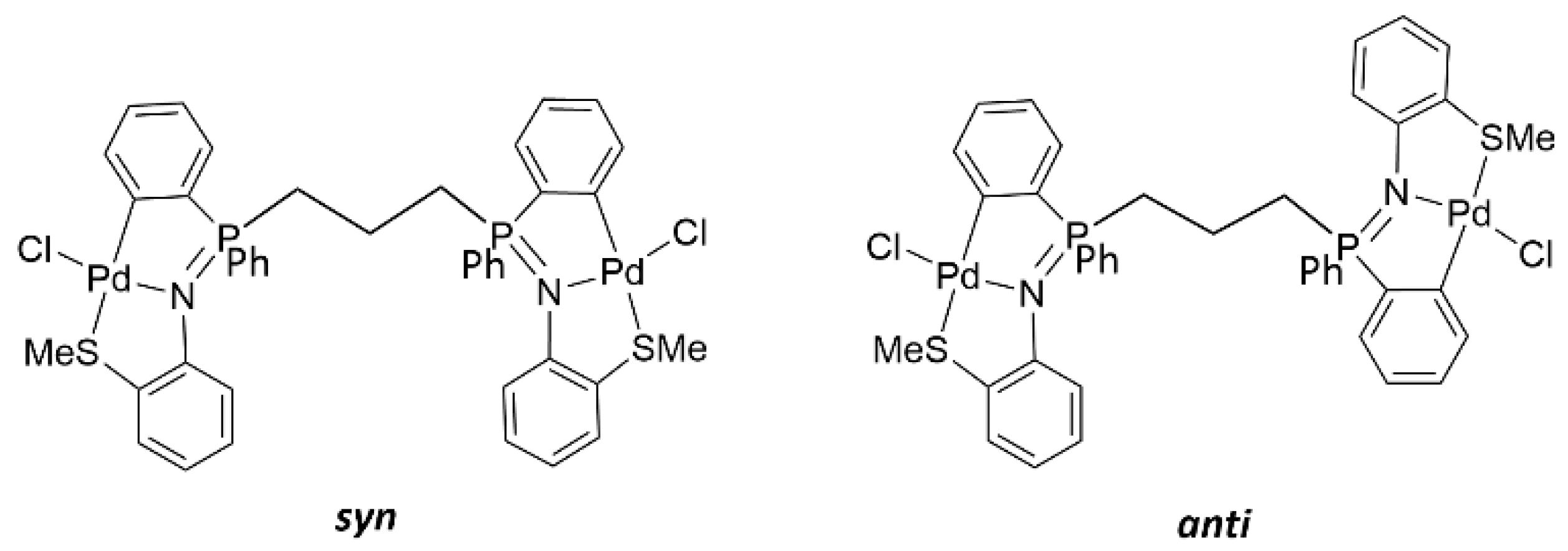

Scheme 3. The two possible isomers for 3c.
