Preparation and Characterization of Water-borne Polyurethane Based on Benzotriazole as Pendant Group with Different N-Alkylated Chain Extenders and Its Application in Anticorrosion

by
Aamna Bibi
,
Ethan Tsai
,
Yun-Xiang Lan
,
Kung-Chin Chang
and
Jui-Ming Yeh
*
Department of Chemistry, Center for Nanotechnology and R & D Center for Membrane Technology, Chung-Yuan Christian University, Chung Li 32023, Taiwan
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(21), 7581; https://doi.org/10.3390/molecules27217581
Submission received: 27 September 2022 / Revised: 1 November 2022 / Accepted: 2 November 2022 / Published: 4 November 2022
(This article belongs to the Special Issue Progress in Synthetic Corrosion Inhibitors in Organic Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
A series of novel anti-corrosive coatings were synthesized successfully. Water-borne polyurethane (WPU) was synthesized using polyethylene glycol and modified by grafting benzotriazole (BTA) as a pendant group (WPU-g-BTA) and N-alkylated amines (ethylene diamine (A), diethylene triamine (B), triethylene tetramine (C)) as side-chain extenders. Fourier-transform infrared spectroscopy, thermogravimetry, and dynamic mechanical analyses were used to characterize the structural and thermomechanical properties of the samples. A gas permeability analyzer (GPA) was used to evaluate molecular barrier properties. The corrosion inhibition performance of WPU-g-BTA-A, WPU-g-BTA-B, and WPU-g-BTA-C coatings in 3.5 wt% NaCl solution was determined by electrochemical measurements. WPU-g-BTA-C coating synthesized with a high cross-linking density showed superior anticorrosive performance. The as-prepared coatings exhibited a very low icorr value of 0.02 µA.cm−2, a high Ecorr value of −0.02 V, as well as excellent inhibition efficiency (99.972%) and impedance (6.33 Ω) after 30 min of exposure.

1. Introduction

Corrosion is responsible for economic losses, and time consumption is one of the major concerns in architectural engineering. Polymer paints and coatings, such as epoxy, polyurethane, polyacrylate, alkyd, polyester, and phenolic resins are the simplest and cheapest compounds to protect against corrosion [1,2]. Polyurethanes (PUs) are one of the popular materials used in different applications, such as coatings, adhesives, sealants, elastomers, foams, etc. [3]. Recently, water-borne polyurethanes (WPU) have gained research attention due to their unique properties of environment friendliness and easy processing [4]. WPUs are used in strain sensors [5], implantable biomaterials [6], cancer therapy [7], anti-bacterial agents [8], and coatings, adhesives, paints, leather, and composites.
Yeh et al. developed a WPU/Na+ -montmorillonite (Na+ -MMT) clay nanocomposite coating for practical evaluation of corrosion protection efficiency [9]. In 2019, Hou et al. reported WPU nanocomposites with complex packing of GO and CB as anti-corrosive coating [10]. Liu et al. proposed WPU nanocomposites with polyether-amine functionalized graphene oxide for anti-corrosion [11]. Bilal et al. and Xie et al. investigated the anti-corrosive properties of WPU reinforced with 2D nanosheets of graphene, GO, hexagonal boron nitride [12,13], and Ti3C2 MXenes [14]. Many other researchers developed WPU nanocomposites for anti-corrosive coatings by using graphene/graphene oxide [13], functionalized nanosilica [15], mGO/PTFE [16], TiO2/PANI/HNT/CNT [17], and MWCNTs [18] and by incorporating a cyclic rigid ring [19]. However, mechanical damages to these coating can create weak points, leading to various types of corrosion including general, flow assisted, galvanic, and pitting [20,21]. In this regard, protection coatings require the use of corrosive inhibitors to solve these issues and enhance anti-corrosion performance. Corrosion inhibitors generally contain specific characters such as nitrogen, sulphur, oxygen, and so on, or some special unsaturated functional groups, etc. They have the advantages of simple operation, significant corrosion protection effect, and small dosage. Therefore, they have received extensive attention from corrosion protection scientists [22,23,24].
For many years, hexavalent chromates were used as traditional inhibitors, but their application was restricted due to their toxic nature. Recently, heterocyclic molecules, such as benzotriazole (BTA), have been widely used as corrosion inhibitors [25,26].
In 2014, Xuewu et al. reported the excellent corrosion protection of BTA-loaded raspberry-like hollow microspheres with and without WPU films [26], in which copper electrode coated by WPU film containing BTA-loaded raspberry-like hollow microspheres showed a corrosion inhibition efficiency of 84.4% after 30 h of immersion in alkaline meium (pH = 10). Abdullayev et al. studied polyurethane and acrylic paints doped with halloysite loaded with benzotriazole, 2-mercaptobenzimidazole, and 2-mercaptobenzothiazole as corrosion inhibitors [27]. Li et al. reported different smart sensing coatings such as PDVB-graft-P(DVB-co-AA)-BTA, Halloysite-BTA, and IPDI@PU/PUF for the evaluation of corrosion inhibition efficiency [28]. Scholars have also developed systems based on silica by using nano-containers, nano-capsules, and microspheres loaded with BTA for corrosion inhibition [29,30].
Coatings also undergo photo-oxidative degradation upon UV exposure. In this regard, various strategies are used, including the addition of organic UV absorbers (UVA) and hindering amine light stabilizers or functional particles (TiO2, ZnO) [31,32,33,34]. Common chemical classes of organic UVA are benzophenones, benzotriazoles, triazines, malonates, and oxalanilides [35].
Khannna et al. [36] and Rabello et al. [37] used nano ZnO and hydroxyphenyl triazine as UV stabilizers in polymer coatings. Campbell et al. used ZnO/TiO2 [38], and Adomsons reported the use of benzotriazole and triazine [39] as UVA in automotive plastic coating. The introduction of side chain improves the properties and flexibility of the WPU main chain [40]. In particular, methyl group [41], long-branched fatty acids [42], organo-phosphorous groups [43], and siloxane groups [44] have been used as side chains. The effects of chain extenders on the adhesion and mechanical properties of WPU films have also been studied [45]. Lu et al. reported a series of WPU with 3-(2-aminoethylamino)propyldimethoxymethylsilane (APTS) as chain extender [46]. Lee et al. reported WPU with cystamine as chain extender [47]. In 2016, Fan et al. synthesized and characterized WPU conjugated with diol bearing a cyclic phosphoramidate pendant group, namely, 2-(5,5-dimethyl-2-oxo-2l5-1,3,2-dioxaphosphinan-2-ylamino)-2-methyl-propane-1,3-diol (PNMPD) [48]. Moreover, WPU with diol as an extender with a triethoxysilane group [49] and alkoxysilane side group [50] was developed.
In this study, we aimed to synthesize an anti-corrosive coating by grafting BTA onto the polymer backbone via a covalent linkage. WPU was prepared using BTA-based Eversorb 80 (EV 80) as a pendant group with HDI (trimer) N3300 as a bridging agent. Novel WPU-g-BTA films were then synthesized with different N-alkylated amines as chain extenders. The structure of WPU-g-BTA was tested by FTIR. Thermogravimetric analysis (TGA), dynamic mechanical analysis (DMA), and gas permeability analysis (GPA) were conducted to investigate the thermomechanical and molecular barrier properties of the synthesized coatings. Anti-corrosive properties were analyzed by potentiodynamic polarization (PDP) and electrochemical impedance spectroscopy (EIS) in a corrosive environment (3.5 wt% NaCl).

2. Results and Discussion

2.1. Characterization

The as-synthesized compound was characterized through FTIR analysis. The representative IR spectra of EV 80, HDI trimer, and WPU-g-BTA are shown in Figure 1. The characteristic band for the NCO- group of HDI trimer at 2260 cm−1 disappeared in the corresponding polymer. The absorption band at 3338 cm−1 indicated the hydrogen-bonded N–H group of the polymer. The absorption band for the C–H group was detected at 2870 cm−1. The strong band at 1638 and 1690 cm−1 were assigned to the C=O groups.

2.2. Gel Contents

The as-synthesized anti-corrosive coatings had different gel contents (%). Gel content is correlated with crosslinking density [51] (Figure 2).
For example, WPU-g-BTA-A had 13.57% gel, which was increased to 18.79% with ‘B’ as the chain extender. Meanwhile, WPU-g-BTA-C showed the highest gel content (21.68%) with the longest chain length (Table 1).

2.3. Electrochemical Corrosion Measurement

2.3.1. Potentiodynamic Polarization (PDP) Measurement

PDP analysis was used for quantitative measurements of the inhibition efficiency (IE) of WPU-g-BTA-A, WPU-g-BTA-B, and WPU-g-BTA-C coatings under 3.5 wt% NaCl environment for 30 min and three days respectively.

Short Term Corrosion Study (30 Min)

The thickness of the coating was set at 060 ± 2 µm. The Tafel plots for the uncoated and coated CRS are presented in Figure 3 and the kinetic corrosion parameters including corrosion potential (Ecorr), corrosion current density (icorr), and IE (%) are summarized in Table 2.
The inhibition efficiency (IE) of the as-prepared coatings was calculated using Equation (1) [15]:
icorr(0) − icorr (i) × 100
icorr(0)
where icorr(0) and icorr(i) denote the corrosive current densities for the uncoated and coated CRS electrodes, respectively.
Ecorr and icorr are substantial parameters that measure the tendency for corrosion and corrosion inhibition as the corrosion rate is directly proportional to Ecorr and inversely proportional to icorr. Thus, the coating with the lowest icorr and the highest Ecorr exhibited the best anticorrosive performance. The coated CRS electrode demonstrated better corrosion protection than the uncoated sample (Figure 3).
The Ecorr and icorr values of the uncoated CRS (black curve) were −0.811 V and 71.77 µA.cm−2, respectively. The icorr value decreased (0.079 µA.cm−2) in WPU-g-BTA-A (red curve), which exhibited excellent barrier property. With respect to CRS, a drastic shift in Ecorr to more positive potential (−0.3311 V) was observed. The Ecorr value for WPU-g-BTA-B was further moved to −0.252 V with a smaller icorr value of 0.068 µA.cm−2 (green curve). Eventually, CRS coated with WPU-g-BTA-C (blue curve) exhibited a very low icorr value of 0.020 µA.cm−2, which is about 4 and 3.4 orders of magnitude lower than those of WPU-g-BTA-A and WPU-g-BTA-B, respectively. However, the Ecorr for the coating was −0.1983 V, which is more positive than that of WPU-g-BTA-A and WPU-g-BTA-B. Hence, CRS coated with WPU-g-BTA blocked the diffusion of electrolytes. The results indicated that the corrosion inhibition performance of WPU-g-BTA coatings increased with increasing cross-linking density from sample A to C. Overall, CRS-coated samples showed significantly higher corrosion inhibition performance than bare CRS. The IE % values are listed in Table 2. The corrosion inhibition efficiency of the coated CRS was higher and increased as the length of the chain extender increased (A to C). The CRS coated with WPU-g-BTA-C showed extremely higher corrosion inhibition efficiency (99.972%). In the present study, the order of inhibition efficiency was found to be
WPU-g-BTA-A < WPU-g-BTA-B < WPU-g-BTA-C

Long Term Anti-Corrosion Study (3 Days)

In Figure 4 and Table 3, it can be seen that, compared with the bare CRS, self-corrosion potentials of the samples, which were covered with organic coating, shifted more significantly to the right and their corrosion currents also had a downward trend.
The corrosion potentials of the samples shifted from −0.634 V for the bare steel to −0.633 V for WPU−g−BTA−A, −0.576 V for WPU−g−BTA−B, and −0.550 V for WPU−g−BTA−C. The corrosion current (icorr) decreased from 4.98 µA.cm−2 for CRS to 4.17 µA.cm−2 for WPU−g−BTA−A, 4.08 µA.cm−2 for WPU−g−BTA−B, and 3.41 µA.cm−2 for WPU−g−BTA−C, where WPU−g−BTA−C had the smallest corrosion current. Further, it is also noted that the CRS exhibited Rp value of 2.587 kΩ whereas the Rp value for WPU−g−BTA−C coated CRS is 3.127 kΩ. This increase in Rp value clearly indicates that the coating acts as a physical barrier and appreciably resists the corrosion of the CRS from corrosion medium. Moreover, the highest corrosion protection efficiency (PEF) % achieved for WPU−g−BTA−C coating was 31.56% after 3 days’ immersion in 3.5 wt% NaCl (aq).

2.3.2. Morphological Studies

The cross-sectional images of before (top) and after (bottom) the corrosion test in the 3.5 wt% NaCl solution for three days are shown in Figure 5. The cross-sectional image of WPU−g−BTA−A in shows that the corroded layer was uniform and without pits. The image of WPU−g−BTA−B in also shows a rough corroded layer with a few pits, while the WPU−g−BTA−C coating shows a relatively less rough surface. The specimens with higher cross-linking density showed complex corrosion morphologies.
SEM images of freshly polished surface (top) as well as specimens retrieved from 3.5 wt% NaCl solution (bottom) after 3 days of immersion are shown in Figure 6. The freshly polished WPU−g−BTA coatings showed a relatively smooth surface as shown in Figure 6a,b, while the longest chain extender C due to high crosslinking density strengthened the coating in WPU−g−BTA−C film showed a coarse surface, as shown in Figure 6c. The WPU−g−BTA specimens retrieved from corrosive media showed a rough surface with corrosion products. The WPU−g−BTA−C coating with high crosslinking density seemed compact, tight, and wrapped around the corrosion products, which is beneficial to shield them from corrosive medium.

2.3.3. Electrochemical Impedance Spectroscopy (EIS)

EIS is an effective technique used to evaluate the anticorrosion performance of as-prepared coatings. The impedance spectrum was recorded on uncoated CRS and CRS coated with WPU−g−BTA−C, WPU−g−BTA−B, and WPU−g−BTA−C after 30 min of immersion in 3.5 wt% NaCl solution (Figure 4 and Table 2) at 298 K.
It can be found from Figure 7 that for CRS, the Nyquist plot consisted of a flattened capacitive loop. The Nyquist plot consisted of a single semicircle over the immersion period, suggesting a complete capacitive and good barrier property. The radius of the semicircle increased with increasing chain length from WPU−g−BTA−A to WPU−g−BTA−C. The radius of the capacitive arc indicated the corrosion rate. The capacitive arc with larger radius had a slower corrosion rate, indicating better corrosive inhibition. The diameter of the Nyquist curve for WPU-g-BTA coatings increased with various chain extenders from A to C. The WPU−g−BTA−C coating had the largest radius, indicating excellent corrosion resistance.
BODE plots are one of the most commonly used tools in corrosion science for monitoring local corrosion damages. Figure 8 is the BODE diagram of coated and un-coated CRS dip in 3.5 wt% NaCl for 30 min at 298 K. A small-amplitude signal was applied over a range of frequencies for EIS measurement. The impedance modulus (log Z) in the BODE plot is usually related to the coatings barrier performance; that is, a large impedance value indicates better corrosion protection. The /Z/ (Table 2) of uncoated CRS was 2.22 Ω, which was increased to 5.99 Ω and 6.21 Ω for WPU−g−BTA−A and WPU−g−BTA−B, respectively. WPU−g−BTA−C, which had the largest impedance modulus, exhibited the best corrosion protection. The trend in the BODE plot was similar to those observed in Tafel and Nyquist plots.

2.4. O2 Permeability

WPU-g-BTA coatings with film thicknesses of 60 ± 2 µm were used to evaluate molecular barrier properties. The O2 gas permeability of the as-prepared coatings with different cross-linking densities at 298 K is presented in Figure 9. The O2 permeation across different coatings decreased with changes in the length of the chain extender. Compared with WPU-g-BTA-A, WPU-g-BTA-B film had 60% reduction in gas permeability (Table 1). The best barrier performance was recorded for the WPU-g-BTA-C coating with longer chain length. The incorporation of ‘C’ into the WPU-g-BTA coating with higher cross-linking density can create a tortuous path for O2 gas molecules, thereby increasing the total path of the gas. The effect of amine-based chain extenders (A, B, C) with various lengths may result in greater interaction, leading to higher efficiency in restricting the movement of polymer chains [52,53].

2.5. Thermomechanical Properties

The thermal degradation behavior is shown in Figure 10. The TGA curves showed the weight loss as a function of temperature under N2 atmosphere. All the samples had the same structural units and almost the same degradation pattern. The degradation temperature was slightly higher for WPU−g−BTA−C. The thermograms showed two-step degradation; first, there was a decomposition stage (around 230–270 °C) due to the urethane bond degradation of hard segment; second, there was a degradation of the soft segment polyol. For WPU−g−BTA−C, 5 wt% loss occurred in the range of 222–261.19 °C followed by 215–258 °C for WPU−g−BTA−A and WPU−g−BTA−B (Table 1).
The mechanical properties of the WPU−g−BTA coatings with different cross-linking densities were determined (Table 1). DMA demonstrated the effect of temperature on various anticorrosive coatings. The storage modulus of all the samples is shown in Figure 11.
The modulus of WPU-g-BTA-C was 171.4 MPa, which is higher than those of WPU-g-BTA-A and WPU-g-BTA-B at room temperature (20 °C). The hardening mechanism may be attributed to the various cross-linking density in the given samples. The as-prepared coatings showed a sharply decreased modulus. However, the WPU-g-BTA-C coating had a slightly reduced decreasing tendency of storage modulus, providing a good thermomechanical stability up to 50 °C. As shown in Table 1, the 100% modulus, stress at break, and elongation at break of the WPU-g-BTA films increased with increasing chain length of the extenders. The tensile–strain behavior showed a stress of 51.2–47.56 kgf/cm2, elongation at break of 178.85%–283.41%, and tensile modulus of 42.2–46.5 kgf/cm2. This increase in properties may be associated with the increased cross-linking density due to the WPU-g-BTA chain end reaction with A, B, and C.

3. Experimental

3.1. Materials

HDI trimer (N3300) was purchased from Covestro (DESMODUR®) (Taoyuan, Taiwan). Eversorb 80 (EV 80) was obtained from Everlight Chemical (Taipei, Taiwan). Polyethylene glycol (PEG, Mn = 300, Sigma Aldrich, St. Louis, MO, USA), acetone, DMBA 2,2-Bis(hydroxymethyl)butyric acid (Uni-ONWARD corporation (TAIPEI, Taiwan)), N, N-dimethyl isopropyl amine (DMIPA Fluka), diethyl amine (A, Fluka), diethyelenetriamine (B, Fluka), and triethyelentetramine (C, Fluka) were used as received. Fourier transform infrared (FTIR) analysis was performed at room temperature on JASCO FT/IR-4100 (Oklahoma City, OK, USA). TGA was performed on DuPont TA Q50 (Boston, MA, USA) in air, and DMA was conducted on Dupont TA Q800. Potentiodynamic Polarization (Tafel). Electrochemical impedance and BODE plots were determined on Autolab (PGSTAT302 N) potentiostatic/galvanostatic analyzer. A GTR 10 gas permeability analyzer (Yanagimoto Co., Kyoto, Japan) was used in the permeation of oxygen gas.

3.2. Gel Content

The amount of crosslinking can be measured by a standard tetrahydrofuran insoluble test. The insoluble tetrahydrofuran (THF) of the polyurethane dispersion was measured by mixing 1 g of the polyurethane dispersion with 30 g of THF in a pre-weighed centrifuge tube. After the solution was centrifuged for 2 h at 17,000× g rpm, the top liquid layer was poured out and the non-dissolved gel in the bottom was left. The centrifuge tube with the non-dissolved gel was re-weighed after drying in an oven at 110 °C for 2 h.
% THF   insoluble   of   WPU = Weight   of   tube   and   non − dissolved   gel − wight   of   the   tube sample   weight * WPU   solid %

3.3. Synthesis of WPU-g-BTA

A 500 mL round-bottom flask with a magnetic stirrer, condenser, and nitrogen inlet was used as reactor. EV 80 (0.1 mole) and HDI trimer (0.3 mole) were first charged and reacted at about 75 °C for 3 h to obtain NCO-terminated prepolymer-1. PEG-300 (0.07 mole) and DMBA (0.03 mole) were placed in the flask and heated for 3 h (prepolymer-2) at 70 °C. Acetone was then added at 40 °C to reduce the viscosity of the prepolymer-2. Then the prepolymers were cooled to 60 °C and neutralized with DMIPA for 30 min. An aqueous dispersion was obtained by adding water (35 °C) to the mixture. Then, the modified HEC was added and stirred for about one hour to homogenize the mixture. Subsequently, amine chain extenders (A, B, C) were added and stirred for the next 1.5 h. Then the mixture was cast onto a Teflon plate and partially dried for two days at 35 °C. Finally, the film was dried for two days at 70 °C. The reaction procedure is shown in Figure 12 [51].

4. Conclusions

WPU was prepared by covalent grafting of BTA on the polymer backbone as a pendant group (WPU-g-BTA). Using this WPU-g-BTA, we developed a series of WPU-g-BTAs containing N-alkylated amine cross-links (WPU-g-BTA-A, WPU-g-BTA-B, and WPU-g-BTA-C). The successful synthesis of WPU-g-BTAs was confirmed by FTIR. The following conclusions were drawn:
  • The gel content of WPU-g-BTAs increased from 13.57% to 21.68% with increasing chain length from WPU-g-BTA-A to WPU-g-BTA-C. Further, increasing the chain length of WPU-g-BTAs significantly increased the crosslink density, thereby improving the thermal and mechanical properties.
  • WPU-g-BTAs improved the corrosion resistance performance of the as synthesized material. The superior inhibition efficiency of 99.972% and 31.16% was achieved by WPU-g-BTA-C after 30 min and 3 days of immersion in 3.5 wt% NaCl (aq) respectively. Hence, WPU-g-BTA coatings are considered promising materials for anti-corrosion applications.

Author Contributions

Conceptualization, methodology, writing—original draft preparation, software, A.B.; validation, formal analysis, investigation, E.T.; resources, data curation, visualization, Y.-X.L.; data curation, K.-C.C.; writing—review and editing, supervision, project administration, funding acquisition, J.-M.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Science Technology Council Taiwan grant number NSTC-111-2113-M-033-007-.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Mahmoudian, M.; Nozad, E.; Kochameshki, M.G.; Enayati, M. Preparation and Investigation of Hybrid Self-Healing Coatings Containing Linseed Oil Loaded Nanocapsules, Potassium Ethyl Xanthate and Benzotriazole on Copper Surface. Prog. Org. Coat. 2018, 120, 167–178. [Google Scholar] [CrossRef]
  2. Zhang, Y.; Zhou, X. Facile Preparation of Homogenous Waterborne Poly(Urethane/Acrylate) Composites and the Correlation between Microstructure and Improved Properties. J. Appl. Polym. Sci. 2021, 138, 50111. [Google Scholar] [CrossRef]
  3. Mestry, S.U.; Khuntia, S.P.; Mhaske, S.T. Development of Waterborne Polyurethane Dispersions (WPUDs) from Novel Cardanol-Based Reactive Dispersing Agent. Polym. Bull. 2021, 78, 6819–6834. [Google Scholar] [CrossRef]
  4. Shan, C.; Ning, C.; Lou, J.; Xu, W.; Zhang, Y. Design and Preparation of UV-Curable Waterborne Polyurethane Based on Novel Fluorinated Chain Extender. Polym. Bull. 2021, 78, 2067–2083. [Google Scholar] [CrossRef]
  5. Wang, S.; Fang, Y.; He, H.; Zhang, L.; Li, C.; Ouyang, J. Wearable Stretchable Dry and Self-Adhesive Strain Sensors with Conformal Contact to Skin for High-Quality Motion Monitoring. Adv. Funct. Mater. 2021, 31, 2007495. [Google Scholar] [CrossRef]
  6. Feng, Z.; Wang, D.; Zheng, Y.; Zhao, L.; Xu, T.; Guo, Z.; Irfan Hussain, M.; Zeng, J.; Lou, L.; Sun, Y.; et al. A Novel Waterborne Polyurethane with Biodegradability and High Flexibility for 3D Printing. Biofabrication 2020, 12, 035015. [Google Scholar] [CrossRef]
  7. Lu, F.; Li, Z.; Kang, Y.; Su, Z.; Yu, R.; Zhang, S. Black Phosphorus Quantum Dots Encapsulated in Anionic Waterborne Polyurethane Nanoparticles for Enhancing Stability and Reactive Oxygen Species Generation for Cancer PDT/PTT Therapy. J. Mater. Chem. B 2020, 8, 10650–10661. [Google Scholar] [CrossRef]
  8. Jia, R.; Hui, Z.; Huang, Z.; Liu, X.; Zhao, C.; Wang, D.; Wu, D. Synthesis and Antibacterial Investigation of Cationic Waterborne Polyurethane Containing Siloxane. New J. Chem. 2020, 44, 19759–19768. [Google Scholar] [CrossRef]
  9. Yeh, J.-M.; Yao, C.-T.; Hsieh, C.-F.; Lin, L.-H.; Chen, P.-L.; Wu, J.-C.; Yang, H.-C.; Wu, C.-P. Preparation, Characterization and Electrochemical Corrosion Studies on Environmentally Friendly Waterborne Polyurethane/Na+-MMT Clay Nanocomposite Coatings. Eur. Polym. J. 2008, 44, 3046–3056. [Google Scholar] [CrossRef]
  10. Hou, L.; Zhou, M.; Gu, Y.; Chen, Y. WPU/CB/GO Nanocomposites: In Situ Polymerization Preparation, Thermal, and Anticorrosion Performance Evaluation. J. Appl. Polym. Sci. 2020, 137, 48716. [Google Scholar] [CrossRef]
  11. Zhang, F.; Liu, W.; Liang, L.; Yang, M.; Wang, S.; Shi, H.; Xie, Y.; Pi, K. Application of Polyether Amine Intercalated Graphene Oxide as Filler for Enhancing Hydrophobicity, Thermal Stability, Mechanical and Anti-Corrosion Properties of Waterborne Polyurethane. Diam. Relat. Mater. 2020, 109, 108077. [Google Scholar] [CrossRef]
  12. Gao, X.; Bilal, M.; Ali, N.; Yun, S.; Wang, J.; Ni, L.; Cai, P. Two-Dimensional Nanosheets Functionalized Water-Borne Polyurethane Nanocomposites with Improved Mechanical and Anti-Corrosion Properties. Inorg. Nano-Met. Chem. 2020, 50, 1358–1366. [Google Scholar] [CrossRef]
  13. Larraza, I.; Alonso-Lerma, B.; Gonzalez, K.; Gabilondo, N.; Perez-Jimenez, R.; Corcuera, M.A.; Arbelaiz, A.; Eceiza, A. Waterborne Polyurethane and Graphene/Graphene Oxide-Based Nanocomposites: Reinforcement and Electrical Conductivity. Express Polym. Lett. 2020, 14, 1018–1033. [Google Scholar] [CrossRef]
  14. Sheng, X.; Li, S.; Huang, H.; Zhao, Y.; Chen, Y.; Zhang, L.; Xie, D. Anticorrosive and UV-Blocking Waterborne Polyurethane Composite Coating Containing Novel Two-Dimensional Ti3C2 MXene Nanosheets. J. Mater. Sci. 2021, 56, 4212–4224. [Google Scholar] [CrossRef]
  15. Zhang, X.; Wen, J.; Hu, B.; Yuan, J.; Wang, J.; Zhu, L.; Pan, M. Dispersity Control and Anti-Corrosive Performance of Graphene Oxide Modified by Functionalized Nanosilica in Waterborne Polyurethane. Nanotechnology 2020, 31, 205708. [Google Scholar] [CrossRef] [PubMed]
  16. Bai, T.; Lv, L.; Du, W.; Fang, W.; Wang, Y. Improving the Tribological and Anticorrosion Performance of Waterborne Polyurethane Coating by the Synergistic Effect between Modified Graphene Oxide and Polytetrafluoroethylene. Nanomaterials 2020, 10, 137. [Google Scholar] [CrossRef] [Green Version]
  17. Nosrati, R.; Kiani, G.; Karimzad Ghavidel, A.; Rashidi, A. Improving Environmental Protection of Waterborne Polyurethane Coating by Adding TiO2/Polyaniline/HNT/CNT Nanocomposite. Environ. Sci. Pollut. Res. 2020, 27, 6438–6448. [Google Scholar] [CrossRef]
  18. Wang, F.; Feng, L.; Huang, Y.; Shen, W.; Ma, H. Effect of the Gradient Distribution of Multiwalled Carbon Nanotubes on the Bond Strength and Corrosion Resistance of Waterborne Polyurethane Conductive Nanocomposites. Prog. Org. Coat. 2020, 140, 105507. [Google Scholar] [CrossRef]
  19. Liang, H.; Li, Y.; Huang, S.; Huang, K.; Zeng, X.; Dong, Q.; Liu, C.; Feng, P.; Zhang, C. Tailoring the Performance of Vegetable Oil-Based Waterborne Polyurethanes through Incorporation of Rigid Cyclic Rings into Soft Polymer Networks. ACS Sustain. Chem. Eng. 2020, 8, 914–925. [Google Scholar] [CrossRef]
  20. Khan, P.F.; Shanthi, V.; Babu, R.K.; Muralidharan, S.; Barik, R.C. Effect of Benzotriazole on Corrosion Inhibition of Copper under Flow Conditions. J. Environ. Chem. Eng. 2015, 3, 10–19. [Google Scholar] [CrossRef]
  21. Montemor, M.F. Functional and Smart Coatings for Corrosion Protection: A Review of Recent Advances. Surf. Coat. Technol. 2014, 258, 17–37. [Google Scholar] [CrossRef]
  22. Zhao, D.; Wang, M.; Wu, Q.; Zhou, X.; Ge, X. Microencapsulation of UV-Curable Self-Healing Agent for Smart Anticorrosive Coating. Chin. J. Chem. Phys. 2014, 27, 607–615. [Google Scholar] [CrossRef]
  23. Tan, B.; Lan, W.; Zhang, S.; Deng, H.; Qiang, Y.; Fu, A.; Ran, Y.; Xiong, J.; Marzouki, R.; Li, W. Passiflora Edulia Sims Leaves Extract as Renewable and Degradable Inhibitor for Copper in Sulfuric Acid Solution. Colloids Surf. A Physicochem. Eng. Asp. 2022, 645, 128892. [Google Scholar] [CrossRef]
  24. Guo, L.; Kaya, S.; Obot, I.B.; Zheng, X.; Qiang, Y. Toward Understanding the Anticorrosive Mechanism of Some Thiourea Derivatives for Carbon Steel Corrosion: A Combined DFT and Molecular Dynamics Investigation. J. Colloid Interface Sci. 2017, 506, 478–485. [Google Scholar] [CrossRef]
  25. Hao, Y.; Zhao, Y.; Li, B.; Song, L.; Guo, Z. Self-Healing Effect of Graphene@PANI Loaded with Benzotriazole for Carbon Steel. Corros. Sci. 2020, 163, 108246. [Google Scholar] [CrossRef]
  26. Zhao, D.; Wang, M.; Xu, Y.; Zhang, Z.; Ge, X. The Fabrication and Corrosion Resistance of Benzotriazole-Loaded Raspberry-like Hollow Polymeric Microspheres. Surf. Coat. Technol. 2014, 238, 15–26. [Google Scholar] [CrossRef]
  27. Abdullayev, E.; Abbasov, V.; Tursunbayeva, A.; Portnov, V.; Ibrahimov, H.; Mukhtarova, G.; Lvov, Y. Self-Healing Coatings Based on Halloysite Clay Polymer Composites for Protection of Copper Alloys. ACS Appl. Mater. Interfaces 2013, 5, 4464–4471. [Google Scholar] [CrossRef]
  28. Wang, J.; Song, X.; Wang, J.; Cui, X.; Zhou, Q.; Qi, T.; Li, G.L. Smart-Sensing Polymer Coatings with Autonomously Reporting Corrosion Dynamics of Self-Healing Systems. Adv. Mater. Interfaces 2019, 6, 1900055. [Google Scholar] [CrossRef]
  29. Jafari, A.H.; Hosseini, S.M.A.; Jamalizadeh, E. Investigation of Smart Nanocapsules Containing Inhibitors for Corrosion Protection of Copper. Electrochim. Acta 2010, 55, 9004–9009. [Google Scholar] [CrossRef]
  30. Chen, T.; Fu, J. PH-Responsive Nanovalves Based on Hollow Mesoporous Silica Spheres for Controlled Release of Corrosion Inhibitor. Nanotechnology 2012, 23, 235605. [Google Scholar] [CrossRef]
  31. Yousif, E.; Haddad, R. Photodegradation and Photostabilization of Polymers, Especially Polystyrene: Review. Springerplus 2013, 2, 398. [Google Scholar] [CrossRef] [Green Version]
  32. Nguyen, T.V.; Le, X.H.; Dao, P.H.; Decker, C.; Nguyen-Tri, P. Stability of Acrylic Polyurethane Coatings under Accelerated Aging Tests and Natural Outdoor Exposure: The Critical Role of the Used Photo-Stabilizers. Prog. Org. Coat. 2018, 124, 137–146. [Google Scholar] [CrossRef]
  33. Nikafshar, S.; Zabihi, O.; Ahmadi, M.; Mirmohseni, A.; Taseidifar, M.; Naebe, M. The Effects of UV Light on the Chemical and Mechanical Properties of a Transparent Epoxy-Diamine System in the Presence of an Organic UV Absorber. Materials 2017, 10, 180. [Google Scholar] [CrossRef] [PubMed]
  34. Saadat-Monfared, A.; Mohseni, M. Polyurethane Nanocomposite Films Containing Nano-Cerium Oxide as UV Absorber; Part 2: Structural and Mechanical Studies upon UV Exposure. Colloids Surf. A Physicochem. Eng. Asp. 2014, 441, 752–757. [Google Scholar] [CrossRef]
  35. Rashvand, M.; Ranjbar, Z.; Rastegar, S. Preserving Anti-Corrosion Properties of Epoxy Based Coatings Simultaneously Exposed to Humidity and UV-Radiation Using Nano Zinc Oxide. J. Electrochem. Soc. 2012, 159, C129–C132. [Google Scholar] [CrossRef] [Green Version]
  36. Dhoke, S.K.; Khanna, A.S. Study on Electrochemical Behavior of Nano-ZnO Modified Alkyd-Based Waterborne Coatings. J. Appl. Polym. Sci. 2009, 113, 2232–2237. [Google Scholar] [CrossRef]
  37. Fechine, G.J.; Rabello, M.; Souto-Maior, G.J. The Effect of Ultraviolet Stabilizers on the Photodegradation of Poly(Ethylene Terephthalate). Polym. Degrad. Stab. 2002, 75, 153–159. [Google Scholar] [CrossRef]
  38. Haacke, G.; Longordo, E.; Brinen, J.S.; Andrawes, F.F.; Campbell, B.H. Chemisorption and Physical Adsorption of Light Stabilizers on Pigment and Ultrafine Particles in Coatings. J. Coat. Technol. 1999, 71, 87–94. [Google Scholar] [CrossRef]
  39. Yaneff, P.V.; Adamsons, K.; Cliff, N.; Kanouni, M. Migration of Reactable UVAs and HALS in Automotive Plastic Coatings. J. Coat. Technol. Res. 2004, 1, 201–212. [Google Scholar] [CrossRef]
  40. Liang, Z.; Zhu, J.; Li, F.; Wu, Z.; Liu, Y.; Xiong, D. Synthesis and Properties of Self-Crosslinking Waterborne Polyurethane with Side Chain for Water-Based Varnish. Prog. Org. Coat. 2021, 150, 105972. [Google Scholar] [CrossRef]
  41. Yen, M.-S.; Tsai, P.-Y.; Hong, P.-D. The Solution Properties and Membrane Properties of Polydimethylsiloxane Waterborne Polyurethane Blended with the Waterborne Polyurethanes of Various Kinds of Soft Segments. Colloids Surf. A Physicochem. Eng. Asp. 2006, 279, 1–9. [Google Scholar] [CrossRef]
  42. Lei, L.; Xia, Z.; Lin, X.; Yang, T.; Zhong, L. Synthesis and Adhesion Properties of Waterborne Polyurethane Dispersions with Long-Branched Aliphatic Chains. J. Appl. Polym. Sci. 2014, 132, 41688. [Google Scholar] [CrossRef]
  43. Zhang, P.; Tian, S.; Fan, H.; Chen, Y.; Yan, J. Flame Retardancy and Hydrolysis Resistance of Waterborne Polyurethane Bearing Organophosphate Moieties Lateral Chain. Prog. Org. Coat. 2015, 89, 170–180. [Google Scholar] [CrossRef]
  44. Lei, L.; Zhang, Y.; Ou, C.; Xia, Z.; Zhong, L. Synthesis and Characterization of Waterborne Polyurethanes with Alkoxy Silane Groups in the Side Chains for Potential Application in Waterborne Ink. Prog. Org. Coat. 2016, 92, 85–94. [Google Scholar] [CrossRef]
  45. Sheikhy, H.; Shahidzadeh, M.; Ramezanzadeh, B.; Noroozi, F. Studying the Effects of Chain Extenders Chemical Structures on the Adhesion and Mechanical Properties of a Polyurethane Adhesive. J. Ind. Eng. Chem. 2013, 19, 1949–1955. [Google Scholar] [CrossRef]
  46. Lyu, J.; Xu, K.; Zhang, N.; Lu, C.; Zhang, Q.; Yu, L.; Feng, F.; Li, X. In Situ Incorporation of Diamino Silane Group into Waterborne Polyurethane for Enhancing Surface Hydrophobicity of Coating. Molecules 2019, 24, 1667. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Lee, D.-I.; Kim, S.-H.; Lee, D.-S. Synthesis and Characterization of Healable Waterborne Polyurethanes with Cystamine Chain Extenders. Molecules 2019, 24, 1492. [Google Scholar] [CrossRef] [Green Version]
  48. Zhang, P.; Zhang, Z.; Fan, H.; Tian, S.; Chen, Y.; Yan, J. Waterborne Polyurethane Conjugated with Novel Diol Chain-Extender Bearing Cyclic Phosphoramidate Lateral Group: Synthesis, Flammability and Thermal Degradation Mechanism. RSC Adv. 2016, 6, 56610–56622. [Google Scholar] [CrossRef]
  49. Wang, G.; Ma, G.; Hou, C.; Guan, T.; Ling, L.; Wang, B. Preparation and Properties of Waterborne Polyurethane/Nanosilica Composites: A Diol as Extender with Triethoxysilane Group. J. Appl. Polym. Sci. 2014, 131, 40526. [Google Scholar] [CrossRef]
  50. Li, Q.; Guo, L.; Qiu, T.; Xiao, W.; Du, D.; Li, X. Synthesis of Waterborne Polyurethane Containing Alkoxysilane Side Groups and the Properties of the Hybrid Coating Films. Appl. Surf. Sci. 2016, 377, 66–74. [Google Scholar] [CrossRef]
  51. Lee, I.H.; Bae, S.Y.; Kim, B.K. Biodegradable Waterborne Polyurethane with Modified Hydroxyethylcellulose. Express Polym. Lett. 2018, 12, 836–843. [Google Scholar] [CrossRef]
  52. Shahriari, L.; Mohseni, M.; Yahyaei, H. The Effect of Cross-Linking Density on Water Vapor and Oxygen Permeability of Hybrid UV Cured Nano Coatings. Prog. Org. Coat. 2019, 134, 66–77. [Google Scholar] [CrossRef]
  53. Deyab, M.A.; Essehli, R.; El Bali, B.; Lachkar, M. Fabrication and Evaluation of Rb2Co(H2P2O7)2·2H2O/Waterborne Polyurethane Nanocomposite Coating for Corrosion Protection Aspects. RSC Adv. 2017, 7, 55074–55080. [Google Scholar] [CrossRef]
Molecules 27 07581 g001 550

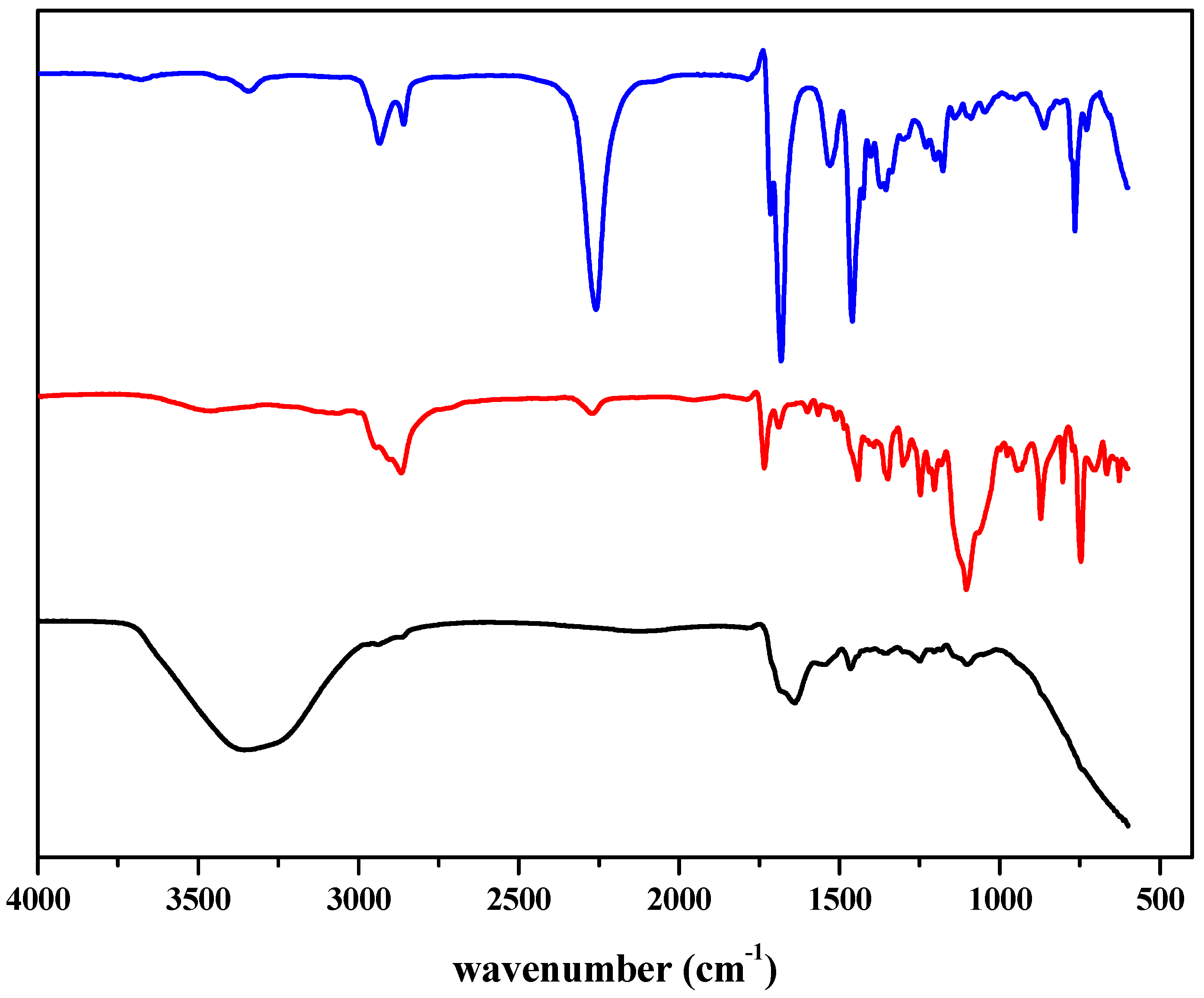

Figure 1. Representative FTIR spectra of (blue) HDI Trimer (red) EV 80 (black) WPU-g-BTA.
Figure 1. Representative FTIR spectra of (blue) HDI Trimer (red) EV 80 (black) WPU-g-BTA.
Molecules 27 07581 g001
Molecules 27 07581 g002 550

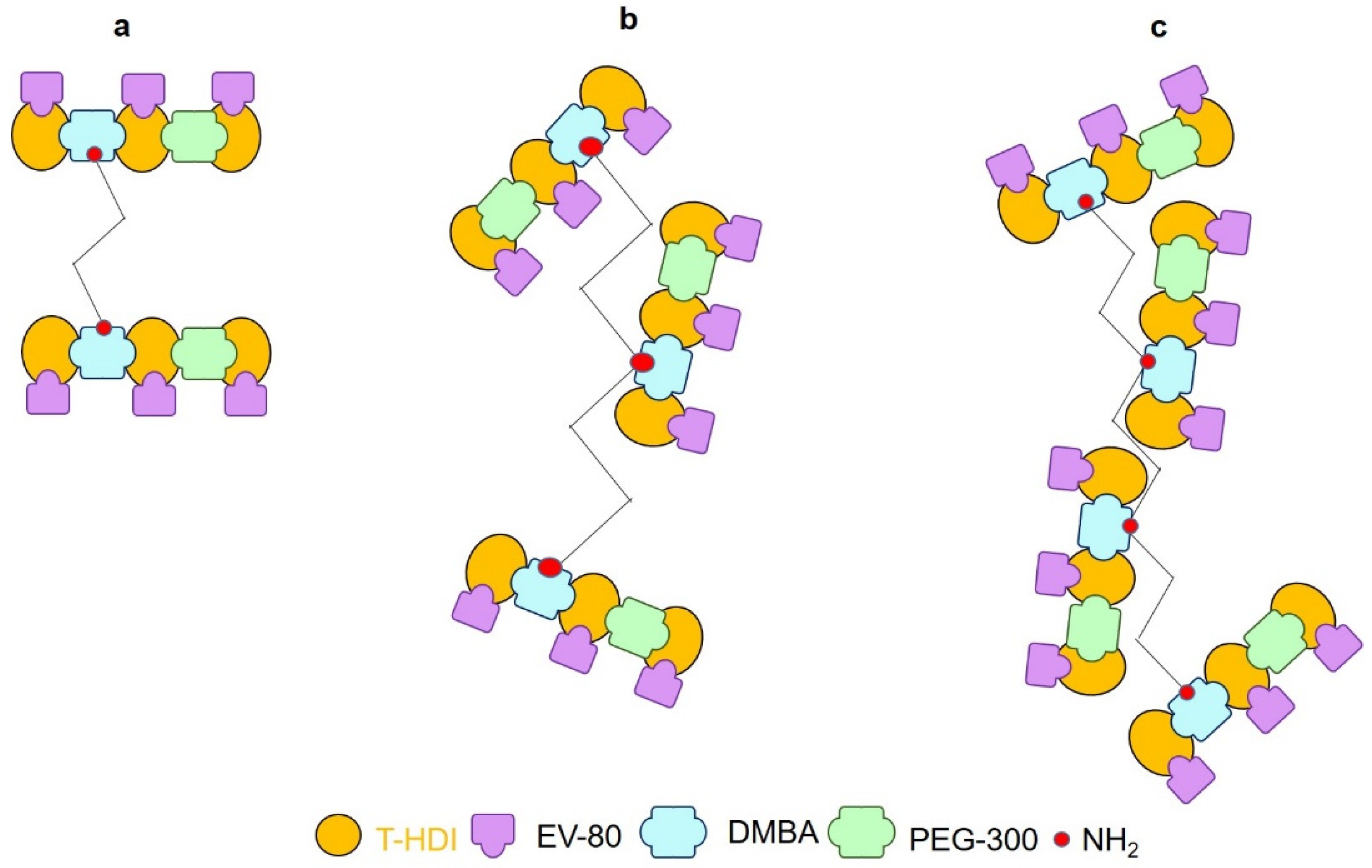

Figure 2. Cross linking density of as prepared (a) WPU-g-BTA-A (b) WPU-g-BTA-B, and (c) WPU-g-BTA-C with different amine chain extenders.
Figure 2. Cross linking density of as prepared (a) WPU-g-BTA-A (b) WPU-g-BTA-B, and (c) WPU-g-BTA-C with different amine chain extenders.
Molecules 27 07581 g002
Molecules 27 07581 g003 550

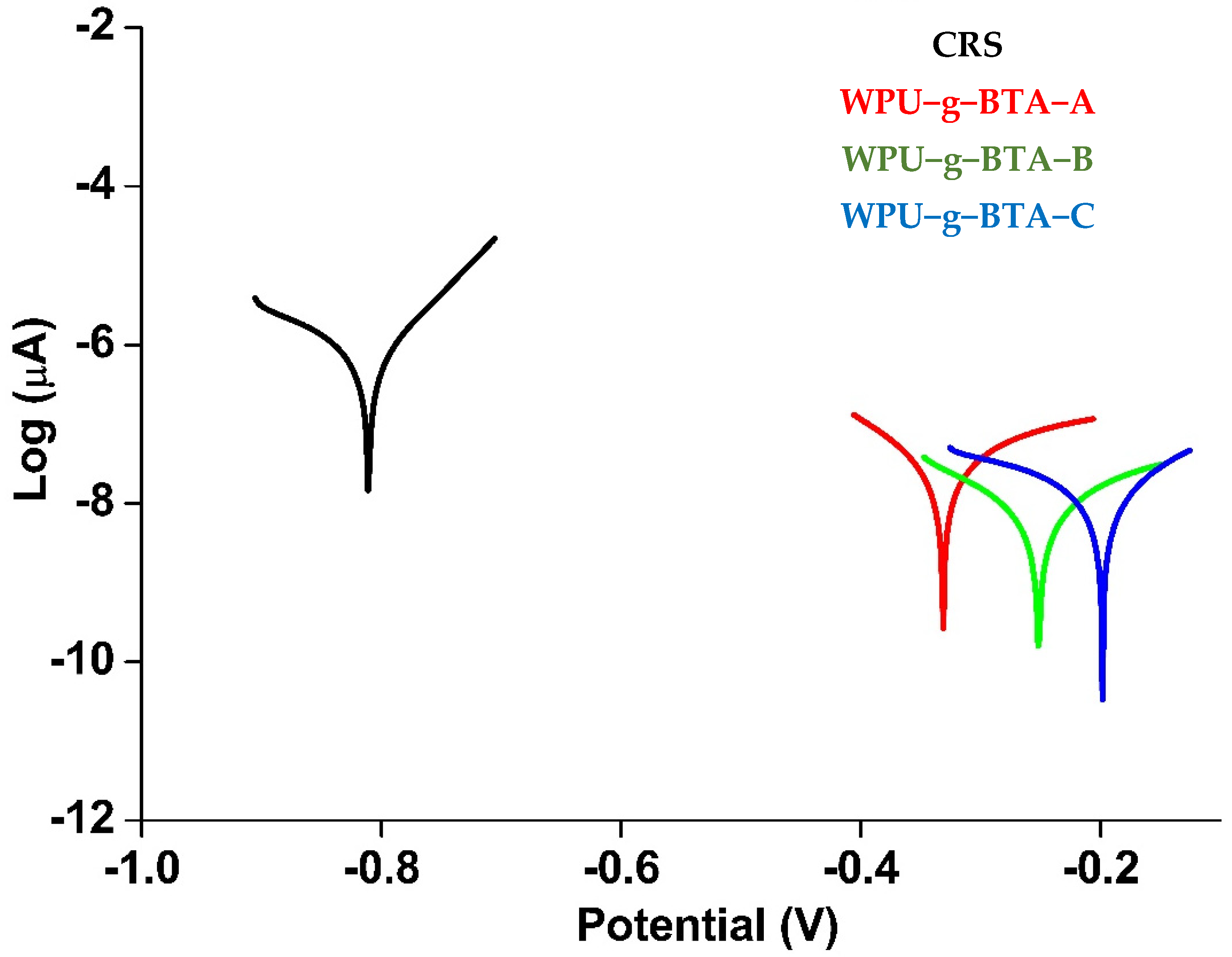

Figure 3. Tafel plots for raw CRS electrode and CRS electrode coated with WPU−g−BTA−A, WPU−g−BTA−B, and WPU−g−BTA−C, in 3.5 wt% NaCl(aq) for 30 min immersion.
Figure 3. Tafel plots for raw CRS electrode and CRS electrode coated with WPU−g−BTA−A, WPU−g−BTA−B, and WPU−g−BTA−C, in 3.5 wt% NaCl(aq) for 30 min immersion.
Molecules 27 07581 g003
Molecules 27 07581 g004 550

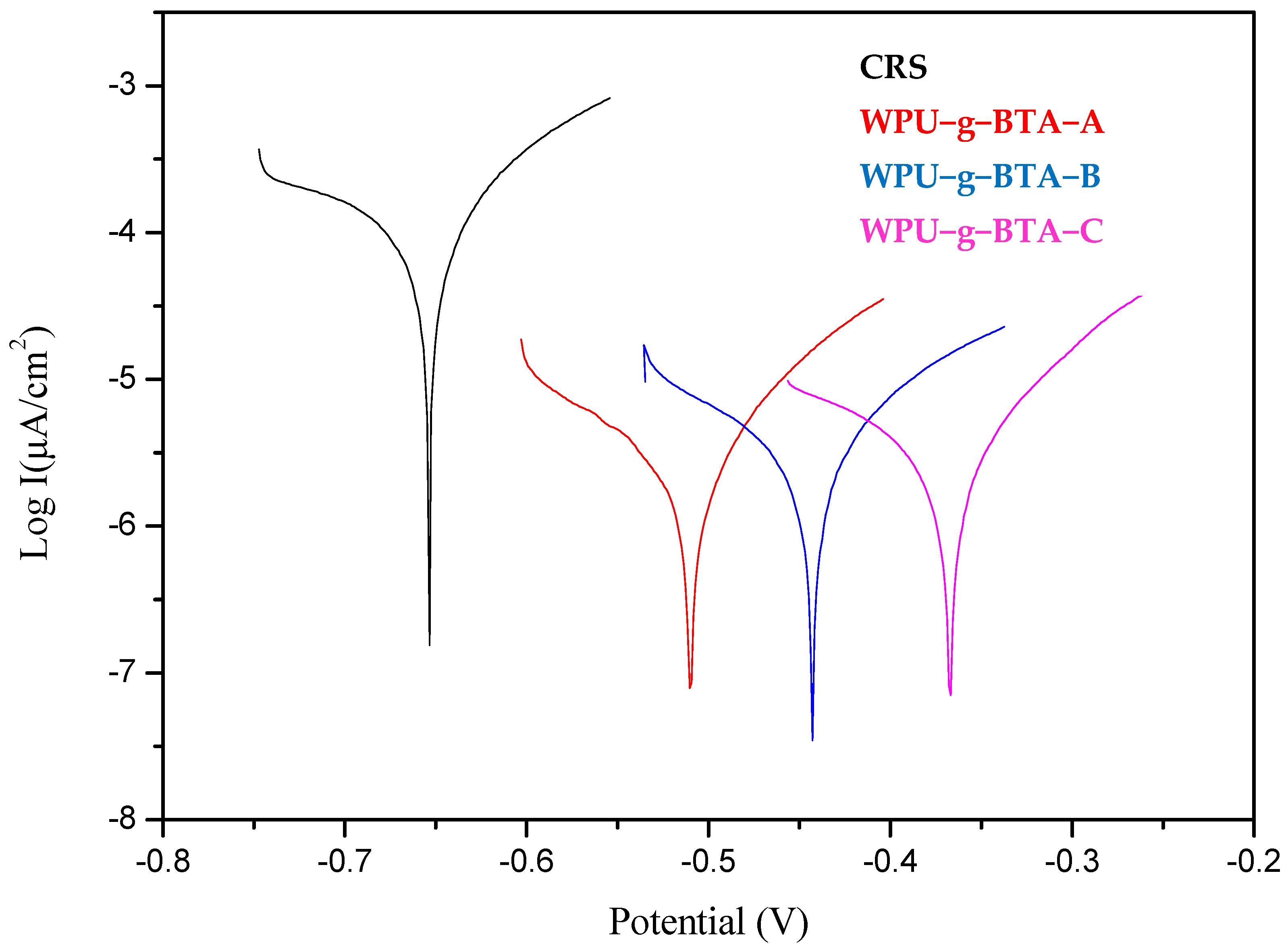

Figure 4. Tafel plots for raw CRS electrode and CRS electrode coated with WPU−g−BTA−A, WPU−g−BTA−B, and WPU−g−BTA−C in 3.5 wt% NaCl(aq) for 3 days of immersion.
Figure 4. Tafel plots for raw CRS electrode and CRS electrode coated with WPU−g−BTA−A, WPU−g−BTA−B, and WPU−g−BTA−C in 3.5 wt% NaCl(aq) for 3 days of immersion.
Molecules 27 07581 g004
Molecules 27 07581 g005 550
Figure 5. Cross-sectional SEM images of (a) WPU−g−BTA−A, (b) WPU−g−BTA−B, and (c) WPU−g−BTA−C in before corrosion (top) and after corrosion (bottom) in 3.5 wt% NaCl(aq) after 3 days of immersion.
Figure 5. Cross-sectional SEM images of (a) WPU−g−BTA−A, (b) WPU−g−BTA−B, and (c) WPU−g−BTA−C in before corrosion (top) and after corrosion (bottom) in 3.5 wt% NaCl(aq) after 3 days of immersion.
Molecules 27 07581 g005
Molecules 27 07581 g006 550
Figure 6. SEM images (top view) of (a) WPU−g−BTA−A, (b) WPU−g−BTA−B and (c) WPU−g−BTA−C before corrosion (top) and after corrosion (bottom) in 3.5 wt% s after 3 days of immersion.
Figure 6. SEM images (top view) of (a) WPU−g−BTA−A, (b) WPU−g−BTA−B and (c) WPU−g−BTA−C before corrosion (top) and after corrosion (bottom) in 3.5 wt% s after 3 days of immersion.
Molecules 27 07581 g006
Molecules 27 07581 g007 550

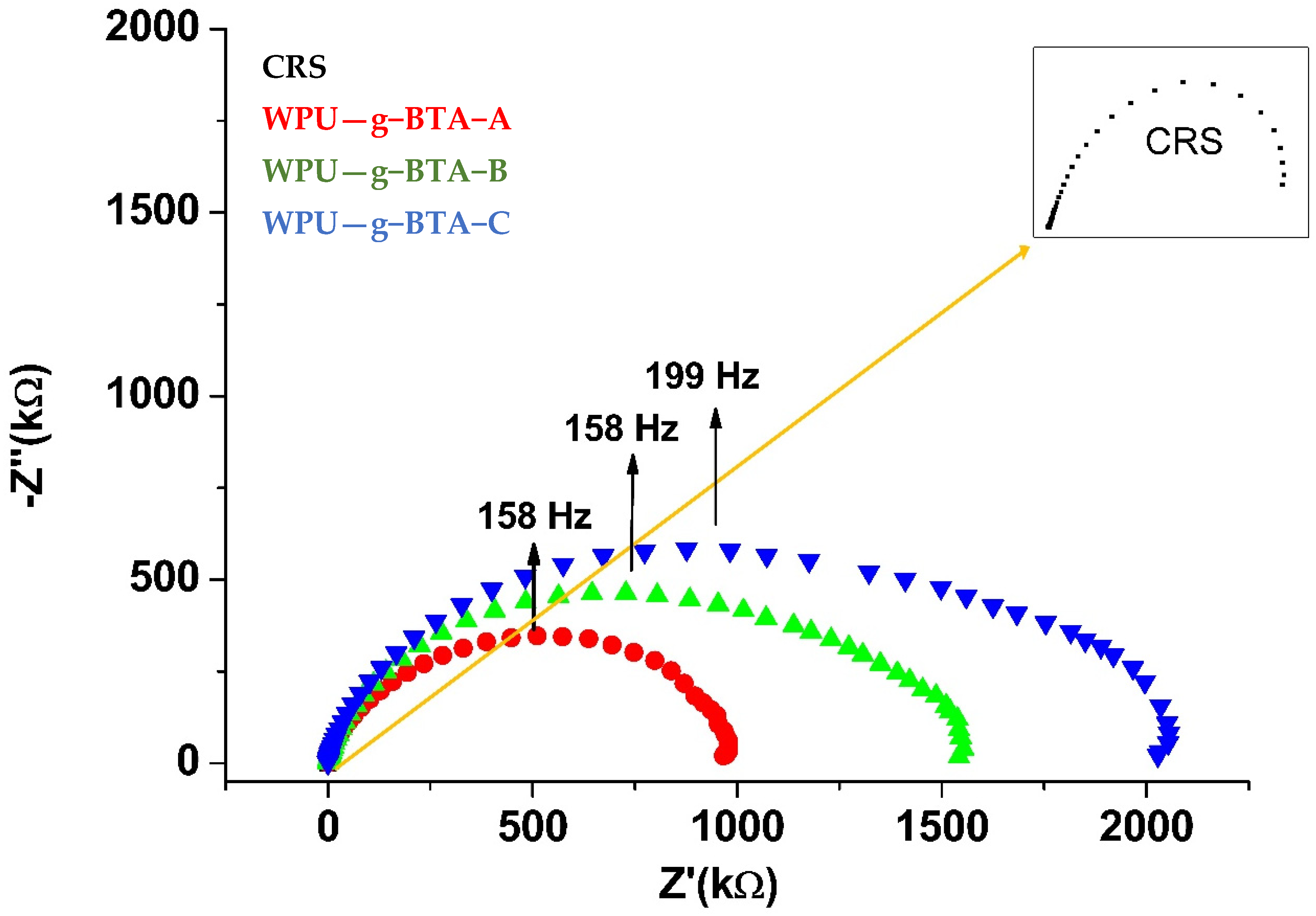

Figure 7. Nyquist plots for raw CRS electrode and CRS electrode coated with WPU−g−BTA−A, WPU−g−BTA−B, WPU−g−BTA−C in 3.5 wt% NaCl(aq).
Figure 7. Nyquist plots for raw CRS electrode and CRS electrode coated with WPU−g−BTA−A, WPU−g−BTA−B, WPU−g−BTA−C in 3.5 wt% NaCl(aq).
Molecules 27 07581 g007
Molecules 27 07581 g008 550

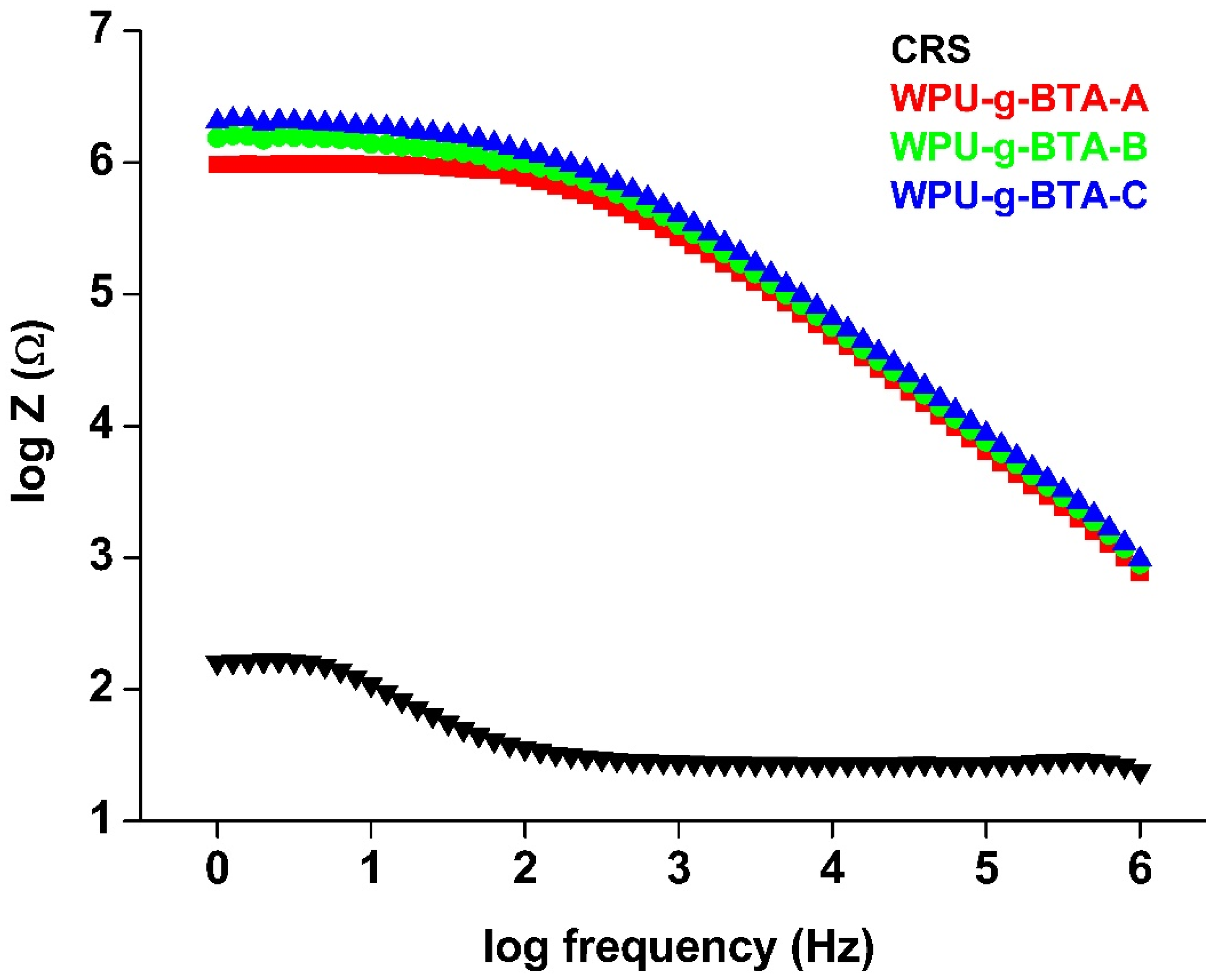

Figure 8. BODE plots for raw CRS electrode and CRS electrode coated with WPU−g−BTA−A, WPU−g−BTA−B, and WPU−g−BTA−C in 3.5 wt% NaCl(aq).
Figure 8. BODE plots for raw CRS electrode and CRS electrode coated with WPU−g−BTA−A, WPU−g−BTA−B, and WPU−g−BTA−C in 3.5 wt% NaCl(aq).
Molecules 27 07581 g008
Molecules 27 07581 g009 550

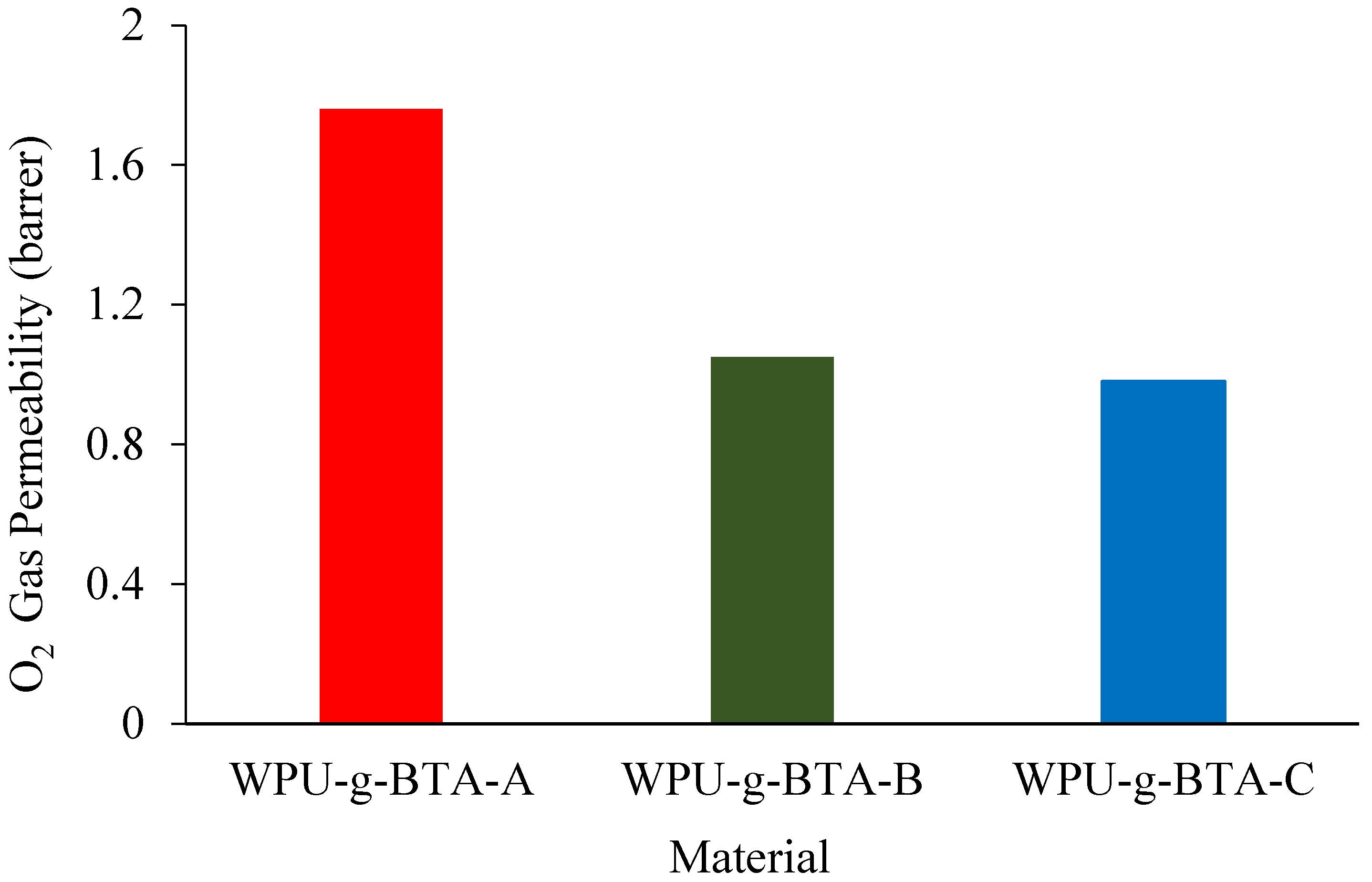

Figure 9. O2 permeability for CRS electrode coated with (red) WPU−g−BTA−A, (green) WPU−g−BTA−B, and (blue) WPU−g−BTA−C.
Figure 9. O2 permeability for CRS electrode coated with (red) WPU−g−BTA−A, (green) WPU−g−BTA−B, and (blue) WPU−g−BTA−C.
Molecules 27 07581 g009
Molecules 27 07581 g010 550

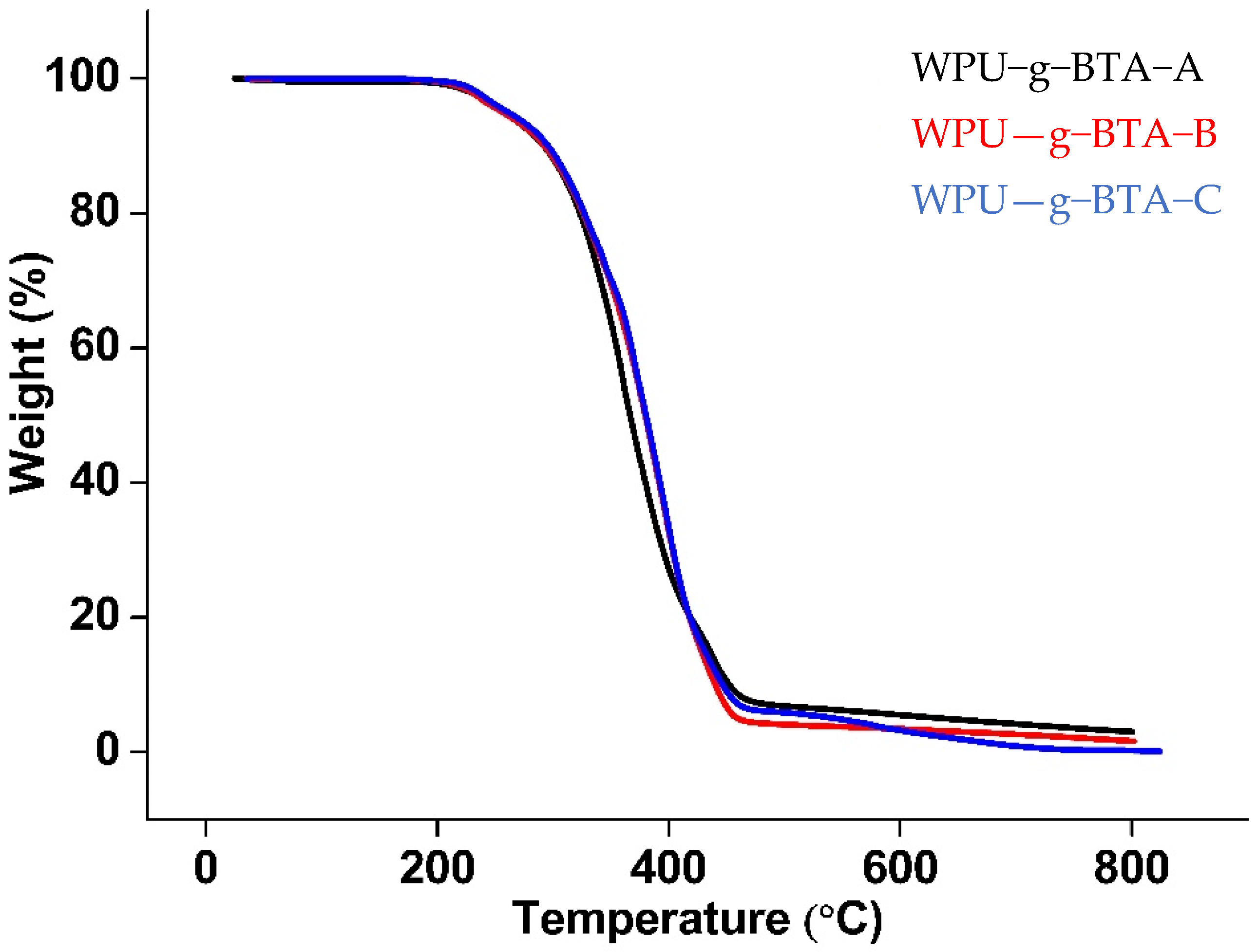

Figure 10. TGA curve of (black) WPU−g−BTA−A, (red) WPU−g−BTA−B, and (blue) WPU−g−BTA−C.
Figure 10. TGA curve of (black) WPU−g−BTA−A, (red) WPU−g−BTA−B, and (blue) WPU−g−BTA−C.
Molecules 27 07581 g010
Molecules 27 07581 g011 550

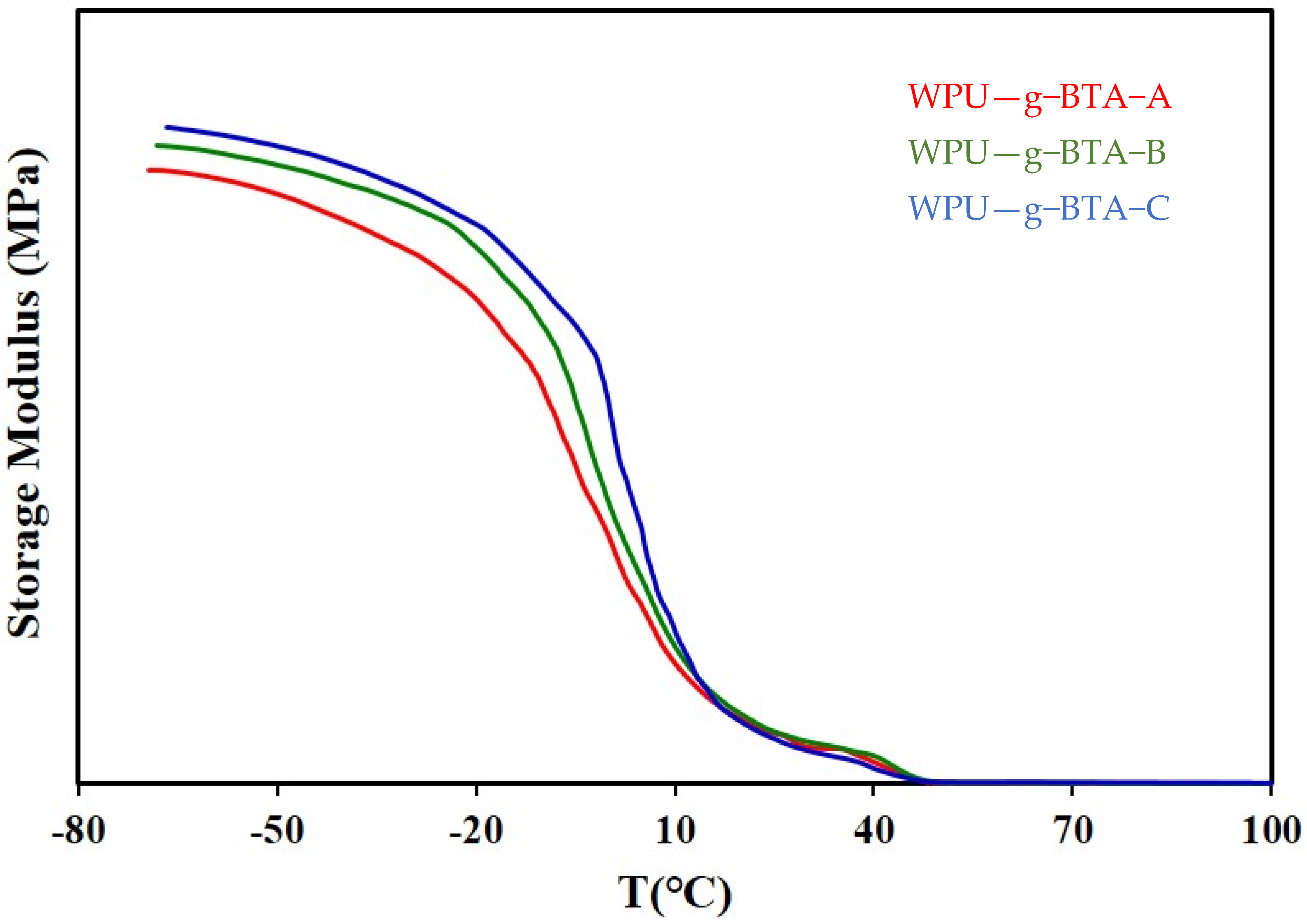

Figure 11. Storage modulus of (red) WPU−g−BTA−A, (green), WPU−g−BTA−A, and (blue) WPU−g−BTA−C.
Figure 11. Storage modulus of (red) WPU−g−BTA−A, (green), WPU−g−BTA−A, and (blue) WPU−g−BTA−C.
Molecules 27 07581 g011
Molecules 27 07581 g012 550

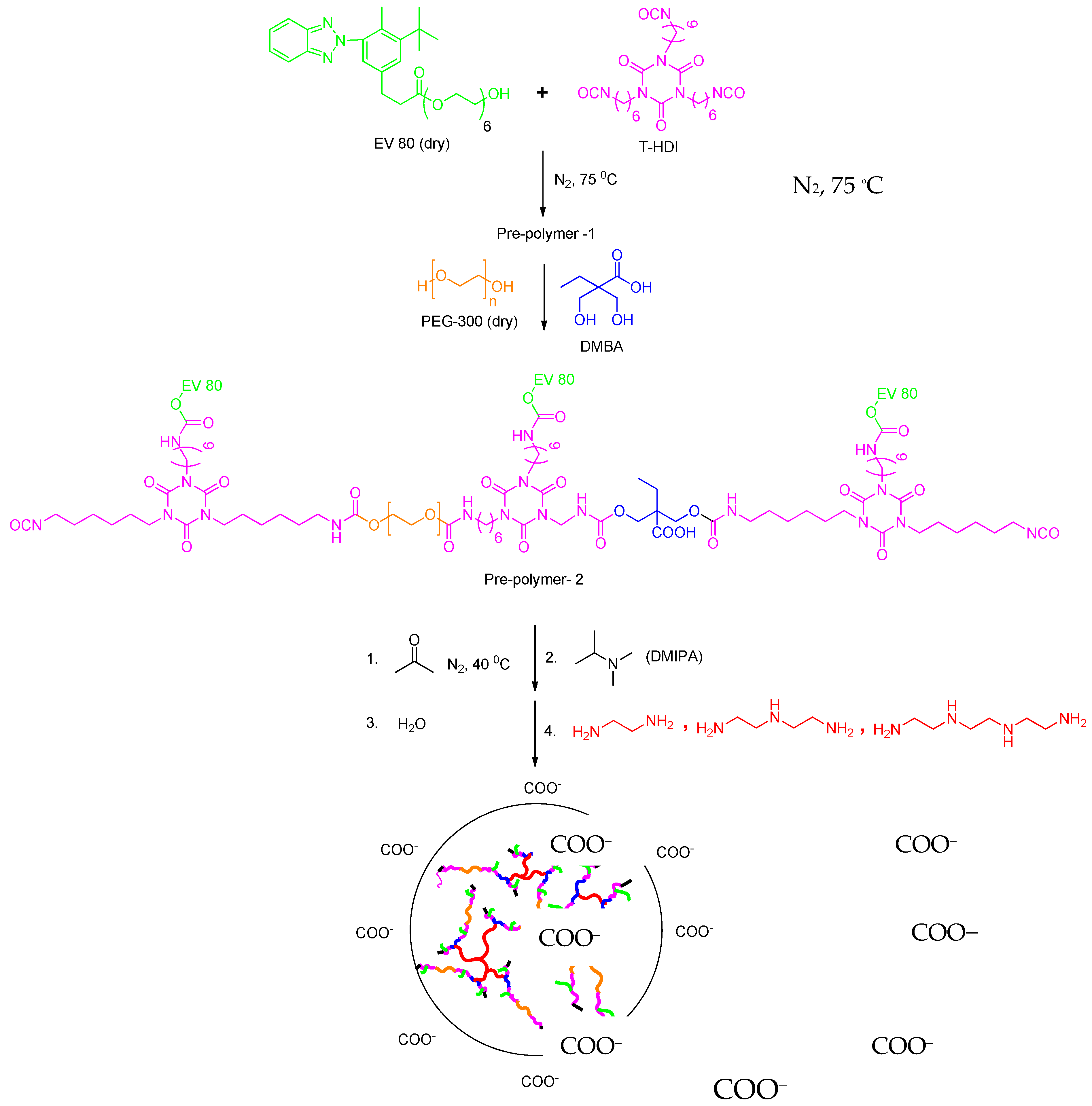

Figure 12. Synthetic route of WPU-g-BTA with side chain extenders.
Figure 12. Synthetic route of WPU-g-BTA with side chain extenders.
Molecules 27 07581 g012
Table
Table 1. Gel content, O2 permeability, and thermal stability measured from TGA and DMA results of WPU-g-BTA coatings.
Table 1. Gel content, O2 permeability, and thermal stability measured from TGA and DMA results of WPU-g-BTA coatings.
Sample CodeWPU-g-BTA-AWPU-g-BTA-BWPU-g-BTA-C
Gel contentTube (g)13.760813.738613.7784
Sample (g)0.66710.66750.6674
THF (g)20.17120.026520.0255
After drying (g)13.851313.86413.9231
Gel Content
(%)		13.5718.7921.68
Gas permeabilityO2 (barrer)1.7583221.0456480.984704
Thermal StabilityTd(5%)252.75257.47257.47
Td(10%)288.26292.41295.69
Char yield %31.60.21
DMAStress
(kgf/cm2)		51.1947.5650.41
Elongation (%)178.85224.66283.41
100% modulus
(kgf/cm2)		42.1544.1246.51
Table
Table 2. Electrochemical parameters, the corresponding inhibition efficiency (IE %), EIS, and BODE results for raw CRS and CRS electrode coated with WPU-g-BTA-A, WPU-g-BTA-B, and WPU-g-BTA-C in 3.5 wt% NaCl (aq) at 298 K.
Table 2. Electrochemical parameters, the corresponding inhibition efficiency (IE %), EIS, and BODE results for raw CRS and CRS electrode coated with WPU-g-BTA-A, WPU-g-BTA-B, and WPU-g-BTA-C in 3.5 wt% NaCl (aq) at 298 K.
Sample CodeCRSWPU-g-BTA-AWPU-g-BTA-BWPU-g-BTA-C
Coating thickness(μm)60 ± 260 ± 260 ± 260 ± 2
Electrochemical
parameters		Ecorr (V)−0.81121−0.3311−0.25208−0.19831
icorr (μA/cm2)71.7730.0790.0680.020
IE %-99.88999.90599.972
EIS (Nyquist)Z’ (kΩ)0.16978.841552.692055.23
-Z’’ (kΩ)0.09346.95462.90582.83
BODElog(Z)2.225.996.216.33
Table
Table 3. Long term anti-corrosion study for raw CRS and CRS electrode coated with WPU-g-BTA-A, WPU-g-BTA-B, and WPU-g-BTA-C in 3.5 wt% NaCl (aq) at 298 K.
Table 3. Long term anti-corrosion study for raw CRS and CRS electrode coated with WPU-g-BTA-A, WPU-g-BTA-B, and WPU-g-BTA-C in 3.5 wt% NaCl (aq) at 298 K.
Sample CodeEcorr (V)icorr (µA.cm−2)Rp (kΩ)PEF %
CRS−0.6344.982.587-
WPU-g-BTA-A−0.6334.173.06516.16
WPU-g-BTA-B−0.5764.082.34918.13
WPU-g-BTA-C−0.5503.413.12731.56
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bibi, A.; Tsai, E.; Lan, Y.-X.; Chang, K.-C.; Yeh, J.-M. Preparation and Characterization of Water-borne Polyurethane Based on Benzotriazole as Pendant Group with Different N-Alkylated Chain Extenders and Its Application in Anticorrosion. Molecules 2022, 27, 7581. https://doi.org/10.3390/molecules27217581

AMA Style

Bibi A, Tsai E, Lan Y-X, Chang K-C, Yeh J-M. Preparation and Characterization of Water-borne Polyurethane Based on Benzotriazole as Pendant Group with Different N-Alkylated Chain Extenders and Its Application in Anticorrosion. Molecules. 2022; 27(21):7581. https://doi.org/10.3390/molecules27217581

Chicago/Turabian Style

Bibi, Aamna, Ethan Tsai, Yun-Xiang Lan, Kung-Chin Chang, and Jui-Ming Yeh. 2022. "Preparation and Characterization of Water-borne Polyurethane Based on Benzotriazole as Pendant Group with Different N-Alkylated Chain Extenders and Its Application in Anticorrosion" Molecules 27, no. 21: 7581. https://doi.org/10.3390/molecules27217581

APA Style

Bibi, A., Tsai, E., Lan, Y. -X., Chang, K. -C., & Yeh, J. -M. (2022). Preparation and Characterization of Water-borne Polyurethane Based on Benzotriazole as Pendant Group with Different N-Alkylated Chain Extenders and Its Application in Anticorrosion. Molecules, 27(21), 7581. https://doi.org/10.3390/molecules27217581

Article Metrics

Back to TopTop
