3.1. Selective Ion Detection
One of the applications of macrocyclic compounds is selective anion detection. This selectivity is very important due to potential applications; e.g., in drug-production processes with metal catalysts (Pd, Ni, etc.) and recent studies on macrocycles proved that it is a promising direction [
14,
15]. The main goal is to obtain receptors that work under practice conditions (polar media, pH range, concentration). The more rigid structure of macrocycles than their acyclic analogues helps to control and maintain the geometry of their binding site, and makes them more selective.
An interesting example of azulene-based macrocyclic receptors for recognition and sensing of phosphate anions was presented by Jurczak and coworkers [

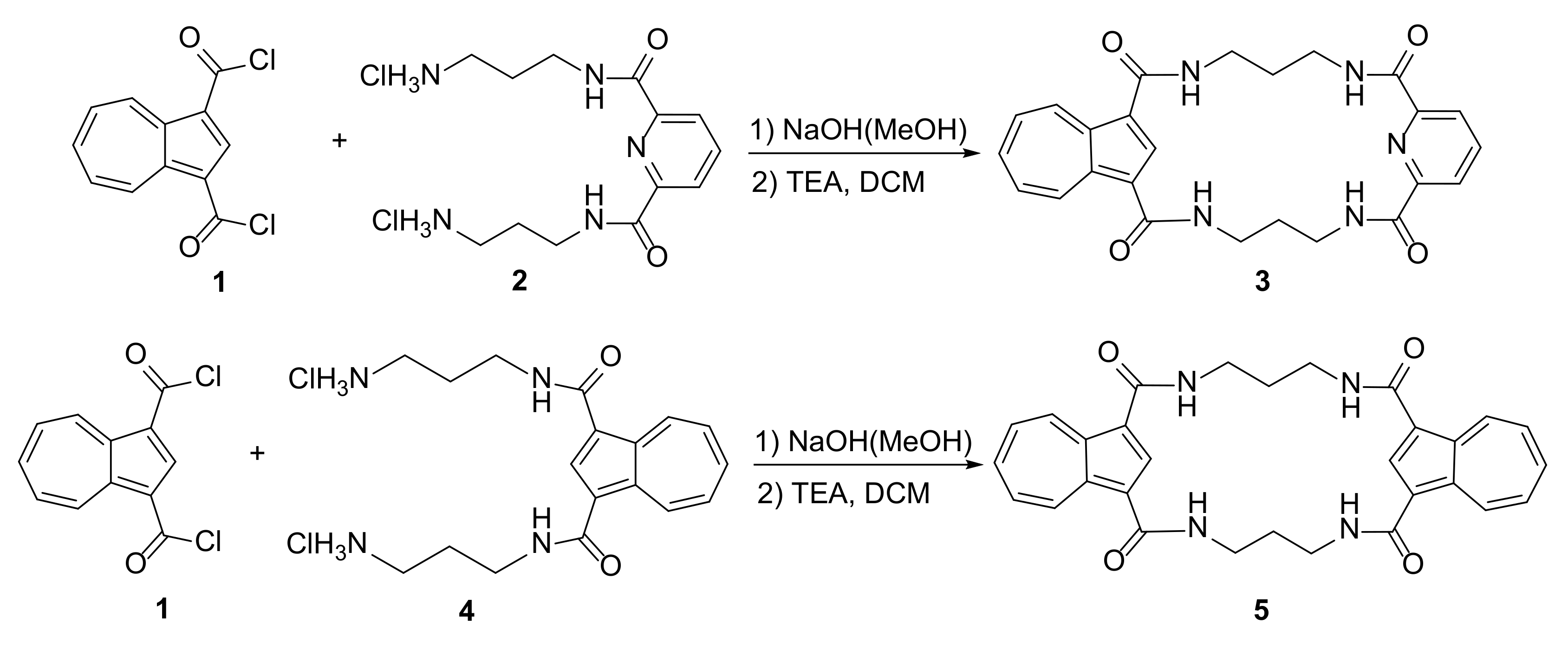

16]. The synthesis of macrocycles was performed by treating diacid dichloride
1 with appropriate diamine dihydrochlorides
2 and
4 in high-dilution conditions (
Figure 2).
The conformations of 3 and 5 were studied in crystals and in solution. Their selective binding of phosphate anions (HP2O73− and H2PO4−) was observed, and their binding constants were calculated on the base of 1H NMR spectroscopy titration experiments. Compound 3 exhibits high binding constant K1:1 = 4800 for H2PO4− ion in comparison to K1:1 = 270 for Cl− and K1:1 = 100 for Br− anions. The change of color in polar solvents such as DMSO allows the detection by eye of the interaction of macrocycle-guest molecules.
Similar macrocycles designed and synthesized by Jurczak and coworkers [
17] can selectively catch the chloride ion (
Figure 3). The macrocycles exhibit chlorine anion binding properties that do not obey the Hofemeister series of simple anion selectivity. Investigations of shape-related properties of polyamide macrocycles
6–
8 combined with crystal structures made it possible to identify crucial structural features that can be connected with selective chlorine binding.
The work was based on the measurement of more than 30 macrocycles and cryptands. This large library of molecules enabled the authors to observe the influence of many structural factors that affected selective anion binding properties. The size of the macrocycle and the nature of the aromatic component and additional nitrogen atoms, which provide additional hydrogen bond donors in the macrocycle structure, were taken into account. The original results were also discussed with a wide range of literature reports. These extensive studies allowed the finding of some general rules for selective Cl− anion detection. The host must possess a rigid scaffold, the size of the binding pocket must not be larger than that of Cl− anion incorporation, binding sites should be present from all spatial directions, and the host:guest complex must be separated from the counter ion and solvent molecules.
The search for selective anion receptors via static combinational chemistry was the subject of interest of Jurczak [
18]. Seventeen macrocyclic polyamides having a structure of so-called unclosed cryptands were synthesized (
Figure 4). Amide functions in the macrocycle moiety formed a complex system of hydrogen-bond-donating centers.
Macrocycles 13–30 were also synthesized by templated (H2PO4− anions in DMSO) or nontemplated concurrent syntheses with macrocyclic precursor 12 and two equimolar acid chlorides. The product and residual macrocyclic substrate ratio was tested. Stability constants for these receptors for H2PO4− anions varied from 40 for 15 to 8600 for 13.
A dynamic covalent chemistry approach was used in the formation of hydrazone macrocycle self-assembly in water [
19]. The reaction of
30 and
31 via reversible hydrazone condensation could produce macrocycles in high yields with interesting new electron-donor properties. A change in the reaction conditions by lowering the temperature and decreasing the acidity of the reaction mixture made macrocycle

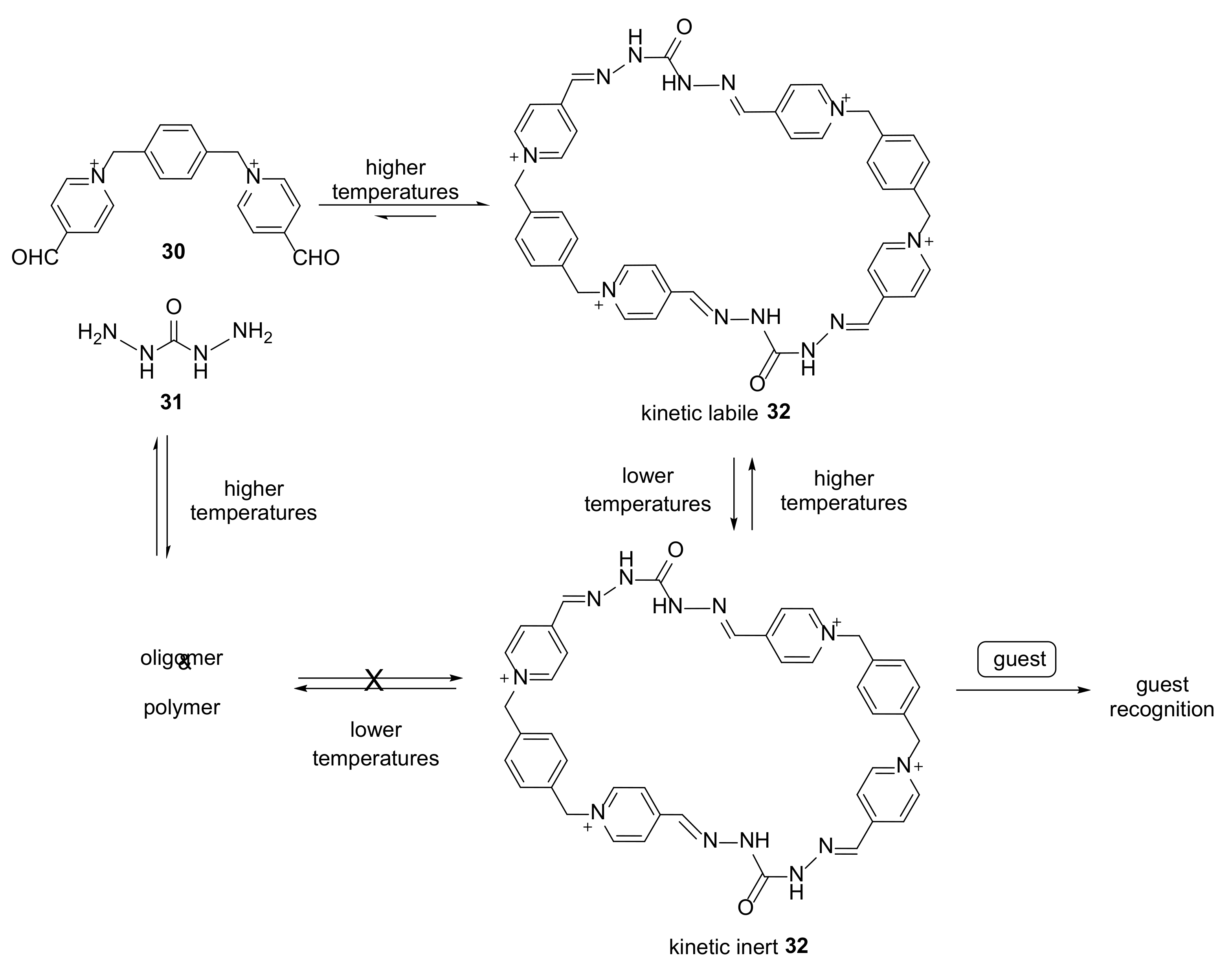

32 kinetically inert (
Figure 5).
This macrocyclic host can incorporate hydrophobic neutral or anionic guest molecules with ether groups from water solutions, and in these conditions, it is stable up to three weeks. Fine selection of the reaction conditions and their change in order to obtain a stable macrocyclic structure is a step to solving the problem of dynamic covalent chemistry; i.e., the combination of high reaction yields and stability of the final product.
Relatively small changes in the size of the macrocyclic ring containing the same functional groups may cause large changes in its conformation, and thus the structure in the crystalline phase in the properties caused by the different spatial arrangement of the donor atoms in the macrocycle ring [
20].

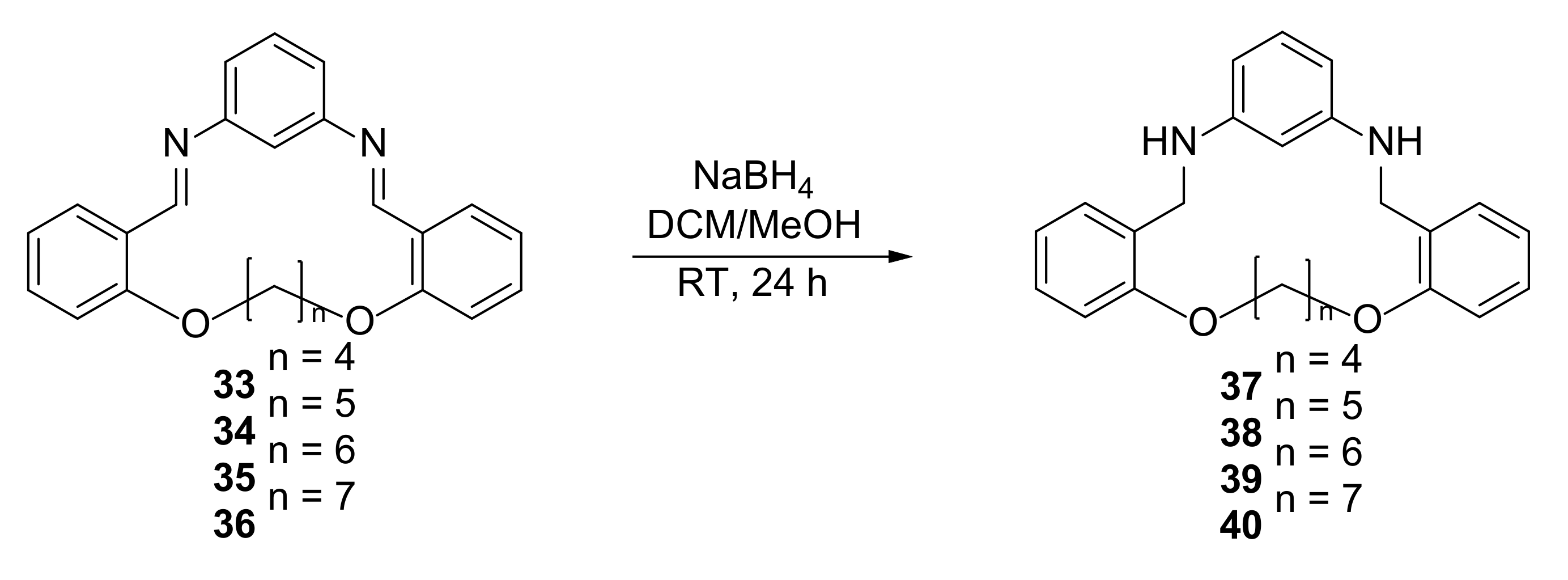

Reduction of macrocyclic imines
33–
36 to the corresponding amines
37–
40 yielded a series of N
2O
2 donor macrocycles. The changes in the length of flexible aliphatic chain may result in different conformation of aromatic rings, which creates the different coordination spheres. For the obtained compounds, the structures in the crystal were determined, and N-H⋅⋅⋅O interactions between neighboring molecules were found. Their affinities to mercury and iron III cations were tested, leading to conclusions that they may transport mercury (II) into the organic phase (
Figure 6).

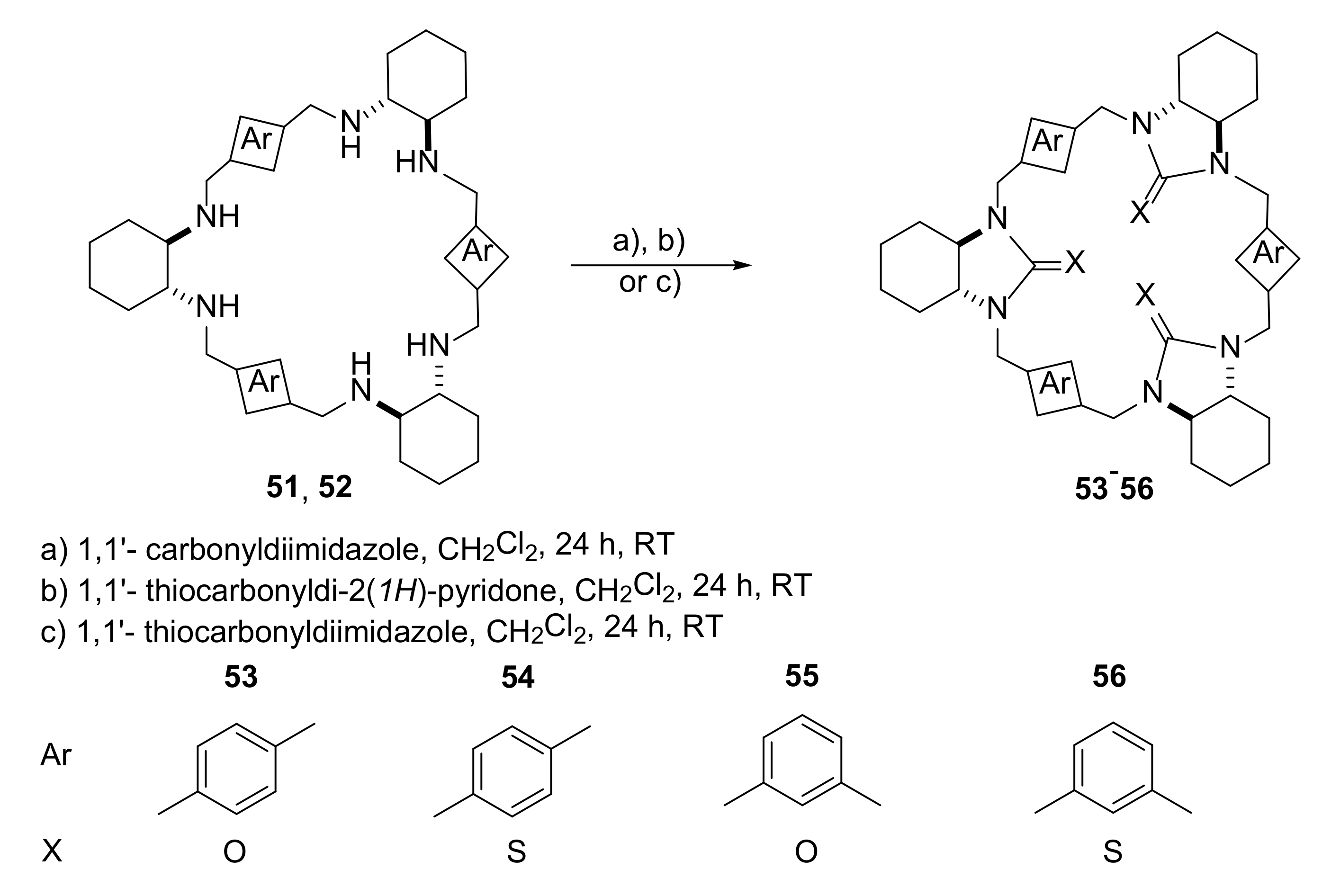

3.3. Electron-Transfer Properties
In the work of Shimizu et al. [
26], the electron transfer from host to guest of the triphenyl bis-urea macrocycles were studied (

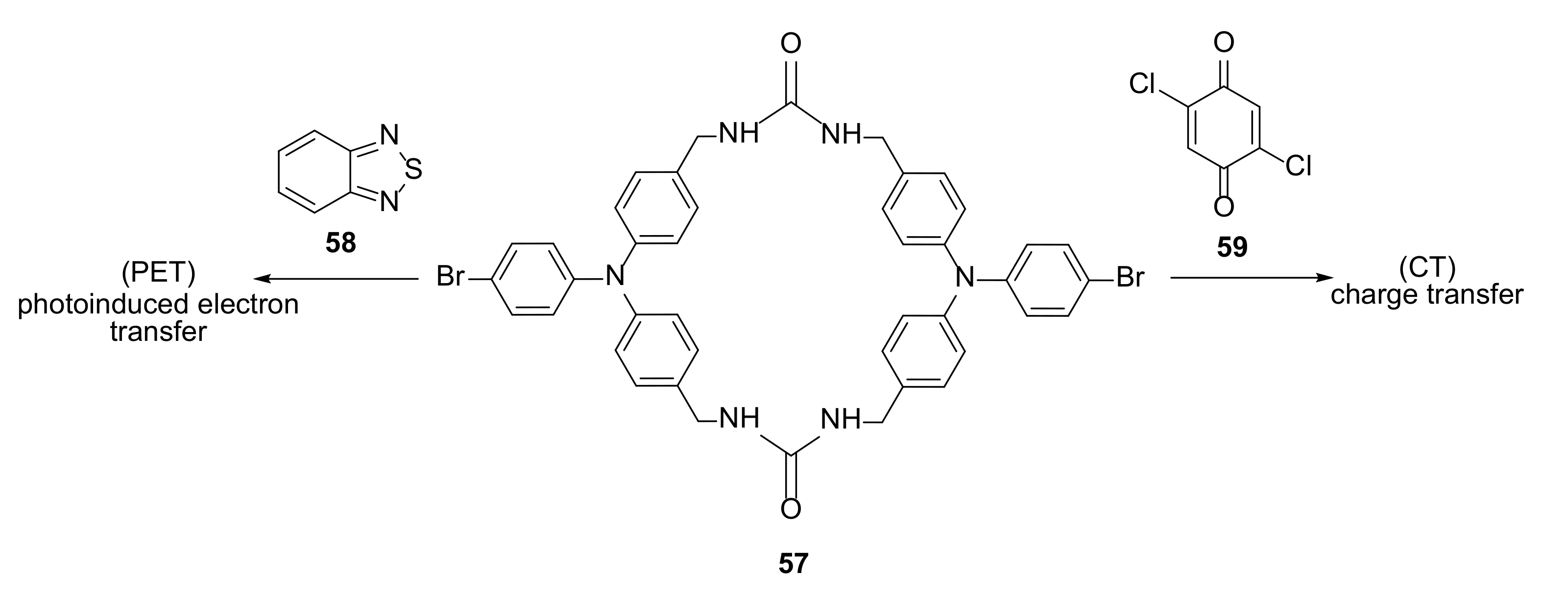

Figure 9). After guest-loading into the crystal structure of
57 by the exposition to vapors of guest molecules, the electron transfer from the macrocycles to the encapsulated guest molecules
58,
59 was observed. The observation of the crystal structures revealed how the distance and mutual orientation of host–guest molecules influenced their electron properties.
The results of diffuse reflectance spectroscopy were supported by DFT structure and absorption calculations, and allowed the detailed analysis of electronic excitations. Depending on the nature of guest molecules, the complexes displayed a charge transfer (CT) transition or photoinduced (365 nm led light) electron transfer (PET).
Progress of this work was presented in the recent paper [
27], in which it was described how the properties of photogenerated radical cations that are characteristic to the triphenyl bis-urea macrocycles
57–
58, due to their porous structures in the solid phase, changed upon their self-assembly into columns in a crystal. The macrocycle void changed from 6.4 × 4.3 Å for complex of
57 with DMSO to 6.5 × 4.3 Å for complex of
58 with DME. The properties of supramolecular complexes of the triphenyl bis-urea macrocycles were also compared to their linear analogues
59–

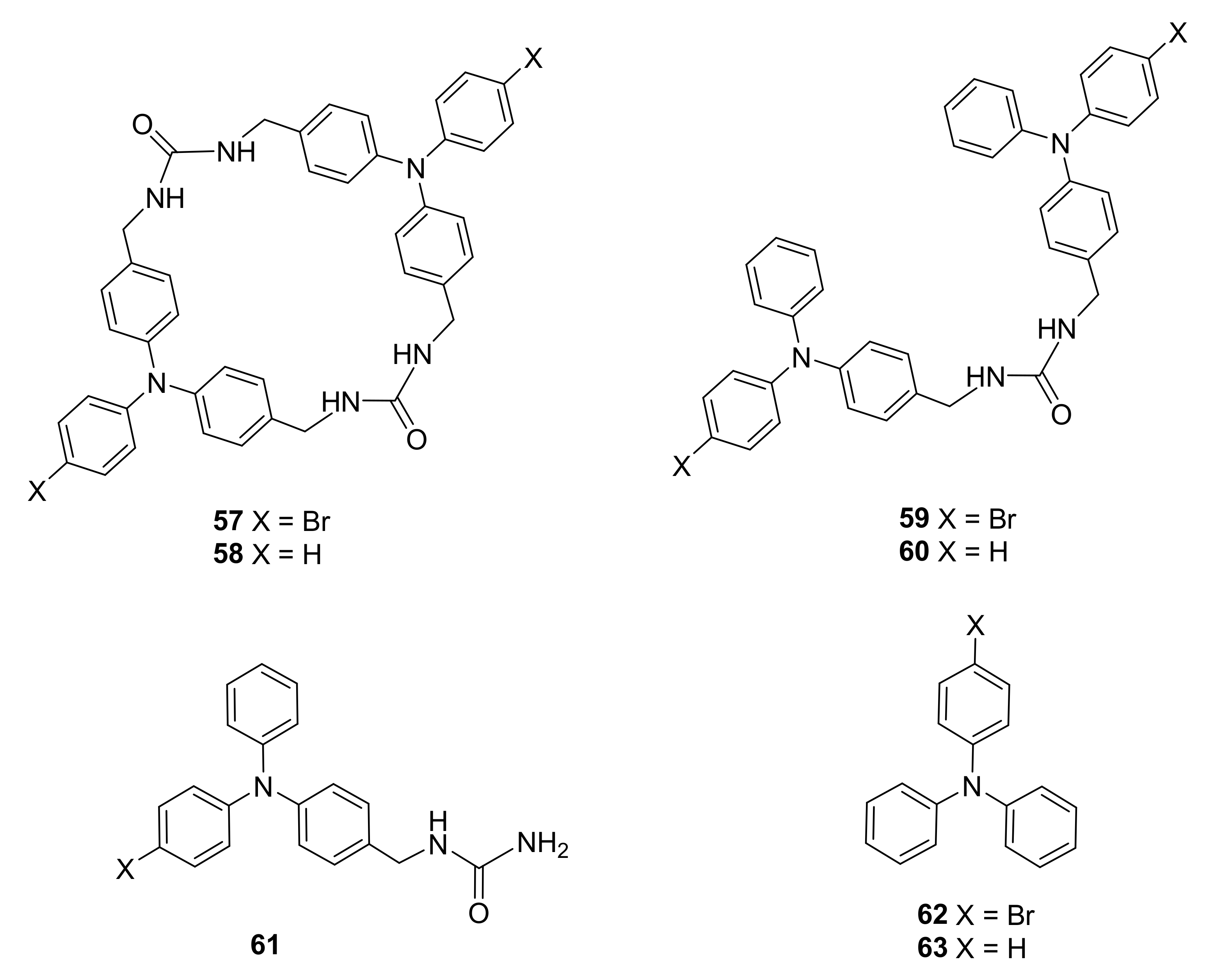

63 using common structural elements (
Figure 10).
The EPR studies of the complexes of macrocycle 58 with guest molecules were performed to measure the approximate number of radicals generated by UV irradiation by 365 nm light. The complexes of 57 with DMF, benzene, and bromobenzene displayed the highest radical formation (up to 0.78%) after one day of irradiation.
A new class of macrocycles—molecular triangles—was presented and summarized by Stoddart and coworkers [
28]. Incorporation of π-conjugated units into a macrocycle structure made them gain new optical, electronic, and magnetic properties. This class of macrocyclic compounds is composed of optically active
trans-diaminocyclohexane (
41) and aromatic diimides.
For the synthesis of symmetric macrocycles, one-step syntheses are presented. Construction of macrocyclic imides (

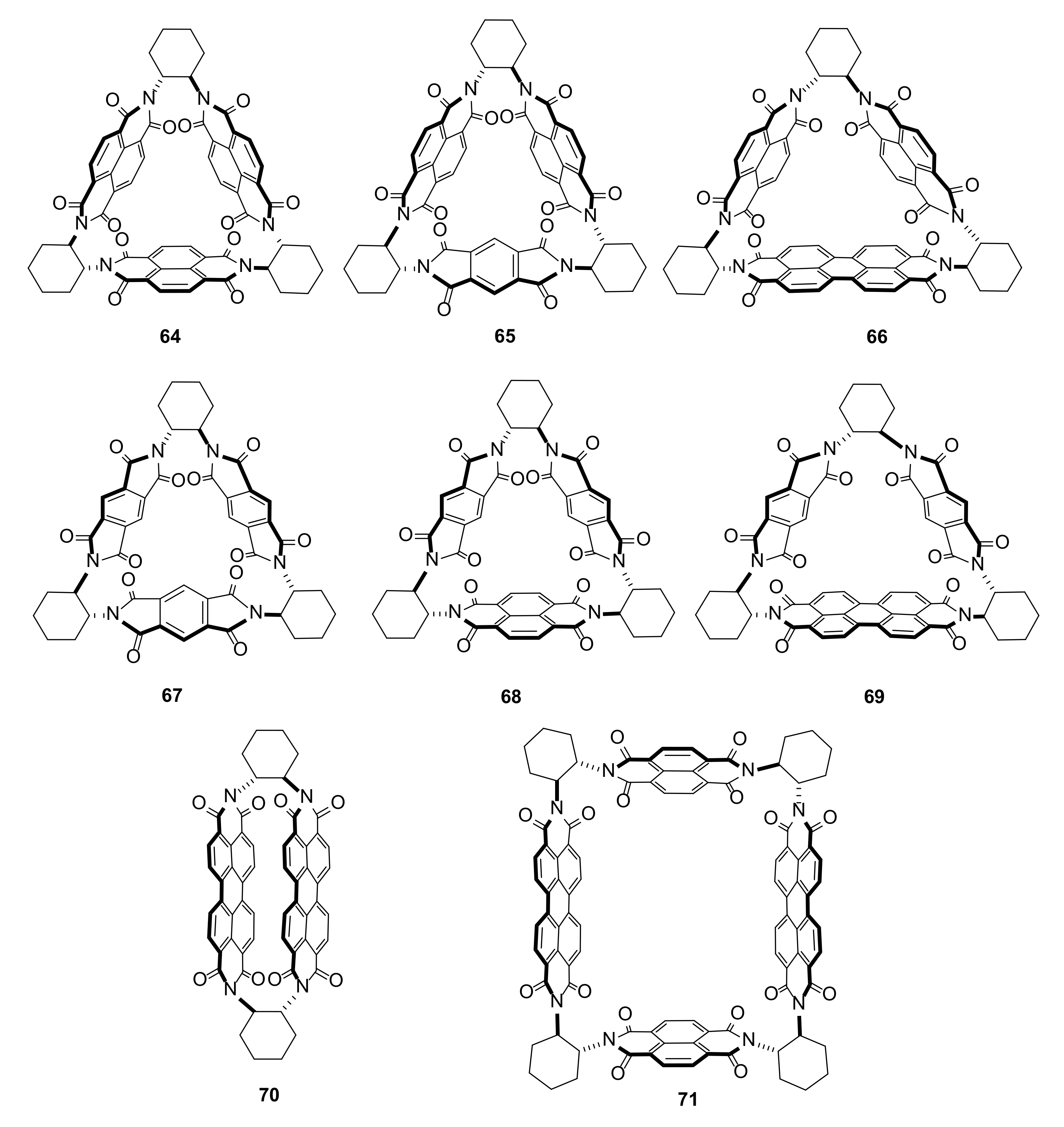

Figure 11) with different aromatic units required, however, a stepwise synthesis from previously obtained diamine and aromatic dianhydride. The new compounds
64–
71 have a set of interesting properties, such as superstructure formation with anions or electron-donor guest molecules [
29]. Another property investigated by galvanostatic measurements is their potential use as an organic electrode material for large-capacity rechargeable batteries [
30]. On the other hand, the solid-state luminescent properties of aromatic polyimides gained attention for their use as sensors and light emitting devices [
31].
Polyimide tetrameric macrocycles with bipyrridynium units are promising materials for organic electronics [
32]. Incorporation of a naphthalene diimide moiety into a tetracationic macrocycle changes its electrochemical and electronic behavior (
Figure 12).
Cyclic voltammograms show different properties of 72 in comparison to analogue acyclic compounds having the same structural components. Macrocycle 72 displayed semiconductive electron properties with high electron affinity (4.2 eV) in the solid state. A thin film of 72 displayed a maximum redox conductivity of 7.6 × 10−4 Sm−1, which makes it potentially usable in organic electronics.
Incorporation of polyaza macrocycles into macrocycle-linked covalent organic frameworks in catalyst and solvent-free conditions resulted in a successful attempt at an electrically conductive material [
33].
The 2-D aza-bridged bis(phenantroline) macrocycle-linked COF
74 was synthesized from
C3-symmetrical tritopic monomer
73 containing three 2,9-dichloro-1,10-phenantroline units and ammonia gas, via a thermally induced reaction (
Figure 13). The structure of
74 was elucidated with FT-IR, UV–vis, XPS, and
13C NMR analyses, and the covalent organic framework (COF) exhibited a high chemical stability toward acids and bases. After exposure to iodine vapor, COF became a semiconductive material.
The influence of nitrogen atoms in the macrocycle in comparison to an analogue structure with boron atoms instead of amino functions was presented on polycationic macrocycles, and due to their redox properties, could be used as molecular switches [
34].
Novel polycationic macrocycles
75 and

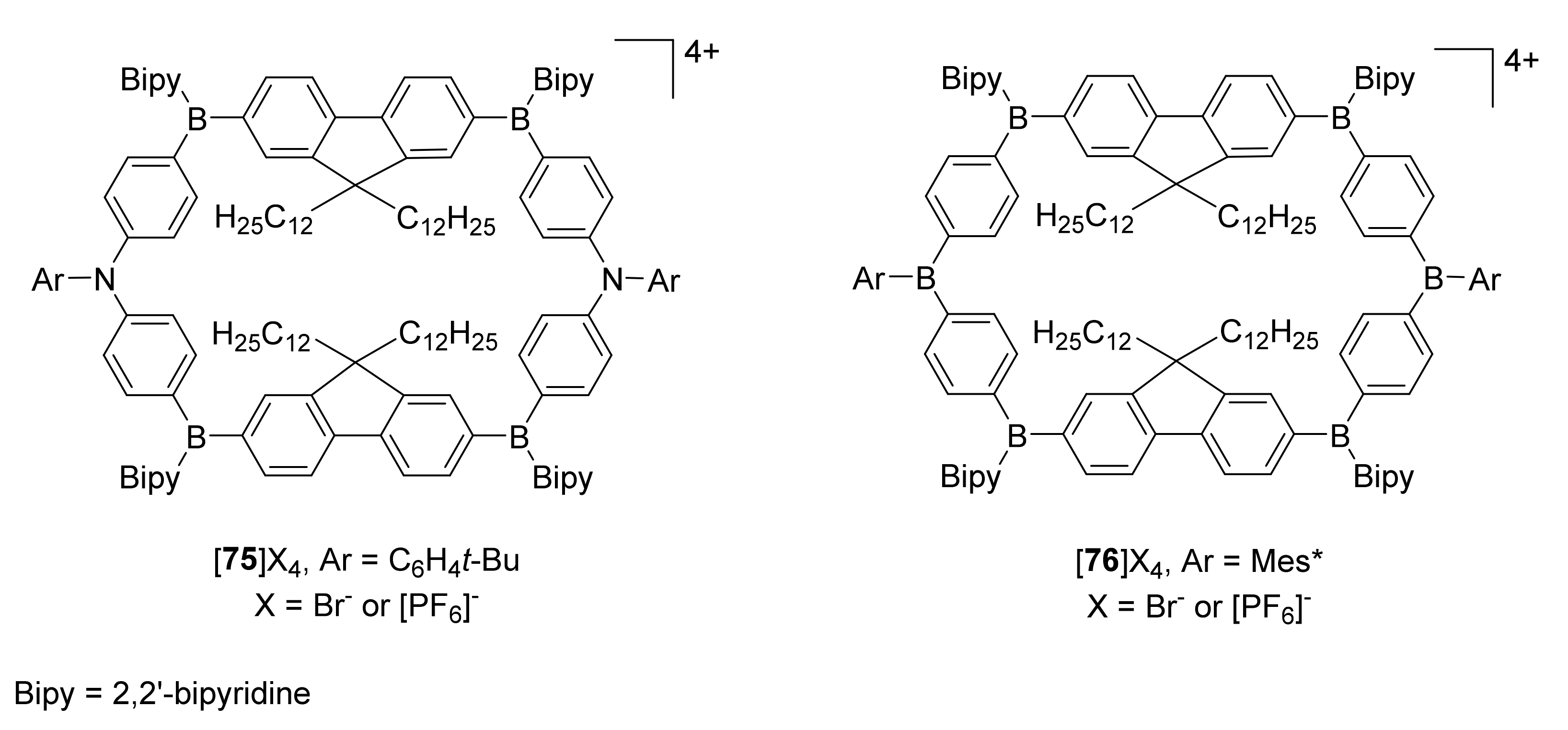

76 possess organoboronium in their macrocyclic framework (
Figure 14). The main difference between these two studied macrocycles is the presence of an electron-deficient arylborane in
76 or electron-rich arylamine moieties in
75. Spectro-electrochemical studies showed reversible electrochromic switching between three redox states for nitrogen-containing macrocycles, or two redox states for its boronium-substituted analogue. Cyclic voltammetry results were confirmed by TD-DFT calculations that allowed assignment of electronic transitions. The switching manifested in color changes from blue to light red in
75 and blue and light yellow to dark blue in
76.
In some cases, electron redox or photochemical properties require the presence of large π-conjugated systems in a macrocycle structure. In this case, the nitrogen atom is a part of the aromatic ring system, as in the 1,6-anthrazoline derived macrocycle [
35]. This macrocycle was synthesized by Friedlaender synthesis from
77 and
78, which involved both imine and aldol condensation (
Figure 15).
In molecules 79–81, the macrocycle structures consist of all sp2 hybridized carbon and nitrogen atoms. UV–vis measurements of 79 and 80 in DCM solution exhibited two main absorption maxima at 403 and 407 nm. The summarized yield of all macrocycles 79–81 was 43%, with dominant hexameric structure 80 as the main one. The heptameric structure of 81, due to problems with purifications caused by poor solubility, was isolated as the mixture with some oligomeric structures with similar properties.
3.5. Host–Guest Interactions with Organic Molecules
The amide macrocycle, which forms a porous molecular structure and can selectively absorb guest molecules, was studied by Zheng and coworkers [
37]. The synthesis of the macrocycle involved cyclization of the structurally rigid diamine

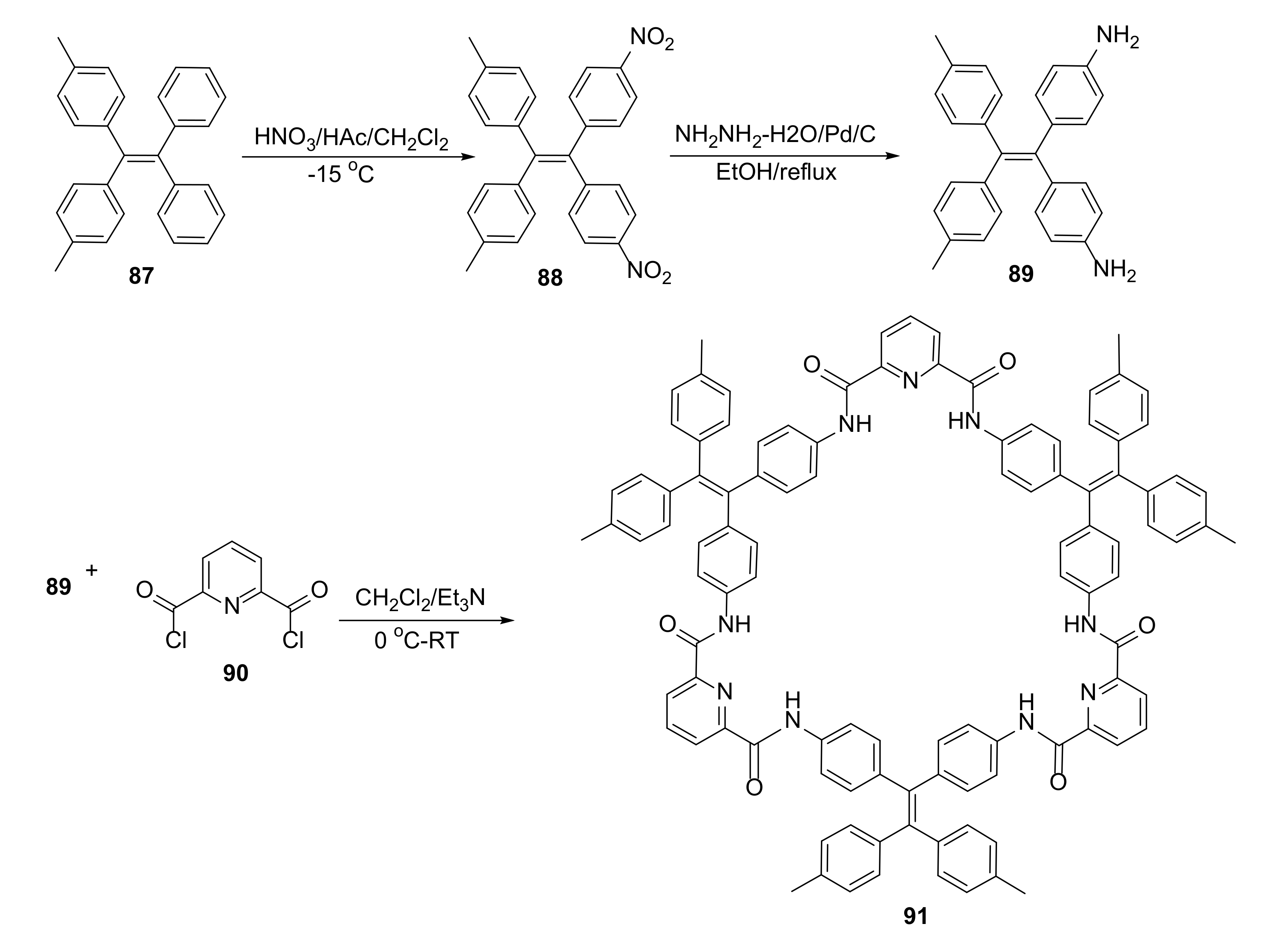

89, containing tertaphenylethylene with dipodal acid chloride
90 (
Figure 17). An X-ray analysis of the crystal structure of macrocycle
91 displayed cofacially folded tetraphenylethylene and pyridynediformyl units. Mutual insertion of two macrocycle molecules led to intertwining and catenane formation.
The porous crystal structure of the macrocycle 91 could accommodate up to two trinitrotoluene (TNT) molecules in a void, which resulted in a 1:1 guest–host ratio of compounds in the crystal. The process of TNT absorbance in the crystal pores could also be observed by fluorescence quenching. Half of the fluorescence of 91 in an H2O/THF suspension (C = 1.0 × 10−7 M) was quenched with around 10 equivalents of TNT. The pore structure of 91 was maintained, even after removal of guest and solvent molecules from the crystal.
Complexation and inclusion properties are strongly connected with the size of a macrocycle. The larger cavity can accommodate larger guest molecules; however, increasing the macrocycle size can strongly influence their solubility. This can be overcome by incorporating long alkyl chains into the macrocycle structure. An example of a polyaromatic-amine-containing macrocycle with a macrocyclic ring of a size that was capable of complexing fullerene molecules was presented by Li and coworkers [
38].
In one-pot synthesis, the diphenylamine derivative
94 was used as a building block to produce three macrocycles
95–
97 with different ring sizes (
Figure 18). Polymeric byproducts that formed during the reaction were removed by Soxhlet extraction. Macrocycles were then separated from their mixture by preparative gel permeation chromatography (GPC).
Host–guest interactions of the macrocycles 95–97 were observed by UV–vis absorption spectroscopy and fluorescence spectroscopy. Complexes of these macrocycles and C60, PC61BM, and C70 fullerenes were observed in 1:1 stoichiometry. The size of the macrocyclic ring influenced the C60, PC61BM complexation, while this was not observed for the C70 guest molecule. The complex of 95 and its complex of 95 with C60 fullerene were further applied in optoelectronic devices.
Molecular recognition, which is often shown in works on macrocycles as their practical application, can also be controlled. Mechanical stoppering of a guest molecule can prevent its interactions with macrocycle host-quenching molecular recognition [
39]. Applying a specific impulse as a heat or addition of a base cause on cationic aromatic polyamine salts can cause controlled release of guest molecules, and enables molecular recognition. The result of this complex formation can be easily observed by the change of the color or by change of absorption in UV–vis spectra at 450 nm.

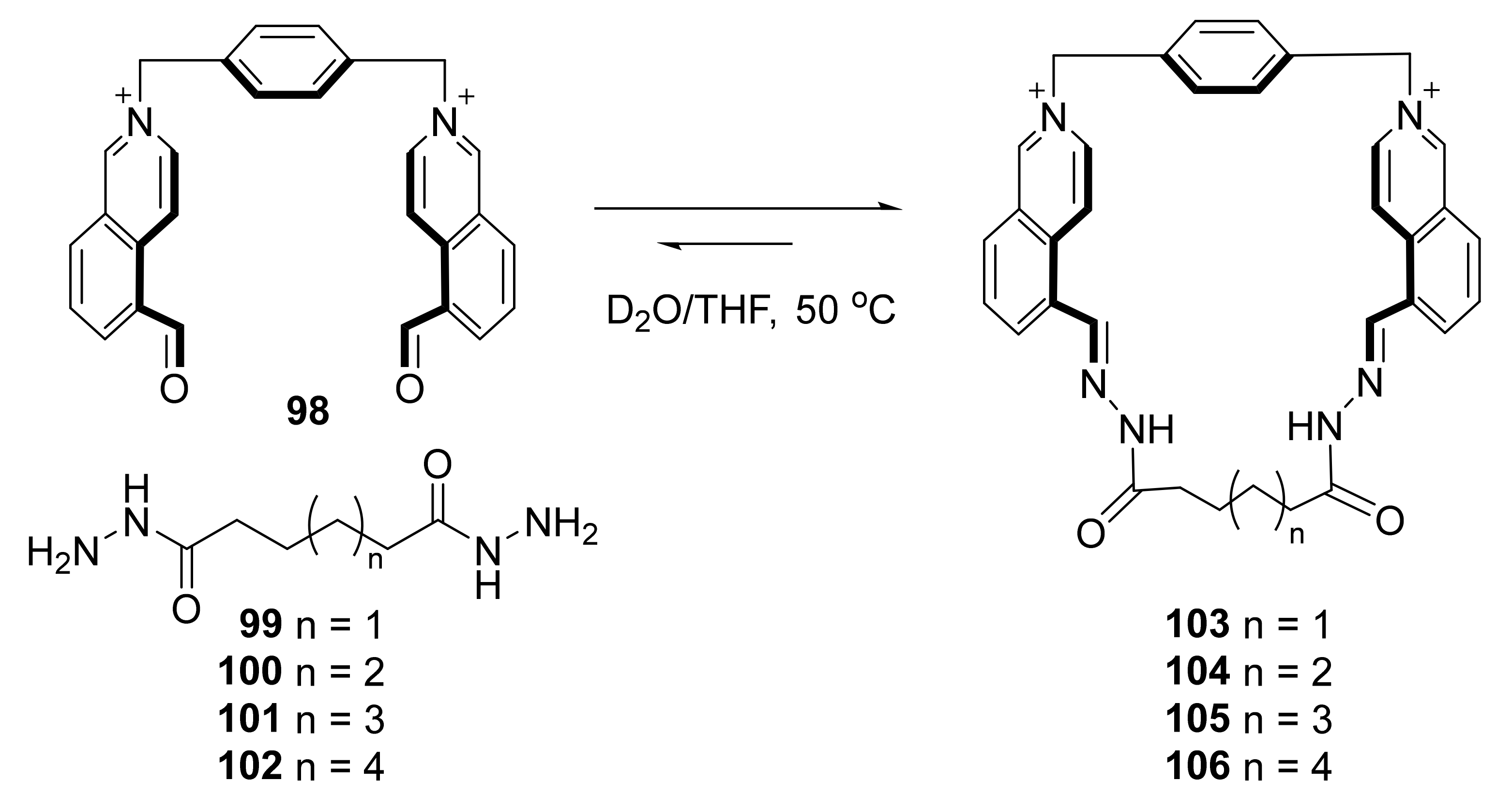

As the cyclic structure stabilizes products of hydrazide condensation in comparison to reactions performed with acyclic molecules, this reaction is also efficient when water is used as a solvent. The series of macrocycles
103–
106 from cationic bisaldehyde component
98 and dihydrazide linkers
99–
102 were synthesized (
Figure 19) [
40].
Host–guest properties of the macrocycles 103–106 were presented using an example of resolving a pair of isomers—phenanthrene and anthracene—which, due to their similar chemical and physical properties, were difficult to separate by commonly used methods. At higher concentrations, in more polar media and lower temperatures, the macrocycles tended to form catenanes with yields up to 33%, while at lower concentrations, mainly macrocycles were formed, with near-quantitative yields in the cases in which the template was used. It was possible to isolate compounds 103–106 from their mixture just by counter ion exchange, without the use of chromatography.
Polyamide macrocyclic compounds can be used as a linkers in metal–organic frameworks [
41]. The flexible benzylic amide macrocycle
111, with two carboxylic acid groups (
Figure 20), was used as an organic ligand for the synthesis of a metal–organic framework with copper (II) or zinc (II) metal ions.
Macrocycles were successfully used to form metal–organic frameworks according to commonly used solvothermal protocols, and structures of products were established by single-crystal X-ray diffraction. Both systems were evaluated as containers for the selective recognition of C60 and C70 fullerenes. Selective incorporation of the C60 fullerene was observed, proving these MOFs were very efficient C60 absorbers (34 wt %).
Implementation of new functional groups into known macrocycles can change their properties and functions. The highly substituted [3 + 3] Schiff-base polyaromatic macrocycles
117–
120 were used to form host–guest interactions with secondary ammonium-based guest molecules (
Figure 21) [
42].
Depending on the nature of the guest (121–123), macrocycles 117–120 could form internal (inside the macrocycle ring) and external complexes, or in the case of sterically crowded guest molecules such as 121, only external ones. NMR studies of the complexes in solution were supported by theoretical calculations, and the partial tautomeric change from enol-imine partially shifted to keto-amine was observed. This tautomerization changed not only binding groups, but also conformation of the host macrocycle. Guest assembly could be also observed by bathochromic shift on UV–vis spectra from 410 to 419 nm.

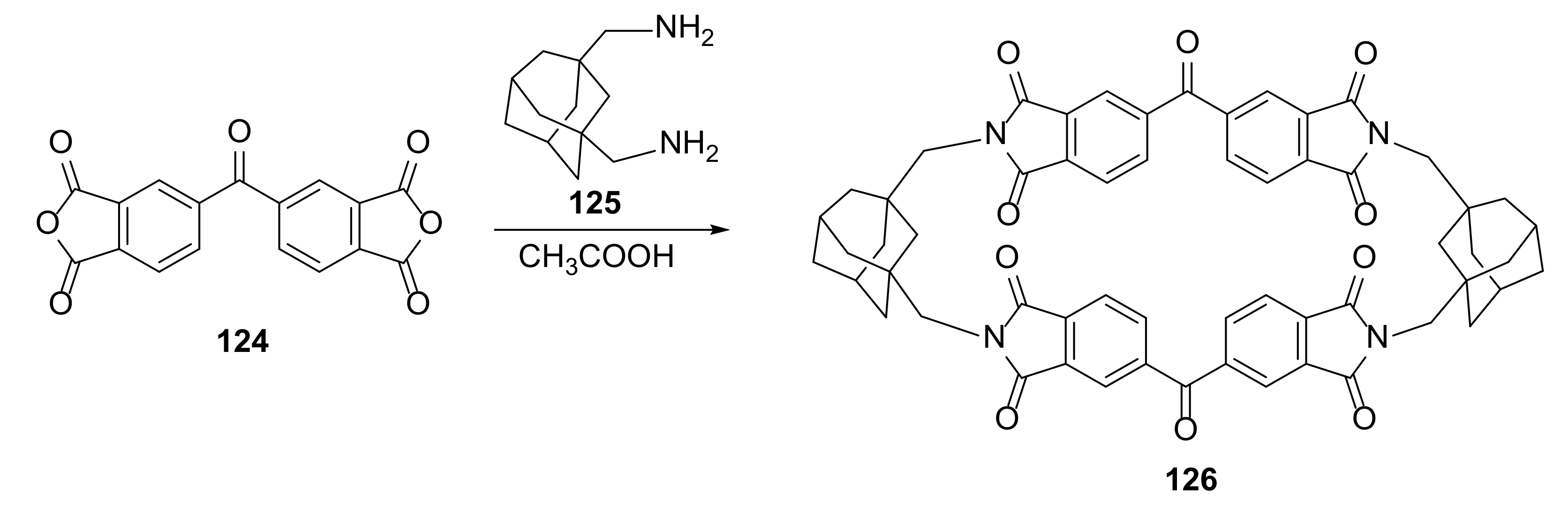

New tetraimide macrocycle
126, having adamantane units in its structure, was found to form inclusion crystals (
Figure 22). This material, in the process of cocrystallization, could form coinclusion with the chloroform and cyclic ethers THF, 1,3-dioxane, and 1,3-dioxolane [
43,
44].
The structure of 126 in crystal was confirmed by X-ray crystallography. Macrocycles formed layer architectures through multiple intermolecular interactions, and guest molecules of cyclic ethers and chloroform were placed within the layer channels. The main driving forces affording formation of isostructural solvates were the van der Waals force and the CH⋯O interactions originating from the aliphatic hydrogen atoms of adamantane linkers.
An example of a giant macrocycle possessing many nitrogen atoms of different types in its structure not due to just imine bonds, but also to porphyrin moieties incorporated into its structure, was presented. A condensation reaction of
cis-diaminophenylporphyrin with 5-bromo-2-hydroxy-1,3-benzenedicarboxyaldehyde (
Figure 23) yielded [3 + 3] macrocycle
129 as the only product [
45].
A detailed structural analysis was performed; due to the geometry of the substrates, the [4 + 4] or the mixture of [4 + 4] and [3 + 3] macrocycles was expected. X-ray diffraction analysis proved that the macrocycle 129 self-assembled into 1-D columns in the solid state. This structures exhibited permanent porosity, which was confirmed by several sorption experiments and powder-diffraction analysis. This was due to the presence of 1.7 nm wide 1D channels inside the column structures.

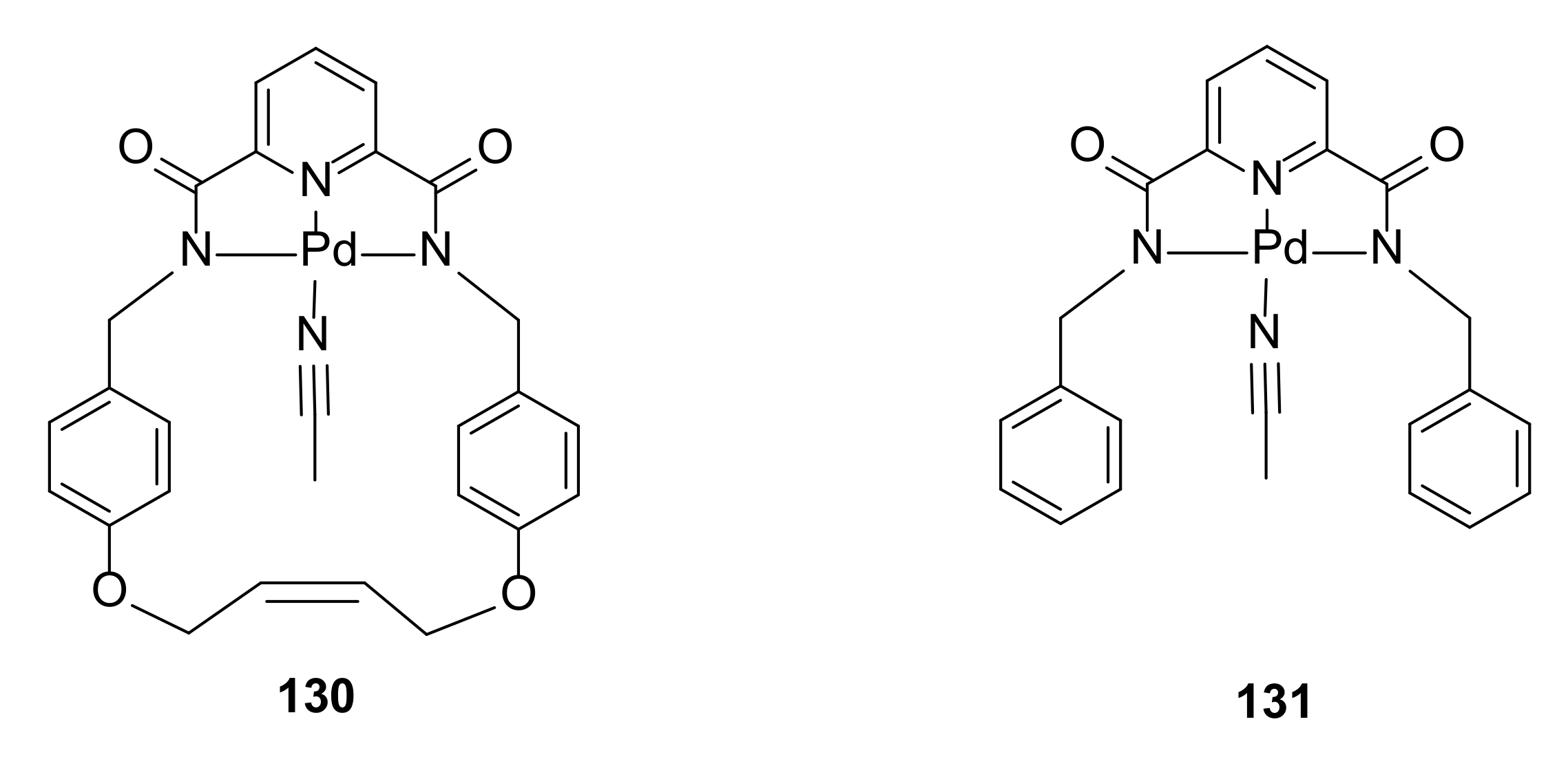

3.7. Macrocycle Size and Shape Control
Polyimine macrocycles were also used for the introduction of axial chirality at a spiro carbon in a macrocycle ring [

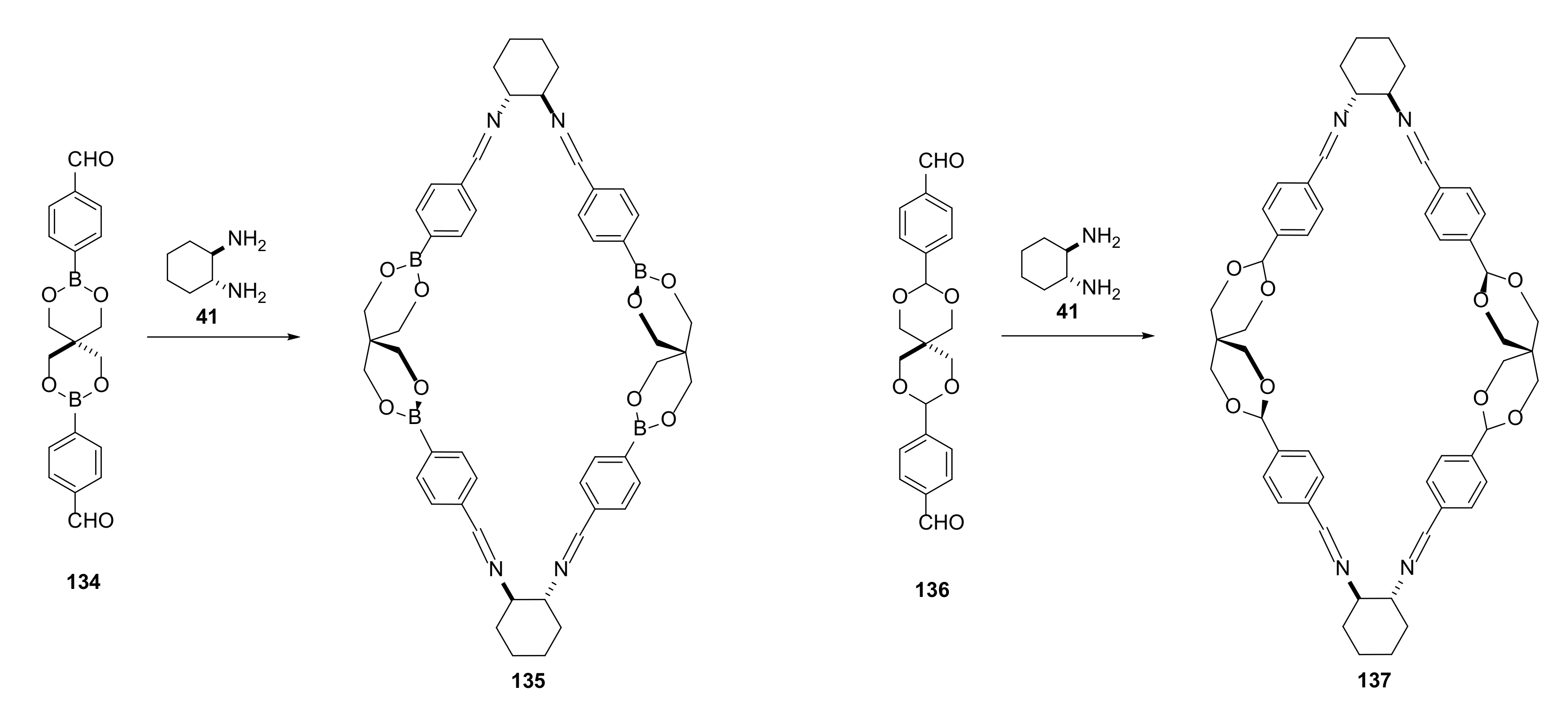

48]. The key step for the synthesis was the formation of an axial chirality in a quaternary carbon atom having four constitutionally identical substituents. The use of pentaerythritol for the macrocycle framework building was also a useful method for heteroatom incorporation into the macrocyclic structure (
Figure 26).
Ring closure was possible by freezing the labile conformation of spiro-diboronate moiety in 134 or by diastereomeric fitting of conformationally stable spiro acetal group in 136 into a chiral macrocycle. The retention or the inversion of the absolute configuration of cyclic spiro-diboranes or separation of cyclic acetals were not observed for acyclic structures. Macrocycles 135 and 137 are very rare examples of chiral carbons having four constitutionally identical groups.

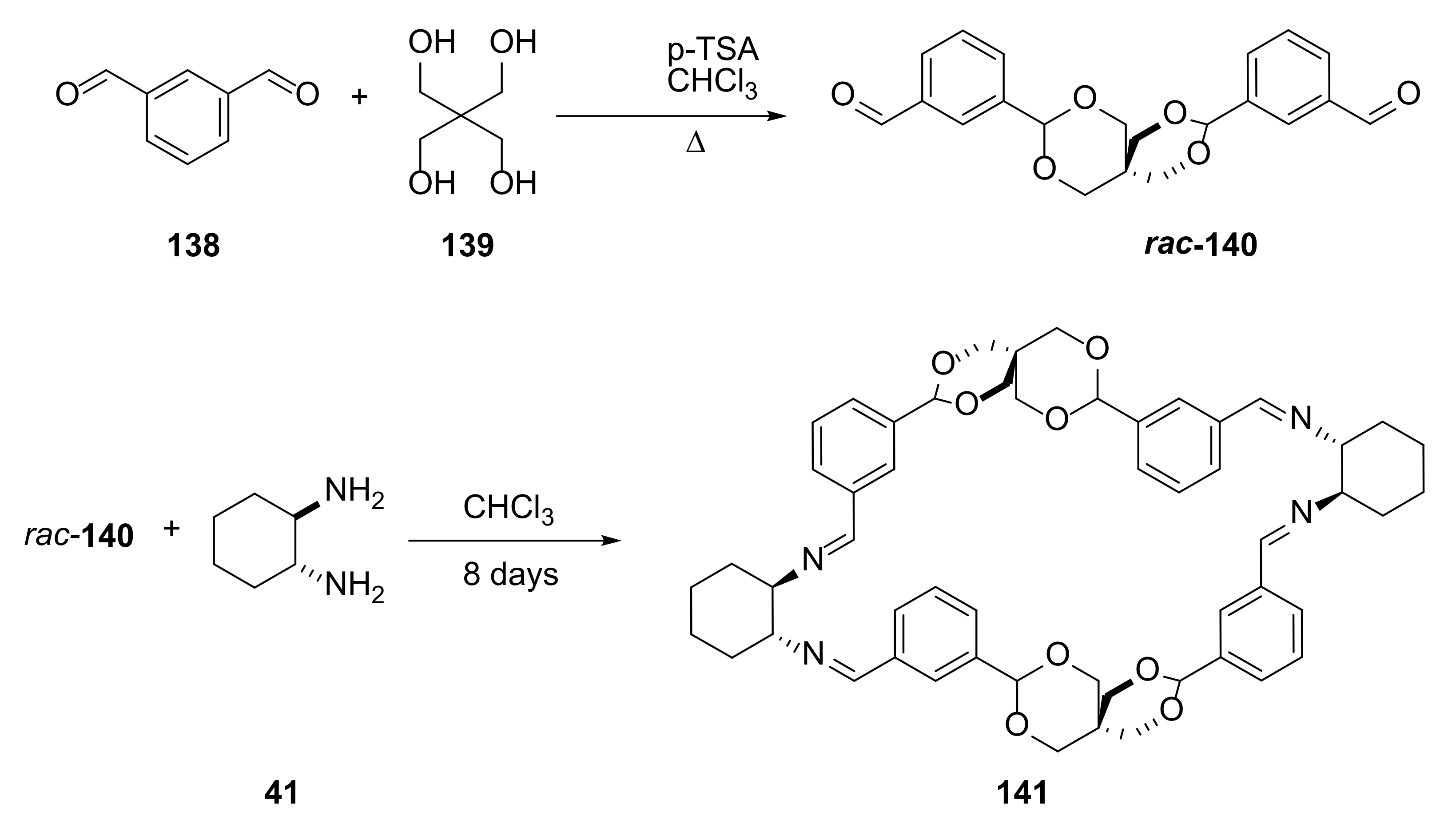

Thermodynamic equilibrium of the synthesis of enantiomerically pure polyimine macrocycles containing the spiro acetal moiety observed in the above publication showed that a mixture of racemic aldehyde components reacted with an optically pure diamine in a manner in which only one enantiomer was incorporated into the macrocycle structure. A second enantiomer of dialdehyde remained in solution, and could only form oligomeric structures.
In order to invert the configuration of spiro acetal moiety, it was necessary to reversibly open at least one acetal ring to allow racemization of the dialdehyde
140 [
49]. Under the reaction conditions in which water was not removed from the reaction mixture, slow hydrolysis of the acetal bond occurred, which enabled the racemization process (
Figure 27).
This approach allowed the researchers to obtain the macrocyclic product 141 with an almost quantitative yield when a 1:1 ratio of dialdehyde to diamine was used. This condition of the macrocyclization, in which dialdehyde racemized, required a long time to proceed. The usual overnight heating, irrespective of the solvents used, resulted in a very complex mixture of products. Only mixing substrates 41 with 140 in a sealed test tube in which the water formed in the imine condensation process was not removed for eight days led to the formation of a product with an almost quantitative yield.
The calix[3]aramide-based cylindrical macrocycles were obtained in a poly amidation reaction of previously synthetized monomer containing two 1,3-alkylaminobenzoic acid units linked by
para-phenylene linkers [
50].

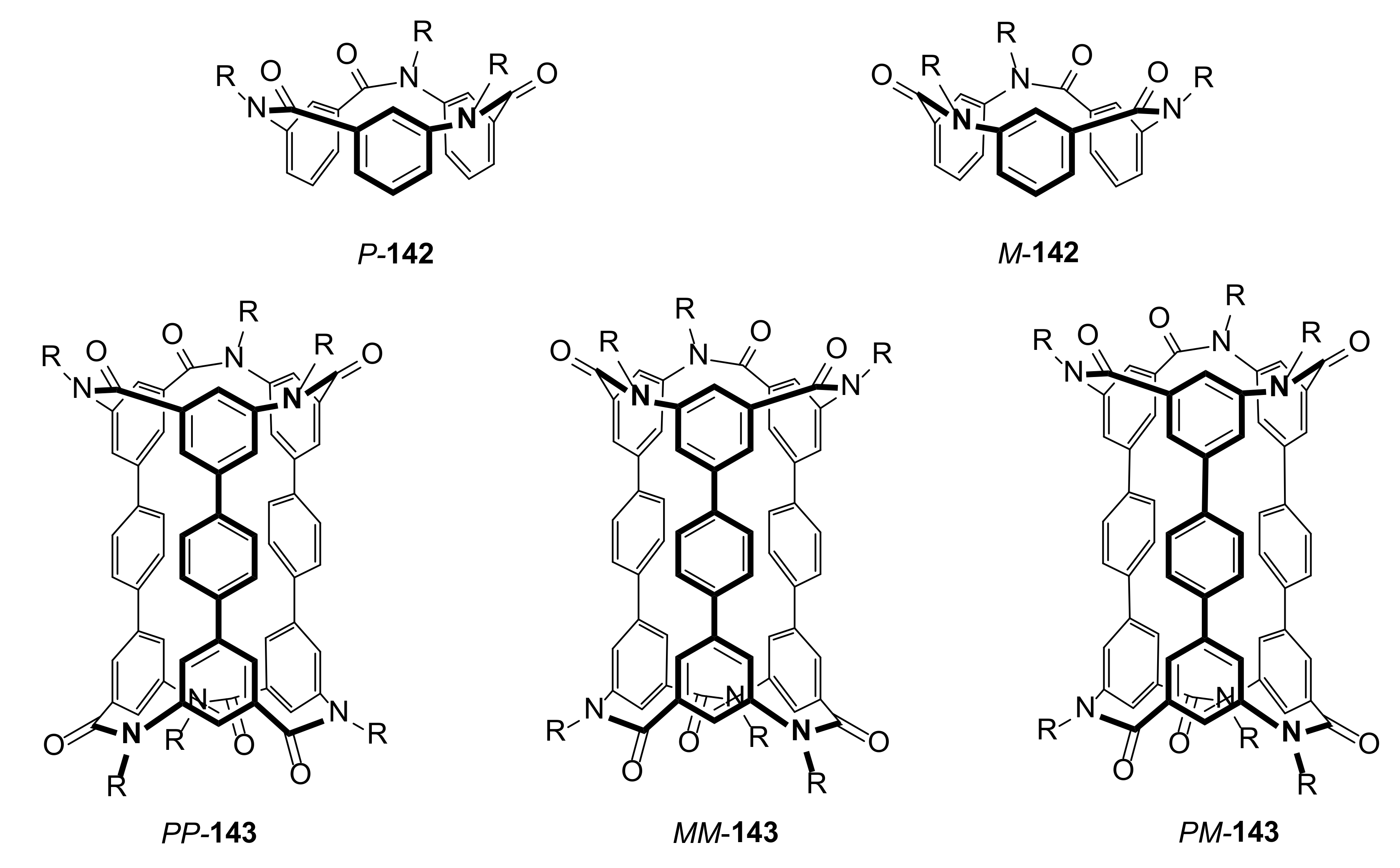

The main products (
143) were formed both in
meso and racemic forms (
Figure 28). This mixture was then separated by chiral HPLC chromatography. The ECD and VCD measurements supported by theoretical calculation helped to established configuration of pure enantiomers. Structure of macrocycle
143 was elucidated by X-ray crystallography and
1H NMR. The
para-phenylene ring showed fast axial rotation at RT and down to 183 K. The absolute configurations of these compounds, as in the case of
135, were stable due to their cyclic structures.
A dynamic combinatorial library of macrocyclic imines allowed the observation of breaking of mirror symmetry upon spontaneous crystallization of polyimine macrocycles (
Figure 29) [
51].
The cascade of a reversible cyclization and crystallization process led to the formation of chiral crystals of 146–LiCl complexes. Randomly selected crystals showed Cotton effects of the opposite sign in the solid-state electronic circular dichroism spectra (maxima at 256, 282, and 311 nm for 146·LiCl). This was evidence that two enantiomorphic crystals were formed. The observation of this phenomenon was then broadened on the crystals formed in different temperatures and with the use of other template ions.
The effect of the solvent used in the macrocyclization reaction may influence not only its time and the yield of the obtained product, but also its stoichiometry. A giant chiral square-shape octaimine macrocycle was selectively obtained from
trans-diamnocyclohexane and 9,10-diphenylantracene-based dialdehyde (
Figure 30) [
52].
In most cases, reactions of substrates with such spatial orientation of the imine and aldehyde groups resulted in the formation of a macrocyclic ring in the [3 + 3] condensation reaction. Due to the steric congestion in the dialdehyde component, in this case a mixture of [3 + 3] (149) and [4 + 4] (150) condensation products was obtained. Heating in various solvents led to the discovery that only in p-xylene did the equilibrium of the reaction shift toward the [4 + 4] product. p-Xylene interacted noncovalently with the resulting macrocycle (could not be fully removed from reaction mixture). This isomerization led to an enlargement of the macrocyclic ring from a 66-membered to an 88-membered gigantocycle in which the distance between the middle points of anthracene units was 21.36 Å. Since the [4 + 4] macrocycle was re-equilibrated after dissolution to mix the [3 + 3] and [4 + 4] products, the imine bonds were reduced to obtain a chemically stable [4 + 4] octaamine 151.
The larger polyimine macrocycles, which are usually not formed or formed in small amounts, also can be synthetized by the use of mixing the template with their smaller ring analogues. In most cases, the smallest possible ring is formed. This is related to both the usually lower solubility of the intermediates and the difficulties in the closure of the larger macrocyclic ring. The interaction of solvent molecules with the interior of the macrocyclic ring is also important.
In their studies, Lisowski, Gregoliński and colleagues showed that the phenomenon of metal complexation by the emerging macrocycle could be used to control the size of the resulting macrocyclic ring. In the condensation of
trans-1,2 diaminocyclohexane with 2,6-diformylpyridine, a mixture of products [2 + 2] and [4 + 4] was formed [
53].

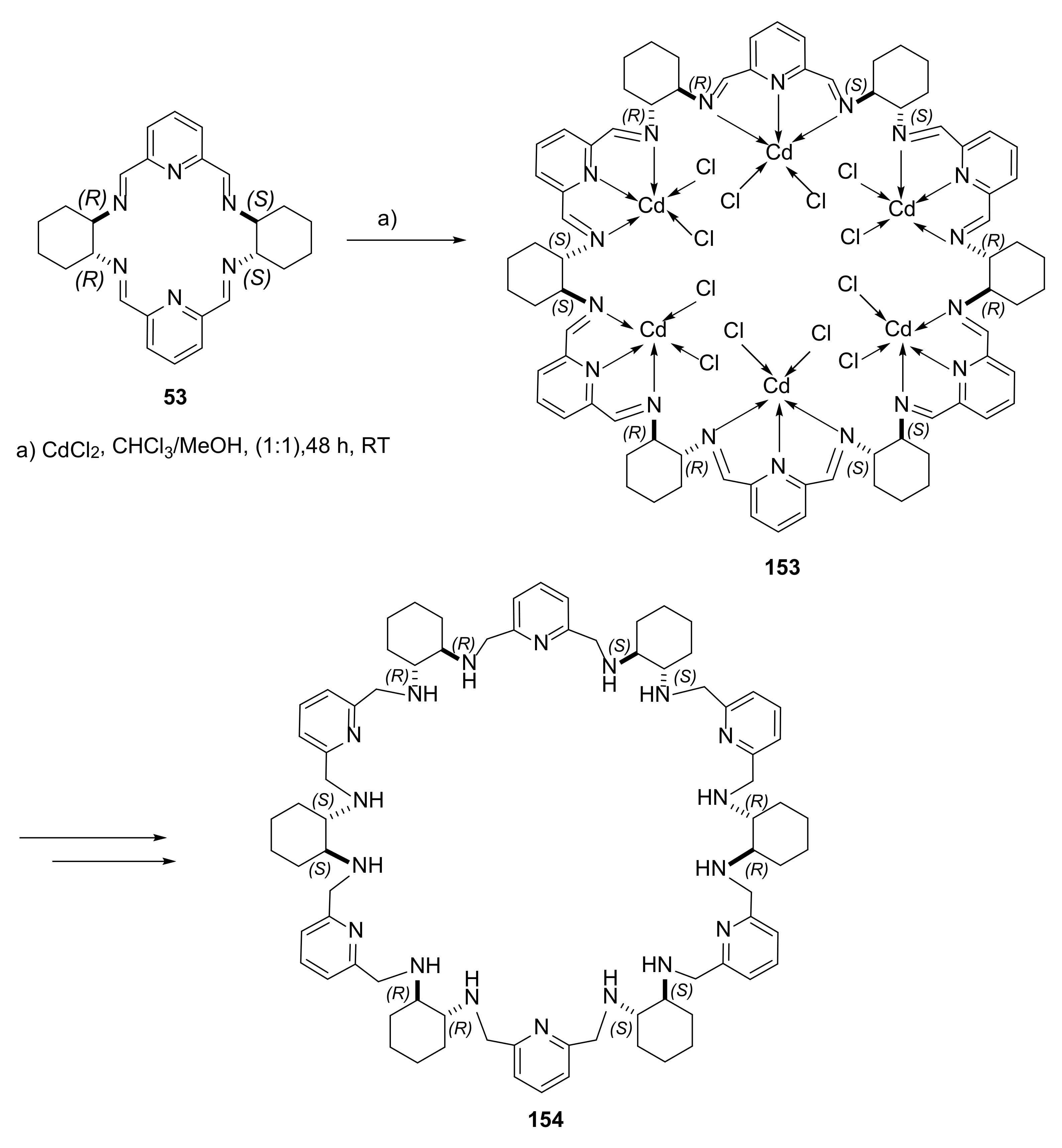

Reaction of the isolated [2 + 2] macrocycle
152 with cadmium (II) chloride resulted in the fusion of three [2 + 2] polyimines into a large [6+6] macrocycle
153 (
Figure 31). In further stages of the synthesis, the obtained cadmium complex with the [6 + 6] macrocycle was reduced to the corresponding polyamine, and the coordinated cadmium was removed from the molecule. The resulting amine
154 was multiply folded, and had the ability to bind other ions or to serve as a host for small organic molecules.
The other situation can be observed in the condensation of enantiomerically pure
trans-1,2-diaminocyclopentane (
155) with 2,6-diformylpyridine (
156) in methanol [

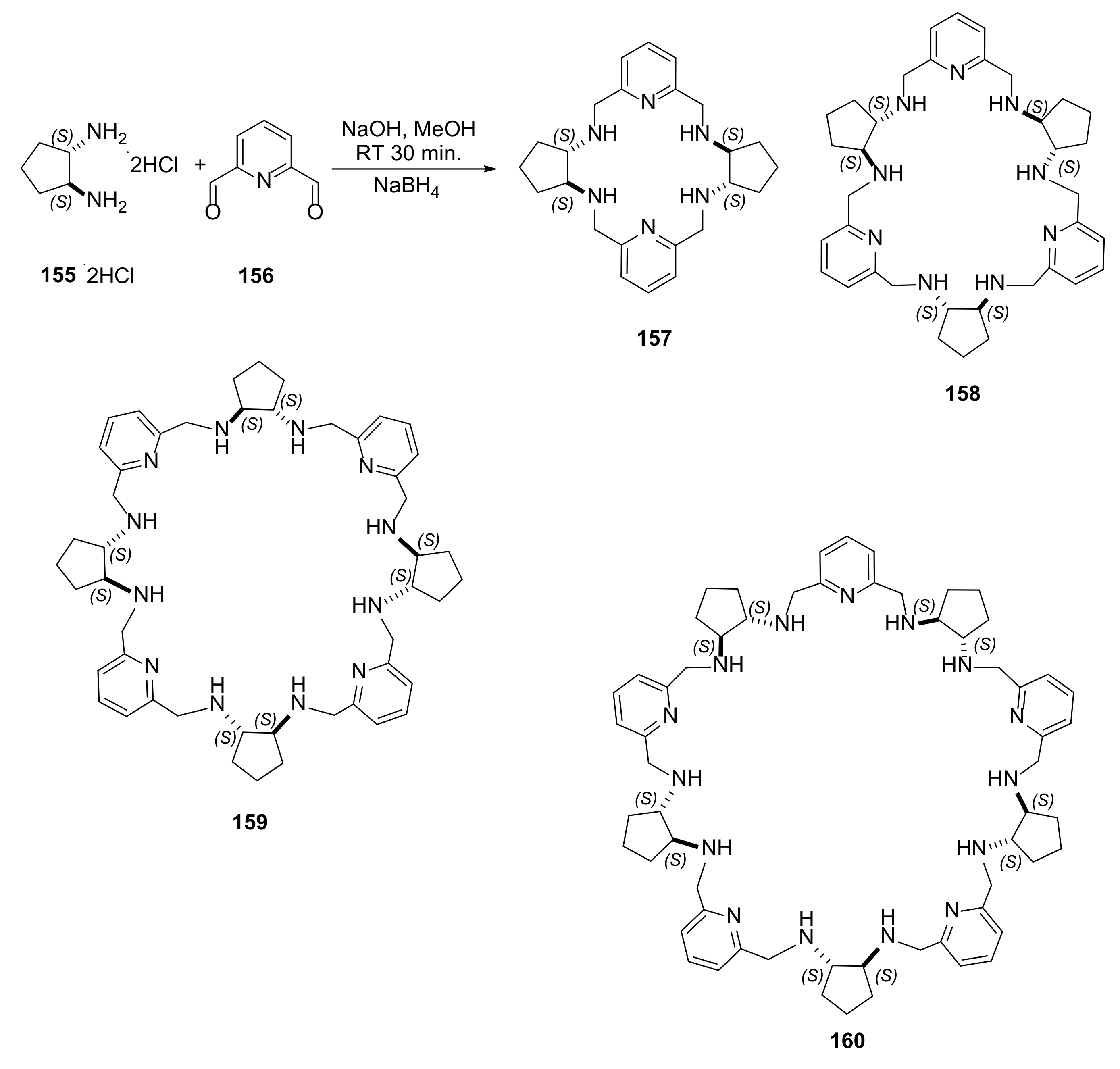

54]. Reduction of the mixture of imine products results in the mixture of [2 + 2], [3 + 3], [4 + 4] and [5 + 5] macrocyclic amines
157–
160, which can be separated to yield small amount of new [4 + 4] and [5 + 5] products (
Figure 32). The replacement of diamino component of macrocyclization from
trans-1,2-diaminocyclopentane with the [2 + 1] primary diamine results in new a dynamic library in the condensation with 2,6-diformylpyridine with [4 + 4] and [6 + 6] cyclocondensation products.
The authors investigated the influence of chirality of the amine component on the stoichiometry of the product. The [2 + 2], [3 + 3], and [4 + 4] condensation products were formed both with racemic and enantiomerically pure diaminocyclopentane. The larger macrocycles could be obtained with cadmium (II) template reactions. Heterochiral gigantocycles, which resulted from [6 + 6] and [8 + 8] condensation, could be obtained by ring expansion reaction of a small meso 2 + 2 product templated by cadmium salts.
The sorting phenomena and the transfer of chirality was studied using the example of polyamine macrocyclic fluoride–bridged complexes [
55]. The reaction of hexaaza macrocyclic complexes with lanthanide (III) and yttrium (III) ions with fluoride anions resulted in the formation of dinuclear fluoride–bridge complexes (
Figure 33).

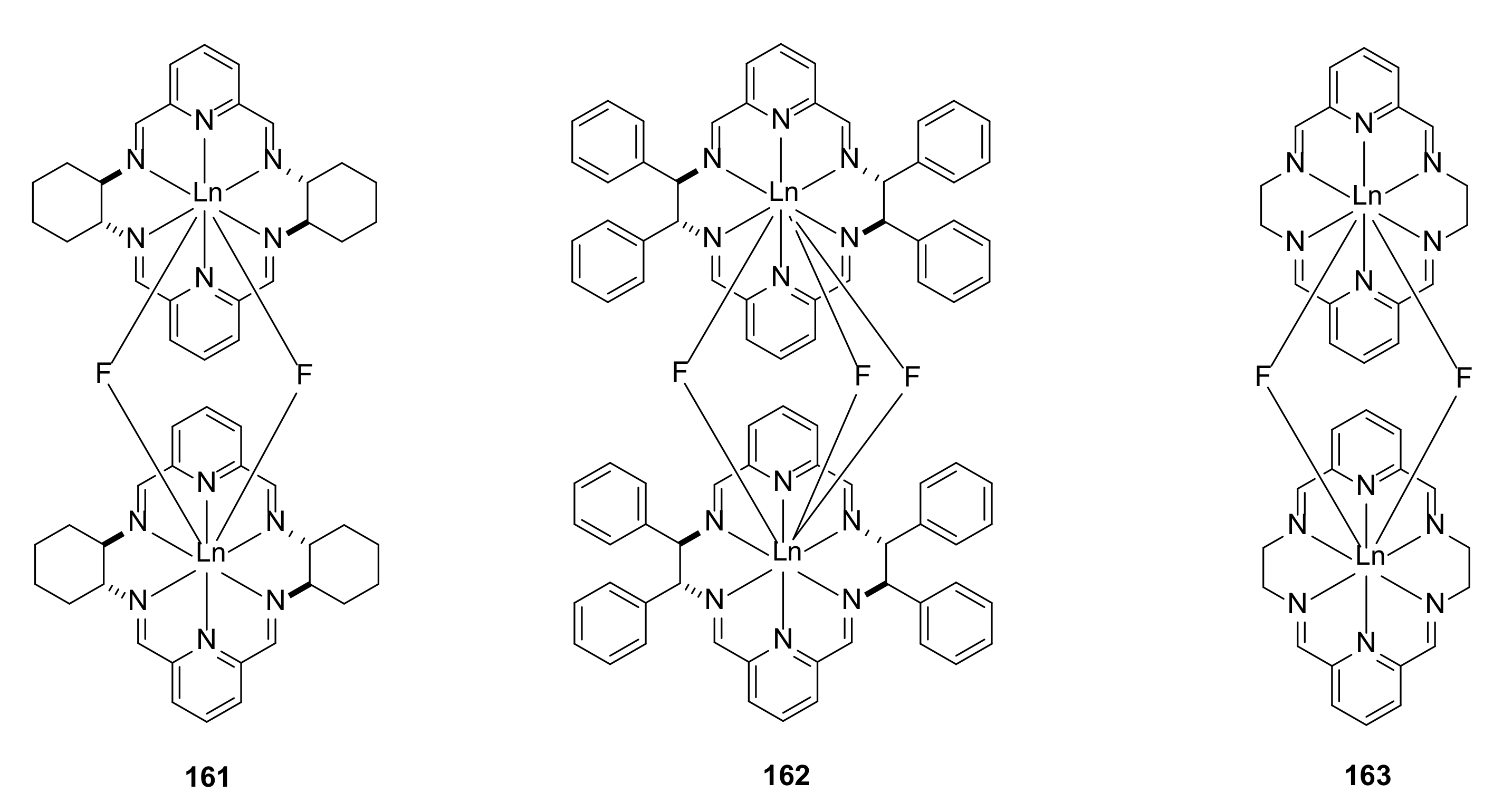

The structure indicated by X-ray single-crystal analysis showed that two metal ions bounded by macrocycles were linked by two (
161 and
163) or three (
162) fluoride ions, depending on the type of the macrocycle of the same size. The differences in macrocyclic complexes’ dimmer formations were explained by the more open axial coordination spheres of the complexes of hexaaza macrocycles compared to cyclen-based tetraaza macrocycles. In the case of the dimmer complexes with two different macrocyclic ligands, chirality transfer was observed by CD spectroscopy, from a chiral macrocycle complex to a nonchiral one. The structures containing trinuclear and hexanuclear lanthanide (III) complexes of chiral nonracemic macrocycles were also a subject of a study by Powell, Lisowski and coworkers [
56]. The hexaaza chiral macrocycle containing three phenol groups formed trinuclear complexes, which were characterized by X-ray structure. The magnetic studies of these complexes indicated the weak ferromagnetic interactions between neighboring metal ions.

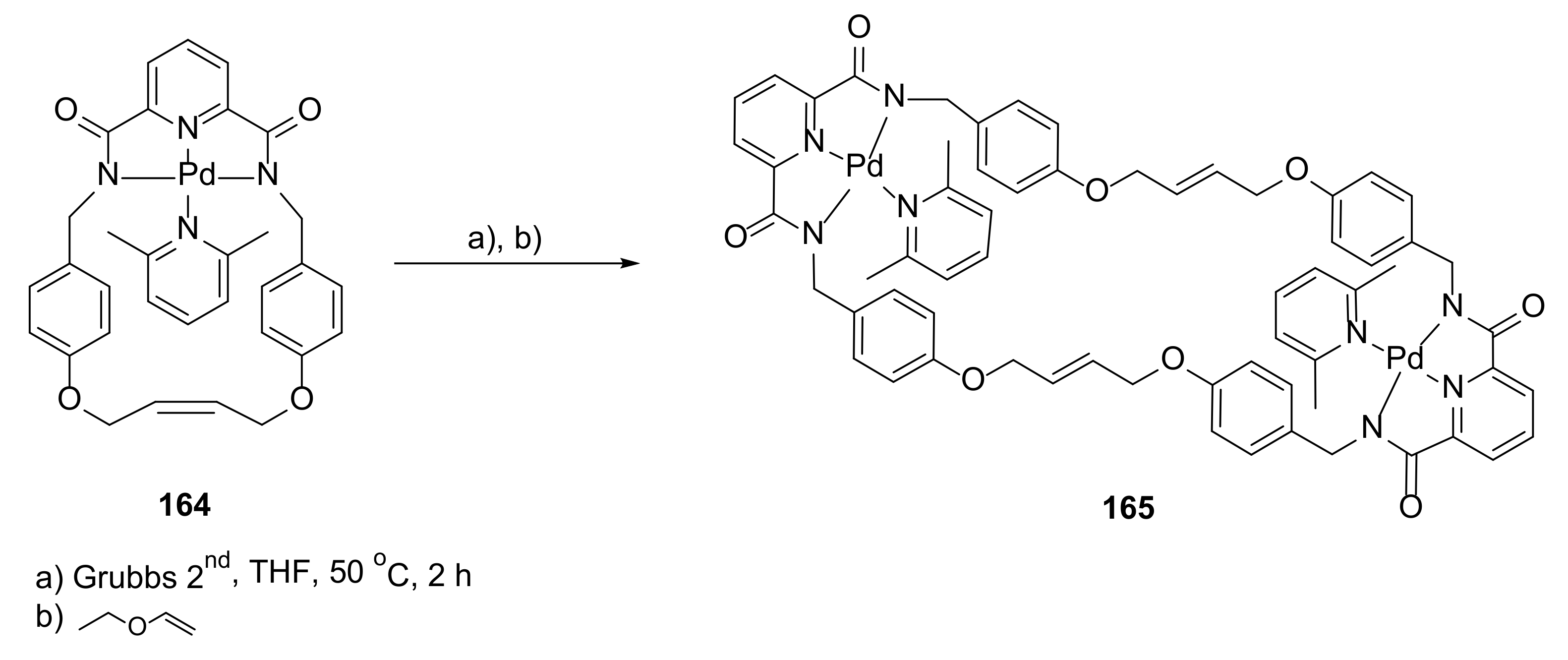

The ring expansion phenomenon of the unstrained palladium-containing macrocycle was a subject of a study by the MacLachan group [
57]. The different strategies of ring expansion usually employ reversible reactions to form larger macrocycle with the aid of template, which change the thermodynamic distribution of macrocycles of different ring sizes. In this paper, the ring-expansion metathesis polymerization was used (
Figure 34).
In this case, the driving force of the reaction was implementation of a bulky ligand into the coordination sphere of 164. This allowed the monometallic macrocycle 164 to be transformed into the bimetallic dimeric 165 with the second generation of Grubbs catalyst, with yields up to 20%. The structure of macrocycle 165 was confirmed by 1H DOSY NMR and SCXRD data. The expansion of macrocycle ring was not observed with smaller ligands such as acetonitrile.
Understanding the process of crystallization and layer formation was demonstrated using an example of a tessellation process of a rigid naphthalene diimide triangle [
58]. In the process of arranging triangle-shaped molecules in a plane in a way such that a surface is entirely covered without gaps or overlaps, a 2D pattern was formed. The process was highly solvent- and concentration-dependent, because this process was driven by π–π interactions between macrocycles competing with π–solvent interactions.
Synthesis of macrocycles by the use of irreversible reaction often results in poor yields, and in many cases requires multistep synthesis. The one-pot efficient formation of the aromatic tetraurea macrocycles
171–
174 could be conducted by the reaction of the
m-phenylenediamine derivatives
166–

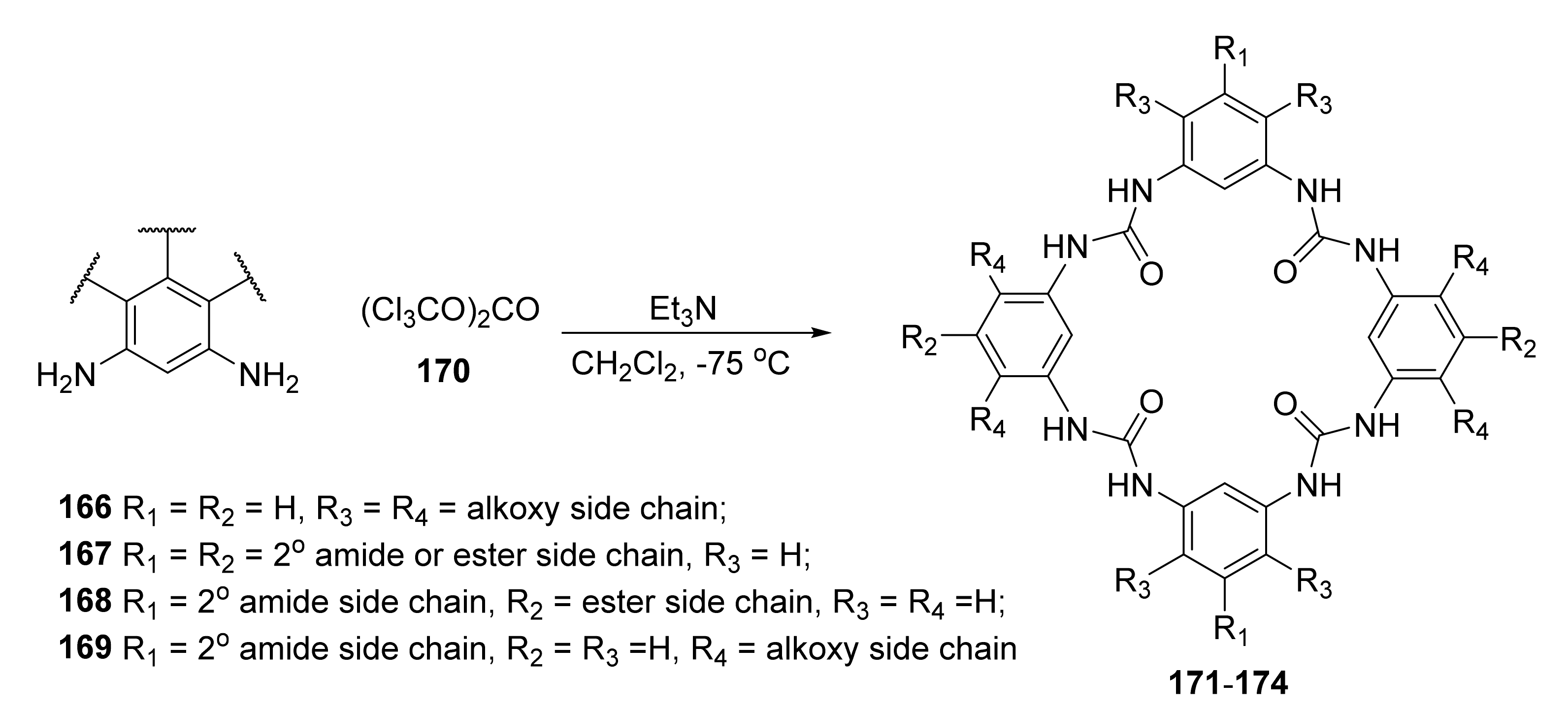

169 with triphosgene in the presence of triethylamine (
Figure 35) [
59].
The factors that were crucial for efficient synthesis included a molar ratio of 2:1 of diamine to triphosgene reactants, DCM as a solvent, and temperature of −75 °C, affording yields up to 79%. Modification of this approach also allowed the researchers to obtain a tetraurea macrocycle from two different diamine components. Tetraurea macrocycles with different side chains exhibited selective cation bonding (selective toward K+ over Na+) and self-assembly behavior.
The synthesis and properties of macrocycles possessing inorganic atoms in their core structure is still a demanding task. Cyclodiphosphazane-containing macrocycles were recently explored as a candidates for supramolecular-structures building blocks, but the synthesis of larger macrocycles is still under development [
60]. The traditional one-step approach usually leads to smaller macrocycles, and in the cases of asymmetric linkers, it results in mixed
exo/
endo arrangement in the macrocycle backbone.

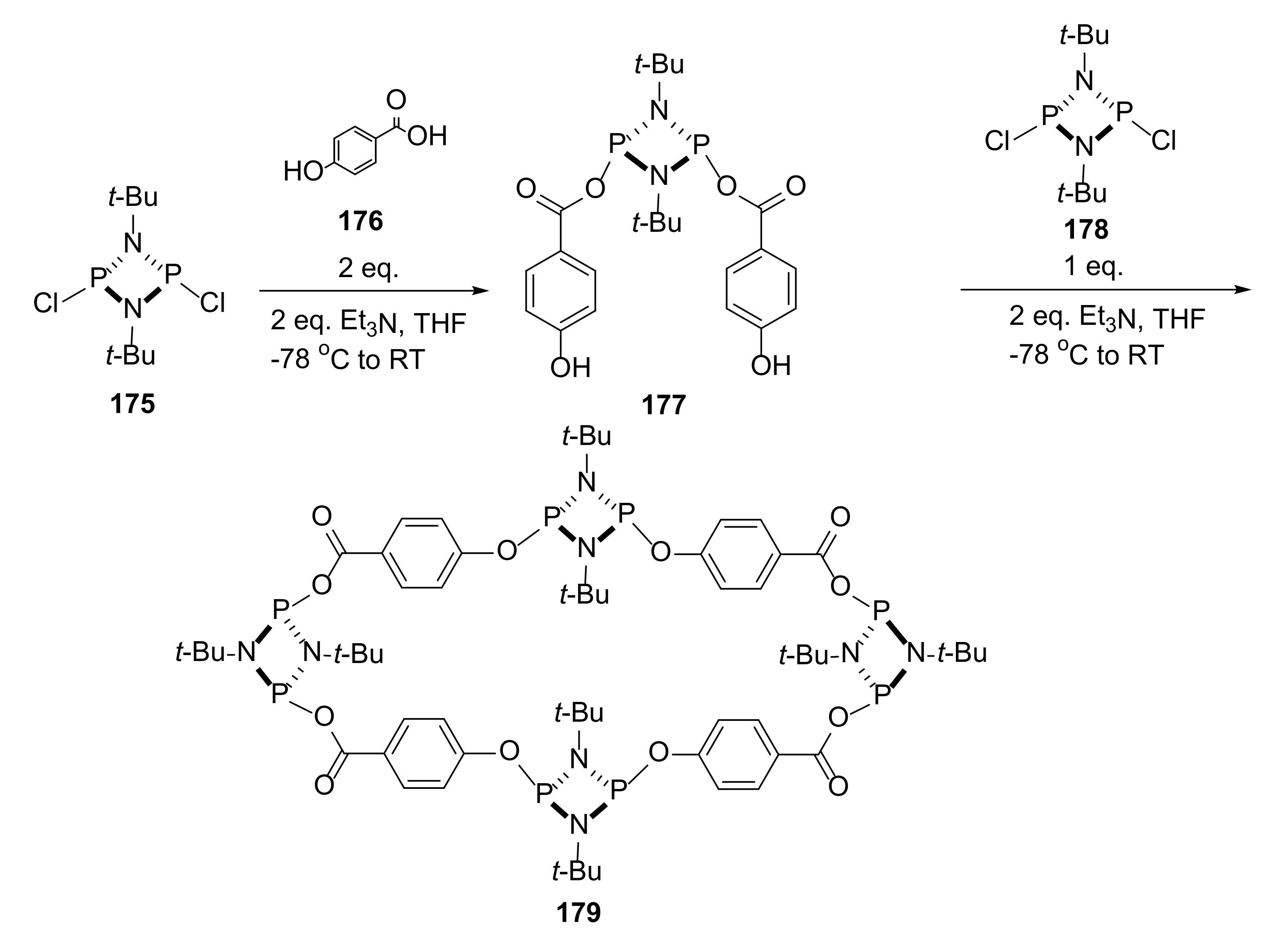

To avoid small macrocycle formation, usually obtained in the conventional one-step approach, García and coworkers decided to use a multistep synthesis with the formation of compound
177 in the first stage of the synthesis (
Figure 36). In this step, only the carboxyl group of the linker reacted, leaving free phenyl groups for the reaction in further steps. Such selectivity was achieved without the use of blocking groups, which would extend the entire synthesis. Then obtained linker was reacted with another
177 molecule, which resulted in the formation of the [4 + 4] macrocycle
179 with linkers of a specific, nonrandom, all-
cis orientation, without the formation of a smaller [2 + 2] macrocycle. Conclusions obtained on the basis of observations of compounds formed during the synthesis were additionally confirmed by molecular modeling, resulting in a relative Gibbs free energy diagram for the formation of macrocycle
179.
3.8. Other Properties

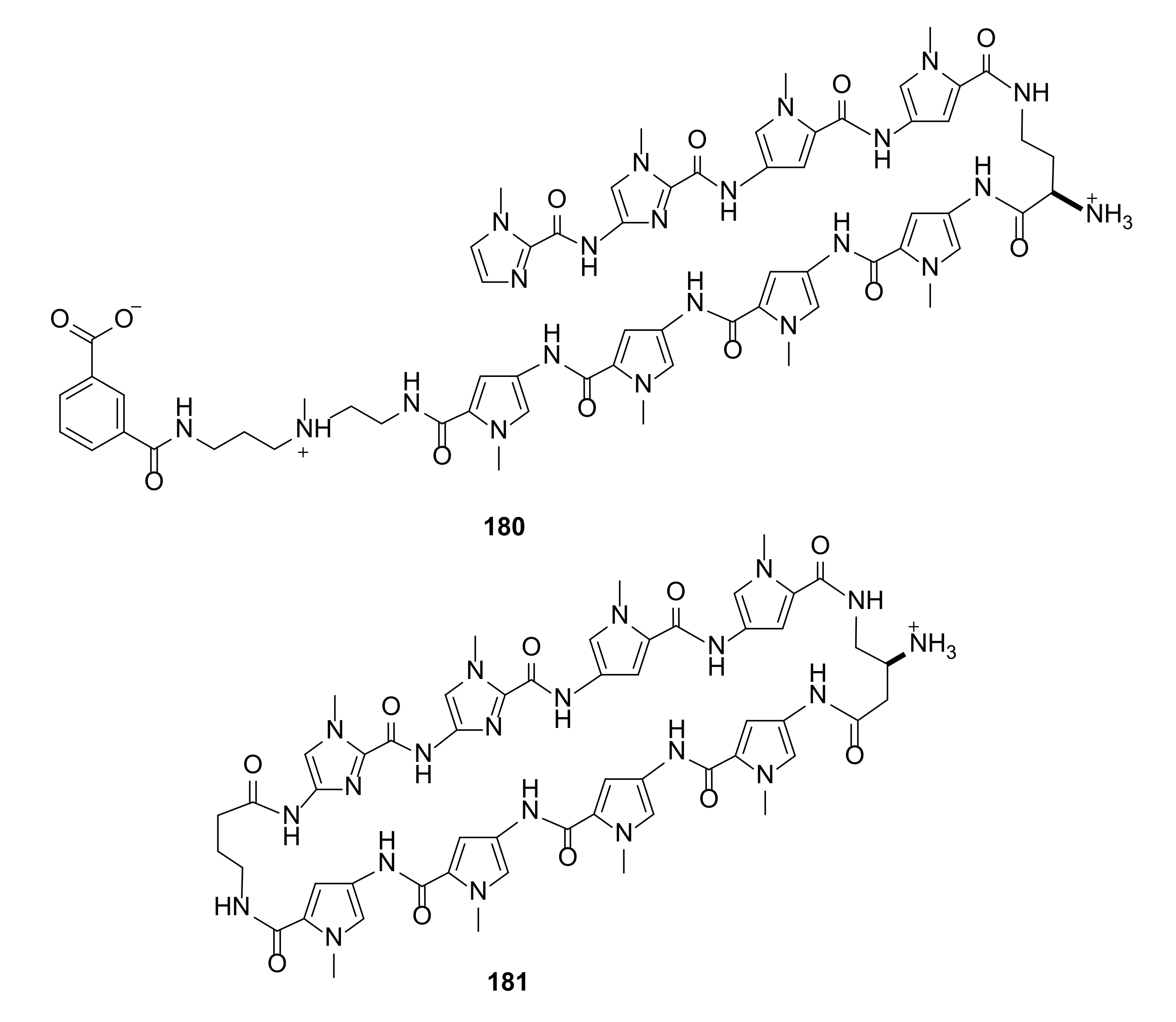

The differences in macrocycle compounds forming acyclic oligomeric analogues was the subject of application research with DNA in living organisms. The pharmacokinetic and toxic properties of macrocyclic and oligomeric pyrrole–imidazole polyamides (
Figure 37) of a similar size were studied in mice [
61].
Despite possessing an identical eight-ring structure, the chemical modifications were significant enough to raise different biochemical properties. The acyclic derivative 180 had a rapid bloodstream accumulation and excretion profile, whereas cyclic polyamide 181 could circulate in animals for at least two days. In addition, the tolerance of 180 and 181 differed, as the compound 180 was well tolerated by animals, while injection of 180 was lethal to the mice.
The simplest trianglimine formed from
trans-diaminocyclohexane and terephyalic acid, synthesized more than two decades ago [
62], found new applications that can be used both in the laboratory and at an industrial scale. This trianglimine was used for selective absorption of ethyl acetate in the solid state by forming solvate [
63]. Formation of a stable complex was confirmed by crystal structure prediction calculations. This phenomena was observed by time-dependent solid-vapor sorption of AcOEt/EtOH 1:1 mixtures at 25 °C. Due to the size and shape of voids in its structure in a solid phase, it absorbed ethyl acetate from ethyl acetate ethanol mixtures, which are difficult to separate by normal distillation.
Crystallization of chiral tiranglimine macrocycle using a heterochiral paring strategy may introduce porosity into the crystal framework. This was observed in the macrocyclic polyiminines that do not exhibit high porosity in the enantiopure form [
64]. Cooper at al proved this using the example of a simple triangilimine derived from condensation of
trans-1,2-diaminocyclohexane and isophthalic aldehyde. Crystals of enantiopure macrocycle obtained from methanol were a solvent of molecules in the crystal lattice. After evacuation of the solvent, the polycrystalline sample exhibited no porous properties, both to N
2 and H
2. The crystal derived from crystallization of equimolar amounts of two enantiomeric macrocycles from ethyl acetate was stable after removal of the solvent and displayed an interconnected pore network, with the highest reported surface area for the trianglimine macrocycle SA
BET = 355 m
2 g
−1.
Macrocyclic polymeric imines that could be readily obtained by polycondensation reaction were transformed into the corresponding polyoxaziridines by oxidation with
m-chloroperoxybenzoic acid (
Figure 38) [
65].
The structures of the new polyoxaziridines (e.g., 183) of different ring sizes, along with oligomeric analogues, were confirmed by NMR, MALDI-TOF MS, and IR experiments displaying conversion of total imine to oxaziridine. The synthesized polyoxaziridines were relatively stable, and could be stored at room temperature.

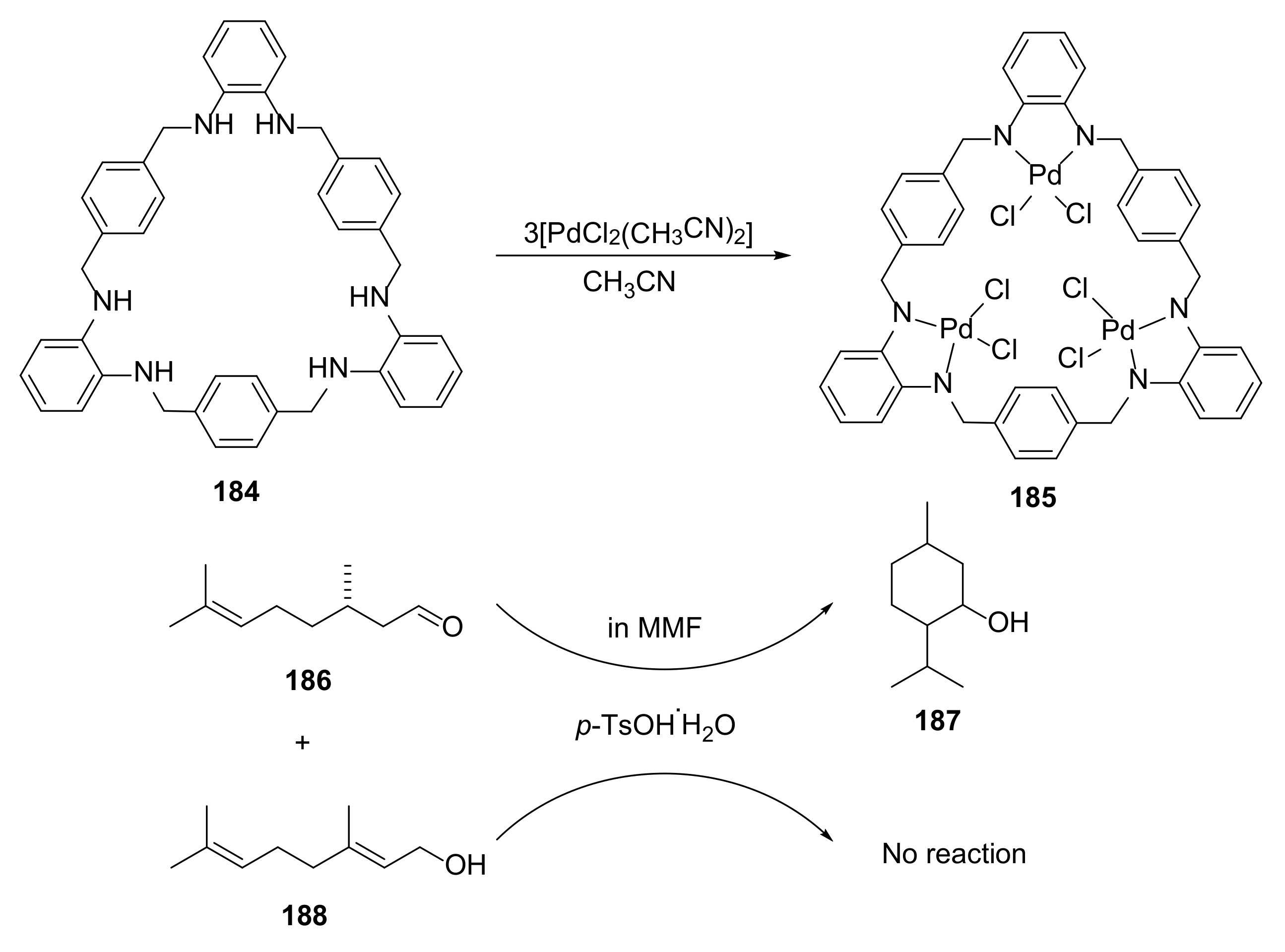

The interactions between macrocycles can significantly change their properties such as emission spectra and photoluminescence. These changes could be observed on the example of anthracene- and pyridinium-containing mechanically interlocked macrocycles [
66]. The synthesis of this type of compound is not easy due to the Coulombic repulsion of positively charged pyridinium salts being fragments of substrate structures, but it was proven to be possible. With the emission around 675 nm in aqueous solutions, this compound may be a water-soluble cationic fluorophore with a potential application in bioimaging.
