Pharmacokinetic Characterization of the DDAH1 Inhibitors ZST316 and ZST152 in Mice Using a HPLC-MS/MS Method
by
, ,
Arduino A. Mangoni
1,2,*
,
Tommaso Ceruti
3,
Roberta Frapolli
3,
Massimo Russo
4,
Stefania Fichera
3,
Massimo Zucchetti
3 and
Sara Tommasi
2 1
Discipline of Clinical Pharmacology, College of Medicine and Public Health, Flinders University, Bedford Park, SA 5042, Australia
2
Department of Clinical Pharmacology, Flinders Medical Centre, Southern Adelaide Local Health Network, Bedford Park, SA 5042, Australia
3
Laboratory of Cancer Pharmacology, Department of Oncology, Istituto di Ricerche Farmacologiche Mario Negri IRCCS, 20156 Milan, Italy
4
Laboratory of Cancer Metastasis Therapeutics, Department of Oncology, Istituto di Ricerche Farmacologche Mario Negri IRCCS, 20156 Milan, Italy
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(3), 1017; https://doi.org/10.3390/molecules27031017
Submission received: 15 December 2021
/
Revised: 28 January 2022
/
Accepted: 31 January 2022
/
Published: 2 February 2022
(This article belongs to the Special Issue Development of Analytical Methods in Food, Biological and Environmental Samples Determination)
Abstract
:The pharmacokinetic profile of ZST316 and ZST152, arginine analogues with inhibitory activity towards human dimethylarginine dimethylaminohydrolase-1 (DDAH1), was investigated in mice using a newly developed HPLC-MS/MS method. The method proved to be reproducible, precise, and accurate for the measurement of the compounds in plasma and urine. Four-week-old female FVB mice received a single dose of ZST316 and ZST152 by intravenous bolus (30 mg/Kg) and oral gavage (60 mg/Kg). ZST316 Cmax was 67.4 µg/mL (intravenous) and 1.02 µg/mL (oral), with a half-life of 6 h and bioavailability of 4.7%. ZST152 Cmax was 24.9 µg/mL (intravenous) and 1.65 µg/mL (oral), with a half-life of 1.2 h and bioavailability of 33.3%. Urinary excretion of ZST152 and ZST316 was 12.5%–22.2% and 2.3%–7.5%, respectively. At least eight urinary metabolites were identified. After chronic intraperitoneal treatment with the more potent DDAH1 inhibitor, ZST316 (30 mg/Kg/day for three weeks), the bioavailability was 59% and no accumulation was observed. Treatment was well tolerated with no changes in body weight vs. untreated animals and no clinical signs of toxicity or distress. The results of this study show that ZST316 has a favorable pharmacokinetic profile, following intraperitoneal administration, to investigate the effects of DDAH1 inhibition in mice.
1. Introduction
The isoform 1 of the enzyme dimethylarginine dimethylaminohydrolase (DDAH1) plays a critical role in the metabolism of the endogenous methylated arginines, asymmetric NG,NG-dimethyl-L-arginine (ADMA) and NG-monomethyl-L-arginine (NMMA), into L-citrulline and dimethylamine [1,2,3]. As both ADMA and NMMA are potent endogenous inhibitors of the three isoforms of nitric oxide (NO) synthase (NOS), DDAH1 regulation significantly influences NO synthesis [4,5]. In particular, the downregulation of DDAH1, and the consequent accumulation of the substrates ADMA and NMMA, leads to NOS inhibition [3,4,6,7,8]. The pharmacological inhibition of DDAH1 is emerging as an attractive therapeutic strategy in disease states, e.g., septic shock and cancer, that are characterized by excessive local and/or systemic NO synthesis, primarily mediated by the inducible NOS isoform (iNOS) [9,10,11,12,13,14].
We have previously synthesized a new series of arginine analogues incorporating carboxylate bio-isosteric functions, with significant inhibitory activity towards human recombinant DDAH1, stably expressed in HEK293T cells. Compound 10a (ZST316), characterized by an acylsulfonamide isosteric replacement of the carboxylate, showed a 13-fold greater inhibitory activity (IC50: 3 μM; Ki: 1 μM) towards DDAH1 when compared to the reference DDAH1 inhibitor, L-257. Another compound of the series, the oxadiazolone 14b (ZST152), was also effective (IC50: 18 μM; Ki: 7 μM) (Figure 1) [15]. ZST316 and ZST152 have been shown in vitro to suppress vasculogenic mimicry, an alternative neo-vascularization pathway driven by iNOS and DDAH1 that increases metastatic potential and adverse outcomes, in triple-negative breast cancer cells [11,16]. In these experiments, ZST316 and ZST152 did not significantly degrade in the culture media and were able to successfully penetrate the cell membrane of cancer cells and inhibit DDAH1 intracellularly [17].
Given the promising results obtained in vitro, and with a view to conduct studies characterizing the pharmacological profile in vivo, we developed a new HPLC-MS/MS method to measure ZST316 and ZST152 concentrations in the plasma and urine of mice. The method was successfully used in the comprehensive pharmacokinetic characterization of the two compounds, determining their safety profile and the most appropriate route of administration and dosing regimen for in vivo efficacy studies. A similar approach has been successfully used by other groups [18,19,20,21,22,23].
2. Results
2.1. HPLC-MS/MS
Analyte detection and quantification were carried out by tandem mass spectrometry (MS/MS) using the following mass transitions: 308.0 > 208.0 m/z for ZST316, and 271.0 > 170.9 m/z for ZST152. The detailed selected reaction monitoring (SRM) reporting the full fragmentation pattern of ZST316 and ZST152 obtained by MS/MS is shown in Figure 2 and Figure 3. Examples of chromatograms including a blank plasma and the lower limit of quantitation (LLOQ) samples are shown in Figure 4.
2.2. Development of the Analytical Method
2.2.1. Plasma
The extraction recovery, established on QCs at the concentrations of LLOQ (i.e., 5 ng/mL), at 15 and 250 ng/mL, fell in the range 88.9%–94.6% and 87.9%–117.5% for ZST316 and ZST152, respectively. The LLOQ in plasma was 5.0 ng/mL for both compounds, with precision of 7.1% and 4.1% and accuracy of 95.8% and 106.1% (n = 6) for ZST316 and ZST152, respectively (Table 1). We decided to validate this value as LLOQ even though the limit of detection (LOD) reached in the initial set up phase of the methods was established for both compounds at 1 ng/mL (S/N > 4.0). However, such sensitivity was not required as the expected range of activity (IC50) was markedly higher than the LLOQ value for both compounds. The linearity of the method, evaluated over three different analytical runs in the concentration range 5.0–500.0 ng/mL, was acceptable for both analytes, with an average coefficient of determination (R2) of 0.990 and 0.992 for ZST316 and ZST152, respectively. The method proved to be reproducible, precise, and accurate as demonstrated by the intra-day and inter-day results from QC plasma samples of ZST316 and ZST152 (Table 2 and Table 3). Both ZST316 and ZST152 were stable in frozen plasma for at least one month at −20 °C. No chromatographic carry-over effect was observed injecting a blank sample after the highest standard calibration point. The method was considered suitable for preclinical pharmacokinetic investigations.
2.2.2. Urine
The linearity of the method, across three separate analytical runs in the concentration range 1.0–50.0 µg/mL for both analytes, was demonstrated by the mean determination coefficient (R2), 0.990 and 0.997 for ZST316 and ZST152, respectively. The method proved to be reproducible, precise, and accurate as demonstrated by the intra-day and inter-day results obtained from QC urine samples of ZST316 and ZST152 (Table 4 and Table 5). Both ZST316 and ZST152 were stable at 37 °C in mice urine for at least 24 h and stored frozen at −20°C for one month. No chromatographic carry-over effect was observed injecting a blank sample after the highest standard calibration point.
2.3. Pharmacokinetics
The plasma pharmacokinetics of ZST316 and ZST152 after oral and intravenous administration and the derived parameters are shown in Figure 5 and Figure 6 and Table 6. After intravenous bolus administration of 30 mg/Kg, ZST316 achieved a Cmax of 67.4 µg/mL. Then, the compound was rapidly distributed and cleared from plasma with an elimination half-life of six hours. ZST316 was still detectable after 24 h at a concentration close to the LLOQ (i.e., 5 ng/mL) in two out of three samples. After oral administration, ZST316 achieved a Cmax of 1.02 µg/mL at 0.5 h and was measurable up to 8 h at a concentration of 0.029 µg/mL. ZST152, after intravenous administration of 30 mg/kg, achieved a Cmax of 24.9 µg/mL, distributed rapidly, and was cleared from plasma with an elimination half-life of 1.2 h. As a consequence of the relatively short half-life, ZST152 was detectable for up to 8 h at a concentration close to the LLOQ.
After oral gavage (60 mg/Kg), ZST152 peaked in plasma already at 15 min, achieving a Cmax of 1.65 µg/mL, which was higher than that of ZST316. ZST152, as also seen following the intravenous bolus, was measurable for up to 8 h at a concentration close to the LLOQ. The ratio of the calculated AUCs after oral and intravenous administration (normalized for the actual dose) indicated a bioavailability of 33% for ZST152 and less than 5% for ZST316. However, considering the actual plasma exposure after intravenous administration, the AUC of ZST316 was approximately twice that of ZST152 (Table 6).
The assessment of the urinary elimination after oral and intravenous administration, in the urine fraction collected 24 h post dose, is reported in Table 6. Regardless of the route of administration, the excretion of ZST152 was four- to fivefold that of ZST316 (12.5–22.2% vs. 2.3–7.5%). The relatively low amount of both compounds recovered in urine does not explain their accelerated clearance. To further investigate this issue, we searched for the presence of urinary metabolites in the 24 h urine samples in one mouse per treatment group. We identified at least eight molecules most likely originating from the parent compounds (Table 7; see Supplementary Figure S1 for the hypothesized structures). Their total amount suggests that metabolism plays an important role in the elimination of the compounds.
The pharmacokinetics of the more potent DDAH1 inhibitor, ZST316, following acute and chronic intraperitoneal administration (single daily dose of 30 mg/Kg) and the derived parameters are shown in Figure 7 and Figure 8 (for a comparison with the intravenous and oral route) and Table 8. ZST316 peaked in plasma shortly after acute and chronic administration. The compound was eliminated from plasma with a half-life of 5.7 and 8.4 h after acute and chronic administration, respectively. No accumulation was observed, with acute and chronic AUC values of 14.45 and 12.57 µg/mL·h, respectively. The bioavailability of the intraperitoneal administration was 67% and 59% after acute and chronic treatment, respectively. The urinary excretion was 55% of the administered dose. Chronic treatment was well tolerated, and no clinical signs of toxicity or distress were noticed. As shown in Supplementary Figure S2, the body weight during treatment was similar to that of untreated animals.
3. Discussion
An accurate and reproducible bioanalytical HPLC-MS/MS method was developed and validated to measure the plasma and urine concentrations of the arginine analogues ZST316 and ZST152, inhibitors of human recombinant DDAH1, in mice. Using this method, a comprehensive pharmacokinetic assessment of the compounds was performed following acute and, for ZST316, chronic treatment to identify the appropriate route of administration and dosing regimen for in vivo efficacy studies. The higher oral bioavailability of ZST152 (33.3%) vs. ZST316 (4.7%) is likely due to the higher lipophilicity of the oxadiazolone moiety compared to the acylsulfonamide functional group, in line with what has been reported with other classes of drugs [24,25]. Furthermore, acylsulfonamides are commonly hydrolyzed to their carboxylic acid derivatives by hepatic carboxylesterase [26,27]. This would explain the high relative abundance of the metabolite M7 in urine after oral administration. Despite its relatively low oral bioavailability, the elimination half-life of compound ZST316 was markedly longer than that of ZST152. Furthermore, the chronic intraperitoneal administration of compound ZST316 was well tolerated, with a markedly higher bioavailability than after oral administration, at 59%, and no accumulation. Therefore, a once-daily intraperitoneal administration of ZST316 appears to be a suitable treatment regimen for in vivo efficacy studies targeting DDAH1. In particular, the recent demonstration by our group that DDAH1 inhibition with ZST316 suppresses in vitro vasculogenic mimicry and migration of MDA-MD-231 cells, an established triple-negative breast cancer cell line, warrants the investigation of these effects in xenograft studies. The intraperitoneal route is appropriate for this type of study as it is relatively simple, easy to manage, reproducible, suitable for chronic treatment, and, importantly, not associated with significant stress for the animal [28,29].
The relatively large volume of distribution following intravenous administration, 12.17 mL/Kg, suggests that compound ZST316 can effectively penetrate extra-vascular compartments. However, further studies are required to investigate the capacity of the compound to reach specific target sites, e.g., cancer tissues, that are characterized by neo-vascularization, erratic vascular networks, and development of resistance mechanisms reducing the exposure of cancer cells and the tumor microenvironment to chemotherapeutics and other drugs [30,31,32].
4. Materials and Methods
4.1. Compounds
ZST316 and ZST152 were provided by Flinders University (Adelaide, Australia). For analytical purposes, the compounds were dissolved in bi-distilled water and the solutions were used to develop the analytical method and for pharmacokinetic analysis. For treatment purposes, the compounds were dissolved in sterile water for injection (S.A.L.F. Bergamo, Italy).
4.2. Mice and Pharmacokinetic Study
Four-week-old female FVB mice were purchased from Charles River Italia (Calco, Italy). Animals were housed and handled under specific pathogen-free conditions in the Animal Care Facilities of the Istituto di Ricerche Farmacologiche Mario Negri. Under rigorous international standards, animals are regularly checked by a certified veterinarian who is responsible for health monitoring, animal welfare supervision, experimental protocols, and procedures revision. Procedures involving animals and their care were conducted in conformity with the following laws, regulations, and policies governing the care and use of laboratory animals: Italian Governing Law (D. lgs 26/2014; Authorization n.19/2008-A issued 6 March 2008 by the Ministry of Health); Mario Negri Institutional Regulations and Policies providing internal authorization for persons conducting animal experiments (Quality Management System Certificate—UNI EN ISO 9001:2008—Reg. N° 6121); the NIH Guide for the Care and Use of Laboratory Animals (2011 edition); EU directives and guidelines (EEC Council Directive 2010/63/UE); and the guidelines for the welfare and use of animals in cancer research [33].
Mice were treated with ZST316 and ZST152 using a dose of 60 mg/Kg (oral gavage) and 30 mg/Kg (intravenous bolus). For pharmacokinetic sampling, blood was collected at 15 and 30 min, and 1, 3, 8, and 24 h post dose. Three mice were analyzed per each time point. After the animals were anesthetized with isoflurane, the blood was drained from the retro-orbital plexus into heparinized tubes, and then centrifuged for 10 min at 4000× g at 4 °C to separate plasma. A 24-h urine fraction was collected in three mice for each drug and route of administration. Plasma and urine samples were stored at −20 °C until analysis by HPLC-MS/MS.
A subsequent study investigated the pharmacokinetics of acute and chronic intraperitoneal administration of the more potent DDAH1 inhibitor, ZST316 (30 mg/Kg). In this study, 18 mice received a single dose and were sampled within 24 h, and the other 18 were treated every day for three weeks (qdx21) and sampled on day 21. Mice were monitored daily for clinical signs of toxicity and distress, and body weight was measured at least twice a week. Blood samples were collected after both treatment regimens at 15 and 30 min, and 1, 3, 8, and 24 h post dose. Three mice were analyzed for each time point. After the animals were anesthetized with isoflurane, the blood was drained from the retro-orbital plexus into heparinized tubes, and then centrifuged for 10 min at 4000 g at 4 °C to separate plasma. A 24-h urine fraction was collected in three mice for each drug and route of administration. Plasma and urine samples were stored at −20 °C until analysis by HPLC-MS/MS.
4.3. Development of the Analytical Method
The analytical methods for ZST316 and ZST152 were similar as the compounds were mutually used as internal standards and fell into the same range of linearity. Therefore, the following sections describe the development of the method for compound ZST316.
4.3.1. Preparation of Standard and Quality Control Plasma Samples
Control mice plasma (90 µL) was spiked with 10 μL of ZST316 working solutions in the range of 50–5000 ng/mL to obtain a final dilution of 1:10, giving six calibration standards into the range 5.0–500 ng/mL. The calibration curve included also a blank and a zero standard plasma sample (processed with IS). For quality control (QC) sample preparation, two fractions of mice plasma were mixed with an appropriate amount of QC working solutions to obtain QC plasma samples at the final concentration of 15 and 250 ng/mL.
4.3.2. Extraction Procedure for Plasma Samples
In the preliminary phase of the method set up, we tried different solvents, 2-propanol, methanol (CH3OH), and acetonitrile (CH3CN) at different pH conditions, quickly obtaining a satisfactory recovery with CH3OH: 0.1% formic acid (HCOOH). Briefly, to assay ZST316, 10 µL of IS (ZST152 WS: 500 ng/mL) were added to 100 µL of plasma study samples, standards, or QCs in a polypropylene tube. The sample was then added with 10 µL of ammonium formate (NH4HCO2) 50 mM, mixed by vortex and added with 400 µL CH3OH: 0.1% HCOOH, vortex mixed again for 30 s and centrifuged at 13,200 rpm for 10 min at 4 °C. A volume of 450 µL of the supernatant was transferred to a new polypropylene tube, dried under nitrogen flow, and reconstituted with 100 µL of MP A:B (1:1, v/v). Finally, the mixed samples were centrifuged at 13,200 rpm for 10 min at 4 °C and the supernatant was transferred into glass vials for HPLC-MS/ MS analysis. Plasma samples containing drug concentrations above the highest standard point of the calibration curve were reanalyzed following dilution with the control matrix.
4.3.3. Preparation of Standard and Quality Control Urine Samples
Control mice urine (45 µL) was spiked with 5 μL of working solutions in the range of 10–500 µg/mL to obtain a final dilution of 1:10, giving five calibration standards in the range 1–50 µg/mL. The calibration curve included also a blank and a zero standard urine sample (processed with IS). To prepare quality control (QC) samples, a fraction of mice urine was mixed with an appropriate amount of QC working solutions to obtain QC urine samples at the nominal concentration of 30 µg/mL.
4.3.4. Extraction Procedure for Urine Samples
To assay ZST316, 5 µL of IS (ZST152 WS: 100 µg/mL) were added to 50 µL of urine samples, standards, or QCs in a polypropylene tube. After vortex mixing, 490 µL of MP A:B (1:1; v/v) were added to 10 µL of each sample to obtain a final dilution of 1:50. Samples were vortex mixed again for 30 s, centrifuged at 13,200 rpm for 10 min at 4 °C, and, finally, the supernatant was transferred into glass vials for HPLC-MS/ MS analysis. The urine samples with drug concentrations above the highest standard point of the calibration curve were reanalyzed following dilution with control matrix.
4.3.5. HPLC-MS/MS Conditions
Reversed-phase chromatography was performed using a series 200 HPLC system (Perkin Elmer, Waltham, MA, USA) under gradient conditions with separation on a HILIC column, 3 µm, 100 A, 2.1 × 150 mm (Waters, Milford, MA, USA), coupled with a 3 µm, 3.9 × 5.0 mm guard column of the same material at the flow rate of 0.2 mL/min. Gradient features: 10% mobile phase (MP) A (NH4HCO2 10 mM, 10% CH3CN, 0.1% HCOOH) and 90% MP B (CH3CN, 0.1% HCOOH) as the initial constant condition; then to 90% MP A in 6 min and the constant condition for 1.5 min. Return to the start condition in 0.5 min and conditioning for 5.5 min. Total run time: 13.5 min. Mass spectrometric detection was performed using an API 4000 triple quadrupole mass spectrometer (SCIEX, Framingham, MA, USA) supplied with a Turbo Ion Spray source set at 350 °C and −4200 V, analyzing biological samples with electrospray ionization (ESI) operating in negative ion mode. Purified air was used as nebulizer gas (Gas 1) and heater gas (Gas 2) and N2 was used as curtain gas and collision activated dissociation gas. They were set to 40, 50, 20, and 4 instrument units (psi), respectively. The declustering potential (DP) was set at −119 V and the collision exit potential (CXP) at –10 V. All parameters of the source were defined by direct infusion of ZST316 and ZST152 1 µg/mL in mobile phase B. The final quantification was carried out in Selected Reaction Monitoring (SRM) with the following transitions: m/z 307.9 → 208.0 (collision energy of −29.5 eV) for ZST316 and m/z 271.9 → 170.9 (collision energy −24.7 eV) for ZST152 (Figure 2 and Figure 3). Data were processed with the software package Analyst 1.6.2 (AB SCIEX).
4.4. Pharmacokinetic Analysis
Pharmacokinetic parameters and descriptive statistics (means, standard deviations, percentages) were calculated using Phoenix WinNonlin V 8.3 (Certara Inc., Princeton, NJ, USA).
5. Conclusions
The development and validation of a HPLC-MS/MS method for the determination of the DDAH1 inhibitors ZST316 and ZST152 in plasma and urine allowed for a comprehensive pharmacokinetic characterization of the compounds during acute and chronic treatment in mice. The results of this study permit the design of in vivo efficacy studies, using the appropriate route of administration and dosing regimens, to investigate the effects of pharmacological DDAH1 inhibition in specific experimental models of disease.
Supplementary Materials
The following are available online. Figure S1: Hypothesized structures of the metabolites recovered in urine; Figure S2: Body weight in mice treated with intraperitoneal ZST316 (blue line) and untreated animals (red line).
Author Contributions
Conceptualization, A.A.M. and S.T.; methodology, data collection, and analysis, T.C., R.F., M.R., S.F., and M.Z.; data interpretation, A.A.M., S.T., T.C., R.F., M.R., S.F., and M.Z.; writing—original draft preparation, A.A.M.; writing—review and editing, S.T., T.C., R.F., M.R., S.F., and M.Z.; funding acquisition, A.A.M. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by Tour de Cure Research, Support, and Prevention, Senior Research Grant, grant number RSP-246-18/19.
Institutional Review Board Statement
All procedures were conducted in conformity with the following laws, regulations, and policies governing the care and use of laboratory animals: Italian Governing Law (D. lgs 26/2014; Authorization n.19/2008-A issued 6 March 2008 by the Ministry of Health); Mario Negri Institutional Regulations and Policies providing internal authorization for persons conducting animal experiments (Quality Management System Certificate–UNI EN ISO 9001:2008–Reg. N° 6121); the NIH Guide for the Care and Use of Laboratory Animals (2011 edition); EU directives and guidelines (EEC Council Directive 2010/63/UE); and the guidelines for the welfare and use of animals in cancer research.
Data Availability Statement
The data supporting the reported results are available from the corresponding author upon request.
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
Sample Availability
Samples of the compounds are available from the authors.
References
- Altmann, K.S.; Havemeyer, A.; Beitz, E.; Clement, B. Dimethylarginine-dimethylaminohydrolase-2 (DDAH-2) does not metabolize methylarginines. ChemBioChem 2012, 13, 2599–2604. [Google Scholar] [CrossRef] [PubMed]
- Hu, X.; Atzler, D.; Xu, X.; Zhang, P.; Guo, H.; Lu, Z.; Fassett, J.; Schwedhelm, E.; Boger, R.H.; Bache, R.J.; et al. Dimethylarginine dimethylaminohydrolase-1 is the critical enzyme for degrading the cardiovascular risk factor asymmetrical dimethylarginine. Arterioscler. Thromb. Vasc. Biol. 2011, 31, 1540–1546. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Jarzebska, N.; Mangoni, A.A.; Martens-Lobenhoffer, J.; Bode-Boger, S.M.; Rodionov, R.N. The Second Life of Methylarginines as Cardiovascular Targets. Int. J. Mol. Sci. 2019, 20, 4592. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Tran, C.T.; Leiper, J.M.; Vallance, P. The DDAH/ADMA/NOS pathway. Atheroscler. Suppl. 2003, 4, 33–40. [Google Scholar] [CrossRef]
- Kithas, A.C.; Broxterman, R.M.; Trinity, J.D.; Gifford, J.R.; Kwon, O.S.; Hydren, J.R.; Nelson, A.D.; Jessop, J.E.; Bledsoe, A.D.; Morgan, D.E.; et al. Nitric oxide synthase inhibition with N(G)-monomethyl-l-arginine: Determining the window of effect in the human vasculature. Nitric Oxide 2020, 104-105, 51–60. [Google Scholar] [CrossRef]
- Mangoni, A.A.; Tommasi, S.; Sotgia, S.; Zinellu, A.; Paliogiannis, P.; Piga, M.; Cauli, A.; Pintus, G.; Carru, C.; Erre, G.L. Asymmetric Dimethylarginine: A Key Player in the Pathophysiology of Endothelial Dysfunction, Vascular Inflammation and Atherosclerosis in Rheumatoid Arthritis? Curr. Pharm. Des. 2021, 27, 2131–2140. [Google Scholar] [CrossRef]
- Mangoni, A.A.; Rodionov, R.N.; McEvoy, M.; Zinellu, A.; Carru, C.; Sotgia, S. New horizons in arginine metabolism, ageing and chronic disease states. Age Ageing 2019, 48, 776–782. [Google Scholar] [CrossRef]
- Wadham, C.; Mangoni, A.A. Dimethylarginine dimethylaminohydrolase regulation: A novel therapeutic target in cardiovascular disease. Expert Opin. Drug Metab. Toxicol. 2009, 5, 303–319. [Google Scholar] [CrossRef]
- Nandi, M.; Kelly, P.; Torondel, B.; Wang, Z.; Starr, A.; Ma, Y.; Cunningham, P.; Stidwill, R.; Leiper, J. Genetic and pharmacological inhibition of dimethylarginine dimethylaminohydrolase 1 is protective in endotoxic shock. Arterioscler. Thromb. Vasc. Biol. 2012, 32, 2589–2597. [Google Scholar] [CrossRef] [Green Version]
- Reddy, K.R.K.; Dasari, C.; Duscharla, D.; Supriya, B.; Ram, N.S.; Surekha, M.V.; Kumar, J.M.; Ummanni, R. Dimethylarginine dimethylaminohydrolase-1 (DDAH1) is frequently upregulated in prostate cancer, and its overexpression conveys tumor growth and angiogenesis by metabolizing asymmetric dimethylarginine (ADMA). Angiogenesis 2018, 21, 79–94. [Google Scholar] [CrossRef]
- Hulin, J.A.; Tommasi, S.; Elliot, D.; Hu, D.G.; Lewis, B.C.; Mangoni, A.A. MiR-193b regulates breast cancer cell migration and vasculogenic mimicry by targeting dimethylarginine dimethylaminohydrolase 1. Sci. Rep. 2017, 7, 13996. [Google Scholar] [CrossRef]
- Murphy, R.B.; Tommasi, S.; Lewis, B.C.; Mangoni, A.A. Inhibitors of the Hydrolytic Enzyme Dimethylarginine Dimethylaminohydrolase (DDAH): Discovery, Synthesis and Development. Molecules 2016, 21, 615. [Google Scholar] [CrossRef] [Green Version]
- Hulin, J.A.; Gubareva, E.A.; Jarzebska, N.; Rodionov, R.N.; Mangoni, A.A.; Tommasi, S. Inhibition of Dimethylarginine Dimethylaminohydrolase (DDAH) Enzymes as an Emerging Therapeutic Strategy to Target Angiogenesis and Vasculogenic Mimicry in Cancer. Front. Oncol. 2019, 9, 1455. [Google Scholar] [CrossRef]
- Basudhar, D.; Somasundaram, V.; De Oliveira, G.A.; Kesarwala, A.; Heinecke, J.L.; Cheng, R.Y.; Glynn, S.A.; Ambs, S.; Wink, D.A.; Ridnour, L.A. Nitric Oxide Synthase-2-Derived Nitric Oxide Drives Multiple Pathways of Breast Cancer Progression. Antioxid. Redox Signal. 2017, 26, 1044–1058. [Google Scholar] [CrossRef]
- Tommasi, S.; Zanato, C.; Lewis, B.C.; Nair, P.C.; Dall’Angelo, S.; Zanda, M.; Mangoni, A.A. Arginine analogues incorporating carboxylate bioisosteric functions are micromolar inhibitors of human recombinant DDAH-1. Org. Biomol. Chem. 2015, 13, 11315–11330. [Google Scholar] [CrossRef]
- Andonegui-Elguera, M.A.; Alfaro-Mora, Y.; Caceres-Gutierrez, R.; Caro-Sanchez, C.H.S.; Herrera, L.A.; Diaz-Chavez, J. An Overview of Vasculogenic Mimicry in Breast Cancer. Front. Oncol. 2020, 10, 220. [Google Scholar] [CrossRef] [Green Version]
- Hulin, J.A.; Tommasi, S.; Elliot, D.; Mangoni, A.A. Small molecule inhibition of DDAH1 significantly attenuates triple negative breast cancer cell vasculogenic mimicry in vitro. Biomed. Pharmacother. 2019, 111, 602–612. [Google Scholar] [CrossRef]
- Sandhu, A.K.; Huang, Y.; Xiao, D.; Park, E.; Edirisinghe, I.; Burton-Freeman, B. Pharmacokinetic Characterization and Bioavailability of Strawberry Anthocyanins Relative to Meal Intake. J. Agric. Food Chem. 2016, 64, 4891–4899. [Google Scholar] [CrossRef]
- Kiss, B.; Nemethy, Z.; Fazekas, K.; Kurko, D.; Gyertyan, I.; Saghy, K.; Laszlovszky, I.; Farkas, B.; Kirschner, N.; Bolf-Terjeki, E.; et al. Preclinical pharmacodynamic and pharmacokinetic characterization of the major metabolites of cariprazine. Drug Des. Dev. Ther. 2019, 13, 3229–3248. [Google Scholar] [CrossRef] [Green Version]
- Reif, S.; Snelder, N.; Blode, H. Characterisation of the pharmacokinetics of ethinylestradiol and drospirenone in extended-cycle regimens: Population pharmacokinetic analysis from a randomised Phase III study. J. Fam. Plan. Reprod. Health Care 2013, 39, e1–e13. [Google Scholar] [CrossRef] [Green Version]
- Henriksen, K.; Broekhuizen, K.; De Boon, W.M.I.; Karsdal, M.A.; Bihlet, A.R.; Christiansen, C.; Dillingh, M.R.; De Kam, M.; Kumar, R.; Burggraaf, J.; et al. Safety, tolerability and pharmacokinetic characterisation of DACRA KBP-042 in healthy male subjects. Br. J. Clin. Pharmacol. 2021, 87, 4786–4796. [Google Scholar] [CrossRef] [PubMed]
- Nardi-Hiebl, S.; Ndieyira, J.W.; Al Enzi, Y.; Al Akkad, W.; Koch, T.; Geldner, G.; Reyher, C.; Eberhart, L.H.J. Pharmacokinetic Characterisation and Comparison of Bioavailability of Intranasal Fentanyl, Transmucosal, and Intravenous Administration through a Three-Way Crossover Study in 24 Healthy Volunteers. Pain Res. Manag. 2021, 2021, 2887773. [Google Scholar] [CrossRef] [PubMed]
- Mallalieu, N.L.; Winter, E.; Fettner, S.; Patel, K.; Zwanziger, E.; Attley, G.; Rodriguez, I.; Kano, A.; Salama, S.M.; Bentley, D.; et al. Safety and Pharmacokinetic Characterization of Nacubactam, a Novel beta-Lactamase Inhibitor, Alone and in Combination with Meropenem, in Healthy Volunteers. Antimicrob. Agents Chemother. 2020, 64, e02229-19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ballatore, C.; Huryn, D.M.; Smith, A.B., 3rd. Carboxylic acid (bio)isosteres in drug design. ChemMedChem 2013, 8, 385–395. [Google Scholar] [CrossRef] [Green Version]
- Kohara, Y.; Kubo, K.; Imamiya, E.; Wada, T.; Inada, Y.; Naka, T. Synthesis and angiotensin II receptor antagonistic activities of benzimidazole derivatives bearing acidic heterocycles as novel tetrazole bioisosteres. J. Med. Chem. 1996, 39, 5228–5235. [Google Scholar] [CrossRef]
- Adriaenssens, Y.; Jimenez Fernandez, D.; Vande Walle, L.; Elvas, F.; Joossens, J.; Lambeir, A.; Augustyns, K.; Lamkanfi, M.; Van der Veken, P. Carboxylate isosteres for caspase inhibitors: The acylsulfonamide case revisited. Org. Biomol. Chem. 2017, 15, 7456–7473. [Google Scholar] [CrossRef]
- Asaki, T.; Kuwano, K.; Morrison, K.; Gatfield, J.; Hamamoto, T.; Clozel, M. Selexipag: An Oral and Selective IP Prostacyclin Receptor Agonist for the Treatment of Pulmonary Arterial Hypertension. J. Med. Chem. 2015, 58, 7128–7137. [Google Scholar] [CrossRef] [Green Version]
- Turner, P.V.; Brabb, T.; Pekow, C.; Vasbinder, M.A. Administration of substances to laboratory animals: Routes of administration and factors to consider. J. Am. Assoc. Lab. Anim. Sci. 2011, 50, 600–613. [Google Scholar]
- Al Shoyaib, A.; Archie, S.R.; Karamyan, V.T. Intraperitoneal Route of Drug Administration: Should it Be Used in Experimental Animal Studies? Pharm. Res. 2019, 37, 12. [Google Scholar] [CrossRef]
- Farnsworth, R.H.; Lackmann, M.; Achen, M.G.; Stacker, S.A. Vascular remodeling in cancer. Oncogene 2014, 33, 3496–3505. [Google Scholar] [CrossRef] [Green Version]
- Son, B.; Lee, S.; Youn, H.; Kim, E.; Kim, W.; Youn, B. The role of tumor microenvironment in therapeutic resistance. Oncotarget 2017, 8, 3933–3945. [Google Scholar] [CrossRef] [Green Version]
- Jin, M.Z.; Jin, W.L. The updated landscape of tumor microenvironment and drug repurposing. Signal Transduct. Target Ther. 2020, 5, 166. [Google Scholar] [CrossRef]
- Workman, P.; Aboagye, E.O.; Balkwill, F.; Balmain, A.; Bruder, G.; Chaplin, D.J.; Double, J.A.; Everitt, J.; Farningham, D.A.; Glennie, M.J.; et al. Guidelines for the welfare and use of animals in cancer research. Br. J. Cancer 2010, 102, 1555–1577. [Google Scholar] [CrossRef] [Green Version]

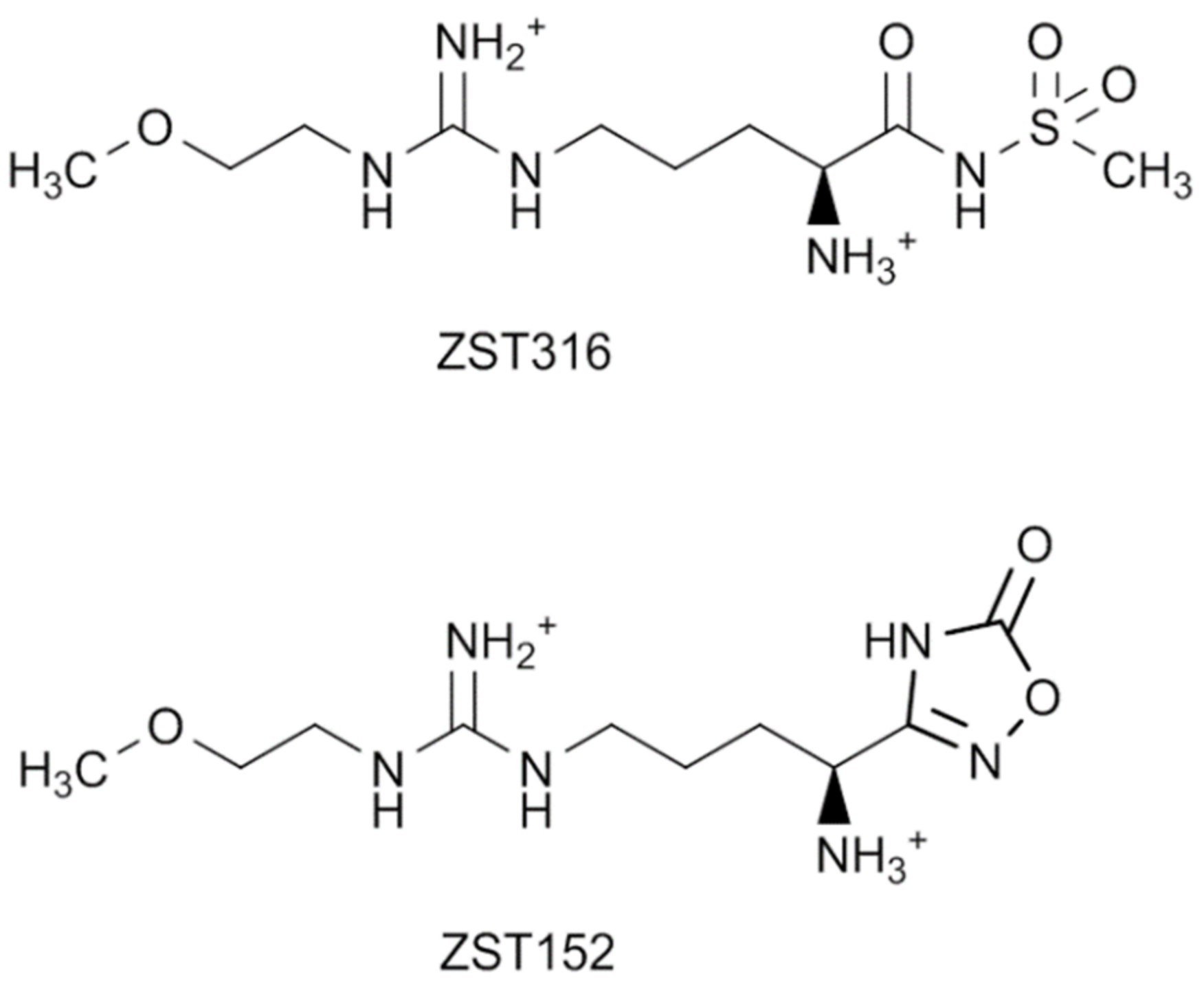

Figure 1.
Chemical structures of the DDAH1 inhibitors ZST316 and ZST152.

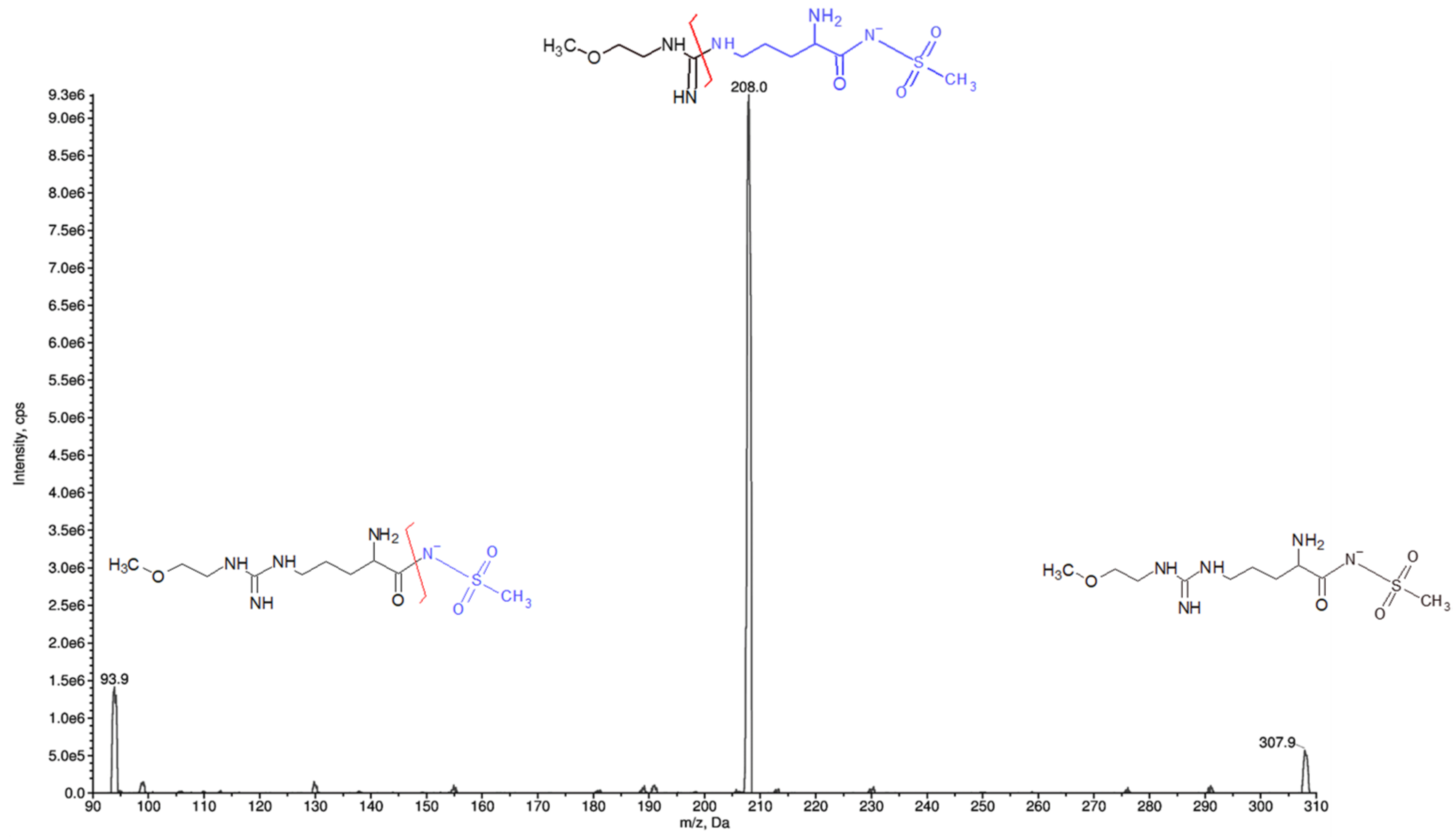

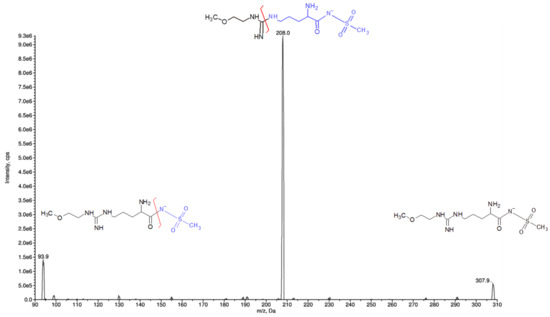

Figure 2.
SRM fragmentation pattern of ZST316 obtained by tandem mass spectrometry.

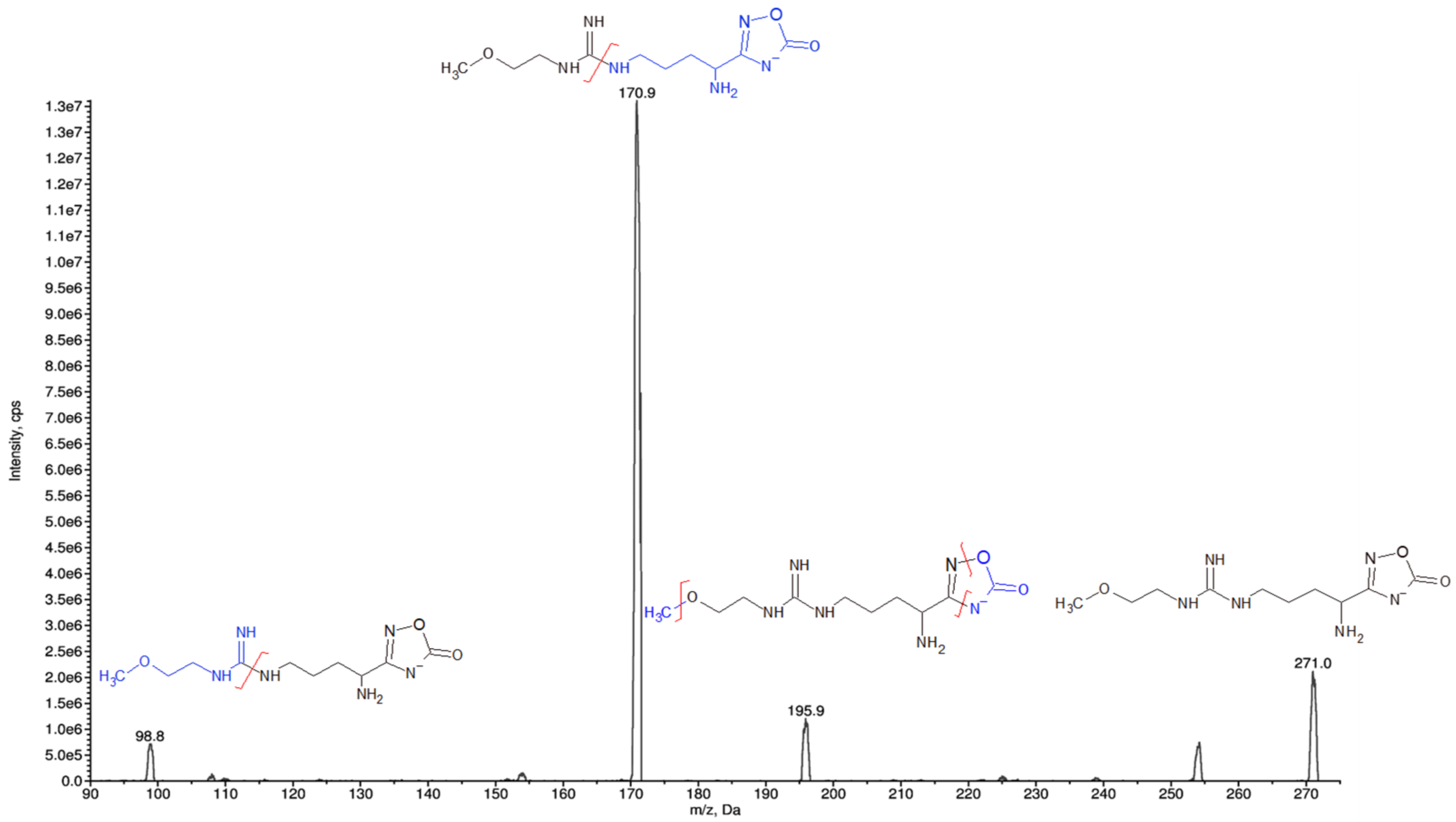

Figure 3.
SRM fragmentation pattern of ZST152 obtained by tandem mass spectrometry.

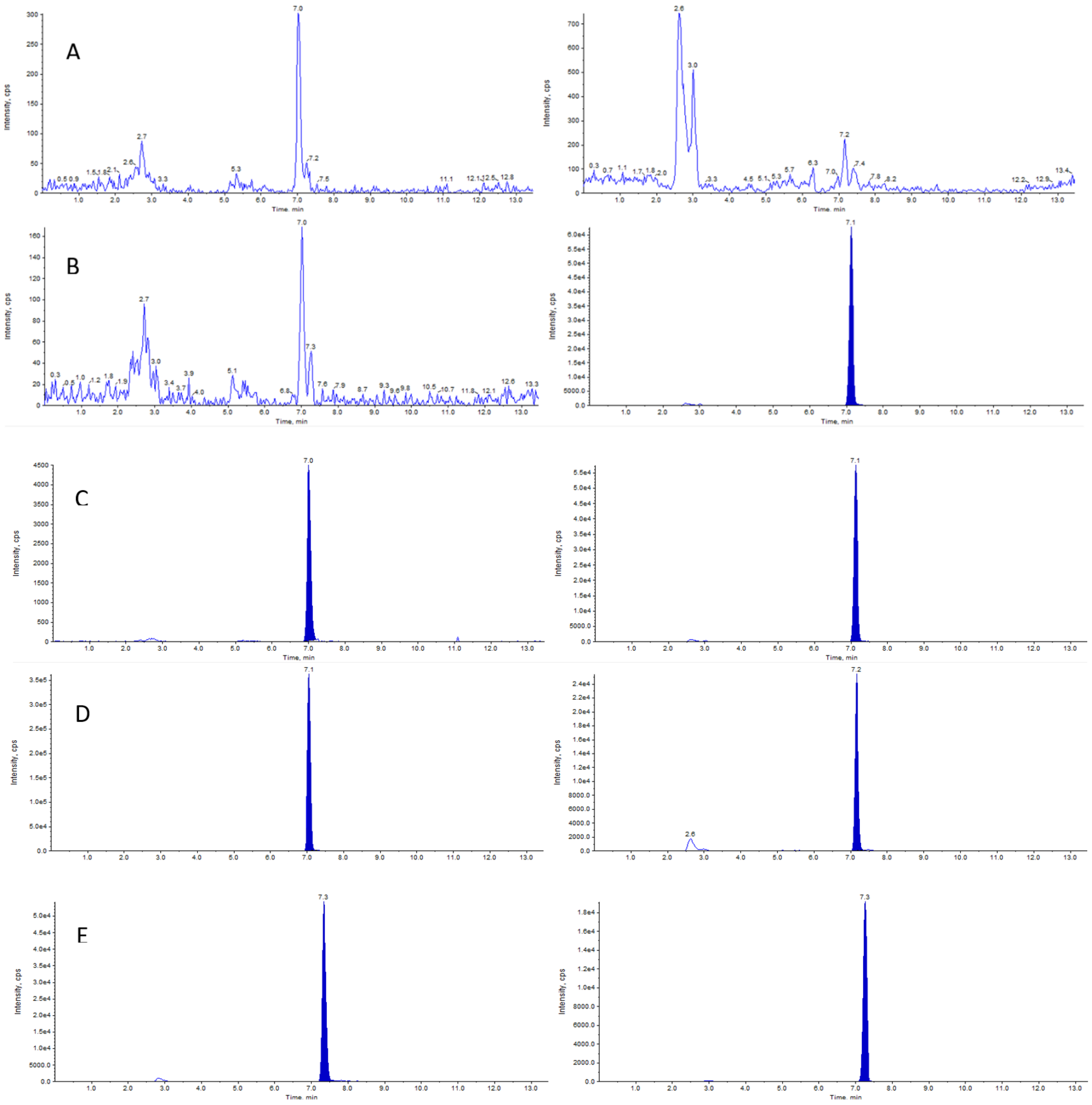

Figure 4.
Representative chromatograms of a double blank plasma sample (panel (A)), blank with internal standard IS (ZST152, panel (B)), LLOQ of ZST316 with IS (ZST152, panel (C)), and of unknown study plasma samples analyzed for ZST316 with IS (ZST152, panel (D)) and ZST152 with IS (ZST316, panel (E)).
Figure 4.
Representative chromatograms of a double blank plasma sample (panel (A)), blank with internal standard IS (ZST152, panel (B)), LLOQ of ZST316 with IS (ZST152, panel (C)), and of unknown study plasma samples analyzed for ZST316 with IS (ZST152, panel (D)) and ZST152 with IS (ZST316, panel (E)).

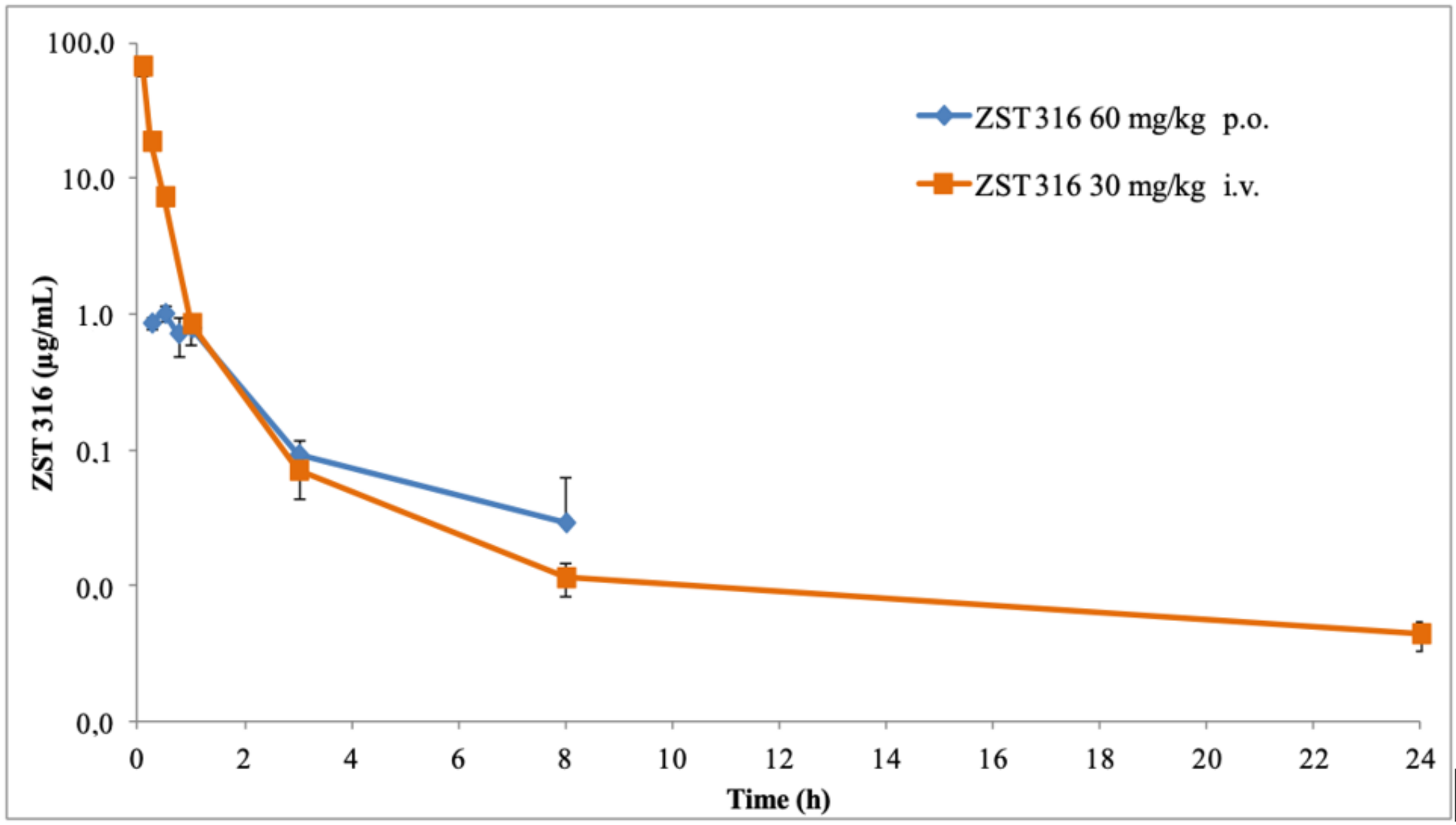

Figure 5.
Plasma decay curves of ZST316 after single oral and intravenous administration.

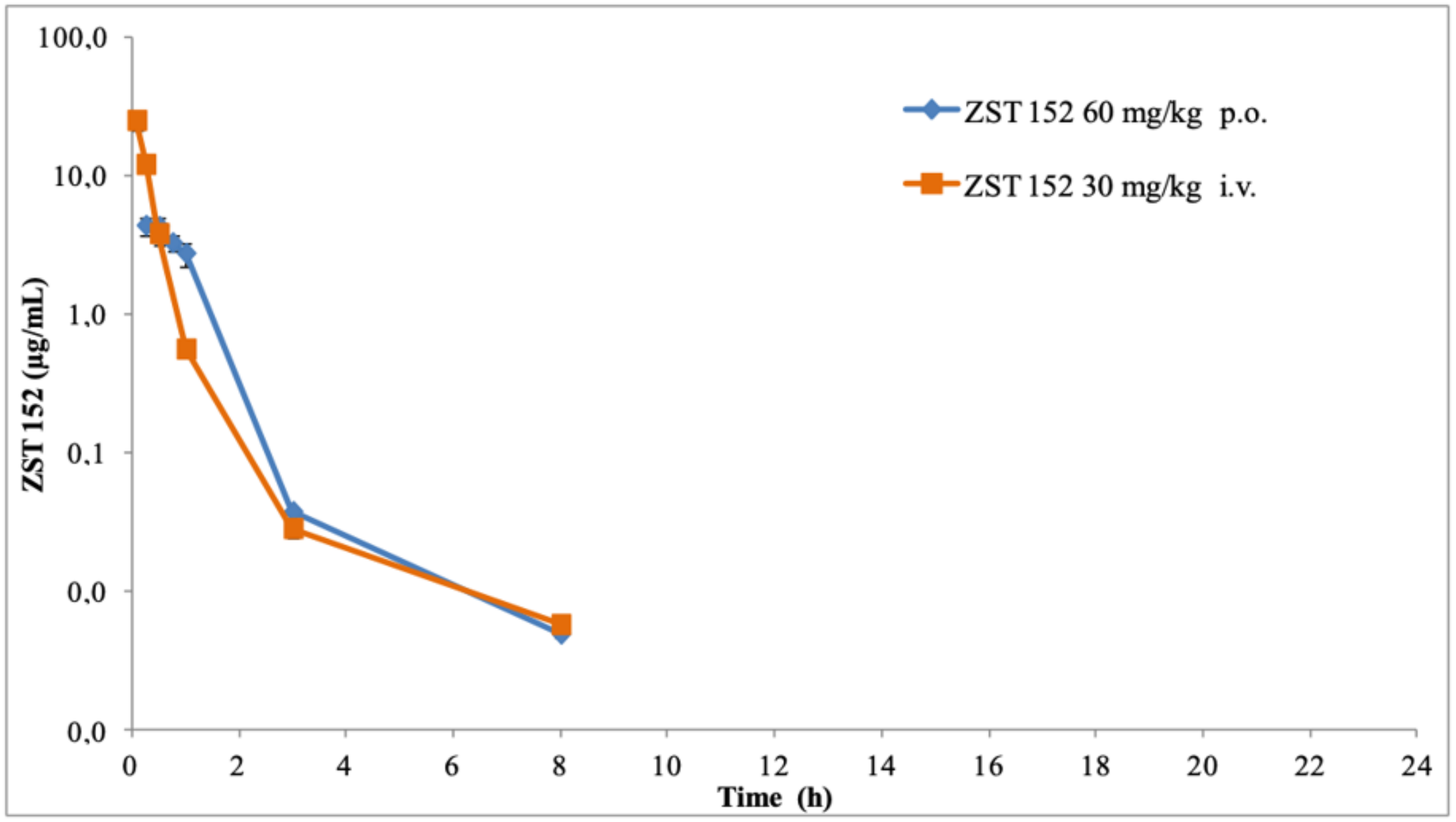

Figure 6.
Plasma decay curves of ZST152 after single oral and intravenous administration.

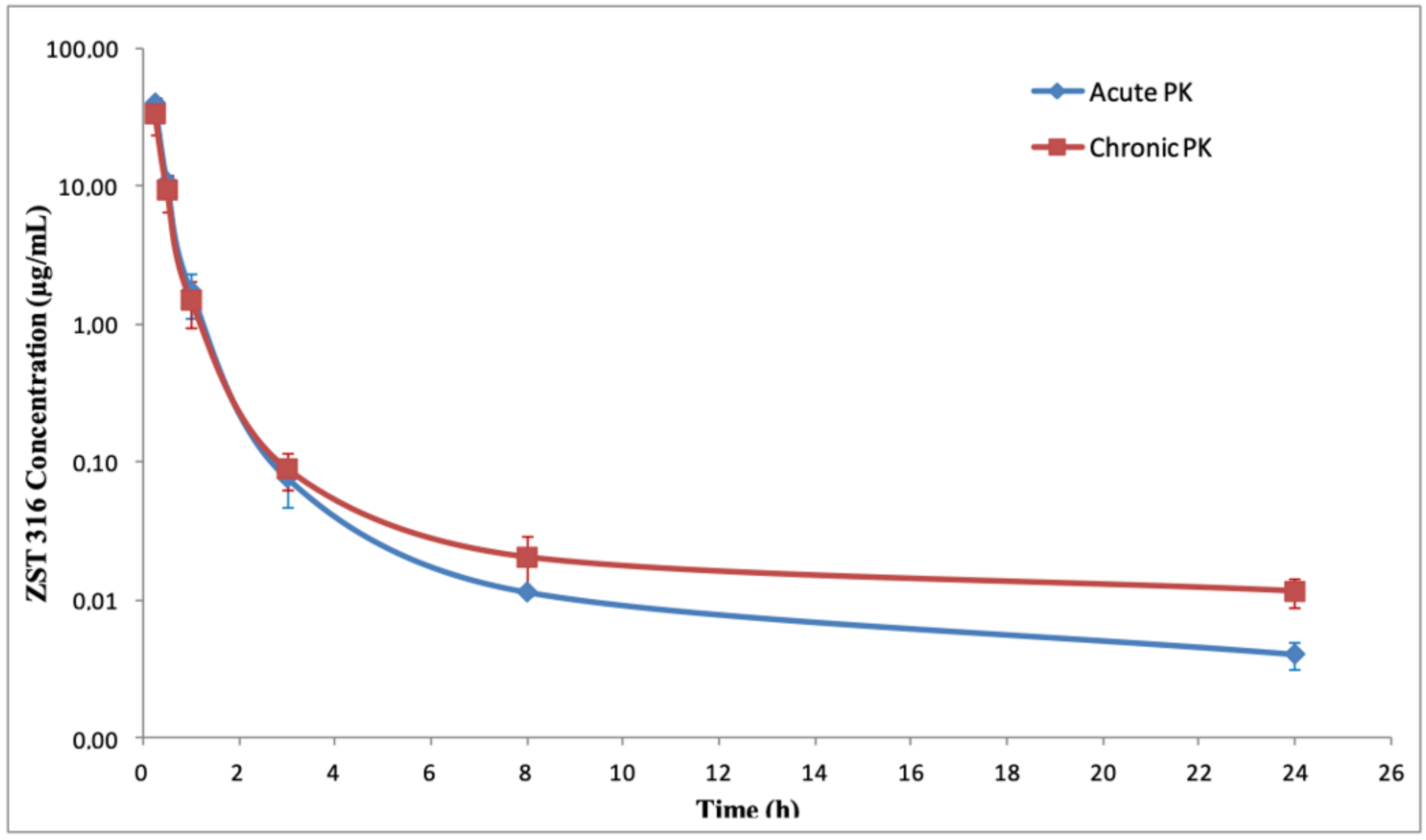

Figure 7.
Plasma decay curves of ZST316 after acute and chronic intraperitoneal administration.

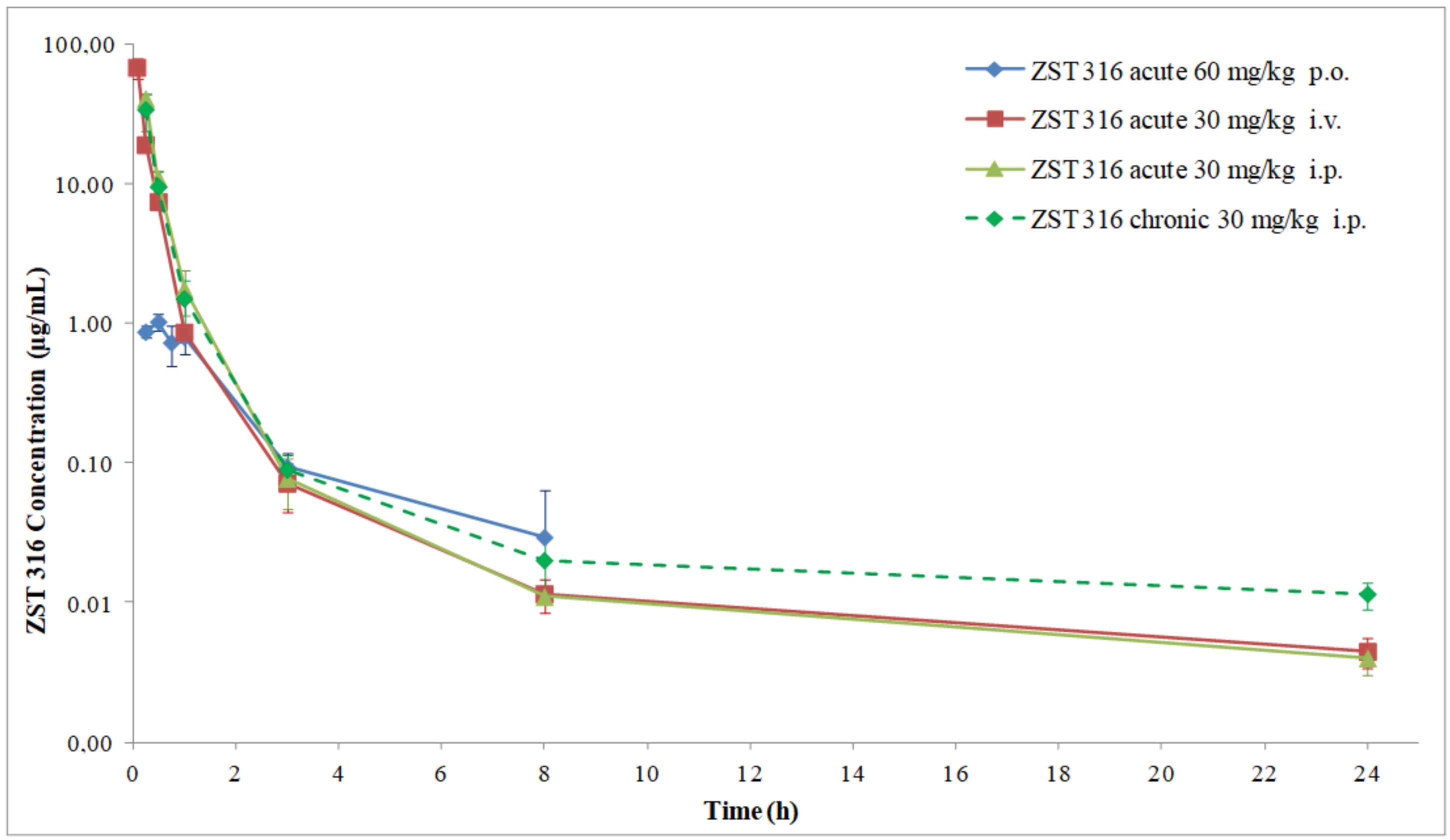

Figure 8.
Comparison of ZST316 plasma decay curves after acute oral, intravenous, and intraperitoneal administration and chronic intraperitoneal administration.
Figure 8.
Comparison of ZST316 plasma decay curves after acute oral, intravenous, and intraperitoneal administration and chronic intraperitoneal administration.
Table 1.
LLOQ of ZST316 and ZST152 in plasma.
| ZST316 | ZST152 | |
|---|---|---|
| Actual LLOQ concentration (ng/mL) | 5.0 | 5.0 |
| Mean concentration found (ng/mL) | 4.8 ± 0.3 | 5.3 ± 0.2 |
| Accuracy % | 95.8 | 106.1 |
| Precision % | 7.1 | 4.1 |
Table 2.
Intra-day precision and accuracy results for ZST316 and ZST152 in plasma.
| ZST316 | ZST152 | |||
|---|---|---|---|---|
| Actual Concentration (ng/mL) | 15.0 | 250.0 | 15.0 | 250.0 |
| Mean concentration found (ng/mL) | 15.6 ± 0.91 | 237.6 ± 10.4 | 15.7 ± 0.78 | 228.6 ± 10.3 |
| Accuracy % | 103.7 | 95.0 | 104.9 | 91.4 |
| Precision % | 5.8 | 4.4 | 5.0 | 4.5 |
| N | 5 | 5 | 5 | 5 |
Table 3.
Inter-day precision and accuracy results for ZST316 and ZST152 in plasma.
| Nominal Concentration (ng/mL) | ||
|---|---|---|
| 15.0 | 250.0 | |
| ZST316 | Measured Concentration | |
| Day 1 | 14.6 | 234.0 |
| 16.4 | 256.0 | |
| 15.8 | 233.0 | |
| 16.4 | 231.0 | |
| 14.6 | 234.0 | |
| Day 2 | 21.6* | 283.0 |
| 15.5 | 271.0 | |
| 16.2 | 257.0 | |
| Day 3 | 19.6 | 279.0 |
| 15.9 | 290.0 | |
| 16.8 | 284.0 | |
| Mean (n = 11) | 16.2 | 259.3 |
| SD | 1.41 | 13.00 |
| Precision (%) | 8.7 | 5.0 |
| Accuracy (%) | 107.9 | 103.7 |
| Nominal concentration (ng/mL) | ||
| 15.0 | 250.0 | |
| ZST152 | Measured concentration | |
| Day 1 | 15.6 | 241.0 |
| 15.8 | 229.0 | |
| 15.7 | 236.0 | |
| 14.7 | 216.0 | |
| 16.9 | 221.0 | |
| Day 2 | 15.9 | 258.0 |
| 12.8 | 191.0 * | |
| 15.6 | 236.0 | |
| Day 3 | 16.3 | 258.0 |
| 18.2 | 256.0 | |
| 13.9 | 258.0 | |
| Mean (n = 11) | 15.6 | 241.4 |
| SD | 1.44 | 16.9 |
| Precision (%) | 9.2 | 7.0 |
| Accuracy (%) | 103.9 | 96.6 |
* Value excluded from calculations because it was out of the acceptance criteria.
Table 4.
Intra-day precision and accuracy results for ZST316 and ZST152 in urine.
| ZST316 | ZST152 | |
|---|---|---|
| Actual concentration (µg/mL) | 30.0 | 30.0 |
| Mean concentration found (µg/mL) | 33.3 ± 1.53 | 29.2 ± 1.1 |
| Accuracy % | 111.2 | 97.2 |
| Precision % | 4.6 | 3.8 |
| N | 3 | 3 |
Table 5.
Inter-day precision and accuracy results for ZST316 and ZST152 in urine.
| Nominal Concentration (µg/mL) | |
|---|---|
| 30.0 | |
| ZST316 | Measured Concentration |
| Day 1 | 31.7 |
| 33.7 | |
| 34.7 | |
| Day 2 | 34.2 |
| 33.7 | |
| 27.7 | |
| Day 3 | 33.9 |
| 44.9* | |
| 29.7 | |
| Mean (n = 8) | 32.4 |
| SD | 2.51 |
| Precision (%) | 7.7 |
| Accuracy (%) | 108.0 |
| Nominal concentration (µg/mL) | |
| 30.0 | |
| ZST152 | Measured concentration |
| Day 1 | 30.0 |
| 29.6 | |
| 27.9 | |
| Day 2 | 28.8 |
| 29.2 | |
| N.D.* | |
| Day 3 | 28.5 |
| 30.5 | |
| 29.1 | |
| Mean (N=8) | 29.2 |
| SD | 0.83 |
| Precision (%) | 2.8 |
| Accuracy (%) | 97.3 |
* Value excluded from calculations because it was out of the acceptance criteria.
Table 6.
Pharmacokinetic parameters and urinary elimination of ZST316 and ZST152 after single oral and intravenous administration.
Table 6.
Pharmacokinetic parameters and urinary elimination of ZST316 and ZST152 after single oral and intravenous administration.
| ZST316 p.o. 60 mg/Kg | ZST316 i.v. 30 mg/Kg | ZST152 p.o. 60 mg/Kg | ZST152 i.v. 30 mg/Kg | |
|---|---|---|---|---|
| Cmax (μg/mL) | 1.02 | 67.4 | 4.34 | 24.9 |
| Tmax (min) | 30 | 5 | 15 | 5 |
| AUC 0-8h (μg/mL·h) | 1.94 | 21.4 | 6.17 | 9.25 |
| AUC 0-last (μg/mL·h) | 1.94 | 21.5 | 6.17 | 9.25 |
| AUC 0-inf (μg/mL·h) | 2.01 | 21.6 | 6.18 | 9.26 |
| Half-life (h) | 1.63 | 6.06 | 0.86 | 1.17 |
| Clp (mL/h/Kg) | - | 1.39 | - | 3.24 |
| Vd (mL/Kg) | - | 12.17 | - | 5.49 |
| F % | 4.7 | - | 33.3 | - |
| 24 h urinary excretion (% of dose) | 2.3 | 7.5 | 12.5 | 22.2 |
Legend: p.o., oral gavage; i.v., intravenous; Cmax, peak concentration; Tmax, time to reach peak concentration; AUC, area under the curve; Clp, plasma clearance; Vd, volume of distribution; F, bioavailability.
Table 7.
List of supposed metabolites (M) for ZST316 and ZST152 found in urine after oral and intravenous administration with quantification by HPLC MS/MS expressed as relative abundance to parent compound.
Table 7.
List of supposed metabolites (M) for ZST316 and ZST152 found in urine after oral and intravenous administration with quantification by HPLC MS/MS expressed as relative abundance to parent compound.
| ZST316 | ZST152 | |||||||
|---|---|---|---|---|---|---|---|---|
| Oral | Intravenous | Oral | Intravenous | |||||
| Total Dose 1.308 mg Mouse #3 | Tot. Dose 1.326 mg Mouse #1 | Tot. Dose 1.158 mg Mouse #3 | Tot. Dose 1.410 mg Mouse #1 | |||||
| Amount Recovered (µg) | % of Dose | Amount Recovered (µg) | % of Dose | Amount Recovered (µg) | % of Dose | Amount Recovered (µg) | % of Dose | |
| ZST316 | 28.9 | 2.2% | 41.2 | 3.1% | - | - | - | - |
| ZST152 | - | - | - | - | 75.0 | 6.5% | 148 | 10.5% |
| M1 | 2.74 | 0.21% | 0.23 | 0.017% | 1.02 | 0.088% | 0.55 | 0.039% |
| M2 | - | - | - | - | 0.27 | 0.023% | 128 | 9.05% |
| M3 | - | - | - | - | 49.1 | 4.2% | 2.62 | 0.19% |
| M4 | 108 | 8.2% | 8.71 | 0.66% | 87.8 | 7.6% | 93.3 | 6.6% |
| M5 | - | - | - | - | 1.84 | 0.16% | 298 | 21.2% |
| M6 | - | - | - | - | 0.16 | 0.014% | 1.48 | 0.10% |
| M7 | 991 | 76% | 86.1 | 6.5% | 2.58 | 0.22% | 1.77 | 0.13% |
| M8 | 53.4 | 4.1% | 4.87 | 0.37% | - | - | - | - |
| M9 | 71.0 | 5.4% | 4.28 | 0.32% | - | - | - | - |
Table 8.
Pharmacokinetic parameters and urinary elimination of ZST316 after acute and chronic intraperitoneal treatment.
Table 8.
Pharmacokinetic parameters and urinary elimination of ZST316 after acute and chronic intraperitoneal treatment.
| ZST316 Acute Treatment | ZST316 Chronic Treatment | |
|---|---|---|
| Cmax (μg/mL) | 40.2 | 33.6 |
| Tmax (min) | 0.25 | 0.25 |
| AUC 0-8h (μg/mL·h) | 14.34 | 12.32 |
| AUC 0-last (μg/mL·h) | 14.45 | 12.57 |
| AUC 0-inf (μg/mL·h) | 14.48 | 12.71 |
| Half-life (h) | 5.7 | 8.4 |
| F % | 67.2 | 58.9 |
| 24-h urinary excretion (% of dose) | 56.1 | 54.1 |
Legend: Cmax, peak concentration; Tmax, time to reach peak concentration; AUC, area under the curve; F, bioavailability.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Mangoni, A.A.; Ceruti, T.; Frapolli, R.; Russo, M.; Fichera, S.; Zucchetti, M.; Tommasi, S. Pharmacokinetic Characterization of the DDAH1 Inhibitors ZST316 and ZST152 in Mice Using a HPLC-MS/MS Method. Molecules 2022, 27, 1017. https://doi.org/10.3390/molecules27031017
AMA Style
Mangoni AA, Ceruti T, Frapolli R, Russo M, Fichera S, Zucchetti M, Tommasi S. Pharmacokinetic Characterization of the DDAH1 Inhibitors ZST316 and ZST152 in Mice Using a HPLC-MS/MS Method. Molecules. 2022; 27(3):1017. https://doi.org/10.3390/molecules27031017
Chicago/Turabian StyleMangoni, Arduino A., Tommaso Ceruti, Roberta Frapolli, Massimo Russo, Stefania Fichera, Massimo Zucchetti, and Sara Tommasi. 2022. "Pharmacokinetic Characterization of the DDAH1 Inhibitors ZST316 and ZST152 in Mice Using a HPLC-MS/MS Method" Molecules 27, no. 3: 1017. https://doi.org/10.3390/molecules27031017
