Highly Fluorescent Dyes Containing Conformationally Restrained Pyrazolylpyrene (Pyrazoolympicene) Chromophore

Abstract

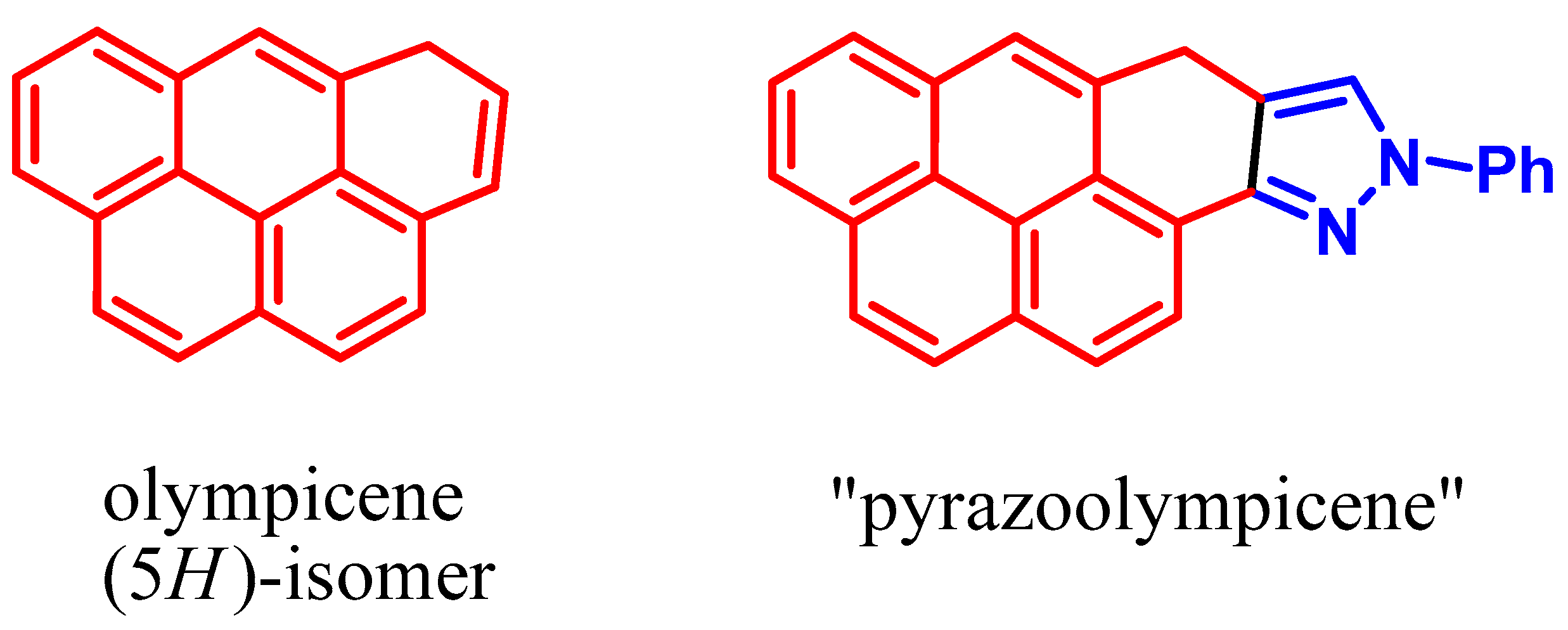

The triflic-acid-promoted cyclization of 1-phenyl-3-(pyren-1-yl)-1H-pyrazole-4-carbaldehyde afforded a mixture of 9-phenyl-7,9-dihydropyreno (10,1-fg)indazole and 9-phenylpyreno(10,1-fg)indazole-7(9H)-one, readily separable by column chromatography. Both products contained a rigid six-ringed pyrazoolympicene backbone and exhibited bright fluorescence in chloroform solution and a weak fluorescence in the solid state. DFT and TD DFT calculations revealed that the lowest excited state (S₁) of these compounds is populated via HOMO →LUMO π-π * transition. Furthermore, the synthesized compounds behaved as weak bases and their emission spectra showed substantial changes upon protonation. Therefore, they may be of interest for sensing of strongly acidic fluorophore environments.

1. Introduction

Pyrene is one of the most interesting fluorophores, exhibiting intense and environment-sensitive emission [1,2], aggregation-induced emission (AIE) [3] and capable of forming emissive excimers and exciplexes [4,5,6]. Moreover, it can also be easily functionalized [7,8,9]. Due to these properties, pyrene has been the subject of interest in numerous studies aimed at its modification to obtain useful fluorophores for practical applications in various branches of science, ranging from optoelectronics to biology and medicine [4,7,10,11,12,13,14]. Pyrazoles are another class of small molecule fluorophores exhibiting intense and tunable emission, thoroughly studied in recent years [15,16,17,18,19,20]. Therefore, it seemed interesting to synthesize molecules with conjugated pyrene-pyrazole cores and to study their luminescent properties.

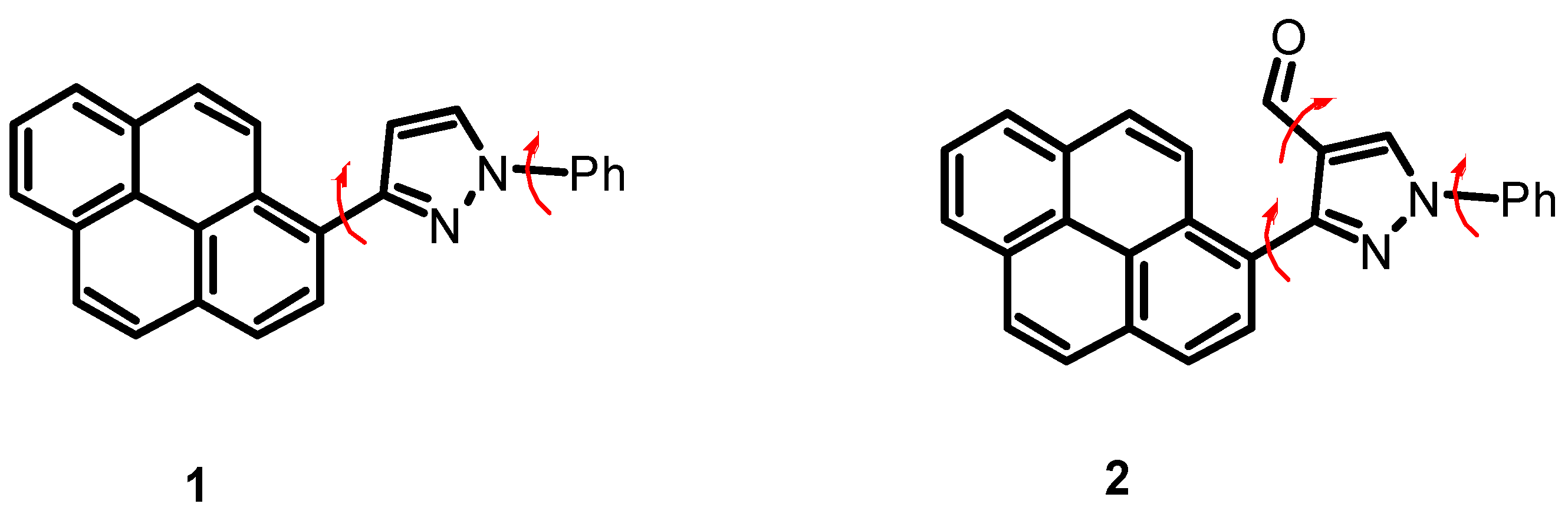

We previously reported the synthesis and fluorescent properties of pyrazolylpyrenes 1 and 2 (Figure 1) [21,22].

However, both molecules are conformationally labile and may adopt nonplanar geometries, which may decrease their emission efficiencies (their emission quantum yields in chloroform are 0.69 and 0.26, respectively). Therefore, we became interested in the synthesis of conformationally restrained and planarized analogs of these compounds with the aim of batochromically shifting their emission maxima and improving their emission quantum yields. The bathochromic shift of the absorption and emission bands and the increase in the emission efficiency of the fluorophore resulting from the structural prevention of intramolecular rotations have already been demonstrated for various classes of dye [23,24,25]

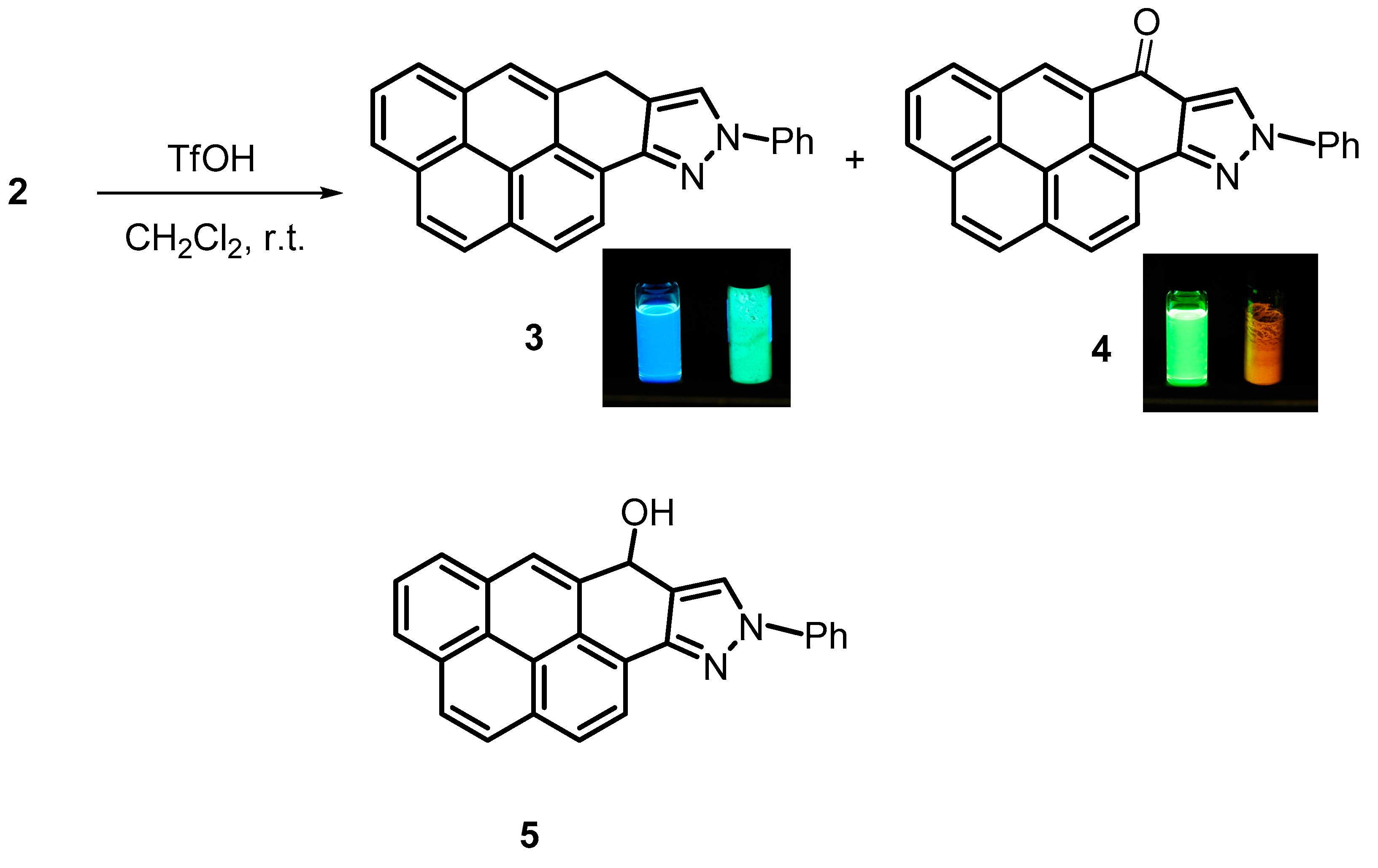

Herein, we disclose the synthesis of dyes 3 and 4 (Scheme 1), along with the study of their structures and optical properties, in comparison to those of 1 and 2.

2. Results and Discussion

2.1. Synthesis of 3 and 4

Inspired by the Klumpp’s work on the superacid-promoted cyclization of naphthyl pyrazolecarbaldehyde [26], we investigated the possibility of performing a similar cyclization with compound 2. Pleasingly, we found that the addition of an excess of trifluoromethanesulfonic (triflic) acid to a solution of this compound in dichloromethane at room temperature resulted in the rapid formation of fluorescent cyclization products, 9-phenyl-7,9-dihydropyreno (10,1-fg)indazole, 3 and 9-phenylpyreno(10,1-fg)indazole-7(9H)-one, 4, readily separable by column chromatography. Both compounds contain a “pyrazoolympicene” six-ringed system (Figure 2).

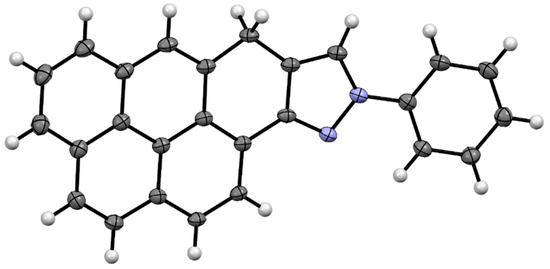

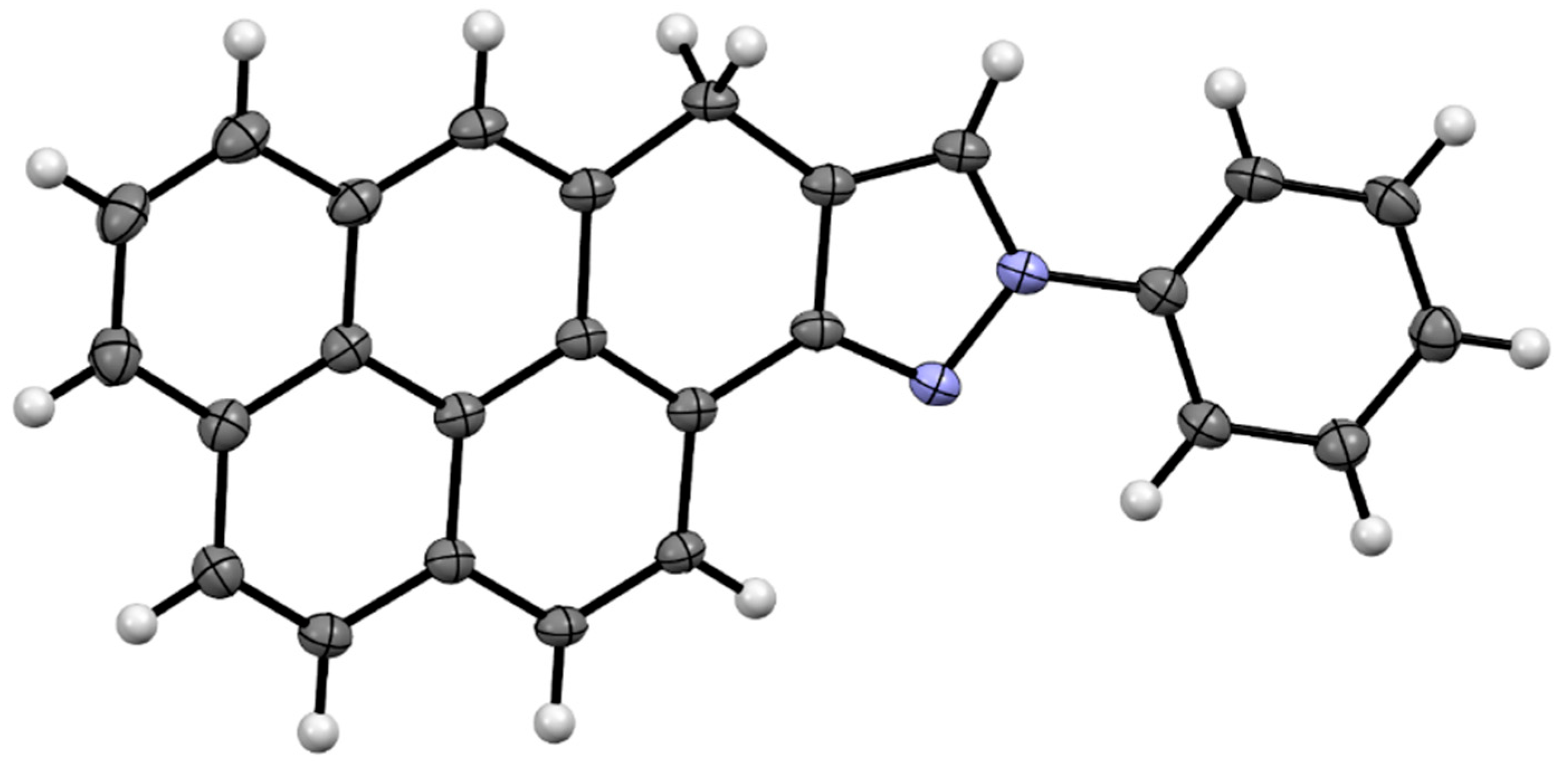

The structures of 3 and 4 were confirmed by spectroscopic methods. That of 3 was confirmed by single crystal X-ray diffraction (Figure 3).

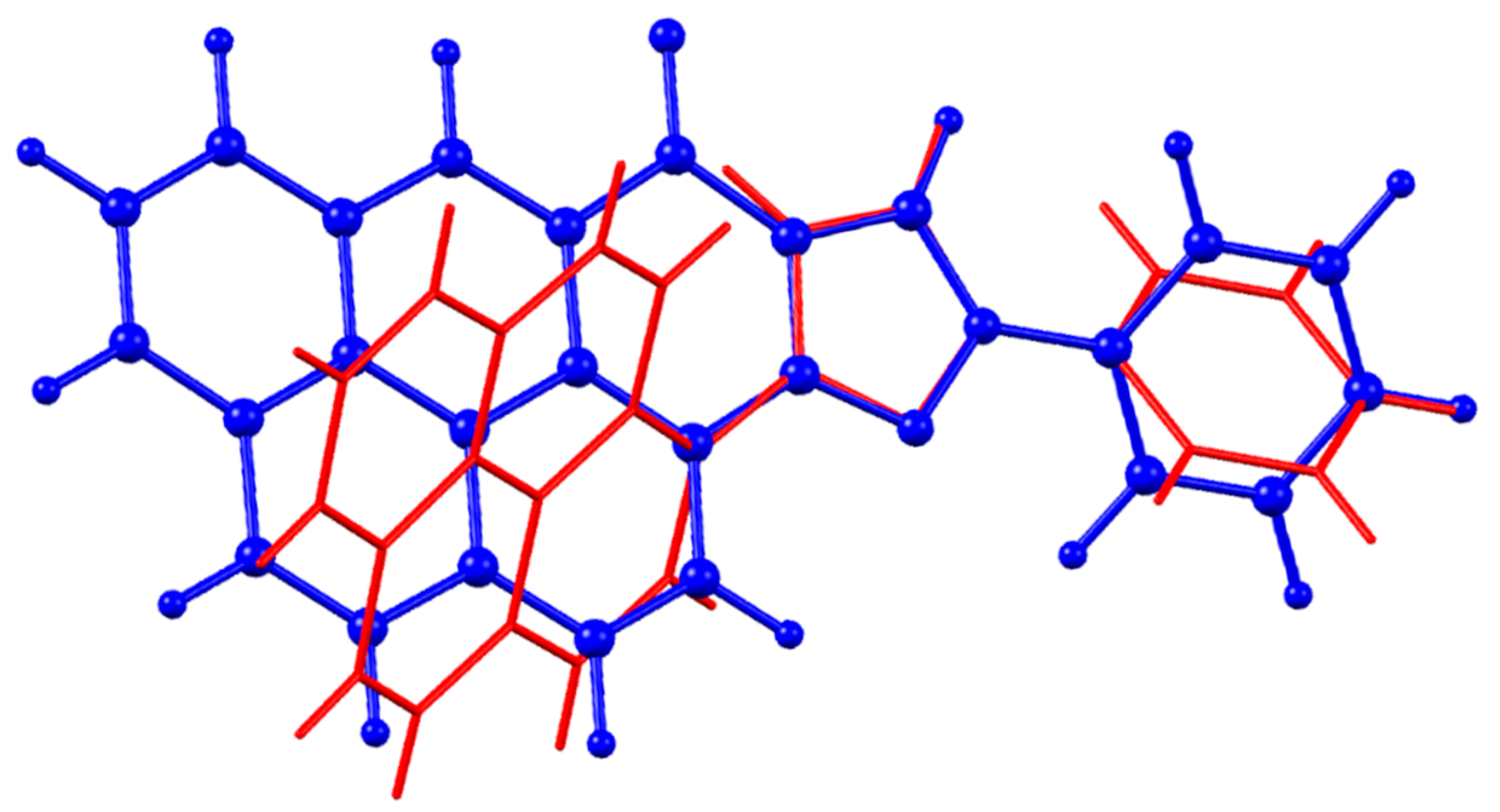

As expected, unlike the highly twisted molecules of 1 [21], the molecules of 3 were found to be planar (Figure 4 and Supplementary Information).

The mechanism proposed by Klumpp [26] suggests that compounds 3 and 4 may be formed by the disproportionation of alcohol, 5, which is the presumed initial cyclization product, and thus obtained in equivalent amounts. However, we found that 3 tended to undergo partial oxidation to 4 on workup. As a result, the isolated yields of 3 and 4 were different and not strictly reproducible (15–25% for 3 and 70–80% for 4).

2.2. Photophysical Properties of 1–4

2.2.1. UV/VIS Absorption and Emission Spectra in Solution

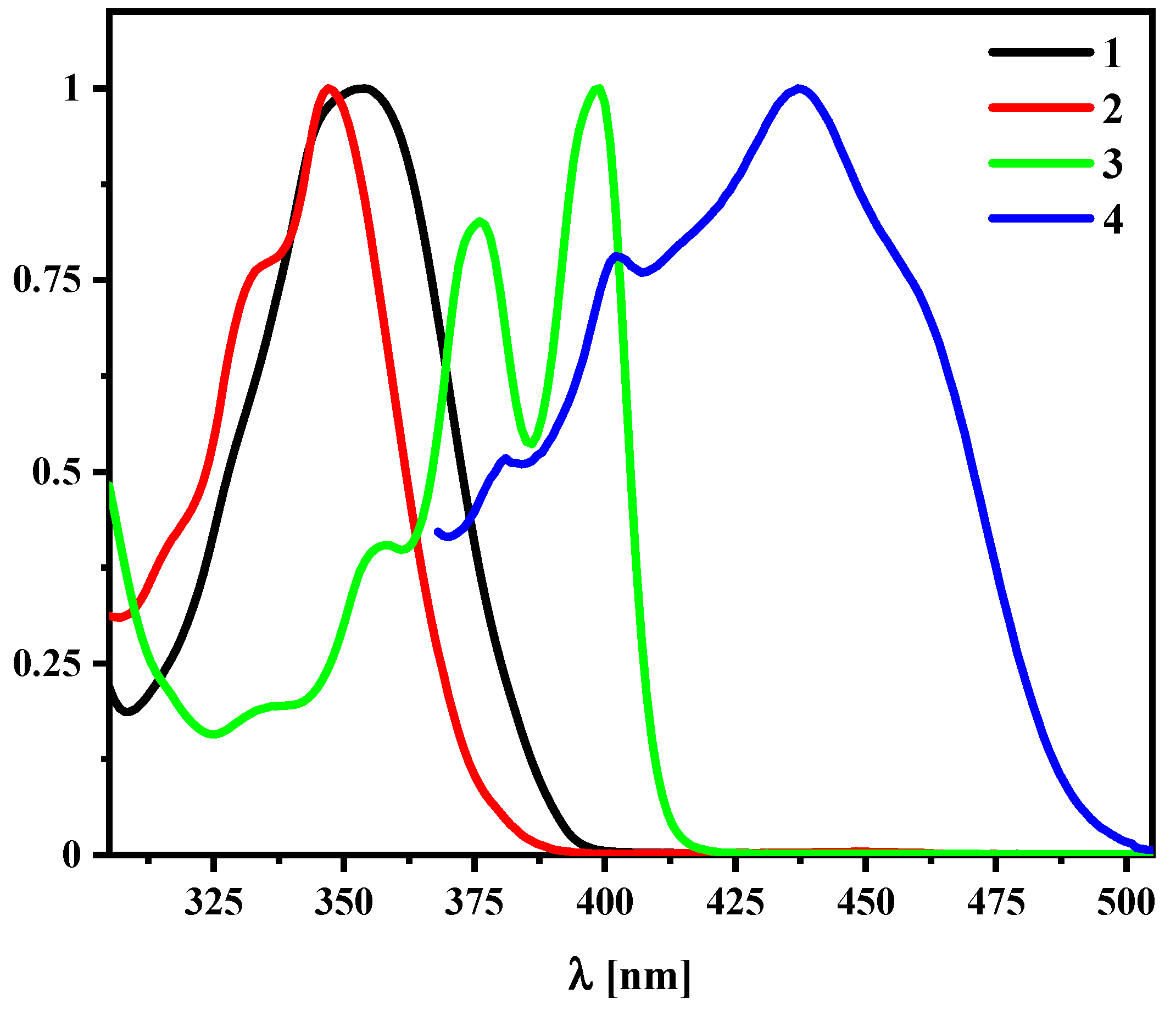

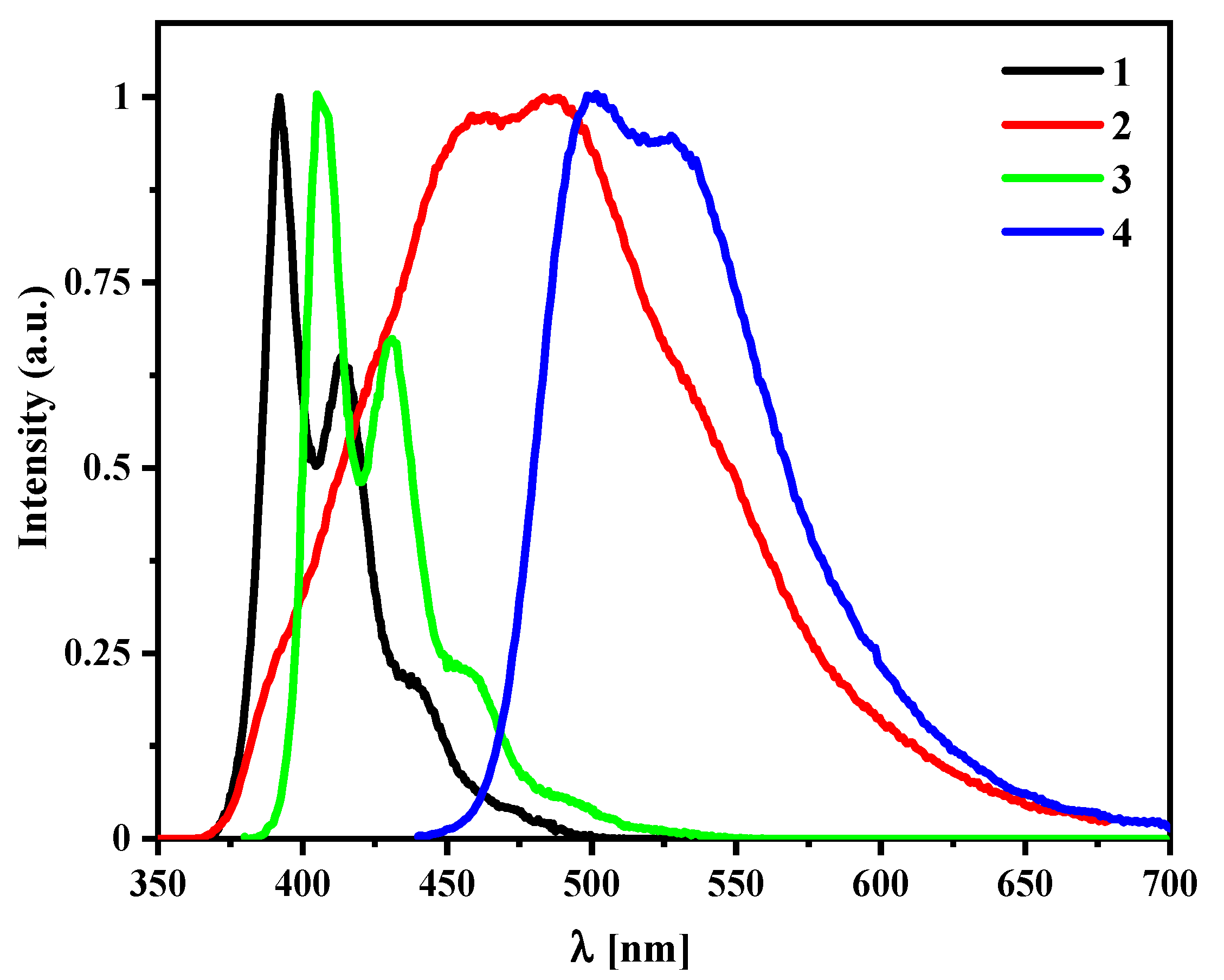

The electronic absorption and emission spectra of compounds 1–4 in chloroform are shown in Figure 5 and the corresponding spectroscopic data are presented in

Table 1. Photophysical data of compounds 1–4.

Compound	Absorption (nm)/εmax (M−1 cm−1)	Emission (nm)	Stokes Shift (nm/cm−1)	Quantum Yield ΦF
1	352/45,570/ *	392, 415, 438 (sh) *	40/2900	0.69 *
2	332/25,240/, 347/32,640/ **	449 **	102/6547	0.26 **
3	357/23,100/, 376/47,240/, 399 (57,140)	406, 432, 459	7/432	0.77
4	381/6480/, 402/9770/, 437/12,510/	503, 532	66/3003	0.94

* Data taken from [21] ** Data taken from [22].

.

It can be seen that the absorption bands of conformationally restrained compounds 3 and 4 are bathochromically shifted relative to the bands of their conformationally labile counterparts, 1 and 2. We noted that in contrast to the broad, structureless absorption band of compound 1, the red-shifted absorption band of compound 3 showed a well-resolved vibronic structure. On the other hand, the emission spectra of both compounds displayed structured bands at highly similar wavelengths, which suggests that their emitting states had similar geometries, and thus compound 1 was planarized upon photoexcitation. Moreover, the comparison of the emission quantum yields of 1 and 3 (0.69 and 0.77, respectively) indicated that the rotation around the C-C bond linking the pyrazole and pyrene units cannot be considered as an efficient nonradiative excited state deactivation channel. Therefore, it can be assumed that the decrease in the emission efficiency of compound 2 can be related to deactivation via the rotation of the aldehyde group. The higher emission quantum yield of compound 4 (0.94) can be attributed to the restriction of this rotation.

2.2.2. Solid State Fluorescence of 3 and 4

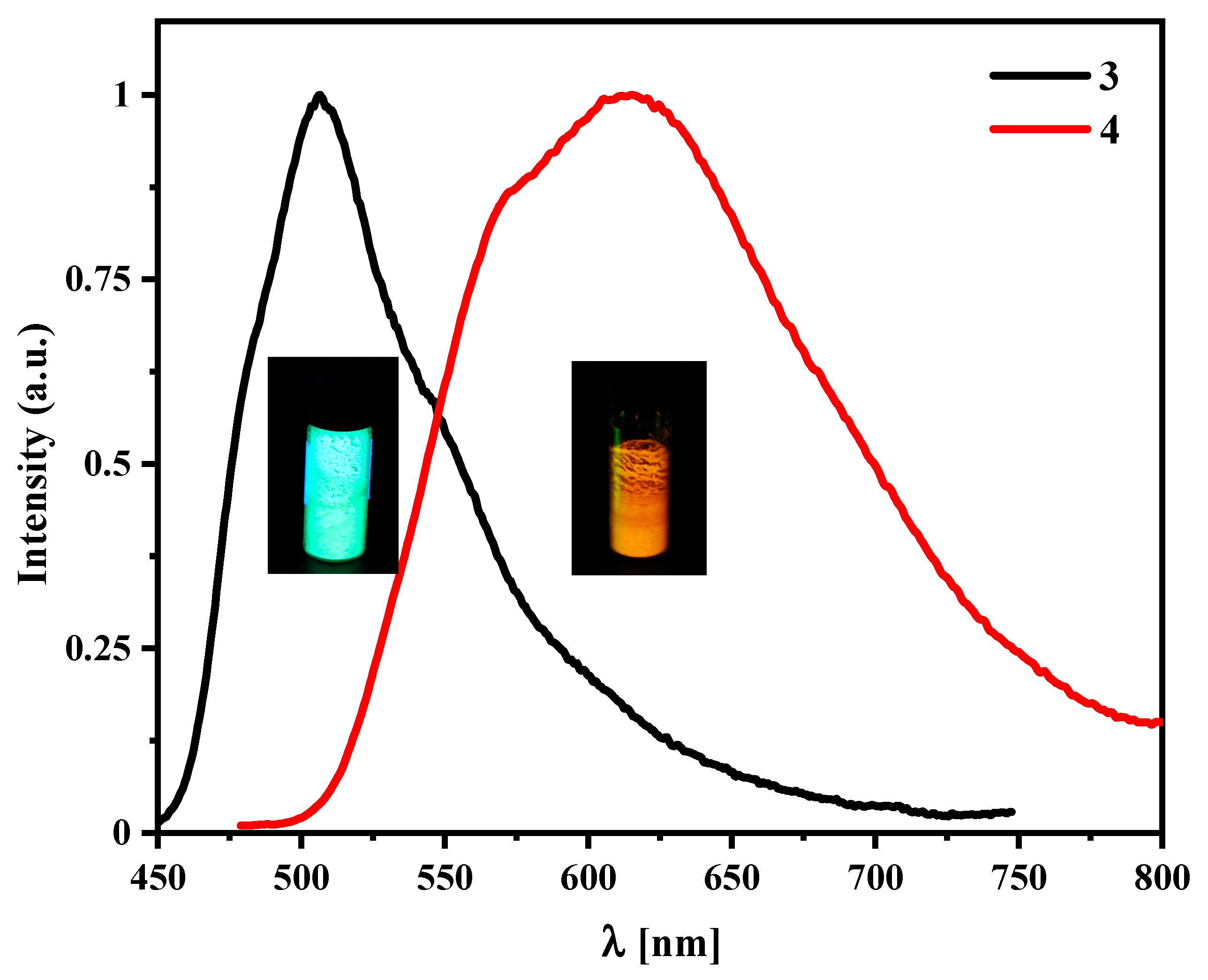

Microcrystalline solid samples of 3 and 4 displayed a weak fluorescence (quantum yields of 0.045 and 0.08, respectively) (Figure 6). In comparison to the emission bands observed in solution the bands of solid samples were broad, structureless and red shifted (maxima at 506 nm and 615 nm, respectively), which suggests that they might have originated from aggregates or excimers.

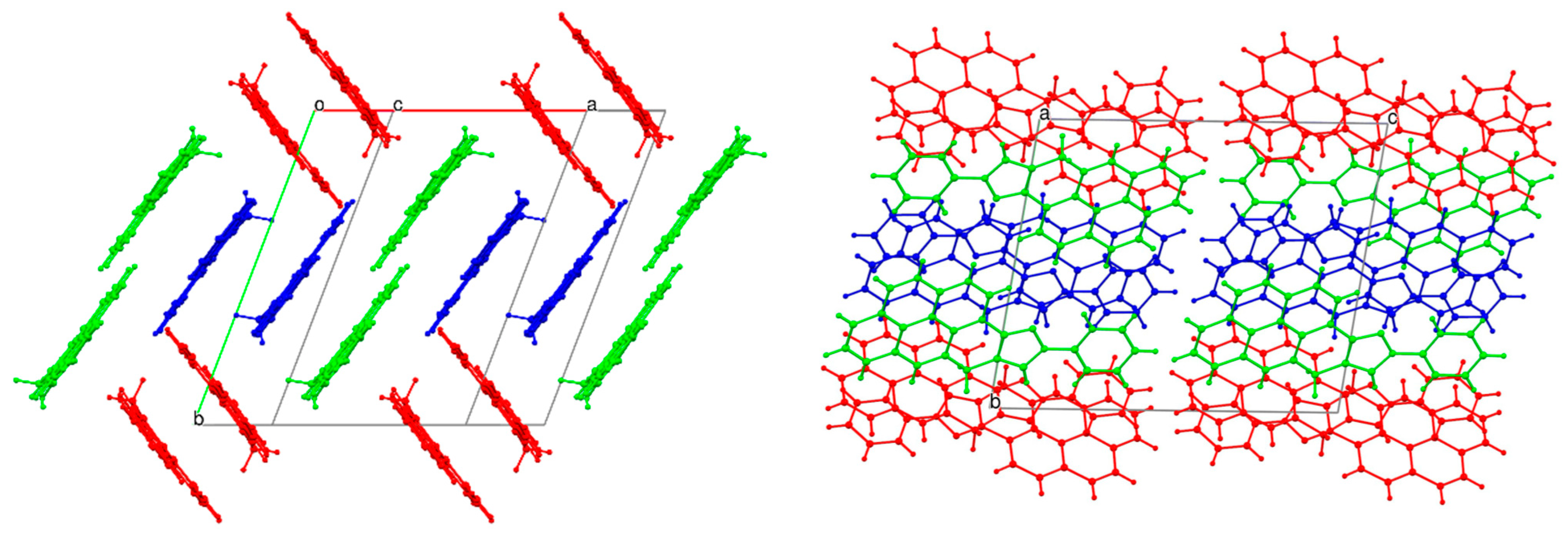

The presence of π···π stacked dimers in the crystal of 3 was confirmed by X-ray diffraction data (Figure 7).

2.3. Theoretical Calculations

For an in-depth understanding of the molecular structures and electronic transitions leading to the lowest-energy singlet-excited states of compounds 3 and 4, we performed density functional theory (DFT) and time-dependent density functional theory (TD-DFT) calculations using Gaussian16 package and B3PW91/6-311++G(d,p) basis set. The calculations were carried out for isolated molecules with the solvent (chloroform) simulated in polarizable continuous model (PCM) approximation. The DFT calculations were performed using resources from WCSS (grant 115).

2.3.1. Geometry Optimizations

The optimized structures of 3 and 4, in their ground (S₀) and in their first excited state (S₁), are shown in Figure S2 (Supplementary Information). The significant interatomic distances, in comparison to the X-ray diffraction data obtained for 3, are presented in Table S2 (Supplementary Information).

In the S₀ state, the six-ringed system was planar in both compounds. In compound 4, the phenyl ring was found to be twisted out by an angle of approximately 30°, but the twist disappeared in the S₁ state (Figure S2d).

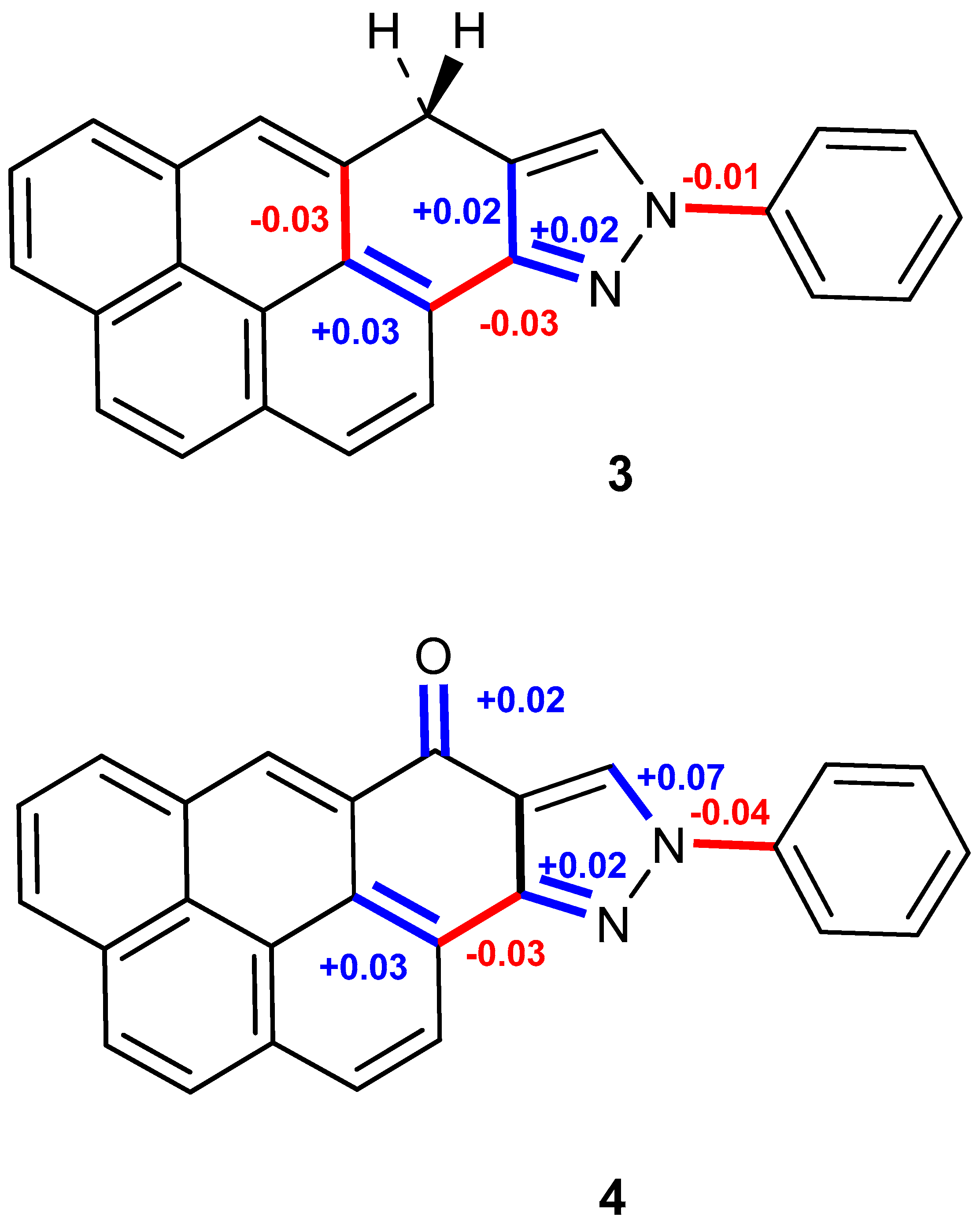

The changes in the bond lengths upon excitation are schematically represented in Figure 8. There was a tendency towards the equalization of the bond lengths between the formally single and double bonds, indicating more efficient electronic conjugation along the π-backbone in the S₁ state.

2.3.2. Molecular Orbitals

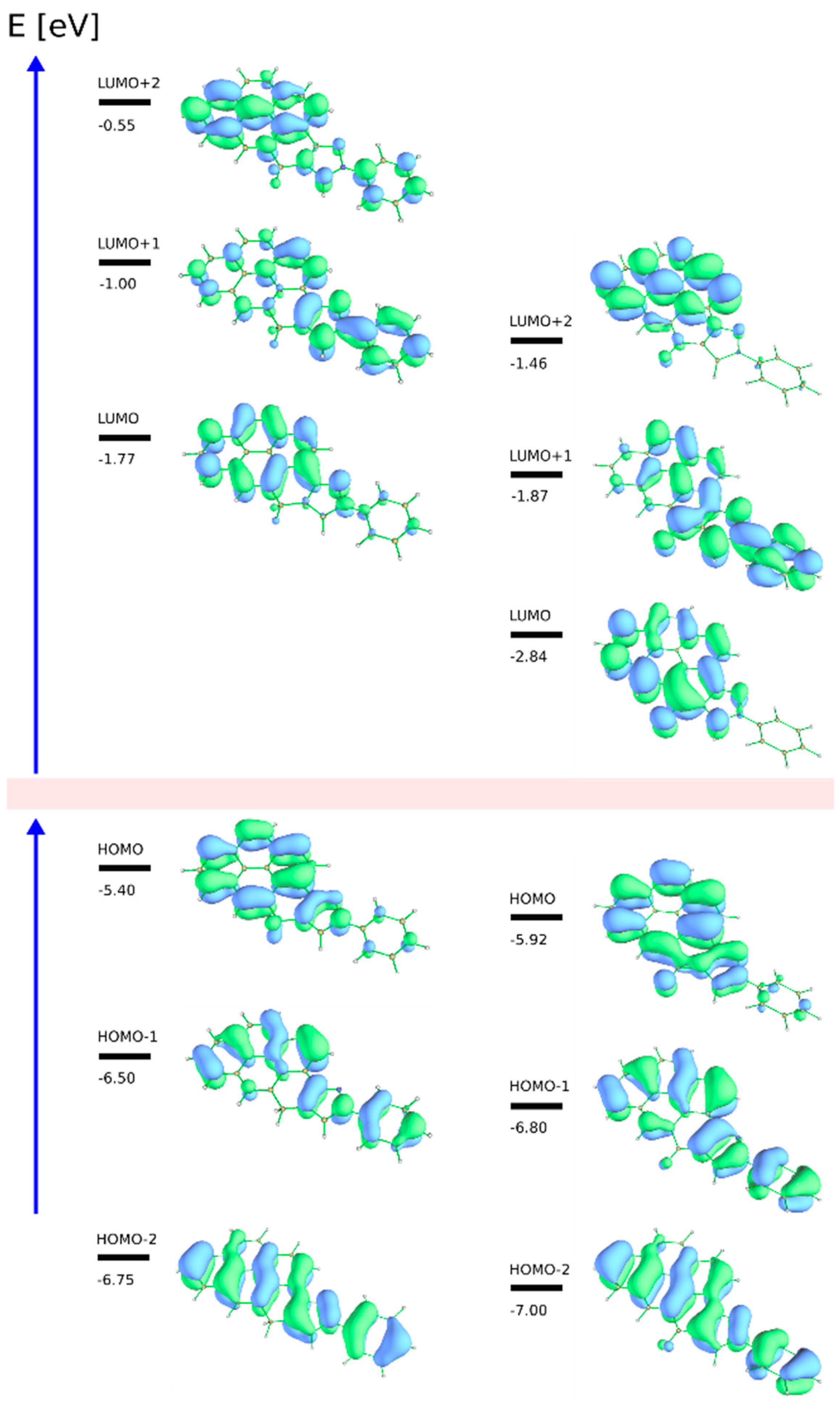

The main molecular orbitals of compounds 3 and 4 are shown in Figure 9.

We found that the highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbitals (LUMO) of 3 and 4 were mostly localized on the pyrene fragment, with a certain degree of extension on the pyrazole ring and (for 4) on the carbonyl group. The energies of these orbitals and the HOMO-LUMO gap of compound 3 were comparable to those of pyrene (HOMO: −5.33 eV, LUMO: −1.50 eV, HOMO-LUMO gap: 3.83 eV (in gas phase) [28]. On the other hand, the HOMO of 4 was stabilized by ~0.6 eV, while the stabilization of LUMO was stronger (~1.3 eV). As a result, the HOMO-LUMO gap of this compound (3.08 eV) was significantly lower than that of 3 (3.63 eV).

2.3.3. Electronic Transitions

The nature, energies and oscillator strengths of the lowest energy (S₀→S₁) transitions of compounds 1–4 are presented in

Table 2. TD-DFT calculated electronic transitions involved in the formation of lowest-energy singlet excited states (S₀→S₁) of compounds 1–4 in chloroform, their energies, wavelengths and oscillator strengths (f).

Compound	Contributing Orbitals (Contribution)	ΔE [eV]	λcalc (nm)	f
1 *	H → L (0.93)	3.41	363.5	0.626
2 **	H → L (0.67) H → L + 1 (0.30)	3.31	375.0	0.236
3	H → L (0.96)	3.26	380.2	0.806
4	H → L (0.96)	2.71	457.1	0.29

* Data taken from [21] ** Data taken from [22].

.

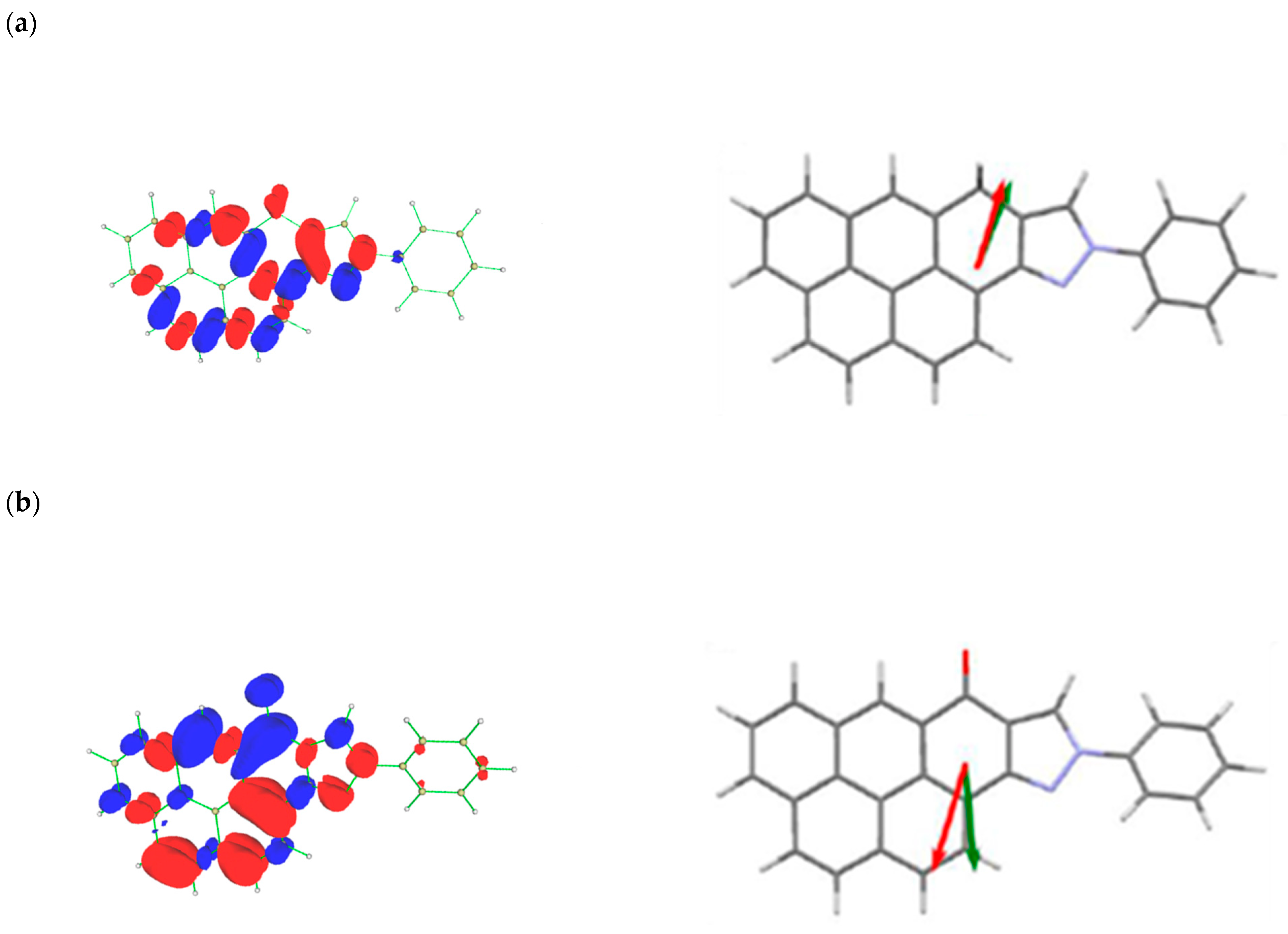

The first singlet electronic excited states of 1, 3 and 4 resulted from almost pure HOMO → LUMO (π→π*) transitions, while for 2, the theory predicts an admixture from HOMO → LUMO + 1 transition. These transitions are associated with charge reorganization within pyrene-pyrazole moieties. In the case of 3 and 4, they practically do not cause any change in molecular dipole moment (only minor changes in dipole orientation) (Figure 10). The values of the dipole moments calculated for compound 3 in chloroform are 3.09 D in the ground (S₀) state and 3.06 D in the excited (S₁) state, and the values for 4 are 2.70 D and 2.84 D, respectively.

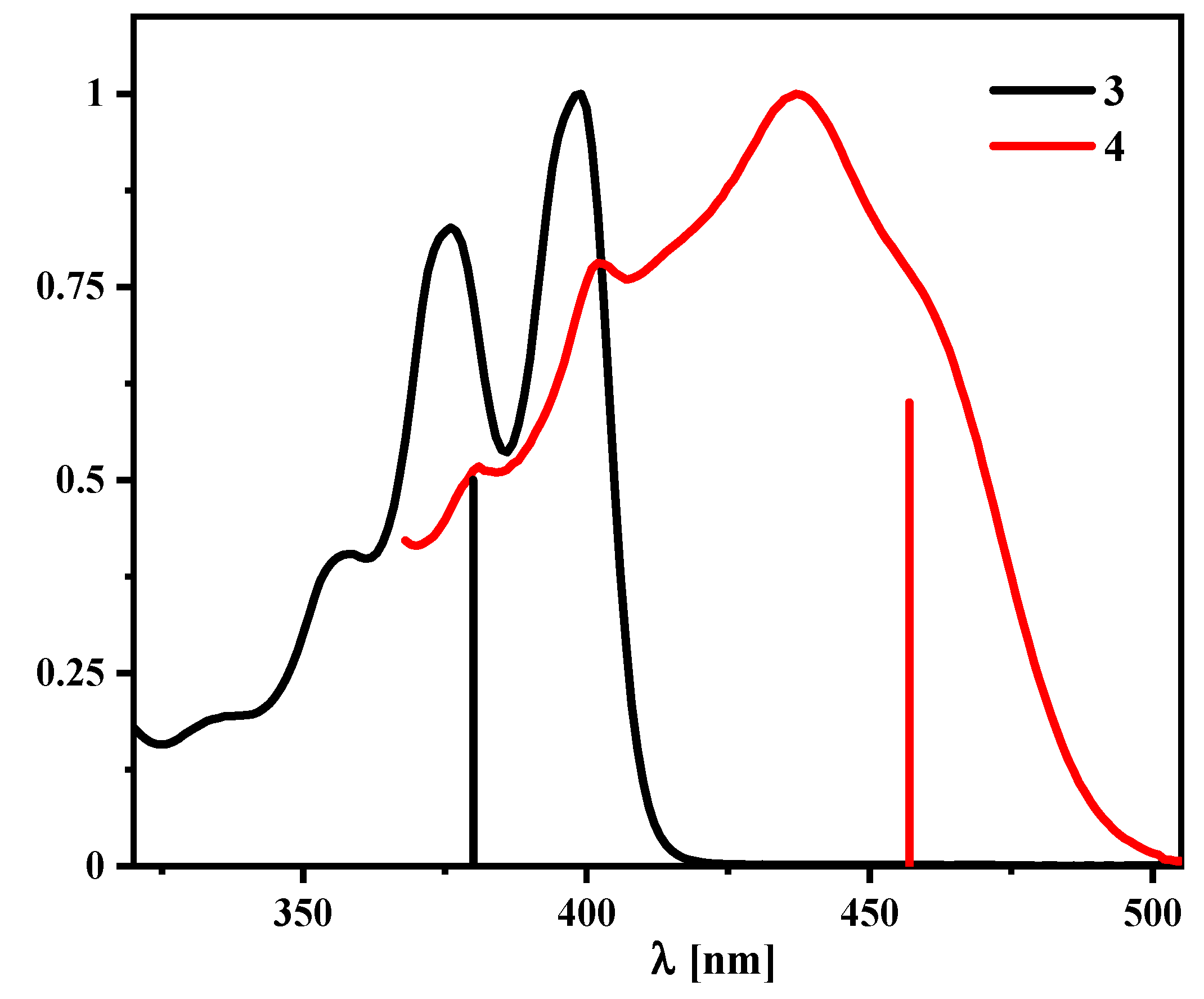

The calculations for 3 predicted an absorption spectrum with a maximum at 380 nm. The experimental spectrum of this compound contains vibronic bands at 357, 376 and 399 nm. The predicted maximum is close to the center of the mass of the experimental spectrum (Figure 11), although its vibrational structure could not be reproduced at this level of theory.

For compound 4, the theory predicts the lowest energy band with a maximum at 457 nm, whereas the experimental spectrum contains a broad band with poorly resolved vibronic structure, with a maximum at 432 nm and a shoulder at ~460 nm (Figure 11).

2.4. Acidity Sensing

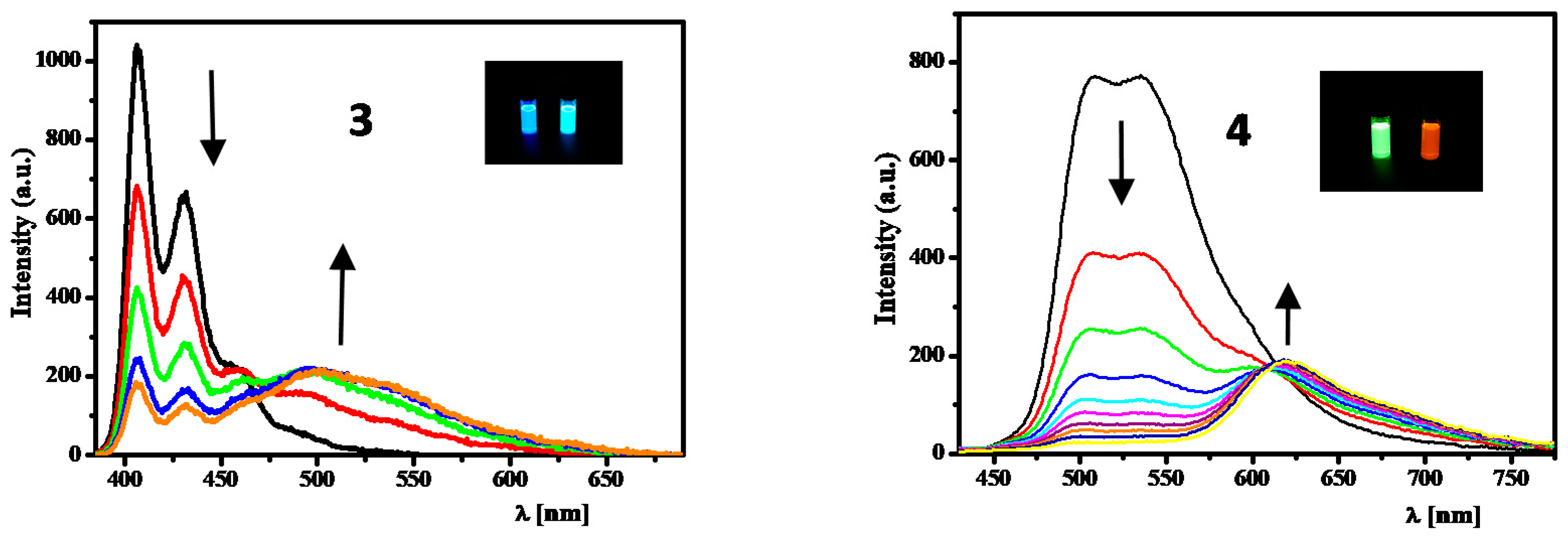

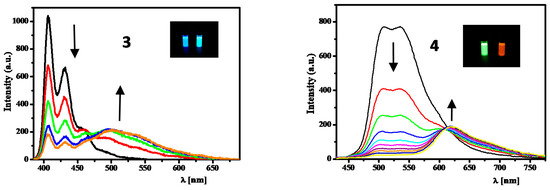

We expected that 3 and 4 would be endowed with weak basic properties by the 1-phenylpyrazole fragment (pKa 0.43–0.44 [30,31]); therefore, we investigated the photophysical properties of these compounds in acidic media. The effect of the addition of trifluoroacetic acid (TFA) on the emission spectra of 3 and 4 in dichloromethane is shown in Figure 12.

As can be seen, the addition of TFA led to the gradual disappearance of the bands of 3 and 4 while resulting in the appearance of broad, red-shifted bands, which can be assigned to their protonated forms.

The above findings indicate that compounds 3 and 4 can act as fluorescent sensors of strongly acidic fluorophore environments (during the titration, the acidity expressed by Ho changed in the range 2.1 ÷ 0.3 for 3 and 2.1 ÷ −0.4 for 4 [32]). It is worthy of note that only a few examples of these sensors have been reported so far [6,33].

3. Conclusions

We developed a simple method to synthesize a novel polycyclic N-heterocyclic fluorophore system, pyrazoolympicene, (7,9-dihydropyreno (10,1-fg) indazole), which exhibits intense fluorescence and may be used for sensing strongly acidic environments. We expect that the photophysical properties of this system can be tuned by various structural modifications of the reactive 1-phenylpyrazole fragment and the carbonyl group.

4. Materials and Methods

All reagents and solvents were purchased from Sigma-Aldrich and used without further purification. Compound 2 was prepared as described in [22]. Column chromatography was carried out on silica gel 60 (0.040–0.063 mm, 230–400 mesh, Fluka). ¹H and ¹³C NMR spectra were recorded at room temperature (291 K) in CDCl₃ on a Bruker ARX 600 MHz (600 MHz for ¹H and 151 MHz for ¹³C). Chemical shifts are in ppm and coupling constants in Hz. Fourier transform-infrared (FT-IR) spectroscopy data were obtained from Thermo Nicolet Nexus FT-IR. The spectra were recorded from an accumulation of 32 scans in the range of 4000~400 cm⁻¹. Mass spectra were recorded on Varian 500-MS LC Ion Trap. Elemental analyses were performed in the Microanalytical Laboratory of the Faculty of Chemistry, University of Lodz.

4.1. Synthesis of 3 and 4

Triflic acid (176 µL, 2 mmol) was added to a solution of 2 (372 mg, 1 mmol) in dichloromethane (10 mL). After stirring for 1 h, the reaction mixture was poured into water (100 mL) and extracted several times with dichloromethane. The combined extracts were dried over anhydrous Na₂SO₄ and evaporated to dryness. The products were separated by column chromatography on silica gel (dichloromethane as eluent).

9-phenyl-7,9-dihydropyreno(10,1-fg)indazole (3). Yellow powder (54–89 mg, 15–25%); mp = 347–348 °C; ¹H NMR (600 MHz, CDCl₃) δ 8.72 (d, J = 7.8 Hz, 1H), 8.21 (d, J = 7.8 Hz, 1H), 8.08 (d, J = 7.8 Hz, 1H), 8.04 (d, J = 7.8 Hz, 1H), 8.02 (q, J = 9.0 Hz, 2H), 7.95 (m, 2H), 7.86 (s, 1H), 7.84 (m, 2H), 7.50 (t, J = 7.8 Hz, 2H), 7.31 (t, J = 7.5 Hz, 1H), 4.66 (s, 2H); ¹³C{¹H} NMR (151 MHz, CDCl₃) δ 148.9, 140.4, 131.6, 131.5, 131.2, 131.1, 129.45, 127.7, 127.0, 126.7, 126.2, 126.17,126.15, 125.8, 125.1, 124.4, 124.1, 124.0, 123.9, 119.6, 118.9, 116.6, 26.5; MS (ESI): m/z: 357 (M)+, 379 (M + Na)+; Anal. calcd. for C₂₆H₁₆N₂: C, 87.62; H, 4.52; found: C, 87.48; H, 4.67.

9-phenylpyreno(10,1-fg)indazole-7(9H)-one (4). Orange powder (260–297 mg, 70–80%); mp = 336–337 °C; 1H NMR (600 MHz, CDCl3) δ 9.44 (s, 1H), 9.00 (d, J = 7.8 Hz, 1H), 8.80 (s, 1H) 8.54 (d, J = 7.8 Hz, 1H), 8.40 (d, J = 7.8 Hz, 1H), 8.37 (d, J = 7.8 Hz, 1H), 8.18 (q, J = 9.0 Hz, 2H), 8.14 (t, J = 7.5 Hz, 1H), 7.97 (m, 2H), 7.59 (m, 2H) 7.45 (t, J = 7.5 Hz, 1H); IR (KBr, cm⁻¹) 1659,5 (C=O); MS (ESI): m/z: 371 (M)+, 393 (M + Na)+; Anal. calcd. for C₂₆H₁₄N₂O: C, 84.31; H, 3.81; found: C, 84.22; H, 3.76.

All spectra are in Supplementary Materials.

4.2. UV/Vis Measurements

The electronic absorption spectra were obtained using a PerkinElmer Lambda 45 UV/VIS spectrometer, and the corrected emission spectra using a PerkinElmer LS-55 fluorescence spectrometer. The emission quantum yields were determined using a solution of quinine sulfate in 0.5 M sulfuric acid as a reference (ΦF = 0.546) [34].

4.3. X-ray Diffraction Measurment

The X-ray intensity data were measured on an Agilent Supernova 4 circle diffractometer system equipped with a copper (CuKα) microsource and an Atlas CCD detector. The data were collected and integrated with CrysAlis171 software (version 1.171.38.43d). The data were corrected for absorption effects using the multi-scan method CrysAlis171 software (version 1.171.38.43d).

The low temperature of the sample was maintained by keeping it in a cold nitrogen stream, using Oxford Cryosystems cooling devices.

The structure was solved by direct methods using SXELXS [35] and refined by full-matrix least squares procedure with SHELXL [35] within an OLEX2 [36] graphical interface. Figures were produced with Mercury_3.10 [37] software.

All H atoms were visible in the residual density map, but were added geometrically and refined mostly in riding approximation.

Detailed information about the data processing, structure solution and refinement are presented in Table S1.
