Mechanism and Selectivity of Electrochemical Reduction of CO2 on Metalloporphyrin Catalysts from DFT Studies

by
Zaheer Masood
and
Qingfeng Ge
*
School of Chemical and Biomolecular Sciences, Southern Illinois University, Carbondale, IL 62901, USA
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(1), 375; https://doi.org/10.3390/molecules28010375
Submission received: 1 December 2022 / Revised: 20 December 2022 / Accepted: 27 December 2022 / Published: 2 January 2023
(This article belongs to the Special Issue Recent Advance in Transition Metal Complexes and Their Applications)
Browse Figures
Versions Notes

Abstract

:
Electrochemical reduction of CO2 to value-added chemicals has been hindered by poor product selectivity and competition from hydrogen evolution reactions. This study aims to unravel the origin of the product selectivity and competitive hydrogen evolution reaction on [MP]0 catalysts (M = Fe, Co, Rh and Ir; P is porphyrin ligand) by analyzing the mechanism of CO2 reduction and H2 formation based on the results of density functional theory calculations. Reduction of CO2 to CO and HCOO− proceeds via the formation of carboxylate adduct ([MP-COOH]0 and ([MP-COOH]−) and metal-hydride [MP-H]−, respectively. Competing proton reduction to gaseous hydrogen shares the [MP-H]− intermediate. Our results show that the pKa of [MP-H]0 can be used as an indicator of the CO or HCOO−/H2 preference. Furthermore, an ergoneutral pH has been determined and used to determine the minimum pH at which selective CO2 reduction to HCOO− becomes favorable over the H2 production. These analyses allow us to understand the product selectivity of CO2 reduction on [FeP]0, [CoP]0, [RhP]0 and [IrP]0; [FeP]0 and [CoP]0 are selective for CO whereas [RhP]0 and [IrP]0 are selective for HCOO− while suppressing H2 formation. These descriptors should be applicable to other catalysts in an aqueous medium.

Graphical Abstract

1. Introduction

Carbon dioxide emissions from fossil fuel combustion have resulted in an accelerated increase in atmospheric CO2 levels, and consequently, serious climate impacts and ocean acidification [1,2]. Conversion of CO2 to value-added chemicals and fuels with sustainable and renewable energy sources helps to mitigate increasing CO2 levels in the atmosphere [3,4,5]. Among the options for CO2 conversion and utilization, electrochemical reduction driven by electricity generated from renewable energy sources such as sunlight and wind is a promising approach [6,7,8]. However, poor product selectivity and competing hydrogen evolution reactions (HER) due to proton reduction are among the major obstacles to the deployment of electrochemical reduction of CO2 [9,10,11].
Tuning of the active site of a molecular catalyst and optimization of the operating pH have been used to control selectivity while suppressing HER. The intrinsic activity of a molecular catalyst determines the reduction potential of the electron transfer steps, pKa of protonated intermediates, and the binding energy of the adsorbate. This activity can be tuned by changing the metal ion or modifying the ligands. Computational electrocatalysis can provide a mechanistic understanding of the reaction chemistry, predict the reduction potential of a particular catalyst, and determine the pKa value and adsorption strength of intermediates. This information will in turn help screening of the metal centers and ligands and guide the selection of experimental conditions, such as applied potential and pH.
Molecular complexes, as homogenous catalysts, can reduce CO2 to CO or HCOO− and proton to gaseous hydrogen (two electron-reduction products). CO can be fed to the Fischer–Tropsch process [12] for the synthesis of alkanes, whereas HCOO− can be protonated to formic acid and used as a commodity chemical or fuel in a direct formic acid fuel cell [13]. Electrocatalysts such as pincer complexes [14,15,16,17,18], cyclam complexes [19,20,21,22], porphyrins [23,24,25,26,27], phthalocyanines and iron carbonyl [28,29,30,31,32] as well as metal–organic frameworks (MOFs) [33,34] have been tested for CO2 reduction.
Electrochemical reduction of CO2 to CO/HCOO− and the competing H+ reduction to H2 on metal complexes (([ML]n), M = metal, L = ligand) starts from the one-electron reduction of [ML]n to form [ML](n−1) [35,36,37]. This is followed by either CO2 binding to [ML](n−1) to form [ML-COO](n−1), leading toward CO cycles, or proton binding to [ML](n−1) to form ([ML-H]n). This results in a HCOO−/H2 cycle. The subsequent one-electron and two-proton transfer to [ML-COO](n−1) lead to the formation of metal carbonyl [LM-CO]0. Desorption of CO from [LM-CO]0 completes the CO cycle. On the other hand, one-electron reduction of [ML-H](n−1) leads to metal hydride ([ML-H](n−1)), which then reacts with CO2 or H+ to form HCOO− or H2 [14,20,38,39,40]. The intrinsic property of the metal complex as well as the operating pH and applied potential determines which pathway the reaction will follow and what product will form from the electrochemical reduction of CO2.
Previous studies show that the strength of a Brönsted acid is very important in the selective reduction of CO2 to CO and suppression of proton reduction in nonaqueous solvents [41,42]. On the other hand, an aqueous medium is essential to keep the practical deployment of electrochemical CO2 reduction green, as the use of an organic solvent may have an unintended impact on the environment. However, the abundance of protons in an aqueous medium would cause proton reduction to compete with CO2 reduction, resulting in reduced faradaic efficiency for CO2 reduction.
On the Fe porphyrin catalyst, both H2 and CO can be produced in an aqueous solution, and their relative productivity depends on the pH and nature of the buffer [43]. On Co porphyrin, hydrogen was produced at pH < 3.0, whereas CO dominated at higher pH [44]. On Rh porphyrin, HCOO− is the main product at pH = 6.8, whereas a significant amount of hydrogen was formed at pH < 4 [27]. These studies show that both the metal center of the catalyst and pH play roles in determining product selectivity.
Herein, we mapped out the pathways of CO2 reduction to CO and HCOO−, along with the proton reduction to H2 on [MP]0 catalysts (M = Fe, Co, Rh, and Ir; P is the porphyrin ligand) based on the results of density functional theory (DFT) calculations. The results indicate that selective reduction of CO2 to CO or HCOO− while suppressing HER in an aqueous medium can be achieved by selecting the metal center in the porphyrin complexes and optimizing the operating pH. Furthermore, the ergoneutral pH can be used to determine the threshold pH above which hydrogen evolution becomes unfavorable.

2. Results

Electrochemical reduction of CO2 to CO and HCOO−, including the competing hydrogen evolution reaction, was studied using the reaction mechanism shown in Scheme 1. In Scheme 1, the catalytic cycle starts from the reduction of the catalyst ([MP]0) to the reduced form ([MP]−) at the corresponding reduction potential (E°) (Step 1) [35,36,37]. Next, the pathway branches into three possibilities: (i) a proton reacts with [MP]− to form a proton adduct ([MP-H]0) (Step 2), (ii) CO2 binds [MP]− to form a CO2 adduct ([MP-COO]−) (Step 3) and (iii) further reduction of [MP]− to [MP]2− (Step 4). Proton transfer to [MP]2− (Step 6) leads to the formation of metal hydride ([MP-H]−), whereas CO2 binding to [MP]2− leads to [MP-COO]2− (Step 9). [MP-H]− can also be formed by the reduction of [MP-H]0 (Step 5). Further, [MP-H]− can react with either CO2 to form HCOO− (Step 7) or H+ to produce hydrogen (Step 8). Completion of Steps 7 and 8 regenerates the catalyst in the form of [MP]0.
As shown in Scheme 1, [MP]− and [MP]2− are the common intermediates for both the CO and HCOO−/H2 cycles. The CO2 binding on the metal center of these complexes (Steps 3 and 9) starts the CO cycle. These may be followed by one-electron reduction ([MPCOO]− + e−, Step 10) and protonation ([MP-COO]2− + H+, Step 11), protonation ([MPCOO]− + H+, Step 12) and one-electron reduction ([MPCOOH]0 + e−, Step 13). These pathways converge at the formation of [MP-COOH]−. Protonation of [MPCOOH]− cleaves the C–O bond, resulting in [MP-CO]0 and H2O (Step 14). Desorption of CO from [MP-CO]0 regenerates the catalyst and completes the CO cycle (Step 15).
The first reduction potentials (step 1, E°, V) and second reduction potentials (Step 4, V) in Scheme 1 for [FeP]0, [CoP]0, [RhP]0, and [RhP]0 are presented in Table 1. Clearly, the first reduction potentials for [FeP]0 and [CoP]0 are below −1 V and significantly more negative than those of [RhP]0 and [IrP]0. Those negative potentials at −1.24 V and −1.28 V make [FeP]0 and [CoP]0 active for CO2 reduction. The calculated E° for [FeP]0/[FeP]− and [CoP]0/[CoP]− are in close agreement with the corresponding experimental values of −1.3 V [27] and −1.10 V [45], respectively. A DFT-calculated E° = −1.15 V for [CoP]0/[CoP]− has been reported [40]. Moreover, the second reduction potentials are more negative than the corresponding first reduction potentials, indicating that the formation of [MP]2− is less favorable and Step 4 is unlikely to happen under a typically applied potential of CO2 reduction (−1 V to −1.5 V) [46,47]. Consequently, [MP]2− is less likely to have a significant contribution to either the CO or HCOO−/H2 cycle.
The subsequent steps (Scheme 1) involve either protonation of [MP]− and [MP]2− (Step 2 and 6) or CO2 binding on [MP]− and [MP]2− (Step 3 and 9), branching the reaction to the HCOO−/H2 and CO cycles, respectively. As shown in Table 1, the second reduction potentials of [MP]− (Step 4) are more negative than the corresponding first reduction potentials, indicating that protonation of [MP]2− (Step 6) and CO2 binding on [MP]2− (Step 9) are unlikely to contribute to the overall reaction in either of the cycles. Consequently, Steps 2 and 3 will be the dominant pathways. If protonation of [MP]− is favorable, the reaction will proceed toward the HCOO−/H2 cycle via [MP-H]0 formations. Otherwise, CO2 will be activated upon binding on [MP]−, steering the reaction toward the CO cycle. Therefore, the reaction free energy of protonation of [MP]− to [MP-H]0 (Step 2) will dictate the selectivity between the CO and HCOO−/H2 cycles.
The proton transfer step (Step 2) is represented by Equation (1). The dependence of the reaction free energy, ΔG°rxn(PT), on the pH and pKa of [MP-H]0 can be derived with Equation (2). Equation (2) clearly shows that ΔG°rxn(PT) can be regulated by adjusting pH relative to the pKa of [MP-H]0. Consequently, the pKa of [MP-H]0 can be used as a descriptor for HCOO−/H2 selectivity. Since ΔG°rxn(PT) is positive for pH > pKa of [MP-H]0, proton binding to the metal center will not be spontaneous, making [MP]− available for CO2 binding. For pH < pKa of [MP-H]0, ΔG°rxn(PT) will become negative, indicating the spontaneity of protonation and initiation of the HCOO−/H2 cycle.
[MP]− + H+ → [MP-H]0: ΔG°rxn(PT)
ΔG°rxn(PT) = 2.303RT(pH − pKa[MP-H]0)

2.1. HCOO−/H2 Cycle

The calculated pKa values of [MP-H]0 and [MP-H]− for all catalysts are presented in Table 2. The pKa values of [FeP-H]0 and [CoP-H]0 are 2.45 and 6.29. At pHs lower than 2.45 and 6.29 for [FeP]0 and [CoP]0 catalysts, respectively, the formation of [FeP-H]0 and [CoP-H]0 becomes possible and leads to the HCOO−/H2 cycle. One-electron reduction of [FeP-H]0 and [CoP-H]0 forms [FeP-H]− and [CoP-H]− at reduction potentials of −0.74 V and −1.12 V, respectively. These reduction potentials are less negative than the corresponding E°, indicating the spontaneity of these steps. The calculated pKa values of [FeP-H]− and [CoP-H]− are 19.45 and 13.45, indicating that [FeP-H]− and [CoP-H]− are stable in the aqueous medium and will not deprotonate. Under the basic condition, hydride transfer from [MP-H]− to CO2 or H2O results in HCOO− or H2, respectively (Steps 7 and 8, Equations (3) and (4)) [14,39].
[MP-H]− + CO2 → [MP]0 + HCOO−: ΔG°rxn(HCOO−)
[MP-H]− + H2O → [MP]0 + OH− + H2: ΔG°rxn(H2)(H2O)
There is a constant difference of 34.88 kJ/mol between ΔG°rxn(HCOO−) and ΔG°rxn(H2)(H2O), ΔG°rxn(H2)(H2O) = ΔG°rxn(HCOO−) + 34.88 kJ/mol [20], as presented graphically in Figure 1. This result indicates that HCOO− formation is always more thermodynamically favorable than H2 formation. On [FeP-H]− and [CoP-H]−, ΔG°rxn(HCOO−) are −138.50 kJ/mol and −158.42 kJ/mol, respectively, whereas ΔG°rxn(H2)(H2O) are −103.62 kJ/mol and −123.52 kJ/mol, respectively. These values indicate that the reactions for both HCOO− and H2 formation are spontaneous. Indeed, hydrogen production on [FeP]0 and [CoP]0 has been observed at pH = 3 experimentally [27,44].
The calculated pKa values of [RhP-H]0 and [IrP-H]0 are 10.07 and 11.25 (Table 2), respectively, indicating that a pH below those values will make HCOO−/H2 thermodynamically favorable. The reduction potentials for [RhP-H]0 and [IrP-H]0 to [RhP-H]− and [IrP-H]− are −1.19 V and −1.26 V, respectively, and the pKa values of [RhP-H]− and [IrP-H]− are 17.53 and 23.75, respectively, indicating that the resulting [RhP-H]− and [IrP-H]− will not deprotonate. The calculated ΔG°rxn(HCOO−) for the [RhP]0, and [IrP]0 catalysts are −21.30 kJ/mol and −16.51 kJ/mol, respectively. The negative reaction free energies indicate that transferring a hydride from [MP-H]− to CO2 to form HCOO− is favorable on the [RhP]0 and [IrP]0 catalysts.
The calculated ΔG°rxn(H2)(H2O) are 13.58 kJ/mol and 18.37 kJ/mol for [RhP-H]− and [IrP-H]−, respectively. The positive ΔG°rxn(H2) for [RhP]0 and [IrP]0 catalysts indicate that hydrogen evolution is unfavorable. The negative values of ΔG°rxn(HCOO−) and positive values of ΔG°rxn(H2)(H2O) show that [RhP]0 and [IrP]0 are selective to HCOO− while suppressing HER, as shown in Figure 1.
The reaction free energy of [MP-H]− with a proton to produce H2 (Step 8, Scheme 1, Equation (5)) depends on the pH.
[MP-H]− + H+ → [MP]0 + H2: ΔGrxn(H2)
The pH at which ΔGrxn(H2) is zero is referred to as ergoneutral pH. A quantitative relationship between ΔG°rxn(HCOO−) and the ergoneutral pH has been derived:
pH(ergoneutral) = (41.84 kJ/mol − ΔG°rxn(HCOO−))/5.70 kJ/mol
Equation (6) determines the pH at which ΔGrxn(H2) becomes zero. At a pH less than the ergoneutral pH, hydrogen evolution prevails. Equation (6) was used to construct the product distribution diagram shown in Figure 2. The vertical line at pH = 3.75 separates the HCOOH and HCOO− zone and the horizontal line at ΔG°rxn(HCOO−) = 0 divides the zone of gaseous CO2 and HCOOH/HCOO−. The green diagonal line divides the zone between H2 and H+. The green region in Figure 2 corresponds to the selective reduction of CO2 to HCOO− where HER is suppressed. Similar schemes have been used to determine the optimum pKa value of the acids for non-aqueous solvents [48,49].
The calculated ergoneutral pHs for [FeP-H]−, [CoP-H]−, [RhP-H]− and [IrP-H]− from Equation (6) are 31.69, 35.19, 11.14 and 10.30, respectively. These values show that HCOO− and gaseous hydrogen will be produced on [FeP-H]− and [CoP-H]−, as the calculated ergoneutral pHs are 31.69 and 35.19, respectively (>>14). In contrast, the [RhP-H]− and [IrP-H]− catalysts will produce HCOO− selectively at a very basic pH. Proton reduction becomes possible at pH < 11.14 and 10.30 on [RhP-H]− and [IrP-H]−, respectively. The calculated ergoneutral pHs have been incorporated in Figure 2 for [RhP-H]− and [IrP-H]−. These predictions are consistent with the experimental observation that HER was dominant on [RhP]0 at pH < 6 [27]. In summary, these results show that [RhP]0 and [IrP]0 are selective to CO2 reduction to HCOO− in a basic pH and active for HER at an acidic pH. The ergoneutral pH values for [FeP-H]− and [CoP-H]− are outside the limits of Figure 2 and were not plotted.

2.2. CO Cycle

The pKa values of [MP-H]0 determine the lowest pH at which protonation of the metal center of the complexes is not spontaneous, freeing the metal center for CO2 binding. These values are 2.45, 6.28, 10.07 and 11.15 for [FeP-H]0, [CoP-H]0, [RhP-H]0 and [IrP-H]0, respectively. These pKa values indicate that the reaction can be steered to the CO cycle on [FeP]0 and [CoP]0 at pHs higher than 2.45 and 6.28, respectively. On the other hand, we will not examine the details of the CO cycle on [RhP]0 and [IrP]0 as the pHs of 10.07 and 11.15 are too high. Instead, we will focus our discussion of the CO cycle on the [FeP]0 and [CoP]0 catalysts.
The CO cycle is replotted in Figure 3, with the numbers in red corresponding to steps on [FeP]0. The cycle on [FeP]0 starts with the reduction of [FeP]0 to [FeP]− at −1.24 V. The formation of [FeP-COOH]− can happen through a number of electron transfer steps in different orders combined with CO2 binding and proton transfer. The reduction of [FeP]− requires a significantly more negative potential (−1.75 V) and is unlikely to play a role in CO formation. Starting from [FeP]−, the free energy of binding of CO2 on [FeP]− is 22.19 kJ/mol. The pKa value of [FeP-COOH]0 is 2.23, indicating that protonation of [FeP-COO]− becomes spontaneous only at a pH < 2.23. Further reduction of [FeP-COOH]0 to [FeP-COOH]− happens at a potential of −0.40 V. As we showed above, a low pH of 2.23 will make the HCOO−/H2 pathway competitive and, therefore, CO formation through this reduction less likely for CO formation. Generally, electrochemical CO2 reduction happens in a slightly acidic or neutral pH. At this pH, the pathway following [FeP]0 → [FeP]− → [FeP-COO]− + H+ → [FeP-COOH]0 + e− → [FeP-COOH]− is likely to be the favorable pathway. Further protonation of [FeP-COOH]− leads to [FeP-CO]0 and H2O (Step 14). This step is exergonic, with a reaction free energy of −85.76 kJ/mol. CO desorption from [FeP-CO]0 is also exergonic with a desorption free energy of −31.75 kJ/mol (Step 15). Therefore, CO2 reduction to CO can happen at −1.24 V in a slightly acidic or neutral pH on [FeP]0. This conclusion is consistent with the experimental results reported by Costentin et al. [37].
The CO cycle on [CoP]0 follows a similar sequence of steps. Since the reduction of [CoP]− requires a more negative potential (−1.55 V), CO2 activation will not likely proceed via [CoP]2− at an applied potential of E° (−1.28). Instead, the CO cycle will primarily occur through CO2 activation on [CoP]− (Step 3). The binding free energy of CO2 on [CoP]− to form [CoP-COO]− is 7.68 kJ/mol. The pKa of [CoP-COOH]0 is 2.66, indicating that protonation of [CoP-COO]− to form [CoP-COOH]0 requires a pH < 2.66. This pKa value is in close agreement with the value (3 ± 0.4) reported by Göttle and Koper [50]. Further reduction of [CoP-COOH]0 to [CoP-COOH]− occurs at a potential of −1.05 V. This alternate proton and electron transfer pathway requires a very low pH at which protonation of [CoPCOO]− becomes spontaneous. The alternative sequential electron–proton transfer pathway, i.e., [CoP-COO]− → [CoP-COO]2− → [CoP-COOH]−, requires a potential of −1.37 V (Step 10), which is more negative than the first reduction potential (Step 1, −1.28 V). At a neutral or slightly alkaline condition, the proton and electron transfer process, i.e., [CoP-COO]− → [CoP-COOH]0 → [CoP-COOH]−, although not spontaneous, would be the most favorable pathway. The reaction of [CoP-COOH]− with a proton to form [CoP-CO]0 and H2O (Step 14) is spontaneous with a reaction-free energy of −132.7 kJ/mol. Desorption of CO is also spontaneous (Step 15). These results indicate that CO formation from electrochemical CO2 reduction at an applied potential of −1.28 V occurs via a series of electron and proton transfer steps at neutral pH or slightly alkaline conditions.

3. Discussion

The initial competitive binding of proton and CO2 to [MP]− determines the pathway that the reaction will follow. Protonation will lead to the HCOO−/H2 cycle. A more nucleophilic metal center tends to bind a small proton more preferably than CO2, making the reaction follow the HCOO−/H2 cycle. On the other hand, a less nucleophilic metal center will bind CO2 and steer the reaction toward the CO cycle. The charge distribution and electrostatic potential on the metal center in the complex provide an understanding of the preference for either proton or CO2 binding [51]. The results of Bader charge analysis for [MP]0 and [MP]− in Table 3 show that the electron density is significantly delocalized on the porphyrin ligand in [FeP]− and [CoP]− following the one-electron reduction. In contrast, the electron density is shared between the metal center and ligands in [RhP]− and [IrP]− following one-electron reduction from [RhP]0 and [IrP]0, with the electron density on the metal center being slightly larger. The increased electron density at the metal center (Rh and Ir) increases their nucleophilicity, making them more attractive to protons and favorable for [MP-H]0 formations. The low electron density at the metal center of [FeP]− and [CoP]− following the reduction does not enhance their reactivity toward protons, leaving them open to CO2 adsorption and its subsequent reduction to CO.
The electrostatic potentials of [MP]− in Figure S1 (Supplementary Materials) show that the negative electrostatic potential is centered on Rh and Ir in [RhP]− and [IrP]−, making these metal centers prone to proton binding. In contrast, the negative electrostatic potential is delocalized among the metal centers and the porphyrin ligands in [FeP]− and [CoP]−, reducing their affinity toward protons.
In order to understand the contribution of the frontier orbitals to the reactivity, we plotted the highest occupied molecular orbitals of [MP]0 and [MP]− in Figure 4. The HOMOs of [FeP]− and [CoP]− show that there is a significant overlap between the pz orbitals of the two nitrogen atoms of the porphyrin and dxz orbitals of the metal center. The overlap between dxz and pz orbitals was facilitated by the two short (N–M) bonds (~1.980 Å) in [FeP]− and [CoP]−. The other two (N–M) bonds are longer, with bond lengths of 2.032 Å and 2.018 Å in [FeP]− and [CoP]−, respectively. There is a lack of such overlap in the HOMOs of [RhP]− and [IrP]−. The longer N–M bonds (2.041 Å) prevented significant overlap in [RhP]− and [IrP]−. The orbital overlap between the metal center and its ligands provides a channel for the electrons to be shared and will affect the redox activity of the transition metal–porphyrin complex. Lack of such orbital overlap will hinder the electron channeling between the metal center and ligands and results in the increased nucleophilicity of the metal centers, steering the reaction towards the HCOO−/H2 cycle.
The first reduction potentials of the metal complex also offer some insights into the preference for proton/CO2 binding. The first reduction potentials of [CoP]0 and [FeP]0 are −1.24 V and −1.28 V, respectively, whereas those of [RhP]0 and [IrP]0 are only −0.02 V and −0.26 V, respectively. It has been shown that CO2 binding is favored at a potential more negative than −1 V [35,52]. The more negative reduction potentials for [CoP]0 and [FeP]0 can be attributed to the more effective charge delocalization between the metal center and ligands. Further reduction of the activated CO2 is driven by the applied potential for the electron transfer steps. In contrast, the proton transfer steps are influenced by the chemical potential of the protons.
In summary, the electronic structure analyses shed additional light on the mechanism of electrochemical reduction of CO2 on transition metal–porphyrin complexes: CO2 reduction to CO can happen on [FeP]0 and [CoP]0, whereas HCOO− is the main product on [RhP]0 and [IrP]0, consistent with experimental observation [27,43,44]. Also consistent with the prediction from this study, hydrogen formation on [FeP]0 in a strongly acidic aqueous medium has been reported [27,53]. We note that other factors could affect the stability of reaction intermediates and the chemical potentials of the reactive species, thereby changing the selectivity of the overall reaction. For example, Costentine et al. reported that H2 production and CO2 reduction in a formic acid buffer on [FeP]0 is roughly 50:50 [43]. Costentine et al. also showed that 90% faradaic efficiency for CO can be achieved by maintaining pH = 6.7 via NaOH addition. Based on Equation (2), ΔG°rxn(PT) becomes 24.23 kJ/mol at pH 6.7, preventing [FeP-H]0 formation while allowing CO2 to bind and react with [FeP]− and facilitating CO formation. Although the present study focuses on the thermodynamic aspect of the electrochemical reduction of CO2, we note that kinetics plays an important role in determining operating potential and product selectivity [54,55].

4. Computational Details

DFT calculations with B3LYP hybrid functional [56] and Grimme’s D3 dispersion corrections [57] have been performed using Gaussian 16 [58]. The Stuttgart–Dresden effective core potentials [59] were adopted for transition metals, and a 6-31g(d,p) basis set was used for the main group elements. The choice of the basis set has been extensively tested against 6-311++G(d,p) in our previous study [20]. Our results showed that the computed reduction potentials using 6-311++G(d,p) and 6-31G(d,p) basis sets differed by less than 50 mV. The same level of theory was used for geometry optimization and frequency analysis. Optimized geometries were confirmed by the absence of any imaginary frequency. The SMD implicit solvation model for water was used [60]. The stability of wavefunctions for all species was also checked. Wavefunction optimization has been performed to include possible unrestricted open-shell diradicals. In this case, single-point energy of a specific spin state, including singlet (doublet), triplet (quartet), quintet (sextet), and septet (octet) was calculated first. These states were then compared, and the lowest-energy spin state was selected for wavefunction optimization. The optimized wavefunctions were used for subsequent geometry optimization and frequency calculations. This strategy allowed us to include possible open-shell radicals’ structures. The spin multiplicities of the complexes and intermediates are presented in Table S1 in the Supplementary Materials.
The methods of determining the reduction potential of the electron transfer steps and pKa value of the carboxylate adducts ([MP-COOH]0 and ([MP-COOH]−) have been presented in our previous study [20]. The reduction potentials were reported by referencing the standard hydrogen electrode (SHE). The pKa value of [MP-H]0 was calculated using the reaction free energy for [MP-H]0 → [MP]− + H+. The chemical potential of H+, G°solv(H+) = −1125.96 kJ/mol was determined using the solvated proton with six water molecules. The Multiwfn program [61] was used to perform Bader’s atom-in-molecule (AIM) charge [62] analysis.

5. Conclusions

A mechanistic analysis of CO2 reduction and H2 formation on transition metal–porphyrin complex catalysts has been performed based on the results of density functional theory calculations. Reduction of CO2 to CO and HCOO− proceeds via the formation of carboxylate adduct ([MP-COOH]0 and ([MP-COOH]−) and metal-hydride [MP-H]−, respectively. The pKa of [MP-H]0 determined the pH or buffer acid condition for selectively producing CO or HCOO−/H2. Furthermore, an ergoneutral pH determined from ΔG°rxn(HCOO−) defines the lowest pH above which HER will be suppressed. Based on the pKa of [MP-H]0, [FeP]0 and [CoP]0 are selective to CO whereas [RhP]0 and [IrP]0 can be selective to HCOO−. The calculated ergoneutral pH indicates that competing HER can be suppressed on [RhP]0 and [IrP]0. These findings are in agreement with experimentally observed product selectivities. Furthermore, our study helps to rationalize the experimental observations and provides guidelines to design selective catalysts and choose optimal experimental parameters for CO2 reduction.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules28010375/s1, Figure S1. Electrostatic potential of (a) [FeP]−, (b) [CoP]−, (c) [RhP]− and (d) [IrP]−. (Isovalue for the surfaces: molecular orbitals 0.02 and density 0.004). Table S1. Spin multiplicities of the intermediates.

Author Contributions

Conceptualization, Z.M. and Q.G.; methodology, Z.M.; investigation and formal analysis, Z.M. and Q.G.; writing—original draft preparation, Z.M.; writing—review and editing, Q.G.; supervision, Q.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable to this study.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

References

  1. Rogelj, J.; Den Elzen, M.; Höhne, N.; Fransen, T.; Fekete, H.; Winkler, H.; Schaeffer, R.; Sha, F.; Riahi, K.; Meinshausen, M. Paris Agreement climate proposals need a boost to keep warming well below 2 C. Nature 2016, 534, 631–639. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Scarpa, D.; Sarno, M. Single-Atom Catalysts for the Electro-Reduction of CO2 to Syngas with a Tunable CO/H2 Ratio: A Review. Catalysts 2022, 12, 275. [Google Scholar] [CrossRef]
  3. Lin, J.; Yan, S.; Zhang, C.; Hu, Q.; Cheng, Z. Electroreduction of CO2 toward High Current Density. Processes 2022, 10, 826. [Google Scholar] [CrossRef]
  4. Domingo-Tafalla, B.; Martínez-Ferrero, E.; Franco, F.; Palomares-Gil, E. Applications of Carbon Dots for the Photocatalytic and Electrocatalytic Reduction of CO2. Molecules 2022, 27, 1081. [Google Scholar] [CrossRef] [PubMed]
  5. Mohammed, S.A.S.; Yahya, W.Z.N.; Bustam, M.A.; Kibria, M.G. Elucidation of the Roles of Ionic Liquid in CO2 Electrochemical Reduction to Value-Added Chemicals and Fuels. Molecules 2021, 26, 6962. [Google Scholar] [CrossRef]
  6. Kauffman, D.R.; Thakkar, J.; Siva, R.; Matranga, C.; Ohodnicki, P.R.; Zeng, C.; Jin, R. Efficient Electrochemical CO2 Conversion Powered by Renewable Energy. ACS Appl. Mater. Interfaces 2015, 7, 15626–15632. [Google Scholar] [CrossRef]
  7. Muis, Z.A.; Hashim, H.; Manan, Z.; Taha, F.; Douglas, P. Optimal planning of renewable energy-integrated electricity generation schemes with CO2 reduction target. Renew. Energy 2010, 35, 2562–2570. [Google Scholar] [CrossRef] [Green Version]
  8. Qiao, J.; Liu, Y.; Hong, F.; Zhang, J. A review of catalysts for the electroreduction of carbon dioxide to produce low-carbon fuels. Chem. Soc. Rev. 2014, 43, 631–675. [Google Scholar] [CrossRef]
  9. Aresta, M.; Dibenedetto, A.; Angelini, A. Catalysis for the valorization of exhaust carbon: From CO2 to chemicals, materials, and fuels. Technological use of CO2. Chem. Rev. 2014, 114, 1709–1742. [Google Scholar] [CrossRef]
  10. Ma, S.; Kenis, P.J. Electrochemical conversion of CO2 to useful chemicals: Current status, remaining challenges, and future opportunities. Curr. Opin. Chem. Eng. 2013, 2, 191–199. [Google Scholar]
  11. Wu, J.; Zhou, X.-D. Catalytic conversion of CO2 to value added fuels: Current status, challenges, and future directions. Chin. J. Catal. 2016, 37, 999–1015. [Google Scholar] [CrossRef]
  12. Dai, H.; Zhao, H.; Chen, S.; Jiang, B. A Microwave-Assisted Boudouard Reaction: A Highly Effective Reduction of the Greenhouse Gas CO2 to Useful CO Feedstock with Semi-Coke. Molecules 2021, 26, 1507. [Google Scholar] [CrossRef] [PubMed]
  13. Bulushev, D.A.; Ross, J.R. Towards sustainable production of formic acid. ChemSusChem 2018, 11, 821–836. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Barlow, J.M.; Yang, J.Y. Thermodynamic Considerations for Optimizing Selective CO2 Reduction by Molecular Catalysts. ACS Cent. Sci. 2019, 5, 580–588. [Google Scholar] [CrossRef] [Green Version]
  15. Shaffer, D.W.; Johnson, S.I.; Rheingold, A.L.; Ziller, J.W.; Goddard, W.A.; Nielsen, R.J.; Yang, J.Y. Reactivity of a Series of Isostructural Cobalt Pincer Complexes with CO2, CO, and H+. Inorg. Chem. 2014, 53, 13031–13041. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Kang, P.; Cheng, C.; Chen, Z.; Schauer, C.K.; Meyer, T.J.; Brookhart, M. Selective electrocatalytic reduction of CO2 to formate by water-stable iridium dihydride pincer complexes. J. Am. Chem. Soc. 2012, 134, 5500–5503. [Google Scholar] [CrossRef] [PubMed]
  17. Gafurov, Z.N.; Kantyukov, A.O.; Kagilev, A.A.; Kagileva, A.A.; Sakhapov, I.y.F.; Mikhailov, I.K.; Yakhvarov, D.G. Recent Advances in Chemistry of Unsymmetrical Phosphorus-Based Pincer Nickel Complexes: From Design to Catalytic Applications. Molecules 2021, 26, 4063. [Google Scholar] [CrossRef] [PubMed]
  18. Petersen, H.A.; Myren, T.H.T.; Luca, O.R. Redox-Active Manganese Pincers for Electrocatalytic CO2 Reduction. Inorganics 2020, 8, 62. [Google Scholar] [CrossRef]
  19. Beley, M.; Collin, J.-P.; Ruppert, R.; Sauvage, J.-P. Nickel(II)-cyclam: An extremely selective electrocatalyst for reduction of CO2 in water. J. Chem. Soc. Chem. Commun. 1984, 1315–1316. [Google Scholar] [CrossRef]
  20. Masood, Z.; Ge, Q. Electrochemical reduction of CO2 to CO and HCOO− using metal–cyclam complex catalysts: Predicting selectivity and limiting potential from DFT. Dalton Trans. 2021, 50, 11446–11457. [Google Scholar] [CrossRef]
  21. Behnke, S.L.; Manesis, A.C.; Shafaat, H.S. Spectroelectrochemical investigations of nickel cyclam indicate different reaction mechanisms for electrocatalytic CO2 and H+ reduction. Dalton Trans. 2018, 47, 15206–15216. [Google Scholar] [CrossRef] [PubMed]
  22. Froehlich, J.D.; Kubiak, C.P. Homogeneous CO2 reduction by Ni (cyclam) at a glassy carbon electrode. Inorg. Chem. 2012, 51, 3932–3934. [Google Scholar] [CrossRef] [PubMed]
  23. Ikeyama, S.; Amao, Y. The effect of the functional ionic group of the viologen derivative on visible-light driven CO2 reduction to formic acid with the system consisting of water-soluble zinc porphyrin and formate dehydrogenase. Photochem. Photobiol. Sci. 2018, 17, 60–68. [Google Scholar] [CrossRef] [PubMed]
  24. Yadav, R.K.; Baeg, J.-O.; Oh, G.H.; Park, N.-J.; Kong, K.-j.; Kim, J.; Hwang, D.W.; Biswas, S.K. A photocatalyst–enzyme coupled artificial photosynthesis system for solar energy in production of formic acid from CO2. J. Am. Chem. Soc. 2012, 134, 11455–11461. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, Z.; Zhou, W.; Wang, X.; Zhang, X.; Chen, H.; Hu, H.; Liu, L.; Ye, J.; Wang, D. Enhanced Photocatalytic CO2 Reduction over TiO2 Using Metalloporphyrin as the Cocatalyst. Catalysts 2020, 10, 654. [Google Scholar] [CrossRef]
  26. Mele, G.; Annese, C.; D’Accolti, L.; De Riccardis, A.; Fusco, C.; Palmisano, L.; Scarlino, A.; Vasapollo, G. Photoreduction of Carbon Dioxide to Formic Acid in Aqueous Suspension: A Comparison between Phthalocyanine/TiO2 and Porphyrin/TiO2 Catalysed Processes. Molecules 2015, 20, 396–415. [Google Scholar] [CrossRef] [Green Version]
  27. Birdja, Y.Y.; Shen, J.; Koper, M.T. Influence of the metal center of metalloprotoporphyrins on the electrocatalytic CO2 reduction to formic acid. Catal. Today 2017, 288, 37–47. [Google Scholar] [CrossRef]
  28. Taheri, A.; Thompson, E.J.; Fettinger, J.C.; Berben, L.A. An Iron Electrocatalyst for Selective Reduction of CO2 to Formate in Water: Including Thermochemical Insights. ACS Catal. 2015, 5, 7140–7151. [Google Scholar] [CrossRef]
  29. Taheri, A.; Berben, L.A. Tailoring electrocatalysts for selective CO2 or H+ reduction: Iron carbonyl clusters as a case study. Inorg. Chem. 2015, 55, 378–385. [Google Scholar] [CrossRef]
  30. Loewen, N.D.; Neelakantan, T.V.; Berben, L.A. Renewable formate from C–H bond formation with CO2: Using iron carbonyl clusters as electrocatalysts. Acc. Chem. Res. 2017, 50, 2362–2370. [Google Scholar] [CrossRef]
  31. Liu, J.-H.; Yang, L.-M.; Ganz, E. Efficient and Selective Electroreduction of CO2 by Single-Atom Catalyst Two-Dimensional TM–Pc Monolayers. ACS Sustain. Chem. Eng. 2018, 6, 15494–15502. [Google Scholar] [CrossRef]
  32. Furuya, N.; Matsui, K. Electroreduction of carbon dioxide on gas-diffusion electrodes modified by metal phthalocyanines. J. Electroanal. Chem. Interf. Electrochem. 1989, 271, 181–191. [Google Scholar] [CrossRef]
  33. Chacón, P.; Hernández-Lima, J.G.; Bazán-Jiménez, A.; García-Revilla, M.A. Modeling Adsorption and Optical Properties for the Design of CO2 Photocatalytic Metal-Organic Frameworks. Molecules 2021, 26, 3060. [Google Scholar] [CrossRef] [PubMed]
  34. Al-Omari, A.A.; Yamani, Z.H.; Nguyen, H.L. Electrocatalytic CO2 Reduction: From Homogeneous Catalysts to Heterogeneous-Based Reticular Chemistry. Molecules 2018, 23, 2835. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Costentin, C.; Savéant, J.-M. Towards an intelligent design of molecular electrocatalysts. Nat. Rev. Chem. 2017, 1, 0087. [Google Scholar] [CrossRef]
  36. Costentin, C.; Savéant, J.-M. Homogeneous Molecular Catalysis of Electrochemical Reactions: Manipulating Intrinsic and Operational Factors for Catalyst Improvement. J. Am. Chem. Soc. 2018, 140, 16669–16675. [Google Scholar] [CrossRef]
  37. Costentin, C.; Savéant, J.-M. Homogeneous molecular catalysis of electrochemical reactions: Catalyst benchmarking and optimization strategies. J. Am. Chem. Soc. 2017, 139, 8245–8250. [Google Scholar] [CrossRef]
  38. Song, J.; Klein, E.L.; Neese, F.; Ye, S. The mechanism of homogeneous CO2 reduction by Ni (cyclam): Product selectivity, concerted proton–electron transfer and C–O bond cleavage. Inorg. Chem. 2014, 53, 7500–7507. [Google Scholar] [CrossRef]
  39. Ceballos, B.M.; Yang, J.Y. Directing the reactivity of metal hydrides for selective CO2 reduction. Proc. Natl. Acad. Sci. USA 2018, 115, 12686–12691. [Google Scholar] [CrossRef] [Green Version]
  40. Yao, C.L.; Li, J.C.; Gao, W.; Jiang, Q. Cobalt-porphine catalyzed CO2 electro-reduction: A novel protonation mechanism. Phys. Chem. Chem. Phys. 2017, 19, 15067–15072. [Google Scholar] [CrossRef]
  41. Friães, S.; Realista, S.; Gomes, C.S.B.; Martinho, P.N.; Royo, B. Click-Derived Triazoles and Triazolylidenes of Manganese for Electrocatalytic Reduction of CO2. Molecules 2021, 26, 6325. [Google Scholar] [CrossRef]
  42. Li, J.; Zhang, S.; Wang, J.; Yin, X.; Han, Z.; Chen, G.; Zhang, D.; Wang, M. Electrocatalytic CO2 Reduction and H2 Evolution by a Copper (II) Complex with Redox-Active Ligand. Molecules 2022, 27, 1399. [Google Scholar] [CrossRef]
  43. Costentin, C.; Robert, M.; Savéant, J.-M.; Tatin, A. Efficient and selective molecular catalyst for the CO2-to-CO electrochemical conversion in water. Proc. Natl. Acad. Sci. USA 2015, 112, 6882–6886. [Google Scholar] [CrossRef] [Green Version]
  44. Shen, J.; Kortlever, R.; Kas, R.; Birdja, Y.Y.; Diaz-Morales, O.; Kwon, Y.; Ledezma-Yanez, I.; Schouten, K.J.P.; Mul, G.; Koper, M.T. Electrocatalytic reduction of carbon dioxide to carbon monoxide and methane at an immobilized cobalt protoporphyrin. Nat. Commun. 2015, 6, 8177. [Google Scholar] [CrossRef] [Green Version]
  45. de Groot, M.T.; Koper, M.T.M. Redox transitions of chromium, manganese, iron, cobalt and nickel protoporphyrins in aqueous solution. Phys. Chem. Chem. Phys. 2008, 10, 1023–1031. [Google Scholar] [CrossRef]
  46. Mohamed, E.A.; Zahran, Z.N.; Naruta, Y. Efficient electrocatalytic CO2 reduction with a molecular cofacial iron porphyrin dimer. Chem. Commun. 2015, 51, 16900–16903. [Google Scholar] [CrossRef]
  47. Ait Ahsaine, H.; Zbair, M.; BaQais, A.; Arab, M. CO2 Electroreduction over Metallic Oxide, Carbon-Based, and Molecular Catalysts: A Mini-Review of the Current Advances. Catalysts 2022, 12, 450. [Google Scholar] [CrossRef]
  48. Connelly, S.J.; Wiedner, E.S.; Appel, A.M. Predicting the reactivity of hydride donors in water: Thermodynamic constants for hydrogen. Dalton Trans. 2015, 44, 5933–5938. [Google Scholar] [CrossRef]
  49. Tsay, C.; Livesay, B.N.; Ruelas, S.; Yang, J.Y. Solvation Effects on Transition Metal Hydricity. J. Am. Chem. Soc. 2015, 137, 14114–14121. [Google Scholar] [CrossRef]
  50. Göttle, A.J.; Koper, M.T. Proton-coupled electron transfer in the electrocatalysis of CO2 reduction: Prediction of sequential vs. concerted pathways using DFT. Chem. Sci 2017, 8, 458–465. [Google Scholar] [CrossRef] [Green Version]
  51. Wu, H.; Miao, T.; Deng, Q.; Xu, Y.; Shi, H.; Huang, Y.; Fu, X. Accelerating Nickel-Based Molecular Construction via DFT Guidance for Advanced Photocatalytic Hydrogen Production. ACS Appl. Mater. Interfaces 2022, 14, 17486–17499. [Google Scholar] [CrossRef]
  52. Ma, Y.; Du, J.; Fang, Y.; Wang, X. Encapsulation of cobalt oxide into metal-organic frameworks for an improved photocatalytic CO2 reduction. ChemSusChem 2021, 14, 946–951. [Google Scholar] [CrossRef]
  53. Bhugun, I.; Lexa, D.; Savéant, J.-M. Homogeneous Catalysis of Electrochemical Hydrogen Evolution by Iron(0) Porphyrins. J. Am. Chem. Soc. 1996, 118, 3982–3983. [Google Scholar] [CrossRef]
  54. Ceballos, B.M.; Yang, J.Y. Highly Selective Electrocatalytic CO2 Reduction by [Pt(dmpe)2]2+ through Kinetic and Thermodynamic Control. Organometallics 2020, 39, 1491–1496. [Google Scholar] [CrossRef]
  55. Riplinger, C.; Sampson, M.D.; Ritzmann, A.M.; Kubiak, C.P.; Carter, E.A. Mechanistic Contrasts between Manganese and Rhenium Bipyridine Electrocatalysts for the Reduction of Carbon Dioxide. J. Am. Chem. Soc. 2014, 136, 16285–16298. [Google Scholar] [CrossRef]
  56. Stephens, P.J.; Devlin, F.; Chabalowski, C.; Frisch, M.J. Ab initio calculation of vibrational absorption and circular dichroism spectra using density functional force fields. J. Phys. Chem. 1994, 98, 11623–11627. [Google Scholar] [CrossRef]
  57. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104–154123. [Google Scholar] [CrossRef] [Green Version]
  58. Frisch, M.; Trucks, G.; Schlegel, H.; Scuseria, G.; Robb, M.; Cheeseman, J.; Scalmani, G.; Barone, V.; Petersson, G.; Nakatsuji, H.; et al. Gaussian 16 Revision B. 01, 2016; Gaussian Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  59. Dolg, M.; Wedig, U.; Stoll, H.; Preuss, H. Energy-adjusted ab initio pseudopotentials for the first-row transition elements. J. Chem. Phys. 1987, 86, 866–872. [Google Scholar] [CrossRef]
  60. Marenich, A.V.; Cramer, C.J.; Truhlar, D.G. Universal solvation model based on solute electron density and on a continuum model of the solvent defined by the bulk dielectric constant and atomic surface tensions. J. Phys. Chem. B 2009, 113, 6378–6396. [Google Scholar] [CrossRef]
  61. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  62. Bader, R.F.W. Atoms in Molecules—A Quantum Theory; Clarendon Press: Oxford, UK, 1994; ISBN 9780198558651. [Google Scholar]
Molecules 28 00375 sch001 550

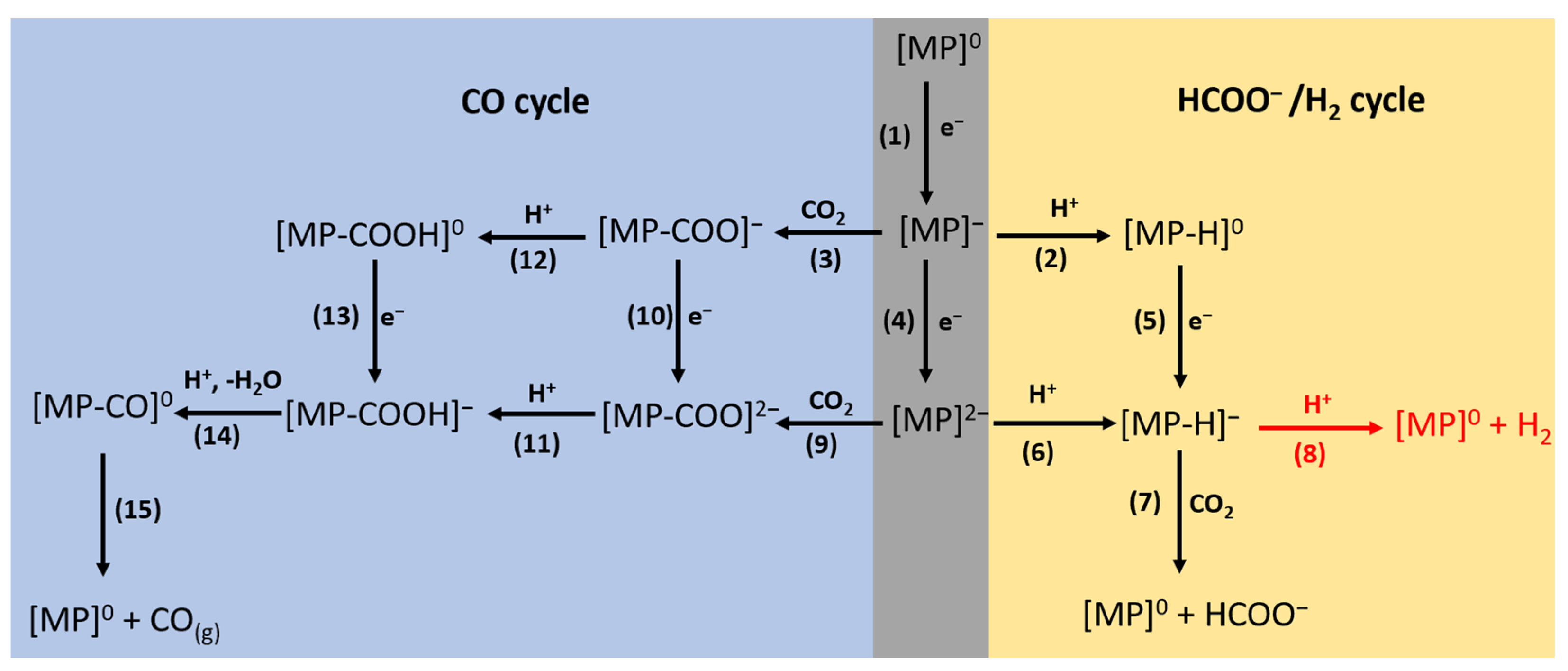

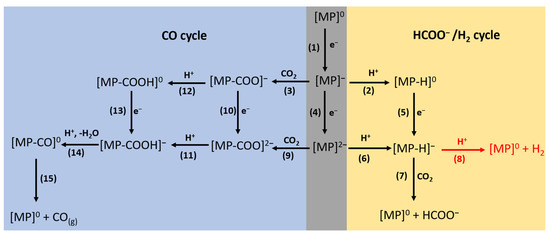

Scheme 1. Schematic reaction steps of the electrocatalytic reduction of CO2 to CO (blue background) and HCOO− (yellow background). The yellow regions also contain proton reduction to hydrogen (red part). The grey region shows common intermediates shared by both cycles. M = Fe, Co, Rh and Ir; P = porphyrin ligand.
Scheme 1. Schematic reaction steps of the electrocatalytic reduction of CO2 to CO (blue background) and HCOO− (yellow background). The yellow regions also contain proton reduction to hydrogen (red part). The grey region shows common intermediates shared by both cycles. M = Fe, Co, Rh and Ir; P = porphyrin ligand.
Molecules 28 00375 sch001
Molecules 28 00375 g001 550

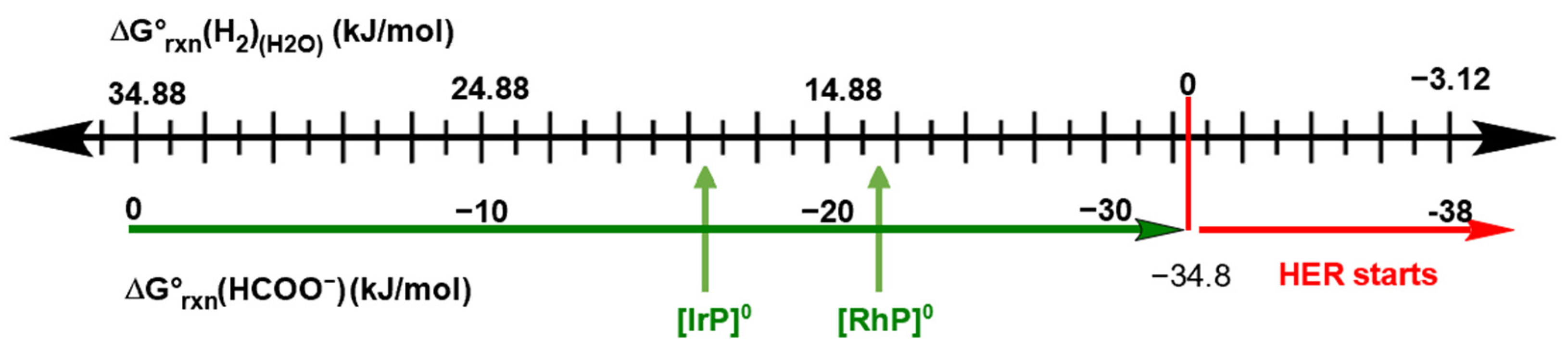

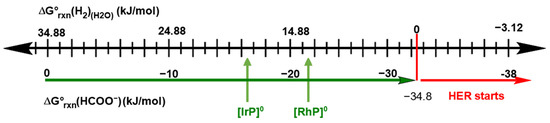

Figure 1. Graphical representation of the relationship of ΔG°rxn(HCOO−) and ΔG°rxn(H2)(H2O).
Figure 1. Graphical representation of the relationship of ΔG°rxn(HCOO−) and ΔG°rxn(H2)(H2O).
Molecules 28 00375 g001
Molecules 28 00375 g002 550

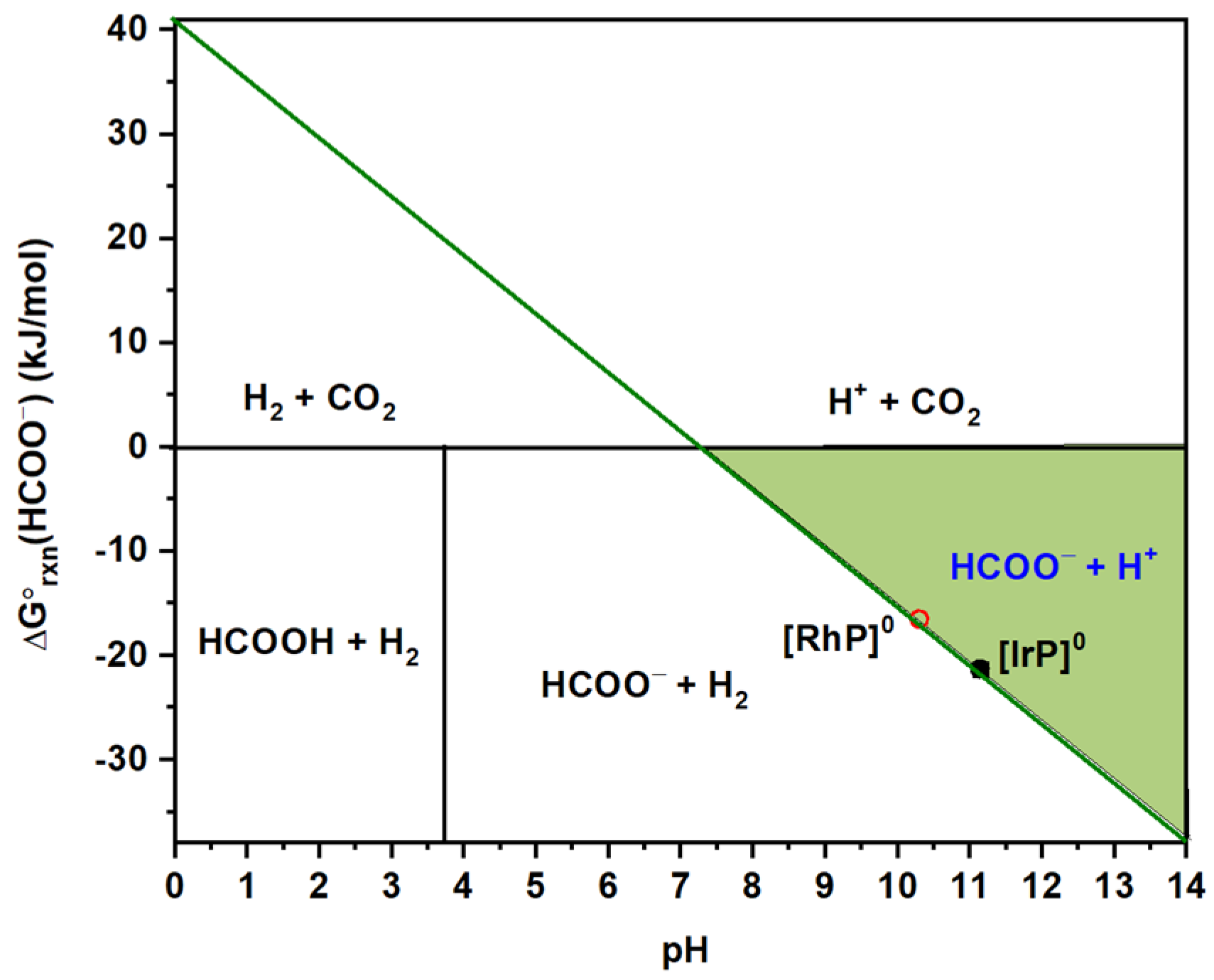

Figure 2. A trend of ΔG°rxn(HCOO−) and ergoneutral pH shows the distribution of CO2 and H+ reduction products.
Figure 2. A trend of ΔG°rxn(HCOO−) and ergoneutral pH shows the distribution of CO2 and H+ reduction products.
Molecules 28 00375 g002
Molecules 28 00375 g003 550

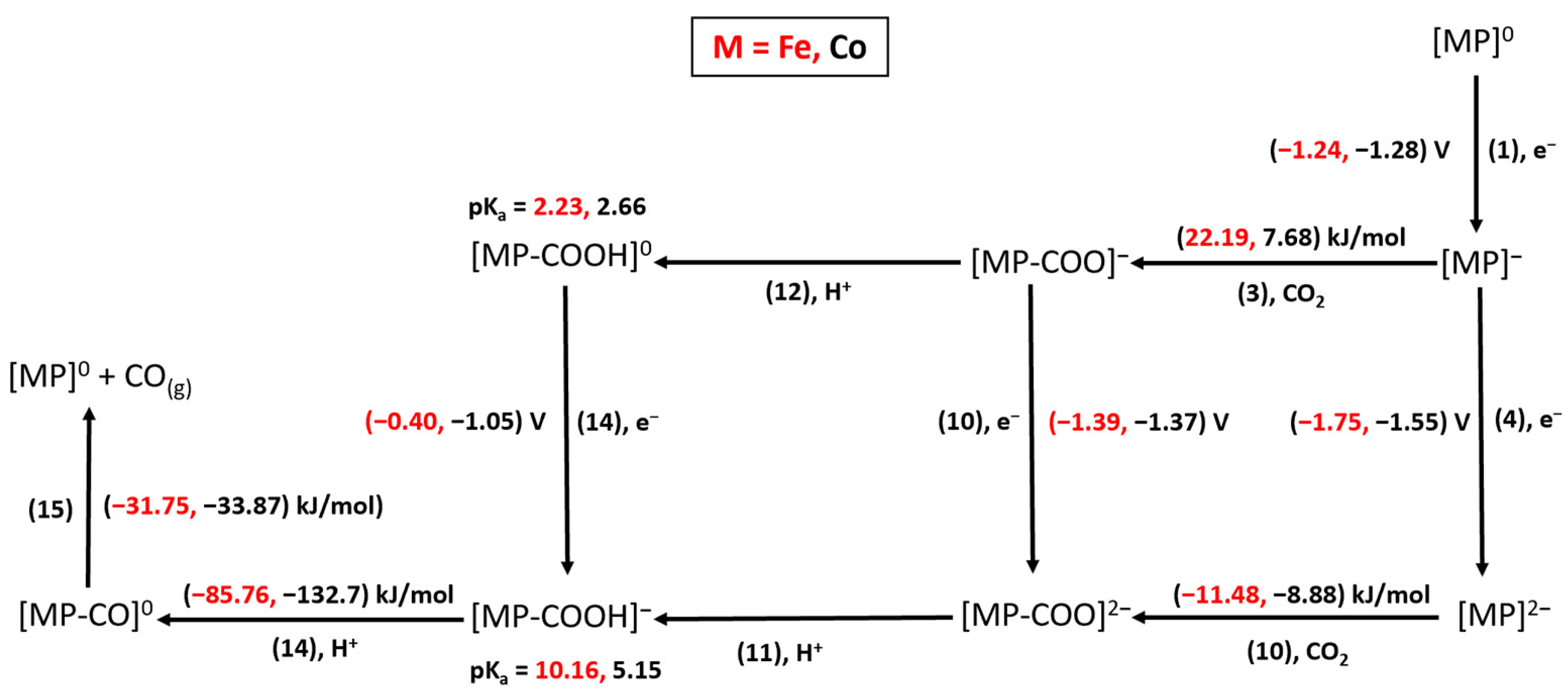

Figure 3. Electrochemical reduction of CO2 to CO on [FeP]0 and [CoP]0. Red parameters correspond to the CO cycle on [FeP]0 and black correspond to [CoP]0.
Figure 3. Electrochemical reduction of CO2 to CO on [FeP]0 and [CoP]0. Red parameters correspond to the CO cycle on [FeP]0 and black correspond to [CoP]0.
Molecules 28 00375 g003
Molecules 28 00375 g004 550

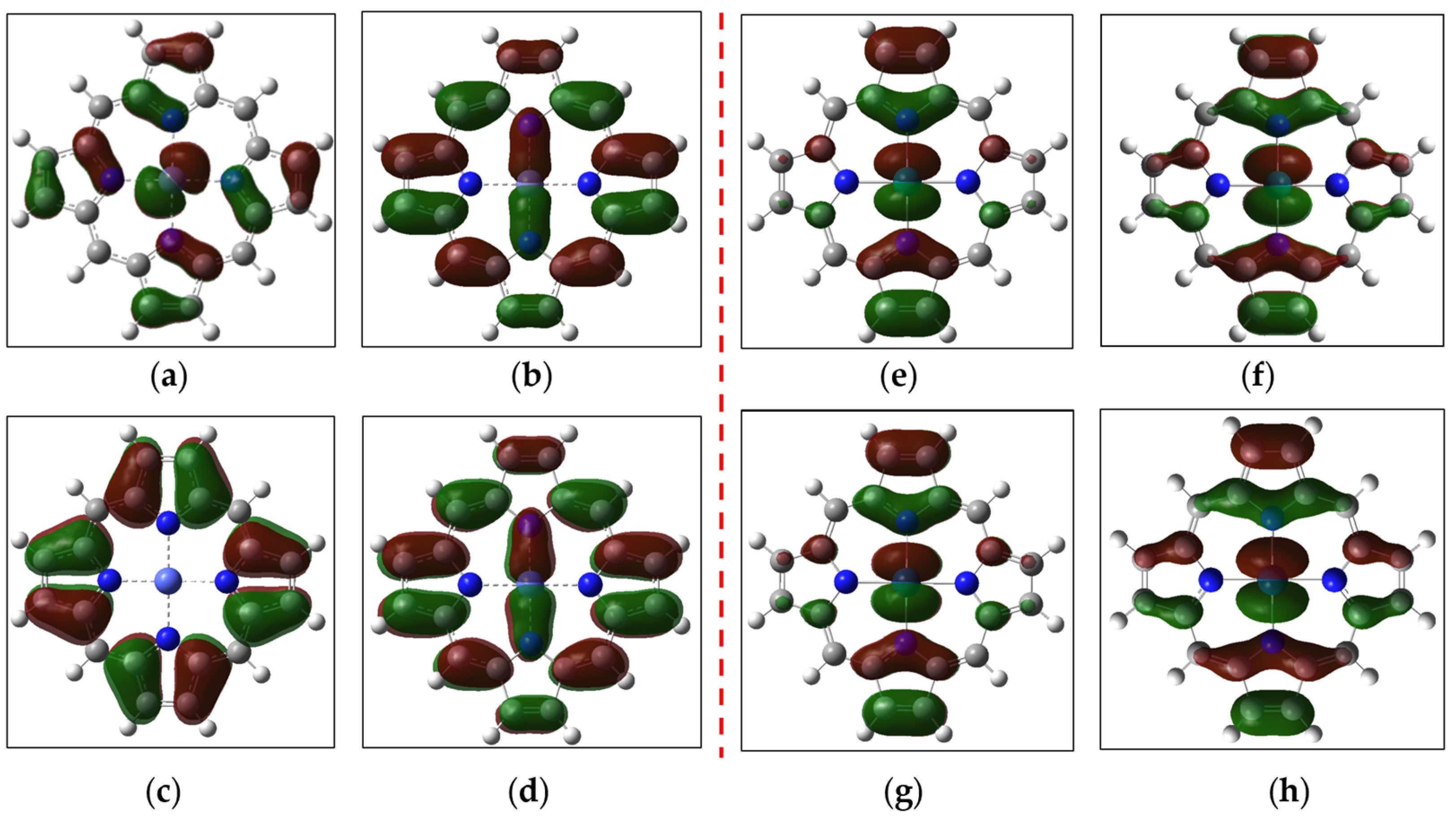

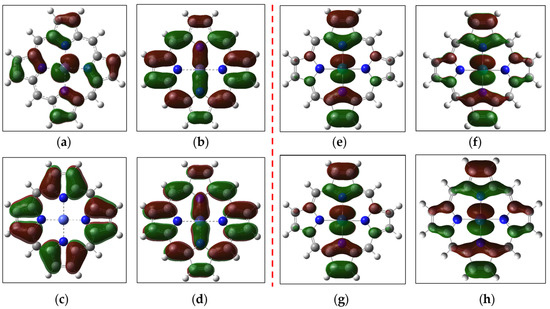

Figure 4. The HOMOs of (a) [FeP]0, (b) [FeP]−, (c) [CoP]0, (d) [CoP]−, (e) [RhP]0, (f) [RhP]−, (g) [IrP]0 and (h) [IrP]−. (Isosurface value = 0.02).
Figure 4. The HOMOs of (a) [FeP]0, (b) [FeP]−, (c) [CoP]0, (d) [CoP]−, (e) [RhP]0, (f) [RhP]−, (g) [IrP]0 and (h) [IrP]−. (Isosurface value = 0.02).
Molecules 28 00375 g004
Table
Table 1. The calculated first reduction potentials (E°, V) (Step 1) and second reduction potentials (V) (Step 4) with reference to a standard hydrogen electrode (SHE) for [MP]0 catalysts.
Table 1. The calculated first reduction potentials (E°, V) (Step 1) and second reduction potentials (V) (Step 4) with reference to a standard hydrogen electrode (SHE) for [MP]0 catalysts.
CatalystFirst Reduction Potential (E°)Second Reduction Potential
[FeP]0−1.24−1.74
[CoP]0−1.28−1.55
[RhP]0−0.02−1.64
[IrP]0−0.26−1.71
Table
Table 2. Calculated pKa values of [FeP-H]0, [FeP-H]−, [CoP-H]0, [CoP-H]−, [RhP-H]0, [RhP-H]−, [IrP-H]0 and [IrP-H]−.
Table 2. Calculated pKa values of [FeP-H]0, [FeP-H]−, [CoP-H]0, [CoP-H]−, [RhP-H]0, [RhP-H]−, [IrP-H]0 and [IrP-H]−.
Catalyst[MP-H]0[MP-H]−
[FeP]02.4519.45
[CoP]06.2913.45
[RhP]010.0717.53
[IrP]011.1523.75
Table
Table 3. Bader charges |e|on the metal center (M) and porphyrin (P) in [MP]0 and [MP]−. The values in parentheses show the gain of negative charge after one-electron reduction.
Table 3. Bader charges |e|on the metal center (M) and porphyrin (P) in [MP]0 and [MP]−. The values in parentheses show the gain of negative charge after one-electron reduction.
Catalyst [MP]0[MP]−
[FeP]0Fe1.251.19 (−0.06)
P−1.25−2.19 (−0.94)
[CoP]0Co1.171.04 (−0.13)
P−1.17−2.04 (−0.87)
[RhP]0Rh0.890.49 (−0.64)
P−0.89−1.49 (−0.36)
[IrP]0Ir1.130.59 (−0.54)
P−1.13−1.60 (−0.46)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Masood, Z.; Ge, Q. Mechanism and Selectivity of Electrochemical Reduction of CO2 on Metalloporphyrin Catalysts from DFT Studies. Molecules 2023, 28, 375. https://doi.org/10.3390/molecules28010375

AMA Style

Masood Z, Ge Q. Mechanism and Selectivity of Electrochemical Reduction of CO2 on Metalloporphyrin Catalysts from DFT Studies. Molecules. 2023; 28(1):375. https://doi.org/10.3390/molecules28010375

Chicago/Turabian Style

Masood, Zaheer, and Qingfeng Ge. 2023. "Mechanism and Selectivity of Electrochemical Reduction of CO2 on Metalloporphyrin Catalysts from DFT Studies" Molecules 28, no. 1: 375. https://doi.org/10.3390/molecules28010375

APA Style

Masood, Z., & Ge, Q. (2023). Mechanism and Selectivity of Electrochemical Reduction of CO2 on Metalloporphyrin Catalysts from DFT Studies. Molecules, 28(1), 375. https://doi.org/10.3390/molecules28010375

Article Metrics

Back to TopTop
