Novel 2-Sulfanylquinazolin-4(3H)-one Derivatives as Multi-Kinase Inhibitors and Apoptosis Inducers: A Synthesis, Biological Evaluation, and Molecular Docking Study

by
Ali Altharawi
1,*,
Mohammed M. Alanazi
2,
Manal A. Alossaimi
1,
Ashwag S. Alanazi
3,
Safar M. Alqahtani
1,
Mohammed H. Geesi
4 and
Yassine Riadi
1
1
Department of Pharmaceutical Chemistry, College of Pharmacy, Prince Sattam Bin Abdulaziz University, Al-Kharj 11942, Saudi Arabia
2
Department of Pharmaceutical Chemistry, College of Pharmacy, King Saud University, Riyadh 11541, Saudi Arabia
3
Department of Pharmaceutical Sciences, College of Pharmacy, Princess Nourah Bint Abdulrahman University, Riyadh 84428, Saudi Arabia
4
Department of Chemistry, College of Science and Humanities in Al-Kharj, Prince Sattam bin Abdulaziz University, Al-Kharj 11942, Saudi Arabia
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(14), 5548; https://doi.org/10.3390/molecules28145548
Submission received: 1 June 2023 / Revised: 14 July 2023 / Accepted: 17 July 2023 / Published: 20 July 2023
(This article belongs to the Special Issue Enzyme Inhibitors: Design, Synthesis and Biological Evaluation)
Browse Figures
Versions Notes

Abstract

:
The discovery of multi-targeted kinase inhibitors emerged as a potential strategy in the therapy of multi-genic diseases, such as cancer, that cannot be effectively treated by modulating a single biological function or pathway. The current work presents an extension of our effort to design and synthesize a series of new quinazolin-4-one derivatives based on their established anti-cancer activities as inhibitors of multiple protein kinases. The cytotoxicity of the new derivatives was evaluated against a normal human cell line (WI-38) and four cancer lines, including HepG2, MCF-7, MDA-231, and HeLa. The most active compound, 5d, showed broad-spectrum anti-cancer activities against all tested cell lines (IC50 = 1.94–7.1 µM) in comparison to doxorubicin (IC50 = 3.18–5.57 µM). Interestingly, compound 5d exhibited lower toxicity in the normal WI-38 cells (IC50 = 40.85 µM) than doxorubicin (IC50 = 6.72 µM), indicating a good safety profile. Additionally, the potential of compound 5d as a multi-targeted kinase inhibitor was examined against different protein kinases, including VEGFR2, EGFR, HER2, and CDK2. In comparison to the corresponding positive controls, compound 5d exhibited comparable activities in nanomolar ranges against HER2, EGFR, and VEGFR2. However, compound 5d was the least active against CDK2 (2.097 ± 0.126 µM) when compared to the positive control roscovitine (0.32 ± 0.019 µM). The apoptotic activity investigation in HepG2 cells demonstrated that compound 5d arrested the cell cycle at the S phase and induced early and late apoptosis. Furthermore, the results demonstrated that the apoptosis pathway was provoked due to an upregulation in the expression of the proapoptotic genes caspase-3, caspase-9, and Bax and the downregulation of the Bcl-2 anti-apoptotic gene. For the in silico docking studies, compound 5d showed relative binding interactions, including hydrogen, hydrophobic, and halogen bindings, with protein kinases that are similar to the reference inhibitors.

1. Introduction

Cancer remains the leading cause of death worldwide, and approximately 19.3 million new cancer cases and 10 million cancer deaths were reported in 2020 [1]. Recently, the American Cancer Society estimated over 1.95 million new cancer cases, and 609,820 cancer deaths are expected to occur in 2023 [2]. The emergence of drug resistance, low selectivity, and high toxicity in the cytotoxic drugs that are currently used have created an urge to discover and develop new classes of anti-cancer agents. When in search of new cancer therapies, many studies have increasingly focused on the development of more potent and selective anti-cancer drugs against pivotal targets, such as protein tyrosine kinases (PTKs) [3,4]. PTKs play a vital role in the control of cascades of biological events that are involved in cell proliferation, differentiation, metastasis, and apoptosis [5,6,7,8]. The upregulation of PTKs drives uncontrolled cell proliferation and often results in the initiation and progression of neoplastic cells. PTKs are mainly classified into two classes according to their structures and locations: receptor tyrosine kinases (RTKs) and non-receptor tyrosine kinases (NRTKs). While NRTKs are cytosolic enzymes, RTKs are transmembrane receptor proteins that transfer transduction signals to downstream effectors such as hormones, growth factors, and polypeptides. Numerous RTKs have been identified and recognized as attractive targets for the further development of novel inhibitors [9]. These receptors mainly include epidermal growth factor receptors (EGFRs), platelet-derived growth factor receptors (PDGFRs), fibroblast growth factor receptors (FGFRs), and vascular endothelial growth factor receptors (VEGFRs). For example, the EGFR family, also referred to as HER or ErbB receptors, is composed of EGFR (ErbB1, HER1), HER2 (ErbB2), HER3 (ErbB3), and HER4 (ErbB4). The EGFR family are transmembrane tyrosine kinase receptors that play a significant role in signal transduction pathways [10]. The overexpression of EGFR is known to be involved in various cancers mediated by the stimulation of carcinogenetic processes resulting in cell proliferation, apoptosis, angiogenesis, and invasiveness through main cascades such as Ras/Raf/MAPK and PIK-3/AKT [11,12]. Additionally, the EGFR-signaling cascades are implicated in the activation of the VEGFR, which is recognized as the main process in the stimulation of angiogenesis. Cyclin-dependent kinases (CDKs) are a large family of serine/threonine kinase enzymes that catalyze the phosphorylation of proteins and control the transition of cell cycles through different phases. Likewise, the overexpression of CDKs has been implicated in many cancer types [13]. These kinases have been recognized as valid targets for anti-cancer therapeutics, and up until now, the US FDA has approved more than 73 small molecules regarding protein kinase inhibitors; most are multi-targeted tyrosine kinase inhibitors (MT-TKIs) [14,15,16,17].
The nitrogen-containing heterocycles are well-known and widely investigated bioactive molecules with a broad range of pharmacological activities [18,19]. Quinazoline, for example, is a nitrogen-containing heterocycle for which numerous pharmacological activities have been recognized, including anti-tubercular, anti-malarial, anti-fungal, anti-microbial, anti-viral, and many others [20,21,22,23,24]. Of particular interest, quinazoline-based compounds emerged as privileged scaffolds possessing anti-tumor activity against various cancer cells through the inhibition of different protein kinases [25,26,27]. For instance, gefitinib (Iressa®) and erlotinib (Tarceva®) are 4-amino quinazoline derivatives that have been shown to exert their anti-cancer activity through the inhibition of epidermal growth factor receptor (EGFR) [28,29]. Idelalisib (Zydelig®) is a quinazolin-4(3H)-one derivative that acts as an inhibitor of phosphoinositide-3 kinase (PI3K) for the treatment of certain hematological malignancies [30]. Furthermore, some quinazoline-based compounds have also been shown to act as MT-TKIs. For example, lapatinib (Tykreb®) is a dual inhibitor that interferes with the HER2/neu and EGFR and is used orally in managing breast cancer and other solid tumors [31]. Vandetanib (Caprelsa®) is a 4-anilinoquinazoline derivative and was approved by the FDA in 2011 for the treatment of thyroid cancer. It mainly acts as a potent inhibitor of VEGFR and EGFR [32]. Other quinazoline-based derivatives bearing various moieties, such as benzenesulfonamide, piperazine, and 1,2,4-triazolestyryl, were designed and synthesized as potential MT-TKIs and have shown enhanced in vitro cytotoxic activities against various cancer cell lines [33,34,35]. Previously, we reported the potential of new quinazolinone-based derivatives as a dual inhibitor of VEGFR2 and EGFR [36,37].
In the current work, we have extended our effort to synthesize effective quinazolin-4(3H)-one derivatives as anti-cancer agents and investigated their potential as MT-TKIs and apoptosis inducers. Novel 2-sulfanylquinazolin-4(3H)-one derivatives were synthesized and evaluated for their cytotoxic activities against some human cancer cell lines in addition to normal human cells. Additionally, the potential of the most cytotoxic derivative as a protein kinase inhibitor of EGFR, VEGFR2, HER2, or CDK2, as well as being an apoptosis inducer, was examined. Finally, we have studied the binding affinity of the most active compound to EGFR, VEGFR2, and CDK2 protein kinases through the in silico molecular docking approach.

2. Results and Discussion

2.1. Chemistry

The procedure employed to prepare the new 2-sulfanylquinazolin-4(3H)-one derivatives is described in our previous work [38]. A schematic illustration of the chemical reaction is shown in Scheme 1. In brief, arylisothiocyanate 2a–c (1 mmol) was added dropwise under stirring to a mixture of 5-fluoroanthranilic acid 1 (1 mmol) in absolute ethanol (20 mL), followed by the addition of triethylamine (1.1 mmol, 0.11 g). This mixture was refluxed for 1.5 h to ensure the total consumption of the starting reactants, as determined by thin-layer chromatography (TLC). The mixture was filtered, and the solvent was removed in vacuo. The resulting crude solid was recrystallized from ethanol to achieve the pure product 3a–c. The following step involved reacting intermediates 3a–c (1 mmol) with different benzyl bromides (1 mmol, 4) in 10 mL of acetone containing anhydrous potassium carbonate (1.5 mmol, K2CO3) and stirring for 10 h. After the completion of the reaction, the mixture was filtered, and the solvent was removed in vacuo. The resulting solid was recrystallized from ethanol to give the final compounds 5a–e (Supplementary Materials Figures S3–S12).

2.2. Biological Evaluation

2.2.1. In Vitro Anti-Proliferative Activity

The in vitro cytotoxic activity of the 2-sulfanylquinazolin-4(3H)-one derivatives were evaluated against four human cancer cell lines, namely, hepatocellular carcinoma (HepG2), breast cancer (MCF-7), triple-negative breast cancer (MDA-MB-231), and cervical cancer (HeLa). In addition, the safety profile of the 2-sulfanylquinazolin-4(3H)-one derivatives was evaluated against normal human cells (WI38) as a positive control. The standard MTT (3-(4,5-dimethylthiazol-2-yl)-2,5 diphenyl tetrazolium bromide) colorimetric assay protocol was used, as described by Mosmann [39]. Doxorubicin was used as a non-selective reference cytotoxic drug, whereas sunitinib was used as a more selective anti-cancer agent. The results were expressed as growth inhibitory concentration (IC50) values. In comparison to doxorubicin and sunitinib, the evaluated compounds showed a different range of anti-proliferative activities against the tested cancer cell lines, as summarized in Table 1. In general, compound 5d, substituted with 4-chlorophenyl at position 3, was the most cytotoxic derivative against the HepG2, MCF-7, MDA-231, and HeLa cell lines with an IC50 of 7.10, 2.48, 1.94, and 6.38, respectively. The cytotoxicity of compound 5d was comparable to the IC50 of doxorubicin in all tested cancer cell lines. Interestingly, compound 5d displayed less cytotoxic activity on the WI38 cells (IC50 = 64.29 µM) when compared to doxorubicin (IC50 = 6.72 µM). When compared to sunitinib, compound 5d showed more potency toward all the tested cell lines with a relatively similar safety profile against the WI38 cell line. Derivatives 5a–c showed less cytotoxic activities when compared to doxorubicin and sunitinib on all tested cancer cell lines, with IC50 values ranging from 19 to >100 µM, while 5e exhibited moderate to strong cytotoxicity (IC50 = 19.18 to 38.17 µM).

2.2.2. Kinase Inhibitory Activity

To obtain mechanistic insight into the potential of the most active compound (5d) against the tested cell lines, we examined the inhibitory activities against multiple TK enzymes, specifically against EGFR, HER2, VEGFR2, and CDK2 by using erlotinib as a positive control for EGFR and HER2, while sorafenib and roscovitine were used as reference standards for VEGFR2 and CDK2, respectively. The corresponding kinase inhibitory kit assays were used, and the results are expressed as IC50 values (µM), as presented in Table 2. In comparison to the positive controls, it can be noted that compound 5d exhibited comparable activities in nanomolar ranges against EGFR, HER2, and VEGFR2. However, compound 5d was less active against CDK2 (2.097 ± 0.126 µM) when compared to the positive control roscovitine (0.32 ± 0.019 µM).

2.2.3. Investigation of Apoptosis

Annexin V/PI Staining and Cell Cycle Analysis

In order to investigate apoptosis, the most cytotoxic compound in anti-proliferative assay 5d was further exposed to cell cycle analysis using the standard Annexin V/PI double staining procedure [40,41]. The HepG2 cells were exposed to compound 5d at a concentration equal to its IC50 values (7.1 µM) for 24 h, and the definite phase at which cell cycle arrest took place was determined. The results of the cell cycle analysis are presented in Figure 1. The exposure of HepG2 cells to compound 5d resulted in a drop in the cell population at the G0-G1 and G2/M phases: 4.5% and 4.73%, respectively. Moreover, an increase in the cell population of 9.23% was observed in the S phase in comparison to the control. Additionally, the results showed that compound 5d remarkably induced apoptosis at all stages in comparison to the untreated HepG2 cells, where the total apoptosis was enhanced by (28.04%) over the control (2.28%), as shown in Figure 2. Additionally, compound 5d induced early and late apoptosis as well as necrotic cell death by 7.51%, 3.45%, and 3.08%, respectively, when compared with the untreated HepG2 cells (0.61%, 0.22%, and 1.45%, respectively), as illustrated in Figure 2. The obtained results show that compound 5d arrested HepG2 cell growth in the S phase and induced early and late apoptosis.

Real-Time Polymerase Chain Reaction (RT-PCR) for the Selected Genes

RT-PCR reactions were carried out to investigate the relative gene expression of apoptosis-related genes, including the proapoptotic genes Bax, caspases 3 and 9, and the anti-apoptotic Bcl2 gene [42]. As shown in Figure 3, the apoptotic pathway of the HepG2 cells treated with compound 5d approximately increased the gene expression of Bax and caspase-3 three-fold and caspase-9 two-fold. On the other hand, it downregulated the expression of the anti-apoptotic gene Bcl2 by 0.4-fold. Therefore, it can be concluded that the induction of apoptosis in HepG2 cells upon treatment with 5d is associated with the upregulation of proapoptotic genes and the downregulation of anti-apoptotic genes.

2.3. Molecular Docking

Compound 5d was docked into the ATP binding pocket of CDK2, EFGR, and VEGFR2 to find its potential as an inhibitor of these protein kinases. Sunitinib, erlotinib, and sorafenib were kept as positive controls for CDK2, EFGR, and VEGFR2, respectively. The docking results and the 2D and 3D docking analysis of the positive controls and compound 5d are summarized in Table 3 and Figure 4, Figure 5 and Figure 6. The binding of sunitinib in the active site formed four hydrogen bonds (one with Glu81, two with Leu83, and one with Ile10). A salt bridge was also observed between Glu8 and the terminal amine of sunitinib, and a halogen bond with Asp145 was favored in the binding as well. In addition, sunitinib was stabilized by several hydrophobic interactions with Val18, Ala31, Val64, Phe82, Leu134, and Ala144. The docking score and binding energy for sunitinib were −9.576 and −81.386 kcal/mol, respectively. The docking score obtained for compound 5d was −6.786 kcal/mol, while the binding energy was −64.058 kcal/mol. Compound 5d was found to be stabilized in the active site mainly by hydrophobic interactions with amino acids Ile10, Glu12, Val18, Ala31, Val64, Phe80, Asp 86, Leu134, and Ala144. The docking results of erlotinib were observed in accordance with the literature, as it binds in the active site with two hydrogen bonds, one with Met793 and the other with Thr854, mediated by a water molecule [17]. In a similar pattern, compound 5d formed a hydrogen bond with Thr854 mediated by a water molecule. The respective docking score and binding energy of erlotinib were −9.660 and −83.352 kcal/mol, while compound 5d has a docking score of −8.514 and binding energy of −68.117 kcal/mol. Compound 5d was also found to be stabilized (with two more halogen bonds) with Met793 and Ser720, as well as hydrophobic interactions in the active site. Regarding VEGFR2, sorafenib binds in the active site with two hydrogen bonds with Cys919 and Asp1046 and one halogen bond with Ile1044 and has a docking score of −9.529 and binding energy of −84.199 kcal/mol. Among the three docked compounds, compound 2 showed good affinity, with a docking score of −7.490, a binding energy of −67.081 kcal/mol, and one hydrogen bond with Asp1046. No hydrogen bonds were observed for compound 5d. The docking score and binding energy for compound 5d were −6.150 and −46.976 kcal/mol, respectively. Amino acids Leu840, Val848, Ala866, Lys868, Leu889, Ile892, Val899, Leu1019, His1026, Leu1035, Cys1045, and Phe1047 were found to be involved in hydrophobic interactions within the VEGFR2 active site.

3. Materials and Methods

3.1. Synthesis

First, arylisothiocyanate 2a–c (1 mmol) was reacted under stirring with a mixture of 5-fluoroanthranilic acid 1 (1 mmol) in absolute ethanol (20 mL), and then triethylamine (1.1 mmol, 0.11 g) was added. This mixture was refluxed for 1.5 h to ensure the total consumption of the starting reactants, as determined by thin-layer chromatography (TLC). The mixture was filtered, and the solvent was removed in vacuo. The resulting crude solid was recrystallized from ethanol to achieve the pure product 3a–c. The following step involved reacting intermediates 3a–c (1 mmol) with different benzyl bromides (1 mmol, 4) in 10 mL of acetone containing anhydrous potassium carbonate (1.5 mmol, K2CO3) and stirring for 10 h. After the completion of the reaction, the mixture was filtered, and the solvent was removed in vacuo. The resulting solid was recrystallized from ethanol to give the final compounds 5a–e.
The melting points of the prepared derivatives were determined in open capillaries using melting point apparatus (Sanyo Gallenkamp, South Borough, UK). Pre-coated silica gel thin-layer chromatography (TLC) plates (silica gel 0.25 mm, 60G F254. Merck, Germany) were employed for the TLC experiment. A developing solvent system consisting of a mixture of (n-hexane: EtOAc (80:20 v/v)) was used as a mobile phase, and the spots were recorded using ultraviolet light. Elucidation of the total proton and environment was made by recording 1H NMR spectra using the NMR instrument BRUCKER-PLUS (500 MHz), while 13C NMR spectra were run at 125 MHz. CDCl3 was used as a solvent for all compounds except 5a, where DMSO was used as the solvent. The chemical shifts are expressed in δ-values (ppm) relative to TMS as an internal standard. All chemicals and solvents were purchased from Sigma Aldrich and AK Scientific.
Intermediate (3a) white solid (89%); M.P.: 142–144 °C; IR (cm−1): 1562 (C = C), 1681 (C = O), 3046 (ArC-H); 1H NMR (500 MHz, CDCl3) δ: 2.48 (s, 3H, CH3), 7.46 (d, 2H, HAr, J = 7.5 Hz), 7.55 (d, 1H, H8, J = 10 Hz), 7.62 (d, 1H, H7, J = 10 Hz), 8.01 (s, 1H, H5), 8.2 (d, 2H, HAr, J = 7.5 Hz). 13C NMR (125 MHz, CDCl3) δ: 21.71 (CH3), 116.99 (CH), 127.93 (CH), 128.62 (CH), 129.18 (Cq), 129.41 (CH × 2), 129.80 (CH × 2), 138.25 (Cq), 139.15 (Cq), 139.33 (Cq), 144.96 (Cq), 155.85 (Cq), 159.84 (Cq); MS: m/z 286.
  • 3-(4-fluoro-Arenyl)-6-fluoro-2-(4-methyl-benzylsulfanyl)-3H-quinazolin-4-one (5a) white solid (82%); MP: 166−168 °C; IR (cm−1): 1560 (C = C), 1689 (C = O), 3042 (ArC-H); 1H NMR (500 MHz, DMSO) δ: 2.44 (s, 3H, CH3), 4.39 (s, 2H, SCH2), 7.09–7.13 (m, 2H, HAr, J = 10 Hz), 7.36–7.40 (m, 2H, HAr, J = 10 Hz), 7.47–7.53 (m, 4H, HAr, J = 10 Hz), 7.61 (d, 1H, H8), 7.69 (m, 1H, H7), 7.88 (s, 1H, H5). 13C NMR (125 MHz, CDCl3) δ: 21.32 (CH3), 36.72 (CH2), 117.02 (CH), 117.20 (CH), 118.75 (CH × 2), 119.60 (CH), 124.98 (Cq), 127.32 (CH), 129.63 (CH), 129.77 (CH × 3), 131.07 (Cq), 132.78 (CH), 136.96 (Cq), 142.36 (Cq), 144.80 (Cq), 157.32 (Cq), 161.25 (Cq), 167.08 (Cq), 196.96 (Cq); MS: m/z 394.7.
  • 6-Fluoro-2-(4-methyl-benzylsulfanyl)-3-Arenyl-3H-quinazolin-4-one (5b) white solid (86%); M.P.: 158-160 °C; IR (cm−1): 1572 (C = C), 1692 (C = O), 3036 (ArC-H); 1H NMR (500 MHz, CDCl3) δ: 2.51 (s, 3H, CH3), 4.47 (s, 2H, SCH2), 7.20–7.24 (m, 2H, HAr, J = 10 Hz), 7.27–7.34 (m, 5H, HAr, J = 10 Hz), 7.42–7.44 (d, 2H, HAr, J = 10 Hz), 7.59–7.66 (m, 2H, H7, H8, J = 10 Hz), 8.08 (s, 1H, H5). 13C NMR (125 MHz, CDCl3) δ: 21.36 (CH3), 37.17 (CH2), 116.73 (CH), 116.92 (CH), 119.60 (CH), 126.18 (CH), 126.73 (CH), 127.62 (CH), 128.66 (CH × 2), 129.46 (CH × 2), 131.30 (CH), 131.83 (Cq), 136.14 (CH), 136.27 (Cq), 136.42 (Cq), 145.89 (Cq), 155.91 (Cq), 161.95 (Cq), 162.27 (Cq), 164.26 (Cq); MS: m/z 376.7.
  • 2-Benzylsulfanyl-6-fluoro-3-(4-methyl-Arenyl)-3H-quinazolin-4-one (5c) white solid (81%); M.P.: 156-158 °C; IR (cm−1): 1578 (C = C), 1678 (C = O), 3056 (ArC-H); 1H NMR (500 MHz, CDCl3) δ: 2.49 (s, 3H, CH3), 4.45 (s, 2H, SCH2), 7.16–7.26 (m, 2H, HAr, J = 5 Hz), 7.27–7.33 (m, 5H, HAr, J = 10 Hz), 7.41–7.43 (d, 2H, HAr, J = 10 Hz), 7.58–7.63 (m, 2H, H7, H8, J = 10 Hz), 8.06 (s, 1H, H5). 13C NMR (125 MHz, CDCl3) δ: 21.52 (CH3), 37.33 (CH2), 116.89 (CH), 117.08 (CH), 119.76 (CH), 126.34 (CH), 126.89 (CH), 127.78 (CH), 128.82 (CH), 129.62 (CH), 131.39 (CH), 131.46 (Cq), 131.96 (CH), 131.99 (CH), 136.30 (CH), 136.43 (Cq), 136.58 (Cq),145.05 (Cq), 156.07 (Cq), 162.11 (Cq), 162.43 (Cq), 164.42 (Cq); MS: m/z 376.7.
  • 2-(4-Chloro-benzylsulfanyl)-6-fluoro-3-(4-methylArenyl)-3H-quinazolin-4-one (5d) white solid (78%); M.P.: 164-166 °C; IR (cm−1): 1562 (C = C), 1684 (C = O), 3061 (ArC-H); 1H NMR (500 MHz, CDCl3) δ: 2.34 (s, 3H, CH3), 4.28 (s, 2H, SCH2), 6.99–7.03 (m, 2H, HAr, J = 10 Hz), 7.26–7.30 (m, 2H, HAr, J = 10 Hz), 7.37–7.42 (m, 4H, HAr, J = 10 Hz), 7.50–7.52 (d, 1H, H8, J = 10 Hz), 7.57–7.59 (m, 1H, H7), 7.79 (d, 1H, H5, J = 5 Hz). 13C NMR (125 MHz, CDCl3) δ: 21.33 (CH3), 36.74 (CH2), 117.02 (CH), 117.21 (CH), 118.76 (CH × 2), 119.61 (CH), 124.99 (CH), 127.33 (CH), 129.64 (CH), 129.78 (CH × 3), 131.08 (Cq), 132.79 (Cq), 136.97 (Cq), 142.37 (Cq), 144.81 (Cq), 157.33 (Cq), 161.25 (Cq), 167.09 (Cq), 196.97 (Cq); MS: m/z 410.8.
  • 2-(4-Fluoro-benzylsulfanyl)-6-fluoro-3-(4-methylArenyl)-3H-quinazolin-4-one (5e) white solid (73%); M.P.: 170-172 °C; IR (cm−1): 1548 (C = C), 1669 (C = O), 3058 (ArC-H); 1H NMR (500 MHz, CDCl3) δ: 2.33 (s, 3H, CH3), 4.28 (s, 2H, SCH2), 6.98–7.02 (m, 2H, HAr, J = 10 Hz), 7.25–7.29 (m, 2H, HAr, J = 10 Hz), 7.36–7.42 (m, 4H, HAr, J = 10 Hz), 7.49–7.51 (d, 1H, H8, J = 10 Hz), 7.56 (m, 1H, H7, J = 10 Hz), 7.77 (d, 1H, H5, J = 5 Hz). 13CNMR (125 MHz, CDCl3) δ: 20.77 (CH3), 36.18 (CH2), 116.46 (CH), 116.65 (CH), 118.20 (CH × 2), 119.05 (CH), 124.43 (CH), 126.77 (CH), 129.08 (CH × 2), 129.22 (Cq), 130.52 (CH), 132.22 (Cq), 136.41 (Cq), 141.81 (Cq), 144.25 (Cq), 156.77 (Cq), 160.69 (Cq), 166.53 (Cq), 196.41 (Cq); MS: m/z 394.7.

3.2. Biological Testing

3.2.1. In Vitro Anti-Proliferative Activity

A standard MTT assay protocol was employed to assess the anti-proliferative activity of the synthesized compounds against normal human cells (WI38) and four human cancer cell lines, namely, hepatocellular carcinoma (HepG2), breast cancer (MCF-7), triple-negative breast cancer (MDA-MB-231), and cervical cancer (HeLa). The cell lines were obtained from ATCC (American Type Culture Collection). The anti-cancer activity was measured quantitatively using an MTT assay protocol as follows: Cell lines were cultured in RPMI-1640 medium with 10% fetal bovine serum and 1% antibiotics (100 units/mL penicillin and100 µg/mL streptomycin) at 37 °C in a 5% CO2 incubator. Cell lines were seeded at a density of 1.0 × 104 cells/well in a 96-well plate and incubated for 48 h at 37 °C under 5% CO2. After incubation, the cells were treated with different concentrations of the synthesized compounds and incubated for 24 h. Afterward, the cells were washed with PBS, and 20 µL of MTT solution at 5 mg/mL was added, all incubated for 4 h. The MTT solution was discarded, and 100 µL of dimethyl sulfoxide (DMSO) was added per well. The dissolved purple formazan products were measured and recorded at an absorbance of 570 nm using a plate reader (EXL 800, USA). The relative cell viability in percentage was calculated as (A570 of treated cells/A570 of untreated cells) × 100.

3.2.2. In Vitro VEGFR2 Kinase Assay

The inhibitory activity of compound 5d against CDK2, HER2, EGFR, and VEGFR2 was evaluated using the corresponding human kinases ELISA kit (Enzyme-Linked Immunosorbent Assay). In brief, specific antibodies for each kinase were seeded on a 96-well plate, and 100 μL of the standard solution or compound 5d was added. Afterward, the plate was incubated at room temperature for 2.5 h and then washed with PBS. A total of 100 μL of the prepared biotin antibody was added and incubated at room temperature for an additional 1 h, and then 100 μL of streptavidin solution was added and incubated at room temperature for another 45 min. After washing, 100 μL of TMB substrate reagent was added and incubated for 30 min at room temperature. Finally, about 50 μL of the stop solution was added and then read at 450 nm immediately. A standard curve was drawn, with concentrations on the X-axis and absorbance on the Y-axis.

3.2.3. Flow Cytometry Analysis of Cell Cycle

Flow cytometry analysis was conducted to assess the effect of compound 5d on the cell cycle distribution in HepG2 cells. The Flow Cytometry Kit for cell cycle analysis (ab139418_Propidium Iodide Flow Cytometry Kit/BD) was used in this test. First, the HepG2 cells were seeded in six-well plates at a density of 2 × 105 cells/well and incubated for 24 h. In the second step, 10% FBS was added, and the cells were incubated at 37 °C and 5% CO2. The medium was replaced with (DMSO 1% v/v) containing 7.1 µM of compound 5d and then incubated for 24 h. After that, the cells were fixed with 70% ethanol at 4 °C for 12 h and washed with cold PBS, and then rinsed with PBS. In the last step, 100 μL of RNase A was added to each well and incubated at 37 °C for 30 min and stained with 400 μL PI in the dark at room temperature for an additional 30 min. The stained cells were measured using an Epics XL-MCL™ Flow Cytometer (Beckman Coulter), and the data were analyzed using Flowing software (version 2.5.1, Turku Centre for Biotechnology, Turku, Finland).

3.2.4. Annexin V-FITC Apoptosis Assay

The apoptotic and necrotic effect of compound 5d was investigated using flow cytometry, as described in [43]. The HepG2 cells were treated with 7.1 µM of compound 5d for 24 h. After treatment, the cells were collected by trypsinization, centrifuged, and washed two times with PBS. A suspension of cells in 500 μL binding buffer was double stained with 5 μL Annexin V-FITC and 5 μL PI in the dark at room temperature for 15 min. The stained cells were measured using an Epics XL-MCL™ Flow Cytometer (Beckman Coulter), and the data were analyzed using Flowing software (version 2.5.1, Turku Centre for Biotechnology, Turku, Finland).

3.2.5. RT-PCR of Selected Apoptosis-Related Genes

The level of apoptotic markers caspase-3, caspase-9, Bax, and Bcl-2 was measured using BIORAD iScript TM One-Step RT-PCR kit with SYBR® Green. According to the manufacturer’s instructions, the kit was used in three subsequent steps.
  • RNA isolation and reverse transcription.
mRNA isolation of up to 1 × 107 cells was carried out using an RNeasy extraction kit. Cells were disrupted in RNeasy Lysis Buffer (RLT buffer) and homogenized. Ethanol was then added to make a lysate and provoke the selective binding of RNA to the RNeasy membrane. The sample was then applied to the RNeasy mini spin column, where total RNA binds to the membrane while contaminants pass through. The RNA was then eluted in RNase-free water.
2.
Master mix preparation.
All the following reagents were mixed to make about 50 μL mixture: 2X SYBR® Green RT-PCR reaction mixture (25 μL), forward primer (10 μM; 1.5 μL), reverse primer (10 μM; 1.5 μL), nuclease-free H2O (11 μL), RNA template (1 pg to 100 ng total RNA; 10 μL) and iScript reverse transcriptase for One-Step RT-PCR (1 μL).
3.
Amplification protocol.
The whole reaction mixture was incubated in a real-time thermal detection system (Rotorgene) as follows: cDNA synthesis (10 min at 50 °C), iScript reverse transcriptase inactivation (5 min at 95 °C), PCR cycling and detection (30–45 cycles):10 s at 95 °C and 30 s at 55 °C to 60 °C (data collection step) and melt curve analysis: 1 min at 95 °C, 1 min at 55 °C and 10 s at 55 °C–95 °C (80 cycles, increasing each by 0.5 °C each cycle).

3.3. Molecular Docking

The 2D structures of compounds 5d, sunitinib, erlotinib, and sorafenib were drawn on ChemDraw Ultra (ver. 12) and saved in the MDL-SD file format. The 2D structures were prepared for molecular docking studies by the LigPrep program of Maestro (ver. 12.8.117), Schrödinger. The co-crystallized structures of the protein kinases CDK2 (PDB ID: 3TI1, resolution: 1.99 Å), EFGR (PDB ID: 3POZ, resolution: 1.50 Å), and VEGFR2 (PDB ID: 3U6J, resolution: 2.15 Å) were downloaded from the protein data bank in the pdb format [44,45,46]. The crystal structures were prepared by a protein preparation wizard in Maestro. In short, the pdb files were imported and preprocessed. The protein chains other than A were deleted. All the water molecules were deleted, except in the case of EGFR, where the water molecules within 3 Å of the ligand were retained, as they are reported to be essential for the binding of the ligands. Heteroatoms, other than the ligands, were deleted. The protein structures were optimized, and their energy was minimized by the OPLS4 force field with heavy atoms converged to RMSD 0.30 Å. The refined structures were used to generate a glide grid file by selecting the co-crystallized ligands. To validate the docking protocol, the co-crystallized ligands were first docked by glide XP docking into the ATP binding pocket, and the RMSD between the native and docked conformation was calculated. After validation, compounds 1, 2, 3, sunitinib, erlotinib, and sorafenib were docked by glide XP docking [47]. The docking score, glide emodel, and H-bond interactions were noted. The top-ranked poses of the docked ligands were saved in pdb format, and the 2D and 3D interaction poses were reproduced by Discovery Studio Visualizer (ver. 20.1.0.19295).

4. Conclusions

In conclusion, new derivatives of 2-sulfanylquinazolin-4(3H)-one derivatives were synthesized, and their in vitro cytotoxic activities against normal human cells (WI38) and some human cancer cell lines (MCF-7, MDA-MB-231, HepG2, and HeLa) were evaluated. In comparison to doxorubicin and sunitinib, the evaluated compounds showed weak-to-strong anti-proliferative activities against the tested cancer cell lines. Among the derivatives, compound 5d was the most potent derivative and exhibited broad-spectrum cytotoxicity against all cancer cell lines under investigation. Moreover, compound 5d was the least toxic in the normal human cell line when compared to the other derivatives and doxorubicin. The potential of compound 5d as a muti-targeted kinase inhibitor was investigated in HepG2 cells. The results revealed inhibitory effects in the nanomolar range against VEGFR2, EGFR, HER2, and CDK2 kinases when compared to the corresponding positive reference. Additionally, the apoptosis induction assessment indicated that compound 5d was able to arrest the cell cycle at the S phase and induced apoptosis 10-fold when compared to untreated HepG2 cells. The induction of apoptosis from compound 5d was associated with its effect on the upregulation of caspase-3, caspase-9, and Bax and the downregulation of Bcl-2 expression. The in silico molecular docking studies showed good binding affinity regarding compound 5d in the ATP binding pocket of the tested kinases when compared to the reference inhibitors. Based on our findings, compound 5d showed promising multi-kinase inhibition and apoptosis induction, which can serve as a lead for the further development of potent cancer therapeutics.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28145548/s1.

Author Contributions

Conceptualization, A.A. and M.M.A.; methodology, Y.R.; software, M.A.A.; validation, M.A.A. and S.M.A.; formal analysis, A.S.A.; investigation, A.S.A. and S.M.A.; resources, M.H.G.; data curation, Y.R. and M.M.A.; writing—original draft preparation, A.A.; writing—review and editing, A.A., M.M.A. and Y.R.; visualization, S.M.A.; supervision, A.A.; project administration, Y.R.; funding acquisition, A.A. and Y.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Prince Sattam Bin Abdulaziz University, project number (PSAU/2023/R/1444).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This study is supported via funding from Prince Sattam Bin Abdulaziz University, project number (PSAU/2023/R/1444).

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global cancer statistics 2020: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef] [PubMed]
  2. Siegel, R.L.; Miller, K.D.; Wagle, N.S.; Jemal, A. Cancer statistics, 2023. CA Cancer J. Clin. 2023, 73, 17–48. [Google Scholar] [CrossRef] [PubMed]
  3. Baselga, J. Targeting tyrosine kinases in cancer: The second wave. Science 2006, 312, 1175–1178. [Google Scholar] [CrossRef] [PubMed]
  4. Ferguson, F.M.; Gray, N.S. Kinase inhibitors: The road ahead. Nat. Rev. Drug Discov. 2018, 17, 353–377. [Google Scholar] [CrossRef]
  5. Bertram, J.S. The molecular biology of cancer. Mol. Asp. Med. 2000, 21, 167–223. [Google Scholar] [CrossRef]
  6. Paul, M.K.; Mukhopadhyay, A.K. Tyrosine kinase–role and significance in cancer. Int. J. Med. Sci. 2004, 1, 101. [Google Scholar] [CrossRef] [Green Version]
  7. Lemmon, M.A.; Schlessinger, J. Cell signaling by receptor tyrosine kinases. Cell 2010, 141, 1117–1134. [Google Scholar] [CrossRef] [Green Version]
  8. Tsai, C.-J.; Nussinov, R. The molecular basis of targeting protein kinases in cancer therapeutics. In Seminars in Cancer Biology; Elsevier: Amsterdam, The Netherlands, 2013. [Google Scholar]
  9. Sawyers, C.L. Rational therapeutic intervention in cancer: Kinases as drug targets. Curr. Opin. Genet. Dev. 2002, 12, 111–115. [Google Scholar] [CrossRef]
  10. Hu, L.; Fan, M.; Shi, S.; Song, X.; Wang, F.; He, H.; Qi, B. Dual target inhibitors based on EGFR: Promising anticancer agents for the treatment of cancers (2017-). Eur. J. Med. Chem. 2022, 227, 113963. [Google Scholar] [CrossRef]
  11. Hawash, M. Highlights on specific biological targets; cyclin-dependent kinases, epidermal growth factor receptors, ras protein, and cancer stem cells in anticancer drug development. Drug Res. 2019, 69, 471–478. [Google Scholar] [CrossRef]
  12. Uribe, M.L.; Marrocco, I.; Yarden, Y. EGFR in cancer: Signaling mechanisms, drugs, and acquired resistance. Cancers 2021, 13, 2748. [Google Scholar] [CrossRef] [PubMed]
  13. Chohan, T.A.; Qayyum, A.; Rehman, K.; Tariq, M.; Akash, M.S.H. An insight into the emerging role of cyclin-dependent kinase inhibitors as potential therapeutic agents for the treatment of advanced cancers. Biomed. Pharmacother. 2018, 107, 1326–1341. [Google Scholar] [CrossRef] [PubMed]
  14. Fu, R.-g.; Sun, Y.; Sheng, W.-b.; Liao, D.-f. Designing multi-targeted agents: An emerging anticancer drug discovery paradigm. Eur. J. Med. Chem. 2017, 136, 195–211. [Google Scholar] [CrossRef]
  15. Roskoski, R. Properties of FDA-approved small molecule protein kinase inhibitors: A 2022 update. Pharmacol. Res. 2021, 187, 106037. [Google Scholar] [CrossRef] [PubMed]
  16. Guo, T.; Ma, S. Recent advances in the discovery of multitargeted tyrosine kinase inhibitors as anticancer agents. ChemMedChem 2021, 16, 600–620. [Google Scholar] [CrossRef]
  17. Ayala-Aguilera, C.C.; Valero, T.; Lorente-Macías, Á.; Baillache, D.J.; Croke, S.; Unciti-Broceta, A. Small molecule kinase inhibitor drugs (1995–2021): Medical indication, pharmacology, and synthesis. J. Med. Chem. 2021, 65, 1047–1131. [Google Scholar] [CrossRef]
  18. Kerru, N.; Gummidi, L.; Maddila, S.; Gangu, K.K.; Jonnalagadda, S.B. A review on recent advances in nitrogen-containing molecules and their biological applications. Molecules 2020, 25, 1909. [Google Scholar] [CrossRef] [Green Version]
  19. Vitaku, E.; Smith, D.T.; Njardarson, J.T. Analysis of the structural diversity, substitution patterns, and frequency of nitrogen heterocycles among US FDA approved pharmaceuticals: Miniperspective. J. Med. Chem. 2014, 57, 10257–10274. [Google Scholar] [CrossRef]
  20. Karan, R.; Agarwal, P.; Sinha, M.; Mahato, N. Recent Advances on Quinazoline Derivatives: A Potential Bioactive Scaffold in Medicinal Chemistry. ChemEngineering 2021, 5, 73. [Google Scholar] [CrossRef]
  21. Guillon, R.; Pagniez, F.; Picot, C.; Hédou, D.; Tonnerre, A.; Chosson, E.; Duflos, M.; Besson, T.; Logé, C.; Le Pape, P. Discovery of a novel broad-spectrum antifungal agent derived from albaconazole. ACS Med. Chem. Lett. 2013, 4, 288–292. [Google Scholar] [CrossRef] [Green Version]
  22. Fan, Z.; Shi, J.; Bao, X. Synthesis and antimicrobial evaluation of novel 1, 2, 4-triazole thioether derivatives bearing a quinazoline moiety. Mol. Divers. 2018, 22, 657–667. [Google Scholar] [CrossRef] [PubMed]
  23. Amrane, D.; Gellis, A.; Hutter, S.; Prieri, M.; Verhaeghe, P.; Azas, N.; Vanelle, P.; Primas, N. Synthesis and Antiplasmodial Evaluation of 4-Carboxamido-and 4-Alkoxy-2-Trichloromethyl Quinazolines. Molecules 2020, 25, 3929. [Google Scholar] [CrossRef] [PubMed]
  24. Jadhavar, P.S.; Patel, K.I.; Dhameliya, T.M.; Saha, N.; Vaja, M.D.; Krishna, V.S.; Sriram, D.; Chakraborti, A.K. Benzimidazoquinazolines as new potent anti-TB chemotypes: Design, synthesis, and biological evaluation. Bioorg. Chem. 2020, 99, 103774. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, J.; Yang, P.L.; Gray, N.S. Targeting cancer with small molecule kinase inhibitors. Nat. Rev. Cancer 2009, 9, 28–39. [Google Scholar] [CrossRef]
  26. Bansal, R.; Malhotra, A. Therapeutic progression of quinazolines as targeted chemotherapeutic agents. Eur. J. Med. Chem. 2021, 211, 113016. [Google Scholar] [CrossRef]
  27. Ahmad, I. An insight into the therapeutic potential of quinazoline derivatives as anticancer agents. MedChemComm 2017, 8, 871–885. [Google Scholar]
  28. Bareschino, M.A.; Schettino, C.; Troiani, T.; Martinelli, E.; Morgillo, F.; Ciardiello, F. Erlotinib in cancer treatment. Ann. Oncol. 2007, 18, vi35–vi41. [Google Scholar] [CrossRef]
  29. Rawluk, J.; Waller, C.F. Gefitinib. In Small Molecules in Oncology; Springer: Berlin/Heidelberg, Germany, 2018; pp. 235–246. [Google Scholar]
  30. Zirlik, K.; Veelken, H. Idelalisib. In Small Molecules in Hematology; Springer: Berlin/Heidelberg, Germany, 2018; pp. 243–264. [Google Scholar]
  31. Kim, H.-P.; Yoon, Y.-K.; Kim, J.-W.; Han, S.-W.; Hur, H.-S.; Park, J.; Lee, J.-H.; Oh, D.-Y.; Im, S.-A.; Bang, Y.-J. Lapatinib, a dual EGFR and HER2 tyrosine kinase inhibitor, downregulates thymidylate synthase by inhibiting the nuclear translocation of EGFR and HER2. PLoS ONE 2009, 4, e5933. [Google Scholar] [CrossRef] [Green Version]
  32. Frampton, J.E. Vandetanib. Drugs 2012, 72, 1423–1436. [Google Scholar] [CrossRef]
  33. Alkahtani, H.M.; Abdalla, A.N.; Obaidullah, A.J.; Alanazi, M.M.; Almehizia, A.A.; Alanazi, M.G.; Ahmed, A.Y.; Alwassil, O.I.; Darwish, H.W.; Alaa, A.-M. Synthesis, cytotoxic evaluation, and molecular docking studies of novel quinazoline derivatives with benzenesulfonamide and anilide tails: Dual inhibitors of EGFR/HER2. Bioorg. Chem. 2020, 95, 103461. [Google Scholar] [CrossRef]
  34. Li, W.; Chen, S.-Y.; Hu, W.-N.; Zhu, M.; Liu, J.-M.; Fu, Y.-H.; Wang, Z.-C.; OuYang, G.-P. Design, synthesis, and biological evaluation of quinazoline derivatives containing piperazine moieties as antitumor agents. J. Chem. Res. 2020, 44, 536–542. [Google Scholar] [CrossRef]
  35. Ewes, W.A.; Elmorsy, M.A.; El-Messery, S.M.; Nasr, M.N. Synthesis, biological evaluation and molecular modeling study of [1, 2, 4]-Triazolo [4, 3-c] quinazolines: New class of EGFR-TK inhibitors. Bioorg. Med. Chem. 2020, 28, 115373. [Google Scholar] [CrossRef] [PubMed]
  36. Altamimi, A.S.; El-Azab, A.S.; Abdelhamid, S.G.; Alamri, M.A.; Bayoumi, A.H.; Alqahtani, S.M.; Alabbas, A.B.; Altharawi, A.I.; Alossaimi, M.A.; Mohamed, M.A. Synthesis, Anticancer Screening of Some Novel Trimethoxy Quinazolines and VEGFR2, EGFR Tyrosine Kinase Inhibitors Assay; Molecular Docking Studies. Molecules 2021, 26, 2992. [Google Scholar] [CrossRef] [PubMed]
  37. Riadi, Y.; Alamri, M.A.; Geesi, M.H.; Anouar, E.H.; Ouerghi, O.; Alabbas, A.B.; Alossaimi, M.A.; Altharawi, A.; Dehbi, O.; Alqahtani, S.M. Synthesis, characterization, biological evaluation and molecular docking of a new quinazolinone-based derivative as a potent dual inhibitor for VEGFR-2 and EGFR tyrosine kinases. J. Biomol. Struct. Dyn. 2022, 40, 6810–6816. [Google Scholar] [CrossRef]
  38. Riadi, Y.; Geesi, M. Photochemical route for the synthesis of novel 2-monosubstituted pyrido [2, 3-d] pyrimidines by palladium-catalyzed cross-coupling reactions. Chem. Pap. 2018, 72, 697–701. [Google Scholar] [CrossRef]
  39. Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef]
  40. Gad, E.M.; Nafie, M.S.; Eltamany, E.H.; Hammad, M.S.; Barakat, A.; Boraei, A.T. Discovery of new apoptosis-inducing agents for breast cancer based on ethyl 2-amino-4, 5, 6, 7-tetra hydrobenzo [b] thiophene-3-carboxylate: Synthesis, in vitro, and in vivo activity evaluation. Molecules 2020, 25, 2523. [Google Scholar] [CrossRef]
  41. Nafie, M.S.; Arafa, K.; Sedky, N.K.; Alakhdar, A.A.; Arafa, R.K. Triaryl dicationic DNA minor-groove binders with antioxidant activity display cytotoxicity and induce apoptosis in breast cancer. Chem. Biol. Interact. 2020, 324, 109087. [Google Scholar] [CrossRef]
  42. El-Dash, Y.; Elzayat, E.; Abdou, A.M.; Hassan, R.A. Novel thienopyrimidine-aminothiazole hybrids: Design, synthesis, antimicrobial screening, anticancer activity, effects on cell cycle profile, caspase-3 mediated apoptosis and VEGFR-2 inhibition. Bioorg. Chem. 2021, 114, 105137. [Google Scholar] [CrossRef]
  43. Alanazi, M.M.; Aldawas, S.; Alsaif, N.A. Design, Synthesis, and Biological Evaluation of 2-Mercaptobenzoxazole Derivatives as Potential Multi-Kinase Inhibitors. Pharmaceuticals 2023, 16, 97. [Google Scholar] [CrossRef]
  44. Martin, M.P.; Alam, R.; Betzi, S.; Ingles, D.J.; Zhu, J.Y.; Schönbrunn, E. A novel approach to the discovery of small-molecule ligands of CDK2. Chembiochem 2012, 13, 2128–2136. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Aertgeerts, K.; Skene, R.; Yano, J.; Sang, B.-C.; Zou, H.; Snell, G.; Jennings, A.; Iwamoto, K.; Habuka, N.; Hirokawa, A. Structural analysis of the mechanism of inhibition and allosteric activation of the kinase domain of HER2 protein. J. Biol. Chem. 2011, 286, 18756–18765. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Norman, M.H.; Liu, L.; Lee, M.; Xi, N.; Fellows, I.; D’Angelo, N.D.; Dominguez, C.; Rex, K.; Bellon, S.F.; Kim, T.-S. Structure-based design of novel class II c-Met inhibitors: 1. Identification of pyrazolone-based derivatives. J. Med. Chem. 2012, 55, 1858–1867. [Google Scholar] [CrossRef]
  47. Friesner, R.A.; Murphy, R.B.; Repasky, M.P.; Frye, L.L.; Greenwood, J.R.; Halgren, T.A.; Sanschagrin, P.C.; Mainz, D.T. Extra precision glide: Docking and scoring incorporating a model of hydrophobic enclosure for protein-ligand complexes. J. Med. Chem. 2006, 49, 6177–6196. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Molecules 28 05548 sch001 550

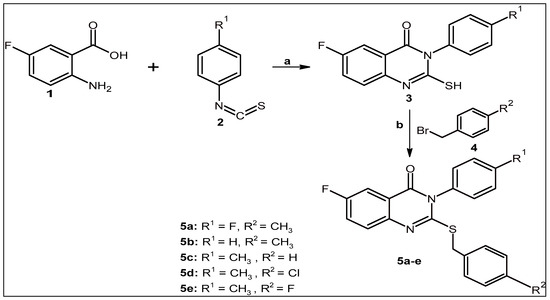

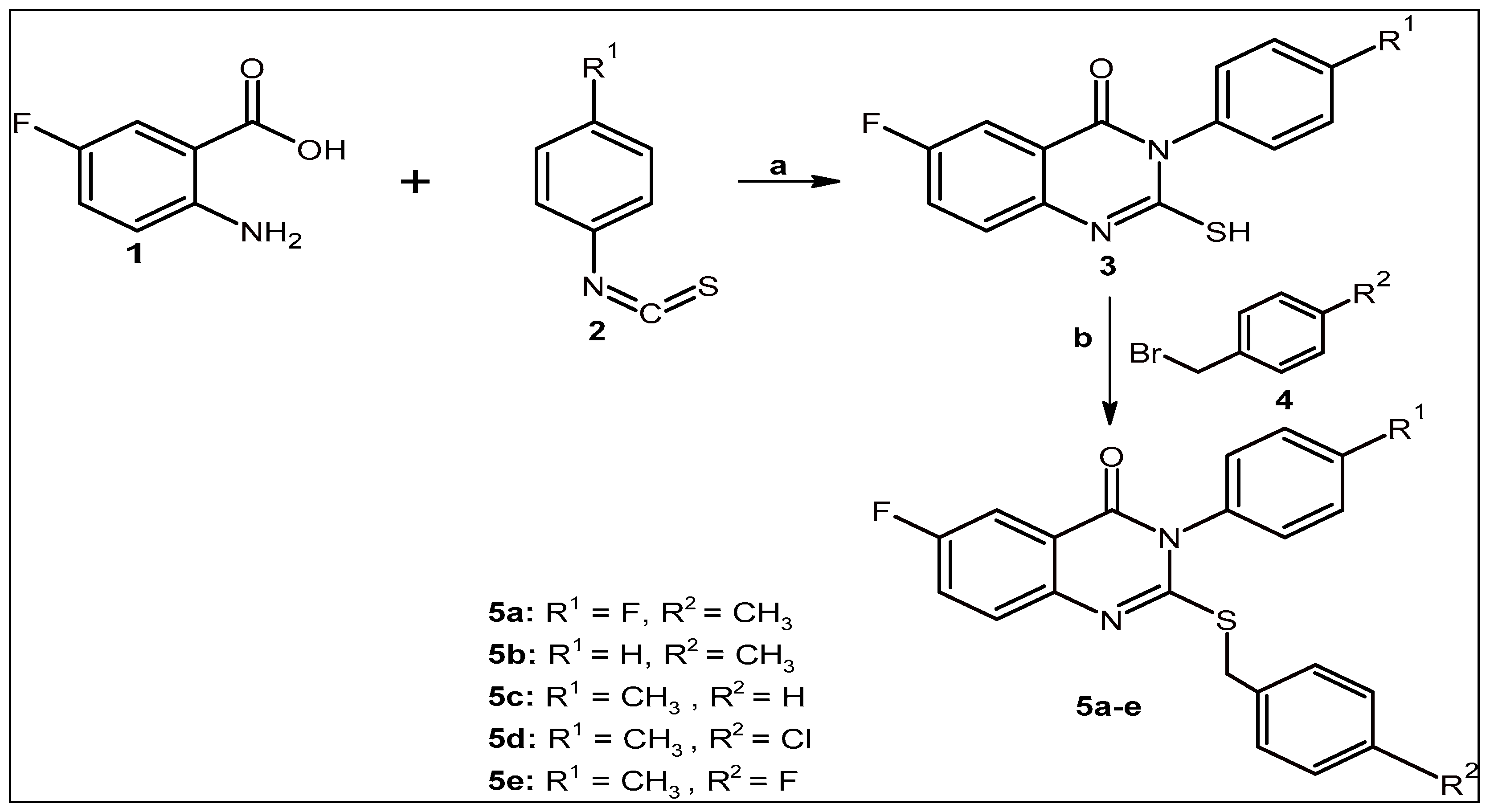

Scheme 1. Synthesis route of 2-sulfanylquinazolin-4(3H)-one derivatives (5a–e). Reagents and conditions: (a) EtOH and Et3N, reflux for 1.5 h. (b) Appropriate benzyl bromide (4), acetone, and K2CO3, stir for 10 h.
Scheme 1. Synthesis route of 2-sulfanylquinazolin-4(3H)-one derivatives (5a–e). Reagents and conditions: (a) EtOH and Et3N, reflux for 1.5 h. (b) Appropriate benzyl bromide (4), acetone, and K2CO3, stir for 10 h.
Molecules 28 05548 sch001
Molecules 28 05548 g001a 550Molecules 28 05548 g001b 550

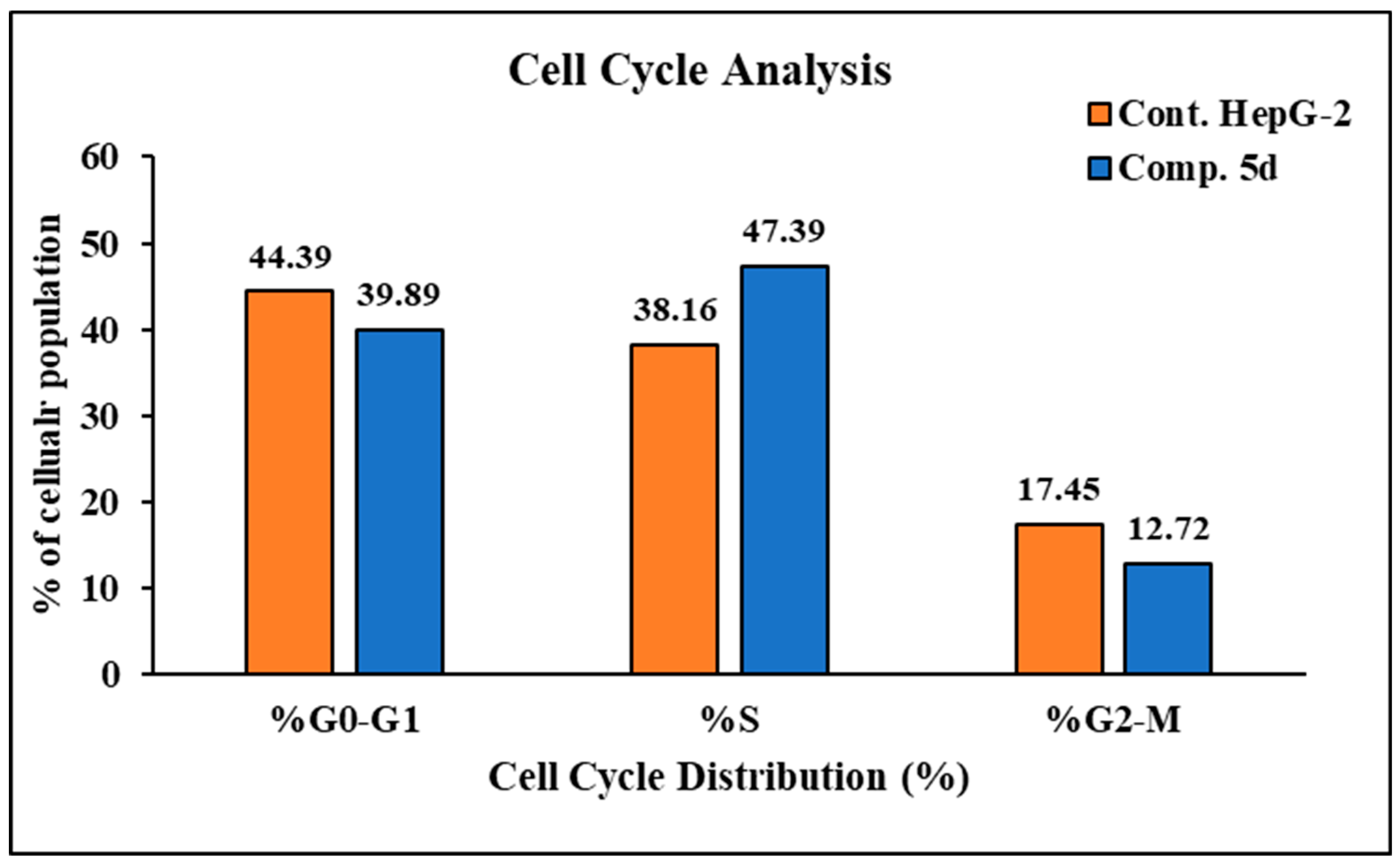

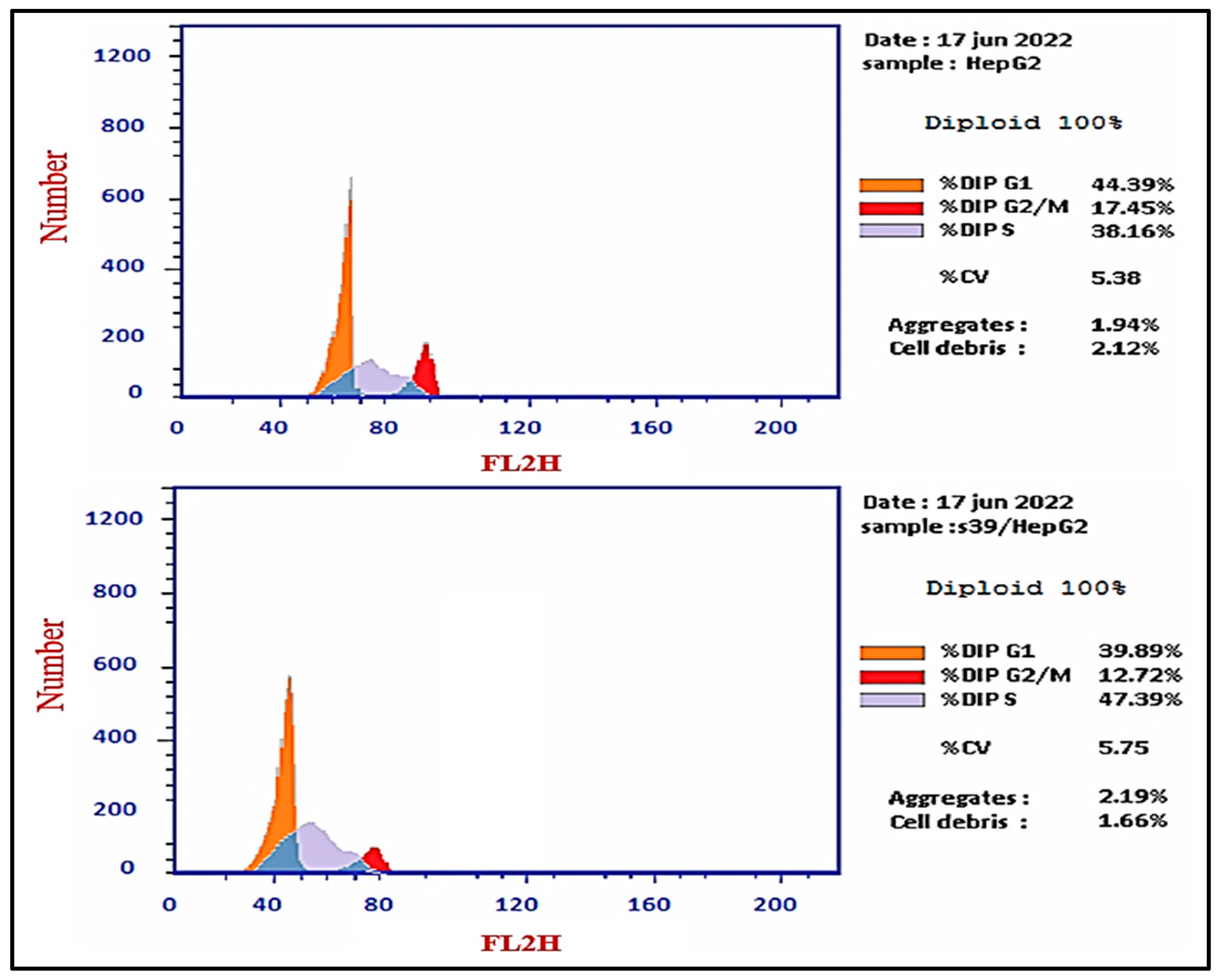

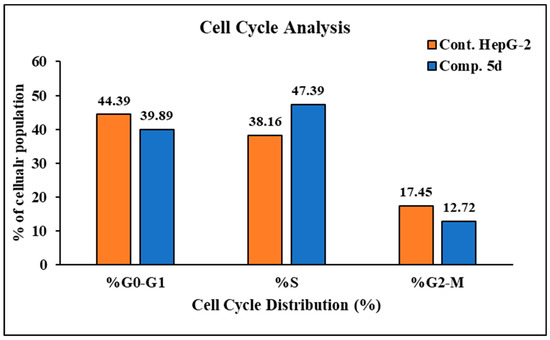

Figure 1. Histograms of DNA content-flow cytometry of untreated (upper panel) and treated HepG2 cells (down panel) with compound 5d (IC50 values = 7.1 µM; 24 h) and bar representation of the percentage of cell population at each cell cycle.
Figure 1. Histograms of DNA content-flow cytometry of untreated (upper panel) and treated HepG2 cells (down panel) with compound 5d (IC50 values = 7.1 µM; 24 h) and bar representation of the percentage of cell population at each cell cycle.
Molecules 28 05548 g001aMolecules 28 05548 g001b
Molecules 28 05548 g002a 550Molecules 28 05548 g002b 550

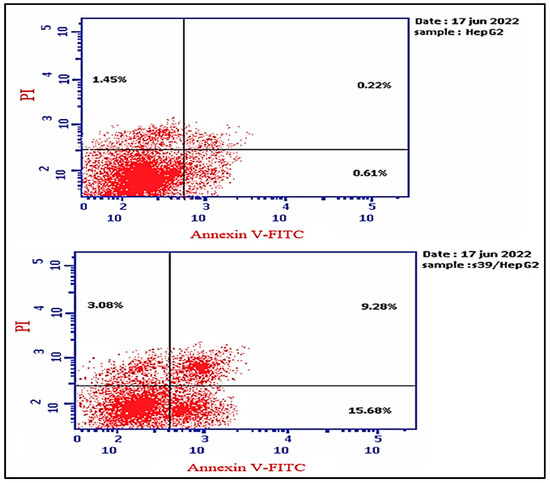

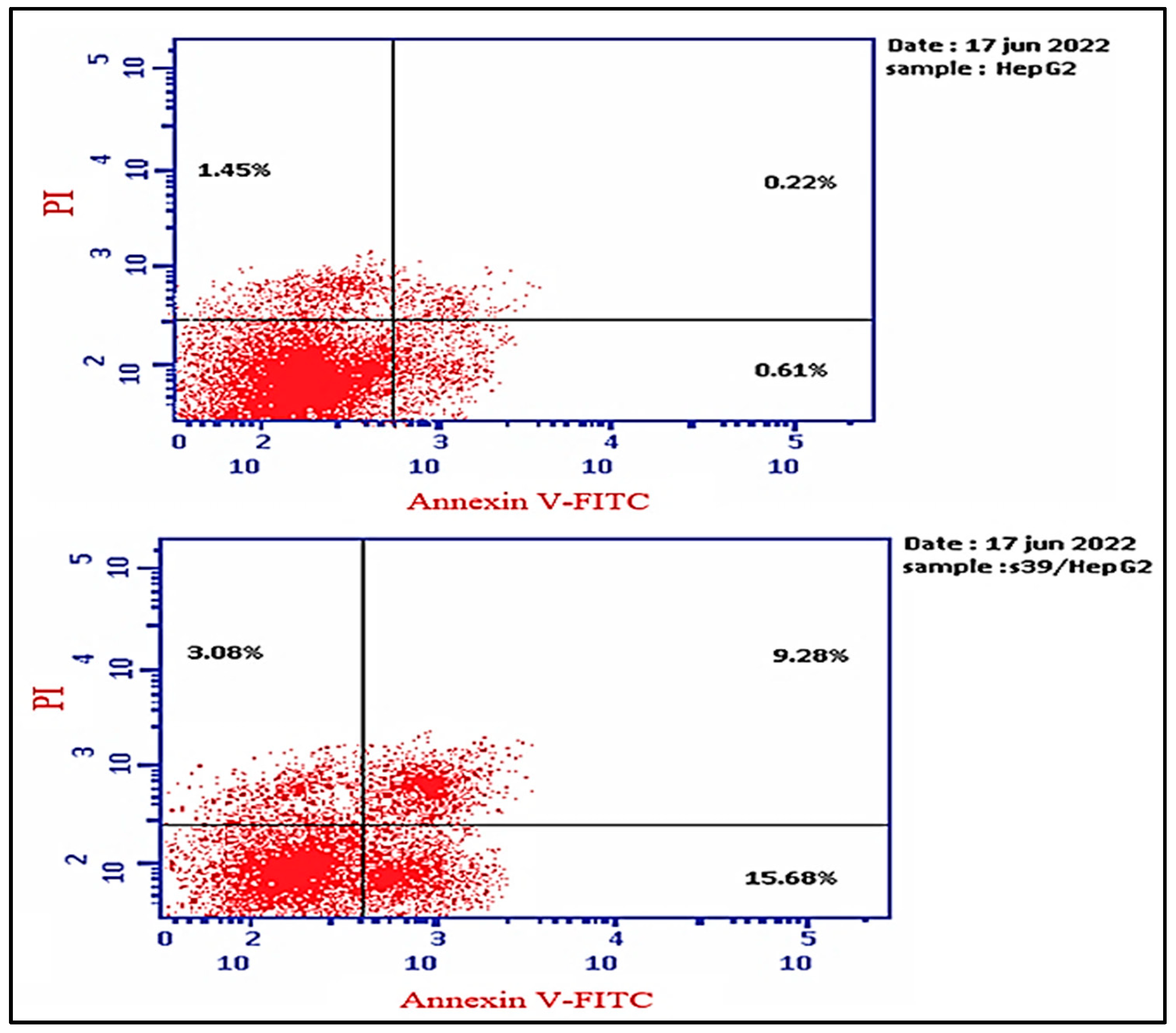

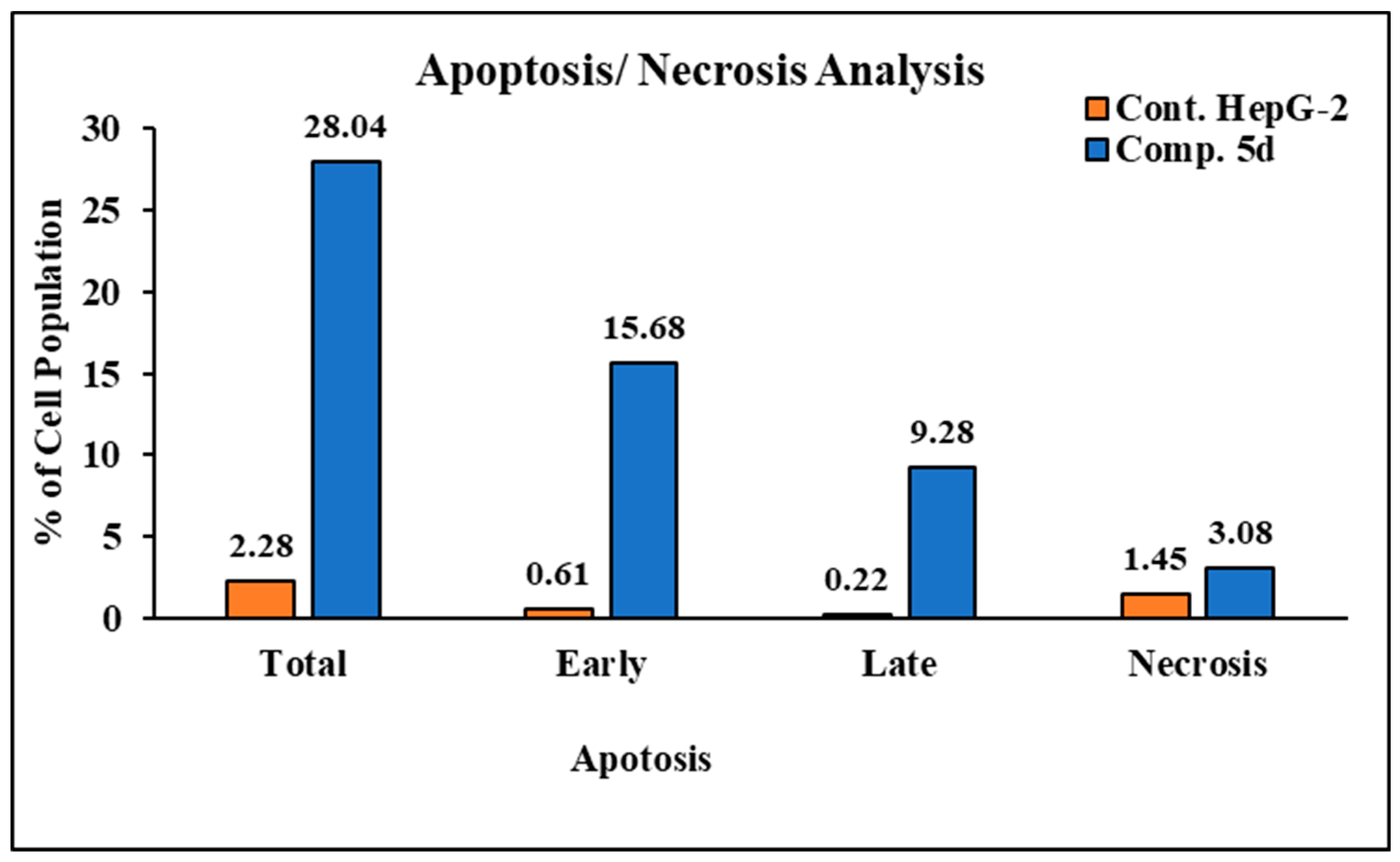

Figure 2. Cryptographs of annexin-V/propidium iodide staining of untreated (upper panel) and treated HepG2 cells (down panel) with compound 5d (IC50 values = 7.1 µM; 24 h). Q1 (necrotic, AV−/PI+), Q2 (late apoptotic cells, AV+/PI+), Q3 (normal cells, AV−/PI−), Q4 (early apoptosis, AV+/PI−), and bar representation of the percentage of total apoptosis and cell population in the early and late apoptosis and necrosis.
Figure 2. Cryptographs of annexin-V/propidium iodide staining of untreated (upper panel) and treated HepG2 cells (down panel) with compound 5d (IC50 values = 7.1 µM; 24 h). Q1 (necrotic, AV−/PI+), Q2 (late apoptotic cells, AV+/PI+), Q3 (normal cells, AV−/PI−), Q4 (early apoptosis, AV+/PI−), and bar representation of the percentage of total apoptosis and cell population in the early and late apoptosis and necrosis.
Molecules 28 05548 g002aMolecules 28 05548 g002b
Molecules 28 05548 g003 550

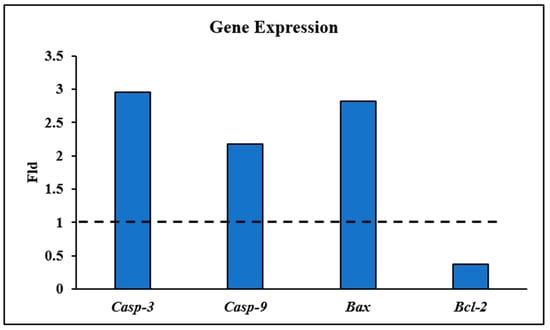

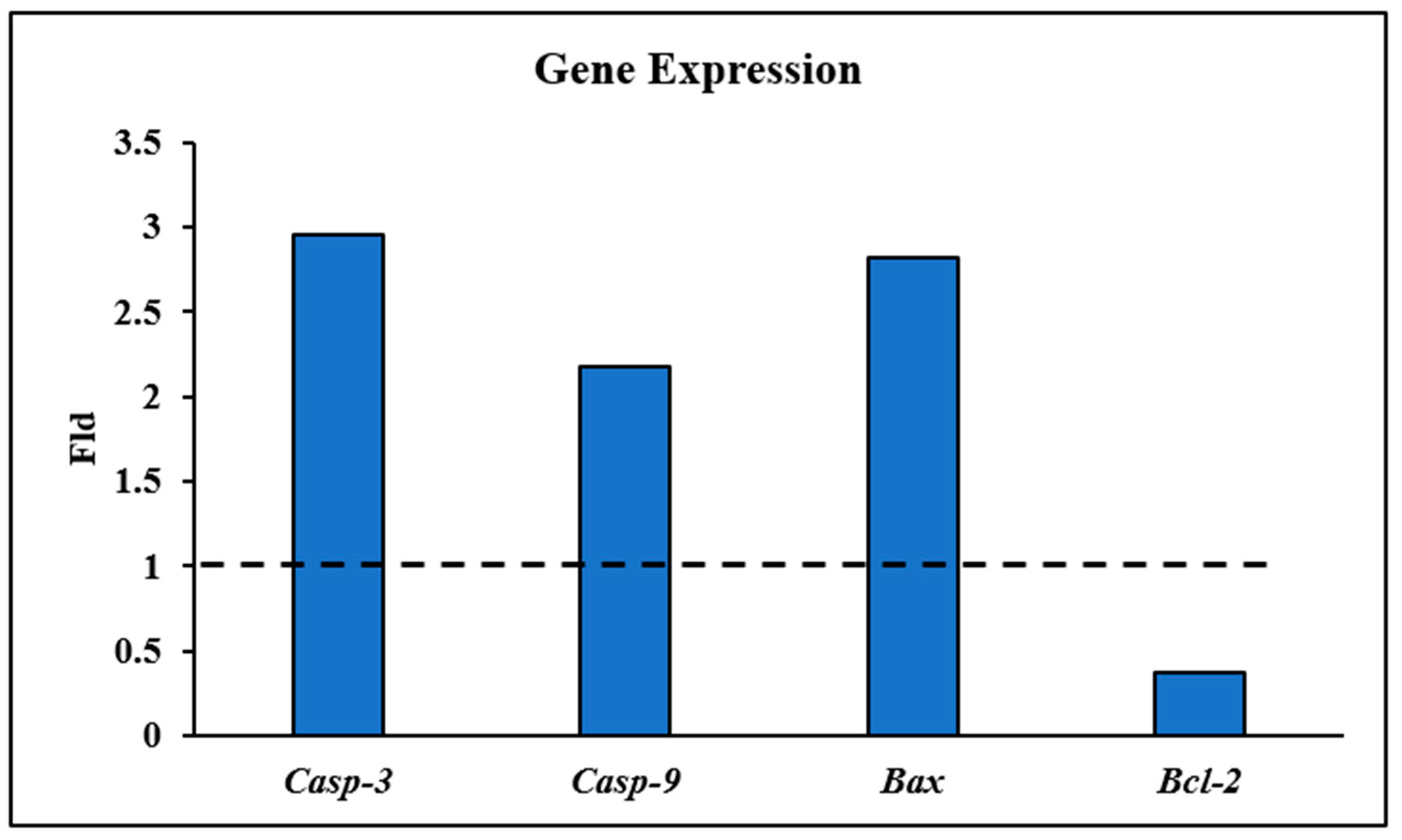

Figure 3. Gene expression representation of Casp-3, Casp-9, and Bax proapoptotic genes and Bcl-2 anti-apoptotic gene in HepG2 cells treated with compound 5d. The dashed horizontal line represents the control (fold change = 1).
Figure 3. Gene expression representation of Casp-3, Casp-9, and Bax proapoptotic genes and Bcl-2 anti-apoptotic gene in HepG2 cells treated with compound 5d. The dashed horizontal line represents the control (fold change = 1).
Molecules 28 05548 g003
Molecules 28 05548 g004 550

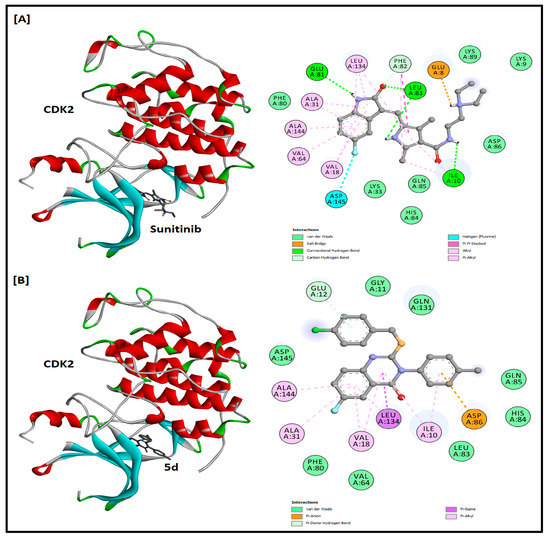

Figure 4. The 2D and 3D docking analysis of sunitinib (A) and compound 5d (B) inside the ATP binding pocket of CDK2 protein kinase (PDB ID: 3TI1).
Figure 4. The 2D and 3D docking analysis of sunitinib (A) and compound 5d (B) inside the ATP binding pocket of CDK2 protein kinase (PDB ID: 3TI1).
Molecules 28 05548 g004
Molecules 28 05548 g005 550

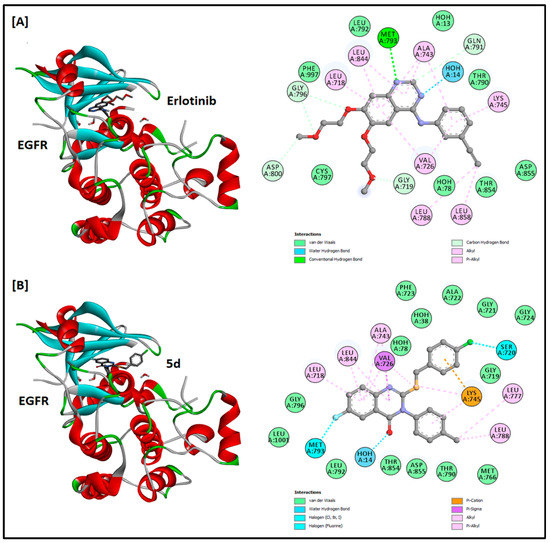

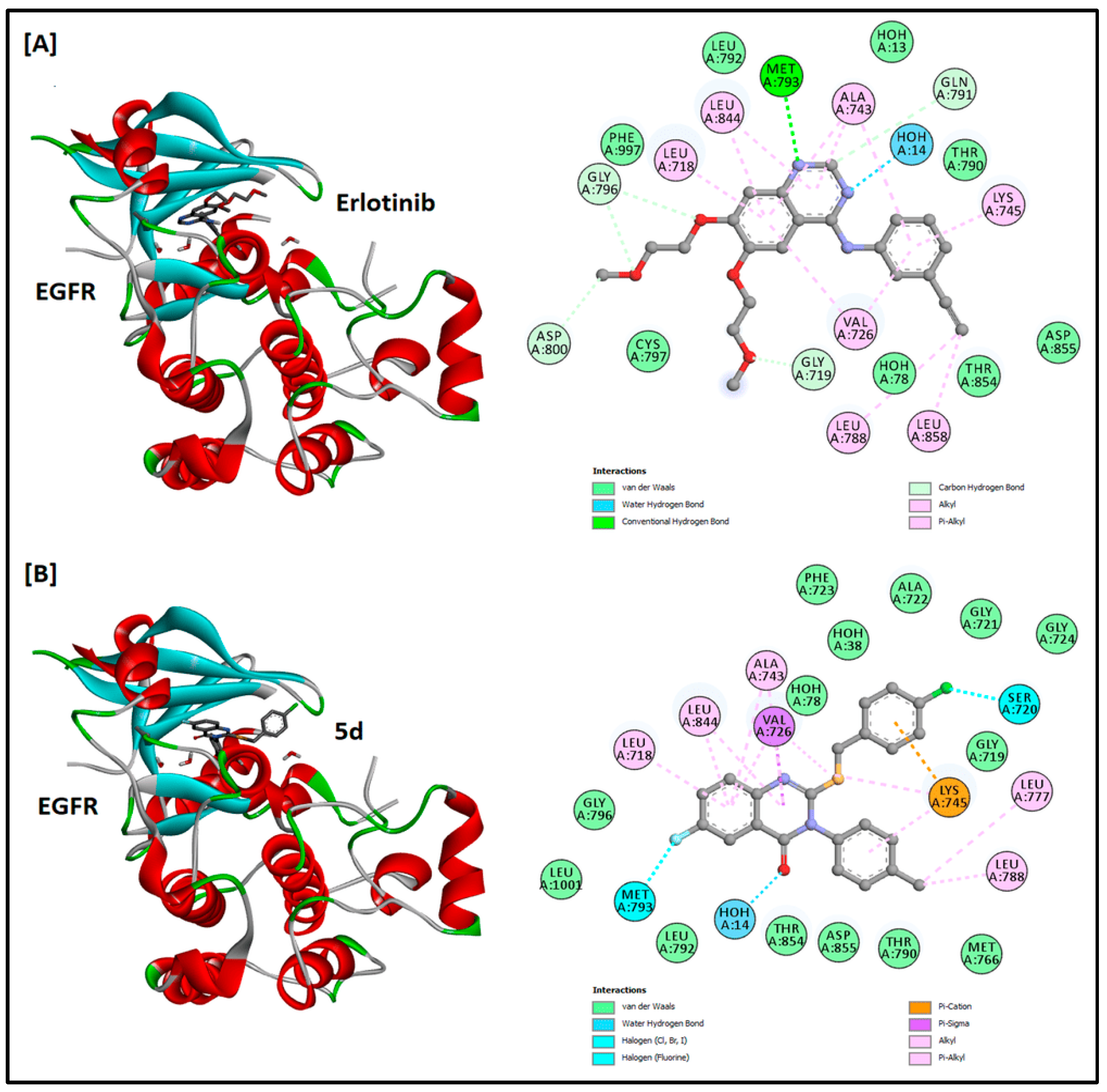

Figure 5. The 2D and 3D docking analysis of erlotinib (A) and compound 5d (B) inside the ATP binding pocket of EGFR protein kinase (PDB ID: 3POZ).
Figure 5. The 2D and 3D docking analysis of erlotinib (A) and compound 5d (B) inside the ATP binding pocket of EGFR protein kinase (PDB ID: 3POZ).
Molecules 28 05548 g005
Molecules 28 05548 g006 550

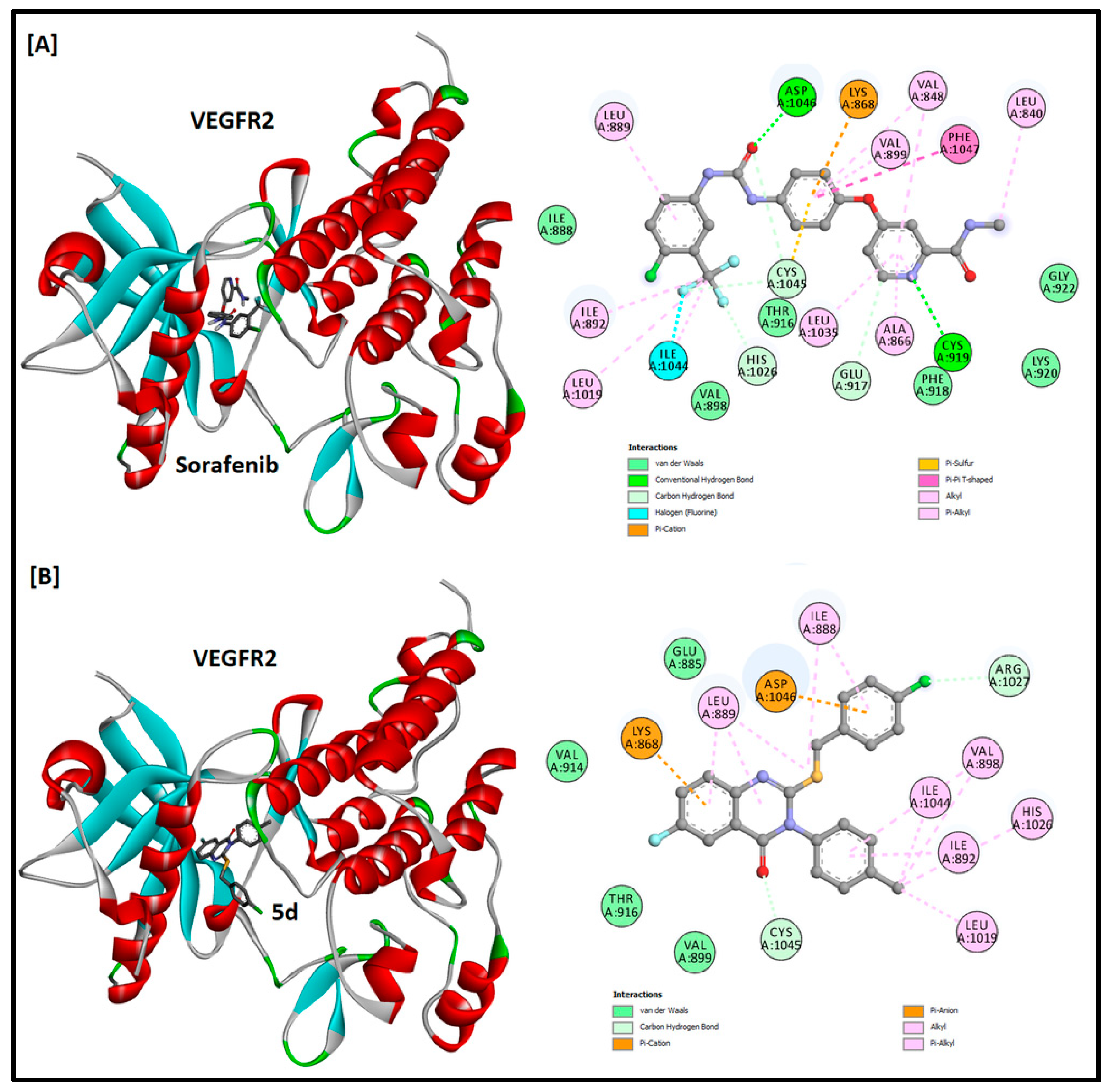

Figure 6. The 2D and 3D docking analysis of sorafenib (A) and compound 5d (B) inside the ATP binding pocket of VEGFR2 protein kinase (PDB ID: 3U6J).
Figure 6. The 2D and 3D docking analysis of sorafenib (A) and compound 5d (B) inside the ATP binding pocket of VEGFR2 protein kinase (PDB ID: 3U6J).
Molecules 28 05548 g006
Table

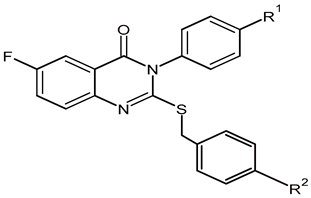

Table 1. Structures and cytotoxicity results of 2-sulfanylquinazolin-4(3H)-one derivatives against normal cell line (WI-38) and cancer cell lines (HepG2, MCF-7, MDA-MB-231, and HeLa) using standard MTT assay.
Table 1. Structures and cytotoxicity results of 2-sulfanylquinazolin-4(3H)-one derivatives against normal cell line (WI-38) and cancer cell lines (HepG2, MCF-7, MDA-MB-231, and HeLa) using standard MTT assay.
Molecules 28 05548 i001
Comp.In Vitro Cytotoxicity IC50 (µM) a,b
R1R2WI38HepG2MCF-7MDA-MB-231HeLa
3aCH3-H36.54 ± 2.582.54 ± 4.377.25 ± 4.065.48 ± 3.773.71 ± 3.9
5aF-CH328.70 ± 2.2>10086.02 ± 4.479.14 ± 4.083.23 ± 4.1
5bH-CH3>10085.01 ± 4.691.18 ± 4.878.26 ± 3.9>100
5cCH3H40.85 ± 2.634.28 ± 2.451.88 ± 3.126.87 ± 1.931.25 ± 2.1
5dCH3Cl64.29 ± 3.57.10 ± 0.62.48 ± 0.21.94 ± 0.16.38 ± 0.4
5eCH3F55.81 ± 3.229.54 ± 2.225.20 ± 1.919.18 ± 1.538.17 ± 2.3
Dox. --------6.72 ± 0.54.50 ± 0.24.17 ± 0.23.18 ± 0.15.57 ± 0.4
Sunitinib --------77.33 ± 4.311.35 ± 1.024.83 ± 1.819.04 ± 1.521.84 ± 1.7
a IC50 values are the mean ± SD of three separate experiments. b IC50 (µM): <10 (potent), 11–50 (moderate), and >50 (weak or negligible).
Table
Table 2. Inhibitory activities of compound 5d against EGFR, HER2, VEGFR2, and CDK2 kinases.
Table 2. Inhibitory activities of compound 5d against EGFR, HER2, VEGFR2, and CDK2 kinases.
CompoundKinase Inhibition IC50 (µM) a
EGFRHER2VEGFR2CDK2
5d0.22 ± 0.0130.184 ± 0.0080.336 ± 0.0092.097 ± 0.126
Positive Control 0.036 ± 0.002 b0.031 ± 0.002 b0.042 ± 0.002 c0.32 ± 0.019 d
a IC50 values are the mean ± SD of three separate experiments. b erlotinib; c sorafenib; d roscovitine.
Table
Table 3. Glide XP docking of compound 5d and the respective standard positive controls (sunitinib, erlotinib, and sorafenib) into the ATP binding pocket of CDK2, EFGR, and VEGFR2.
Table 3. Glide XP docking of compound 5d and the respective standard positive controls (sunitinib, erlotinib, and sorafenib) into the ATP binding pocket of CDK2, EFGR, and VEGFR2.
CDK2 (PDB ID: 3TI1)EGFR (PDB ID: 3POZ)VEGFR2 (PDB ID: 3U6J)
LigandsDocking ScoreGlide Emodel (Kcal/mol)H-Bond InteractionsDocking ScoreGlide Emodel (Kcal/mol)H-Bond InteractionsDocking ScoreGlide Emodel (Kcal/mol)H-Bond Interactions
Compound 5d−6.786−64.058---−8.514−68.117-H2O-Thr854−6.150−46.976---
Sunitinib−9.576−81.386Leu83, Glu81,
Ile10, Glu8		------------------
Erlotinib---------−9.660−83.352Met793,
-H2O-Thr854		---------
Sorafenib------------------−9.529−84.199Cys919, Asp1046
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Altharawi, A.; Alanazi, M.M.; Alossaimi, M.A.; Alanazi, A.S.; Alqahtani, S.M.; Geesi, M.H.; Riadi, Y. Novel 2-Sulfanylquinazolin-4(3H)-one Derivatives as Multi-Kinase Inhibitors and Apoptosis Inducers: A Synthesis, Biological Evaluation, and Molecular Docking Study. Molecules 2023, 28, 5548. https://doi.org/10.3390/molecules28145548

AMA Style

Altharawi A, Alanazi MM, Alossaimi MA, Alanazi AS, Alqahtani SM, Geesi MH, Riadi Y. Novel 2-Sulfanylquinazolin-4(3H)-one Derivatives as Multi-Kinase Inhibitors and Apoptosis Inducers: A Synthesis, Biological Evaluation, and Molecular Docking Study. Molecules. 2023; 28(14):5548. https://doi.org/10.3390/molecules28145548

Chicago/Turabian Style

Altharawi, Ali, Mohammed M. Alanazi, Manal A. Alossaimi, Ashwag S. Alanazi, Safar M. Alqahtani, Mohammed H. Geesi, and Yassine Riadi. 2023. "Novel 2-Sulfanylquinazolin-4(3H)-one Derivatives as Multi-Kinase Inhibitors and Apoptosis Inducers: A Synthesis, Biological Evaluation, and Molecular Docking Study" Molecules 28, no. 14: 5548. https://doi.org/10.3390/molecules28145548

Article Metrics

Back to TopTop
