Review

Nanoscale Ion-Exchange Materials: From Analytical Chemistry to Industrial and Biomedical Applications

by
Magdalena Matczuk
1,
Lena Ruzik
1,*,
Bernhard K. Keppler
2,* and
Andrei R. Timerbaev
2
1
Faculty of Chemistry, Warsaw University of Technology, 00-664 Warsaw, Poland
2
Institute of Inorganic Chemistry, University of Vienna, 1090 Vienna, Austria
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(18), 6490; https://doi.org/10.3390/molecules28186490
Submission received: 12 August 2023 / Revised: 5 September 2023 / Accepted: 6 September 2023 / Published: 7 September 2023
(This article belongs to the Special Issue Recent Progress in the Analysis and Detection of Pollutants of Emerging Concern in Environmental and Food Samples)
Browse Figures
Review Reports Versions Notes

Abstract

:
Nano-sized ion exchangers (NIEs) combine the properties of common bulk ion-exchange polymers with the unique advantages of downsizing into nanoparticulate matter. In particular, being by nature milti-charged ions exchangers, NIEs possess high reactivity and stability in suspensions. This brief review provides an introduction to the emerging landscape of various NIE materials and summarizes their actual and potential applications. Special attention is paid to the different methods of NIE fabrication and studying their ion-exchange behavior. Critically discussed are different examples of using NIEs in chemical analysis, e.g., as solid-phase extraction materials, ion chromatography separating phases, modifiers for capillary electrophoresis, etc., and in industry (fuel cells, catalysis, water softening). Also brought into focus is the potential of NIEs for controlled drug and contrast agent delivery.

1. Introduction

Ion-exchange polymers (IEPs) are synthetic materials that contain active, electrically charged groups along the polymer backbone to form a medium for ion exchange. When cross-linked via copolymerization with a suitable organic linker, the IEPs are converted into 3D structures with improved structural integrity and robustness, which are often called ion-exchange resins. Together with inorganic ion exchangers and natural ion-exchange materials, e.g., zeolites, clays, or soil humus, IEPs comprise a broad class of ion exchangers [1]. The enormous economic impact of IEPs is largely due to their wide use in the hydrometallurgical, chemical and petrochemical, and metal-finishing industries [2,3,4,5], among many others, especially where separation, purification, or decontamination is essential [6,7,8,9,10].
In recent years, we have observed research in both academic and industrial domains on downsizing various materials to have intensified, and this trend has included IEPs. The interest in reducing IEPs down to particles with different morphologies, whose size in at least one dimension is below 100 nm, is driven by the desire to improve the performance of these polymers. However, attracting much more interest is the ability of nano-sized ion exchangers (NIEs) to introduce new nanoscale properties. Among these are large specific surface area and high ion-exchange activity, surface-to-volume ratios, and water dispersity, as well as longer circulation times in biosystems, etc. Furthermore, due to their intrinsic composition, NIEs behave like multi-charged ions, promoting electrostatic repulsion to maintain high stability in suspension with no need of surface modification. All of these attributes have inspired both fundamental research and research activities toward diverse applications. Some applications require NIEs to be mixed or conjugated with other materials, e.g., magnetite [11] or silica gel [12], within a nanoparticle, and these hybrid nanostructures are also reviewed in this paper. On the other hand, beyond its scope, are nanocomposites made primarily of IEPs doped with inorganic nanoparticles [13,14,15]. It should be mentioned that the family of ionic polymer nanomaterials is distinctly larger, including, for instance, an interesting class of nanoparticles based on poly(ionic liquids) [16,17,18], ionically assembled from ionic liquids [19] or grafted with them [20].
To stay on message, this review describes only NIEs in greater detail. We first briefly introduce rational design strategies and then focus on the fabrication procedures, which have a significant effect on each intended application, including their merits, limitations, and complementarity for large-scale production. Also critically discussed are the characterization techniques that enable researchers to better understand the ion-exchange behavior of NIEs, particularly at the nanoscale. Next, the application potential and recent developments of NIEs in the fields of analytical chemistry, nanotechnology, and biomedicine are presented in detail. A summary of the challenges of and future perspectives on NIEs follows to give context to the state of the art of this engaging research field (Table 1).

2. Rational Design and Fabrication Strategies

Classical IEPs contain acidic or basic functionalities such as sulfonic and carboxylic acid groups or quaternary ammonium groups, respectively. These are introduced into the polymer matrix, consisting most commonly of cross-linked polystyrene (PS). While NIEs do not differ from IEPs in their functional, ionizable groups, the polymer substrates may be varied from poly(methyl methacrylate) (PMMA) and its derivatives to polyesters and poly(lactic acid), which are generally recognized as safe polymers (Table 1), to boost their application possibilities and potential. In addition, a number of NIEs are based on natural polymer materials such as chitosan [25,40,46], alginate [47], or gelatin [48]. Of these NIEs, chitosan possesses perhaps the best combination of properties that makes it favorable for a plethora of applications [49,50,51], some of which are discussed below (see Section 4). Another inexpensive and easy-to-produce alternative to synthetic NIEs is halloysite, a natural clay material with a nanotubular structure [52] which can be converted into effective cation NIEs in one of two ways (Figure 1; see also [53]).
There are numerous strategies to produce synthetic NIEs with the desired nanoscale characteristics. According to the common classification [54], they can be divided into direct polymerization and post-polymerization methods.

2.1. Direct Polymerization

The prevailing method is the direct approach using emulsion or precipitation polymerization, which is associated with nanoparticle functionalization (unless styrene sulfonate is used as an emulsifying comonomer to form an ionic charge on the surface of the nanoparticles in situ [21]). In another (out of the very few) one-step approach for the preparation of NIEs, monomers of 2-(dimethylamino) ethyl methacrylate (or 4-vynylpyridine) and 4-vinylbenzyl chloride are polymerized in the presence of azobisisobutyronitrile and undergo quarterization simultaneously [45]. For fabricating core–shell architectures, e.g., with a core of PMMA and an anionic shell of modified poly(N-isopropylacrylamide), a two-stage emulsion polymerization technique is employed, importantly, in aqueous medium [24]. Copolymerization with acrylic or methacrylic acid, each possessing a different reactivity toward the shell polymer, results in the formation of nanoparticles with the same total charge but a dissimilar distribution of carboxylic groups across the shell, either uniformly distributed throughout or with a carboxylic-rich inner shell, respectively (Figure 2).
As mentioned above, in contrast to nonionic polymeric nanoparticles, NIEs can rarely be obtained in one step, requiring a further reaction in order to obtain an ion-exchanging functionality. For this purpose, a sulfonated sodium styrene comonomer was incorporated in the shell of PS latex particles in a two-step seeded polymerization reaction [22]. A score of NIEs were thus produced either with the same size and different surface charge densities or with varying size and a similar surface charge. Likewise, a positively charged unit was introduced into otherwise uncharged diblock poly(stearyl methacrylate)–poly(benzyl methacrylate) nanoparticles to obtain NIEs with a range of morphologies (spheres, worms, and vesicles) [39]. Some researchers gave preference to more tedious synthetic schemes such as incorporating the synthesis of poly(styrene-co-maleic anhydride), its grafting with melamine, and, finally, functionalization by 1,2-ethlynediamine or 1,3-propylenediamine, all steps under the action of ultrasonic irradiation and magnetic stirring to generate nanoscale polymeric particles [55,56,57].

2.2. Post-Polymerization

When using post-polymerization, polymerization and nanoparticle formation are independent steps. For instance, a series of polyethylene-based NIEs with periodic sulfonate groups was synthesized by polyesterification of octatetraconane-1,48-diol and tetrabutylammonium dimethyl sulfosuccinate, which, after the replacement of the NBu4+ counterions by Na+ or Cs+, were transformed into platelet-like self-stabilized NIEs by ultrasonication [38]. Reisch et al. [26] proposed a simple and flexible protocol for the preparation of ultrasmall NIEs based on charge-controlled nanoprecipitation that basically only requires dissolving a charged polymer in a water-miscible solvent and adding this solution to water. In some cases, the assembly of NIEs needs virtually no polymerization, such as for particles that consist of a hydrophobic polymeric core and an anionic methacrylate-based layer, and nanoization can be attained using flash nanoprecipitation [42]. In this kinetically controlled process, an organic stream containing core and amphiphilic polymer materials is mixed under turbulent flow conditions with an aqueous stream, promoting uniform nucleation and particle growth. As a continuous procedure, flash nanoprecipitation makes the scalable production of NIEs feasible. However, greener conditions than using tetrahydrofuran as a solvent in the organic stream would be highly desirable.

2.3. Non-Synthetic Methodology

An alternative “bottom-down” approach was proposed by Dolgonosov and Khamizov [58], who prepared NIEs not synthetically but by the grinding of commercial ion-exchange materials (based on a styrene–divinylbenzene copolymer matrix). To downsize such ion exchangers, the authors used their treatment in a ball mill, followed by prolonged sedimentation and centrifugation of an aqueous suspension of the ground substance. As shown in Table 1 (see also Section 4 for more detail), the obtained NIEs possess a range of attractive properties, enabling their application in various fields. However, the fabrication is complicated by the rather tedious and time-consuming process (more than 100 h of grinding time), resulting in a negligible end-product yield. Also critically, the NIEs, particularly of the anion-exchange type, form colloids with considerable size dispersity, and the size of individual particles may reach 300 nm, thus greatly surpassing the characteristic nanoscale limit.

3. Characterization

As with every newly synthesized nanomaterial, NIEs need characterization with regard to their morphology, size, composition and functionalization, stability in suspension, and other nanoscale attributes. However, the arsenal of methods used to acquire these data, such as electron microscopy, dynamic light or small-angle X-ray scattering, ζ potential measurements, and Fourier-transform IR spectroscopy, etc., does not differ from that employed for studying other nanostructures. In view of the potential applications of NIEs, it is of greater interest to consider the parameters governing their ion-exchange behavior (the number of charged groups in the particle shell, total charge and charge distribution, the IEC, etc.) and some other pertinent properties (e.g., conductivity, metal adsorption capacity, the electrophoretic response), as well as the related methodological aspects and toolbox available for the respective measurements.
Surface charge density, i.e., the charge per unit surface area, is an important characteristic of NIEs which can be routinely determined by conductometric titration [22]. The same technique is suitable to determine the molar amount of ion-exchange sites per g of NIE. From the potentiometric titration results, it is possible to evaluate the acid capacity of the HSO3-functionalized NIEs (in mmol H+ per g) [53]. For determining the IEC or the ability of an NIE to undergo displacement of ions, manually performed acid–base titration is still the method of choice [21,31,40]. Moreover, units used to express this parameter vary greatly, from mmol g−1 to meq mL−1 or meq g−1, which makes a comparison of different NIE systems difficult. On the other hand, the charge density measurements can be carried out instrumentally by a particle charge detector [41]. Another parameter indicative of the number of ionizable groups is the degree of neutralization (or percent of neutralization), which is reliably quantified by 13C NMR spectroscopy [42]. For PS-based NIEs, the surface charge, surface-to-volume ratio, and electric potential have been estimated by calculation but without experimental verification [31]. When the electrophoretic mobility of the nanoparticles is of interest, the measurements can be performed using a standard Zetasizer instrument [39].

4. Applications

4.1. Solid-Phase Extraction

Sample cleanup and enrichment by SPE has been the major application domain of functionalized nanomaterials from their advent to modern-day analysis [59,60], and this trend includes NIEs. Sulfonated cation-exchange nanotubes, which are made of organosilylated halloysite [61], were recently tested for their performance in the selective SPE of toxic pyrrolizidine alkaloids as alternative candidates to polymeric resins [43,44]. Their practical applicability was demonstrated for LC-MS/MS analysis of spiked honey samples using an optimized protocol, detailed in Figure 3. Importantly, this NIE showed excellent reusability performance with no decrease in recovery or sorbent depletion over six SPE cycles.
However, it appears that the cited work of Prof. Bonn’s group is the only example of using the NIEs in dynamic SPE mode. Other published reports deal with the adsorption of target analytes evaluated in a tedious batch system. Polypyrrole displays high adsorption capacity with respect to the chromate ion [62], which is boosted and becomes more selective after grafting its positively charged nanoparticles onto functionalized silica gel [12]. A group of Iranian researchers proposed using a nano-sized ion-exchange bioresin to remove heavy metal ions from aqueous solutions [55,56,57]. It should be noted that these and other authors point out the possible application of NIEs for environmental remediation, taking advantage of their high metal reactivity and surface area [24]. However, no studies on metal detoxification of environmental and industrial waters could be traced in the literature.
Concerning bioanalytical applications, a positively charged PMMA-based NIE encapsulated together with magnetite nanoparticles in polymer beads was designed for selective protein binding [11]. At first sight, these composite particles appeared to be encouraging due to their superparamagnetic properties, but, surprisingly, their advantages for magnetic separation were not demonstrated. Guo et al. [23] and Li and coworkers [63] found that commercial superparamagnetic cation or anion NIEs may selectively capture some bacteria by the mechanism of aggregation on the bacterial surface due to electrostatic forces. Such capturing can be used for magnet-guided separation of target bacteria for subsequent MALDI-MS analysis. Another recent application of NIEs incorporating magnetite is the separation of thrombin from clinical serum samples with the help of a magnetic fluidized system [64].

4.2. Separation Methods

Ion-exchange materials have a long employment history as a separation-mediated component in chromatography and electrophoresis. Still, some researchers believe that nanoscale dimensionality would give a new lease of life to such mature techniques as IC or CE. The idea of modifying the µm-sized particles of common IC column loadings with a suspension of sub-microparticles is almost as old as the method itself [65,66], but implementation of NIEs as modifiers has not been a prominent response. In an attempt to fill this gap, Dolgonosov et al. [30] constructed a cation-exchange column in which the cation NIE is fixed in the pores of an anion-exchange matrix (Figure 4). Due to the chemical stability and stable sorption properties, such a design may have an advantage over other multifunctional stationary phases, e.g., those based on silica gel [67]. However, no practical applications have so far been reported besides the separation of a model mixture of alkali metal cations and ammonium [31].
Hardware modification is also a mainstream approach in electromigration techniques, particularly for separating basic and/or hydrophobic analytes. Dzema et al. [28] and Polikarpova and coworkers [33] explored the possibility of dynamic coating of fused-silica capillaries using a PS-based NIE functionalized with sulfo groups. When added to the capillary electrolyte, the NIE was shown to form a loose uniform monolayer on the capillary surface which, for certain analytes, made the resolution and separation efficiency better than in the case of untreated capillaries. However, the authors provided no detailed comparison with other cationic capillary modifiers, and some separations (e.g., of inorganic anions [28]) were significantly inferior to the golden CE standard (over 30 separands in one run [68,69]). As a practical application of CE on NIE-modified capillaries, the determination of a number of catecholamines and amino acids [33] or a few inorganic anions [28] in human urine was demonstrated. In another report by the same research group [29], a similar but positively charged NIE was proven as a feasible pseudostationary phase for CEC, another powerful electromigration technique for the separation of a variety of analytes [70]. To cope with the modest durability of NIE coatings, a layer-by-layer approach was recently proposed [34] in which the capillary inner wall is sequentially coated with two layers of oppositely charged NIEs. Due to the benefits of high IEC, large surface-to-volume ratio, and a high affinity toward the fused silica surface, a wider implementation of NIEs in CEC holds promise. However, significant fabrication challenges limit the use of NIEs with CEC, at least in part, and, as such, it has only been reported twice at the time of this writing. Earlier applications of other types of polymeric nanoparticles such as pseudostationary phases for CEC were reviewed by Palmer and McCarney [71].

4.3. Miscellaneous Analytical Applications

PS-NIEs also find application in boosting the analytical signal in certain spectroscopic methods. When a cation NIE in the H-form was recently added to the analyzed solution, an unusual (and still inexplicable) effect on the response of various metals in ICP-OES was discovered [32]. This greatly enhanced emission resulted in an improvement in the limits of detection by up to one order of magnitude. In contrast, the use of NIEs in luminescence analysis has a solid foundation as their diluted suspensions possess a marked luminescence. Heavy metal ions, e.g., Cu(II) [27], tend to be concentrated on NIEs and simultaneously quench their luminescence, which affords an indirect method of metal quantification (albeit within a limited concentration range and with ambiguous selectivity).
Shkinev et al. [35] designed an instrumental setup for the electrochemical determination of acetylcholine in which a cation NIE was used as a modifier of the pores of track membranes. The explicit role of the NIE was to stabilize the interface between two immiscible electrolytes, filling the membrane pores, and to facilitate reversible charge transfer. While the proposed voltammetric sensor demonstrated acceptable analytical characteristics in comparison with other electrochemical methods, its sensitivity calls for improvement, and the applicability to real-world samples awaits examination.

4.4. Toward Industrial Use

A range of NIEs have the potential to be employed in industrial technology. Similarly to those of other engineered nanostructures [72,73], promising applications of NIEs may be segmented into energy, electronics, chemistry, healthcare, and other end-user industries. One of the prospective directions in finding new energy sources is the development of fuel cells, the functioning of which is defined by the proton exchange between the anode and cathode sides of polymer electrolyte membranes [74]. Novel sulfonic acid-functionalized chitin nanowhiskers were recently assessed for the production of direct methanol fuel cell membranes [40]. The results showed that the modification with sulfonic acid groups as the proton-conducting sites enhanced the performance of the manufactured membranes in terms of the proton-conductivity-to-methanol permeability ratio. Similarly, functionalized halloysite nanotubes were examined as acid catalysts in the esterification of a mixture of free fatty acids as a hybrid feedstock model for biodiesel production [53]. Almost 100% feedstock conversion and reusability are attractive attributes of this new nanocatalyst, especially in terms of making the biodiesel production process more efficient and economical. In addition, in the area of developing next-generation electronic devices, NIEs originating from conducting or semiconducting polymers possess (high) conductivity and thus may play a role in advancing research in soft electronics. This application was highlighted in a recent review paper by Wang et al. [75], in which progress in engineering conducting polymers with various nanostructures to be used in soft electronic devices was summarized.
Nanoscale polypyrrole-based material, containing polystyrenesulfonate as a counter-ion and exhibiting cation-exchange behavior, has been shown to be promising in technological applications [76]. Depending on its morphology, either particles or films, this type of NIE can be employed as a support for a nano-dispersed Pt catalyst used in a hydrogen and methanol oxidation reaction or for electrochemical water softening. Binding of catalytically active rhodium complexes to polycationic polymer NIEs of different sizes via multiplying sulfonated ligands was investigated by Mecking et al. [77] with the goal of combining the advantages of classical homogeneous and heterogeneous catalysts. An ionic polymeric NIE was used to fabricate ultrafiltration membranes with improved water permeability, antifouling nature, and surface hydrophilicity, mainly due to the presence of quaternary ammonium groups [45]. Initial testing revealed that the fabricated membranes improved the separation of oil/water emulsions. Negatively charged polymer nanoparticles were used to modify the rheological properties of fresh cement pastes [41]. High adsorption of NIE on cement produced electrostatic repulsion and steric hindrance between cement grains and, therefore, greatly advanced its yield stress and plastic viscosity. In another application, Sun et al. constructed a conductive textile-based wearable pressure sensor featuring a robust polydopamine–carboxylated carbon tube configuration and capable of detecting a pulse and throat movement or other human motions [78].
In summary, however multifaceted and promising the development of NIEs for industrial use may be, their practical application still remains an elusive goal. More efforts for the commercialization of technical inventions in which these materials play a key role are anticipated.

4.5. Drug Delivery

Nanomedicine is arguably the most rapidly emerging application of nanotechnology, and one of its pillars, controlled or targeted drug delivery, has received a great deal of interest from oncologists and medicinal chemists [79,80]. Over the past decade, a wide variety of drug carriers have been synthesized from different types of nanomaterials, of organic, inorganic, or biological nature, and their composites [81], as well as synthetic and natural polymeric nanosystems [82,83,84]. This does not impede, however, the discovery of alternative nanoscale vehicles. A proof-of-concept study by Kuznetsova and her colleagues [37] indicated that NIEs possess some of the features required of an intelligent drug carrier. Using cisplatin as a test drug, it was demonstrated that a cation PS-based NIE is able to load a high drug dose, protect the payload against the human serum environment, and release the drug in therapeutically effective quantities. As can be seen in Figure 5, the amount of platinum discharged in a simulated cancer cytosol differed greatly from that released under normal cytosol conditions, which is a sign of cell-selective drug delivery. Nonetheless, the proposed nanocarrier clearly requires further development to accomplish targeted delivery. Its magnetization [85], e.g., by fabricating nanocomposite particles [9], modification with explicit moieties overexpressed by cancer cells [86], or noncovalent decoration with antibodies [87], might address the issue of enhancing tumor-specific uptake.
The same NIE offers promise as a nanoplatform for the delivery of another first-line chemotherapeutic agent, doxorubicin [36]. The drug loaded on the nanomaterial possesses a three to six times greater cytotoxicity than the same dose of doxorubicin alone. The authors ascribed this effect to the drug enrichment upon attachment to the NIE and expressed their hope that this NIE could find application in clinical practice. Recently, it was shown that the intracellular delivery of doxorubicin depends on the core architecture of pH-responsive polymer nanoparticles, with the loaded particles with a linear core displaying higher toxicity in MCF-7 cells compared to those with a star core [88]. However, an interested reader should not be misguided. High cell-killing ability is not the most important characteristic of an anticancer drug, especially when the cytotoxicity is tested in a simplistic way, i.e., by adding a drug formulation directly to a cell culture without taking into consideration the numerous potential chemical transformations on the way to the cancer cell.
In another recent study, an anionic PMMA-based polymer approved by the FDA was applied to poly(lactic acid) nanoparticles, and, simultaneously, a small-molecule therapeutic drug was incorporated into the structure, thereby creating an effective oral nanoformulation [42]. The drug release from the nanoparticle core largely depends on the pH responsiveness of the polymer coating provided by the presence of carboxyl groups. While it has been explored only with a single antimalarial drug, lumefantrine, this combined nanomaterial is believed to enable the encapsulation of a broad spectrum of hydrophobic active pharmaceutical ingredients. Perhaps the most comprehensive study on drug-carrying systems based on NIEs was performed by Zhang et al. [89]. The authors functionalized monodispersed silica nanoparticles with polydopamine, loaded the resultant material with cyclophosphamide, a therapeutic drug against diffusive alveolar hemorrhage, and proved drug release through photothermal conversion and low pH. Furthermore, good biocompatibility of the nanoformulation and its ability to alleviate disease progression after three weeks of systematic administration were demonstrated in animal experiments.

4.6. Delivery of Contrast Agents

The biomedical functions of polymeric nanoparticles extend beyond drug delivery [90] as they can also be used as nanocarriers of contrast agents, e.g., for fluorescence bioimaging [91,92]. At least one family of NIEs, based on three types of polymers, including two biodegradable polyesters (see Table 1), and functionalized with negatively charged carboxylate or sulfonate or positively charged trimethylammonium groups, was prepared and investigated for such an application [26]. A fit-for-purpose feature of these NIEs is the nearly quantitative encapsulation of organic dyes, which generates a fluorescence nanomarker that is more than 10 times brighter than typical commercial quantum dots (Figure 6). No release of the dye was observed in a simulated biological medium, PBS with 10% serum, and, even though these are not real blood conditions, the developed NIEs may expect a drive towards being adapted in medical diagnostics.
In conclusion, different types of NIEs are pursued for the development of novel analytical, technological, and medicinal tools and materials. Their benefits and current limitations are summarized in Table 2.

5. Conclusions

The past few years have seen great efforts toward putting NIEs on the map of advanced engineered nanostructures. Tailor-made fabrication strategies are continuously being developed to improve the nanoscale characteristics of NIE materials. While the approaches can differ, those which use versatile direct polymerization hold greater promise in terms of required cost efficiency, end-product variability, and quality metrics. On the other hand, post-polymerization based on nanoprecipitation is an attractive approach to induce polymer nanoization via a simple charge- and kinetically controlled process. More problematic is the precise control over the NIE nanostructure from the standpoint of its ion-exchange behavior, which remains a bottleneck for approved synthesis qualification. Advanced characterization techniques that can address this challenge are therefore urgently required. In addition, the issues of environmentally friendly and large-scale manufacturing have not received due attention. In this regard, materials with massive natural occurrence, such as chitosan [93] or nanoclays [94], seem to present green and sustainable alternatives to the usual NIEs based on fossil-derived polymeric substrates.
As reflected in this review, a representative number of NIEs have been explored with respect to increasing useful applications. However, most of the research endeavors looked like ‘one-bullet shootings’, with a single study or few studies devoted to a specific application, and, therefore, remain at the level of qualitative research. In the field of analytical chemistry, nanoparticulation is clearly gaining popularity for IEPs. Still, as with pursuing every novel analytical approach or tool, analysts should be guided by the principle of proving the advantage of an NIE-mediated system over the existing analytical methodology in order to justify their time, effort, and costs. To bridge the gap between the laboratory bench and industry, extensive collaborative investigations from multiple disciplines are needed. In particular, the long-term reliability of devices and units fabricated from NIEs should be thoroughly assessed. The functionalities, optimized performance, and user friendliness of current NIE-based designs are also limited, demanding a devoted research response. Finally, the path of NIEs from concept to clinical translation is by no means straightforward. Using NIEs made from biocompatible and degradable polymers would be the most promising roadmap strategy to ensure their biosafety and clearance from living organisms. In addition, NIEs designed as nanocarrier vectors require in-depth quality control before loading to produce drug formulations free of impurities, as well as the assessment of biocompatibility, immunogenicity, and possible side effects prior to testing in humans.

Author Contributions

Conceptualization, A.R.T.; formal analysis, M.M. and A.R.T.; writing—original draft preparation, M.M. and A.R.T.; writing—reviewing and editing; L.R., A.R.T. and B.K.K.; supervision, L.R. and B.K.K. All authors have read and agreed to the published version of the manuscript.

Funding

Open-access funding is provided by the University of Vienna.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. De Dardel, F.; Arden, T.V. Ion exchangers. In Ullmann’s Encyclopedia of Industrial Chemistry; Wiley Online Library: Hoboken, NJ, USA, 2008. [Google Scholar] [CrossRef]
  2. Van Deventer, J. Selected ion exchange applications in the hydrometallurgical industry. Solv. Extract. Ion Exch. 2011, 29, 695–718. [Google Scholar] [CrossRef]
  3. Kilislioglu, A. Ion Exchange Technologies; IntechOpen: Rijeka, Croatia, 2012; p. 366. [Google Scholar]
  4. Sarkar, S.; Sen Gupta, A.K.; Greenleaf, J.E. Ion-exchange technology. In Encyclopedia of Polymer Science and Technology, 4th ed.; Mark, H.F., Ed.; Wiley Online Library: Hoboken, NJ, USA, 2014; Volume 7, pp. 150–194. [Google Scholar]
  5. Meetei, T.T.; Devi, Y.B.; Chanu, T.T. Ion exchange: The most important chemical reaction on earth after photosynthesis. Int. Res. J. Pure Appl. Chem. 2020, 21, 56798. [Google Scholar] [CrossRef]
  6. Sharma, V.; Singh, L. Ion exchange resins: A boon for pharmaceutical industry—An overview. Int. J. Pharm. Sci. Rev. Res. 2011, 6, 10–13. [Google Scholar]
  7. Ramirez, E.; Bringue, R.; Fite, C.; Iborra, M.; Tejero, J.; Cunill, F. Role of ion-exchange resins as catalyst in the reaction-network of transformation of biomass into biofuels. J. Chem. Technol. Biotechnol. 2017, 92, 2775–2786. [Google Scholar] [CrossRef]
  8. Lee, C.G.; Alvarez, P.J.J.; Nam, A.; Park, S.J.; Do, T.; Choi, U.S.; Lee, S.H. Arsenic(V) removal using an amine-doped acrylic ion exchange fiber: Kinetic, equilibrium, and regeneration studies. J. Hazard. Mater. 2017, 325, 223–229. [Google Scholar] [CrossRef]
  9. Chu, J.H.; Kang, J.K.; Park, S.J.; Lee, C.G. Application of the anion-exchange resin as a complementary technique to remove residual cyanide complexes in industrial plating wastewater after conventional treatment. Environ. Sci. Pollut. Res. 2020, 27, 41688–41701. [Google Scholar] [CrossRef] [PubMed]
  10. Dixit, F.; Dutta, R.; Barbeau, B.; Berube, P.; Mohseni, M. PFAS removal by ion exchange resins: A review. Chemosphere 2021, 272, 129777. [Google Scholar] [CrossRef] [PubMed]
  11. Banert, T.; Peuker, U.A. Synthesis of magnetic beads for bio-separation using the solution method. Chem. Engineer. Commun. 2007, 194, 707–719. [Google Scholar] [CrossRef]
  12. Mondal, P.; Roy, K.; Bayen, S.P.; Chowdhury, P. Synthesis of polypyrrole nanoparticles and its grafting with silica gel for selective binding of chromium(VI). Talanta 2011, 83, 1482–1486. [Google Scholar] [CrossRef]
  13. Siva, S.; Sudharsan, S.; Sayee Kannan, R. Synthesis, characterization and ion-exchange properties of novel hybrid polymer nanocomposites for selective and effective mercury(II) removal. RSC Adv. 2015, 5, 79665–79678. [Google Scholar] [CrossRef]
  14. Dzyazko, Y.S.; Fedina, L.V.; Zakharov, V.V.; Kolomiets, Y.O.; Kudelko, K.O. Composite ion-exchanges for the recycling of liquid waste of dairy industry. Ukr. Chem. J. 2020, 86, 38–52. (In Ukrainian) [Google Scholar] [CrossRef]
  15. Saha, A.; Deb, M.K.; Mahilang, M.; Kurrey, R.; Sinha, S. Polymeric resins as nano-catalysts: A brief review. J. Ind. Chem. Soc. 2020, 97, 1442–1454. [Google Scholar]
  16. Zhang, W.; Kochovski, Z.; Lu, Y.; Schmidt, B.V.K.J.; Antonietti, M.; Yuan, J. Internal morphology-controllable self-assembly in poly(ionic liquid) nanoparticles. ACS Nano 2016, 10, 7731–7737. [Google Scholar] [CrossRef] [PubMed]
  17. Fang, C.; Kong, L.; Ge, Q.; Zhang, W.; Zhou, X.; Zhang, L.; Wang, X. Antibacterial activities of N-alkyl imidazolium-based poly(ionic liquid) nanoparticles. Polymer Chem. 2019, 10, 209–218. [Google Scholar] [CrossRef]
  18. Lu, B.; Zhou, G.; Xiao, F.; He, Q.; Zhang, J. Stimuli-responsive poly(ionic liquid) nanoparticles for controlled drug delivery. J. Mater. Chem. B 2020, 8, 7994–8001. [Google Scholar] [CrossRef] [PubMed]
  19. Cui, W.; Lu, X.; Cui, K.; Niu, L.; Wei, Y.; Lu, Q. Dual-responsive controlled drug delivery based on ionically assembled nanoparticles. Langmuir 2012, 28, 9413–9420. [Google Scholar] [CrossRef] [PubMed]
  20. Dai, W.; Zhang, Y.; Tan, Y.; Luo, X.; Tu, X. Reusable and efficient polymer nanoparticles grafted with hydroxyl-functionalized phosphonium-based ionic liquid catalyst for cycloaddition of CO2 with epoxides. Appl. Catal. A 2016, 514, 43–50. [Google Scholar] [CrossRef]
  21. Brijmohan, S.B.; Swier, S.; Weiss, R.A.; Shaw, M.T. Synthesis and characterization of cross-linked sulfonated polystyrene nanoparticles. Ind. Eng. Chem. Res. 2005, 44, 8039–8045. [Google Scholar] [CrossRef]
  22. Wutzel, H.; Samhaber, W.M. Synthesis and characterization of sulphonated core-shell lattices in the size range between 30 and 80 nm. Colloids Surf. A 2008, 319, 84–89. [Google Scholar] [CrossRef]
  23. Guo, Z.; Liu, Y.; Li, S.; Yang, Z. Interaction of bacteria and ion-exchange particles and its potential in separation for matrix-assisted laser desorption/ionization mass spectrometric identification of bacteria in water. Rapid Commun. Mass Spectrom. 2009, 23, 3983–3993. [Google Scholar] [CrossRef]
  24. Pinheiro, J.P.; Moura, L.; Fokkink, R.; Farinha, J.P.S. Preparation and characterization of low dispersity anionic multiresponsive core-shell polymer nanoparticles. Langmuir 2012, 28, 5802–5809. [Google Scholar] [CrossRef]
  25. Fàbregas, A.; Minarro, M.; García-Montoya, E.; Pérez-Lozano, P.; Carrillo, C.; Sarrate, R.; Sánchez, N.; Ticó, J.R.; Suné-Negre, J.M. Impact of physical parameters on particle size and reaction yield when using the ionic gelation method to obtain cationic polymeric chitosan–tripolyphosphate nanoparticles. Int. J. Pharm. 2013, 446, 199–204. [Google Scholar] [CrossRef] [PubMed]
  26. Reisch, A.; Runser, A.; Arntz, Y.; Mely, Y.; Klymchenko, A.S. Charge-controlled nanoprecipitation as a modular approach to ultrasmall polymer nanocarriers: Making bright and stable nanoparticles. ACS Nano 2015, 9, 5104–5116. [Google Scholar] [CrossRef] [PubMed]
  27. Dolgonosov, A.M.; Khamizov, R.K.; Kolotilina, N.K.; Shaikhina, S.U.; Evstigneeva, P.V. Preparation, properties and application of colloid solutions of nano-sized ion-exchangers. Sorpt. Chromatogr. Process. 2016, 16, 400–414. (In Russian) [Google Scholar]
  28. Dzema, D.V.; Kartsova, L.A.; Polikarpova, D.A. Application of the highly basic nano-sized anionite for the capillary electrophoresis separation and on-line concentration of inorganic anions. Anal. Control 2017, 21, 41–48. (In Russian) [Google Scholar] [CrossRef]
  29. Polikarpova, D.; Makeeva, D.; Kartsova, L.; Dolgonosov, A.; Kolotilina, N. Nano-sized anion-exchangers as a stationary phase in capillary electrochromatography for separation and on-line concentration of carboxylic acids. Talanta 2018, 188, 744–749. [Google Scholar] [CrossRef] [PubMed]
  30. Dolgonosov, A.M.; Kolotilina, N.K.; Yadykov, M.S. Method of Preparation of High-Performance Columns for Ion Chromatography. Russian Patent No. 2499628, 27 November 2013. [Google Scholar]
  31. Dolgonosov, A.M.; Khamizov, R.K.; Kolotilina, N.K. Nano ion exchangers as modifiers of chromatographic phases and sources of analytical signal. J. Anal. Chem. 2019, 74, 382–392. [Google Scholar] [CrossRef]
  32. Dolgonosov, A.M.; Khamizov, R.K.; Kolotilina, N.K.; Fokina, O.V. The Method of Optical Emission Analysis of Solutions. Russian Patent No. 2706720, 20 November 2019. [Google Scholar]
  33. Polikarpova, D.; Makeeva, D.; Kolotilina, N.; Dolgonosov, A.; Peshkova, M.; Kartsova, L. Nanosized cation exchanger for the electrophoretic separation and preconcentration of catecholamines and amino acids. Electrophoresis 2020, 41, 1031–1038. [Google Scholar] [CrossRef]
  34. Makeeva, D.V.; Polikarpova, D.A.; Kartsova, L.A. Bilayer capillary coatings based on nanosized ion-exchangers for the capillary electrochromatography analyses of biogenic amines and amino acids. Anal. Control 2021, 25, 230–240. (In Russian) [Google Scholar] [CrossRef]
  35. Shkinev, V.M.; Martynov, L.Y.; Trofimov, D.A.; Dolgonosov, A.M. Ion exchanger-filled track membranes with asymmetric pores for the electrochemical determination of acetylcholine chloride. J. Anal. Chem. 2021, 76, 390–398. [Google Scholar] [CrossRef]
  36. Dolgonosov, A.M.; Khamizov, R.K.; Kolotilina, N.K. Nano-ion-exchangers—A new class of reactive materials. Sorpt. Chromatogr. Process. 2018, 18, 794–808. [Google Scholar] [CrossRef] [PubMed]
  37. Kuznetsova, O.V.; Kolotilina, N.K.; Dolgonosov, A.M.; Khamizov, R.K.; Timerbaev, A.R. A de novo nanoplatform for the delivery of metal-based drugs studied with high-resolution ICP-MS. Talanta 2023, 253, 124035. [Google Scholar] [CrossRef]
  38. Rank, C.; Yan, L.; Mecking, S.; Winey, K.I. Periodic polyethylene sulfonates from polyesterification: Bulk and nanoparticle morphologies and ionic conductivities. Macromolecules 2019, 52, 8466–8475. [Google Scholar] [CrossRef]
  39. Smith, G.N.; Canning, S.L.; Derry, M.J.; Jones, E.R.; Neal, T.J.; Smith, A.J. Ionic and nonspherical polymer nanoparticles in nonpolar solvents. Macromolecules 2020, 53, 3148–3156. [Google Scholar] [CrossRef]
  40. Nasirinezhad, M.; Ghaffarian, S.R.; Tohidian, M. Eco-friendly polyelectrolyte nanocomposite membranes based on chitosan and sulfonated chitin nanowhiskers for fuel cell applications. Iran. Polym. J. 2021, 30, 355–367. [Google Scholar] [CrossRef]
  41. Zhang, C.; Kong, X.; Yin, J.; Fu, X. Rheology of fresh cement pastes containing polymer nanoparticles. Cem. Concr. Res. 2021, 144, 106419. [Google Scholar] [CrossRef]
  42. Kim, B.; Zhang, D.; Armstrong, M.S.; Pelczer, I.; Prud’homme, R.K. Formulation of pH-responsive methacrylate-based polyelectrolyte-stabilized nanoparticles for applications in drug delivery. ACS Appl. Nano Mater. 2022, 5, 18770–18778. [Google Scholar] [CrossRef]
  43. Schlappack, T.; Rainer, M.; Weinberger, N.; Bonn, G.K. Sulfonated halloysite nanotubes as a novel cation exchange material for solid phase extraction of toxic pyrrolizidine alkaloids. Anal. Methods 2022, 14, 2689–2697. [Google Scholar] [CrossRef]
  44. Schlappack, T.; Weidacher, N.; Huck, C.W.; Bonn, G.K.; Rainer, M. Effective solid phase extraction of toxic pyrrolizidine alkaloids from honey with reusable organosilyl-sulfonated halloysite nanotubes. Separations 2022, 9, 270. [Google Scholar] [CrossRef]
  45. Sayed Ibrahim, G.P.M.; Isloor, A.M.; Farnood, R. Catalyst- and stabilizer-free rational synthesis of ionic polymer nanoparticles in one step for oil/water separation membranes. ACS Appl. Mater. Interfaces 2022, 14, 45800–45809. [Google Scholar]
  46. Mikušová, V.; Mikuš, P. Advances in chitosan-based nanoparticles for drug delivery. Int. J. Mol. Sci. 2021, 22, 9652. [Google Scholar] [CrossRef]
  47. Dodero, A.; Alberti, S.; Gaggero, G.; Ferretti, M.; Botter, R.; Vicini, S.; Castellano, M. An up-to-date review on alginate nanoparticles and nanofibers for biomedical and pharmaceutical applications. Adv. Mater. Interfaces 2021, 8, 2100809. [Google Scholar] [CrossRef]
  48. Yasmin, R.; Shah, M.; Khan, S.A.; Ali, R. Gelatin nanoparticles: A potential candidate for medical applications. Nanotechnol. Rev. 2017, 6, 191–207. [Google Scholar] [CrossRef]
  49. Sayed, S.; Jardine, A. Chitosan derivatives as important biorefinery intermediates. Quaternary tetraalkylammonium chitosan derivatives utilized in anion exchange chromatography for perchlorate removal. Int. J. Mol. Sci. 2015, 16, 9064–9077. [Google Scholar] [CrossRef] [PubMed]
  50. Hoang, N.H.; Thanh, T.L.; Sangpueak, R.; Treekoon, J.; Saengchan, C.; Thepbandit, W.; Papathoti, N.K.; Kamkaew, A.; Buensanteai, N. Chitosan nanoparticles-based ionic gelation method: A promising candidate for plant disease management. Polymers 2022, 14, 662. [Google Scholar] [CrossRef] [PubMed]
  51. Benettayeb, A.; Seihoub, F.Z.; Pal, P.; Ghosh, S.; Usman, M.; Chia, C.H.; Usman, M.; Sillanpää, M. Chitosan nanoparticles as potential nano-sorbent for removal of toxic environmental pollutants. Nanomaterials 2023, 13, 447. [Google Scholar] [CrossRef] [PubMed]
  52. Kumar, P.; Gupta, P. Halloysite-based magnetic manostructures for diverse applications: A review. ACS Appl. Nano Mater. 2023, 6, 13824–13868. [Google Scholar] [CrossRef]
  53. Silva, S.M.; Peixoto, A.F.; Freire, C. HSO3-functionalized halloysite nanotubes: New acid catalysts for esterification of free fatty acid mixture as hybrid feedstock model for biodiesel production. Appl. Catal. A 2018, 568, 221–230. [Google Scholar] [CrossRef]
  54. Kuehne, A.J.C. Conjugated polymer nanoparticles toward in vivo theranostics—Focus on targeting, imaging, therapy, and the importance of clearance. Adv. Biosyst. 2017, 1, 1700100. [Google Scholar] [CrossRef]
  55. Ansari, R.; Samadi, N.; Khodavirdilo, B. Synthesized nano particle derivation of poly(styrene -alternative maleic anhydride) for the removal of the silver(I) ions from aqueous solutions. Iran. J. Anal. Chem. 2017, 4, 50–60. [Google Scholar]
  56. Samadi, N.; Ansari, R.; Khodavirdilo, B. Synthesized nanoparticles of poly(styrene–alternative-maleic anhydride) and prunus cerasus rock used for removing cadmium(II) ions from aqueous solutions. Asian J. Green Chem. 2018, 2, 338–363. [Google Scholar]
  57. Samadi, N.; Ansari, R.; Khodavirdilo, B. Synthesized nano particle derivation of poly(styrene-co-maleic anhydride) and sour cherry rock for removing nickel(II) ion from aqueous solutions. Toxicol. Rep. 2019, 5, 590–597. [Google Scholar] [CrossRef] [PubMed]
  58. Dolgonosov, A.M.; Khamizov, R.K. Properties and application of nano-ion-exchangers. In Ion Exchange—A Continuing Success Story (IEx 2016); Cox, M., Ed.; Robinson College Publ.: Cambridge, UK, 2016; p. 135. [Google Scholar]
  59. Öztürk Er, E.; Dalgıç Bozyiğit, G.; Büyükpınar, Ç.; Bakırdere, S. Magnetic nanoparticles based solid phase extraction methods for the determination of trace elements. Crit. Rev. Anal. Chem. 2022, 52, 231–249. [Google Scholar] [CrossRef] [PubMed]
  60. Badawy, M.E.I.; El-Nouby, M.A.M.; Kimani, P.K.; Lim, L.W.; Rabea, E.I. A review of the modern principles and applications of solid-phase extraction techniques in chromatographic analysis. Anal. Sci. 2022, 38, 1457–1487. [Google Scholar] [CrossRef] [PubMed]
  61. Peixoto, A.F.; Fernandes, A.C.; Pereira, C.; Pires, J.; Freire, C. Physicochemical characterization of organosilylated halloysite clay nanotubes. Microporous Mesoporous Mater. 2016, 219, 145–154. [Google Scholar] [CrossRef]
  62. Ansari, R.; Khoshbakht Fahim, N. Application of polypyrrole coated on wood sawdust for removal of Cr(VI) ion from aqueous solutions. React. Funct. Polym. 2007, 67, 367–374. [Google Scholar] [CrossRef]
  63. Li, S.; Guo, Z.; Liu, Y.; Yang, Z.; Hui, H.K. Integration of microfiltration and anion-exchange nanoparticles-based magnetic separation with MALDI mass spectrometry for bacterial analysis. Talanta 2009, 80, 313–320. [Google Scholar] [CrossRef]
  64. Çimen, D.; Bereli, N.; Günaydın, S.; Denizli, A. Preparation of magnetic poly(ethylene glycol dimethacrylate-N-methacryloyl-(L)-glutamic acid) particles for thrombin purification. J. Chromatogr. B 2023, 1219, 123653. [Google Scholar] [CrossRef] [PubMed]
  65. Weiss, J. Handbook of Ion Chromatography; Wiley-VCH: Weinheim, Germany, 2016; p. 1522. [Google Scholar]
  66. Paull, B.; Michalski, R. Ion exchange/ion chromatography—Principles and Applications. In Encyclopedia of Analytical Science, 3rd ed.; Elsevier: Amsterdam, The Netherlands, 2019; pp. 178–189. [Google Scholar]
  67. Liu, X.; Pohl, C.; Woodruff, A.; Chen, J. Chromatographic evaluation of reversed-phase/anion-exchange/cation exchange trimodal stationary phases prepared by electrostatically driven self-assembly process. J. Chromatogr. A 2011, 1218, 3407–3412. [Google Scholar] [CrossRef] [PubMed]
  68. Pobozẏ, E.; Trojanowicz, M. Application of capillary electrophoresis for determination of inorganic analytes in waters. Molecules 2021, 26, 6972. [Google Scholar] [CrossRef]
  69. Gao, Z.; Zhong, W. Recent (2018–2020) development in capillary electrophoresis. Anal. Bioanal. Chem. 2022, 414, 115–130. [Google Scholar] [CrossRef]
  70. Yan, C.; Xue, Y.; Wang, Y. Chapter 9—Capillary electrochromatography. In Separation Methods; Handbooks in Separation Science; Elsevier: Amsterdam, The Netherlands, 2018; pp. 209–233. [Google Scholar]
  71. Palmer, C.P.; McCarney, J.P. Recent progress in the use of soluble ionic polymers as pseudostationary phases for electrokinetic chromatography. Electrophoresis 2004, 25, 4086–4094. [Google Scholar] [CrossRef] [PubMed]
  72. The Global Market for Nanomaterials 2010–2030. Available online: https://www.futuremarketsinc.com/the-global-market-for-nanomaterials-2010-2022 (accessed on 9 April 2023).
  73. Nanomaterials Market—Growth, Tends, COVID-19 Impact, and Forecasts (2023–2028). Available online: https://www.mordorintelligence.com/industry-reports/nanomaterials-market (accessed on 9 April 2023).
  74. Tenson, T.J.; Baby, R. Recent advances in proton exchange membrane fuel cells: A view. Int. Adv. Res. J. Sci. Eng. Technol. 2017, 4, 34–40. [Google Scholar]
  75. Wang, T.; Bao, Y.; Zhuang, M.; Li, J.; Chen, J.; Xu, H. Nanoscale engineering of conducting polymers for emerging applications in soft electronics. Nano Res. 2021, 14, 3112–3125. [Google Scholar] [CrossRef]
  76. Juttner, K.; Mangold, K.-M.; Weidlich, C.; Leuze, M.; Bouzek, K. Nano-scale conducting polymers as ion exchangers and electrocatalyst support. Proc. Electrochem. Soc. 2001, 2001–2023, 428–437. [Google Scholar]
  77. Mecking, S.; Schwab, E.; Thomann, R. Microheterogenization of catalytically active rhodium complexes by ionic binding to charged polymer nanoparticles. In Proceedings of the Abstract Papers, American Chemical Society—221st National Meeting, San Diego, CA, USA, 1–5 April 2001. INOR-285. [Google Scholar]
  78. Sun, X.; Wang, Q.; Zhan, J.; Yang, T.; Zhao, Y.; Sun, C.K.; Aisha, M.; Guo, M.; Tang, S.; Zhao, H.; et al. Superhydrophobic conductive suede fabrics based on carboxylated multiwalled carbon nanotubes and polydopamine for wearable pressure sensors. ACS Appl. Nano Mater. 2023, 6, 10746–10757. [Google Scholar] [CrossRef]
  79. Grumezescu, A.M. (Ed.) Design of Nanostructures for Theranostics Applications; Elsevier: Amsterdam, Netherlands, 2018; p. 666. [Google Scholar]
  80. Tekade, R.K. (Ed.) Basic Fundamentals of Drug Delivery; Academic Press: Cambridge, USA, 2019; p. 792. [Google Scholar]
  81. Mohajer, F.; Mirhosseini-Eshkevari, B.; Ahmadi, S.; Ghasemzadeh, M.A.; Mohammadi Ziarani, G.; Badiei, A.; Farshidfar, N.; Varma, R.S.; Rabiee, N.; Iravani, S. Advanced nanosystems for cancer therapeutics: A review. ACS Appl. Nano Mater. 2023, 6, 7123–7149. [Google Scholar] [CrossRef]
  82. Liu, W.; Li, X.; Wang, T.; Xiong, F.; Sun, C.R.; Yao, X.K.; Huang, W. Platinum drug-incorporating polymeric nanosystems for precise cancer therapy. Small 2023, 19, 2208241. [Google Scholar] [CrossRef]
  83. Naskar, S.; Koutsu, K.; Sharma, S. Chitosan-based nanoparticles as drug delivery systems: A review on two decades of research. J. Drug Target. 2018, 27, 379–393. [Google Scholar] [CrossRef]
  84. Shanmuganathan, R.; Edison, N.T.J.I.; Lewis Oscar, F.; Kumar, P.; Shanmugan, S.; Pugazhendhi, A. Chitosan nanopolymers: An overview of drug delivery against cancer. Int. J. Biol. Macromol. 2019, 130, 727–736. [Google Scholar] [CrossRef]
  85. Wang, S.; Xu, J.; Li, W.; Sun, S.; Gao, S.; Hou, Y. Magnetic nanostructures: Rational design and fabrication strategies toward diverse applications. Chem. Rev. 2022, 122, 5411–5475. [Google Scholar] [CrossRef] [PubMed]
  86. Cheng, C.-C.; Huang, S.-Y.; Fan, W.-L.; Lee, A.-W.; Chiu, C.-W.; Lee, D.-J.; Lai, J.-Y. Water-soluble single-chain polymeric nanoparticles for highly selective cancer chemotherapy. ACS Appl. Polym. Mater. 2021, 3, 474–484. [Google Scholar] [CrossRef]
  87. Sogomonyan, A.S.; Deyev, S.M.; Shipunova, V.O. Internalization-responsive poly(lactic-co-glycolic acid) nanoparticles for image-guided photodynamic therapy against HER2-positive breast cancer. ACS Appl. Nano Mater. 2023, 6, 11402–11415. [Google Scholar] [CrossRef]
  88. Nayanathara, U.; Rossi Herling, B.; Ansari, N.; Zhang, C.; Logan, S.R.; Beach, M.A.; Smith, S.A.; Boase, N.R.B.; Johnston, A.P.R.; Such, G.K. Impact of the core architecture of dual pH-responsive polymer nanoparticles on intracellular delivery of doxorubicin. ACS Appl. Nano Mater. 2023, 6, 10015–10022. [Google Scholar] [CrossRef]
  89. Zhang, L.; Li, M.; Wang, Y.; Liu, Y.; Zhang, F.; Lin, Z.; Zhang, Y.; Ma, M.; Wang, S. Hollow-polydopamine-nanocarrier-based near-infrared-light/pH-responsive drug delivery system for diffusive alveolar hemorrhage treatment. Front. Chem. 2023, 11, 1222107. [Google Scholar] [CrossRef]
  90. Ou, H.; Li, J.; Chen, C.; Gao, H.; Ding, D. Organic/polymer photothermal nanoagents for photoacoustic imaging and photothermal therapy in vivo. Sci. China Mater. 2019, 62, 1740–1758. [Google Scholar] [CrossRef]
  91. Ma, Y.; Chen, Q.; Pan, X.; Zhang, J. Insight into fluorescence imaging and bioorthogonal reactions in biological analysis. Top. Curr. Chem. 2021, 379, 10. [Google Scholar] [CrossRef]
  92. Mieog, J.S.D.; Achterberg, F.B.; Zlitni, A.; Hutteman, M.; Burggraaf, J.; Swijnenburg, R.-J.; Gioux, S.; Vahrmeijer, A.L. Fundamentals and developments in fluorescence-guided cancer surgery. Nat. Rev. Clin. Oncol. 2022, 19, 9–22. [Google Scholar] [CrossRef]
  93. Poznanski, P.; Hameed, A.; Orczyk, W. Chitosan and chitosan nanoparticles: Parameters enhancing antifungal activity. Molecules 2023, 28, 2996. [Google Scholar] [CrossRef]
  94. Yuan, P.; Tan, D.; Annabi-Bergaya, F. Properties and applications of halloysite nanotubes: Recent research advances and future prospects. Appl. Clay Sci. 2015, 112–113, 75–93. [Google Scholar] [CrossRef]
Molecules 28 06490 g001

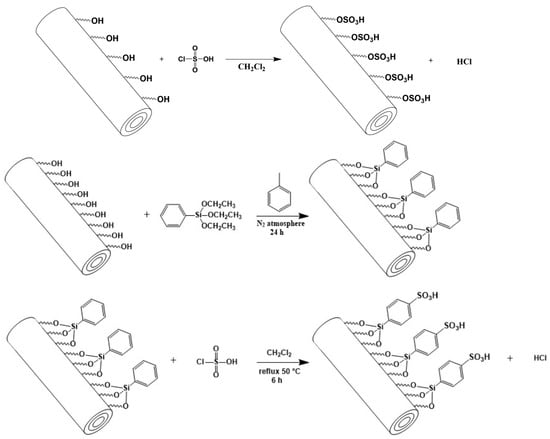

Figure 1. Synthesis of halloysite-based NIEs consisting of direct sulfonation [43] or organosilylation and sulfonation steps [44].
Figure 1. Synthesis of halloysite-based NIEs consisting of direct sulfonation [43] or organosilylation and sulfonation steps [44].
Molecules 28 06490 g001
Molecules 28 06490 g002

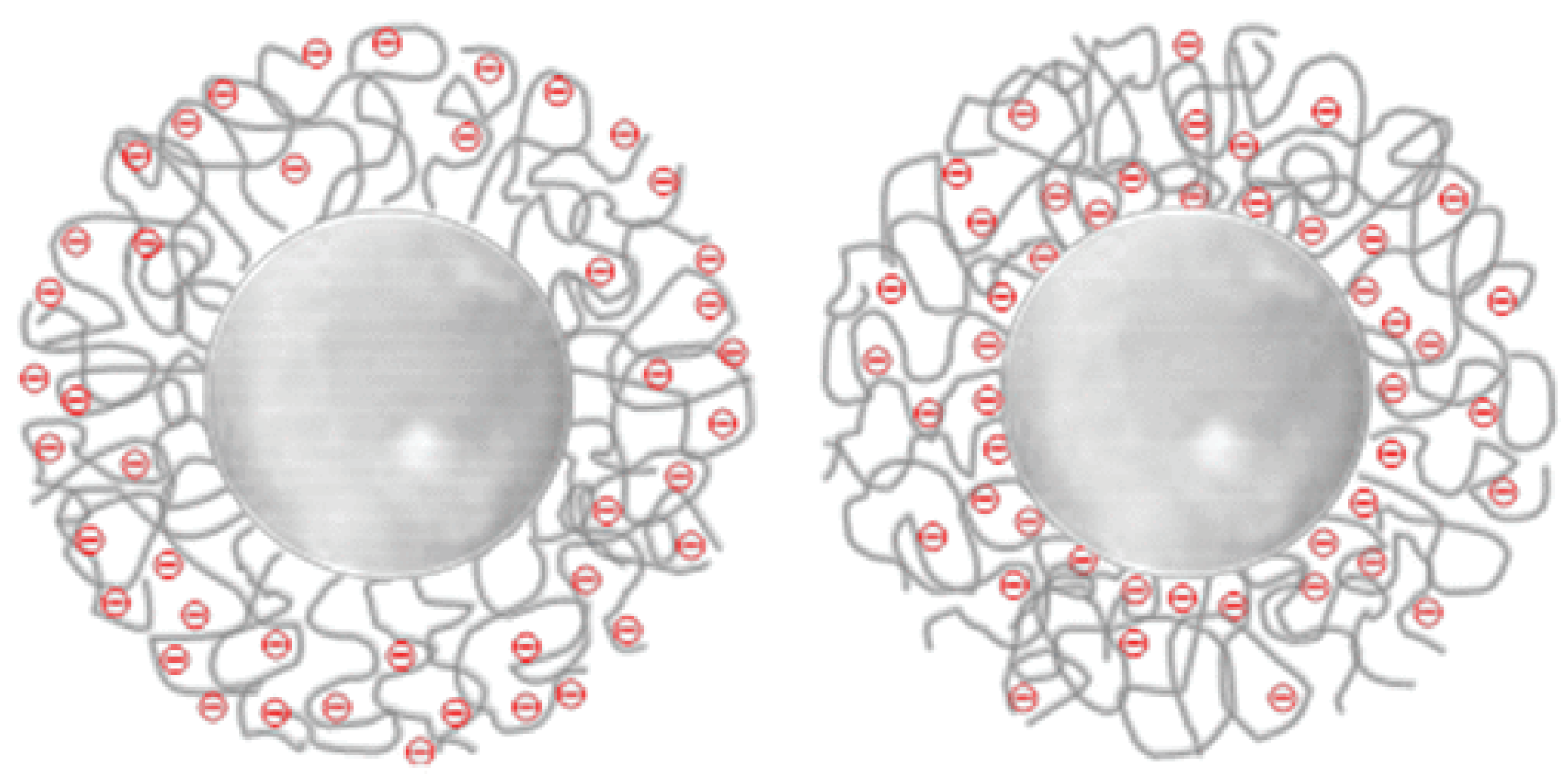

Figure 2. Charge distribution in core–shell NIEs functionalized with acrylic and methacrylic acid (left- and right-hand cartoon, respectively) [24].
Figure 2. Charge distribution in core–shell NIEs functionalized with acrylic and methacrylic acid (left- and right-hand cartoon, respectively) [24].
Molecules 28 06490 g002
Molecules 28 06490 g003

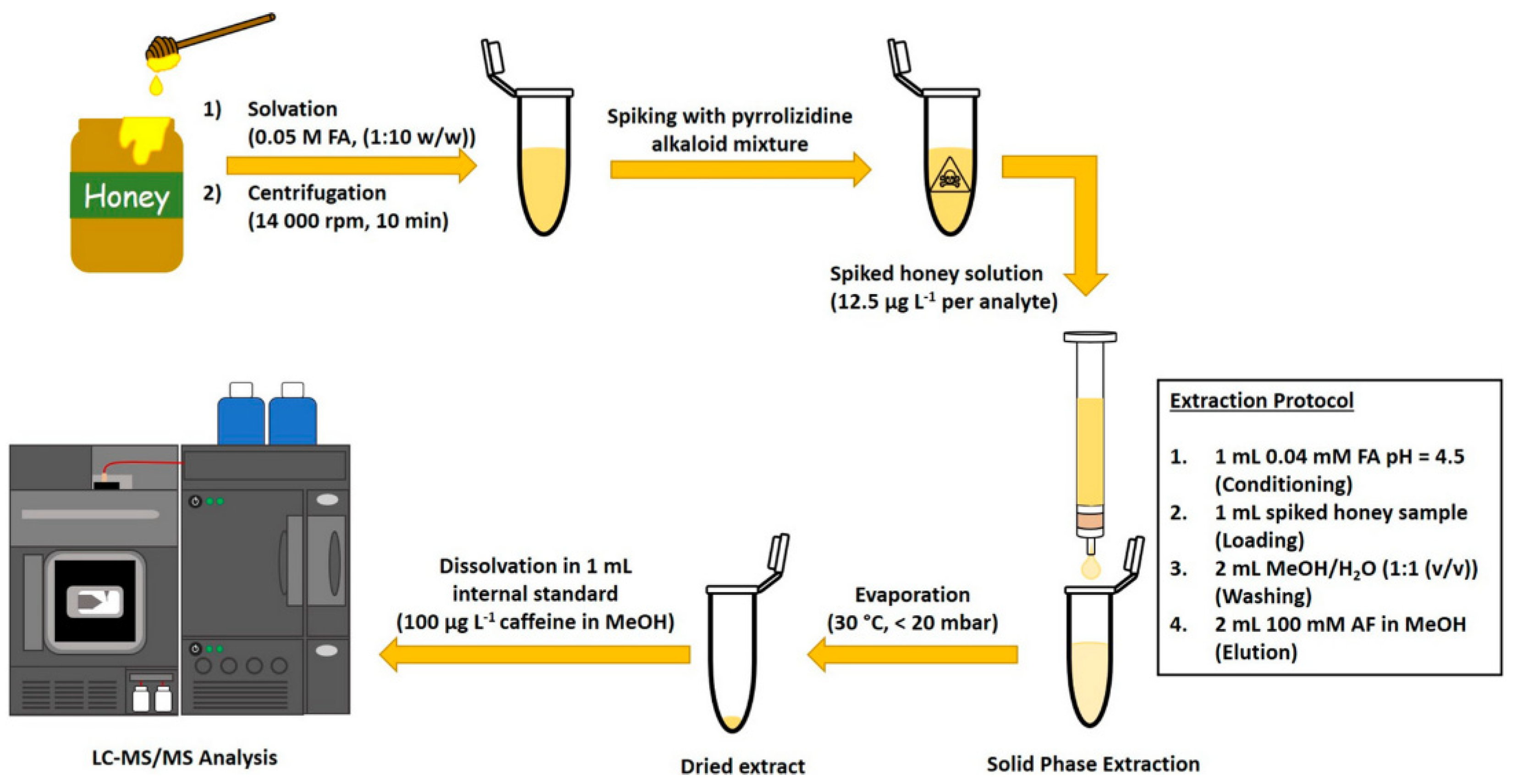

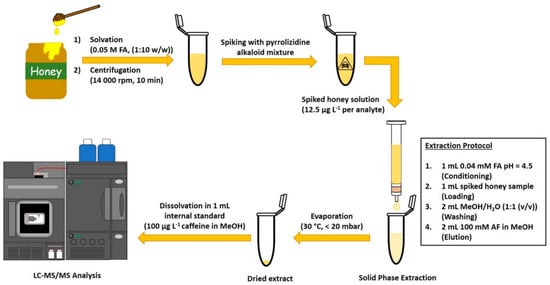

Figure 3. Experimental workflow of LC-MS/MS of pyrrolizidine alkaloids in honey matrix using sulfonated halloysite nanotubes as material for SPE [44].
Figure 3. Experimental workflow of LC-MS/MS of pyrrolizidine alkaloids in honey matrix using sulfonated halloysite nanotubes as material for SPE [44].
Molecules 28 06490 g003
Molecules 28 06490 g004

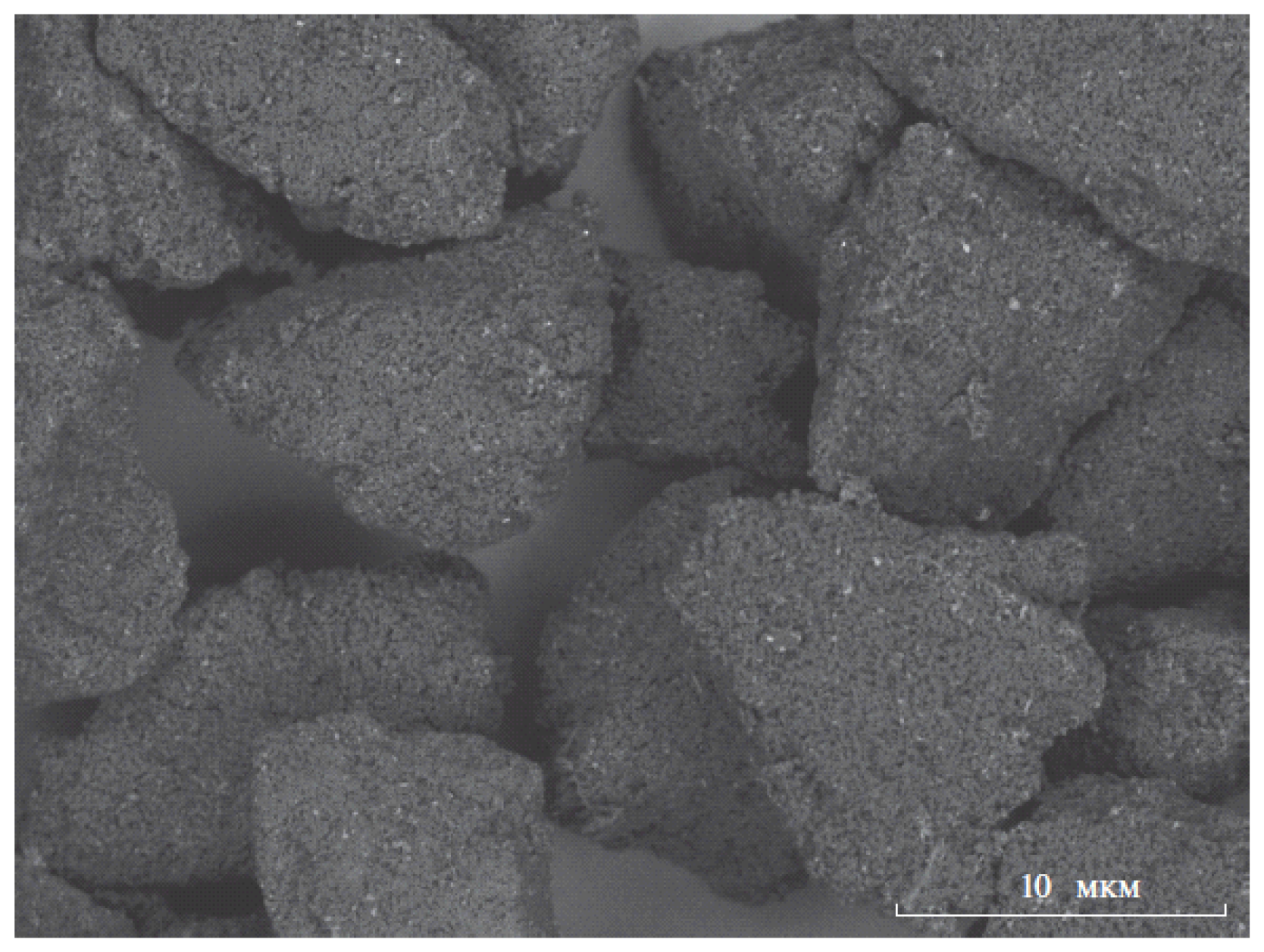

Figure 4. TEM image of NIE-modified column material. Cation NIE particles are seen as light inclusions. The scale marker shows a 10 µm range [30].
Figure 4. TEM image of NIE-modified column material. Cation NIE particles are seen as light inclusions. The scale marker shows a 10 µm range [30].
Molecules 28 06490 g004
Molecules 28 06490 g005

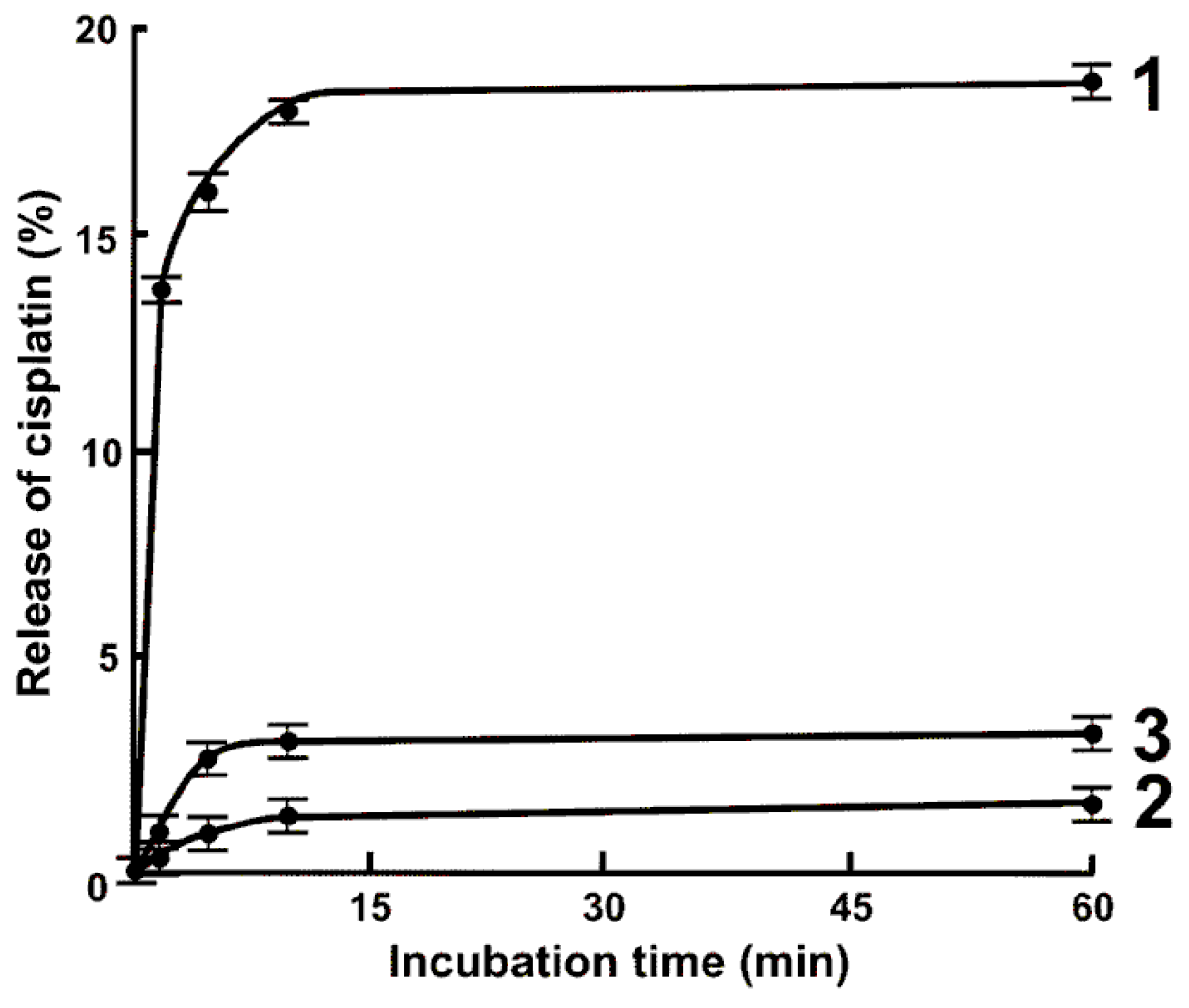

Figure 5. In vitro release of cisplatin from the cation NIE under the action of simulated cancer (1) and normal (3) cytosol. For comparison, trace (2) shows the release behavior in cancer-like physiological buffer containing no active cytosolic components [37].
Figure 5. In vitro release of cisplatin from the cation NIE under the action of simulated cancer (1) and normal (3) cytosol. For comparison, trace (2) shows the release behavior in cancer-like physiological buffer containing no active cytosolic components [37].
Molecules 28 06490 g005
Molecules 28 06490 g006

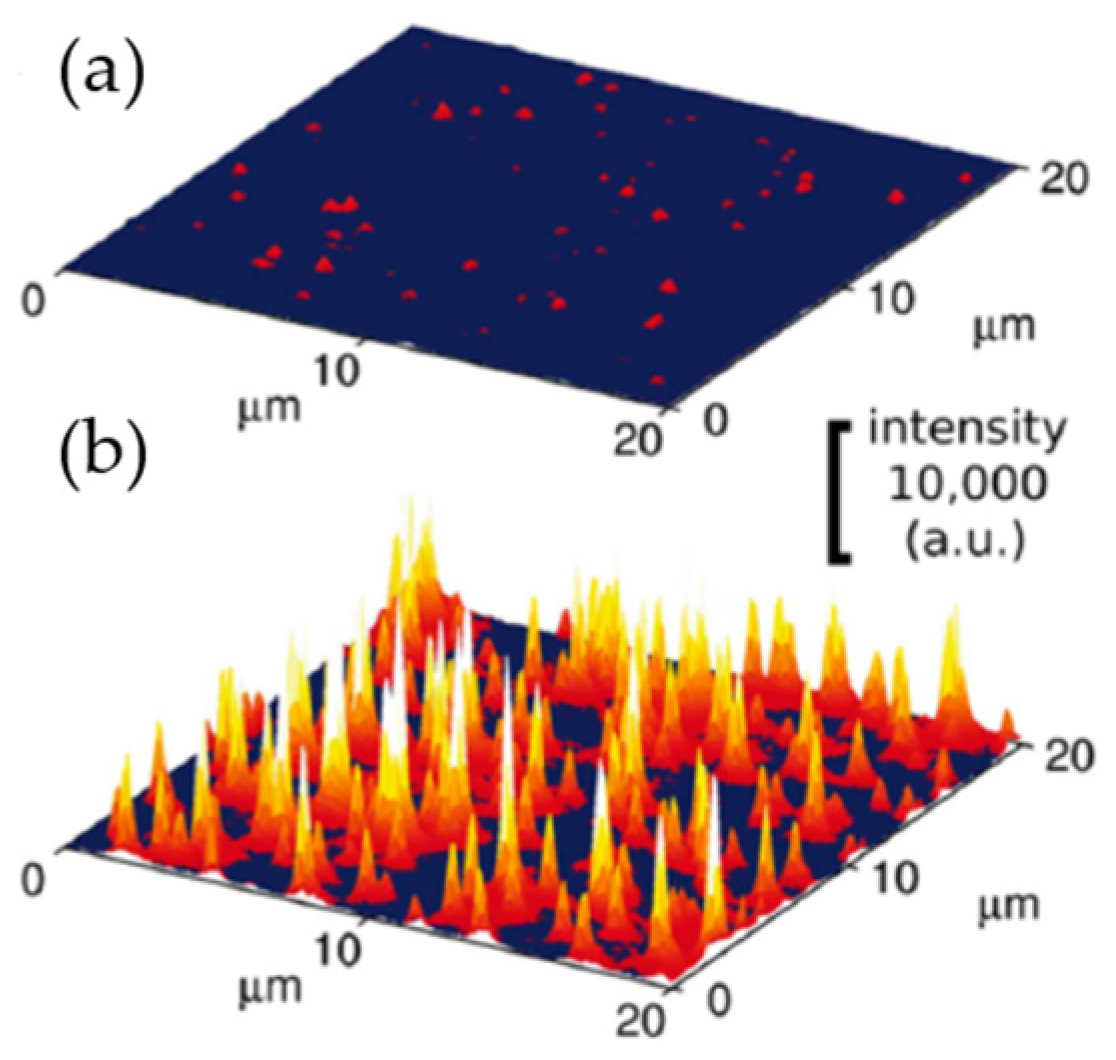

Figure 6. Fluorescence microscopy images of (a) quantum dots (Qdot 585) and (b) PMMA-SO3H nanoparticles loaded with a cationic dye of rhodamine class [26].
Figure 6. Fluorescence microscopy images of (a) quantum dots (Qdot 585) and (b) PMMA-SO3H nanoparticles loaded with a cationic dye of rhodamine class [26].
Molecules 28 06490 g006
Table 1. Different types and applications of NIEs a.
Table 1. Different types and applications of NIEs a.
MatrixIonizable GroupsFabricationShape/Size (nm)PropertiesApplicationRef.
PSSulfonic acid groups (SG)Emulsion or emulsifier-free polymerization Spherical/40–90IEC, 0.7–2.2 meq g−1-[21]
PSTrimethylamine groups Emulsion polymerization followed by surface functionalizationSpherical/150IEC, 2.35 mmol g−1Binding of BSA (after the preparation of magnetic/ion-exchange composite beads) [11]
Polystyrene modified with sodium styrene sulfonate SGEmulsion polymerization followed by surface modification by a two-step polymerization reactionSpherical/30–80Surface charge density, 5.9–27.7 µC cm−2-[22]
Polypyrrole grafted onto functionalized silica gelPyrrolium groupsMicelle technique Opal-like/100IEC, 1.78 meq g−1Adsorption of Cr(VI)[12]
Poly-d,l-aspartic acid Carboxylic groupsCommercial product (Chemicell GmbH, Berlin, Germany)Spherical/100-Capturing of bacteria (after coating on magnetite nanoparticles)[23]
PMMA covered with poly(N-isopropylacrylamide) Carboxylic groupsTwo-stage emulsion polymerizationSpherical/90–260--[24]
ChitosanTripolyphosphate groupsIonic gelationNonspherical/105–209--[25]
PMMA, poly(d,l-lactide-co-glycolide) or polylcaprolactoneCarboxylate, sulfonate or trimethylammonium groupsFunctionalization and nanoprecipitationSpherical/15-Loading of a fluorescent contrast agent (after postmodification by surfactants)[26]
PSSG or trimethylamine groupsGrinding of commercial cation or anion exchanger Nonspherical/50–300IEC, 0.1 and 0.95 meq mL−1 for cation and anion NIE, respectivelyLuminescence analysis of metals[27]
CE of inorganic anions (in urine)[28]
CEC of carboxylic acids (in wine)[29]
IC of alkali metals and ammonium [30,31]
ICP-OES of metals[32]
CE of catecholamines and amino acids (in urine)[33]
CEC of catecholamines and amino acids[34]
CEC of carboxylic acids (in wine)[35]
Loading of an anticancer drug (doxorubicin)[36]
Loading of an anticancer drug (cisplatin)[37]
Aliphatic polyester SGPolyesterification Platelet/400--[38]
Poly(stearyl methacrylate)– poly(benzyl methacrylate) with incorporated 2-((methacryloyloxy)ethyl)-trimethylammoniumTrimethylamine groupsPolymerization-induced self-assembly Spherical and nonspherical (worms, vesicles)--[39]
ChitosanSGExtraction by HCl (from shell chitin), dialysis, freeze-drying, modification by propane- 1,3-sultoneWhiskers/diameter, 15–30; length, 150–300IEC, 0.60–0.91 mmol g−1Preparation of nanocomposite polymer membranes for direct methanol fuel cell[40]
Copolymers of styrene, acrylic acid, N-dimethyl acryl amide, and methyl allyl polyoxyethylene ether Carboxylic groupsPrecipitation polymerizationNonsperical/7–146Charge density, 0.09–1.5 meq g−1Modification of the rheological properties of cement pastes[41]
Poly(lactic acid) covered with methyl methacrylate polymer Carboxylic groupsFlash nanoprecipitationSpherical/59–454 Surface charge (no data)Loading of antimalarial drug (lumefantrine)[42]
HalloysiteSGDirect sulfonation or organosilylation and sulfonation Tubes -SPE of pyrrolizidine alkaloids[43,44]
Poly(2-(dimethylamino) ethyl methacrylate-co-4-vinylbenzyl chloride) Quaternary ammonium groupsQuarterization precipitation polymerizationSpherical/50–80-Oil/water emulsion separation (after the incorporation into polysulfone ultrafiltration membranes) [45]
a CE = capillary electrophoresis; CEC = capillary electrochromatography; IC = ion chromatography; ICP-OES = inductively coupled plasma optical emission spectroscopy; IEC = ion-exchange capacity; SPE = solid-phase extraction.
Table 2. Summary of the main advantages and disadvantages of NIEs.
Table 2. Summary of the main advantages and disadvantages of NIEs.
AdvantagesDisadvantages
Large specific surface area
High IEC
Surface-to-volume area
Reactivity
Stability in suspension
Rational design strategies
Solid preparation technology
Reusability
Wealth of analytically and technically attractive properties		Outdated methodology for assessing ion-exchange properties
Shortage of large-scale manufacturing approaches
No real-world applications for environmental remediation
Uneasiness of NIE-based devices and unitsMarginal biosafety
Lack of targeted delivery function
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Matczuk, M.; Ruzik, L.; Keppler, B.K.; Timerbaev, A.R. Nanoscale Ion-Exchange Materials: From Analytical Chemistry to Industrial and Biomedical Applications. Molecules 2023, 28, 6490. https://doi.org/10.3390/molecules28186490

AMA Style

Matczuk M, Ruzik L, Keppler BK, Timerbaev AR. Nanoscale Ion-Exchange Materials: From Analytical Chemistry to Industrial and Biomedical Applications. Molecules. 2023; 28(18):6490. https://doi.org/10.3390/molecules28186490

Chicago/Turabian Style

Matczuk, Magdalena, Lena Ruzik, Bernhard K. Keppler, and Andrei R. Timerbaev. 2023. "Nanoscale Ion-Exchange Materials: From Analytical Chemistry to Industrial and Biomedical Applications" Molecules 28, no. 18: 6490. https://doi.org/10.3390/molecules28186490

APA Style

Matczuk, M., Ruzik, L., Keppler, B. K., & Timerbaev, A. R. (2023). Nanoscale Ion-Exchange Materials: From Analytical Chemistry to Industrial and Biomedical Applications. Molecules, 28(18), 6490. https://doi.org/10.3390/molecules28186490

Article Metrics

Back to TopTop
