Per- and Poly-Fluoroalkyl Substances in Portuguese Rivers: Spatial-Temporal Monitoring

by
Marta O. Barbosa
1,2,3,
Nuno Ratola
2,4,
Vera Homem
2,4,
M. Fernando R. Pereira
1,2,
Adrián M. T. Silva
1,2,
Ana R. L. Ribeiro
1,2,
Marta Llorca
5,* and
Marinella Farré
5,*
1
LSRE-LCM—Laboratory of Separation and Reaction Engineering-Laboratory of Catalysis and Materials, Faculty of Engineering, University of Porto, Rua Dr. Roberto Frias, 4200-465 Porto, Portugal
2
ALiCE—Associate Laboratory in Chemical Engineering, Faculty of Engineering, University of Porto, Rua Dr. Roberto Frias, 4200-465 Porto, Portugal
3
Centre for Research and Intervention in Education (CIIE), Faculdade de Psicologia e de Ciências da Educação, Universidade do Porto, Rua Alfredo Allen s/n, 4200-135 Porto, Portugal
4
LEPABE—Laboratory for Process Engineering, Environment, Biotechnology and Energy, Faculty of Engineering, University of Porto, Rua Dr. Roberto Frias, 4200-465 Porto, Portugal
5
ON-HEALTH Research Group, Institute of Environmental Assessment and Water Research (IDAEA-CSIC), C/Jordi Girona, 18-26, 08034 Barcelona, Spain
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(3), 1209; https://doi.org/10.3390/molecules28031209
Submission received: 20 December 2022 / Revised: 10 January 2023 / Accepted: 11 January 2023 / Published: 26 January 2023
(This article belongs to the Section Analytical Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
Eighteen per-and polyfluoroalkyl substances (PFASs) were investigated in surface waters of four river basins in Portugal (Ave, Leça, Antuã, and Cértima) during the dry and wet seasons. All sampling sites showed contamination in at least one of the seasons. In the dry season, perfluorooctanoate acid (PFOA) and perfluoro-octane sulfonate (PFOS), were the most frequent PFASs, while during the wet season these were PFOA and perfluobutane-sulfonic acid (PFBS). Compounds detected at higher concentrations were PFOS (22.6 ng L−1) and perfluoro-butanoic acid (PFBA) (22.6 ng L−1) in the dry and wet seasons, respectively. Moreover, the prospective environmental risks of PFASs, detected at higher concentrations, were evaluated based on the Risk Quotient (RQ) classification, which comprises acute and chronic toxicity. The results show that the RQ values of eight out of the nine PFASs were below 0.01, indicating low risk to organisms at different trophic levels in the four rivers in both seasons, wet and dry. Nevertheless, in the specific case of perfluoro-tetradecanoic acid (PFTeA), the RQ values calculated exceeded 1 for fish (96 h) and daphnids (48 h), indicating a high risk for these organisms. Furthermore, the RQ values were higher than 0.1, indicating a medium risk for fish, daphnids and green algae (96 h).

1. Introduction

The presence of per- and poly-fluoroalkyl substances (PFASs) in the environment is a worldwide concern. PFASs comprise a vast class of chemicals that usually have an aliphatic carbon composition, in which hydrogen molecules have been completely or partially (i.e., prefix per- or poly-, respectively) substituted by fluorine. They are characterized by their exceptionally high thermal and chemical stability, thanks to the strength of the carbon-fluorine bond [1]. In addition, PFASs are excellent surfactants, surface protectors and water and oil repellents. Therefore, PFASs have been extensively used since the 1940s in a wide range of consumer and industrial products, including firefighting foams, alkaline cleaners, non-stick cookware, lubricants, adhesives, paints, additives, coatings, among many others [2,3]. However, the concern about the adverse effects of PFASs, such as perfluoro-octane sulfonate (PFOS) and perfluorooctanoic acid (PFOA) did not start until the 1990s [4,5]. These two compounds are the more recalcitrant and have been related to cancer promotion, liver damage and hormone disruption. PFOS and PFOA and their salts, which were phased out by the major producers, are listed under the Stockholm Convention on Persistent Organic Pollutants (POPs). The case of PFOS and perfluoro-octane-sulfonyl fluoride (POSF) are listed under Annex B [6], whereas PFOA and its salts are listed under Annex A [7].
However, as aforementioned, PFASs are a large class of synthetic compounds and different replacement compounds are widely distributed in the market. PFASs, in general, tend to bioaccumulate and bio-magnify through food chains [8,9,10,11] and they have been detected in all environmental compartments (e.g., sediments, surface, drinking water and groundwater) [5,12,13,14,15,16,17,18,19,20,21,22,23]. They are considered “forever chemicals”, due to their persistence [1,3,24]. Given the potential risks associated with PFASs, some actions are currently in place to prevent and minimize environmental and human exposure. In 2016, the United States Environmental Protection Agency (USEPA) published national drinking water guidelines that consider the safe concentration of any combination of PFASs as 70 ng L−1 [25,26]. Even more recently, on 18 October 2021, USEPA announced the Comprehensive National Strategy to Confront PFAS Pollution, which is a roadmap that is focused on three main directives: research, restrict and remediate [27]. At the European Union (EU) level, the new EU Drinking Water Directive recommends a limiting value of 0.5 µg L−1 for total PFAS [28], which is a threshold that is well above that which is recognized in the US. The technical guidelines concerning analysis methods for monitoring of PFASs in the EU are not expected to be defined until January 2024, including frequency of sampling, detection limits and parametric values. Regarding surface water (SW), PFOS and its by-products are included as a priority hazardous substance (Directive 2013/39/EU), with an Environmental Quality Standard limiting value of 0.13 ng L−1 in seawater and 0.65 ng L−1 in SW [29]. A recent proposal amending this Directive and Directive 2006/118/EC on the protection of groundwater included the sum of 24 PFASs expressed as PFOA-equivalents based on the potencies of the substances relative to that of PFOA, specifically a groundwater Quality Standard of 0.0044 µg L−1 as the sum of PFOA equivalents, the same value as an annual average value of 0.0044 µg L−1 in inland SW and other SW, and an Environmental Quality Standard for biota and sediments corresponding to 0.077 μg kg−1 wet weight. Moreover, two groups of PFASs were identified in 2020 as substances of very high concern (SVHC) under the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) regulation and several other PFASs are on the candidate list of SVHC [30]. Nevertheless, it should be highlighted that nowadays, in the EU, only six compounds and their salts are under regulation.
The occurrence of PFASs in SW has been reported across Europe [20,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49], but despite this effort in Portugal only two monitoring studies have been carried out by our group [50,51], with PFOS as the target of the PFASs group. However, studies of a wide range of PFASs, including emerging examples, still need to be performed.
Therefore, the main goal of the present study was to perform a two-seasonal monitoring campaign, during the dry and wet seasons, of 18 PFASs in four Portuguese rivers, namely Ave, Leça, Antuã and Cértima, which are identified as polluted water courses. Moreover, the ecological risk assessment of PFASs that were found at higher concentrations was calculated. To the best of our knowledge, this is the first study characterizing contamination with PFASs and their associated risk in SW of Portugal.

2. Results and Discussion

2.1. Seasonal Variation and Distribution of PFASs

PFBA, PFHpA, PFOA, PFNA, PFDA, PFTeA, PFHxS, PFOS and PFBS were detected in this study and PFBA, PFOA, PFNA, PFDA, PFOS and PFBS were found in all four investigated rivers in Portugal in at least one season (Table S1). Long-chain PFASs, such as PFUnDA, PFDoDA, PFTrDA and PFTeA were less frequent because, nowadays, short-chain PFASs are used as replacements for PFOS and PFOA and their water solubility is higher [52]. On the other hand, the recalcitrant C8 compounds, such as PFOS and PFOA, were extensively used for over three decades. This extensive use, together with their high persistence, explains the fact that, even after their discontinuation in production, these compounds continue to be frequently detected. In general, the PFAS concentrations were lower in the winter, as expected, due to the higher flow rates in this season that promote a dilution effect in the river courses. Despite this, for two compounds (PFBA and PFHpA), a contrary tendency was shown. Both chemicals were predominantly detected in the wet season with frequencies of PFBS (76.5%) and PFBA (32.4%), in contrast to 13.8% and 23.5% in the dry season, respectively. Moreover, PFBA has reported the highest concentration in the wet season, with 22.6 ng L−1 in one of the sites of the Antuã River. This fact can be attributed to the rain wash from surrounding soils and the higher water solubility of short-chain compounds.

2.1.1. Ave River

The Ave River receives freshwater from a set of different tributaries and brooks and runs along intensive agricultural and livestock farm areas and some industrial areas that are dedicated to the textile industry [53]. As can be seen in Figure 1A, the sample sites which present the highest concentration and major distribution of PFASs are the last four points (6, 7, 8 and 9) before the mouth of the river. It is noteworthy that the textile industry has an impact on this area. Moreover, between points 6 and 7, there is one of the major WWTPs along the river. In this area, during the dry season, the sampling sites presented between 3 and 5 different compounds in the dry season, while sites 4 and 5 presented two compounds (PFOS and PFDA) but with higher concentrations in point 5, showing the influence of the WWTP between these two points. In all the samples, PFOA was detected during the dry season but at concentrations between 4 and 18 ng L−1. In the wet season, only PFOA was detected and was present in eight samples, but at much lower concentrations (below 5 ng L−1).

2.1.2. Leça River

In the 48 km length of the Leça River basin, it has three distinct sections: the upper source and mid-way areas with rural activity (points 1 and 2, respectively); the urban and industrialized area (point 3); and the final section which is impacted by urban discharges and intense industrialization (points 4–9) [54]. The compounds that were more frequently found and at higher concentrations were PFOS, PFOA and PFBS (Figure 1B). Despite the discontinuation in the production of 8-carbon chain compounds, PFOS and PFOA were commonly found, due to their high persistence. PFOS was detected in 6 of the 8 sampling sites in the Leça River during the wet season, but at low concentrations ranging from about 1 to 6 ng L−1. On the other hand, they were detected during the dry season in 5 sites, but at slightly higher concentrations. PFOA was present in all the samples during the wet season and in 4 samples during the dry season. PFBS, which is used as a replacement for PFOS, was present in 6 of the 8 sampling sites (i.e., in sites 3 to 8), but only during the wet season and at low concentrations (less than 2 ng L−1).

2.1.3. Antuã River

The Antuã River is a relatively short river with a length of about 30 km. Most of its route can be characterized by an urban and industrial profile, particularly the final section (sites 7–9), which is impacted by footwear, textile, paper production and chemical industries [54]. For this reason, this section presented the highest mean concentration of the total PFASs during the wet season and, in the dry season, was the third most polluted, but at similar levels to those found in the Ave (Figure 1C). PFBS was frequently detected in the wet season in 7 of the 9 sampling sites, but at concentrations below 1 ng L−1. PFBAs were present in 33.3% of the samples (sites 1, 2 and 3), but they reached 22.5 ng L−1 in site 1. In addition, PFOS and PFOA were the PFASs that were detected at higher frequencies. PFOS was detected in 55% of the samples and PFOA in 100% of the samples in both sampling campaigns. During the wet season, the concentrations were below 10 ng L−1, while in the dry season they were slightly higher, up to 17 ng L−1. During the dry season, PFNA and PFTeA were quantified in a few samples at low concentrations.

2.1.4. Cértima River

The Cértima has a length of 45 km and in the last 5 km (site 8) becomes a lagoon, flowing into the left bank of the Águeda River. The river crosses intensive agricultural areas and ceramic, metal, and foundry industries [50]. These factors can explain why this river basin was one of the most contaminated by the PFASs included in this study. PFBA and PFOA were the most frequently found compounds (Figure 1D), being present in both cases in 100% of the samples in the wet season and 75% in the dry season. The concentrations of PFBA in both seasons were similar, ranging from about 1 to 9 ng L−1. The concentrations of PFOA in the wet season were below 5 ng L−1 and in the dry season were below 10 ng L−1. PFBS was present in 87% of the samples during the wet season at concentrations below 2 ng L−1, while in the dry season it was detected in 3 samples (sites 6, 7 and 8) at concentrations of about 6–8 ng L−1. In Cértima River, two of the four predominant compounds, PFBS and PFBA, are replacement compounds for the more persistent ones.
These facts can be explained by the hydrologic regime of Cértima River, which is of Mediterranean type with dry and hot summers and mild and wet winters, with intense precipitation events. The effect of the summer climate on the hydrologic regime is so severe that, in a typical year, the riverbed dries up for a length of about 20 km, from the source to Mogofores. Then, during the heavy rains, the polar PFASs can be mobilized from surrounding soils to SW.

2.2. Ecological Risk Assessment of PFASs in the Rivers in Portugal

The adverse ecological impacts of PFASs still require further investigation since these types of compounds are recognized as very persistent and extremely mobile in the environment. Thus, in the present work, the potential environmental risks of PFASs that were detected at higher concentrations, in SW samples, were evaluated based on RQ classification, which is comprised of acute and chronic toxicity (Table 1). The results showed that the RQ values of 8 out of the 9 PFASs were below 0.01, suggesting low risk to organisms at different trophic levels (i.e., fish, daphnid and green algae) in the four target rivers in both seasons. Nevertheless, in the specific case of PFTeA (Figure 2), the RQ values exceeded 1 for acute exposure of fish (96 h) and daphnid (48 h), which indicates a high risk for these organisms. Moreover, a medium risk was suggested for fish and daphnid for chronic exposure and green algae (96 h) for acute exposure, resulting from RQ above 0.1. In fact, the estimated acute aquatic toxicity values (LC50) for this compound are lower than those of the other per- and poly-fluoroalkyl substances targeted in the study, showing that PFTeA is inherently more toxic to aquatic species. Chronic exposure of green algae revealed to be of low risk at the concentrations found. Even though the ecological risk assessment of single substances is valuable and important, the simultaneous exposure to multiple contaminants was not considered. The so-called “cocktail effect” in water matrices is much more complex, i.e., individual compounds that are present at harmless concentrations, in the case of mixtures, may additively or synergistically cause a risk to ecosystems [12,55].

2.3. Occurrence of Target PFASs in European SWs

In Table 2, a comparison of the maximum concentrations of PFASs reported in SW from different European studies is presented. As can be seen, the maximum value recorded in this study was in the medium range of most of the studies, except for some that reported punctual high concentrations in France [20], Spain [39], Ireland [56] and Germany [44]. As in the present study, PFOS and PFOA were the compounds that, in general, were more frequently found. Table S2 of the Supplementary Materials presents the mean values of an extended survey of the PFASs reported in different rivers in Europe. The values below MLOQ were considered MLOQ/2 and values below MLOD were considered zero. The cluster analysis of these data is presented in the dendrogram in Figure 3. Dissimilarity was calculated using the Bray-Curtis approach and agglomeration using Ward’s method. As can be seen, four significantly different classes can be distinguished. The first class (in purple) presents the centroid levels below 1 ng L−1 for most of the compounds, except PFOA. The second class (in green) presents centroids at slightly higher levels and groups the studies of France, Spain, Italy, The Netherlands and some results from Sweden and Austria. The third class (in red) comprises the results from Ireland with the highest centroid levels. Finally, the fourth class (in blue) shows results from basins in Sweden, with the lowest values of the centroids. In summary, the reported values in the present study were in the range of medium-low values of SWs in Europe.

3. Materials and Methods

3.1. Chemicals and Materials

The 18 reference standards (Table S3) (i.e., perfluoro-butanoic (PFBA), perfluoro-pentanoic (PFPeA), perfluoro-hexanoic (PFHxA), perfluoro-heptanoic (PFHpA), perfluorooctanoic (PFOA), perfluoro-nonanoic (PFNA), perfluoro-decanoic (PFDA), perfluoro-undecanoic (PFUnDA), perfluoro-dodecanoic (PFDoDA), perfluoro-tridecanoic (PFTrDA), perfluoro-tetradecanoic (PFTeA), perfluoro-hexadecanoic (PFHxDA), perfluoro-octadecanoic (PFODA), perfluoro-butanesulfonic (PFBS), perfluoro-hexasulfonic (PFHxS), perfluoro-octanesulfonic (PFOS), perfluoro-decanesulfonic (PFDS) acids and perfluoro-octane-sulfonamide (PFOSA); ≥98% purity) and the nine surrogate standards (i.e., (13C4)-perfluoro-butanoic acid (MPFBA (13C4)), ion (18O2)-perfluoro-hexane-sulfonate (MPFHxS (18O2)), (13C2)-perfluoro-hexanoic acid (MPFHxA (13C2)), ion (13C4)-perfluoro-octane-sulfonate (MPFOS (13C4)), (13C4)-perfluoro-octanoic acid (MPFOA (13C4)), (13C5)-perfluoro-nonanoic acid (MPFNA (13C5)), (13C2)-perfluoro-dodecanoic acid (MPFDoA (13C2)), (13C2)-perfluoro-decanoic acid (MPFDA (13C2)) and [13C2]-perfluoro-undecanoic acid (MPFUdA (13C2)); ≥98% purity) that were used in this work, were purchased from Wellington Laboratories Inc. (Guelph, ON, Canada). Methanol CHROMASOLV® Plus (HPLC grade), ammonium acetate salt (≥98%) and water used in the instrumental analysis were obtained from Sigma-Aldrich (Steinheim, Germany). For the extraction procedure, methanol (MS grade) was acquired from VWR International (Fontenay-sous-Bois, France), ultrapure water was supplied by a Milli-Q water system and ammonium hydroxide (25%) was obtained from Merck (Darmstadt, Germany). The Oasis® WAX (Weak Anion eXchange) cartridges (3 cc) used for sample preparation were purchased from Waters (Milford, MA, USA).

3.2. Sampling Area, Collection and Preparation

SW samples of four stressed rivers located in Portugal with no crosslinking between them (Ave River, Leça River, Antuã River, and Cértima River; Figure S1) were collected in two different sampling campaigns, namely in the dry (September 2016) and wet (February 2017) seasons. Eight sampling points (SPs) were carefully selected for Leça River and Cértima River and nine SPs for Ave River and Antuã River (Figure 4). These SPs include strategic areas (i.e., near the contamination points that are used for urban, agricultural, or WWTP activities) and close to the source and mouth of each target river. A detailed description of each river can be found in our previous work [50].
All the SW samples were collected by dipping a bottle sampler (properly washed in the laboratory and pre-cleaned with the water from each sampling site) at the centre of the river basin to provide a representative sample. Then, the SW samples were stored at 4 °C in amber glass bottles (1 L) until solid-phase extraction (24 h). SW samples were filtered through 1.2-μm glass-fiber filters (47 mm GF/C, Whatman, Maidstone, UK) before the extraction procedure.

3.3. Analysis by LC-MS/MS

An SPE–LC–ESI-HRMS method was employed for the quantification of the target PFASs, based on a previous method [67,68] with minor modifications. Succinctly, Oasis® WAX cartridges (3 cc) were successively conditioned with 2 mL of methanol and 2 mL of ultrapure water (gravity conditions). Sample loading of 500 mL of SW samples (previously spiked with 10 µL of a standard solution comprising the nine surrogate standards; 2 µg mL−1) was carried out at a constant flow rate of 1 mL min−1, using a vacuum manifold unit. The cartridges were then dried under vacuum for 15 min. Analytes were eluted in 8 mL (2 mL in four sequent elution steps) of methanol (0.1% NH4OH) in PP tubes and evaporated in a Centrivap Concentrator® device (LABCONCO® Corporation, Kansas City, MO, USA), to near dryness. The resulting extracts were transferred from the PP tubes to the LC-vial with 250 µL insert, dried and reconstituted in 100 µL of ultrapure water/methanol (90:10). SPE of blank samples was performed to prevent any cross-contamination during this procedure. All experiments were done in triplicate.
The chromatographic separation was achieved using a Thermo Scientific Aria TLX-1 system (Thermo Fisher Scientific, Franklin, MA, USA) equipped with a C18 analytical column Hypersil GOLD PFP LC (50 × 3 µm) (Thermo Fisher Scientific, San Jose, CA, USA). An extra column, BDS Hypersil C8 (50 × 3) (Thermo Fisher Scientific, San Jose, CA, USA) was used after the LC pumps and before the injection system, in order to delay the contamination from the system pumps. The total run time for each injection (20 μL) was 9 min with a flow rate of 0.4 mL min−1. The LC system was coupled to a Thermo Scientific Quantiva triple quadrupole mass spectrometer (Thermo Fisher Scientific, San Jose, CA, USA), equipped with a Heated IonSpray source. All analyses were performed operating in the negative electrospray ionization (ESI(-)) mode and the acquisition relied on selected reaction monitoring mode (SRM) to obtain enough identification points (two transitions for each compound) according to current legislations (Commission_Decision, 2002/657/EC). Selected m/z for each compound can be seen in Table S4 of the Supplementary Materials.
Linearity, limit of detection (LOD), limit of quantification (LOQ), precision and estimation of measurement uncertainty (MU) were all assessed in accordance with the SANTE/12682/2019 Guidelines [69]. Linearity was evaluated by injecting four calibration points in triplicate into a range from 0.004 to 10 ng L−1 for native standards. In accordance with EPA [70], the MLOD was determined using two approaches that were chosen according to the presence or absence of the analytes of interest in the procedural blank. For the first approach, MLODs were estimated as three times the standard deviation of the background concentrations of the procedural blank (n = 10). In the second case, the MLODs were determined using the lowest spiking level (n = 6). MLOQ was estimated as the lowest concentration of the sample fortified with acceptable precision, by applying the complete analytical method and identification criteria. The MLOQ values are summarized in Table S5 of the Supplementary Materials. Precision was obtained by using spiking experiments at three concentration levels (1, 5, 10 ng L−1). Each level was analyzed three times on two different days. The inter-day precision was evaluated as the relative standard deviation for each level and the trueness was obtained from the average recovery for each level.

3.4. Ecological Risk Assessment

The potential risk caused by the target PFASs to the aquatic ecosystems was estimated based on the ecological risk quotient (RQ) assessment methodology, in accordance with the European Technical Guidance Document on Risk Assessment [71] and the work of various authors [51,55,72], whereby, RQ < 0.1 was considered to indicate low risk; 0.1 < RQ < 1 medium risk; and RQ > 1 high risk for the aquatic environment. The ecological RQ was obtained from the ratio between the measured environmental concentration (MEC) and a predicted no-effect concentration (PNEC), using Equation (1):
RQ = MEC/PNEC
The MEC corresponds to the highest concentration found for PFASs in the target rivers in Portugal (refer to Table S6 of Supplementary Materials). PNEC values were determined by using Equation (2), i.e., from the ratio of the acute (LC50—Fish (96 h), LC50—daphnid (48 h) and EC50—green algae (96)) and chronic (ChV) toxicity data, from three different trophic levels, acquired from the ECOSAR (Ecological Structure Activity Relationships) application (version 2.0) and an appropriate assessment factor (AF), considered as 1000 and 100 for acute and chronic toxicity, respectively, in SW [55,71,72,73].
PNEC = (LC50, EC50 or ChV)/AF

4. Conclusions

During two sampling campaigns, which were carried out in the dry and wet seasons, 34 sampling sites, were studied along four river basins in Portugal (Ave, Leça, Antuã and Cértima). PFAS contamination was confirmed in all studied sites in at least one of the studied seasons.
PFOS and PFOA were frequently detected in both sampling campaigns due to their high persistence and extensive use in the past: 40.6 and 41.2% and 82.4 and 97%, for PFOS and PFOA, during the dry and wet seasons, respectively. On the other hand, during the wet season, 74% of the samples presented PFBS and PFBA (another short-chain PFASs) was the compound quantified at the maximum concentration, with 22.6 ng L−1 detected in the Antuã River. The rivers presenting the highest levels of contamination by PFASs over the year were Cértima and Antuã, which are impacted by industries such as ceramics, metal-processing, footwear, textile, paper production and chemicals. The mean values of the sum of investigated compounds in all the sampling sites and both campaigns, were 15.9 ng L−1 for Cértima and 12.0 ng L−1 for Antuã. In addition, in the latter, the mean values of PFASs during the dry season were almost double the values of the wet season due to the dilution effect in the rainy period. However, in the wet season, PFBA and PFBS were the most frequent compounds, and they were detected in sampling sites 1, 2 and 3 but not in these sites during the dry season. Although the Cértima River is tagged as one of the most polluted rivers in Europe due to intense industrial and urban activities, in the present study the Ave River basin presents a mean value of the sum of PFASs of 9.5 ng L−1, along the river during both sampling campaigns. However, substantial differences can be highlighted in the dry and wet seasons, with 17 and 1.9 ng L−1, respectively. The point source pressures in the Ave are the most dominant threat to water quality in this river basin.
Finally, comparing the results of selected compounds in the four river basins to those reported by other studies in European SWs, they were found to have similar levels but in the range of medium–low concentrations. Moreover, also in agreement with other studies, high frequencies of detection for PFOS and PFOA were shown, despite their phased-out production and usage.
Concerning the potential for adverse effects on biota, the results of the present study show that the RQ values of eight out of the nine PFASs were below 0.01, indicating low risk to organisms at different trophic levels in the four target rivers in both seasons. Nevertheless, in the specific case of PFTeA, a high risk for fish and daphnids was estimated, as well as a medium risk for green algae (acute exposure). Simultaneous exposure to multiple contaminants was not studied here, but the results of the present study highlight the need to carry out further investigations in this sense in SWs in Portugal.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28031209/s1, Figure S1: Target Portuguese rivers (Ave, Leça, Antuã, and Cértima) and location of sampling sites, Table S1: Concentration (ng L−1) of PFASs at different sampling points (SP) of the target Portuguese rivers, in the dry and wet seasons, Table S2: Extended survey of the occurrence data for the targeted PFASs in European surface water samples (ng L−1); nd, not detected, Table S3: Target compounds, acronym, CAS number, structure, and relative molecular mass (Mr), Table S4: Summary of accurate masses from selected PFASs and their product ions detected in the MS/HRMS spectra, Table S5: Retention time, linearity and method limit of quantification (MLOQ) for each target analyte, Table S6: Measured environmental concentration (MEC; mg L−1), i.e., the highest concentration of PFASs, found in the target Portuguese rivers and respective sampling point (SP) and season.

Author Contributions

Conceptualization, N.R., V.H., A.R.L.R., M.L. and M.F.; methodology, N.R., A.R.L.R., M.L. and M.F.; software, M.O.B. and M.L.; validation M.L. and M.F.; formal analysis, M.O.B., M.L. and M.F.; investigation, M.O.B., N.R., V.H., A.R.L.R., M.L. and M.F.; resources, M.F.R.P., A.M.T.S. and M.F.; writing—original draft preparation, M.O.B.; writing—review and editing, N.R., V.H., M.F.R.P., A.M.T.S. and A.R.L.R.; visualization, M.O.B., M.L. and M.F.; supervision, N.R., A.R.L.R., M.L. and M.F.; funding acquisition, M.F.R.P., A.M.T.S. and M.F. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by IMAGE PROJECT (PID2020-116789RB) from the Spanish Ministry of Science and Innovation. IDAEA-CSIC is a Severo Ochoa Centre of Research Excellence (Spanish Ministry of Science and Innovation; Project CEX2018-000794-S). Further financial support was provided by: (i) LA/P/0045/2020 (ALiCE), UIDB/00511/2020 and UIDP/00511/2020 (LEPABE) and UIDB/50020/2020 and UIDP/50020/2020 (LSRE-LCM), funded by national funds through FCT/MCTES (PIDDAC); (ii) Project “HealthyWaters—Identification, Elimination, Social Awareness and Education of Water Chemical and Biological Micropollutants with Health and Environmental Implications” (NORTE-01-0145-FEDER-000069), co-financed by Programa Operacional Regional do Norte (NORTE 2020), through Portugal 2020 and FEDER; V. Homem thanks national funds through FCT, under the Scientific Employment Stimulus—Individual Call—CEECIND/00676/2017; and A.R.L. Ribeiro acknowledges FCT funding under DL57/2016 Transitory Norm Programme.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

The authors wish to thank all the volunteers that helped on the collection of the samples.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pramanik, B.K. Occurrence of perfluoroalkyl and polyfluoroalkyl substances in the water environment and their removal in a water treatment process. J. Water Reuse Desalination 2015, 5, 196–210. [Google Scholar] [CrossRef] [Green Version]
  2. Rahman, M.F.; Peldszus, S.; Anderson, W.B. Behaviour and fate of perfluoroalkyl and polyfluoroalkyl substances (PFASs) in drinking water treatment: A review. Water Res. 2014, 50, 318–340. [Google Scholar] [CrossRef] [PubMed]
  3. Cui, D.; Li, X.; Quinete, N. Occurrence, fate, sources and toxicity of PFAS: What we know so far in Florida and major gaps. TrAC Trends Anal. Chem. 2020, 130, 115976. [Google Scholar] [CrossRef]
  4. Abunada, Z.; Alazaiza, M.Y.D.; Bashir, M.J.K. An Overview of Per- and Polyfluoroalkyl Substances (PFAS) in the Environment: Source, Fate, Risk and Regulations. Water 2020, 12, 3590. [Google Scholar] [CrossRef]
  5. Crone, B.C.; Speth, T.F.; Wahman, D.G.; Smith, S.J.; Abulikemu, G.; Kleiner, E.J.; Pressman, J.G. Occurrence of Per- and Polyfluoroalkyl Substances (PFAS) in Source Water and Their Treatment in Drinking Water. Crit. Rev. Environ. Sci. Technol. 2019, 49, 2359–2396. [Google Scholar] [CrossRef]
  6. SC-4/17; Stockholm_Convention, Report of the Persistent Organic Pollutants Review Committee on the Work of Its Fourth Meeting—Addendum to the Risk Management Evaluation for Perfluorooctane Sulfonate. United Nations Environment Programme: Nairobi, Kenya, 2008.
  7. UNEP/POPS/POPRC.14/6/Add.2; Stockholm_Convention, Report of the Persistent Organic Pollutants Review Committee on the Work of Its Fourteenth Meeting—Addendum to the Risk Management Evaluation on Perfluorooctanoic Acid (PFOA), Its Salts and PFOA-Related Compounds. United Nations Environment Programme: Nairobi, Kenya, 2018.
  8. Schulz, K.; Silva, M.R.; Klaper, R. Distribution and effects of branched versus linear isomers of PFOA, PFOS, and PFHxS: A review of recent literature. Sci. Total Environ. 2020, 733, 139186. [Google Scholar] [CrossRef]
  9. Sinclair, G.M.; Long, S.M.; Jones, O.A.H. What are the effects of PFAS exposure at environmentally relevant concentrations? Chemosphere 2020, 258, 127340. [Google Scholar] [CrossRef]
  10. Steenland, K.; Winquist, A. PFAS and cancer, a scoping review of the epidemiologic evidence. Environ. Res. 2021, 194, 110690. [Google Scholar] [CrossRef]
  11. Liu, W.; Wu, J.; He, W.; Xu, F. A review on perfluoroalkyl acids studies: Environmental behaviors, toxic effects, and ecological and health risks. Ecosyst. Health Sustain. 2019, 5, 1–19. [Google Scholar] [CrossRef] [Green Version]
  12. Barbosa, M.O.; Ribeiro, A.R.; Pereira, M.F.R.; Silva, A.M.T. Eco-friendly LC–MS/MS method for analysis of multi-class micropollutants in tap, fountain, and well water from northern Portugal. Anal. Bioanal. Chem. 2016, 408, 8355–8367. [Google Scholar] [CrossRef]
  13. Becker, A.M.; Gerstmann, S.; Frank, H. Perfluorooctanoic acid and perfluorooctane sulfonate in the sediment of the Roter Main river, Bayreuth, Germany. Environ. Pollut. 2008, 156, 818–820. [Google Scholar] [CrossRef]
  14. Jiang, J.-J.; Okvitasari, A.R.; Huang, F.-Y.; Tsai, C.-S. Characteristics, pollution patterns and risks of Perfluoroalkyl substances in drinking water sources of Taiwan. Chemosphere 2021, 264, 128579. [Google Scholar] [CrossRef]
  15. Guardian, M.G.E.; Boongaling, E.G.; Bernardo-Boongaling, V.R.R.; Gamonchuang, J.; Boontongto, T.; Burakham, R.; Arnnok, P.; Aga, D.S. Prevalence of per- and polyfluoroalkyl substances (PFASs) in drinking and source water from two Asian countries. Chemosphere 2020, 256, 127115. [Google Scholar] [CrossRef]
  16. Xiao, S.-K.; Wu, Q.; Pan, C.-G.; Yin, C.; Wang, Y.-H.; Yu, K.-F. Distribution, partitioning behavior and potential source of legacy and alternative per- and polyfluoroalkyl substances (PFASs) in water and sediments from a subtropical Gulf, South China Sea. Environ. Res. 2021, 201, 111485. [Google Scholar] [CrossRef]
  17. Baluyot, J.C.; Reyes, E.M.; Velarde, M.C. Per- and polyfluoroalkyl substances (PFAS) as contaminants of emerging concern in Asia’s freshwater resources. Environ. Res. 2021, 197, 111122. [Google Scholar] [CrossRef]
  18. Goodrow, S.M.; Ruppel, B.; Lippincott, R.L.; Post, G.B.; Procopio, N.A. Investigation of levels of perfluoroalkyl substances in surface water, sediment and fish tissue in New Jersey, USA. Sci. Total Environ. 2020, 729, 138839. [Google Scholar] [CrossRef]
  19. Chen, C.-E.; Yang, Y.-Y.; Zhao, J.-L.; Liu, Y.-S.; Hu, L.-X.; Li, B.-B.; Li, C.-L.; Ying, G.-G. Legacy and alternative per- and polyfluoroalkyl substances (PFASs) in the West River and North River, south China: Occurrence, fate, spatio-temporal variations and potential sources. Chemosphere 2021, 283, 131301. [Google Scholar] [CrossRef]
  20. Munoz, G.; Giraudel, J.L.; Botta, F.; Lestremau, F.; Dévier, M.H.; Budzinski, H.; Labadie, P. Spatial distribution and partitioning behavior of selected poly- and perfluoroalkyl substances in freshwater ecosystems: A French nationwide survey. Sci. Total Environ. 2015, 517, 48–56. [Google Scholar] [CrossRef]
  21. Muir, D.; Miaz, L.T. Spatial and Temporal Trends of Perfluoroalkyl Substances in Global Ocean and Coastal Waters. Environ. Sci. Technol. 2021, 55, 9527–9537. [Google Scholar] [CrossRef]
  22. Banzhaf, S.; Filipovic, M.; Lewis, J.; Sparrenbom, C.J.; Barthel, R. A review of contamination of surface-, ground-, and drinking water in Sweden by perfluoroalkyl and polyfluoroalkyl substances (PFASs). Ambio 2017, 46, 335–346. [Google Scholar] [CrossRef] [Green Version]
  23. Pico, Y.; Blasco, C.; Farré, M.; Barceló, D. Occurrence of perfluorinated compounds in water and sediment of L’Albufera Natural Park (València, Spain). Environ. Sci. Pollut. Res. 2012, 19, 946–957. [Google Scholar] [CrossRef] [PubMed]
  24. Podder, A.; Sadmani, A.H.M.A.; Reinhart, D.; Chang, N.-B.; Goel, R. Per and poly-fluoroalkyl substances (PFAS) as a contaminant of emerging concern in surface water: A transboundary review of their occurrences and toxicity effects. J. Hazard. Mater. 2021, 419, 126361. [Google Scholar] [CrossRef] [PubMed]
  25. U.S. Environmental Protection Agency. Drinking Water Health Advisory for Perfluorooctane Sulfonate (PFOS). In EPA Document Number: 822-R-16-004; U.S. Environmental Protection Agency, Office of Water (4304T)—Health and Ecological Criteria Division: Washington, DC, USA, 2016. [Google Scholar]
  26. U.S. Environmental Protection Agency. Drinking Water Health Advisory for Perfluorooctanoic Acid (PFOA). In EPA Document Number: 822-R-16-005; U.S. Environmental Protection Agency, Office of Water (4304T)—Health and Ecological Criteria Division: Washington, DC, USA, 2016. [Google Scholar]
  27. U.S. Environmental Protection Agency. PFAS Strategic Roadmap: EPA’s Commitments to Action 2021–2024. In EPA-100-K-21-002; U.S. Environmental Protection Agency: Washington, DC, USA, 2021. [Google Scholar]
  28. Directive 2020/2184/EU of the European Parliament and of the Council of 16 December 2020 on the quality of water intended for human consumption (recast). Off. J. Eur. Union 2020, L435, 1–62.
  29. Directive 2013/39/EU of the European Parliament and of the Council of 12 August 2013 amending Directives 2000/60/EC and 2008/105/EC as regards priority substances in the field of water policy. Off. J. Eur. Union 2013, L226, 1–17.
  30. Candidate List of Substances of Very High Concern for Authorisation (Published in Accordance with Article 59(10) of the REACH Regulation). Available online: https://echa.europa.eu/candidate-list-table (accessed on 20 July 2022).
  31. Ademollo, N.; Spataro, F.; Rauseo, J.; Pescatore, T.; Fattorini, N.; Valsecchi, S.; Polesello, S.; Patrolecco, L. Occurrence, distribution and pollution pattern of legacy and emerging organic pollutants in surface water of the Kongsfjorden (Svalbard, Norway): Environmental contamination, seasonal trend and climate change. Mar. Pollut. Bull. 2021, 163, 111900. [Google Scholar] [CrossRef]
  32. Awchi, M.; Gebbink, W.A.; Berendsen, B.J.A.; Benskin, J.P.; van Leeuwen, S.P.J. Development, validation, and application of a new method for the quantitative determination of monohydrogen-substituted perfluoroalkyl carboxylic acids (H-PFCAs) in surface water. Chemosphere 2021, 287, 132143. [Google Scholar] [CrossRef]
  33. Castiglioni, S.; Valsecchi, S.; Polesello, S.; Rusconi, M.; Melis, M.; Palmiotto, M.; Manenti, A.; Davoli, E.; Zuccato, E. Sources and fate of perfluorinated compounds in the aqueous environment and in drinking water of a highly urbanized and industrialized area in Italy. J. Hazard. Mater. 2015, 282, 51–60. [Google Scholar] [CrossRef]
  34. Clara, M.; Gans, O.; Weiss, S.; Sanz-Escribano, D.; Scharf, S.; Scheffknecht, C. Perfluorinated alkylated substances in the aquatic environment: An Austrian case study. Water Res. 2009, 43, 4760–4768. [Google Scholar] [CrossRef]
  35. Ericson, I.; Nadal, M.; van Bavel, B.; Lindström, G.; Domingo, J.L. Levels of perfluorochemicals in water samples from Catalonia, Spain: Is drinking water a significant contribution to human exposure? Environ. Sci. Pollut. Res. Int. 2008, 15, 614–619. [Google Scholar] [CrossRef]
  36. Huset, C.A.; Chiaia, A.C.; Barofsky, D.F.; Jonkers, N.; Kohler, H.-P.E.; Ort, C.; Giger, W.; Field, J.A. Occurrence and Mass Flows of Fluorochemicals in the Glatt Valley Watershed, Switzerland. Environ. Sci. Technol. 2008, 42, 6369–6377. [Google Scholar] [CrossRef] [Green Version]
  37. Junttila, V.; Vähä, E.; Perkola, N.; Räike, A.; Siimes, K.; Mehtonen, J.; Kankaanpää, H.; Mannio, J. PFASs in Finnish Rivers and Fish and the Loading of PFASs to the Baltic Sea. Water 2019, 11, 870. [Google Scholar] [CrossRef] [Green Version]
  38. Labadie, P.; Chevreuil, M. Partitioning behaviour of perfluorinated alkyl contaminants between water, sediment and fish in the Orge River (nearby Paris, France). Environ. Pollut. 2011, 159, 391–397. [Google Scholar] [CrossRef]
  39. Llorca, M.; Farré, M.; Picó, Y.; Müller, J.; Knepper, T.P.; Barceló, D. Analysis of perfluoroalkyl substances in waters from Germany and Spain. Sci. Total Environ. 2012, 431, 139–150. [Google Scholar] [CrossRef]
  40. Loos, R.; Gawlik, B.M.; Locoro, G.; Rimaviciute, E.; Contini, S.; Bidoglio, G. EU-wide survey of polar organic persistent pollutants in European river waters. Environ. Pollut. 2009, 157, 561–568. [Google Scholar] [CrossRef]
  41. Loos, R.; Locoro, G.; Huber, T.; Wollgast, J.; Christoph, E.H.; de Jager, A.; Manfred Gawlik, B.; Hanke, G.; Umlauf, G.; Zaldívar, J.-M. Analysis of perfluorooctanoate (PFOA) and other perfluorinated compounds (PFCs) in the River Po watershed in N-Italy. Chemosphere 2008, 71, 306–313. [Google Scholar] [CrossRef]
  42. Loos, R.; Wollgast, J.; Huber, T.; Hanke, G. Polar herbicides, pharmaceutical products, perfluorooctanesulfonate (PFOS), perfluorooctanoate (PFOA), and nonylphenol and its carboxylates and ethoxylates in surface and tap waters around Lake Maggiore in Northern Italy. Anal. Bioanal. Chem. 2007, 387, 1469–1478. [Google Scholar] [CrossRef]
  43. McLachlan, M.S.; Holmstrom, K.E.; Reth, M.; Berger, U. Riverine discharge of perfluorinated carboxylates from the European continent. Environ. Sci. Technol. 2007, 41, 7260–7265. [Google Scholar] [CrossRef] [Green Version]
  44. Möller, A.; Ahrens, L.; Surm, R.; Westerveld, J.; van der Wielen, F.; Ebinghaus, R.; de Voogt, P. Distribution and sources of polyfluoroalkyl substances (PFAS) in the River Rhine watershed. Environ. Pollut. 2010, 158, 3243–3250. [Google Scholar] [CrossRef] [Green Version]
  45. Rostkowski, P.; Taniyasu, S.; Yamashita, N.; Falandysz, J.J.; Zegarowski, Ł.; Chojnacka, A.; Pazdro, K.; Falandysz, J. Survey of perfluorinated compounds (PFCs) in surface waters of Poland. J. Environ. Sci. Health 2009, 44, 1518–1527. [Google Scholar] [CrossRef]
  46. Schmidt, N.; Fauvelle, V.; Castro-Jiménez, J.; Lajaunie-Salla, K.; Pinazo, C.; Yohia, C.; Sempéré, R. Occurrence of perfluoroalkyl substances in the Bay of Marseille (NW Mediterranean Sea) and the Rhône River. Mar. Pollut. Bull. 2019, 149, 110491. [Google Scholar] [CrossRef]
  47. Skutlarek, D.; Exner, M.; Färber, H. Perfluorinated surfactants in surface and drinking waters. Environ. Sci. Pollut. Res. Int. 2006, 13, 299–307. [Google Scholar] [PubMed]
  48. Pignotti, E.; Farré, M.; Barceló, D.; Dinelli, E. Occurrence and distribution of six selected endocrine disrupting compounds in surface- and groundwaters of the Romagna area (North Italy). Environ. Sci. Pollut. Res. 2017, 24, 21153–21167. [Google Scholar] [CrossRef] [PubMed]
  49. Köck-Schulmeyer, M.; Ginebreda, A.; Petrovic, M.; Giulivo, M.; Aznar-Alemany, Ò.; Eljarrat, E.; Valle-Sistac, J.; Molins-Delgado, D.; Diaz-Cruz, M.S.; Monllor-Alcaraz, L.S.; et al. Priority and emerging organic microcontaminants in three Mediterranean river basins: Occurrence, spatial distribution, and identification of river basin specific pollutants. Sci. Total Environ. 2021, 754, 142344. [Google Scholar] [CrossRef] [PubMed]
  50. Barbosa, M.O.; Ribeiro, A.R.; Ratola, N.; Hain, E.; Homem, V.; Pereira, M.F.R.; Blaney, L.; Silva, A.M.T. Spatial and seasonal occurrence of micropollutants in four Portuguese rivers and a case study for fluorescence excitation-emission matrices. Sci. Total Environ. 2018, 644, 1128–1140. [Google Scholar] [CrossRef]
  51. Sousa, J.C.G.; Barbosa, M.O.; Ribeiro, A.R.L.; Ratola, N.; Pereira, M.F.R.; Silva, A.M.T. Distribution of micropollutants in estuarine and sea water along the Portuguese coast. Mar. Pollut. Bull. 2020, 154, 111120. [Google Scholar] [CrossRef]
  52. Onghena, M.; Moliner-Martinez, Y.; Picó, Y.; Campíns-Falcó, P.; Barceló, D. Analysis of 18 perfluorinated compounds in river waters: Comparison of high performance liquid chromatography-tandem mass spectrometry, ultra-high-performance liquid chromatography-tandem mass spectrometry and capillary liquid chromatography-mass spectrometry. J. Chromatogr. A 2012, 1244, 88–97. [Google Scholar]
  53. Sousa, J.C.G.; Ribeiro, A.R.; Barbosa, M.O.; Ribeiro, C.; Tiritan, M.E.; Pereira, M.F.R.; Silva, A.M.T. Monitoring of the 17 EU Watch List contaminants of emerging concern in the Ave and the Sousa Rivers. Sci. Total Environ. 2019, 649, 1083–1095. [Google Scholar] [CrossRef]
  54. Homem, V.; Llompart, M.; Vila, M.; Ribeiro, A.R.L.; Garcia-Jares, C.; Ratola, N.; Celeiro, M. Gone with the flow—Assessment of personal care products in Portuguese rivers. Chemosphere 2022, 293, 133552. [Google Scholar] [CrossRef]
  55. Yan, C.; Yang, Y.; Zhou, J.; Liu, M.; Nie, M.; Shi, H.; Gu, L. Antibiotics in the surface water of the Yangtze Estuary: Occurrence, distribution and risk assessment. Environ. Pollut. 2013, 175, 22–29. [Google Scholar] [CrossRef]
  56. Huerta, B.; McHugh, B.; Regan, F. Development and application of an LC-MS method to the determination of poly- and perfluoroalkyl substances (PFASs) in drinking, sea and surface water samples. Anal. Methods 2022, 14, 2090–2099. [Google Scholar] [CrossRef]
  57. Nguyen, M.A.; Wiberg, K.; Ribeli, E.; Josefsson, S.; Futter, M.; Gustavsson, J.; Ahrens, L. Spatial distribution and source tracing of per- and polyfluoroalkyl substances (PFASs) in surface water in Northern Europe. Environ. Pollut. 2017, 220, 1438–1446. [Google Scholar] [CrossRef]
  58. Lorenzo, M.; Campo, J.; Farré, M.; Pérez, F.; Picó, Y.; Barceló, D. Perfluoroalkyl substances in the Ebro and Guadalquivir river basins (Spain). Sci. Total Environ. 2016, 540, 191–199. [Google Scholar] [CrossRef]
  59. Campo, J.; Pérez, F.; Masiá, A.; Picó, Y.; Farré, M.; Barceló, D. Perfluoroalkyl substance contamination of the Llobregat River ecosystem (Mediterranean area, NE Spain). Sci. Total Environ. 2015, 503–504, 48–57. [Google Scholar] [CrossRef]
  60. Gebbink, W.A.; van Asseldonk, L.; van Leeuwen, S.P.J. Presence of Emerging Per- and Polyfluoroalkyl Substances (PFASs) in River and Drinking Water near a Fluorochemical Production Plant in the Netherlands. Environ. Sci. Technol. 2017, 51, 11057–11065. [Google Scholar] [CrossRef] [Green Version]
  61. Pan, Y.; Zhang, H.; Cui, Q.; Sheng, N.; Yeung, L.W.Y.; Sun, Y.; Guo, Y.; Dai, J. Worldwide distribution of novel perfluoroether carboxylic and sulfonic acids in surface water. Environ. Sci. Technol. 2018, 52, 7621–7629. [Google Scholar] [CrossRef]
  62. Campo, J.; Lorenzo, M.; Pérez, F.; Picó, Y.; Farré, M.; Barceló, D. Perfluoroalkyl substance contamination of the Llobregat River ecosystem (Mediterranean area, NE Spain). Environ. Res. 2016, 147, 503–512. [Google Scholar] [CrossRef]
  63. Shafique, U.; Schulze, S.; Slawik, C.; Böhme, A.; Paschke, A.; Schüürmann, G. Perfluoroalkyl acids in aqueous samples from Germany and Kenya. Environ. Sci. Pollut. Res. 2017, 24, 11031–11043. [Google Scholar] [CrossRef]
  64. Sammut, G.; Sinagra, E.; Helmus, R.; de Voogt, P. Perfluoroalkyl substances in the Maltese environment—(I) surface water and rain water. Sci. Total Environ. 2017, 589, 182–190. [Google Scholar] [CrossRef]
  65. Aro, R.; Carlsson, P.; Vogelsang, C.; Kärrman, A.; Yeung, L.W.Y. Fluorine mass balance analysis of selected environmental samples from Norway. Chemosphere 2021, 283, 131200. [Google Scholar] [CrossRef]
  66. Sánchez-Avila, J.; Meyer, J.; Lacorte, S. Spatial distribution and sources of perfluorochemicals in the NW Mediterranean coastal waters (Catalonia, Spain). Environ. Pollut. 2010, 158, 2833–2840. [Google Scholar] [CrossRef]
  67. Llorca, M.; Farré, M.; Picó, Y.; Barceló, D. Analysis of perfluorinated compounds in sewage sludge by pressurized solvent extraction followed by liquid chromatography-mass spectrometry. J. Chromatogr. A 2011, 1218, 4840–4846. [Google Scholar] [CrossRef] [PubMed]
  68. Llorca, M.; Farré, M.; Picó, Y.; Barceló, D. Development and validation of a pressurized liquid extraction liquid chromatography-tandem mass spectrometry method for perfluorinated compounds determination in fish. J. Chromatogr. A 2009, 1216, 7195–7204. [Google Scholar] [CrossRef] [PubMed]
  69. Pihlström, T.; Fernández-Alba, A.R.; Gamón, M.; Amate, C.; Poulsen, M.; Lippold, R.; Anastassiades, M. Analytical quality control and method validation procedures for pesticide residues analysis in food and feed. Sante 2017, 11813, 21–22. [Google Scholar]
  70. USEPA. Definition and Procedure for the Determination of the Method Detection Limit, Revision 2, in EPA Doocument Number: 821-R-16-006. 2016, U.S. Environmental Protection Agency, Office of Science and Technology—CWA Methods Team, Engineering and Analytical Support Branch/EAD (4303T) Washington, DC 20460. Available online: https://www.epa.gov/sites/default/files/2016-12/documents/mdl-procedure_rev2_12-13-2016.pdf (accessed on 13 December 2022).
  71. E.C.J.R.Centre. Technical Guidance Document on Risk Assessment in Support of Commission Directive 93/67/EEC on Risk Assessment for New Notified Substances, Commission Regulation (EC) No. 1488/94 on Risk Assessment for Existing Substance, and Directive 98/8/EC of the European Parliament and of the Council Concerning the Placing of Biocidal Products on the Market. Part II. EUR 20418 EN/2. 2003, European Commission Joint Research Centre, 100-102. Available online: https://echa.europa.eu/documents/10162/987906/tgdpart2_2ed_en.pdf/138b7b71-a069-428e-9036-62f4300b752f (accessed on 13 December 2022).
  72. Ding, H.; Wu, Y.; Zhang, W.; Zhong, J.; Lou, Q.; Yang, P.; Fang, Y. Occurrence, distribution, and risk assessment of antibiotics in the surface water of Poyang Lake, the largest freshwater lake in China. Chemosphere 2017, 184, 137–147. [Google Scholar] [CrossRef]
  73. Sardiña, P.; Leahy, P.; Metzeling, L.; Stevenson, G.; Hinwood, A. Emerging and legacy contaminants across land-use gradients and the risk to aquatic ecosystems. Sci. Total Environ. 2019, 695, 133842. [Google Scholar] [CrossRef]
Molecules 28 01209 g001 550

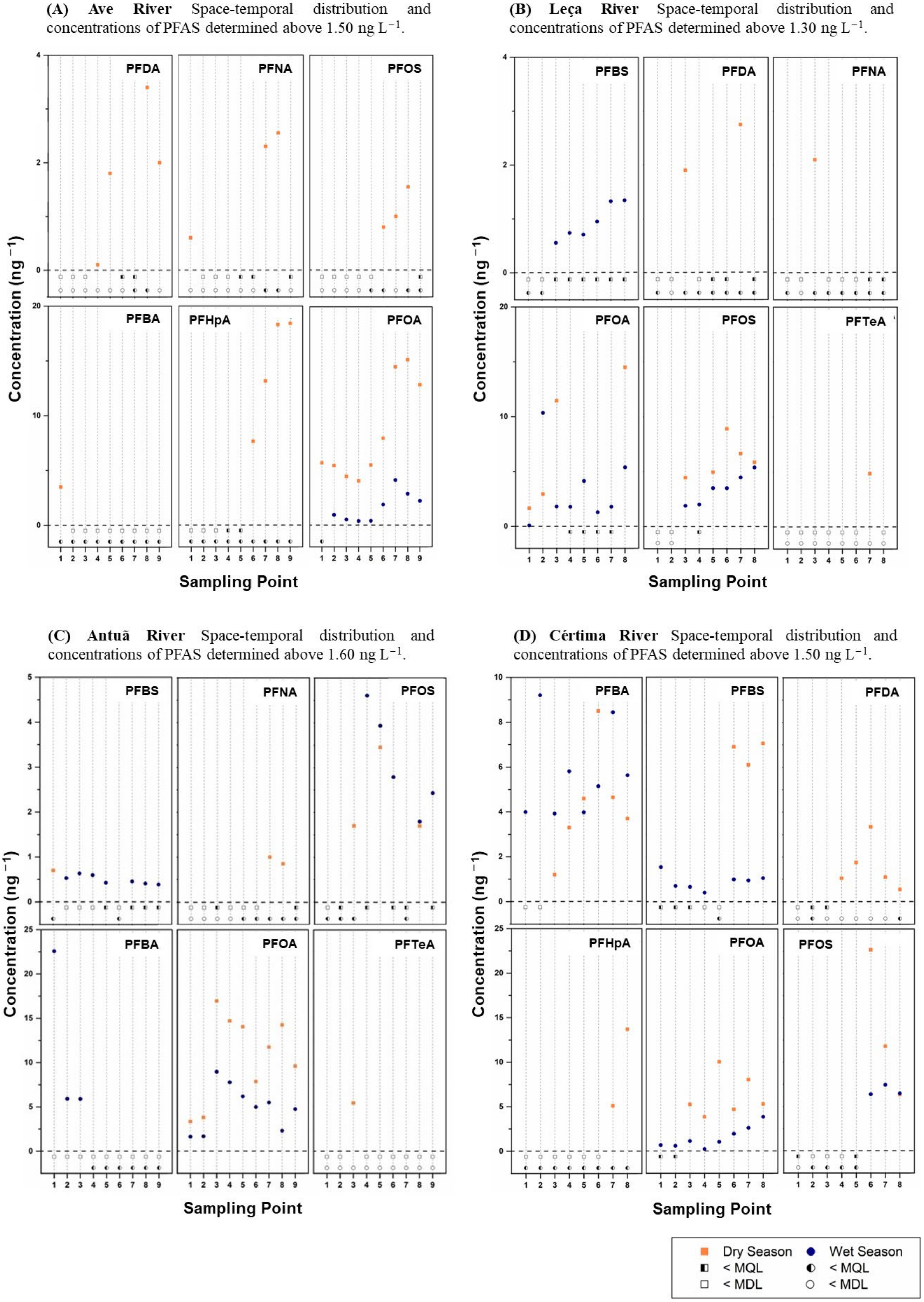

Figure 1. Space-temporal distribution of PFASs and the concentration of compounds found at higher concentrations in the four river basins: (A) Ave, (B) Leça, (C) Antuã, and (D) Cértima.
Figure 1. Space-temporal distribution of PFASs and the concentration of compounds found at higher concentrations in the four river basins: (A) Ave, (B) Leça, (C) Antuã, and (D) Cértima.
Molecules 28 01209 g001
Molecules 28 01209 g002 550

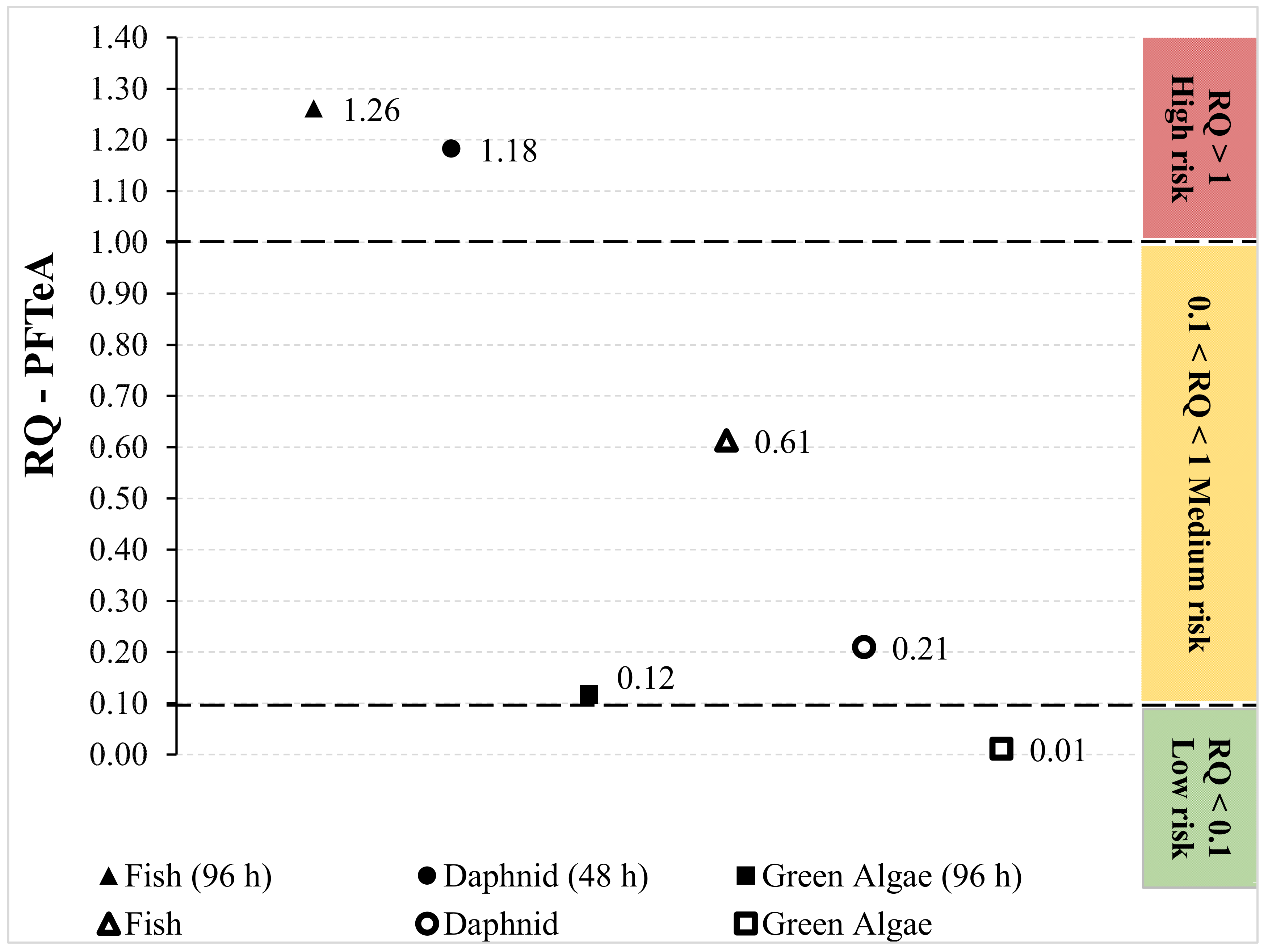

Figure 2. Risk assessment of the higher detected concentration of PFTeA (i.e., Antuã river at SP3 in dry season). The different symbols represent the RQ values for the different organisms and types of toxicity (acute—bold symbols and chronic—open symbols).
Figure 2. Risk assessment of the higher detected concentration of PFTeA (i.e., Antuã river at SP3 in dry season). The different symbols represent the RQ values for the different organisms and types of toxicity (acute—bold symbols and chronic—open symbols).
Molecules 28 01209 g002
Molecules 28 01209 g003 550

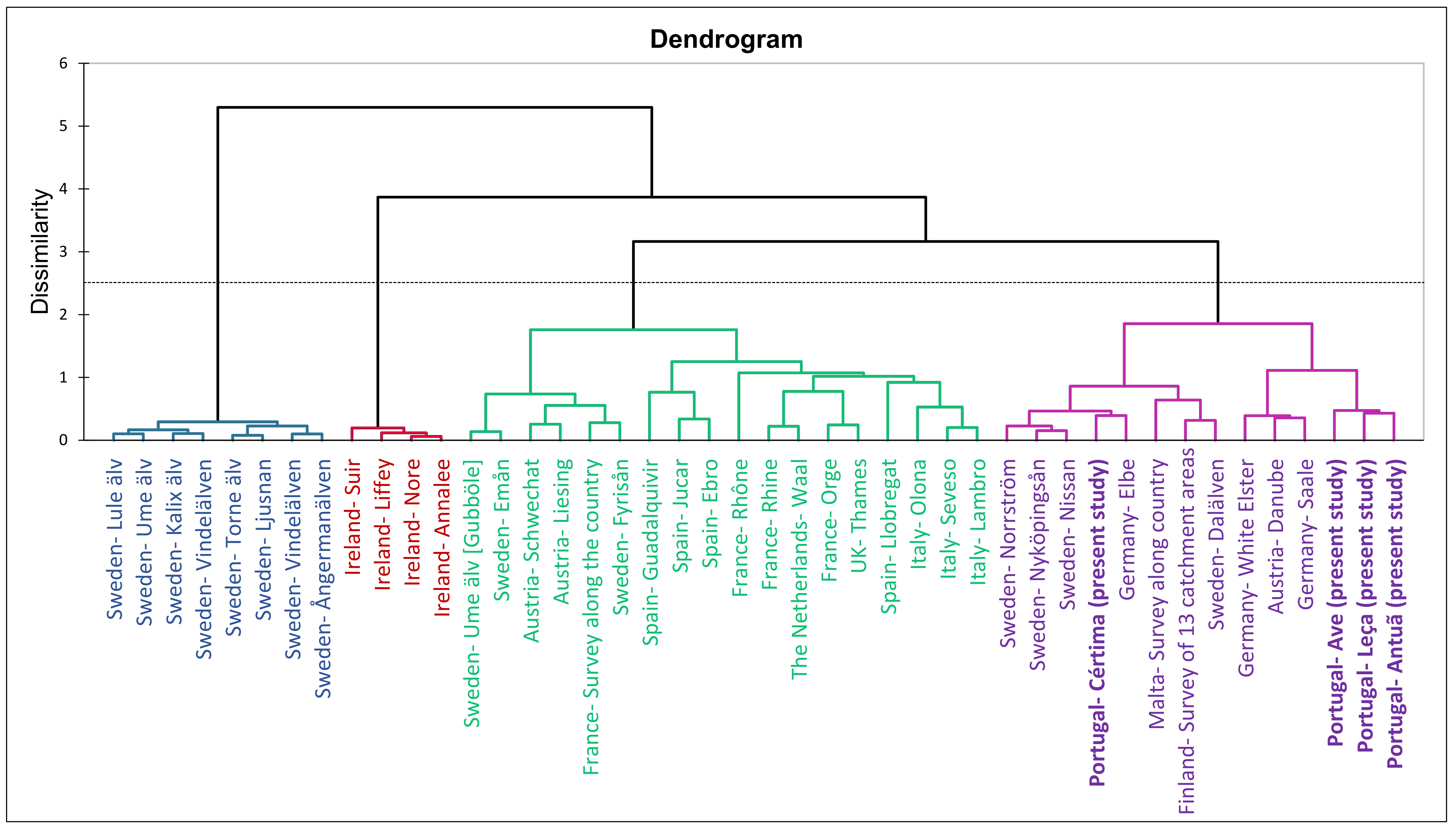

Figure 3. Hierarchical cluster analysis of different studies of PFASs in European SWs. The four river basins of this study are indicated in bold type. References: Sweden [57]; Ireland [56]; Austria [34]; France—Survey along the country [20]; Spain—Guadalquivir and Ebro [58]; Spain—Jucar [59]; France—Rhône and Rhine [46]; The Netherlands [60]; France—Orge [38]; UK—Thames [61]; Spain—Llobregat [62]; Italy [33]; Germany [63]; Malta [64]; Finland—[37].
Figure 3. Hierarchical cluster analysis of different studies of PFASs in European SWs. The four river basins of this study are indicated in bold type. References: Sweden [57]; Ireland [56]; Austria [34]; France—Survey along the country [20]; Spain—Guadalquivir and Ebro [58]; Spain—Jucar [59]; France—Rhône and Rhine [46]; The Netherlands [60]; France—Orge [38]; UK—Thames [61]; Spain—Llobregat [62]; Italy [33]; Germany [63]; Malta [64]; Finland—[37].
Molecules 28 01209 g003
Molecules 28 01209 g004 550
Figure 4. Location of each sampling point (SP) and WWTP in the target rivers: (a) Leça; (b) Cértima; (c) Ave and (d) Antuã; and respective GPS coordinates.
Figure 4. Location of each sampling point (SP) and WWTP in the target rivers: (a) Leça; (b) Cértima; (c) Ave and (d) Antuã; and respective GPS coordinates.
Molecules 28 01209 g004
Table
Table 1. Toxicity data of target PFAS compounds (type of effect, organism, and concentration), predicted no-effect concentration (PNEC), risk quotient and the respective classification obtained.
Table 1. Toxicity data of target PFAS compounds (type of effect, organism, and concentration), predicted no-effect concentration (PNEC), risk quotient and the respective classification obtained.
CompoundType of EffectOrganismConc.
(mg L−1) a		PNEC
(mg L−1) b		RQ cClassification
PFBAAcute (LC50 or EC50 for Green Algae)Fish (96 h)13231.3230.000RQ < 0.1 Low risk
Daphnid (48 h)760.60.7610.000
Green Algae (96 h)597.10.5970.000
Chronic (ChV)Fish131.21.3120.000
Daphnid76.840.7680.000
Green Algae160.91.6090.000
PFHxSAcute (LC50 or EC50 for Green Algae)Fish (96 h)301.30.3010.000RQ < 0.1 Low risk
Daphnid (48 h)190.40.1900.000
Green Algae (96 h)220.40.2200.000
Chronic (ChV)Fish33.400.3340.000
Daphnid24.980.2500.000
Green Algae73.200.7320.000
PFBSAcute (LC50 or EC50 for Green Algae)Fish (96 h)35973.5970.000RQ < 0.1 Low risk
Daphnid (48 h)20082.0080.000
Green Algae (96 h)13951.3950.000
Chronic (ChV)Fish344.73.4470.000
Daphnid186.91.8690.000
Green Algae351.93.5190.000
PFHpAAcute (LC50 or EC50 for Green Algae)Fish (96 h)35.430.0350.001RQ < 0.1 Low risk
Daphnid (48 h)24.520.0250.001
Green Algae (96 h)41.430.0410.000
Chronic (ChV)Fish4.3740.0440.000
Daphnid4.1500.0420.000
Green Algae16.860.1690.000
PFOAAcute (LC50 or EC50 for Green Algae)Fish (96 h)10.100.0100.002RQ < 0.1 Low risk
Daphnid (48 h)7.4370.0070.002
Green Algae (96 h)16.220.0160.001
Chronic (ChV)Fish1.3410.0130.001
Daphnid1.4950.0150.001
Green Algae7.5760.0760.000
PFNAAcute (LC50 or EC50 for Green Algae)Fish (96 h)2.8370.0030.001RQ < 0.1 Low risk
Daphnid (48 h)2.2220.0020.001
Green Algae (96 h)6.2580.0060.000
Chronic (ChV)Fish0.4050.0040.001
Daphnid0.5300.0050.000
Green Algae3.3540.0340.000
PFDAAcute (LC50 or EC50 for Green Algae)Fish (96 h)0.7880.0010.004RQ < 0.1 Low risk
Daphnid (48 h)0.6560.0010.005
Green Algae (96 h)2.3860.0020.001
Chronic (ChV)Fish0.1210.0010.003
Daphnid0.1860.0020.002
Green Algae1.4680.0150.000
PFTeAAcute (LC50 or EC50 for Green Algae)Fish (96 h)0.0044.320 × 10−61.261RQ > 1 High risk
Daphnid (48 h)0.0054.608 × 10−61.183
Green Algae (96 h)0.0474.654 × 10−50.1170.1 < RQ < 1 Medium risk
Chronic (ChV)Fish0.0018.884 × 10−60.613
Daphnid0.0032.599 × 10−50.210
Green Algae0.0504.963 × 10−40.011RQ < 0.1 Low risk
PFOSAcute (LC50 or EC50 for Green Algae)Fish (96 h)23.660.0240.001RQ < 0.1 Low risk
Daphnid (48 h)16.920.0170.001
Green Algae (96 h)32.650.0330.001
Chronic (ChV)Fish3.0350.0300.001
Daphnid3.1310.0310.001
Green Algae14.280.1430.000
a data obtained from ECOSAR (Ecological Structure Activity Relationships) application (version 2.0) veloped by U.S. EPA. b PNEC values were determined by using Equation (2) (PNEC = (LC50, EC50 or ChV)/AF), detailed at “3.4. Ecological risk assessment”. c RQ < 0.1 indicates low risk; 0.1 < RQ < 1 medium risk; and RQ > 1 high risk for the aquatic environment.
Table
Table 2. Comparison of occurrence data for the targeted PFASs in SW samples (ng L−1) from this study with previous reports in Europe.
Table 2. Comparison of occurrence data for the targeted PFASs in SW samples (ng L−1) from this study with previous reports in Europe.
CompoundMax. Concentration Found (ng L−1)
Present StudyLiterature Overview
PortugalAustria [34]Finland [37]France [38]France [20]Germany [47]Germany and Netherlands [44]Germany [39]Spain [39]Italy [42]Malta and Gozo [64]Netherlands [32]Norway [65]Spain [35]Spain [66]Switzerland [36]
PFBA23<MDL5.3<MDL0.23.03350.427n.a.n.a.n.a.8.0n.a.0.6n.a.
PFHxS1.5<MDL6.414217n.a.14<MQL28n.a.2.5n.a.1.60.80.914
PFBS7.1<MDL1.54.42946181<MQL36n.a.n.a.n.a.2.0n.a.n.a.7.7
PFHpA18<3.22.74.516114.72416211104.43.4102.7
PFOA17195.49.43648411.9351616>1255.76.31.67.7
PFNA2.6<1.1231.330n.a.n.a.<MQL22163.41.52.80.6n.a.<MDL
PFDA3.4<1.10.51.110n.a.n.a.<MQL4.7114.43.82.0< 0.82n.a.<MDL
PFTeA5.5<MDL<MDL<MDL<MDLn.a.n.a.n.a.n.a.n.a.n.a.n.a.n.a.< 0.9010n.a.
PFOS2335261737026250.4258395.3n.a.9.15.9n.a.60.0
MDL—method detection limit; MQL—method quantification limit; n.a.—not available.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Barbosa, M.O.; Ratola, N.; Homem, V.; Pereira, M.F.R.; Silva, A.M.T.; Ribeiro, A.R.L.; Llorca, M.; Farré, M. Per- and Poly-Fluoroalkyl Substances in Portuguese Rivers: Spatial-Temporal Monitoring. Molecules 2023, 28, 1209. https://doi.org/10.3390/molecules28031209

AMA Style

Barbosa MO, Ratola N, Homem V, Pereira MFR, Silva AMT, Ribeiro ARL, Llorca M, Farré M. Per- and Poly-Fluoroalkyl Substances in Portuguese Rivers: Spatial-Temporal Monitoring. Molecules. 2023; 28(3):1209. https://doi.org/10.3390/molecules28031209

Chicago/Turabian Style

Barbosa, Marta O., Nuno Ratola, Vera Homem, M. Fernando R. Pereira, Adrián M. T. Silva, Ana R. L. Ribeiro, Marta Llorca, and Marinella Farré. 2023. "Per- and Poly-Fluoroalkyl Substances in Portuguese Rivers: Spatial-Temporal Monitoring" Molecules 28, no. 3: 1209. https://doi.org/10.3390/molecules28031209

APA Style

Barbosa, M. O., Ratola, N., Homem, V., Pereira, M. F. R., Silva, A. M. T., Ribeiro, A. R. L., Llorca, M., & Farré, M. (2023). Per- and Poly-Fluoroalkyl Substances in Portuguese Rivers: Spatial-Temporal Monitoring. Molecules, 28(3), 1209. https://doi.org/10.3390/molecules28031209

Article Metrics

Back to TopTop
