Interfacial Synthesis of an Ultrathin Two-Dimensional Polymer Film via [2 + 2] Photocycloaddition

Abstract

A carbon–carbon-linked, ultrathin, two-dimensional (2D) polymer film was prepared at the air/water interface through photochemically triggered [2 + 2] cycloaddition. The preorganization of the monomers on the water surface and the subsequent photo-polymerization led to the successful preparation of the ultrathin 2D polymer film. The obtained film is continuous, free standing, and has a large area (over 50 μm²). Transmission electron microscopy (TEM) and atomic force microscopy (AFM) give clear evidence of the ultrathin film morphology. Raman spectroscopy and X-ray photoelectron spectroscopy (XPS) indicate successful photo-induced [2 + 2] polymerization.

1. Introduction

Two-dimensional (2D) polymers are single- or few-layered and free-standing covalent networks with long-range order in two directions [1,2,3,4,5,6,7,8]. In contrast to other traditional 1D polymers, 2D polymers have drawn lots of attention due to their unique arrangement of the structural units in two directions, ultrathin thickness, uniform pore size, and facilely-tailored functionality [8,9,10,11,12]. More importantly, the endless flexibility in designing monomers can increase the variety of 2D polymers and endow them with peculiar physicochemical properties [13,14]. In recent years, 2D polymers have been developing rapidly, and these can be widely used in chemical sensors, membrane separation, catalysis, energy conversion and storage, etc. [15,16,17,18,19,20,21,22,23,24]. Therefore, the study of various 2D polymers has important research significance and a high application value. However, the preparation of highly ordered and large-sized 2D polymers is still a challenge, especially in the case of mono- or few-layered 2D polymer films [25,26,27,28,29]. The emergence of 2D covalent organic frameworks (COFs) solved the problem of the periodicity in the 2D structures to some extent. The utilization of dynamic covalent chemistry facilitates the self-adjusting process during the polymerization, and thus, leads to the highly ordered 2D structure via solvothermal synthetic methods [30,31]. The 2D COFs are usually obtained as solid powders [32,33]. The poor solubility and processibility of bulk 2D COFs are appreciable disadvantages limiting their practical application to a certain extent, particularly in thin films or membranes. This is a big disadvantage for their broad practical applications [34].

The study of 2D COFs films is still in its infancy [35]. In contrast to the various documents on bulk 2D COF powders, examples of 2D COFs films have been relatively infrequently reported [36]. There are currently two main strategies for the preparation of 2D COFs films: top-down and bottom-up approaches [19]. Inspired by the graphene sheets from the exfoliation of graphite, the top-down approach is one attractive method for the directly exfoliated bulk 2D COFs powders [37]. At present, there are many ways to obtain free-standing films, such as solvent-assisted exfoliation, mechanical delamination, and self-exfoliation [38,39,40]. However, bulk lamellar COFs have compact stacking forms and narrow interlayer spacing due to the strong interlayer interactions, which make their exfoliation challenging and demanding [41,42]. The alternative bottom-up approach thus becomes an important strategy that enables 2D COFs to be deposited on specific substrates or prepared at interfaces with a controllable thickness. In most cases, the bottom-up approach is a technically simple and powerful tool towards achieving potential applications. More and more methods are being presented as time goes on, including solvothermal synthesis, interfacial polymerization, synthesis under continuous flow conditions, and room temperature vapor-assisted conversion [19]. Additionally, under suitable experimental conditions, 2D structures that can be generated by these approaches can assume very large lateral dimensions. They are essentially based on the direct combination/reaction of different building blocks, allowing the formation of two-dimensional structures. Typically, this can be either carried out on the substrate surface or at the liquid/liquid or air/liquid interface [43,44]. In this case, interfacial polymerization has emerged as the most popular method, and it features a well-defined interface of two phases to guide the formation of continuous, mono-, or few-layered ultrathin 2D COFs or 2D polymer films under mild conditions [45,46]. Interface systems are abundant and suitable for the growth of a wide range of materials. Benefiting from the enhanced chemical reactivity at the interface, some reactions could be realized by interfacial synthesis, whereas these reactions are challenging under solvothermal conditions [47].

According to previous reports, several reaction types have been successfully applied to the interfacial synthesis of 2D COFs or 2D polymer films, such as Schiff base condensation, azide-alkyne cycloadditions, Glaser-Hay coupling reactions, [2 + 2] photocycloaddition, and so on [48,49,50,51]. Dichtel’s groups reported the interfacial polymerization of monomers capable of forming imine-linked 2D COF films at liquid/liquid interfaces. The 2D COF films were transferred onto supports, and the resulting films showed the enhanced rejection of Rhodamine [52]. At the interface of the two phases, Nishihara’s groups prepared a 1,2,3-triazole-linked 2D nanosheet for the storage of metal ions, and they also produced crystalline 2D graphdiyne nanosheets [44,49]. The obtained 2D polymer films have exhibited superior potentials in various applications due to their increased specific surface area, more facile charge transport properties, and more exposed active sites, etc. [53,54,55,56]. Additionally, water with low surface roughness could provide a perfect template or substrate for the confined polymerization in a 2D plane, which is widely available. Photocatalytic cycloaddition reactions based on anthracene dimerization were successfully realized by Schlüter’s and King’s groups at the air/water interface [57,58]. A cycloaddition reaction is a powerful tool for the synthesis of cyclic structures in a green way. In the meanwhile, photocatalytic cycloaddition reactions are also becoming popular due to their high synthetic utility under simple operational conditions. O of the most important photochemical reactions in organic photochemistry is [2 + 2] photocycloaddition, which is conveniently achieved through direct excitation or sensitization by UV irradiation. The cyclobutene derivatives could be prepared by [2 + 2] photocycloaddition, which cannot be obtained in some other way [59,60,61,62,63]. Inspired by these, we considered preparing one carbon–carbon-linked 2D polymer film by photocatalytic cycloaddition reactions.

Here, we prepared a large-sized, ultrathin, and free-standing 2D polymer (P1) film at the air/water interface via [2 + 2] photocycloaddition. The monomer (M1) was designed as a star-type molecule with C3 symmetry, which would achieve head-to-tail self-assembly through D-A and π-π interactions between arene and fluoroarene at the water interface. Weak supramolecular interactions as important forces could effectively control the molecular arrangement, which in turn forms an ordered 2D structure. Water was used as the liquid template due to its extremely low surface roughness, and it could confine polymerization at the same time [64]. The subsequent light-intermediated intermolecular [2 + 2] photocycloadditions connected the monomers together in a 2D plane through covalent bonds, and thus, led to the successful construction of 2D polymer films. Raman spectroscopy and X-ray photoelectron spectroscopy (XPS) proved the successful bond formation of the as-prepared 2D polymer film. Transmission electron microscopy (TEM) and atomic force microscopy (AFM) give clear evidence of the ultrathin film morphology.

2. Results and Discussion

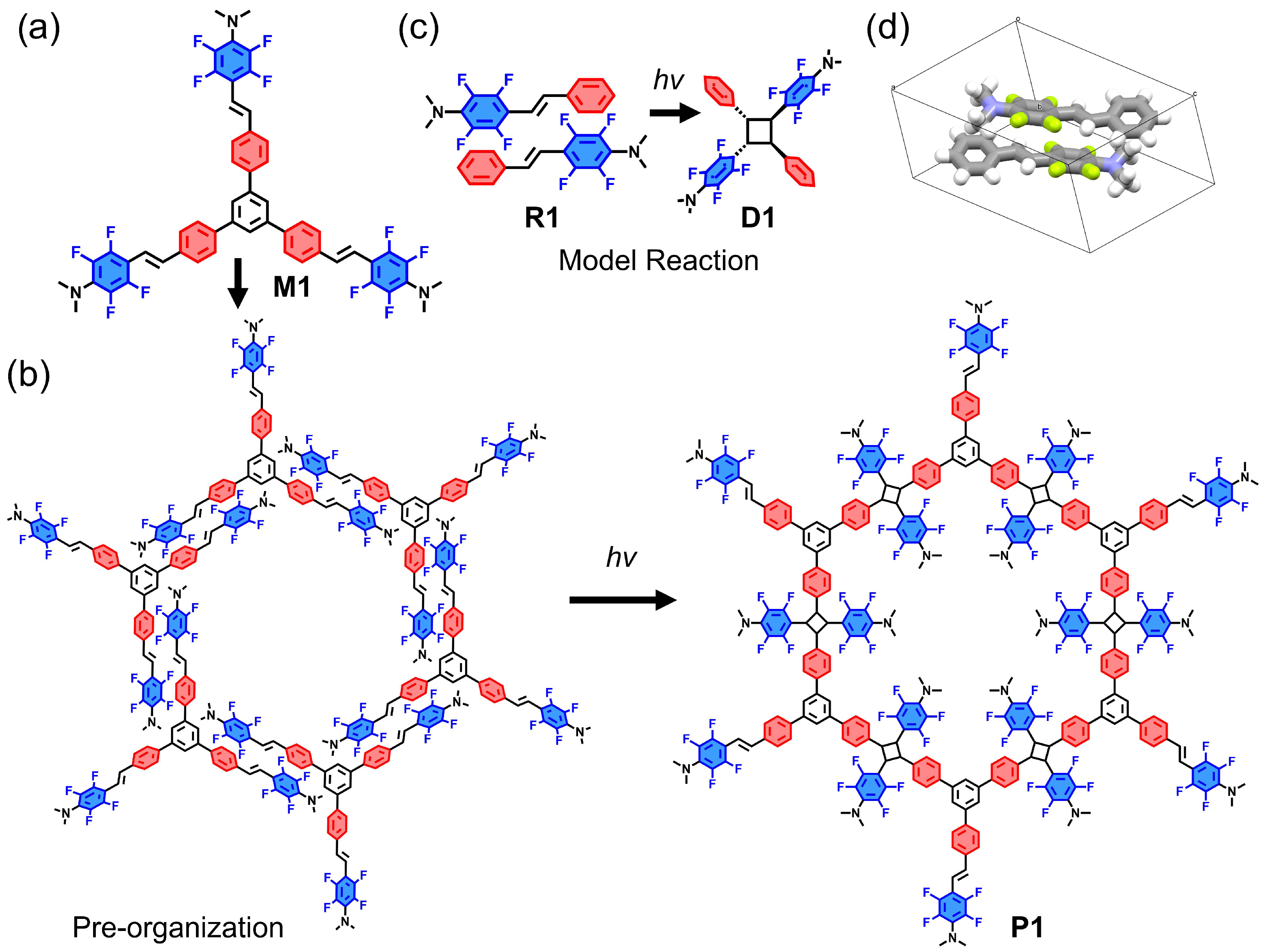

The star-type monomer M1 (Figure 1a) was synthesized by a heck reaction between 1,3,5-tris(4-iodophenyl)benzene as the core and 2,3,5,6-tetrafluoro-N,N-dimethyl-4-vinylaniline as the arms. For the synthesis details, see the Supporting Information (Scheme S1). The solubility and reactivity of the monomer are improved by the introduction of N,N-dimethyl groups. Fluorinated aromatic rings in M1 contributed to the arene-fluoroarene interactions in the self-assembly process, which in turn promoted [2 + 2] photocycloaddition (Figure 1b). To verify the feasibility, the model compound (R1) was synthesized according to the previously reported work (Figure 1c). A single crystal of R1 was easily acquired through the slow evaporation of its CH₂Cl₂ solution. The X-ray single crystal diffraction analysis demonstrates that R1 adopts a head-to-tail stacking mode in the single crystal state (Figure 1d). The further irradiation of the R1 solution under a 450 nm LED lamp leads to the dimer D1 through successful [2 + 2] photodimerization (Figure 1c). According to the suitable self-assembly mode (head-to-tail) of the reference R1 and the successful realization of the reference dimer D1 through photo-dimerization, the reasonable preorganization and the corresponding polymerization of M1 should be feasible.

The 2D polymer film P1 was then successfully prepared at the air/water interface. The star-type M1 solution in dichloromethane (250 μL, 1 × 10⁻⁵ M) was spread uniformly on the surface of the water in a Langmuir–Blodgett (LB) trough. With the volatilization of the dichloromethane, the self-assembly process of M1 at the air/water interface was investigated by Brewster Angle Microscopy (BAM) [65]. Initially, no surface pressure was observed on the interface due to the loose distribution of M1. With the slow shift of barriers, the value of the surface pressure increased gradually as the M1 molecules assumed a compact arrangement (Figure S1). In the end, uniform and dense films were successfully observed by BAM at the air/water interface (Figure S2). The turning point of the surface pressure appeared at around 41 mN·m⁻¹, which indicated that the self-assembly process of monomers at the interface was completed (Figure S2). Furthermore, the value of the measurement of mean molecular area (MMA) value was calculated to be 610 Ų/molecule. Subsequently, the pre-assembled monomers were polymerized under irradiation using a 450 nm LED lamp (36 W) for 2 h. Immediately afterward, the obtained films were simply transferred to SiO₂/Si wafer and copper TEM grids for further characterization.

The TEM images show that the film was ultrathin and continuous, with a sheet-like morphology. Several angles are denoted by orange segments in Figure 2a,b, which reveal the rigidity of the 2D polymer film P1 to some extent. The image of P1 film can also be obtained on a copper TEM grid (Figure S3). On the whole, the 2D polymer film P1 displayed sharply defined, regular edges, and very few wrinkles, which suggests high crystallinity. Notably, the ultrathin film does not burn immediately under the focused beams during TEM, which indicates the good stability of the films. The AFM image indicates that the 2D polymer film P1 has a rather flat and uniform surface (Figure 2c). The carbon–carbon-linked ultrathin 2D polymer film P1 possesses a large-area (over 50 μm² in domain size), and the average thickness of the film is approximately 5 nm (Figure 2d).

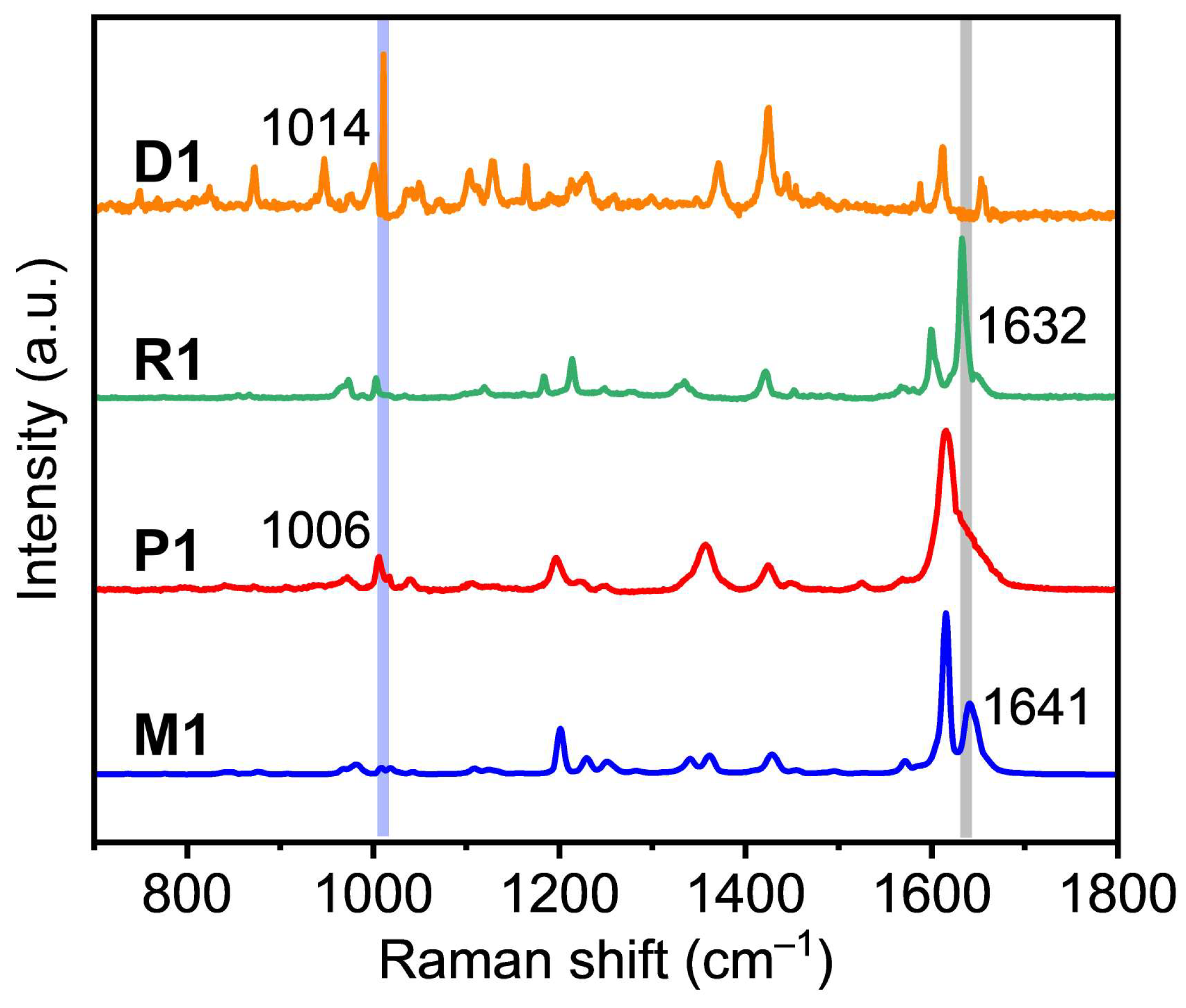

The Raman spectra further revealed changes in the characteristic functional group peaks before and after [2 + 2] cycloaddition at the interface. As we know, Raman is a powerful tool for characterizing chemical information with high sensitivity, spatial resolution, and chemical selectivity. To prove the successful photocycloaddition, the model compound (R1) and the corresponding dimer (D1) were measured by Raman spectroscopy. As shown in Figure 3, the Raman spectra of R1 and D1 have obvious changes before and after dimerization. Similar changes are also observed in the Raman spectra of M1 and P1. The peak at 1632 cm⁻¹ of R1 and the peak at 1641 cm⁻¹ of M1 correspond to the stretching vibrations of single -C=C- bonds, which disappeared in the prepared D1 and P1. Meanwhile, new peaks were observed at 1006 cm⁻¹ for P1 and at 1014 cm⁻¹ for D1, which mainly belong to the stretching vibrations of the cyclobutene. In conclusion, the Raman spectra confirmed that the polymerization was successful. Moreover, also P1 could be depolymerized back to M1 under heating conditions, which was measured by Raman spectra (Figure S4). With the extension of the heating time, the intensity of the -C=C- bonds peak became stronger, whereas the intensity of the cyclobutene peak became weaker gradually, implying the stepwise elimination of cyclobutane rings and resulting in the depolymerization process. To obtain a further understanding of the bonding properties of P1, the chemical bonding analysis was performed using the XPS spectra (Figure S5). According to the XPS spectra, the results of the multilayers indicate unambiguously that the P1 film is mainly composed of carbon, nitrogen, fluorine, oxygen, and silicon (Figure S5a). As the substrate is SiO₂/Si, silicon was observed. Further analysis from the high-resolution C 1s spectra shows that C=C, C-F, C-N, and C-C make the major contributions to the Gaussian curves (Figure S5b). Additionally, C-O and C=O forms are detected. The C 1s peak can be mainly deconvoluted into three subpeaks at 284.2, 284.7, 285.4, 286.2, 287.3, and 288.8 eV, which have been assigned to C 1s orbitals of C-N (sp³), C=C (sp²), C-F (sp²), C-C (sp³), C-O, and C=O, respectively. The area ratio of C-N/C=C/C-F/C-C is around 3:9:4:2, which is in agreement with the chemical composition of P1.

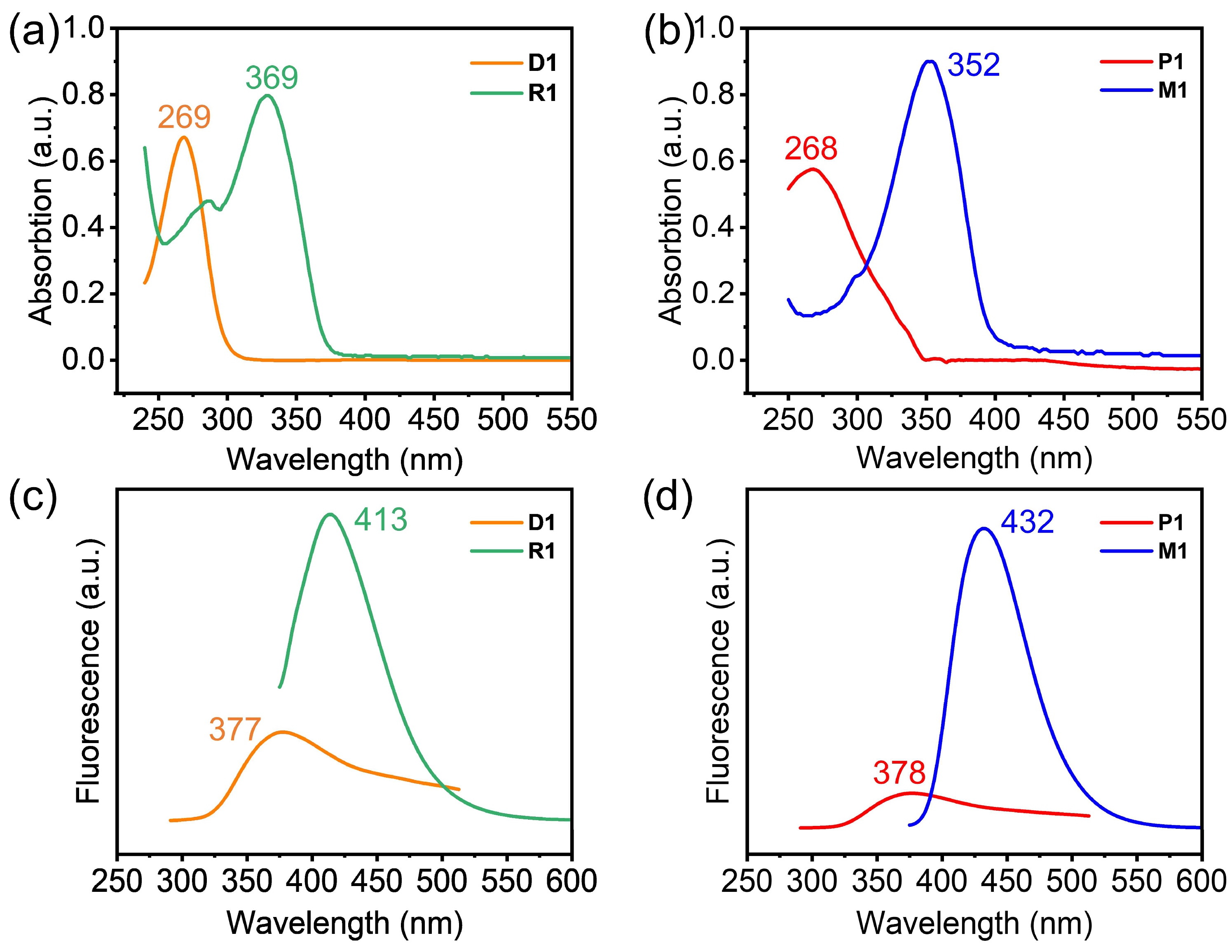

Besides the evidence from the Raman spectra and XPS spectra, the photophysical property further confirms the success of the photo-polymerization. The UV-vis absorption and fluorescence spectrum changed significantly after photo-polymerization. The UV-vis absorption spectra of D1 and R1 display the maximum absorption peaks located at around 269 and 369 nm, respectively (Figure 4a). P1 and M1 displayed similar UV absorption peaks at around 268 nm and 352 nm (Figure 4b). Both D1 and P1 have a significant blue shift, which is due to the interruption of conjugation via the successful photochemically triggered [2 + 2] cycloaddition. In the fluorescence spectrum, D1 and R1 showed emission peaks at around 377 nm and 413 nm (Figure 4c), while the fluorescence intensity of D1 became significantly weakened. The fluorescence emission peaks of P1 and M1 were located at 378 nm and 432 nm (Figure 4d). A similar fluorescence change phenomenon was also observed for M1 and P1. The fluorescence intensity of P1 decreased much more markedly compared with that of M1. After photochemically triggered [2 + 2] cycloaddition, the emission peaks of P1 and D1 also showed an obvious blue shift.

3. Materials and Methods

3.1. Materials

Unless otherwise specified, the starting materials were purchased commercially and used as received without further purification. Iodobenzene and 4′-Iodoacetophenone were supplied by Aladdin (Shanghai, China). We purchased 2,3,4,5,6-pentafluorostyrene, N,N-dimethylformamide (DMF), dichloromethane (DCM), hexane, absolute ethanol, ethyl acetate, thionyl chloride, KOH, K₂CO₃, Na₂SO₄, Pd(OAc)₂, and 2-(2-methoxyethoxy)-N,N-bis [2-(2-methoxyethoxy)ethyl]ethanamine from Energy Chemical (Shanghai, China). Nitrogen stored in a high-pressure gas cylinder was ordered from Dehai Gas (Qingdao, China). All of the aqueous solutions were prepared with Milli-Q water.

3.2. Characterizations

Using silica gel of 200–300 mesh, column chromatography was performed. The TLC analysis was conducted on precoated silica gel plates (0.2 mm in thickness). The ¹H, ¹³C, and ¹⁹F NMR spectra were collected in the indicated solvents at room temperature using a 400 MHz spectrometer (Bruker AVANCE NEO 400 Ascend, Bruker, Bremen, Germany). Matrix-Assisted Laser Desorption Ionization—Time of Flight (MALDI-TOF) mass spectrometry analysis was performed on a Bruker Microflex-LRF mass spectrometer (Bruker, Bremen, Germany) in positive ion reflector mode using dichloromethane as the solvent. Using a UV-Vis spectrometer (HITACHI, 3900, Tokyo, Japan), the absorbance of the liquid UV-VIS was measured. An F-2700 fluorescence spectrometer (HITACHI) was used to record the fluorescence spectra. A 20 kV, 30 mA X-ray diffractometer (XRD, X-Pert, Panalytical, Almelo, The Netherlands) with Mo Kα radiation (40 kV, 30 mA) was used to determine the crystal structure. The transmission electron microscope used in this study was a JEM-2100 electron microscope (JEOL Japan Electronics Co., Ltd., Tokyo, Japan) with a 200 kV accelerating voltage. The images were obtained using the Nanoscope V controller attached to Bruker Multimode 8 Atomic Force Microscope (AFM) (Bruker, Bremen, Germany). Samples were imaged by operating it in the PF-QNM mode at a scan rate of 1.0 Hz. Raman spectra were investigated using a HORIBA Raman spectrometer (LabRAM HR Evolution, Paris, France) with an excitation wavelength at 633 nm and a spot diameter of 1 μm. The LB trough used in the experiment was KSV Mediumtrough (KSV NIMA, Goteborg, Sweden). Two symmetrical barriers were made of Delrin, and the trough was made of Teflon. For BAM measurements, a 659 nm laser from the MicroBAM (KSV NIMA, Goteborg, Sweden) was used. The Langmuir trough (Teflon) was fitted with black glass to permit total reflection without films. Optical microscopes (Vision Engineering Co., Goteborg, Sweden) were used to acquire images, which were then captured using CCD cameras. X-Ray photoelectron spectroscopy was performed on a Thermo Scientific ESCALab 250Xi instrument (Waltham, MA, USA). The parameters were as follows: Al Kα (1486.6 eV, 150 W) radiation was used as the X-ray source, the vacuum degree of the chamber was 3.6 × 10⁻⁹ mbar, and the scan range was −10~1350 eV.

3.3. Synthesis Details

We synthesized 1,3,5-tris(4-iodophenyl)benzene (2) according to the previously reported procedures [66]. We prepared 2,3,5,6-tetrafluoro-N,N-dimethyl-4-vinylaniline (1), and the model compound (R1), dimer (D1), and monomer (M1) according to previously described methods [50,67]. The preparation of the 2D films using the Langmuir–Blodgett (LB) trough was conducted according to a previously reported study [68].

3.3.1. Compound (1)

We mixed 2,3,4,5,6-pentafluorostyrene (1.94 g, 10 mmol), KOH (1.40 g, 25 mmol), and N,N-dimethylformamide (5.5 mL) in a 25 mL pear flask equipped with one magnetic stir bar under an atmosphere of air, and then heated the solution to 120 °C for 24 h. After cooling the mixture to room temperature, 20 mL of water was added to the mixture under stirring, and then extracted with ethyl acetate (2 × 50 mL). The combined organic layers were dried with anhydrous sodium sulfate Na₂SO₄. The vacuum was used to remove the solvent. Additionally, the crude product was purified by column chromatography, eluting with a 10:1 mixture of hexane and CH₂Cl₂, to give compound (1) (2.0 g, 95%) as a sticky colorless oil. ¹H-NMR (400 MHz, CDCl₃): δ 2.96 (t, J = 2.1 Hz, 6H), 5.55 (d, J = 11.9 Hz, 1H), 5.97 (d, J = 17.9 Hz, 1H), 6.62 (dd, J = 18.0, 11.9 Hz, 1H).

3.3.2. Compound R1

A 50 mL pear flask equipped with a magnetic stir bar was charged with Iodobenzene (4.08g, 20 mmol), compound (1) (4.38 g, 20.0 mmol), anhydrous DMF (10 mL), K₂CO₃ (3.50 g, 25.0 mmol), and 2-(2-methoxyethoxy)-N,N-bis[2-(2-methoxyethoxy)ethyl]ethanamine (0.16 g, 0.50 mmol). After being degassed thoroughly with nitrogen, Pd(OAc)₂ (22 mg, 0.1 mmol) was added. The reaction was gradually warmed to 110 °C in a nitrogen atmosphere for 24 h. We cooled the mixture to room temperature, water (100 mL) was added slowly, and then the mixture was extracted with CH₂Cl₂ (2 × 200 mL). Over anhydrous Na₂SO₄, the organic layers were dried. The vacuum was used to remove the solvent. The crude product was purified by flash column chromatography, eluting with a 3:1 mixture of hexane and CH₂Cl₂ to give R1 as a light yellow solid (4.70 g, 80% yield). ¹H-NMR (400 MHz, CDCl₃): δ 2.99 (t, J = 2.1 Hz, 6H), 7.01 (d, J = 16.8 Hz, 1H), 7.30 (d, J = 7.3 Hz, 1H), 7.35 (d, J = 3.8 Hz, 1H), 7.38 (d, J = 5.1 Hz, 2H), δ 7.52 (d, J = 7.6 Hz, 2H). ¹³C-NMR (400 MHz, CDCl₃): δ 145.5 (t), 143.1 (t), 142.5 (t), 139.8 (t), 136.1 (s), 133.5 (t), 128.7 (t), 127.7 (s), 127.2 (s), 125.5 (s) 113.2 (s), 108.1 (t), 42.2 (s). ¹⁹F-NMR (376 MHz, CDCl₃): δ −152.82 (m, 2F), −145.24 (m, 2F).

3.3.3. Compound D1

A saturated dichloromethane solution of R1 in a 3 mL flask was irradiated by 450 nm for 2 h. Then, the solution was concentrated under reduced pressure. D1 was obtained after being washed with petroleum ether (80% yield). ¹H-NMR (400 MHz, CDCl₃): δ 7.28–7.13 (m, 10H), 4.95–4.89 (m, 2H), 4.84–4.77 (m, 2H), 2.86 (t, J = 2.0 Hz, 12H). ¹³C-NMR (400 MHz, CDCl₃): δ 146.8 (s), 144.4 (s), 143.2 (s), 140.7 (s), 140.1 (s), 129.5 (s), 128.2 (s), 127.0 (s), 126.5 (s), 110.7 (t), 45.5 (d), 43.2 (t), 38.79 (s). ¹⁹F-NMR (376 MHz, CDCl₃): δ −143.96 (m, 4F), −152.35 (m, 4F). MS (MALDI-TOF): calcd. for C₃₂H₂₆F₈N₂: 590.56, found 591.22 [M+H]⁺.

3.3.4. Compound R2

A three-necked flask equipped with a temperature prober was charged with absolute ethanol (4.4 mL) and 4’-iodoacetophenone (3.7 g, 15.0 mmol). During vigorous stirring, thionyl chloride (1.8 mL, 25.0 mmol) was added in a dropwise way, and then the reaction mixture was refluxed for 2h. After the completion of the reaction, the reaction mixture was neutralized with saturated sodium carbonate. The precipitate was collected by filtration, washed with water and ethanol, and dried in a vacuum. The crude product was purified by flash column chromatography with petroleum ether to give R2 as an earthy yellow solid. (2.20 g, 64%).¹H-NMR (400 MHz, CDCl₃): δ 7.70 (d, J = 8.5 Hz, 6H), 7.86 (d, J = 8.4 Hz, 6H), 7.90 (s, 3H)

3.3.5. Compound M1

A 50 mL pear flask equipped with a magnetic stir bar was charged with compound (2) (4.51 g, 6.6 mmol), compound R1 (4.50 g, 20.0 mmol), anhydrous DMF (10 mL), K₂CO₃ (3.50 g, 12.5 mmol), and 2-(2-methoxyethoxy)-N,N-bis[2-(2- methoxyethoxy)ethyl]ethanamine (0.16 g, 0.50 mmol). After being degassed thoroughly with nitrogen, Pd(OAc)₂ (22 mg, 0.1 mmol) was added. The reaction was gradually heated up to 110 °C for 24 h in a nitrogen atmosphere. We cooled the mixture to room temperature, water (100 mL) was added slowly, and then the mixture was extracted with CH₂Cl₂ (2 × 200 mL). Over anhydrous Na₂SO₄, the organic layers were dried. The vacuum was used to remove the solvent. The crude product was purified by flash column chromatography, eluting with a 5:1 mixture of hexane and CH₂Cl₂ to give M1 as a light yellow solid (3.73 g, 60% yield). ¹H-NMR (400 MHz, CDCl₃): δ 7.83 (s, 3H), 7.73 (d, J = 8.4 Hz, 6H), 7.65 (d, J = 8.4 Hz, 6H), 7.43 (d, J = 16.7 Hz, 3H), 7.09 (d, J = 16.7 Hz, 3H), 3.00 (t, J = 2.0 Hz, 18H). ¹³C-NMR (400 MHz, CDCl₃): δ 146.6 (s), 144.2 (s), 143.3 (s), 141.8 (s), 141.0 (s), 140.7(s), 136.6 (s), 133.8 (t), 129.8 (s), 127.6 (s), 127.2(s), 124.8 (s), 114.4 (s), 108.9 (s), 43.3 (s). ¹⁹F-NMR (376 MHz, CDCl₃): δ −152.85 (s, 6F), −145.03 (s, 6F). MS (MALDI-TOF): calcd. for C₅₄H₃₉F₁₂N₃: 957.91, found 958.11 [M].

3.3.6. The Preparation of the 2D Polymer Film P1

Deionized water was uniformly injected into the prepared test bench samples. Using a micro-liter syringe, 250 μL of a 1.0 × 10⁻⁵ M solution of M1 in CH₂Cl₂ was applied to the water surface. Following the evaporation of the solvent for 20 min, compression was conducted at 3 mm min⁻¹ until a surface pressure of 41 mN m⁻¹ was reached. Photochemically triggered polymerization then took place using a home-built 450 nm LED lamp (power: 36 W) for 2 h (LED lamp was homemade by ourselves, Qingdao, China). A constant rate of 0.5 mm per minute was used to lift up the pre-submerged substrate (e.g., silicon wafer). As soon as the drying process has been completed, the collected P1 film was subjected to TEM, Raman, XPS, and AFM for characterization.

3.3.7. Film P1 Transfer and Spanning

The transfer pressure on the substrates was set to 41 mN m⁻¹. TEM grids made up of copper with a mesh size of 300 (XXBR, T10023, China) were placed on the surface. A clean white paper was then gently placed on the grids until the soaked paper had TEM grids attached to it. The paper along with the grids on it was then removed and left at room temperature until it was dry. For the vertical transferring of the films, the substrate was initially immersed horizontally in the water subphase. After 2 h of polymerization at 41 mN m⁻¹, the substrate was pulled up at the constant rate of 0.5 mm min⁻¹. The substrate with the P1 films was put into a sample bottle with CH₂Cl₂ and sonicated for 10 min. The vast majority of the P1 films were dispersed into the solvent by ultrasonication. We repeated similar operations several times.

4. Conclusions

In summary, a carbon–carbon-linked, ultrathin 2D polymer film was prepared in a well-controlled manner at the air/water interface. The self-assembly process of the monomers was caused by D-A and π-π interactions, which played a vital role in the photo-polymerization. Representative images obtained by BAM, AFM, and TEM revealed that the ultrathin film was uniform, continuous, and had a large area. Raman spectrum and XPS spectroscopy provided direct evidence of the successful polymerization of the 2D polymer film via photochemically triggered [2 + 2] cycloaddition. This work not only provides a simple and powerful approach for constructing carbon–carbon-linked 2D polymer films, but it also reveals a guide for the molecular design strategy of 2D polymer films.
