The Effects of Acid and Water in the Formation of Anodic Alumina: DFT and Experiment Study

Abstract

The DFT method is employed to study the adsorption and reaction behaviors of HC₂O₄⁻, H₂PO₄⁻, HSO₄⁻ and H₂O on neutral and anodic aluminum slabs. With the exception of adsorption, the three acid radicals can successively take the two H atoms from the adsorbed H₂O on the anodic aluminum slabs, which is the key step of the formation of anodic alumina. The dehydrogenation reaction is dominated by the Coulombic interaction of O and H, respectively belonging to acid radicals and the adsorbed H₂O or OH, rather than by the interaction of electronic orbits located on the two kinds of atoms. The experiment of anodic polarization of aluminum verifies the calculation result well.

1. Introduction

The anodic alumina layer has been used in many fields, such as corrosion resistance [1], capacitors [2], biomaterials [3] and biosensors [4].The alumina film obtained through the anodic oxidation of aluminum in acidic electrolytes has been investigated for its wide range of uses.

Many factors influence the morphology and crystal structure of anodic alumina. The anodizing parameters including anodic potential [5,6], electrolyte [7,8] and temperature [6,9,10,11] have been investigated. The electrolyte component is the key factor affecting anodic alumina. Oxalic acid, phosphoric acid and sulfuric acid solutions are usually used to form the anodic alumina. When the anodic oxidation was performed in oxalic acid solutions [12,13,14], the concentrations were usually 0.3 M, and the temperature, voltage and time varied with different morphologies. The solutions containing phosphoric acid [15,16,17,18,19,20] were usually used when fabricating porous alumina. Sulfuric acid [21,22,23] was also used in the fabrication of porous alumina. In most cases, the combined application of the three acids was carried out in order to regulate the size and morphology of pores in the anodic alumina. Some other acids [24,25,26,27] are occasionally used, and their aims are also obtaining various porous anodic alumina. The morphology of alumina film closely relates to acid radicals in the electrolyte.

The factors influencing the formation of alumina morphology have been carefully studied in experiments, but the microscopic mechanism at the molecular level was rarely involved. Microscopic mechanism investigation involves the change of the Al–O bond and the composition of oxides. Su [28] studied the field-enhanced water dissociation at the growing oxide surface in order to explain the dissolution of alumina and the pore formation in the anodic alumina. This work solved one of problems raised 22 years ago by Thompson and coworkers [29]. Thompson and coworkers [29] also mentioned phosphorous and carbon contained in the anodic alumina formed in phosphate and oxalate solution, respectively. They pointed out that phosphorus extends over about two thirds of the film thickness. Garcia-Vergara and coworkers [30] also found the phosphorous signal in the anodic alumina film fabricated by anodizing in Na₂HPO₄ electrolyte. The phosphorous is present from the surface of the film to relative depths of in the range ~0.7 to ~0.8 of the film thickness. Thompson [31] obtained a similar result. A relatively pure anodic alumina contains 3–4 wt% phosphorous [29]. The changing mechanism of the Al-O bond and composition of oxides need to be further explored.

What are the roles of acid radicals and water during the formation of anodic alumina? Does the oxygen of alumina come from the acid radicals or water? How does the oxygen of alumina become separated from the molecule? The initial adsorption and interaction of acid radicals and water have a relationship with those questions. In the present work, the adsorption and interaction of electrolyte molecules will be studied using the DFT method.

2. Results

2.1. The Adsorption of Molecules

The small molecules of H₂O, HC₂O₄⁻, H₂PO₄⁻ and HSO₄⁻ were randomly placed on three aluminum slabs of (100), (110) and (111), see Figure S1. The three slabs are, respectively, given 0 or +1 charges to represent neutral or anodic conditions in the calculation. The adsorption energies (E_ads) of H₂O and acid radicals are listed in

Table 1. The adsorption energies (E_ads/eV) of small molecules.

Slabs	H2O	HC2O4−	H2PO4−	HSO4−
(100)0	−0.34	−3.65	−4.06	−2.93
(110)0	−0.47	−3.39	−3.28	−3.08
(111)0	−0.36	−2.78	−3.70	−3.18
(100)+1	−0.50	−4.62	−5.16	−3.69
(110)+1	−0.53	−3.90	−3.67	−3.75
(111)+1	−0.56	−3.99	−5.22	−3.80

. Their adsorption states are shown in Figure S2.

The E_ads is calculated using the following equation:

E_ads = E_{slab-molecule} − E_slab − E_molecule

(1)

where the E_{slab-molecule} is the energy of the aluminum slab adsorbed with the small molecule, the E_slab is the energy of the aluminum slab and the E_molecule is the energy of the small molecule. All of the adsorption energies of H₂O and the three acid radicals are negative. The four small molecules can stably adsorb on the three kinds of aluminum faces under neutral or anodic conditions. The adsorption energies of the three acid radicals are bigger than that of H₂O, and the adsorption of acid radicals is more stable. The H₂O and the three acid radicals have bigger E_ads; in other words, the four small molecules have more stable adsorption states when the aluminum faces are in the anodic condition.

The directly stable adsorption is the first behavior of the H₂O and the three acid radicals on the three aluminum faces.

2.2. The Acid Radicals Replacing the Adsorbed H₂O

Because the three acid radicals adsorb more stably than H₂O, the adsorbed H₂O may be replaced by acid radicals leaving the aluminum surface. The models of the acid radicals substituting the adsorbed H₂O were built as shown as Figure S3. The acid radicals approach the adsorbed H₂O from the side. The calculation results show that the adsorbed H₂O really can be replaced by the acid radicals. These courses are represented by Figure S3, too. The replacing energy values (E_rep) of the three replacing courses are listed in

Table 2. The E_rep (eV) values of acid radicals replacing H₂O.

Slabs	HC2O4−	H2PO4−	HSO4−
(100)0	−3.31	−3.72	−2.59
(110)0	−2.92	−2.81	−2.61
(111)0	−2.42	−3.33	−2.82
(100)+1	−4.11	−4.65	−3.18
(110)+1	−3.37	−3.14	−3.22
(111)+1	−3.42	−4.65	−3.23

. The E_rep is calculated using the following equation:

E_rep = E_{rep after} − E_slab-water − E_{acid radical}

(2)

where the E_{rep after} is the energy of the adsorbed H₂O replaced by the acid radical, the E_slab-water is the energy of the aluminum slab with adsorbed H₂O and the E_{acid radical} is the energy of the acid radical. The negative E_rep values mean that the replacing courses are feasible.

The three acid radicals replacing the adsorbed H₂O is the second behavior of the four small molecules.

2.3. The Acid Radicals Bonding with the H of Adsorbed H₂O

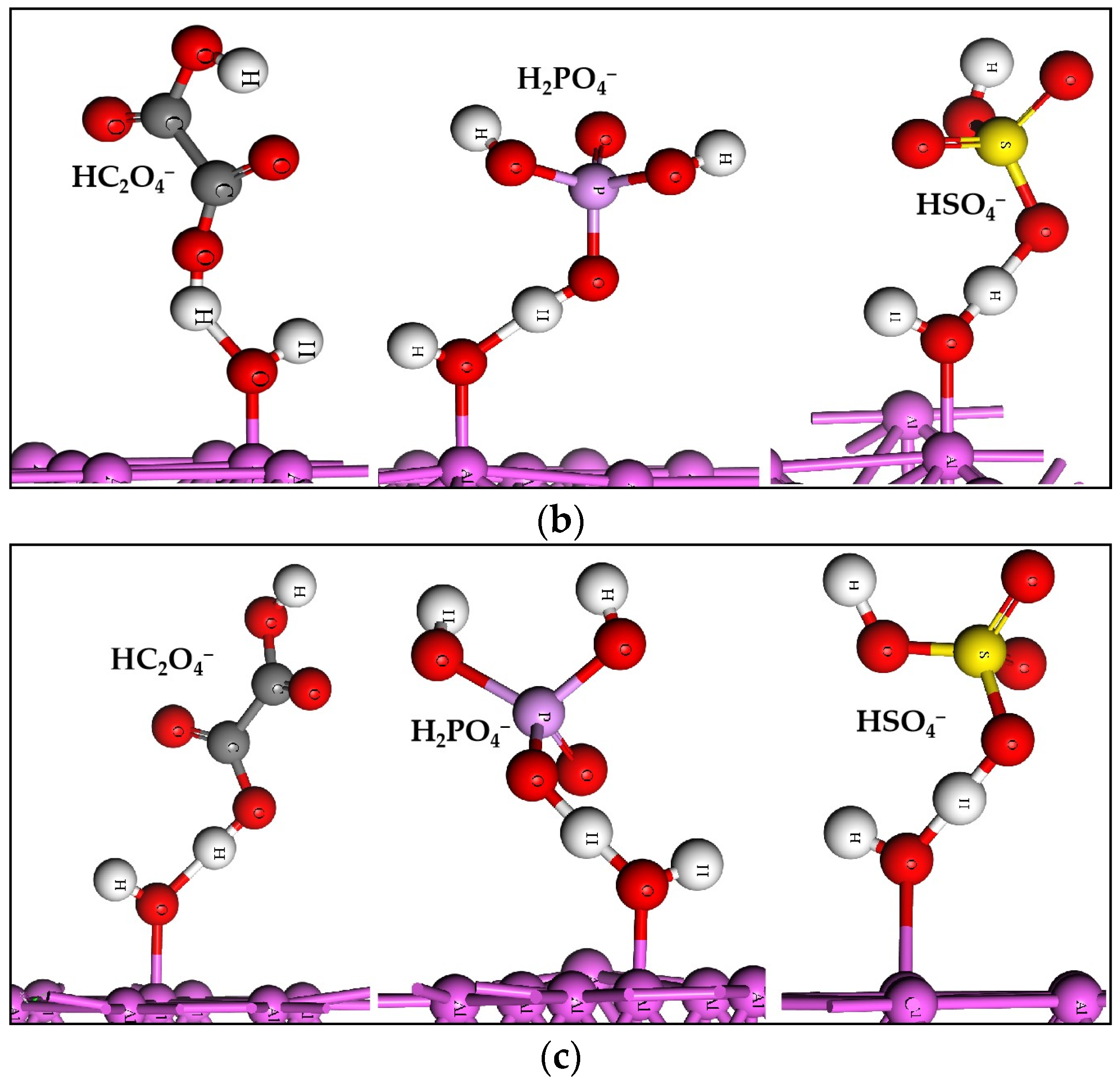

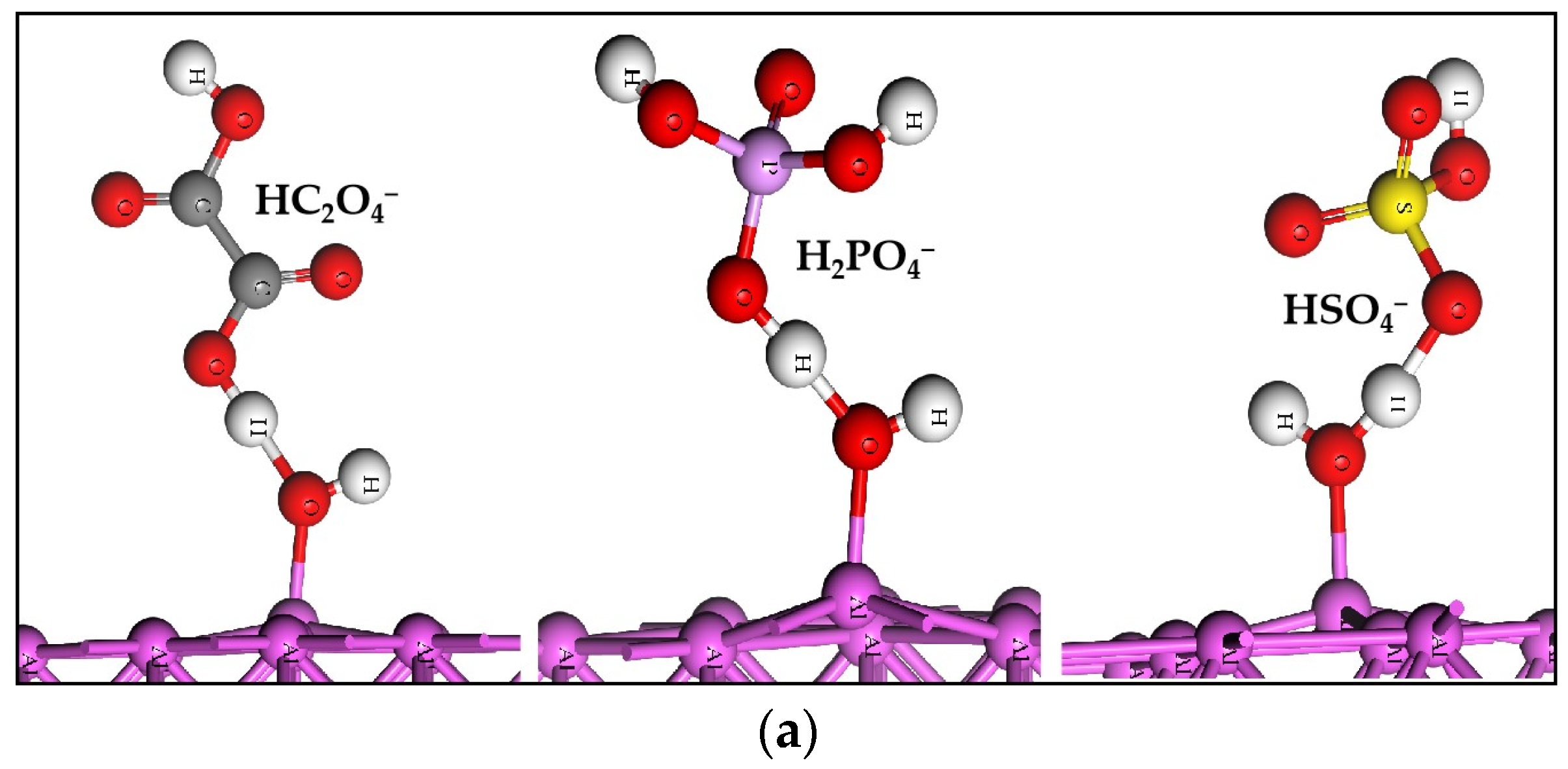

The acid radicals of HC₂O₄⁻, H₂PO₄⁻ and HSO₄⁻ have the O atoms enriched with negative charge, so they have the ability to bond with the H of adsorbed H₂O. In the initial models, the O atom of the acid radical is near to the H of adsorbed H₂O on the neutral aluminum slab. After the calculation of geometry optimization, the acid radical does connect with the adsorbed H₂O through O–H–O, as shown as Figure 1. The H–O bond of H₂O is stretched to a longer length. The change in bonding energy (E_bon) of the acid radical and adsorbed H₂O is calculated using the following equation:

E_bon = E_{(slab-H2O-acid radical)} − E_slab-H2O − E_{acid radical}

(3)

where the E_{(slab-H2O-acid radical)} is the energy of the acid radical connecting with the adsorbed H₂O on the neutral aluminum slab, the E_slab-H2O is the energy of the neutral aluminum slab with adsorbed H₂O and the E_{acid radical} is the energy of the acid radical. The E_bon values of the three acid radicals are listed in

Table 3. The E_bon (eV) values of acid radicals bonding with the H of adsorbed H₂O.

Slabs	HC2O4−	H2PO4−	HSO4−
(100)0	−2.23	−1.41	−0.52
(110)0	−1.70	−0.83	−0.04
(111)0	−2.49	−1.73	−0.80

. The negative E_bon values indicate that the connection between the acid radicals and adsorbed H₂O are reasonable.

The three acid radicals connecting with the adsorbed H₂O on the neutral aluminum slab is the third behavior of the four small molecules.

The adsorption of radicals is more stable than water, yet the molecular structures of radicals remain stable on the neutral or positively charged slab, see Figure S2. It has been confirmed that the concentrations of light elements are very low in the anodic alumina [32]. This implies that the adsorption of radicals with complete structure has no important contribution to Al–O formation. The O–H of adsorbed water is easily stretched by the radicals, see Figure 1 and Table 3, so the third behavior of water and radicals may be the dominant way in which the Al–O bond is formed.

2.4. The Acid Radicals Stripping off H from Adsorbed H₂O and OH

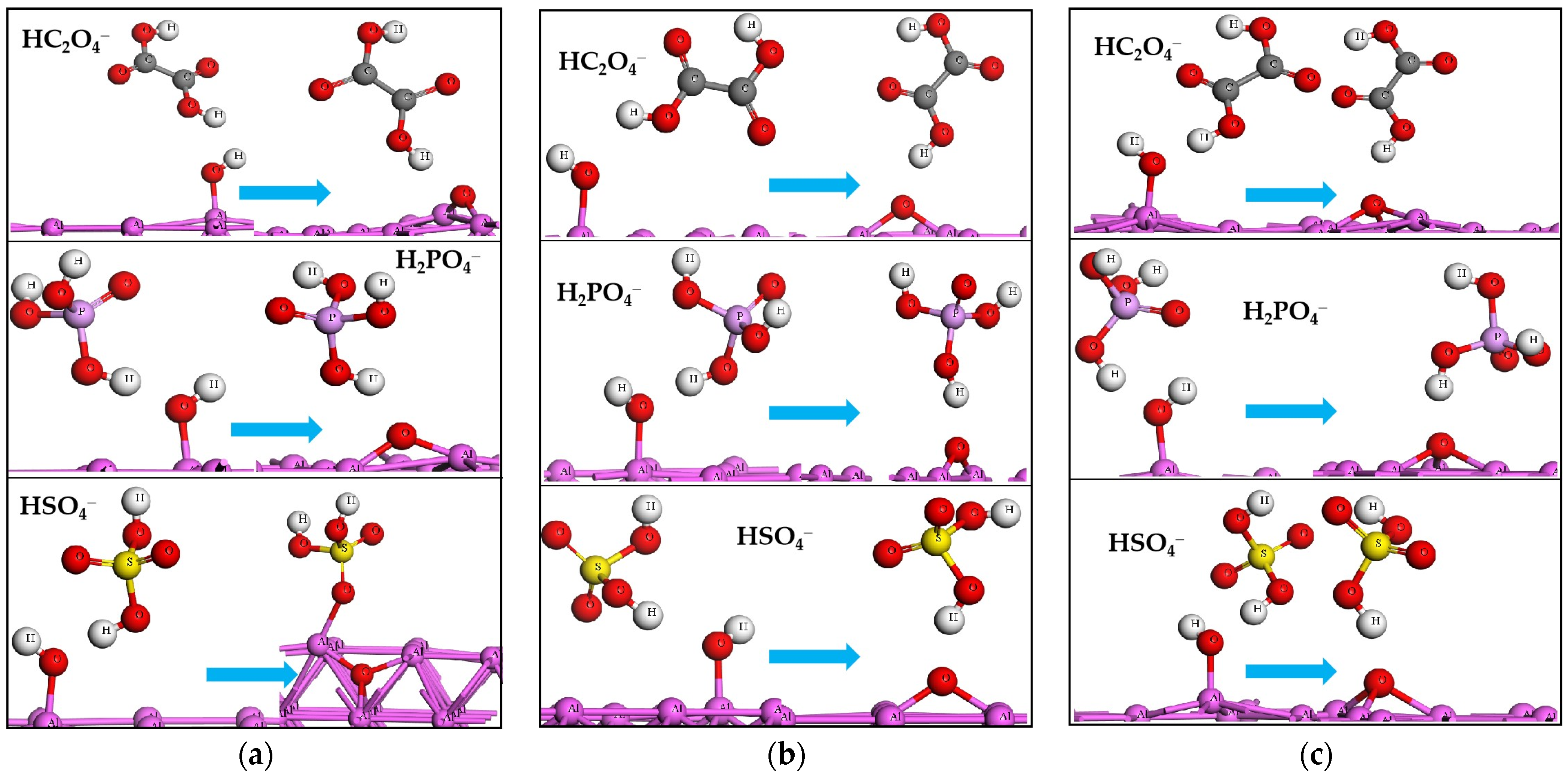

On the neutral aluminum slabs, the acid radicals can stretch the H–O bond of adsorbed H₂O to a longer length, but they do not have the ability to snap it. Under the anodic condition, the three acid radicals have enough power to successfully take the two H atoms away from the adsorbed H₂O, see Figure 2. The O atom of the adsorbed H₂O is finally left to bond with the aluminum on the surface. The processes of acid radicals stripping off H are represented through chemical equations in Figure 3. Every equation has two reaction directions. The “1” direction is the acid radical stripping off H from the adsorbed H₂O or OH, and the “2” direction is the corresponding reverse reaction. The energy change of the reaction of the acid radical stripping off H (E_str) is calculated using the following equation:

E_str = E_{(OH or O+acid)} − E_{slab-H2O or OH} − E_{acid radical}

(4)

where the E_{(OH or O+acid)} is the energy of the acid and adsorbed OH (one of the H atoms of H₂O is stripped) or adsorbed O (the two H atoms of H₂O are stripped), the E_{slab-H2O or OH} is the energy of the anodic aluminum slab adsorbed with H₂O or OH and the E_{acid radical} is the energy of the acid radical. Every step of the acid radical taking the H atom away from the adsorbed H₂O or OH has a negative E_str value (see

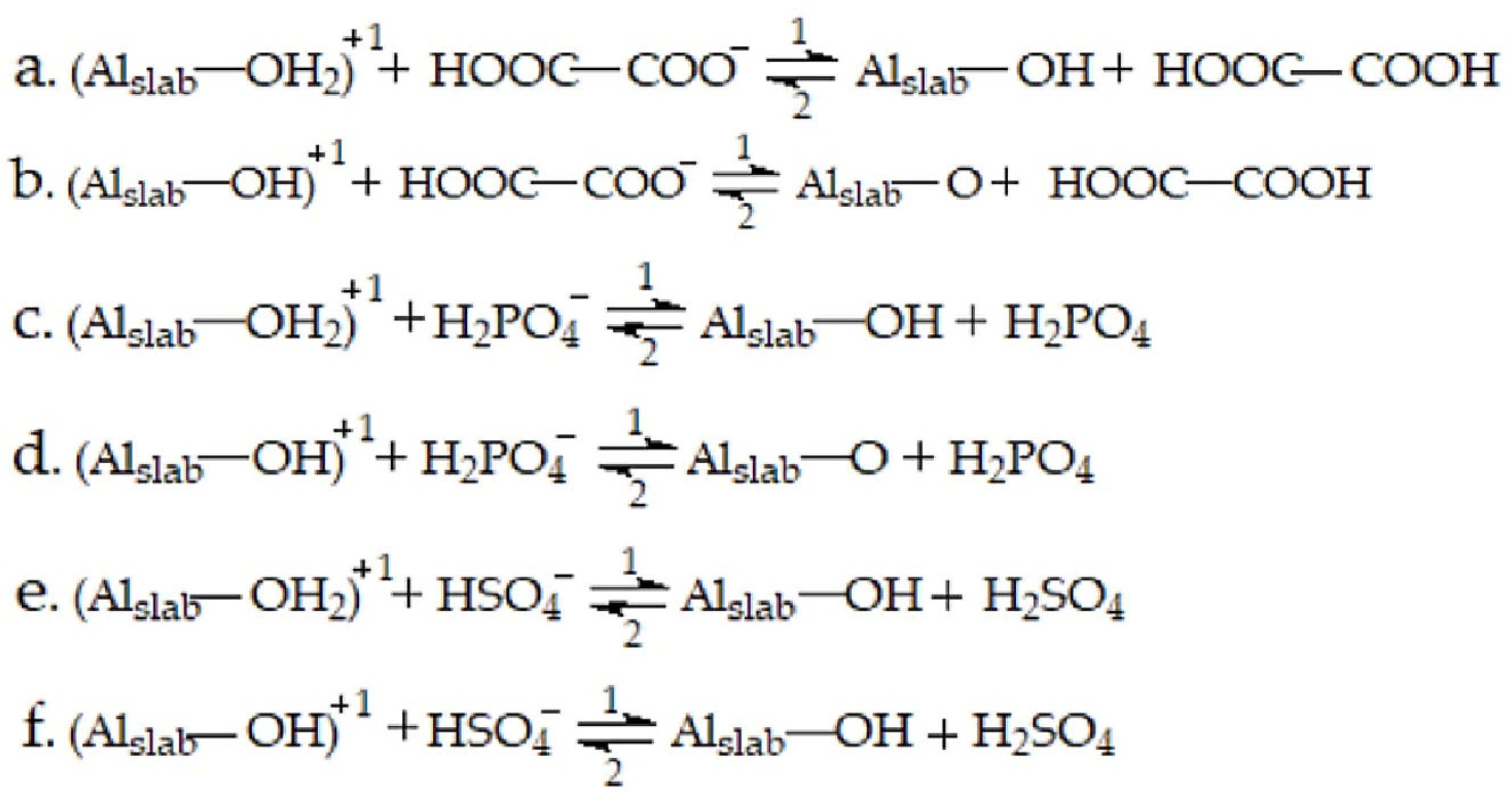

Table 4. The E_str (eV) values of acid radicals stripping off one of the H in H₂O. The a, b, c, d, e and f correspond to the labels of reactions in Figure 3. Subscript “1” is for the direction of reactions in Figure 3.

Slabs	a1	b1	a1 + b1	c1	d1	c1 + d1	e1	f1	e1 + f1
(100)+1	−3.21	−2.54	−5.75	−3.24	−2.57	−5.81	−2.57	−1.91	−4.48
(110)+1	−2.33	−2.15	−4.48	−2.42	−2.24	−4.66	−1.76	−1.58	−3.34
(111)+1	−2.97	−3.37	−6.34	−3.08	−3.48	−6.56	−2.49	−2.89	−5.38

), in other words, the reverse reactions are not feasible.

The acid radical continuously stripping the two H atoms off the adsorbed H₂O on the anodic aluminum slab is the fourth behavior of the four molecules. The binding energies of absorption for the three acid radicals (see Table 1) are actually lower than those of reacting with H₂O (see Table 4). The reaction of extracting H from H₂O has a larger tendency than adsorption for the three radicals. It can be deduced that the adsorption of radicals really occurs, with much less influence on the formation of the Al–O bond. In the course of alumina formation, the function of the acid radical is to pull off the two H atoms of the adsorbed H₂O, and the role of H₂O is the supplier of oxygen in alumina.

2.5. The Reasons for Acid Radicals Stripping off H Atoms of H₂O

The acid radicals stripping off the H atoms of the adsorbed H₂O are chemical reactions including the changing of chemical bonds. DFT energies about bond changes are some of the most accurate theoretical results, and can be interpreted by analysis of the Klopman–Salem equation [32] from a molecular orbital theory perspective. The Coulombic and/or covalent interactions between the acid radicals and H atoms determine the reactions in the Klopman–Salem equation:

$$\Delta \mathrm{E}=\frac{{\mathrm{Q}}_{\mathrm{Nu}}{\mathrm{Q}}_{\mathrm{EI}}}{\mathsf{\epsilon }\mathrm{R}}+\frac{2{({\mathsf{\beta }\mathrm{C}}_{\mathrm{Nu}}{\mathrm{C}}_{\mathrm{EI}})}^2}{{\mathrm{E}}_{\mathrm{Nu},\mathrm{HOMO}}-{\mathrm{E}}_{\mathrm{EI},\mathrm{HOMO}}}$$

(5)

where ΔE is the energy change of the reaction, Q_Nu is the charge of the nucleophile, Q_EI is the charge of the electrophile, ε is the local dielectric constant, R is the distance between the nucleophile and electrophile, β is the resonance integral, c is the coefficient of the molecular orbit to form the new bond, E_Nu,HOMO is the HOMO energy of the nucleophile and E_EI,LUMO is the LUMO energy of the electrophile. In the present work, the nucleophiles are acid radicals and the electrophiles are the H atoms of adsorbed H₂O. In the Klopman– Salem equation, the first term and the second term represent the Coulombic interaction and orbital interaction between acid radicals and H atoms, respectively.

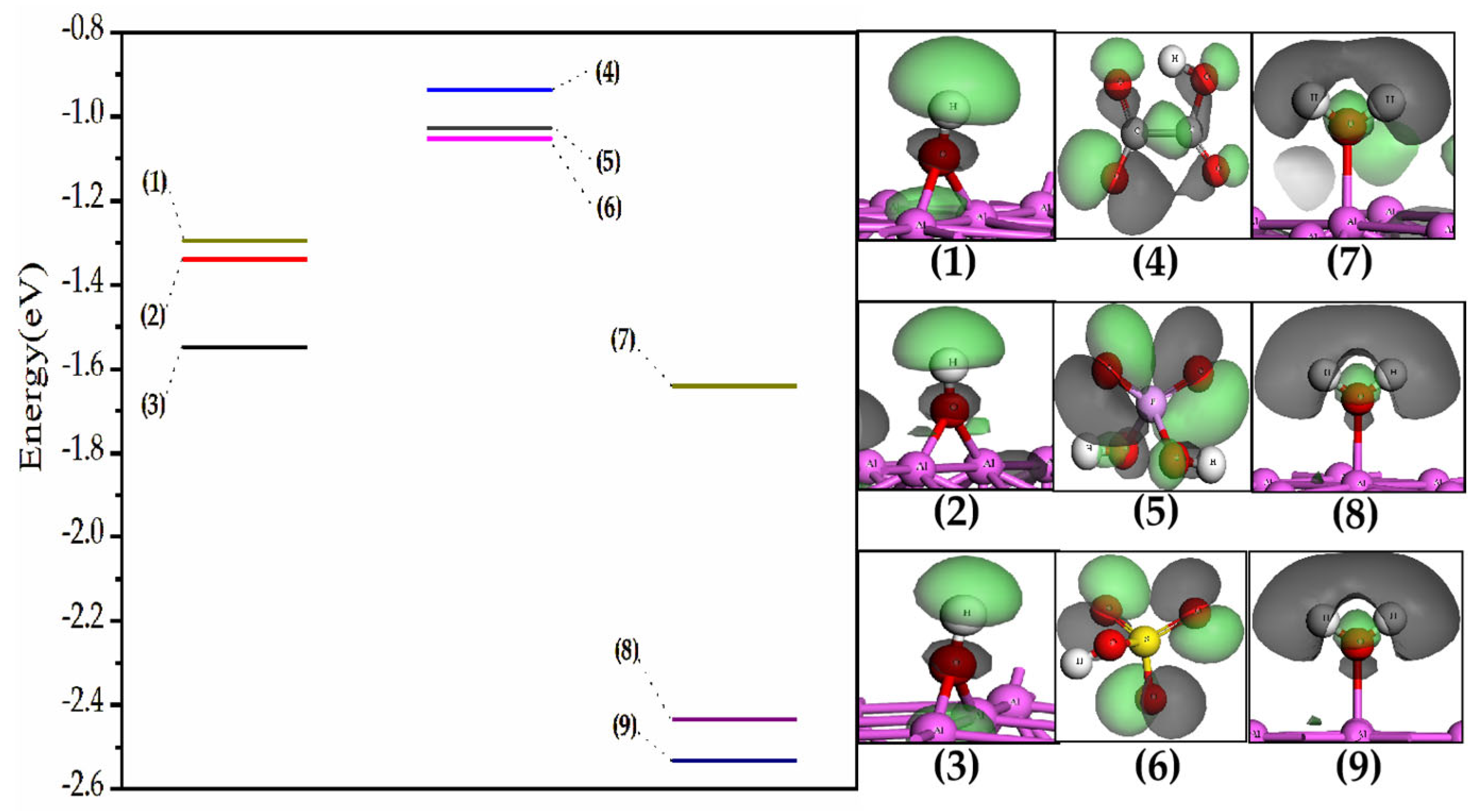

If the orbital interaction determines the reaction of acid radicals stripping off H atoms, the ΔE should inversely relate to the difference between E_Nu,HOMO and E_EI,LUMO, as shown in the second term of the Klopman–Salem equation. Figure 4 shows the difference between E_{acid radical,HOMO} (the HOMO energy of the acid radical) and E_H (the orbital energy of H in the adsorbed H₂O and OH). The value of (E_HSO4⁻_,HOMO − E_H) is the smallest one, which is close to that of (E_H2PO4⁻_,HOMO − E_H). The value of (E_HCO4⁻_,HOMO − E_H) is the largest one. In Table 4, the reaction energy change of HSO₄⁻ stripping off H is the lowest one, the H₂PO₄⁻ has the largest reaction energy change and the HCO₄⁻ has a large reaction energy change, too. The results in Table 4 have no regular relationship with the values of (E_{acid radical,HOMO} − E_H), and, thus, the orbital interaction does not determine the reaction of acid radicals stripping off H atoms.

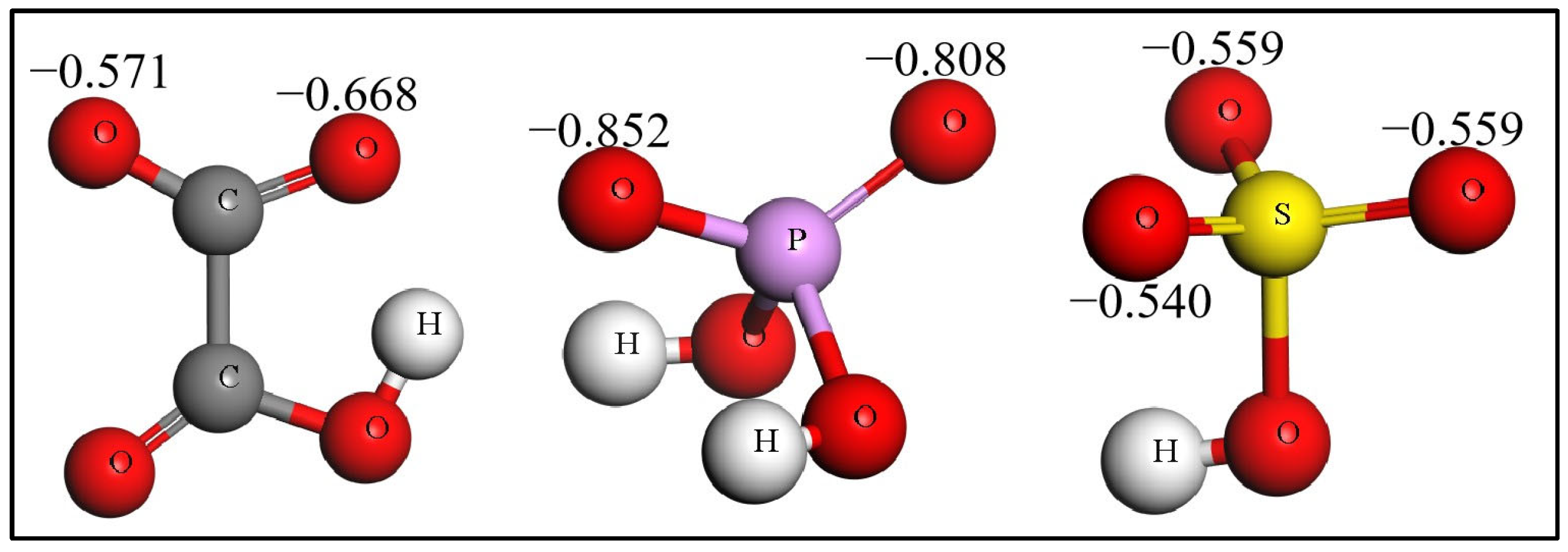

If the Coulombic interaction determines the reaction of acid radicals stripping off H atoms, the ΔE should positively relate to the product of Q_NuQ_EI, as shown in the first term of the Klopman–Salem equation. Figure 5 shows the charges of the O atom of HCO₄⁻, H₂PO₄⁻ and HSO₄⁻. These O atoms directly interact with the H atoms with charge of Q_H. The order of charge values is Q_{O, H2PO4}⁻ > Q_{O, HCO4}⁻ > Q_{O, HSO4}⁻, so there should be Q_HQ_{O, H2PO4}⁻ > Q_HQ_{O, HCO4}⁻ > Q_HQ_{O, HSO4}⁻ for the three acid radicals interacting with the same kind of H. In Table 4, the reaction energy changes of HCO₄⁻, H₂PO₄⁻ and HSO₄⁻ are also in the order of H₂PO₄⁻ > HCO₄⁻ > HSO₄⁻. The order of ΔE is same as that of the products of Q_HQ_{O, acid radical}, so ΔE positively relates to the product of Q_HQ_O. The reactions of dehydrogenation may be dominated by the Coulombic interaction.

Since the reaction is solely affected by Coulombic interaction (the first term of the Klopman–Salem equation), there are two further inferences. The first one is that the acid radical with larger-charged O has the greater ability to extract the same kind of H atom of adsorbed H₂O. The second one is that it is easier for a larger-charged H of adsorbed H₂O to be stripped off by the same acid radical.

The positive charge of the slab makes the charge of H of adsorbed H₂O and OH increase, as shown as

Table 5. The charges of the two H of adsorbed H₂O; the charges of the H of adsorbed OH.

Slabs	H	H	Slabs	H
(100)0-H2O	0.274	0.274	(100)0-OH	0.261
(110)0-H2O	0.267	0.267	(110)0-OH	0.260
(111)0-H2O	0.282	0.282	(111)0-OH	0.298
(100)+1-H2O	0.322	0.322	(100)+1-OH	0.323
(110)+1-H2O	0.311	0.311	(110)+1-OH	0.312
(111)+1-H2O	0.328	0.328	(111)+1-OH	0.343

. This means the Q_{H, neutral} is smaller than the Q_{H, positive}. The product of Q_{H, neutral}Q_{O, acid radical} is smaller than that of Q_{H, positive}Q_{O, acid radical}. The product value of charges indicates that the reaction of stripping off H on the positively charged slab is easier. The H atoms of H₂O adsorbed on the neutral slab really cannot be stripped off, see Figure 1, while those on the positively charged slab can be taken away by the same acid radical, see Figure 2. The second inference is reasonable.

According to the courses of proving the two inferences, the acid radical with larger-charged O in favor of the dehydrogenation of adsorbed H₂O and the positive charge of the anodic slab are necessary for accelerating the process of the H leaving the adsorbed H₂O.

2.6. The Experimental Verification

The calculation results, see Table 4, indicate that the abilities of dehydrogenation of the three acids are in the order phosphoric acid > oxalic acid > sulfuric acid. In other words, the forming of the anodic alumina is the easiest in the phosphoric acid aqueous solution, and it is the most difficult in the sulfuric acid aqueous solution.

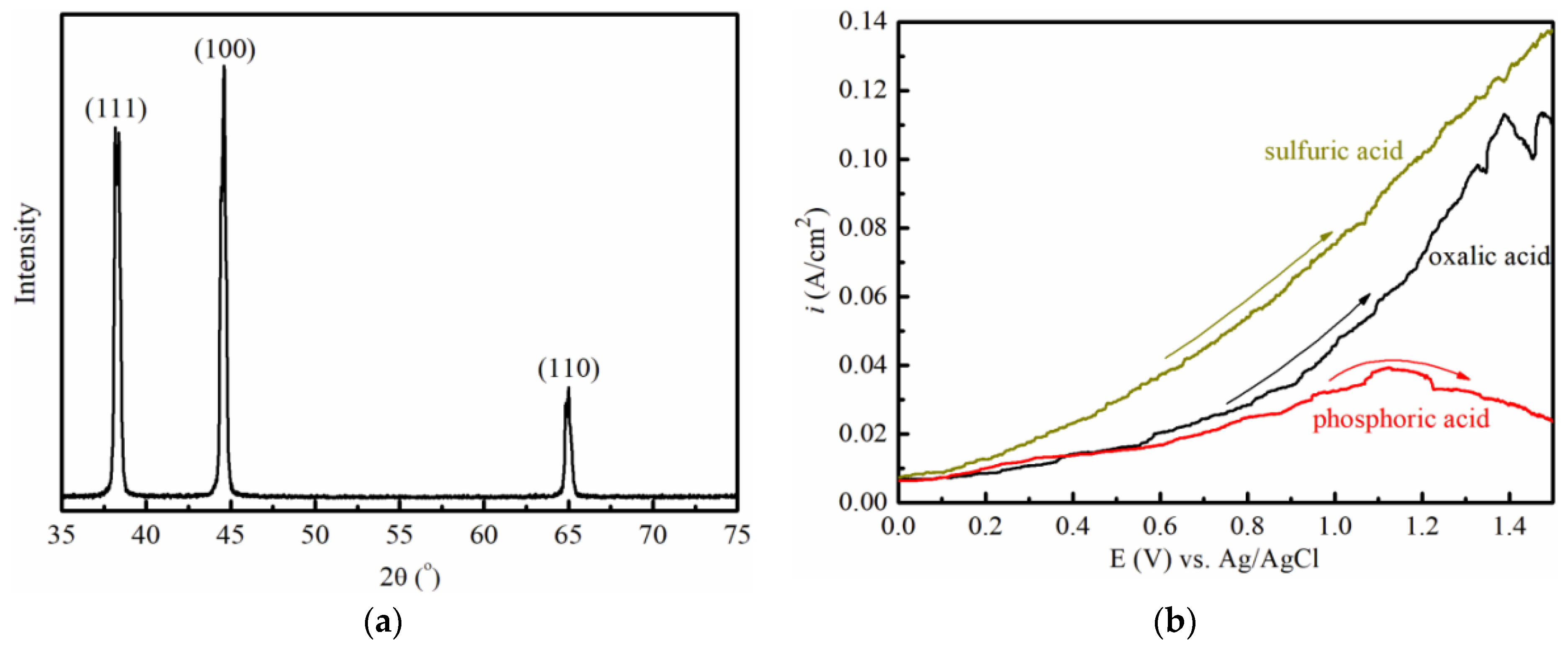

In order to verify the theoretic results, the anodic alumina will, respectively, grow in the three acid solutions. The aluminum foil with (100), (110) and (111) faces, see Figure 6a, is immersed into the acid solution to perform anodic polarization. In the sulfuric acid solution, the current rises with the increasing potential of the aluminum anode. In the oxalic acid solution, the change in current has a similar trend to that in the sulfuric acid solution, but the current of the oxalic acid solution is smaller than that of the sulfuric acid solution. In the phosphoric acid solution, the current maintains the smallest value, and the polarization curve is far under the curves generated in the oxalic and sulfuric acids solutions, as shown in Figure 6b. The reduction in the current arises from the coverage of the anodic surface by the growth of alumina. The polarization curves of Figure 6b imply that the phosphoric acid has the most powerful ability to extract H from the H₂O adsorbed on the anodic surface, and to facilitate the growth of anodic alumina. The sulfuric acid is the weakest one. The oxalic acid lies between the former two acids.

The experiment result has the same trend as the theoretic calculation. It verifies the theoretic interpretation of the formation course of anodic alumina.

The acid radical stepwisely removes the hydrogen atoms of H₂O adsorbed on the anodic surface. The ability of dehydrogenation is in the order H₃PO₄ > H₂CO₄ > H₂SO₄. The reaction of dehydrogenation is dominated by the Coulombic interaction between the oxygen anion of the acid radical and the hydrogen of the water, rather than by the frontier molecular orbits of the acid radical and water.

This work only supplies a reference for selecting acid and interprets the initial stage of alumina formation. The incrassation of alumina involves the transfer of oxygen and aluminum ions in the alumina layer and the dehydrogenation of water on the alumina surface. These processes need a follow-up study.

3. Materials and Methods

3.1. Computation

The oxalic acid, phosphoric acid and sulfuric acid are frequently used as the acid component of electrolyte in preparing anodic alumina. In the aqueous solution of oxalic acid, phosphoric acid or sulfuric acid, the three kinds of acid radicals HC₂O₄⁻, H₂PO₄⁻ or HSO₄⁻, respectively, are the dominant species. The (100), (110) and (111) are the main exposed faces on the aluminum surface. The water, three acid radicals and Al (100), (110) and (111) faces were selected as the specific model to investigate the roles of water and acid in the formation of the Al–O bond of anodic alumina.

Al (100), (110) and (111) slabs (p5 × 5) with 5 layers and 20 Å vacuum range were built, see Figure S1. The atomic coordinates of the inner three layers (blue) are fixed, while the atoms of the outer two layers (pink) relax freely. The small molecules including H₂O, HC₂O₄⁻, H₂PO₄⁻ and HSO₄⁻ were placed on the center of slabs in the course of calculation. Computations were performed using DMOl3 code, which adopts fully self-consistent DFT calculations to solve Kohn–Sham equations. The generalized gradient approximation (GGA), with the functional PBE for metallic surfaces adsorbing with some small molecules [33], was employed. For all models, the double numerical plus polarization (DNP) [34] was selected as the basis set. The ultrasoft pseudopotentials for Al, S, P, O, C and H were used in all calculations. The energy convergence tolerance was 2 × 10⁻⁵ eV per atom.

3.2. Experiment

Commercial aluminum foils was prepared. They simultaneously have three faces of (100), (110) and (111), which was confirmed through the analysis of X-ray diffraction (XRD) on a PAN-analytical-X’Pert PRO X diffractometer equipped with Cu Kα radiation (λ = 0.15406 nm). The aluminum foils were cut into small squares with a tail as the outgoing line. The side length of the squares is 10 mm. The squares were washed subsequently with acetone and ethanol. Electrochemical tests were successively performed in the oxalic acid solution (0.1 mol/L), phosphoric acid solution (0.1 mol/L) and sulfuric acid solution (0.1 mol/L). The Versatile Multichannel Potentiostat 2/Z (VMP2, Princeton Applied Research) was employed in the test. The Ag/AgCl reference electrode was adopted to obtain the relative potential. The potential sweeping speed is 10 mV s⁻¹ in this work.

4. Conclusions

The H₂O, HCO₄⁻, H₂PO₄⁻ and HSO₄⁻ have four kinds of adsorption behaviors on the aluminum slabs: (1) all of them can spontaneously adsorb on the aluminum slabs; (2) the HCO₄⁻, H₂PO₄⁻ and HSO₄⁻ have the ability to replace the adsorbed H₂O; (3) the HCO₄⁻, H₂PO₄⁻ and HSO₄⁻ can connect with the adsorbed H₂O through the O–H–O bond on the neutral aluminum slabs and (4) on the anodic aluminum slabs, the HCO₄⁻, H₂PO₄⁻ and HSO₄⁻ connected with the adsorbed H₂O can further polarize the O–H bond of H₂O and strip off its H. The three radicals can continuously extract the second H of H₂O. The process going on in cycles leaves the O being left to form alumina. The third and fourth behaviors are the key steps of the formation of anodic alumina. The effect of radicals is to take the H away from the H₂O. The effect of the H₂O is to supply the O for anodic alumina.

The dehydrogenation processes between the acid radicals and adsorbed H₂O on the anodic aluminum slab are thermodynamically feasible and have no potential barriers. These processes are dominated by the Coulombic interaction of the O of radicals and H of adsorbed H₂O or OH, rather than by the interaction of electronic orbits located on the two kinds of atoms. The experiment verifies the theoretic interpretation of formation course of anodic alumina well.

The energy changes of extracting H on the three faces are different. The effect of aluminum slab structures influence the anodic alumina formation, too. This factor will be investigated in the follow-up study.
