Hydrophobic Nanoporous Silver with ZIF Encapsulation for Nitrogen Reduction Electrocatalysis

by
Yating Qi
,
Shulin Zhao
,
Yue Pang
and
Yijie Yang
*
Tianjin Key Laboratory of Structure and Performance for Functional Molecules, College of Chemistry, Tianjin Normal University, Tianjin 300387, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(6), 2781; https://doi.org/10.3390/molecules28062781
Submission received: 1 March 2023 / Revised: 16 March 2023 / Accepted: 18 March 2023 / Published: 20 March 2023
(This article belongs to the Topic Nanomaterials for Sustainable Energy Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Electrochemical nitrogen reduction reaction (ENRR) offers a sustainable alternative to the environmentally hazardous Haber–Bosch process for producing ammonia. However, it suffers from an unsatisfactory performance due to its limited active sites and competitive hydrogen evolution reaction. Herein, we design a hydrophobic oleylamine-modified zeolitic imidazolate framework-coated nanoporous silver composite structure (NPS@O-ZIF). The composite achieves a high ammonia yield of (41.3 ± 0.9) μg·h−1·cm−2 and great Faradaic efficiency of (31.7 ± 1.2)%, overcoming the performances of NPS@ZIF and traditional silver nanoparticles@O-ZIF. Our strategy affords more active sites and accessible channels for reactant species due to the porous structure of NPS cores and restrains the evolution of hydrogen by introducing the hydrophobic molecule coated on the ZIF surfaces. Hence, the design of the hydrophobic core–shell composite catalyst provides a valuably practical strategy for ENRR as well as other water-sensitive reactions.

1. Introduction

Nowadays, ammonia has become one of the most widely used industrial chemicals for economic development [1,2,3]. However, to date, ammonia synthesis heavily relies on the energy-consuming and capital-intensive Haber–Bosch process [4,5,6,7]. With the reduction in fossil fuels, and the focus on increased greenhouse gas emissions, more sustainable and economical methods of ammonia production are needed to support the growing demand [8]. The electrochemical nitrogen reduction reaction (ENRR) under environmental conditions offers a promising alternative to the highly polluting Haber–Bosch process [9,10,11]. The electrochemical synthesis of ammonia has proposed an electrically driven nitrogen immobilization reaction based on a heterogeneous catalytic process, which not only decreases the high pressure and heat requirements, but also reduces the energy consumption [12,13]. However, it is difficult to effectively improve the ammonia yield for industrial applications with noble metal electrocatalysts [14,15] due to their unsatisfactory catalytic efficiency, cumbersome preparation process, and high cost. Therefore, efficient and stable electrocatalysts are urgently needed to improve the yield and Faradaic efficiency of electrochemical ammonia synthesis. Silver nanoparticles are a kind of common precious metal [16]. Compared with noble metal catalysts such as gold [17,18,19] and ruthenium [20,21,22], silver has an excellent cost advantage. Additionally, silver nanostructures have been proven to efficiently catalyze ENRR [23]. Nevertheless, compared with traditional solid metal nanoparticles, nanoporous structures exhibit numerous interconnected ligaments, which provide more catalytically active sites for boosting the electrocatalysis performance [24,25,26]. Nanoporous gold has been reported for enhancing the ENRR performance with high ammonia yield and efficiency [27,28].
In addition, the unsatisfactory ENRR property also results from the competitive hydrogen evolution reaction (HER) [29,30,31]. Various methods have been utilized to inhibit the occurrence of HER, involving the use of alloy composition [32], fabricating hydrophobic surfaces [33], and coating protective shells [34]. The zeolitic imidazolate framework (ZIF) is one broad class of metal–organic frameworks which is able to immobilize active metal electrocatalysts [35]. Recently, core–shell structures with ZIF encapsulation promote the preferable performance in various areas, involving plastic separation, catalysis, energy-related battery, and gas adsorption [36,37,38]. The stable ZIF structures can prevent the aggregation of active nanostructures, thus sustaining their structural integrity, especially in the application of electrocatalysis. Additionally, the porous structural feature of ZIF can facilitate the concentration of reactant molecules near the catalytic sites, hence promoting the enhancement of catalysis performance for various reactions. Moreover, the hydrophobic post-functionalization of ZIFs can effectively regulate proton availability at the electrode and hence prohibit competing HER [39].
In this work, we propose the design and fabrication of a hydrophobic core–shell nanoporous silver@ZIF-8 nanocomposite with oleylamine surface modification (NPS@O-ZIF, Scheme 1). The synergistic interaction between nanoporous silver (NPS) and ZIF shell can reduce the agglomeration of NPS, promote the concentration ability of reactants, and improve the stability of the catalyst. The hydrophobic surface modification by oleylamine can repel protons from the catalyst surface, thus preventing the occurrence of HER. The NPS@O-ZIF composite achieves a high ammonia production rate and Faradaic efficiency ((41.3 ± 0.9) μg·h−1·cm−2, (31.7 ± 1.2)%) under −1.0 V versus the reversible hydrogen electrode (vs. RHE). The comparison with NPS@ZIF without oleylamine modification indicates that the hydrophobic post-functionalization facilitates ENRR. Additionally, the contrast with Ag@O-ZIF (solid silver nanoparticles@ZIF with oleylamine surface modification) reveals that the porous structure of NPS can boost the catalytic activity by promoting the reaction at the outer and inner surface, bearing numerous active sites. In addition, the NPS@O-ZIF composite also shows excellent stability and selectivity (93%) in the experiments. The above results indicate that the NPS@O-ZIF composite can effectively suppress the HER competition and enhance catalytic activity in the ENRR, providing an effective strategy for the introduction of a core–shell structure and hydrophobic functional layer for water-sensitive electrocatalytic reactions.

2. Results

2.1. Morphological and Structural Description

A simple method was utilized to fabricate the NPS@O-ZIF composites. Primarily, the NPS cores were synthesized via a dealloying protocol. AgCl templates with a homogeneous cubic structure were synthesized via a reported method wherein the reactant of silver nitrate is ion-exchanged by concentrated hydrochloric acid to form AgCl composition and polyvinylpyrrolidone (PVP) served as a capping agent for stabilizing the formation of AgCl particles [40]. Then, AgCl nanocubes were partially dealloyed by the reducing agent NaBH4 and etched by concentrated ammonia with the mass fraction of 25–28% for 1 min to form NPS. The monodisperse NPS nanostructures were characterized by transmission electron microscopy (TEM), exhibiting the size of (232 ± 12) nm and a spherical-like shape but roughened surfaces with interconnected nano-sized channels, which could furnish more plentiful active sites for the later ENRR catalysis (Figure S1a). Subsequently, the encapsulation of the ZIF-8 shell was conducted by the crystallization of ZIF in the solvent of methanol in the presence of PVP-capped NPS structures under mild conditions. Additionally, the NPS@ZIF electrode was further functionalized with hydrophobic oleylamine by simply immersing the electrode into oleylamine solution for an optimized duration. Characterization by TEM exhibits the formation of core–shell crystals with the ZIF-8 shell with a thickness of approximately 100 nm (Figure S1b). As observed in the high-angle annular dark-field scanning transmission electron microscope (HAADF-STEM) image, a close inspection displays numerous interconnected ligaments with observable voids (Figure S2). It is remarkable that, compared with traditional solid metal nanoparticles, our NPS structures are highly porous with anisotropic morphology, hence greatly increasing the specific surface area. Scanning the transmission electron microscope-energy dispersion X-ray spectroscopy (STEM-EDS) further demonstrates the distribution of each element. The EDS signals of Ag and Cl are acquired from the peaks at 2.99 and 2.65 keV assigned to Ag L and Cl K, respectively. The EDS mappings of NPS clearly state that NPS cores are mainly composed of Ag with a trace residual Cl element with the atomic ratio of Ag:Cl to be 99.7:0.3. NPS@ZIF composites were also characterized for morphology and composition via HAADF-STEM and STEM-EDS. As shown in Figure 1a, the HAADF-STEM image represents the entire and homogeneous encapsulation of ZIF-8 shell on NPS core. The EDS elemental analyses of NPS@ZIF reveal that NPS@ZIF is predominantly composed of silver and zinc elements (Figure 1b,c), which are uniformly distributed throughout the whole surface of the NPS core and NPS@ZIF composite, respectively. EDS mapping signals of Ag L and Zn L are obtained from the peaks at 2.99 and 1.02 keV, from which the atomic ratio of Ag:Zn could be determine to be 41:59, also stating the entire encapsulation of ZIF-8 on NPS cores (Figure 1d).
Furthermore, X-ray photoelectron spectroscopy (XPS) was also performed to analyze the composition and oxidation states in accordance with each element (Figure S3). The XPS survey spectrum of NPS in the Ag 3d region exhibits two peaks at the binding energies of 368.3 and 374.3 eV corresponding to metallic Ag. The Cl 2p peak is resolved into two separated peaks at 197.6 and 199.2 eV, confirming the trace quantity of Cl−. Based on the integral areas of Ag and Cl peaks, the atomic ratio for Ag:Cl is 98:2 and verifies that the NPS structure is mostly composed of Ag with a trace amount of Cl. NPS@ZIF is further investigated by high-resolution Zn 2p and Ag 3d scans (Figure 2a,b). The peaks for the Zn 2p region exhibit a doublet at 1021.2 and 1044.1 eV, while the two peaks of Ag 3d are at 197.6 and 199.2 eV. By calculating the integral areas of the corresponding peaks, the Ag/Zn atomic ratio is 5:95. To determine the crystallinity and structure of NPS@ZIF, powder X-ray diffraction (XRD) tests were employed (Figure 2c). The XRD spectra of NPS and NPS@ZIF show five typical diffraction peaks at 38.4°, 44.6°, and 64.7° corresponding to the (111), (200), and (220) lattice planes of the crystalline Ag, which reveal the formation of porous Ag in the NPS@ZIF structures. The XRD pattern of NPS@ZIF also exhibits sharp diffraction peaks corresponding to the highly crystalline ZIF, representing the formation of the ZIF shell in the NPS@ZIF composites. The infrared (IR) spectroscopy of NPS, ZIF, and NPS@ZIF is performed to further represent the formation of the NPS@ZIF structure (Figure S4). The IR spectrum of pristine ZIF exhibits several characteristic peaks. The band at 1584 cm−1 is ascribed to the C = N stretch. The intense bands in the region of 1350–1500 cm−1 resulted from the entire imidazole ring stretching, while other bands at 900–1350 cm−1 and below 800 cm−1 are attributed to the in-plane and out-of-plane bending of the ring, respectively. It is worth noting that the band at the same position can also be observed in NPS@ZIF material, proving the formation of the ZIF shell. Additionally, although the characteristic peaks of ZIF overlap with those of NPS cores to some extent, NPS@ZIF also shows consistency in the bands with NPS structures, thereby confirming the NPS cores in the NPS@ZIF composite. Moreover, inductively coupled plasma optical emission spectrometry (ICP-OES) was also used to state the variation of Ag mass composition in NPS and NPS@ZIF materials. After coating the ZIF shell, an Ag mass ratio decreased from 90% to 38%, indicating the successful encapsulation of ZIF on NPS. The porosity of NPS@ZIF was evaluated by a nitrogen gas sorption. Nitrogen adsorption–desorption isotherms of ZIF and NPS@ZIF show a type I curve, stating the formation of ZIF-coated composition. The Brunauer–Emmett–Teller (BET) surface area of NPS@ZIF is 849.2 m2/g, while the NPS structure and pristine ZIF material exhibit a BET surface area of 3.8 m2/g and 1873.3 m2/g. The NPS@ZIF structures show a much higher surface area than NPS particles due to the encapsulation of the porous ZIF shell. Compared with original ZIF crystals, the composite shows a reduction in BET surface areas due to the embedded NPS particles (Figure S5), which are too large to occupy the channels or voids of ZIF structures. The above characterization results quantitatively state the successful formation of the NPS core and homogeneous ZIF shell. Static liquid contact angle tests were conducted to investigate the water affinity of various structures. As shown in Figure 2d, by encapsulating the ZIF shell, the water contact angle increases from (18.7 ± 0.5)° to (61.0 ± 4.2)°. The surface modification of oleylamine further reinforces the hydrophobicity of composites with a high contact angle of (135.0 ± 0.2)°, which proves the successful functionalization of oleylamine.

2.2. ENRR Catalysis Performance

We performed the ENRR catalysis tests using the three-electrode electrochemical setup under ambient conditions based on neutral Na2SO4 solution as electrolyte. Additionally, we used the as-synthesized composites as working electrode with Ag/AgCl and Pt plate as the reference and counter electrode, respectively. All the applied potential was converted into a reversible hydrogen electrode (RHE) scale. The ammonia products were tested via a spectrophotometric indophenol blue approach [41] (Figure S6). The UV–Vis spectra of the electrolyte after 2 h reaction exhibit the absorption band at 655 nm, ascribed to indophenol blue. To exclude the possible contamination, the electrolyte solution is purged with high-purity nitrogen before each measurement. Linear sweep voltammogram (LSV) tests were first conducted ranging from −0.5 V to −1.2 V vs. RHE in the Ar and N2 atmosphere. As shown in Figure 3a, the LSV curves of NPS@O-ZIF in Ar- and N2- saturated electrolyte display an obvious difference in current density, indicating the remarkable ENRR activity in the potential range from −1.2 V to −0.8 V vs. RHE. Hence, 2 h chronoamperometric (CA) measurements were conducted on NPS@O-ZIF electrodes under the N2-saturated electrolyte for 2 h under the applied potentials from −1.2 V to −0.8 V vs. RHE (Figure 3b). The UV–Vis absorption spectra of the electrolyte after the reaction with an indophenol indicator for 2 h exhibit the highest absorbance obtained at −1.0 V vs. RHE, indicating the maximum ammonia yield (Figure 3c). The ammonia yield rate and Faradaic efficiency at different potentials are calculated based on the corresponding absorbance intensity and current density. The highest achieved ammonia yield rate was −1.0 V vs. RHE to be (41.3 ± 0.9) μg·h−1·cm−2, while the Faradaic efficiency reached (31.7 ± 1.2)% (Figure 3d). One of the by-products of the nitrogen reduction process is hydrazine N2H4, which could be spectrophotometrically detected utilizing the approach of Watt and Chrisp [42]. Hydrazine is consequently measured under −1.0 V vs. RHE to be (3.0 ± 2.1) μg·h−1·cm−2. Based on the hydrazine yield, the ENRR selectivity shows excellent value of 93% (Figure S7).
Stability of the electrocatalyst for a long-time reaction is also significant for ENRR application. After 30 h of electrolysis under the potential of −1.0 V vs. RHE, the CA curve of NPS@O-ZIF shows no significant degradation of the current density (Figure 4a), indicating the stable ENRR performance of NPS@O-ZIF composites. Moreover, recycling tests in the N2 saturated electrolyte at the potential of −1.0 V vs. RHE was also conducted. Neither the ammonia production rate or the Faradaic efficiency significantly decreased after five-cycle experiments (Figure 4b), stating the excellent durability of NPS@O-ZIF to ENRR. After several long-time ENRR catalytic cycles, NPS@O-ZIF catalysts still maintain the original morphology with no collapsed structures (Figure S8). To further evaluate the superior ENRR property of NPS@O-ZIF composites, a series of control experiments was conducted. Firstly, the ENRR catalytic performance of pristine ZIF structures was likewise evaluated for the CA test under the potential of −1.0 V vs. RHE. ZIF presents the ammonia production rate of (1.7 ± 1.5) μg·h−1·cm−2 and the Faradaic efficiency of (1.7 ± 1.4)%. A week ENRR performance states the inappreciable activity of a ZIF structure, proving that the active sites of composites for ENRR are mainly derived from NPS cores. Solid silver nanoparticles (Ag) and the corresponding composites (Ag@ZIF, Ag@O-ZIF) were prepared. Since ZIF has a negligible catalytical activity and the source of active sites mainly derives from the NPS cores, the role of NPS was demonstrated by comparing the ENRR performance of NPS@O-ZIF and Ag@O-ZIF, which was tested at −1.0 V vs. RHE under the same condition (Figure 4c). It is evident that the ammonia production rate of NPS@O-ZIF at the potential of −1.0 V vs. RHE ((41.3 ± 0.9) μg·h−1·cm−2) and Faradaic efficiency ((31.7 ± 1.2)%) is significantly higher than those of Ag@O-ZIF ((17.8 ± 1.7) μg·h−1·cm−2, (13.7 ± 1.1)%). The ammonia yield rate of NPS@O-ZIF shows a 1.3-fold enhancement and the Faradaic efficiency exhibits 1.3-fold increasement compared with Ag@O-ZIF. This result could be attributed to the porous structure and thus higher density of electrocatalytic active sites. Secondly, NPS@O-ZIF and Ag@O-ZIF show a significantly better ENRR than NPS@ZIF ((24.2 ± 2.5) μg·h−1·cm−2, (19.7 ± 2.9)%), and Ag@ZIF ((14.1 ± 0.9) μg·h−1·cm−2, (9.3 ± 2.1)%) under the same conditions. Compared with NPS@ZIF, hydrophobic NPS@O-ZIF reveals a 0.7- and 0.6- fold improvement in accordance with the ammonia yield and catalytic efficiency. In addition, in contrast with Ag@ZIF, the ammonia production rate and Faradaic efficiency of Ag@O-ZIF exhibits 1.3- and 1.5-fold performance. This result proves that the occurrence of HER is suppressed by involving the hydrophobic oleylamine layer, which increases the energy barrier of proton desorption [43]. Moreover, the ENRR performance of NPS was also tested for comparison. The ammonia yield is (7.8 ± 1.4) μg·h−1·cm−2 and the Faradaic efficiency is (13.8 ± 1.8)%, which are 2.1- and 0.4-fold lower than those of NPS@ZIF, and 4.3- and 1.3-fold lower than those of NPS@O-ZIF, respectively. This comparison states that ZIF encapsulation plays a vital role in reinforcing ENRR by promoting the local concentration of molecules near the active surfaces of electrocatalysts. Hence, the great ammonia yield and Faradaic efficiency prove the feasibility of our design on hydrophobic core–shell NPS@O-ZIF electrocatalysts, attributed to its high stability and excellent electrocatalytic performance.

3. Materials and Methods

3.1. Materials and General Methods

All available chemicals were purchased commercially and used as received without further purification. AgNO3 (AR) from the Beijing Chemical Plant was used during the synthesis. Hydrochloric acid (36–38%), acetone (C3H6O, ≥99.5%), ethanol (C2H6O, AR), and sodium sulfate (Na2SO4, AR) were the products of Tianjin Fengchuan Chemical Reagent Co., Ltd. (Tianjin, China). Polyvinylpyrrolidone (PVP, (C6H9NO)n, average molecular weight = 130,000) was from Shanghai Yuanye Bio-Technology Co., Ltd. (Shanghai, China). Glycol ((CH2OH)2, AR), isopropyl alcohol (C3H8O, AR), sodium citrate (Na3C6H5O7·2H2O, AR), salicylate (C7H6O3, AR), HNO₃ (AR), and sodium borohydride (NaBH4, AR) were obtained from Tianjin Damao Chemical Trading Co., Ltd. (Tianjin, China). P-dimethylaminobenzaldehyde (C9H11NO, AR) was from Shanghai Maclin Biochemical Technology Co., Ltd. (Shanghai, China). NH₃·H₂O (mass fraction = 25–28%) was from Shanghai Meryl Chemical Technology Co., Ltd. (Shanghai, China). Anhydrous methanol (CH3OH, AR) was derived from Tianjin Chemical Reagent Plant No. 6. Sodium hydroxide (NaOH, AR) was from Tianjin Kermel Chemical Reagent Co., Ltd. (Tianjin, China). Nitropurna (C5FeN6Na2O, 99.98%) and sodium hypochlorite (NaClO, AR), oleylamine (C20H39NO2, 80–90%) were purchased from Shanghai Yi’en Chemical Technology Co., LTD. Ammonium chloride (NH4Cl, 99.99%), hydrazine hydrate (N2H4·H2O, 98%), zinc nitrate (Zn(NO3)2, 99%), and 2-methylimidazole (C4H6N2, 98%) were purchased from Shanghai Aladdin Biochemical Technology Co., Ltd. (Shanghai, China). Nitrogen N2 (≥99.999%) and argon Ar (≥99.999%) gas were from Tianjin Huanyu Co., Ltd. (Tianjin, China).
Transmission electron microscopy (TEM) imaging was performed on a Philips Tecnai F20 system at 200 kV to observe the morphology and quantitatively and qualitatively analyze the elements by EDS mapping. The chemical composition and bonding characteristics were analyzed by X-ray photoelectron spectroscopy (XPS) of PHI Quantera under monochromatic Mg X-ray radiation source. In a Bruker GADDS X-ray diffractometer with Cu Kα radiation, the powder X-ray diffraction (XRD) records the structure of the composite materials. The composition analysis of the materials was also performed using Thermo Scientific iCAP 6500 model ICP-OES. Nitrogen adsorption and desorption tests were performed at 77 K and 1 bar using the Micromeritics ASAP 2020 adsorption apparatus. Nitrogen adsorption–desorption isotherms were analyzed by Micromeritics ASAP 2020 built-in software to obtain specific surface areas and pore sizes. A methanol solution of NPS, NPS@ZIF, or NPS@O-ZIF was drop-casted on silica substrate and dried for static contact angle measurement, which was performed on a Theta Lite tensiometer equipped with the Firewire digital camera. The static contact angle was measured with an ultrapure water droplet (3 μL). Each result was averaged by five tests taken on the NPS, NPS@ZIF, or NPS@O-ZIF functionalized silica substrate.

3.2. Synthesis of NPS@O-ZIF

A mixture of silver nitrate and polyvinylpyrrolidone (PVP) solution was prepared and kept stirring under room temperature for 10 min. Hydrochloric acid solution (2.75 mL, 6 mol/L) was added dropwise followed by reaction for 20 min. Then, the mixture solution was washed and centrifuged with water and ethanol several times to obtain the AgCl cubic templates. The precipitate AgCl was dispersed in deionized water to form 10 mg/mL concentration. The solution (5 mL) was mixed with 45 mL glycol under stirring and then NaBH4 solution (1 mL, 20 mg/mL) was added dropwise as the reducing agent. After reacting under room temperature for 30 min, ammonia was added to the reaction system and then stirred for 1 min to etch the residual AgCl template. The product solution was washed and successively centrifuged with acetone and methanol. The obtained product was nanoporous silver material (NPS).
Zn(NO3)2 and 2-methylimidazole were dispersed in methanol solution (25 mM, 10 mL) and then mixed with NPS solution (0.7 mg/mL) for 12 h reaction. After centrifugal cleaning with methanol for several times, the product of NPS@ZIF was obtained and then dispersed in ethanol. The NPS@ZIF solution (4 mg/mL) was distributed on glassy carbon electrode and dried under room temperature. NPS@ZIF functionalized electrode was immersed in oleylamine solution (10 mM, 2 mL) for 40 min and then washed with ethanol before being dried at room temperature. The obtained product was the target NPS@O-ZIF electrode.

3.3. Synthesis of Ag Nanoparticles and Corresponding Ag@O-ZIF for Control Experiments

Four grams of PVP with one gram of AgNO3 were dissolved in 200 mL glycol under stirring to form the precursor solution. Then, the reaction was kept under the temperature of 160° for 1 h. After the reaction, the mixture was cooled down to room temperature and washed with ethanol several times to obtain Ag nanoparticles. The solution of Zn(NO3)2 and 2-methylimidazole (25 mM, 10 mL) was then added into the dispersion of solid Ag nanoparticles in the methanol solution (0.7 mg/mL). The encapsulation of ZIF shell was conducted at room temperature. After centrifugal cleaning with methanol several times, the obtained product was Ag@ZIF composite material. Four milligrams of Ag@ZIF material was dissolved in 1 mL ethanol and utilized to functionalize glassy carbon electrode. The Ag@ZIF-modified electrode was immersed in the oleylamine solution (2 mL, 10 mM). Finally, a hydrophobic Ag@ZIF electrode with oleylamine surface modification was obtained for the subsequent electrocatalytic NRR test.

3.4. ENRR Tests

Electrochemical tests were made using he electrochemical station (CHI760E) with three-electrode system. The electrolyte was 0.1 M aqueous solution of Na2SO4. NPS@O-ZIF composite material was used as the working electrode with the Pt plate as counter electrode and Ag/AgCl electrode as reference electrode. The electrochemical system was continuously purged with nitrogen gas for at least 1 h before each ENRR test and then throughout the whole reaction. Cyclic voltammetry measurements were carried out with the applied potentials between −1.2 V and −0.5 V vs. RHE using scanning rate of 50 mV/s in N2 saturated electrolyte. Potentiostatic measurements were performed across a range of applied potentials, including −0.8 V, −0.9 V, −1.0 V, −1.1 V, and −1.2 V vs. RHE, at constant room temperature for 2 h. The potential used in this work is converted into reversible hydrogen electrode (RHE) by the equation E(vs. RHE) = E(vs. Ag/AgCl) + 0.0592 × pH + 0.1976. The amount of ammonia generated in the ENRR process was characterized by indophenol blue method. Solution A was a mixture of NaOH (1 M), salicylic acid (5 wt%), and sodium citrate (5 wt%). Solution B is 0.2 M sodium hypochlorite. Solution C is C5FeN6Na2O (1 wt%). Two milliliter electrolyte after ENRR was taken and mixed with the above A, B, and C solutions. After reacting for 2 h, the absorption spectrum exhibits a broad peak at 655 nm. The Watt–Chrisp protocol was utilized to measure the amount of hydrazine. Concentrated hydrochloric acid (30 mL) and ethanol (300 mL) were mixed in a beaker, then 6 g p-(dimethylamino) benzaldehyde was added and the mixture was stirred until the solid was completely dissolved. After electrocatalyzing NRR, the electrolyte was mixed with the above mixture. After reacting for 20 min, the absorption spectrum was measured to determine the amount of hydrazine.

3.5. Calculation of Ammonia Yield and Faradaic Efficiency

The amount of ammonia produced during ENRR tests was estimated according to the standard curve using the absorption intensity at 655 nm. Additionally, the corresponding ammonia yield rate (vNH3) and Faradaic efficiency (FE) were calculated based on the following equation:
vNH3 = nNH3/(t × Acat.)
FE = 3F × nNH3/Q
where F is Faradaic constant, nNH3 is the amount of generated ammonia, Q is the total electric quantity of the whole ENRR process, t is the electrochemical reaction time, and Acat. is the loading area of catalyst.

4. Conclusions

In this work, a core–shell composite structure with hydrophobic surface modification was successfully synthesized for catalyzing ENRR. The morphology, composition, and surface property of the prepared catalysts were well characterized and discussed. Our design of NPS@O-ZIF achieves a high ammonia yield of (41.3 ± 0.9) μg·h−1·cm−2 and a great Faradaic efficiency of (31.7 ± 1.2)%. The comparison of the ENRR performance with the Ag@O-ZIF and NPS@ZIF demonstrates the significance of active sites on the NPS cores and the suppression of HER by utilizing the oleylamine layer. This work effectively solves the bottleneck problems of ENRR catalysis and will create huge opportunities for sustainable ENRR applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28062781/s1, Figure S1: TEM images of (a) NPS and (b) NPS@ZIF; Figure S2: Characterization of NPS. (a) HAADF-STEM image of NPS and EDS mapping of elements (b) Ag, and (c) Cl. (d) Corresponding EDS elemental spectrum; Figure S3: XPS characterization of NPS; Figure S4. IR spectra of NPS, ZIF, and NPS@ZIF; Figure S5: (a) Nitrogen sorption isotherms at 77 K. (b) Corresponding pore size distributions; Figure S6: (a) Absorbance spectra of indophenol blue in NH4+ solutions at various concentrations. (b) Linear correlation of the absorbance intensity to NH4+ concentration; Figure S7: (a) Absorbance spectra of N2H4 solutions with various concentrations after reacting for 20 min at room temperature. (b) Corresponding calibration curve. (c) Yield of ammonia and hydrazine generated during ENRR at −1.0 V vs. RHE; Figure S8: TEM image of NPS@ZIF after long-term electrocatalysis.

Author Contributions

Writing—original draft preparation, Y.Q.; investigation and data curation, Y.Q., S.Z. and Y.P.; writing—review and editing, funding acquisition, Y.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the financial support of Tianjin Natural Science Foundation (19JCQNJC05000) and National Natural Science Foundation of China (Grant No. 22005220).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not available.

References

  1. Qing, G.; Ghazfar, R.; Jackowski, S.T.; Habibzadeh, F.; Ashtiani, M.M.; Chen, C.-P.; Smith, M.R., III; Hamann, T.W. Recent Advances and Challenges of Electrocatalytic N2 Reduction to Ammonia. Chem. Rev. 2020, 120, 5437–5516. [Google Scholar] [CrossRef]
  2. Jiao, F.; Xu, B. Electrochemical Ammonia Synthesis and Ammonia Fuel Cells. Adv. Mater. 2019, 31, 1805173. [Google Scholar] [CrossRef]
  3. Seo, Y.; Han, S. Economic Evaluation of an Ammonia-Fueled Ammonia Carrier Depending on Methods of Ammonia Fuel Storage. Energies 2021, 14, 8326. [Google Scholar] [CrossRef]
  4. Macfarlane, D.R.; Cherepanov, P.V.; Choi, J.; Suryanto, B.H.R.; Hodgetts, R.Y.; Bakker, J.M.; Vallana, F.M.F.; Simonov, A.N. A Roadmap to the Ammonia Economy. Joule 2020, 4, 1186–1205. [Google Scholar] [CrossRef]
  5. Rouwenhorst, K.H.R.; Ham, A.G.J.V.; Lefferts, L. Beyond Haber-Bosch: The renaissance of the Claude process. Int. J. Hydrogen Energy 2021, 46, 21566–21579. [Google Scholar] [CrossRef]
  6. Erisman, J.W.; Sutton, M.A.; Galloway, J.; Klimont, Z.; Winiwarter, W. How a century of ammonia synthesis changed the world. Nat. Geosci. 2008, 1, 636–639. [Google Scholar] [CrossRef]
  7. Vojvodic, A.; Medford, A.J.; Studt, F.; Abild-Pedersen, F.; Khan, T.S.; Bligaard, T.; Nørskov, J.K. Exploring the Limits: A Low-Pressure, Low-Temperature Haber–Bosch Process. Chem. Phys. Lett. 2014, 598, 108–112. [Google Scholar] [CrossRef]
  8. Xu, H.; Ithisuphalap, K.; Li, Y.; Mukherjee, S.; Lattimer, J.; Soloveichik, G.; Wu, G. Electrochemical Ammonia Synthesis Through N2 and H2O Under Ambient Conditions: Theory, Practices, and Challenges for Catalysts and Electrolytes. Nano Energy 2020, 69, 104469. [Google Scholar] [CrossRef]
  9. Yang, Y.; Zhang, L.; Hu, Z.; Zheng, Y.; Tang, C.; Chen, P.; Wang, R.; Qiu, K.; Mao, J.; Ling, T.; et al. The Crucial Role of Charge Accumulation and Spin Polarization in Activating Carbon-Based Catalysts for Electrocatalytic Nitrogen Reduction. Angew. Chem. Int. Ed. 2020, 59, 4525–4531. [Google Scholar] [CrossRef]
  10. Choi, J.; Suryanto, B.H.R.; Wang, D.; Du, H.-L.; Hodgetts, R.Y.; Vallana, F.M.F.; MacFarlane, D.R.; Simonov, A.N. Identification and Elimination of False Positives in Electrochemical Nitrogen Reduction Studies. Nat. Commun. 2020, 11, 5546. [Google Scholar] [CrossRef]
  11. Lin, L.; Yan, L.; Fu, L.; He, C.; Xie, K.; Zhu, L.; Sun, J.; Zhang, Z. First Principle Investigation of W/P3C Sheet as an Efficient Single Atom Electrocatalyst for N2 and NO Electrochemical Reaction with Suppressed Hydrogen Evolution. Fuel 2022, 308, 122068. [Google Scholar] [CrossRef]
  12. Suryanto, B.H.R.; Du, H.-L.; Wang, D.; Chen, J.; Simonov, A.N.; MacFarlane, D.R. Challenges and Prospects in the Catalysis of Electroreduction of Nitrogen to Ammonia. Nat. Catal. 2019, 2, 290–296. [Google Scholar] [CrossRef] [Green Version]
  13. Su, Z.; Chen, T. Porous Noble Metal Electrocatalysts: Synthesis, Performance, and Development. Small 2021, 17, 2005354. [Google Scholar] [CrossRef]
  14. Shipman, M.A.; Symes, M.D. Recent Progress Towards the Electrosynthesis of Ammonia from Sustainable Resources. Catal. Today 2017, 286, 57–68. [Google Scholar] [CrossRef] [Green Version]
  15. Guo, C.; Ran, J.; Vasileff, A.; Qiao, S.-Z. Rational Design of Electrocatalysts and Photo(electro)catalysts for Nitrogen Reduction to Ammonia (NH3) under Ambient Conditions. Energy Environ. Sci. 2018, 11, 45–56. [Google Scholar] [CrossRef]
  16. Huang, H.; Xia, L.; Shi, X.; Asiri, A.M.; Sun, X. Ag Nanosheet for Efficient Electrocatalytic N2 Fixation to NH3 at Ambient Conditions. Chem. Commun. 2018, 54, 11427–11430. [Google Scholar] [CrossRef] [PubMed]
  17. Nazemi, M.; Panikkanvalappil, S.R.; El-Sayed, M.A. Enhancing the Rate of Electrochemical Nitrogen Reduction Reaction for Ammonia Synthesis Under Ambient Conditions Using Hollow Gold Nanocages. Nano Energy 2018, 49, 316–323. [Google Scholar] [CrossRef]
  18. Liu, Y.; Huang, L.; Zhu, X.; Fang, Y.; Dong, S. Coupling Cu with Au for Enhanced Electrocatalytic Activity of Nitrogen Reduction Reaction. Nanoscale 2020, 12, 1811–1816. [Google Scholar] [CrossRef]
  19. Yao, Y.; Zhu, S.; Wang, H.; Li, H.; Shao, M. A Spectroscopic Study on the Nitrogen Electrochemical Reduction Reaction on Gold and Platinum Surfaces. J. Am. Chem. Soc. 2018, 140, 1496–1501. [Google Scholar] [CrossRef]
  20. Wang, H.; Li, Y.; Li, C.; Deng, K.; Wang, Z.; Xu, Y.; Li, X.; Xue, H.; Wang, L. One-pot Synthesis of Bi-metallic PdRu Tripods as an Efficient Catalyst for Electrocatalytic Nitrogen Reduction to Ammonia. J. Mater. Chem. A 2019, 7, 801–805. [Google Scholar] [CrossRef]
  21. Kim, C.; Song, J.-Y.; Choi, C.; Ha, J.P.; Lee, W.; Nam, Y.T.; Lee, D.-M.; Kim, G.; Gereige, I.; Jung, W.-B.; et al. Atomic-Scale Homogeneous Ru-Cu Alloy Nanoparticles for Highly Efficient Electrocatalytic Nitrogen Reduction. Adv. Mater. 2022, 34, 2205270. [Google Scholar] [CrossRef] [PubMed]
  22. Ahmed, M.I.; Liu, C.; Zhao, Y.; Ren, W.; Chen, X.; Chen, S.; Zhao, C. Metal-Sulfur Linkages Achieved by Organic Tethering of Ruthenium Nanocrystals for Enhanced Electrochemical Nitrogen Reduction. Angew. Chem. Int. Ed. 2020, 59, 21465. [Google Scholar] [CrossRef] [PubMed]
  23. Li, W.; Li, K.; Ye, Y.; Zhang, S.; Liu, Y.; Wang, G.; Liang, C.; Zhang, H.; Zhao, H. Efficient Electrocatalytic Nitrogen Reduction to Ammonia with Aqueous Silver Nanodots. Commun. Chem. 2021, 4, 10. [Google Scholar] [CrossRef]
  24. Chen, D.; Ning, S.; Lan, J.; Peng, M.; Duan, H.; Pan, A.; Tan, Y. General Synthesis of Nanoporous 2D Metal Compounds with 3D Bicontinous Structure. Adv. Mater. 2020, 32, 2004055. [Google Scholar] [CrossRef] [PubMed]
  25. Pang, F.; Wang, Z.; Zhang, K.; He, J.; Zhang, W.; Guo, C.; Ding, Y. Bimodal Nanoporous Pd3Cu1 Alloy with Restrained Hydrogen Evolution for Stable and High Yield Electrochemical Nitrogen Reduction. Nano Energy 2019, 58, 834–841. [Google Scholar] [CrossRef]
  26. Qiu, H.-J.; Peng, L.; Li, X.; Xu, H.T.; Wang, Y. Using Corrosion to Fabricate Various Nanoporous Metal Structures. Corros. Sci. 2015, 92, 16–31. [Google Scholar] [CrossRef]
  27. Yang, Y.; Wang, S.-Q.; Wen, H.; Ye, T.; Chen, J.; Li, C.-P.; Du, M. Nanoporous Gold Embedded ZIF Composite for Enhanced Electrochemical Nitrogen Fixation. Angew. Chem. Int. Ed. 2019, 58, 15362–15366. [Google Scholar] [CrossRef] [PubMed]
  28. Ma, H.; Chen, Z.; Wang, Z. Electroreduction of Nitrogen to Ammonia on Nanoporous Gold. Nanoscale 2021, 13, 1717–1722. [Google Scholar] [CrossRef]
  29. Lü, F.; Zhao, S.; Guo, R.; He, J.; Peng, X.; Bao, H.; Fu, J.; Han, L.; Qi, G.; Luo, J.; et al. Nitrogen-Coordinated Single Fe Sites for Efficient Electrocatalytic N2 Fixation in Neutral Media. Nano Energy 2019, 61, 420–427. [Google Scholar] [CrossRef]
  30. Lazouski, N.; Chung, M.; Williams, K.; Gala, M.L.; Manthiram, K. Non-aqueous Gas Diffusion Electrodes for Rapid Ammonia synthesis from Nitrogen and Water-Splitting-Derived Hydrogen. Nat. Catal. 2020, 3, 463–469. [Google Scholar] [CrossRef]
  31. Chen, G.-F.; Ren, S.; Zhang, L.; Cheng, H.; Luo, Y.; Zhu, K.; Ding, L.-X.; Wang, H. Advances in Electrocatalytic N2 Reduction-Strategies to Tackle the Selectivity Challenge. Small Methods 2019, 3, 1800337. [Google Scholar] [CrossRef]
  32. Nazemi, M.; Ou, P.; Alabbady, A.; Soule, L.; Liu, A.; Song, J.; Sulchek, T.A.; Liu, M.; El-Sayed, M.A. Electrosynthesis of Ammonia Using Porous Bimetallic Pd−Ag Nanocatalysts in Liquid- and Gas-Phase Systems. ACS Catal. 2020, 10, 10197–10206. [Google Scholar] [CrossRef]
  33. Sim, H.Y.F.; Chen, J.R.T.; Koh, C.S.L.; Lee, H.K.; Han, X.; Phan-Quang, G.C.; Pang, J.Y.; Lay, C.L.; Pedireddy, S.; Phang, I.Y.; et al. ZIF-induced D-Band Modification in Bimetallic Nanocatalyst: Achieving 44% Efficiency in Ambient Nitrogen Reduction Reaction. Angew. Chem. Int. Ed. 2020, 59, 16997–17003. [Google Scholar] [CrossRef] [PubMed]
  34. Gao, Y.; Xia, Q.; Hao, L.; Robertson, A.W.; Sun, Z. Design of Porous Core-Shell Manganese Oxides to Boost Electrocatalytic Dinitrogen Reduction. ACS Sustain. Chem. Eng. 2022, 10, 1316–1322. [Google Scholar] [CrossRef]
  35. Zhu, Q.; Hu, S.; Zhang, L.; Li, Y.; Carraro, C.; Maboudian, R.; Wei, W.; Liu, A.; Zhang, Y.; Liu, S. Reconstructing Hydrophobic ZIF-8 Crystal into Hydrophilic Hierarchically-Porous Nanoflowers as Catalyst Carrier for Nonenzymatic Glucose Sensing. Sensor. Actuat. B Chem. 2020, 313, 128031. [Google Scholar] [CrossRef]
  36. Zhong, Y.; Chen, C.; Liu, S.; Lu, C.; Liu, D.; Pan, Y.; Sakiyama, H.; Muddassir, M.; Liu, J. A New Magnetic Adsorbent of Eggshell-Zeolitic Imidazolate Framework for Highly Efficient Removal of Norfloxacin. Dalton Trans. 2021, 50, 18016–18026. [Google Scholar] [CrossRef] [PubMed]
  37. Qin, N.; Pan, A.; Yuan, J.; Ke, F.; Wu, X.; Zhu, J.; Liu, J.; Zhu, J. One-Step Construction of a Hollow Au@Bimetal–Organic Framework Core–Shell Catalytic Nanoreactor for Selective Alcohol Oxidation Reaction. ACS Appl. Mater. Interfaces 2021, 13, 12463–12471. [Google Scholar] [CrossRef]
  38. Katsumi, N.; Nagao, S.; Okochi, H. Addition of Polyvinyl Pyrrolidone During Density Separation with Sodium Iodide Solution Improves Recovery Rate of Small Microplastics (20–150 μm) from Soils and Sediments. Chemosphere 2022, 307, 135730. [Google Scholar] [CrossRef]
  39. Koh, C.S.L.; Lee, H.K.; Sim, H.Y.F.; Han, X.; Phan-Quang, G.C.; Ling, X.Y. Turning Water from a Hindrance to the Promotor of Preferential Electrochemical Nitrogen Reduction. Chem. Mater. 2020, 32, 1674–1683. [Google Scholar] [CrossRef]
  40. Yang, Z.; Pedireddy, S.; Lee, H.K.; Liu, Y.; Tjiu, W.W.; Phang, I.Y.; Ling, X.Y. Manipulating the D-Band Electronic Structure of Platinum Functionalized Nanoporous Gold Bowls: Synergistic Intermetallic Interactions Enhance Catalysis. Chem. Mater. 2016, 28, 5080–5086. [Google Scholar] [CrossRef]
  41. Qiu, W.; Xie, X.-Y.; Qiu, J.; Fang, W.-H.; Liang, R.; Ren, X.; Ji, X.; Cui, G.; Asiri, A.M.; Cui, G.; et al. High-performance Artificial Nitrogen Fixation at Ambient Conditions Using a Metal-free Electrocatalyst. Nat. Commun. 2018, 9, 3485. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Watt, G.W.; Chrisp, J.D. Spectrophotometric Method for Determination of Hydrazine. Anal. Chem. 1952, 24, 2006–2008. [Google Scholar] [CrossRef]
  43. Zhang, J.; Zhao, B.; Liang, W.; Zhou, G.; Liang, Z.; Wang, Y.; Qu, J.; Sun, Y.; Jiang, L. Three-phase Electrolysis by Gold Nanoparticle on Hydrophobic Interface for Enhanced Electrochemical Nitrogen Reduction Reaction. Adv. Sci. 2020, 7, 2002630. [Google Scholar] [CrossRef] [PubMed]
Molecules 28 02781 sch001 550

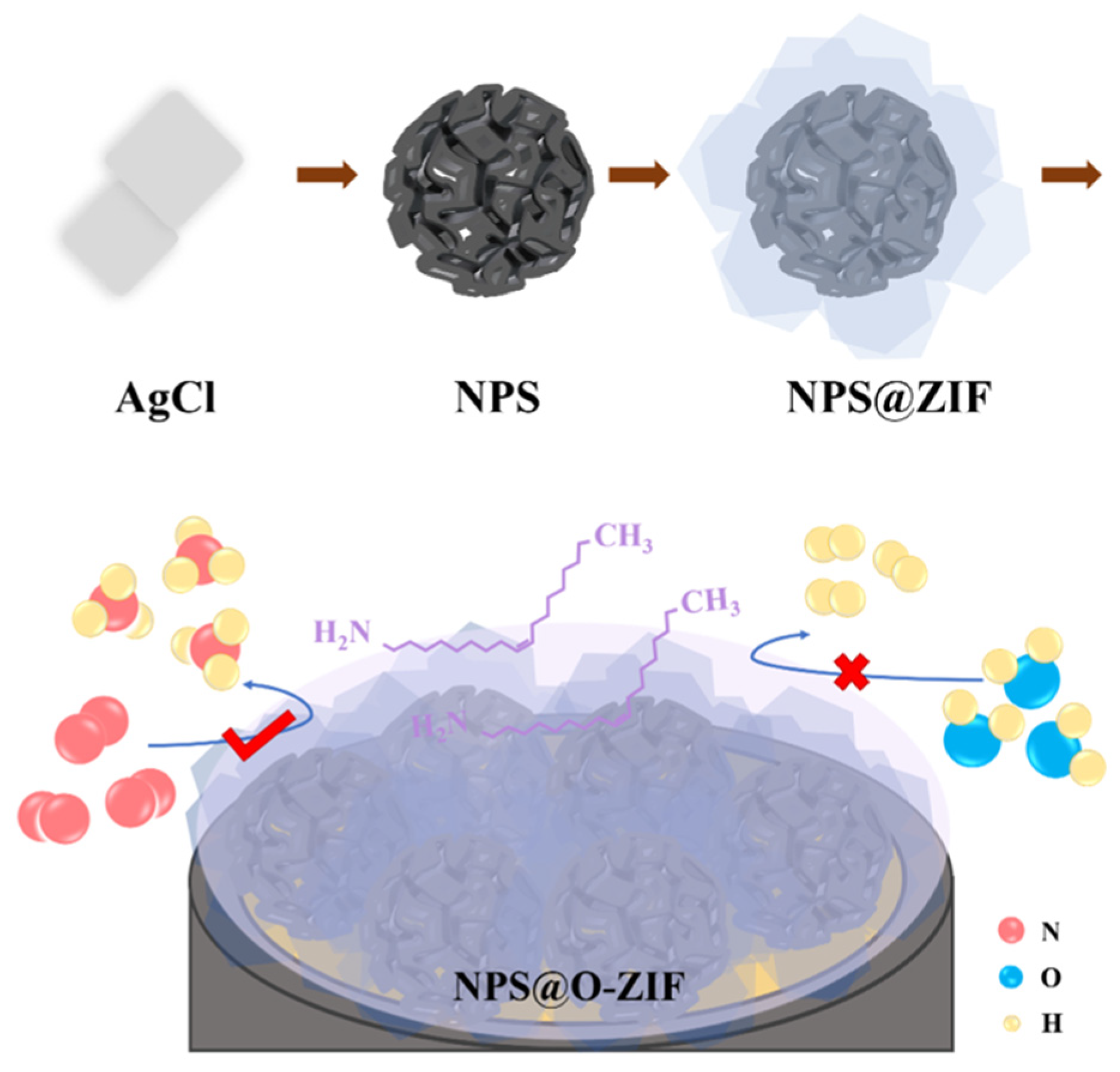

Scheme 1. ENRR performance enhancement by utilizing the NPS@O-ZIF electrocatalyst.
Scheme 1. ENRR performance enhancement by utilizing the NPS@O-ZIF electrocatalyst.
Molecules 28 02781 sch001
Molecules 28 02781 g001 550

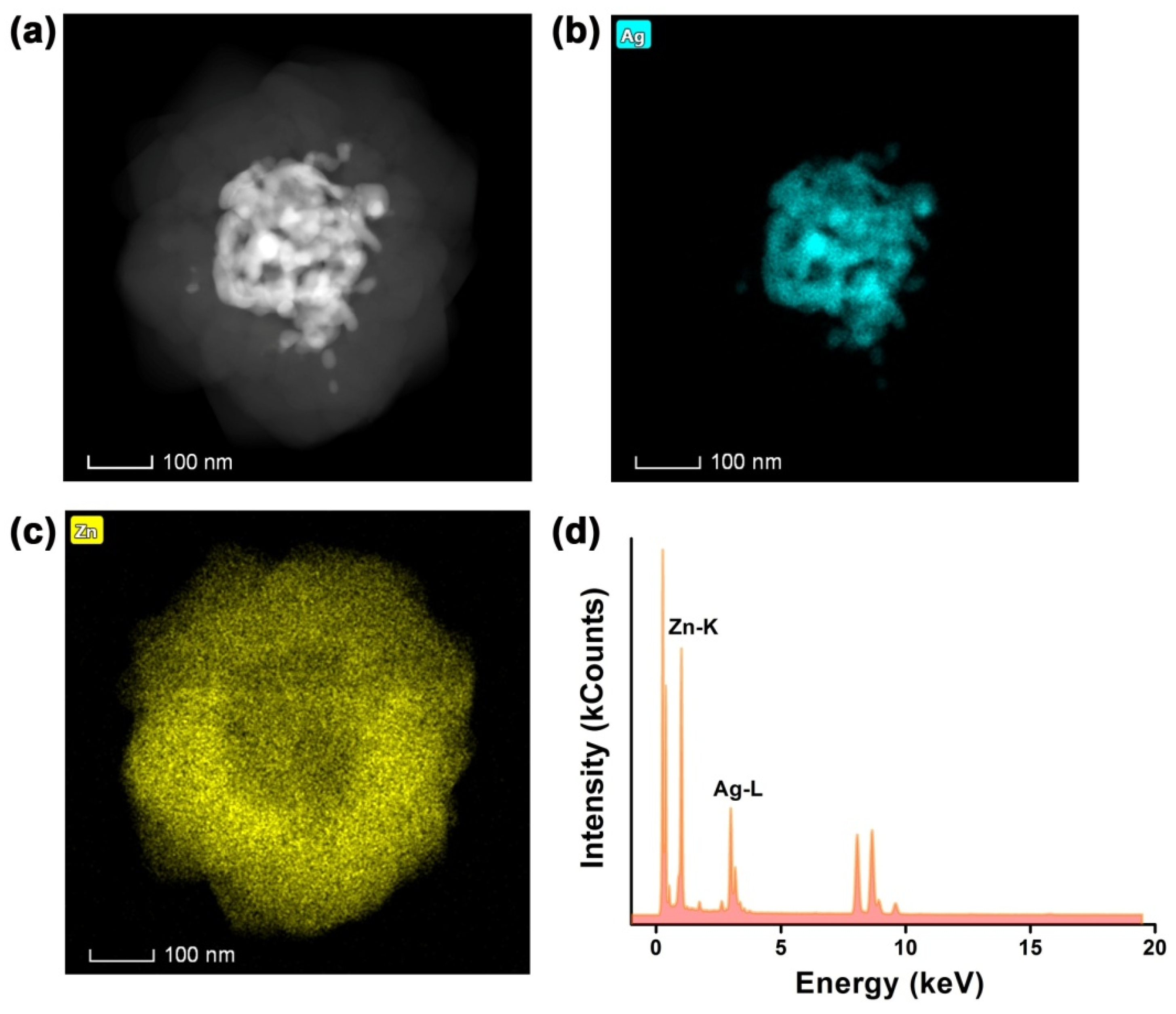

Figure 1. (a) HAADF-STEM image of NPS@ZIF and EDS mapping patterns of elements (b) Ag, (c) Zn. (d) Corresponding EDS elemental spectrum.
Figure 1. (a) HAADF-STEM image of NPS@ZIF and EDS mapping patterns of elements (b) Ag, (c) Zn. (d) Corresponding EDS elemental spectrum.
Molecules 28 02781 g001
Molecules 28 02781 g002 550

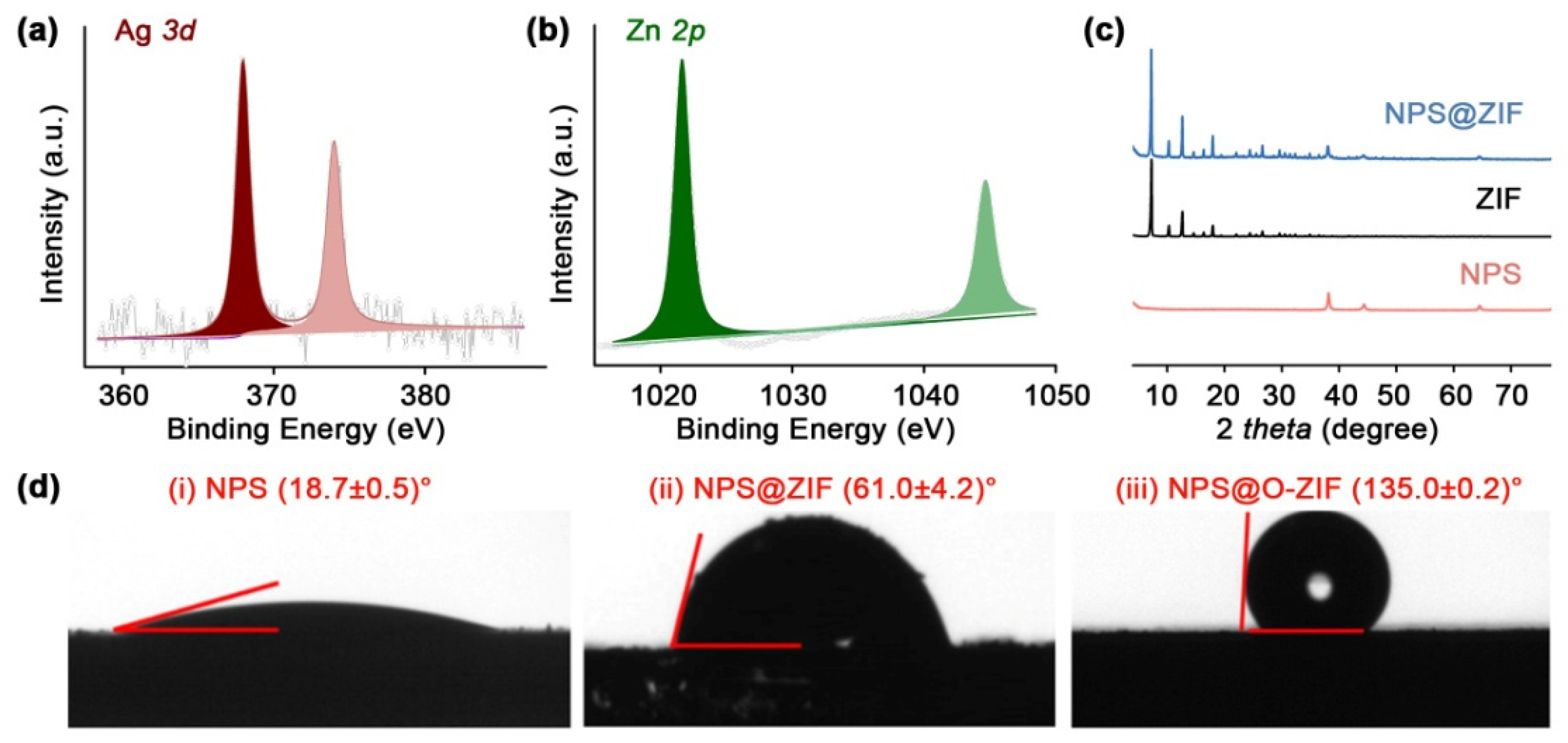

Figure 2. XPS characterization of NPS@ZIF at (a) Ag 3d and (b) Zn 2p binding energy. (c) XRD patterns of NPS, ZIF, and NPS@ZIF. (d) Corresponding static water contact angle tests.
Figure 2. XPS characterization of NPS@ZIF at (a) Ag 3d and (b) Zn 2p binding energy. (c) XRD patterns of NPS, ZIF, and NPS@ZIF. (d) Corresponding static water contact angle tests.
Molecules 28 02781 g002
Molecules 28 02781 g003 550

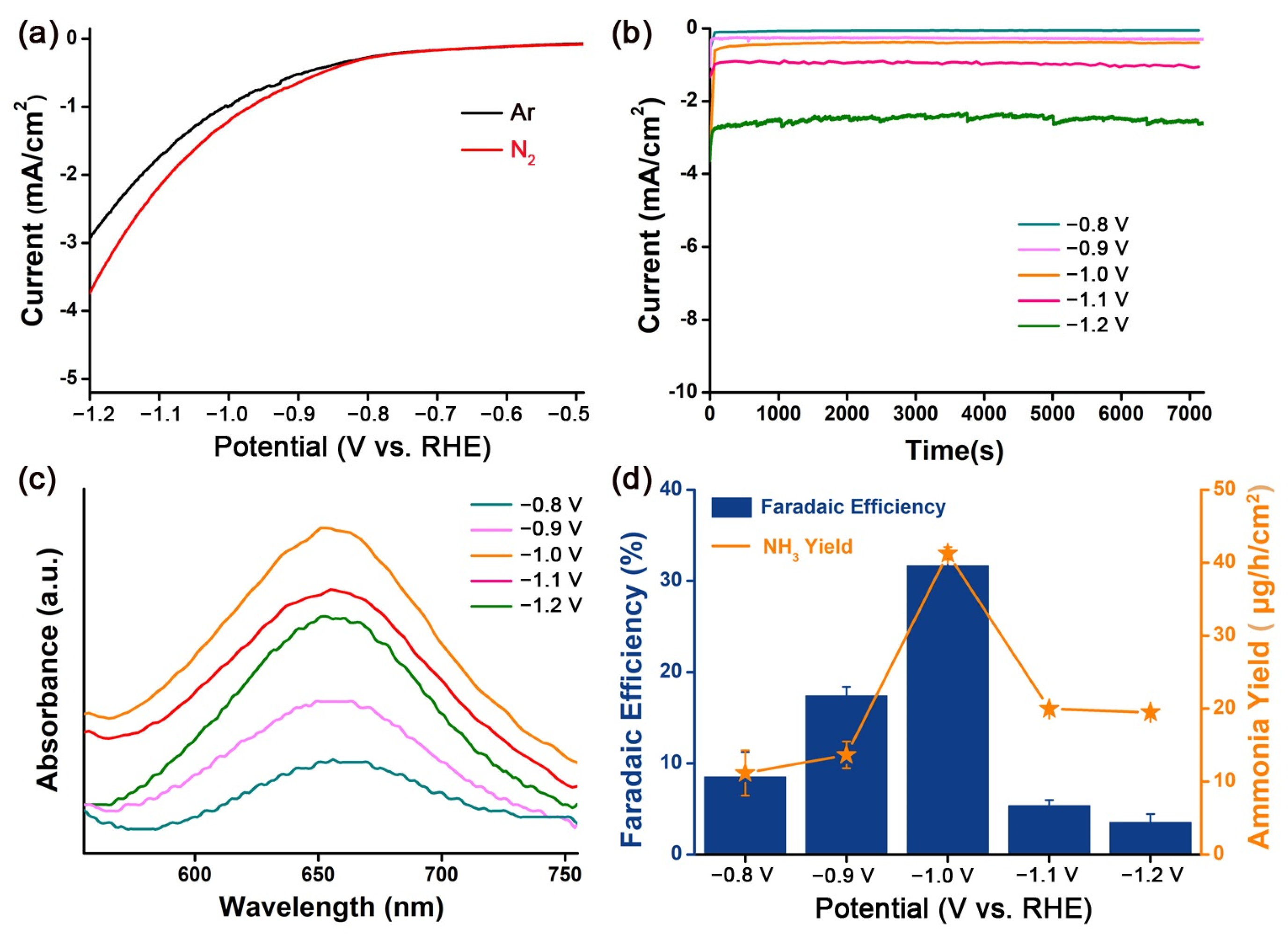

Figure 3. Catalysis performance using the NPS@O-ZIF electrode. (a) LSV curves in the N2- and Ar- saturated electrolyte. (b) CA tests under various potentials and (c) the corresponding UV–vis spectra of electrolytes after ENRR is colored with the indophenol indicator. (d) Calculation of ammonia yield and Faradaic efficiency.
Figure 3. Catalysis performance using the NPS@O-ZIF electrode. (a) LSV curves in the N2- and Ar- saturated electrolyte. (b) CA tests under various potentials and (c) the corresponding UV–vis spectra of electrolytes after ENRR is colored with the indophenol indicator. (d) Calculation of ammonia yield and Faradaic efficiency.
Molecules 28 02781 g003
Molecules 28 02781 g004 550

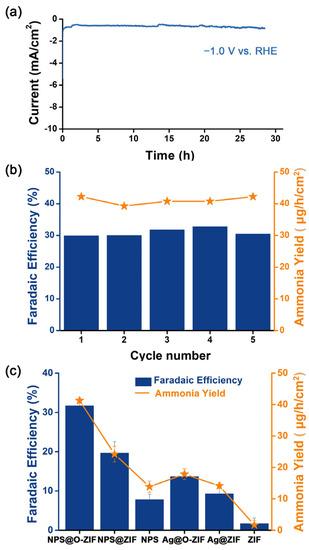

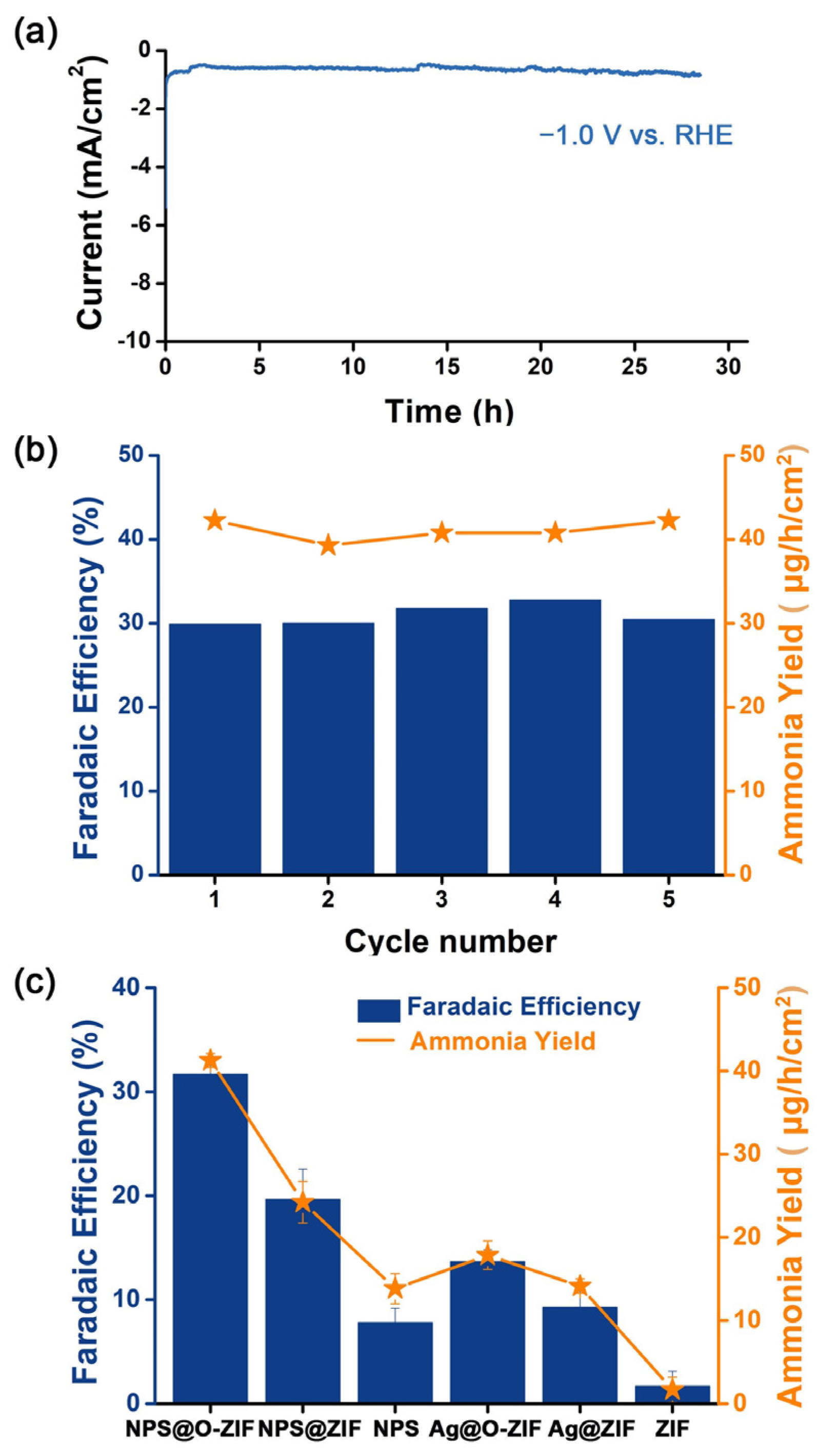

Figure 4. (a) Stability of NPS@O-ZIF for 30 h ENRR test. (b) Cycling tests for five consecutive ENRR under −1.0 V vs. RHE. (c) Comparison of ENRR performance using various electrocatalysts.
Figure 4. (a) Stability of NPS@O-ZIF for 30 h ENRR test. (b) Cycling tests for five consecutive ENRR under −1.0 V vs. RHE. (c) Comparison of ENRR performance using various electrocatalysts.
Molecules 28 02781 g004
