Article

The Temperature Dependence of Hydrogen Bonds Is More Uniform in Stable Proteins: An Analysis of NMR h3JNC′ Couplings in Four Different Protein Structures

by
Andrei T. Alexandrescu
1,* and
Aurelio J. Dregni
2
1
Department of Molecular and Cell Biology, University of Connecticut, Storrs, CT 06269, USA
2
Department of Chemistry, Massachusetts Institute of Technology, Cambridge, MA 02139, USA
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(13), 2950; https://doi.org/10.3390/molecules29132950
Submission received: 18 May 2024 / Revised: 11 June 2024 / Accepted: 18 June 2024 / Published: 21 June 2024
(This article belongs to the Special Issue New Trends of Nuclear Magnetic Resonance Spectroscopy (NMR) in Chemical and Biomolecular Studies)
Browse Figures
Versions Notes

Abstract

:
Long-range HNCO NMR spectra for proteins show crosspeaks due to 1JNC′, 2JNC′, 3JNCγ, and h3JNC′ couplings. The h3JNC′ couplings are transmitted through hydrogen bonds and their sizes are correlated to hydrogen bond lengths. We collected long-range HNCO data at a series of temperatures for four protein structures. P22i and CUS-3i are six-stranded beta-barrel I-domains from phages P22 and CUS-3 that share less than 40% sequence identity. The cis and trans states of the C-terminal domain from pore-forming toxin hemolysin ΙΙ (HlyIIC) arise from the isomerization of a single G404-P405 peptide bond. For P22i and CUS-3i, hydrogen bonds detected by NMR agree with those observed in the corresponding domains from cryoEM structures of the two phages. Hydrogen bond lengths derived from the h3JNC′ couplings, however, are poorly conserved between the distantly related CUS-3i and P22i domains and show differences even between the closely related cis and trans state structures of HlyIIC. This is consistent with hydrogen bond lengths being determined by local differences in structure rather than the overall folding topology. With increasing temperature, hydrogen bonds typically show an apparent increase in length that has been attributed to protein thermal expansion. Some hydrogen bonds are invariant with temperature, however, while others show apparent decreases in length, suggesting they become stabilized with increasing temperature. Considering the data for the three proteins in this study and previously published data for ubiquitin and GB3, lowered protein folding stability and cooperativity corresponds with a larger range of temperature responses for hydrogen bonds. This suggests a partial uncoupling of hydrogen bond energetics from global unfolding cooperativity as protein stability decreases.

1. Introduction

Hydrogen bonds (H-bonds) are critical components of protein secondary and tertiary structure. A main driver of protein secondary structure is that backbone H-bonds compensate for the partially polar character of the protein mainchain when it crosses through the hydrophobic core of a protein [1]. H-bonds involving sidechains and/or a solvent play additional roles in protein structure specificity, stability, and function. Individually, a H-bond confers only about 1–2 kcal/mol to the stability of the protein, the weakness of the interaction allowing it to be easily formed and broken under physiological conditions [2,3,4]. However, the tens to hundreds of H-bonds in a typical protein, together with other non-covalent interactions, provide the enthalpic stabilization of the structure that counteracts the loss of conformational entropy accompanying protein folding. The degree to which individual H-bonds contribute additively to protein stability or as part of a cooperative network of non-covalent interactions remains an open question [5,6,7].
Initially, H-bonds were viewed as an electrostatic interaction between a hydrogen bonded to an electronegative donor atom and a second electronegative acceptor atom [3,8]. In the 1930s, Pauling suggested that H-bonds have partial covalent character (first edition of [2]). This was finally confirmed in the late 1990s by the NMR detection of J-couplings transmitted through H-bonds [9,10,11,12,13,14] and Compton X-ray scattering anisotropy in ice [3,15]. In proteins, direct NMR investigations of H-bond couplings are usually carried out with the long-range HNCO (lrHNCO) experiment that measures a three-bond h3JNC′ through-hydrogen-bond scalar coupling between amide 15N and carbonyl 13C’ nuclei [9]. The h3JNC′ couplings are small with values typically <1 Hz, requiring high sensitivity and usually necessitating the perdeuteration of proteins larger than ~10 KDa [13]. However, the h3JNC′ couplings provide an unambiguous identification of H-bond donors and acceptors, without requiring knowledge about the rest of the molecular structure. This contrasts with hydrogen exchange protection studies [16] that identify only the H-bond donor. Thus, our lab and others have found through-H-bond couplings to be extremely useful restraints in protein NMR structure calculations [17,18,19,20,21,22,23].
Another interesting but lesser explored application of h3JNC′ couplings is to investigate how structure varies with conditions—a unique strength of NMR in structural biology. Arguably, h3JNC′ couplings, because of their short distance ranges, are less complicated by averaging and dynamics than other types of NMR restraints such as RDCs, dihedral restraints, and NOEs (that can also be confounded by spin diffusion). The detection of a h3JNC′ coupling unambiguously establishes that an H-bond between 2.5 and 3.5 Å is present, with a relatively sensitive and straightforward dependence on backbone H-bond length [24,25]. In contrast, sidechain H-bonds are seen infrequently in lrHNCO experiments, possibly due to their increased flexibility, and have a more complex dependence on H-bond length [24]. Studies on the variability of H-bonds have investigated how h3JNC′ couplings respond to pressure [26], kosmotropic solvents like trifluoroethanol (TFE) [27], and ligand binding [28].
To date, there have been only two studies of the temperature dependence of h3JNC′ couplings, for the proteins ubiquitin [29] and GB3 [30]. Both proteins showed a small weakening of h3JNC′ couplings with increasing temperatures that was interpreted in terms of lengthening of N-to-O H-bond distances due to the thermal volume expansion of the proteins [29]. In ubiquitin, a few individual residues showed different behavior than the average H-bond expansion, characterized by H-bonds that became shorter or were invariant with temperature. These exceptions were attributed to localized partially autonomous folding regions at the ends of regular secondary structure that became more stable with increasing temperature [29]. Both the ubiquitin and G3 proteins are small (<8.5 KDa), have the same protein folding motif, and are very stable proteins (Tm ≥ 80 °C). We therefore wanted to investigate how generalizable the temperature dependence of H-bonds is to proteins with other structural motifs and stabilities. Since we were interested in the conservation of H-bonds between proteins with similar structures [25], we selected two pairs of structures for these studies (Figure 1). P22i and CUS-3i are autonomously folding “insertion domains” form the coat proteins of the related bacteriophages P22 and CUS-3 [21]. The two domains have 40% sequence identity and the same overall six-strand β-barrel fold, although there are structural differences in the lengths of β-strand elements and intervening loops [21]. The cis and trans states of the C-terminal domain of hemolysin II (HlyIIC) are two slightly different structural forms of the same protein sequence brought about by the cis/trans isomerization of the G404-P405 peptide bond. The HlyIIC domain has a pseudo-barrel fold comprised of five beta strands and two α-helices [19]. Since the cis and trans forms are in slow exchange on the NMR timescale, the two closely related structures, which differ mainly in the position of the proline-bearing loop, give separate NMR signals for about half of the residues in the protein [31]. The four protein states considered in this work were used to probe the conservation of H-bonds and their dependence on temperature in distantly and closely related protein structures.

2. Results and Discussion

2.1. lrHNCO Experiments Detect H-Bond 3hJNC′ and Sidechain 3JNCγ Scalar Couplings

Figure 2 shows representative data from lrHNCO experiments obtained at five different temperatures for the protein HlyIIC. In Figure 2A, 15N planes near 116.5 ppm are superposed for the different temperatures. In this portion of the spectrum, none of the six residues have resolvable signals from the cis and trans states of the protein since they are far away in the structure from the site of isomerization, P405. However, separate cis and trans signals are observed for K355 in Figure 2B. Four types of correlations are observed in the lrHNCO spectra (Figure 2A).
The first type of crosspeak is a 1JNC′ coupling of ~11 Hz connecting the amide nitrogen with the carbonyl of the preceding residue [33], exemplified for M349, F384, and V390. These couplings are detected in standard HNCO experiments but are suppressed in the lrHNCO experiment by setting the N-to-C’ dephasing time 2T to a value of 133 ms corresponding to 2/(1JNC) [9]. For comparison, a value of ~16 ms corresponding to 1/(2 × (1JNC)) is used in the standard HNCO experiment [34]. Despite being suppressed, strong 1JNC′ couplings can nevertheless persist in the lrHNCO experiment (Figure 2). The 1JNC′ couplings are correlated with the strengths of H-bonds [33,35,36].
The second type of crosspeak h3JNC′ is the three-bond through-H-bond coupling between the N atom of the H-bond donor and the C’ of the acceptor (Figure 2), which the lrHNCO experiment is intended to detect [9]. The h3JNC′ coupling constants in units of Hz were calculated from crosspeak volumes in H-bond (VHB) and reference (Vref) versions of long-range HNCO experiments according to the formula:
h3JNC′ = ([(VHB/Vref) × (Nref/NHB)]1/2)/(2πT)
where Nref and NHB are the number of scans per FID in the two experiments, and T is the 66 msec delay for the N-to-C’ INEPT refocusing period used to detect H-bond couplings [9,25]. The h3JNC′ couplings are typically less than 1 Hz, with smaller values for H-bonds in α-helices than β-sheets [13]. It has been empirically established that the sizes of the h3JNC′ couplings are inversely correlated with N-to-O distances across H-bonds [24,25] as
rNO = 2.75 − 0.25 × (ln |h3JNC′|)
assuming that the h3JNC′ coupling constant depends only on the N-O distance [24].
The third type of crosspeak that occurs in lrHNCO spectra is the intraresidue two-bond 2JNC′ coupling between the N and the C’ atoms within the same residue [9,25]. These couplings are not seen in standard HNCO experiments, but their small sizes of 0 to 1.5 Hz are comparable to the h3JNC′ couplings, so that both appear in lrHNCO experiments [9,25]. The size of the 2JNC′ coupling depends on the angle between sequentially adjacent peptide groups [37].
Finally, a set of relatively strong crosspeaks are seen in the lrHNCO spectra from the backbone N to the sidechain carbonyl Cγ atoms of Asp and Asn residues, for example, D336, N339, and N398 in Figure 2A. These correlations are due to 3JNCγ couplings with sizes between 0 and 3 Hz. The 3JNCγ couplings depend on the χ1 dihedral angles of Asp/Asn residues defined by the atoms N-Cα-Cβ-Cγ [38,39]. The 3JNCγ coupling constant has the largest values near 3 Hz for the trans conformation (χ1 = 180°), decreasing to near zero for the gauche conformations (χ1 ± 60°). Motional averaging of the χ1 angle is expected to give 3JNCγ values near 1.4 Hz. To characterize the 3JNCγ couplings, we supplemented complete mainchain assignments for the four protein states with sidechain assignments for carbonyl containing Asp, Asn, Glu, and Gln using 3D HNCO and the sidechain–HCACO experiment [40]. These sidechain assignments are given in Tables S1–S3. The h3JNC′ and 3JNCγ coupling constants determined from lrHNCO experiments at various temperatures are summarized in Tables S4 and S5. The d(rNO)/dT slopes defining the temperature dependence of mainchain H-bond distances calculated from h3JNC′ coupling constants are given in Tables S6 and S7, and Tables S8 and S9 compare H-bonds detected by NMR for CUS-3i and P22i with those from the cryoEM structures of the corresponding phages.

2.2. Agreement of H-Bonds Measured by NMR and cryoEM

None of the four protein states studied have X-ray structures; however, there are cryoEM structures for phages CUS-3 (PDB 8SKG, resolution of 2.8 Å) and P22 (PDB 5UU5 and 8I1V, resolutions of 3.3 and 2.6 Å, respectively). We compared the H-bonds detected in lrHNCO experiments in this work to the H-bonds in the I-domains of the cryoEM phage structures.
The NMR and cryoEM data are in good agreement for CUS-3i with 31 of the 48 mainchain H-bonds (65%) seen by both NMR and cryoEM (Table S8). There were an additional 15 mainchain H-bonds in the cryoEM structure for which h3JNC′ couplings were not detected in the lrHNCO experiment. Two of these could not be identified due to NMR spectral overlap; one is at the dynamic N-terminus of CUS-3i that is free in the NMR fragment but covalently attached to the coat protein in the cryoEM phage structure. An additional 10 H-bonds in the cryoEM structure are in turns connecting residues separated by less than three sequence positions. These are probably an artefact of overly close contacts in the cryoEM structure, since the H-bonds have marginal <DHA (donor–H•••acceptor) angles near 120° that would probably not qualify them as true H-bonds based on energetic considerations [12,13,41]. Only three genuine H-bonds disagreed between the NMR and cryoEM data. Two H-bonds, G261(N)-A259(O) and R291(N)-S303(O), were observed in the lrHNCO spectra but were not present in the cryoEM structure, with both at the end of regular β-sheet secondary structure. The Q288(N)-V273(O) H-bond in the cryoEM structure was not observed by NMR.
For P22i, the H-bonds detected in lrHNCO experiments are also consistent with those in the cryoEM structures determined at 2.6 Å-resolution [42] and an earlier 3.3 Å-resolution structure [43]. A complicating factor for comparison is that two long D- (a.a. 239–254) and S-loops (a.a. 281–291) are disordered when the P22i domain is studied in isolation by solution NMR [32], but become involved in H-bonded β-sheet structure that stabilizes the icosahedral capsid when the P22i domain is studied in the context of the intact P22 phage structure determined by cryoEM [42,43]. For the 2.6 Å-resolution cryoEM P22 structure, 25 of 37 (68%) mainchain H-bonds are detected by NMR, and 25 of 32 (78%) for the lower 3.3 Å-resolution structure. Conversely, excluding the D- and S-loops, 27 of 30 (90%) mainchain H-bonds detected by NMR for P22i are seen in one of the corresponding domains from the cryoEM structures of phage P22. As with Cus-3, the differences between the H-bonds detected by NMR and cryoEM for P22i are largely due to differences in dynamics, H-bonds that cannot be detected by NMR due to spectral overlap, and H-bonds with marginal <DHA angles in the cryoEM structures that often involve turns shorter than four residues.
By comparison, H-bonds involving sidechains show much poorer agreement between the NMR and cryoEM data. In CUS-3i, only two N-H•••O=C H-bonds involving sidechains were detected in the lrHNCO experiments and only one of these was observed in the cryoEM structure. Conversely, six of the sidechain-involving H-bonds in the cryoEM structure do not give detectable h3JNC′ couplings. For P22i, none of the four sidechain H-bonds observed by NMR are detected in the 2.6 Å-resolution 8I1V cryoEM structure, and only one is seen in the 3.3 Å-resolution 5UU5 structure. Most of the sidechain H-bonds in the cryoEM structures are not seen in the lrHNCO NMR experiments, and there is also poor internal agreement for the sidechain H-bonds between the two cryoEM structures of P22i (Table S9). H-bonds involving sidechains are typically more difficult to detect via h3JNC′ couplings than their backbone counterparts, possibly due to their more dynamic character [24]. In the case of P22i where multiple cryoEM structures are available, and even for high-resolution X-ray structures of the same ubiquitin protein (PDB codes 1UBQ and 2ZCC), sidechain H-bonds are poorly conserved, perhaps due to the more dynamic nature of protein sidechains.
We next investigated the agreement of mainchain H-bond distances calculated from h3JNC′ couplings according to Equation (2) [24] with the corresponding N-to-O distances across H-bonds in the cryoEM structures. We did not observe a correlation between distances calculated from NMR and cryoEM structures similar to those observed with X-ray structures [24,25], probably due to the more limited resolutions of the cryoEM structures. Nevertheless, when examining the RMS differences in N-to-O distances across H-bonds calculated from h3JNC′ couplings and cryoEM, these were 0.13 Å for the 2.8 Å-resolution CUS-3 structure (31 H-bonds), 0.21 Å for the 2.6 Å-resolution P22 structure (21 H-bonds), and 0.16 Å for the 3.3 Å-resolution P22 structure (25 H-bonds). Thus, the H-bond distances from h3JNC′ couplings agree with those from the cryoEM structures on average within about 0.1 to 0.2 Å.
The temperature dependence of H-bonds δ(NO)/δT obtained for the proteins in this work are as large as 0.01 to 0.02 Å/°K, although for the more stable ubiquitin, the values are smaller, on average 0.0005 Å/°K (see below). To determine cryoEM structures, samples prepared at physiological temperatures are vitrified by plunging them into cryogens such as liquid ethane. Vitrification necessitates a rapid cooling rate between 105 to 108 °K/s−1 to bring samples to a typical temperature of ~80 °K for cryoEM data collection [44]. The H-bond distances obtained from h3JNC′ couplings and cryoEM structures agree within 0.2 Å, even though the data collection temperatures for the two methods differ by more than 200 °K. This suggests that the cryoEM samples are trapped by rapid vitrification in conformations similar to those present at physiological temperatures.

2.3. H-Bonds and Their Temperature Dependence Are Poorly Conserved between Related Protein Structures

To obtain information on the temperature dependence of H-bonds, we recorded lrHNCO and reference HNCO spectra for the three proteins studied in this work at five or six different temperatures. h3JNC′ coupling constants were calculated from peak volumes in the H-bond and reference spectra according to Equation (1) [9,25]. The resulting coupling constants were used to calculate N-O distances across H-bonds according to Equation (2) [24]. The derived individual H-bond distances are shown as a function of temperature in Figure 3. H-bond distances for ubiquitin, calculated the same way from published h3JNC′ coupling constants [29], are also included for reference. The H-bond distances show three types of behaviors. Most of the distances increase with temperature, indicated by the red symbols. Some of the H-bonds become shorter and therefore stronger with increasing temperature, indicated by the green symbols. The last class of H-bonds with slopes smaller than the uncertainty of the slope and R-values < 0.6, indicated with “X” symbols, were assigned as temperature-invariant within experimental uncertainty. The proportions of different kinds of H-bond temperature responses vary among the different proteins studied (Figure 3).
In addition to the mainchain H-bonds, we also looked at the temperature dependence of the sidechain 3JNCγ couplings that to our knowledge has not been described before. Of 18 Asp/Asn sidechains analyzed in four protein states, 6 (33%) showed decreases in 3JNCγ couplings with increasing temperature and the rest were invariant within experimental uncertainty (Tables S4 and S5). Most of the six residues that experienced a decrease in the coupling constant with temperature had a large sidechain 3JNCγ above 2 Hz at low temperature, characteristic of a trans conformation (χ1 = 180°), that decreased towards the ~1.4 Hz limit expected for χ1 dihedrals undergoing conformational averaging [39].
For the analysis of mainchain H-bonds, we first looked at conservation between related structures. The phage I-domains CUS-3i and P22i share 40% sequence identity and the same six-strand β-barrel folding motif but have differences in secondary structure elements, differences in loop dynamics, and markedly different surface electrostatics [21]. The cryoEM structures of the two proteins (PDB codes 8SKG and 5UU5) align with an RMSD of 0.9 Å, allowing for the comparison of 12 structurally equivalent H-bonds after best-fit superposition. The rNO distances (Equation (2)) for equivalent H-bonds show only a moderate correlation between the two proteins (R-value = 0.76, p = 0.0038), which could be due to the proteins sharing similar secondary structures and the fact that H-bonds are shorter in β-sheets. The d(rNO)/dT slopes describing the changes in H-bond distances with temperature were not significantly correlated between the two proteins (R-value = −0.50, p = 0.093).
We next examined the cis and trans states of HlyIIC related by isomerization about the G404-P405 peptide bond. The two states are in slow exchange on the NMR timescale, giving separate NMR signals for about half of the residues in the protein [45]. The main difference between the structures of the two states is in the orientation of the loop between helix α2 and strand β5 that harbors P405 [31]. We were able to resolve and analyze ten structurally equivalent H-bonds that were resolved in the cis and trans states. The H-bond distances at 307 °K are moderately correlated (R-value = 0.69, p = 0.026). However, in the same 3D lrHNCO spectrum where the cis and trans state can be analyzed simultaneously, 3 of 28 H-bonds in the cis state are not seen in the trans state (N377-Y406, G404-N352, E408-F375). The three H-bonds involve residues near the P405 site of isomerization that are lost in the trans state due to the structural differences accompanying isomerization. The d(rNO)/dT slopes for the ten structurally equivalent H-bonds are only moderately correlated between the cis and trans states (R-value = 0.80, p = 0.0059). In several cases, N350-Q353, T357-S346, V381-I374, and I397-I393, the H-bonds show markedly different d(rNO)/dT slopes between the two states.
The relatively weak conservation of H-bond distances and temperature responses between closely similar protein structures such as the cis and trans states of HlyIIC suggest that the length and temperature dependence of H-bonds are determined mostly by short-range interactions in their immediate vicinities and less by the overall protein fold. This is further supported by the observation that three H-bonds are lost near P405 in the trans compared to the cis state of HlyIIC due to conformational differences localized to the loop bearing the proline.

2.4. The Variability of H-Bond Temperature Responses Is Inversely Correlated with Global Folding Stability

Data on the stabilities of the three proteins used to carry out temperature-dependent H-bond studies in this work, together with ubiquitin from a previously published study [29], are given in Table 1. A plot summarizing the variability in d(rNO)/dT slopes is shown in Figure 4A. The proteins in Figure 4A are arranged in order of increasing stability to unfolding from left to right (Table 1). The average d(rNO)/dT slope near (10.7 ± 4.6) × 10−4 Å/K is similar for all the proteins. We used the t-test to establish that the difference in the means of the d(rNO)/dT slopes is not statistically significant (p > 0.05) with any pairing of the proteins. The average d(rNO)/dT slope of (10.7 ± 4.6) × 10−4 Å/K probably reflects the thermal volume expansion coefficient, an intrinsic property that has a conserved value near 5.2 × 10−4 1/K for a variety of proteins [29]. The spread in d(rNO)/dT slopes, however, shows an increase with decreasing stability to unfolding. For the moderately stable protein HlyIIC, the range of d(rNO)/dT slopes between 0.019 and −0.022 Å/K is more than 10-fold larger than for the stable protein ubiquitin where d(rNO)/dT slopes vary between 0.0015 and −0.0004 Å/K. This is illustrated in Figure 4B where the standard deviation of the d(rNO)/dT slopes is correlated with the m-values and ∆G0unf values obtained for the three proteins from equilibrium unfolding experiments (Table 1). Studies of the temperature dependence of H-bond h3JNC couplings were performed for the additional protein GB3 [30] but are not included in Figure 4 because data for the couplings of individual H-bonds were not available. Nevertheless, the range of d(h3JNC)/dT slopes between 0.001 and −0.0003 Hz/K for GB3 [30] is very similar to those for ubiquitin [29]. The GB3 protein has a similar fold to ubiquitin [46], and a high thermal stability estimated to be ≥90 °C [47,48]. Therefore, the data for GB3 also qualitatively support that d(rNO)/dT slopes are more uniform for stable proteins.
The m-value is a descriptor of the slope or steepness of the unfolding transition [53,54,55]. There are two interpretations of the m-value. The first is that it describes the change in solvent accessible surface area (∆ASA) between the folded and unfolded state [53,54]. The second interpretation, which we favor to explain the variance in d(rNO)/dT H-bond slopes, is that the m-value describes the cooperativity of the unfolding transition [55,56]. The two interpretations are largely equivalent, in as much as cooperative all-or-none unfolding transitions lead to a large change in accessible surface area whereas non-cooperative partial unfolding leads to a smaller change in accessible surface area. The variance in d(rNO)/dT H-bond slopes is also correlated with ∆G0unf, the change in the Gibbs free energy for unfolding measured in equilibrium denaturation experiments that describes the stability of the folded compared to the unfolded state. It is well established that ∆G0unf and the m-value for unfolding are often correlated [50,54]. The ∆G0unf and m-values are also correlated for the four proteins considered in Table 1 and Figure 4 (R-value = 0.991, p = 0.0088). The m-values tend to be small for poorly structured proteins such as molten globules, and large for stable proteins [55,57].
The correlation between increased variability in H-bond d(rNO)/dT slopes and lower m-values (Figure 4B) is consistent with the interpretation of the latter in terms of cooperativity. For the highly cooperative and stable protein ubiquitin, all H-bonds show nearly the same small 5 × 10−4 Å/K expansion that coincides with the value for the thermal volume expansion of the protein. For the least stable proteins, CUS-3 and HlyIIC, with the smallest m-values indicative of diminished unfolding cooperativity, the range of d(rNO)/dT slopes is about 10-fold larger and includes an increasing proportion of H-bonds with negative slopes, shown in green in Figure 3. Most of the H-bonds with negative d(rNO)/dT slopes occur in irregular structures, or at the edges of secondary structure elements. In the HlyIIC β-sheet, H-bonds with negative d(rNO)/dT slopes are segregated largely to strands β5–β3–β4 while strands β1–β2 have H-bonds that are invariant or have positive slopes (Figure S1). Based on hydrogen exchange data, the two sheets in HlyIIC have properties of independent folding subdomains, with the β5-β3-β4 sheet being more stable to exchange than β1–β2 [19]. In the β-barrel of CUS-3i, the H-bonds with negative d(rNO)/dT slopes are segregated to specific β-strand pairings between strands β2–β4–β5 and between strands β3–β6 (Figure S2). The segment β2–β4–β5 in CUS-3i behaves as an autonomously folding subdomain under acid denaturing conditions, retaining β-sheet structure while the rest of the protein is unfolded (A.T.A, unpublished observations). Taken together, these observations suggest that H-bonds with negative d(rNO)/dT slopes occur in protein subdomains that have enhanced stability to unfolding.
Residues with negative d(rNO)/dT slopes tend to correspond to some of the shortest H-bonds in the proteins HlyIIC, CUS-3i, and P22i (green in Figure 3). This suggests that the H-bonds are energetically favorable but opposed by strain, arising from the remainder of non-covalent interactions stabilizing the structure. In weekly cooperative proteins, as the structure becomes increasingly dynamic at higher temperature, the strain due to rigid sidechain packing could become abated, allowing some of the H-bonds to move towards their energetic optimum. In contrast, in a highly cooperative stable system like ubiquitin, nearly all H-bonds experience the same increase driven by thermal expansion, with the few exceptions of H-bonds in the β-strand near the N-terminus that are invariant or become more stable at higher temperature [29].
The H-bonds may not be undergoing changes in length with temperature but changes in the ratio of conformers that have the H-bonds formed or broken. These conformers are in fast exchange on the NMR timescale, so that the measured h3JNC′ coupling will be a population-weighted average. When the α-helical structure of the RNaseA S-peptide is stabilized by increasing concentrations of the kosmotropic solvent TFE, the h3JNC′ coupling constants show apparent increases suggestive of decreasing H-bond distances [27]. However, circular dichroism (CD) ellipticity becomes more negative [58] and the NMR Cα secondary chemical shifts increase [27]. Both observations are more consistent with an increasing fraction of molecules adopting H-bonded α-helical conformers than with a shortening of pre-existing H-bonds. Similarly, in proteins with low m-values indicative of reduced unfolding cooperativity, the responses of H-bonds to changes in temperature would be more varied if the populations of individual sub-structures become uncoupled from the unfolding of the overall global structure. Our conclusions for this work are tempered by the fact that the number of proteins for which data are available is currently small. Future studies on the temperature dependence of H-bonds as well as other NMR variables such as mainchain S2-order parameters [59,60] should clarify how temperature effects depend on the cooperativity of protein structure.

3. Materials and Methods

3.1. Samples

Double-labeled 13C/15N and triple-labeled 13C/15N/2H samples of wild-type HlyIIC [19], P22i [61], and CUS-3i [62] were prepared as described previously. For long-range HNCO experiments to measure H-bonds, triple-labeled 13C/15N/2H proteins in 90% H2O/10% D2O were used with the following sample conditions: 1.0 mM HlyIIC in 20 mM NaH2PO4 with 1 mM EDTA and 1 mM PMSF at pH 6.6; 1.7 mM P22i in 20 mM NaH2PO4 at pH 6.1; and 1.6 mM CUS-3i in 20 mM NaH2PO4 at pH 6.3. For sidechain–HCACO experiments to obtain Asp/Asn and Glu/Gln assignments, double-labeled 13C/15N samples were lyophilized and re-dissolved in 99.96% D2O with the following sample conditions: 1 mM HlyIIC at pH* 6.0, 3.8 mM P22i at pH* 6.1, and 0.7 mM CUS-3i at pH* 6.3, where pH* is the pH measured in D2O with a glass pH electrode.

3.2. NMR Data Acquisition and Analysis

Experiments were performed on 600 MHz Bruker Avance and 600 MHz Varian Inova spectrometers, both equipped with cryogenic probes. For the Bruker instrument (Bruker, Billerica, MA, USA), we modified the BEST TROSY HNCO H-bond experiment [63] from the Bruker IBS library (pulse sequence BT_HNCO_hbonds) to work on Topsin v. 2.1. At each temperature, we obtained long-range HNCO (d23 = 66 ms) and reference HNCO (d24 = 16.5 ms) versions of the experiments to quantify h3JNC′ couplings [9,25,27]. For HlyIIC, we recorded 3D spectra on the Bruker 600 MHz spectrometer at temperatures of 285, 290, 295, 301, and 307 °K, with 32(t1,C’) × 16(t2,N) × 1024(t3,H) complex points and acquisition times of 13, 9, and 114 ms in the t1, t2, and t3 dimensions. Total experiment times were on the order of 46 and 4 h for the H-bond and reference spectra, respectively. For CUS-3i, we recorded 3D spectra on the Bruker 600 MHz spectrometer at temperatures of 274, 286, 295, 298, and 305 °K, with 64(t1,C) × 16(t2,N) × 1024(t3,H) complex points and acquisition times of 26, 10, and 107 ms in the t1, t2, and t3 dimensions. Total experiment times were about 54 and 8 h for each of the H-bond and reference spectra, respectively. Since P22i had the best dispersion of the three proteins, we recorded 2D versions of the TROSY-HNCO experiment (pulse sequence best_trosy_hbonds) on the Varian 600 MHz spectrometer (Palo Alto, CA, USA) at temperatures of 274, 282, 290, 298, 307, and 314 °K. For the reference experiment, we modified the Varian best_trosy_hbonds pulse sequence to shift the 13C′ 180° pulses by 16.5 ms with respect to the 15N 180° pulses in the INEPT steps as described in the literature [9]. The 2D data sets on P22i were recorded with 64 (t1,C) × 512 (t2,H) complex points with acquisition times of 14 (t1) and 107 ms (t2). Total acquisition times were 11 h for the H-bond and 1 h for the reference experiments. NMR sample temperatures were calibrated using 100% methanol (T < 300 °K) and 100% ethylene glycol (T ≥ 300 °K) standards, as described in the Bruker VT-calibration manual.
Sidechain carbonyl and amide resonances were assigned from 3D HNCO and HCACO experiments. The 3D HCACO experiment (Bruker pulse sequence hcacogp3d) was modified for sidechains as described in the literature [40]; namely, the aliphatic 13C center was placed at ~39 ppm and the carbonyl 13C center at ~177 ppm, and the delay 1/[4(JHC)] (called d4 in the hcacogp3d pulse sequence) was set to 1.8 ms for methylene protons rather than 3.3 ms in the standard experiment. The 3D HCACO spectrum for HlyIIC was recorded at a sample temperature of 37 °C on a 500 MHz instrument with 50(t1,C) × 32(t2,C′) × 1024(t3,H) complex points, and acquisition times of 20, 12, and 122 ms in the t1, t2, and t3 dimensions, respectively. The total acquisition time was 34 h. The 3D HCACO spectrum for CUS-3i was recorded at a temperature of 25 °C on a 500 MHz Bruker magnet with 16(t1,C) × 11(t2,C′) × 1024(t3,H) complex points, and acquisition times of 4 (t1), 3 (t2), and 157 (t3) ms; the total was 30 h. The 3D HCACO for P22i was at 37 °C on a 600 Bruker MHz spectrometer with 48(t1,C) × 32(t2,C′) × 1024(t3,H) complex points, and acquisition times of 29 (t1), 13 (t2), and 122 (t3) ms; the total was 64 h.
NMR spectra were processed with iNMR v. 6.3 (Mestrelab Research, Santiago de Compostela, Spain) and analyzed with CcpNmr Analysis v. 2.5.2 [64]. Published assignments were used to analyze the NMR data for cis HlyIIC (BMRB 19461), trans HlyIIC (BMRB 19462), CUS-3i (BMRB 25263), and P22i (BMRB 18566).
h3JNC′ coupling constants were calculated according to Equation (1). To estimate uncertainties in h3JNC′ values, experiments were replicated on two separate samples at one temperature for each protein: HlyIIC (307 °K), CUS-3i (298 °K), and P22i (307 °K). The RMS differences between the duplicate h3JNC′ values were 0.10, 0.06, and 0.04 Hz for HlyIIC, CUS-3i, and P22i, respectively. H-bond distances were calculated using the empirical relationship (Equation (2)) established by Bax and co-workers [24].

3.3. Structure Analysis

To correlate NMR with structural parameters, we used the segment corresponding to CUS-3i (chain A of the asymmetric unit, residues 223–337) from the 2.8 Å-resolution cryoEM structure of phage CUS-3 (Richard Whitehead, Carolyn Teschke, and A.T.A, in preparation; PDB accession code 8SKG, coordinates are available from the corresponding author until release). For P22i, we used the 3.3 Å-resolution cryoEM structure of phage P22 (PDB 5UU5, chain E of asymmetric unit, residues 223–345 [43]), and the 2.6 Å-resolution cryoEM structure of phage P22 (PDB 8I1V, chain A of asymmetric unit, residues 223–345 [42]). Interatomic distances were calculated with the “get_distance” command of PyMol v. 2.5.5 (Schrödinger software, New York, NY, USA). H-bonds were calculated with the program HBPLUS v. 3.06 [65].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29132950/s1. Tables S1–S3: sidechain carbonyl NMR assignments; Tables S4 and S5: 3hJNC′ and 3JNCγ couplings at various temperatures; Tables S6 and S7: temperature dependences of H-bond lengths; Tables S8 and S9: comparisons between NMR and cryoEM H-bonds in CUS-3i and P22i. Figures S1 and S2: schematics illustrating H-bonds and their temperature dependence in the β-sheets of HlyIIC, CUS-3i and P22i.

Author Contributions

Conceptualization, A.T.A.; methodology, A.T.A. and A.J.D.; formal analysis, A.T.A.; resources, A.T.A.; writing—original draft preparation, A.T.A.; writing—reviewing and editing, A.T.A. and A.J.D. All authors have read and agreed to the published version of the manuscript.

Funding

The NMR experiments used equipment at the MIT–Harvard Center for Magnetic Resonance, which is supported by the P41 grant GM132079. M.H. is partially supported by NIH grant AG059661. A.J.D. was partially supported by an NIH fellowship, F31AG069418.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in article and Supplementary Materials.

Acknowledgments

We thank Richard Whitehead III and Carol Teschke for the coordinates of the cryoEM CUS-3 phage structure. We thank Anne Kaplan and Rich Olson for samples of HlyIIC, and Carol Teschke and Therese Tripler for samples of CUS-3i and P22i. A.T.A. thanks Mei Hong and the Hong lab for the use of their solution 600 MHz instrument during his sabbatical.

Conflicts of Interest

The authors declare no potential conflicts of interest.

Abbreviations

2D and 3D, two- and three-dimensional; cryoEM, cryogenic electron microscopy; CUS-3i, insertion domain from the coat protein of phage CUS-3; FID, free induction decay; H-bond, hydrogen bond; HlyIIC, hemolysin II C-terminal domain; INEPT, insensitive nuclei enhancement by polarization transfer; lrHNCO, long-range HNCO experiment; NMR, nuclear magnetic resonance; P22i, insertion domain from the coat protein of phage P22; RMS, root-mean-square; RMSD, root-mean-square deviation; TFE, trifluoroethanol; TROSY, transverse relaxation optimized spectroscopy.

References

  1. Branden, C.; Tooze, J. Introduction to Protein Structure, 2nd ed.; Garland Science: New York, NY, USA, 1998. [Google Scholar]
  2. Pauling, L. The hydrogen bond. In The Nature of the Chemical Bond, 3rd ed.; Pauling, L., Ed.; Cornell University Press: New York, NY, USA, 1960; pp. 449–504. [Google Scholar]
  3. Martin, T.W.; Derewenda, Z.S. The name is bond—H bond. Nat. Struct. Biol. 1999, 6, 403–406. [Google Scholar] [CrossRef]
  4. Pace, C.N.; Fu, H.; Lee Fryar, K.; Landua, J.; Trevino, S.R.; Schell, D.; Thurlkill, R.L.; Imura, S.; Scholtz, J.M.; Gajiwala, K.; et al. Contribution of hydrogen bonds to protein stability. Protein Sci. 2014, 23, 652–661. [Google Scholar] [CrossRef]
  5. Boresch, S.; Archontis, G.; Karplus, M. Free energy simulations: The meaning of the individual contributions from a component analysis. Proteins 1994, 20, 25–33. [Google Scholar] [CrossRef]
  6. Brady, G.P.; Szabo, A.; Sharp, K.A. On the decomposition of free energies. J. Mol. Biol. 1996, 263, 123–125. [Google Scholar] [CrossRef]
  7. Mark, A.E.; van Gunsteren, W.F. Decomposition of the free energy of a system in terms of specific interactions. Implications for theoretical and experimental studies. J. Mol. Biol. 1994, 240, 167–176. [Google Scholar] [CrossRef]
  8. Pauling, L. The Shared-Electron Chemical Bond. Proc. Natl. Acad. Sci. USA 1928, 14, 359–362. [Google Scholar] [CrossRef]
  9. Cordier, F.; Grzesiek, S. Direct observation of hydrogen bonds in proteins by interresidue 3HJNC’ scalar couplings. J. Am. Chem. Soc. 1999, 121, 1601–1602. [Google Scholar] [CrossRef]
  10. Cordier, F.; Rogowski, M.; Grzesiek, S.; Bax, A. Observation of through-hydrogen-bond 2hJHC’ in a perdeuterated protein. J. Magn. Reson. 1999, 140, 510–512. [Google Scholar] [CrossRef]
  11. Cornilescu, G.; Hu, J.S.; Bax, A. Identification of the hydrogen bonding network in a protein by scalar couplings. J. Am. Chem. Soc. 1999, 121, 2949–2950. [Google Scholar] [CrossRef]
  12. Dingley, A.J.; Grzesiek, S. Direct Observation of Hydrogen Bonds in Nucleic Acid Base Pairs by Internucleotide 2JNN Couplings. J. Am. Chem. Soc. 1998, 120, 8293–8297. [Google Scholar] [CrossRef]
  13. Grzesiek, S.; Cordier, F.; Jaravine, V.A.; Barfield, M. Insights into biomolecular hydrogen bonds from hydrogen bond scalar couplings. Prog. Nucl. Magn. Reson. Spectrosc. 2004, 45, 275–300. [Google Scholar] [CrossRef]
  14. Pervushin, K.; Ono, A.; Fernandez, C.; Szyperski, T.; Kainosho, M.; Wuthrich, K. NMR scalar couplings across Watson-Crick base pair hydrogen bonds in DNA observed by transverse relaxation-optimized spectroscopy. Proc. Natl. Acad. Sci. USA 1998, 95, 14147–14151. [Google Scholar] [CrossRef] [PubMed]
  15. Isaacs, E.D.; Shukla, A.; Platzman, P.M.; Hamann, D.R.; Barbiellini, B.; Tulk, C.A. Covalency of the Hydrogen Bond in Ice: A Direct X-ray Measurement. Phys. Rev. Lett. 1999, 82, 600–603. [Google Scholar] [CrossRef]
  16. Englander, S.W.; Sosnick, T.R.; Englander, J.J.; Mayne, L. Mechanisms and uses of hydrogen exchange. Curr. Opin. Struct. Biol. 1996, 6, 18–23. [Google Scholar] [CrossRef] [PubMed]
  17. Alexandrescu, A.T. Strategy for supplementing structure calculations using limited data with hydrophobic distance restraints. Proteins 2004, 56, 117–129. [Google Scholar] [CrossRef] [PubMed]
  18. Sheftic, S.R.; Garcia, P.P.; White, E.; Robinson, V.L.; Gage, D.J.; Alexandrescu, A.T. Nuclear magnetic resonance structure and dynamics of the response regulator Sma0114 from Sinorhizobium meliloti. Biochemistry 2012, 51, 6932–6941. [Google Scholar] [CrossRef] [PubMed]
  19. Kaplan, A.R.; Kaus, K.; De, S.; Olson, R.; Alexandrescu, A.T. NMR structure of the Bacillus cereus hemolysin II C-terminal domain reveals a novel fold. Sci. Rep. 2017, 7, 3277. [Google Scholar] [CrossRef] [PubMed]
  20. Newcomer, R.L.; Schrad, J.R.; Gilcrease, E.B.; Casjens, S.R.; Feig, M.; Teschke, C.M.; Alexandrescu, A.T.; Parent, K.N. The phage L capsid decoration protein has a novel OB-fold and an unusual capsid binding strategy. Elife 2019, 8, e45345. [Google Scholar] [CrossRef] [PubMed]
  21. Tripler, T.N.; Kaplan, A.R.; Alexandrescu, A.T.; Teschke, C.M. Conservation and Divergence of the I-Domain Inserted into the Ubiquitous HK97 Coat Protein Fold in P22-Like Bacteriophages. J. Virol. 2019, 93, e00007-19. [Google Scholar] [CrossRef]
  22. Kanelis, V.; Rotin, D.; Forman-Kay, J.D. Solution structure of a Nedd4 WW domain-ENaC peptide complex. Nat. Struct. Biol. 2001, 8, 407–412. [Google Scholar] [CrossRef]
  23. Jee, J.G.; Ikegami, T.; Hashimoto, M.; Kawabata, T.; Ikeguchi, M.; Watanabe, T.; Shirakawa, M. Solution structure of the fibronectin type III domain from Bacillus circulans WL-12 chitinase A1. J. Biol. Chem. 2002, 277, 1388–1397. [Google Scholar] [CrossRef]
  24. Cornilescu, G.; Ramirez, B.E.; Frank, M.K.; Clore, G.M.; Gronenborn, A.M.; Bax, A. Correlation between 3hJNC’ and hydrogen-bond length in proteins. J. Am. Chem. Soc. 1999, 121, 6275–6279. [Google Scholar] [CrossRef]
  25. Alexandrescu, A.T.; Snyder, D.R.; Abildgaard, F. NMR of hydrogen bonding in cold-shock protein A and an analysis of the influence of crystallographic resolution on comparisons of hydrogen bond lengths. Protein Sci. 2001, 10, 1856–1868. [Google Scholar] [CrossRef]
  26. Li, H.; Yamada, H.; Akasaka, K.; Gronenborn, A.M. Pressure alters electronic orbital overlap in hydrogen bonds. J. Biomol. NMR 2000, 18, 207–216. [Google Scholar] [CrossRef]
  27. Jaravine, V.A.; Alexandrescu, A.T.; Grzesiek, S. Observation of the closing of individual hydrogen bonds during TFE-induced helix formation in a peptide. Protein Sci. 2001, 10, 943–950. [Google Scholar] [CrossRef] [PubMed]
  28. Cordier, F.; Wang, C.; Grzesiek, S.; Nicholson, L.K. Ligand-induced strain in hydrogen bonds of the c-Src SH3 domain detected by NMR. J. Mol. Biol. 2000, 304, 497–505. [Google Scholar] [CrossRef]
  29. Cordier, F.; Grzesiek, S. Temperature-dependence of protein hydrogen bond properties as studied by high-resolution NMR. J. Mol. Biol. 2002, 317, 739–752. [Google Scholar] [CrossRef] [PubMed]
  30. Hong, J.; Jing, Q.; Yao, L. The protein amide (1)H(N) chemical shift temperature coefficient reflects thermal expansion of the N-H...O=C hydrogen bond. J. Biomol. NMR 2013, 55, 71–78. [Google Scholar] [CrossRef]
  31. Kaplan, A.R.; Olson, R.; Alexandrescu, A.T. Protein yoga: Conformational versatility of the Hemolysin II C-terminal domain detailed by NMR structures for multiple states. Protein Sci. 2021, 30, 990–1005. [Google Scholar] [CrossRef] [PubMed]
  32. Rizzo, A.A.; Suhanovsky, M.M.; Baker, M.L.; Fraser, L.C.; Jones, L.M.; Rempel, D.L.; Gross, M.L.; Chiu, W.; Alexandrescu, A.T.; Teschke, C.M. Multiple functional roles of the accessory I-domain of bacteriophage P22 coat protein revealed by NMR structure and CryoEM modeling. Structure 2014, 22, 830–841. [Google Scholar] [CrossRef]
  33. Juranic, N.; Ilich, P.K.; Macura, S. Hydrogen Bonding Networks in Proteins As Revealed by the Amide 1JNC’ Coupling Constant. J. Am. Chem. Soc. 1995, 117, 405–410. [Google Scholar] [CrossRef]
  34. Kay, L.E.; Ikura, M.; Tschudin, R.; Bax, A. Three-dimensional triple-resonance NMR Spectroscopy of isotopically enriched proteins. 1990. J. Magn. Reson. 2011, 213, 423–441. [Google Scholar] [CrossRef]
  35. Juranic, N.; Moncrieffe, M.C.; Likic, V.A.; Prendergast, F.G.; Macura, S. Structural dependencies of h3JNC’ scalar coupling in protein H-bond chains. J. Am. Chem. Soc. 2002, 124, 14221–14226. [Google Scholar] [CrossRef] [PubMed]
  36. Juranic, N.; Macura, S. Correlations among (1)J(NC)’ and (h3)J(NC)’ coupling constants in the hydrogen-bonding network of human ubiquitin. J. Am. Chem. Soc. 2001, 123, 4099–4100. [Google Scholar] [CrossRef]
  37. Juranic, N.; Dannenberg, J.J.; Cornilescu, G.; Salvador, P.; Atanasova, E.; Ahn, H.C.; Macura, S.; Markley, J.L.; Prendergast, F.G. Structural dependencies of protein backbone 2JNC’ couplings. Protein Sci. 2008, 17, 768–776. [Google Scholar] [CrossRef]
  38. Benirschke, R.C.; Thompson, J.R.; Nomine, Y.; Wasielewski, E.; Juranic, N.; Macura, S.; Hatakeyama, S.; Nakayama, K.I.; Botuyan, M.V.; Mer, G. Molecular basis for the association of human E4B U box ubiquitin ligase with E2-conjugating enzymes UbcH5c and Ubc4. Structure 2010, 18, 955–965. [Google Scholar] [CrossRef]
  39. Juranic, N.; Atanasova, E.; Moncrieffe, M.C.; Prendergast, F.G.; Macura, S. Calcium-binding proteins afford calibration of dihedral-angle dependence of 3J(NC(gamma)) coupling constant in aspartate and asparagine residues. J. Magn. Reson. 2005, 175, 222–225. [Google Scholar] [CrossRef]
  40. Yamazaki, T.; Nicholson, L.K.; Torchia, D.A.; Wingfield, P.; Stahl, S.J.; Kaufman, J.D.; Eyermann, C.J.; Hodge, C.N.; Lam, P.Y.S.; Ru, Y.; et al. NMR and X-ray evidence that the HFV protease catalytic aspartyl groups are protonated in the complex formed by the protease and a non-peptide cyclic urea-based inhibitor. J. Am. Chem. Soc. 1994, 116, 10791–10792. [Google Scholar] [CrossRef]
  41. Wood, P.A.; Allen, F.H.; Pidock, E. Hydrogen-bond directionality at the donor H atom—Analysis of interaction energies and database statistics. CrystEngComm 2009, 11, 1563–1571. [Google Scholar] [CrossRef]
  42. Xiao, H.; Zhou, J.; Yang, F.; Liu, Z.; Song, J.; Chen, W.; Liu, H.; Cheng, L. Assembly and Capsid Expansion Mechanism of Bacteriophage P22 Revealed by High-Resolution Cryo-EM Structures. Viruses 2023, 15, 355. [Google Scholar] [CrossRef]
  43. Hryc, C.F.; Chen, D.H.; Afonine, P.V.; Jakana, J.; Wang, Z.; Haase-Pettingell, C.; Jiang, W.; Adams, P.D.; King, J.A.; Schmid, M.F.; et al. Accurate model annotation of a near-atomic resolution cryo-EM map. Proc. Natl. Acad. Sci. USA 2017, 114, 3103–3108. [Google Scholar] [CrossRef] [PubMed]
  44. Weissenberger, G.; Henderikx, R.J.M.; Peters, P.J. Understanding the invisible hands of sample preparation for cryo-EM. Nat. Methods 2021, 18, 463–471. [Google Scholar] [CrossRef] [PubMed]
  45. Kaplan, A.R.; Maciejewski, M.W.; Olson, R.; Alexandrescu, A.T. NMR assignments for the cis and trans forms of the hemolysin II C-terminal domain. Biomol. NMR Assign. 2014, 8, 419–423. [Google Scholar] [CrossRef] [PubMed]
  46. Kraulis, P.J. Similarity of protein G and ubiquitin. Science 1991, 254, 581–582. [Google Scholar] [CrossRef] [PubMed]
  47. Alexander, P.; Fahnestock, S.; Lee, T.; Orban, J.; Bryan, P. Thermodynamic analysis of the folding of the streptococcal protein G IgG-binding domains B1 and B2: Why small proteins tend to have high denaturation temperatures. Biochemistry 1992, 31, 3597–3603. [Google Scholar] [CrossRef] [PubMed]
  48. Granata, D.; Camilloni, C.; Vendruscolo, M.; Laio, A. Characterization of the free-energy landscapes of proteins by NMR-guided metadynamics. Proc. Natl. Acad. Sci. USA 2013, 110, 6817–6822. [Google Scholar] [CrossRef]
  49. Tripler, T.N. Conservation and Divergence between P22-like Bacteriophages Coat Protein’s I-domains and Procapsid-like Particles. Doctoral Dissertation, University of Connecticut, Storrs, CT, USA, 2019. [Google Scholar]
  50. Newcomer, R.L.; Fraser, L.C.R.; Teschke, C.M.; Alexandrescu, A.T. Mechanism of Protein Denaturation: Partial Unfolding of the P22 Coat Protein I-Domain by Urea Binding. Biophys. J. 2015, 109, 2666–2677. [Google Scholar] [CrossRef]
  51. Surana, P.; Das, R. Observing a late folding intermediate of Ubiquitin at atomic resolution by NMR. Protein Sci. 2016, 25, 1438–1450. [Google Scholar] [CrossRef]
  52. Wintrode, P.L.; Makhatadze, G.I.; Privalov, P.L. Thermodynamics of ubiquitin unfolding. Proteins 1994, 18, 246–253. [Google Scholar] [CrossRef]
  53. Myers, J.K.; Pace, C.N.; Scholtz, J.M. Denaturant m values and heat capacity changes: Relation to changes in accessible surface areas of protein unfolding. Protein Sci. 1995, 4, 2138–2148. [Google Scholar] [CrossRef]
  54. Shortle, D. Staphylococcal nuclease: A showcase of m-value effects. Adv. Protein Chem. 1995, 46, 217–247. [Google Scholar] [PubMed]
  55. Alexandrescu, A.T.; Jaravine, V.A.; Dames, S.A.; Lamour, F.P. NMR hydrogen exchange of the OB-fold protein LysN as a function of denaturant: The most conserved elements of structure are the most stable to unfolding. J. Mol. Biol. 1999, 289, 1041–1054. [Google Scholar] [CrossRef] [PubMed]
  56. Carra, J.H.; Privalov, P.L. Thermodynamics of denaturation of staphylococcal nuclease mutants: An intermediate state in protein folding. FASEB J. 1996, 10, 67–74. [Google Scholar] [CrossRef] [PubMed]
  57. Smith, L.J.; Alexandrescu, A.T.; Pitkeathly, M.; Dobson, C.M. Solution structure of a peptide fragment of human alpha-lactalbumin in trifluoroethanol: A model for local structure in the molten globule. Structure 1994, 2, 703–712. [Google Scholar] [CrossRef] [PubMed]
  58. Nelson, J.W.; Kallenbach, N.R. Stabilization of the ribonuclease S-peptide alpha-helix by trifluoroethanol. Proteins 1986, 1, 211–217. [Google Scholar] [CrossRef] [PubMed]
  59. Mandel, A.M.; Akke, M.; Palmer, A.G., 3rd. Dynamics of ribonuclease H: Temperature dependence of motions on multiple time scales. Biochemistry 1996, 35, 16009–16023. [Google Scholar] [CrossRef] [PubMed]
  60. Vugmeyster, L.; Trott, O.; McKnight, C.J.; Raleigh, D.P.; Palmer, A.G., 3rd. Temperature-dependent dynamics of the villin headpiece helical subdomain, an unusually small thermostable protein. J. Mol. Biol. 2002, 320, 841–854. [Google Scholar] [CrossRef] [PubMed]
  61. Rizzo, A.A.; Fraser, L.C.; Sheftic, S.R.; Suhanovsky, M.M.; Teschke, C.M.; Alexandrescu, A.T. NMR assignments for the telokin-like domain of bacteriophage P22 coat protein. Biomol. NMR Assign. 2013, 7, 257–260. [Google Scholar] [CrossRef] [PubMed]
  62. Tripler, T.N.; Maciejewski, M.W.; Teschke, C.M.; Alexandrescu, A.T. NMR assignments for the insertion domain of bacteriophage CUS-3 coat protein. Biomol. NMR Assign. 2015, 9, 333–336. [Google Scholar] [CrossRef]
  63. Favier, A.; Brutscher, B. Recovering lost magnetization: Polarization enhancement in biomolecular NMR. J. Biomol. NMR 2011, 49, 9–15. [Google Scholar] [CrossRef]
  64. Vranken, W.F.; Boucher, W.; Stevens, T.J.; Fogh, R.H.; Pajon, A.; Llinas, M.; Ulrich, E.L.; Markley, J.L.; Ionides, J.; Laue, E.D. The CCPN data model for NMR spectroscopy: Development of a software pipeline. Proteins 2005, 59, 687–696. [Google Scholar] [CrossRef] [PubMed]
  65. McDonald, I.K.; Thornton, J.M. Satisfying hydrogen bonding potential in proteins. J. Mol. Biol. 1994, 238, 777–793. [Google Scholar] [CrossRef] [PubMed]
Molecules 29 02950 g001

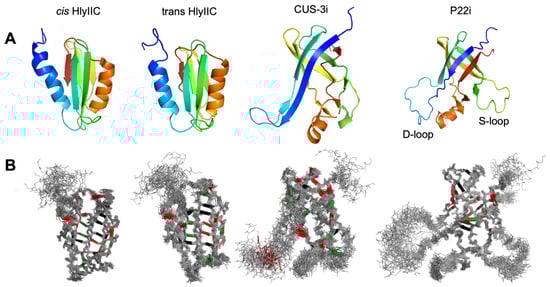

Figure 1. Solution structures of the four protein states studied in this work. (A) Cartoons of the NMR conformer closest to the ensemble average, shown with a color ramp from the N (blue) to the C-terminus (red). For HlyIIC, the largest difference between the cis and trans structures [31] is in the loop between helix α2 (orange) and strand β5 (red). The D- and S-loops in the P22i structure are dynamically disordered [32]. In Cus3i, the segment corresponding to the P22i loop becomes structured to form an extension of the β1–β2 hairpin [21]. (B) NMR backbone ensembles of the four proteins. Backbone H-bonds studied in this work are indicated by dotted lines. The color coding signifies changes in H-bond lengths with increasing temperature, red—increase, black—unchanged, and green—decrease. For clarity, additional depictions of H-bonds in the β-sheets of the proteins and their temperature dependencies are shown in Figures S1 and S2.
Figure 1. Solution structures of the four protein states studied in this work. (A) Cartoons of the NMR conformer closest to the ensemble average, shown with a color ramp from the N (blue) to the C-terminus (red). For HlyIIC, the largest difference between the cis and trans structures [31] is in the loop between helix α2 (orange) and strand β5 (red). The D- and S-loops in the P22i structure are dynamically disordered [32]. In Cus3i, the segment corresponding to the P22i loop becomes structured to form an extension of the β1–β2 hairpin [21]. (B) NMR backbone ensembles of the four proteins. Backbone H-bonds studied in this work are indicated by dotted lines. The color coding signifies changes in H-bond lengths with increasing temperature, red—increase, black—unchanged, and green—decrease. For clarity, additional depictions of H-bonds in the β-sheets of the proteins and their temperature dependencies are shown in Figures S1 and S2.
Molecules 29 02950 g001
Molecules 29 02950 g002

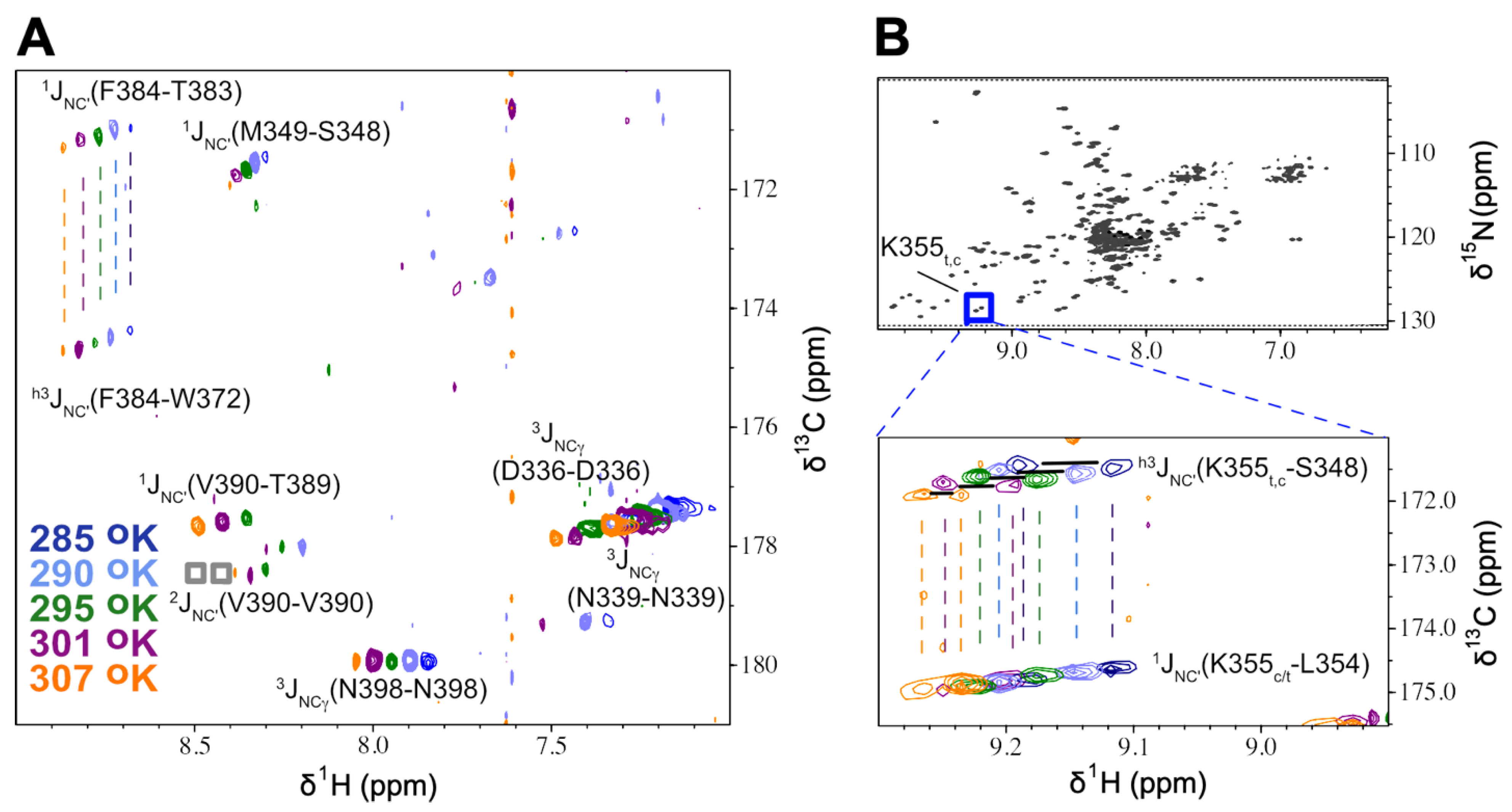

Figure 2. Superposed 15N planes from lrHNCO spectra for HlyIIC at five temperatures. (A) The 15N plane at 116.6 ppm illustrating the various types of correlations observed: 1JNC′, h3JNC′, and 3JNCγ. Two weak intraresidue 2JNC′ crosspeaks are also present in this plane but at contour levels lower than shown (gray boxes near 8.5 ppm). (B) 1H-15N HSQC of HlyIIC highlighting crosspeaks due to trans (left crosspeaks in each pair) and cis (right crosspeaks in each pair) signals from residue K355. The expansion shows superpositions of 3D lrHNCO and reference HNCO planes at 15N 128.4 ppm for five different temperatures, using the same coloring scheme for contour levels as in (A). At each temperature, a pair of 1HN resonances is observed, making it possible to investigate the temperature dependence of h3JNC′ couplings for K355 in both the cis and trans states. There were ten residues in HlyIIC for which separate mainchain h3JNC′ couplings could be resolved from the cis and trans states and fifteen for which NMR signals from the two conformations were unresolved (Tables S4 and S6).
Figure 2. Superposed 15N planes from lrHNCO spectra for HlyIIC at five temperatures. (A) The 15N plane at 116.6 ppm illustrating the various types of correlations observed: 1JNC′, h3JNC′, and 3JNCγ. Two weak intraresidue 2JNC′ crosspeaks are also present in this plane but at contour levels lower than shown (gray boxes near 8.5 ppm). (B) 1H-15N HSQC of HlyIIC highlighting crosspeaks due to trans (left crosspeaks in each pair) and cis (right crosspeaks in each pair) signals from residue K355. The expansion shows superpositions of 3D lrHNCO and reference HNCO planes at 15N 128.4 ppm for five different temperatures, using the same coloring scheme for contour levels as in (A). At each temperature, a pair of 1HN resonances is observed, making it possible to investigate the temperature dependence of h3JNC′ couplings for K355 in both the cis and trans states. There were ten residues in HlyIIC for which separate mainchain h3JNC′ couplings could be resolved from the cis and trans states and fifteen for which NMR signals from the two conformations were unresolved (Tables S4 and S6).
Molecules 29 02950 g002
Molecules 29 02950 g003

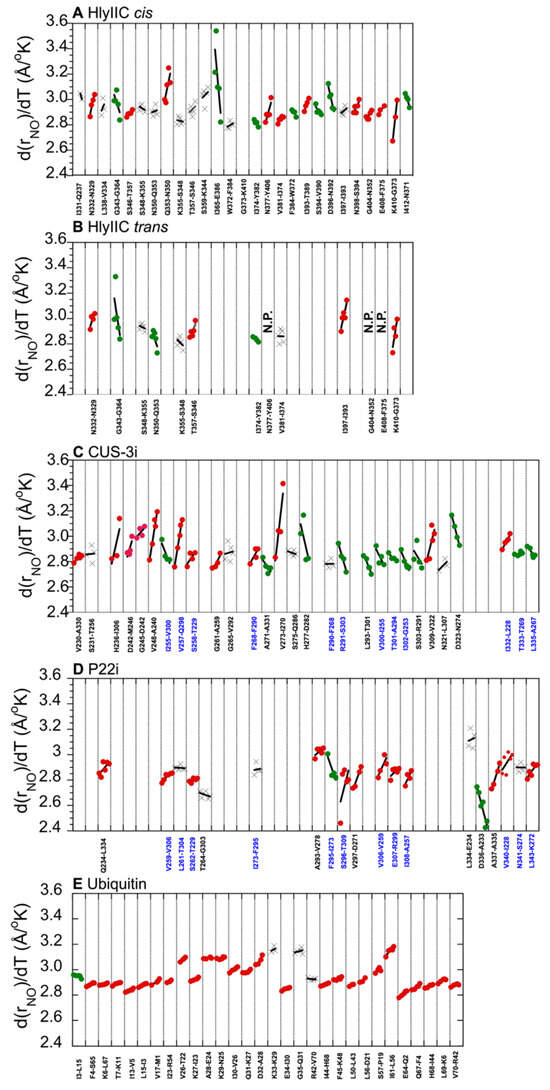

Figure 3. Temperature dependence of mainchain H-bond distances derived from h3JNC′ couplings. (A) HlyIIC cis state (left to right: 285, 290, 295, 301, 307 °K), (B) HlyIIC trans state (same temperatures as cis), (C) CUS-3i (274, 286, 295, 298, 305 °K), (D) P22i (274, 282, 290, 298, 307, 314 °K), (E) ubiquitin (278, 298, 318, 328, 338 °K). The data for ubiquitin are derived from a previously published paper [29]. Each H-bond is labeled as donor (N)–acceptor (O). H-bonds that show an increase with temperature, decrease, or no change within uncertainty are shown with red, green, and gray “X” symbols, respectively. Linear fits are shown for all H-bonds but in some cases the lines are obscured by the data points. For Cus3i and P22i, H-bonds labeled as blue are structurally equivalent after the superposition of the structures. N.P. indicates three H-bonds that are present in the cis but not trans state of HlyIIC.
Figure 3. Temperature dependence of mainchain H-bond distances derived from h3JNC′ couplings. (A) HlyIIC cis state (left to right: 285, 290, 295, 301, 307 °K), (B) HlyIIC trans state (same temperatures as cis), (C) CUS-3i (274, 286, 295, 298, 305 °K), (D) P22i (274, 282, 290, 298, 307, 314 °K), (E) ubiquitin (278, 298, 318, 328, 338 °K). The data for ubiquitin are derived from a previously published paper [29]. Each H-bond is labeled as donor (N)–acceptor (O). H-bonds that show an increase with temperature, decrease, or no change within uncertainty are shown with red, green, and gray “X” symbols, respectively. Linear fits are shown for all H-bonds but in some cases the lines are obscured by the data points. For Cus3i and P22i, H-bonds labeled as blue are structurally equivalent after the superposition of the structures. N.P. indicates three H-bonds that are present in the cis but not trans state of HlyIIC.
Molecules 29 02950 g003
Molecules 29 02950 g004

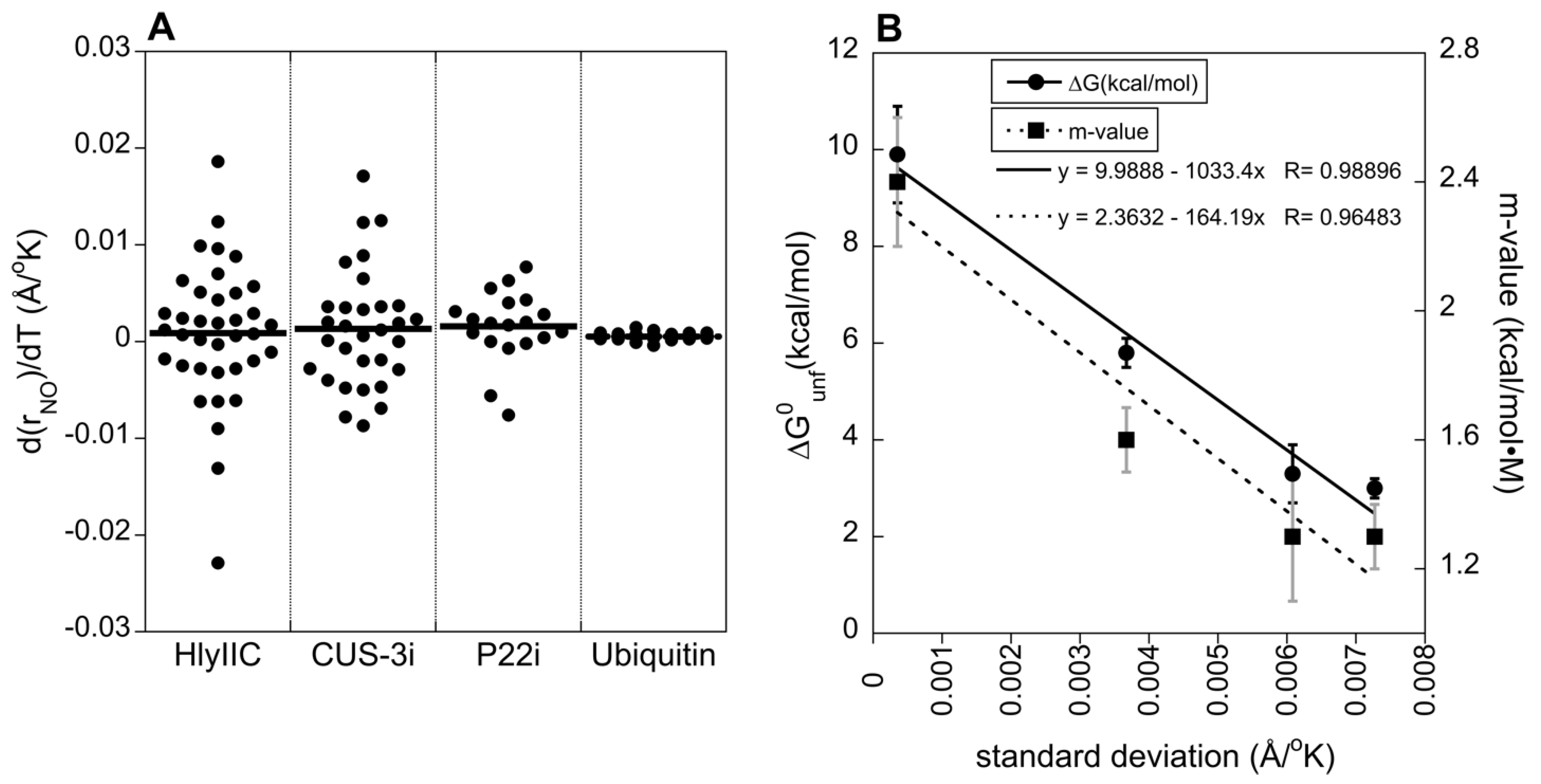

Figure 4. Variability in the temperature dependence of H-bonds as a function of folding stability. (A) The distribution of d(rNO)/dT slopes in four proteins arranged in order of increasing stability to unfolding (least stable on right, most stable on left). The data for HlyIIC include H-bond data for both the cis and trans states, which have very similar unfolding stabilities [31]. (B) Correlation between the standard deviation in d(rNO)/dT slopes and parameters related to protein stability: ∆G0unf and m-values (from Table 1).
Figure 4. Variability in the temperature dependence of H-bonds as a function of folding stability. (A) The distribution of d(rNO)/dT slopes in four proteins arranged in order of increasing stability to unfolding (least stable on right, most stable on left). The data for HlyIIC include H-bond data for both the cis and trans states, which have very similar unfolding stabilities [31]. (B) Correlation between the standard deviation in d(rNO)/dT slopes and parameters related to protein stability: ∆G0unf and m-values (from Table 1).
Molecules 29 02950 g004
Table 1. Folding stability information on proteins used for lrHNCO studies a.
Table 1. Folding stability information on proteins used for lrHNCO studies a.
Protein∆G0unf
(kcal/mol)		m-Value
(kcal/mol·M)		Tmelt
(°C)		References
HlyIIC b3.0 ± 0.21.3 ± 0.152[19,31]
CUS-3i3.3 ± 0.61.3 ± 0.248[49]
P225.8 ± 0.31.6 ± 0.154[50]
ubiquitin9.9 ± 1.02.4 ± 0.2>90[51,52]
GB3~6 to 7N.D.≥90[47,48]
a The ∆G0unf and m-values are from equilibrium denaturation experiments using urea, except for ubiquitin where guanidine chloride was used as a denaturant, and GB3 where values were estimated from the highly homologous GB1 and GB2 domains [47,48]. The Tmelt values are midpoints for thermal unfolding. b Urea and temperature denaturation data for HlyIIC were obtained by CD spectroscopy, which does not distinguish between the cis and trans states. As such, the reported values are population-weighted averages for the two states, which have very similar stabilities to unfolding. At the 298 K temperature used for the urea denaturation studies, the trans/cis ratio is 1:1 so the ∆∆Gtrans->cis ~ 0 kcal/mol. At higher temperatures, the trans state becomes slightly favored, with the trans/cis ratio reaching 1.5:1 at a temperature of 310 K [31].
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Alexandrescu, A.T.; Dregni, A.J. The Temperature Dependence of Hydrogen Bonds Is More Uniform in Stable Proteins: An Analysis of NMR h3JNC′ Couplings in Four Different Protein Structures. Molecules 2024, 29, 2950. https://doi.org/10.3390/molecules29132950

AMA Style

Alexandrescu AT, Dregni AJ. The Temperature Dependence of Hydrogen Bonds Is More Uniform in Stable Proteins: An Analysis of NMR h3JNC′ Couplings in Four Different Protein Structures. Molecules. 2024; 29(13):2950. https://doi.org/10.3390/molecules29132950

Chicago/Turabian Style

Alexandrescu, Andrei T., and Aurelio J. Dregni. 2024. "The Temperature Dependence of Hydrogen Bonds Is More Uniform in Stable Proteins: An Analysis of NMR h3JNC′ Couplings in Four Different Protein Structures" Molecules 29, no. 13: 2950. https://doi.org/10.3390/molecules29132950

Article Metrics

Back to TopTop
