Next Article in Journal
Enhanced Fire Safety of Energy-Saving Foam by Self-Cleavage CO2 Pre-Combustion and Phosphorus Release Post-Combustion
Previous Article in Journal
Establishing the Thermodynamic Cards of Dipine Models’ Oxidative Metabolism on 21 Potential Elementary Steps
Previous Article in Special Issue
Transformation of Graphite Recovered from Batteries into Functionalized Graphene-Based Sorbents and Application to Gas Desulfurization


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Molecules
Volume 29
Issue 15
10.3390/molecules29153707
molecules-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles thumb_up
...
Endorse textsms
...
Comment
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Gold Nanoparticle Mesoporous Carbon Composite as Catalyst for Hydrogen Evolution Reaction

by
Erik Biehler
,
Qui Quach
and
Tarek M. Abdel-Fattah
*
Applied Research Center at Thomas Jefferson National Accelerator Facility, Department of Molecular Biology and Chemistry at Christopher Newport University, Newport News, VA 23606, USA
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(15), 3707; https://doi.org/10.3390/molecules29153707
Submission received: 25 May 2024 / Revised: 16 July 2024 / Accepted: 30 July 2024 / Published: 5 August 2024
(This article belongs to the Special Issue Two-Dimensional Materials: From Synthesis to Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Increased environmental pollution and the shortage of the current fossil fuel energy supply has increased the demand for eco-friendly energy sources. Hydrogen energy has become a potential solution due to its availability and green combustion byproduct. Hydrogen feedstock materials like sodium borohydride (NaBH4) are promising sources of hydrogen; however, the rate at which the hydrogen is released during its reaction with water is slow and requires a stable catalyst. In this study, gold nanoparticles were deposited onto mesoporous carbon to form a nano-composite catalyst (AuNP-MCM), which was then characterized via transmission electron microscopy (TEM), powder X-ray diffraction (P-XRD), and scanning electron microscopy/energy dispersive X-ray spectroscopy (SEM/EDS). The composite’s catalytic ability in a hydrogen evolution reaction was tested under varying conditions, including NaBH4 concentration, pH, and temperature, and it showed an activation of energy of 30.0 kJ mol−1. It was determined that the optimal reaction conditions include high NaBH4 concentrations, lower pH, and higher temperatures. This catalyst, with its stability and competitively low activation energy, makes it a promising material for hydrogen generation.

1. Introduction

Hydrogen fuel is an alternative type of fuel that has potential in solving the world’s energy crisis [1]. The energy generation of gasoline combustion is lower than the energy released from hydrogen combustion [2]. When hydrogen is used as a fuel, the major byproduct, in terms of its energy reaction, is water, so its environmental impact is minimal [2]. Furthermore, hydrogen can be generated from the reaction between hydrogen feedstock, such as sodium borohydrides (NaBH4), and water [3], as seen in Equation (1). The widespread implementation of hydrogen as a fuel would reduce dependence on fossil fuels; however, the biggest disadvantage of this reaction is the slow rate of reaction between metal hydrides and water. As such, a catalyst is necessary before hydrogen gas can become a viable fuel source [3].
NaBH4 + 2H2O → 4H2 + NaBO2
Among the catalysts, nanoparticles have been the focus of much scientific study due to their unique properties, including their catalytic properties [4,5]; however, it is difficult to control nanoparticle performance in reactions as this depends greatly on characteristics such as shape, size, crystal structure, and texture [6,7,8]. The agglomeration of nanoparticles often affects their size and structure and leads to the degeneration of catalytic ability [9,10]. In order to mitigate this issue, the nanoparticles can be imbedded on a carbon template to prevent their agglomeration and improve the durability of the material in catalytic reactions [5,11].
One family of durable carbon materials that also has catalytic potential is that of mesoporous carbon materials (MCMs) [12,13]. The different types of porous carbons are characterized by their differences in pore size, with mesoporous carbon materials having a pore size 2–50 nm, while microporous and macroporous carbon have smaller and larger pore sizes, respectively [14,15]. The narrow pore size range allows for significant control of various characteristics during synthesis, which includes thermal, mechanical, and electrical stability, chemical inertness, ordered pore structure, large surface area, pore volume, and catalytic activity [16,17]. Most traditional metal and biological catalysts have several disadvantages, such as high reaction temperature, long reaction time, low conversion ratio, and low regioselectivity, so research is being conducted with MCMs to reduce these disadvantages [18]. For example, factors like cost, complexity of synthesis, and potential wasted materials can be reduced by using MCMs as opposed to traditional catalysts as MCMs are only made of ordered carbon atoms that are synthesized via well-established procedures [19].
One such method of synthesizing MCMs involves filling mesoporous silica with a carbon precursor like sucrose, which undergoes several high-temperature processes. The silica is removed with hydrofluoric acid, which leaves only carbon in the form of MCMs [20]. Unfortunately, this process involves aggressive chemicals that, along with intermediary products, become dangerous waste products. One novel method of forming MCMs has recently been developed, which involves using starches and expanding the present pores to increase the catalytic potential [21]. Starches are typically high-density substances, which makes them catalytically inert; but by expanding the pores, this activity was increased [21]. The pore expansion temperature is the key to controlling pore size and volume, with a similar process used on plant fibers resulting in similar results [21,22]. The benefits of this new method include the starting material being completely nontoxic and renewable, the lack of toxic materials needed for the reaction, and the ease of synthesis [21,23,24].
For this study, MCMs were decorated with gold nanoparticles to form a nanocomposite catalyst (AuNP-MCM) that is highly active, stable, and easily recyclable. The synthesized AuNP-MCM was characterized via TEM, P-XRD, and SEM-EDS. The catalytic ability of nanocomposite was tested in the hydrogen evolution reaction under various pHs (6, 7, 8), reactant concentrations (793 µmol, 952 µmol, 1057 µmol), and temperatures (273 K, 288 K, 295 K, 303 K). The recyclability of AuNP-MCM was also examined in reusability trials.

2. Results/Discussions

2.1. Catalyst Characterization

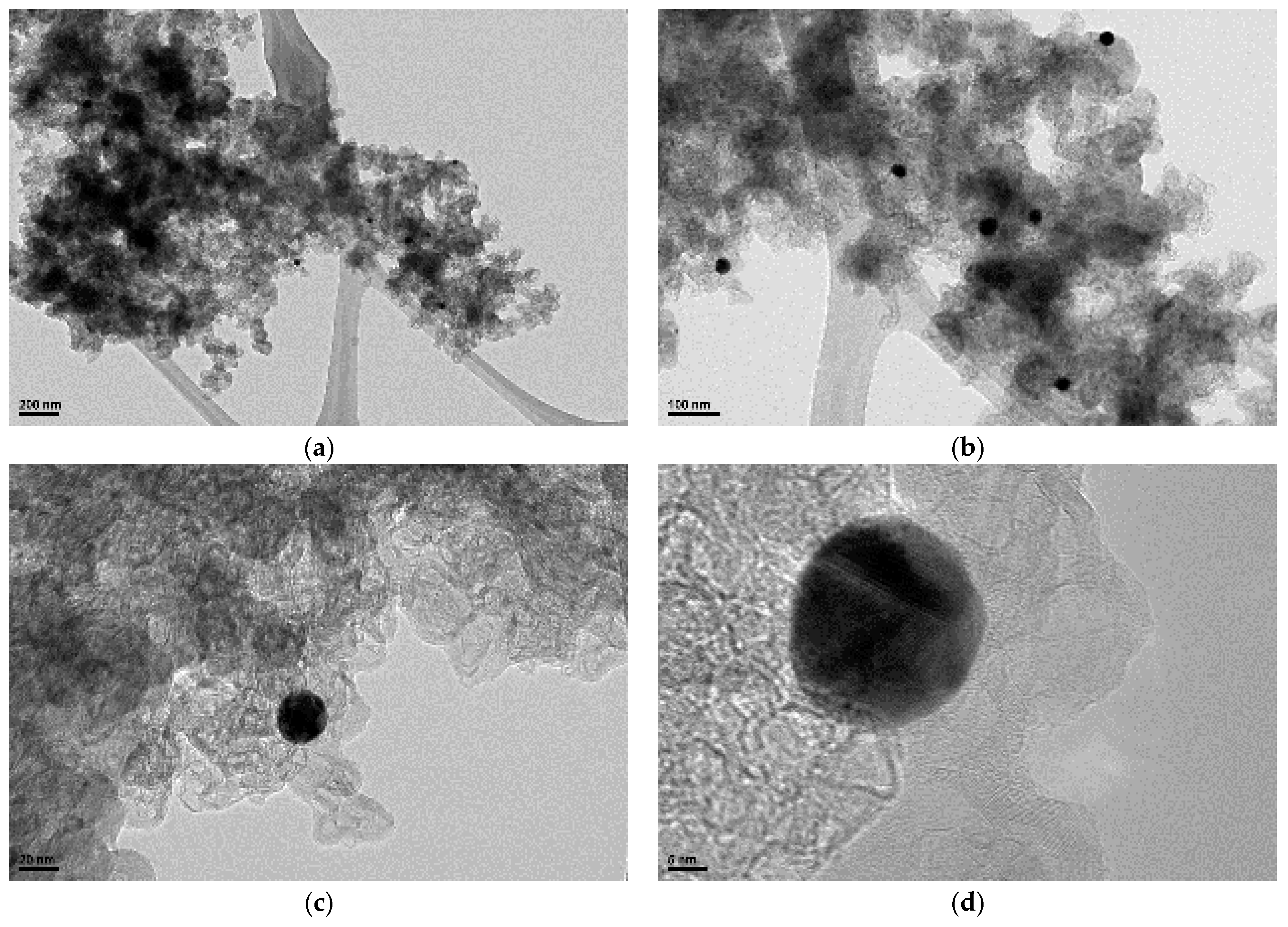

The gold nanoparticles for the AuNP-MCM seen in the TEM micrograph of Figure 1 vary greatly in diameter, but the particle specifically observed in Figure 1d under a smaller scale has a diameter of 20 nm. The SEM/EDS analysis in Figure 2a,b shows the gold nanoparticles on the mesoporous carbon with the gold concentration of 8.54% and carbon concentration of 10.73%. Figure 1b and Figure 2a also show that the gold nanoparticles are evenly distributed on the MCM backbone.

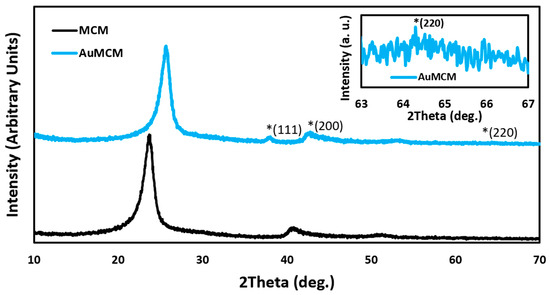

The P-XRD spectrum seen in Figure 3 for the MCM showed a peak in the 20–30° range, correlating to the carbon framework, and a peak at the 40–45° range that also corresponds to the mesoporous carbon [25]. After AuNPs were deposited on the MCM, the observed peaks of the MCM were slightly shifted, but they were still within the acceptable range. The peaks at 40–45° disappeared in AuNP-MCM; the same phenomena were reported in some previous studies [26,27]. The peaks at 38°, 44°, and 64° corresponded with the (111), (200), and (220) lattice planes of gold nanoparticles [28].

2.2. Catalytic Tests

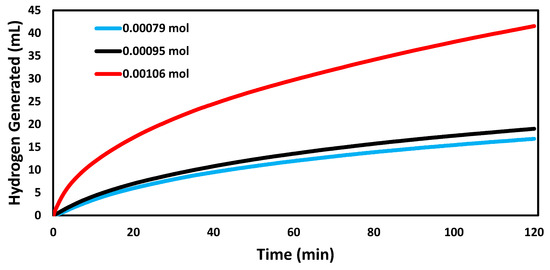

Figure 4 shows the catalytic ability of AuNP-MCM at different reactant concentrations. The catalyzed reaction achieved the highest hydrogen generated rate of 0.0346 mL min−1 mg−1 at 1057 µmol, while the reaction achieved the lowest rate of 0.0140 mL min−1 mg−1 at 793 µmol. At the concentration of 952 µmol, the reaction rate was 0.0159 mL min−1 mg−1. The hydrogen generated rate increased as the concentration of NaBH4 increased. The increase in the reactant concentration shifted the equilibrium of Equation (1) and led to the formation of more products [3,29].

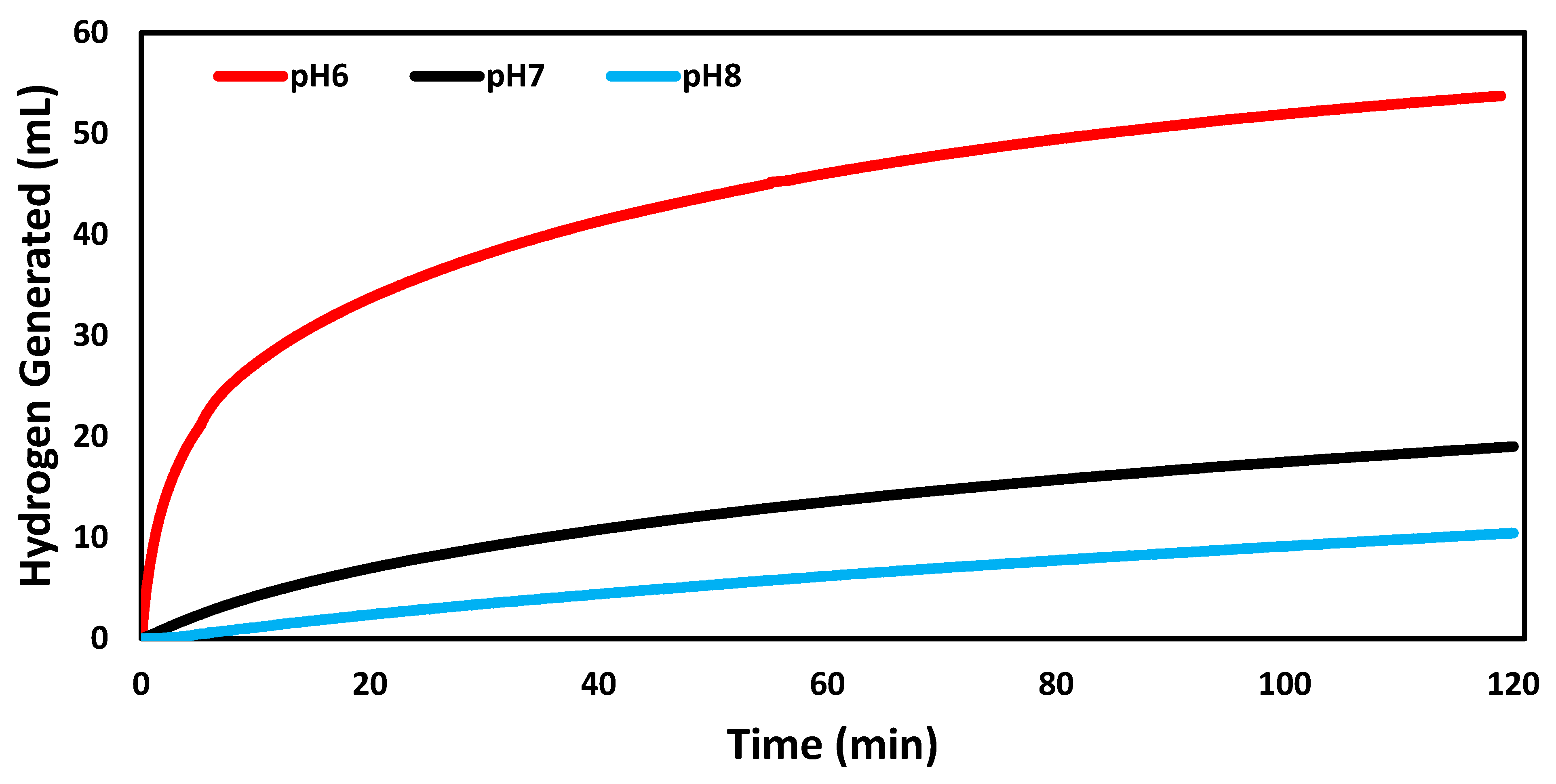

The effect of pH on the catalyzed reactions was indicated in Figure 5. The reaction rate at pH 6 (0.0447 mL min−1 mg−1) was higher than that of pH 7 (0.0159 mL min−1 mg−1). The lowest reaction rate was 0.0087 mL min−1 mg−1 at pH 8. It had been stated in a previous kinetic study of sodium borohydride hydrolysis that the rate becomes lower as the pH increase due to the inhibition effect of OH− [29]. The free proton at low pH condition accelerated the hydrolysis process [29].
Scheme 1 shows a proposed mechanism for the overall reaction, which could explain these results. NaBH4 reduces when hydrolyzed and forms a reversable complex with the metal nanoparticle at a catalytic site. An adjacent catalytic site receives a hydride ion and stabilizes the nanoparticle–borohydride complex, which reacts with the water to release hydrogen gas. This process repeats until there are no longer any hydride ions available and the complex breaks, releasing tetrahydroxylborate and H2 gas. More acidic pHs increase the concentration of H+ ions, which increase the conversion rate and supply of hydroxide ions for the conversion.

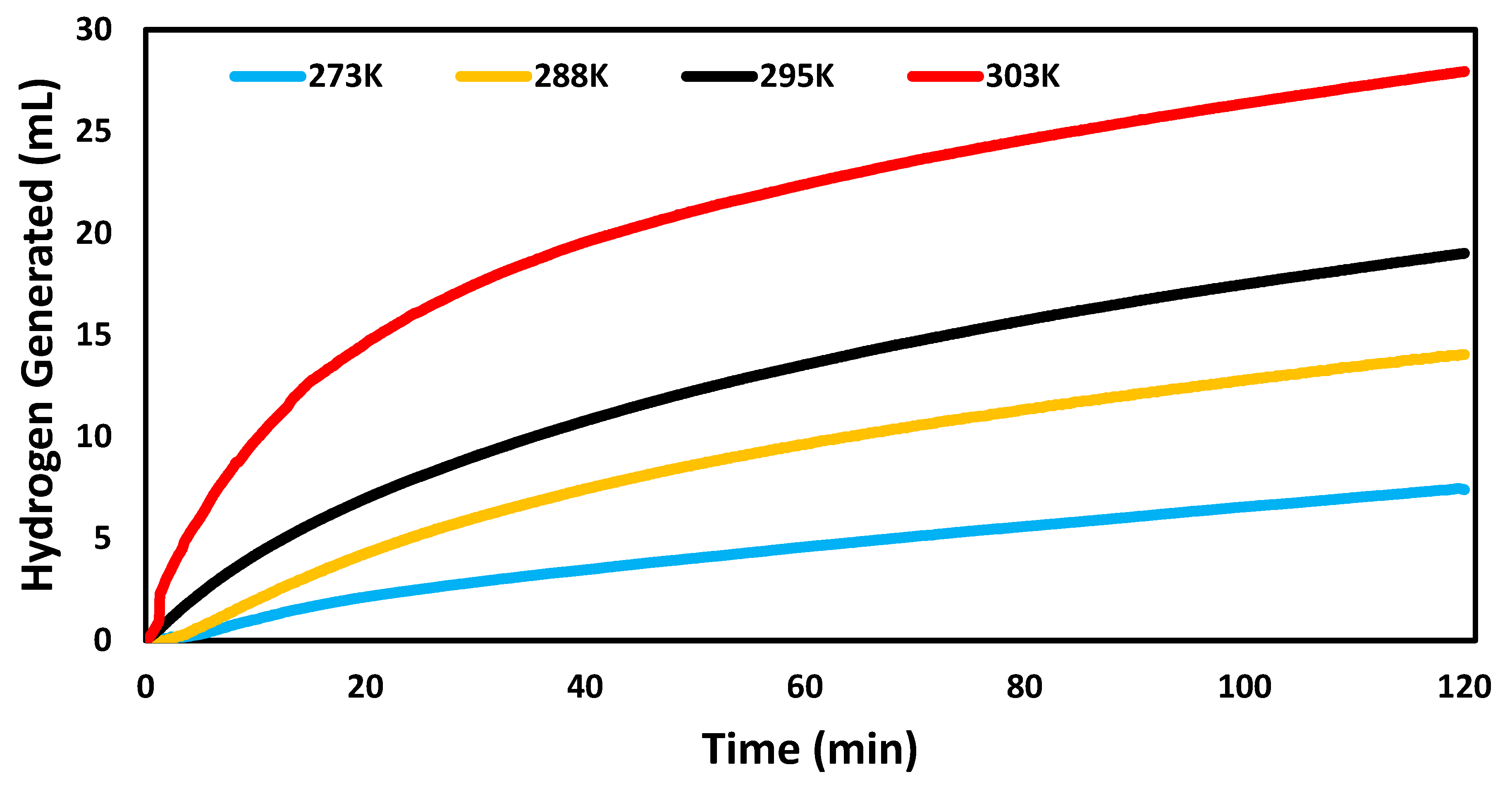

Figure 6 shows that the reaction rate of catalyzed hydrogen evolution reaction improved at higher temperature. The hydrogen generation rates were 0.0062 mL min−1 mg−1, 0.0117 mL min−1 mg−1, 0.0159 mL min−1 mg−1, and 0.0232 mL min−1 mg−1 at 273 K, 288 K, 295 K, and 303 K, respectively. The same pattern was observed in other studies [3,4,29].

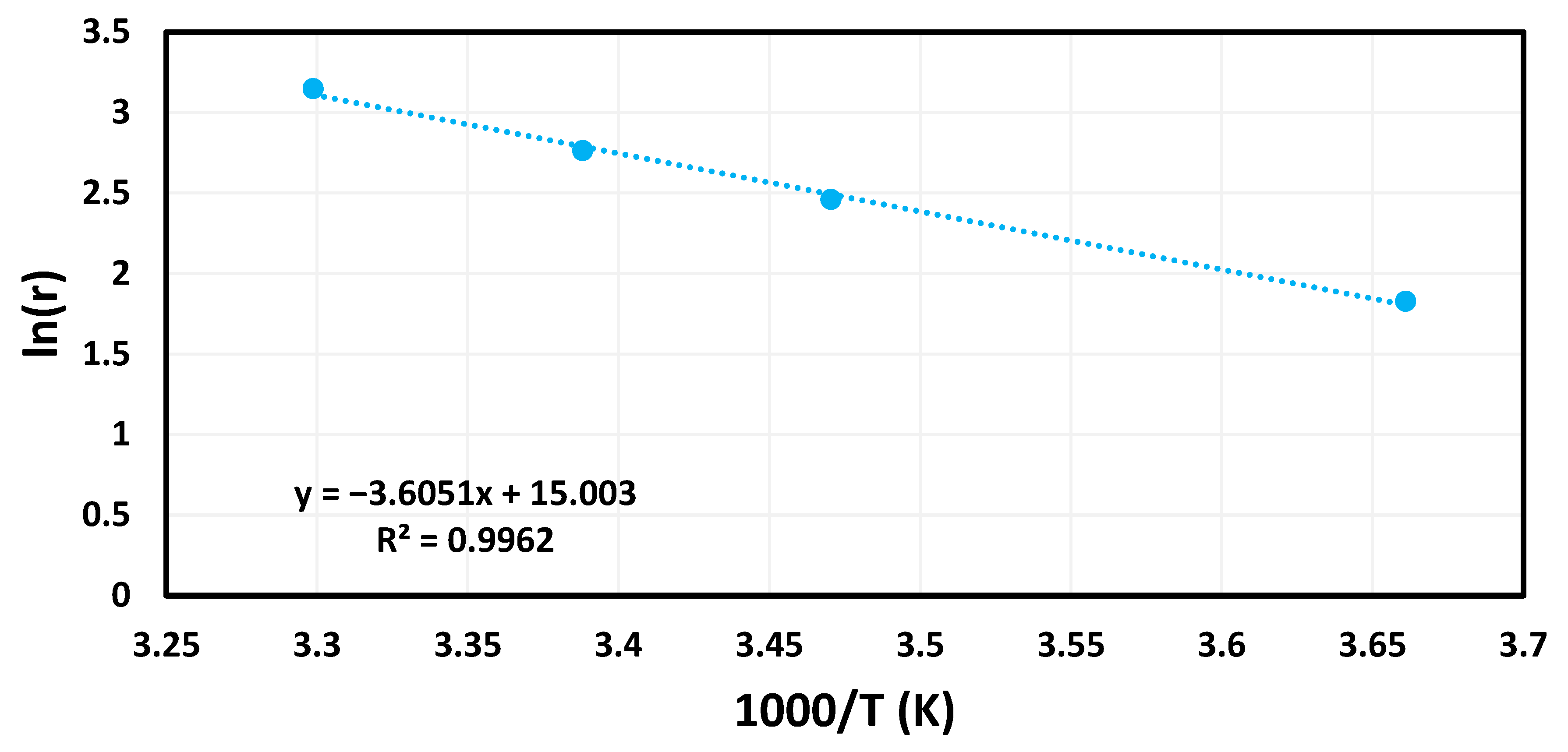

From the Arrhenius plot seen in Figure 7 and Figure S2, the activation energy for the AuNP-MCM catalyst is determined to be 30 kJ mol−1. The activation energy is also compared to previously recorded activation energies for other catalysts in Table 1, which shows it as one of the higher activation energies among other inorganic catalysts. AuNP-MCM has higher activation energy than other catalysts, except the gold nanoparticle supported over multiwalled carbon nanotubes (Au/MWCNTs). When compared to unsupported gold nanoparticles (BCD-AuNPs), there was a marked improvement. This indicates that the addition of MCM improves the catalytic ability of gold nanoparticles. These results highly imply that AuNP-MCM is an efficient catalyst for sodium borohydride hydrolysis.

2.3. Catalytic Reusability Tests

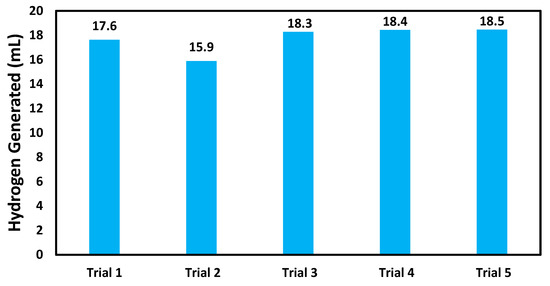

The AuNP-MCM catalyst underwent reusability trials to determine its reusability after five consecutive uses under conditions involving 952 µmol of NaBH4, a pH of 7, and at 295 K. The plot in Figure 8 shows that the catalytic activity for the AuNP-MCM catalyst drastically decreased in catalytic activity after the second trial. From the third trial, the catalytic ability was increased and remained consistent in the fourth and fifth trials. This indicates that if more trials were to have been conducted, the catalytic activity may eventually remain consistent, resulting in a more ideal and durable catalyst. This would be consistent with Scheme 1, which shows the catalyst breaking away from the nanoparticle-borohydride complex to start the series of reactions again [47]. However, these reusability trials indicate that while the nanoparticles greatly increase the catalytic activity of the developed catalysts, the AuNP-MCM catalyst is generally less stable.

3. Experimental Section

3.1. Synthesis

The Mesoporous carbon was reported to be synthesized from starch via the Starbon synthesis method [21,22,24]. Nitrogen sorption/desorption isotherms generated at 77 K for mesoporous carbon is presented in Figure S1 and nitrogen adsorption data for mesoporous carbon is included in Table S1. Gold nanoparticles were synthesized by bringing a 1 mM aqueous chlorauric acid (Sigma Aldrich, St. Louis, MO, USA) solution to a boil and adding 1% aqueous sodium citrate (Sigma Aldrich) dropwise for five minutes with continuous stirring with a magnetic stir bar [48]. The AuNP-MCM nanocomposite was synthesized by adding 40 mL of the nanoparticle solution to 1 g of mesoporous carbon in order to functionalize the mesoporous carbon via the incipient wetness impregnation method [4,5]. The resulting precipitate was filtered and dried in a vacuum oven at 100 °C for 24 h.

3.2. Characterization

Transmission electron microscopy (TEM, JEM-2100F, JEOL, Akishima, Tokyo, Japan) was used to visualize the size of the nanoparticles in the composite and to characterize the binding between the nanoparticles and the mesoporous carbon. These samples were prepared by putting 1 μL of the nanoparticle solution onto the TEM sample grid and letting it dry overnight. X-ray diffraction (XRD, Rigaku Miniflex II, Cu Kα X-ray, nickel filters, Rigaku, Tokyo, Japan) was used to determine the crystal structure of mesoporous carbon and its composite. The sample was put onto a P-XRD slide, and a Rigaku Miniflex II was used to perform the P-XRD. Scanning electron microscopy (SEM, JEOL JSM-6060LV, JEOL, Akishima, Tokyo, Japan)/energy dispersive spectroscopy (EDS, ThermoScientific UltraDry, Thermo Fischer Scientific, Waltham, Massachusetts, USA) was used to determine the elemental composition of the nanocomposite and further confirm the presence of nanoparticles on the mesoporous carbon. The sample, in powder form, was mounted on a sample holder with carbon tape and analyzed under SEM with an EDS attachment.

3.3. Catalytic Tests

The catalytic properties of the nanocomposite were tested in the hydrogen evolution reaction between water and sodium borohydride (NaBH4) as the reducing agent. The volume of generated hydrogen was determined via a gravimetric water displacement system [4,5]. Various conditions, such the concentration of NaBH4 (793 µmol, 952 µmol, 1057 µmol), pH (6, 7, 8) and temperature (273 K, 288 K, 295 K, 303 K), were applied in the tests. In all trials, 0.01 g of the AuNP-MCM nanocomposite catalyst was used, and 100 mL of deionized water was used in all NaBH4 solutions. During the reaction, the solution was stirred with a magnetic stir bar to maintain the dispersion of the AuNP-MCM. The water displaced during the reaction was measured via an Ohaus Pioneer Balance (Pa124) with proprietary mass logging software. Each variation was repeated in triplicate with the averages calculated.

3.4. Catalyst Reusability

In order to test for the reusability of the AuNP-MCM nanocomposites, a 952 µmol solution of NaBH4 and 100 mL of deionized water at pH 7 and 295 K was made and 0.01 g of the nanocomposite was added. The same solution containing the deionized water and the catalyst was used in five reduction reactions, adding a constant amount of NaBH4 for each trial.

4. Conclusions

The structure and composition of the AuNP-MCM catalyst was confirmed via transmission electron microscopy (TEM), scanning electron microscopy/energy dispersive spectroscopy (SEM/EDS), and X-ray diffraction (P-XRD). The catalytic activity for this catalyst saw its catalytic activities increase only with increasing NaBH4 concentrations, increasing temperature, and lower pH. The variations in temperature allowed for the determination of an activation energy of 30.0 kJ mol−1, which, when compared to previously tested inorganic catalysts, represents one of the lower activation energies, making it favorable. Catalytic reusability tests of this catalyst showed that the AuNP-MCM catalyst is stable and produces a consistent volume of hydrogen after five consecutive uses. This stability and low activation energy make this catalyst a competitive option for the hydrolysis of NBH4.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29153707/s1. Figure S1: Nitrogen sorption/desorption isotherms generated at 77 K for Mesoporous Carbon; Figure S2: Arrhenius plot showing the Standard Deviation values for calculating the activation energy of a hydrogen generation reaction with the AuNP-MCM catalyst; Table S1: Nitrogen Adsorption data for Mesoporous Carbon;

Author Contributions

Methodology, T.M.A.-F.; Validation, T.M.A.-F.; Formal analysis, E.B., Q.Q. and T.M.A.-F.; Investigation, Q.Q.; Resources, T.M.A.-F.; Data curation, E.B.; Writing—original draft, E.B.; Writing—review & editing, Q.Q. and T.M.A.-F. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors on request.

Acknowledgments

The corresponding author acknowledges Lawrence J. Sacks’ professorship in chemistry.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Guan, D.; Wang, B.; Zhang, J.; Shi, R.; Jiao, K.; Li, L.; Wang, Y.; Xie, B.; Zhang, Q.; Yu, J.; et al. Hydrogen society: From present to future. Energy Environ. Sci. 2023, 16, 4926–4943. [Google Scholar] [CrossRef]
  2. Yu, X.; Li, G.; Du, Y.; Guo, Z.; Shang, Z.; He, F.; Shen, Q.; Li, D.; Li, Y.A. comparative study on effects of homogeneous or stratified hydrogen on combustion and emissions of a gasoline/hydrogen SI engine. Int. J. Hydrog. Energy 2019, 44, 25974–25984. [Google Scholar] [CrossRef]
  3. Schlesinger, H.I.; Brown, H.C.; Finholt, A.E.; Gilbreath, J.R.; Hoekstra, H.R.; Hyde, E.K. Sodium borohydride, its hydrolysis and its use as a reducing agent and in the generation of hydrogen. J. Am. Chem. Soc. 1953, 75, 215–219. [Google Scholar] [CrossRef]
  4. Quach, Q.; Biehler, E.; Elzamzami, A.; Huff, C.; Long, J.M.; Abdel-Fattah, T.M. Catalytic activity of beta-cyclodextrin-gold nanoparticles network in hydrogen evolution reaction. Catalysts 2021, 11, 118. [Google Scholar] [CrossRef]
  5. Huff, C.; Dushatinski, T.; Barzanji, A.; Abdel-Fattah, N.; Barzanji, K.; Abdel-Fattah, T.M. Pretreatment of gold nanoparticle multi-walled carbon Nanotube Composites for Catalytic Activity toward Hydrogen Generation Reaction. ECS J. Solid State Sci. Technol. 2017, 6, M69. [Google Scholar] [CrossRef]
  6. Datta, K.K.R.; Reddy, B.V.S.; Ariga, K.; Vinu, A. Gold Nanoparticcles Embedded in a Mesoporous Carbon Nitride Stabilizer for Highly Efficent Three-Component Coupling Reaction. Angew. Chem. 2010, 122, 6097–6101. [Google Scholar] [CrossRef]
  7. Gan, X.; Liu, T.; Zhong, J.; Li, G. Effect of Silver Nanoparticles on Electron Transfer Reactivity and the Catalytic Activity of Myoglobin. ChemBioChem 2004, 5, 1686–1691. [Google Scholar] [CrossRef] [PubMed]
  8. Xu, R.; Wang, D.; Zhang, J.; Li, Y. Shape-Dependent Catalytic Activity of Silver Nanoparticles for the Oxidation of Styrene. Chem. Asian J. 2006, 1, 888–893. [Google Scholar] [CrossRef] [PubMed]
  9. Maillard, F.; Schreier, S.; Hanzlik, M.; Savinova, E.R.; Weinkauf, S.; Stimming, U. Influence of particle agglomeration on the catalytic activity of carbon-supported Pt nanoparticles in CO monolayer oxidation. Phys. Chem. Chem. Phys. 2005, 7, 385–393. [Google Scholar] [CrossRef]
  10. Comotti, M.; Pina, C.D.; Matarrese, R.; Rossi, M. The Catalytic Activity of “Naked” Gold Particles. Angew. Chem. Int. Ed. 2004, 43, 5812–5815. [Google Scholar] [CrossRef]
  11. Osborne, J.; Horten, M.R.; Abdel-Fattah, T.M. Gold Nanoparticles supported over low-cost supports for hydrogen generation from a hydrogen feedstock material. ECS J. Solid State Sci. Technol. 2020, 9, 071004. [Google Scholar] [CrossRef]
  12. Xia, Y.; Yang, Z.; Mokaya, R. Simultaneous Control of Morphology and Porosity in Nanoporous Carbon: Graphitic Mesoporous Carbon Nanorods and Nanotubules with Tunable Pore size. Chem. Mater. 2005, 18, 140–148. [Google Scholar] [CrossRef]
  13. Horváth, E.; Puskás, R.; Rémiás, R.; Mohl, M.; Kukovecz, Á.; Kónya, Z.; Kiriesi, I. A Novel Catalyst Type Containing Noble Metal Nanoparticles Supported on Mesoporous Carbon: Synthesis, Characterization and Catalytic properties. Top Catal. 2009, 52, 1242–1250. [Google Scholar] [CrossRef]
  14. McNaught, A.D.; Wilkinson, A. Compendium of Chemical Terminology, 2nd ed.; (the “Gold Book”); IUPAC: Malden, MA, USA, 1997. [Google Scholar]
  15. Liang, C.; Li, Z.; Dai, S. Mesoporous Carbon Materials: Synthesis and Modification. Angew. Chem. Int. 2008, 47, 3696–3717. [Google Scholar] [CrossRef] [PubMed]
  16. Xia, Y.; Mokaya, R. Generalized and Facile Synthesis Approach to N-Doped Highly Graphitic Mesoporous Carbon Materials. Chem. Mater. 2005, 17, 1553–1560. [Google Scholar] [CrossRef]
  17. Su, F.; Zeng, J.; Bao, X.; Yu, Y.; Lee, J.Y.; Zhao, X.S. Preparation and Characterization of Highly Ordered Graphitic Mesoporous Carbon as a Pt Catalyst Support for Direct Methanol Fuel Cells. Chem. Mater. 2005, 17, 3960–3967. [Google Scholar] [CrossRef]
  18. Matos, I.; Bernardo, M.; Neves, P.D.; Castanheiro, J.E.; Vital, J.; Fonseca, I.M. Mesoporous Carbon as effective and sustainable catalyst for fine chemistry. Bol. Grupo Español Carbón 2016, 39, 19–22. Available online: http://hdl.handle.net/10174/19991 (accessed on 1 January 2024).
  19. Chang, H.; Joo, S.H.; Pak, C. Synthesis and characterization of mesoporous carbon for fuel cell applications. J. Mater. Chem. 2007, 17, 3078–3088. [Google Scholar] [CrossRef]
  20. Ryoo, R.; Joo, S.H.; Jun, S. Synthesis of highly ordered carbon molecular sieves via template-mediated structural transformation. J. Phys. Chem. B 1999, 103, 7743–7746. [Google Scholar] [CrossRef]
  21. Budarin, V.; Clark, J.H.; Hardy, J.J.E.; Luque, R.; Milkowski, K.; Tavener, S.J.; Wilson, A.J. Starbons: New Starch-Derived Mesoporous Carbonaceous Materials with Tunable Properties. Angew. Int. Ed. 2007, 45, 3782–3786. [Google Scholar] [CrossRef]
  22. Shuttleworth, P.S.; Budarin, V.; White, R.J.; Gun’ko, V.M.; Luque, R.; Clark, J.H. Molecular-Level Understanding of the Carbonistation of Polysaccharides. Chem. Eur. J. 2013, 19, 9351–9357. [Google Scholar] [CrossRef]
  23. Biehler, E.; Quach, Q.; Abdel-Fattah, T.M. Screening study of Different Carbon Based Materials for Hydrogen. ECS J. Solid State Sci. Technol. 2023, 12, 081002. [Google Scholar] [CrossRef]
  24. Milkowski, K.; Clark, J.H.; Doi, S. New materials based on renewable resources: Chemically modified highly porous starches and their composites with synthetic monomers. Green Chem. 2004, 6, 189–190. [Google Scholar] [CrossRef]
  25. Wahab, M.A.; Darain, F.; Islam, N.; Young, D.J. Nano/mesoporous carbon from rice starch for voltammetric detection of ascorbic acid. Molecules 2018, 23, 234. [Google Scholar] [CrossRef]
  26. Banerjee, R.; Ghosh, D.; Satra, J.; Ghosh, A.B.; Singha, D.; Nandi, M.; Biswas, P. One Step Synthesis of a gold/ordered mesoporous carbon composite using a hard template method for electrocatalytic oxidation of methanol and colorimetric determination of glutathione. ACS Omega 2019, 4, 16360–16371. [Google Scholar] [CrossRef] [PubMed]
  27. Hu, Q.L.; Zhang, Z.X.; Zhang, J.J.; Li, S.M.; Wang, H.; Lu, J.X. Ordered mesoporous carbon embedded with cu Nanoparticle materials for electrocatalytic synthesis of benzyl methyl carbonate from benzyl alcohol and carbon dioxide. ACS Omega 2020, 5, 3498–3503. [Google Scholar] [CrossRef]
  28. Khalil, M.M.H.; Ismail, E.H.; El-Magdoub, F. Biosynthesis of Au nanoparticles using olive leaf extract. Arab. J. Chem. 2012, 5, 431–437. [Google Scholar] [CrossRef]
  29. Yu, L.; Mathews, M.A. Hydrolysis of sodium borohydride in concentrated aqueous solution. Int. J. Hydrog. Energy 2011, 36, 7416–7422. [Google Scholar] [CrossRef]
  30. Hashimi, A.S.; Nohan, M.; Chin, S.X.; Khiew, P.S.; Zakaria, S.; Chia, C.H. Copper Nanowires as Highly Efficient and Recyclable Catalyst for Rapid Hydrogen Generation from Hydrolysis of Sodium Borohydride. Nanomaterials 2020, 10, 1153. [Google Scholar] [CrossRef]
  31. Chen, B.; Chen, S.; Bandal, H.A.; Appiah-Ntiamoah, R.; Jadhav, A.R.; Kim, H. Cobalt nanoparticles supported on magnetic core-shell structured carbon as a highly efficient catalyst for hydrogen generation from NaBH4 hydrolysis. Int. J. Hydrog. Energy 2018, 43, 9296–9306. [Google Scholar] [CrossRef]
  32. Guo, J.; Hou, Y.; Li, B.; Liu, Y. Novel Ni-Co-B hollow nanospheres promote hydrogen generation from the hydrolysis of sodium borohydride. Int. J. Hydrog. Energy 2018, 43, 15245–15254. [Google Scholar] [CrossRef]
  33. Loghmani, M.H.; Shojaei, A.F.; Khakzad, M. Hydrogen generation as a clean energy through hydrolysis of sodium borohydride over Cu-Fe-B nano powders: Effect of polymers and surfactants. Energy 2017, 126, 830–840. [Google Scholar] [CrossRef]
  34. Zou, Y.; Yin, Y.; Gao, Y.; Xiang, C.; Chu, H.; Qui, S.; Yan, E.; Xu, F.; Sun, L. Chitosan-mediated Co-Ce-B nanoparticles for catalyzing the hydrolysis of sodium borohydride. Int. J. Hydrog. Energy 2018, 43, 4912–4921. [Google Scholar] [CrossRef]
  35. Biehler, E.; Quach, Q.; Abdel-Fattah, T.M. Application of Platinum Nanoparticles Decorating Mesoporous Carbon Derived from Sustainable Source for Hydrogen Evolution Reaction. Catalysts 2024, 14, 423. [Google Scholar] [CrossRef]
  36. Balbay, A.; Saka, C. Effect of phosphoric acid addition on the hydrogen production from hydrolysis of NaBH4 with Cu based catalyst. Energy Source Part A 2018, 40, 794–804. [Google Scholar] [CrossRef]
  37. Xie, L.; Wang, K.; Du, G.; Asiri, A.M.; Sun, X. 3D hierarchical CuO/Co3O4 core-shell nanowire array on copper foam for on-demand hydrogen generation from alkaline NaBH4 solution. RSC Adv. 2016, 6, 88846–88850. [Google Scholar] [CrossRef]
  38. Wu, C.; Zhang, J.; Guo, J.; Sun, L.; Ming, J.; Dong, H.; Zhao, Y.; Tian, J.; Yang, X. Ceria-Induced Strategy To Tailor Pt Atomic Clusters on Cobalt-Nickel Oxide and the Synergetic Effect for Superior Hydrogen Generation. ACS Sustain. Chem. Eng. 2018, 6, 7451–7457. [Google Scholar] [CrossRef]
  39. Lai, Q.; Alligier, D.; Aguey-Zinxou, K.; Demirci, U.B. Hydrogen generation from a sodium borohydride-nickel core@shell structure under hydrolytic conditions. Nanoscale Adv. 2019, 1, 2707–2717. [Google Scholar] [CrossRef] [PubMed]
  40. Huff, C.; Long, J.M.; Aboulatta, A.; Heyman, A.; Abdel-Fattah, T.M. Silver Nanoparticle/Multi-Walled Carbon Nanotube Composite as Catalyst for Hydrogen Production. ECS J. Solid State Sci. Technol. 2017, 6, 115–118. [Google Scholar] [CrossRef]
  41. Huff, C.; Quach, Q.; Long, J.M.; Abdel-Fattah, T.M. Nanocomposite Catalyst Derived from Ultrafine Platinum Nanoparticles and Carbon Nanotubes for Hydrogen Generation. ECS J. Solid State Sci. Technol. 2020, 9, 101008. [Google Scholar] [CrossRef]
  42. Huff, C.; Long, J.M.; Heyman, A.; Abdel-Fattah, T.M. Palladium Nanoparticle Multiwalled Carbon Nanotube Composite as Catalyst for Hydrogen Production by the Hydrolysis of Sodium Borohydride. ACS Appl. Energy Mater. 2018, 1, 4635–4640. [Google Scholar] [CrossRef]
  43. Huff, C.; Long, J.M.; Abdel-Fattah, F.M. Beta-Cyclodextrin-Assisted Synthesis of Silver Nanoparticle Network and Its Application in a Hydrogen Generation Reaction. Catalysts 2020, 10, 1014. [Google Scholar] [CrossRef]
  44. Huff, C.; Biehler, E.; Quach, Q.; Long, J.M.; Abdel-Fattah, T.M. Synthesis of highly dispersive platinum nanoparticles and their application in a hydrogen generation reaction. Colloid Surf. A 2021, 610, 125734. [Google Scholar] [CrossRef]
  45. Biehler, E.; Quach, Q.; Abdel-Fattah, T.M. Application of Silver Nanoparticles Supported over Mesoporous Carbon Produced from Sustainable Sources as Catalysts for Hydrogen Production. Energies 2024, 17, 3327. [Google Scholar] [CrossRef]
  46. Biehler, E.; Quach, Q.; Abdel-Fattah, T.M. Application of Palladium Mesoporous Carbon Composite Obtained from a Sustainable Source for Catalyzing Hydrogen Generation Reaction. J. Compos. Sci. 2024, 8, 270. [Google Scholar] [CrossRef]
  47. Abdel-Fattah, T.M.; Biehler, E. Carbon Based Supports for Metal Nanoparticles for Hydrogen Generation Reactions Review. Adv. Carbon J. 2024, 1, 1–19. [Google Scholar] [CrossRef]
  48. Turkevich, J.; Stevenson, P.C.; Hillier, J. A Study of the Nucleation and Growth Progesses in the synthesis of Colloidal Gold. Discuss. Faraday Soc. 1951, 11, 55–75. [Google Scholar] [CrossRef]
Molecules 29 03707 g001
Figure 1. TEM images of the AuNP-MCM catalyst at scales of (a) 200 nm, (b) 100 nm, (c) 20 nm, and (d) 5 nm.
Figure 1. TEM images of the AuNP-MCM catalyst at scales of (a) 200 nm, (b) 100 nm, (c) 20 nm, and (d) 5 nm.
Molecules 29 03707 g001
Molecules 29 03707 g002

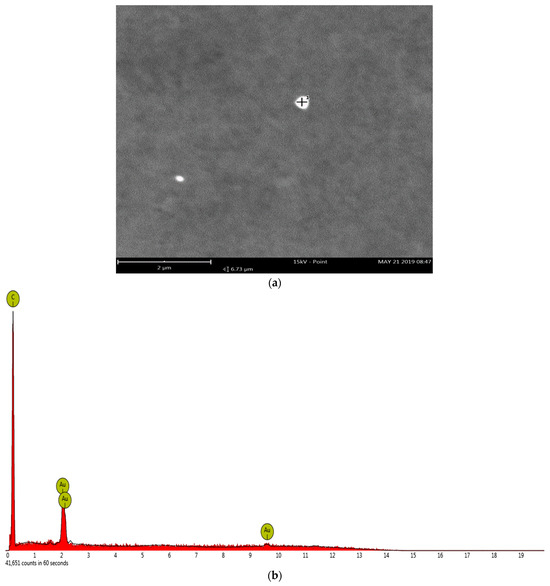

Figure 2. SEM/EDX analysis with (a) the SEM micrograph of the AuNP-MCM catalyst at scales of 2 µm and (b) the EDS spectrum correlating to the indicated gold nanoparticle.
Figure 2. SEM/EDX analysis with (a) the SEM micrograph of the AuNP-MCM catalyst at scales of 2 µm and (b) the EDS spectrum correlating to the indicated gold nanoparticle.
Molecules 29 03707 g002
Molecules 29 03707 g003
Figure 3. P-XRD spectra for the MCM and AuNP-MCM. The asterisks highlight the location of important peaks.
Figure 3. P-XRD spectra for the MCM and AuNP-MCM. The asterisks highlight the location of important peaks.
Molecules 29 03707 g003
Molecules 29 03707 g004
Figure 4. Volume of hydrogen generated over time in the hydrogen evolution reactions catalyzed by AuNP-MCM at different NaBH4 concentrations (793 µmol, 952 µmol, and 1057 µmol).
Figure 4. Volume of hydrogen generated over time in the hydrogen evolution reactions catalyzed by AuNP-MCM at different NaBH4 concentrations (793 µmol, 952 µmol, and 1057 µmol).
Molecules 29 03707 g004
Molecules 29 03707 g005
Figure 5. Volume of hydrogen generated over time in the hydrogen evolution reactions catalyzed by AuNP-MCM at different pHs (pH 6, pH 7, and pH 8).
Figure 5. Volume of hydrogen generated over time in the hydrogen evolution reactions catalyzed by AuNP-MCM at different pHs (pH 6, pH 7, and pH 8).
Molecules 29 03707 g005
Molecules 29 03707 sch001
Scheme 1. Proposed mechanism for the hydrolysis of NaBH4 while catalyzed by AuNP-MCMs.
Scheme 1. Proposed mechanism for the hydrolysis of NaBH4 while catalyzed by AuNP-MCMs.
Molecules 29 03707 sch001
Molecules 29 03707 g006
Figure 6. Volume of hydrogen generated over time in the hydrogen evolution reactions catalyzed by AuNP-MCM at different temperatures (273 K, 288 K, 295 K, and 303 K).
Figure 6. Volume of hydrogen generated over time in the hydrogen evolution reactions catalyzed by AuNP-MCM at different temperatures (273 K, 288 K, 295 K, and 303 K).
Molecules 29 03707 g006
Molecules 29 03707 g007
Figure 7. Arrhenius plot for calculating the activation energy of a hydrogen generation reaction with the AuNP-MCM catalyst.
Figure 7. Arrhenius plot for calculating the activation energy of a hydrogen generation reaction with the AuNP-MCM catalyst.
Molecules 29 03707 g007
Molecules 29 03707 g008
Figure 8. Testing reusability of the AuNP-MCM catalyst after five consecutive hydrogen generation reactions.
Figure 8. Testing reusability of the AuNP-MCM catalyst after five consecutive hydrogen generation reactions.
Molecules 29 03707 g008
Table 1. Comparison of reported activation energies for catalyzed NaBH4 hydrolysis.
Table 1. Comparison of reported activation energies for catalyzed NaBH4 hydrolysis.
CatalystEa (kJ mol−1)Temperature (K)Reference
CuNWs42.48298–333[30]
Co/Fe3O4@C49.2288–328[31]
Ni-Co-B31.3273–303[32]
Cu-Fe-B57285–333[33]
Co-Ce-B/Chi-C33.1266–303[34]
Pt-MCM37.7298–328[35]
Cu based catalyst61.16293–313[36]
CuO/Co3O456.38294–333[37]
Pt/CeO2-Co2Ni2Ox47.4298–318[38]
NaBH4@Ni46.6283–333[39]
Au/MWCNTs21.1273–303[20]
Ag/MWCNTs44.45273–303[40]
Pt/MWCNTs46.2273–303[41]
Pd/MWCNTs62.66273–303[42]
AgNPs53.3273–295[43]
PtNPs39.2273–303[44]
Pt-MCM37.7273–303[45]
Ag-MCM15.6273–303[45]
Pd-MCM27.9273–303[46]
BCD-AuNP57.4283–303[4]
AuNP-MCM30273–303This Work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Biehler, E.; Quach, Q.; Abdel-Fattah, T.M. Gold Nanoparticle Mesoporous Carbon Composite as Catalyst for Hydrogen Evolution Reaction. Molecules 2024, 29, 3707. https://doi.org/10.3390/molecules29153707

AMA Style

Biehler E, Quach Q, Abdel-Fattah TM. Gold Nanoparticle Mesoporous Carbon Composite as Catalyst for Hydrogen Evolution Reaction. Molecules. 2024; 29(15):3707. https://doi.org/10.3390/molecules29153707

Chicago/Turabian Style

Biehler, Erik, Qui Quach, and Tarek M. Abdel-Fattah. 2024. "Gold Nanoparticle Mesoporous Carbon Composite as Catalyst for Hydrogen Evolution Reaction" Molecules 29, no. 15: 3707. https://doi.org/10.3390/molecules29153707

Article Metrics

Back to TopTop
