Article

The Effect of Alkyl Substituents on the Formation and Structure of Homochiral (R*,R*)-[R2Ga(µ-OCH(Me)CO2R′)]2 Species—Towards the Factors Controlling the Stereoselectivity of Dialkylgallium Alkoxides in the Ring-Opening Polymerization of rac-Lactide

by
Magdalena Kaźmierczak
1,2,
Łukasz Dobrzycki
3,
Maciej Dranka
1 and
Paweł Horeglad
1,*
1
Faculty of Chemistry, Warsaw University of Technology, Noakowskiego 3, 00-664 Warsaw, Poland
2
Centre of New Technologies, University of Warsaw, Banacha 2c, 02-097 Warsaw, Poland
3
Faculty of Chemistry, University of Warsaw, Pasteura 1, 02-093 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Molecules 2025, 30(1), 190; https://doi.org/10.3390/molecules30010190
Submission received: 11 December 2024 / Revised: 30 December 2024 / Accepted: 2 January 2025 / Published: 6 January 2025
(This article belongs to the Special Issue Organometallic Compounds: Design, Synthesis and Application)
Browse Figures
Review Reports Versions Notes

Abstract

:
Building on our previous studies, which have demonstrated that homochiral propagating species—(R*,R*)-[Me2Ga(µ-OCH(Me)CO2R)]2—were crucial for the heteroselectivity of [Me2Ga(µ-OCH(Me)CO2Me)]2 in the ring-opening polymerization (ROP) of racemic lactide (rac-LA), we have investigated the effect of alkyl groups on the structure and catalytic properties of dialkylgallium alkoxides in the ROP of rac-LA. Therefore, we have isolated and characterized the rac-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et (1), iPr (2) and rac-[R2Ga(µ-OCH(Me)C5H4N]2 (R = Et (3), iPr (4)) complexes, to demonstrate the effect of alkyl groups on the chiral recognition induced the formation of the respective homochiaral species—(R*,R*)-[R2Ga(µ-OCH(Me)CO2Me)]2 and (R*,R*)-[R2Ga(µ-OCH(Me)C5H4N]2. Moreover, we have investigated the structure of (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et ((S,S)-1, R = iPr ((S,S)-2,) and their catalytic activity in the ROP of rac-LA. With an increase in the bulkiness of alkyl substituents on gallium the following can be observed: (a) the tendency for the formation of homochiral complexes decreased, (b) the symmetry of homochiral (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (M = Me, Et (S,S)-1), iPr (S,S)-2) changed, and both have resulted in (c) lower or no heteroselectivtity across these complexes in the ROP of rac-LA. Importantly, the results have confirmed the crucial role of the chiral-induced formation of homochiral asymmetric dimers on the heteroselectivity of dialkylgallium alkoxides in the ROP of rac-LA.

Graphical Abstract

1. Introduction

Over the last two decades, there has been great interest in stereoselective catalysts/catalytic systems for the ring-opening polymerization (ROP) of rac-lactide (rac-LA) [1,2,3,4], in order to synthesize PLA of different stereostructures and properties [5,6]. Many efforts have been made in order to determine the effect of the various elements of the structure of metal alkoxide propagating species in the ROP of rac-LA on their stereoselectivity, resulting in the development of numerous metal alkoxides capable of the isoselective or heteroselective ROP of rac-LA [2,7,8,9]. Notably, there have been considerably fewer reports concerning dimeric metal alkoxides, which can polymerize rac-LA in a stereoselective fashion [10,11,12], leading to isotactically [13,14,15,16] and heterotactically [17,18,19,20,21,22,23] enriched PLA in comparison with monomeric species [2,7,8,9]. Irrespective of the dimeric/monomeric structure of the stereoselective propagating species, there are two widely accepted mechanisms of stereoselectivity control in the coordination-insertion polymerization of rac-lactide, as well as other chiral and prochiral monomers, i.e., enantiomorphic site control (ESM) and chain end control (CEM) mechanisms [24,25]. They define two main structural elements responsible for the stereoselectivity of both monomeric and dimeric propagating species—the presence of asymmetry on the metal center and the presence of chiral carbon on the last inserted monomeric unit in the growing PLA chain. However, the cooperativity between metal centers, which can be observed only in the case of dimeric catalysts (or higher aggregates), and which has been recently reported for the dimeric metal alkoxides in the ROP of rac-LA [12,26,27,28], should be considered an important factor affecting their stereoselectivity. We have demonstrated that the cooperative effects between two metal centers of dimeric gallium and indium alkoxides manifested in the change in the stereoselectivity of the investigated complexes in the ROP of rac-LA [1]. In this case, the formation of excess homochiral dimeric species was responsible for the heteroselectivity of dimethylgallium and dimethylindium alkoxides in the ROP of rac-lactide, with a positive non-linear effect. With regard to the latter, Nozaki and coworkers have shown that excess homochiral zinc dimeric complexes were responsible for the stereoselective copolymerization of olefines with CO2 [29]. Therefore, one should consider the formation of the excess of homochiral dimeric species over heterochiral ones in the ROP, a strategy for stereoselectivity control that is comparable to enantioselective organic transformations, where excess R,R or S,S dimeric catalytic species are decisive for the enantiomeric excess (ee) of the product [30]. Interestingly, the difference in the stereoselectivity between homochiral and heterochiral dimeric metal alkoxide was reported in the case of Y [31], Cu [32], and In [33,34] complexes. Moreover, the formation of homochiral dimeric Zr and Hf [35], Sc [36], and In [37] complexes could have been responsible for their stereoselectivity, although it was not clearly indicated. Notably, the different activities of homochiral and heterochiral dimeric aluminum alkoxides have been recently observed in the ROP of cyclic esters [38]. Therefore, the factors influencing the formation of homochiral/heterochiral dimeric metal alkoxides should be considered an interesting area of research.
With regard to our previous studies, we have considered dialkylgallium alkoxides, which tend to form dimers both in the solid state and solution [1,39], a good starting point for further research on factors controlling the formation of homochiral/heterochiral dimers, and subsequently, their catalytic activity in the ROP of rac-LA. Although the selected class of complexes has been thoroughly investigated with regard to their synthesis and structure [39], the issue concerned with the formation of homochiral/heterochiral species has been barely discussed, not only for dialkylgallium derivatives, but also for group 13 metal dialkylalkoxides. Except for our studies on [Me2M(µ-CH(Me)CO2Me]2 (M = Ga, In) with chiral centers on an alkoxide ligand [1], the chiral recognition leading to exclusively homochiral dimers was reported in the case of the analogous dimethylaluminum derivatives of rac-ethyl lactate [40]. However, although rac-[Me2Al(µ-CH(Me)CO2Et]2 mimicked propagating species in the ROP of rac-LA with dialkylaluminum alkoxides, they did not allow for the stereoselective polymerization of rac-LA due to an essential lack of activity at mild conditions and extensive transesterification observed at higher temperatures [41]. Therefore, with regard to our studies on the structure and catalytic activity of dialkylgallium and dialkylindium alkoxides in the ROP of rac-LA [1,42], we have focused on the effect of the alkyl groups of [R2Ga(µ-CH(Me)CO2Me]2, on the formation and structure of homochiral species, and their impact on their stereoselectivity in the ROP of rac-LA. Studies on the dialkylgallium alkoxides should be particularly interesting, given the high stereoselectivity in the ROP of rac-LA and the low tendency for transesterification side reactions in comparison with aluminum [41] and indium [1] analogues.
Hereby, we report the synthesis, structure, and catalytic activity of rac-[R2Ga(µ-OCH(Me)CO2Me)]2 and (S,S)-[R2Ga(µ-OCH(Me)CO2Me)]2 (R = Et, iPr) in the ROP of rac-LA, as well as the synthesis and structure of rac-[R2Ga(µ-OCH(Me)C5H4N]2 (R = Et, iPr). We discuss how the effect of alkyl substituents affects their structure, most importantly with regard to the tendency for the formation of homochiral complexes. Based on structure-activity studies, we demonstrate that the decrease in the tendency for the formation of homochiral (R*,R*)-[R2Ga(µ-OCH(Me)CO2PLA)]2 (PLA—growing polylactide chain) considerably influences the stereoselectivity of dialkylgallium alkoxide species in the ROP of rac-LA. This constitutes further evidence for the crucial role of homochiral dimeric dialkylgallium alkoxide species in the stereoselective ROP of rac-lactide.

2. Results and Discussion

In order to demonstrate how gallium-bonded alkyl groups affect the structure and catalytic properties of dialkylgallium alkoxide propagating species in the ROP of rac-lactide (rac-LA), we initially focused on the synthesis and structure of (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 and rac-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et, iPr), as well as rac-[R2Ga(µ-OCH(Me)C5H4N]2 (R = Et, iPr), with regard to their dimethylgallium analogues, previously reported by us [1]. Due to the presence of a methyl lactate ligand (melac), which is expected to mimic the growing PLA chain [41,43,44,45], both rac-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et (1), iPr (2) and (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et ((S,S)-1, R = iPr ((S,S)-2,) are expected to represent model complexes for the dialkylgallium propagating species in the ROP of rac-LA (Scheme 1). Therefore, the studies of (S,S)-1 and (S,S)-2 were expected to show the effect of alkyl groups on the structure of homochiral—(R*,R*)-[R2Ga(µ-OCH(Me)CO2PLA)]2—species, which were decisive for the stereoselective ROP of rac-LA with analogous dimethylgallium alkoxides [1]. On the other hand, the structures of rac-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et (1), iPr (2)) were expected to demonstrate the effect of alkyl groups on the ratio of homochiral—(R*,R*)-[R2Ga(µ-OCH(Me)CO2PLA)]2—to heterochiral—(R,S)-[R2Ga(µ-OCH(Me)CO2PLA)]2 (R = Et, iPr)—propagating species in the ROP of rac-LA, both in the absence and presence of pyridine derivatives [1]. The latter was previously used to enhance the formation of the homochiral (R*,R*)-[Me2Ga(µ-OCH(Me)CO2PLA)]2 species. Finally, rac-[R2Ga(µ-OCH(Me)C5H4N]2 (R = Et (3), iPr (4)), where OCH(Me)C5H4N represents an alkoxide ligand with pyridine functionality, further served as model complexes in order to demonstrate the effect of alkyl groups on the formation of homochiral/heterochiral dialkylgallium alkoxides in the presence of pyridine derivatives. In addition to the main scope of our research presented above, it should be noted that there is a paucity of data on diethylgallium alkoxides [46,47] or aryloxides [48,49,50,51,52,53,54], and, as far as we are aware, there are no fully characterized di-iso-propylgallium alkoxides/aryloxides, in contrast to dimethylgallium or even bulky di-tert-butylgallium analogues [39].
rac-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et (1) and iPr (2)) and (S,S)-[R2Ga(µ-OCH(Me)CO2Me)]2 (R = Et ((S,S)-1), iPr (S,S-2)) complexes were synthesized in the equimolar reaction between R3Ga (R = Et, iPr) and rac-methyl lactate or S-methyl lactate, respectively (Scheme 2). rac-[R2Ga(µ-OCH(Me)C6H4N]2 (R = Et (3) and iPr (4)) were synthesized analogously, in the reaction of trialkylgallium compounds with rac-HOCH(Me)C6H4N (Scheme 3). All complexes were purified by crystallization and isolated as colorless crystals in moderate to high yields. Single crystals suitable for X-ray analysis were obtained for complexes 2, 3, 4, as well as (S,S)-1 and (S,S)-2.

2.1. Structure of rac-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et (1), iPr (2))

rac-[iPr2Ga(µ-OCH(Me)CO2Me)] (2) crystallized as centrosymmetric dimer (R,S)-2 (Figure 1), similarly to the previously reported (R,S)-[Me2Ga(µ-OCH(Me)CO2Me)] complex [1]. The coordination sphere of gallium atoms adopted a distorted trigonal-bipyramidal geometry, with the methine carbons of iPr groups and alkoxide oxygen of the melac ligand defining the equatorial plane. The carbonyl oxygen of melac ester functionality and the bridging alkoxide oxygen of the second monomeric unit were located in the axial positions, which is typical for five-coordinate group 13 dialkylalkoxides [39], analogous to dialkylaluminum complexes [55]. The presence of iPr resulted in the significantly longer Ga–C bonds (1.9837(15) Å and 1.9899(15) Å), in comparison to Ga–C bonds (1.9584(18) Å and 1.9611(17) Å) of the analogous dimethyl derivative—(R,S)-[Me2Ga(µ-OCH(Me)CO2Me)] [1]. While this observation is in line with the structure of dialklylgallium alkoxides bearing ethyl and tert-butyl alkyl groups [39], it should not be surprising as it can be associated with both larger steric hindrances of iPr groups, and especially with the lower basicity of monoanionic (CH3)2HC− ligands in comparison with H3C−. Notably, the increase in the steric hindrances of a gallium-bonded alkyl groups did not result in the longer Ga…O(2) chelate interaction (2.449(5) Å) between the gallium and carbonyl group of melac ligand in comparison with the analogous dimethyl derivative 2.5220(13) Å. Moreover, the stronger chelate bond in the case of the di-iso-propyl derivative 2 could be indicated by the distance of bridging Ga–O bonds in the trans position to chelate Ga–O=C ones [55]. In the latter case, the longer bridging Ga–O bond (2.0547(10) Å) in the trans position to the chelate Ga–O(2) bond (2.449(5) Å) was observed in comparison with the analogous distances of 2.0231(11) Å within the Ga2O2 central ring of (R,S)-[Me2Ga(µ-OCH(Me)CO2Me)] [1]. Notably, with regard to the discussion on the structure of (S,S)-[R2Ga(µ-OCH(Me)CO2Me)] (R = Me, Et ((S,S)-1), iPr ((S,S)-2))) (see below), the presence of isopropyl groups in (R,S)-2 had a considerable effect on the Ga(1)–O(1)–Ga(11)–C(2)/Ga(11)–O(11)–Ga(1)–C(21) torsion angles (164.94(14)°/−164.94(14)° in comparison with the analogous angles of (R,S)-[Me2Ga(µ-OCH(Me)CO2Me)] (146.08(15)°/−146.69(15)°).
With regard to our studies on the structure of [Me2Ga(µ-OCH(Me)CO2Me)]2 in solution [1], 1H NMR spectra of 1 and 2 were expected to demonstrate the effect of alkyl groups on the distribution of homochiral—(R*,R*)-[R2Ga(µ-OCH(Me)CO2Me)]2 (R = Et, iPr)—and heterochiral—(R,S)-[R2Ga(µ-OCH(Me)CO2Me)]2 (R = Et, iPr)—species, as they have been crucial for the heteroselectivity of dialkylgallium alkoxide species in the ROP of rac-LA. On the other hand, the FTIR studies should be considered as indicative of the strength of the Ga…O=C chelate interaction between gallium and the melac ligand. Notably, in the latter case, the FTIR spectra of (S,S)-2 and (S,S)-1, which are discussed below, showed essentially no effect across gallium-bonded ethyl or iso-propyl groups in comparison with (S,S)-[Me2Ga(µ-OCH(Me)CO2Me)]2 [42]. The dissolution of (R,S)-2 led to the equimolar mixture of (R*,R*)-2 and (R,S)-2 dimers, which was revealed by 1H NMR and the presence of two sets of signals that are characteristic of homochiral and heterochiral species. The presence of three septets at 1.01, 1.08, and 1.17 ppm, in a 1:2:1 ratio, corresponding to methine protons of Ga–CH(CH3)2 groups, was especially indicative of their ratio. Analogously, the equimolar mixture of (R*,R*)-1 and (R,S)-1, in the solution of 1 was evidenced by two quartets at 0.61 and 0.77 ppm, and a multiplet at 0.69 ppm, in a 1:1:2 ratio, corresponding to methylene protons of the Ga-CH2CH3 groups of the respective (R,S)-1 and (R*,R*)-1 species. In the case of both 1 and 2, it confirmed the presence of dimeric species, while the observed equimolar mixture of homochiral and heterochiral species was analogous to rac-[Me2Ga(µ-OCH(Me)CO2Me]2 [1]. Similarly to the latter, the fast exchange between (R,S)-[R2Ga(µ-OCH(Me)CO2Me]2 and (R*,R*)-[R2Ga(µ-OCH(Me)CO2Me]2 species was expected. Notable, in the case of 2, the minor septet, overlapping with the septet at 0.77 ppm and corresponding to (R,S)-2 (Figure 2), could suggest the presence of monomeric iPr2Ga(µ-OCH(Me)CO2Me) (<4% based on the integration). In this case, the increased tendency of 2 to dissociate in solution was in line with the significantly longer bridging Ga–O′ bond in the Ga2O2 ring in comparison with the analogous Ga–O bridging bond of rac-[Me2Ga(µ-OCH(Me)CO2Me)]2 [1]. However, even in the case of 2, with the bulkiest alkyl groups among the discussed [R2Ga(µ-OCH(Me)CO2Me)] (R = Me, Et, iPr), dimeric species were dominant, which also the case in the presence of different pyridine derivatives (Figure 2).
In the case of 1, the ratio of (R*,R*)-1/(R,S)-1 increased with the addition of differently substituted pyridines, i.e., pyridine, 4-methylpyridine, and 4-(dimethylamino)pyridine, and this was strongly dependent on both their donor number [56] and pyridine/1 ratio (Figure 3). Notably, the formation of only traces of tentatively assumed monomeric Ga species—Et2Ga(OCH(Me)CO2Me)(Py)—facilitated by the presence of pyridine derivative, could be suggested by the 1H NMR spectra (Figure S2.) Importantly, the excess of homochiral (R*,R*)-[Et2Ga(µ-OCH(Me)CO2Me)]2 ((R*,R*)-1) species was much lower in comparison with analogous (R*,R*)-[Me2Ga(µ-OCH(Me)CO2Me)]2 [1], as previously reported for rac-[Me2Ga(µ-OCH(Me)CO2Me)]2/Py (Py—pyridine derivative), (Figure 3). On the other hand, no excess homochiral (R*,R*)-2, was observed under the same conditions, irrespective of the donor number and excess of pyridine derivative added to 2 (Figure 2). On the contrary, the slight excess of heterochiral ((R,S)-[R2Ga(µ-OCH(Me)CO2Me)]2 was observed either without or with, e.g., the pyridine derivative added (Figure 2), which resulted in the (R*,R*)-2/(R,S)-2 ratio of 0.45—0.48, essentially, irrespective of the donor number of the pyridine derivative or Py:2 ratio. Interestingly, the percentage of tentatively assumed monomeric Ga species increased with both the donor number of pyridine or 4-methylpyridine and the Lewis base/2 ratio, reaching up to 17% in the case of the 4-methylpyridine/2 ratio of 60:1. In the case of DMAP/2, a ratio of 6:1 was observed, where DMAP represents a 4-(dimethylamino)pyridine of the highest donor number among all pyridine derivatives used, and the percentage of monomeric gallium species reached over 75%. The formation of such tentatively proposed monomeric species could be facilitated by the formation of iPr2Ga(OCH(Me)CO2Me)(Py), where Py represents the pyridine derivative. Although no monomeric dialkylgallium alkoxides could be isolated in our studies, several X-ray structures of tBu2GaOPh(Py) have been reported and well characterized so far [57]. With regard to the latter, further studies on the synthesis and structure of monomeric iPr2Ga(OCH(Me)CO2Me)(Py) should be conducted. However, the dimeric species decisive for the stereoselectivity of dialkylgallium alkoxides are the primary focus of this article. While in the case of rac-[R2Ga(µ-OCH(Me)CO2Me)] (R = Me [1], Et (1), iPr (2)) the essentially equimolar ratio of homochiral ((R*,R*)-[R2Ga(µ-OCH(Me)CO2Me)]2) to heterochiral ((R,S)-[R2Ga(µ-OCH(Me)CO2Me)]2) species was observed irrespective of the alkyl group, the alkyl groups considerably affected the distribution of homo- and heterochiral species in the presence of pyridine derivatives. Therefore, gallium-bonded alkyl groups can be considered responsible for the distribution of homo- and heterochiral species, as well as for the pyridine derivatives of different coordination efficiencies to gallium.

2.2. Structure of (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et((S,S)-1), iPr((S,S)-2))

(S,S)-[Et2Ga(µ-OCH(Me)CO2Me]2 ((S,S)-1) (Figure 4) and (S,S)-[iPr2Ga(µ-OCH(Me)CO2(PLA)]2 ((S,S)-2) (Figure 5) crystallized as dimers, with the coordination sphere of both gallium atoms adopting a distorted trigonal-bipyramidal geometry, similarly to the previously reported (S,S)-[Me2Ga(µ-OCH(Me)CO2Me)]2 complex [42]. For a whole series of compounds—(S,S)-[R2Ga(µ-OCH(Me)CO2Me)]2 (R = Me, Et, iPr)—the carbons of alkyl groups and alkoxide oxygen of the melac ligand defined the equatorial plane, and the carbonyl oxygen of the melac ester’s functionality and the bridging alkoxide oxygen of the second monomeric unit were located in the axial positions. Notably, the Ga–C bond distances of (S,S)-[R2Ga(µ-OCH(Me)CO2Me)] decreased in series iPr ((S,S)-2; 1.985–1.996 Å) > Et ((S,S)-1; 1.962–1.978 Å) > Me (1.952–1.962 Å). Similarly, the Ga–O bridging bonds within the Ga2O2 central ring were significantly longer in the case of (S,S)-2 (2.055(3) and 2.053(3)) and (S,S)-1 (2.021(4) and 2.058(3)), in comparison with (S,S)-[Me2Ga(µ-OCH(Me)CO2Me)] (2.0269(18) and 2.0349(17) Å). Both findings were in line with the differences between the structures of 2 and (R,S)-[Me2Ga(µ-OCH(Me)CO2Me)] [1] discussed above. Importantly, for both (S,S)-1 and (S,S)-2, the X-ray diffraction analyses revealed the presence of asymmetric dimers, which is in line with the structure of the previously characterized (S,S)-[Me2Ga(µ-OCH(Me)CO2Me)]2 complex [1,42]. Similarly to the latter, the observed asymmetry was the effect of the differently distorted methine carbon of melac ligands from the GaOCCO planes (Figure 6), which could be quantified by measuring the Ga–O–Ga–CH(Me) torsion angles [1]. However, the difference between the two different torsion angles Ga–O–Ga–CH(Me) in dimeric (S,S)-1 (Figure 6b) and (S,S)-2 (Figure 6c) were much smaller in comparison with (S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2 (Figure 6a). Therefore, the presence of more sterically hindered Et and iPr, in comparison with Me groups, resulted in significantly smaller distortion from the symmetric species, for which no or an equal level of distortion of both methine carbon S-melac ligands from the GaOCCO planes was expected. It is impossible to indicate unequivocally all the factors responsible for the above observation at this point in our research. However, one should note the presence of the center of symmetry in (S,S)-1 and (S,S)-2 resulting from the arrangement of ethyl and iso-propyl groups, respectively, in cases where the S-melac ligands are not taken under consideration (Figure 5). Such an effect was not evidenced for small gallium-bonded Me groups in (S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2. Therefore, in the case of (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et, iPr) complexes, the alkyl groups resulted in the formation of species of different symmetry, although the C2 point group was initially expected due to the presence of S-melac ligands of the same absolute configuration. Notably, the presence of two different structural elements, i.e., the alkyl groups on the gallium and S-melac ligands, which favored the formation of (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et, iPr) complexes of different symmetry, could be responsible for the higher tension within their central Ga2O2 ring in comparison with the analogous dimethyl derivative. This was reflected by the Ga(O1)–O(1)–Ga(1B)–O(1B) torsion angles of 3.3° ((S,S)-2) and 2.4° ((S,S)-1), larger in comparison with 2.0° in the case of (S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2. The increased preference for the formation of centrosymmetric species for more bulky alkyl groups, should also be expected for the heterochiral (R,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et, iPr) complexes discussed above, for which the presence of melac ligands of the opposite absolute configuration does not prevent the formation of centrosymmetric complexes. Such reasoning is in line, e.g., with the lower tendency for the formation of homochiral (R*,R*)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et, iPr) in solution, presented and discussed above in the case of rac-[R2Ga(µ-OCH(Me)CO2Me]2, 1 and 2.
In solution, the 1H NMR spectrum of (S,S)-1 revealed one set of signals, which was in line with the presence of (S,S)-[Et2Ga(µ-OCH(Me)CO2Me]2. Additionally the dimeric structure of 1, both in the solid state and solution, supported the proposed structure of (S,S)-1, which was additionally in agreement with the tendency of dialkylgallium alkoxides to form dimeric species [39]. Similarly, the major set of signals evidenced by the 1H NMR spectrum of (S,S)-2, was assigned to (S,S)-[iPr2Ga(µ-OCH(Me)CO2Me]2. In this case, the additional minor septet corresponding to methine protons of the GaCH(CH3)2 groups (Figure S5) could be assigned to monomeric species, tentatively proposed for 2. It can also indicate the presence of an equilibrium between dimeric (S,S)-[iPr2Ga(µ-OCH(Me)CO2Me]2 and monomeric [iPr2Ga((S)-OCH(Me)CO2Me] species, shifted considerably towards the former species. While the structure of (S,S)-1 and (S,S)-2 in solution, revealed by NMR spectra, was in line with the structure of rac-1 and rac-2, discussed above, infrared spectroscopy was especially indicative of the effect of alkyl groups on the chelate Ga…O=C interaction of (S,S)-[R2Ga(µ-OCH(Me)CO2Me)]2 (R = Me, Et, iPr). The FTIR of both (S,S)-1 and (S,S)-2 in CH2Cl2 revealed the presence of absorption bands of C=O groups at 1724 cm−1, essentially the same, accounting for experimental error, in comparison with (S,S)-[Me2Ga(µ-OCH(Me)CO2Me)]2 (νC=O = 1725 cm−1) [42]. Moreover, the deconvolution of the C=O band, leading to bands at 1724 and 1740 cm−1, corresponding to the coordinated and uncoordinated C=O groups of the melac ligand, was indicative of the percentage of the latter. In the case of (S,S)-1, it was revealed that 88% of C=O groups remained coordinated to gallium, which was exactly the same value as in the case of (S,S)-[Me2Ga(µ-OCH(Me)CO2Me)]2 [42]. A slightly higher percentage of coordinated C=O groups was observed for (S,S)-2 (90%), which could explain the slightly stronger chelate Ga–O bonds in the case of 2 in comparison with both 1 and [Me2Ga(µ-OCH(Me)CO2Me)]2, as revealed by X-ray analysis.

2.3. Structure of rac-[R2Ga(µ-OCH(Me)C5H4N]2 (R = Et (3), iPr (4))

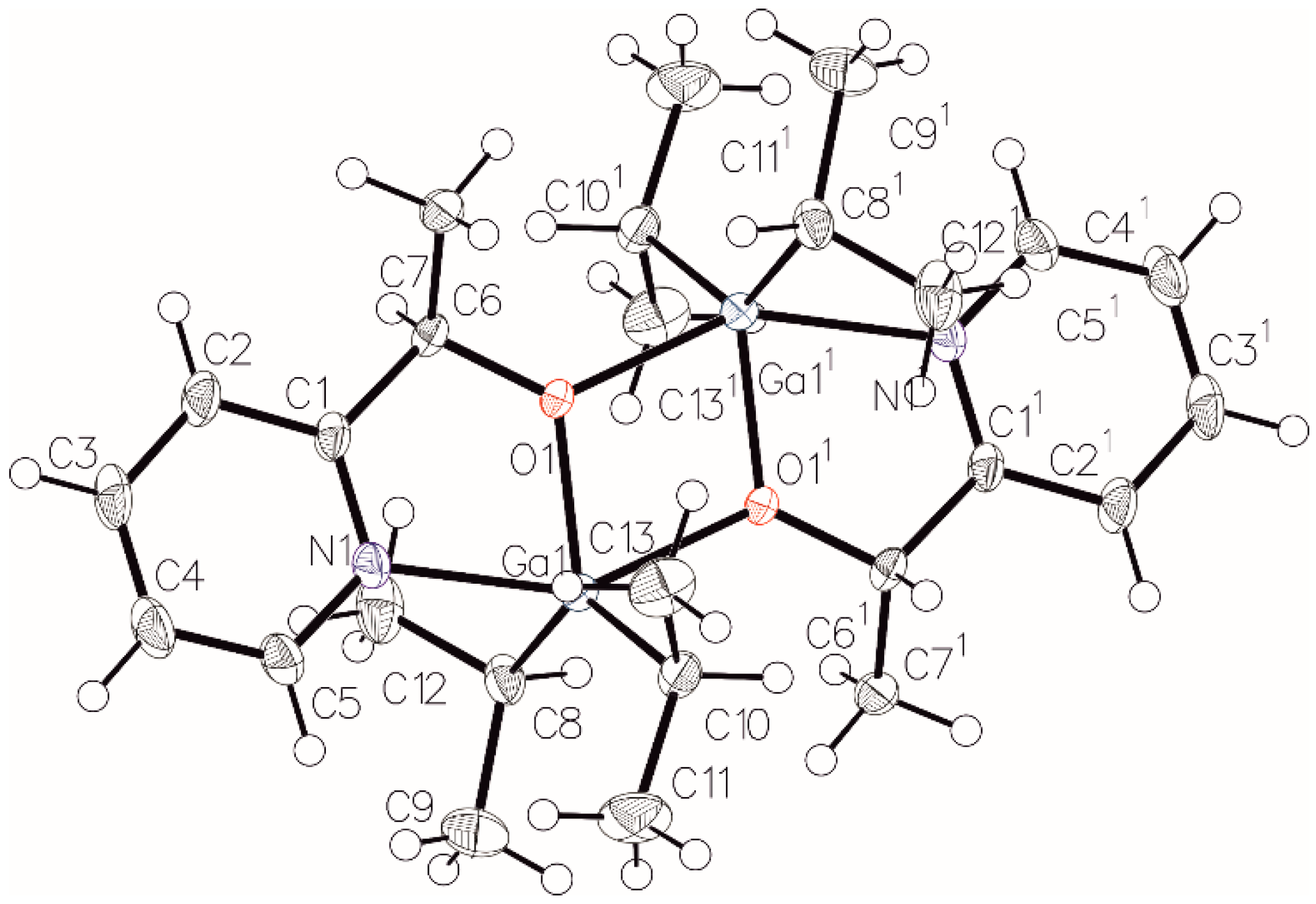

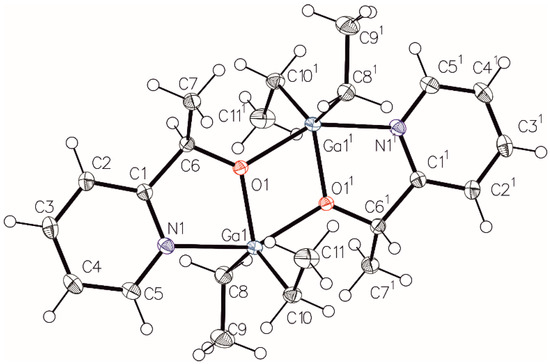

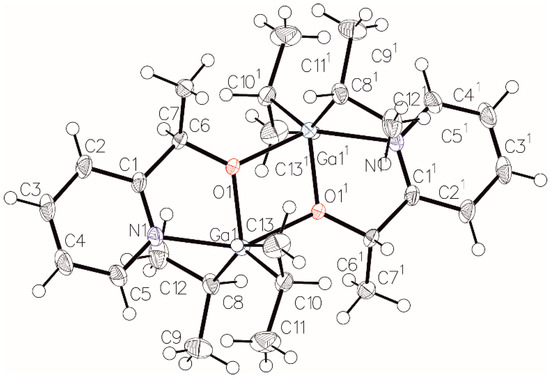

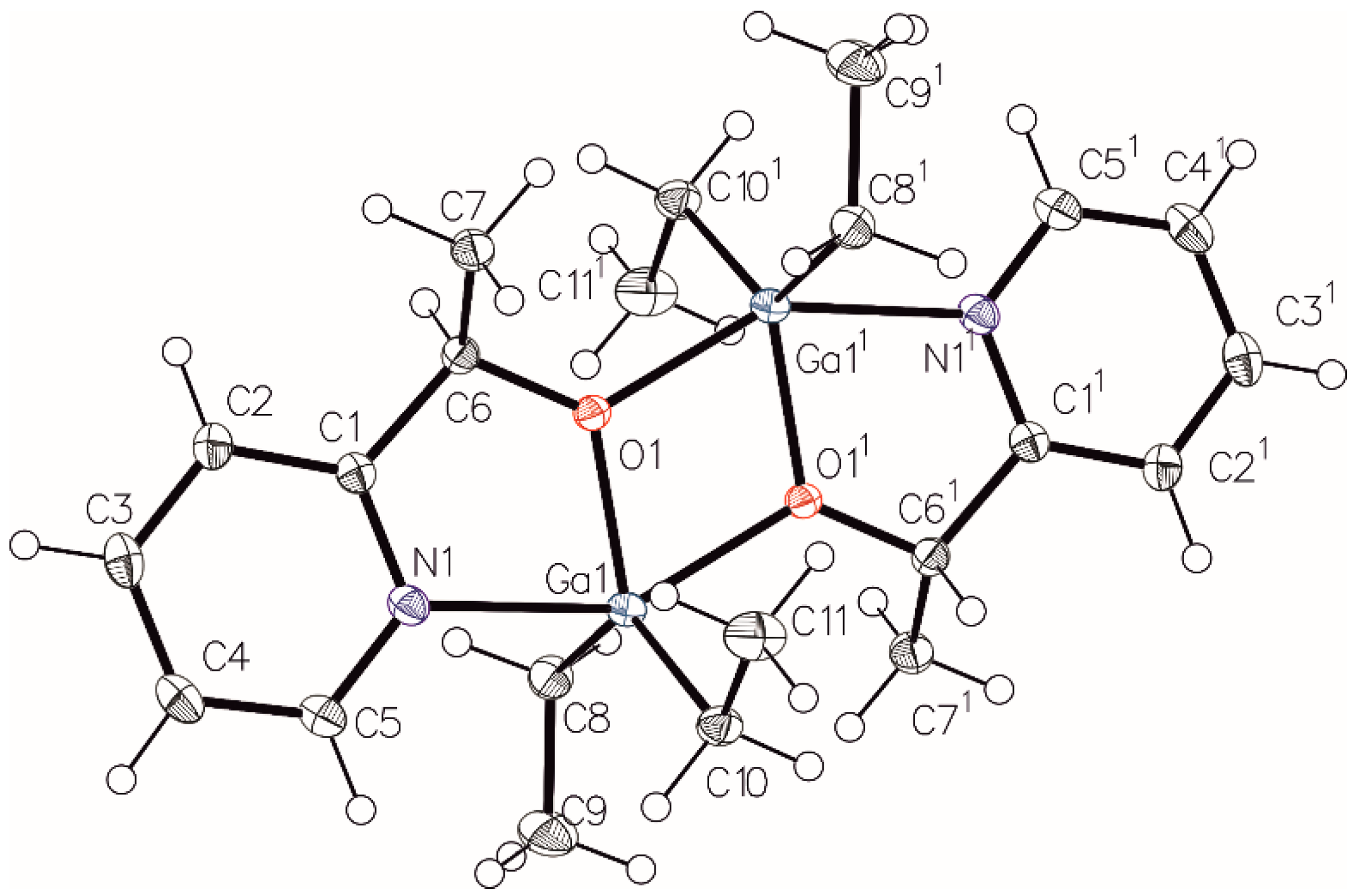

Complexes 3 and 4 were characterized in the solid state by X-ray diffraction analysis, which revealed, in both cases, the presence of centrosymmetric heterochiral dimers (R,S)-[R2Ga(µ-OCH(Me)C5H4N]2 (Figure 7 and Figure 8). This was in sharp contrast to the analogous dimethyl derivatives, which led upon crystallization solely to the (R*,R*)-[Me2Ga(µ-OCH(Me)C5H4N]2 of the C2 symmetry [1]. However, the observed structure of 3 and 4 was in line with the effect of the ethyl and iso-propyl groups on the tendency for the formation of centrosymmetric dialkylgallium alkoxide species, as shown above for the [R2Ga(µ-OCH(Me)CO2Me]2 complexes. In the case of 3 and 4, five-coordinate gallium atoms adopted a distorted trigonal-bipyramidal geometry. Carbon atoms of gallium-bonded alkyl groups and the alkoxide oxygen of the OCH(Me)C5H4N ligand defined the equatorial plane. The nitrogen of the pyridine functionality of the OCH(Me)C5H4N ligand and a bridging alkoxide oxygen atom of the second monomeric unit were located in the axial positions. Notably, the presence of ethyl, and especially iso-propyl groups, did not essentially restrain the formation of Ga–N bonds to the fifth coordinate site of gallium in comparison to the analogous dimethyl derivative. This was demonstrated by the Ga–N distances for the following [R2Ga(µ-OCH2C5H4N)]2 complexes: 2.2789(18) Å (R = Me), 2.2908(11) Å (R = Et; 3), and 2.2759(18) Å (R = iPr; 4). On the other hand, the presence of a iPr group resulted in the elongation of the bridging Ga–O′ bond (2.1632(13) Å) within central Ga2O2 ring in comparison to the analogous bond in (R*,R*)-[Me2Ga(µ-OCH(Me)C5H4N)]2 (2.0931 Å), as well as in 3 (2.0906(8) Å).
In solution, the 1H NMR spectrum of 3 revealed one set of signals, which was not in agreement with either the molecular structure of (R,S)-3 in the solid state or the mixture of (R,S)-3 and (R*,R*)-3 diastereomers, which was expected given the structures of 1 and 2 (see above). This could either suggest the presence of tentative monomeric—[Et2Ga(µ-OCH(Me)C5H4N)]2—or dimeric homochiral species—(R*,R*)-[Et2Ga(µ-OCH(Me)C5H4N)]2— in solution. The presence of the latter was further indicated by the 1H NMR spectrum of 4, which revealed two sets of signals that, analogously to 2 and (S,S)-2, should be ascribed to the dimeric homochiral species—(R*,R*)-[iPr2Ga(µ-OCH(Me)C5H4N)]2—and the tentative monomeric [iPr2Ga(µ-OCH(Me)C5H4N)]2 species in a ratio of about 3:1. Although the ratio could not be determined precisely due to the overlapping signals (Figure S7), the presence of a higher percentage of monomeric species, in comparison with the structure of 2 and (S,S)-2, was in line with the structure of 2 in the presence of pyridine derivatives (see above), as well as with the interaction of pyridine functionality with Ga. Although the presence of only homochiral dimers—(R*,R*)-[R2Ga(µ-OCH(Me)C5H4N)]2 (R = Et, iPr)—for 3 and 4 was initially surprising given the structure of 1 and 2, this is in line with the suggested structure of rac-[Me2Ga(µ-OCH(Me)C5H4N)]2, as well as with the tendency of rac-[Me2Ga(µ-OCH(Me)CO2Me] for the formation of homochiral species in the presence of pyridines [1]. Despite the remaining questions and uncertainties concerning the structure of these complexes in solution, the minor effect of alkyl groups on the distribution of homo (R*,R*) and heterochiral (R,S) dimers for rac-[R2Ga(µ-OCH(Me)C5H4N)]2 (R = Me, Et, iPr) was observed in contrast to their solid state structures. Notably, in the solid state, the tendency for the formation of centrosymmetric heterochiral dimers in the case of 3 and 4 was facilitated for diethyl- and especially di-iso-propylgallium melac derivatives in comparison to methyl derivatives [1]. This was in line with a reduced tendency for the formation of homochiral species with growing alkyl groups in the case of rac-[R2Ga(µ-OCH(Me)CO2Me)]2 (R = Me, Et (1) and iPr (2)) in the presence of pyridine derivatives. The latter should be of special interest with regard to the ROP of rac-lactide using [R2Ga(µ-OCH(Me)CO2Me)]2, as well as the structure of the [R2Ga(µ-OCH(Me)CO2PLA)]2 propagating species.

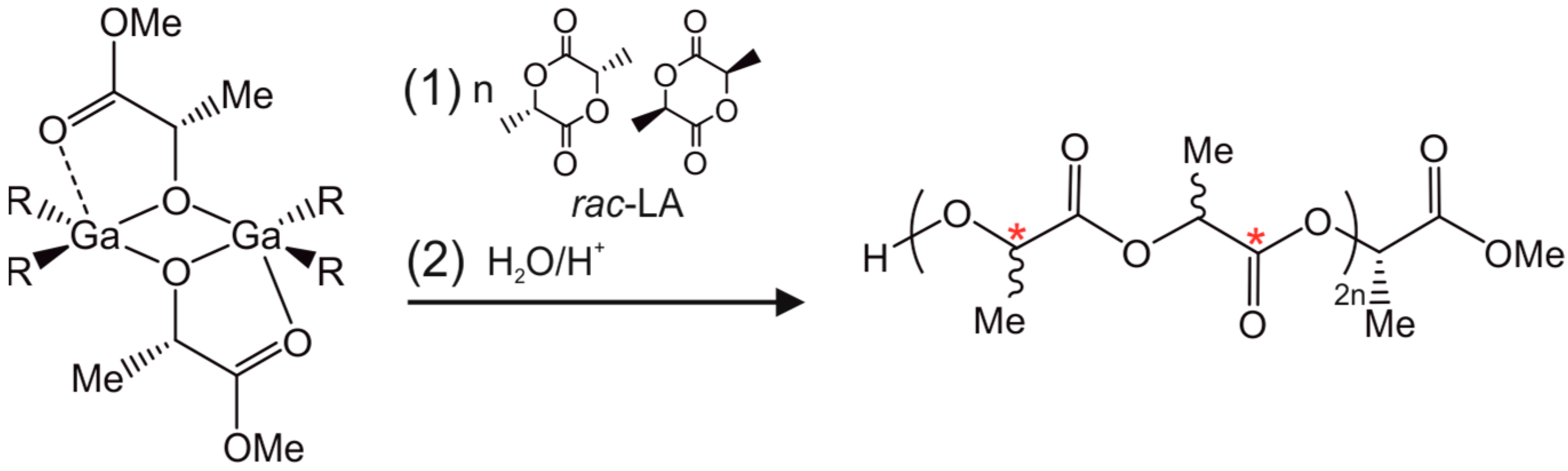

2.4. Ring-Opening Polymerization of rac-LA with [R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et, iPr)

In order to investigate the effect of the alkyl groups of [R2Ga(µ-OCH(Me)CO2Me]2 (R = Et, iPr) on their activity, and especially their stereoselectivity in the ROP of rac-LA, we examined the catalytic properties of (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et ((S,S)-1), iPr ((S,S)-2)), chosen analogously to (S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2, and previously used by us in polymerization studies [1,42]. Additionally, (S,S)-1/pyridine (1:6) and (S,S)-2/pyridine (1:6) were used in order to generate propagating species with the excess of homochiral—(R*,R*)—dimers and served as a representative examples of the catalytic systems—(S,S)-[R2Ga(µ-OCH(Me)CO2Me]2/Py (Py—pyridine derivative)—described above. One should note that after the insertion of rac-LA into the Ga–O bond of (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et, iPr), the formation of both heterochiral (R,S)-[R2Ga(µ-OCH(Me)CO2PLA]2 and homochiral (R*,R*)-[R2Ga(µ-OCH(Me)CO2PLA]2 propagating species should be expected, analogous to the previously described dimethylgallium derivatives (Scheme 1) [1].
The ROP of rac-LA, with (S,S)-1, (S,S)-1/pyridine, (S,S)-2, (S,S)-2/pyridine, as well as (S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2 and (S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2/pyridine, was conducted at 40 °C and 70 °C. (Table 1) At 40 °C (Table 1, Entries 1–6), the insertion of rac-LA occurred solely into the Ga–Oalkoxide bond and led to the PLA with OH and S-melac end groups (Scheme 4), which was in each case verified by 1H NMR and MALDI-TOF analysis (see the Supplementary Materials). The latter indicated that there were essentially no transesterification reactions for the (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2/pyridine catalytic systems, which confirmed the lack of activity of amines towards rac-LA at the polymerization conditions and the coordination insertion mechanism of the ROP of rac-LA with dialkylgallium alkoxide species. This was in line with previously reported results on the ROP of rac-LA with (S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2 and (S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2/pyridine [1]. Although, at 70 °C (Table 1, Entries 7–12), the insertion of rac-LA into Ga–Oalkoxide bond was evidenced both by the 1H NMR and MALDI TOF analysis, the higher tendency for side reactions, both the intermolecular transesterification and formation of cyclic PLA, were evidenced by the MALDI-TOF analyses. For a series of catalysts—(S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et ((S,S)-1) and iPr ((S,S)-2)—the side reactions were essentially eliminated in the case of (S,S)-2, most probably due to the presence of iPr groups—the bulkiest among all investigated [R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et, iPr) complexes. For a series of catalytic systems—(S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2/pyridine (1:6), (S,S)-1/pyridine (1:6) and (S,S)-2/pyridine (1:6)—the side reactions were more pronounced; however, the lowest extent was observed in the case of di-iso-propyl species. Although the reader must note that the MALDI-TOF analysis is not a quantitative method, the effect of iPr groups on the decreased tendency for side reactions, especially transesterification, should be considered. The differences in the activities of both (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 catalysts, at 70 °C, and (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2/pyridine (1:6) catalytic systems, both at 40 °C and 70 °C, were too small to substantially demonstrate the effect of the alkyl groups. However, in the case of the (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 catalysts, at 40 °C, and in the absence of pyridine (Table 1, Entries 1–3), for which the lowest activity of propagating species was observed, the rac-LA conversions decreased in the following series: (S,S)-2 > (S,S)-1 > (S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2. Such an observation could be the result of the decreasing distances of bridging Ga–O bonds with the decreasing bulkiness of the alkyl groups in series iPr > Et > Me. While the highest activity was observed for (S,S)-2, we cannot exclude the effect of the presence of minor fractions of other species, tentatively ascribed as monomeric species, in this case.
For the ROP of rac-LA with [R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et ((S,S)-1) and iPr ((S,S)-2) (Table 1, Entries 1–3 and 7–12), only atactic PLA was formed, even at mild conditions at which no side reactions could be detected. However, in the case of catalytic systems [R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et)/pyridine (1:6) (Table 1, Entries 4–6), the formation of heterotactically enriched PLA was observed. The essential lack of heteroselectivity at 70 °C (Table 1, Entries 10–12) should be considered a result of both high temperature as well as the effect of side reactions at polymerization conditions. Most importantly, the heteroselectivity, expressed as a probability of racemo-linkages (Pr) in the formed PLA, strongly correlated with the excess of homochiral dimeric propagating species, which should be expected based on the structure studies of [R2Ga(µ-OCH(Me)CO2Me]2 (R = Me [1], Et ((S,S)-1) and iPr ((S,S)-2) in the presence of pyridine (see the discussion above). Notably, essentially no stereoselectivity was observed in the case of (S,S)-2 and (S,S)-2/pyridine, which indicates that there is essentially no effect of minor species, tentatively assigned to monomeric species, on the stereoselectivity. Most importantly, despite the limited number of examples, the obtained results clearly demonstrate that the chiral recognition induced the formation of homochiral dimeric (R*,R*)-[R2Ga(µ-OCH(Me)CO2PLA]2 propagating species and should be considered responsible for their stereoselectivity in the ROP of rac-LA. While the presence of bulky alkyl groups in [R2Ga(µ-OCH(Me)CO2PLA]2 has no adverse effect on their activity and can be somehow helpful in order to limit side reactions, it considerably decreases or even eliminates the excess of homochiral (R*,R*)-[R2Ga(µ-OCH(Me)CO2Me]2 species and therefore the stereoselectivity.

3. Materials and Methods

3.1. General Procedures

All operations were carried out under dry argon using standard Schlenk techniques. Solvents and reagents were purified and dried prior to use. Solvents were purified using MBRAUN Solvent Purification Systems (MB-SPS-800) and stored over molecular sieves. rac-Lactide was purchased from Sigma-Aldrich (Merck, Warsaw, Poland) and further purified by crystallization from anhydrous toluene and then sublimated. (S)-methyl lactate and (rac)-methyl lactate were purchased from Sigma-Aldrich. rac-HOCH(Me)C5H4N (rac-1-(2-pyridinyl)ethanol) was synthesized according to the literature [58]. All alcohols were stored under argon, over 4 Å molecular sieves, at least 48h before they were used for the reaction with trialkylgallium compounds. Me3Ga was purchased from STREM Chemicals, Inc. and used as received. Et3Ga and iPr3Ga, which we received as a gift, were synthesized in the research group of Prof. Kazimierz B. Starowieyski at Warsaw University of Technology. iPr3Ga was freshly distilled under vacuum prior to use. (S,S)-[Me2Ga(μ-OCH(Me)CO2Me)]2 was synthesized according to our article [42]. The 1H and 13C NMR spectra were recorded on Varian 700 MHz (Varian, Palo Alto, CA, USA) and Agilent 400 MHz spectrometers (Agilent Technologies, Santa Clara, CA, USA), with shifts given in ppm according to the deuterated solvent shift. FTIR spectra were recorded on a FTIR Perkin Elmer System 2000 instrument (Perkin Elmer, Waltham, MA, USA). MALDI-TOF spectra were recorded on a Bruker Model ultrafleXtreme instrument (Bruker, Billerica, MA, USA). Elemental analysis was performed on a Vario EL III instrument (Heraeus, Hanau, Germany) for (S,S)-1 and (S,S)-2. Although, for (S,S)-1, the obtained values were low for carbon with 0.6%, they represent the best values we could obtain experimentally. EA for (S,S)-2 was significantly low in carbon and hydrogen. This could result from the EA measurement or sample handling without an inert atmosphere.

3.2. Synthesis of Gallium Complexes

The representative method for the synthesis of 1, (S,S)-1, 2, (S,S)-2, 3, and 4 was as follows. The stirred solution of trialkylgallium—R3Ga (R = Et, iPr; 3.0 mmol)—in CH2Cl2 (1 mL) was added dropwise to the solution of S-methyl lactate/rac-methyl lactate/rac-1-(2-pyridinyl)ethanol (3.0 mmol) in CH2Cl2 (9 mL), at −40 °C. Subsequently, the cooling bath was removed, and the reaction mixture was warmed slowly to room temperature. Upon increasing the solution temperature, the evolution of gas was observed. The reaction mixture was stirred at room temperature for 5h. Then, the solvent and volatiles were removed under a vacuum to give, in each case, a white crystalline solid. (S,S)-1 and (S,S)-2 were recrystallized from n-hexane, and 1, 2, 3, 4 from the methylene chloride/n-hexane solution, at −20 °C, to give colorless crystals in moderate to high yields, the latter depending on the concentration of the solution and CH2Cl2/n-hexane ratio.
(S,S)-1; 1H NMR (CD2Cl2, 700 MHz): 0.35, (q, 3J(H,H) = 8.0 Hz, 4H, GaCH2CH3), 1.04 (t, 3J(H,H) = 8.0 Hz, 6H, GaCH2CH3), 1.39 (d, 3J(H,H) = 6.9 Hz, 3H, CHCH3), 3.77 (s, 6H, OCH3), 4.44 (q, 3J(H,H) = 6.9 Hz, 1H, CHCH3). 13C {1H} NMR (CD2Cl2, 175 MHz): 5.9, 10.2, 22.1, 53.3, 68.3, 179.1. FTIR: 1724 cm−1 (C=O). Anal. Calcd for C16H34Ga2O6: C, 41.61, H, 7.42. Found: C, 40.96, H, 7.32.
(S,S)-2; 0.83 (sept, 3J(H,H) = 7.6 Hz, 2H, GaCH(CH3)2), 1.12 (d, 3J(H,H) = 7.6 Hz, 12H, GaCH(CH3)2), 1.42 (d, 3J(H,H) = 6.9 Hz, 3H, CHCH3), 3.78 (s, 3H, OCH3), 4.52 (q, 3J(H,H) = 6.9 Hz, 1H, CHCH3). 13C {1H} NMR (CD2Cl2, 175 MHz): 17.4, 21.7, 22.3, 53.5, 68.85, 179.69. FTIR: 1724 cm−1 (C=O).
1: 1H NMR (toluene-d8, 700 MHz): 0.61 (q, 3J(H,H) = 8.1 Hz, 1H, GaCH2CH3), 0.74–0.65 (m, 2H, GaCH2CH3), 0.77 (q, 3J(H,H) = 8.1 Hz, 1H, GaCH2CH3), 1.46–1.25 (m, 9H, CHCH3, GaCH2CH3), 3.21, 3.22 (s, 3H, OCH3), 4.44–4.39 (m, 1H, CHCH3).
2: 1H NMR (toluene-d8, 700 MHz): 1.05–0.98 (sept, 3J(H,H) = 7.6 Hz, 1H, GaCH(CH3)2), 1.12–1.05 (sept, 3J(H,H) = 7.6 Hz, 2H, GaCH(CH3)2), 1.21–1.14 (m, 1H, GaCH(CH3)2), 1.50–1.33 (m, 30H, CHCH3, GaCH(CH3)2), 3.22, 3.23 (s, 6H, OCH3), 4.52–4.47 (m, 2H, CHCH3).
3: 1H NMR (CD2Cl2, 400 MHz): 0.36 (q, 3J(H,H) = 8.0 Hz, 4H, GaCH2CH3), 0.96 (t, 3J(H,H) = 8.0 Hz, 6H, GaCH2CH3), 1.52 (d, 3J(H,H) = 6.6 Hz, 3H, CHCH3), 5.23 (q, 3J(H,H) = 6.6 Hz, 1H, CHCH3), 7.37–7.29 (m, 2H, CH(C5H4N)), 7.84–7.77 (m, 1H, CH(C5H4N)), 8.43–8.37 (m, 1H, CH(C5H4N)).
4: 1H NMR (CD2Cl2, 400 MHz): 0.78–0.92 (m, 2H, GaCH(CH3)2, 1.06 (m, 12H, GaCH(CH3)2), 1.49 (d, 3J(H,H) = 6.6 Hz, 3H, CHCH3), 5.33 (q, 3J(H,H) = 6.6 Hz, 1H, CHCH3), 7.33–7.49 (m, 2H, CH(C5H4N)), 7.88–7.95 (m, 1H, CH(C5H4N)), 8.27–8.33 (m, 1H, CH(C5H4N)).

3.3. General Procedure for the ROP of rac-LA with (S,S)-1 and (S,S)-2

To a rac-LA (334.8 mg, 2.32 mmol, 25 eq) solution in CH2Cl2, or a suspension in toluene, (10 mL) the solution of the catalyst (0.09 mmol, 1 eq Ga) in the same solvent was added. The reaction was stirred at the indicated temperature for 96 h in order to support high conversions. For the polymerizations in toluene, the dissolution of rac-LA was observed with its conversion, while after 96 h, the whole rac-LA was dissolved. Each polymerization was quenched by the addition of a HCl solution (5%, 50 mL). The organic phase was separated, washed twice with water (50 mL), dried over anhydrous MgSO4, and dried under vacuum to give PLA as a white solid. 1H NMR (CDCl3, 400 MHz): (a) PLA signals, 1.52–1.60 (m, 3H, CHCH3), 5.11–5.26 (m, 1H, CHCH3); (b) end groups: 1.47–150 (m, CHCH3), 3.73, 3.74 (s, OCH3), 4.31–4.38 (m, CHCH3).

3.4. Crystal Structure Determination

Select crystals of 1–3 were measured on the Bruker D8 Venture single crystal diffractometer equipped with a CMOS II detector and LT device using a Mo sealed tube as a radiation source (λ = 0.71073 Å). The samples were measured at lowered temperatures as follows: 100 K for (R,S)-3 and 130 K for (S,S)-1, (R,S)-2, and (S,S)-2. The data were collected using Bruker APEX3 software [59], followed by the integration in the Bruker SAINT program [60] and scaled in Bruker SADABS [61], [samples: (R,S)-3, (S,S)-1, (R,S)-2] or TWINABS [62], [sample: (S,S)-2]. A single crystal of (R,S)-4 was measured on an Oxford Diffraction κ-CCD Gemini A Ultra diffractometer. Cell refinement and data collection, as well as data reduction and analysis, were performed with Rigaku Oxford CRYSALISPRO software (Rigaku Oxford Diffraction CrysAlisPro Software System, 2024, v. 1.171.43.136a). Using Olex2 [63], the structure was solved with ShelXT [64], structure solution program using Intrinsic Phasing, and refined with ShelXL [65], a refinement package using least squares minimization. All non-hydrogen atoms were refined with anisotropic displacement parameters. Hydrogen atoms attached to carbon atoms were added to the structure model at geometrically idealized coordinates and refined as riding atoms. Flack parameters were calculated from selected quotients (Parsons’ method) [66]. CCDC2406865-2406869 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via https://www.ccdc.cam.ac.uk/structures/? (accessed on 1 January 2025) (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: deposit@ccdc.cam.ac.uk).
Crystal Data for (R,S)-2 C20H42Ga2O6 (M = 517.97 g/mol): monoclinic, space group P21/c (no. 14), a = 10.5816(5) Å, b = 15.3600(5) Å, c = 7.9356(3) Å, β = 100.808(2)°, V = 1266.92(9) Å3, Z = 2, T = 130.00 K, μ(MoKα) = 2.155 mm−1, Dcalc = 1.358 g/cm3, 37,190 reflections measured (5.86° ≤ 2Θ ≤ 56.5°), 3118 unique (Rint = 0.0291, Rsigma = 0.0133), used in all calculations. The final R1 was 0.0208 (I > 2σ(I)) and wR2 was 0.0485 (all data).
Crystal Data for (S,S)-2 C20H42Ga2O6 (M = 517.97 g/mol): monoclinic, space group P21 (no. 4), a = 7.8664(2) Å, b = 15.5512(4) Å, c = 10.4906(3) Å, β = 100.1397(9)°, V = 1263.29(6) Å3, Z = 2, T = 130.0(5) K, μ(MoKα) = 2.161 mm−1, Dcalc = 1.362 g/cm3, 33,428 reflections measured (5.88° ≤ 2Θ ≤ 50.76°), 4573 unique (Rint = 0.0203, Rsigma = 0.0065), used in all calculations. The final R1 was 0.0209 (I > 2σ(I)) and wR2 was 0.0668 (all data).
Crystal Data for (S,S)-1 C16H34Ga2O6 (M = 461.87 g/mol): triclinic, space group P1 (no. 1), a = 8.1834(7) Å, b = 8.2430(7) Å, c = 8.7070(8) Å, α = 113.352(3)°, β = 90.424(3)°, γ = 94.829(3)°, V = 536.78(8) Å3, Z = 1, T = 130.0(5) K, μ(MoKα) = 2.534 mm−1, Dcalc = 1.429 g/cm3, 15,512 reflections measured (5.76° ≤ 2Θ ≤ 52.98°), 4348 unique (Rint = 0.0313, Rsigma = 0.0330), used in all calculations. The final R1 was 0.0186 (I > 2σ(I)) and wR2 was 0.0466 (all data).
Crystal Data for (R,S)-3 C22H36Ga2N2O2 (M = 499.97 g/mol): triclinic, space group P  1 ¯ (no. 2), a = 8.7984(5) Å, b = 8.8724(5) Å, c = 8.9171(5) Å, α = 82.408(2)°, β = 66.358(2)°, γ = 67.060(2)°, V = 587.00(6) Å3, Z = 1, T = 100.00 K, μ(MoKα) = 2.313 mm−1, Dcalc = 1.414 g/cm3, 32,854 reflections measured (4.988° ≤ 2Θ ≤ 59.996°), 3435 unique (Rint = 0.0215, Rsigma = 0.0108), used in all calculations. The final R1 was 0.0155 (I > 2σ(I)) and wR2 was 0.0421 (all data).
Crystal Data for (R,S)-4 C26H44Ga2N2O2 (M = 556.07 g/mol): monoclinic, space group P21/n (no. 14), a = 10.0033(3) Å, b = 12.2497(4) Å, c = 11.8020(4) Å, β = 94.142(3)°, V = 1442.41(8) Å3, Z = 2, T = 293.15 K, μ(Mo Kα) = 1.890 mm−1, Dcalc = 1.280 g/cm3, 20,992 reflections measured (6.652° ≤ 2Θ ≤ 55.752°), 3440 unique (Rint = 0.0283, Rsigma = 0.0175), used in all calculations. The final R1 was 0.0295 (I > 2σ(I)) and wR2 was 0.0827 (all data).

4. Conclusions

In summary, we have focused on the effect of alkyl substituents on the structure of rac-[R2Ga(µ-OCH(Me)CO2Me)]2, (S,S)-[R2Ga(µ-OCH(Me)CO2Me)]2, and rac-[R2Ga(μ-OCH(Me)C5H4N)]2 (R = Me, Et, iPr), as well as the catalytic properties of (S,S)-[R2Ga(µ-OCH(Me)CO2Me)]2 and (S,S)-[R2Ga(µ-OCH(Me)CO2Me)]2/pyridine in the ROP of rac-LA. We expected these studies to be especially indicative for the effect of alkyl substituents of [R2Ga(µ-OCH(Me)CO2PLA)]2 (PLA—growing polylactide chain) propagating species on their tendency to form homochiral species and the influence of the latter on their stereoselectivity in the ROP of rac-LA.
In solution, rac-[R2Ga(µ-OCH(Me)CO2Me)]2 (R = Et, iPr) have shown a much lower tendency for the formation of homochiral (R*,R*)-[R2Ga(µ-OCH(Me)CO2Me)]2 species in the presence of pyridine in comparison with the previously reported rac-[Me2Ga(µ-OCH(Me)CO2Me)]2 complexes [1]. The analogue’s effect has been demonstrated by the formation of heterochiral R,S-[R2Ga(μ-OCH(Me)C5H4N)]2, (R = Et, iPr), in contrast to homochiral (R*,R*)-[Me2Ga(μ-OCH(Me)C5H4N)]2 [1], upon crystallization. Notably, the X-ray analysis of the homochiral (S,S)-[R2Ga(µ-OCH(Me)CO2Me)]2 (R = Me, Et, iPr) complexes has further proven the greater tendency of diethyl and di-iso-propyl derivatives for the formation of centrosymmetric species, which affects their structures considerably. Importantly, the decreasing tendency to form homochiral species (R*,R*)-[R2Ga(µ-OCH(Me)CO2Me)]2 with larger alkyl substituents on gallium was in line with the hetereoselectivity of the (S,S)-[R2Ga(µ-OCH(Me)CO2Me)]2 and (S,S)-[R2Ga(µ-OCH(Me)CO2Me)]2 (R = Me, Et, iPr)/pyridine catalytic systems in the ROP of rac-LA, which decreased in series R = Me > Et > iPr. The observed correlation supports the crucial role of homochiral (R*,R*)-[R2Ga(µ-OCH(Me)CO2R)]2 species on the heteroselectivity of dialkylgallium alkoxides, as previously reported by us [1]. Notably, the findings described in this article constitute a new example indicating that chiral recognition induced the formation of homochiral dimeric metal alkoxides, which can be used in order to tune the stereoselectivity in the coordination polymerization of lactide and other chiral heterocyclic monomers that interest us.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/molecules30010190/s1: Figures S1–S7: 1H NMR spectra for complexes 1, 2, (S,S)-1, (S,S)-2, 3, and 4; Figure S8: Exemplary 1H NMR spectrum of PLA obtained with gallium complexes; Figures S9–S11: Decoupled 1H NMR spectra (methine region) of PLA obtained with (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et, iPr)/pyridine (1:6) at 40°C; Figures S12 and S13: FTIR data for complexes (S,S)-1, (S,S)-2; Figures S14–S16: MALDI-TOF of PLA obtained with (S,S)-1 and (S,S)-2; Table S1. Crystal data and structure refinement details for (R,S)-2, (S,S)-1, (S,S)-2, (R,S)-3, and (R,S)-4.

Author Contributions

Conceptualization, P.H.; Methodology, P.H., M.K.; Investigation (analyses of the structure and catalytic properties of gallium complexes), M.K.; Investigation (X-ray analyses of gallium complexes), Ł.D., M.D.; Visualization, P.H., M.D., M.K. and Ł.D.; Writing—Original Draft, P.H.; Writing—Review and Editing, P.H., M.K., M.D.; Resources (synthesis and purification of substrates), P.H., M.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Scientific Discipline Board (RDN) for Chemical Engineering of the Warsaw University of Technology, grant number: 2020 I-CHEM.1-1.2.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data supporting this article have been included as part of the manuscript and in the Supplementary Materials.

Acknowledgments

We are especially grateful to Kazimierz B. Starowieyski from the Warsaw University of Technology for supporting us with Et3Ga and iPr3Ga, without which all the studies described in this article would not be possible. P.H. cordially thanks Janusz Zachara for the discussions on the effect of alkyl groups on the symmetry of the dialkylgallium alkoxides. The authors also thank Krzysztof Kazimierczuk from the Centre of New Technologies, University of Warsaw for the NMR measurements on Varian 700 MHz and Grażyna Zofia Żukowska from the Warsaw University of Technology for the FTIR measurements.

Conflicts of Interest

The authors declare no competing financial interests.

References

  1. Horeglad, P.; Cybularczyk, M.; Litwińska, A.; Dąbrowska, A.M.; Dranka, M.; Żukowska, G.Z.; Urbańczyk, M.; Michalak, M. Controlling the stereoselectivity of rac-LA polymerization by chiral recognition induced the formation of homochiral dimeric metal alkoxides. Polym. Chem. 2016, 7, 2022–2036. [Google Scholar] [CrossRef]
  2. Thomas, C.M. Stereocontrolled ring-opening polymerization of cyclic esters: Synthesis of new polyester microstructures. Chem. Soc. Rev. 2010, 39, 165–173. [Google Scholar] [CrossRef] [PubMed]
  3. Stanford, M.J.; Dove, A.P. Stereocontrolled ring-opening polymerisation of lactide. Chem. Soc. Rev. 2010, 39, 486–494. [Google Scholar] [CrossRef] [PubMed]
  4. Dijkstra, P.J.; Du, H.; Feijen, J. Single site catalysts for stereoselective ring-opening polymerization of lactides. Polym. Chem. 2011, 2, 520–527. [Google Scholar] [CrossRef]
  5. Becker, J.M.; Pounder, R.J.; Dove, A.P. Synthesis of Poly(lactide)s with Modified Thermal and Mechanical Properties. Macromol. Rapid Commun. 2010, 31, 1923–1937. [Google Scholar] [CrossRef] [PubMed]
  6. Michell, R.M.; Ladelta, V.; Da Silva, E.; Müller, A.J.; Hadjichristidis, N. Poly(lactic acid) stereocomplexes based molecular architectures: Synthesis and crystallization. Prog. Polym. Sci. 2023, 146, 101742. [Google Scholar] [CrossRef]
  7. Fazekas, E.; Lowy, P.A.; Rahman, M.A.; Lykkeberg, A.; Zhou, Y.; Chambenahalli, R.; Garden, J.A. Main group metal polymerisation catalysts. Chem. Soc. Rev. 2022, 51, 8793–8814. [Google Scholar] [CrossRef] [PubMed]
  8. Dong, X.; Robinson, J.R. The versatile roles of neutral donor ligands in tuning catalyst performance for the ring-opening polymerization of cyclic esters. New J. Chem. 2022, 46, 444–453. [Google Scholar] [CrossRef]
  9. Munzeiwa, W.A.; Omondi, B.O.; Nyamori, V.O. A perspective into ring-opening polymerization of ε-caprolactone and lactides: Effect of, ligand, catalyst structure and system dynamics, on catalytic activity and polymer properties. Polym. Bull. 2024, 81, 9419–9464. [Google Scholar] [CrossRef]
  10. Kremer, A.B.; Mehrkhodavandi, P. Dinuclear catalysts for the ring opening polymerization of lactide. Coord. Chem. Rev. 2019, 380, 35–57. [Google Scholar] [CrossRef]
  11. Gao, J.; Zhu, D.; Zhang, W.; Solan, G.A.; Ma, Y.; Sun, W.-H. Recent progress in the application of group 1, 2 & 13 metal complexes as catalysts for the ring opening polymerization of cyclic esters. Inorg. Chem. Front. 2019, 6, 2619–2652. [Google Scholar]
  12. Yolsal, U.; Shaw, P.J.; Lowy, P.A.; Chambenahalli, R.; Garden, J.A. Exploiting Multimetallic Cooperativity in the Ring-Opening Polymerization of Cyclic Esters and Ethers. ACS Catal. 2024, 14, 1050–1074. [Google Scholar] [CrossRef] [PubMed]
  13. Aluthge, D.C.; Patrick, B.O.; Mehrkhodavandi, P. A highly active and site selective indium catalyst for lactide polymerization. Chem. Commun. 2013, 49, 4295–4297. [Google Scholar] [CrossRef]
  14. Honrado, M.; Otero, A.; Fernández-Baeza, J.; Sánachez-Barba, L.F.; Garcés, A.; Lara-Sánchez, A.; Rodriguez, A.M. Stereoselective ROP of rac-Lactide Mediated by Enantiopure NNO-Scorpionate Zinc Initiators. Organometallics 2014, 33, 1859–1866. [Google Scholar] [CrossRef]
  15. Sun, Y.; Cui, Y.; Xiong, J.; Dai, Z.; Tang, N.; Wu, J. Different mechanisms at different temperatures for the ring-opening polymerization of lactide catalyzed by binuclear magnesium and zinc alkoxides. Dalton Trans. 2015, 44, 16383–16391. [Google Scholar]
  16. Pang, X.; Duan, R.; Li, X.; Hu, C.; Wang, X.; Chen, X. Breaking the Paradox between Catalytic Activity and Stereoselectivity: Rac-Lactide Polymerization by Trinuclear Salen–Al Complexes. Macromolecules 2018, 51, 906–913. [Google Scholar] [CrossRef]
  17. Jensen, T.R.; Breyfogle, L.E.; Hillmyer, M.A.; Tolman, W.B. Stereoelective polymerization of D, L-lactide using N-heterocyclic carbene based compounds. Chem. Commun. 2004, 2504–2505. [Google Scholar] [CrossRef] [PubMed]
  18. Pietrangelo, A.; Knight, S.C.; Gupta, A.K.; Yao, L.J.; Hillmyer, M.A.; Tolman, W.B. Mechanistic Study of the Stereoselective Polymerization of d,l-Lactide Using Indium(III) Halides. J. Am. Chem. Soc. 2010, 132, 11649–11657. [Google Scholar] [CrossRef]
  19. Sinenkov, M.; Kirillov, E.; Roisnel, T.; Fukin, G.; Trifonov, A.; Carpentier, J.-F. Rare Earth Complexes with Multidentate Tethered Phenoxy-Amidinate Ligands: Synthesis, Structure and Activity in Ring-Opening Polymerization of Lactide. Organometallics 2011, 30, 5509–5523. [Google Scholar] [CrossRef]
  20. Pappuru, S.; Chokkapu, E.R.; Chakraborty, D.; Ramkumar, V. Group IV complexes containing the benzotriazole phenoxide ligand as catalysts for the ring-opening polymerization of lactides, epoxides and as precatalysts for the polymerization of ethylene. Dalton Trans. 2013, 42, 16412–16427. [Google Scholar] [CrossRef]
  21. Garcés, A.; Sánachez-Barba, L.F.; Fernández-Baeza, J.; Otero, A.; Honrado, M.; Lara-Sánchez, A.; Rodriguez, A.M. Heteroscorpionate Magnesium Alkyls Bearing Unprecedented Apical σ-C(sp3)–Mg Bonds: Heteroselective Ring-Opening Polymerization of rac-Lactide. Inorg. Chem. 2013, 52, 12691–12701. [Google Scholar] [CrossRef] [PubMed]
  22. Whitehorn, T.J.J.; Vabre, B.; Schaper, F. Lactide polymerization catalyzed by Mg and Zn diketiminate complexes with flexible ligand frameworks. Dalton Trans. 2014, 43, 6339–6352. [Google Scholar] [CrossRef]
  23. Nifant’ev, I.E.; Shlyakhtin, A.V.; Bagarov, V.V.; Minyaev, M.E.; Churakov, A.V.; Karchevsky, S.G.; Birin, K.P.; Ivchenko, P.V. Mono-BHT heteroleptic magnesium complexes: Synthesis, molecular structure and catalytic behavior in the ring-opening polymerization of cyclic esters. Dalton Trans. 2017, 46, 12132–12146. [Google Scholar] [CrossRef]
  24. Kuran, W. Principles of Coordination Polymerisation, 1st ed.; John Wiley & Sons, Ltd.: Chichester, UK, 2001. [Google Scholar]
  25. Byers, J.A.; Biernesser, A.B.; Delle Chiaie, K.R.; Kaur, A.; Kehl, J.A. Catalytic Systems for the Production of Poly(lactic acid). In Synthesis, Structure and Properties of Poly(lactic acid); Advances in Polymer Science; Di Lorenzo, M.L., Androsch, R., Eds.; Springer: Cham, Switzerland, 2017; Volume 279, pp. 67–118. [Google Scholar]
  26. Gruszka, W.; Walker, L.C.; Shaver, M.P.; Garden, J.A. In Situ Versus Isolated Zinc Catalysts in the Selective Synthesis of Homo and Multi-block Polyesters. Macromolecules 2020, 53, 4294–4302. [Google Scholar] [CrossRef]
  27. Ghosh, S.; Schulte, Y.; Wölper, C.; Tjaberings, A.; Gröschel, A.H.; Haberhauer, G.; Schulz, S. Cooperative Effect in Binuclear Zinc Catalysts in the ROP of Lactide. Organometallics 2022, 41, 2698–2708. [Google Scholar] [CrossRef]
  28. Fiorentini, F.; Diment, W.T.; Deacy, A.C.; Kerr, R.W.F.; Faulkner, S.; Williams, C.K. Understanding catalytic synergy in dinuclear polymerization catalysts for sustainable polymers. Nat. Commun. 2023, 14, 4783. [Google Scholar] [CrossRef] [PubMed]
  29. Nakano, K.; Hiyama, T.; Nozaki, K. Asymmetric amplification in asymmetric alternating copolymerization of cyclohexene oxide and carbon dioxide. Chem. Commun. 2005, 1871–1873. [Google Scholar] [CrossRef]
  30. Satyanarayana, T.; Abraham, S.; Kagan, H.B. Nonlinear Effects in Asymmetric Catalysis. Angew. Chem. Int. Ed. 2009, 48, 456–494. [Google Scholar] [CrossRef] [PubMed]
  31. Platel, R.H.; White, A.J.P.; Williams, C.K. Stereocontrolled lactide polymerisation determined by the nuclearity of the yttrium initiator. Chem. Commun. 2009, 4115–4117. [Google Scholar] [CrossRef]
  32. Fortun, S.; Daneshmand, P.; Schaper, F. Isotactic rac-Lactide Polymerization with Copper Complexes: The Influence of Complex Nuclearity. Angew. Chem. Int. Ed. 2015, 54, 13669–13672. [Google Scholar] [CrossRef] [PubMed]
  33. Fang, J.; Yu, I.; Mehrkhodavandi, P.; Maron, L. Theoretical Investigation of Lactide Ring-Opening Polymerization Induced by a Dinuclear Indium Catalyst. Organometallics 2013, 32, 6950–6956. [Google Scholar] [CrossRef]
  34. Aluthge, D.C.; Ahn, J.M.; Mehrkhodavandi, P. Overcoming aggregation in indium salen catalysts for isoselective lactide polymerization. Chem. Sci. 2015, 6, 5284–5292. [Google Scholar] [CrossRef]
  35. Hu, M.; Wang, M.; Zhu, H.; Zhang, L.; Zhang, H.; Sun, L. Preparation and structures of enantiomeric dinuclear zirconium and hafnium complexes containing two homochiral N atoms, and their catalytic property for polymerization of rac-lactide. Dalton Trans. 2010, 39, 4440–4446. [Google Scholar] [CrossRef]
  36. Ma, H.; Spaniol, T.P.; Okuda, J. Highly Heteroselective Ring-Opening Polymerization of rac-Lactide Initiated by Bis(phenolato)scandium Complexes. Angew. Chem. Int. Ed. 2006, 45, 7818–7821. [Google Scholar] [CrossRef]
  37. Hu, M.; Wang, M.; Zhang, P.; Wang, L.; Zhu, F.; Sun, L. Preparation and structure of an enantiomeric water-bridged dinuclear indium complex containing two homochiral N atoms and its performance as an initiator in polymerization of rac-lactide. Inorg. Chem. Commun. 2010, 13, 968–971. [Google Scholar] [CrossRef]
  38. Gesslbauer, S.; Hutchison, G.; White, A.J.P.; Burés, J.; Romain, C. Chirality-Induced Catalyst Aggregation: Insights into Catalyst Speciation and Activity Using Chiral Aluminum Catalysts in Cyclic Ester Ring-Opening Polymerization. ACS Catal. 2021, 11, 4084–4093. [Google Scholar] [CrossRef]
  39. Carmalt, C.J.; King, S.J. Gallium(III) and indium(III) alkoxides and aryloxides. Coord. Chem. Rev. 2006, 250, 682–709. [Google Scholar] [CrossRef]
  40. Lewiński, J.; Zachara, J.; Justyniak, I. Structure investigation of a dimethylaluminium derivative of ethyl rac-lactate in the solid state and solution. First evidence for stereoselective association of a dialkylaluminium O,O′-chelate complex. Chem. Commun. 1997, 1519–1520. [Google Scholar]
  41. Lewiński, J.; Horeglad, P.; Wójcik, K.; Justyniak, I. Chelation Effect in Polymerization of Cyclic Esters by Metal Alkoxides: Structure Characterization of the Intermediate Formed by Primary Insertion of Lactide into the Al-OR Bond of an Organometallic Initiator. Organometallics 2005, 24, 4588–4593. [Google Scholar] [CrossRef]
  42. Horeglad, P.; Kruk, P.; Pécaut, J. Heteroselective Polymerization of rac-Lactide in the Presence of Dialkylgallium Alkoxides: The Effect of Lewis Base on Polymerization Stereoselectivity. Organometallics 2010, 29, 3729–3734. [Google Scholar] [CrossRef]
  43. Chamberlain, B.M.; Cheng, M.; Moore, D.R.; Ovitt, T.M.; Lobkovsky, E.B.; Coates, G.W. Polymerization of Lactide with Zinc and Magnesium β-Diiminate Complexes: Stereocontrol and Mechanism. J. Am. Chem. Soc. 2001, 123, 3229–3238. [Google Scholar] [CrossRef]
  44. Dove, A.P.; Gibson, V.C.; Marshall, E.L.; Rzepa, H.S.; White, A.J.P.; Williams, D.J. Synthetic, Structural, Mechanistic, and Computational Studies on Single-Site β-Diketiminate Tin(II) Initiators for the Polymerization of rac-Lactide. J. Am. Chem. Soc. 2006, 128, 9834–9984. [Google Scholar] [CrossRef]
  45. Horeglad, P.; Rola-Nowowryta, A.; Tuszyński, D.; Fabianowska, I.; Marek, N.A.; Gładysz, P.; Wielgus, I.; Dąbrowska, A.M. Enhancing the stereoselectivity of Me2GaOR(NHC) species in the ring-opening polymerization of rac-lactide, with the help of the chelation effect. RSC Adv. 2024, 14, 28638–28647. [Google Scholar] [CrossRef] [PubMed]
  46. Westerhausen, M.; Kneifel, A.N.; Mayer, P.; Nöth, H. Synthesis and Molekular Structures of N-substituted Diethylgallium-2-pyridylmethylamides. Z. Anorg. Allg. Chem. 2004, 630, 2013–2021. [Google Scholar] [CrossRef]
  47. Basharat, S.; Carmalt, C.J.; Palgrave, R.; Barnett, S.A.; Tocher, D.A.; Davies, H.O. Syntheses, X-ray structures and CVD studies of diorganoalkoxogallanes. J. Organomet. Chem. 2008, 693, 1787–1796. [Google Scholar] [CrossRef]
  48. Atwood, D.A.; Rutherford, D. Use of Tetradentate (N2O2) Ligands To Form Monomeric, Trimetallic Gallium Complexes. Organometallics 1995, 14, 2880–2886. [Google Scholar] [CrossRef]
  49. Webster, M.; Browning, D.J.; Corker, J.M. Bis[([μ]-2,6-diphenylphenoxido-O:O)diethylgallium]. Acta Cryst. 1996, C52, 2439–2441. [Google Scholar] [CrossRef]
  50. Wei, P.; Atwood, D.A. Syntheses and reactions of Saltren–Group 13 complexes. J. Organomet. Chem. 1998, 563, 87–93. [Google Scholar] [CrossRef]
  51. Hill, M.S.; Wei, P.; Atwood, D.A. Bimetallic mixed-metal complexes of the salen(tBu) ligands. Polyhedron 1998, 17, 811–819. [Google Scholar] [CrossRef]
  52. Van Aelstyn, M.A.; Keizer, T.S.; Klopotek, D.L.; Liu, S.; Munoz-Hernandez, M.-A.; Wei, P.; Atwood, D.A. Bimetallic Aluminum and Gallium Chelates with N2O2 Ligands. Organometallics 2000, 19, 1796–1801. [Google Scholar] [CrossRef]
  53. Basiak, D.; Dobrzycki, Ł.; Socha, P.; Rzepiński, P.; Plichta, A.; Bujnowski, K.; Synoradzki, L.; Orłowska, N.; Ziemkowska, W. Aminophenolates of aluminium, gallium and zinc: Synthesis, characterization and polymerization activity. Appl. Organometal. Chem. 2017, 31, e3748. [Google Scholar] [CrossRef]
  54. Price, C.E.; Dantas, A.B.; Powell, D.R.; Wehmschulte, R.J. Alkylaluminum, -gallium, -magnesium, and -zinc monophenolates with bulky substituents. Z. Naturforsch. B Chem. Sci. 2018, 73, 943. [Google Scholar] [CrossRef]
  55. Lewiński, J.; Zachara, J.; Justyniak, I. Electronic factors determining the rearrangement of dialkylaluminum O,O′-chelate compounds from dimeric five- to monomeric four-coordinated complexes on dissolution. Structure investigations of dialkylaluminum chelate derivatives of α- and β-hydroxy carbonyl compounds. Organometallics 1997, 16, 4597–4605. [Google Scholar]
  56. Lewis Basicity and Affinity Scales: Data and Measurement; Laurence, C., Gal, J.-F., Eds.; John Wiley & Sons Ltd.: Chichester, UK, 2010. [Google Scholar]
  57. Van Poppel, L.H.; Bott, S.G.; Barron, A.R. 1,4-Dioxobenzene Compounds of Gallium:  Reversible Binding of Pyridines to [{(tBu)2Ga}2(μ-OC6H4O)]n in the Solid State. J. Am. Chem. Soc. 2003, 125, 11006–11017. [Google Scholar] [CrossRef] [PubMed]
  58. Steves, J.E.; Stahl, S.S. Copper(I)/ABNO-Catalyzed Aerobic Alcohol Oxidation: Alleviating Steric and Electronic Constraints of Cu/TEMPO Catalyst Systems. J. Am. Chem. Soc. 2013, 135, 15742–15745. [Google Scholar] [CrossRef]
  59. APEX3, V2019; Bruker Nano, Inc.: Madison, WI, USA, 2019.
  60. SAINT, V8.40A; Bruker Nano, Inc.: Madison, WI, USA, 2019.
  61. SADABS, V2016/2; Bruker Nano, Inc.: Madison, WI, USA, 2019.
  62. TWINABS, V2012/1; Bruker Nano, Inc.: Madison, WI, USA, 2019.
  63. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H.A. Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  64. Sheldrick, G.M. SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A Found. Adv. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  65. Sheldrick, G.M. Crystal structure refinement with SHELX. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  66. Parsons, S.; Flack, H.D.; Wagner, T. Use of Intensity Quotients and Differences in Absolute Structure Refinement. Acta Crystallogr. Sect. B Struct. Sci. Cryst. Eng. Mat. 2013, 69, 249–259. [Google Scholar] [CrossRef] [PubMed]
Molecules 30 00190 sch001

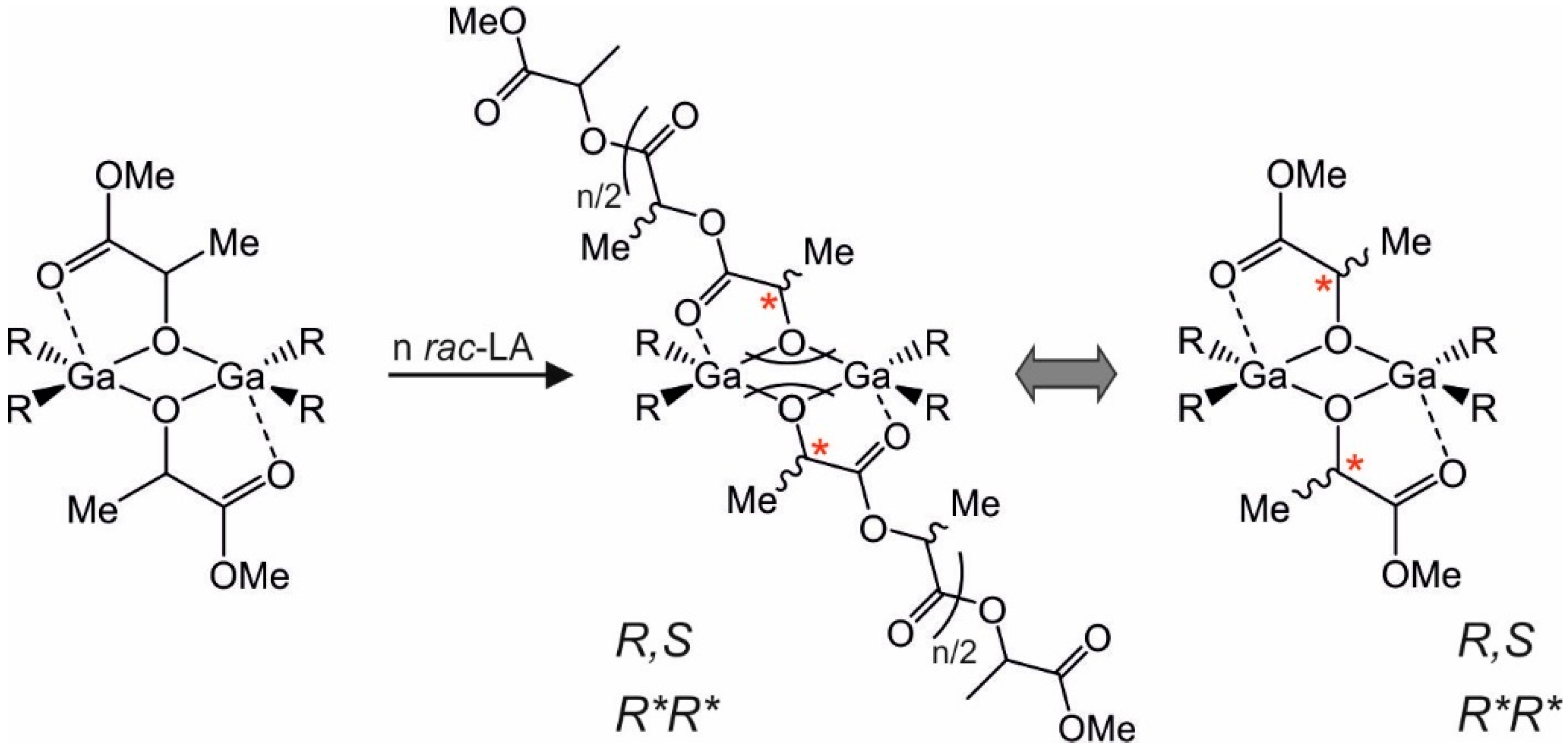

Scheme 1. The structure of propagating species—[R2Ga(µ-OCH(Me)CO2PLA)]2—in the ROP of rac-LA with dialkylgallium alkoxides, modeled by the dialkylgallium methyl lactate derivatives. Red stars indicate chiral centers which lead to the formation of either homochiral or heterochiral species. In our study, the homochiral (R*,R*) species are modeled by (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2; the heterochiral (R,S) species by (R,S)-[R2Ga(µ-OCH(Me)CO2Me]2.
Scheme 1. The structure of propagating species—[R2Ga(µ-OCH(Me)CO2PLA)]2—in the ROP of rac-LA with dialkylgallium alkoxides, modeled by the dialkylgallium methyl lactate derivatives. Red stars indicate chiral centers which lead to the formation of either homochiral or heterochiral species. In our study, the homochiral (R*,R*) species are modeled by (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2; the heterochiral (R,S) species by (R,S)-[R2Ga(µ-OCH(Me)CO2Me]2.
Molecules 30 00190 sch001
Molecules 30 00190 sch002

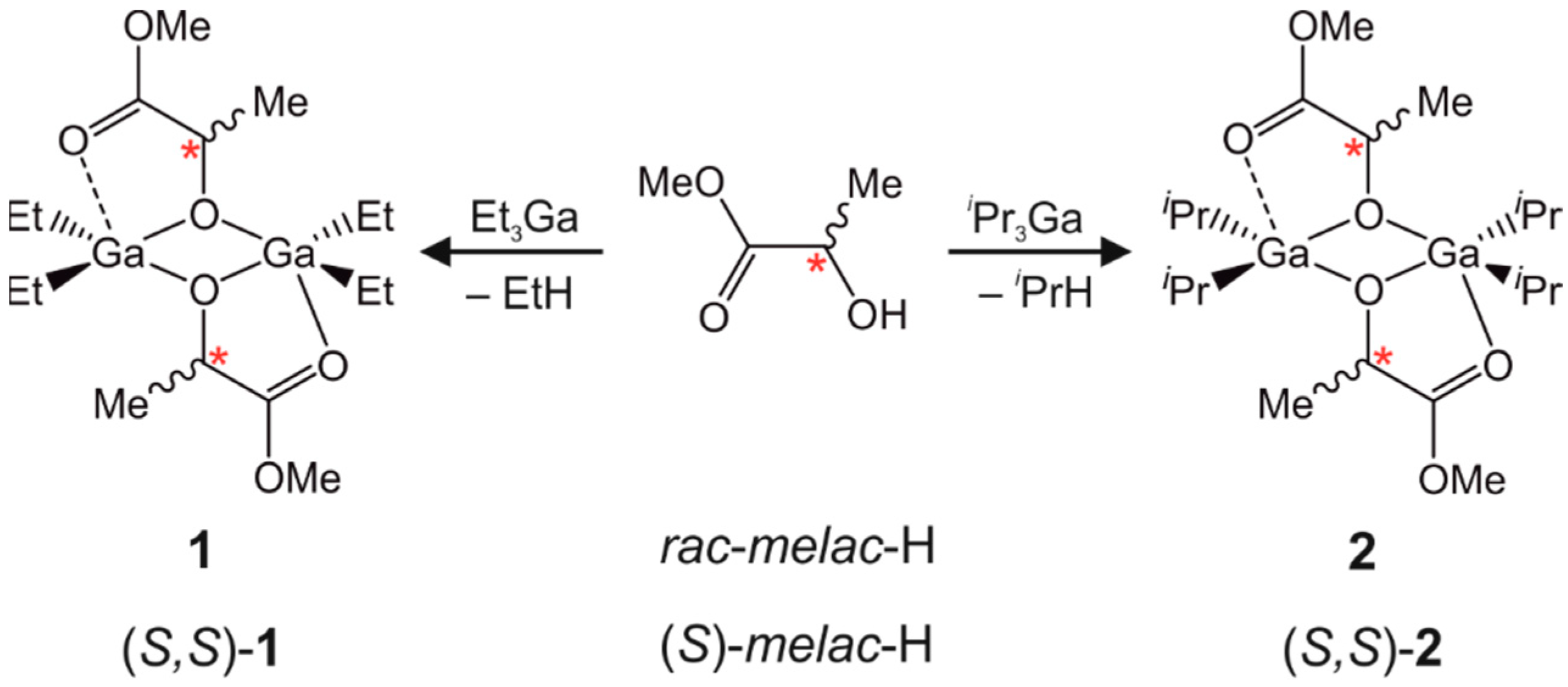

Scheme 2. Synthesis of rac-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et (1) and iPr (2)) and (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et ((S,S)-1) and iPr (S,S)-2)). Red stars indicate chiral centers.
Scheme 2. Synthesis of rac-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et (1) and iPr (2)) and (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Et ((S,S)-1) and iPr (S,S)-2)). Red stars indicate chiral centers.
Molecules 30 00190 sch002
Molecules 30 00190 sch003

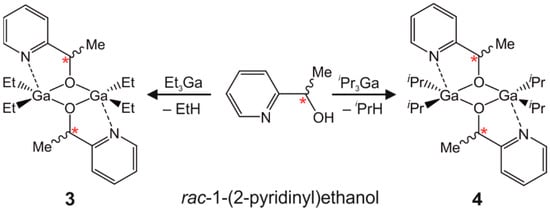

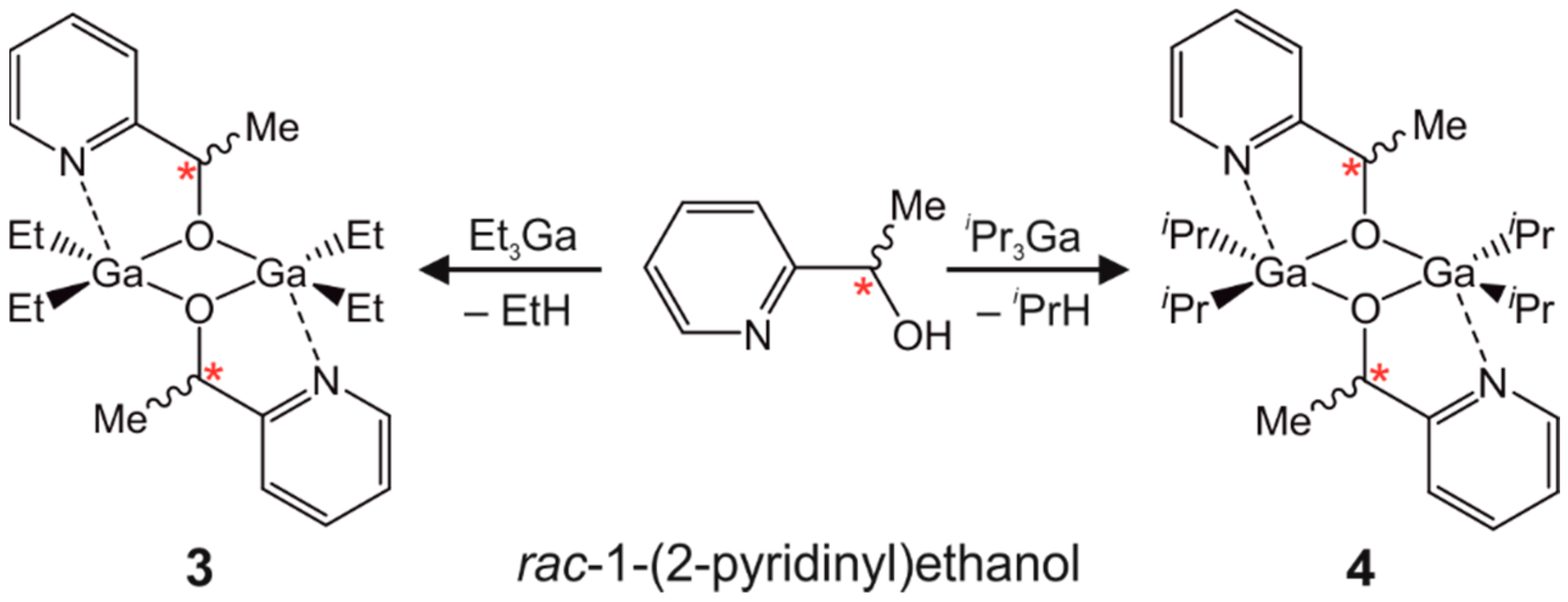

Scheme 3. Synthesis of rac-[R2Ga(µ-OCH(Me)C5H4N]2 (R = Et (3), iPr (4)). Red stars indicate chiral centers.
Scheme 3. Synthesis of rac-[R2Ga(µ-OCH(Me)C5H4N]2 (R = Et (3), iPr (4)). Red stars indicate chiral centers.
Molecules 30 00190 sch003
Molecules 30 00190 g001

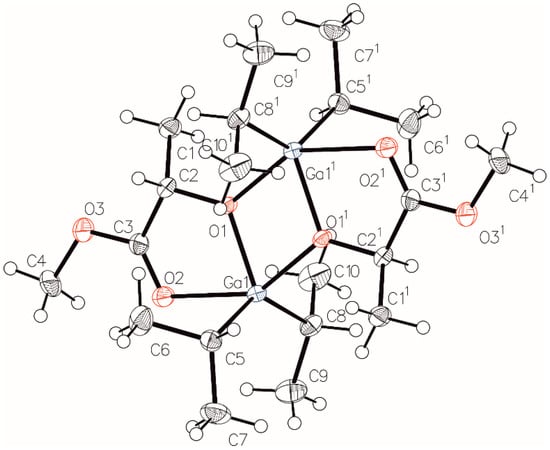

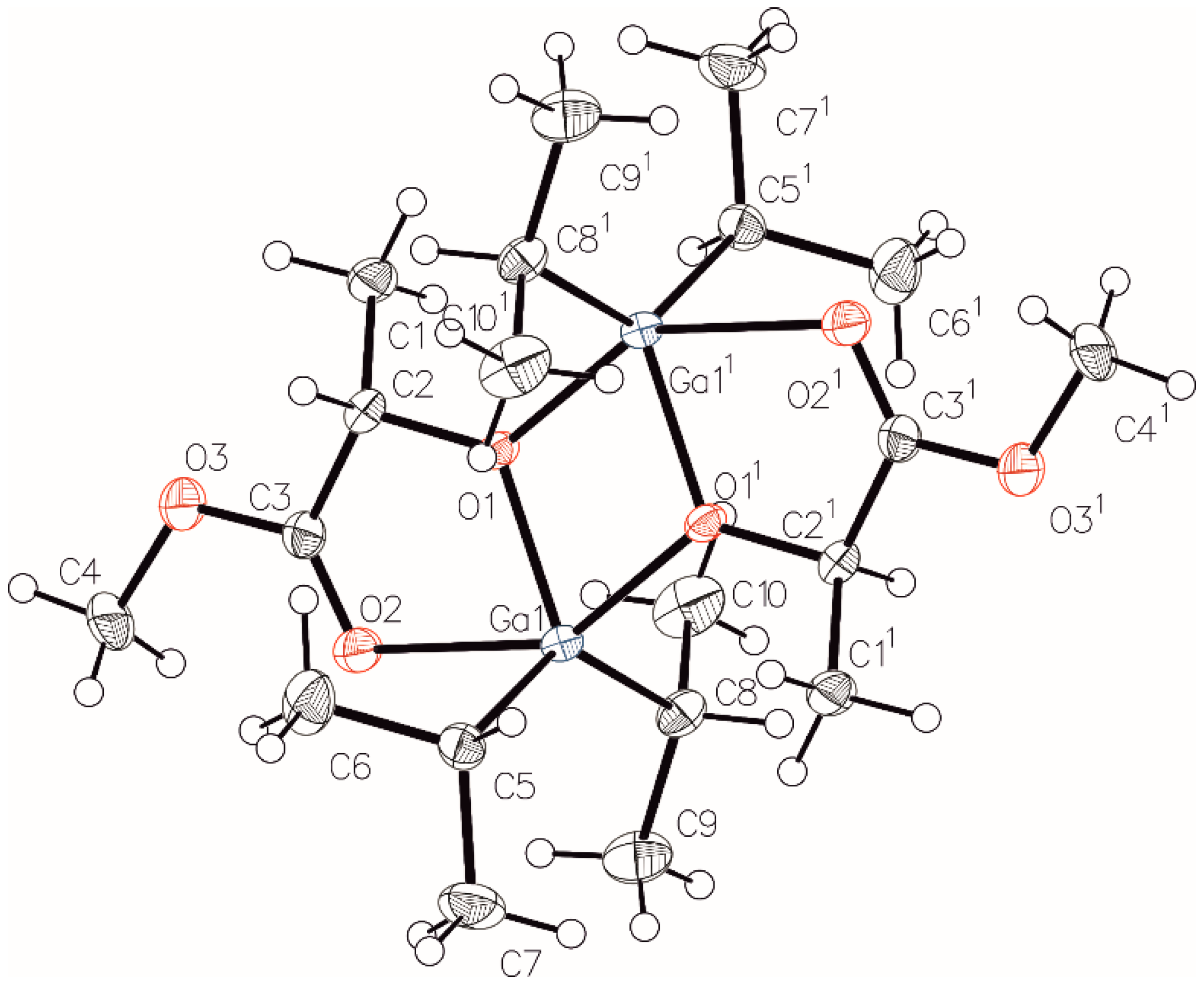

Figure 1. Molecular structure of (R,S)-2 with thermal ellipsoids at the 50% probability level. Hydrogen atoms are omitted for clarity. The selected bond lengths (Å) and angles (deg) are as follows: Ga(1)–C(5) 1.9899(15), Ga(1)–C(8) 1.9837(15), Ga(1)–O(1) 1.9421(10), Ga(1)–O(1)1 2.0547(10), Ga(1)–O(2) 2.449(5), and O(2)1–Ga(1)–O(1) 147.69(7). The selected torsion angles (deg) are as follows: Ga(1)–O(1)–Ga(1)1–C(2) −164.94(14) and Ga(1)1–O(1)1–Ga(1)–C(2)1 164.94(14).
Figure 1. Molecular structure of (R,S)-2 with thermal ellipsoids at the 50% probability level. Hydrogen atoms are omitted for clarity. The selected bond lengths (Å) and angles (deg) are as follows: Ga(1)–C(5) 1.9899(15), Ga(1)–C(8) 1.9837(15), Ga(1)–O(1) 1.9421(10), Ga(1)–O(1)1 2.0547(10), Ga(1)–O(2) 2.449(5), and O(2)1–Ga(1)–O(1) 147.69(7). The selected torsion angles (deg) are as follows: Ga(1)–O(1)–Ga(1)1–C(2) −164.94(14) and Ga(1)1–O(1)1–Ga(1)–C(2)1 164.94(14).
Molecules 30 00190 g001
Molecules 30 00190 g002

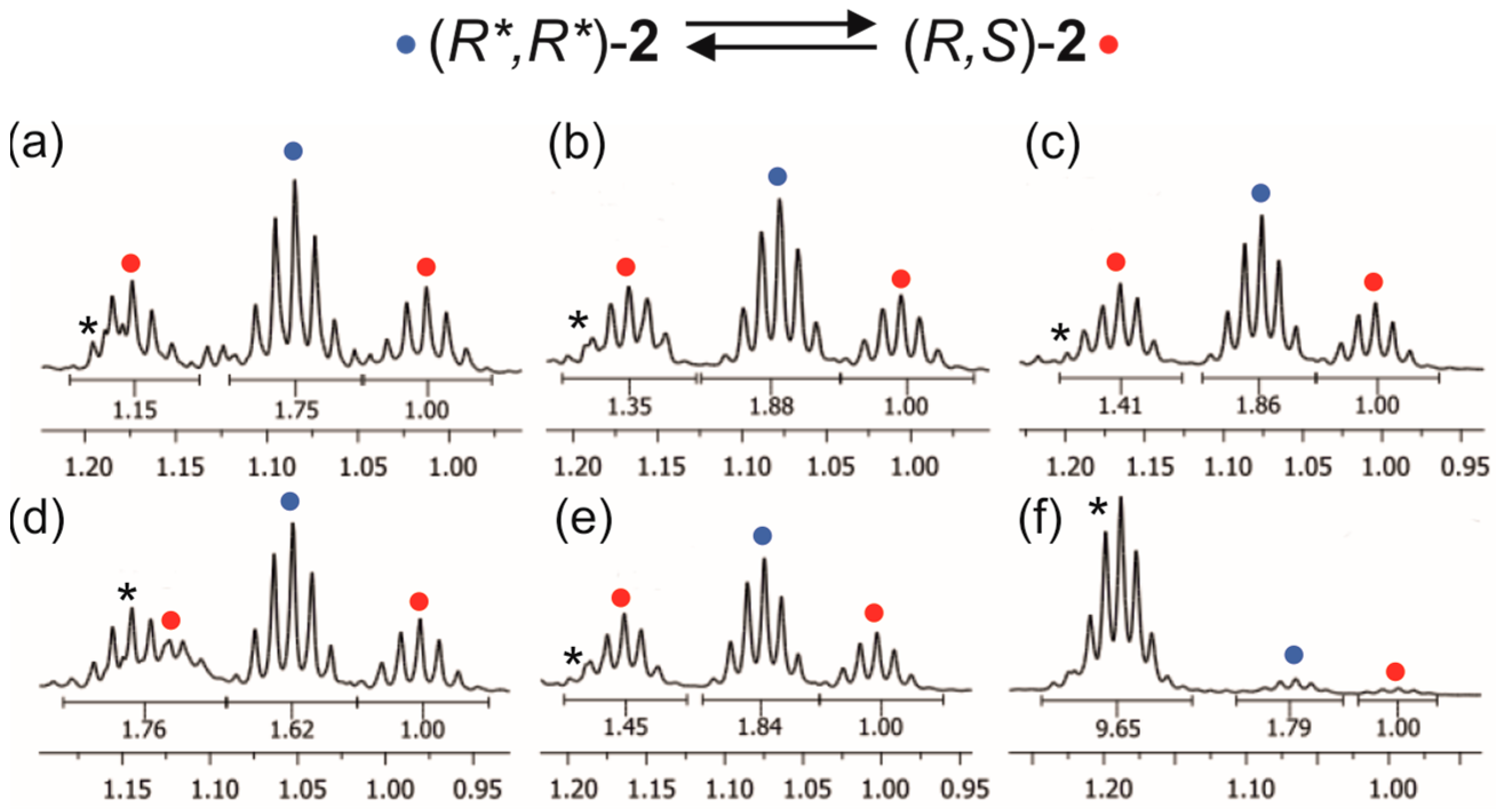

Figure 2. 1H NMR spectra of 2 (a) and 2/Py (2/pyr (1:2) (b), 2/pyr (1:6) (c), 2/pyr (1:60) (d), 2/pic (1:6) (e), 2/DMAP (1:6) (f)), in the region corresponding to the methine protons of the Ga–CH(CH3)2 groups. (R*,R*)-2 (•) and (R,S)-2 (•) are depicted as blue and red dots, respectively. Tentative monomeric iPr2Ga(OCH(Me)CO2Me) or iPr2Ga(OCH(Me)CO2Me)(Py) species are depicted as stars (∗); the integral corresponding to the latter was estimated based on the fact that both septets corresponding to R,S-2 refer to the same number of methine protons. Abbreviations “pyr”, “pic”, and DMAP stand for pyridine, 4-methylpyridine, and 4-(dimethylamino)pyridine, respectively.
Figure 2. 1H NMR spectra of 2 (a) and 2/Py (2/pyr (1:2) (b), 2/pyr (1:6) (c), 2/pyr (1:60) (d), 2/pic (1:6) (e), 2/DMAP (1:6) (f)), in the region corresponding to the methine protons of the Ga–CH(CH3)2 groups. (R*,R*)-2 (•) and (R,S)-2 (•) are depicted as blue and red dots, respectively. Tentative monomeric iPr2Ga(OCH(Me)CO2Me) or iPr2Ga(OCH(Me)CO2Me)(Py) species are depicted as stars (∗); the integral corresponding to the latter was estimated based on the fact that both septets corresponding to R,S-2 refer to the same number of methine protons. Abbreviations “pyr”, “pic”, and DMAP stand for pyridine, 4-methylpyridine, and 4-(dimethylamino)pyridine, respectively.
Molecules 30 00190 g002
Molecules 30 00190 g003

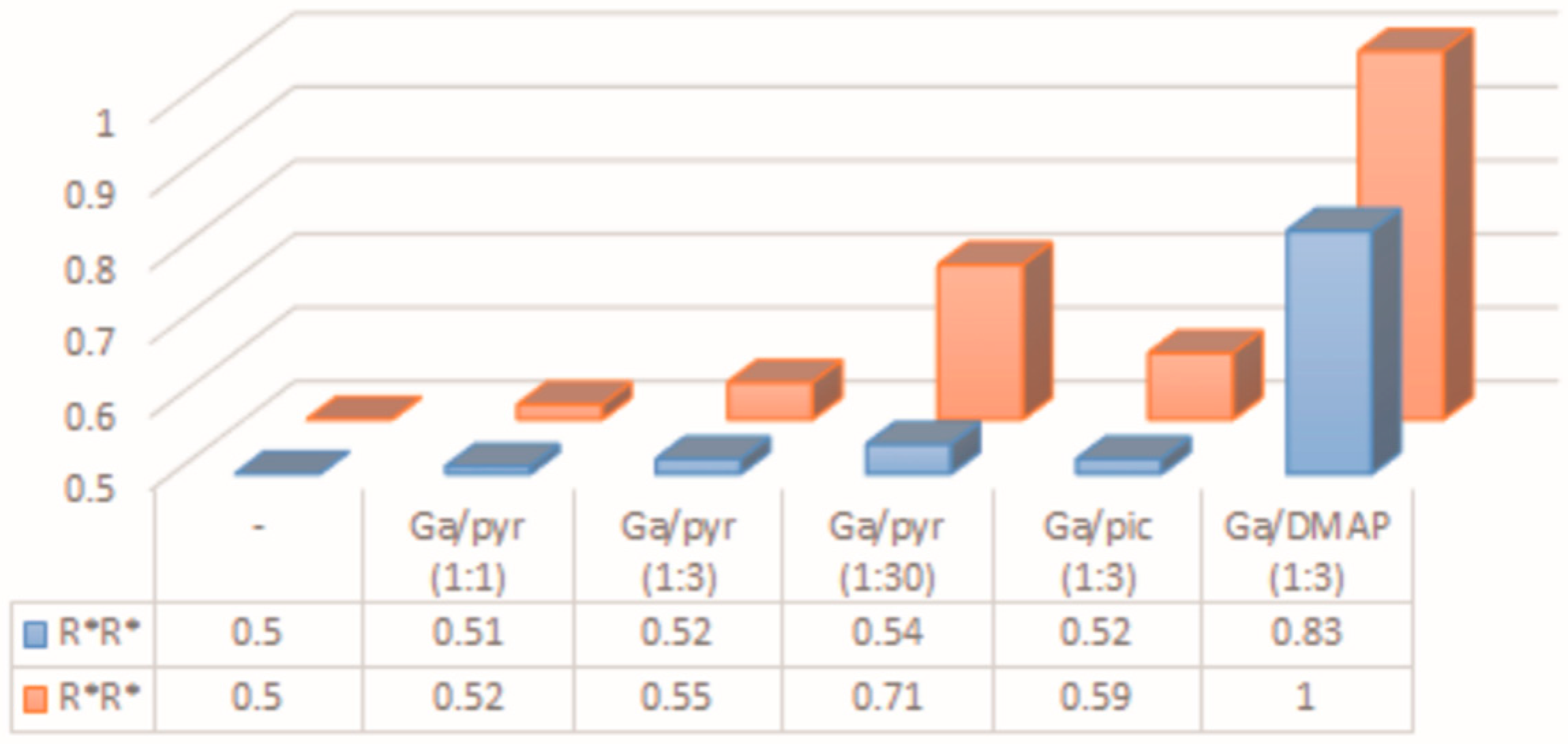

Figure 3. Molar fraction of homochiral species (R*,R*) for 1/Py (Py—pyridine derivative) (blue) and rac-[Me2Ga(µ-OCH(Me)CO2Me)]2/Py (orange) [1], calculated on the basis of the ratio of methylene protons and methyl protons of the Ga-Me and Ga-Et groups, respectively. Abbreviations “pyr”, “pic”, and DMAP stand for pyridine, 4-methylpyridine, and 4-(dimethylamino)pyridine, respectively.
Figure 3. Molar fraction of homochiral species (R*,R*) for 1/Py (Py—pyridine derivative) (blue) and rac-[Me2Ga(µ-OCH(Me)CO2Me)]2/Py (orange) [1], calculated on the basis of the ratio of methylene protons and methyl protons of the Ga-Me and Ga-Et groups, respectively. Abbreviations “pyr”, “pic”, and DMAP stand for pyridine, 4-methylpyridine, and 4-(dimethylamino)pyridine, respectively.
Molecules 30 00190 g003
Molecules 30 00190 g004

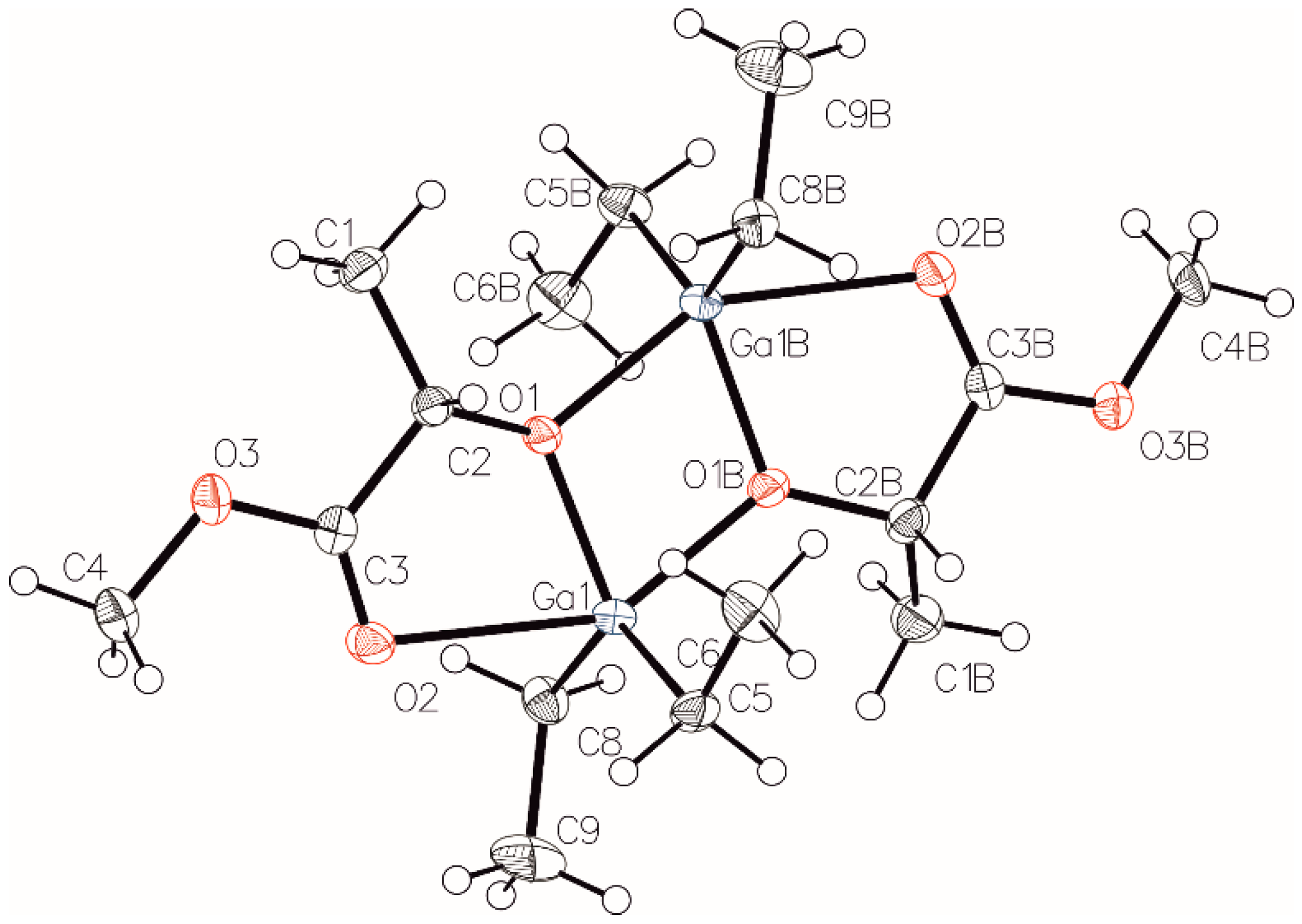

Figure 4. Molecular structure of (S,S)-1 with ellipsoids at the 50% probability level. The selected bond lengths (Å) and angles are as follows: Ga(1)–C(5) 1.974(5), Ga(1)–C(8) 1.962(5), Ga(1)–O(1) 1.927(4), Ga(1)–O(1B) 2.021(4), Ga(1)–O(2) 2.518(4), Ga(1B)–C(5B) 1.973(5), Ga(1B)–C(8B) 1.978(5), Ga(1B)–O(1B) 1.953(4), Ga(1B)–O(1) 2.058(3), Ga(1B)–O(2B) 2.405(4), O(2)–Ga(1)–O(1B) 147.70(12), and O(2B)–Ga(1B)–O(1) 148.14(12). The selected torsion angles (deg) are as follows: Ga(1)–O(1)–Ga(1B)–C(2)–157.3(5) and Ga(1B)–O(1B)–Ga(1)–C(2B)–163.7(5).
Figure 4. Molecular structure of (S,S)-1 with ellipsoids at the 50% probability level. The selected bond lengths (Å) and angles are as follows: Ga(1)–C(5) 1.974(5), Ga(1)–C(8) 1.962(5), Ga(1)–O(1) 1.927(4), Ga(1)–O(1B) 2.021(4), Ga(1)–O(2) 2.518(4), Ga(1B)–C(5B) 1.973(5), Ga(1B)–C(8B) 1.978(5), Ga(1B)–O(1B) 1.953(4), Ga(1B)–O(1) 2.058(3), Ga(1B)–O(2B) 2.405(4), O(2)–Ga(1)–O(1B) 147.70(12), and O(2B)–Ga(1B)–O(1) 148.14(12). The selected torsion angles (deg) are as follows: Ga(1)–O(1)–Ga(1B)–C(2)–157.3(5) and Ga(1B)–O(1B)–Ga(1)–C(2B)–163.7(5).
Molecules 30 00190 g004
Molecules 30 00190 g005

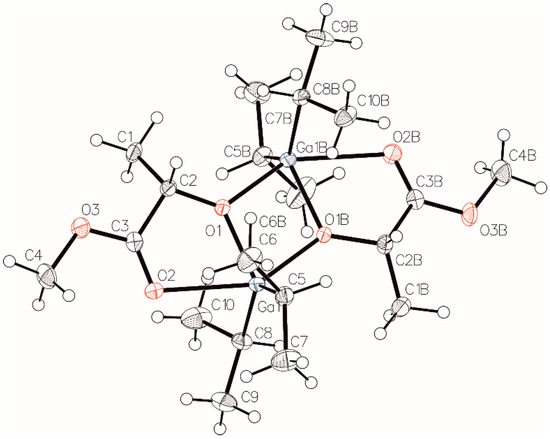

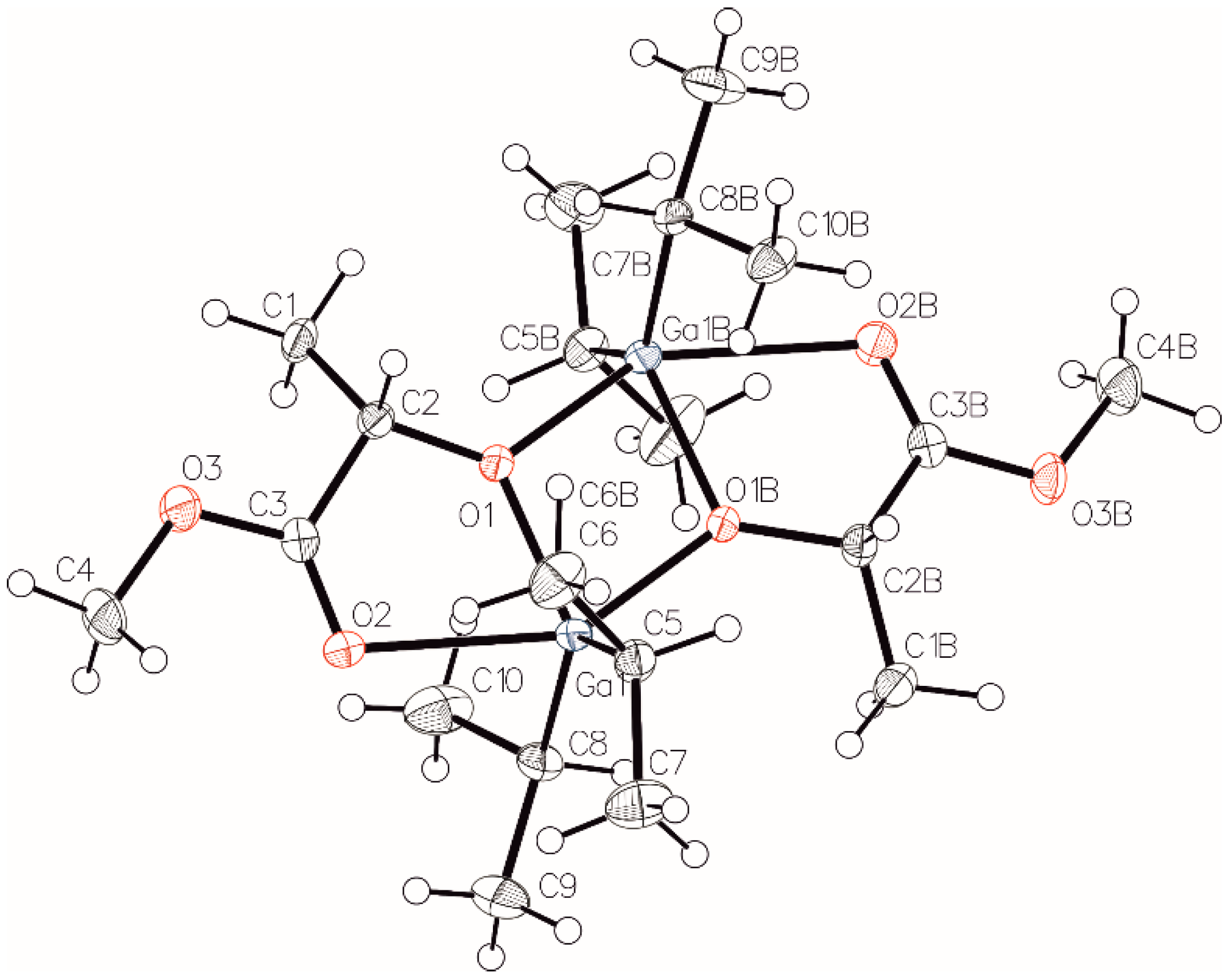

Figure 5. Molecular structure of (S,S)-2 with thermal ellipsoids at the 50% probability level. Hydrogen atoms are omitted for clarity. The selected bond lengths (Å) and angles (deg) are as follows: Ga(1)–C(5) 1.985(4), Ga(1)–C(8) 1.988(5), Ga(1)–O(1) 1.944(3), Ga(1)–O(1B) 2.055(3), Ga(1)–O(2) 2.435(3), Ga(1B)–C(5B) 1.996(4), Ga(1B)–C(8B) 1.984(4), Ga(1B)–O(1B) 1.940(3), Ga(1B)–O(1) 2.053(3), Ga(1B)–O(2B) 2.467(3), O(2)–Ga(1)–O(1B) 148.28(11), and O(2B)–Ga(1B)–O(1) 147.93(11). The selected torsion angles (deg) are as follows: Ga(1)–O(1)–Ga(1B)–C(2)–168.3(4) and Ga(1B)–O(1B)–Ga(1)–C(2B)–161.7(4).
Figure 5. Molecular structure of (S,S)-2 with thermal ellipsoids at the 50% probability level. Hydrogen atoms are omitted for clarity. The selected bond lengths (Å) and angles (deg) are as follows: Ga(1)–C(5) 1.985(4), Ga(1)–C(8) 1.988(5), Ga(1)–O(1) 1.944(3), Ga(1)–O(1B) 2.055(3), Ga(1)–O(2) 2.435(3), Ga(1B)–C(5B) 1.996(4), Ga(1B)–C(8B) 1.984(4), Ga(1B)–O(1B) 1.940(3), Ga(1B)–O(1) 2.053(3), Ga(1B)–O(2B) 2.467(3), O(2)–Ga(1)–O(1B) 148.28(11), and O(2B)–Ga(1B)–O(1) 147.93(11). The selected torsion angles (deg) are as follows: Ga(1)–O(1)–Ga(1B)–C(2)–168.3(4) and Ga(1B)–O(1B)–Ga(1)–C(2B)–161.7(4).
Molecules 30 00190 g005
Molecules 30 00190 g006

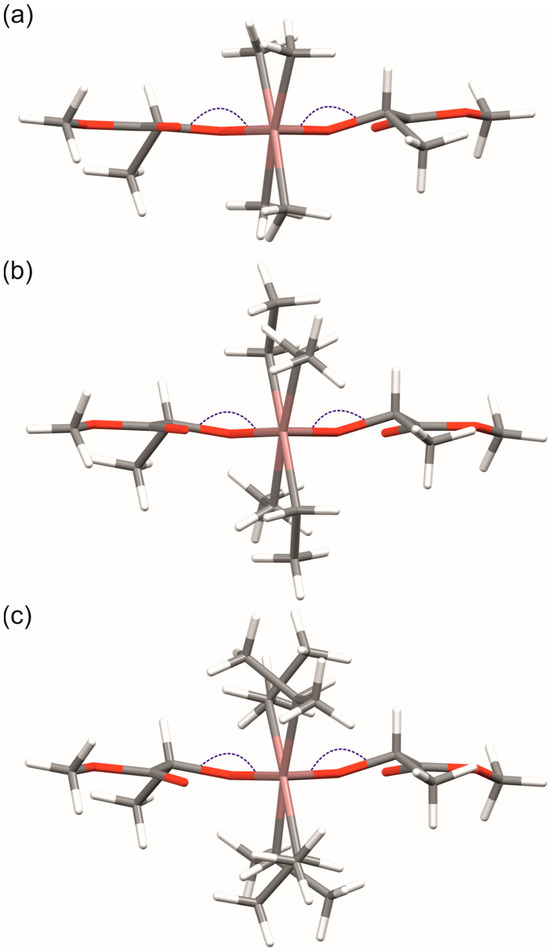

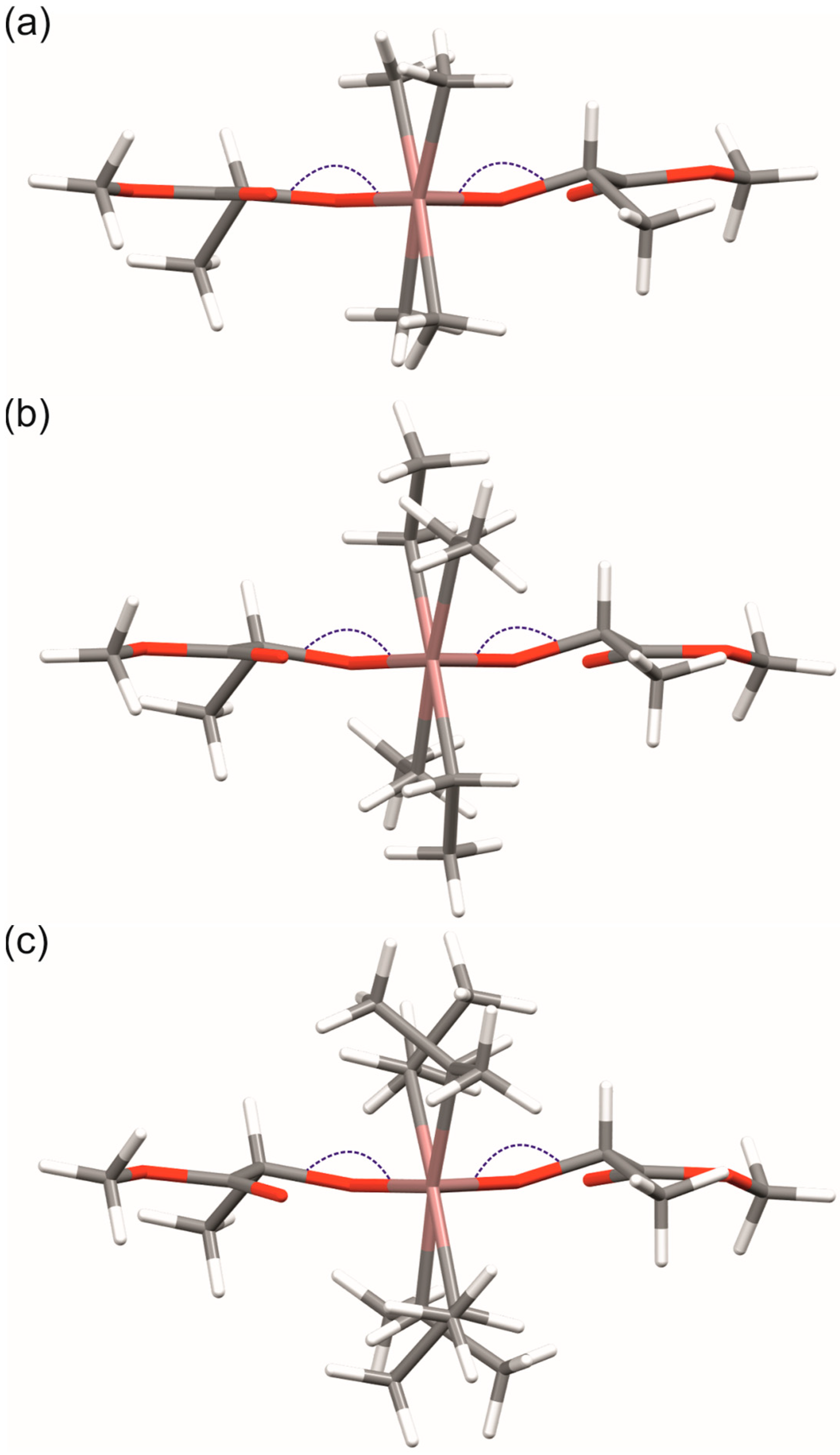

Figure 6. The view of the molecular structures of (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Me (a), Et (b), and iPr (c)) along the Ga-Ga axis. Different Ga–O–Ga–CH(Me) torsion angles (deg) are indicated by the dashed blue arches for the following: (S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2 (−156.7 and −171.7), (S,S)-1 (−157.3 and −163.7), and (S,S)-2 (−168.3 and −161.8). Gallium and oxygen atoms are depicted as brown and red, respectively.
Figure 6. The view of the molecular structures of (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Me (a), Et (b), and iPr (c)) along the Ga-Ga axis. Different Ga–O–Ga–CH(Me) torsion angles (deg) are indicated by the dashed blue arches for the following: (S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2 (−156.7 and −171.7), (S,S)-1 (−157.3 and −163.7), and (S,S)-2 (−168.3 and −161.8). Gallium and oxygen atoms are depicted as brown and red, respectively.
Molecules 30 00190 g006
Molecules 30 00190 g007
Figure 7. Molecular structure of (R,S)-3 with thermal ellipsoids at the 50% probability level. Hydrogen atoms are omitted for clarity. The selected bond lengths (Å) and angles (deg) are as follows: Ga(1)–C(8) 1.9854(10), Ga(1)–C(10) 1.9808(10), Ga(1)–O(1) 1.9340(8), Ga(1)–O(1)1 2.0906(8), Ga(1)–N(1) 2.2908(11), N(1)–Ga(1)–O(1)1 148.49(3).
Figure 7. Molecular structure of (R,S)-3 with thermal ellipsoids at the 50% probability level. Hydrogen atoms are omitted for clarity. The selected bond lengths (Å) and angles (deg) are as follows: Ga(1)–C(8) 1.9854(10), Ga(1)–C(10) 1.9808(10), Ga(1)–O(1) 1.9340(8), Ga(1)–O(1)1 2.0906(8), Ga(1)–N(1) 2.2908(11), N(1)–Ga(1)–O(1)1 148.49(3).
Molecules 30 00190 g007
Molecules 30 00190 g008
Figure 8. Molecular structure of (R,S)-4 with thermal ellipsoids at the 50% probability level. Hydrogen atoms are omitted for clarity. Ga(1)–C(8) 1.992(3), Ga(1)–C(10) 1.996(4), Ga(1)–O(1) 1.9100(13), Ga(1)–O(1)1 2.1632(13), Ga(1)–N(1) 2.2759(18), N(1)–Ga(1)–O(1)1 150.22(6).
Figure 8. Molecular structure of (R,S)-4 with thermal ellipsoids at the 50% probability level. Hydrogen atoms are omitted for clarity. Ga(1)–C(8) 1.992(3), Ga(1)–C(10) 1.996(4), Ga(1)–O(1) 1.9100(13), Ga(1)–O(1)1 2.1632(13), Ga(1)–N(1) 2.2759(18), N(1)–Ga(1)–O(1)1 150.22(6).
Molecules 30 00190 g008
Molecules 30 00190 sch004
Scheme 4. ROP of rac-LA with (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et and iPr). Red stars indicate chiral centers in the PLA.
Scheme 4. ROP of rac-LA with (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et and iPr). Red stars indicate chiral centers in the PLA.
Molecules 30 00190 sch004
Table 1. Polymerization of rac-LA with (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et ((S,S)-1) and iPr ((S,S)-2))); rac-LA/Ga = 25, time = 96 h.
Table 1. Polymerization of rac-LA with (S,S)-[R2Ga(µ-OCH(Me)CO2Me]2 (R = Me, Et ((S,S)-1) and iPr ((S,S)-2))); rac-LA/Ga = 25, time = 96 h.
No.Cat.Pyridine (Equiv.)Temp. [°C]SolventConv. [%]10−3 Mn b10−3 Mn cPm d
1 a(S,S)-[Me2Ga(melac]2-40DCM822.03.00.50
2(S,S)-1-40DCM872.63.20.50
3(S,S)-2-40DCM933.93.40.50
4 a(S,S)-[Me2Ga(melac]2640Tol.902.03.30.66
5(S,S)-1640Tol.833.03.10.58
6(S,S)-2640Tol.893.93.30.50
7(S,S)-[Me2Ga(melac]2-70Tol.972.53.60.50
8(S,S)-1-70Tol.973.83.60.50
9(S,S)-2-70Tol.923.83.40.50
10(S,S)-[Me2Ga(melac]2670Tol.972.73.60.50
11(S,S)-1670Tol.973.53.60.50
12(S,S)-2670Tol.963.93.60.50
a Although indicted entries concern the previously reported ROP of rac-LA with (S,S)-[Me2Ga(µ-OCH(Me)CO2Me]2 [1], they refer to the new samples obtained in the current studies, at exactly the same conditions as the ROP of rac-LA with (S,S)-1 and (S,S)-2; b determined by 1H NMR; c expected according to LA/Ga ratio and conversion; d calculated on the basis of homonuclear decoupled 1H NMR spectra according to Chamberlain et al. [43].
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kaźmierczak, M.; Dobrzycki, Ł.; Dranka, M.; Horeglad, P. The Effect of Alkyl Substituents on the Formation and Structure of Homochiral (R*,R*)-[R2Ga(µ-OCH(Me)CO2R′)]2 Species—Towards the Factors Controlling the Stereoselectivity of Dialkylgallium Alkoxides in the Ring-Opening Polymerization of rac-Lactide. Molecules 2025, 30, 190. https://doi.org/10.3390/molecules30010190

AMA Style

Kaźmierczak M, Dobrzycki Ł, Dranka M, Horeglad P. The Effect of Alkyl Substituents on the Formation and Structure of Homochiral (R*,R*)-[R2Ga(µ-OCH(Me)CO2R′)]2 Species—Towards the Factors Controlling the Stereoselectivity of Dialkylgallium Alkoxides in the Ring-Opening Polymerization of rac-Lactide. Molecules. 2025; 30(1):190. https://doi.org/10.3390/molecules30010190

Chicago/Turabian Style

Kaźmierczak, Magdalena, Łukasz Dobrzycki, Maciej Dranka, and Paweł Horeglad. 2025. "The Effect of Alkyl Substituents on the Formation and Structure of Homochiral (R*,R*)-[R2Ga(µ-OCH(Me)CO2R′)]2 Species—Towards the Factors Controlling the Stereoselectivity of Dialkylgallium Alkoxides in the Ring-Opening Polymerization of rac-Lactide" Molecules 30, no. 1: 190. https://doi.org/10.3390/molecules30010190

APA Style

Kaźmierczak, M., Dobrzycki, Ł., Dranka, M., & Horeglad, P. (2025). The Effect of Alkyl Substituents on the Formation and Structure of Homochiral (R*,R*)-[R2Ga(µ-OCH(Me)CO2R′)]2 Species—Towards the Factors Controlling the Stereoselectivity of Dialkylgallium Alkoxides in the Ring-Opening Polymerization of rac-Lactide. Molecules, 30(1), 190. https://doi.org/10.3390/molecules30010190

Article Metrics

Back to TopTop
