Molecular Characteristics and Biochemical Functions of VpPR10s from Vitis pseudoreticulata Associated with Biotic and Abiotic Stresses

by
Lan Wang
1,2,3,†,
Jinyu Wei
1,2,3,†,
Ying Zou
1,2,3,
Keyao Xu
1,2,3,
Yuejin Wang
1,2,3,
Lu Cui
4,* and
Yan Xu
1,2,3,*
1
State Key Laboratory of Crop Stress Biology in Arid Areas, Northwest A&F University, Yangling 712100, Shaanxi, China
2
College of Horticulture, Northwest A&F University, Yangling 712100, Shaanxi, China
3
Key Laboratory of Horticultural Plant Biology and Germplasm Innovation in Northwest China, Ministry of Agriculture, Yangling 712100, Shaanxi, China
4
College of Food Science Engineering, Northwest A&F University, Yangling 712100, Shaanxi, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2014, 15(10), 19162-19182; https://doi.org/10.3390/ijms151019162
Submission received: 12 June 2014 / Revised: 5 August 2014 / Accepted: 13 October 2014 / Published: 22 October 2014
(This article belongs to the Section Biochemistry)
Browse Figures
Versions Notes

Abstract

:
Grapes are one of the world’s oldest and most important fruit crops. They are of high economic value in many countries, but the susceptibility of the dominant winegrape species Vitis vinifera to fungal disease is a significant problem. The Chinese wild grape species are a rich source of disease-resistance genes and these can be used to discover how disease resistance in V. vinifera grapevines might be enhanced. Pathogenesis-related (PR) 10 proteins are involved in the disease-response. Here, we use the genomic DNA of the Chinese wild species Vitis pseudoreticulata accession “Baihe-35-1” as the template to design specific primers based on VvPR10s sequences. We used overlap extension PCR to obtain the sequences: VpPR10.4, VpPR10.6, VpPR10.7 and VpPR10.9. The coding sequences of the VpPR10s were then cloned into the pGEX-4T-1 vector. The purified proteins VpPR10.4, VpPR10.6, VpPR10.7 and VpPR10.9 were used to analyse nuclease activity. Meanwhile, functional analysis of VpPR10s under different biotic and abiotic stresses was carried out to further clarify the disease-resistance mechanisms of the Chinese wild grapevine VpPR10 genes. The analysis of protein structure indicates that VpPR10.4 and VpPR10.7 had the P-loop domain and the Bet v 1 motif, which are a consistent feature of plant PR10. However, there was no P-loop domain or Bet v 1 motif in VpPR10.9 and we could not find the Bet v 1 motif in VpPR10.6. The results of the nuclease activity assay and of the functional analyses of VpPR10s under different biotic and abiotic stresses also confirm that VpPR10.4 and VpPR10.7 proteins have marked RNase, DNase, anti-fungal activities and respond to abiotic stresses. The VpPR10.6 and VpPR10.9 proteins do not have these activities and functions.

1. Introduction

Grapes have been cultivated for a very long time and, today, are one of the world’s more important fruit crops. However, most cultivars of the most commonly cultivated species, the European grapevine Vitis vinifera, are highly susceptible to the disease powdery mildew caused by the fungus Erysiphe necator [1,2,3]. Powdery mildew causes substantial reductions in harvest yield and also in the quality of the resulting wine. The prevention and cure of the fungal diseases of grapevine are still managed largely through agrichemicals [4]. The use of many of these is not sustainable in the long term with toxic build up of heavy metals (principally copper) in the soil. Nor are their residues desirable in the processed product. Therefore, for many years one of the key goals of grapevine breeders has been to develop V. vinifera cultivars having enhanced disease resistance through hybridization with other, more disease-resistant species and by genetic modification [5].
The Chinese flora contains a rich germplasm resource with a number of wild grapevine species, many of which carry genes conferring strong disease resistance. For example, the Chinese wild grapevine Vitis pseudoreticulata accession “Baihe-35-1” has relatively highly resistance to a number of fungi, and especially to E. necator [6,7]. These wild grapevine germplasm resources offer the opportunity to mine novel disease-resistance genes and so accelerate the genetic improvement of our existing V. vinifera germplasm resources.
Plant pathogenesis-related (PR) proteins were first discovered in tobacco leaves infected by tobacco mosaic virus (TMV) [8]. PR proteins are usually induced by pathogen infection or by pathological conditions, but they do not accumulate in healthy plants. Hence, they play various roles in improving the defensive responses of plants to pathogen attack [9].
PR proteins are usually encoded by multiple genes and have been grouped into 17 families, based on the similarity of their amino acid sequences, structures, serological relationships and biological activities [8,9,10]. Most are extracellular proteins but some are localised intracellularly in the vacuole. In contrast, the PR10 proteins are the only ones residing in the cytoplasm. PR10 proteins were first discovered in cultured parsley cells after treatment with an elicitor [11]. Generally, PR10 proteins are slightly acidic, lack a signal peptide and possess an antiprotease character. The open reading frame (ORF) of most PR10 genes is between 456 and 489 bp long, encoding 151–162 amino acids, with a molecular mass of 16–19 kDa [12]. To date, members of the PR10 family have been reported in many higher plant species of both monocots [13,14] and dicots [12,15,16,17,18]. During growth [19,20], PR10 genes are expressed in many different tissues and organs, such as in pollen grains [15,21], flowers [15,22,23,24,25], fruits [26,27], seeds [25,28], and in the vegetative organs, roots [29,30,31,32], stems [25,33] and leaves [33,34].
PR10 proteins exist widely in higher plants. Most PR10 proteins contain a highly conservative P-loop domain, which functions as a nucleotide binding site and can activate ribonuclease activity in some PR10 proteins [35]. Mutations in PR10 conservative amino acid sites have been found in cotton, sweet potato and peanut. These mutations can result in loss of ribonuclease activity in the PR10 proteins [28,36,37]. These results suggest that conservative amino acid residues of the P-loop domain play an important role in determining the ribonuclease activity of the PR10 protein. Most PR10 proteins also contain the Bet v 1 motif [38]. It is reported that the main birch pollen allergen (Bet v 1) has RNase activity [39]. Chadha and Das (2006) isolated a PR10 gene, encoding PR10 protein containing a P-loop domain and Bet v 1 motif from the peanut cDNA library. They also showed a relationship between the antifungal activity of PR10 protein and its RNase activity in vitro [37]. Moreover, it has been shown that white lupin LaPR10 [40], cotton GaPR10 [36] and chili PR10 proteins [41,42] all have ribonuclease activity and antifungal activity. Besides these plants, PR10 proteins in rice [43] and pea [44] have also been confirmed as having nuclease activity in vitro. The VpPR10 proteins in the Chinese wild V. pseudoreticulata have been show not only to have RNase and antifungal activity but also to have DNase activity [45].
PR10 proteins can have a direct affect on a pathogen by nuclease activity or through programmed cell death in the infection site. The hypersensitive response (HR) is a process through which plant cells can respond to outside biological stresses. It is characterised by the rapid death of cells in the region immediately surrounding the infection, to prevent the spread of the pathogen. It has been confirmed that the PBZ1 gene in rice, a member of the PR10 family, is related to programmed cell death [43]. After the pathogen has been induced, programmed cell death occurs as an allergic response, and the accumulation of PBZ1 protein can also be detected. It has been clearly shown that PR10 protein can cause hypersensitive responses in plant cells, thereby resulting in programmed cell death [43,46].
The expression of PR10 in plant cells can be induced by a number of biotic and abiotic stresses. The rice JIOsPR10 genes are highly expressed under the induction of H2O2, salicylic acid (SA) or jasmonic acid (JA) [47]. The rice RSOsPR10 genes are induced by JA, NaCl and drought but do not respond to abscisic acid (ABA), SA and low temperature [48]. The expressions of maize PR10.1 and PR10.2 proteins can also be induced by biological stresses, such as bacterial infection. Abiotic stresses, such as H2O2, mechanical damage and freezing, can induce their expressions simultaneously [49]. RzPR10 proteins in the Tunisian grape cultivar “Razegui” are induced by salt stress and may be associated with resistance to salt stress [50].
Here, we investigate the functions of the genes VpPR10.4, VpPR10.6, VpPR10.7 and VpPR10.9 cloned from Chinese wild V. pseudoreticulata accession “Baihe-35-1”. We carried out DNase and RNase activities assays, an in vitro anti-fungal activity assay and functional analyses under different abiotic stresses to elucidate the disease-resistant mechanism of these VpPR10 genes and to provide a theoretical basis for other related research.

2. Results

2.1. Sequence Alignment of VpPR10s

It was found that the family resemblance of VpPR10s ranged from 59.0%–79.3% after nucleotide sequence analysis. The highest similarity was 79.3% between VpPR10.4 and VpPR10.6, while the lowest was 59.0% between VpPR10.4 and VpPR10.9. VpPR10.4, VpPR10.6, VpPR10.7 and VpPR10.9 contained inserts of complete ORF of 480, 450, 477 and 486 bp, which encode peptides of 159, 149, 158 and 161 amino acid residues, having 99.4% similarity (with VvPR10.4), 97.6% (with VvPR10.6), 99% (with VvPR10.7) and 98.8% (with VvPR10.9), molecular masses of 17.34, 16.90, 17.45 and 18.41 kDa and isoelectric points of 4.99, 5.99, 4.98 and 5.45, respectively.
Most PR10 proteins contain two conservative structure domains—A P-loop domain (AA 47–55, GXGGXGXXK) and a Bet v 1 motif (AA89-121, G-[DG]-[VA]-L-x(4)-E-[SY]-[IL]-[CSATV]-[HY]-[ED]-x-[KST]-x-[VE]-x(3)-[GNDS]-G(2)-[CS]-x(2)-K-x(2)-[SK]-X-Y) [38]. The P-loop domain has a nucleotide binding site, and phosphorylation of this area suggests it may be associated with nuclease activity in some PR10 proteins [14,51].
Ijms 15 19162 g001 1024

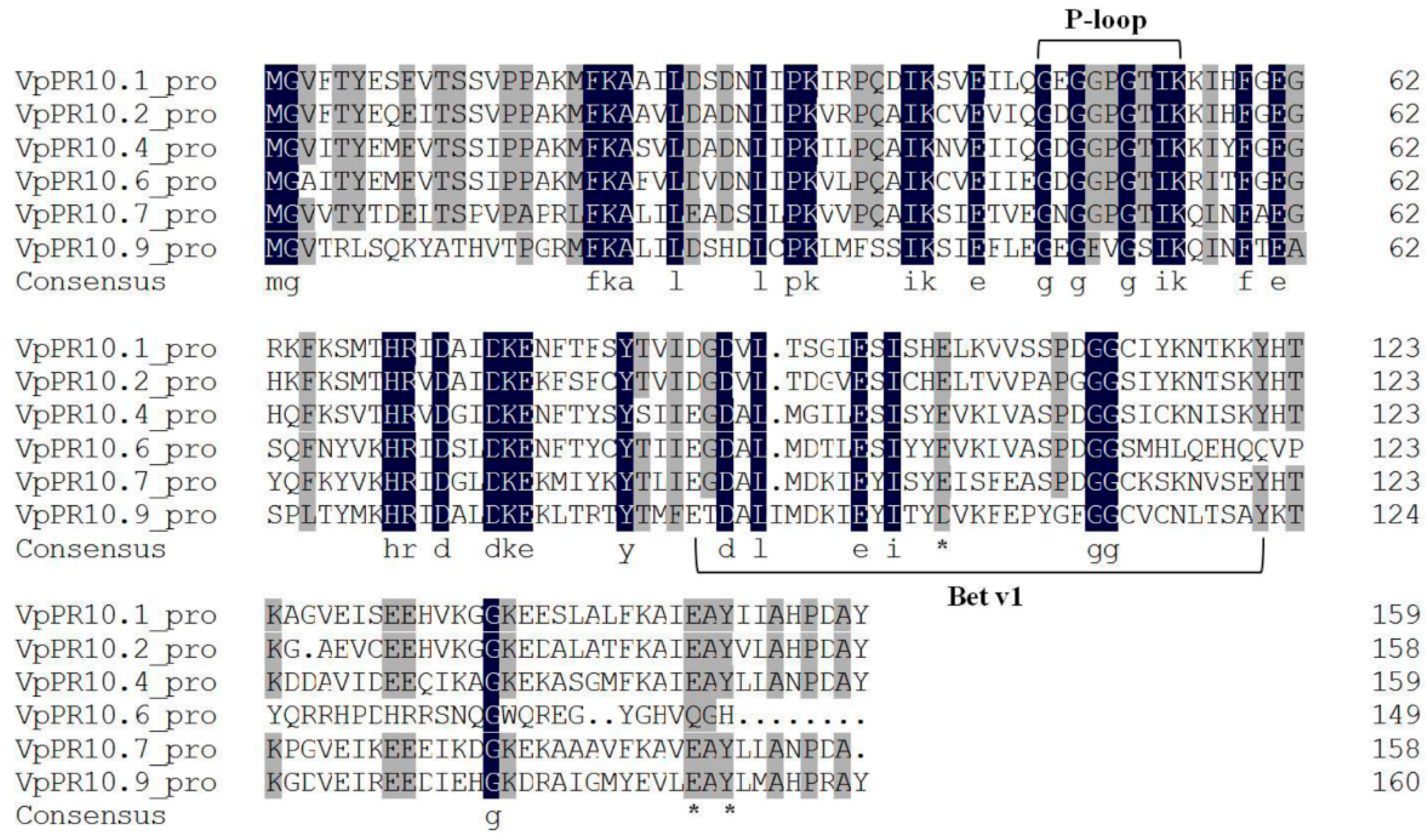

Figure 1. Deduced sequence alignment of PR10 proteins. Black and gray shading indicate amino acids which are identical or similar, respectively. Dashes indicate gaps introduced for optimal alignment. The P-loop and Bet v 1 are framed. The Bet v 1 motif was determined as:AA89-121,G-[DG]-[VA]-L-x(4)-E-[SY]-[IL]-[CSATV]-[HY]-[ED]-x-[KST]-x-[VE]-x(3)-[GNDS]-G(2)-[CS]-x(2)-K-x(2)-[SK]-X-Y and the P-loop domain as: AA 47-55, G-X-G (2)-X-G-X(2)-K. (*) marks the amino-acids implicated in possible ribonuclease activity (E102, E149 and Y151).
Figure 1. Deduced sequence alignment of PR10 proteins. Black and gray shading indicate amino acids which are identical or similar, respectively. Dashes indicate gaps introduced for optimal alignment. The P-loop and Bet v 1 are framed. The Bet v 1 motif was determined as:AA89-121,G-[DG]-[VA]-L-x(4)-E-[SY]-[IL]-[CSATV]-[HY]-[ED]-x-[KST]-x-[VE]-x(3)-[GNDS]-G(2)-[CS]-x(2)-K-x(2)-[SK]-X-Y and the P-loop domain as: AA 47-55, G-X-G (2)-X-G-X(2)-K. (*) marks the amino-acids implicated in possible ribonuclease activity (E102, E149 and Y151).
Ijms 15 19162 g001
A protein motif analysis was carried out among the amino acid sequences coded by the four VpPR10 genes. Figure 1 shows that, except for VpPR10.9, the amino acids 47–55 of the VpPR10s corresponded to the P-loop conservative structure domain. In the analysis of protein structure, it is predicted that amino acids 89–121 of VpPR10.4 and VpPR10.7 correspond to the Bet v 1 motif. However, this Bet v 1 motif was not found in the amino acid sequences of VpPR10.6 and VpPR10.9. Amino acid sequences of VpPR10.4 and VpPR10.7 contained characteristic amino acid sites of nuclease activity, E102, E149 and Y151. Nevertheless, E102 was replaced by D102 in the amino acid sequence of VpPR10.9, while E149 and Y151 were mutated to Q149 and H151 in VpPR10.6.

2.2. Phylogenetic Analyses of VpPR10s

To further our understanding of the evolutionary location and genetic relationships of VpPR10s among the PR10 protein family and adjacent families, MEGA4.0 software was used to research the homology and phylogenetic relationships among VpPR10.4, VpPR10.6, VpPR10.7 and VpPR10.9, and other reported PR10 proteins. The clustering results of the evolutionary tree confirmed that VpPR10.4 and VpPR10.6 were close relatives and there was close similarity between VpPR10.7 and VpPR10.9 (Figure 2).
Ijms 15 19162 g002 1024

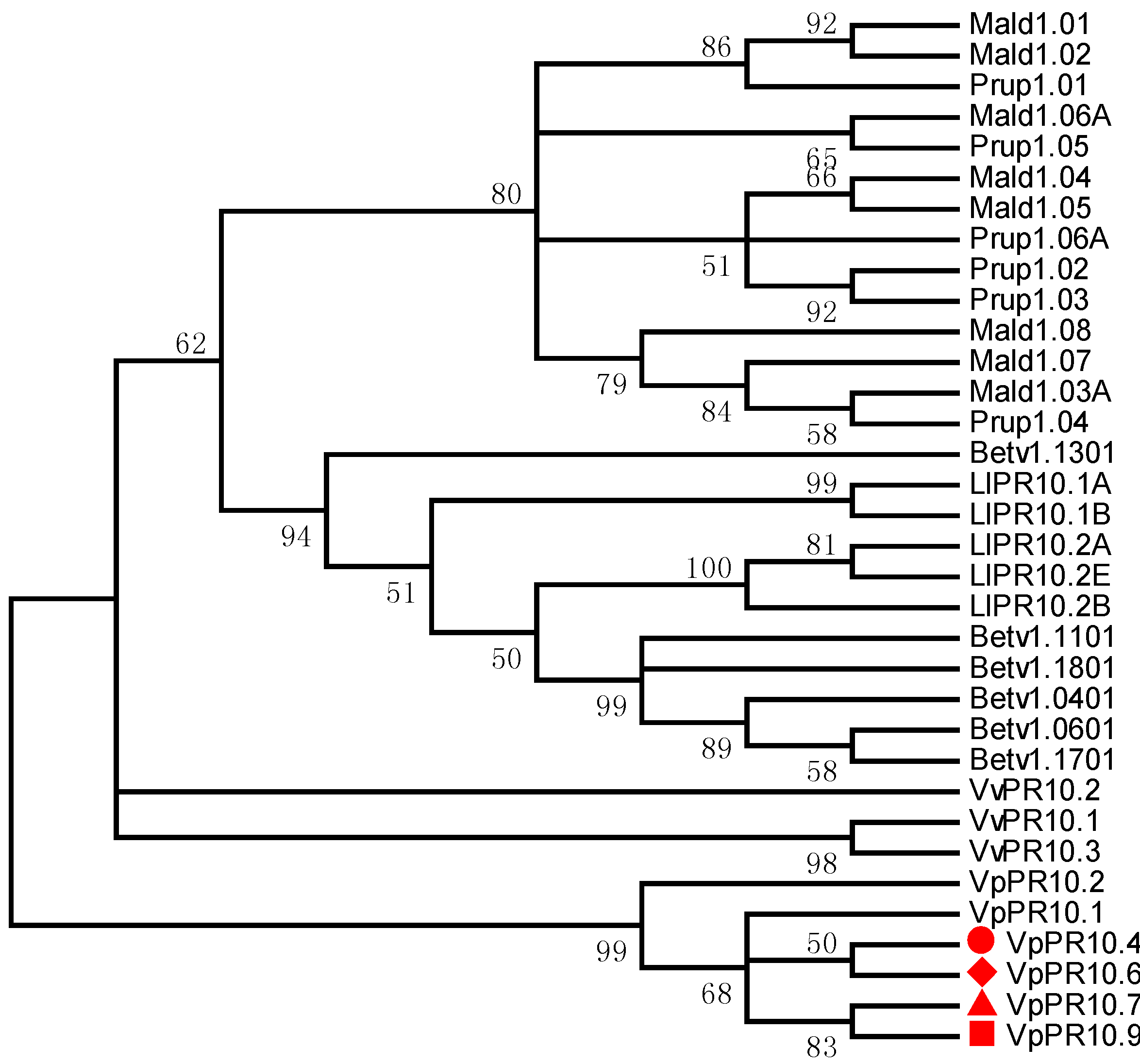

Figure 2. Phylogenetic relationships of the deduced amino acids in VpPR10s, and other reported PR10 proteins. GenBank accession numbers are: Betula pendula: Betv1.0401 (CAA54482), Betv1.0601 (CAA54484), Betv1.1101 (CAA54694), Betv1.1301 (CAA54696), Betv1.1701 (CAA96539) and Betv1.1801 (CAA96540); Lupinus luteus: LlPR10.1A (CAA56298), LlPR10.1B (CAA56299), LlPR10.2A (AAF77633), LlPR10.B (AAF77634) andLlPR10.2E (AAP37978); Malus domestica: Mald1.01 (AAX18288), Mald1.02 (AAX18291),Mald1.03A (AAX18313), Mald1.04 (AAX18294), Mald1.05 (AAX18296), Mald1.06A (AAX18299), Mald1.07 (AAX18307) and Mald1.08 (AAX18310); Prunus persica: Prup1.01 (ACE80940), Prup1.02 (ACE80942), Prup1.03 (ACE80944), Prup1.04 (ACE80946), Prup1.05 (ACE80948) and Prup1.06A (ACE80952); Vitis vinifera: VvPR10.1 (AJ291705), VvPR10.2 ( AJ291704) and VvPR10.3 (EU379313).
Figure 2. Phylogenetic relationships of the deduced amino acids in VpPR10s, and other reported PR10 proteins. GenBank accession numbers are: Betula pendula: Betv1.0401 (CAA54482), Betv1.0601 (CAA54484), Betv1.1101 (CAA54694), Betv1.1301 (CAA54696), Betv1.1701 (CAA96539) and Betv1.1801 (CAA96540); Lupinus luteus: LlPR10.1A (CAA56298), LlPR10.1B (CAA56299), LlPR10.2A (AAF77633), LlPR10.B (AAF77634) andLlPR10.2E (AAP37978); Malus domestica: Mald1.01 (AAX18288), Mald1.02 (AAX18291),Mald1.03A (AAX18313), Mald1.04 (AAX18294), Mald1.05 (AAX18296), Mald1.06A (AAX18299), Mald1.07 (AAX18307) and Mald1.08 (AAX18310); Prunus persica: Prup1.01 (ACE80940), Prup1.02 (ACE80942), Prup1.03 (ACE80944), Prup1.04 (ACE80946), Prup1.05 (ACE80948) and Prup1.06A (ACE80952); Vitis vinifera: VvPR10.1 (AJ291705), VvPR10.2 ( AJ291704) and VvPR10.3 (EU379313).
Ijms 15 19162 g002

2.3. Purification of Recombinant Proteins

The recombinant VpPR10s proteins were purified with GST resin and detected with 12% concentrated gel SDS-PAGE. Single bands of purified target proteins VpPR10.4, VpPR10.6, VpPR10.7 and VpPR10.9 were observed in Lane 5, with molecular masses of 43.3, 42.9, 43.4 and 44.4 kDa, respectively (Figure 3A–D).
Ijms 15 19162 g003 1024

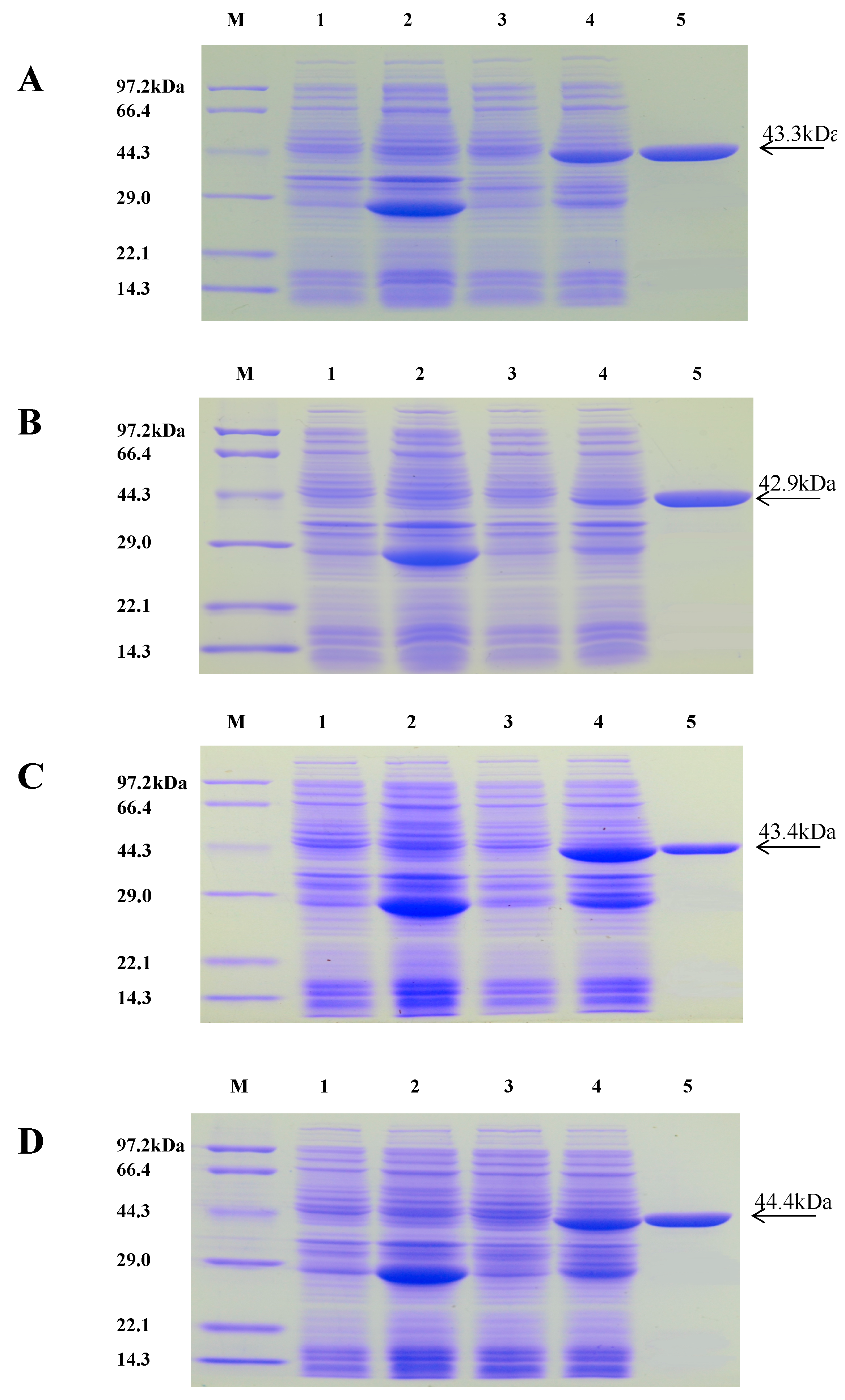

Figure 3. Purification of VpPR10 recombinant proteins. Lane M: Protein marker; Lane 1: The total protein of null vector pGEX-4T-1 without induction (37 °C, 4 h); Lane 2: The total protein of pGEX-4T-1 with induction (37 °C, 4 h, 0.1 mM IPTG); Lane 3: The total protein of pGEX-VpPR10s without induction (37 °C, 4 h); Lane 4: The total protein of pGEX-VpPR10s with induction (37 °C, 4 h, 0.1 mM IPTG); and Lane 5: VpPR10 recombinant proteins purified with GST resin. (A–D) represent bacteria containing the recombinantexpression vector pGEX-VpPR10.4, pGEX-VpPR10.6, pGEX-VpPR10.7 and pGEX-VpPR10.9, respectively.
Figure 3. Purification of VpPR10 recombinant proteins. Lane M: Protein marker; Lane 1: The total protein of null vector pGEX-4T-1 without induction (37 °C, 4 h); Lane 2: The total protein of pGEX-4T-1 with induction (37 °C, 4 h, 0.1 mM IPTG); Lane 3: The total protein of pGEX-VpPR10s without induction (37 °C, 4 h); Lane 4: The total protein of pGEX-VpPR10s with induction (37 °C, 4 h, 0.1 mM IPTG); and Lane 5: VpPR10 recombinant proteins purified with GST resin. (A–D) represent bacteria containing the recombinantexpression vector pGEX-VpPR10.4, pGEX-VpPR10.6, pGEX-VpPR10.7 and pGEX-VpPR10.9, respectively.
Ijms 15 19162 g003

2.4. DNase and RNase Activities of VpPR10s

In this study, the effects of protein concentration and Mg2+ on nuclease activity of VpPR10.7 recombinant protein were carried out with the incubation of 0, 2, 4, 6, 8 and 10 μg VpPR10.7 mixed with 100 ng·μL−1 “Baihe-35-1” leaf total RNA or genomic DNA for 30 min at 37 °C. The nuclease experiments showed that the degradation of “Baihe-35-1” RNA or gDNA incubated with 4–8 μg target protein was significantly observed, and 4 μg recombinant protein could thoroughly degrade total RNA in the reaction system with 30 min incubation (Figure 4A). Meanwhile, 8 μg VpPR10.7 recombinant protein was enough to degrade total “Baihe-35-1” gDNA for 30 min incubation (Figure 4B), and the 2.5 mM Mg2+ in the reaction mixtures could enhance the DNase activity of VpPR10.7. Based on the nuclease experimental results, 8 μg purified recombinant proteins were used to perform subsequent RNase and DNase activities assays.
Ijms 15 19162 g004 1024

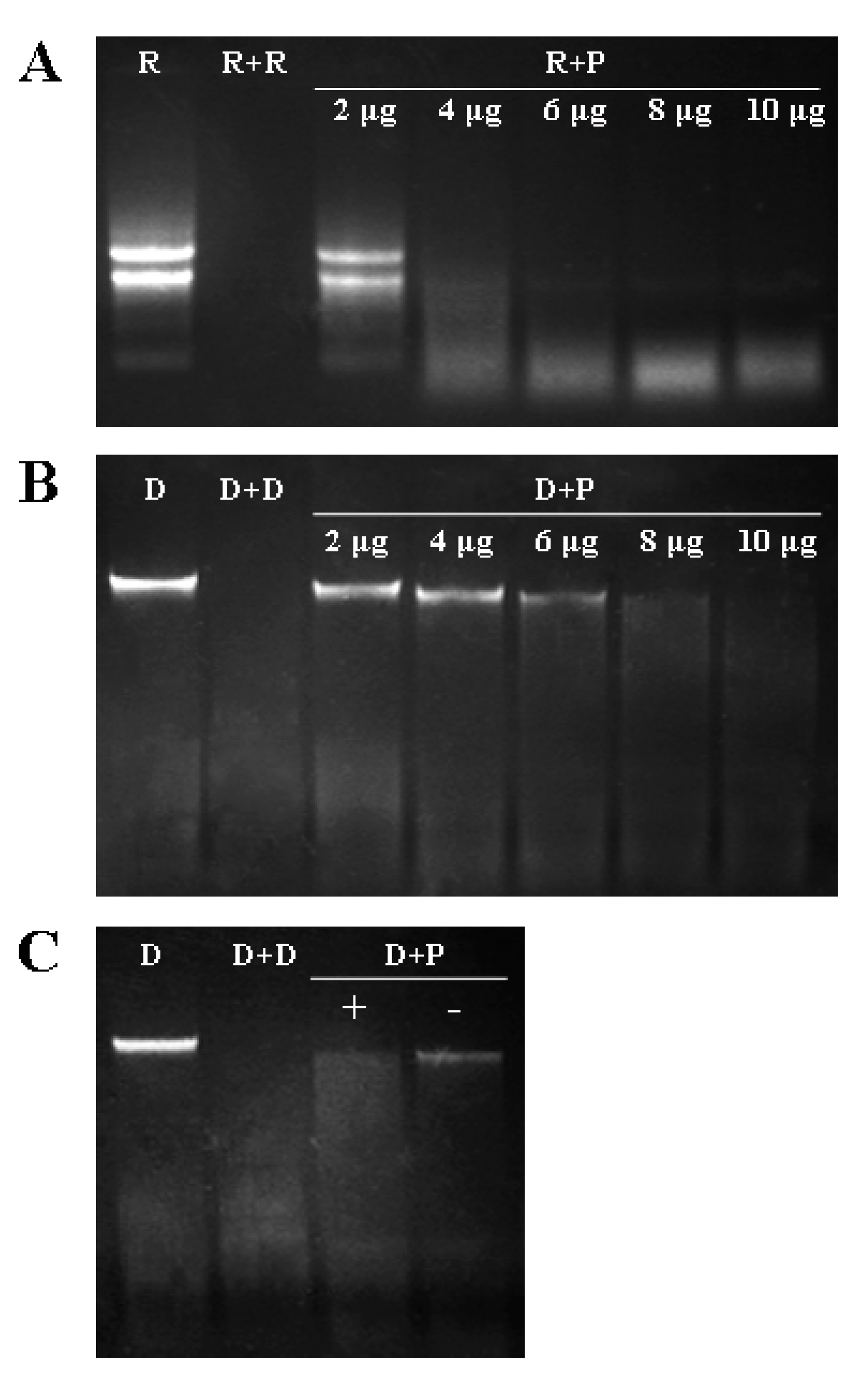

Figure 4. Effects of protein concentration and Mg2+ on nuclease activity of VpPR10.7 recombinant protein. (A) Effect of protein concentration on RNase activity of VpPR10.7. Lane R: RNA + reduced glutathione buffer (negative control); Lane R + R: RNA + RNase (positive control); Lane R + P: RNA + VpPR10.7 protein; 2, 4, 6, 8 and 10 μg represent different protein concentrations; (B) Effect of protein concentration on DNase activity of VpPR10.7. Lane D: DNA + reduced glutathione buffer (negative control); Lane D + D: DNA + DNase (positive control); Lane D + P: DNA + VpPR10.7 protein; and (C) Effect of Mg2+ on DNase activity. “+”: with 2.5 mM MgCl2; “–”: without 2.5 mM MgCl2.
Figure 4. Effects of protein concentration and Mg2+ on nuclease activity of VpPR10.7 recombinant protein. (A) Effect of protein concentration on RNase activity of VpPR10.7. Lane R: RNA + reduced glutathione buffer (negative control); Lane R + R: RNA + RNase (positive control); Lane R + P: RNA + VpPR10.7 protein; 2, 4, 6, 8 and 10 μg represent different protein concentrations; (B) Effect of protein concentration on DNase activity of VpPR10.7. Lane D: DNA + reduced glutathione buffer (negative control); Lane D + D: DNA + DNase (positive control); Lane D + P: DNA + VpPR10.7 protein; and (C) Effect of Mg2+ on DNase activity. “+”: with 2.5 mM MgCl2; “–”: without 2.5 mM MgCl2.
Ijms 15 19162 g004
The RNase activity analysis of VpPR10s proteins was carried out in accordance with the method of Yan et al. [52]. The degradation of total RNA by VpPR10s proteins was used to further investigate the RNase activities of VpPR10s. The degradation of RNA did not appear in the negative control using reduced glutathione buffer (lane R) and four boiled VpPR10 proteins (lane R + BP). The total RNA when treated with VpPR10.4 and VpPR10.7 proteins (Figure 5 lane R + P in A,C) showed obvious degradation while VpPR10.6 and VpPR10.9 proteins (Figure 5 lane R + P in B,D) did not show degradation.
Ijms 15 19162 g005 1024

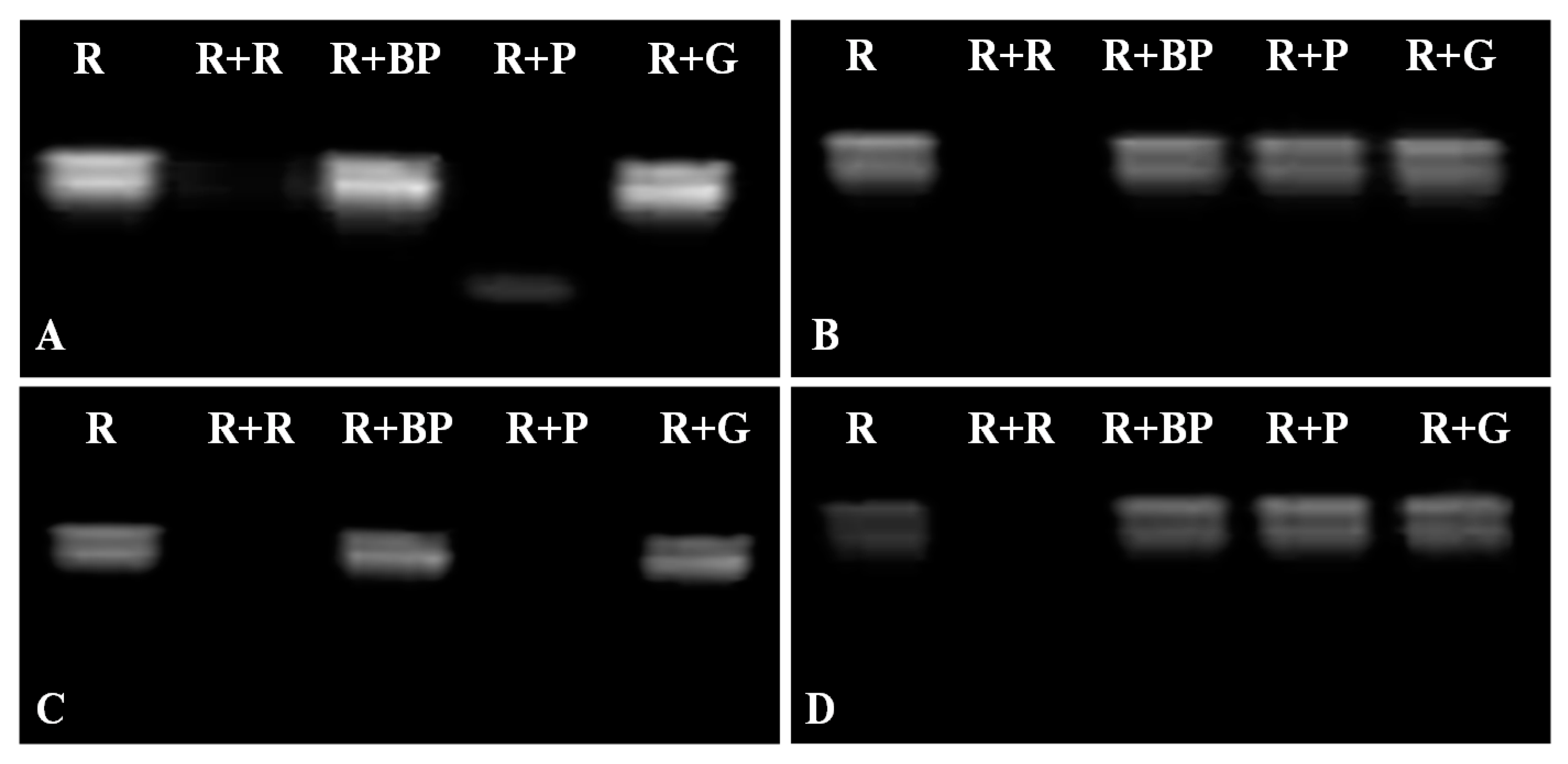

Figure 5. RNase activities of VpPR10 proteins. (A–D) represent the recombinant proteins pGEX-VpPR10.4, pGEX-VpPR10.6, pGEX-VpPR10.7 and pGEX-VpPR10.9, respectively. Lane R: RNA + reduced glutathione buffer (negative control); Lane R + R: RNA + RNase (positive control); Lane R + BP: RNA + boiled-VpPR10 protein (negative control); Lane R + P: RNA + VpPR10 protein; Lane R + G: RNA + GST-Tag protein (negative control).
Figure 5. RNase activities of VpPR10 proteins. (A–D) represent the recombinant proteins pGEX-VpPR10.4, pGEX-VpPR10.6, pGEX-VpPR10.7 and pGEX-VpPR10.9, respectively. Lane R: RNA + reduced glutathione buffer (negative control); Lane R + R: RNA + RNase (positive control); Lane R + BP: RNA + boiled-VpPR10 protein (negative control); Lane R + P: RNA + VpPR10 protein; Lane R + G: RNA + GST-Tag protein (negative control).
Ijms 15 19162 g005
The DNase activity analysis of VpPR10s proteins was carried out according to the method of Guevara-Morato et al. [53]. As shown in Figure 6, the various VpPR10s proteins had different levels of DNase activities. The genomic DNA did not appear to degrade with reduced glutathione buffer as the negative control. When treated with VpPR10.4 and VpPR10.7 recombinant proteins (Figure 6 lane D + P in E,G), the genomic DNA showed obvious degradation, while with VpPR10.6 and VpPR10.9 (Figure 6 lane D + P in F,H) there was almost no degradation. This shows that the degree of gDNA degradation changes with reaction time. The gDNA degraded more after 40 min when treated with VpPR10.4 and VpPR10.7 (Figure 6A,C) but did not degrade with VpPR10.6 and VpPR10.9 (Figure 6B,D).

2.5. In Vitro Anti-Fungal Activities of Recombinant VpPR10s Proteins

The recombinant proteins VpPR10.7 and VpPR10.9 were selected for the in vitro anti-fungal activity assay. Their inhibition of the growth of B. cinerea was shown in Figure 7. Preliminary screening of VpPR10.7 confirmed that it could strongly inhibit B. cinerea growth (Figure 7A) whereas VpPR10.9 showed only slight inhibition compared with the negative control (Figure 7A). Figure 7B showed a quantitative analysis of anti-fungal activities of VpPR10.7 and VpPR10.9. The average number ofsporangia showed big differences between treatment with VpPR10.7 and the negative control (Figure 7B). However, the average number of sporangia decreased less with VpPR10.9 (Figure 7 B). This result was identical with that in Figure 7A.
Ijms 15 19162 g006 1024

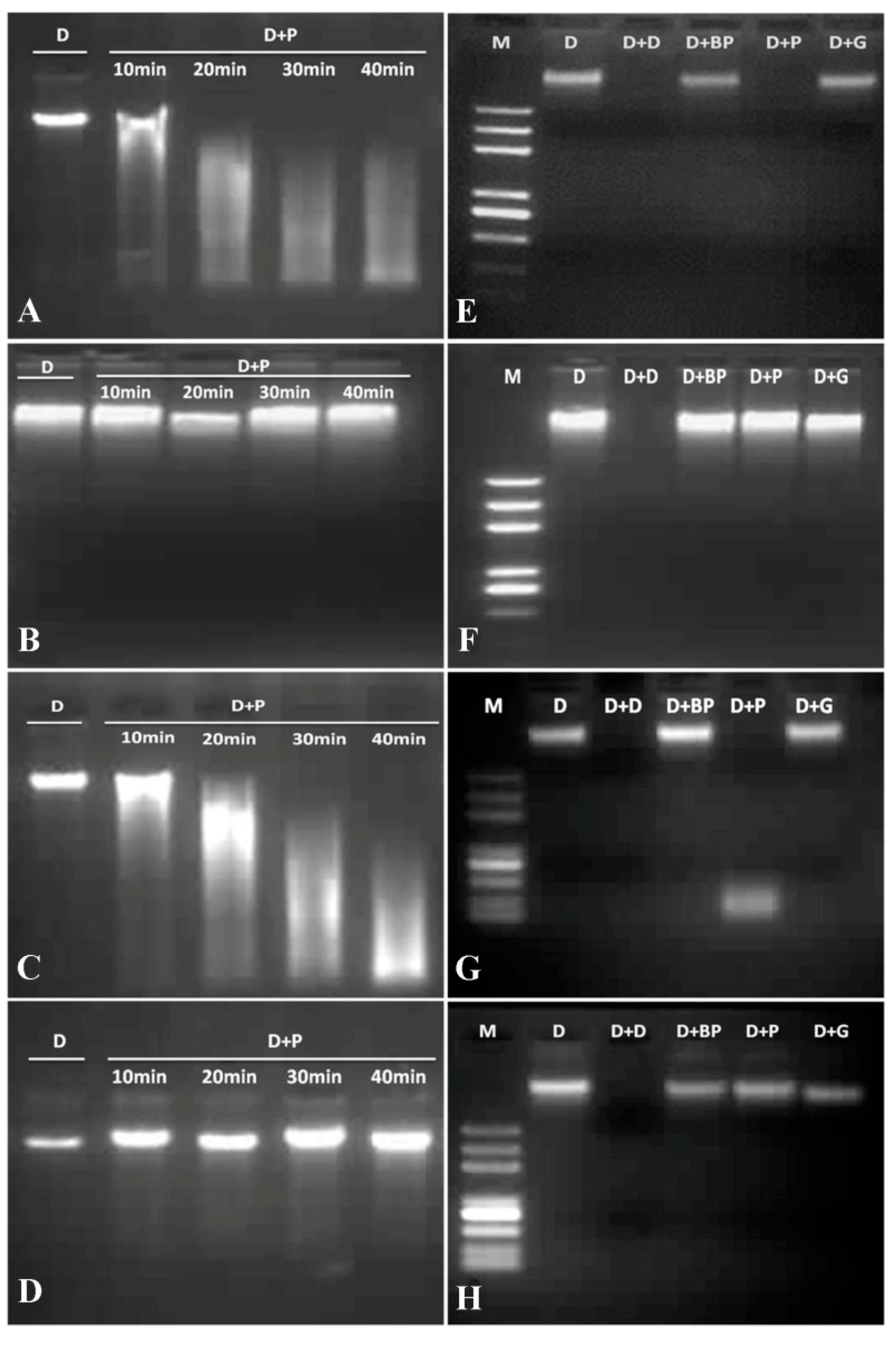

Figure 6. DNase activities of VpPR10 proteins. (A–D) represent the recombinant proteins pGEX-VpPR10.4, pGEX-VpPR10.6, pGEX-VpPR10.7 and pGEX-VpPR10.9, respectively.Lane M: DNA marker; Lane D: DNA + reduced glutathione buffer (negative control); Lane D + P: DNA + VpPR10 protein, 10, 20, 30 and 40 min represent different reaction times; (E–H) represent the recombinant proteins pGEX-VpPR10.4, pGEX-VpPR10.6, pGEX-VpPR10.7 and pGEX-VpPR10.9, respectively. Each reaction included 8 μg of recombinant protein. Final concentrations of gDNA and MgCl2 were 100 ng μL−1 and 2.5 mM, respectively. The mixture was thoroughly incorporated and held at 37 °C in a water bath for 30 min. Lane D: DNA + reduced glutathione buffer (negative control); Lane D + D: DNA + DNase (positive control); Lane D + BP: DNA + boiled-VpPR10 protein (negative control); Lane D + P: DNA + VpPR10 protein; Lane D + G: DNA + GST-protein (negative control).
Figure 6. DNase activities of VpPR10 proteins. (A–D) represent the recombinant proteins pGEX-VpPR10.4, pGEX-VpPR10.6, pGEX-VpPR10.7 and pGEX-VpPR10.9, respectively.Lane M: DNA marker; Lane D: DNA + reduced glutathione buffer (negative control); Lane D + P: DNA + VpPR10 protein, 10, 20, 30 and 40 min represent different reaction times; (E–H) represent the recombinant proteins pGEX-VpPR10.4, pGEX-VpPR10.6, pGEX-VpPR10.7 and pGEX-VpPR10.9, respectively. Each reaction included 8 μg of recombinant protein. Final concentrations of gDNA and MgCl2 were 100 ng μL−1 and 2.5 mM, respectively. The mixture was thoroughly incorporated and held at 37 °C in a water bath for 30 min. Lane D: DNA + reduced glutathione buffer (negative control); Lane D + D: DNA + DNase (positive control); Lane D + BP: DNA + boiled-VpPR10 protein (negative control); Lane D + P: DNA + VpPR10 protein; Lane D + G: DNA + GST-protein (negative control).
Ijms 15 19162 g006
Ijms 15 19162 g007 1024

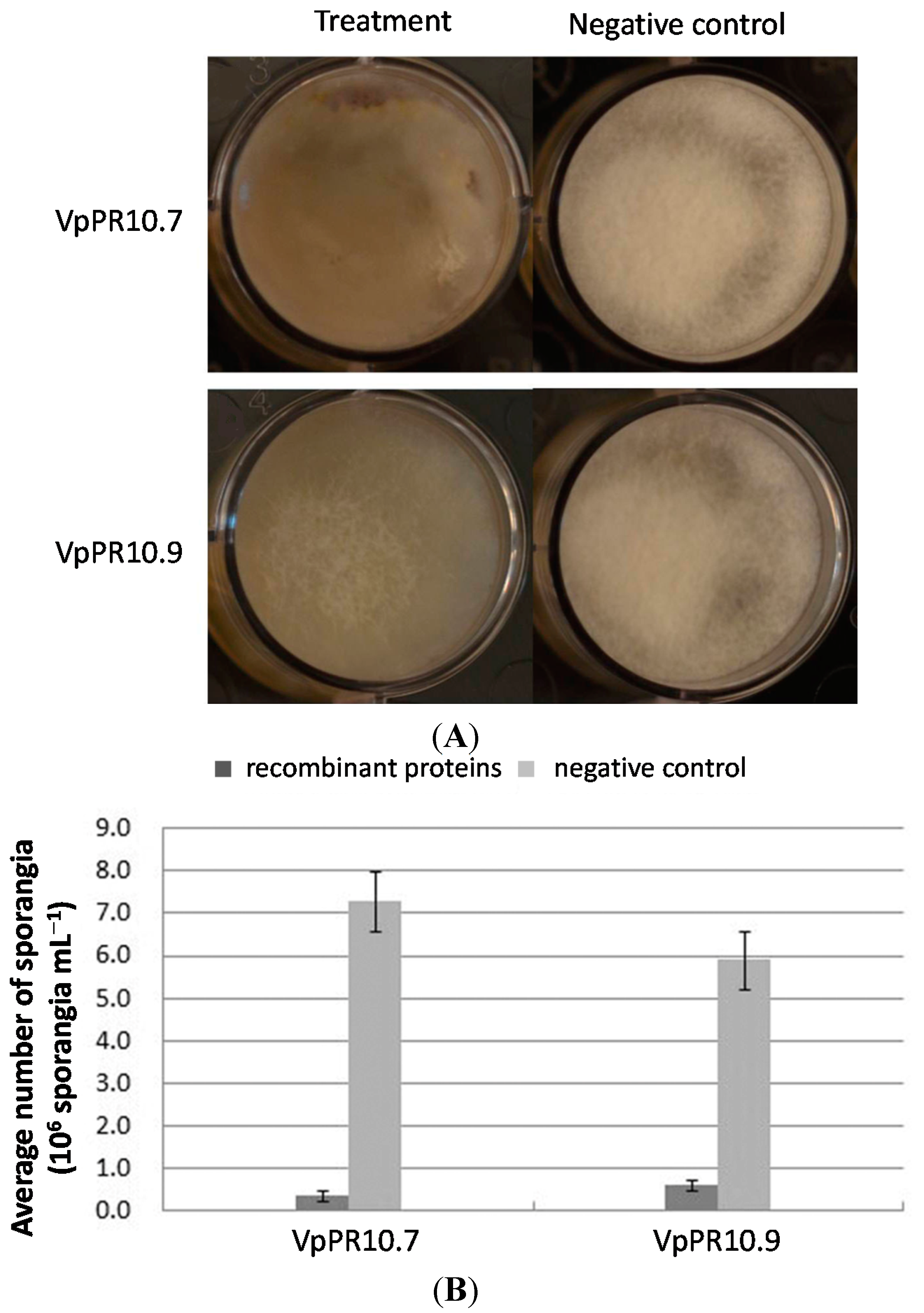

Figure 7. In vitro anti-fungal activities of recombinant VpPR10s proteins. (A) Growth inhibition of Botrytis cinerea treated with VpPR10 proteins. Left: 30 μL Botrytis cinerea sporangial suspension + 100 μL purified recombinant proteins (treatment); Right: 30 μL Botrytis cinerea sporangial suspension + 100 μL glutathione buffer (negative control); and (B) Quantitative analysis of anti-fungal activities of VpPR10 proteins.
Figure 7. In vitro anti-fungal activities of recombinant VpPR10s proteins. (A) Growth inhibition of Botrytis cinerea treated with VpPR10 proteins. Left: 30 μL Botrytis cinerea sporangial suspension + 100 μL purified recombinant proteins (treatment); Right: 30 μL Botrytis cinerea sporangial suspension + 100 μL glutathione buffer (negative control); and (B) Quantitative analysis of anti-fungal activities of VpPR10 proteins.
Ijms 15 19162 g007

2.6. Influences of VpPR10s on E. coli under Abiotic Stresses

The growth of E. coli cells was studied under different stress conditions. Solid LB media and E. coli cells transformed with pGEX-4T-1 were used as controls. Recombinant E. coli cells transformed with VpPR10.4 or VpPR10.7 had fewer colonies compared to controls transformed with pGEX-4T-1 in the presence of sorbitol and SA (Figure 8). However, the growth of E. coli cells showed no significant differences between recombinant cells transformed with VpPR10.6 or VpPR10.9 and controls transformed with pGEX-4T-1 on the LB plates supplemented with sorbitol and SA (Figure 8).
Ijms 15 19162 g008 1024

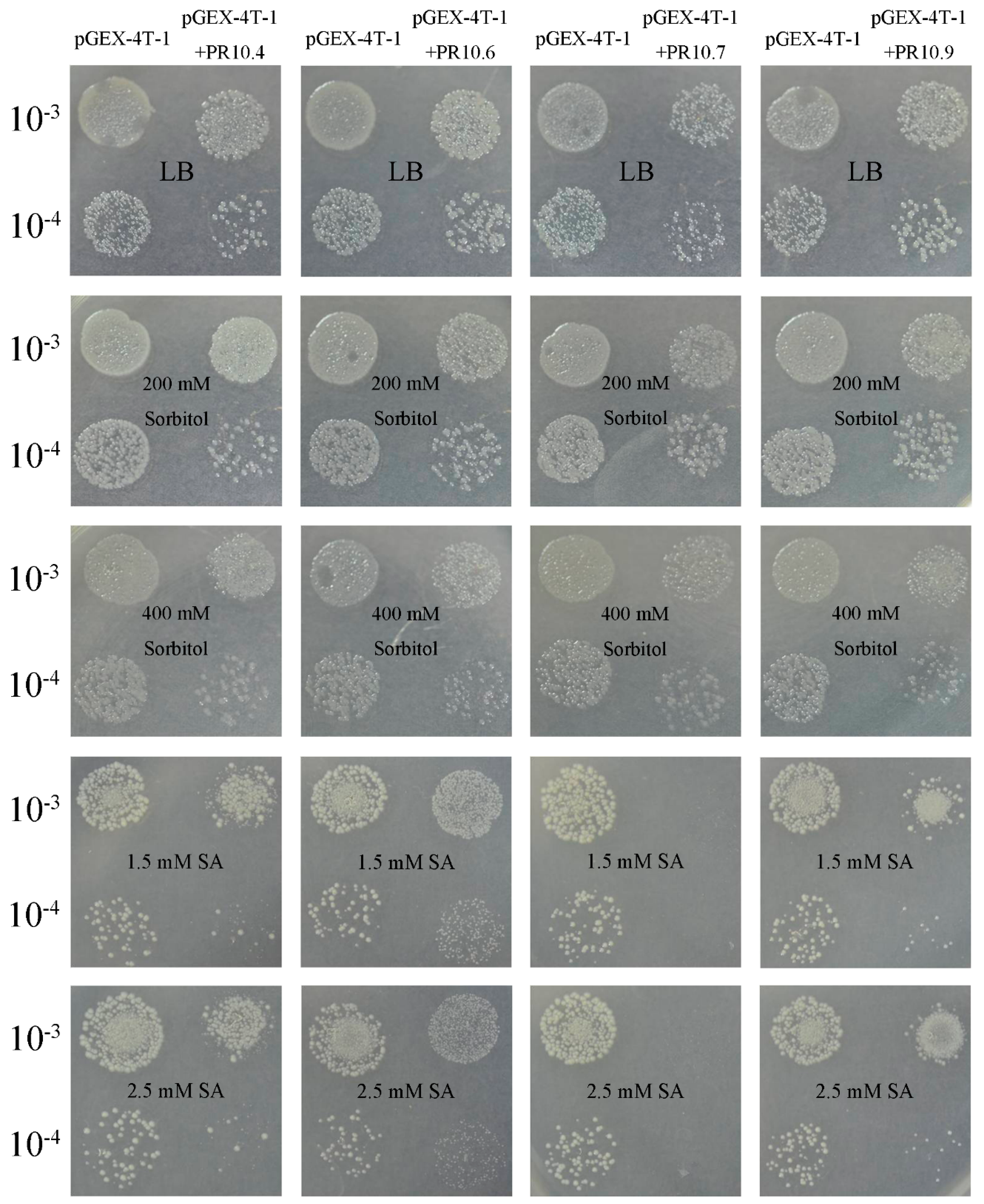

Figure 8. Growth analysis of Escherichia coli cells containing VpPR10s recombinant plasmid and pGEX-4T-1 alone in solid LB media with different supplements. Solid LB media and E. coli cells transformed with pGEX-4T-1 were used as controls.
Figure 8. Growth analysis of Escherichia coli cells containing VpPR10s recombinant plasmid and pGEX-4T-1 alone in solid LB media with different supplements. Solid LB media and E. coli cells transformed with pGEX-4T-1 were used as controls.
Ijms 15 19162 g008

3. Discussion

Pathogenesis-related genes (PR10) exist widely in the genomes of higher plants. Most PR10 genes have open reading frames (ORF) of 456–489 bp, which encode peptides containing 151–162 amino acid residues, with molecular masses of 15–18 kDa [54]. The work of Gao et al. (2005) confirms that the ORF of PR10s are usually inserted by a 76–359 bp intron—although one subtribe of the Malus PR10 gene family has no introns in the ORF [55]. In this experiment, we show that the VpPR10 sequences share the characteristics described above. Thus, VpPR10.4, VpPR10.6, VpPR10.7, VpPR10.9 contain ORFs of 480, 450, 477 and 486 bp, which encode peptides of 159, 149, 158 and 161 amino acid residues, with molecular masses of 17.34, 16.90, 17.45 and 18.41 kDa, respectively. All these ORFs are inserted by the introns at 189/190 bp (VpPR10.4 and VpPR10.7) or 183/184 bp (VpPR10.6 and VpPR10.9). These results indicate that the introns have highly-conservative positioning and that the VpPR10s are typical members of the PR10 family.
Most PR10 proteins contain a highly conservative P-loop domain and a Bet v 1 motif [35,38]. It has been reported that the P-loop domain and Bet v 1 motif are contained in the amino acid sequence of PR10 proteins in Lupinus albus (LaPR10) [40], Asiatic cotton (GaPR10) [36], peanuts [37] and pepper [42]. The relationships between the two conservative domains and nuclease activity were further confirmed in our experiment. The sequences of VpPR10.4 and VpPR10.7 amino acids contain characteristic amino acid sites with nuclease activity. These are E102, E149 and Y151, respectively. However, E102 is replaced by D102 in the sequence of VpPR10.9 and E149, Y151 are replaced by Q149, H102 in VpPR10.6 (Figure 1). Hence, it can be speculated that VpPR10.4 and VpPR10.7 proteins are likely to have nuclease activities and VpPR10.6 and VpPR10.9 proteins may not have this function.
In this study, there was an obvious degradation of “Baihe-35-1” total RNA when treated with VpPR10.4 or VpPR10.7 proteins (Figure 5A,C). Sequence analysis shows that amino acid sequences encoded by VpPR10.4 and VpPR10.7 contain conservative structure domains P-loop and Bet v 1 and characteristic amino acid sites (E102, E149 and Y151) with nuclease activity. The corresponding relations can be further verified among the conservative structure domains P-loop and Bet v 1, characteristic amino acid site of nuclease and RNase activities of proteins in vitro. The “Baihe-35-1” total RNA showed no degradation when treated with VpPR10.6 or VpPR10.9 proteins (Figure 5B,D). Sequence analyses indicate that amino acid sequences encoded by VpPR10.6 and VpPR10.9 have no P-loop domain or Bet v 1 motif.
The PR10.2 protein obtained from V. pseudoreticulata has both RNase and DNase activities [45]. This demonstrates that VpPR10 proteins possess DNase activity. The study of Agarwal et al. (2013) shows that JcPR-10a protein from Jatropha curcas exhibits simultaneous RNase and DNase activities [56]. It has also been confirmed that the VpPR10.1 in V. pseudoreticulata, a member of the PR10 family, is related to programmed cell death and DNA degradation when incubated with tobacco BY-2 suspension cells [57]. RNase activity of pea PR10.1 protein has been demonstrated [44]. In rice plants, PBZ1 protein, a PR10 family protein, also exhibits RNase activity [43]. Therefore, it can be confirmed that PR10 proteins in many plants have nuclease activity. The purified VpPR10.4 and VpPR10.7 proteins show not only RNase activity but also DNase activity (Figure 5 and Figure 6). This has important significance for studies of the biological activities of PR10 proteins in the defense responses of plants. We speculate that the P-loop domain and Bet v 1 motif may have relationships with the RNase and DNase activities of VpPR10 proteins.
It has been reported that some PR10 proteins have strong anti-fungal activities [37,41,49]. For example, VpPR10.2 protein displayed strong growth inhibition of A. alternate while over-expression of VpPR10.2 in V. vinfera strengthened resistance to P. viticola [45]. However, over-expression of STH-2, a member of the Ypr10 family, does not increase resistance of potato to Phytophthora infestans or to potato virus X [58]. These differences may be a result of selective inhibition by the PR10 proteins [37]. In the present study, VpPR10.7 in V. pseudoreticulata strongly inhibited the growth of B. cinerea (Figure 7), which indicates that VpPR10.7 with anti-fungus activity might play an important role in resistance to E. necator in the host plant. Meanwhile, VpPR10.9 protein slightly slowed the growth of B. cinerea (Figure 7).
The expressions of VpPR10s genes are induced with IPTG, so the growth of E. coli cells transformed with VpPR10s recombinant plasmids shows some variation under different abiotic stresses (Figure 8). Sorbitol causes osmotic stress to bacterial cells and ASA (Acetyl SA) inhibits DNA glycation by interacting with DNA [56]. The VpPR10.4 and VpPR10.7 proteins contain the P-loop domain and Bet v 1 motif, which relate to RNase and DNase activities. The growth inhibition of E. coli cells could be associated with the RNase activities of VpPR10.4 and VpPR10.7, as a result of RNA degradation. Thus, the accumulation of truncated mRNA could inhibit protein synthesis and hence slow bacterial growth. In this way, the cells would grow poorly when exposed to abiotic stresses (Figure 8). However, the VpPR10.6 and VpPR10.9 proteins have no DNase or RNase activities, so the growth of E. coli cells transformed with these two recombinant plasmids is unaffected when placed on LB plates with added sorbitol and SA (Figure 8). The same results have been confirmed in work by Parinita Agarwal et al. [56].

4. Experimental Section

4.1. Plant Material

Material of the Chinese wild grape V. pseudoreticulata accession “Baihe-35-1” was obtained from the grape repository of Northwest A&F University, Shaanxi, China.
Leaves of greenhouse-grown vines were harvested and immediately covered with aluminium foil, frozen in liquid nitrogen and stored at −80 °C pending use.

4.2. Full-Length Cloning of VpPR10s

Genomic DNA was extracted using the CTAB protocol [59]. Genomic DNA of “Baihe-35-1” was used as the template, to design two pairs of specific primers based on VvPR10s sequences, and amplified twice to obtain the sequences VpPR10.4, VpPR10.6, VpPR10.7 and VpPR10.9 using overlap extension PCR. All primers are listed in Table 1.The primers F1 + R2 and F2 + R1 were chosen for the first amplification. For each gene, two purpose fragments were recycled on 1% agarose gel electrophoresis, including upstream and downstream sections of intron. The second amplification was done using the mixture of two fragments as templates and primers F1 and R1. The amplification products were analysed by electrophoresis and the single-purpose fragment was recycled with the Universal DNA Purification Kit (Tiangen biotech, Beijing, China). The recycled products were ligated into pMD-19T vector, transformed into Escherichia coli Top 10 and screened on LB plates containing 100 mg·L−1 ampicillin using blue-white selection.
Table
Table 1. Primers for gene splicing by overlap extension PCR.
Table 1. Primers for gene splicing by overlap extension PCR.
Primer NameSequence (5' to 3')
VpPR10.4F15'-ATGGGTGTTATTACTTATGAGATG-3'
VpPR10.4R15'-TTAATAAGCATCAGGATTTGCCAAG-3'
VpPR10.4F25'-CTACTTTGGTGAAGGTCACCAATTCAAGAGCGTGACACA-3'
VpPR10.4R25'-CACGCTCTTGAATTGGTGACCTTCACCAAAGTAGATC-3'
VpPR10.6F15'-ATGGGTGCTATCACTTATGAAATGGA-3'
VpPR10.6R15'-TTAATAGGCATCAGGATTGGCCAAG-3'
VpPR10.6F25'-GATTACTTTCGGTGAAGGCAGCCAATTCAACTACGTG-3'
VpPR10.6R25'-GTTGAATTGGCTGCCTTCACCGAAAGTAATCTTCTTG-3'
VpPR10.7F15'-ATGGGTGTTGTCACTTACACTG-3'
VpPR10.7R15'-TCAGGCATCAGGATTAGCTAAGAG-3'
VpPR10.7F25'-GAACTTTGCTGAAGGCTACCAATTCAAATATGTGAAGC-3'
VpPR10.7R25'-GCTTCACATATTTGAATTGGTAGCCTTCAGCAAAGTTCA-3'
VpPR10.9F15'-ATGGGTGTCACAAGACTCAGT-3'
VpPR10.9R15'-TCAAGTATAGGCGCGAGGGTGT-3'
VpPR10.9F25'-CAGATCAACTTCACTGAAGCTAGTCCTTTAACATACATG-3'
VpPR10.9R25'-GTATGTTAAAGGACTAGCTTCAGTGAAGTTGATCTGTTTG-3'

4.3. Sequence Alignment of VpPR10s

Splicing sequences were used for homology analysis with the online BLAST program (http://www.ncbi.nlm.nih.gov/BLAST) [60]. Sequence alignments of nucleotides and amino acids were analysed using DNAMAN software and the evolutionary tree of amino acid sequence was designed using MEGA4.0.

4.4. Prokaryotic Expression of VpPR10s and Purification of Recombinant Proteins

Based on the VpPR10s sequences, two primers were designed with the flanking restriction sites of EcoR1 in the forward primer and Sal1 in the reverse primer (VpPR10.4, VpPR10.6, VpPR10.7), while the EcoR1 was replaced by BamH1 in VpPR10.9. The complete coding sequences of VpPR10s were amplified using PCR carried out at an annealing temperature of 58 °C for 35 cycles. The amplified products were ligated into the cloning vector pMD19-T and transformed into E. coli Top 10. The selected recombinant cloning vectors pMD19-T/VpPR10s were digested with EcoR1 (BamH1) and Sal1, and the VpPR10s gene segments were sub-cloned into the expression vector of pGEX-4T-1. The recombinant plasmid was transformed in E. coli (BL21) strains and grown in LB medium at 37 °C to OD600 0.8. The VpPR10s proteins were induced with 0.1 mM IPTG and bacterial cells were harvested after induction at 30 °C for 4 h. The expression and purification of recombinant proteins were carried out using the methods described by Xu et al. [61]. Fusion proteins were purified with GST resin by affinity chromatography. A 1 mL volume of GST resin was centrifuged at 4 °C for 5 min at 7000 rpm, then 8 mL precooling PBS was added and mixed well with the resin. The treated GST resin was kept on ice pending use. The induced bacterial cells were lysed for 10 min at room temperature and then centrifuged for 5 min at 7000 rpm. The supernatant was transferred to cool GST resin and incubated at 4 °C for 30 min at 50 rpm to ensure GST tag proteins were fully bound to the GST resin. Next, 8 mL cool PBS was added and gently inverted to elute the free proteins. GST resin was then added with 800 μL reduced glutathione buffer and incubated at 4 °C for 30 min at 50 rpm to elute the bound proteins. The recombinant proteins were then collected by centrifuging at 4 °C for 5 min at 7000 rpm. The pGEX-4T-1 empty vector in BL21 was used as control.

4.5. DNase and RNase Activities Assays of Recombinant Proteins

Two gradient experiments were performed to investigate the effect of protein concentration on nuclease activity of VpPR10.7 recombinant protein. The influence of protein concentration on RNase activity was determined using the reaction systems included 100 ng·μL−1 “Baihe-35-1” leaf total RNA mixed with 0, 2, 4, 6, 8 or 10 μg VpPR10.7 recombinant protein. The total volume of the system was 20 μL. The mixture was thoroughly incorporated and held at 37 °C in a water bath for 30 min. Thereafter, 20 μL chloroform was added to these systems to terminate the responses. The mixture systems were held on ice for 10 min and 1% agarose gel electrophoresis was used to detect RNase activity. To determine the effect of protein concentration on DNase activity, 100 ng·μL−1 “Baihe-35-1” genomic DNA and 2.5 mM MgCl2 were incubated with 0, 2, 4, 6, 8 or 10 μg recombinant protein in reduced glutathione buffer for 30 min at 37 °C. The subsequent processes were identical. The effect of Mg2+ on DNase activity was also determined using two reaction systems with or without 2.5 mM MgCl2. All of the reaction temperatures and times were identical.
To determine the RNase activities of the purified recombinant proteins, Leaf total RNA was mixed with reduced glutathione buffer (negative control), boiled VpPR10s proteins (negative control) and the VpPR10s proteins (VpPR10.4, VpPR10.6, VpPR10.7, VpPR10.9). The total volume of the system was 20 μL. Each treatment contained 8 μg recombinant protein and the final concentration of RNA was 100 ng·μL−1. The mixture was thoroughly incorporated and held at 37 °C in a water bath for 30 min. Thereafter, 20 μL chloroform was added to these systems to terminate the responses. The mixture systems were held on ice for 10 min and 1% agarose gel electrophoresis was used to detect RNase activity.
To determine the DNase activities of the purified recombinant proteins VpPR10.4, VpPR10.6, VpPR10.7 and VpPR10.9, “Baihe-35-1” genomic DNA and MgCl2 were mixed with reduced glutathione buffer (negative control), boiled VpPR10s proteins (negative control) and the VpPR10s proteins (VpPR10.4, VpPR10.6, VpPR10.7, VpPR10.9). Each reaction included 8 μg of recombinant protein. Final concentrations of gDNA and MgCl2 were 100 ng·μL−1 and 2.5 mM, respectively. The subsequent processes were identical.

4.6. In Vitro Anti-Fungal Activity Assay

In vitro anti-fungal activity assays were conducted using the purified recombinant VpPR10s proteins. The fungus Botrytis cinerea was activated by incubating on potato dextrose agar (PDA) plates at 28 °C for four days and one colony (diameter 1 cm) was separated and suspended in sterile water. The sporangial suspensions contained the same amounts of sporangia (1.2 × 106 sporangia·mL−1). A volume of 30 μL of sporangial suspension was mixed with 100 μL of each recombinant VpPR10s protein. The mixtures were added to the surface of solid PDA media and then dried and cultured at 28 °C for 5 days. Volumes of 30 μL of B. cinerea sporangial suspension and 100 μL of glutathione buffer were used as negative controls. When the five day culture period was complete, the B. cinerea on the surface of the solid PDA medium was removed and suspended in sterile water. The average number of sporangia (SN) per treatment was assayed using a haemocytometer and bright-field microscopy.

4.7. Functional Analysis of VpPR10s Proteins under Different Abiotic Stresses

Spot assays were carried out to investigate the abiotic stress responses of E. coli BL21 cells, transformed with VpPR10s recombinant plasmids and vector alone. E. coli cells were grown in liquid LB medium to OD600 0.6. Next, 1 mM IPTG was added and cells were grown at 37 °C for 12 h. The induced E. coli cells were diluted to OD600 0.6, and then diluted to 10−3 and 10−4. A volume 10 μL of each dilution was then spotted onto LB basal plates as controls and LB plates supplemented with 200 mM sorbitol, 400 mM sorbitol, 1.5 mM SA and 2.5 mM SA. The experiment was repeated three times.

5. Conclusions

In conclusion, our analysis of protein structure indicated that VpPR10.4 and VpPR10.7 had the P-loop domain and the Bet v 1 motif, which were consistent features of plant PR10. However, there was no P-loop domain or Bet v 1 motif in VpPR10.9 and we could not find the Bet v 1 motif in VpPR10.6. The results also demonstrated that VpPR10.4 and VpPR10.7 proteins had obvious RNase, DNase and anti-fungal activities in response to abiotic stress, while VpPR10.6 and VpPR10.9 proteins did not exhibit these behaviours.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (Grant No. 31272125) and was also supported by the Program for Young Talents in Northwest A&F University (NCET-10-0692, QN2011052) and the Program for Innovative Research Team of Grape Germplasm Resource and Breeding (2013KCT-25) to Yan Xu.

Author Contributions

Conceived and designed the experiments: Yuejin Wang, Yan Xu; Performed the experiments: Ying Zou, Lan Wang, Jinyu Wei, Keyao Xu; Analyzed the data: Ying Zou, Lan Wang; Contributed reagents/materials/analysis tools: Lu Cui, Yan Xu; and Wrote the paper: Lan Wang, Yan Xu.

Abbreviations

ABA
abscisic acid
CTAB
cetyltrimethyl ammonium bromide
IPTG
isopropyl-β-d-thiogalactoside
JA
jasmonic acid
PDA
potato dextrose agar
PR
pathogenesis-related
SA
salicylic acid
SDS-PAGE
Tsodium dodecyl sulfate polyacrylamide gel electrophoresis
Vp
Vitis pseudoreticulata

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brewer, M.T.; Milgroom, M.G. Phylogeography and population structure of the grape powdery mildew fungus, Erysiphe necator, from diverse Vitis species. BMC Evolut. Biol. 2010, 10, 268. [Google Scholar]
  2. Cadle-Davidson, L.; Chicoine, D.R.; Consolie, N.H. Variation within and among Vitis spp for foliar resistance to the powdery mildew pathogen Erysiphe necator. Plant Dis. 2011, 95, 202–211. [Google Scholar]
  3. Caffi, T.; Rossi, V.; Legler, S.E.; Bugiani, R. A mechanistic model simulating ascosporic infections by Erysiphe necator, the powdery mildew fungus of grapevine. Plant Pathol. 2011, 60, 522–531. [Google Scholar]
  4. Donald, T.M.; Pellerone, F.; Adam Blondon, A.-F.; Bouquet, A.; Thomas, M.R.; Dry, I.B. Identification of resistance gene analogs linked to a powdery mildew resistance locus in grapevine. Theor. Appl. Genet. 2002, 104, 610–618. [Google Scholar]
  5. Bisson, L.F.; Waterhouse, A.L.; Ebeler, S.E.; Andrew Walker, M.; Lapsley, J.T. The present and future of the international wine industry. Nature 2002, 418, 696–699. [Google Scholar]
  6. Wang, Y.; Liu, Y.; He, P.; Chen, J.; Lamikanra, O.; Lu, J. Evaluation of foliar resistance to Uncinula necator in Chinese wild Vitis species. Vitis 1995, 34, 159–164. [Google Scholar]
  7. Xu, W.; Yu, Y.; Zhou, Q.; Ding, J.H.; Dai, L.M.; Xie, X.Q.; Xu, Y.; Zhang, C.H.; Wang, Y.J. Expression pattern, genomic structure, and promoter analysis of the gene encoding stilbene synthase from Chinese wild Vitis pseudoreticulata. J. Exp. Bot. 2011, 62, 2745–2761. [Google Scholar]
  8. Van Loon, L.C.; Pierpoint, W.S.; Boller, T.; Conejero, V. Recommendations for naming plant pathogenesis-related proteins. Plant Mol. Biol. Rep. 1994, 12, 245–264. [Google Scholar]
  9. Van Loon, L.C.; van Strien, E.A. The families of pathogenesis-related proteins, their activities, and comparative analysis of PR-1 type proteins. Physiol. Mol. Plant Pathol. 1999, 55, 85–97. [Google Scholar]
  10. Christensen, A.B.; Cho, B.H.; Næsby, M.; Gregersen, P.L.; Brandt, J.; Madriz-Ordeñana, K.; Collinge, D.B.; Thordal-Christensen, H. The molecular characterization of two barley proteins establishes the novel PR-17 family of pathogenesis-related proteins. Mol. Plant Pathol. 2002, 3, 135–144. [Google Scholar]
  11. Somssich, I.E.; Schmelzer, E.; Kawalleck, P.; Hahlbrock, K. Gene structure and in situ transcript localization of pathogenesis-related protein 1 in parsley. Mol. Gen. Genet. MGG 1988, 213, 93–98. [Google Scholar]
  12. Walter, M.H.; Liu, J.W.; Grand, C.; Lamb, C.J.; Hess, D. Bean pathogenesis-related (PR) proteins deduced from elicitor-induced transcripts are members of a ubiquitous new class of conserved PR proteins including pollen allergens. Mol. Gen. Genet. MGG 1990, 222, 353–360. [Google Scholar]
  13. Warner, S.A.; Scott, R.; Draper, J. Characterisation of a wound induced transcript from the monocot asparagus that shares similarity with a class of intracellular pathogenesis-related (PR) proteins. Plant Mol. Biol. 1992, 19, 555–561. [Google Scholar]
  14. Huang, J.C.; Chang, F.C.; Wang, C.S. Characterization of a lily tapetal transcript that shares sequence similarity with a class of intracellular pathogenesis-related (IPR) proteins. Plant Mol. Biol. 1997, 34, 681–686. [Google Scholar]
  15. Breiteneder, H.; Pettenburger, K.; Bito, A.; Valenta, R.; Kraft, D.; Rumpold, H.; Scheiner, O.; Breitenbach, M. The gene coding for the major birch pollen allergen Bet v 1, is highly homologous to a pea disease resistance response gene. EMBO J. 1989, 8, 1935–1938. [Google Scholar]
  16. Swoboda, I.; Jilek, A.; Ferreira, F.; Engel, E.; Hoffmann-Sommergruber, K.; Scheiner, O.; Kraft, D.; Breiteneder, H.; Pittenauer, E.; Schmid, E.; et al. Isoforms of Bet v 1, the major birch pollen allergen, analyzed by liquid chromatography, mass spectrometry, and cDNA cloning. J. Biol. Chem. 1995, 270, 2607–2613. [Google Scholar]
  17. Breda, C.; Sallaud, C.; EL Turk, J.; Buffard, D.; de Kozak, I.; Esnault, R.; Kondorosi, A. Defense reaction in Medicago sativa: A gene encoding a class 10 PR protein is expressed in vascular bundles. Mol. Plant-Microbe Interact. 1996, 9, 713–719. [Google Scholar]
  18. Esnault, R.; Buffard, D.; Breda, C.; Sallaud, C.; el Turk, J.; Kondorosi, A. Pathological and molecular characterizations of alfalfa interactions with compatible and incompatible bacteria, Xanthomonas campestris pv. alfalfae and Pseudomonas syringae pv. pisi. Mol. Plant-Microbe Interact. 1993, 6, 655–664. [Google Scholar]
  19. Liu, J.J.; Ekramoddoullah, A.K. Root-specific expression of a western white pine PR10 gene is mediated by different promoter regions in transgenic tobacco. Plant Mol. Biol. 2003, 52, 103–120. [Google Scholar]
  20. Ukaji, N.; Kuwabara, C.; Takezawa, D.; Arakawa, K.; Fujikawa, S. Accumulation of pathogenesis-related (PR) 10/Bet v 1 protein homologues in mulberry (Morus bombycis Koidz.) tree during winter. Plant Cell Environ. 2004, 27, 1112–1121. [Google Scholar]
  21. Apold, J.; Florvaag, E.; Elsayed, S. Comparative studies on tree-pollen allergens. Int. Arch. Allergy Immunol. 1981, 64, 439–447. [Google Scholar]
  22. Constabel, C.P.; Brisson, N. Stigma- and vascular-specific expression of the PR-10a gene of potato: A novel pattern of expression of a pathogenesis-related gene. Mol. Plant-Microbe Interact. 1995, 8, 104–113. [Google Scholar]
  23. Swoboda, I.; Hoffmann Sommergruber, K.; O’Ríordáin, G.; Scheiner, O.; Heberle-Bors, E.; Vicente, O. Bet v 1 proteins, the major birch pollen allergens and members of a family of conserved pathogenesis-related proteins, show ribonuclease activity in vitro. Physiol. Plant 1996, 96, 433–438. [Google Scholar]
  24. Warner, S.A.; Scott, R.; Draper, J. Isolation of an asparagus intracellular PR gene (AoPR1) wound-responsive promoter by the inverse polymerase chain reaction and its characterization in transgenic tobacco. Plant J. 1993, 3, 191–201. [Google Scholar]
  25. Warner, S.A.; Gill, A.; Draper, J. The developmental expression of the asparagus intracellular PR protein (AoPR1) gene correlates with sites of phenylpropanoid biosynthesis. Plant J. 1994, 6, 31–43. [Google Scholar]
  26. Atkinson, R.G.; Perry, J.; Matsui, T.; Ross, G.S.; MacRae, E.A. A stress-, pathogenesis-, and allergen-related cDNA in apple fruit is also ripening-related. NZ J. Crop Hort. Sci. 1996, 24, 103–107. [Google Scholar]
  27. Pühringer, H.; Moll, D.; Hoffmann Sommergruber, K.; Watillon, B.; Katinger, H.; da Câmara Machado, M.L. The promoter of an apple Ypr10 gene, encoding the major allergen Mal d 1, is stress-and pathogen-inducible. Plant Sci. 2000, 152, 35–50. [Google Scholar]
  28. Wu, F.; Yan, M.; Li, Y.; Chang, S.; Song, X.; Zhou, Z.; Gong, W. cDNA cloning, expression, and mutagenesis of a PR-10 protein SPE-16 from the seeds of Pachyrrhizus erosus. Biochem. Biophys. Res. Commun. 2003, 312, 761–766. [Google Scholar]
  29. Mylona, P.; Moerman, M.; Yang, W.C.; Gloudemans, T.; van de Kerckhove, J.; van Kamme, A.; Bisseling, T.; Franssen, H.J. The root epidermis-specific pea gene RH2 is homologous to a pathogenesis-related gene. Plant Mol. Biol. 1994, 26, 39–50. [Google Scholar]
  30. Sikorski, M.M.; Biesiadka, J.; Kasperska, A.E.; Kopcińska, J.; Łotocka, B.; Golinowski, W.; Legocki, A.B. Expression of genes encoding PR10 class pathogenesis-related proteins is inhibited in yellow lupine root nodules. Plant Sci. 1999, 149, 125–137. [Google Scholar]
  31. Walter, M.H.; Liu, J.W.; Wünn, J.; Hess, D. Bean ribonuclease-like pathogenesis-related protein genes (Ypr10) display complex patterns of developmental, dark-induced and exogenous-stimulus-dependent expression. Eur. J. Biochem. 1996, 239, 281–293. [Google Scholar]
  32. Yamamoto, M.; Torikai, S.; Oeda, K. A major root protein of carrots with high homology to intracellular pathogenesis-related (PR) proteins and pollen allergens. Plant Cell Physiol. 1997, 38, 1080–1086. [Google Scholar]
  33. Liu, J.J.; Ekramoddoullah, A.K.; Piggott, N.; Zamani, A. Molecular cloning of a pathogen/wound-inducible PR10 promoter from Pinus monticola and characterization in transgenic Arabidopsis plants. Planta 2005, 221, 159–169. [Google Scholar]
  34. Liu, J.J.; Ekramoddoullah, A.K. Characterization, expression and evolution of two novel subfamilies of Pinus monticola cDNAs encoding pathogenesis-related (PR)-10 proteins. Tree Physiol. 2004, 24, 1377–1385. [Google Scholar]
  35. Hoffmann Sommergruber, K.; Vanek Krebitz, M.; Radauer, C.; Wen, J.; Ferreira, F.; Scheiner, O.; Breiteneder, H. Genomic characterization of members of the Bet v 1 family: Genes coding for allergens and pathogenesis-related proteins share intron positions. Gene 1997, 197, 91–100. [Google Scholar]
  36. Zhou, X.J.; Lu, S.; Xu, Y.H.; Wang, J.W.; Chen, X.Y. A cotton cDNA (GaPR-10) encoding a pathogenesis-related 10 protein with in vitro ribonuclease activity. Plant Sci. 2002, 162, 629–636. [Google Scholar]
  37. Chadha, P.; Das, R.H. A pathogenesis related protein, AhPR10 from peanut: An insight of its mode of antifungal activity. Planta 2006, 225, 213–222. [Google Scholar]
  38. Lebel, S.; Schellenbaum, P.; Walter, B.; Maillot, P. Characterisation of the Vitis vinifera PR10 multigene family. BMC Plant Biol. 2010, 10, 184. [Google Scholar]
  39. Bufe, A.; Spangfort, M.D.; Kahlert, H.; Schlaak, M.; Becker, W.-M. The major birch pollen allergen, Bet v 1, shows ribonuclease activity. Planta 1996, 199, 413–415. [Google Scholar]
  40. Bantignies, B.; Séguin, J.; Muzac, I.; Dédaldéchamp, F.; Gulick, P.; Ibrahim, R. Direct evidence for ribonucleolytic activity of a PR-10-like protein from white lupin roots. Plant Mol. Biol. 2000, 42, 871–881. [Google Scholar]
  41. Park, C.J.; Kim, K.J.; Shin, R.; Park, J.M.; Shin, Y.C.; Paek, K.H. Pathogenesis-prelated protein 10 isolated from hot pepper functions as a ribonuclease in an antiviral pathway. Plant J. 2004, 37, 186–198. [Google Scholar]
  42. Soh, H.C.; Park, A.R.; Park, S.; Back, K.; Yoon, J.B.; Park, H.G.; Kim, Y.S. Comparative analysis of pathogenesis-related protein 10 (PR10) genes between fungal resistant and susceptible peppers. Eur. J. Plant Pathol. 2012, 132, 37–48. [Google Scholar]
  43. Kim, S.G.; Kim, S.T.; Wang, Y.M.; Yu, S.; Choi, I.S.; Kim, Y.C.; Kim, W.T.; Agrawal, G.K.; Rakwal, R.; Kang, K.Y. The RNase activity of rice probenazole-induced protein 1 (PBZ1) plays a key role in cell death in plants. Mol. Cells 2011, 31, 25–31. [Google Scholar]
  44. Srivastava, S.; Emery, R.N.; Kurepin, L.V.; Reid, D.M.; Fristensky, B.; Kav, N.N.V. Pea PR 10.1 is a ribonuclease and its transgenic expression elevates cytokinin levels. Plant Growth Regul. 2006, 49, 17–25. [Google Scholar]
  45. He, M.Y.; Xu, Y.; Cao, J.J.; Zhu, Z.G.; Jiao, Y.T.; Wang, Y.J.; Guan, X.; Yang, Y.Z.; Xu, W.R.; Fu, Z.F. Subcellular localization and functional analyses of a PR10 protein gene from Vitis pseudoreticulata in response to Plasmopara viticola infection. Protoplasma 2013, 250, 129–140. [Google Scholar]
  46. Kim, S.T.; Yu, S.; Kang, Y.H.; Kim, S.G.; Kim, J.Y.; Kim, S.H.; Kang, K.Y. The rice pathogen-related protein 10 (JIOsPR10) is induced by abiotic and biotic stresses and exhibits ribonuclease activity. Plant Cell Rep. 2008, 27, 593–603. [Google Scholar]
  47. Jwa, N.S.; Kumar Agrawal, G.; Rakwal, R.; Park, C.H.; Prasad Agrawal, V. Molecular cloning and characterization of a novel jasmonate inducible pathogenesis-related class 10 protein gene, JIOsPR10, from rice (Oryza sativa L.) seedling leaves. Biochem. Biophys. Res. Commun. 2001, 286, 973–983. [Google Scholar]
  48. Hashimoto, M.; Kisseleva, L.; Sawa, S.; Furukawa, T.; Komatsu, S.; Koshiba, T. A novel rice PR10 protein, RSOsPR10, specifically induced in roots by biotic and abiotic stresses, possibly via the jasmonic acid signaling pathway. Plant Cell Physiol. 2004, 45, 550–559. [Google Scholar]
  49. Xie, Y.R.; Chen, Z.Y.; Brown, R.L.; Bhatnagar, D. Expression and functional characterization of two pathogenesis-related protein 10 genes from Zea mays. J. Plant Physiol. 2010, 167, 121–130. [Google Scholar]
  50. Jellouli, N.; Ben Jouira, H.; Skouri, H.; Ghorbel, A.; Gourgouri, A.; Mliki, A. Proteomic analysis of Tunisian grapevine cultivar Razegui under salt stress. J. Physiol. 2008, 165, 471–481. [Google Scholar]
  51. Krishnaswamy, S.; Baral, P.K.; James, M.N.; Kav, N.N.V. Site-directed mutagenesis of histidine 69 and glutamic acid 148 alters the ribonuclease activity of pea ABR17 (PR10.4). Plant Physiol. Biochem. 2011, 49, 958–962. [Google Scholar]
  52. Yan, Q.J.; Qi, X.W.; Jiang, Z.Q.; Yang, S.Q.; Han, L.J. Characterization of a pathogenesis-related class 10 protein (PR-10) from Astragalus mongholicus with ribonuclease activity. Plant Physiol. Biochem. 2008, 46, 93–99. [Google Scholar]
  53. Guevara Morato, M.Á.; de Lacoba, M.G.; García Luque, I.; Serra, M.T. Characterization of a pathogenesis-related protein 4 (PR-4) induced in Capsicum chinense L3 plants with dual RNase and DNase activities. J. Exp. Bot. 2010, 61, 3259–3271. [Google Scholar]
  54. Liu, J.J.; Ekramoddoullah, A.K. The family 10 of plant pathogenesis-related proteins: Their structure, regulation, and function in response to biotic and abiotic stresses. Physiol. Mol. Plant Pathol. 2006, 68, 3–13. [Google Scholar]
  55. Gao, Z.S.; van de Weg, W.E.; Schaart, J.G.; Schouten, H.J.; Tran, D.H.; Kodde, L.P.; van der Meer, I.M.; van der Geest, A.H.M.; Kodde, J.; Breiteneder, H.; et al. Genomic cloning and linkage mapping of the Mal d 1 (PR-10) gene family in apple (Malus domestica). Theor. Appl. Genet. 2005, 111, 171–183. [Google Scholar]
  56. Agarwal, P.; Bhatt, V.; Singh, R.; Das, M.; Sopory, S.K.; Chikara, J. Pathogenesis-related gene, JcPR-10a from Jatropha curcas exhibit RNase and antifungal activity. Mol. Biotechnol. 2013, 54, 1–14. [Google Scholar]
  57. A pathogenesis related protein, VpPR-10.1, from Vitis pseudoreticulata: An insight of its mode of antifungal activity. PLoS One 2014, 9, e95102.
  58. Constabel, C.P.; Bertrand, C.; Brisson, N. Transgenic potato plants overexpressing the pathogenesis-related STH-2 gene show unaltered susceptibility to Phytophthora infestans and potato virus X. Plant Mol. Biol. 1993, 22, 775–782. [Google Scholar]
  59. Lodhi, M.A.; Ye, G.N.; Weeden, N.F.; Reisch, B.I. A simple and efficient method for DNA extraction from grapevine cultivars and Vitis species. Plant Mol. Biol. Rep. 1994, 12, 6–13. [Google Scholar]
  60. Basic Local Alignment Search Tool. Available online: http://www.ncbi.nlm.nih.gov/BLAST (accessed on 30 September 2013).
  61. Xu, Y.; Yu, H.; He, M.Y.; Yang, Y.Z.; Wang, Y.J. Isolation and expression analysis of a novel pathogenesis-related protein 10 gene from Chinese wild Vitis pseudoreticulata induced by Uncinula necator. Biologia 2010, 65, 653–659. [Google Scholar]

Share and Cite

MDPI and ACS Style

Wang, L.; Wei, J.; Zou, Y.; Xu, K.; Wang, Y.; Cui, L.; Xu, Y. Molecular Characteristics and Biochemical Functions of VpPR10s from Vitis pseudoreticulata Associated with Biotic and Abiotic Stresses. Int. J. Mol. Sci. 2014, 15, 19162-19182. https://doi.org/10.3390/ijms151019162

AMA Style

Wang L, Wei J, Zou Y, Xu K, Wang Y, Cui L, Xu Y. Molecular Characteristics and Biochemical Functions of VpPR10s from Vitis pseudoreticulata Associated with Biotic and Abiotic Stresses. International Journal of Molecular Sciences. 2014; 15(10):19162-19182. https://doi.org/10.3390/ijms151019162

Chicago/Turabian Style

Wang, Lan, Jinyu Wei, Ying Zou, Keyao Xu, Yuejin Wang, Lu Cui, and Yan Xu. 2014. "Molecular Characteristics and Biochemical Functions of VpPR10s from Vitis pseudoreticulata Associated with Biotic and Abiotic Stresses" International Journal of Molecular Sciences 15, no. 10: 19162-19182. https://doi.org/10.3390/ijms151019162

APA Style

Wang, L., Wei, J., Zou, Y., Xu, K., Wang, Y., Cui, L., & Xu, Y. (2014). Molecular Characteristics and Biochemical Functions of VpPR10s from Vitis pseudoreticulata Associated with Biotic and Abiotic Stresses. International Journal of Molecular Sciences, 15(10), 19162-19182. https://doi.org/10.3390/ijms151019162

Article Metrics

Back to TopTop
