Article

In Silico Identification and Characterization of N-Terminal Acetyltransferase Genes of Poplar (Populus trichocarpa)

by
Hang-Yong Zhu
1,†,
Chun-Ming Li
2,†,
Li-Feng Wang
3,
Hui Bai
2,
Yan-Ping Li
3,
Wen-Xi Yu
2,
De-An Xia
1,* and
Chang-Cai Liu
1,4,*
1
State Key Laboratory of Tree Genetics and Breeding, Northeast Forestry University, 26 Hexing Road, Harbin 150040, China
2
Forestry Research Institution of Heilongjiang Province, Harbin 150081, China
3
Faculty of life Science and Technology, Mudanjiang Normal University, 191 Wenhua Street, Mudanjiang 157012, China
4
Laboratory for Chemical Defense and Microscale Analysis, Hubei Nanxing General Chemical Factory, Zhijiang 443200, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2014, 15(2), 1852-1864; https://doi.org/10.3390/ijms15021852
Submission received: 18 December 2013 / Revised: 17 January 2014 / Accepted: 18 January 2014 / Published: 27 January 2014
(This article belongs to the Section Biochemistry)
Browse Figures
Versions Notes

Abstract

:
N-terminal acetyltransferase (Nats) complex is responsible for protein N-terminal acetylation (Nα-acetylation), which is one of the most common covalent modifications of eukaryotic proteins. Although genome-wide investigation and characterization of Nat catalytic subunits (CS) and auxiliary subunits (AS) have been conducted in yeast and humans they remain unexplored in plants. Here we report on the identification of eleven genes encoding eleven putative Nat CS polypeptides, and five genes encoding five putative Nat AS polypeptides in Populus. We document that the expansion of Nat CS genes occurs as duplicated blocks distributed across 10 of the 19 poplar chromosomes, likely only as a result of segmental duplication events. Based on phylogenetic analysis, poplar Nat CS were assigned to six subgroups, which corresponded well to the Nat CS types (CS of Nat A–F), being consistent with previous reports in humans and yeast. In silico analysis of microarray data showed that in the process of normal development of the poplar, their Nat CS and AS genes are commonly expressed at one relatively low level but share distinct tissue-specific expression patterns. This exhaustive survey of Nat genes in poplar provides important information to assist future studies on their functional role in poplar.

1. Introduction

Protein N-terminal acetylation (Nα-acetylation) is one of the most common covalent modifications of eukaryotic proteins, in which an acetyl group is transferred from acetyl-CoA to the α-amino group of protein N-terminal residues [1–4]. Nα-acetylation of proteins might act as a destabilization signal for some yeast proteins or stabilizer mediated degradation by blocking N-terminal ubiquitination [5,6]. Unlike most other protein modifications, Nα-acetylation is irreversible [7,8]; it mainly occurs cotranslationally on nascent polypeptide chains and almost all Nα-acetylation is catalyzed by the action of ribosome associated N-terminal acetyltransferase (Nats) complex in eukaryotes [8].
Currently, six types of Nats (NatA–F) complexes conserved from yeast to humans are responsible for these Nα-acetylation events: each of the three major Nats, NatA, NatB and NatC contain a catalytic subunit, and one or two auxiliary subunits, whereas NatD, NatE and NatF are composed of only one catalytic subunit [8,9]. Each type of Nats appears to acetylate a distinct subset of substrates [8,10], and there are also crossing subsets of substrates between particular Nats [9]. Evidence has indicated that Nats are involved in a number of cellular processes in the lower eukaryotes, while NatA, NatB and NatC are associated with cell cycle arrest or apoptosis, NatE with sister chromatid cohesion, and NatF with normal chromosome segregation in higher eukaryotes [9]. Although these considerable advances have been made in exploring components and in the function of Nats in yeast and humans, such in-depth study has not been directed towards plants, especially for woody plants.
The entire gene encoding catalytic or auxiliary subunits of NatA–NatF have been identified and described in yeast and humans (Table 1) [9,10]. However, there is still no systematic and comprehensive characterization of Nats in poplar. In order to explore all genes encoding Nat catalytic subunits (CS) and auxiliary subunits (AS) in poplar, the complete Populus trichocarpa genome was investigated using the method of domain search. Here, we exhibit the identification and analysis of Nats and their respective genes in Populus trichocarpa. As we know, this is the first systematic characterization of all genes encoding CS and AS of Nat in a single woody plant genome, and represents the basis for future studies on the composition and function in vivo of each poplar Nat.

2. Results and Discussion

2.1. Identification and Characterization of Genes Encoding Nat Subunits in Populus

Before this work six types of Nats (NatA–F) had been found and identified in a few eukaryotes, amongst which NatA, NatB and NatC complex were composed of AS and CS, whereas NatD, NatE and NatF complex were only composed of CS [9]. However, it still remained unexplored whether there were corresponding genes encoding similar AS and CS orthologs of Nats in the genome of the single woody plants. In order to precisely obtain all members of each type of Nat complex orthologs in Populus, domain files representing subunits of individual types [11] were exploited as queries to identify the AS and CS orthologs of Nat complex in the P. trichocarpa genome [12]. As a result, a total of 11 non-redundant putative Nat CS genes were identified as significantly encoding the CS domain of individual Nats, amongst which except for the CS of NatD encoded by one gene, the CS of the remaining Nats (NatA, B, C, E and F) were respectively encoded by two paralogous genes (Table 1). There are five non-redundant putative AS genes identified as significantly encoding the AS domain of individual Nats, with one encoding the AS of NatB, one encoding the AS I of NatC, one encoding the AS II of NatC, and two encoding the AS of NatA (Table 1). They were designated as novel simplified nomenclature according to a previous study [13], for example, the two Nat CS of P. trichocarpa were respectively named as Ptr Naa10p and Ptr Naa11p (Table 1). Since such information had not been characterized in other model plants, an extended domain search across the Arabidopsis protein sequence database ( http://www.arabidopsis.org/), was performed to identify the AS and CS of Arabidopsis Nats. It was found that, although the Arabidopsis genome also contains the entire genes encoding CS or AS of Nat complex (NatA–F), few paralogous genes were found to encode the same one CS of Nats, which is consistent with the occurrence in yeast and humans [14,15].
In other words, we found that both Arabidopsis and poplar genomes contain the full Nat system composed of NatA–F. Most of the Nat catalytic subunits in poplar exist as two paralogous isoforms: Ptr Naa10p and Ptr Naa11p for the poplar NatA CS, Ptr Naa20p and Ptr Naa21p for NatB CS, Ptr Naa30p and Ptr Naa31p for NatC CS, Ptr Naa50p and Ptr Naa51p for NatE CS, as well as Ptr Naa60p and Ptr Naa61p for NatF CS (Table 1), while only NatD CS exists as a single protein, Ptr Naa40p (Table 1). In comparison with other eukaryotes, no Nat CS contains paralogous isoforms in yeast, only one NatA CS contains paralogous isoforms (i.e., Naa10p and Naa11p) in humans and one NatF CS contains paralogous isoforms (Ath Naa60p and Ath Naa61p) in Arabidopsis [14]. These results above implied that the genes encoding Nat CS in poplar have expanded. This expansion, often present in a large number of Populus multi-gene families, could have occurred from multiple gene duplication events, involving in segmental duplication and tandem duplication events [12]. However, it was very necessary for our further understanding of their function to identify in the expansion which events play a critical role. It has been suggested that the presence of more Nat CS genes in the Populus genome might reflect a greater requirement for acetylation of proteins. In summary, our in silico identification showed that the P. trichocarpa genome not only contains the entire genes encoding CS or AS of Nat complex (NatA–F), but also the expansion of the genes encoding Nat CS is different from those of other known eukaryotes.

2.2. Chromosomal Location and Duplication of Nat CS Gene in Populus

To explore the reasons for the expansion of Nat CS genes in the Populus genome, wide-genome chromosomal location was performed in this study. In silico mapping of the gene loci showed that, these genes encoding CS and AS of Nats in P. trichocarpa, were distributed across 11 of 19 Linkage Groups (LGs) (Table 1 and Figure 1). Eleven Nat CS genes were distributed across 10 of the 19 LGs, while five Nat AS genes across four of the 19 LGs. The distribution of the Nat CS genes among 10 LGs appears to be relatively even: LG II, V, VI, IX, XI, XII, XIII, XVIII and XIX individual have only one Nat CS gene, while LG I contains two Nat CS genes (Ptr Naa11p and Ptr Naa31p) in which high density cluster within a 20 kb fragment has not been formed. The distribution of Nat AS genes among four LGs also seems to be relatively even: LG III, VI, and XIII respectively have one AS gene, two genes (Ptr Naa15p and Ptr Naa38p) that are far apart were located in the same LG I (Figure 1). The results above showed the absence of tandem duplication events present in the process of expansion of poplar Nat CS genes.
Previous analysis of the Populus genome has identified the presence of paralogous segments caused by the whole-genome duplication event in the Salicaceae (salicoid duplication), which occurred 65 million years ago and significantly contributed to the amplification of many multi-gene families [12]. To determine the possible relationship between the Nat CS genes and their paralogous segments, the Populus Nat CS genes were mapped to the duplicated blocks of P. trichocarpa established in the studies of Tuskan and his coworkers [12]. The distribution of Nat CS genes relative to the duplicated blocks is illustrated as in Figure 1. It was found that nine of all the eleven mapped Nat CS genes (82%) are located in duplicated blocks. Four duplicated pairs (PtrNaa10/11p, PtrNaa20/21p, PtrNaa30/31p and PtrNaa50/51p) are each located in a pair of paralogous blocks created by the whole-genome duplication event, and can be considered as a direct result of the segmental duplication event (Figure 1). One duplicated pair (PtrNaa40) harbored Nat CS genes on only one of the blocks and lacks corresponding duplicates, suggesting that the loss event of its corresponding paralogous genes would have occurred after the segmental duplication events (Figure 1). The findings support the result that the most abundant gene losses in eukaryotes occur following the whole genome duplication [16]. In addition, one pair of PtrNaa60p and PtrNaa61p that are the NatF orthologs corresponding to new identified human Naa60p [9], are respectively located in non-duplicated blocks of LG XIII and XIX. However, between the two chromosomes, there are numerous homologous genome blocks, suggesting that the expansion of the poplar NatF CS gene could have resulted from other duplicated events.
The segmental duplication as well as the tandem duplication events were thought to be the main factors in contributing to the expansion of the gene family in Populus [12]. However, in our study no tandem duplication events were found, indicating that the presence of the segmental duplication events might be single events contributing to the expansion of the Populus Nat CS gene family. In a different way, the two events in Populus genome had also been shown to contribute to the expansion of NAC [17] and GLUC [12] etc. gene families. Here, the Populus Nat CS gene family has been preferentially retained at a rate of 82%, while in the Populus genome, only about one-third of putative genes are retained in duplicated blocks resulting from the whole genome duplication events [12]. The high retention rate of duplicated genes has also previously been documented in other Populus gene families [17–20].

2.3. Phylogenetic Analysis of Nat CS

To gain insight into the evolutionary relationship of the Nat CS genes family, an unrooted tree was respectively generated by both Minimum-Evolution methods using MEGA 5.0 [21] and Neighbor-Joining [22] based on complete protein sequences of all type of Nat CS genes in Populus, Arabidopsis, human and yeast. The tree topologies generated by the two methods were comparable without modifications at branches, and were supported by their high bootstrap values of >47, suggesting that we had constructed a reliable unrooted tree topology, in which the 30 Nat CS were grouped into six distinct clans including Type I, Type II, Type III, Type IV, Type V and Type VI (Figure 2). The six distinct types generated by their evolutional divergence corresponded well to the Nat CS subgroups (CS of Nat A–F) (Figure 2), which is consistent with previous reports in humans and yeast [9]. Both Minimum-Evolution and Neighbor-Joining analyses suggest an association of the Type I, II, III, V and VI Nat CS proteins to the exclusion of the Type IV Nat CS proteins (Figure 2). It could be explained well by previous evidence that the apparent amino acid sequence difference between NatD CS and other types of Nat CS from yeast and humans had occurred in the acetyl coenzyme A (AcCoA) binding motif “RxxGxG/A”, which is a sequence feature of the N-acyltransferase family [23]. To expand this evidence, amino acid sequence alignment among all types of poplar Nat CS (Figure 3a), as well as between poplar NatD CS with NatD counterparts from yeast, humans and Arabidopsis was performed (Figure 3b). It was found that the AcCoA binding motif RxxGxG/A is present in the CS of each poplar NatA, NatB, NatC, NatE and NatF except for poplar NatD CS (Naa40p) (Figure 3a), whereas the absence of this motif occurred in all CS of NatD (Naa40p) from Arabidopsis, poplar, yeast and humans (Figure 3b).
The analyses group Type I, III, V and VI isoforms of Populus (Ptr Naa10/11p, PtrNaa30/31p, PtrNaa50/51p and PtrNaa60/61p), Type I isoforms of human (Hsa Naa10/11p) and Type VI isoforms (Ath Naa60/61p) were assigned within their respective clades. In addition, the groupings of Type II isoforms of P. trichocarpa (PtrNaa20p and PtrNaa21p) suggest additional recent duplication events within these lineages. This evidence further supports the expansion of the Nat CS gene family in the Populus genome caused by segmental duplication events.

2.4. Tissue Location of Nat CS and AS Gene Expression in Populus

Although numerous studies prior to this work were mainly focused on the expression, composition and function of Nats from several eukaryotes, such as yeast, mouse and human [24], such a systematic investigation had not yet been conducted in plants, especially for woody plants. Publicly available microarray data has often been considered as a reliable means of studying gene expression profiles [25]. To investigate the expression pattern of all poplar Nat CS and AS genes, the poplar Affymetrix microarray data [26] were reorganized in the Populus Genome Integrative Explorer (PopGenIE) [27]. All 16 poplar Nat genes including 11 CS and five AS genes have their corresponding transcript ID in the dataset and their expression profiles are displayed as shown Figure 4. It was found that expression of poplar Nat AS and CS genes in all five tissues were commonly low level in the process of normal development, but they also showed distinct tissue-specific expression patterns that were preferentially expressed in root (R), internode (IN), node (N) and young leaf (YL) while few in mature leaf (ML) (Figure 4). The highest expression level was found in the R, IN and YL, suggesting that in these tissues N-terminus of more proteins might be needed to undergo Nα-acetylation catalyzed by Nats for certain signal transmissions. The three genes encodingPtr Naa10p, Ptr Naa11p and Ptr Naa15p combined into Ptr NatA complex [28], have significantly similar expression patterns and high-level expression is mostly present in R and N (Figure 4). The expression profile of Ptr Naa20p, Ptr Naa21p and Ptr Naa25p genes encoding Ptr NatB complex showed also relatively consistently that transcript accumulation is focused on IN, few transcript expressions are focused on R, N, YL and ML. Furthermore, it was notable that consistent expression patterns were also found in the three genes encoding Ptr Naa30p, Ptr Naa31p and Ptr Naa35p combined into Ptr NatC complex, which have almost no expression in all five tissues. The evidence that poplar Nat CS and AS genes combined into the same Nat complex share similar expression patterns across tissues, seems likely to contribute to fast assembly from their individual subunit combination into active Nat complex.

3. Experimental Section

3.1. Acquisition or Establishment of Hidden Markov Model (HMM) Profile Files

Hidden Markov Model (HMM) profile files of Mdm20 (PF09797) and Mak10 (PF04112) subunits were known and loaded from the Pfam database ( http://pfam.sanger.ac.uk/). HMM profile files representing the other nine Nat subunits were unexplored and needed to be established. Firstly, these known protein sequences representing each subunit from various organisms were respectively extracted from the UniProt database ( http://www.uniprot.org), and then were aligned using the ClustalW program to produce Stockholm files [29]. Subsequently, their HMM profile files were respectively in-house established using the hmmbuild command of the HMMER (v 3.0) software [11].

3.2. Domain Profile Search

The genes encoding each Nat subunit of Populus and Arabidopsis were in silico identified by the method of Domain profile search. HMM profile files representing each Nat ortholog subunit were searched against the poplar protein database [12] using the hmmer search command of the HMMER (v 3.0) software with the sequence reporting threshold parameter (E-value ≤ 1000) [11]. In the same manner, these above HMM profile files were searched against the Arabidopsis protein database [14].

3.3. Chromosomal Location and Phylogenetic Analysis

The genes encoding Nat subunits (CS and AS) were located in the genome of Populus trichocarpa using NCBI map viewer ( http://www.ncbi.nlm.nih.gov/projects/mapview/). Identification of duplicated regions between chromosomes was completed as described in Tuskan et al. [12]. The tandem gene duplication in poplar was determined according to the criteria that five or fewer gene loci occurred within a range of 100 kb distance [17,18,30–32].
The total 30 Nat CS protein sequences of Populus, Arabidopsis, human and yeast were obtained from the Nr protein database of NCBI ( http://www.ncbi.nlm.nih.gov/) by batch extraction. Alignments of the full-length protein sequences were performed using the ClustalW program in BioEdit software with default parameters [33]. Based on these aligned sequences, the unrooted phylogenetic trees were constructed using MEGA 5.0 software [21,34], by both Neighbor-Joining method [22] and Minimum Evolution method with parameters (p-distance and partial deletion). The reliability of the phylogenetic tree was estimated using a bootstrap value with 1000 replicates.

3.4. In silico Microarray Analysis

Transcript IDs corresponding to the individual poplar Nat gene were retrieved from Popgenie 2.0 ( http://popgenie.org/), in which a set of integrated online tools could be applied to facilitate the exploration of genes and gene function in Populus. The transcript relative abundance values of all poplar Nat genes from various tissues were obtained from the poplar transcript abundances datasets [26], whose data originated from the NCBI Gene Expression Omnibus (accession number: GSE13990). A set of integrated online tools including gene search, experiment search and ePlant expression viewer were successively applied to extract Nat gene expression values in special tissues. Dendrogram and heat map for display expression pattern were obtained using Cluster 3.0 [35] for normalizing and hierarchical clustering with average linkage based on Pearson coefficients, followed by Java Tree-View 1.1 program [36] for visualizing the analyzing datasets.

4. Conclusions

Considerable research efforts have been conducted into the characterization of Nat complexes in yeast and humans, but such effort has not yet been directed towards plants, especially for woody trees. In this work, the above issues were addressed using the method of genome-wide identification and in silico analysis. Unlike most of eukaryotes, the expansion of encoding Nat CS genes was found in the poplar genome which could have resulted from segmental duplication events. Although the poplar has more Nats than yeast and humans do, it also contains the entire genes encoding CS or AS of Nat complex (NatA–F), suggesting that the Nα-acetylation patterns and the Nat machinery should be similar between the poplar and other higher eukaryotes. This comprehensive analysis is an important starting point for future efforts to elucidate the functional role of all Nat complex proteins in poplar.

Acknowledgments

We are grateful for the financial support from the Special Fund of Forestry Industrial Research for Public Welfare of China (Grant No. 201004060); and this work was also supported by the National 863 Program of China (No. 2013AA102704).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Giglione, C.; Boularot, A.; Meinnel, T. Protein N-terminal methionine excision. Cell Mol. Life Sci 2004, 61, 1455–1474. [Google Scholar]
  2. Polevoda, B.; Sherman, F. N-terminal acetyltransferases and sequence requirements for N-terminal acetylation of eukaryotic proteins. J. Mol. Biol 2003, 325, 595–622. [Google Scholar]
  3. Martinez, A.; Traverso, J.A.; Valot, B.; Ferro, M.; Espagne, C.; Ephritikhine, G.; Zivy, M.; Giglione, C.; Meinnel, T. Extent of N-terminal modifications in cytosolic proteins from eukaryotes. Proteomics 2008, 8, 2809–2831. [Google Scholar]
  4. Ross, S.; Giglione, C.; Pierre, M.; Espagne, C.; Meinnel, T. Functional and developmental impact of cytosolic protein N-terminal methionine excision in Arabidopsis. Plant Physiol 2005, 137, 623–637. [Google Scholar]
  5. Hwang, C.S.; Shemorry, A.; Varshavsky, A. N-Terminal acetylation of cellular proteins creates specific degradation signals. Science 2010, 327, 973–977. [Google Scholar]
  6. Shemorry, A.; Hwang, C.-S.; Varshavsky, A. Control of protein quality and stoichiometries by N-terminal acetylation and the N-end rule pathway. Mol. Cell 2013, 50, 540–551. [Google Scholar]
  7. Geissenhöner, A.; Weise, C.; Ehrenhofer-Murray, A.E. Dependence of ORC silencing function on NatA-mediated Nα acetylation in Saccharomyces cerevisiae. Mol. Cell. Biol 2004, 24, 10300–10312. [Google Scholar]
  8. Starheim, K.K.; Gevaert, K.; Arnesen, T. Protein N-terminal acetyltransferases: When the start matters. Trends Biochem. Sci 2012, 37, 152–161. [Google Scholar]
  9. Van Damme, P.; Hole, K.; Pimenta-Marques, A.; Helsens, K.; Vandekerckhove, J.; Martinho, R.G.; Gevaert, K.; Arnesen, T. NatF contributes to an evolutionary shift in protein N-terminal acetylation and is important for normal chromosome segregation. PLoS Genet 2011, 7, e1002169. [Google Scholar]
  10. Polevoda, B.; Arnesen, T.; Sherman, F. A synopsis of eukaryotic Nα-terminal acetyltransferases: nomenclature, subunits and substrates. BMC Proc 2009, 3, S2. [Google Scholar]
  11. Eddy, S.R. A new generation of homology search tools based on probabilistic inference. Genome Inform 2009, 23, 205–211. [Google Scholar]
  12. Tuskan, G.; Difazio, S.; Jansson, S.; Bohlmann, J.; Grigoriev, I.; Hellsten, U.; Putnam, N.; Ralph, S.; Rombauts, S.; Salamov, A. The genome of black cottonwood, Populus trichocarpa (Torr. & Gray). Science 2006, 313, 1596–1604. [Google Scholar]
  13. Polevoda, B.; Sherman, F. Nα-terminal acetylation of eukaryotic proteins. J. Biol. Chem 2000, 275, 36479–36482. [Google Scholar]
  14. Liu, C.-C.; Zhu, H.-Y.; Dong, X.-M.; Ning, D.-L.; Wang, H.-X.; Li, W.-H.; Yang, C.-P.; Wang, B.-C. Identification and analysis of the acetylated status of poplar proteins reveals analogous N-terminal protein processing mechanisms with other eukaryotes. PLoS One 2013, 8, e58681. [Google Scholar]
  15. Hollebeke, J.; van Damme, P.; Gevaert, K. N-terminal acetylation and other functions of N-α-acetyltransferases. Biol. Chem 2012, 393, 291–298. [Google Scholar]
  16. Abdel-Haleem, H. The origins of genome architecture. J. Hered 2007, 98, 633–634. [Google Scholar]
  17. Hu, R.; Qi, G.; Kong, Y.; Kong, D.; Gao, Q.; Zhou, G. Comprehensive analysis of NAC domain transcription factor gene family in Populus trichocarpa. BMC Plant Biol 2010, 10, 145. [Google Scholar]
  18. Liu, C.C.; Li, C.M.; Liu, B.G.; Ge, S.J.; Dong, X.M.; Li, W.; Zhu, H.Y.; Wang, B.C.; Yang, C.P. Genome-wide identification and characterization of a dehydrin gene family in poplar (Populus trichocarpa). Plant Mol. Biol. Rep 2011, 30, 848–859. [Google Scholar]
  19. Barakat, A.; Bagniewska-Zadworna, A.; Choi, A.; Plakkat, U.; DiLoreto, D.S.; Yellanki, P.; Carlson, J.E. The cinnamyl alcohol dehydrogenase gene family in Populus: Phylogeny, organization, and expression. BMC Plant Biol 2009, 9, 26. [Google Scholar]
  20. Kalluri, U.C.; DiFazio, S.P.; Brunner, A.M.; Tuskan, G.A. Genome-wide analysis of Aux/IAA and ARF gene families in Populus trichocarpa. BMC Plant Biol 2007, 7, 59. [Google Scholar]
  21. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol 2011, 28, 2731–2739. [Google Scholar]
  22. Saitou, N.; Nei, M. The Neighbor-Joining method: A new method for reconstructing phylogenetic trees. Mol. Biol. Evol 1987, 4, 406–425. [Google Scholar]
  23. Zybailov, B.; Rutschow, H.; Friso, G.; Rudella, A.; Emanuelsson, O.; Sun, Q.; van Wijk, K.J. Sorting signals, N-terminal modifications and abundance of the chloroplast proteome. PLoS One 2008, 3, 1–19. [Google Scholar]
  24. Polevoda, B.; Sherman, F. Composition and function of the eukaryotic N-terminal acetyltransferase subunits. Biochem. Biophys. Res. Commun 2003, 308, 1–11. [Google Scholar]
  25. Ohlrogge, J.; Benning, C. Unraveling plant metabolism by EST analysis. Curr. Opin. Plant Biol 2000, 3, 224–228. [Google Scholar]
  26. Wilkins, O.; Nahal, H.; Foong, J.; Provart, N.J.; Campbell, M.M. Expansion and diversification of the Populus R2R3-MYB family of transcription factors. Plant Physiol 2009, 149, 981–993. [Google Scholar]
  27. Sjödin, A.; Street, N.R.; Sandberg, G.; Gustafsson, P.; Jansson, S. The Populus Genome Integrative Explorer (PopGenIE): A new resource for exploring the Populus genome. N. Phytol 2009, 182, 1013–1025. [Google Scholar]
  28. Starheim, K.K.; Gromyko, D.; Velde, R.; Varhaug, J.E.; Arnesen, T. Composition and biological significance of the human Nα-terminal acetyltransferases. BMC Proc 2009, 3, S3. [Google Scholar]
  29. Larkin, M.; Blackshields, G.; Brown, N.; Chenna, R.; McGettigan, P.; McWilliam, H.; Valentin, F.; Wallace, I.; Wilm, A.; Lopez, R. Clustal W and Clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar]
  30. Liu, C.C.; Liu, B.G.; Yang, Z.W.; Li, C.M.; Wang, B.C.; Yang, C.P. Genome-wide identification and in silico analysis of poplar peptide deformylases. Int. J. Mol. Sci 2012, 13, 5112–5124. [Google Scholar]
  31. Finn, R.; Mistry, J.; Schuster-Bockler, B.; Griffiths-Jones, S.; Hollich, V.; Lassmann, T.; Moxon, S.; Marshall, M.; Khanna, A.; Durbin, R. Pfam: clans, web tools and services. Nucleic Acids Res 2006, 34, D247–D251. [Google Scholar]
  32. Liu, C.C.; Li, W.; Yang, Z.W.; Liu, B.G.; Ge, S.J.; Zhu, H.Y.; Yang, C.P.; Wei, Z.G. The systematic characterization of poplar CK2α and its theoretical studies on phosphorylation of P-protein C-terminal domain. Afr. J. Microbiol. Res 2011, 5, 4850–4858. [Google Scholar]
  33. Hall, T.A. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symp. Ser 1999, 41, 95–98. [Google Scholar]
  34. Liu, C.C.; Lu, T.C.; Li, H.H.; Wang, H.X.; Liu, G.F.; Ma, L.; Yang, C.P.; Wang, B.C. Phosphoproteomic identification and phylogenetic analysis of ribosomal P-proteins in Populus dormant terminal buds. Planta 2010, 231, 571–581. [Google Scholar]
  35. De Hoon, M.; Imoto, S.; Nolan, J.; Miyano, S. Open source clustering software. Bioinformatics 2004, 20, 1453–1454. [Google Scholar]
  36. Saldanha, A.J. Java Treeview-extensible visualization of microarray data. Bioinformatics 2004, 20, 3246–3248. [Google Scholar]
Ijms 15 01852f1 1024

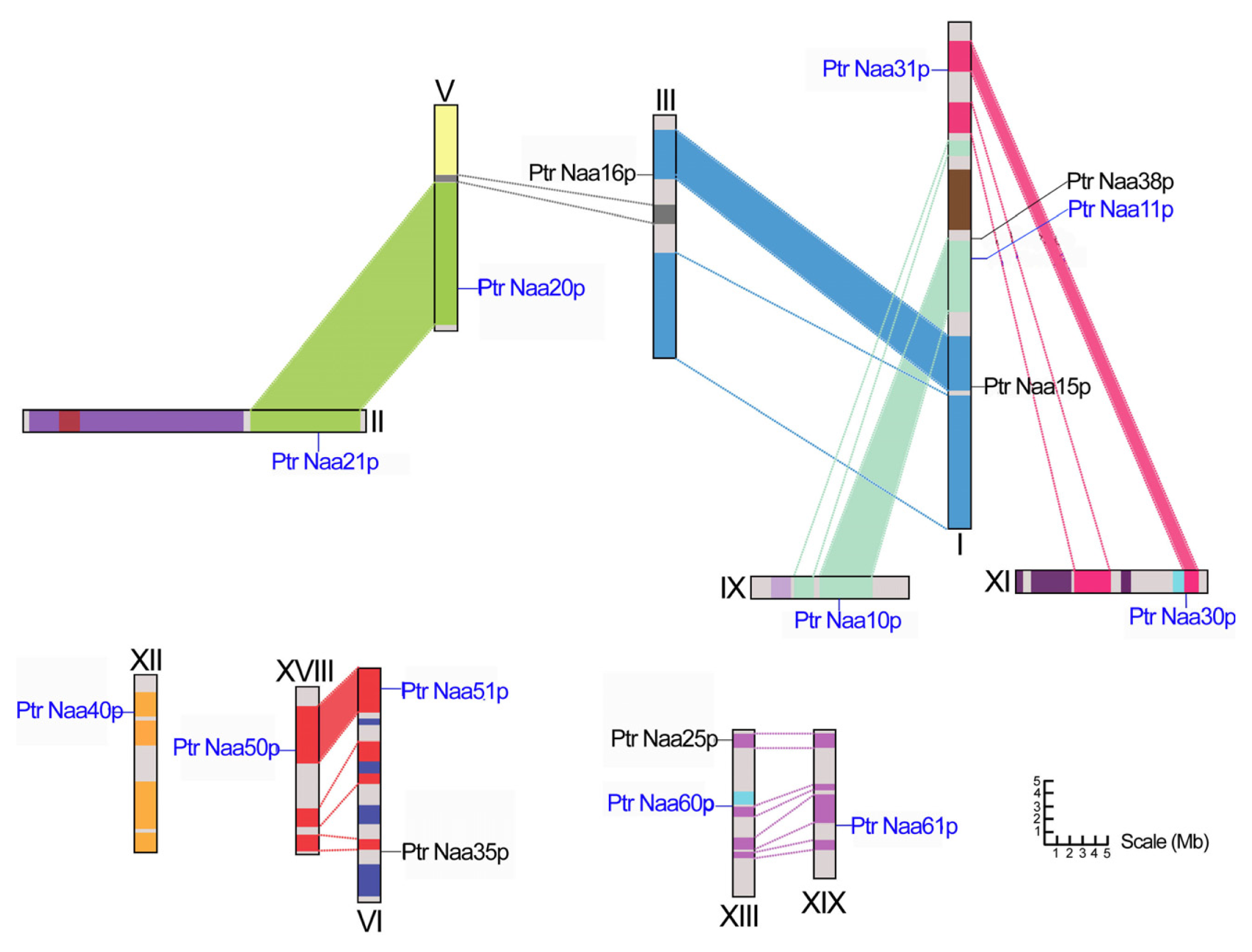

Figure 1. Chromosomal location of the Populus N-terminal acetyltransferase (Nat) catalytic subunit (CS) and auxiliary subunit (AS) genes. All sixteen genes are mapped to the 11 of nineteen Linkage Groups (LG). The schematic representation of genome-wide chromosome organization arising from the whole-genome duplication event in Populus was obtained from the study of Tuskan and its co-workers [12]. Segmental duplicated homologous regions are shown with the same color. Only the duplication blocks containing Nat CS and AS genes are connected with lines in shaded colors. The scale at the bottom represents a 5 Mb chromosomal distance.
Figure 1. Chromosomal location of the Populus N-terminal acetyltransferase (Nat) catalytic subunit (CS) and auxiliary subunit (AS) genes. All sixteen genes are mapped to the 11 of nineteen Linkage Groups (LG). The schematic representation of genome-wide chromosome organization arising from the whole-genome duplication event in Populus was obtained from the study of Tuskan and its co-workers [12]. Segmental duplicated homologous regions are shown with the same color. Only the duplication blocks containing Nat CS and AS genes are connected with lines in shaded colors. The scale at the bottom represents a 5 Mb chromosomal distance.
Ijms 15 01852f1
Ijms 15 01852f2 1024

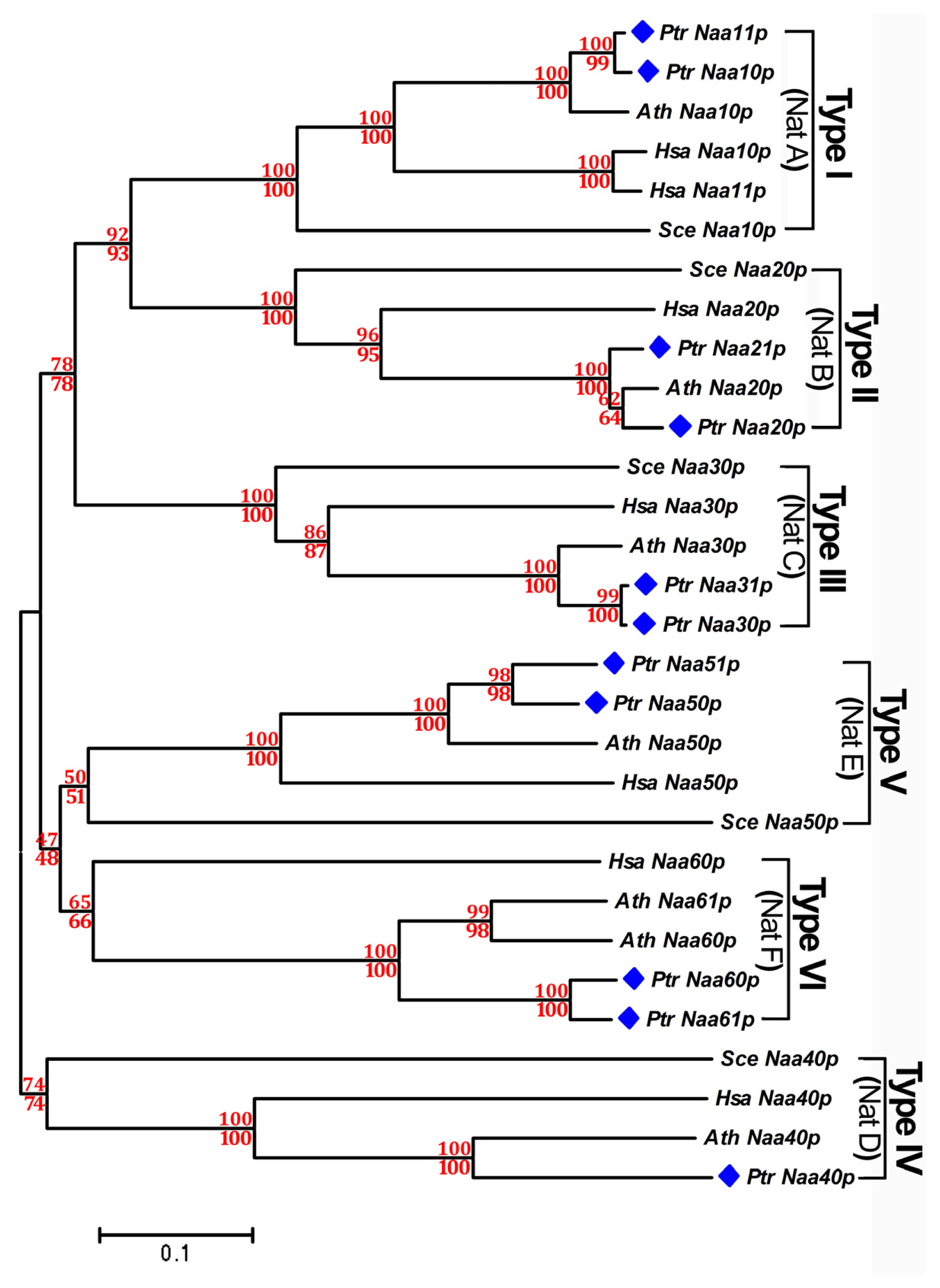

Figure 2. Phylogenetic relationships of poplar Nat CS proteins. Neighbor-Joining bootstrap and Minimum Evolution values for clans supported above the 47% level were respectively indicated above and below the branches in red font. The blue diamonds are highlighted in the front of all Nat CS subtypes from Populus. All poplar Nat CS and AS protein names and their individual corresponding ID number for phylogenetic analysis are listed as in Table 1. Sce Naa10p (P07347); Sce Naa20p (Q06504); Sce Naa30p (Q03503); Sce Naa40p (Q04751); Sce Naa50p (Q08689); Hsa Naa10p (P41227); Hsa Naa11p (Q9BSU3); Hsa Naa20p (P61599); Hsa Naa30p (Q147X3); Hsa Naa40p (Q86UY6); Hsa Naa50p (Q9GZZ1); Hsa Naa60p (Q9H7X0); Ath Naa10p (AT5G13780); Ath Naa20p (AT1G03150); Ath Naa30p (AT2G38130); Ath Naa40p (AT1G18335); Ath Naa50p (AT5G11340); Ath Naa60p (AT5G16800); Ath Naa61p (AT3G02980).
Figure 2. Phylogenetic relationships of poplar Nat CS proteins. Neighbor-Joining bootstrap and Minimum Evolution values for clans supported above the 47% level were respectively indicated above and below the branches in red font. The blue diamonds are highlighted in the front of all Nat CS subtypes from Populus. All poplar Nat CS and AS protein names and their individual corresponding ID number for phylogenetic analysis are listed as in Table 1. Sce Naa10p (P07347); Sce Naa20p (Q06504); Sce Naa30p (Q03503); Sce Naa40p (Q04751); Sce Naa50p (Q08689); Hsa Naa10p (P41227); Hsa Naa11p (Q9BSU3); Hsa Naa20p (P61599); Hsa Naa30p (Q147X3); Hsa Naa40p (Q86UY6); Hsa Naa50p (Q9GZZ1); Hsa Naa60p (Q9H7X0); Ath Naa10p (AT5G13780); Ath Naa20p (AT1G03150); Ath Naa30p (AT2G38130); Ath Naa40p (AT1G18335); Ath Naa50p (AT5G11340); Ath Naa60p (AT5G16800); Ath Naa61p (AT3G02980).
Ijms 15 01852f2
Ijms 15 01852f3 1024
Figure 3. Amino acid sequence alignment. (a) Amino acid sequence alignment of all predicted Nat CS from poplar; (b) Amino acid sequence alignment of poplar NatD catalytic (Ptr Naa40p) subunit with its counterparts from Arabidopsis, yeast and humans. Gaps are introduced to ensure maximum identity. Color shading represents 70% identical residues among the sequences. The consensus acetyl coenzyme A (AcCoA) binding motif sequence RxxGxG/A, where x can be any amino acid, is boxed (red). The identifiers of the Nat CS proteins from poplar are shown in Table 1. Ath Naa40p (AT1G18335); Hsa Naa40p (Q86UY6); Sce Naa40p (Q04751).
Figure 3. Amino acid sequence alignment. (a) Amino acid sequence alignment of all predicted Nat CS from poplar; (b) Amino acid sequence alignment of poplar NatD catalytic (Ptr Naa40p) subunit with its counterparts from Arabidopsis, yeast and humans. Gaps are introduced to ensure maximum identity. Color shading represents 70% identical residues among the sequences. The consensus acetyl coenzyme A (AcCoA) binding motif sequence RxxGxG/A, where x can be any amino acid, is boxed (red). The identifiers of the Nat CS proteins from poplar are shown in Table 1. Ath Naa40p (AT1G18335); Hsa Naa40p (Q86UY6); Sce Naa40p (Q04751).
Ijms 15 01852f3
Ijms 15 01852f4 1024

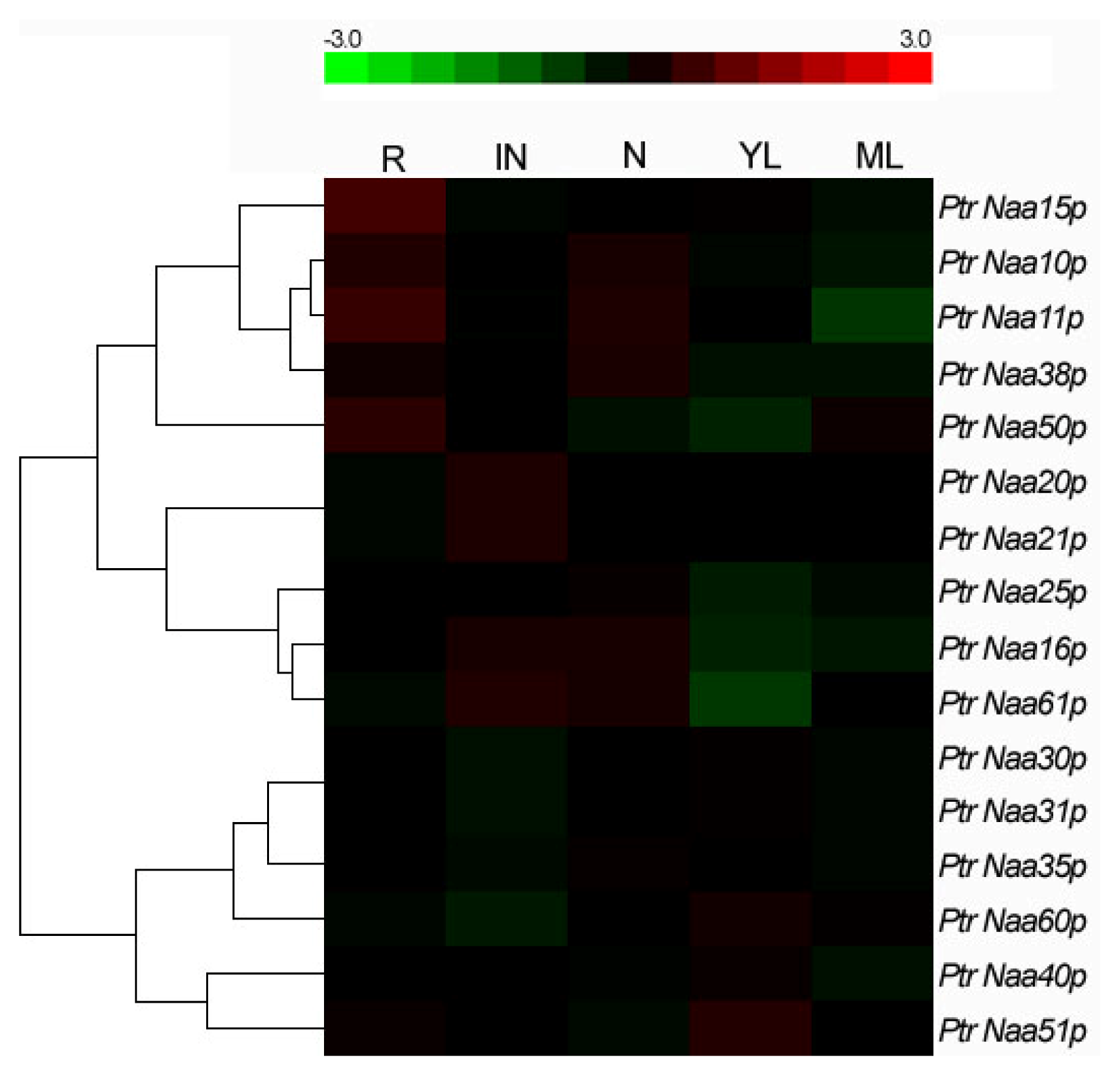

Figure 4. Relative transcript abundance profiles of Populus Nat CS and AS genes across different tissues. A heat map displaying the transcript abundance is produced here using the genome-wide microarray data generated by Wilkins and coworkers [26]. The transcript abundance levels for the Populus Nat CS and AS genes were clustered using hierarchical clustering based on the Pearson correlation. The color scale at the bottom of each dendrogram represents log2 expression values, green color represents low level, red color represents high level of transcript abundances and black color represents no transcript expression. The symbols represent as follows: R, root; IN, internodes; N, nodes; YL, young leaf; ML, mature leaf.
Figure 4. Relative transcript abundance profiles of Populus Nat CS and AS genes across different tissues. A heat map displaying the transcript abundance is produced here using the genome-wide microarray data generated by Wilkins and coworkers [26]. The transcript abundance levels for the Populus Nat CS and AS genes were clustered using hierarchical clustering based on the Pearson correlation. The color scale at the bottom of each dendrogram represents log2 expression values, green color represents low level, red color represents high level of transcript abundances and black color represents no transcript expression. The symbols represent as follows: R, root; IN, internodes; N, nodes; YL, young leaf; ML, mature leaf.
Ijms 15 01852f4
Table
Table 1. All identified N-terminal acetyltransferase (Nat) genes (CS and AS) and putative encoded poplypeptides present in Populus trichocarpa genome.
Table 1. All identified N-terminal acetyltransferase (Nat) genes (CS and AS) and putative encoded poplypeptides present in Populus trichocarpa genome.
TypeJGI gene and protein IDTranscript IDChromosome locationProtein products
NCBI REFseqPopulus genome V2.2Protein IDNovel simplified nomenclature
NatA CS a650021XM_002314022.1POPTR_0009s06150LG_IX:6944007–6945077(−)XP_002314058.1Ptr Naa10p
NatA CS641307XM_002298379.1POPTR_0001s26920LG_I:18982354–18983685 (+)XP_002298415.1Ptr Naa11p
NatA AS b548659XM_002299594.1POPTR_0001s17830LG_I:9952442–9966294 (−)XP_002299630.1Ptr Naa15p
NatA AS553694XM_002304144.1POPTR_0003s05540LG_III:4692360–4705382 (−)XP_002304180.1Ptr Naa16p
NatB CS818659XM_002307550.1POPTR_0005s23200LG_V:14531524–14534737 (−)XP_002307586.1Ptr Naa20p
NatB CS643297XM_002300805.1POPTR_0002s05290LG_II:3418242–3421271 (+)XP_002300841.1Ptr Naa21p
NatB AS571859XM_002319920.1POPTR_0013s14900LG_XIII:12260671–12271953 (−)XP_002319956.1Ptr Naa25p
NatC CS727122XM_002316966.1POPTR_0011s14270LG_XI:13438711–13441426 (+)XP_002317002.1Ptr Naa30p
NatC CS642436XM_002298895.1POPTR_0049s00200LG_I:32126776–32129356 (+)XP_002298931.1Ptr Naa31p
NatC AS I560565XM_002308020.1POPTR_0006s06370LG_VI:3978171–3986294 (+)XP_002308056.1Ptr Naa35p
NatC AS II641478XM_002299954.1POPTR_0001s28460LG_I:20275848–20278373 (−)XP_002299990.1Ptr Naa38p
NatD CS729076XM_002318277.1POPTR_0012s03830LG_XII:300904–304114 (−)XP_002318313.1Ptr Naa40p
NatE CS737117XM_002324238.1POPTR_0018s01280LG_XVIII:5217292–5220254 (+)XP_002324274.1Ptr Naa50p
NatE CS654093XM_002308604.1POPTR_0006s26500LG_VI:16869902–16872551 (+)XP_002308640.1Ptr Naa51p
NatF CS834607XM_002319219.1POPTR_0013s07770LG_XIII:7060330–7064827 (+)XP_002319255.1Ptr Naa60p
NatF CS665408XM_002325352.1POPTR_0019s07740LG_XIX:4276553–4280210 (+)XP_002325388.1Ptr Naa61p
aCS denotes catalytic subunit of Nat;
bAS represents auxiliary subunit of Nat.
