Plasma Neutrophil Gelatinase-Associated Lipocalin and Predicting Clinically Relevant Worsening Renal Function in Acute Heart Failure
by
Kevin Damman
1,*,
Mattia A. E. Valente
1,
Dirk J. Van Veldhuisen
1,
John G. F. Cleland
2,
Christopher M. O’Connor
3,
Marco Metra
4,
Piotr Ponikowski
5,
Gad Cotter
6,
Beth Davison
6,
Michael M. Givertz
7,
Daniel M. Bloomfield
8,
Hans L. Hillege
1,9 and
Adriaan A. Voors
1 1
Department of Cardiology, University Medical Center Groningen, University of Groningen, Groningen 9712, The Netherlands
2
Imperial College London, London SW7 2AZ, UK
3
Inova Heart and Vascular Institute, Falls Church, VA 22042, USA
4
University of Brescia, Brescia 25121, Italy
5
Medical University, Clinical Military Hospital, Wroclaw 50-981, Poland
6
Momentum Research, Durham, NC 27707, USA
7
Brigham and Women’s Hospital, Boston, MA 02115, USA
8
Merck Research Laboratories, Rahway, NJ 07065, USA
9
Department of Epidemiology, University Medical Center Groningen, University of Groningen, Groningen 9712, The Netherlands
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2017, 18(7), 1470; https://doi.org/10.3390/ijms18071470
Submission received: 20 May 2017
/
Revised: 29 June 2017
/
Accepted: 4 July 2017
/
Published: 8 July 2017
(This article belongs to the Special Issue Advances in Chronic Kidney Disease 2017)
Abstract
:The aim of this study was to evaluate the ability of Neutrophil Gelatinase-Associated Lipocalin (NGAL) to predict clinically relevant worsening renal function (WRF) in acute heart failure (AHF). Plasma NGAL and serum creatinine changes during the first 4 days of admission were investigated in 1447 patients hospitalized for AHF and enrolled in the Placebo-Controlled Randomized Study of the Selective A1Adenosine Receptor Antagonist Rolofylline for Patients Hospitalized with Acute Decompensated Heart Failure and Volume Overload to Assess Treatment Effect on Congestion and Renal Function (PROTECT) study. WRF was defined as serum creatinine rise ≥ 0.3 mg/dL through day 4. Biomarker patterns were described using linear mixed models. WRF developed in 325 patients (22%). Plasma NGAL did not rise earlier than creatinine in patients with WRF. After multivariable adjustment, baseline plasma NGAL, but not creatinine, predicted WRF. AUCs for WRF prediction were modest (<0.60) for all models. NGAL did not independently predict death or rehospitalization (p = n.s.). Patients with WRF and high baseline plasma NGAL had a greater risk of death, and renal or cardiovascular rehospitalization by 60 days than patients with WRF and a low baseline plasma NGAL (p for interaction = 0.024). A rise in plasma NGAL after baseline was associated with a worse outcome in patients with WRF, but not in patients without WRF (p = 0.007). On the basis of these results, plasma NGAL does not provide additional, clinically relevant information about the occurrence of WRF in patients with AHF.
1. Introduction
Worsening renal function (WRF) during hospitalization for acute heart failure (AHF) is associated with poorer outcome. However, some studies suggest that transient WRF during treatment for AHF may not be harmful, and may even reflect a better therapeutic response [1,2,3]. We recently showed that patients with AHF and a good diuretic response had a higher incidence of WRF but better outcomes [4,5]. The cause of WRF appears to be an important factor for determining risk related to WRF. Early identification of patients at risk of WRF, as well as a robust definition and better understanding of its cause and consequences, may improve risk stratification. Novel biomarkers may play a role in achieving this goal.
Neutrophil Gelatinase Associated Lipocalin (NGAL), a 25 kDa member of the Lipocalin family expressed by the renal tubular epithelium, is released into both urine and blood in response to tubular injury. Higher plasma NGAL has been associated with poorer clinical outcomes in AHF [6,7,8]. A number of small studies showed conflicting findings on the potential value of plasma NGAL as an early marker of WRF [6,9,10,11,12,13,14,15]. For instance, in 207 patients with AHF, neither serum creatinine nor NGAL was able to accurately predict WRF [10]. In sharp contrast, in another study in 119 AHF patients, NGAL (below a certain cutoff value) had a 100% negative predictive value for the prediction of WRF [13]. A recent study evaluating NGAL as a predictor of acute kidney injury (AKI) showed similar results for NGAL, compared with serum creatinine, in the ability to predict AKI [16]. In the present study, we aimed to establish the value of plasma NGAL as an early predictor of WRF, and as a discriminator between WRF with a good and a poor prognosis.
2. Results
Patient characteristics for patients with and without WRF, stratified by survival, are presented in Table 1. Patients who developed WRF during the first four days (n = 325; 22%) had a higher Left Ventricular Ejection Fraction (LVEF), higher systolic blood pressure, less edema, worse baseline renal function, higher NGAL levels, lower hemoglobin, and more anemia (all p < 0.05). Profiles for survivors at 180 days versus patients who died were similar, regardless of whether WRF developed; patients who died had a lower ejection fraction, lower blood pressure, worse renal function, reflected by higher Blood Urea Nitrogen (BUN), and plasma concentrations of creatinine and NGAL (all p < 0.05). Tables S1 and S2 present baseline characteristics, by tertiles, of baseline serum creatinine and plasma NGAL. Higher levels were associated with more advanced age and more co-morbidity. Plasma concentrations of NGAL, correlated with serum creatinine (Spearman’s rho 0.58 at baseline and 0.60 at day 4, p < 0.001), estimated GFR (Spearman’s rho −0.60 at baseline and −0.62 at day 4, p < 0.001) and BUN (Spearman’s rho 0.52 at baseline and 0.54 at day 4, p < 0.001), and modestly with CRP (Spearman’s rho 0.12 at day 1, 0.13 at day 4, p < 0.001).
2.1. Neutrophil Gelatinase-Associated Lipocalin (NGAL) and Worsening Renal Function (WRF)
Figure 1 displays changes in serum creatinine and NGAL during the first week of admission in patients with and without WRF, adjusted for study treatment. Biomarker changes for alternative WRF definitions are presented as supplementary Figures S1 and S2, and display similar patterns. Serum creatinine and plasma NGAL trajectories differed significantly between patients with and without WRF for all definitions (p for interaction with time <0.001), and rolofylline treatment had no effect (p = n.s.). Figure 2 shows the relative creatinine and plasma NGAL changes over the first 7 days in patients with and without WRF. In patients who developed WRF, NGAL levels did not rise significantly sooner than creatinine levels; both markers increased in parallel over the first 2 days (p for difference n.s.), with NGAL rising further than creatinine over the course of 7 days, while displaying greater variability (p < 0.05). Patterns were similar for alternative definitions of WRF (Figures S3 and S4).
In ROC curve analyses, WRF proved difficult to predict well, with modest AUC values. Baseline and day 2 NGAL and creatinine were similarly predictive of WRF, while a non-diagnostic creatinine change on day 2 was a much stronger predictor of WRF than NGAL change on day 2 (Table 2).
In sensitivity analyses, predictive value for other WRF definitions/cut-offs showed similar patterns (Tables S3 and S4). Baseline plasma NGAL was independently predictive of WRF in a multivariable model (Table 3), while serum creatinine was not. NGAL contributed significantly to improving WRF prediction (AUC 0.648 vs. 0.635 for model with vs. without NGAL, p = 0.002). In sensitivity analyses, multivariable models for other WRF cut-offs consistently included NGAL, which significantly improved model discrimination in all models (p < 0.05), but not creatinine. However, these small improvements are likely not clinically relevant.
2.2. NGAL and Clinically Relevant WRF
To investigate the value of NGAL for distinguishing between WRF with good and poor outcomes, we examined NGAL and creatinine trajectories (Figure 3) in patients who experienced WRF (or not) who had died, or were alive, after 180 days. Baseline plasma NGAL was higher and rose further in patients who died compared to survivors, and was higher in patients with WRF, irrespective of outcome. The pattern was similar when the 60-day endpoint was examined. In mutually adjusted models, including NGAL and Creatinine, NGAL was a stronger predictor of WRF with a poor outcome, and improved the model when added to creatinine, showing consistently higher Goodness of Fit (Table 4).
2.3. NGAL, WRF, and Clinical Outcome
In Cox models, baseline serum creatinine and plasma NGAL were invariably associated with both 180-day mortality and the 60-day composite (all p < 0.001), although this did not persist following multivariable adjustment (all p = n.s.). WRF was independently associated with both endpoints (multivariable HR for 180-day mortality: 1.45, 95% CI 1.12–1.88, p = 0.004; multivariable HR for the 60-day composite: 1.27, 95% CI 1.01–1.59, p = 0.04); sensitivity analyses with absolute creatinine change and other definitions for WRF showed similar performance (data not shown).
In patients with a rise in serum creatinine, higher baseline plasma NGAL (p for interaction 0.024)—but not higher baseline serum creatinine (p for interaction = 0.464)—posed a significant, relatively greater risk of reaching the 60-day composite endpoint. Supplementary Figure S5 displays the multivariable hazard ratios for the 60-day composite endpoint for the continuous interactions between creatinine change, and baseline values of creatinine or NGAL. The continuous hazard functions for creatinine change, stratified by either baseline creatinine levels (first panel) or baseline NGAL levels (second panel), illustrate the interaction between creatinine change and baseline biomarker levels. Patterns were similar for the 180-day mortality endpoint, but no interactions reached significance.
The clinical value of changes in NGAL, combined with WRF, was examined by comparing clinical outcomes between patients with and without WRF, and with a similar rise in NGAL on day 4. This was defined as an increase of ≥1 SD (≥88 ng/mL) in NGAL (n = 83), as the SD for creatinine change by day 4 was about 0.3 mg/dL, resembling the definition of WRF. The Kaplan-Meier curve is displayed in Figure 4, showing a significantly increased risk of mortality, only if both markers rose significantly (p-value for WRF with NGAL increase ≥88 ng/mL versus the other three groups = 0.007). Patients with ≥1 SD rise in NGAL had significantly higher creatinine at baseline than those who did not (p < 0.05), but similar levels, irrespective of whether WRF developed (1.8 vs. 1.7 mg/dL with vs. without WRF, p = 0.59). Baseline characteristics in this small subgroup did not differ significantly based on WRF status.
3. Discussion
We examined the value of NGAL for predicting clinically relevant WRF and outcomes in 1447 patients admitted with AHF (to our knowledge, the largest cohort of AHF patients with available serial plasma NGAL measurements). WRF was common, occurring in 22% of patients during the first four days of admission. Patients who developed WRF were more likely to have poor renal function at baseline, although only NGAL levels—but not creatinine—were independently associated with the development of WRF. We found no indication that plasma NGAL rises earlier than creatinine in AHF patients who develop WRF; both markers rose in tandem over the first two days of admission. Although NGAL showed statistically significant incremental value for predicting WRF, no combination of markers performed particularly well, with AUCs below 0.60. While high levels of both NGAL and creatinine at baseline were associated with mortality and rehospitalization, neither was independently predictive after adjustment for clinical covariates.
3.1. Prediction of WRF
NGAL has been identified as a powerful early predictor of WRF in a number of different clinical settings [17,18,19,20,21,22,23,24,25], although the data in AHF are conflicting [6,7,10,11,12,13,14,15,26]. Similarly to Breidthardt et al. [10], we found modest predictive ability for plasma NGAL, which provided minimal improvement on top of creatinine for predicting WRF. Our data further confirm findings by the prospective biomarker study Acute Kidney Injury Neutrophil Gelatinase-Associated Lipocalin Evaluation of Symptomatic Heart Failure Study (AKINESIS) that recently showed similar results—NGAL was not a more sensitive predictor of AKI in patients admitted with acute HF [16]. Whereas AKINESIS only assessed severe and sustained increases in creatinine, more closely resembling acute kidney injury, we evaluated the much more common used definitions of WRF. Furthermore, our study not only provides data on inhospital changes in plasma NGAL, but also long term outcomes, whereas in AKINESIS only inhospital events were evaluated. In the end, considering the poor performance of both markers for AKI/WRF prediction in both AKINESIS and the present study, the clinical relevance of the associations is debatable at best.
One potential issue is the self-fulfilling nature of predicting a rise in creatinine, using creatinine. Interestingly, we found that baseline NGAL values—but not baseline creatinine values—predicted WRF in multivariable models. Regardless, the hypothesis that NGAL rises earlier than creatinine does not hold true in this AHF cohort, as illustrated by the estimated trajectories corrected for study treatment. There are several potential explanations for the lack of an early rise in plasma NGAL, and thus the poor prognostic accuracy for WRF in AHF. First, plasma NGAL—in contrast with urinary NGAL—may not be a particularly appropriate tubular marker; it is strongly related to glomerular filtration rate, as reflected by its correlation with GFR and creatinine, and also involved in iron scavenging and immune response, as indicated by the correlation with markers such as CRP and markers of anemia [27,28]. Shrestha et al noted strong correlations between urinary NGAL and measures for natriuresis and response to diuretics, while plasma NGAL only correlated well with GFR, though both predicted WRF [14]. Second, there are multiple mechanisms for WRF in AHF patients. For example, true AKI (resulting in tubular damage), with substantial and rapid loss of function and decreased urine output is probably not comparable to the kind of WRF studied extensively in AHF. In the clinical context of AHF, changes in renal function may be driven more by hemodynamic and neurohormonal (mal) adaptation and drug effects than the (hypoxic) kidney injury common in intensive care or post-surgical settings; Dupont et al. showed that despite a relatively high incidence of AKI, defined based on creatinine increases, tubular injury was relatively uncommon in a small, prospective study of 141 AHF patients [26]. Third, in contrast with studies in post-surgical or post-intervention patients [17,18,19,24,25,29], the timing of renal injury is often unclear in AHF, and its pre-hospital course may vary significantly, and may include undetected WRF. Pre-admission worsening congestion and intensification of diuretic therapy may have already triggered progressive renal impairment in the patients in our study—all of whom had at least a brief history of heart failure. Fourth, there is ongoing debate regarding the best measure for renal function and injury; a definition of WRF, based on a more “pure” marker, such as cystatin C or measured GFR, may have yielded very different results.
However, it is noteworthy that our additional analysis of clinically relevant WRF (that is, WRF associated with poor clinical outcome) showed patients with WRF (and an adverse outcome had much higher NGAL levels).
3.2. NGAL, Creatinine and Outcome
Impaired and worsening renal function are established risk markers in heart failure [30]. Data on the prognostic value of NGAL is mixed, with many [7,8,12,31,32,33,34]—but not all [35]—studies in both chronic and AHF reporting prognostic value, though correction for potential confounders varies greatly. Givertz et al. previously reported on the prognostic value of various renal markers in PROTECT, concluding that creatinine change and baseline BUN were strong predictors of outcome [36]. Additionally, our analyses show that NGAL modulates the risk of outcomes associated with creatinine change, conferring a greater relative risk to patients with higher NGAL levels with a creatinine increase, but not to patients without. This effect is independent of baseline creatinine. Furthermore, a large increase in NGAL during admission conferred an additional risk of death (only in patients with WRF). Thus, while plasma NGAL levels appear to largely reflect GFR (and thus creatinine), they do have some incremental value for assessing the risk associated with WRF, and could help discriminate between higher and lower risk WRF.
3.3. Clinical Perspectives
Identifying patients at high risk of developing renal dysfunction and poor outcomes remains a challenge in AHF. Coupled with a lack of effective therapeutic options, this poses a problem for clinicians. Biomarkers such as NGAL can be used as diagnostic or prognostic tools, though their application requires careful and thorough evaluation. Despite the extensive but conflicting literature on plasma NGAL, our analyses in this very large group of well-characterized AHF patients, together with findings from AKINESIS, indicate fairly poor accuracy for predicting WRF.
Plasma NGAL was not independently prognostic for death or rehospitalization. Our findings suggest elevated baseline NGAL levels, and large increases in NGAL do confer additional risk for patients who develop WRF (although the clinical relevance of these findings—given the lack of independent prognostic value for NGAL, the small numbers of patients with NGAL increases, and the post-hoc nature of our analyses—remains to be established).
3.4. Limitations
Due to the retrospective nature of this study, our results should be considered hypothesis-generating, and should therefore be interpreted cautiously. Furthermore, NGAL was measured using frozen samples, which may have affected data quality. No urine was collected, so the performance of urinary NGAL could not be compared that of plasma NGAL, and may have shown very different patterns and results.
4. Materials and Methods
4.1. Study Design and Population
This is a post hoc analysis of the Placebo-controlled Randomized Study of the Selective A1 Adenosine Receptor Antagonist Rolofylline for Patients Hospitalized with Acute Heart Failure and Volume Overload to Assess Treatment Effect on Congestion and Renal FuncTion (PROTECT) trial, a randomized, double-blind, placebo-controlled, multi-center study that enrolled 2033 patients admitted for acute decompensated heart failure, randomized 2:1 to rolofylline, with neutral overall results. Study design, inclusion, and exclusion criteria and results have been published previously [37,38,39]. The trial was approved by all local Ethics Committees and conducted in accordance with the Declaration of Helsinki (NCT00328692 and NCT00354458). All patients provided written informed consent. Of the patients who remained hospitalized for at least 4 days (n = 1681), those with available NGAL and creatinine values at baseline (n = 1470), and at least one follow-up measurement for each marker during the first 4 days, were included in the analysis, resulting in a study population of 1447 patients. Patients who had already developed WRF by day 2 (n = 101) were excluded from analyses of the effects of biomarker levels and changes on day 2.
4.2. Procedures and Definitions
Heart failure signs and symptoms, serum creatinine, and other hematologic and biochemical markers, were assessed daily from baseline (day 1) until discharge or day 6 and on day 7, as dictated by study protocol [37]. Plasma NGAL levels were measured in frozen plasma samples collected on the same days and stored at −80 °C. Measurements were performed by Alere Inc. (San Diego, CA, USA) using sandwich enzyme-linked immunosorbent assays (ELISA) on a microtiter plate. The estimated glomerular filtration rate (GFR) was calculated using the simplified modification of diet in renal disease (MDRD) study equation.
4.3. Endpoints
This study examined WRF occurring during the first 4 days of hospitalization, defined as a creatinine increase of ≥0.3 mg/dL (26.5 µmol/L), at any time between day 1 (baseline) and day 4, or initiation of hemofiltration as it was defined in the main study. Sensitivity analyses were performed with other definitions, including absolute creatinine, a relative creatinine increase of ≥25%, a combined increase of ≥0.3 mg/dL and ≥25%, and various cut-offs.
The prognostic value of plasma NGAL for distinguishing between WRF and good vs. poor prognosis was examined for adjudicated endpoints of 180-day mortality and a composite of 60-day death or renal or cardiovascular rehospitalization. WRF with good vs. poor outcome was defined based on whether patients experienced either of the clinical endpoints.
4.4. Statistical Methods
Continuous data are presented as mean ± SD if normally distributed, or median [interquartile range] if not. Group comparisons were performed using Student’s t-test, ANOVA, Wilcoxon, or Kruskall-Wallis tests, as appropriate. Differences between relative changes in biomarkers were assessed using paired Wilxocon rank sum tests. Correlations between biomarkers were evaluated using Spearman’s rank correlation. Missing data were assumed to be missing at random, and no imputations were performed.
Changes in serial biomarker measurements were evaluated using random slope, random intercept linear mixed-effects models, adjusted for study treatment. A mixed-effects model is a hierarchical regression model that includes fixed and random (subject-specific) effects, allowing for within-subject correlation between repeated measurements. Both NGAL and creatinine were log-transformed for modeling. Model selection was based on combined assessment of likelihood ratio tests of nested models for selection of random effects, and of Bayesian and Akaike’s information criteria (measures for model fit, lower is better) for selection of fixed effects, following graphical exploration of the data. Best fit was obtained using a second order polynomial (quadratic) time transformation for creatinine and third order polynomial (cubic) time transformation for NGAL, for both fixed and random effects.
Receiver Operator Characteristic (ROC) curve analyses and multivariable logistic regression were performed to evaluate predictors of WRF, and added value in multivariable models was assessed using likelihood ratio tests of nested models. Multivariable models were constructed via backward elimination of candidate covariates with a univariable association at p < 0.1, with a p for retention of 0.05.
Kaplan Meier survival analyses were performed to examine group associations with the mortality and composite endpoints. Outcomes between groups were compared with log-rank tests. Cox proportional hazards regression was performed to evaluate univariable and multivariable associations with 180-day mortality and the 60-day composite, adjusting for covariates from a previously published prognostic model—age, creatinine, BUN, systolic blood pressure, edema, previous hospitalization for heart failure, serum albumin, and serum sodium [40]. Multiple fractional polynomials were used to check for non-linearity in survival analyses. Interactions were investigated graphically. Proportionality of hazards assumptions were evaluated graphically and tested statistically. A two-tailed p-value of 0.05 was considered statistically significant. All analyses were performed using R: A Language and Environment for Statistical Computing, version 3.1.0 (R Foundation for Statistical Computing, Vienna, Austria) and Stata, version 11.2 (College Station, TX, USA).
5. Conclusions
Plasma NGAL was not independently predictive of poor outcome, though serial plasma NGAL levels provide some additional information for the prediction of clinically significant WRF in patients with AHF. However, plasma NGAL levels did not rise earlier than creatinine in patients who developed WRF, and both NGAL and creatinine were similarly modest predictors of WRF.
Supplementary Materials
Supplementary materials can be found at https://www.mdpi.com/1422-0067/18/7/1470/s1.
Acknowledgments
The main PROTECT study was sponsored by NovaCardia (now Merck).
Author Contributions
For research articles with several authors, a short paragraph specifying their individual contributions must be provided. The following statements should be used: Kevin Damman, Mattia A.E. Valente, Adriaan A. Voors, and Hans L. Hillege conceived and designed the research; Kevin Damman and Mattia A.E. Valente executed the analysis; Kevin Damman, Mattia A.E. Valente and Adriaan A. Voors wrote the draft manuscript; Adriaan A. Voors, Hans L. Hillege, Dirk J. van Veldhuisen, Marco Metra, Christopher M. O’Connor, Piotr Ponikowski, Gad Cotter, Beth Davison, John G.F. Cleland, Michael M. Givertz and Daniel M. Bloomfield analyzed the data, supervised and critically revised the manuscript.
Conflicts of Interest
Mattia A.E. Valente, Kevin Damman, Dirk J. van Veldhuisen and Hans L. Hillege have nothing to disclose. Adriaan A. Voors has received speakers and consultancy fees from Merck and NovaCardia. Christopher M. O’Connor is a consultant to Merck. Michael M. Givertz has received honoraria and reimbursements from Bayer, Novartis, and Sevier, and NovaCardia, sponsors of the study, and from Merck, that purchased the rights to rolofylline after completion of the PROTECT pilot study. Piotr Ponikowski has received honoraria from Merck. Gad Cotter and Beth Davison are employees of Momentum Research Inc., which was contracted to perform work on the project by Merck & Co, Inc. John G.F. Cleland was on the Steering Committee for the study, served on the Advisory Board for MSD, and received payments for both. Michael M. Givertz has received institutional research support and served on a scientific Advisory Board for Merck. Daniel M. Bloomfield is an employee of Merck.
Abbreviations
| AHF | Acute Heart Failure |
| AKI | Acute Kidney Injury |
| LVEF | Left ventricular ejection fraction |
| NGAL | Neutrophil Gelatinase-Associated Lipocalin |
| WRF | Worsening Renal Function |
| HR | Hazard Ratio |
| SD | Standard Deviation |
References
- Felker, G.M.; Lee, K.L.; Bull, D.A.; Redfield, M.M.; Stevenson, L.W.; Goldsmith, S.R.; LeWinter, M.M.; Deswal, A.; Rouleau, J.L.; Ofili, E.O.; et al. Diuretic strategies in patients with acute decompensated heart failure. N. Engl. J. Med. 2011, 364, 797–805. [Google Scholar] [CrossRef] [PubMed]
- Testani, J.M.; Chen, J.; McCauley, B.D.; Kimmel, S.E.; Shannon, R.P. Potential effects of aggressive decongestion during the treatment of decompensated heart failure on renal function and survival. Circulation 2010, 122, 265–272. [Google Scholar] [CrossRef] [PubMed]
- Metra, M.; Davison, B.; Bettari, L.; Sun, H.; Edwards, C.; Lazzarini, V.; Piovanelli, B.; Carubelli, V.; Bugatti, S.; Lombardi, C.; et al. Is worsening renal function an ominous prognostic sign in patients with acute heart failure? The role of congestion and its interaction with renal function. Circ. Heart Fail. 2012, 5, 54–62. [Google Scholar] [CrossRef] [PubMed]
- Valente, M.A.; Voors, A.A.; Damman, K.; van Veldhuisen, D.J.; Massie, B.M.; O’Connor, C.M.; Metra, M.; Ponikowski, P.; Teerlink, J.R.; Cotter, G.; et al. Diuretic response in acute heart failure: Clinical characteristics and prognostic significance. Eur. Heart J. 2014, 35, 1284–1293. [Google Scholar] [CrossRef] [PubMed]
- Voors, A.A.; Davison, B.A.; Teerlink, J.R.; Felker, G.M.; Cotter, G.; Filippatos, G.; Greenberg, B.H.; Pang, P.S.; Levin, B.; Hua, T.A.; et al. Diuretic response in patients with acute decompensated heart failure: Characteristics and clinical outcome—An analysis from RELAX-AHF. Eur. J. Heart Fail. 2014, 16, 1230–1240. [Google Scholar] [CrossRef] [PubMed]
- Van Veldhuisen, D.J.; Ruilope, L.M.; Maisel, A.S.; Damman, K. Biomarkers of renal injury and function: Diagnostic, prognostic and therapeutic implications in heart failure. Eur. Heart J. 2016, 37, 2577–2585. [Google Scholar] [PubMed]
- Alvelos, M.; Lourenco, P.; Dias, C.; Amorim, M.; Rema, J.; Leite, A.B.; Guimaraes, J.T.; Almeida, P.; Bettencourt, P. Prognostic value of neutrophil gelatinase-associated lipocalin in acute heart failure. Int. J. Cardiol. 2013, 165, 51–55. [Google Scholar] [CrossRef] [PubMed]
- Maisel, A.S.; Mueller, C.; Fitzgerald, R.; Brikhan, R.; Hiestand, B.C.; Iqbal, N.; Clopton, P.; van Veldhuisen, D.J. Prognostic utility of plasma neutrophil gelatinase-associated lipocalin in patients with acute heart failure: The NGAL EvaLuation along with B-type NaTriuretic peptide in acutely decompensated heart failure (GALLANT) trial. Eur. J. Heart Fail. 2011, 13, 846–851. [Google Scholar] [CrossRef] [PubMed]
- Aghel, A.; Shrestha, K.; Mullens, W.; Borowski, A.; Tang, W.H. Serum neutrophil gelatinase-associated lipocalin (NGAL) in predicting worsening renal function in acute decompensated heart failure. J. Card. Fail. 2010, 16, 49–54. [Google Scholar] [CrossRef] [PubMed]
- Breidthardt, T.; Socrates, T.; Drexler, B.; Noveanu, M.; Heinisch, C.; Arenja, N.; Klima, T.; Zusli, C.; Reichlin, T.; Potocki, M.; et al. Plasma neutrophil gelatinase-associated lipocalin for the prediction of acute kidney injury in acute heart failure. Crit. Care 2012, 16, R2. [Google Scholar] [CrossRef] [PubMed]
- Mortara, A.; Bonadies, M.; Mazzetti, S.; Fracchioni, I.; Delfino, P.; Chioffi, M.; Bersano, C.; Specchia, G. Neutrophil gelatinase-associated lipocalin predicts worsening of renal function in acute heart failure: Methodological and clinical issues. J. Cardiovasc. Med. (Hagerstown) 2013, 14, 629–634. [Google Scholar] [CrossRef] [PubMed]
- Palazzuoli, A.; Ruocco, G.; Beltrami, M.; Franci, B.; Pellegrini, M.; Lucani, B.; Nuti, R.; Ronco, C. Admission plasma neutrophil gelatinase associated lipocalin (NGAL) predicts worsening renal function during hospitalization and post discharge outcome in patients with acute heart failure. Acute Card. Care 2014. [Google Scholar] [CrossRef] [PubMed]
- Alvelos, M.; Pimentel, R.; Pinho, E.; Gomes, A.; Lourenco, P.; Teles, M.J.; Almeida, P.; Guimaraes, J.T.; Bettencourt, P. Neutrophil gelatinase-associated lipocalin in the diagnosis of type 1 cardio-renal syndrome in the general ward. Clin. J. Am. Soc. Nephrol. 2011, 6, 476–481. [Google Scholar] [CrossRef] [PubMed]
- Shrestha, K.; Shao, Z.; Singh, D.; Dupont, M.; Tang, W.H. Relation of systemic and urinary neutrophil gelatinase-associated lipocalin levels to different aspects of impaired renal function in patients with acute decompensated heart failure. Am. J. Cardiol. 2012, 110, 1329–1335. [Google Scholar] [CrossRef] [PubMed]
- Macdonald, S.; Arendts, G.; Nagree, Y.; Xu, X.F. Neutrophil Gelatinase-Associated Lipocalin (NGAL) predicts renal injury in acute decompensated cardiac failure: A prospective observational study. BMC Cardiovasc. Disord. 2012, 12, 8. [Google Scholar] [CrossRef] [PubMed]
- Maisel, A.S.; Wettersten, N.; van Veldhuisen, D.J.; Mueller, C.; Filippatos, G.; Nowak, R.; Hogan, C.; Kontos, M.C.; Cannon, C.M.; Muller, G.A.; et al. Neutrophil gelatinase-associated lipocalin for acute kidney injury during acute heart failure hospitalizations: The AKINESIS study. J. Am. Coll. Cardiol. 2016, 68, 1420–1431. [Google Scholar] [CrossRef] [PubMed]
- Mishra, J.; Dent, C.; Tarabishi, R.; Mitsnefes, M.M.; Ma, Q.; Kelly, C.; Ruff, S.M.; Zahedi, K.; Shao, M.; Bean, J.; et al. Neutrophil gelatinase-associated lipocalin (NGAL) as a biomarker for acute renal injury after cardiac surgery. Lancet 2005, 365, 1231–1238. [Google Scholar] [CrossRef]
- Xin, C.; Yulong, X.; Yu, C.; Changchun, C.; Feng, Z.; Xinwei, M. Urine neutrophil gelatinase-associated lipocalin and interleukin-18 predict acute kidney injury after cardiac surgery. Ren. Fail. 2008, 30, 904–913. [Google Scholar] [CrossRef] [PubMed]
- Ling, W.; Zhaohui, N.; Ben, H.; Leyi, G.; Jianping, L.; Huili, D.; Jiaqi, Q. Urinary IL-18 and NGAL as early predictive biomarkers in contrast-induced nephropathy after coronary angiography. Nephron. Clin. Pract. 2008, 108, c176–c181. [Google Scholar] [CrossRef] [PubMed]
- Che, M.; Xie, B.; Xue, S.; Dai, H.; Qian, J.; Ni, Z.; Axelsson, J.; Yan, Y. Clinical usefulness of novel biomarkers for the detection of acute kidney injury following elective cardiac surgery. Nephron. Clin. Pract. 2010, 115, 66–72. [Google Scholar] [CrossRef] [PubMed]
- Koyner, J.L.; Garg, A.X.; Coca, S.G.; Sint, K.; Thiessen-Philbrook, H.; Patel, U.D.; Shlipak, M.G.; Parikh, C.R. Biomarkers predict progression of acute kidney injury after cardiac surgery. J. Am. Soc. Nephrol. 2012. [Google Scholar] [CrossRef] [PubMed]
- Torregrosa, I.; Montoliu, C.; Urios, A.; Elmlili, N.; Puchades, M.J.; Solis, M.A.; Sanjuan, R.; Blasco, M.L.; Ramos, C.; Tomas, P.; et al. Early biomarkers of acute kidney failure after heart angiography or heart surgery in patients with acute coronary syndrome or acute heart failure. Nefrologia 2012, 32, 44–52. [Google Scholar] [CrossRef] [PubMed]
- Haase, M.; Devarajan, P.; Haase-Fielitz, A.; Bellomo, R.; Cruz, D.N.; Wagener, G.; Krawczeski, C.D.; Koyner, J.L.; Murray, P.; Zappitelli, M.; et al. The outcome of neutrophil gelatinase-associated lipocalin-positive subclinical acute kidney injury: A multicenter pooled analysis of prospective studies. J. Am. Coll. Cardiol. 2011, 57, 1752–1761. [Google Scholar] [CrossRef] [PubMed]
- Parikh, C.R.; Coca, S.G.; Thiessen-Philbrook, H.; Shlipak, M.G.; Koyner, J.L.; Wang, Z.; Edelstein, C.L.; Devarajan, P.; Patel, U.D.; Zappitelli, M.; et al. Postoperative biomarkers predict acute kidney injury and poor outcomes after adult cardiac surgery. J. Am. Soc. Nephrol. 2011, 22, 1748–1757. [Google Scholar] [CrossRef] [PubMed]
- Parikh, C.R.; Devarajan, P.; Zappitelli, M.; Sint, K.; Thiessen-Philbrook, H.; Li, S.; Kim, R.W.; Koyner, J.L.; Coca, S.G.; Edelstein, C.L.; et al. Postoperative biomarkers predict acute kidney injury and poor outcomes after pediatric cardiac surgery. J. Am. Soc. Nephrol. 2011, 22, 1737–1747. [Google Scholar] [CrossRef] [PubMed]
- Dupont, M.; Shrestha, K.; Singh, D.; Awad, A.; Kovach, C.; Scarcipino, M.; Maroo, A.P.; Tang, W.H. Lack of significant renal tubular injury despite acute kidney injury in acute decompensated heart failure. Eur. J. Heart Fail. 2012, 14, 597–604. [Google Scholar] [CrossRef] [PubMed]
- Schmidt-Ott, K.M.; Mori, K.; Li, J.Y.; Kalandadze, A.; Cohen, D.J.; Devarajan, P.; Barasch, J. Dual action of neutrophil gelatinase-associated lipocalin. J. Am. Soc. Nephrol. 2007, 18, 407–413. [Google Scholar] [CrossRef] [PubMed]
- Shrestha, K.; Borowski, A.G.; Troughton, R.W.; Klein, A.L.; Tang, W.H. Association between systemic neutrophil gelatinase-associated lipocalin and anemia, relative hypochromia, and inflammation in chronic systolic heart failure. Congest. Heart Fail. 2012, 18, 239–244. [Google Scholar] [CrossRef] [PubMed]
- Parikh, C.R.; Jani, A.; Mishra, J.; Ma, Q.; Kelly, C.; Barasch, J.; Edelstein, C.L.; Devarajan, P. Urine NGAL and IL-18 are predictive biomarkers for delayed graft function following kidney transplantation. Am. J. Transplant. 2006, 6, 1639–1645. [Google Scholar] [CrossRef] [PubMed]
- Damman, K.; Valente, M.A.; Voors, A.A.; O’Connor, C.M.; van Veldhuisen, D.J.; Hillege, H.L. Renal impairment, worsening renal function, and outcome in patients with heart failure: An updated meta-analysis. Eur. Heart J. 2014, 35, 455–469. [Google Scholar] [CrossRef] [PubMed]
- Bolignano, D.; Basile, G.; Parisi, P.; Coppolino, G.; Nicocia, G.; Buemi, M. Increased plasma neutrophil gelatinase-associated lipocalin levels predict mortality in elderly patients with chronic heart failure. Rejuvenation Res. 2009, 12, 7–14. [Google Scholar] [CrossRef] [PubMed]
- Damman, K.; van Veldhuisen, D.J.; Navis, G.; Vaidya, V.S.; Smilde, T.D.; Westenbrink, B.D.; Bonventre, J.V.; Voors, A.A.; Hillege, H.L. Tubular damage in chronic systolic heart failure is associated with reduced survival independent of glomerular filtration rate. Heart 2010, 96, 1297–1302. [Google Scholar] [CrossRef] [PubMed]
- Damman, K.; Masson, S.; Hillege, H.L.; Maggioni, A.P.; Voors, A.A.; Opasich, C.; van Veldhuisen, D.J.; Montagna, L.; Cosmi, F.; Tognoni, G.; et al. Clinical outcome of renal tubular damage in chronic heart failure. Eur. Heart J. 2011, 32, 2705–2712. [Google Scholar] [CrossRef] [PubMed]
- Van Deursen, V.M.; Damman, K.; Voors, A.A.; van der Wal, M.H.; Jaarsma, T.; van Veldhuisen, D.J.; Hillege, H.L. Prognostic value of plasma neutrophil gelatinase-associated lipocalin for mortality in patients with heart failure. Circ. Heart Fail. 2014, 7, 35–42. [Google Scholar] [CrossRef] [PubMed]
- Nymo, S.H.; Ueland, T.; Askevold, E.T.; Flo, T.H.; Kjekshus, J.; Hulthe, J.; Wikstrand, J.; McMurray, J.; van Veldhuisen, D.J.; Gullestad, L.; et al. The association between neutrophil gelatinase-associated lipocalin and clinical outcome in chronic heart failure: Results from CORONA. J. Intern. Med. 2011. [Google Scholar] [CrossRef]
- Givertz, M.M.; Postmus, D.; Hillege, H.L.; Mansoor, G.A.; Massie, B.M.; Davison, B.A.; Ponikowski, P.; Metra, M.; Teerlink, J.R.; Cleland, J.G.; et al. Renal function trajectories and clinical outcomes in acute heart failure. Circ. Heart Fail. 2014, 7, 59–67. [Google Scholar] [CrossRef] [PubMed]
- Weatherley, B.D.; Cotter, G.; Dittrich, H.C.; DeLucca, P.; Mansoor, G.A.; Bloomfield, D.M.; Ponikowski, P.; O’Connor, C.M.; Metra, M.; Massie, B.M.; et al. Design and rationale of the PROTECT study: A placebo-controlled randomized study of the selective A1 adenosine receptor antagonist rolofylline for patients hospitalized with acute decompensated heart failure and volume overload to assess treatment effect on congestion and renal function. J. Card. Fail. 2010, 16, 25–35. [Google Scholar] [CrossRef] [PubMed]
- Massie, B.M.; O’Connor, C.M.; Metra, M.; Ponikowski, P.; Teerlink, J.R.; Cotter, G.; Weatherley, B.D.; Cleland, J.G.; Givertz, M.M.; Voors, A.; et al. Rolofylline, an adenosine A1-receptor antagonist, in acute heart failure. N. Engl. J. Med. 2010, 363, 1419–1428. [Google Scholar] [CrossRef] [PubMed]
- Voors, A.A.; Dittrich, H.C.; Massie, B.M.; DeLucca, P.; Mansoor, G.A.; Metra, M.; Cotter, G.; Weatherley, B.D.; Ponikowski, P.; Teerlink, J.R.; et al. Effects of the adenosine A1 receptor antagonist rolofylline on renal function in patients with acute heart failure and renal dysfunction: Results from PROTECT (Placebo-Controlled Randomized Study of the Selective Adenosine A1 Receptor Antagonist Rolofylline for Patients Hospitalized with Acute Decompensated Heart Failure and Volume Overload to Assess Treatment Effect on Congestion and Renal Function). J. Am. Coll. Cardiol. 2011, 57, 1899–1907. [Google Scholar] [CrossRef] [PubMed]
- Cleland, J.G.; Chiswell, K.; Teerlink, J.R.; Stevens, S.; Fiuzat, M.; Givertz, M.M.; Davison, B.A.; Mansoor, G.A.; Ponikowski, P.; Voors, A.A.; et al. Predictors of postdischarge outcomes from information acquired shortly after admission for acute heart failure: A report from the Placebo-Controlled Randomized Study of the Selective A1 Adenosine Receptor Antagonist Rolofylline for Patients Hospitalized With Acute Decompensated Heart Failure and Volume Overload to Assess Treatment Effect on Congestion and Renal Function (PROTECT) Study. Circ. Heart Fail. 2014, 7, 76–87. [Google Scholar] [CrossRef] [PubMed]

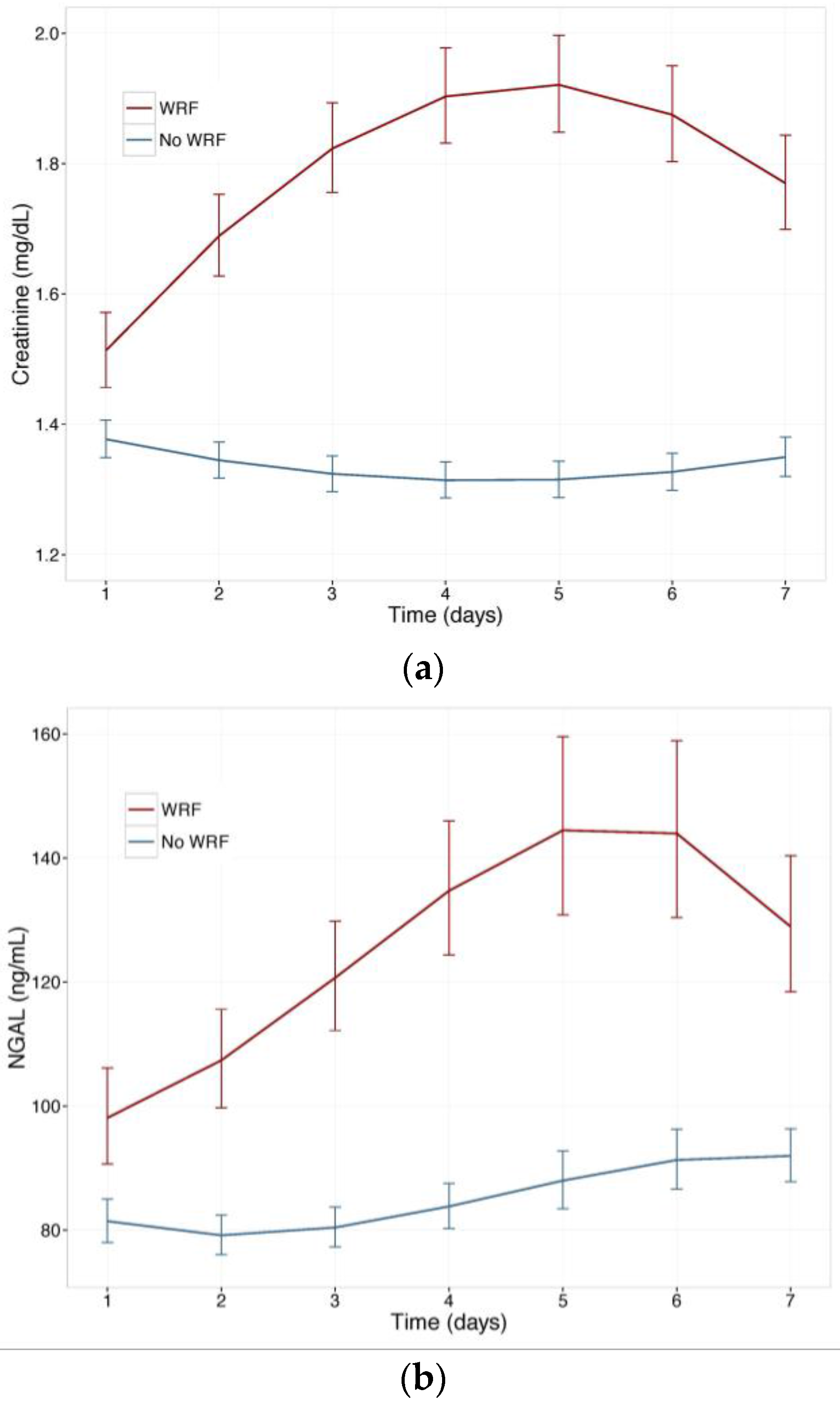

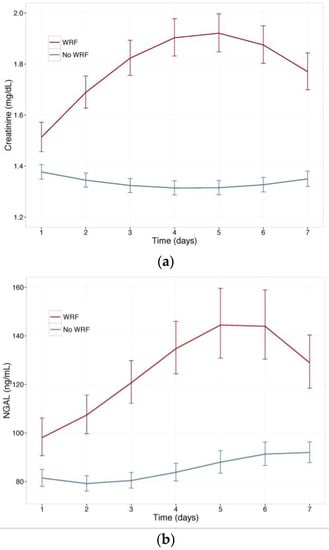

Figure 1.
(a) Change in serum creatinine in patients with and without WRF; (b) Change in plasma Neutrophil Gelatinase-Associated Lipocalin (NGAL) in patients with and without WRF. Least square means, with 95% confidence intervals, WRF: worsening renal function, defined as a creatinine increase of ≥0.3 mg/dL by day 4.
Figure 1.
(a) Change in serum creatinine in patients with and without WRF; (b) Change in plasma Neutrophil Gelatinase-Associated Lipocalin (NGAL) in patients with and without WRF. Least square means, with 95% confidence intervals, WRF: worsening renal function, defined as a creatinine increase of ≥0.3 mg/dL by day 4.

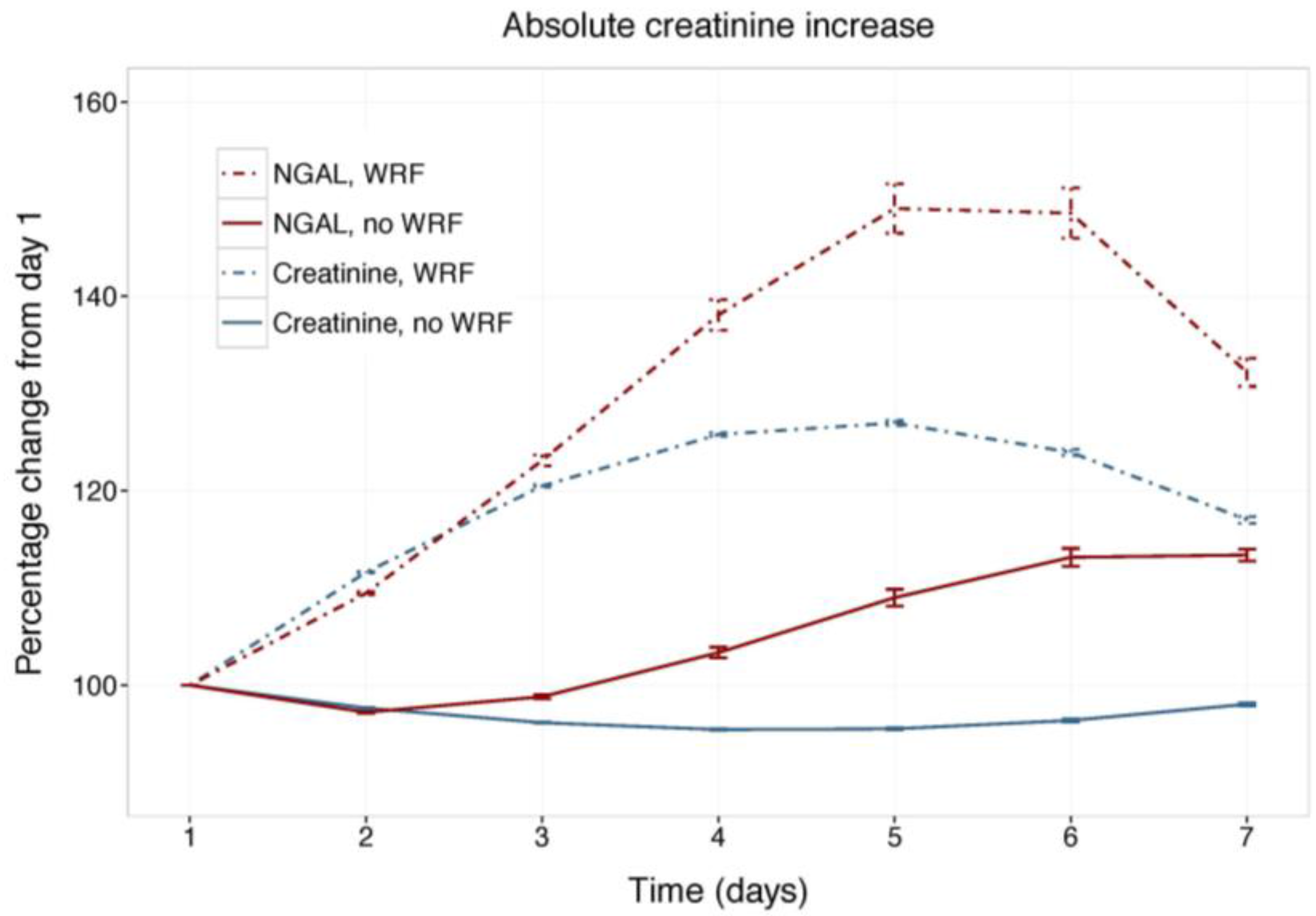

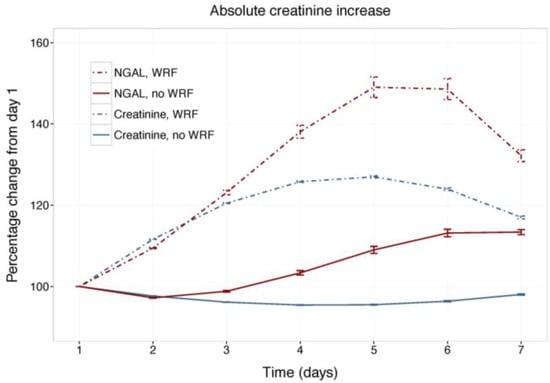

Figure 2.
Relative changes in serum creatinine and NGAL. Least square means with 95% confidence intervals. WRF: worsening renal function, defined as creatinine increase of ≥0.3 mg/dL by day 4.
Figure 2.
Relative changes in serum creatinine and NGAL. Least square means with 95% confidence intervals. WRF: worsening renal function, defined as creatinine increase of ≥0.3 mg/dL by day 4.

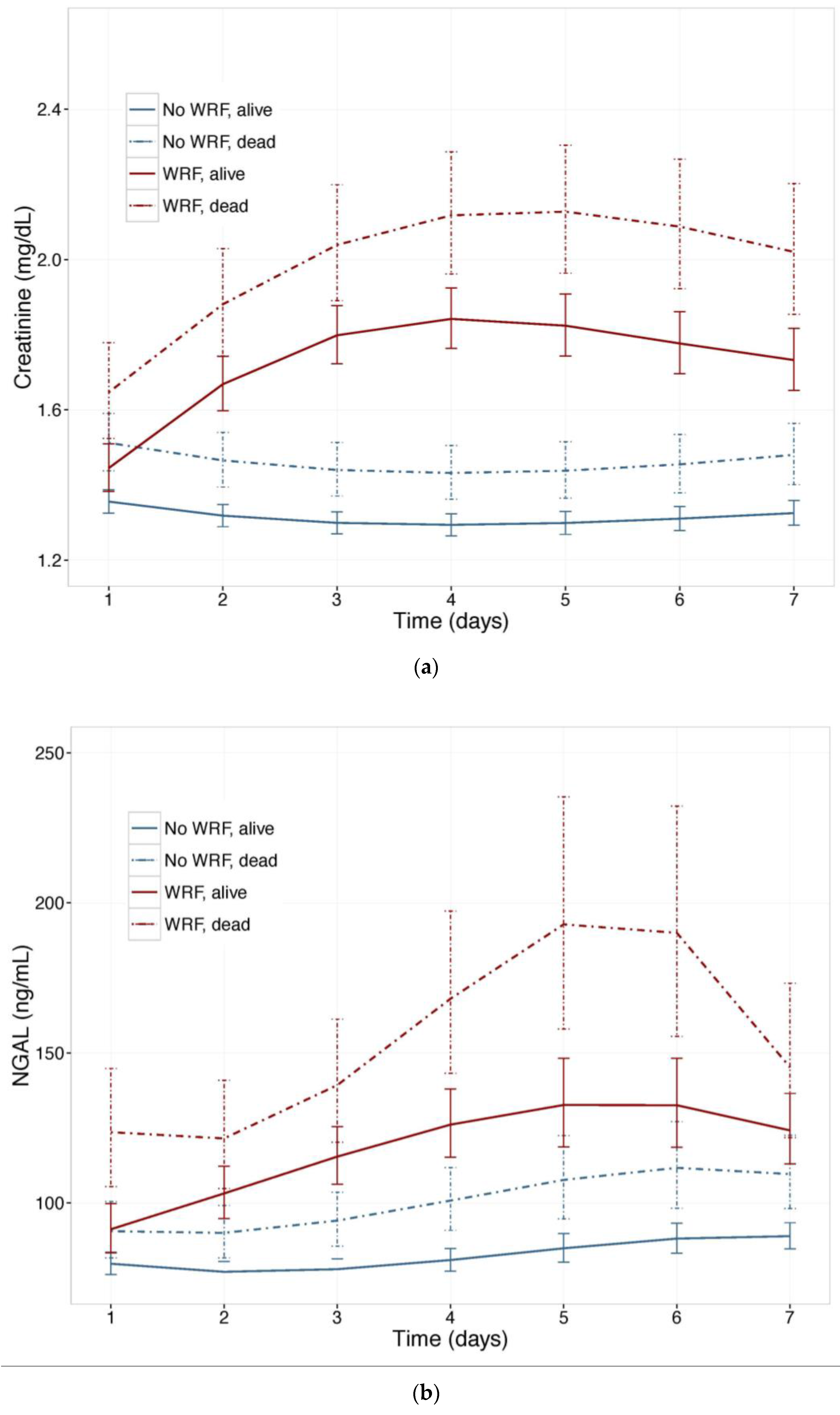

Figure 3.
(a) Changes in serum Creatinine; and (b) NGAL in patients with and without worsening renal function, by vital status, at 180 days. Least square means with 95% confidence intervals. WRF: worsening renal function, defined as a creatinine increase of ≥0.3 mg/dL by day 4.
Figure 3.
(a) Changes in serum Creatinine; and (b) NGAL in patients with and without worsening renal function, by vital status, at 180 days. Least square means with 95% confidence intervals. WRF: worsening renal function, defined as a creatinine increase of ≥0.3 mg/dL by day 4.

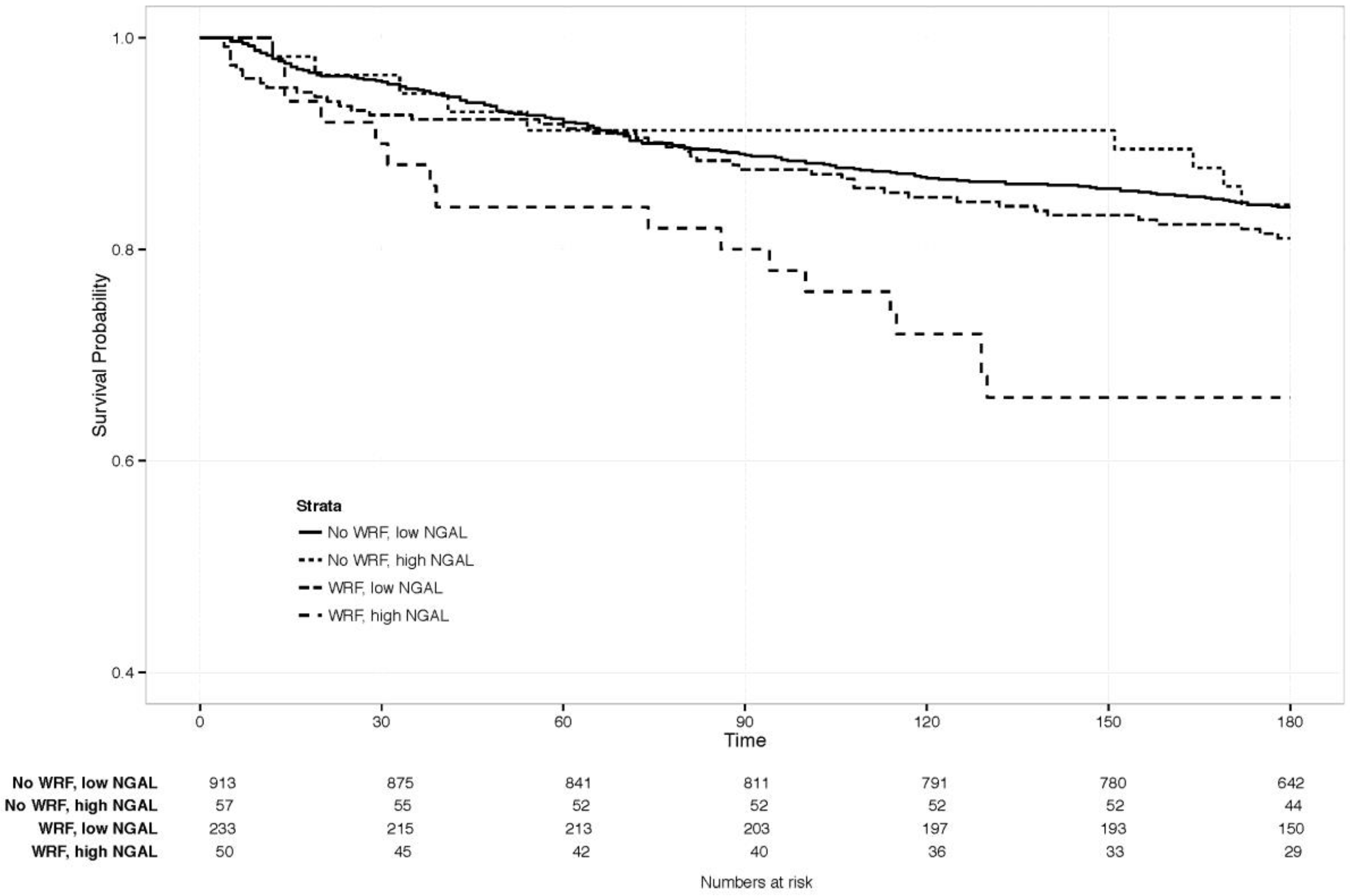

Figure 4.
180-day survival in patients with vs. without WRF, high vs. low NGAL change. Creat: creatinine. NGAL: Neutrophil Gelatinase-Associated Lipocalin. High vs. low, defined as an NGAL increase of ≥1 standard deviation (≥88 ng/mL increase).
Figure 4.
180-day survival in patients with vs. without WRF, high vs. low NGAL change. Creat: creatinine. NGAL: Neutrophil Gelatinase-Associated Lipocalin. High vs. low, defined as an NGAL increase of ≥1 standard deviation (≥88 ng/mL increase).
Table 1.
Baseline characteristics for patients with and without worsening renal function (WRF), and by vital status, at day 180.
Table 1.
Baseline characteristics for patients with and without worsening renal function (WRF), and by vital status, at day 180.
| Categories | No WRF, Alive | No WRF, Dead | p * | No WRF, Total | WRF, Alive | WRF, Dead | p * | WRF, Total | p ** |
|---|---|---|---|---|---|---|---|---|---|
| (n = 936) | (n = 186) | (n = 1122) | (n = 247) | (n = 78) | (n = 325) | ||||
| Demographics | |||||||||
| Sex (% Male) | 64 (599) | 68.3 (127) | 0.302 | 64.7 (726) | 69.6 (172) | 71.8 (56) | 0.825 | 70.2 (228) | 0.079 |
| Age (years) | 69.6 ± 11.6 | 72.4 ± 10.7 | 0.001 | 70 ± 11.5 | 71.1 ± 10.3 | 71.9 ± 10.7 | 0.578 | 71.3 ± 10.4 | 0.058 |
| BMI (kg/m2) | 28.8 ± 6 | 27.8 ± 5.7 | 0.032 | 28.6 ± 6 | 29.1 ± 5.8 | 28.3 ± 6 | 0.311 | 28.9 ± 5.9 | 0.516 |
| LVEF (% (n)) | 32.7 ± 12.8 | 28.6 ± 11 | 0.001 | 31.9 ± 12.5 | 36.5 ± 13.9 | 30.5 ± 13.4 | 0.021 | 34.9 ± 14 | 0.020 |
| Systolic Blood Pressure (mmHg) | 125.7 ± 17.3 | 117.8 ± 17.2 | <0.001 | 124.4 ± 17.6 | 129.2 ± 16.6 | 120.1 ± 16.4 | <0.001 | 127 ± 17 | 0.015 |
| Diastolic Blood Pressure (mmHg) | 74.8 ± 11.5 | 71 ± 10.7 | <0.001 | 74.1 ± 11.5 | 76.9 ± 12.1 | 71.2 ± 10.8 | <0.001 | 75.5 ± 12 | 0.060 |
| Heart Rate (beats/min) | 81.6 ± 16.4 | 80.3 ± 15.1 | 0.286 | 81.4 ± 16.2 | 80.3 ± 14.9 | 78.8 ± 14.8 | 0.452 | 79.9 ± 14.9 | 0.124 |
| Rolofylline administration (% (n)) | 65.2 (610) | 69.4 (129) | 0.310 | 65.9 (739) | 72.5 (179) | 65.4 (51) | 0.291 | 70.8 (230) | 0.112 |
| Clinical Profile | |||||||||
| Orthopnea (% (n)) | 96.6 (896) | 94.6 (175) | 0.287 | 96.2 (1071) | 95.1 (233) | 100 (78) | 0.099 | 96.3 (311) | 1.000 |
| Rales (% (n)) | 63.5 (594) | 61.3 (114) | 0.621 | 63.2 (708) | 64.8 (160) | 65.4 (51) | 1.000 | 64.9 (211) | 0.605 |
| Edema (% (n)) | 71.2 (666) | 71 (132) | 1.000 | 71.1 (798) | 63.6 (157) | 60.3 (47) | 0.695 | 62.8 (204) | 0.005 |
| Jugular venous pressure (% (n)) | 41.2 (344) | 49.4 (81) | 0.064 | 42.5 (425) | 40.3 (87) | 43.7 (31) | 0.716 | 41.1 (118) | 0.716 |
| Medical History | |||||||||
| Hypertension (% (n)) | 80.1 (750) | 79 (147) | 0.810 | 79.9 (897) | 79.8 (197) | 74.4 (58) | 0.394 | 78.5 (255) | 0.612 |
| Diabetes Mellitus (% (n)) | 44.9 (420) | 45.7 (85) | 0.899 | 45 (505) | 44.5 (110) | 41.6 (32) | 0.743 | 43.8 (142) | 0.754 |
| Hypercholesterolemia (% (n)) | 45.7 (427) | 42.5 (79) | 0.472 | 45.1 (506) | 51.4 (127) | 48.7 (38) | 0.775 | 50.8 (165) | 0.084 |
| Smoking (% (n)) | 18.6 (174) | 19.5 (36) | 0.867 | 18.8 (210) | 14.2 (35) | 20.5 (16) | 0.250 | 15.7 (51) | 0.247 |
| Ischemic Heart Disease (% (n)) | 69.3 (648) | 74.6 (138) | 0.177 | 70.2 (786) | 69.2 (171) | 73.1 (57) | 0.613 | 70.2 (228) | 1.000 |
| Myocardial Infarction (% (n)) | 49 (458) | 54.3 (100) | 0.216 | 49.9 (558) | 48.2 (119) | 52.6 (41) | 0.585 | 49.2 (160) | 0.879 |
| PCI (% (n)) | 21.9 (203) | 26.8 (49) | 0.182 | 22.7 (252) | 22.3 (55) | 23.4 (18) | 0.962 | 22.5 (73) | 1.000 |
| CABG (% (n)) | 18.6 (172) | 21.9 (40) | 0.349 | 19.1 (212) | 21.9 (54) | 25.6 (20) | 0.590 | 22.8 (74) | 0.168 |
| Peripheral Vascular Disease (% (n)) | 10.2 (95) | 15.1 (28) | 0.069 | 11 (123) | 11 (27) | 14.3 (11) | 0.559 | 11.8 (38) | 0.769 |
| Atrial Fibrillation (% (n)) | 55.6 (518) | 57 (106) | 0.797 | 55.9 (624) | 55.1 (136) | 50 (39) | 0.515 | 53.8 (175) | 0.561 |
| NYHA Class | 0.426 | 0.059 | 0.578 | ||||||
| I–II | 16.6 (155) | 13.4 (25) | 16 (180) | 19.8 (49) | 10.3 (8) | 17.5 (57) | |||
| III | 44.9 (420) | 49.5 (92) | 45.6 (512) | 45.7 (113) | 59 (46) | 48.9 (159) | |||
| IV | 32.8 (307) | 31.7 (59) | 32.6 (366) | 31.6 (78) | 26.9 (21) | 30.5 (99) | |||
| ICD therapy (% (n)) | 12.6 (118) | 17.2 (32) | 0.119 | 13.4 (150) | 12.6 (31) | 19.2 (15) | 0.197 | 14.2 (46) | 0.790 |
| CRT therapy (% (n)) | 7.2 (67) | 14 (26) | 0.003 | 8.3 (93) | 11.3 (28) | 9 (7) | 0.706 | 10.8 (35) | 0.205 |
| Stroke (% (n)) | 8.3 (78) | 9.1 (17) | 0.828 | 8.5 (95) | 12.6 (31) | 19.2 (15) | 0.197 | 14.2 (46) | 0.003 |
| COPD (% (n)) | 19.4 (181) | 21.6 (40) | 0.545 | 19.7 (221) | 18.6 (46) | 21.8 (17) | 0.650 | 19.4 (63) | 0.953 |
| Prior Medication Use | |||||||||
| ACE inhibitors or ARB (% (n)) | 76.4 (715) | 69.9 (130) | 0.074 | 75.3 (845) | 76.5 (189) | 71.8 (56) | 0.488 | 75.4 (245) | 1.000 |
| Beta blockers (% (n)) | 74.7 (699) | 75.3 (140) | 0.939 | 74.8 (839) | 74.5 (184) | 67.9 (53) | 0.323 | 72.9 (237) | 0.547 |
| MRA (% (n)) | 45.8 (429) | 48.4 (90) | 0.577 | 46.3 (519) | 47.4 (117) | 59 (46) | 0.097 | 50.2 (163) | 0.239 |
| Calcium Antagonists (% (n)) | 12.7 (119) | 8.6 (16) | 0.147 | 12 (135) | 21.9 (54) | 7.7 (6) | 0.008 | 18.5 (60) | 0.004 |
| Nitrates (% (n)) | 26.9 (252) | 26.9 (50) | 1.000 | 26.9 (302) | 27.5 (68) | 29.5 (23) | 0.849 | 28 (91) | 0.752 |
| Digoxin (% (n)) | 31 (290) | 31.2 (58) | 1.000 | 31 (348) | 32.4 (80) | 20.5 (16) | 0.063 | 29.5 (96) | 0.660 |
| Laboratory Values | |||||||||
| Creatinine (mg/dL) | 1.3 (1.1–1.7) | 1.5 (1.2–2.1) | <0.001 | 1.3 (1.1–1.7) | 1.4 (1.2–1.8) | 1.7 (1.3–2) | 0.002 | 1.5 (1.2–1.8) | <0.001 |
| eGFR (mL/min/1.73 m2) | 52 (39–66) | 45 (33–60) | <0.001 | 51 (38–65) | 48 (38–62) | 40 (32–51) | <0.001 | 46 (37–59) | <0.001 |
| NGAL (ng/mL) | 78 (50–123) | 96 (58–137) | 0.008 | 81 (52–127) | 90 (56–142) | 131 (72–187) | 0.002 | 93 (58–151) | <0.001 |
| Blood Urea Nitrogen (mg/dL) | 28 (21–38) | 37 (26–51) | <0.001 | 29 (22–40) | 28 (23–38) | 41 (30–55) | <0.001 | 31 (24–43) | 0.029 |
| Sodium (mmol/L) | 140 (137–143) | 138 (135–141) | <0.001 | 140 (137–142) | 141 (138–143) | 139 (136–142) | 0.010 | 140 (138–143) | 0.063 |
| Potassium (mmol/L) | 4.2 (3.9–4.6) | 4.3 (3.9–4.8) | 0.175 | 4.2 (3.9–4.6) | 4.3 (4–4.7) | 4.3 (3.9–4.7) | 0.815 | 4.3 (3.9–4.7) | 0.090 |
| Hemoglobin (g/dL) | 12.9 ± 2 | 12.7 ± 1.9 | 0.216 | 12.8 ± 2 | 12.5 ± 1.9 | 12.3 ± 1.8 | 0.399 | 12.5 ± 1.9 | 0.007 |
| Anemia (% (n)) | 38.3 (314) | 44.4 (75) | 0.169 | 39.4 (389) | 46.6 (102) | 49.3 (34) | 0.800 | 47 (136) | 0.021 |
| BNP (mg/dL) | 1195 (815–2228) | 1895 (1172–3300) | <0.001 | 1351 (852–2433) | 1073 (718–1616) | 1749 (1153–2829) | 0.006 | 1190 (779–2078) | 0.227 |
Abbreviations: BMI: Body Mass Index; LVEF: Left Ventricular Ejection Fraction; PCI: Percutaneous Coronary Intervention; CABG: Coronary Artery Bypass Graft; NYHA: New York Heart Association; ICD: Internal Cardiac Defibrillator; CRT: Cardiac Resynchronization Therapy; COPD: chronic obstructive pulmonary disease; ACE: Angiotensin Converting Enzyme; ARB: Aldosterone Receptor Blocker; MRA: Mineralocorticoid Receptor Antagonist; eGFR: estimated Glomerular Filtration Rate; BNP: Brain Natriuretic Peptide. Categorical variables are presented as: % (N). * p value for dead vs. alive, ** p value for WRF vs. No WRF. To convert Creatinine from mg/dL to µmol/L, multiply by 88.4.
Table 2.
Predictive value of NGAL and Creatinine for WRF.
| Baseline Values | |||
| WRF definition | Creatinine AUC | NGAL AUC | p * |
| ≥0.3 mg/dL increase | 0.571 | 0.569 | 0.930 |
| Day 2 Values | |||
| WRF definition | Creatinine AUC | NGAL AUC | p * |
| ≥0.3 mg/dL increase | 0.617 | 0.570 | 0.097 |
| Change on Day 2 | |||
| WRF definition | Creatinine AUC | NGAL AUC | p * |
| ≥0.3 mg/dL increase | 0.718 | 0.491 | <0.001 |
* p for difference in AUC.
Table 3.
Multivariable logistic regression for prediction of worsening renal function.
| Variables | OR (95% CI) | χ2 | p |
|---|---|---|---|
| Cholesterol (per SD) | 1.33 (1.16–1.52) | 16.26 | <0.001 |
| Hemoglobin (per SD) | 0.77 (0.67–0.90) | 11.45 | 0.001 |
| NGAL (per SD) | 1.23 (1.08–1.40) | 9.79 | 0.002 |
| History of Stroke | 1.89 (1.25–2.83) | 9.52 | 0.002 |
| Male Sex | 1.48 (1.10–2.01) | 6.55 | 0.010 |
| Albumin (per SD) | 1.19 (1.03–1.38) | 5.77 | 0.016 |
| Rolofylline treatment | 1.39 (1.04–1.87) | 4.78 | 0.029 |
Abbreviations: SD: standard deviation; OR: Odds Ratio.
Table 4.
Added value of NGAL on top of creatinine for predicting clinically relevant WRF.
| WRF definition | MV Model * OR (95% CI) | χ2 | p-value ** | AUC | p-value *** |
|---|---|---|---|---|---|
| WRF and 180-day mortality **** | |||||
| ≥0.3 mg/dL increase | |||||
| Creatinine | 1.26 (1.02–1.55) | 4.81 | 0.028 | 0.670 | 0.021 |
| NGAL | 1.25 (1.04–1.48) | 6.52 | 0.011 | ||
| ≥25% & ≥0.3mg/dL increase | |||||
| Creatinine | 1.03 (0.78–1.33) | 0.04 | 0.833 | 0.637 | 0.017 |
| NGAL | 1.31 (1.06–1.56) | 7.53 | 0.006 | ||
| WRF and 60-day endpoint **** | |||||
| ≥0.3 mg/dL increase | |||||
| Creatinine | 1.25 (1.03–1.5) | 5.36 | 0.021 | 0.656 | 0.001 |
| NGAL | 1.32 (1.12–1.55) | 11.69 | 0.001 | ||
| ≥25% & ≥0.3mg/dL increase | |||||
| Creatinine | 1.03 (0.81–1.29) | 0.05 | 0.821 | 0.633 | 0.005 |
| NGAL | 1.31 (1.09–1.55) | 9.57 | 0.002 |
* Multivariable logistic model, including both creatinine and NGAL; odds ratios presented per standard deviation; ** Multivariable p value for WRF prediction; *** Likelihood ratio test for added value of adding NGAL to a model with creatinine alone; **** Prediction of WRF with poor clinical outcome, compared to all other patients.
© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Damman, K.; Valente, M.A.E.; Van Veldhuisen, D.J.; Cleland, J.G.F.; O’Connor, C.M.; Metra, M.; Ponikowski, P.; Cotter, G.; Davison, B.; Givertz, M.M.; et al. Plasma Neutrophil Gelatinase-Associated Lipocalin and Predicting Clinically Relevant Worsening Renal Function in Acute Heart Failure. Int. J. Mol. Sci. 2017, 18, 1470. https://doi.org/10.3390/ijms18071470
AMA Style
Damman K, Valente MAE, Van Veldhuisen DJ, Cleland JGF, O’Connor CM, Metra M, Ponikowski P, Cotter G, Davison B, Givertz MM, et al. Plasma Neutrophil Gelatinase-Associated Lipocalin and Predicting Clinically Relevant Worsening Renal Function in Acute Heart Failure. International Journal of Molecular Sciences. 2017; 18(7):1470. https://doi.org/10.3390/ijms18071470
Chicago/Turabian StyleDamman, Kevin, Mattia A. E. Valente, Dirk J. Van Veldhuisen, John G. F. Cleland, Christopher M. O’Connor, Marco Metra, Piotr Ponikowski, Gad Cotter, Beth Davison, Michael M. Givertz, and et al. 2017. "Plasma Neutrophil Gelatinase-Associated Lipocalin and Predicting Clinically Relevant Worsening Renal Function in Acute Heart Failure" International Journal of Molecular Sciences 18, no. 7: 1470. https://doi.org/10.3390/ijms18071470
APA StyleDamman, K., Valente, M. A. E., Van Veldhuisen, D. J., Cleland, J. G. F., O’Connor, C. M., Metra, M., Ponikowski, P., Cotter, G., Davison, B., Givertz, M. M., Bloomfield, D. M., Hillege, H. L., & Voors, A. A. (2017). Plasma Neutrophil Gelatinase-Associated Lipocalin and Predicting Clinically Relevant Worsening Renal Function in Acute Heart Failure. International Journal of Molecular Sciences, 18(7), 1470. https://doi.org/10.3390/ijms18071470
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
