Bombyx mori Dihydroorotate Dehydrogenase: Knockdown Inhibits Cell Growth and Proliferation via Inducing Cell Cycle Arrest

by
Erhu Zhao
1,2,3,†,
Xiaolan Jiang
1,† and
Hongjuan Cui
1,2,3,*
1
State Key Laboratory of Silkworm Genome Biology, College of Biotechnology, Southwest University, Chongqing 400716, China
2
Chongqing Engineering and Technology Research Center for Silk Biomaterials and Regenerative Medicine, Chongqing 400716, China
3
Southwest University Engineering Research Center for Cancer Biomedical and Translational Medicine, Southwest University, Chongqing 400715, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2018, 19(9), 2581; https://doi.org/10.3390/ijms19092581
Submission received: 17 July 2018 / Revised: 22 August 2018 / Accepted: 26 August 2018 / Published: 30 August 2018
(This article belongs to the Section Biochemistry)
Browse Figures
Versions Notes

Abstract

:
Dihydroorotate dehydrogenase (DHODH), in the de novo pyrimidine biosynthetic pathway, is the fourth enzyme of pyrimidine synthesis and is used to oxidize dihydroorotate and hence to orotat. We cloned and characterized here the dhod of silkworms, Bombyx mori. The full-length cDNA sequence of dhod is 1339 bp, including an open reading frame (ORF) of 1173 bp that encoded a 390 amino acid protein. And two domains were involved in the Dihydroorotate dehydrogenase amino acid sequence of silkworms, Bombyx mori (BmDHODH), namely a DHO_dh domain and a transmembrane domain in N-termina. The silkworm dhod is expressed throughout development and in nine tissues. Moreover, knockdown of the silkworm dhod gene reduced cell growth and proliferation through G2/M phase cell cycle arrest. Similarly, DHODH inhibitor (leflunomide) also reduced cell growth and proliferation, with a significant decrease of cyclin B and cdk2. DHODH is the fourth enzyme of pyrimidine synthesis, so we also found that leflunomide can inhibit, at least in part, the endomitotic DNA replication in silk glands cells. These findings demonstrate that downregulation of BmDHODH inhibits cell growth and proliferation in silkworm cells, and the endomitotic DNA replication in silk gland cells.

Graphical Abstract

1. Introduction

Pyrimidine nucleotide synthesis is an essential biological process, which play a pivotal role in cellular metabolism serving as activated precursors of RNA and DNA [1]. This process is conducted by both de novo and salvage pathways. Dihydroorotate dehydrogenase (DHODH) is the fourth enzyme in the de novo pyrimidine biosynthesis pathway, serving as the catalyst to oxidize the dihydroorotate to orotic acid in the biosynthesis of uridine monophosphate (UMP) [2,3]. This acid is the essential precursor of all other pyrimidine nucleotides. The impairment of DHODH activity causes cell growth retardation and cell cycle arrest. This is considered to result from a block in progression from G2/M phase, but not from impaired DNA synthesis induced by a pyrimidine deficiency [4,5,6]. In human, DHODH has been validated as a potential target for treating a variety of autoimmune disease as well as cancer [7]. In malaria parasite, Plasmodium falciparum, DHODH has been recognized as a latent drug target to inhibit malarial activity in vivo [8]. The inhibitors on Pneumocystis jiroveci (previously called Pneumocystis carinii) DHODH are also used to treat Pneumocystis jiroveci pneumonia [9,10]. Therefore, DHODH is a high-potential drug target, for example leflunomide, a DHODH specific inhibitor, is used to treat malaria and Pneumocystis jiroveci infections as a low molecular weight compound [2,11,12,13]. Leflunomide is also reported to be able to effectively reduce cell growth and proliferation by inhibiting DHODH activity in several types of cancers [14,15,16,17,18]. However, there is little information available on the functions of DHODH in insects. Drosophila melanogaster DHODH has ever been shown with properties common to the other animal DHODHs: mitochondrial localization and electron transport chain coupling via quinones, and its protein sequence strongly resembles the mammalian protein [19,20,21]. Yet further researches are still required. Therefore, the dhod gene of silkworm, Bombyx mori, was cloned and characterized here.
The silkworm (Bombyx mori) is a potential research model for the study of lepidoptera pests biology. Besides, as genetic manipulation technologies have been successfully established, some new tools are provided to identify and characterize more novel genes in silkworm [22,23,24]. In this study, we analyzed the differentiation, description, expression, and functions of the silkworm dhod gene. We investigated the role of the dhod gene on cell growth and proliferation in the BmE-SWU3 cell line, which was established from silkworm embryos and takes on potent growth vigor and genetic stability [25]. Furthermore, there are multiple endomitotic cell cycles in silk gland cells during larval development [26,27]. In our previous work, we also found that the cell cycles of endomitosis are activated during the intermolt stages and are inhibited during the molt stages in silk gland cells [28]. Given that DHODH is the fourth enzyme of pyrimidine synthesis, we investigated the effects of DHODH inhibitor on endomitotic DNA synthesis in silk glands cells.

2. Results

2.1. Cloning and Characterization of dhod in Silkworm, Bombyx mori

The complementary DNA (cDNA) of dhod was obtained by amplifying polymerase chain reaction (PCR) and rapid-amplification of cDNA ends (RACE), i.e., the rapid magnification of cDNA ends while the result was verified by amplifying the open reading frames (ORF). The full-length cDNA sequence of BmDHODH is 1339 bp. It included a 1173 bp ORF that encoded a 390 aa protein, a 93 bp 5′ UTR, and a 73 bp 3′ UTR (Figure 1A), which were entirely clustered on nscaf3032 situated on chromosome 26 in silkworm genome. Two domains were involved in the BmDHODH aa sequence, namely a DHO_dh domain and a transmembrane domain in N-terminal (Figure 1B and Figure S1). Besides, SignalP 4.1 was employed to get the advance information of the position and orientation of the signal peptide cleavage sites in dhod sequence for assuming about potential signal peptides of BmDHODH proteins. The Y-score from the SignalP output was adopted to discriminate the signal and nonsignal peptide. As shown in Figure 1C, the BmDHODH sequence contains no cleavage site, which means it belongs to a nonsecretory protein.

2.2. Phylogenetic Analysis of DHODH Homologues

To explore the evolution of the silkworm and other species, a phylogenetic tree of aligned aa sequences was established from various species using MEGA 6.0. The phylogenetic analysis suggests that DHODH was conserved from invertebrates and vertebrates. Yet the members can still be classified into two types: vertebrates (including Mammalia, Aves, Pisce, and Amhibia) and invertebrates (Insecta). Insecta can also fall into three subgroups: Lepidoptera, Hymenoptera, and Diptera (Figure 2). Expectedly, silkworm dhod is clustered into Lepidoptera subgroups; it is the most closely associated with ones of Plutella xylostella, Papilio polytes, Papilio machaon, and Papilio xuthus, which form a clade (Figure 2).

2.3. Amino Acid Sequence Alignment of BmDHODH Homologues

The homology of BmDHODH and other species DHODH sequences were explored through multiple sequence alignment using ClustalX. As suggested in the results, BmDHODH is shared with PxDHODH, PpDHODH, PmDHODH, and PxuDHODH in 70%, 67%, 67%, and 67%, respectively. These sequences shared much similarity to BmDHODH sequence and contained a highly conserved motif, the DHO_dh motif (Figure 3). The secondary structural analysis of the homologues suggests that all homologues contained a conceivable N-terminal transmembrane domain and their aa locations were 12–29 (PxDHODH) and 13–30 (BmDHODH, PpDHODH, PxuDHODH, PmDHODH) (Figure 3).

2.4. The Expression Profile of dhod in Silkworm, Bombyx mori

The expressed-sequence tag (ETS) database from silkworm at stage of 3-day-old 5th instar larvae was analyzed. It was found that dhod was highly expressed in several tissues including testis, ovary, head, and silk gland. However, its expression was relatively low in epidermis, mid-gut, and hemolymph while moderate in fat and malpighian tubles (Figure 4A); we confirmed this result by qRT-PCR (Figure 4B). Next, the expression profile of dhod was analyzed in different developmental stages. The result illustrated that dhod was commonly expressed throughout the entire developmental stages. Generally, the dhod expression level in premolting period was greater than that in other corresponding stages (Figure 4C).

2.5. Knockdown of BmDHODH Inhibited Cell Growth and Proliferation through G2/M Cell Cycle Arrest

To further explore the function of BmDHODH in the silkworm, DsRNA interference was employed to knock down BmDHODH expression. BmDHODH expressivity was checked by RT-PCR analysis as well as Western blot assay, and dsRed served as a control. As predicted, dsRNA#1 or dsRNA#2 could significantly decrease BmDHODH mRNA and protein level in comparison with dsRed control (Figure 5A,B). Knock down of BmDHODH expression by dsRNA largely inhibited cell proliferation (Figure 5C and Figure S2A). To further investigate whether BmDHODH knockdown change the rate of nuclear DNA synthesis, BrdU staining assay was employed. The result shows that knock down of BmDHODH expression significantly decreased DNA replication (Figure 5D and Figure S2B). Generally, knockdown of BmDHODH expression by dsRNA significantly inhibits cell growth and proliferation in BmE-SWU3 cells.
To better understand how BmDHODH knockdown inhibits cell growth and proliferation, the cell cycle was analyzed by flow cytometry. As illustrated in Figure 5E,F, knockdown of BmDHODH by dsRNA interference led to the accumulation in G2/M phase in BmE-SWU3 cells. We further examined the molecular mechanism by which BmDHODH knockdown induces G2/M cell cycle arrest. Accordingly, the associated cell cycle regulatory factors were investigated by qRT-PCR, which involved cyclin A, cyclin B, cyclin D, cyclin E, and cdk2. We found BmDHODH knockdown significantly decreased the mRNA level of cdk2 and cyclin B and increased cyclin A, cyclin, D and cyclin E (Figure 5G). In conclusion, knockdown of BmDHODH by dsRNA interference led to an accretion of cells at the G2/M stage with the decease of certain cell cycle factors that regulated the proceeding of G2/M phase, and inhibited cell growth and proliferation in BmE-SWU3 cells.

2.6. DHODH Inhibitor Both Reduced Cell Growth and Proliferation and DNA Synthesis of Silk Gland Cells

Leflunomide is capable of inhibiting the enzyme DHODH, thus counting as a DHODH inhibitor. To verify whether leflunomide exerted an impact on cell growth and proliferation, cell morphology was first observed after leflunomide treatment, followed by trypan blue assay. According to the results, it is shown that cell growth was repressed by leflunomide (Figure 6A and Figure S3A). The MTT assay was also performed and presented that cell proliferation was significantly inhibited with leflunomide in comparison with DMSO group (Figure 6B). In addition, BrdU staining assay was employed and BrdU-positive cells in leflunomide treated group were less than DMSO treated group (Figure S3B,C), which suggested that leflunomide significantly suppressed cell growth and proliferation.
DHODH is the fourth enzyme of pyrimidine synthesis, so we investigate the effects of a DHODH inhibitor on endomitotic DNA synthesis in silk glands cells. The silk glands from 1-day-old 4th instar larvae were dissected and then cultured in Grace medium with or without DHODH inhibitor. As shown in Figure 6C,D, the result showed that DHODH inhibitor decreased significantly the number of BrdU-positive silk gland cells. To further investigate the mechanism of the inhibition by leflunomide, the expression levels of associated cell cycle regulatory factors were checked using qRT-PCR. The results suggest that cdk2 and cyclin B mRNA levels significantly decreased while DMSO-treated cells, and cyclin A, cyclin D, and cyclin E levels increased (Figure 6E). These findings are consistent with the model that knockdown of BmDHODH inhibited cell growth and proliferation through control of cell cycle regulatory factors. Together, these results demonstrate that BmDHODH regulates cell cycle progression in BmE-SWU3 cells (Figure 6F).

3. Discussion

DHODH is a critical biological enzyme closely correlated with cell growth and proliferation. Previous studies suggested that the decrease of DHODH activity is associated with mitochondrial dysfunction, and causes cell growth retardation and cell cycle arrest in mammal models [6,29,30]. Loffler et al. first studied and characterized a purified insect dihydroorotate dehydrogenase [19]. They found the Drosophila DHODH is very similar to its mammalian forms in its catalytic kinetic properties, but significantly different in its sensitivity to diverse inhibitors previously evaluated for inhibition of mammalian DHODHs. Furthermore, they confirmed that the prodrug leflunomide with its active metabolite was the most effective agents from the study on the insect DHODH. But besides that, relatively little is known about the insect DHODH.
In this study, we employed a bioinformatic approach to identify BmDHODH based on the completion of silkworm genome sequencing [31,32,33]. The dhod gene of the silkworm was further cloned and characterized using PCR amplification and the RACE method. The BmDHODH amino acid sequence contained a DHO_dh domain and a transmembrane domain in N-terminal, which was conserved from invertebrates and vertebrates. And the dhod was commonly expressed in all silkworm larval stages of silkworm and peaked in premolting period, which indicated that dhod may correlate with higher metabolism rate in the molting period. Furthermore, dsRNA interference was found able to inhibit cell growth and proliferation. It made the cell cycle arrested at the G2/M stage, with a significant decrease of cyclin B and cdk2, which are the determinants of G2/M transition in the cell cycle [34,35]. These results are consistent with previous reports that DHODH knockdown induces cell growth retardation and G2/M cell cycle arrest in mammalian models [6]. Generally, these findings also indicate that BmDHODH controls the expression of several genes such as cyclin B and cdk2, which are involved in silkworm cell proliferation.
There are two domains in human DHODH gene, including an alpha-helical domain, which forms the opening of the tunnel guiding to the active site, and an alpha/beta-barrel domain in which the active site is located [30,36]. It is proven that leflunomide can bind in this tunnel, which serves as a specific inhibitor of DHODH [30]. Similarly, leflunomide also reduced cell growth and proliferation, with a significant decrease of cyclin B and cdk2. Furthermore, DHODH is the fourth enzyme of pyrimidine synthesis, so we found that leflunomide can inhibit, at least in part, the endomitotic DNA replication in silk glands cells. These findings, together with those presented above, demonstrate that downregulation of BmDHODH inhibits cell growth and proliferation, and the endomitotic DNA replication in silk glands cells. However, more researches with silkworms are still needed, which could uncover very interesting BmDHODH properties. Our work might be a promising tool to help researchers understand the characteristics of BmDHODH. Furthermore, pyrimidine biosynthesis is an essential process for DNA and RNA synthesis in silkworm. A critical step in the de novo pyrimidine biosynthesis pathway is catalyzed by BmDHODH. Therefore, BmDHODH is a potential drug target. The silkworm is a promising lepidoptera pest model, so the search for inhibitors of DHODH may provide new insights into ecofriendly pest control.

4. Experimental Section

4.1. Biological Materials

This study adopted the Chinese silkworm strain Dazao (P50) and kept in the State Key Laboratory of Silkworm Genome Biology. The food of the grub were artificial diet or fresh mulberry leaves at 25 ± 2 °C, following a cycle of 12 h light/12 h dark. In such development period, the specimens would be isolated from the larval and stored in liquid nitrogen before being adopted. The BmE-SWU3 cell line [25] was cultured in Grace medium (GIBCO BRL, Gaithersburg, MD, USA) at 27 °C supplemented with 10% fetal bovine serum (FBS; Invitrogen, Carlsbad, CA, USA) and 1% penicillin-streptomycin (P/S) in 25 cm2 T-flasks. The medium was changed every three days.

4.2. Prediction of BmDHODH and Full-Length cDNA Cloning

The bioinformatics method following CDS database, EST database and silkworm genome was employed to identify silkworm dhod and predicted the protein database of Bombyx mori (http://www.silkdb.org/silkdb/). The other amino acid (aa) sequences were acquired from the NCBI GenBank (http://www.ncbi.nlm.nih.gov/). Additionally, DHODH sequences of some other species were utilized to investigate BLAST against the silkDB via an E-value initiation point 10−6 [37,38]. As a result, the domain predication validated every putative protein via SMART (http://smart.embl-heidelberg.de/).
PCR works in acquiring the segments of silkworm dhod, and the forecasted CDS and EST sequences within the SilkDB could help the design of the primers. As a result, the 3′ and 5′ RNA ligase-mediated speedy expansions were carried out in the cDNA ends to acquire the entire length of the cDNA using a GeneRacerTM kit (Invitrogen, Carlsbad, CA, USA) with the gene-specific primer. Eventually, every ORF (open reading frame) was confirmed by PCR. In the next stage, the entire PCR products were cloned into the PMD19-T Simple vector in the Japanese TaKaRa company as well as the sequence of the PCR products in the Invitrogen Corporation in Shanghai, China.

4.3. Bioinformatic Analysis

The ORF of dhod in silkworm was ascertained by the ORF Finder software (http://www.ncbi.nlm.nih.gov/gorf.html). Besides, the signal peptide was predicted using the SignalP 4.1 (http://www.cbs.dtu.dk/services/SignalP). SMART was employed to predict the domain (http://smart.embl-heidelberg.de/). Moreover, the ClustalX program worked in aligning the aa sequences of BmDHODH, and the neighbor-joining method was employed to establish the BmDHODH with 1000 bootstrap replicates using the MEGA 6.0 program [39].

4.4. The dsRNA Production

Three DNA fragments with the length of approximately 473, 460, and 394 bp were amplified by PCR. Primers were listed in Table 1. MEGAScriptTM RNAi Kit (Ambion, Austin, TX, USA) was employed to synthesize dsRNAs; the PCR products served as templates. Three groups of dsRNA were generated and analyzed by 1% agarose gel electrophoresis to ensure their purity, dsRed served as control, and spectrophotometry was used to check the concentration of dsRNAs.

4.5. Drug Treatment and Transfection

Leflunomide (Sigma, St. Louis, MO, USA) was dissolved in dimethyl sulfoxide (DMSO) as 200 mM stock solutions. BmE-SWU3 cells were treated with leflunomide (10, 50, and 100 μM) for 96 h. DMSO served as a control in this process. Cell survival was analyzed by trypan blue exclusion assay. Two sets of dsRNA were employed to knock down BmDHODH, and dsRed served as a control. Cells were diluted with fresh medium and seeded 2 × 105 cells into 24-well culture plates the day before transfection. Serum-free transfection with dsRNA was performed using the TransMessengerTM transfection Reagent (QIAGEN, Hilden, Germany) following the description of the manufacturer.

4.6. Cell Proliferation Assay

Cell proliferation was measured using the (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl) tetrazolium bromide (MTT) assay (Sigma, USA). Cell loading was realized when cells were planted into 96-well plates with density of 8 × 103 cells per well. A microplate reader was employed to measure the absorbance values at at 560 nm. Notably, each experiment was performed respectively at least three occasions.

4.7. BrdU Staining

A primary rat antibody against BrdU (Abcam, Cambridge, MA, USA) was employed to incubate the cells for 1 h, which were preconditioned with 10 µM thymidine analog 5-bromo-2-deoxyuridine (BrdU) (Sigma, USA) for 2 h. It is an appropriate secondary antibody for 1 h. The 300 nM 4′,6-diamidino-2-phenylindole (DAPI) (Beyotime, Shanghai, China) was added for counterstaining. In the florescence mounting medium (Beyotime), the cells were first mounted and then examined using an Image-Pro Plus software of a Nikon microscope for the analysis of the images.

4.8. Cell Cycle Assay

The targeted cells were fixed in 70% ethanol after 96 h treatment, and then stained with propidium iodide (PI) (Beyotime, China). The FACScan instrument (BD BioSciences, Ann Arbor, MI, USA) was adopted to pass through the cells, and the CellQuest analysis software was applied for data analysis.

4.9. Western Blot Assay

SDS-PAGE with corresponding gel concentration was adopted to fractionate the proteins isolated with RIPA lysis buffer. Antibody against tubulin and BmDHODH (prepared from Zoonbio Biotechnology, Nanjing, China) were purchased from Beyotime. The BmDHODH expression value was measured using the Quantity One Software (Version 4.6.8).

4.10. Effects of Leflunomide on DNA Synthesis in Silk Gland Cells

Culture of silk glands was performed in vitro as described previously [26,28,40]. Silk glands from 1-day-old 4th instar larvae were incubated with or without 100 μM leflunomide for 24 h. Subsequently, the silk glands incubated in Grace’s insect cell culture medium containing 15 μM BrdU for 1 h. The number of BrdU-positive cells was determined.

4.11. RNA Extraction and RT-PCR and qRT-PCR Analysis

The TRIzol Reagent (Invitrogen Life Technologies, Carlsbad, CA, USA) was employed to extract the RNA following the manufacturer’s protocol. Each sample was then transcribed reversely. Consequently, the cDNA was amplified. The semiquantitative RT-PCR amplification (RT-PCR) was performed under the following conditions. First and foremost, it should be exposed at 94 °C for a period of 5 min. Subsequently, 30 cycles were performed at 94 °C for 30 s. Later, it was posed at 55.5 °C for 30 s while 72 °C for 1 min, and extended at 72 °C for 10 min. The expression of housekeeping gene actin3 was analyzed using Quantity One software. And the corresponding expressivity was measured after the standardization following the quantification of actin3 mRNA expression. Table 2 below lists the primers used in the research.
SYBR® Premix Ex TaqTM II (TaKaRa, Shiga, Japan) as well as a StepOnePlusTM Real-Time PCR system (Applied Biosystems, Foster City, CA, USA) worked in the process of Quantitative real-time PCR (qRT-PCR). The conditions for the PCR were being exposed at 95 °C for 30 s, followed by 40 cycles at 95 °C for 5 s and 60 °C for 30 s. Table 2 below lists all the primers adopted by each gene. Actin3 served as a control. The corresponding gene expressivity was computed following the 2−ΔΔCt method [41].

4.12. Statistical Analysis

Assays were performed in triplicates. The analysis results were presented as mean ± S.D. The two-tailed t-tests played a role in verifying the difference between distinct treatment groups. According to the result, p is less than 0.05, which was of statistical significance.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/19/9/2581/s1.

Author Contributions

H.C., X.J., and E.Z. contributed to the study design; E.Z. and X.J. performed the research and conducted the data analysis; E.Z. and X.J. wrote the manuscript.

Funding

This study was supported by National Natural Science Foundation of China (No. 81602479, 81672502), Chongqing Research Program of Basic Research and Frontier Technology (No. cstc2017jcyjAX0028, cstc2018jcyjAX0330), Venture & Innovation Support Program for Chongqing Overseas Returnees (No. cx2017014), the Doctorial Start-up Fund of Southwest University (No. SWU118107), and Chongqing University Innovation Team Building Program Funded Project (No. CXTDX201601010).

Acknowledgments

We are very grateful for Kui Zhang, Juan Tan, and Man Xu, and we also thank all members of our laboratory for helpful discussion.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

DHODHDihydroorotic dehydrogenase
UMPUridine monophosphate
cDNAThe complementary DNA
ORFThe open reading frames
RACERapid-amplification of cDNA ends
PCRPolymerase chain reaction
RT-PCRReal time-Polymerase chain reaction
qRT-PCRQuantitative real time-Polymerase chain reaction
LefLeflunomide
BrdU5-bromo-2-deoxyuridine
DAPI4′,6-diamidino-2-phenylindole
FBSFetal bovine serum
P/SPenicillin-streptomycin
CycACyclin A
CycBCyclin B
CycDCyclin D
CycECyclin E
Cdk2Cyclin-dependent kinase 2

References

  1. Evans, D.R.; Guy, H.I. Mammalian pyrimidine biosynthesis: Fresh insights into an ancient pathway. J. Biol. Chem. 2004, 279, 33035–33038. [Google Scholar] [CrossRef] [PubMed]
  2. Bruneau, J.M.; Yea, C.M.; Spinella-Jaegle, S.; Fudali, C.; Woodward, K.; Robson, P.A.; Sautes, C.; Westwood, R.; Kuo, E.A.; Williamson, R.A.; et al. Purification of human dihydro-orotate dehydrogenase and its inhibition by A77 1726, the active metabolite of leflunomide. Biochem. J. 1998, 336, 299–303. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Baldwin, J.; Farajallah, A.M.; Malmquist, N.A.; Rathod, P.K.; Phillips, M.A. Malarial dihydroorotate dehydrogenase. Substrate and inhibitor specificity. J. Biol. Chem. 2002, 277, 41827–41834. [Google Scholar] [CrossRef] [PubMed]
  4. Hansen, M.; Le Nours, J.; Johansson, E.; Antal, T.; Ullrich, A.; Loffler, M.; Larsen, S. Inhibitor binding in a class 2 dihydroorotate dehydrogenase causes variations in the membrane-associated N-terminal domain. Protein Sci. 2004, 13, 1031–1042. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Von Borstel, R.W. Compositions and Methods for Treatment of Mitochondrial Diseases. U.S. Patent US6472378B2, 29 October 2002. [Google Scholar]
  6. Fang, J.X.; Uchiumi, T.; Yagi, M.; Matsumoto, S.; Amamoto, R.; Takazaki, S.; Yamaza, H.; Nonaka, K.; Kang, D.C. Dihydro-orotate dehydrogenase is physically associated with the respiratory complex and its loss leads to mitochondrial dysfunction. Biosci. Rep. 2013, 33, 217–227. [Google Scholar] [CrossRef] [PubMed]
  7. Vyas, V.K.; Variya, B.; Ghate, M.D. Design, synthesis and pharmacological evaluation of novel substituted quinoline-2-carboxamide derivatives as human dihydroorotate dehydrogenase (hDHODH) inhibitors and anticancer agents. Eur. J. Med. Chem. 2014, 82, 385–393. [Google Scholar] [CrossRef] [PubMed]
  8. Lolli, M.L.; Sainas, S.; Pippione, A.C.; Giorgis, M.; Boschi, D.; Dosio, F. Use of human Dihydroorotate Dehydrogenase (hDHODH) Inhibitors in Autoimmune Diseases and New Perspectives in Cancer Therapy. Recent Patents Anti-Cancer Drug Discov. 2018, 13, 86–105. [Google Scholar] [CrossRef] [PubMed]
  9. Loffler, M.; Grein, K.; Knecht, W.; Klein, A.; Bergjohann, U. Dihydroorotate dehydrogenase. Profile of a novel target for antiproliferative and immunosuppressive drugs. Adv. Exp. Med. Biol. 1998, 431, 507–513. [Google Scholar] [CrossRef]
  10. Ittarat, I.; Asawamahasakda, W.; Bartlett, M.S.; Smith, J.W.; Meshnick, S.R. Effects of atovaquone and other inhibitors on Pneumocystis carinii dihydroorotate dehydrogenase. Antimicrob. Agents Chemother. 1995, 39, 325–328. [Google Scholar] [CrossRef] [PubMed]
  11. Grant, G.A.; Xu, X.L.; Hu, Z.; Purvis, A.R. Phosphate ion partially relieves the cooperativity of effector binding in D-3-phosphoglycerate dehydrogenase without altering the cooperativity of inhibition. Biochemistry 1999, 38, 16548–16552. [Google Scholar] [CrossRef] [PubMed]
  12. Yamaguchi, M.; Chen, S.; Hatefi, Y. Amino acid sequence of the nucleotide-binding site of d-(–)-beta-hydroxybutyrate dehydrogenase labeled with arylazido-beta-[3-3H]alanylnicotinamide adenine dinucleotide. Biochemistry 1986, 25, 4864–4868. [Google Scholar] [CrossRef] [PubMed]
  13. Greene, S.; Watanabe, K.; Braatz-Trulson, J.; Lou, L. Inhibition of dihydroorotate dehydrogenase by the immunosuppressive agent leflunomide. Biochem. Pharmacol. 1995, 50, 861–867. [Google Scholar] [CrossRef]
  14. Loffler, M.; Fairbanks, L.D.; Zameitat, E.; Marinaki, A.M.; Simmonds, H.A. Pyrimidine pathways in health and disease. Trends Mol. Med. 2005, 11, 430–437. [Google Scholar] [CrossRef] [PubMed]
  15. Shawver, L.K.; Schwartz, D.P.; Mann, E.; Chen, H.; Tsai, J.; Chu, L.; Taylorson, L.; Longhi, M.; Meredith, S.; Germain, L.; et al. Inhibition of platelet-derived growth factor-mediated signal transduction and tumor growth by N-[4-(trifluoromethyl)-phenyl]5-methylisoxazole-4-carboxamide. Clin. Cancer Res. 1997, 3, 1167–1177. [Google Scholar] [PubMed]
  16. Van der Heijden, J.W.; Oerlemans, R.; Tak, P.P.; Assaraf, Y.G.; Kraan, M.C.; Scheffer, G.L.; van der Laken, C.J.; Lems, W.F.; Scheper, R.J.; Dijkmans, B.A.; et al. Involvement of breast cancer resistance protein expression on rheumatoid arthritis synovial tissue macrophages in resistance to methotrexate and leflunomide. Arthritis Rheum. 2009, 60, 669–677. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Li, P.; White, R.M.; Zon, L.I. Transplantation in zebrafish. Methods Cell Biol. 2011, 105, 403–417. [Google Scholar] [PubMed]
  18. Arakaki, T.L.; Buckner, F.S.; Gillespie, J.R.; Malmquist, N.A.; Phillips, M.A.; Kalyuzhniy, O.; Luft, J.R.; DeTitta, G.T.; Verlinde, C.L.M.J.; Van Voorhis, W.C.; et al. Characterization of Trypanosoma brucei dihydroorotate dehydrogenase as a possible drug target; structural, kinetic and RNAi studies. Mol. Microbiol. 2008, 68, 37–50. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Loffler, M.; Knecht, W.; Rawls, J.; Ullrich, A.; Dietz, C. Drosophila melanogaster dihydroorotate dehydrogenase: The N-terminus is important for biological function in vivo but not for catalytic properties in vitro. Insect Biochem. Mol. Biol. 2002, 32, 1159–1169. [Google Scholar] [CrossRef]
  20. Rawls, J.M., Jr.; Chambers, C.L.; Cohen, W.S. A small genetic region that controls dihydroorotate dehydrogenase in Drosophila melanogaster. Biochem. Genet. 1981, 19, 115–127. [Google Scholar] [CrossRef] [PubMed]
  21. Rawls, J.; Kirkpatrick, R.; Yang, J.; Lacy, L. The dhod gene and deduced structure of mitochondrial dihydroorotate dehydrogenase in Drosophila melanogaster. Gene 1993, 124, 191–197. [Google Scholar] [CrossRef]
  22. Mon, H.; Kobayashi, I.; Ohkubo, S.; Tomita, S.; Lee, J.; Sezutsu, H.; Tamura, T.; Kusakabe, T. Effective RNA interference in cultured silkworm cells mediated by overexpression of Caenorhabditis elegans SID-1. RNA Biol. 2012, 9, 40–46. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Takahashi, M.; Kikuchi, K.; Tomita, S.; Imanishi, S.; Nakahara, Y.; Kiuchi, M.; Kamimura, M. Transient in vivo reporter gene assay for ecdysteroid action in the Bombyx mori silk gland. Comp. Biochem. Physiol. B Biochem. Mol. Biol. 2003, 135, 431–437. [Google Scholar] [CrossRef]
  24. Mita, K.; Morimyo, M.; Okano, K.; Koike, Y.; Nohata, J.; Kawasaki, H.; Kadono-Okuda, K.; Yamamoto, K.; Suzuki, M.G.; Shimada, T.; et al. The construction of an EST database for Bombyx mori and its application. Proc. Natl. Acad. Sci. USA 2003, 100, 14121–14126. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Xu, M.; Tan, J.; Wang, X.; Zhong, X.; Cui, H. Establishment and characterization of a new embryonic cell line from the silkworm, Bombyx mori. ISJ Invertbr. Surviv. J. 2015, 12, 13–18. [Google Scholar]
  26. Li, Y.F.; Chen, X.Y.; Zhang, C.D.; Tang, X.F.; Wang, L.; Liu, T.H.; Pan, M.H.; Lu, C. Effects of starvation and hormones on DNA synthesis in silk gland cells of the silkworm, Bombyx mori. Insect Sci. 2016, 23, 569–578. [Google Scholar] [CrossRef] [PubMed]
  27. Dhawan, S.; Gopinathan, K.P. Cell cycle events during the development of the silk glands in the mulberry silkworm Bombyx mori. Dev. Genes Evol. 2003, 213, 435–444. [Google Scholar] [CrossRef] [PubMed]
  28. Zhang, C.D.; Li, F.F.; Chen, X.Y.; Huang, M.H.; Zhang, J.; Cui, H.; Pan, M.H.; Lu, C. DNA replication events during larval silk gland development in the silkworm, Bombyx mori. J. Insect Physiol. 2012, 58, 974–978. [Google Scholar] [CrossRef] [PubMed]
  29. Ng, S.B.; Buckingham, K.J.; Lee, C.; Bigham, A.W.; Tabor, H.K.; Dent, K.M.; Huff, C.D.; Shannon, P.T.; Jabs, E.W.; Nickerson, D.A.; et al. Exome sequencing identifies the cause of a mendelian disorder. Nat. Genet. 2010, 42, 30–35. [Google Scholar] [CrossRef] [PubMed]
  30. Liu, S.; Neidhardt, E.A.; Grossman, T.H.; Ocain, T.; Clardy, J. Structures of human dihydroorotate dehydrogenase in complex with antiproliferative agents. Structure 2000, 8, 25–33. [Google Scholar] [CrossRef]
  31. Xia, Q.; Zhou, Z.; Lu, C.; Cheng, D.; Dai, F.; Li, B.; Zhao, P.; Zha, X.; Cheng, T.; Chai, C.; et al. A draft sequence for the genome of the domesticated silkworm (Bombyx mori). Science 2004, 306, 1937–1940. [Google Scholar] [PubMed]
  32. Xia, Q.; Guo, Y.; Zhang, Z.; Li, D.; Xuan, Z.; Li, Z.; Dai, F.; Li, Y.; Cheng, D.; Li, R.; et al. Complete resequencing of 40 genomes reveals domestication events and genes in silkworm (Bombyx). Science 2009, 326, 433–436. [Google Scholar] [CrossRef] [PubMed]
  33. Xia, Q.; Li, S.; Feng, Q. Advances in silkworm studies accelerated by the genome sequencing of Bombyx mori. Annu. Rev. Èntomol. 2014, 59, 513–536. [Google Scholar] [CrossRef] [PubMed]
  34. Elledge, S.J. Cell cycle checkpoints: Preventing an identity crisis. Science 1996, 274, 1664–1672. [Google Scholar] [CrossRef] [PubMed]
  35. King, K.L.; Cidlowski, J.A. Cell cycle regulation and apoptosis. Annu. Rev. Physiol. 1998, 60, 601–617. [Google Scholar] [CrossRef] [PubMed]
  36. Bonomo, S.; Tosco, P.; Giorgis, M.; Lolli, M.; Fruttero, R. The role of fluorine in stabilizing the bioactive conformation of dihydroorotate dehydrogenase inhibitors. J. Mol. Model. 2013, 19, 1099–1107. [Google Scholar] [CrossRef] [PubMed]
  37. Altschul, S.F.; Madden, T.L.; Schaffer, A.A.; Zhang, J.; Zhang, Z.; Miller, W.; Lipman, D.J. Gapped BLAST and PSI-BLAST: A new generation of protein database search programs. Nucleic Acids Res. 1997, 25, 3389–3402. [Google Scholar] [CrossRef] [PubMed]
  38. Duan, J.; Li, R.; Cheng, D.; Fan, W.; Zha, X.; Cheng, T.; Wu, Y.; Wang, J.; Mita, K.; Xiang, Z.; et al. SilkDB v2.0: A platform for silkworm (Bombyx mori) genome biology. Nucleic Acids Res. 2010, 38, D453–D456. [Google Scholar] [CrossRef] [PubMed]
  39. Teramoto, K.; Sato, H.; Sun, L.; Torimura, M.; Tao, H.; Yoshikawa, H.; Hotta, Y.; Hosoda, A.; Tamura, H. Phylogenetic classification of Pseudomonas putida strains by MALDI-MS using ribosomal subunit proteins as biomarkers. Anal. Chem. 2007, 79, 8712–8719. [Google Scholar] [CrossRef] [PubMed]
  40. Li, Y.; Chen, X.; Tang, X.; Zhang, C.; Wang, L.; Chen, P.; Pan, M.; Lu, C. DNA synthesis during endomitosis is stimulated by insulin via the PI3K/Akt and TOR signaling pathways in the silk gland cells of Bombyx mori. Int. J. Mol. Sci. 2015, 16, 6266–6280. [Google Scholar] [CrossRef] [PubMed]
  41. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
Ijms 19 02581 g001 550
Figure 1. Cloning and characterization of dhod, Bombyx mori. (A) The gene structure of dhod in silkworm. Exons and introns are represented by brown box and black solid lines, respectively. The 5’ and 3’ UTRs are represented by blue box. (B) The putative structure protein domain of BmDHODH. The domain was predicted by SMART. (C) The signal peptide predication of BmDHODH. The result was generated by SignalP 4.1 Server.
Figure 1. Cloning and characterization of dhod, Bombyx mori. (A) The gene structure of dhod in silkworm. Exons and introns are represented by brown box and black solid lines, respectively. The 5’ and 3’ UTRs are represented by blue box. (B) The putative structure protein domain of BmDHODH. The domain was predicted by SMART. (C) The signal peptide predication of BmDHODH. The result was generated by SignalP 4.1 Server.
Ijms 19 02581 g001
Ijms 19 02581 g002 550

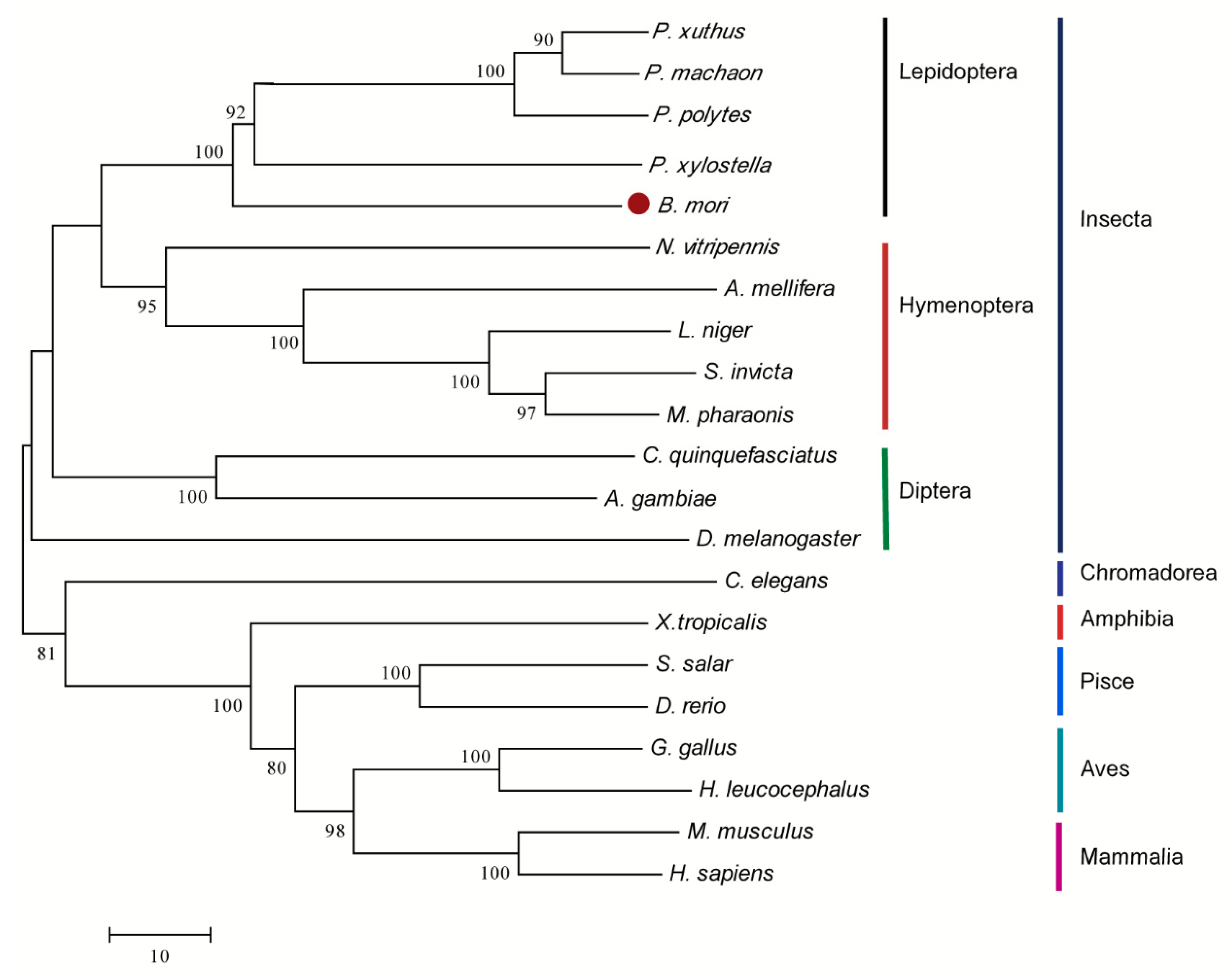

Figure 2. Phylogenetic analysis of DHODH homologues. The phylogenetic tree of DHODHs were established by neighbor-joining method. The number closed to individual branches represents the percentage of 1000 bootstrap iterations supporting the branch, and values below 60% were omitted.
Figure 2. Phylogenetic analysis of DHODH homologues. The phylogenetic tree of DHODHs were established by neighbor-joining method. The number closed to individual branches represents the percentage of 1000 bootstrap iterations supporting the branch, and values below 60% were omitted.
Ijms 19 02581 g002
Ijms 19 02581 g003 550

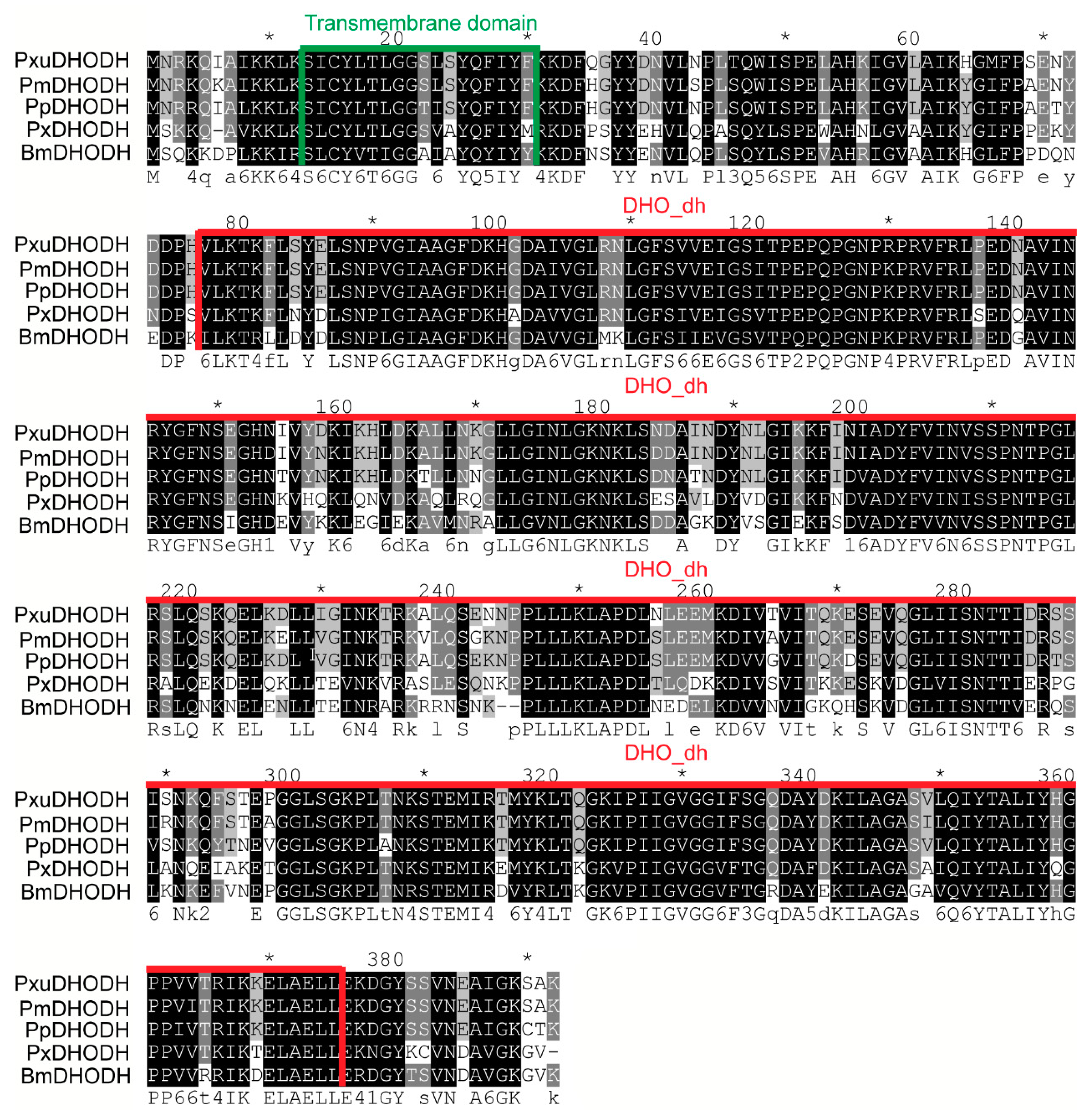

Figure 3. Phylogenetic analysis of DHODH homologues. Multiple alignment of DHODH aa sequences from Plutella xylostella (PxDHODH, XP_011556582.1), Papilio polytes (PpDHODH, XP_013138102.1), Papilio machaon (PmDHODH, XP_014361985.1), and Papilio xuthus (PxuDHODH, KPJ04273.1). Identical amino acids and those shared in more than four sequences are highlighted by black and gray, respectively. The DHO_dh motif is underlined in red. The transmembrane domain is underlined in green, which was predicted by SMART (http://smart.embl-heidelberg.de/).
Figure 3. Phylogenetic analysis of DHODH homologues. Multiple alignment of DHODH aa sequences from Plutella xylostella (PxDHODH, XP_011556582.1), Papilio polytes (PpDHODH, XP_013138102.1), Papilio machaon (PmDHODH, XP_014361985.1), and Papilio xuthus (PxuDHODH, KPJ04273.1). Identical amino acids and those shared in more than four sequences are highlighted by black and gray, respectively. The DHO_dh motif is underlined in red. The transmembrane domain is underlined in green, which was predicted by SMART (http://smart.embl-heidelberg.de/).
Ijms 19 02581 g003
Ijms 19 02581 g004 550

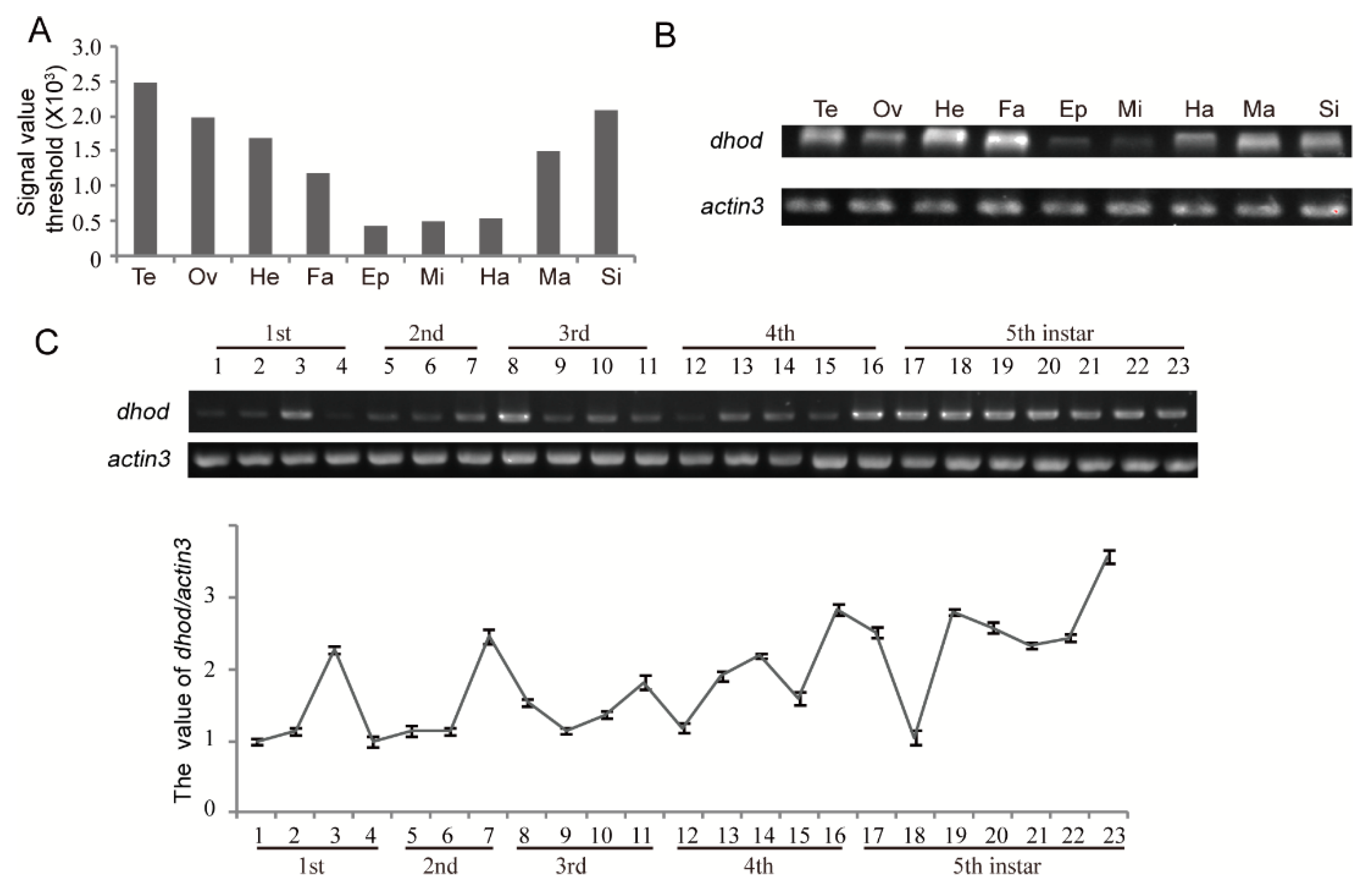

Figure 4. The expression profile of dhod, Bombyx mori. (A) The expression levels of dhod were generated from 3-day-old 5th instar larval tissues based on EST database of silkworm. (B) The expression levels of dhod were achieved from 3-day-old 5th instar larval tissues by RT-PCR, and actin3 was used as a control. A and B: Te: Testis; Ov: Ovary; He: Head; Fa: Fat body; Ep: Epidermis; Mi: Midgut; Ha: Hemolymph; Ma: Malpighian tubles; Si: Silk gland. (C) The expression profile of dhod was performed by RT-PCR during whole larvae development stages in silkworm, and actin3 was used as a control. 1–3: 1st instar day 1 to day 3; 4: 1st instar premolting; 5–6: 2nd instar day 1 to day 2; 7: 2nd instar premolting; 8–10: 3rd instar day 1 to day 3; 11: 3rd instar premolting; 12–15: 4th instar day 1 to day 4; 16: 4th instar premolting; 17–23: 5th instar day 1 to day 7. Data represent the average ± SD of at least three independent experiments. The value of dhod expression was calculated by using Quantity One software.
Figure 4. The expression profile of dhod, Bombyx mori. (A) The expression levels of dhod were generated from 3-day-old 5th instar larval tissues based on EST database of silkworm. (B) The expression levels of dhod were achieved from 3-day-old 5th instar larval tissues by RT-PCR, and actin3 was used as a control. A and B: Te: Testis; Ov: Ovary; He: Head; Fa: Fat body; Ep: Epidermis; Mi: Midgut; Ha: Hemolymph; Ma: Malpighian tubles; Si: Silk gland. (C) The expression profile of dhod was performed by RT-PCR during whole larvae development stages in silkworm, and actin3 was used as a control. 1–3: 1st instar day 1 to day 3; 4: 1st instar premolting; 5–6: 2nd instar day 1 to day 2; 7: 2nd instar premolting; 8–10: 3rd instar day 1 to day 3; 11: 3rd instar premolting; 12–15: 4th instar day 1 to day 4; 16: 4th instar premolting; 17–23: 5th instar day 1 to day 7. Data represent the average ± SD of at least three independent experiments. The value of dhod expression was calculated by using Quantity One software.
Ijms 19 02581 g004
Ijms 19 02581 g005 550

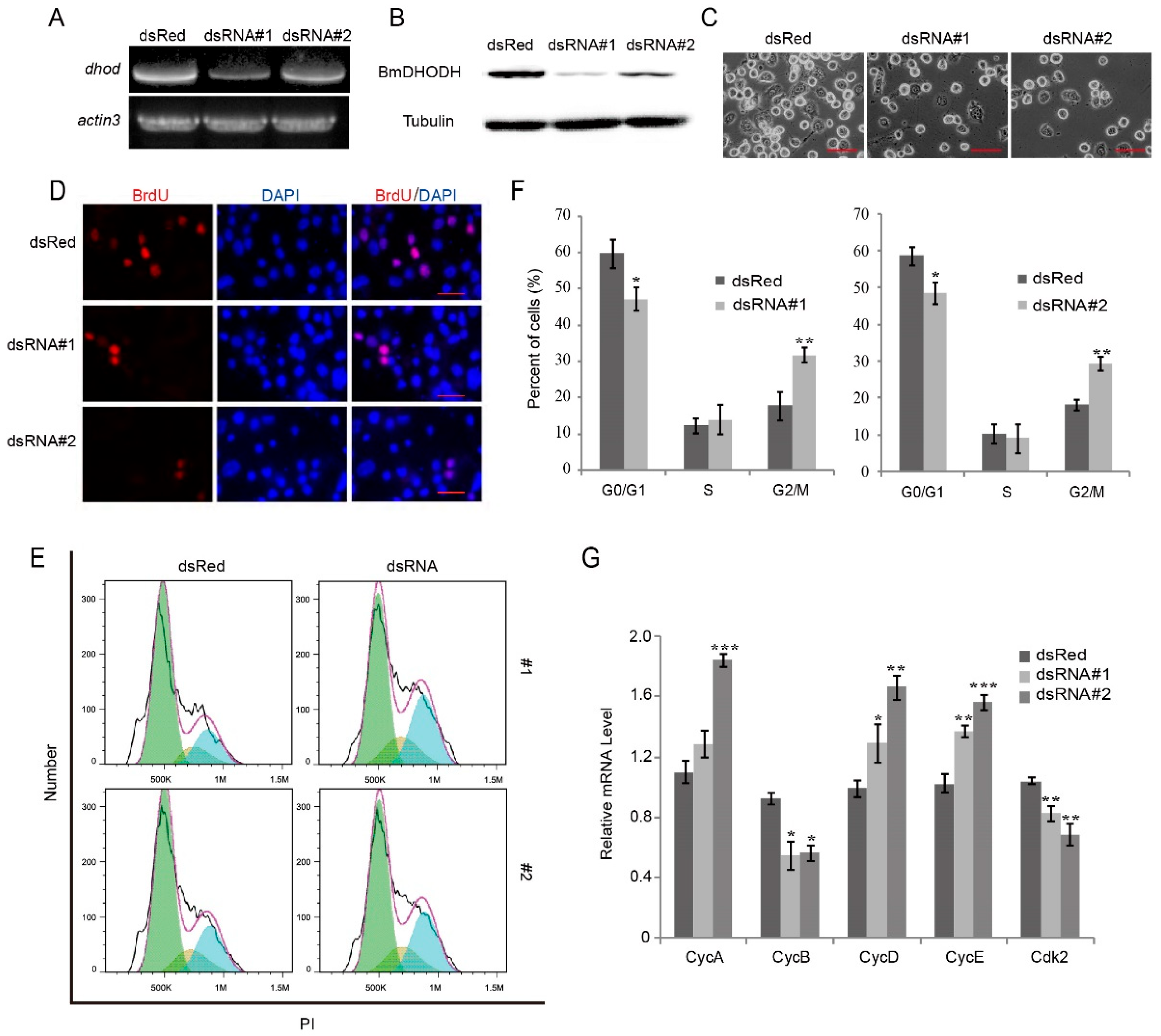

Figure 5. Knockdown of BmDHODH inhibited cell growth and proliferation. (A) RT-PCR was performed to detect dhod mRNA expression level in BmE-SWU3 cells after knockdown of BmDHODH by dsRNA interference for 48 h: actin3 was used as a control. (B) Western blot assay was performed to detect BmDHODH protein expression level in BmE-SWU3 cells after knockdown of BmDHODH by dsRNA interference for 48 h: tubulin was used as a control. (C) Morphologic examination of BmE-SWU3 cells was showed after dsRNA interference for 48 h: dsRed was used as a control. Scale bar, 50 μm. (D) Cells were grown on coverslips and after dsRNA interference for 48 h respectively, and dsRed was used as a control. Cells were stained with an antibody against BrdU (red), counterstained with 4′,6-diamidino-2-phenylindole (DAPI) (blue), scale bar, 100 μm. BrdU-positive cells were calculated randomly at least 10 fields under microscopy. (E,F) Cell cycle was analyzed by FACS assay, after knockdown of BmDHODH by dsRNA interference in BmE-SWU3 cells, and dsRed was used as a control. (G) The qRT-PCR analysis was performed in BmE-SWU3 cells after dsRNA#1 or dsRNA#2 interference for 48 h, and dsRed was used as a control. In (F,G), data represent the average ± SD of at least three independent experiments. Statistical analysis was performed using the 2-tailed Student’s t-test, * p < 0.05, ** p < 0.01, *** p < 0.001.
Figure 5. Knockdown of BmDHODH inhibited cell growth and proliferation. (A) RT-PCR was performed to detect dhod mRNA expression level in BmE-SWU3 cells after knockdown of BmDHODH by dsRNA interference for 48 h: actin3 was used as a control. (B) Western blot assay was performed to detect BmDHODH protein expression level in BmE-SWU3 cells after knockdown of BmDHODH by dsRNA interference for 48 h: tubulin was used as a control. (C) Morphologic examination of BmE-SWU3 cells was showed after dsRNA interference for 48 h: dsRed was used as a control. Scale bar, 50 μm. (D) Cells were grown on coverslips and after dsRNA interference for 48 h respectively, and dsRed was used as a control. Cells were stained with an antibody against BrdU (red), counterstained with 4′,6-diamidino-2-phenylindole (DAPI) (blue), scale bar, 100 μm. BrdU-positive cells were calculated randomly at least 10 fields under microscopy. (E,F) Cell cycle was analyzed by FACS assay, after knockdown of BmDHODH by dsRNA interference in BmE-SWU3 cells, and dsRed was used as a control. (G) The qRT-PCR analysis was performed in BmE-SWU3 cells after dsRNA#1 or dsRNA#2 interference for 48 h, and dsRed was used as a control. In (F,G), data represent the average ± SD of at least three independent experiments. Statistical analysis was performed using the 2-tailed Student’s t-test, * p < 0.05, ** p < 0.01, *** p < 0.001.
Ijms 19 02581 g005
Ijms 19 02581 g006 550

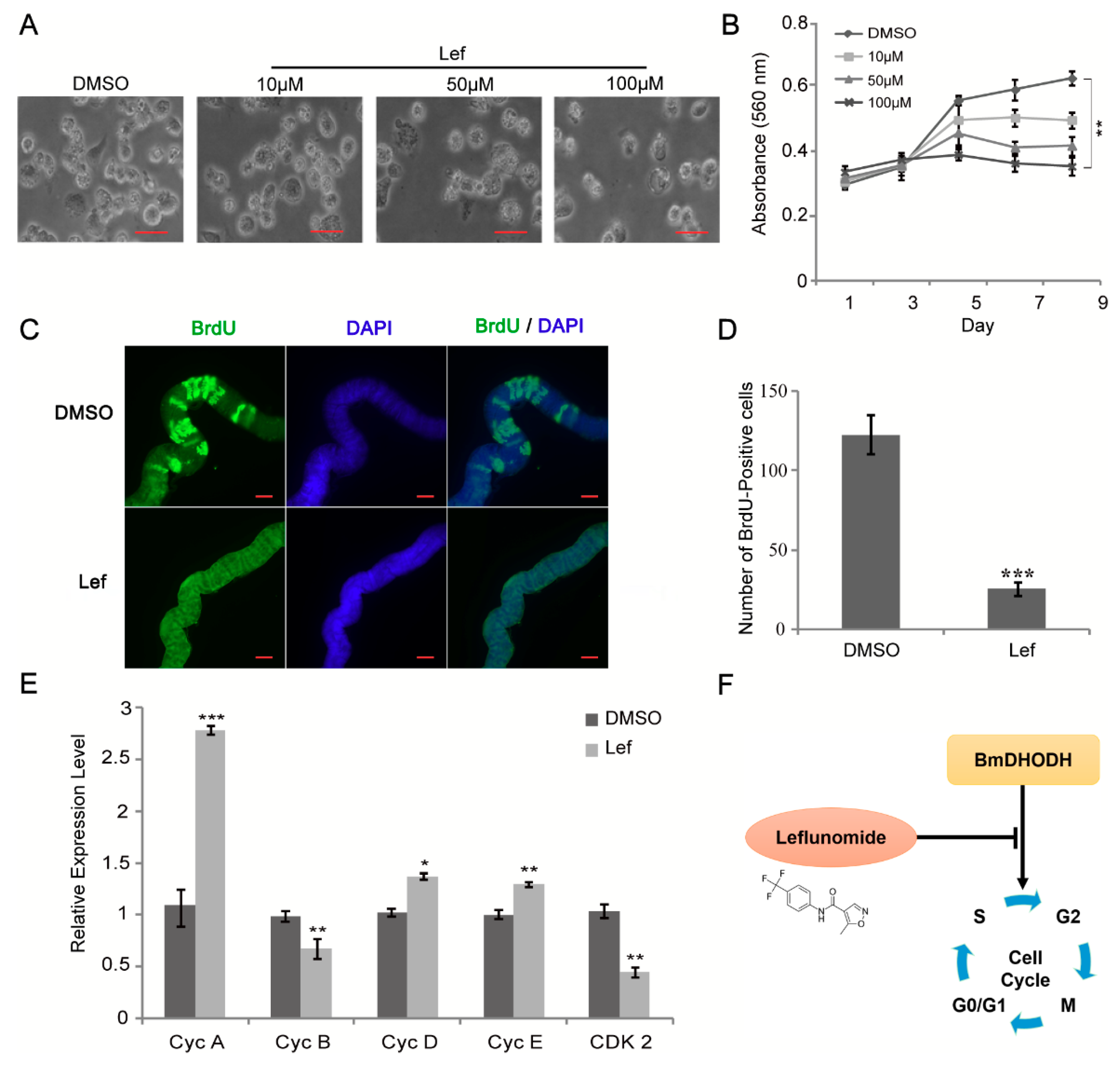

Figure 6. Leflunomide reduced cell growth and proliferation though suppressing the expression of BmDHODH. (A) Morphologic examination of BmE-SWU3 cells was showed after treated with 10, 50, and 100 μM leflunomide for 96 h, DMSO was used as a control. Scale bar, 50 μm. (B) After treated with 100 μM leflunomide, cell growth was detected every other day by MTT assay, DMSO was used as a control. (C,D) The analysis of BrdU-labeled cells in each silk gland treated with 100 μM leflunomide for 24 h. DMSO was used as a control. Scale bar, 100 μm. (E) The qRT-PCR analysis was performed in BmE-SWU3 cells after treated with 100 μM leflunomide for 96 h. DMSO was used as a control. (F) Model for BmDHODH in control of cell cycle progression. The black “T” arrow represents “inhibition”; and the black arrow represents “promotion”. In (B,D,E), each bar represented the average ± SD of three independent experiments. Statistical analysis was performed using the 2-tailed Student’s t-test, * p < 0.05, ** p < 0.01, *** p < 0.001.
Figure 6. Leflunomide reduced cell growth and proliferation though suppressing the expression of BmDHODH. (A) Morphologic examination of BmE-SWU3 cells was showed after treated with 10, 50, and 100 μM leflunomide for 96 h, DMSO was used as a control. Scale bar, 50 μm. (B) After treated with 100 μM leflunomide, cell growth was detected every other day by MTT assay, DMSO was used as a control. (C,D) The analysis of BrdU-labeled cells in each silk gland treated with 100 μM leflunomide for 24 h. DMSO was used as a control. Scale bar, 100 μm. (E) The qRT-PCR analysis was performed in BmE-SWU3 cells after treated with 100 μM leflunomide for 96 h. DMSO was used as a control. (F) Model for BmDHODH in control of cell cycle progression. The black “T” arrow represents “inhibition”; and the black arrow represents “promotion”. In (B,D,E), each bar represented the average ± SD of three independent experiments. Statistical analysis was performed using the 2-tailed Student’s t-test, * p < 0.05, ** p < 0.01, *** p < 0.001.
Ijms 19 02581 g006
Table
Table 1. The Primers of dsRNA.
Table 1. The Primers of dsRNA.
NamePrimerSequence
dsRNA#1dsRNA#1-FGTAATACGACTCACTATAGGGAGAACAACTACAATGTCGCAGAA
dsRNA#1-RGTAATACGACTCACTATAGGGAGATTCGTCGTGCCCTATGCT
dsRNA#2dsRNA#2-FGTAATACGACTCACTATAGGGAGATCGACAAGCACGGAGAC
dsRNA#2-RGTAATACGACTCACTATAGGGAGAAGCCAGTTTGAGGAGCAG
dsReddsRed-FGTAATACGACTCACTATAGGGAGAATGGTGAGCAAGGGCGA
dsRed-RGTAATACGACTCACTATAGGGAGATTACTTGTACAGCTCGTCCATG
Table
Table 2. The primers of Related Genes in Silkworm.
Table 2. The primers of Related Genes in Silkworm.
Gene NamePrimer NameSequence
dhoddhod-FGGCTTCAACAGCATAGGGC
dhod-RCAGCCACATCCGAGAACTTTT
cyclin ACycA-FCTCTCAACACCCACCTCAC
CycA-RCGCTGCTATTACTGAGGGT
cyclin BCycB-FTTGCGAGACCGATACCTTTG
CycB-RAGATTGCTGCCGCTGCTA
cyclin DCycD-FCCTCAAAGTTTCGTCAGTGTCATC
CycD-RGCATAATCTCCCATTGCCTCA
cyclin ECycE-FCCCAAGACAATCCAGGCAA
CycE-RAGAGGCGAGTCCACCCCA
cdk 2Cdk2-FGGTACACCAGGCGAGGCACTATG
Cdk2-RCACCAGAGTCGCATCAGCCAAG
actin3actin3-FCGGCTACTCGTTCACTACC
actin3-RCCGTCGGGAAGTTCGTAAG
